HIGH-QUALITY CABLE REPLACEMENT ADAPTOR

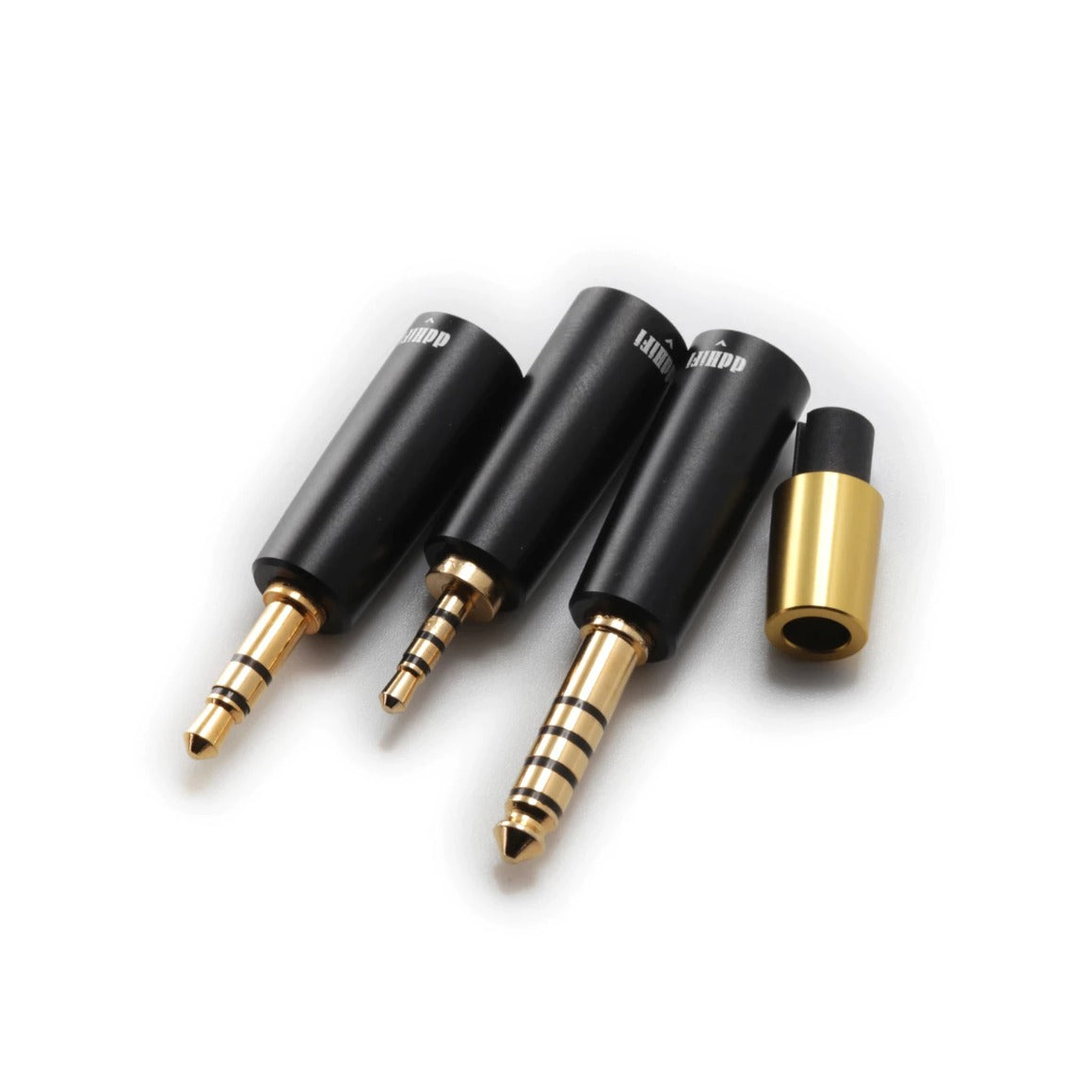

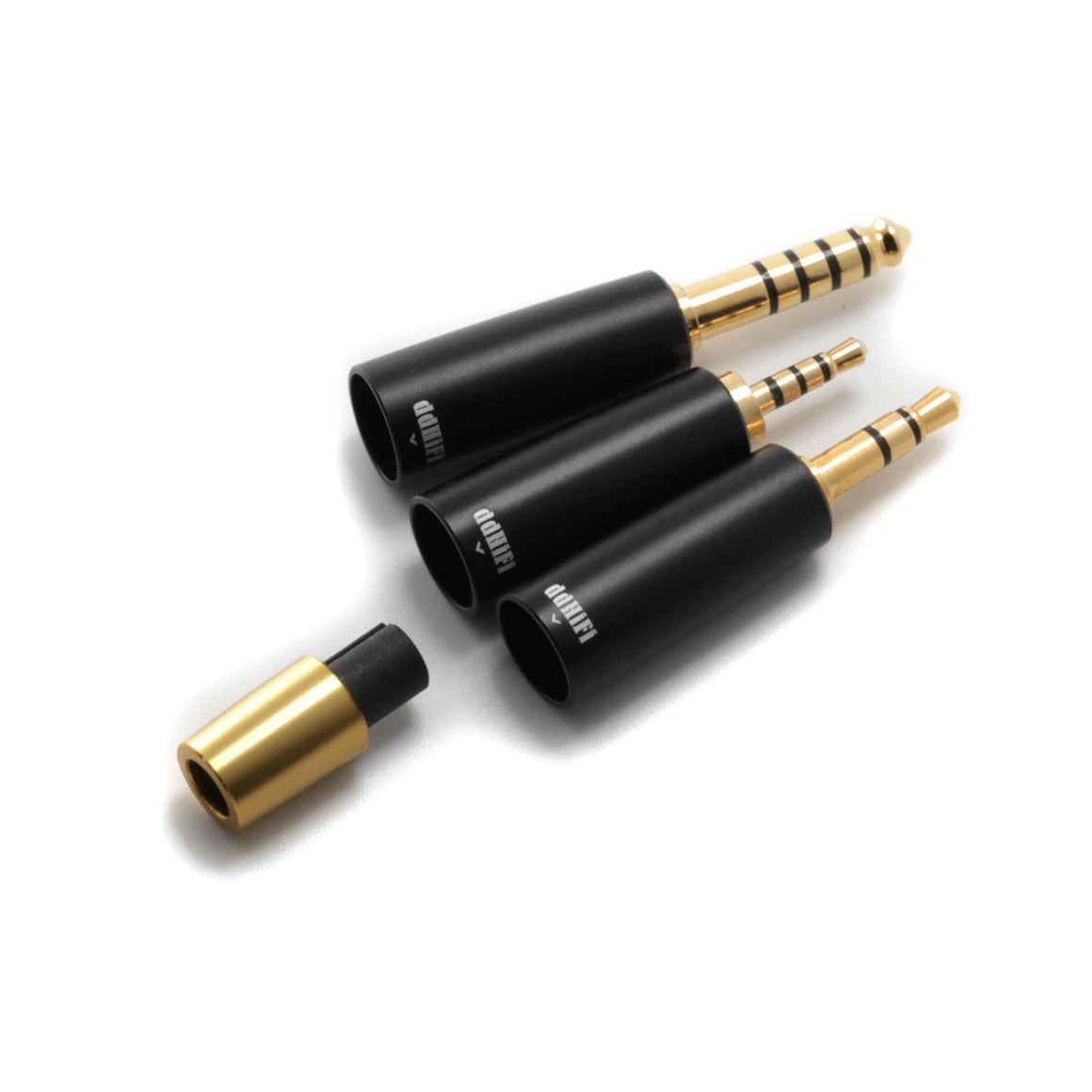

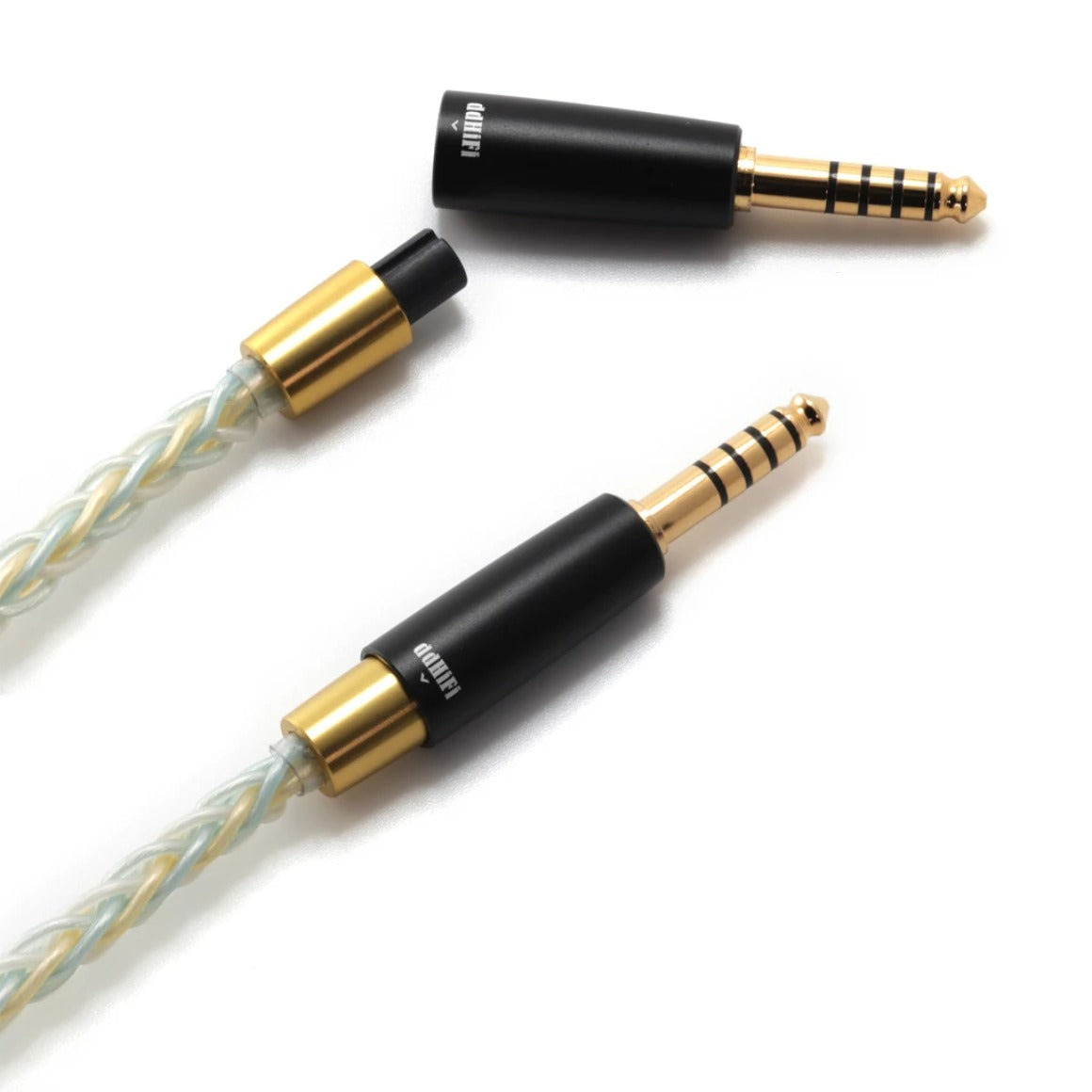

The ddHiFi BM4P is an elegant solution to replace headphone cable adaptors. The fundamental idea behind the ddHiFi BM4P is that you can create a customisable and high-quality cable with the required cable connector plug, all in a DIY approach. Once the 4-pin jack is connected with the cable, it is easy to swap with the given connector plugs. In every package, there are three different connector plugs included. A 2.5 mm BM25, 3.5mm BM35, 4.4mm BM44 as well as a 4-pin jack to create a wide range of cable types. ddHiFi BM4P headphone cable replacement adapters set is made of aluminium alloy shell providing a durable, stylish and compact design. The plugs are 24-karat gold-plated copper material and each adapter in the ddHiFi BM4P set is engineered for excellent signal transmission that holds up with intensive use. The package also includes a small piece of silver-containing solder wire and a heat-shrinkable tube.
SETUP INSTRUCTIONS AND PRECAUTIONS
For setup, remove the ends of an existing cable or find a new cable to get started. Next, solder the left and right channels to the appropriate components. Add insulation and connect your chosen plug and jack.
NOTE : To solder the left and right channels of the earphone cable. Put on the shell after insulation, and use quick-drying glue to fix the shell and the female socket. To avoid burns during soldering, be sure to use clamps.
|BM4P||Headphone Cable Replacement Adapter|
|LENGTH OF SHELL (After Assembly)||33.5mm (excl. the plug)|
|WEIGHT||4.0g(BM25) / 4.1g(BM35) / 5.1g(BM44)|
|MATERIAL OF PLUG||High purity 24K Gold-plated Copper|
|INTERNAL CONNECTING MATERIAL||Mixed conductor of OCC and Silver-plated OCC|
|MATERIAL OF SHELL||6063 Aluminum Alloy|
|BOX CONTENTS||1. BM25 2.5mm plug and shell|
|2. BM35 3.5mm plug and shell|
|3. BM44 4.4mm plug and shell|
|4. 4-pin jack and shell|
|5. Silver-containing solder wire|
|6. Heat shrinkable tube|
|GENERIC NAME||Headphone Accessories|
|COUNTRY OF ORIGIN||China|
|IMPORTER DETAILS||Importers Name: Ferrari Video
Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020
Contact No: 044-24420733
1 Year Warranty
Don't sweat it, this ddHiFi - BM4P Headphone Cable Replacement Adapter comes with a warranty
from ddHiFi that covers manufacturing defects.
