SMSL PRESENTS A MINI HI-RESOLUTION DAC WITH JAPAN ELECTRONICS ASSOCIATION HI-RES AUDIO CERTIFICATION
SMSL is a Hi-Fi audio brand specialising in high-quality premium desktop audio gears. Foshan ShuangMuSanLin Technology Co., Ltd, founded in 2009, located in Shenzhen, China, is a company that specialises in audio DAC, stereo headphone amplifiers, and power amplifiers. Utilising their years of expertise, SMSL presents the all-new D-6 mini desktop DAC that is Hi-Res certified by the Japanese Electronics Association. It is a Hi-Res DAC for discerning audiophiles, which will help you get the best possible audio experience. It is an excellent digital-to-analogue converter that makes for a better listening experience. To get the desired sound output from your system stack, SMSL D-6 does justice and delivers exceptional sonic performance.
FEATURING DUAL AKM DAC CHIPS AND SECOND GENERATION XMOS CHIP DELIVERING EXCEPTIONAL AUDIO PERFORMANCE
The engineers at SMSL have designed the D-6 DAC with dual AK4493S DAC chips achieving low distortion characteristics and a wide dynamic range. The AK4493S supports playback up to 768kHz/32Bit PCM and DSD512 audio formats for a Hi-Resolution audio source playback. The SMSL D-6 also has a second-generation XMOS interface that allows for playback via USB input (supports Type-C to Type-C). You get unmatched performance with D-6 in your chain with its high-quality components. The D-6 achieves super THD+N ratings of 0.00011%. If you are looking for a Desktop DAC with impressive performance, SMSL D-6 is made right for you.
HIGH-END QCC BLUETOOTH CHIPSET FOR STREAMING AUDIO WIRELESSLY
SMSL has equipped the D-6 with the latest generation QCC5125 chipset from Qualcomm Technologies. It provides Hi-Resolution Bluetooth 5.1 connectivity to the D-6 for wireless signal input with an effective range of 10 m. The Qualcomm processor, QCC5125, is embedded in the SMSL D-6 to elevate its wireless functionality tenfolds. This chip enables you to stream music remotely without any signal loss or quality degradation. The D-6 supports industry-leading transmission codecs like LDAC, aptX HD, aptX, AAC, and SBC. You won't have annoying disconnects thanks to Bluetooth 5.1 technology, which also ensures that the connection is stable and that the audio signal quality is maintained.
POWER FILTERING SYSTEM FUSED WITH CK-03 CLOCK MODULE AND JAPANESE ULTRA-LOW PHASE NOISE CLOCKS DELIVERING DISTORTION-FREE SIGNAL
The SMSL D-6 features a high-performance power filtering system that delivers a clean audio signal. To reduce the jitter, SMSL has included a CK-03 Clock Module that makes the clock jitter of optical coaxial as low as USB. SMSL has featured top-quality components on the audio circuitry, a Japanese low-noise phase noise clock with a low-noise power filter that delivers distortion-free signals and reduces system jitter. Not only does the D-6 support Hi-Res decoding, but it also provides impressive performance with clean and precise sound output.
EXPERTLY DESIGNED AND BUILT WITH CNC INTEGRATED MILLING PROCESS AND THOUGHTFUL INPUTS AND OUTPUTS WITH REMOTE CONTROL

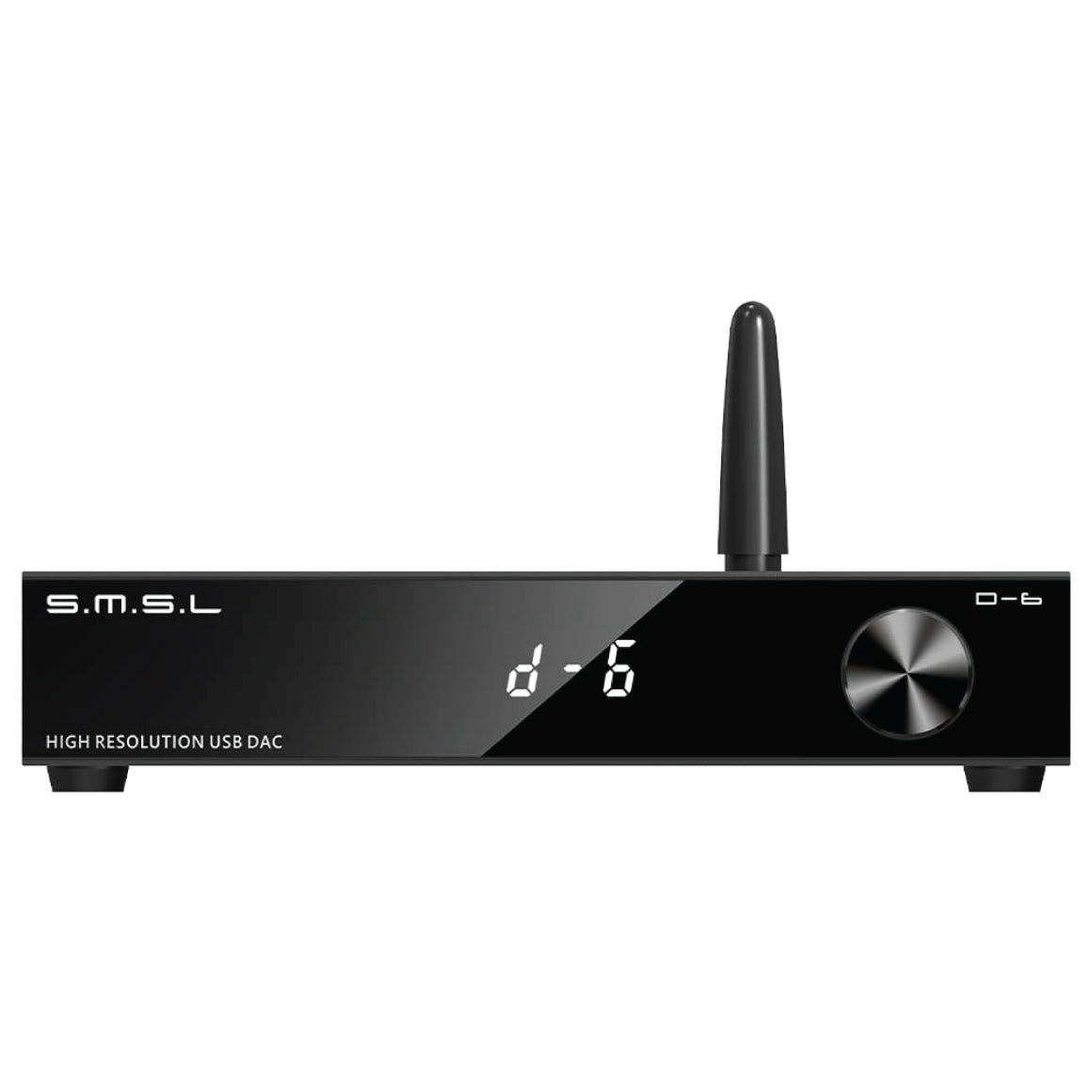

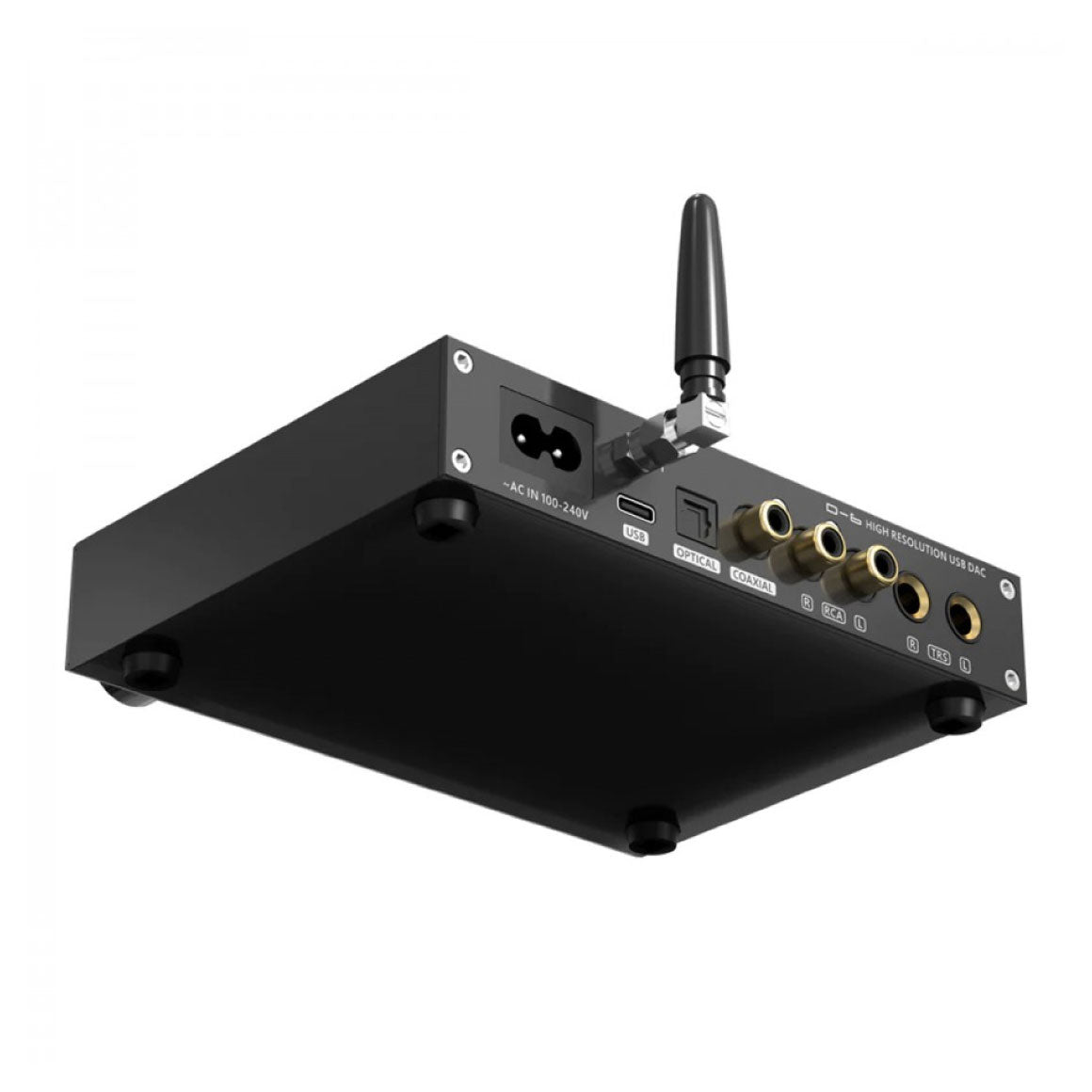

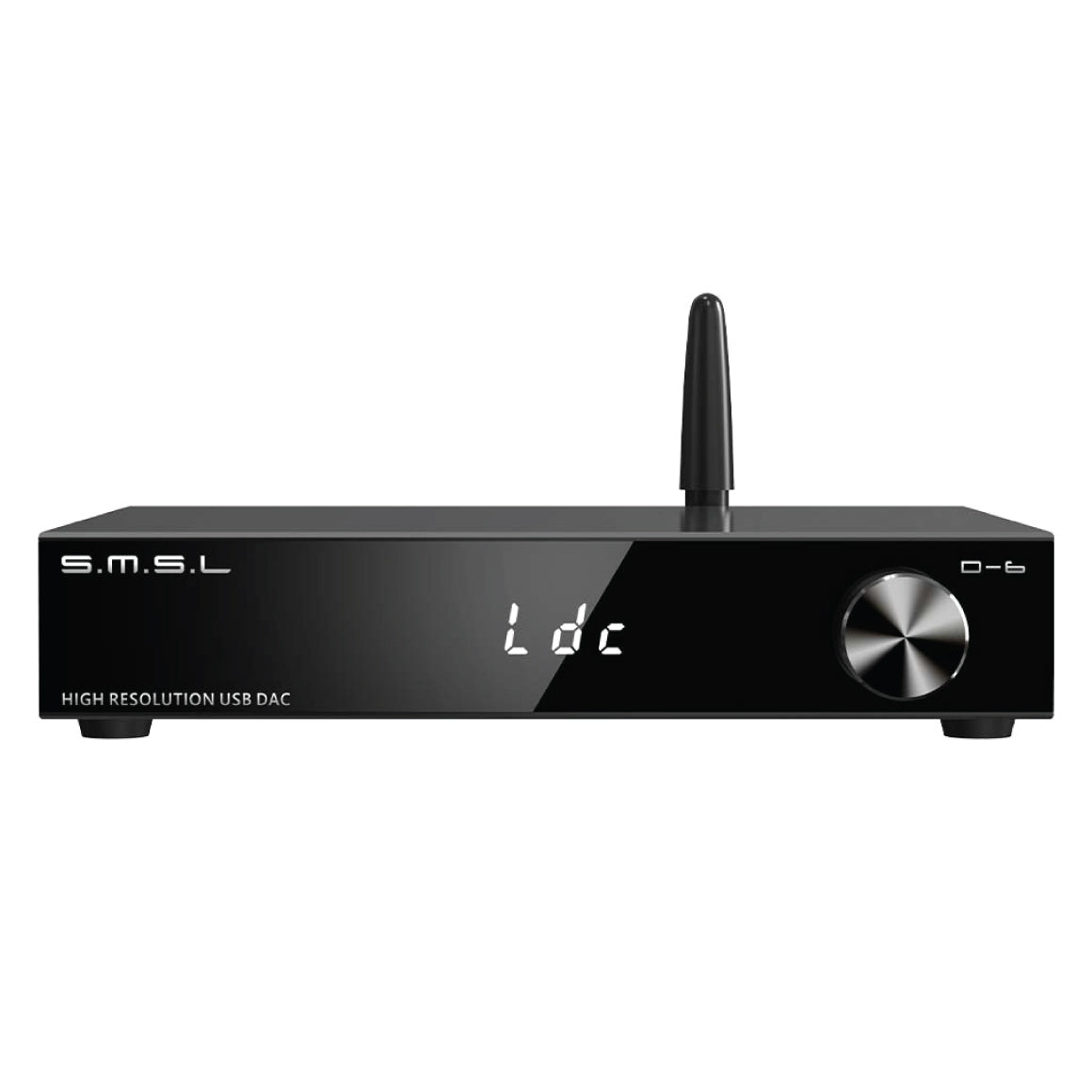

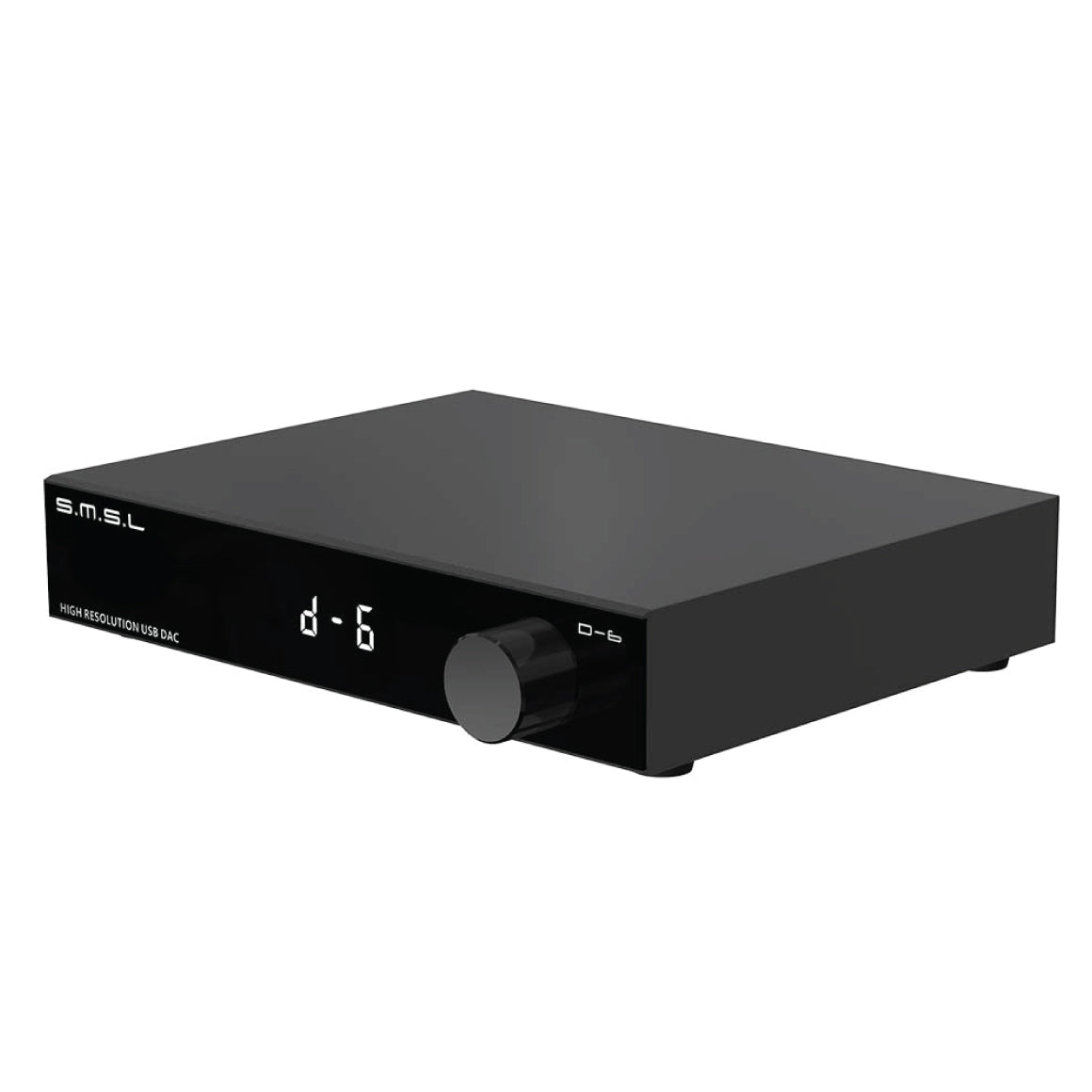

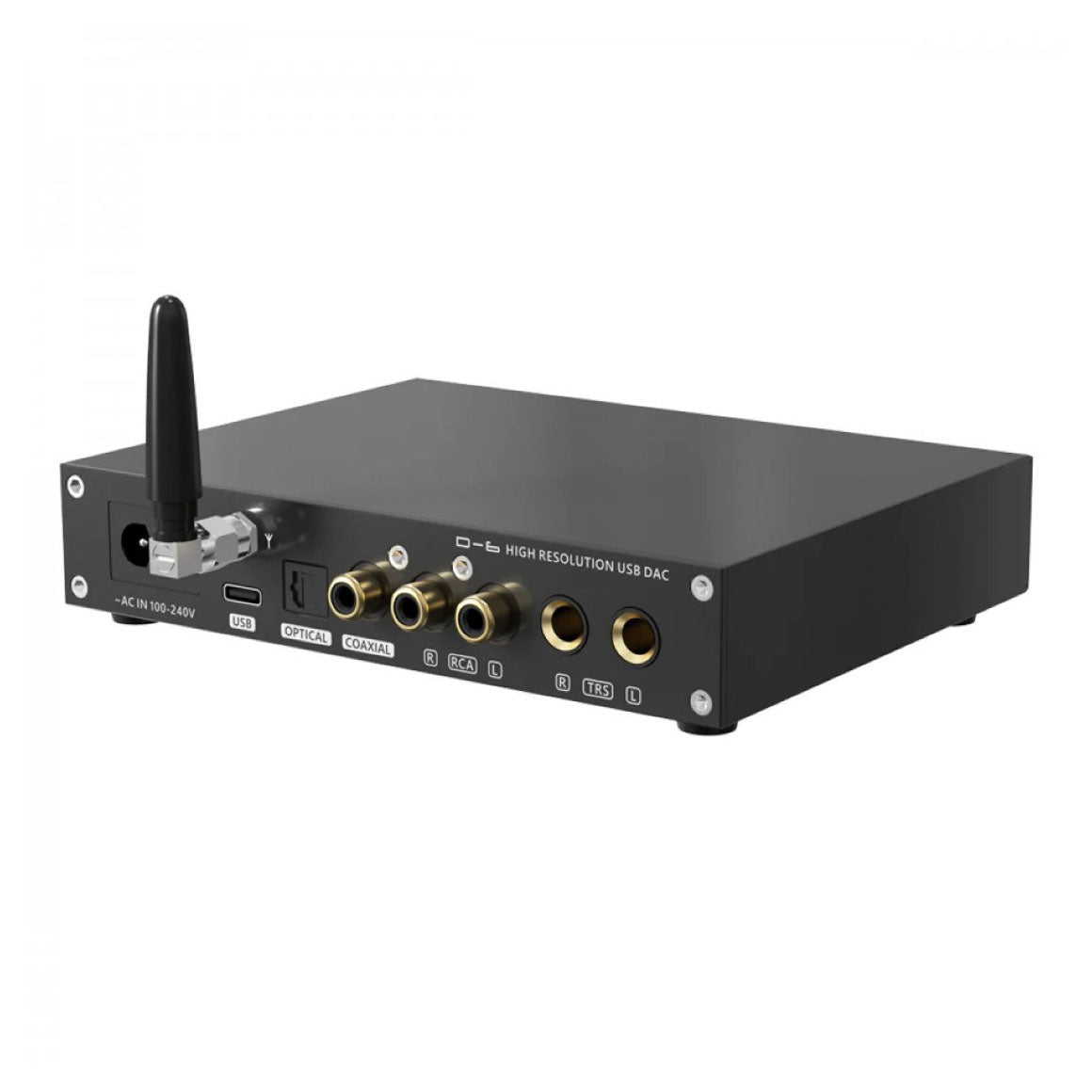

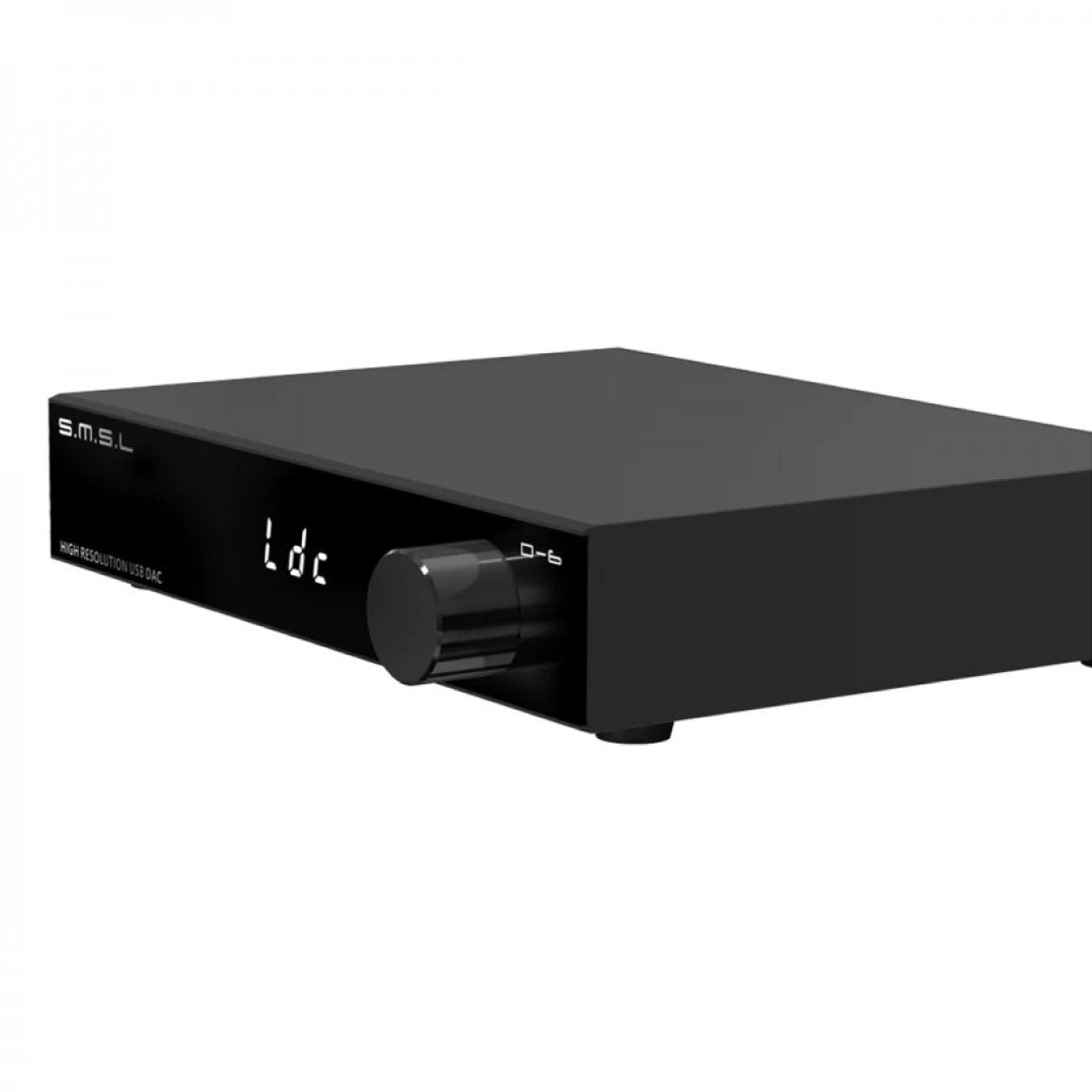

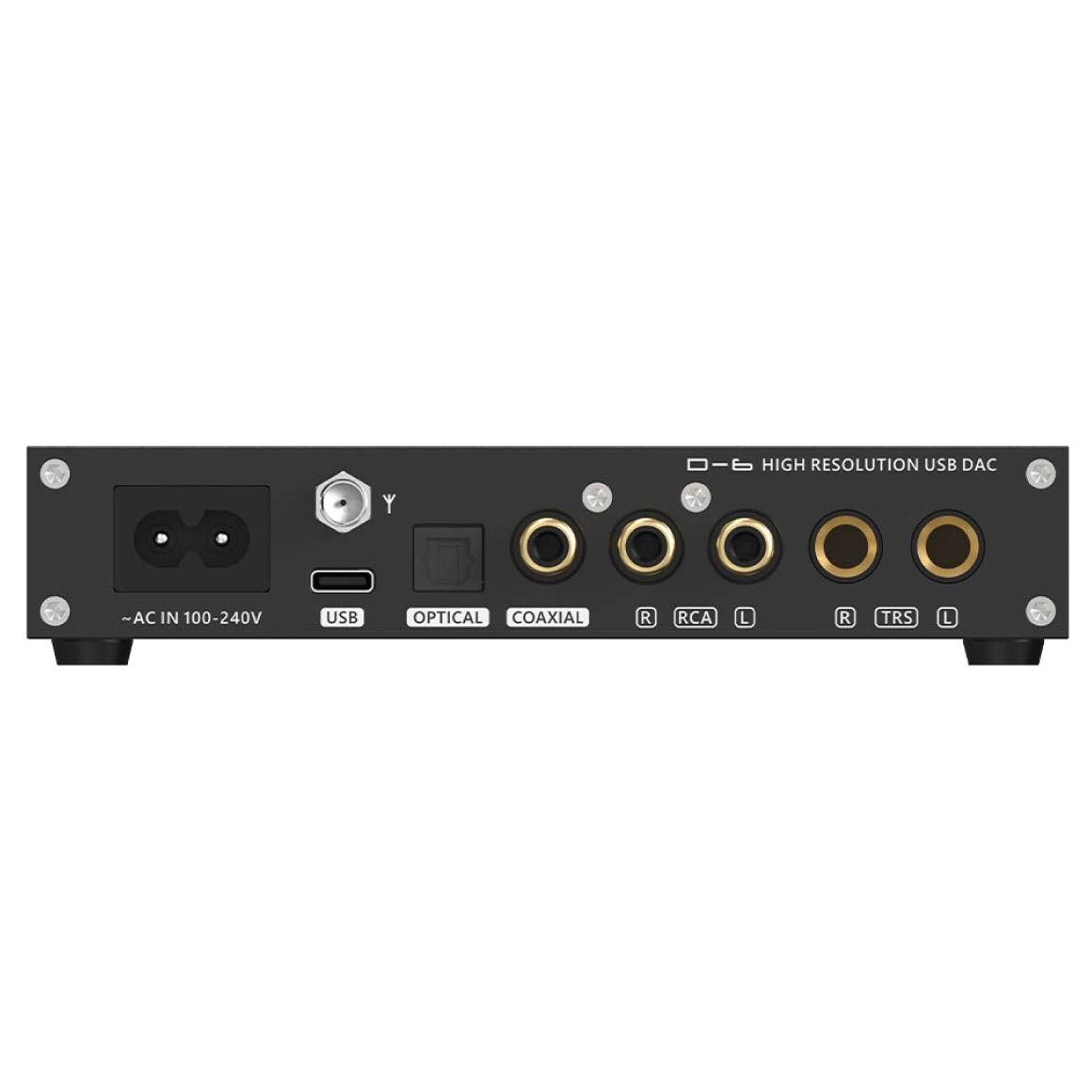

The SMSL D-6 has been expertly designed and built with a CNC integrated milling process that makes it simple and looks elegant with added robustness. The mini-size design is suitable for desktop use. The front baffle of the D-6 includes a knob and display, and the rear baffle consists of numerous inputs like USB, Optical, and Coaxial. The D-6 offers RCA output, balanced 6.35mm TRS output, and a Bluetooth antenna. This setup enables you to create a balanced desktop audio stack. The SMSL D-6 has a fully functional remote that allows you to change settings, toggle the menu, and increase or decrease volume. The remote uses two R03/AAA batteries.
1x Optical Toslink
|OUTPUTS||1x Stereo RCA
1x Balanced TRS Jack 6.35mm
|OUTPUTS INDEXES||TRS : 4.0Vrms
RCA : 2.0Vrms
|THD+N||Weighted : 0.00011% (118.5dB)
A-Weighted : 0.00010% (119.5dB)
|USB AUDIO SYSTEM COMPATIBILITY||windows 7/8/8.1/10/11, Mac OS X, Linux|
|DYNAMIC RANGE||TRS : 123dB
RCA : 120dB
|SNR||TRS : 122dB
RCA : 119dB
|USB COMPATIBILITY||Windows 7/8/8.1/10 Mac OS X10.6 or later Linux|
|BIT DEPTH||USB : 1bit ~ 32bit
OPT/COA : 16bit ~ 24bit
|SAMPLING||USB : PCM 44.1 kHz ~ 768 kHz
DSD 2.8224 ~ 22.5792MHz
OPT/COA : 32 kHz ~ 192 kHz
|STANDBY CONSUMPTION||< 0.1W|
|USB MAXIMUM OUTPUT CURRENT||2A (The sum of two USB output currents)|
|SIZE||148 x 27.5 x 112.8mm (WxHxD)|
|BOX CONTENTS||1. S.M.S.L D-6|
|2. Remote Control|
|GENERIC NAME||Digital Audio Player|
|IMPORTER DETAILS||Importers Name: Ferrari Video
Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020
Contact No: 044-24420733
