Schiit
Schiit - Jotunheim 2
Desktop DAC & Headphone AmpDesigned in
USA
Ideal for
Desktop Use
4-Pin XLR
Balanced Output
ESS Sabre ES9028
DAC Chip
THE ALL-NEW SCHIIT JOTUNHEIM 2 IS ALL YOU NEED FOR YOUR SETUP
The Jotunheim 2 has a "true'' balanced, 4-gang, silky-smooth Alps RK27114 potentiometer and 1% supermatched JFET inputs, 10% matched, paired BJT gain stage and output devices, and zero capacitors in the signal path is just a start. Jotunheim 2 also features Schiit's exclusive Nexus™ current-feedback, inherently differential, input/output agnostic topology. It also includes their Continuity S™ output stage for exceptional linearity and efficiency at high output. The Jotunheim 2 connects seamlessly to all your sources without compromise, puts out an incredible amount of power, and is whisper-quiet on even the most sensitive IEMs. Unique technology, unrivalled flexibility, and modular design—the Jotunheim 2 sets the standard for balanced headphone amps and preamps. It’s ready for any headphone—and fully enabled to be the centrepiece of a complete desktop system.

FEATURES ES9028 DAC CHIP THAT DELIVERS EXCEPTIONAL SONIC PERFORMANCE
The Jotunheim 2 features an ESS ES9028 DAC chip that delivers flawless Digital-to-analogue conversion. The ESS DAC chip allows the Jotunheim 2 to perform at its best. When paired with your IEMs or headphones, you will enjoy smoother treble, clear vocals and a detailed overall sound.


GET TOTAL CONTROL OF YOUR DESKTOP SYSTEM WITH MULTIPLE CONNECTIVITY OPTIONS
Jotunheim 2 provides all the connections and control for your entire desktop. Choose a balanced, single-ended, or internal card source with one front panel switch. Enjoy all your headphones, from the most power-hungry to the most sensitive. Hook up to powered monitors or speaker power amps via the balanced and single-ended preamp outputs. You can also enable or disable the preamp outputs with a convenient switch. Jotunheim is all you need for a state-of-the-art desktop setup!

POWER OUTPUT | Maximum Power, 16 ohms: 7.5W RMS per channel Maximum Power, 32 ohms: 6W RMS per channel Maximum Power, 50 ohms: 4W RMS per channel Maximum Power, 300 ohms: 1.2W RMS per channel Maximum Power, 600 ohms: 600mW RMS per channel |
FREQUENCY RANGE | 20Hz-20Khz, +/-0.01db, 2Hz-700KHz, -3dB |
THD | <0.00015%, 20Hz-20KHz, at 4V RMS, 300 ohms |
IMD | <0.0002%, CCIR, at 4V RMS, 300 ohms |
THD | <0.0004% 20-20kHz at 2V RMS, 32 ohms |
IMD | <0.0006%, CCIR, at 2V RMS, 32 ohms |
SNR | >123db, unweighted, referenced to 4V RMS |
CROSSTALK | >-85dB, 20 Hz-20KHz, 300 ohms |
CROSSTALK | >-70dB, 20 Hz-20KHz, 32 ohms |
OUTPUT IMPEDANCE | Less than 0.1 ohms, at either gain setting |
POWER OUTPUT | Maximum Power, 16 ohms: 2.4W RMS per channel Maximum Power, 32 ohms: 2.0W RMS per channel Maximum Power, 50 ohms: 1.2W RMS per channel Maximum Power, 300 ohms: 330mW RMS per channel Maximum Power, 600 ohms: 165mW RMS per channel |
FREQUENCY RANGE | 20Hz-20Khz, +/-0.01db, 2Hz-700KHz, -3dB |
THD | <0.006%, 20Hz-20KHz, at 2V RMS, 300 ohms |
IMD | <0.007%, CCIR, at 2V RMS, 300 ohms |
THD | <0.03% 20-20kHz at 1V RMS, 32 ohms |
IMD | <0.035%, CCIR, at 1V RMS, 32 ohms |
SNR | >102db, unweighted, referenced to 2V RMS |
CROSSTALK | >-85dB, 20 Hz-20KHz, 300 ohms |
CROSSTALK | >-70dB, 20 Hz-20KHz, 32 ohms |
OUTPUT IMPEDANCE | Less than 0.1 ohms, at either gain setting |
INPUT IMPEDANCE | 50K ohms |
GAIN (BALANCED INPUT) | 2 (0dB) or 8 (18dB) |
GAIN (SE INPUT) | 1 (0dB) or 4 (12dB) |

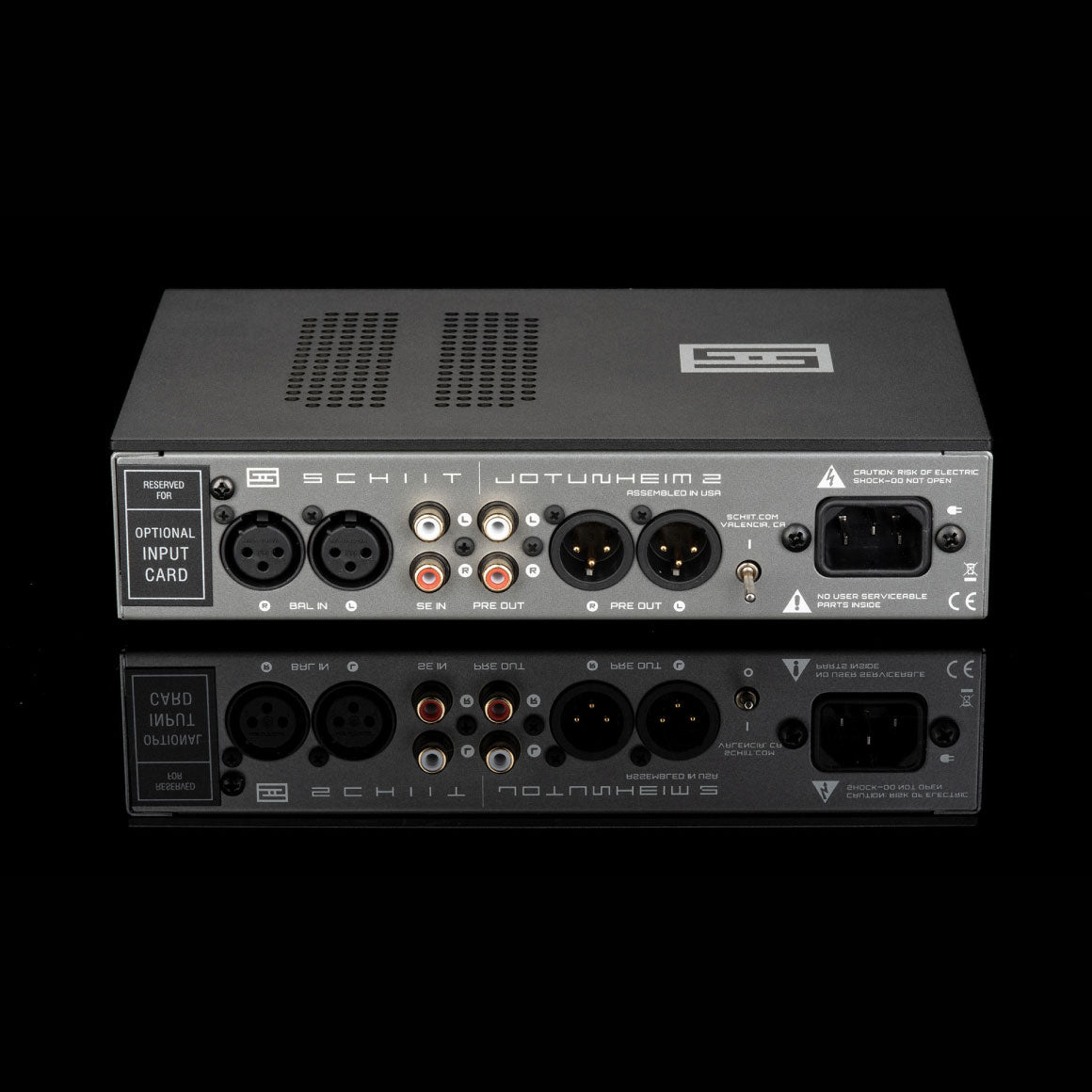

INPUTS | Balanced XLR and Single-Ended RCA, relay switched |
OUTPUTS | Balanced headphone (4-pin XLR), single-ended headphone (1/4” TRS), switchable balanced and single-ended line preamp |
OPTIONAL INPUTS | ES9028 DAC |
GAIN STAGE | Nexus™ fully discrete differential current-feedback topology with Continuity S™ output stage |
POWER SUPPLY | One 48VA transformer with four stacked rails, series two-stage ultra-low-noise regulation and over 65,000uF total filter capacitance |
USB INPUT RECEIVER | Schiit Unison USB™ |
D/A CONVERSION IC | ESS ES9028 |
ANALOG OUTPUT | differential I/V conversion based on LME49724, switchable summed SE mode |
FREQUENCY RESPONSE | 20Hz-20KHz, +/-0.1dB |
THD | <0.0005%, 20Hz-20KHz |
IMD | <0.0005%, CCIR |
S/N | >116dB, referenced to 2V RMS, unweighted |
BOX CONTENTS | 1. Schiit Jotunheim 2 |
GENERIC NAME | Headphone Amplifier |
COUNTRY OF ORIGIN | USA |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |


The Schiit Story
The story of Schiit Audio begins with two veteran audiophiles Jason Stoddard, formerly of Sumo, and Mike Moffat, formerly of Theta coming together to shake things up a bit. Both of them have extensive experience in developing lots of audio and A/V products including the Andromeda III, Cobalt 307, DS Pre and Angstrom 200. From power amplifiers, I/V conversion stages, D/A converters, relay-switched stepped attenuator volume controls in preamps to developing the first DTS home theatre surround processor on the market, Schiit Audio has developed a lot of audio products over the years.
![]() |
![]() |
![]() |
Getting into Designing Headphones
Headphones are the need of the hour everyone who likes music uses a headphone. Therefore Schiit Audio moved to develop personal audio equipment while continuing to design a speaker-based system which includes the industry-leading preamps, amps and DACs. So right now Schiit Audio has a plethora of audio products ranging from personal audio to speaker-based systems. Schiit designs affordable audio products that bring happiness in your lives.

True Multibit DACs and Unique Digital Filter
Unlike ordinary DACs that use delta-sigma, NOS (new old stock) D/A chips, multibit chips, high-cost R2R ladders, Schiit uses unique DSP-based closed-form digital filter which improves the sonic performance of the multibit DAC. Therefore the Schiit's multibit technology brings all of it together using the current-production, medical/military grade D/A converters.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Innovation in Analog
Schiit has opted for an innovative approach for the analog side as well. Even the most affordable Schiit headphone amplifier is a miniature, fully discrete, DC coupled, current-feedback power amplifier. Schiit is credited for introducing Continuity output stage to solve the issue of transconductance droop which was common in Class AB amplifier design. Schiit has also developed balanced topologies like Nexus in Ragnarok 2 and a perfect combination of tube and solid-state with Coherence in Lyr 3.

Designed with High-End Materials for Durability
All the Schiit products are designed for solidity and durability. Even the smallest of the products are made of aluminium and steel while the larger products are made of high-end C core transformers, power supply filtering and low-noise control. All the products have to go through severe testing procedures including the latest APx555 audio analyzer and Avermetrics analyzers. Every product from Asgard and up goes through burn-in to address the issues faced during the initial period of usage. Schiit takes care of all the service and support requirements so that you can concentrate on great sound.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Handcrafted in the USA
Schiit believes that local control of all the aspects of production improves the delivering of the product. Therefore all the Schiit products are designed and made in the USA and most of the cost of the components are going to the US-based companies. Assembled in the USA means that Schiit's chassis guys are from San Fernando Valley, Schiit transformers are made in California, Schiit boards come from the east coast of the USA and all the designing, assembling and testing of Schiit products happen in Valencia, California.

5 Year Warranty
Don't sweat it, this Schiit - Jotunheim 2 comes with a warranty
from Schiit that covers manufacturing defects.
