Designed & Made
in the USA
RCA & USB
6.0W RMS @ 32Ω
FLEXIBLE...LIKE A GYMNAST

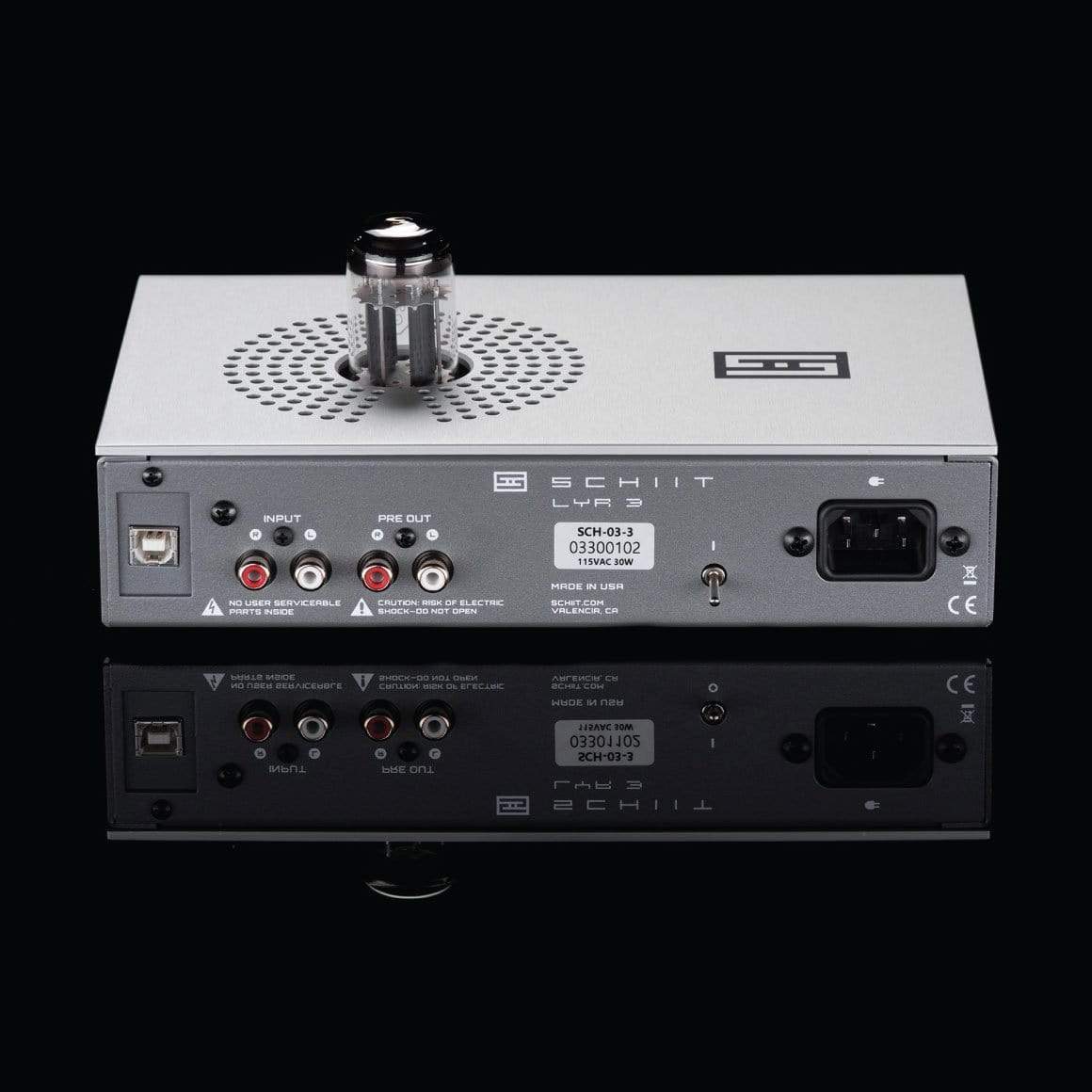

The Schiit Lyr 3 lets you choose between multiple modules or even to not have a module. Pick the Multibit DAC Module to get Schiit’s multi-bit DAC architecture & unique digital filter or the AK4490 DAC Module for a world-class delta-sigma DAC or even MM Phono Input Module, for passive RIAA, 42dB of gain & great phono sound. You can even pick from the internal card or rear-panel analogue input as well as between high or low gain.
ONE TUBE, TWO TECHNOLOGIES

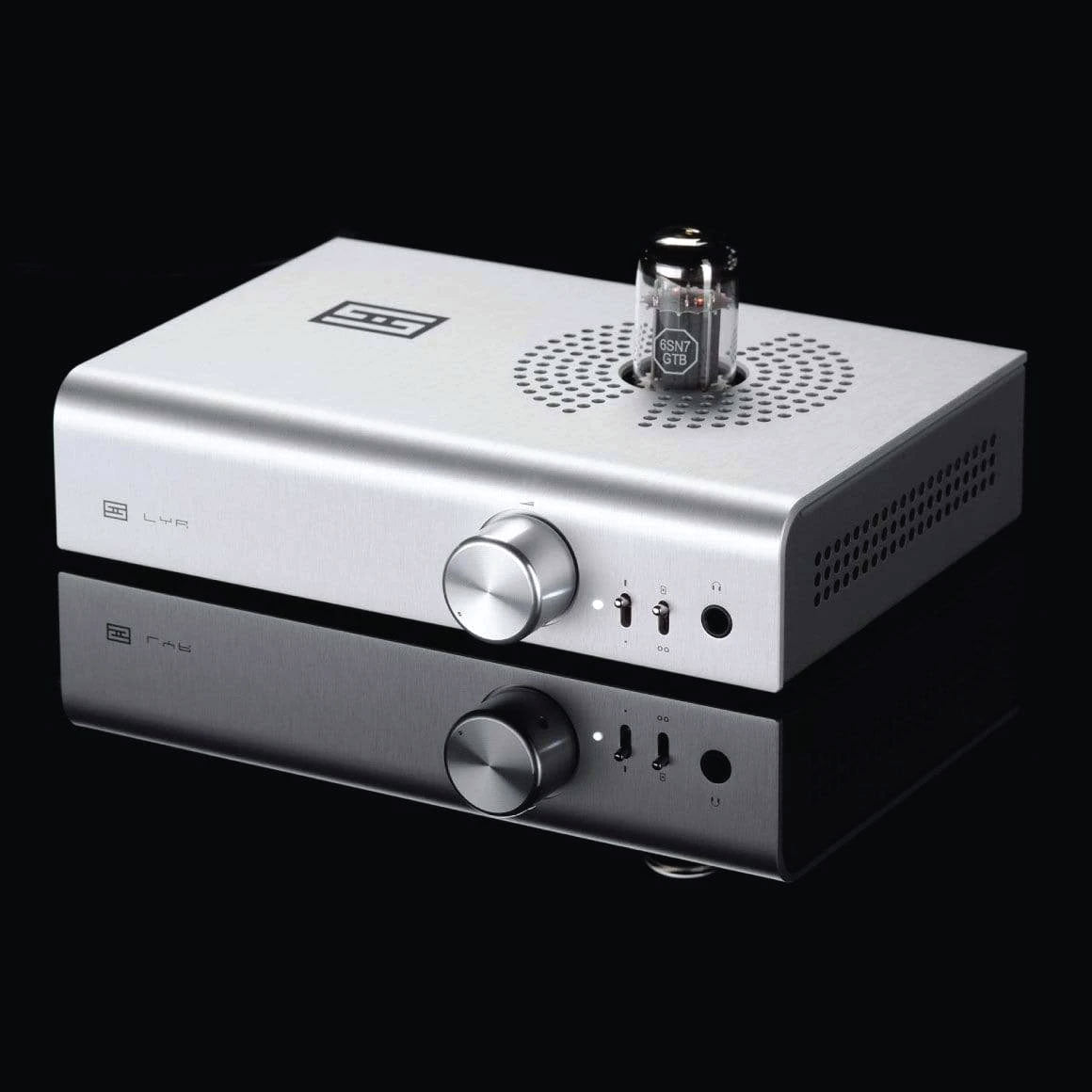

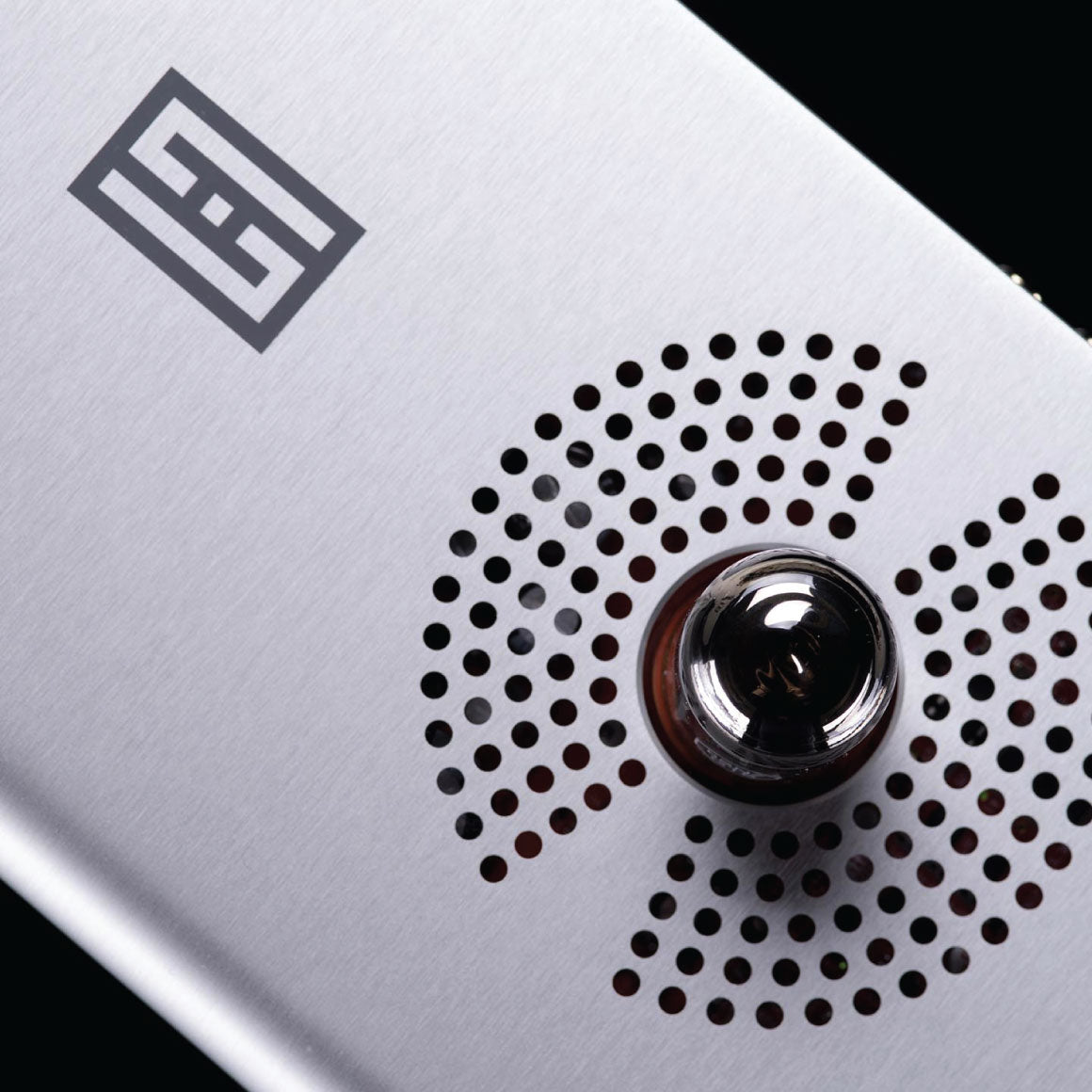

The Lyr 3 delivers a great sound with a single NOS 6N8S tube. It can work with any NOS and new-production 6SN7 tube. The Coherence™ hybrid topology uses a unique current-mode, noninverting tube/BJT hybrid topology that eliminates the need for interstage coupling capacitors. Continuity™, a constant transconductance output stage, provides superior performance along with a 100% linear power supply.
DRIVES WITH THE HIGHEST QUALITY

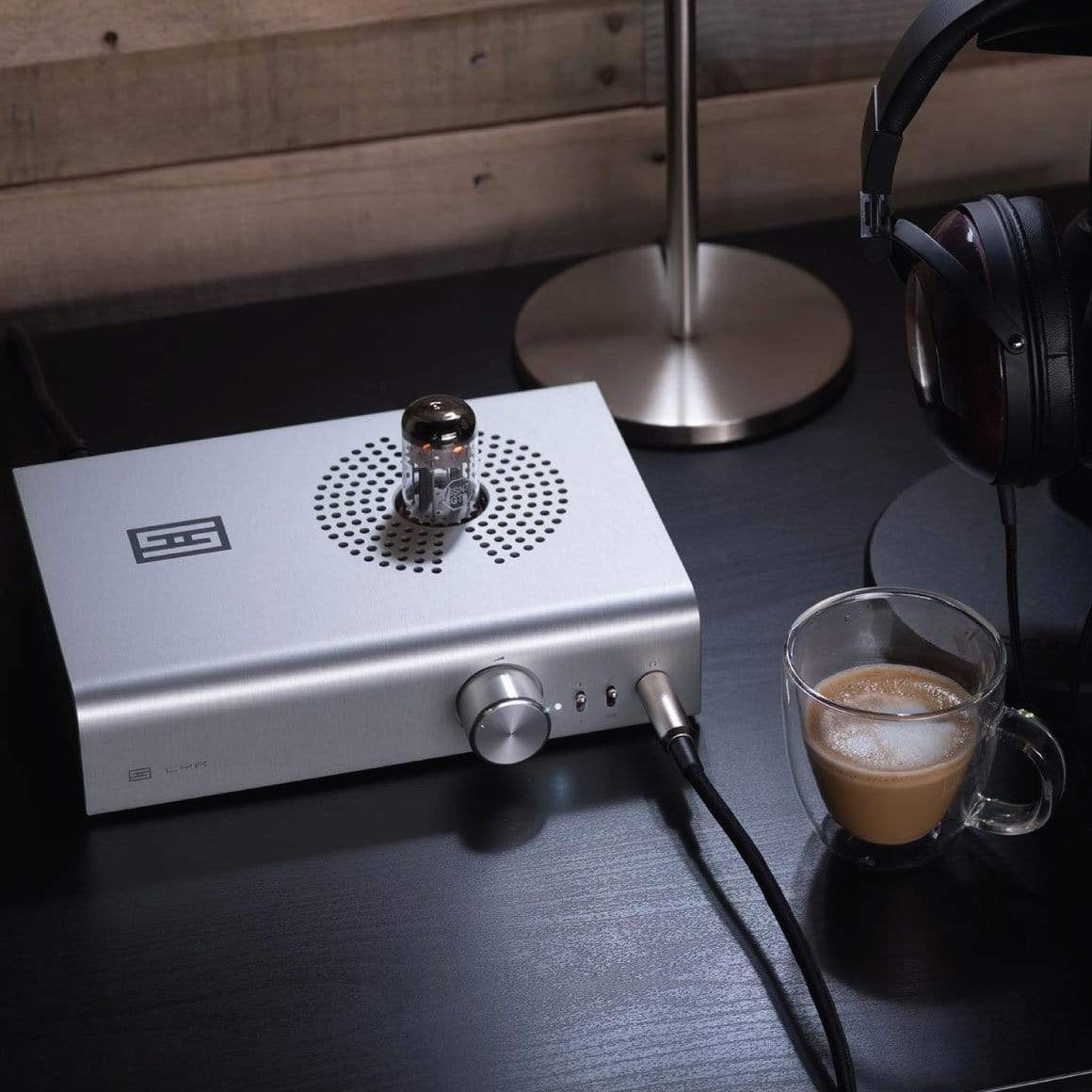

Be it a power-hungry headphone or a sensitive IEM, the Lyr 3 can drive just about any audio device you have. All your headphone needs is a 3.5mm jack and that’s it; you can plug-in and enjoy great sound. You don't need a balanced connection to take full advantage of it.
|FREQUENCY RESPONSE||20 Hz-20 kHz, -0.1db, 2Hz-700 KHz, -3dB, in gain = 1.5 mode|
|POWER OUTPUT||Maximum Power, 16 ohms: 9.0W RMS per channel
Maximum Power, 32 ohms: 6.0W RMS per channel (7.5W at <1% THD typical, one channel driven)
Maximum Power, 50 ohms: 4.0W RMS per channel
Maximum Power, 300 ohms: 900 mW RMS per channel
Maximum Power, 600 ohms: 450 mW RMS per channel
|THD||< 0.007%, 20 Hz-20 kHz, at 1V RMS, high gain (worst case)|
|IMD||< 0.005%, CCIR at 1V RMS, high gain (worst case)|
|SNR||> 102db, unweighted, referenced to 1V RMS, in gain = 1.5 mode|
|CROSSTALK||< -75dB, 20 Hz-20 kHz|
|OUTPUT IMPEDANCE||0.3 ohms, high gain (worst case)|
|GAIN||7.5 (17.5db) or 1.5 (3.5db)|
|TOPOLOGY||fully discrete, current-mode noninverting 6SN7/bipolar hybrid with constant transconductance output stage|
|PROTECTION||standard muting relay for delayed turn-on and fast turn-off|

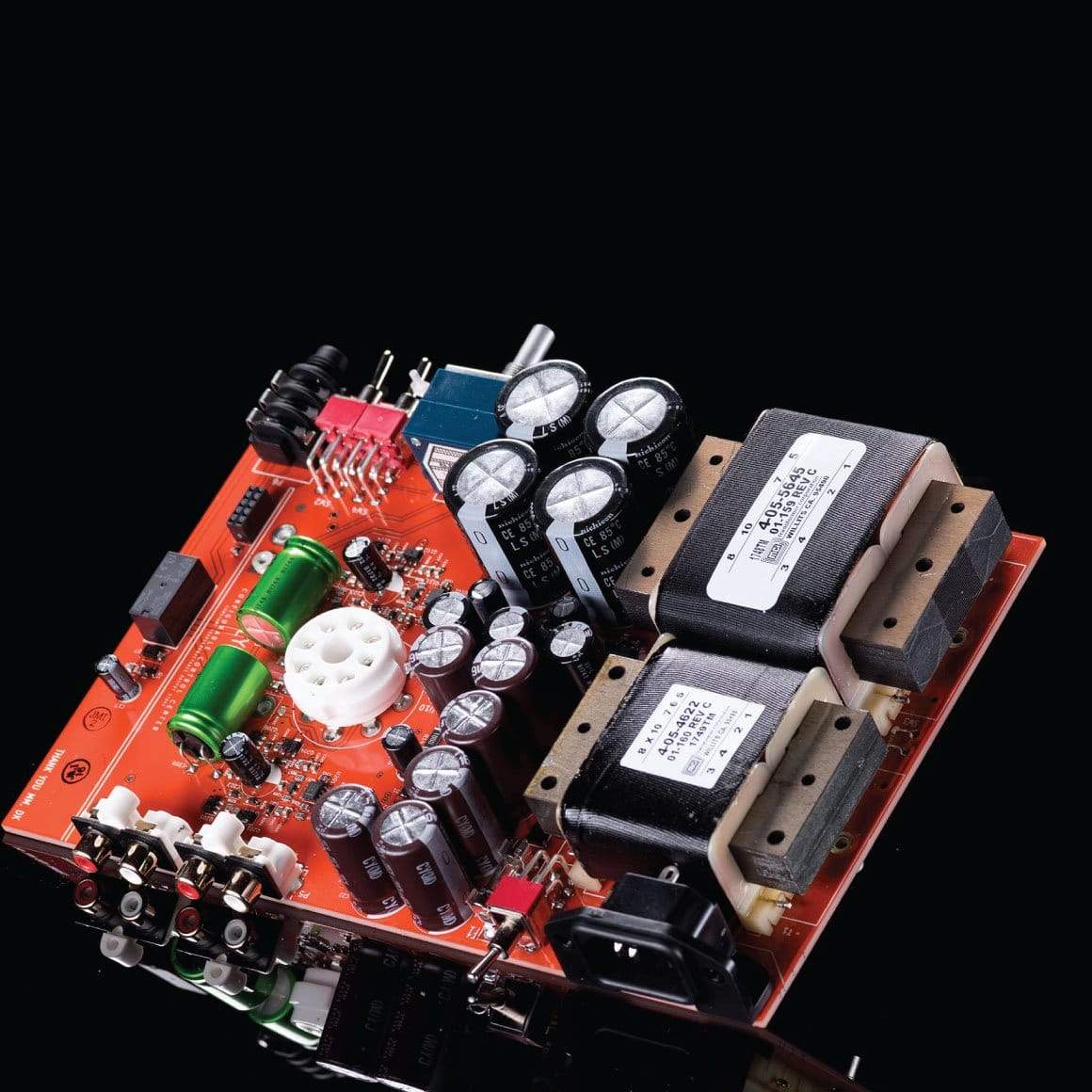

|POWER SUPPLY||two internal power transformers with 72VA total rating, plus with over 55,000uf of filter capacitance|
|USB INPUT RECEIVER||C-Media CM6631A|
|D/A CONVERSION IC||Analog Devices AD5547|
|DIGITAL FILTERS||Schiit Comboburrito Time- and Frequency-domain Optimized DSP filter|
|INPUT CAPABILITY||up to 24/192|
|ANALOG OUTPUT||fully differential, active summing and filtering|
|FREQUENCY RESPONSE||20 Hz-20 kHz, +/-0.25dB, 2-100kHz, -3dB|
|THD||<0.005%, 20 Hz-20 kHz, full scale|
|S/N||>109dB, referenced to 2V RMS, unweighted|
|USB INPUT RECEIVER||C-Media CM6631A|
|D/A CONVERSION IC||AK4490 x 2|
|INPUT CAPABILITY||up to 24/192, including 24/176.4|
|ANALOG OUTPUT||fully differential, passive summing and passive filtering|
|FREQUENCY RESPONSE||20 Hz-20 kHz, +/-0.1dB, 2-100kHz, -3dB|
|THD||<0.0015%, 20 Hz-20 kHz, full scale|
|S/N||>110dB, referenced to 2V RMS, unweighted|
|THD||<0.01%, A-weighted, at 1V RMS|
|SNR||>80dB, A-weighted, inputs shorted|
|CROSSTALK||-70dB, 20-20 kHz|
|SENSITIVITY||2.3mV for 400mV output|
|INPUT IMPEDANCE||47k ohms|
|RIAA ACCURACY||+/- 0.25dB, 20-20 kHz|
|TOPOLOGY||Fully passive RIAA network with AD8599 gain stages and PET film capacitors throughout, DC coupled, with DC servo|
|SIZE||9 x 6 x 2.25”|
|BOX CONTENTS||1. Schiit Lyr 3|
|2. Power cord|
|GENERIC NAME||Headphone Amplifier|
|COUNTRY OF ORIGIN||USA|
|IMPORTER DETAILS||Importers Name: Ferrari Video
Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020
Contact No: 044-24420733
The Schiit Story
The story of Schiit Audio begins with two veteran audiophiles Jason Stoddard, formerly of Sumo, and Mike Moffat, formerly of Theta coming together to shake things up a bit. Both of them have extensive experience in developing lots of audio and A/V products including the Andromeda III, Cobalt 307, DS Pre and Angstrom 200. From power amplifiers, I/V conversion stages, D/A converters, relay-switched stepped attenuator volume controls in preamps to developing the first DTS home theatre surround processor on the market, Schiit Audio has developed a lot of audio products over the years.
Getting into Designing Headphones
Headphones are the need of the hour everyone who likes music uses a headphone. Therefore Schiit Audio moved to develop personal audio equipment while continuing to design a speaker-based system which includes the industry-leading preamps, amps and DACs. So right now Schiit Audio has a plethora of audio products ranging from personal audio to speaker-based systems. Schiit designs affordable audio products that bring happiness in your lives.
True Multibit DACs and Unique Digital Filter
Unlike ordinary DACs that use delta-sigma, NOS (new old stock) D/A chips, multibit chips, high-cost R2R ladders, Schiit uses unique DSP-based closed-form digital filter which improves the sonic performance of the multibit DAC. Therefore the Schiit's multibit technology brings all of it together using the current-production, medical/military grade D/A converters.
Innovation in Analog
Schiit has opted for an innovative approach for the analog side as well. Even the most affordable Schiit headphone amplifier is a miniature, fully discrete, DC coupled, current-feedback power amplifier. Schiit is credited for introducing Continuity output stage to solve the issue of transconductance droop which was common in Class AB amplifier design. Schiit has also developed balanced topologies like Nexus in Ragnarok 2 and a perfect combination of tube and solid-state with Coherence in Lyr 3.
Designed with High-End Materials for Durability
All the Schiit products are designed for solidity and durability. Even the smallest of the products are made of aluminium and steel while the larger products are made of high-end C core transformers, power supply filtering and low-noise control. All the products have to go through severe testing procedures including the latest APx555 audio analyzer and Avermetrics analyzers. Every product from Asgard and up goes through burn-in to address the issues faced during the initial period of usage. Schiit takes care of all the service and support requirements so that you can concentrate on great sound.
Handcrafted in the USA
Schiit believes that local control of all the aspects of production improves the delivering of the product. Therefore all the Schiit products are designed and made in the USA and most of the cost of the components are going to the US-based companies. Assembled in the USA means that Schiit's chassis guys are from San Fernando Valley, Schiit transformers are made in California, Schiit boards come from the east coast of the USA and all the designing, assembling and testing of Schiit products happen in Valencia, California.
5 Year Warranty
Don't sweat it, this Schiit - Lyr 3 comes with a warranty
from Schiit that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about Schiit's warranty in India.
