Schiit - Modi Multibit 2
Desktop Digital To Analog Converter (DAC)Designed & Made
in the USA
Ideal for
Indoor Use
Connect With USB
Toslink SPDIF, Coaxial SPDIF
TRUE MULTIBIT ARCHITECTURE FOR EXCEPTIONAL SONIC PERFORMANCE

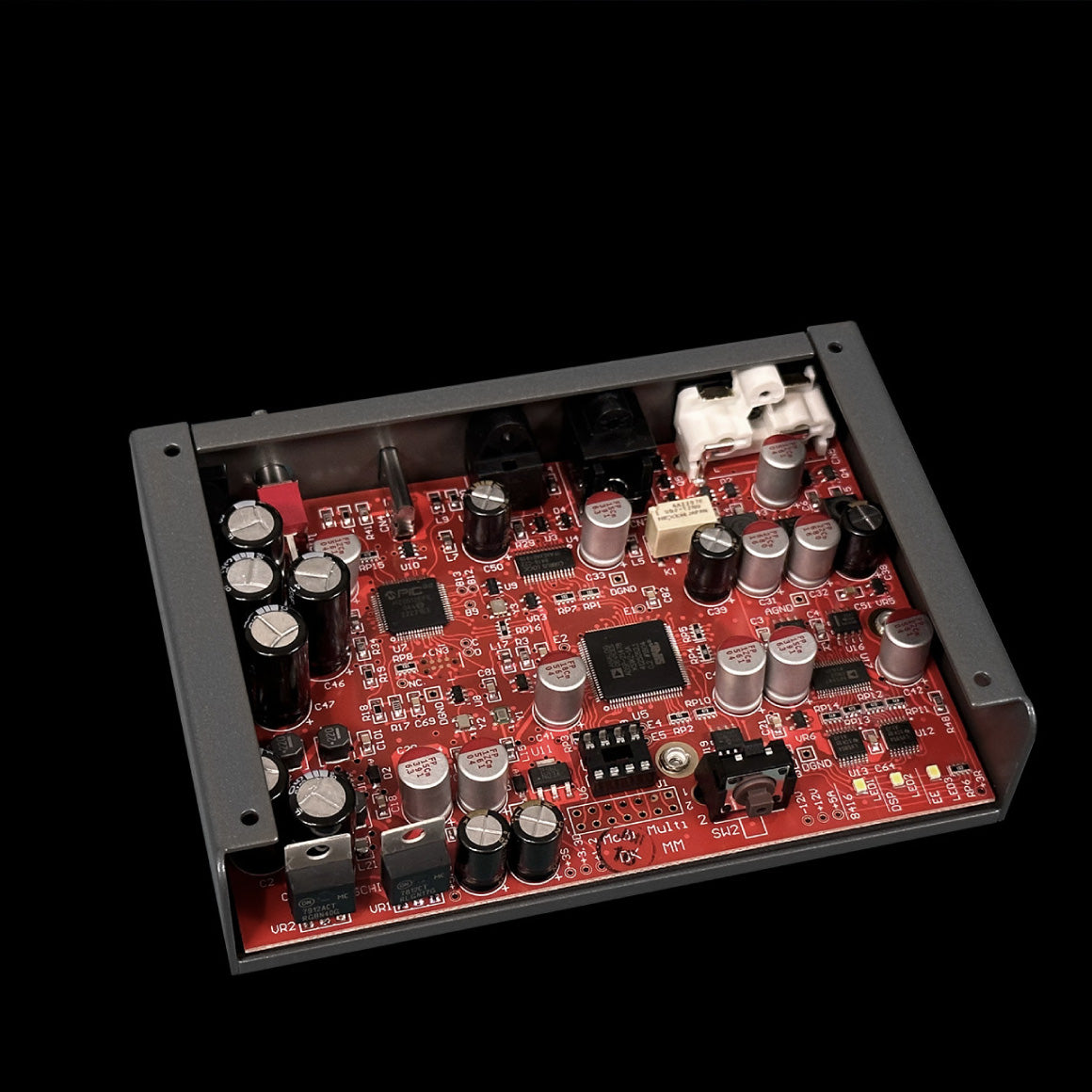

The Schiit Modi Multibit 2 is a multibit DAC with modern architecture, top-of-class USB input, and the flexibility to be the centrepiece of your entire system. The Modi Multibit 2 is designed around the True Multibit™ architecture. The architecture includes a unique time & frequency domain-optimised digital filter, implemented on an Analog Devices DSP, with a medical/defence grade Analog Devices AD5547 D/A converter. It even includes Schiit's proprietary Unison USB™ digital input for superb performance. It is capable of decoding 16/44.1 to 24/192 via USB, Coax, and Optical. The Schiit Modi Multibit 2 promises to deliver exceptional sonic performance.

A HIGHLY CAPABLE DAC THAT IS VERSATILE AND FEATURE-RICH
The Schiit Modi Multibit 2 is a highly capable DAC. In addition to USB, you also get coaxial and optical inputs. It also includes NOS (non-oversampling) mode to give you even more flexibility in system matching. It is easy to build a complete system around Modi Multibit 2. Its size and aesthetics match many of Schiit's other products like Magni or Vali for headphone and preamp duties, Loki for EQ, Mani for your turntable, and more. You can use it as a DAC for your system stack. It is that versatile!


MASTERFULLY DESIGNED AND BUILT-IN CALIFORNIA AND TEXAS

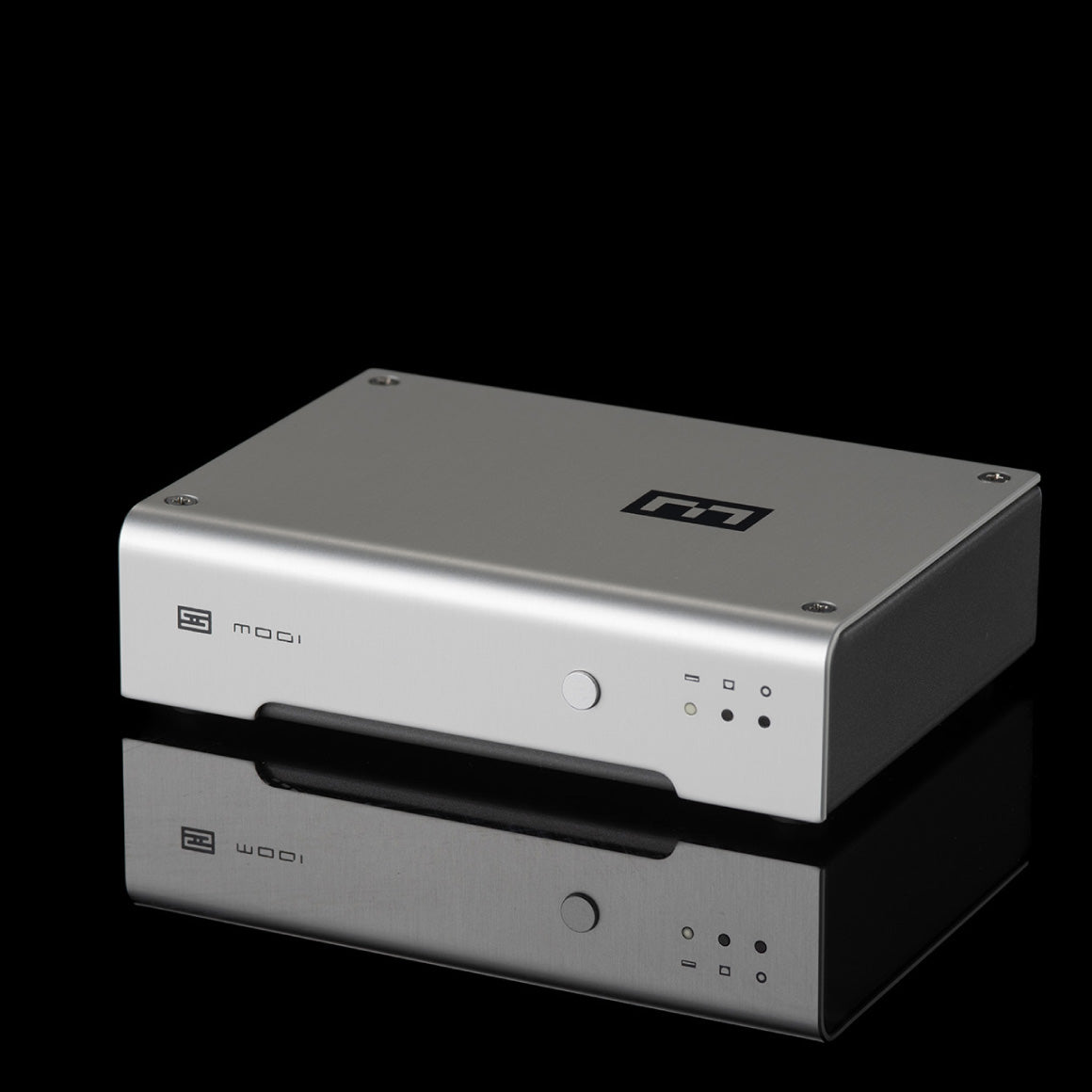

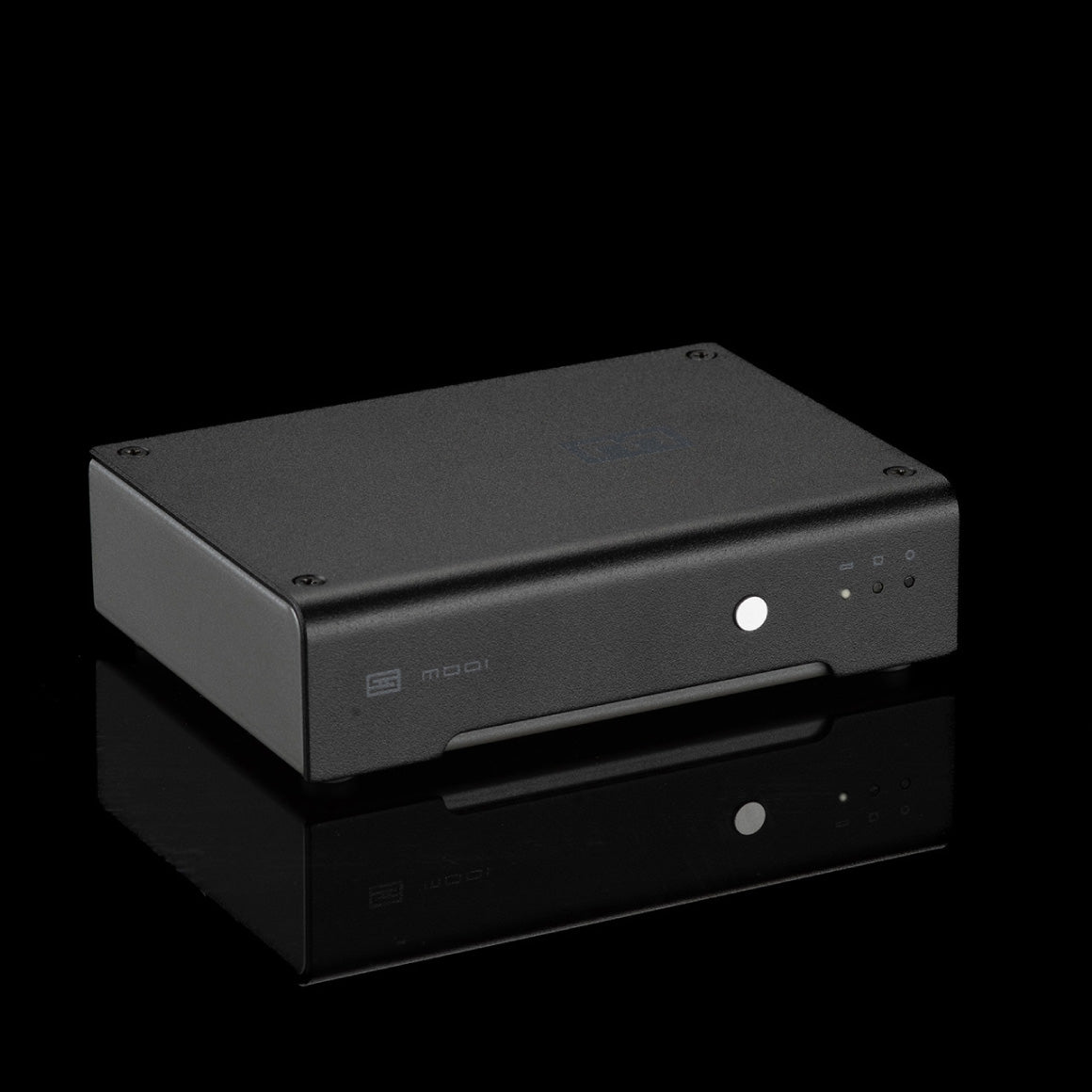

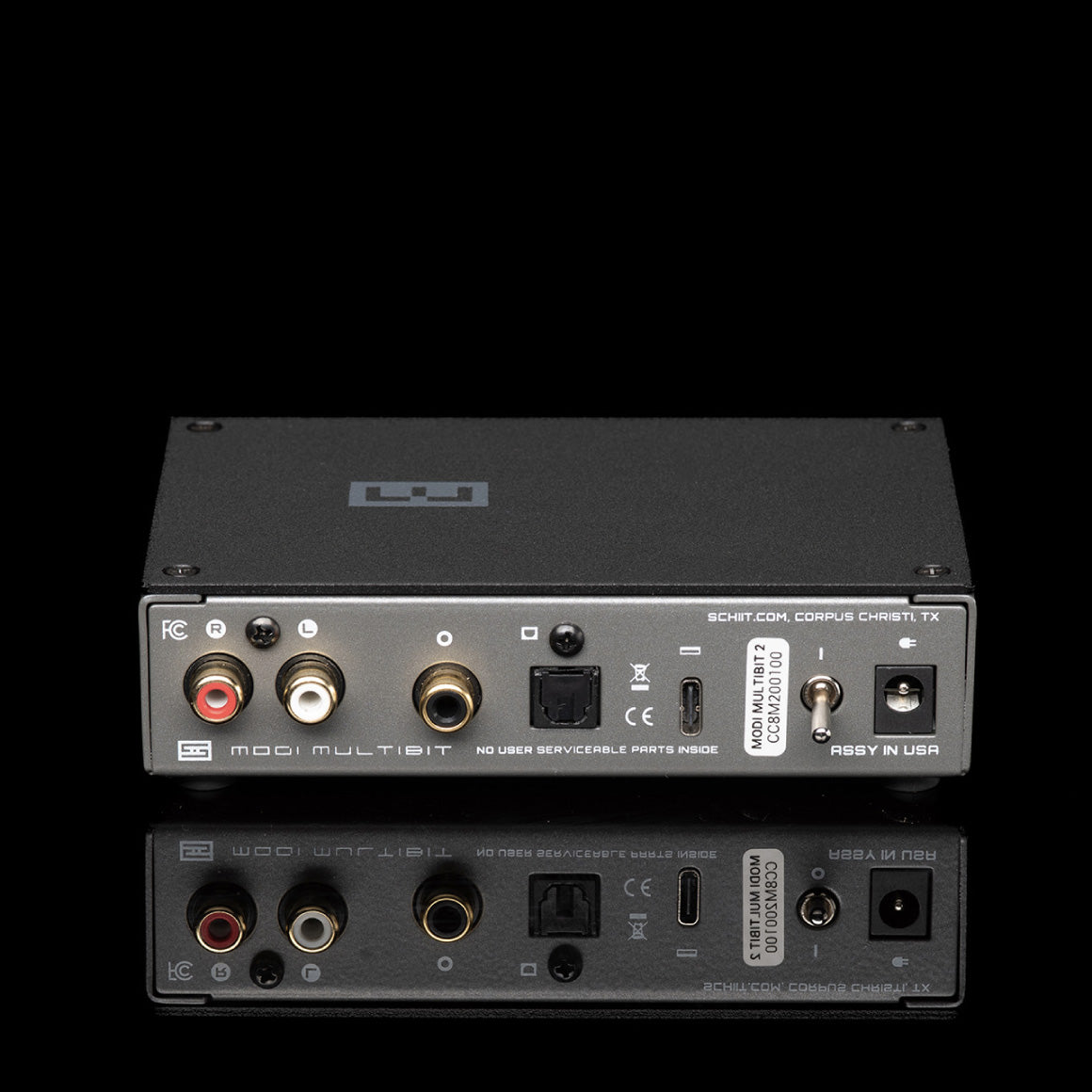

All the units of Modi Multibit 2 are manufactured in Valencia, CA and Corpus Christi, Texas. The vast majority of the total production cost of Modi Multibit 2 chassis, boards, transformers, assembly, etc., goes to US companies manufacturing in the US. Schiit has taken a no-nonsense approach while designing the Modi Multibit 2. The front panel consists of Input selection and indicators for USB, Optical, and Coaxial. The rear panel consists of Power input, USB input, Optical input, Coaxial input, and Analogue input.

INPUTS | USB, Toslink SPDIF, Coaxial SPDIF |
SAMPLE RATED AND BIT DEPTHS | 16/44.1 to 24/192 via USB, Coax, and Optical |
INPUT RECEIVER | USB: C-Media CM6631A SPDIF: AKM 4113) |
D/A CONVERSION IC | Analog Devices AD5547 |
ANALOG SUMMING, ACTIVE FILTERING | Based on AD8512 with precision thin-film resistors, DC-coupled with DC servo |
OUTPUT | RCA (single-ended) Impedance: 75 ohms |
FREQUENCY RESPONSE | 20 Hz-20 kHz, +/-0.25dB |
MAXIMUM OUTPUT | 2.0V RMS |
THD | <0.006%, 20 Hz-20 kHz, at max output |
IMD | <0.007%, 20 Hz-20 kHz, CCIR |
S/N | >104 dB, referenced to 1.5VRMS, unweighted |
CROSSTALK | -80dB, 20-20 kHz |
POWER SUPPLY | Included 16VAC wall-wart with 100% linear power supply |
WEIGHT | 453g (1 lb) |
BOX CONTENTS |
1. Schiit Modi 2 Multibit
|
2. Wall-Wart
|
|
3. Stick-On Feet
|
GENERIC NAME | Digital Audio Converter |
COUNTRY OF ORIGIN | USA |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |


The Schiit Story
The story of Schiit Audio begins with two veteran audiophiles Jason Stoddard, formerly of Sumo, and Mike Moffat, formerly of Theta coming together to shake things up a bit. Both of them have extensive experience in developing lots of audio and A/V products including the Andromeda III, Cobalt 307, DS Pre and Angstrom 200. From power amplifiers, I/V conversion stages, D/A converters, relay-switched stepped attenuator volume controls in preamps to developing the first DTS home theatre surround processor on the market, Schiit Audio has developed a lot of audio products over the years.
![]() |
![]() |
![]() |
Getting into Designing Headphones
Headphones are the need of the hour everyone who likes music uses a headphone. Therefore Schiit Audio moved to develop personal audio equipment while continuing to design a speaker-based system which includes the industry-leading preamps, amps and DACs. So right now Schiit Audio has a plethora of audio products ranging from personal audio to speaker-based systems. Schiit designs affordable audio products that bring happiness in your lives.

True Multibit DACs and Unique Digital Filter
Unlike ordinary DACs that use delta-sigma, NOS (new old stock) D/A chips, multibit chips, high-cost R2R ladders, Schiit uses unique DSP-based closed-form digital filter which improves the sonic performance of the multibit DAC. Therefore the Schiit's multibit technology brings all of it together using the current-production, medical/military grade D/A converters.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Innovation in Analog
Schiit has opted for an innovative approach for the analog side as well. Even the most affordable Schiit headphone amplifier is a miniature, fully discrete, DC coupled, current-feedback power amplifier. Schiit is credited for introducing Continuity output stage to solve the issue of transconductance droop which was common in Class AB amplifier design. Schiit has also developed balanced topologies like Nexus in Ragnarok 2 and a perfect combination of tube and solid-state with Coherence in Lyr 3.

Designed with High-End Materials for Durability
All the Schiit products are designed for solidity and durability. Even the smallest of the products are made of aluminium and steel while the larger products are made of high-end C core transformers, power supply filtering and low-noise control. All the products have to go through severe testing procedures including the latest APx555 audio analyzer and Avermetrics analyzers. Every product from Asgard and up goes through burn-in to address the issues faced during the initial period of usage. Schiit takes care of all the service and support requirements so that you can concentrate on great sound.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Handcrafted in the USA
Schiit believes that local control of all the aspects of production improves the delivering of the product. Therefore all the Schiit products are designed and made in the USA and most of the cost of the components are going to the US-based companies. Assembled in the USA means that Schiit's chassis guys are from San Fernando Valley, Schiit transformers are made in California, Schiit boards come from the east coast of the USA and all the designing, assembling and testing of Schiit products happen in Valencia, California.

Windows. Windows 10 or 11 are plug and play.
MacOS. 10.11 and up, you’re good.
iOS. From iOS7 on up, iOS devices work using a Lightning to USB3 Camera Adapter.
Android. Most Android plug and chug. Some may require separate player software.
Linux. Most Linux distros that support UAC2 natively will be plug and play. Please note that we cannot provide detailed technical support for Linux.
Roon. Roon recognizes our products and is plug and play. Most streamers. Most streamers are Linux-based, so they have no problem with our USB input.
2 Year Warranty
Don't sweat it, this Schiit - Modi Multibit 2 comes with a warranty
from Schiit that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about Schiit's warranty in India.
