Designed & Made
in the USA
BE PASSIVE OR ACTIVE: IT'S YOUR CHOICE
The Schiit Saga+ is a hi-fi preamp that has two modes to choose from. The Active Mode is best used for when you have to drive long cables and want to take advantage of the warm tube sound. This mode uses the 6SN7 based hybrid tube buffer. The result? A mean machine running on 200V for incredibly low levels of distortion. In the Passive Mode, you use it with a remote-controlled passive preamp which is apt for various systems.
CONTROLS AT YOUR FINGERTIPS
The Saga+ is made for those who desire the best for their home audio setup. The custom remote control allows you to control volume, input switching, output switching, and muting. Switch on your music with the stepped attenuator that uses a relay switch so that your volume is clear. If you are using the remote control, the volume setting matches that of the remote.
|HYBRID TUBE BUFFER STAGE|
|FREQUENCY RESPONSE||20 Hz-20 kHz, -0.2db, 3Hz-200KHz, -3dB|
|THD||<0.001%, 20 Hz-20 kHz, at 1V RMS|
|IMD||<0.001%, CCIR (active stage)|
|SNR||>108db, A-weighted, referenced to 1V RMS|
|MAXIMUM OUTPUT||>10V RMS|
|OUTPUT IMPEDANCE||180 ohms|
|OUTPUT IMPEDANCE||varies, maximum 4.8 kohms|
|BOTH PASSIVE OR ACTIVE STAGE|
|INPUT IMPEDANCE||10k ohms|
|GAIN||Approximately 1 (0dB) through either passive or active stage|
|CROSSTALK||>-75dB, 20 Hz-20 kHz|

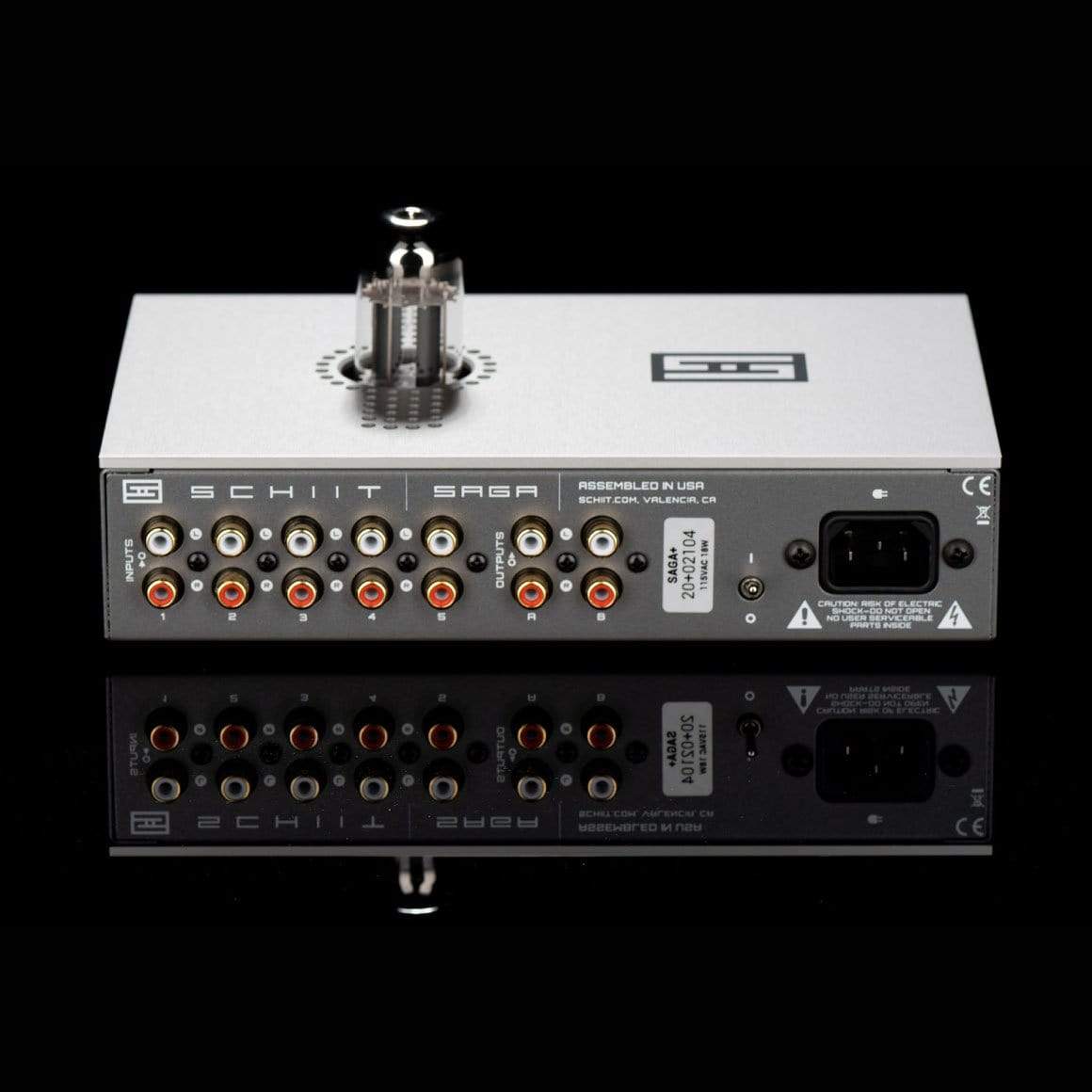

|INPUTS||5 RCA pairs, selectable via front switch or remote|
|OUTPUTS||2 RCA pairs, selectable via front switch or remote|
|BUFFER STAGE||Hybrid push-pull tube-BJT buffer stage with equalized transconductance|
|VOLUME CONTROL||relay-switched stepped attenuator with discrete thin-film resistors , 64 1dB steps|
|POWER SUPPLY||One 24VA transformer with regulated +/-100V rails, plus 6.3VDC heaters and 5VDC for microprocessor|
|POWER CONSUMPTION||25W typical|
|SIZE||9"W x6"D x 2"H, plus additional 1.25" H for tube|
1. Schiit Saga+
2. Power cord
3. 6N8S or 6SN7 tube
|GENERIC NAME||Headphone Amplifier|
|COUNTRY OF ORIGIN||USA|
|IMPORTER DETAILS||Importers Name: Ferrari Video
Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020
Contact No: 044-24420733
The Schiit Story
The story of Schiit Audio begins with two veteran audiophiles Jason Stoddard, formerly of Sumo, and Mike Moffat, formerly of Theta coming together to shake things up a bit. Both of them have extensive experience in developing lots of audio and A/V products including the Andromeda III, Cobalt 307, DS Pre and Angstrom 200. From power amplifiers, I/V conversion stages, D/A converters, relay-switched stepped attenuator volume controls in preamps to developing the first DTS home theatre surround processor on the market, Schiit Audio has developed a lot of audio products over the years.
Getting into Designing Headphones
Headphones are the need of the hour everyone who likes music uses a headphone. Therefore Schiit Audio moved to develop personal audio equipment while continuing to design a speaker-based system which includes the industry-leading preamps, amps and DACs. So right now Schiit Audio has a plethora of audio products ranging from personal audio to speaker-based systems. Schiit designs affordable audio products that bring happiness in your lives.
True Multibit DACs and Unique Digital Filter
Unlike ordinary DACs that use delta-sigma, NOS (new old stock) D/A chips, multibit chips, high-cost R2R ladders, Schiit uses unique DSP-based closed-form digital filter which improves the sonic performance of the multibit DAC. Therefore the Schiit's multibit technology brings all of it together using the current-production, medical/military grade D/A converters.
Innovation in Analog
Schiit has opted for an innovative approach for the analog side as well. Even the most affordable Schiit headphone amplifier is a miniature, fully discrete, DC coupled, current-feedback power amplifier. Schiit is credited for introducing Continuity output stage to solve the issue of transconductance droop which was common in Class AB amplifier design. Schiit has also developed balanced topologies like Nexus in Ragnarok 2 and a perfect combination of tube and solid-state with Coherence in Lyr 3.
Designed with High-End Materials for Durability
All the Schiit products are designed for solidity and durability. Even the smallest of the products are made of aluminium and steel while the larger products are made of high-end C core transformers, power supply filtering and low-noise control. All the products have to go through severe testing procedures including the latest APx555 audio analyzer and Avermetrics analyzers. Every product from Asgard and up goes through burn-in to address the issues faced during the initial period of usage. Schiit takes care of all the service and support requirements so that you can concentrate on great sound.
Handcrafted in the USA
Schiit believes that local control of all the aspects of production improves the delivering of the product. Therefore all the Schiit products are designed and made in the USA and most of the cost of the components are going to the US-based companies. Assembled in the USA means that Schiit's chassis guys are from San Fernando Valley, Schiit transformers are made in California, Schiit boards come from the east coast of the USA and all the designing, assembling and testing of Schiit products happen in Valencia, California.
1. Saga+ has a motorized pot that tracks the remote control volume, whereas Saga did not; which provides a continuous physical reference for the volume level.
2. Saga+ uses DC heaters for the tube buffer stage, which provides a lower noise floor when in buffer mode.
3. Saga+ uses our new "fastenerless" chassis design for a sleeker overall look.
5 Year Warranty
Don't sweat it, this Schiit - Saga+ comes with a warranty
from Schiit that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about Schiit's warranty in India.
