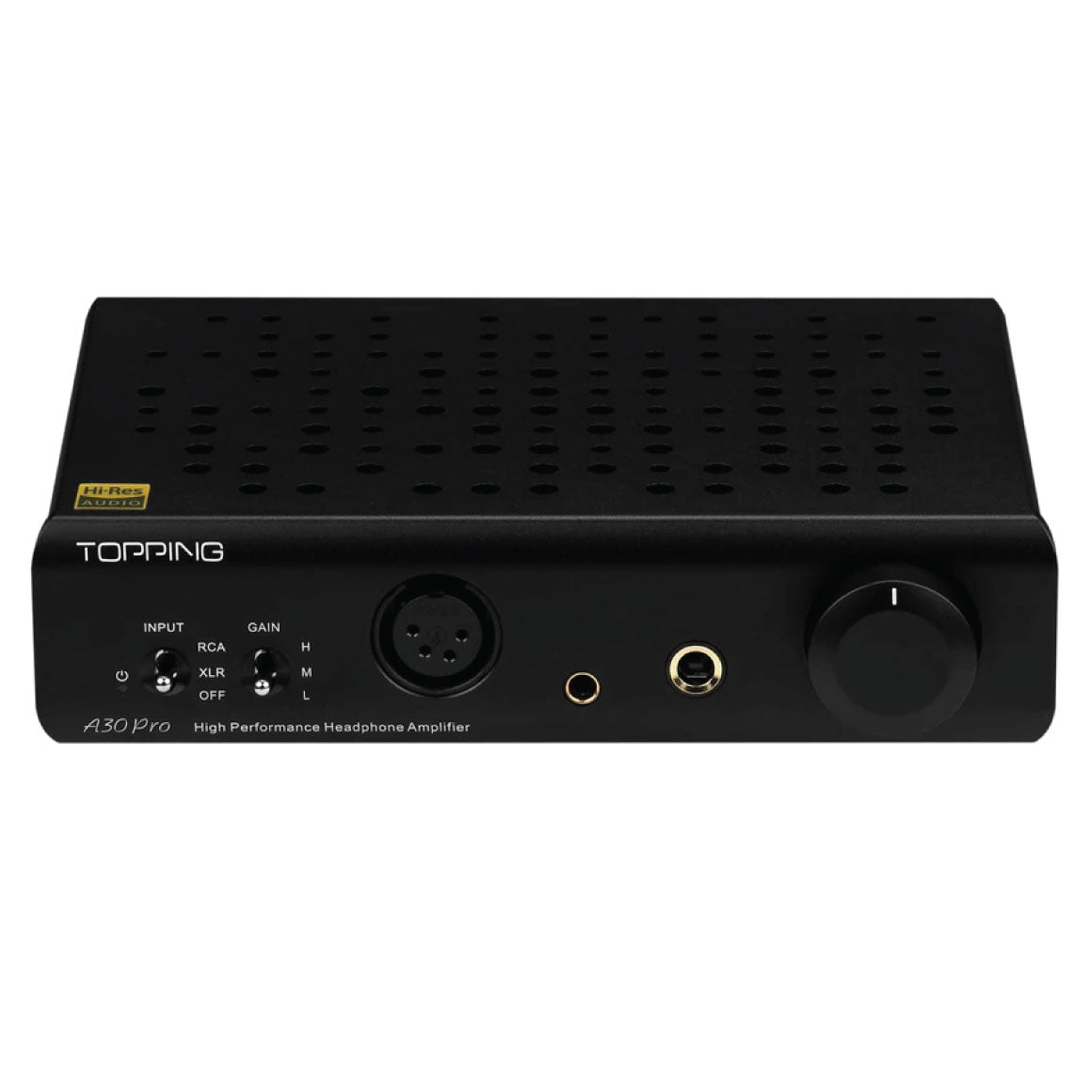

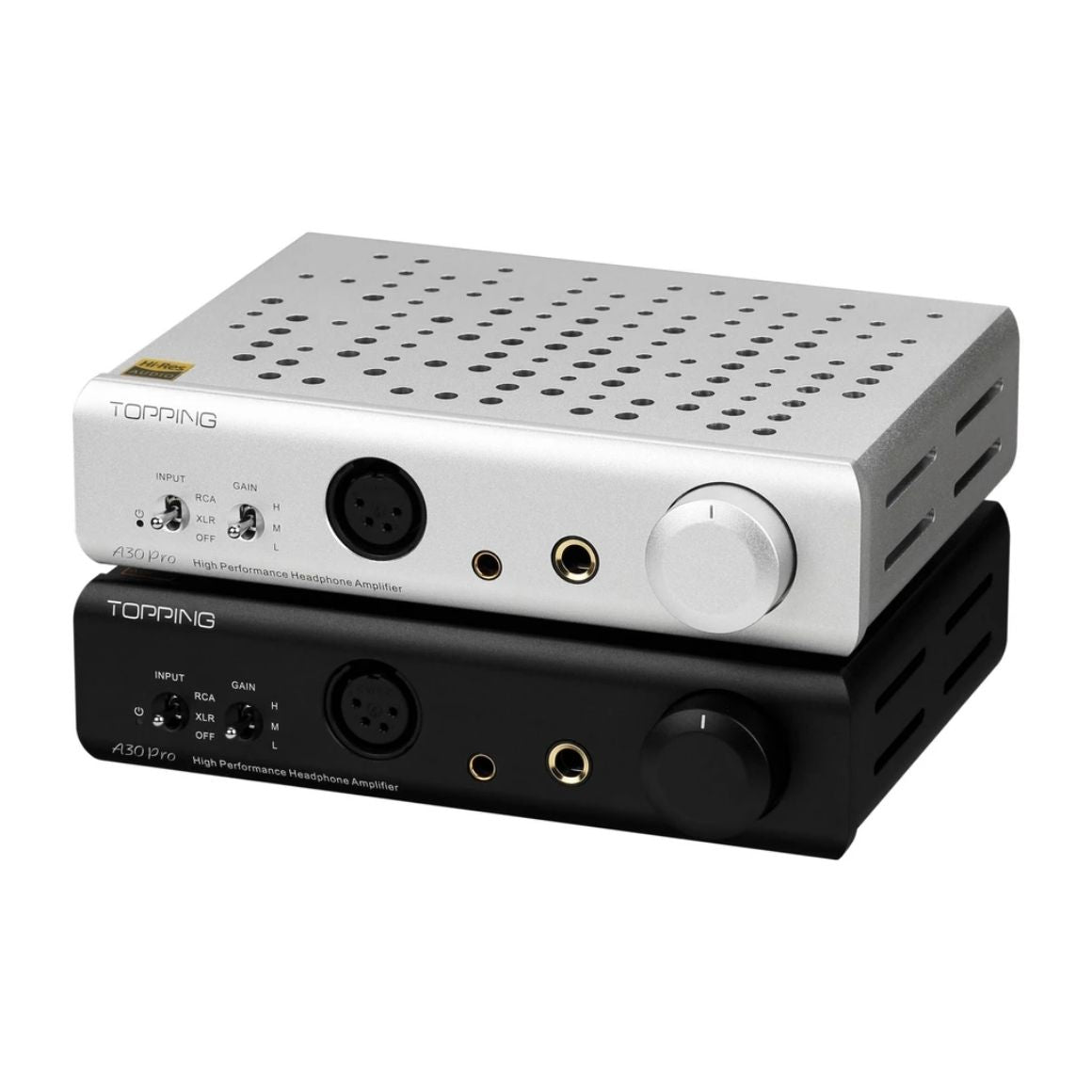

TOPPING - A30 Pro (Unboxed)
Desktop Headphone AmplifierGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
₹ 1,898 per month with Snapmint
Tenure available: 3, 6 and 9 months
Eligibility: Above 18 years of age, Credit Card NOT Required
Transaction value: Available on all orders
Payment Gateway: Please choose Snapmint Cardless EMI at checkout
3 Months
(No Cost EMI)
₹ 5,248
₹ 5,248
₹ 0
6 Months
(Low Cost EMI)
₹ 5,248
₹ 2,739
₹ 703
9 Months
(Low Cost EMI)
₹ 5,248
₹ 1,898
₹ 1,364
₹ 3,498 per month with axio
Tenure available: 3 or 6 Months
Eligibility: All above 21 years of age
Transaction value: Available on all orders below Rs. 60,000/-
Payment Gateway: Please choose Razorpay at checkout
3 Months
No Cost EMI
₹ 6,997
₹ 0
6 Months
No Cost EMI
₹ 3,498
₹ 0
₹ 6,997 per month with Bajaj Finserv
Tenure available: 3 Months
Eligibility: All Bajaj Finance card owners
Transaction value: All orders above Rs. 4,500/-
Payment Gateway: Please choose Razorpay at checkout
3 Months
No Cost EMI
₹ 6,997
₹ 0
₹ 6,997 per month with Zest Money
Tenure available: 3 Months
Eligibility: All Zestmoney users
Transaction value: Depends on your credit limit
Payment Gateway: Please choose Cashfree at checkout
3 Months
No Cost EMI
3
No Cost EMI
₹ 6,997
₹ 0
EMI Options through Other Credit Cards
American Express
3
14%
₹ 7,161
₹ 492
6
14%
₹ 3,643
₹ 865
9
14%
₹ 2,470
₹ 1,243
12
14%
₹ 1,885
₹ 1,626
18
14%
₹ 1,300
₹ 2,403
24
14%
₹ 1,008
₹ 3,197
Axis Bank
3
No Cost EMI
₹ 6,997
₹ 0
6
No Cost EMI
₹ 3,498
₹ 0
9
14%
₹ 2,470
₹ 1,243
12
14%
₹ 1,885
₹ 1,626
18
15%
₹ 1,309
₹ 2,580
24
15%
₹ 1,018
₹ 3,436
Bank of Baroda
3
No Cost EMI
₹ 6,997
₹ 0
6
No Cost EMI
₹ 3,498
₹ 0
9
13%
₹ 2,460
₹ 1,153
12
13%
₹ 1,875
₹ 1,507
18
15%
₹ 1,309
₹ 2,580
24
15%
₹ 1,018
₹ 3,436
Citi Bank
3
No Cost EMI
₹ 6,997
₹ 0
6
No Cost EMI
₹ 3,498
₹ 0
9
15%
₹ 2,480
₹ 1,334
12
15%
₹ 1,895
₹ 1,744
18
15%
₹ 1,309
₹ 2,580
24
15%
₹ 1,018
₹ 3,436
HDFC Bank
3
No Cost EMI
₹ 6,997
₹ 0
6
No Cost EMI
₹ 3,498
₹ 0
9
15%
₹ 2,480
₹ 1,334
12
15%
₹ 1,895
₹ 1,744
18
15%
₹ 1,309
₹ 2,580
24
15%
₹ 1,018
₹ 3,436
HSBC Bank
3
No Cost EMI
₹ 6,997
₹ 0
6
No Cost EMI
₹ 3,498
₹ 0
9
13.50%
₹ 2,465
₹ 1,198
12
13.50%
₹ 1,880
₹ 1,566
18
13.50%
₹ 1,295
₹ 2,314
ICICI Bank
3
No Cost EMI
₹ 6,997
₹ 0
6
No Cost EMI
₹ 3,498
₹ 0
9
13.99%
₹ 2,470
₹ 1,242
12
13.99%
₹ 1,885
₹ 1,624
18
14.99%
₹ 1,309
₹ 2,578
24
14.99%
₹ 1,018
₹ 3,433
INDUSIND Bank
3
No Cost EMI
₹ 6,997
₹ 0
6
No Cost EMI
₹ 3,498
₹ 0
9
13%
₹ 2,460
₹ 1,153
12
12%
₹ 1,865
₹ 1,389
18
12%
₹ 1,280
₹ 2,050
24
12%
₹ 988
₹ 2,724
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
No Cost EMI
₹ 6,997
₹ 0
6
No Cost EMI
₹ 3,498
₹ 0
9
14%
₹ 2,470
₹ 1,243
12
14%
₹ 1,885
₹ 1,626
18
15%
₹ 1,309
₹ 2,580
24
15%
₹ 1,018
₹ 3,436
RBL Bank
3
No Cost EMI
₹ 6,997
₹ 0
6
No Cost EMI
₹ 3,498
₹ 0
9
15%
₹ 2,480
₹ 1,334
12
15%
₹ 1,895
₹ 1,744
18
15%
₹ 1,309
₹ 2,580
24
15%
₹ 1,018
₹ 3,436
SBI Bank
3
No Cost EMI
₹ 6,997
₹ 0
6
No Cost EMI
₹ 3,498
₹ 0
9
14%
₹ 2,470
₹ 1,243
12
14%
₹ 1,885
₹ 1,626
Standard Chartered Bank
3
No Cost EMI
₹ 6,997
₹ 0
6
No Cost EMI
₹ 3,498
₹ 0
9
14%
₹ 2,470
₹ 1,243
12
14%
₹ 1,885
₹ 1,626
YES Bank
3
No Cost EMI
₹ 6,997
₹ 0
6
No Cost EMI
₹ 3,498
₹ 0
9
14%
₹ 2,470
₹ 1,243
12
14%
₹ 1,885
₹ 1,626
18
15%
₹ 1,309
₹ 2,580
24
15%
₹ 1,018
₹ 3,436
Payment Offers
Snapmint
Tenure available: 3, 6 and 9 months
Eligibility: Above 18 years of age, Credit Card NOT Required
Transaction value: Available on all orders
Payment Gateway: Please choose Snapmint Cardless EMI at checkout
3 Months
(No Cost EMI)
₹ 5,248
₹ 5,248
₹ 0
6 Months
(Low Cost EMI)
₹ 5,248
₹ 2,739
₹ 703
9 Months
(Low Cost EMI)
₹ 5,248
₹ 1,898
₹ 1,364
Axio
Tenure available: 3 or 6 Months
Eligibility: All above 21 years of age
Transaction value: Available on all orders below Rs. 60,000/-
Payment Gateway: Please choose Razorpay at checkout
3 Months
No Cost EMI
₹ 6,997
₹ 0
6 Months
No Cost EMI
₹ 3,498
₹ 0
Bajaj Finance
Tenure available: 3 Months
Eligibility: All Bajaj Finance card owners
Transaction value: All orders above Rs. 4,500/-
Payment Gateway: Please choose Razorpay at checkout
3 Months
No Cost EMI
₹ 6,997
₹ 0
Zest Money
Tenure available: 3 Months
Eligibility: All Zestmoney users
Transaction value: Depends on your credit limit
Payment Gateway: Please choose Cashfree at checkout
3 Months
No Cost EMI
3
No Cost EMI
₹ 6,997
₹ 0
MobiKwik
Cashback Offer
- Select Cashfree at Checkout to transact through Mobikwik
- Get Additional Cashback upto Rs. 500/- on transaction via MobiKwik wallet
- Use Code :- MBK500 on MobiKwik Payment page to avail the additional cashback.
- Transaction to be done through MobiKwik wallet only
- Offer can be availed on minimum transaction of Rs. 1999/-
- Offer can be availed once per user during the campaign
- Offer valid till 30th September '23
- T&C Applied
Club Audiophile
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Chi-Fi
Excellence
Ideal for Audiophiles
These DAC & Amps are designed for discerning music lovers. If audio quality is important to you, a set of DAC & Amps like these would be ideal.
You can expect these DAC & Amps to present you with a refined listening experience. The audio quality exhibited by these DAC & Amps is a beautiful mix of musicality, technical brilliance and high precision.
These DAC & Amps deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!
Ideal for
Indoor Use
For Studio & Professionals
As the name implies, anything branded as studio headphones is designed especially for a studio setting with a particular focus on accuracy and transparency for monitoring and mixing.
These headphones present an accurate image of your music than ordinary headphones, allowing you to hear every nuance and aspect of your music. Therefore, having a good set of studio headphones is just as important as any other gear in your studio.
These headphones provide a fresh perspective to that mix you’ve spent hours mastering and recording, essentially giving you another set of ears.
4.4mm & 4-Pin XLR
Balanced Output
Connect With
3-Pin XLR & RCA
5500mW X 2 @ 32Ω
Power Output
Metal
Build
Volume Controls
If your DAC & Amps include volume controls or volume rockers, you can easily change the volume with a button press or volume knob turn.
DAC & Amps that have volume controls make its operation incredibly simple; turn up the volume on your smartphone or your source devices and then change the volume on DAC & Amps to the desired level.
This design feature allows you to have complete control over the desired volume according to your listening preferences.
UNBOXED
Headphone Zone Certified Unboxed Units
Unboxed units are as good as new products with the product's packaging being unavailable. These products give you the same satisfaction of new products - but at down-to-earth prices. Usually, the product's packaging may have gotten damaged in transit. Customers use a product once or twice and then return it with opened up packaging.
Customer Returns
Returned headphones are fully functional products that have left the warehouse and therefore can no longer be sold as new as their packaging has been opened. The product may have been used once or twice by the customer who returned it.
Transit Damages
Sometimes we receive headphones in damaged packaging due to shipping accidents. These are brand new headphones with cosmetic flaws on the packaging.
Save Upto 15%
Since you won't get the original packaging, we give you a good discount compared to a new headphone.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.
Original Warranty
All unboxed headphones carry the same warranty period as a brand new headphone would.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Unboxed Products or new products.
Unchanged Replacement Policy
Received a defective Unboxed unit? Return it under our Replacement Policy.
All Original Accessories
The unboxed headphones itself comes with all original accessories.
DESCRIPTION
SUPER-CLEAN POWER FOR YOUR HEADPHONES WITH A HIGH-PERFORMANCE NFCA AUDIO CIRCUIT
The Topping A30 Pro is embedded with the redesigned NFCA (Nested Feedback Composite
Amplifier) based audio circuit. This circuit is optimised for stellar performance with super-clean and crisp
output. The A30 Pro is equipped with 10xOPA1656 OP-Amp architecture and UHGF(Ultra High Gain Feedback)
technology to maximise the performance of the A30 Pro. The overall Total Harmonic Distortion + Noise (THD+N)
of the Topping A30 Pro is below 0.00006%. In other words, the Topping A30 Pro restores up to 99.99994%
original sound so you can enjoy your music at pristine quality.
CAPABLE OF DRIVING THE MOST POWER-HUNGRY HEADPHONES WHILE RETAINING THE DYNAMIC RANGE
Topping A30 Pro is an incredibly powerful headphone amplifier. It can power hard-to-drive headphones without any trouble. It outputs up to 6W at 16 ohms of load, 5.5W at 32 ohms, 840mW at 300 ohms, and 420mW at 600 ohms of the output load. Massie output power and margin bring excellent control ability and drive all the demanding headphones with ease. It supports both power-hungry headphones and sensitive IEMs while maintaining a clean audio signal. Thanks to its NFCA-based circuit and UHGF (ultra high gain feedback) technology, the A30 Pro delivers a stunning 145dB of dynamic range. This means that 145dB exists between the lowest and highest volumes of sound it can reproduce, resulting in exceptionally realistic playback.
CLASS-A OPERATION FOR HIGH IMPEDANCE HEADPHONE AND GROUND LOOP ELIMINATING TECHNOLOGY
When the Topping A30 Pro is paired to a headphone with an impedance greater than 250 ohms, it offers complete Class A operation, thanks to the ample quiescent current architecture. When multiple pieces of equipment are operating in conjunction, ground loop noise can occur. Ground loop noise most often manifests as a buzzing or humming sound, which is loud enough to damage speakers or headphones. The Topping A30 Pro solves this issue with a dedicated GND/LIFT switch on the rear panel. When in normal use, set the switch to GND. If you encounter ground loop noise, flick it to LIFT, which will change the ground point of the A30 Pro from its chassis to the equipment it’s connected to, eliminating the noise.
OFFERS A VARIETY OF CONNECTIVITY OPTIONS WITH THREE-STEP GAIN AND INPUT PASSTHROUGH
The Topping A30 Pro is designed to be compatible with various headphones and to enable this, it features 4-Pin XLR + 4.4mm and 6.35mm outputs. You also get RCA and XLR connections for the input stage. The inclusion of these outports allows you to connect virtually any headphone without compromising on functionality or quality. The Topping A30 Pro headphone amp provides Three-Step gain settings with -14dB, 0dB, and +14dB gain modes to switch for use with IEMs or high impedance and full-size over-ears. Just connect your headphones or IEM and leave the rest to the Topping A30 Pro desktop headphone amp. When powered down, the A30 Pro passes the input signal directly to RCA or TRS connections without applying amplification. This allows you to connect active monitors to the A30 Pro and benefit from an outboard DAC with pre-amp functionality without introducing another amp into the chain. This process is called Input Passthrough and elevates the functionality of the Topping A30 Pro tenfolds.
BEST PAIRED WITH THE TOPPING D30 PRO DAC FOR EXCEPTIONAL PERFORMANCE AND CLEAN AUDIO
If you're looking to add a high-quality DAC to your desktop setup with the A30 Pro, do consider the Topping D30 Pro. The Topping A30 Pro and D30 Pro share the exact spatial dimensions, making them easily stackable. At a combined 4” of height, they're modest enough to fit under a monitor, in a desk compartment, or on a space-restricted shelf. The D30 Pro offers an extremely low level of jitters for all kinds of inputs and allows you to utilise the input passthrough capability of the A30 Pro. The pair of Topping A30 Pro and D30 Pro is an excellent choice for the modern music lover looking for a setup that can do it all.
SPECS
| DIMENSION | 17.4cm x 13.8cm x 4.5cm |
| WEIGHT | 870g |
| AMPLIFIER INPUT | 1 X XLR (L+R) 1 X RCA(L+R) |
| HEADPHONE AMPLIFIER OUTPUT | 1 X 6.35mm Headphone Output jack 1 X XLR Headphone Output jack 1 X 4.4mm Headphone Output jack |
| ADAPTER IMPEDANCE | <8 ohm |
| POWER OUTPUT | 6W x2 @ 16Ω THD+N <0.1% 5,500mW x2 @ 32Ω THD+N <0.1% 840mW x2 @300Ω THD+N <0.1% |
| PASS THROUGH OUTPUTS | 1 X 6.35mm TRS (L+R) 1 X RCA (L+R) |
| POWER CONSUMPTION | <0.00006% |
| NOISE | <9.0W |
| THD+N @ A-WEIGHTING | <0.00007% @ 3.5W (32Ω) <0.00006% @ 90mW (300Ω) |
| THD @ 20 Hz-20 kHz 90 kBW | <0.00008% @ 760mW (32Ω) <0.00007% @ 81mW (300Ω) |
| SNR @ MAX Out, 1 kHz,A-WEIGHTING | 145dB |
| SNR @50MV OUT 1 kHz | 104dB |
| DYNAMIC RANGE @1 kHz A-WT | 145dB |
| FREQUENCY RESPONSE | 20 - 40,000Hz (±0.05dB) |
| OUTPUT LEVEL | 34Vpp @ G=L 34Vpp @ G=M 45Vpp @ G=H |
| AP MEASURED NOISE LEVEL @ A-WEIGHTING | <0.7uVrms @ G=L <0.7uVrms @ G=M <1.2 uVrms @ G=H |
| ACTUAL NOISE LEVEL @ A-WEIGHTING | <0.3uVrms @ G=L <0.3uVrms @ G=M <0.9 uVrms @ G=H |
| CHANNEL CROSSTALK | -106dB |
| IMD CCIF @(18 kHz+19KHZ) | -116dB |
| IMD SMPTE @(60HZ+7KHZ) | -110dB@SMPTE4: 1 -115dB@SMPTE1: 1 |
| INPUT SENSITIVITY | 60Vrms @ G=L 12.6Vrms @ G=M 2.7Vrms @ G=H |
| GAIN | -14dB @ G=L 0dB @ G=M 14dB @ G=H |
| OUTPUT IMPEDANCE | <0.1Ω |
| OUTPUT POWER | 6000mW X @ 16Ω THD+N <0.1% 5500mW X @ 32Ω THD+N <0.1% 840mW X @ 300Ω THD+N <0.1% |
| ADAPTER IMPEDANCE | >8Ω |
| THD+N @ A-WEIGHTING | <0.00007% @ 3.2W (32Ω) <0.00006% @ 86mW (300Ω) |
| THD @ 20 Hz-20 kHz 90 kBW | <0.00008% @ 760mW (32Ω) <0.00007% @ 81mW (300Ω) |
| SNR @ MAX Out, 1 kHz,A-WEIGHTING | 140dB |
| SNR @50MV OUT 1 kHz | 104dB |
| DYNAMIC RANGE @1 kHz A-WT | 140dB |
| FREQUENCY RESPONSE | 20 - 40,000Hz (±0.01dB) |
| OUTPUT LEVEL | 6.6Vpp @ G=L 34Vpp @ G=M 45Vpp @ G=H |
| AP MEASURED NOISE LEVEL @ A-WEIGHTING | <0.7uVrms @ G=L <0.7uVrms @ G=M <1.2 uVrms @ G=H |
| ACTUAL NOISE LEVEL @ A-WEIGHTING | <0.3uVrms @ G=L <0.3uVrms @ G=M <1.1 uVrms @ G=H |
| CHANNEL CROSSTALK | -101dB |
| IMD CCIF @(18 kHz+19KHZ) | -116dB |
| IMD SMPTE @(60HZ+7KHZ) | -110dB@SMPTE4: 1 -116dB@SMPTE1: 1 |
| INPUT SENSITIVITY | 12.7Vrms @ G=L 12.7Vrms @ G=M 2.7Vrms @ G=H |
| GAIN | -14dB @ G=L 0dB @ G=M 14dB @ G=H |
| OUTPUT IMPEDANCE | <0.1Ω |
| OUTPUT POWER | 6000mW X @ 16Ω THD+N <0.1% 5500mW X @ 32Ω THD+N <0.1% 840mW X @ 300Ω THD+N <0.1% |
| ADAPTER IMPEDANCE | >8Ω |
| WHAT YOU WILL GET | 1. TOPPING A30 Pro |
| 2. 1 X AC Cable | |
| 3. 1 X 6.35mm To 3.5mm Connector | |
| 4. User Manual | |
| 5. Warranty Card | |
| WHAT YOU WILL NOT GET | 1. Original packaging of TOPPING A30 Pro |
| GENERIC NAME | Headphone Amplifier |
| COUNTRY OF ORIGIN | China |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
Headphone Zone Certified Unboxed Units
Unboxed units are as good as new products with the product's packaging being unavailable. These products give you the same satisfaction of new products - but at down-to-earth prices. Usually, the product's packaging may have gotten damaged in transit. Customers use a product once or twice and then return it with opened up packaging.
Customer Returns
Returned headphones are fully functional products that have left the warehouse and therefore can no longer be sold as new as their packaging has been opened. The product may have been used once or twice by the customer who returned it.
Transit Damages
Sometimes we receive headphones in damaged packaging due to shipping accidents. These are brand new headphones with cosmetic flaws on the packaging.
Save Upto 15%
Since you won't get the original packaging, we give you a good discount compared to a new headphone.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.
Original Warranty
All unboxed headphones carry the same warranty period as a brand new headphone would.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Unboxed Products or new products.
Unchanged Replacement Policy
Received a defective Unboxed unit? Return it under our Replacement Policy.
All Original Accessories
The unboxed headphones itself comes with all original accessories.
SUPER-CLEAN POWER FOR YOUR HEADPHONES WITH A HIGH-PERFORMANCE NFCA AUDIO CIRCUIT
The Topping A30 Pro is embedded with the redesigned NFCA (Nested Feedback Composite
Amplifier) based audio circuit. This circuit is optimised for stellar performance with super-clean and crisp
output. The A30 Pro is equipped with 10xOPA1656 OP-Amp architecture and UHGF(Ultra High Gain Feedback)
technology to maximise the performance of the A30 Pro. The overall Total Harmonic Distortion + Noise (THD+N)
of the Topping A30 Pro is below 0.00006%. In other words, the Topping A30 Pro restores up to 99.99994%
original sound so you can enjoy your music at pristine quality.
CAPABLE OF DRIVING THE MOST POWER-HUNGRY HEADPHONES WHILE RETAINING THE DYNAMIC RANGE
Topping A30 Pro is an incredibly powerful headphone amplifier. It can power hard-to-drive headphones without any trouble. It outputs up to 6W at 16 ohms of load, 5.5W at 32 ohms, 840mW at 300 ohms, and 420mW at 600 ohms of the output load. Massie output power and margin bring excellent control ability and drive all the demanding headphones with ease. It supports both power-hungry headphones and sensitive IEMs while maintaining a clean audio signal. Thanks to its NFCA-based circuit and UHGF (ultra high gain feedback) technology, the A30 Pro delivers a stunning 145dB of dynamic range. This means that 145dB exists between the lowest and highest volumes of sound it can reproduce, resulting in exceptionally realistic playback.
CLASS-A OPERATION FOR HIGH IMPEDANCE HEADPHONE AND GROUND LOOP ELIMINATING TECHNOLOGY
When the Topping A30 Pro is paired to a headphone with an impedance greater than 250 ohms, it offers complete Class A operation, thanks to the ample quiescent current architecture. When multiple pieces of equipment are operating in conjunction, ground loop noise can occur. Ground loop noise most often manifests as a buzzing or humming sound, which is loud enough to damage speakers or headphones. The Topping A30 Pro solves this issue with a dedicated GND/LIFT switch on the rear panel. When in normal use, set the switch to GND. If you encounter ground loop noise, flick it to LIFT, which will change the ground point of the A30 Pro from its chassis to the equipment it’s connected to, eliminating the noise.
OFFERS A VARIETY OF CONNECTIVITY OPTIONS WITH THREE-STEP GAIN AND INPUT PASSTHROUGH
The Topping A30 Pro is designed to be compatible with various headphones and to enable this, it features 4-Pin XLR + 4.4mm and 6.35mm outputs. You also get RCA and XLR connections for the input stage. The inclusion of these outports allows you to connect virtually any headphone without compromising on functionality or quality. The Topping A30 Pro headphone amp provides Three-Step gain settings with -14dB, 0dB, and +14dB gain modes to switch for use with IEMs or high impedance and full-size over-ears. Just connect your headphones or IEM and leave the rest to the Topping A30 Pro desktop headphone amp. When powered down, the A30 Pro passes the input signal directly to RCA or TRS connections without applying amplification. This allows you to connect active monitors to the A30 Pro and benefit from an outboard DAC with pre-amp functionality without introducing another amp into the chain. This process is called Input Passthrough and elevates the functionality of the Topping A30 Pro tenfolds.
BEST PAIRED WITH THE TOPPING D30 PRO DAC FOR EXCEPTIONAL PERFORMANCE AND CLEAN AUDIO
If you're looking to add a high-quality DAC to your desktop setup with the A30 Pro, do consider the Topping D30 Pro. The Topping A30 Pro and D30 Pro share the exact spatial dimensions, making them easily stackable. At a combined 4” of height, they're modest enough to fit under a monitor, in a desk compartment, or on a space-restricted shelf. The D30 Pro offers an extremely low level of jitters for all kinds of inputs and allows you to utilise the input passthrough capability of the A30 Pro. The pair of Topping A30 Pro and D30 Pro is an excellent choice for the modern music lover looking for a setup that can do it all.
| DIMENSION | 17.4cm x 13.8cm x 4.5cm |
| WEIGHT | 870g |
| AMPLIFIER INPUT | 1 X XLR (L+R) 1 X RCA(L+R) |
| HEADPHONE AMPLIFIER OUTPUT | 1 X 6.35mm Headphone Output jack 1 X XLR Headphone Output jack 1 X 4.4mm Headphone Output jack |
| ADAPTER IMPEDANCE | <8 ohm |
| POWER OUTPUT | 6W x2 @ 16Ω THD+N <0.1% 5,500mW x2 @ 32Ω THD+N <0.1% 840mW x2 @300Ω THD+N <0.1% |
| PASS THROUGH OUTPUTS | 1 X 6.35mm TRS (L+R) 1 X RCA (L+R) |
| POWER CONSUMPTION | <0.00006% |
| NOISE | <9.0W |
| THD+N @ A-WEIGHTING | <0.00007% @ 3.5W (32Ω) <0.00006% @ 90mW (300Ω) |
| THD @ 20 Hz-20 kHz 90 kBW | <0.00008% @ 760mW (32Ω) <0.00007% @ 81mW (300Ω) |
| SNR @ MAX Out, 1 kHz,A-WEIGHTING | 145dB |
| SNR @50MV OUT 1 kHz | 104dB |
| DYNAMIC RANGE @1 kHz A-WT | 145dB |
| FREQUENCY RESPONSE | 20 - 40,000Hz (±0.05dB) |
| OUTPUT LEVEL | 34Vpp @ G=L 34Vpp @ G=M 45Vpp @ G=H |
| AP MEASURED NOISE LEVEL @ A-WEIGHTING | <0.7uVrms @ G=L <0.7uVrms @ G=M <1.2 uVrms @ G=H |
| ACTUAL NOISE LEVEL @ A-WEIGHTING | <0.3uVrms @ G=L <0.3uVrms @ G=M <0.9 uVrms @ G=H |
| CHANNEL CROSSTALK | -106dB |
| IMD CCIF @(18 kHz+19KHZ) | -116dB |
| IMD SMPTE @(60HZ+7KHZ) | -110dB@SMPTE4: 1 -115dB@SMPTE1: 1 |
| INPUT SENSITIVITY | 60Vrms @ G=L 12.6Vrms @ G=M 2.7Vrms @ G=H |
| GAIN | -14dB @ G=L 0dB @ G=M 14dB @ G=H |
| OUTPUT IMPEDANCE | <0.1Ω |
| OUTPUT POWER | 6000mW X @ 16Ω THD+N <0.1% 5500mW X @ 32Ω THD+N <0.1% 840mW X @ 300Ω THD+N <0.1% |
| ADAPTER IMPEDANCE | >8Ω |
| THD+N @ A-WEIGHTING | <0.00007% @ 3.2W (32Ω) <0.00006% @ 86mW (300Ω) |
| THD @ 20 Hz-20 kHz 90 kBW | <0.00008% @ 760mW (32Ω) <0.00007% @ 81mW (300Ω) |
| SNR @ MAX Out, 1 kHz,A-WEIGHTING | 140dB |
| SNR @50MV OUT 1 kHz | 104dB |
| DYNAMIC RANGE @1 kHz A-WT | 140dB |
| FREQUENCY RESPONSE | 20 - 40,000Hz (±0.01dB) |
| OUTPUT LEVEL | 6.6Vpp @ G=L 34Vpp @ G=M 45Vpp @ G=H |
| AP MEASURED NOISE LEVEL @ A-WEIGHTING | <0.7uVrms @ G=L <0.7uVrms @ G=M <1.2 uVrms @ G=H |
| ACTUAL NOISE LEVEL @ A-WEIGHTING | <0.3uVrms @ G=L <0.3uVrms @ G=M <1.1 uVrms @ G=H |
| CHANNEL CROSSTALK | -101dB |
| IMD CCIF @(18 kHz+19KHZ) | -116dB |
| IMD SMPTE @(60HZ+7KHZ) | -110dB@SMPTE4: 1 -116dB@SMPTE1: 1 |
| INPUT SENSITIVITY | 12.7Vrms @ G=L 12.7Vrms @ G=M 2.7Vrms @ G=H |
| GAIN | -14dB @ G=L 0dB @ G=M 14dB @ G=H |
| OUTPUT IMPEDANCE | <0.1Ω |
| OUTPUT POWER | 6000mW X @ 16Ω THD+N <0.1% 5500mW X @ 32Ω THD+N <0.1% 840mW X @ 300Ω THD+N <0.1% |
| ADAPTER IMPEDANCE | >8Ω |
| WHAT YOU WILL GET | 1. TOPPING A30 Pro |
| 2. 1 X AC Cable | |
| 3. 1 X 6.35mm To 3.5mm Connector | |
| 4. User Manual | |
| 5. Warranty Card | |
| WHAT YOU WILL NOT GET | 1. Original packaging of TOPPING A30 Pro |
| GENERIC NAME | Headphone Amplifier |
| COUNTRY OF ORIGIN | China |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
Don't sweat it, this
TOPPING - A30 Pro (Unboxed) comes with a 1 Year warranty
from TOPPING that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about TOPPING's warranty in India.
"I like both the pure clean sound of op-amps,the mild distortion of tubes too.Tubes amps are my favorite but I like to alternate back & forth with tubes & the op amp units."
Read MoreThis product is rated 4.9 of 5.0 stars.
It has received 10 reviews.
Customer Reviews
I think there are very few amps out there in this price range that can compete with A30 pro's astounding power output. It's not only powerful, it sounds very, very clean and neutral. Compared to my Aune X1s Pro's amp section, A30 pro sounds a bit more balanced with my beyerdynamic DT880 pro 250 ohm headphones and the treble of my cans sounds much more rounded. It's clean, powerful and has small form factor. It gives my headphones a very good headroom in terms of clean distortion free volume.
Things to note -
1. A30 pro runs a bit hotter than my Aune, not a huge deal, but that's why it has so many ventilation holes on it.
2. The supplied power cable is of Schuko type, so it is unusable in indian sockets. I had to buy a separate 3 pin cable for this amp.
__original.jpg?auto=format)
Hey Rupam, We are happy to hear the positive feedback about this amplifier. Thanks for taking time and sharing it with us. Its good to see that you're loving the sound output after using it with your setup.
Im using this for my Sundara (single ended). Using high gain really improves the dynamic range and separation of sundara (even though mid gain was loud enough).
Connected this to Zen DAC using RCA. Heard using balanced input improves the signal, hence improving output as well, waiting to get an balanced interconnect and try that out as well.
Sound stage is actually little smaller than zen dac's inbuilt amp (with ifi power supply), but noise/distortion and dynamic range are good improvements.
Sound signature is very clean, neutral-warm (not neutral-clinical). Very impactful sound signature.
I guess sound stage and impactful sound are more or less inversely proportional. If one should increase, the other should decrease.
If it had some more sound stage, it would be perfect for me. Hope balanced input and balanced connectors for headphone helps in that.
Other headphones used: DT 770 pro 80ohm, HD599 both sounded better with this. (Even though zen dac is very loud for HD599, this amp still made HD599 much better)
P.S. Make sure to push RCA plugs til the end or else sound quality degrades audibly. Also, sound quality improves after running for about an hour - that's when it reaches its max performance (more impactful, more power, more real)
BTW, the 1/4" adaptor provided with topping has different sound signature than identically looking sundara's 1/4" adaptor to a shockingly audible amount. I feel topping one sounds greater in quality.
But beware I have tweaked my pc for audio at hardware and software/os level (yes that matters) and have tended the best I could to electrical sources (pc, monitor, modem sharing same ground, trying reverse polarity etc.). So, if you haven't done that, the audible difference might be less.
But at this price point, I think everyone should start tweaking to truly listen to its dynamic range.
HI Prasanth,
Wow! that was one hell of a detailed review on the A30 Pro. Well we hope you are loving your purchase & thanks for the note. Keep the music playing buddy!
Works as expected
Thank you for the great review & ratings Sanidhya!
