TOPPING
TOPPING - D90LE
Desktop Digital To Analog Converter (DAC)24 Hours
Chi-Fi
Excellence
Ideal for
Indoor Use
Bluetooth with
LDAC, aptX LL, aptX HD, & AAC
Connect With USB, AES
Coaxial, Optical & I2S
The Topping D90 LE is a highly capable DAC, benefiting from an intelligent and careful design for high performance. It features the latest DA/AD conversion chips, an XMOS interface and an Altera Max II CPLD to deliver a truly remarkable listening experience. When combined with the A90, the combo makes for one of the cleanest DAC & Amp stacks.

A FULLY BALANCED HI-FI DAC COMPILED WITH XMOS, ES9038PRO CHIPS, AND CUSTOMIZED THESYCON ASIO DRIVER
The D90LE features 2nd generation XMOS, USB compatibility for PCM 32bit768kHz and native DSD512, and USB support for up to PCM 32bit768kHz. Your PC will act as a HIFI source with the help of a modified Thesycon ASIO driver (for Windows 10 and above) (MAC does not need a driver to achieve ASIO). The ESS SABRE ES9038PRO, which has a 32-bit Hyper-stream architecture, is used in the D90LE to achieve ultra-high performance. The D90LE's channels are connected in parallel by four conventional balanced channels that improve the D90LE's performance even further. It offers a DAC+preamplifier mode in addition to the DAC mode with a fixed output level. This mode enables control of output volume on the front panel or via the remote control. Each channel is structured in parallel by four standard balanced channels for optimal fidelity and precision. The D90LE's performance has reached a new high, with full-range sound at your fingertips. 126dB@1kHz SINAD, 134dB@1kHz Dynamic range specifications were calculated using the A-weighted method.




NOSE-DIVE INTO THE ULTIMATE HI-RES EXPERIENCE WIRED AND WIRELESS
Topping D90LE supports native decoding up to DSD512 & PCM 768 kHz and 134 dB Dynamic range Hi-Res audio with a wired connection. Ditch the cables, not the quality, with Bluetooth 5.0 transmission wirelessly. Experience rich 24-bit support for lossless codecs. D9OLE has Hi-Res Audio Wireless certification, and it employs the CSR8675 chipset to handle LDAC/AAC/SBC/aptX LL/aptX HD protocols. To get even higher sound quality over Bluetooth, the CSR8675's built-in DAC is bypassed and decoded by the ES9038PRO.

IIS INPUT SUPPORTS UP TO NATIVE DSD512 DECODING
You can use an HDMI cable to transfer the IIS signal directly to the D90LE's ESS9038PRO for better decoding. The IIS input supports PCM 32bit768kHz and native DSD512. The IIS input offers phase settings, DSD channel, and DSD indication pin selection settings compatible with most digital interfaces on the market that output IIS signals through the HDMI interface. Instead of using regular HDMI signals, this capability uses only the HDMI interface to transfer IIS signals. As a result, it cannot connect to a PC, TV, or set-top box through HDMI.

WIDE RANGE OF COMPATIBILITY PLUG AND PLAY SELECTABLE OUTPUTS
D90LE is compatible with Windows 10 and higher, MAC, LINUX, iOS, and Android. You must install and configure the driver only for Windows ASIO apps. The D90LE features a balanced XLR output and a single-ended RCA output. For various applications, you can select "XLR Only," "RCA Only," or "XLR Plus RCA." Selectable XLR 4V/5V and RCA 2V/2.5V outputs: In addition to the more versatile XLR 4V and RCA 2V outputs, XLR 5V and RCA 2.5V outputs are in high demand, and D90LE expands the number of alternatives available to fulfill a range of requirements. More devices can be adapted when XLR 4V and RCA 2V are selected to deliver optimal performance.

EXCEPTIONAL SOUND SIMULATION AND DRIVING CAPABILITIES
The inclusion of the sound modeling capability of tubes and transistors in the D90LE allows a listener to hear three separate performances based on the unique harmonic performance of tubes and transistors. The channel balance can be adjusted in 0.5dB increments within a 10dB range. A90 Discrete is the ideal headphone amplifier for D90LE with a balanced discrete NFCA module, ultra-high-output capability, 0.000055 % ultra-low THD+N, 0.1 Ohm output impedance, wide gain adjustment, and high output voltage to get flawless audio playback with no jitter or distortion. The XMOS 16-core XU216 microcontroller translates high-quality digital data to the analog voltage without distortion. In addition, asynchronous USB audio transfer and a CPLD guarantee jitter of less than -160dB.

PRE-AMPLIFIER FUNCTION
D90LE has a DAC+preamplifier mode which helps you control the volume on the front panel or through remote control. This functionality avoids adding a pre-amplifier to the setup.

THINGS TO BE WEIGHED IN
Unlike traditional parallel connections followed by I/V conversion, the D90LE performs independent I/V conversion for the ES9038PRO's eight channels before connecting them in parallel, resulting in a "4*DAC parallel connection" in terms of sound effects and technology. A CPLD is employed to process the clock and considerably improve the digital signal, so Jitter is less than -160dB regardless of USB, optical coaxial, or AES input.



BRANDISHES A CLASS-LEADING BUILD QUALITY WITH FULLY-OPERATIONAL REMOTE

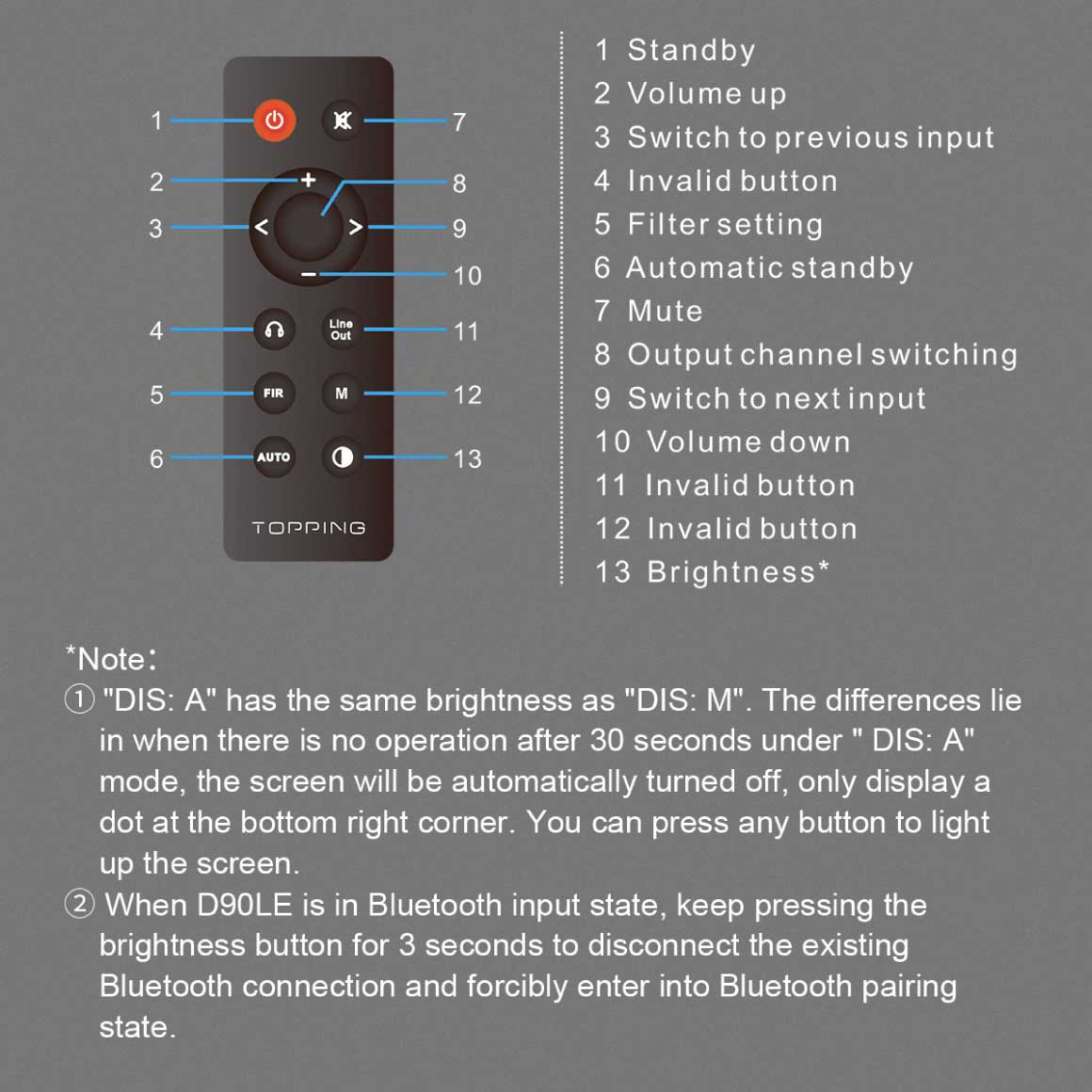

D90LE has a stalwart build quality with dimensions of 4.5cm (H), 22.2cm (L), and 16.0cm (W) with extraordinarily built cables from CANARE composed of two-core braided black gold-plated NEUTRIK. From the comfort of your couch, use the D90LE's capable remote to operate the complete range of settings and functions. Change output modes, volume, and digital filters, among other things.



USB IN | PCM: 44.1 kHz-768kHz/16 bit-32 Bit DSD (Native): DSD64-DSD512 DSD (DoP): DSD64-DSD256 (DoP) MQA: Not Supported |
IIS IN | PCM: 44.1 kHz-768kHz/16 bit-32 Bit DSD (Native): DSD64-DSD512 DSD (DoP): DSD64-DSD256 MQA: Not Supported |
COAX/OPT/AES IN | PCM: 44.1 kHz-192kHz/16 bit-24 Bit DSD (Native): Not supported DSD (DoP): DSD64 MQA: Not Supported |
BT | PCM: AAC/SBC/APTX/APTXLL/APTX HD/LDAC DSD (Native): Not Supported DSD (DoP): Not Supported MQA: Not Supported |
THD+N @ A-WT | <0.00007% @ 1 kHz |
THD+N @ NO-WT 90 kBW | <0.0008% @ 20-20 kHz |
SNR @ A-WEIGHTING | 127dB @ 1 kHz |
DYNAMIC RANGE @ A-WEIGHTING | 127dB @ 1 kHz |
FREQUENCY RESPONSE | 20 Hz-20 kHz(+/- 0.1 dB) 20 Hz-40 kHz(+/- 0. 3dB) |
OUTPUT LEVEL | 2.1Vrms @ 0dBFS(4V Mode) 2.6Vrms @ 0dBFS(5V Mode) |
NOISE @ A-WEIGHTING | <1.3uVrms |
CROSSTALK | -124dB @ 1 kHz |
CHANNEL BALANCE | 0.3dB |
OUTPUT IMPEDANCE | 100 Ω |
THD+N @ A-WEIGHTING | <0.00005% @ 1 kHz |
THD+N @ NO-WT 90 kBW | <0.0003% @ 20-20 kHz |
SNR @ A-WEIGHTING | 134dB @ 1 kHz |
DYNAMIC RANGE @ A-WEIGHTING | 134dB @ 1 kHz |
FREQUENCY RESPONSE | 20 Hz-20 kHz(+/- 0.1 dB) 20 Hz-40 kHz(+/- 0. 3dB) |
OUTPUT LEVEL | 4.2Vrms @ 0dBFS(4V Mode) 5.2Vrms @ 0dBFS(5V Mode) |
NOISE @ A-WEIGHTING | <1.1uVrms |
CROSSTALK | -139dB @ 1 kHz |
CHANNEL BALANCE | 0.3dB |
OUTPUT IMPEDANCE | 100 Ω |

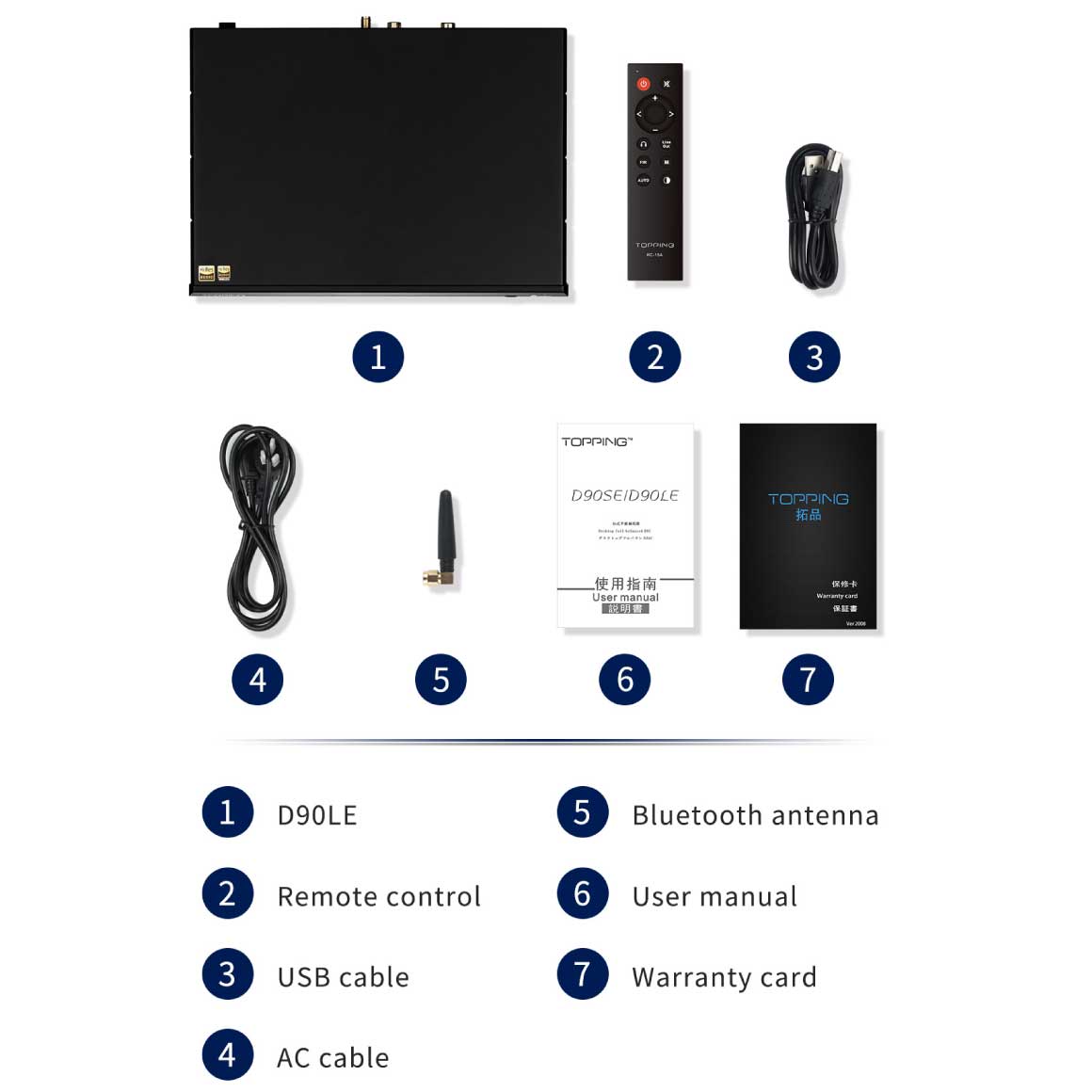

BOX CONTENTS | 1. TOPPING D90LE |
2. Remote Control | |
3. USB Cable | |
4. AC cable | |
5. Bluetooth Antenna | |
6. User Manual | |
7. Warranty Card |


GENERIC NAME | Digital Audio Converter |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
