TOPPING
TOPPING - DX5
Desktop DAC + Amp & Pre-Amp24 Hours
Chi-Fi
Excellence
Ideal for
Indoor Use
Bluetooth with
LDAC, aptX LL, aptX HD & AAC
4-Pin XLR
Balanced Output
ESS SABRE ES9068AS
Dual DAC Chip
Connect With
USB, Optical & Coaxial
1800mW X 2 @ 32 Ω
Power Output
TOPPING INTRODUCES THE ALL-NEW AWARD-WINNING DX5 DAC AND AMPLIFIER
Topping, over the years, has garnered a lot of praise for its high-quality audio
equipment. Recently, Topping released a brand new all-in-one DAC and AMP, the all-new Topping DX5. DX5
offers excellent performance with dual ES9068AS DAC chips achieving an ultra-low THD+N distortion rating.
The Topping DX5 DAC and Amp is a Red Dot Design award winner and Golden Pin Design award winner, offering
you a variety of connection options and also offering MQA(Master-Quality Authenticated) decoding. The latest
DX5 can act as a single device that handles decoding of High-res signals and at the same time provides
powerful amplification allowing the users to drive demanding cans with ease.

EXPERIENCE FLAGSHIP-GRADE PERFORMANCE WITH DUAL ESS SABRE DAC CHIPSET
Topping has leveraged its expertise on the new DX5. Utilising premium components to achieve power-packed performance, the DX5 features a premium Dual DAC Chipset on the latest DX5 DAC and Amp. Topping has equipped two Sabre ES9068AS DAC chips in the DX5 with professional tuning adjustments and attention to detail, the DX5 provides flagship-grade performance with low THD+N ratings and high SNR ratings. The THD+N is 0.00009%, the dynamic range is 128dB, and the noise is <2.0uVrms. This dual DAC chipset unlocks performance to the next level and allows you to enjoy your favourite music in pristine sound quality with the Topping DX5 by your side.


BUILT-IN NFCA AMPLIFICATION ARCHITECTURE WITH TWO GAIN SETTINGS
Topping DX5 is designed with an NFCA headphone amplification circuitry. In recent times, the NFCA amplification circuitry was implemented in NX7 Portable Amp and the L50 Desktop Amp, both of these are highly-successful products by Topping. With this specially-designed NFCA amplification circuitry, the DX5 provides you with enough juice to drive even demanding headphones with ease. Even at a 300Ω high-impedance level, the DX5 provides up to 250mW of clean power. This NFCA circuit also presents ultra-low noise and distortion. With 125dB SNR and 1800mW x2 @32Ω of output power, it pairs perfectly with high-sensitivity IEMs and high-impedance full-sized headphones. The DX5 also offers two gain settings - low gain and High gain, which greatly expand the headphones' adaptation.


EMBEDDED WITH XMOS CHIP AND BLUETOOTH CONNECTIVITY FOR HI-RES PLAYBACK
Topping has equipped the latest DX5 DAC and Amp with the new XU216 16-core USB
processor from XMOS. It supports high-resolution PCM and DSD signal decoding over USB connections. DX5
decodes 32-Bit/768kHz PCM and native DSD512 with great precision and clarity, ensuring accurate and neutral
sound. The DX5 from Topping also supports Bluetooth connectivity with the latest Qualcomm QCC 5125 Bluetooth
chip. With its balanced architecture and a dedicated Bluetooth antenna, DX5 supports all the latest wireless
transmission codecs like LDAC (24bit 96kHz), AptX HD, AptX LL, AptX, SBC and AAC, ensuring sound quality
that is equal to or better than CD quality. To achieve the greatest sound possible, the DX5’s Bluetooth
input signal bypasses the QCC5125’s built-in DAC chip and gets decoded by the dual ESS chips.




MULTIPLE OPERATION MODES AND CONNECTIVITY OPTIONS WITH MQA SUPPORT

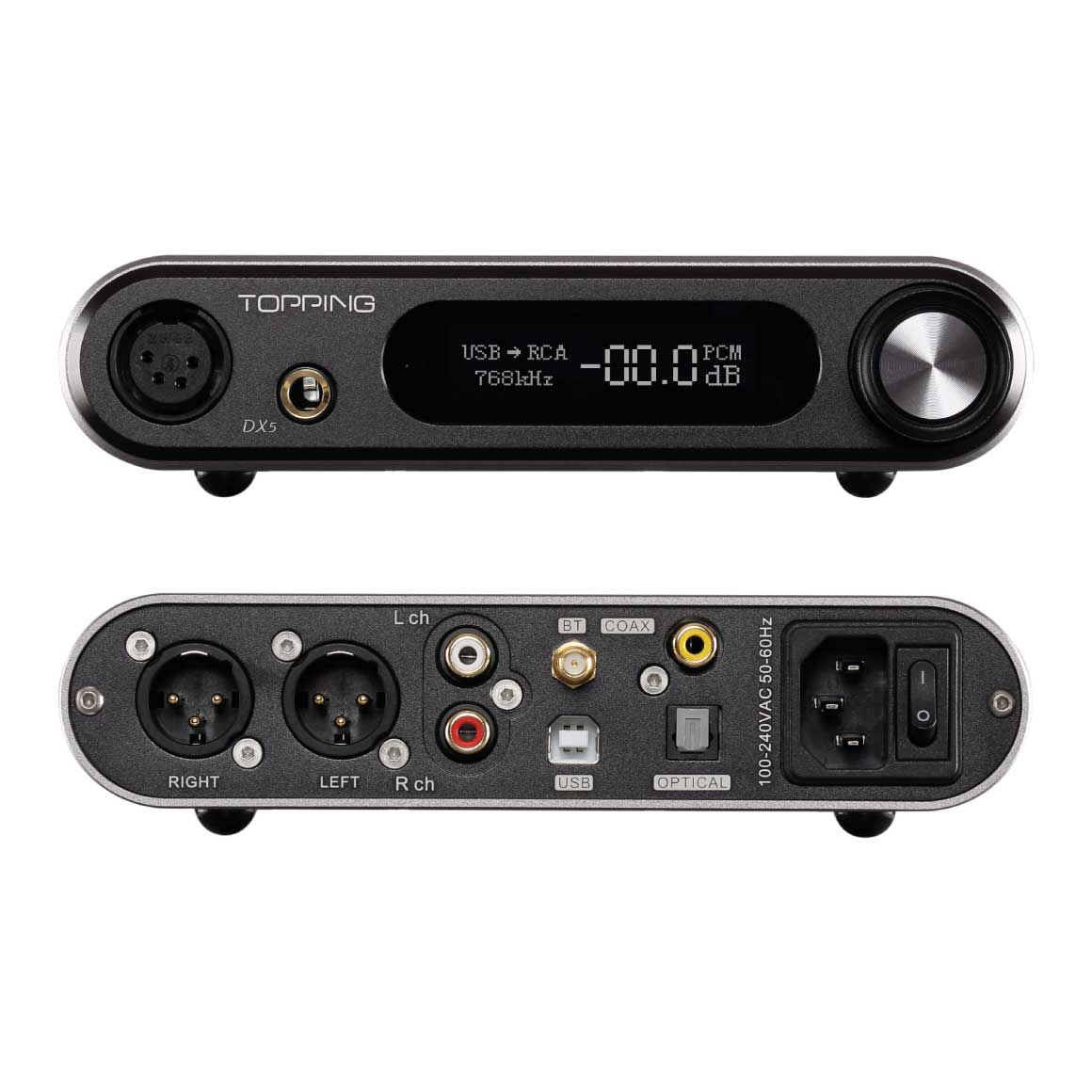

The latest Topping DX5 offers multiple connectivity options. For input, you can use
USB, Coaxial, Optical, or even Bluetooth. As for output, you have the 6.35mm single-ended headphone jack and
4-pin XLR balanced headphone jack on the front and XLR balanced and RCA single-ended on the rear. You can
use the Topping DX5 in different output modes based on your usage. It supports DAC-only mode, Pre-Amp mode,
Headphone Amp mode and Headphone Amp + Line out mode. You can also use it to give line-out simultaneously
from both RCA and XLR ports. With multiple high-end inputs, you can connect a Macbook, PC, or other sources
via USB. Connect game consoles, phones, and players via Bluetooth or coaxial. Watch movies and TV via
optical. Master-Quality Authenticated(MQA) decoding is fully supported on the Topping DX5. It not only
supports MQA over the USB Connection but also with Digital Coaxial and Optical Inputs supports full MQA
decoding.


BUNDLED WITH A RICH SET OF ACCESSORIES TO GET YOU STARTED OF THE BOX
The Topping DX5 is designed and manufactured to offer the ultimate audio listening experience. To enable this, the Topping DX5 comes bundled with an array of accessories to help you operate the DX5 with ease. In the box, you get a dedicated remote control, to operate the DX5 and change the required settings without having to be near the device. You also get a Bluetooth antenna that can be attached to the rear panel to offer seamless Bluetooth connectivity. Topping has also provided a 6.35mm to 3.5mm adaptor to pair with your headphones. The inclusion of these is well thought out and elevates the user experience when operating the Topping DX5.



USB IN | PCM: 44.1kHz - 768kHz / 16bit - 32bit DSD (Native): DSD64 - DSD512 DSD (DoP): DSD64 - DSD256 MQA: Full decode |
OPT/COAX IN | PCM: 44.1kHz - 192kHz / 16bit - 24bit DSD (Native): Not supported DSD (DoP): DSD64 MQA: Full decode |
BT IN | PCM: AAC/ SBC/ APTX/ APTX LL/ APTX HD/ LDAC DSD (Native): Not supported DSD (DoP): Not supported MQA: Not supported |
THD+N @1KHZ (A-WT) | RCA: <0.00010% XLR: <0.00009% |
THD @20-20KHZ 90KBW | RCA: <0.0005% XLR: <0.0002% |
SNR @1KHZ (A-WT) | RCA: 125dB XLR: 128dB |
DYNAMIC RANGE @1KHZ (A-WT) | RCA: 125dB XLR: 128dB |
FREQUENCY RESPONSE | RCA/XLR: 20Hz-20kHz (±0.1dB) 20Hz-40kHz (±0.3dB) |
OUTPUT LEVEL | RCA: 2.1Vrms @0dBFS XLR: 4.2Vrms @0dBFS |
NOISE @A-WT | RCA: <1.5uVrms XLR: <2.0uVrms |
CHANNEL CROSSTALK | RCA: -130dB @1kHz XLR: -140dB @1kHz |
CHANNEL BALANCE | RCA: 0.3dB XLR: 0.3dB |
OUTPUT IMPEDANCE | RCA/XLR: 50Ω |
THD+N @1KHZ (A-WT) | <0.00010% @145mW (32Ω) <0.00009% @15mW (300Ω) |
THD @20-20KHZ 90KBW | <0.00050% @145mW (32Ω) <0.00020% @15mW (300Ω) |
SNR @MAX OUT 1KHZ (A-WT) | 125dB @1kHz |
DYNAMIC RANGE @1kHz (A-WT) | 125dB @1kHz |
FREQUENCY RESPONSE | 20Hz - 20kHz (±0.1dB) 20Hz - 40kHz (±0.3dB) |
OUTPUT LEVEL | 6Vpp @ G=L 25Vpp @ G=H |
NOISE @A-WT | <1.7uVrms @ G=L <5.5uVrms @ G=H |
CHANNEL CROSSTALK | -114dB @1kHz |
GAIN | G=L 6.7dB (Vrms/FS) G=H 19dB (Vrms/FS) |
CHANNEL BALANCE | 0.3dB |
OUTPUT IMPEDANCE | <0.1Ω |
OUTPUT POWER | 1800mW x 2 @32Ω THD+N <1% 1000mW x 2 @64Ω THD+N <1% 250mW x 2 @300Ω THD+N <1% |
LOAD IMPEDANCE | >8Ω |
THD+N @1KHZ (A-WT) | <0.00010% @145mW (32Ω) <0.00009% @15mW (300Ω) |
THD @20-20KHZ 90KBW | <0.00050% @145mW (32Ω) <0.00030% @15mW (300Ω) |
SNR @MAX OUT 1KHZ (A-WT) | 125dB @1kHz |
DYNAMIC RANGE @1kHz (A-WT) | 125dB @1kHz |
FREQUENCY RESPONSE | 20Hz - 20kHz (±0.1dB) 20Hz - 40kHz (±0.3dB) |
OUTPUT LEVEL | 6Vpp @ G=L 25Vpp @ G=H |
NOISE @A-WT | <1.7uVrms @ G=L <5.5uVrms @ G=H |
CHANNEL CROSSTALK | -114dB @1kHz |
GAIN | G=L 6.7dB (Vrms/FS) G=H 19dB (Vrms/FS) |
CHANNEL BALANCE | 0.3dB |
OUTPUT IMPEDANCE | <0.1Ω |
OUTPUT POWER | 1800mW x 2 @32Ω THD+N <1% 1000mW x 2 @64Ω THD+N <1% 250mW x 2 @300Ω THD+N <1% |
LOAD IMPEDANCE | >8Ω |

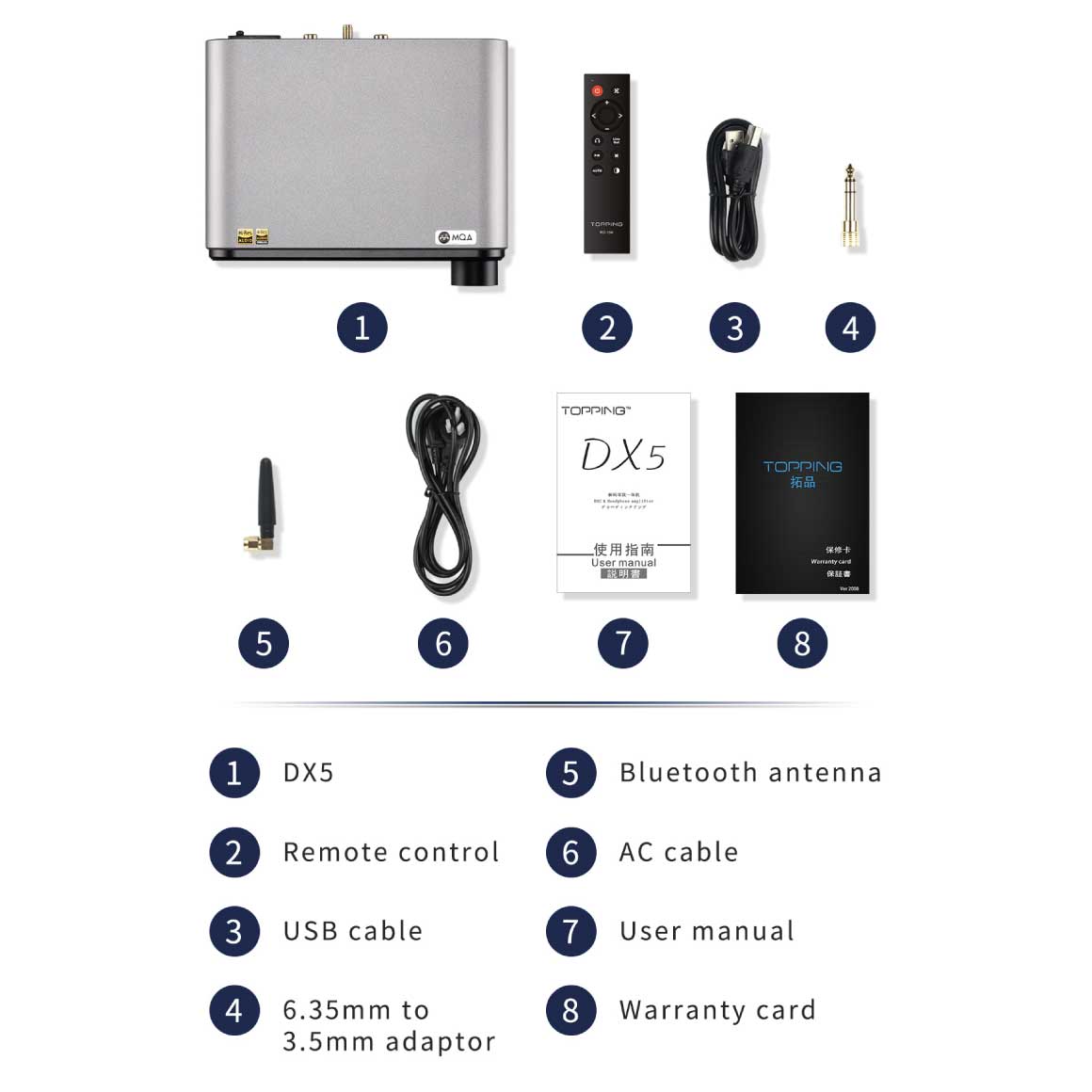

BOX CONTENTS | 1. TOPPING DX5 |
2. Remote Control | |
3. USB Cable | |
4. 6.35 mm To 3.5 mm adaptor | |
5. Bluetooth Antenna | |
6. AC Cable | |
7. User Manual | |
8. Warranty Card |


GENERIC NAME | Headphone Amplifier |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
