Cayin - N3Ultra
Portable Digital Audio PlayerGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 17,112
₹ 1,338
₹ 1,079
6
Low Cost EMI
₹ 8,726
₹ 2,358
₹ 1,907
9
15.99%
₹ 5,932
₹ 3,390
12
15.99%
₹ 4,536
₹ 4,436
18
15.99%
₹ 3,143
₹ 6,566
24
15.99%
₹ 2,448
₹ 8,750
HDFC Bank
3
Low Cost EMI
₹ 17,113
₹ 1,339
₹ 1,079
6
Low Cost EMI
₹ 8,726
₹ 2,359
₹ 1,907
9
16%
₹ 5,932
₹ 3,392
12
16%
₹ 4,536
₹ 4,438
18
16%
₹ 3,143
₹ 6,571
24
16%
₹ 2,448
₹ 8,756
SBI Bank
3
Low Cost EMI
₹ 17,127
₹ 1,381
₹ 1,111
6
Low Cost EMI
₹ 8,702
₹ 2,210
₹ 1,780
9
15%
₹ 5,908
₹ 3,177
12
15%
₹ 4,513
₹ 4,155
18
16%
₹ 3,143
₹ 6,571
24
16%
₹ 2,448
₹ 8,756
Axis Bank
3
Low Cost EMI
₹ 17,113
₹ 1,339
₹ 1,079
6
Low Cost EMI
₹ 8,726
₹ 2,359
₹ 1,907
9
16%
₹ 5,932
₹ 3,392
12
16%
₹ 4,489
₹ 3,872
18
16%
₹ 3,143
₹ 6,571
24
16%
₹ 2,448
₹ 8,756
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 17,057
₹ 1,171
6
14%
₹ 8,677
₹ 2,061
9
16%
₹ 5,932
₹ 3,392
12
16%
₹ 4,536
₹ 4,438
18
16%
₹ 3,143
₹ 6,571
24
16%
₹ 2,448
₹ 8,756
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 17,113
₹ 1,339
6
16%
₹ 8,726
₹ 2,359
9
16%
₹ 5,932
₹ 3,392
12
16%
₹ 4,536
₹ 4,438
18
16%
₹ 3,143
₹ 6,571
24
16%
₹ 2,448
₹ 8,756
RBL Bank
3
13%
₹ 17,029
₹ 1,087
6
14%
₹ 8,677
₹ 2,061
9
15%
₹ 5,908
₹ 3,177
12
15%
₹ 4,513
₹ 4,155
18
15%
₹ 3,119
₹ 6,146
24
15%
₹ 2,424
₹ 8,184
Standard Chartered Bank
3
13%
₹ 17,029
₹ 1,087
6
13%
₹ 8,652
₹ 1,913
9
14%
₹ 5,885
₹ 2,962
12
14%
₹ 4,489
₹ 3,872
INDUSIND Bank
3
14%
₹ 17,057
₹ 1,171
6
14%
₹ 8,677
₹ 2,061
9
15%
₹ 5,908
₹ 3,177
12
15%
₹ 4,513
₹ 4,155
18
15%
₹ 3,119
₹ 6,146
24
15%
₹ 2,424
₹ 8,184
HSBC Bank
3
12.50%
₹ 17,015
₹ 1,045
6
12.50%
₹ 8,640
₹ 1,839
9
13.50%
₹ 5,873
₹ 2,854
12
13.50%
₹ 4,478
₹ 3,731
18
13.50%
₹ 3,084
₹ 5,513
YES Bank
3
13%
₹ 17,029
₹ 1,087
6
13%
₹ 8,652
₹ 1,913
9
14%
₹ 5,885
₹ 2,962
12
14%
₹ 4,489
₹ 3,872
18
15%
₹ 3,119
₹ 6,146
24
15%
₹ 2,424
₹ 8,184
Bank of Baroda
3
13%
₹ 17,029
₹ 1,087
6
14%
₹ 8,677
₹ 2,061
9
14%
₹ 5,885
₹ 2,962
12
15%
₹ 4,513
₹ 4,155
18
15%
₹ 3,119
₹ 6,146
24
16%
₹ 2,448
₹ 8,756
American Express
3
14%
₹ 17,057
₹ 1,171
6
14%
₹ 8,677
₹ 2,061
9
14%
₹ 5,885
₹ 2,962
12
14%
₹ 4,489
₹ 3,872
18
15%
₹ 3,119
₹ 6,146
24
15%
₹ 2,424
₹ 8,184
Talk to a Headphone Guru
Club Audiophile
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Why is special
Why we love this
Why it sounds
Chi-Fi
Excellence
Ideal for Audiophiles
These DAPs are designed for discerning music lovers. If audio quality is important to you, DAPs like these would be ideal.
You can expect these DAPs to present you with a refined listening experience. The audio quality exhibited by these DAPs is a beautiful mix of musicality, technical brilliance and high precision.
These DAPs deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!
Best Suited for Portable Use
For those who value them, being able to carry their favourite DAP when they are on the move is invaluable.
These DAPs offer the ultimate portability experience without sacrificing sound quality. If you’re someone who appreciates cutting-edge engineering, quality sound and portability, then look no further.
Designed to be trusty companions, these DAPs are cleverly engineered with the latest technology to offer the ultimate combination of portability & Hi-Fidelity!
Upto 13.5 Hours of
Battery Life
4.4mm
Balanced Output
Upto 600mW @32Ω
Power Output
AKM AK4493SEQ
Dual DAC Chip
Metal
Build
Upto 1TB
of Storage
Battery Capacity of
4500mAH
DESCRIPTION

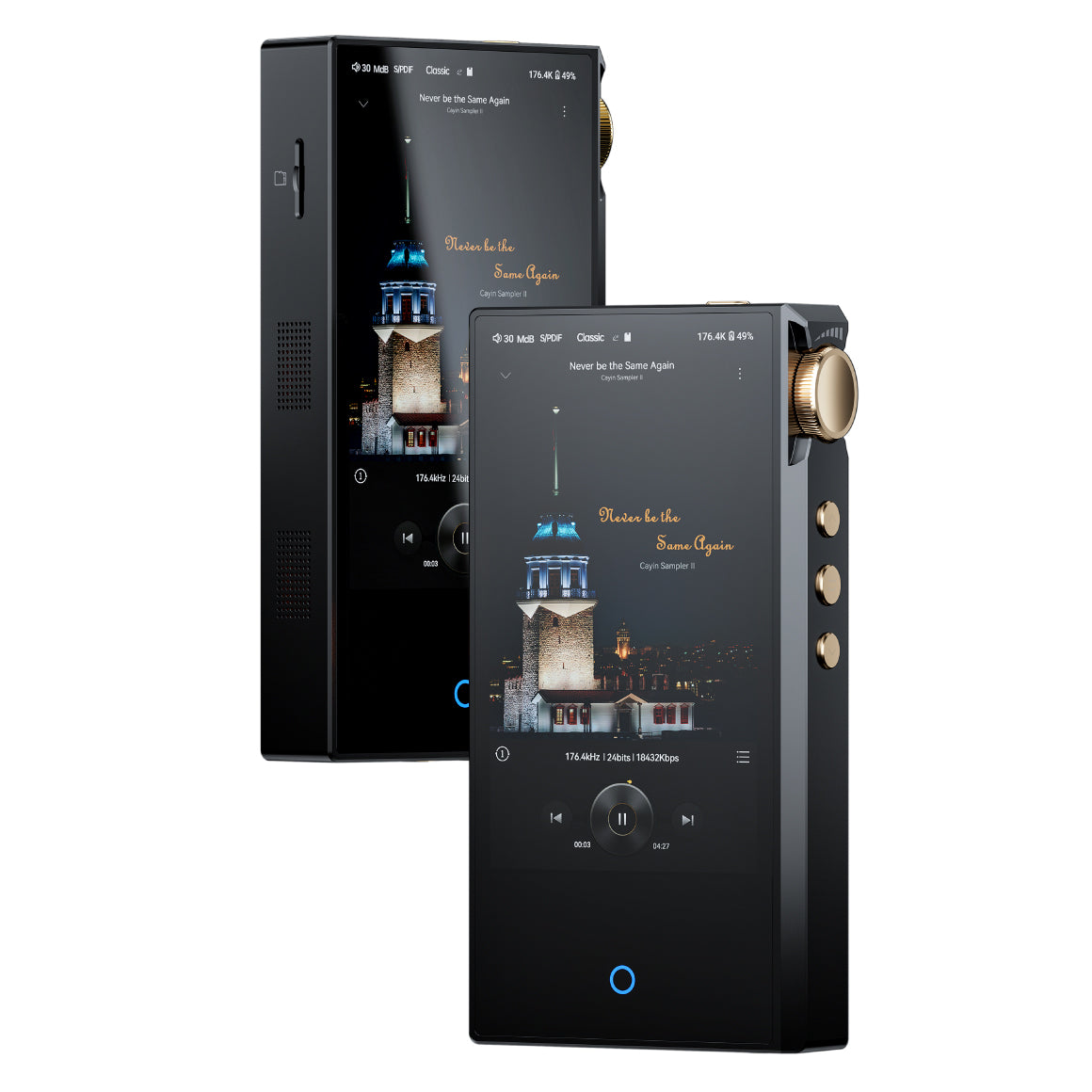

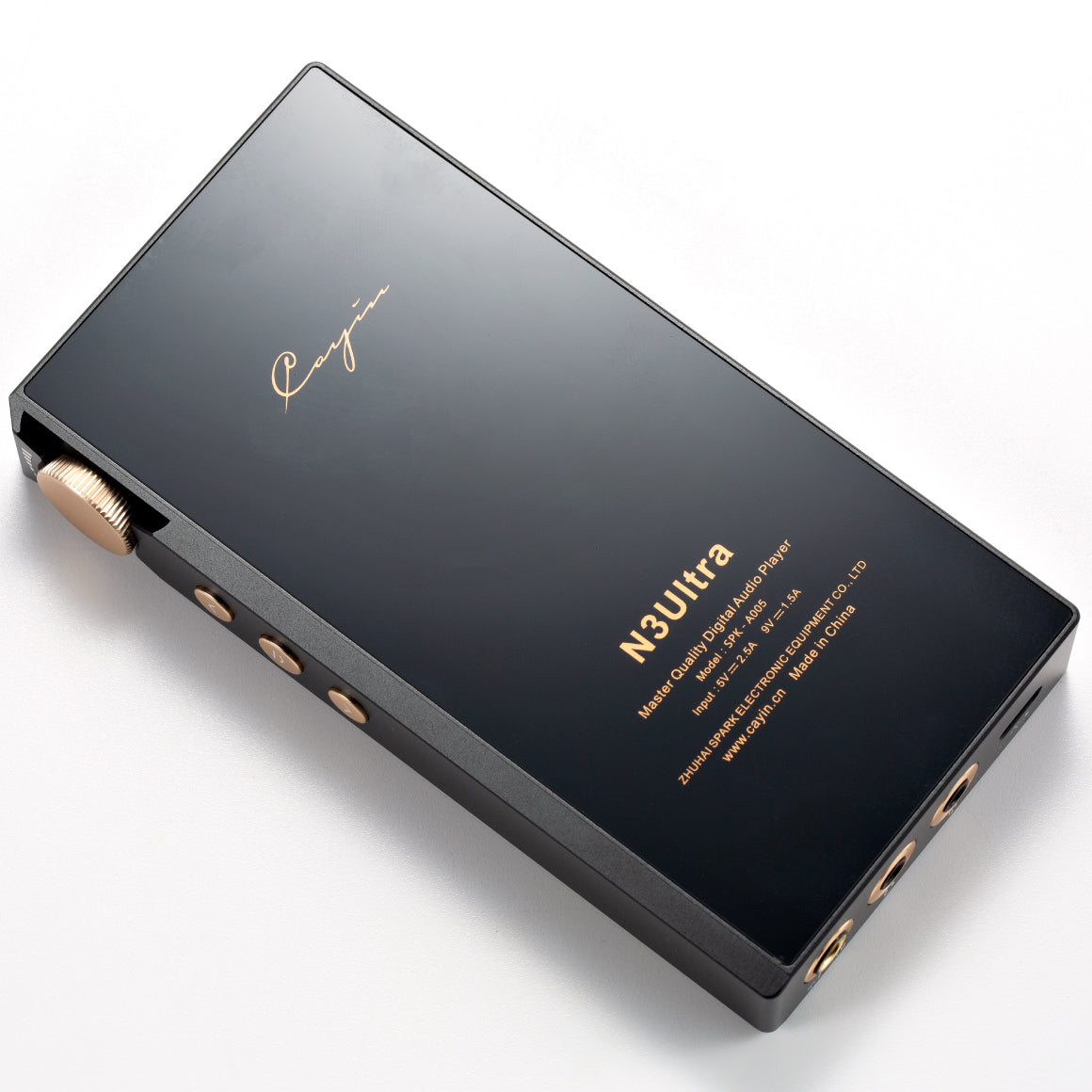

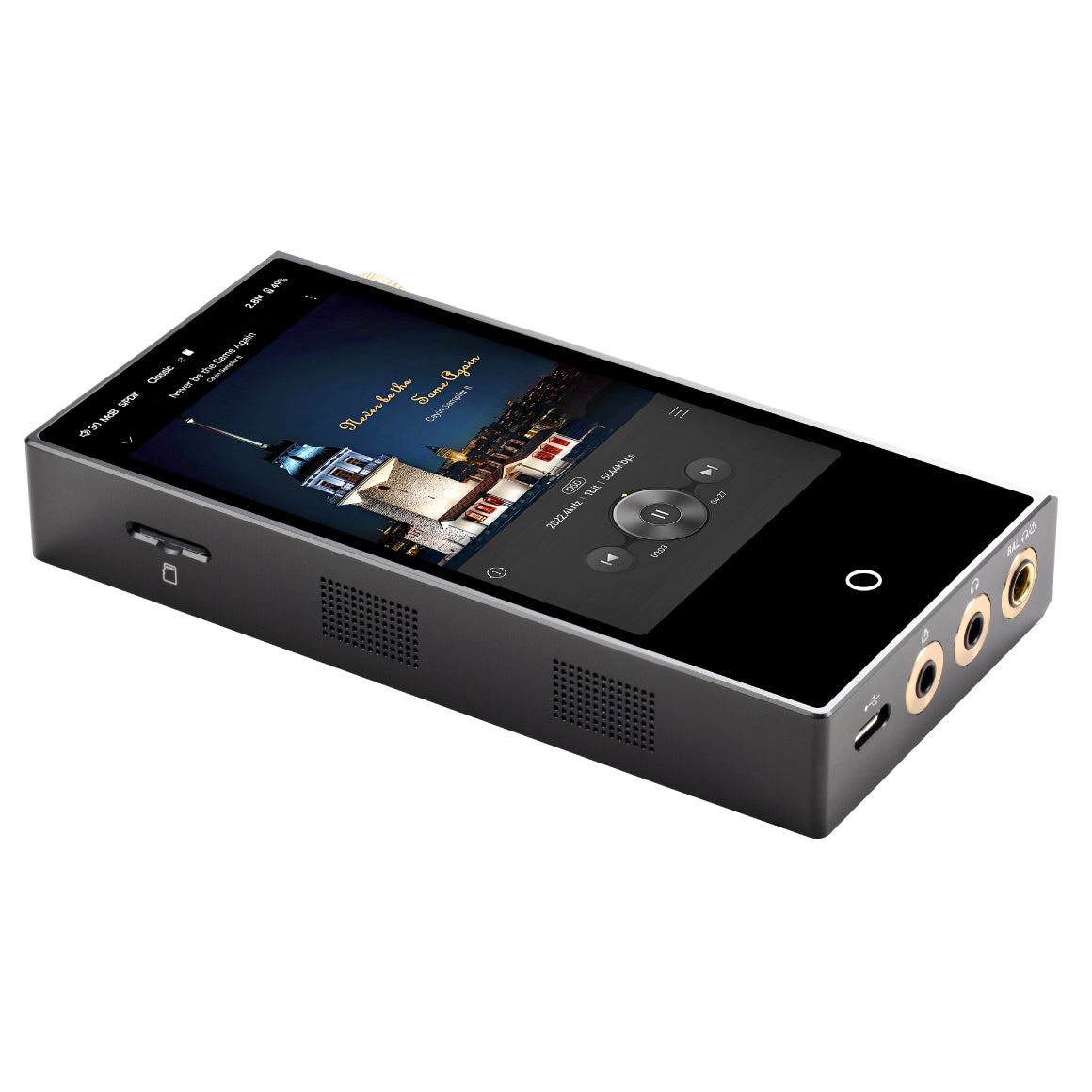

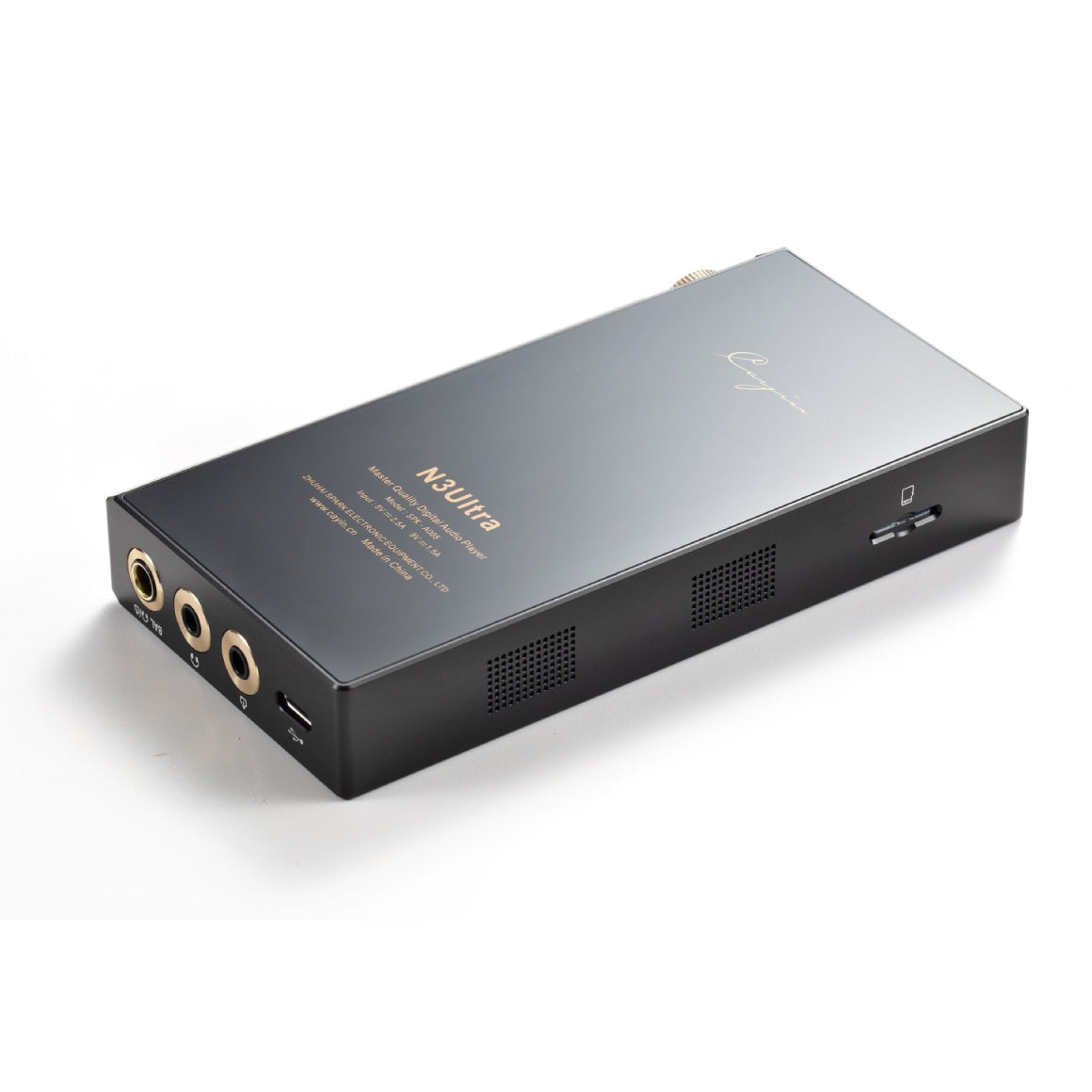

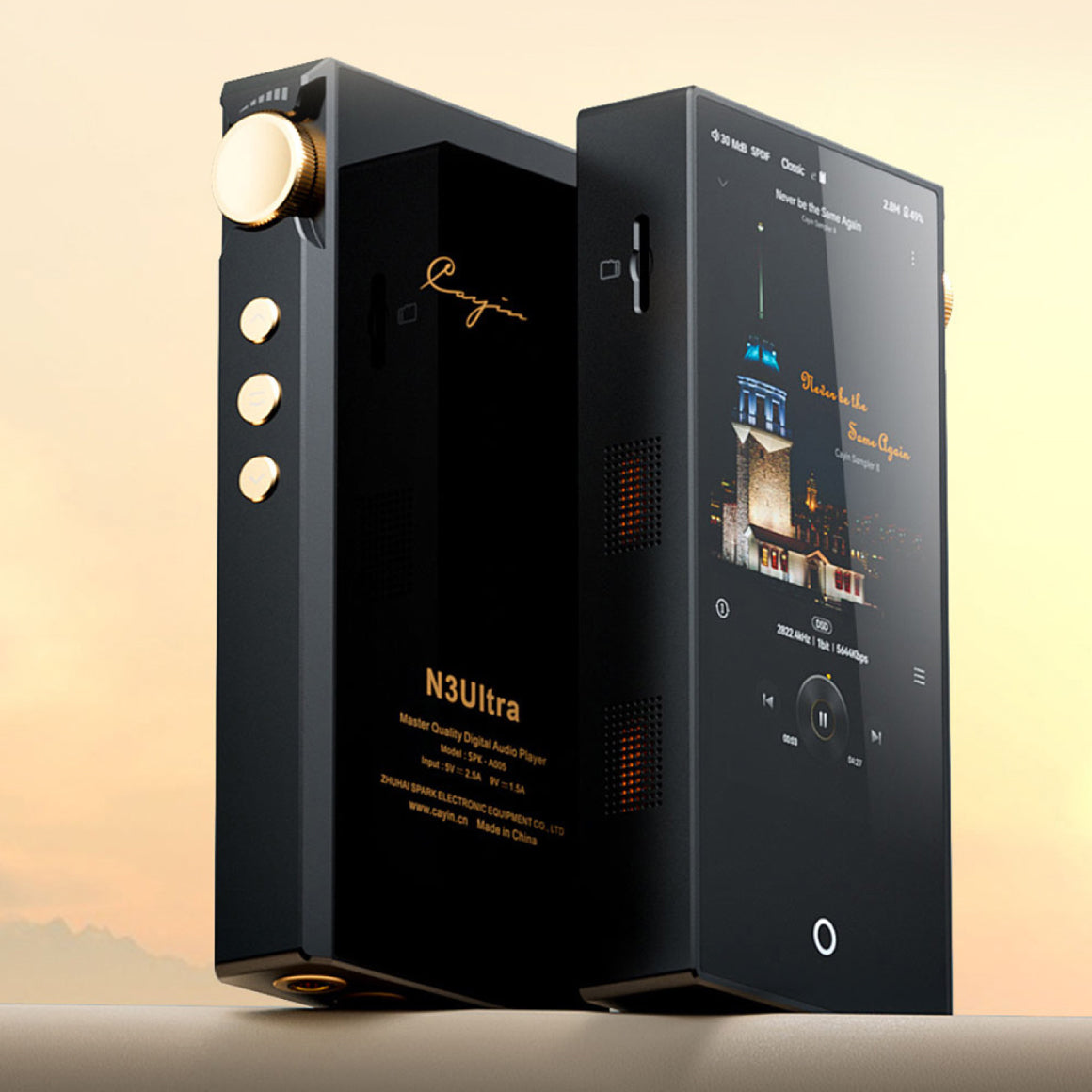

PRESENTING THE CAYIN N3ULTRA - THE ALL-NEW ON-THE-GO MUSIC COMPANION
Cayin launches a digital audio player, the all-new N3Ultra. Crafted with meticulous attention to detail, this portable music player is designed with high-performance components to deliver an exceptional on-the-go music listening experience. The Cayin N3Ultra houses vintage JAN6418 vacuum tubes, providing a warm and rich sound signature. Its dual AK4493SEQ DAC chips ensure high-resolution audio playback, supporting formats up to DSD512 and PCM 768kHz/32Bit. It also features a precision volume controller, customizable parametric EQ, and versatile headphone and line-level outputs that cater to individual preferences, offering a personalized audio journey. This portable excellence provides fast-charging capability and long battery life and is compatible with amplifiers, active speakers, and DAC setups. It is a versatile audio device and an indispensable companion for music enthusiasts seeking uncompromising audio quality and control.

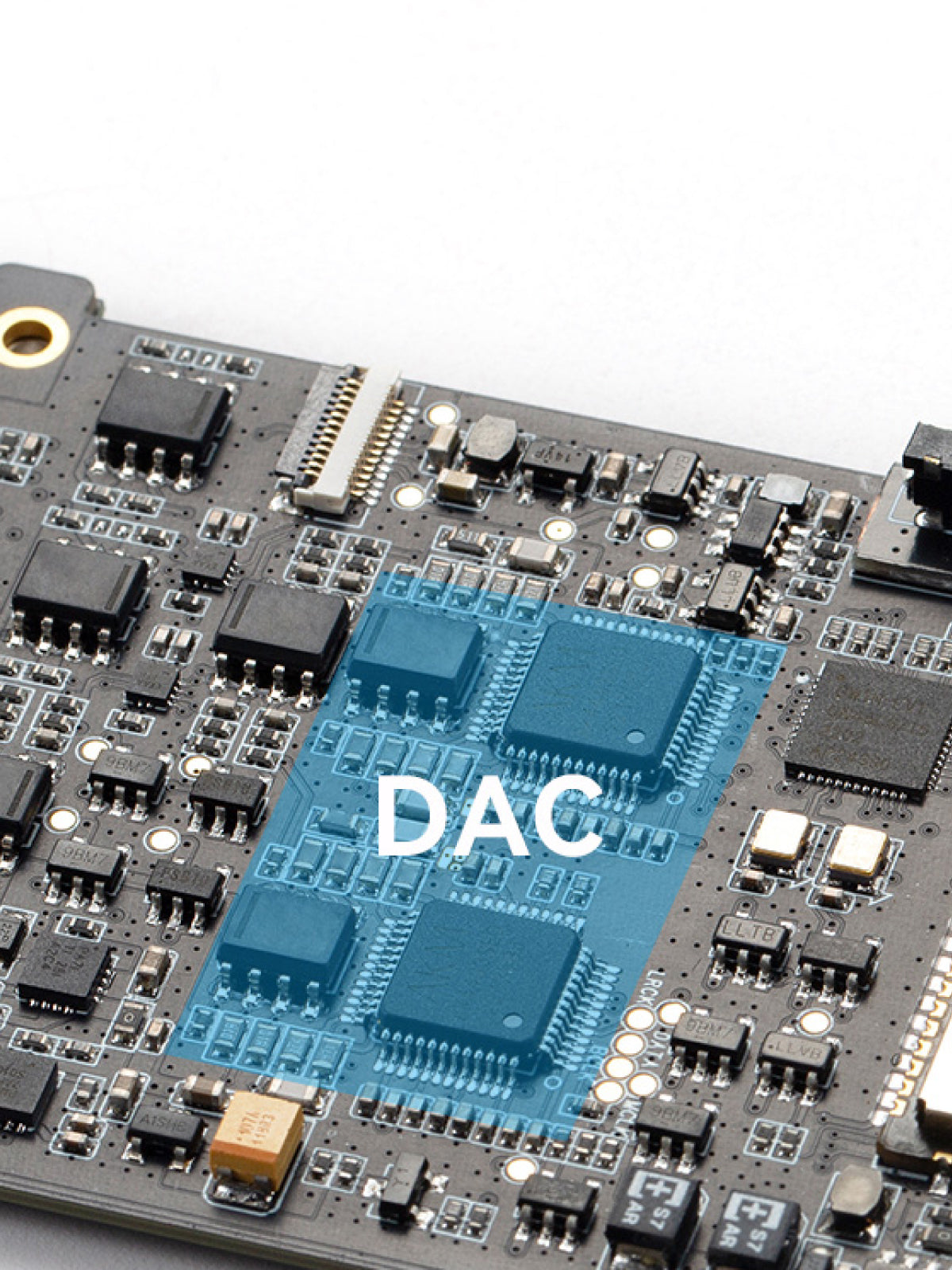

EQUIPPED WITH DUAL AK4493SEQ CHIPSETS FOR EXCEPTIONAL DECODING PERFORMANCE
Cayin has equipped the N3Ultra with exceptional DAC from AKM technologies. The AK4493SEQ chipset had earned its name in the audio-fidelity realm for its capability to deliver detailed, natural sound with clarity and fidelity. The Cayin N3Ultra supports high-resolution audio decoding formats like DSD512 and PCM 768kHz/32Bit, allowing you to listen to music in its purest form. The dual AK4493SEQ chipsets and analog circuits work independently in each channel, ensuring that your Cayin N3Ultra efficiently reduces crosstalk, enhancing audio clarity and stereo separation. The dual AK4493SEQ chipsets in the Cayin N3Ultra operate in Mono mode in fully differential output, providing precise and detailed sound reproduction. This thoughtful design contributes towards a more immersive and lifelike music listening experience with your Cayin N3Ultra.

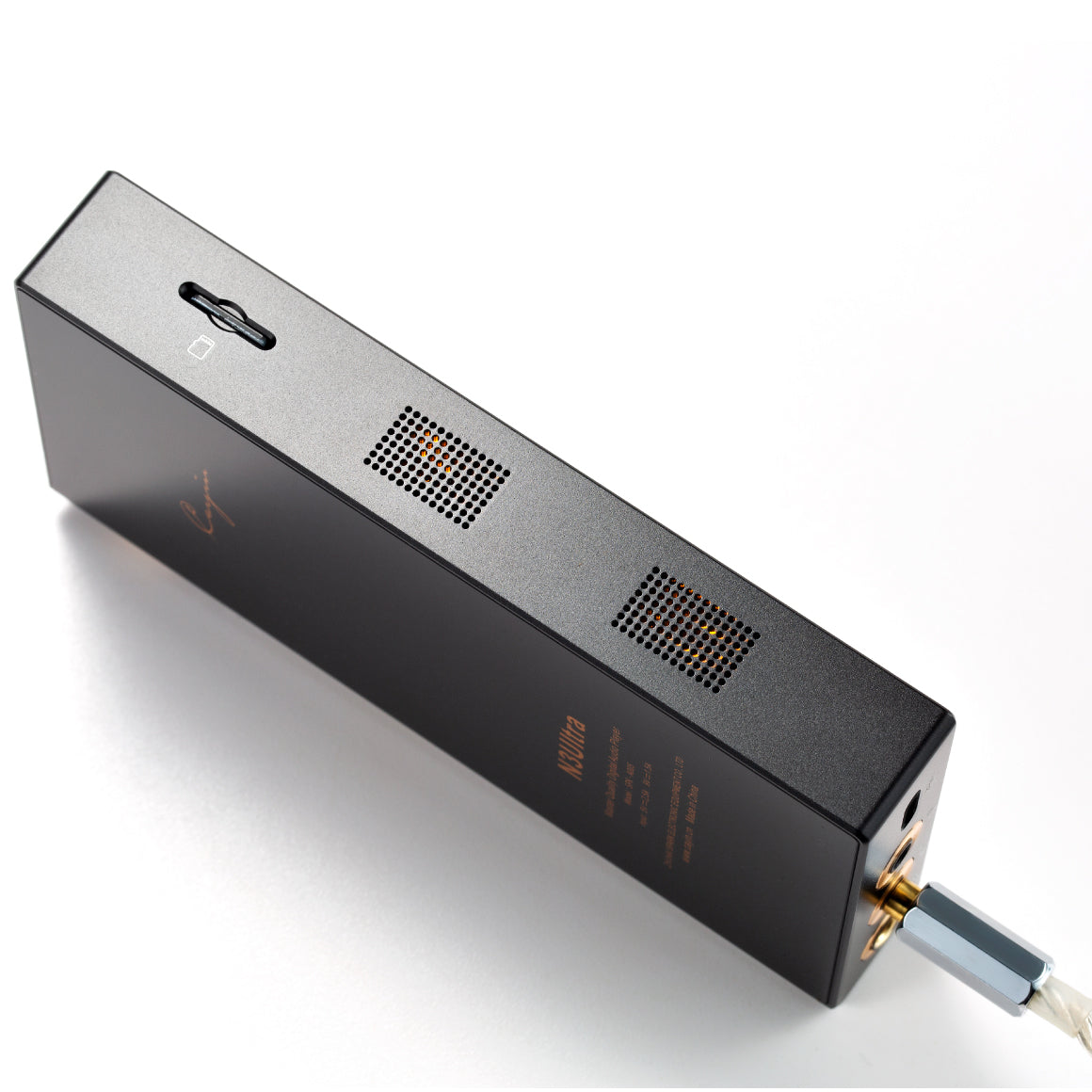

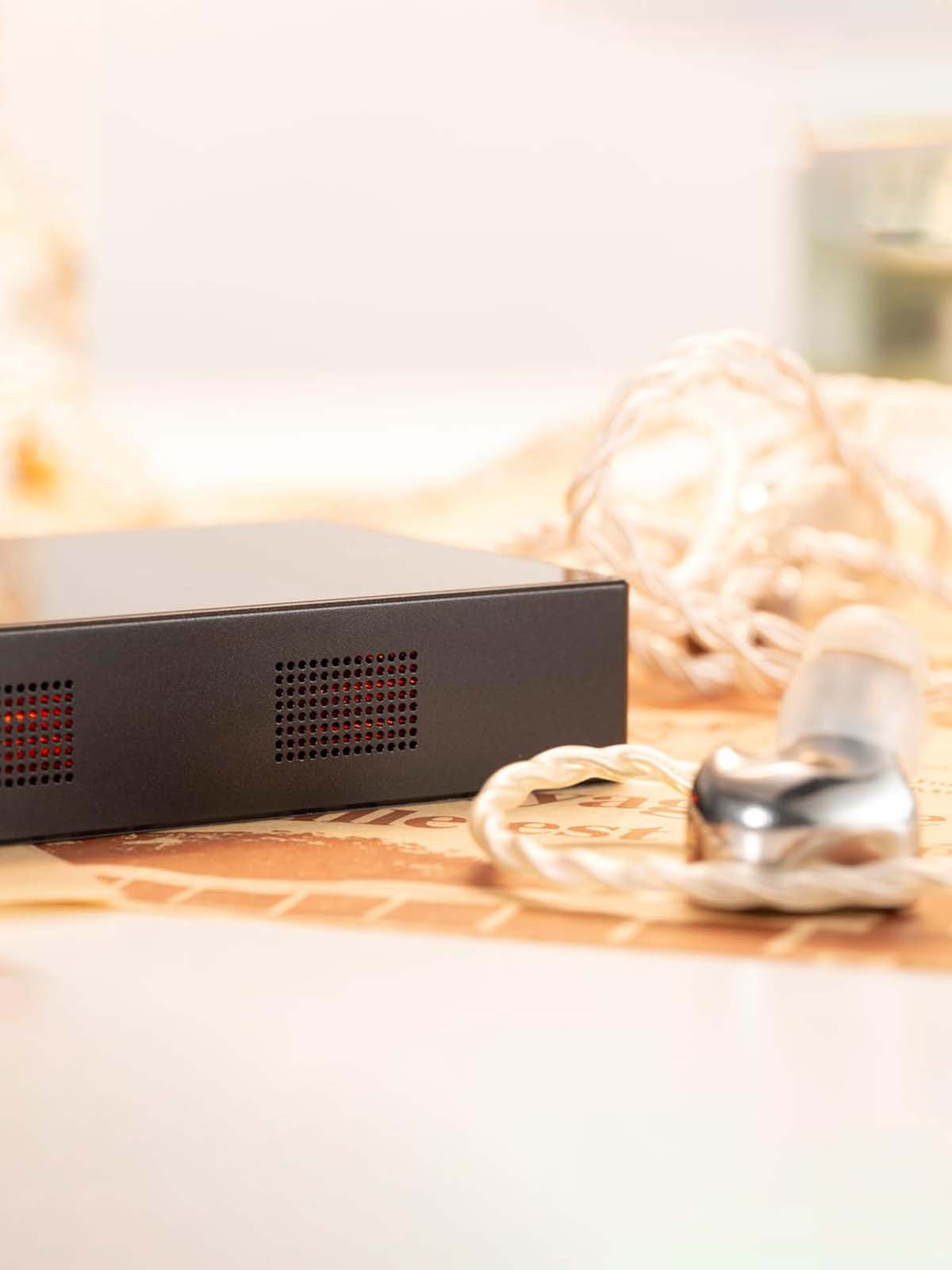

POWERFUL AMPLIFICATION CAPABILITIES WITH MILITARY-GRADE NOS VACUUM TUBES
Cayin's expertise in tube amplifier engineering is evident in the N3Ultra, which features vintage JAN6418 vacuum tubes and Raytheon military-grade NOS tubes. The former vintage tube amps aim to provide a classic tube sound with rich overtones. And the military-grade NOS tubes from Raytheon ensure high-quality analog outputs across all channels. Unlike traditional setups, the N3Ultra equips Cayin's 3rd generation vacuum tube technology in a two-stage timbre circuit. These tubes enhance the low gain voltage amplification and driving capability. This setup allows you to choose from three distinct timbre options - Classic Tube for a warm and full-bodied sound, Modern Tube for a lively soundstage with impressive linearity and Solid-State for a balanced and clear audio experience. The Cayin N3Ultra caters to your preferences with these sound customisation characteristics, giving you an authentic music listening experience.
CUSTOMIZE THE SOUND OF YOUR MUSIC ALONGWITH PRECISE VOLUME CONTROL AND PEQ ADJUSTMENTS
The Cayin N3Ultra digital audio player provides a unique level of customization through its tube amps, offering three distinct sound signatures. With options like classic tube timbre for a warm and rich sound, modern tube timbre for a lively and linear soundstage and solid-state timbre for a balanced and clear audio experience. Along with this, it features precise volume control and accurate sound-delivering components, along with customizable features. It equips the JRC NJW1195A four-channel volume controller, known for its low noise and distortion, ensuring high-quality sound output. The Cayin N3Ultra also features two accusilicon AS318 femtosecond oscillators, reducing jitter and maintaining signal accuracy with ultra-low phase noise (-100dBC) for an authentic listening experience. The volume control chip minimizes digital artefacts and enhances musicality during playback. Also with precise volume control, the Cayin N3Ultra provides 10-band parametric EQ customization, allowing you to fine-tune sound according to your preferences and listening style taste.

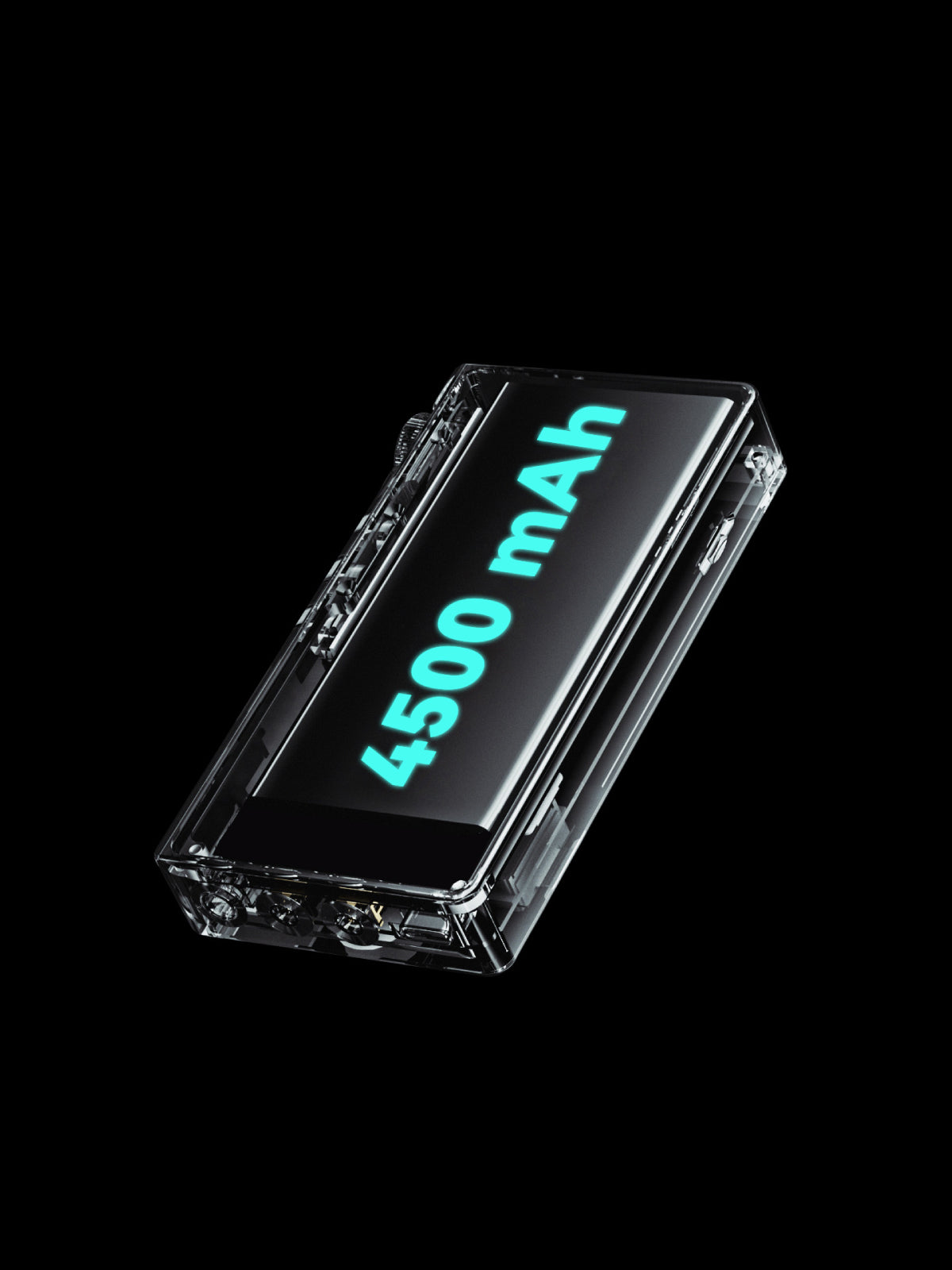

EMBEDDED WITH A MASSIVE 4500MAH BATTERY AND ANDROID-BASED OPERATING SYSTEM
The compact yet powerful Cayin N3Ultra provides a robust battery life with its 3.85V 4500mAH Lithium battery. This efficient power management system provides a playback time of up to 11.8 hours with 3.5mm single-ended IEM in solid-state timbre and 7.6 hours with 4.4mm balanced IEM in vacuum tube timbre. It supports fast charging with QC3.0, allowing you to charge from 20% to 80% in around 1 hour, ensuring minimal downtime. The Cayin N3Ultra runs on an Android-based system with a Qualcomm 425 CPU, delivering a smooth and responsive user interface. Along with all its high-performance features and components, the portable Cayin N3Ultra supports up to 1TB storage expansion via TF card and OTG USB.

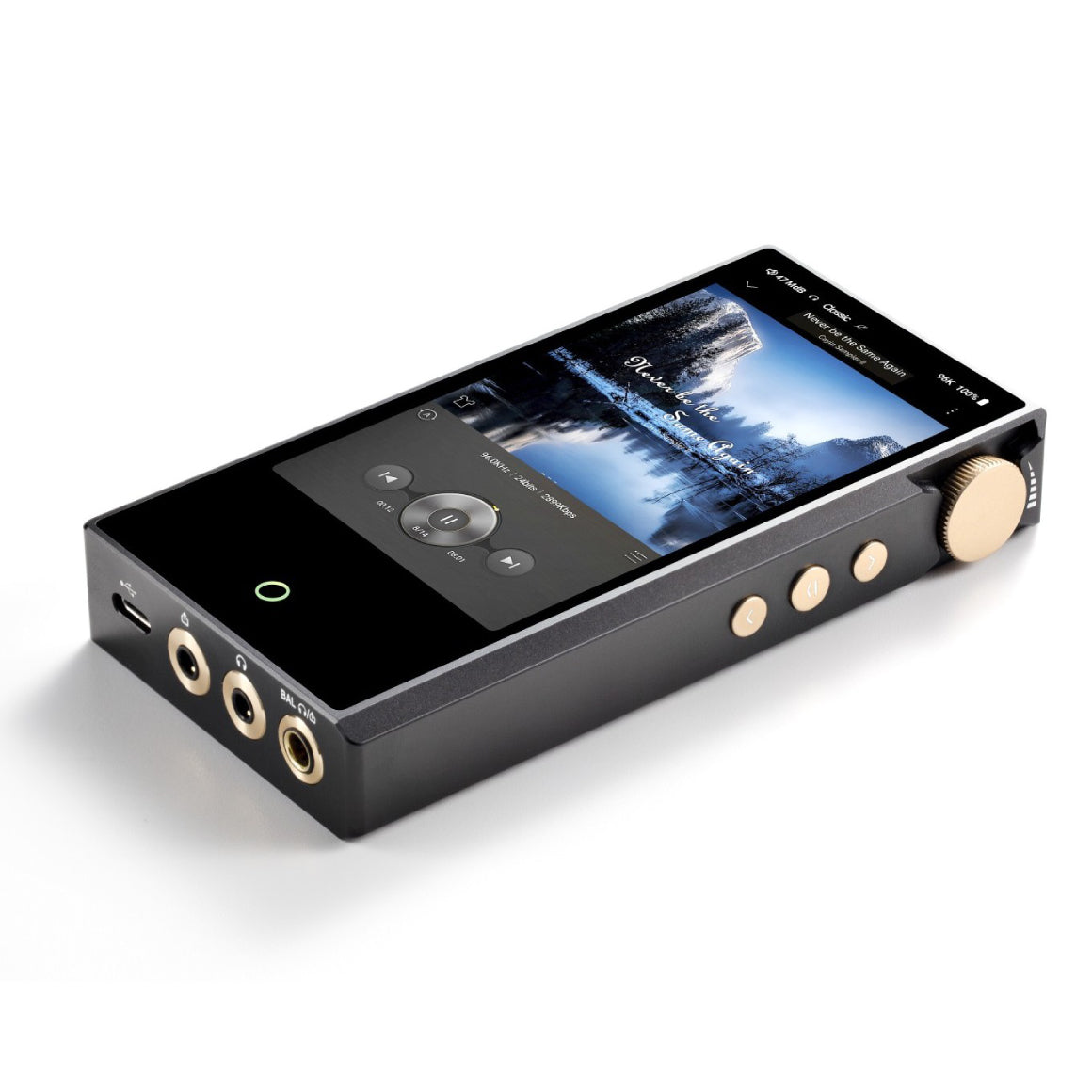

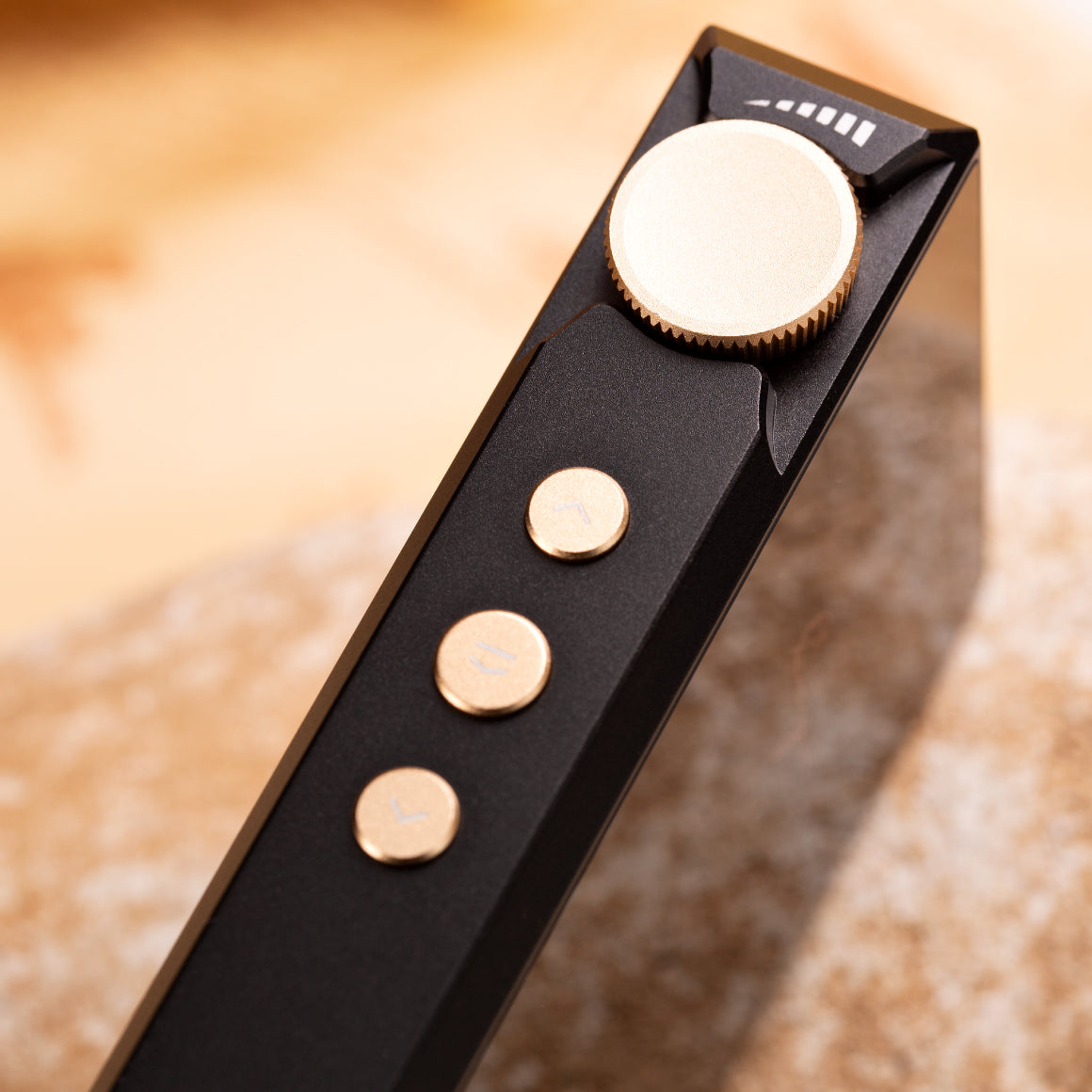

OFFERS EASY CONTROLS AND SMART INDICATOR FOR ELEVATED USER EXPERIENCE

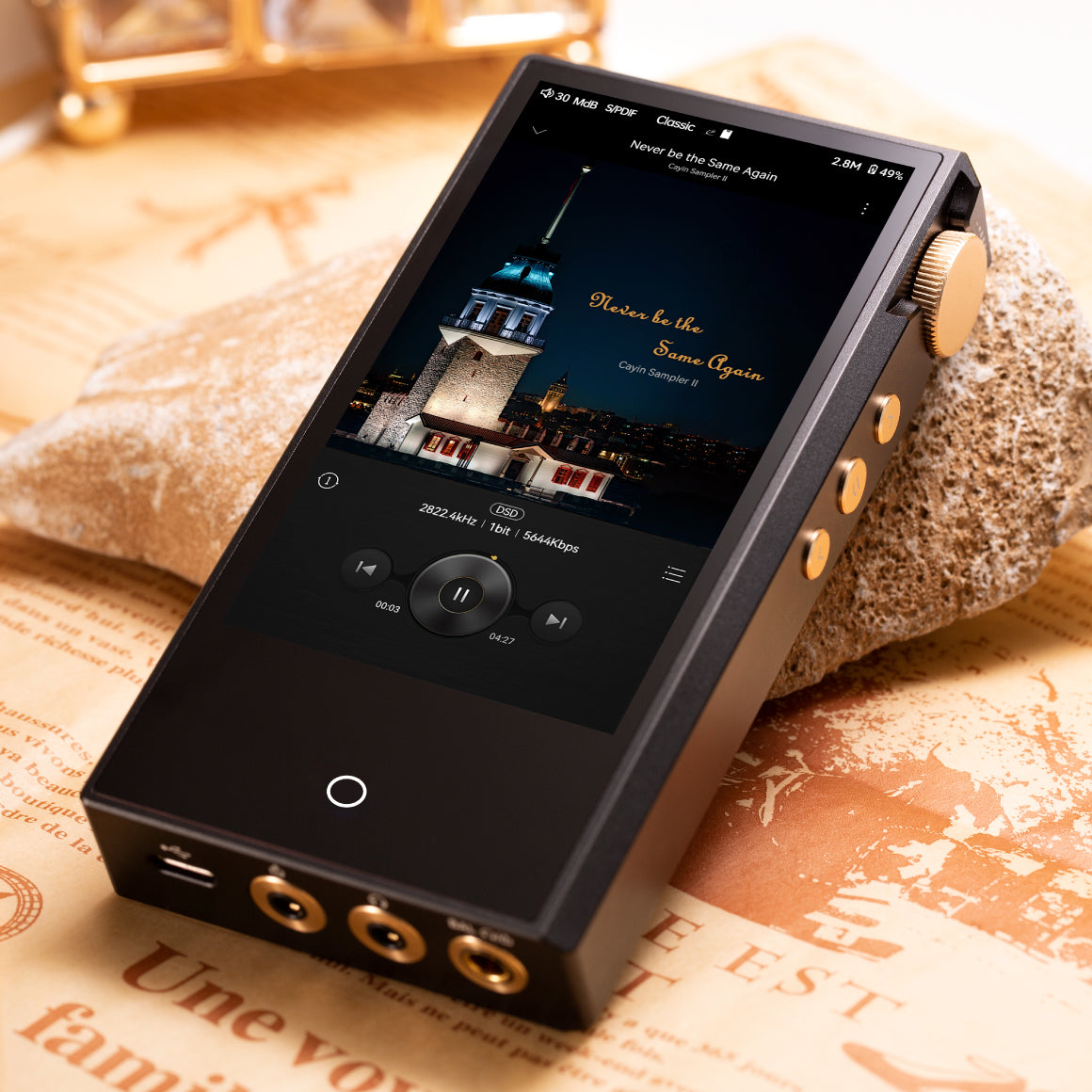

For a user-friendly experience, the Cayin N3Ultra features a 4.1" 720x1280 responsive touch screen, physical knobs and buttons for intuitive operation, all in a compact and lightweight design. It also equips a glowing HOME button functioning as a sampling rate indicator. To ensure seamless navigation, it includes a BACK key for easy access to files and menus. Above all, to showcase visual design appeals complementing the CNC precision build, the Cayin N3Ultra features a laser-drilled side-mounted tube window, adding a warm glow to enhance the immersive musical experience during playback.

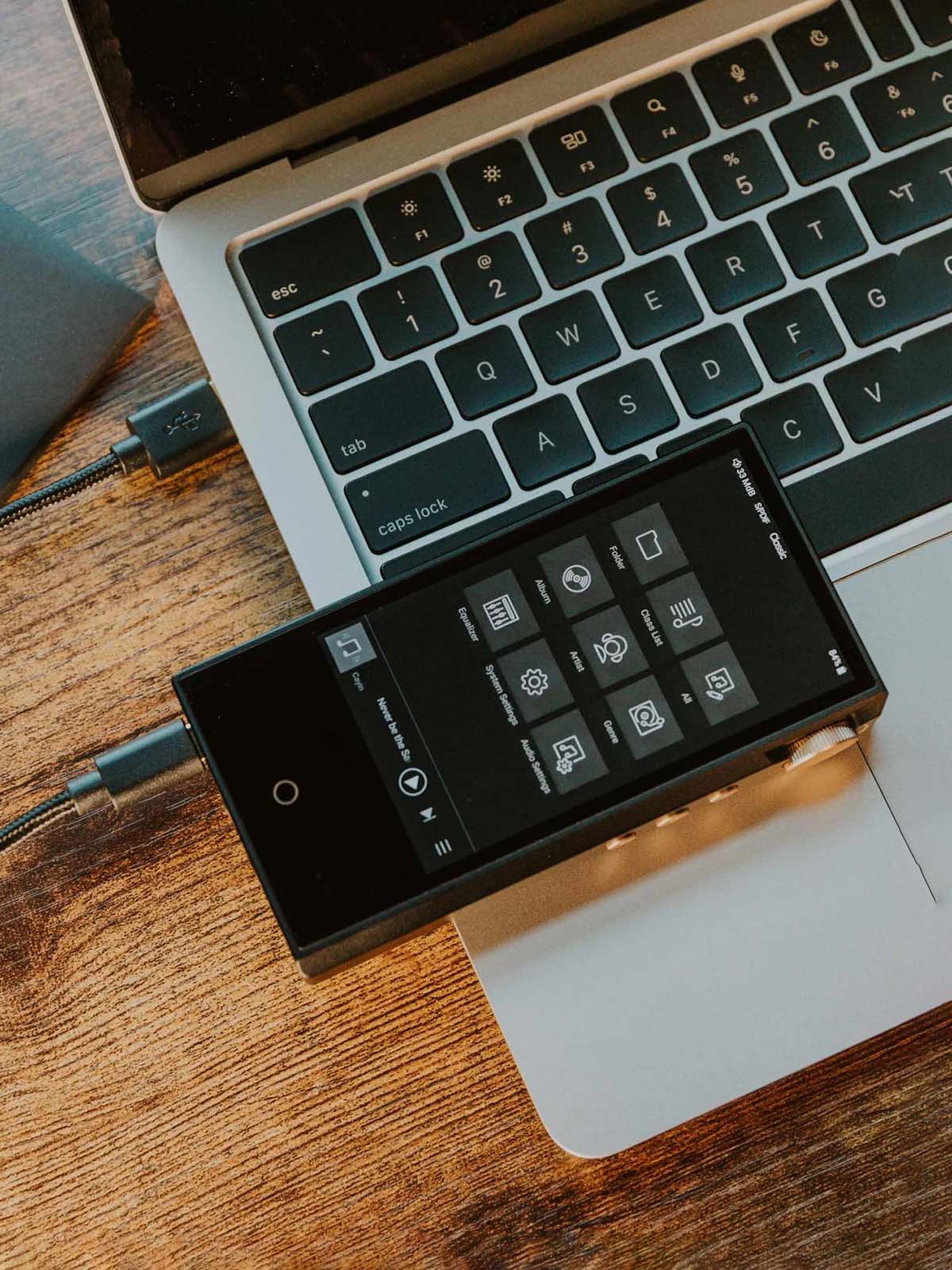

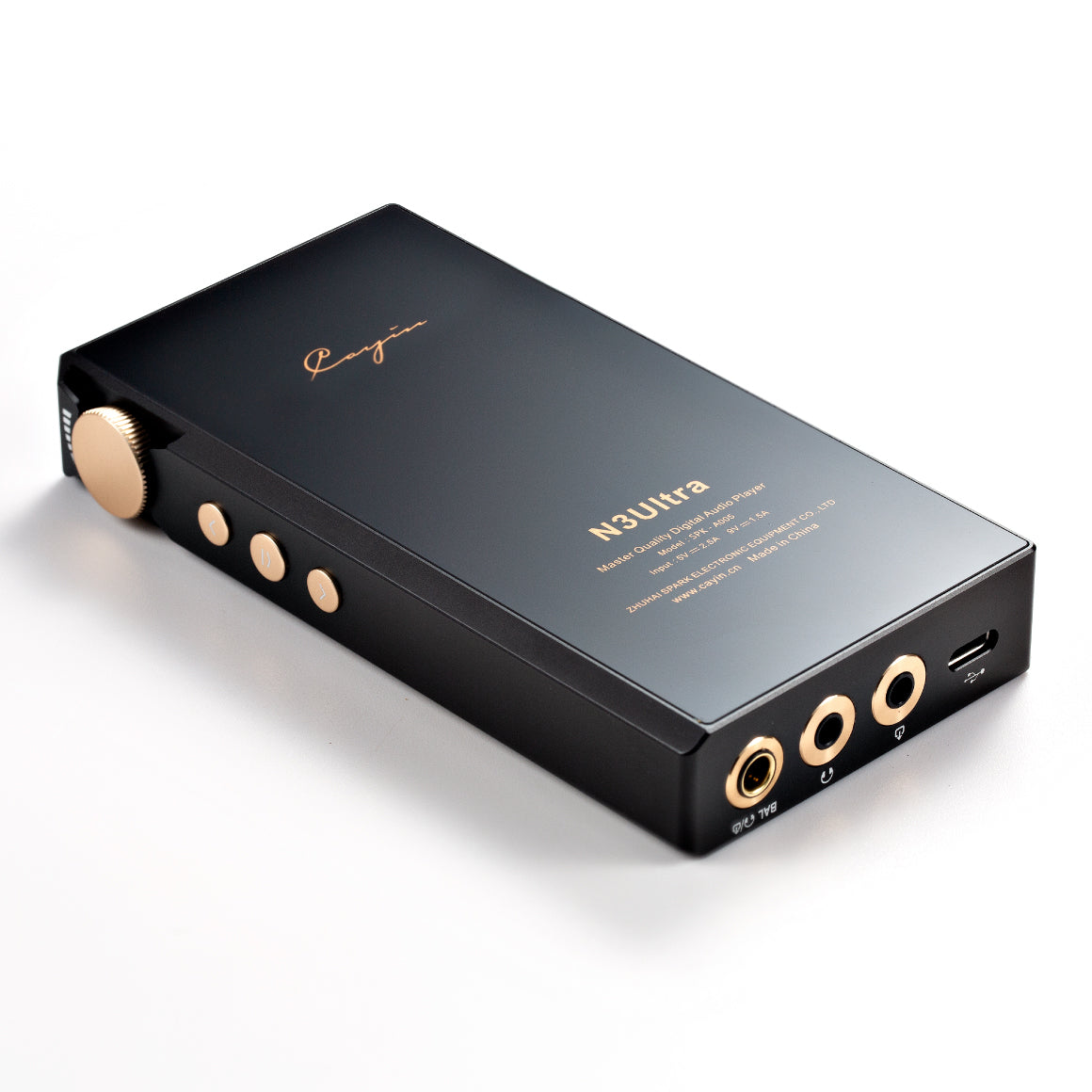

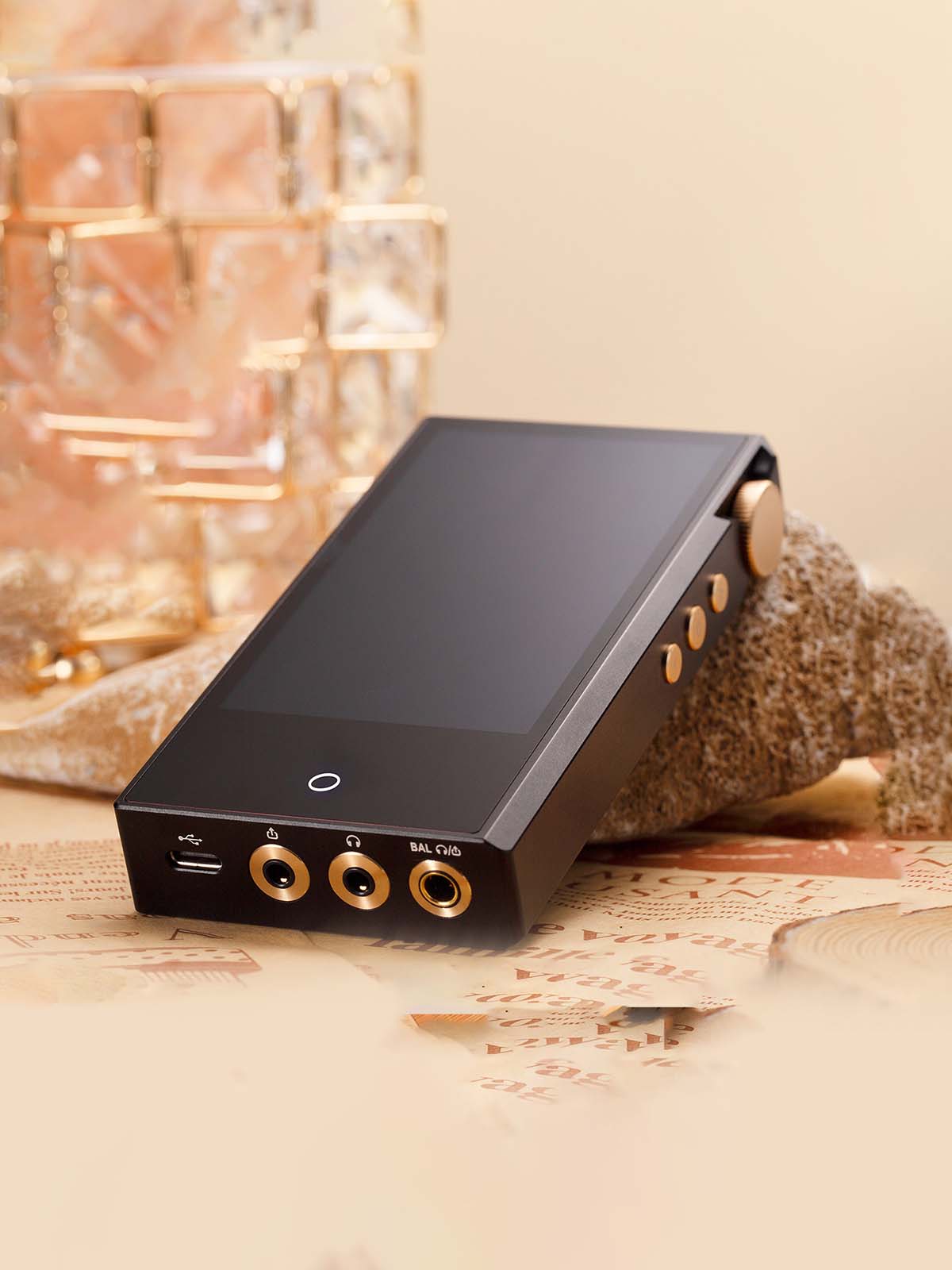

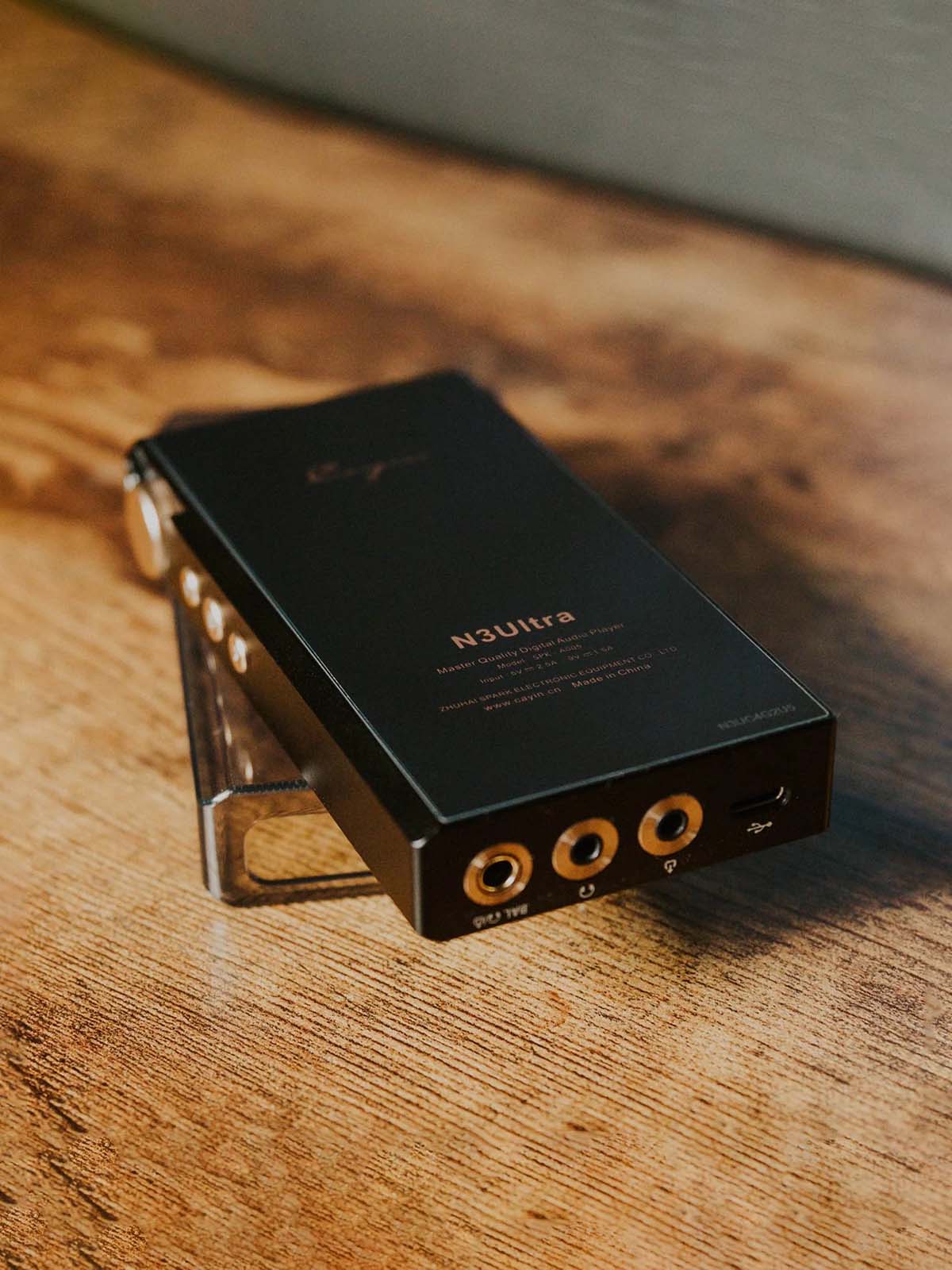

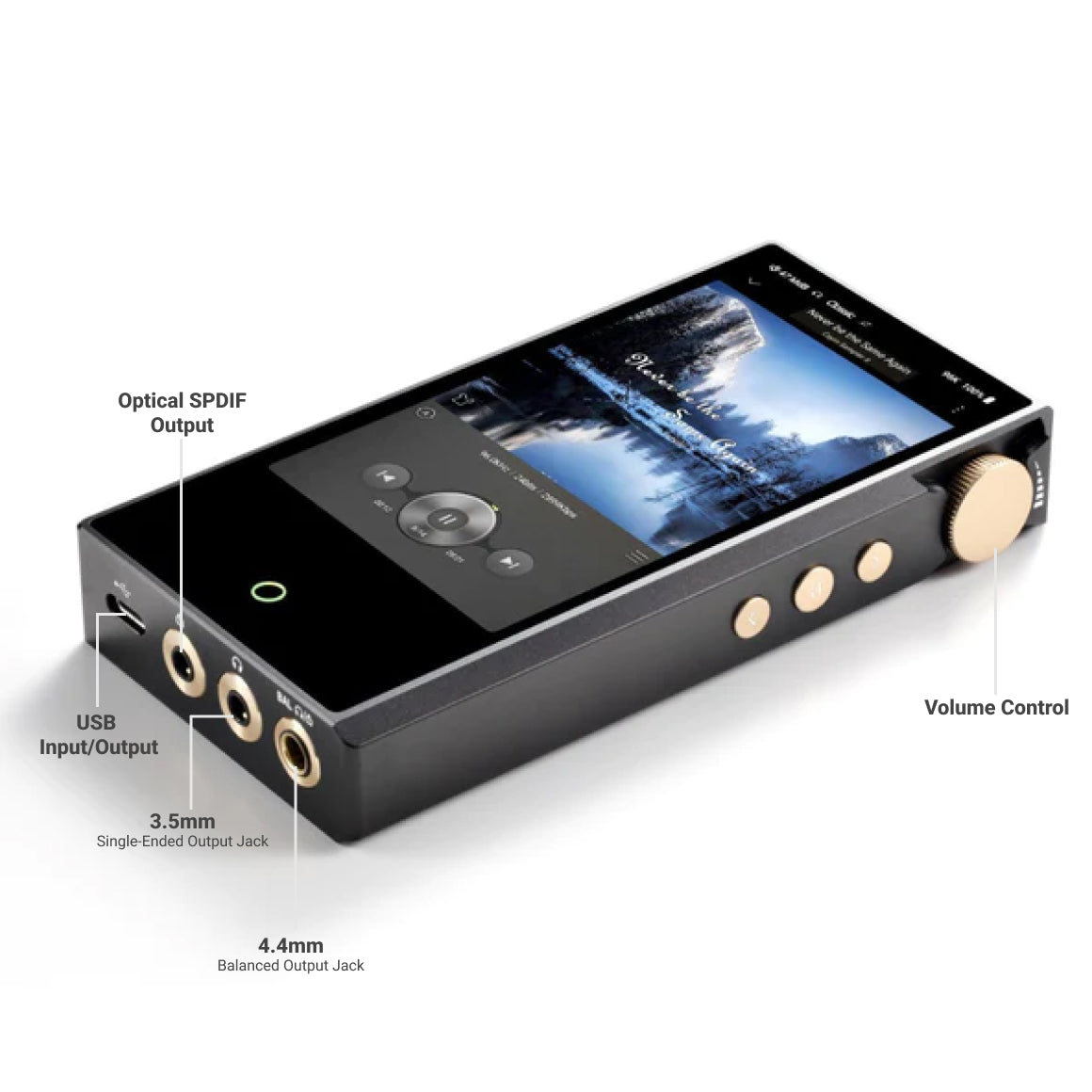

THOUGHTFUL INPUT AND OUTPUT STAGE FOR CONNECTIVITY WITH VARIOUS DEVICES
The portable Cayin N3Ultra provides versatile headphone and line-level outputs, with single-ended 3.5mm and balanced 4.4mm options. These outputs can produce either vacuum tubes or solid-state timbres, providing diverse sound listening experiences. The Cayin N3Ultra also features dual line outputs, with the 4.4mm balanced output configurable as either a headphone out or line out. You can adjust the output levels for maximum compatibility with various audio devices. The line out provides a clean, unamplified fixed voltage signal, ideal for connecting to external headphone amplifiers or integrated amplifiers in home audio systems. The Cayin N3Ultra equips a versatile connectivity interface, including USB audio input and output and S/PDIF coaxial output. This expands the compatibility of the Cayin N3Ultra to pair with amplifiers, active speakers and DAC setups, making it capable of operating with a diverse range of devices.
DESIGNED WITH SAFETY-ENSURING COMPONENTS FOR SMOOTH OPERATION
The Cayin N3Ultra digital audio player features innovative shock-absorbing mechanisms and suspension design to minimize vibrations and microphonic effects. It utilizes custom-molded shock absorption Silicon housing to shield and hold the JAN6418 vacuum tube, reducing external interference. The device integrates suspension pins into its CNC aluminium frame, providing a vertical suspension effect for the tube, which helps relieve stress and enhances stability. The Cayin N3Ultra equips an inter-stage loop negative feedback (NFB) and FET control for the vacuum tube's power supply, ensuring consistent performance and stability.
SPECS
DAC | AK4493SEQ x2 (Mono Mode) |
MCU | Snapdragon 425 |
VACUUM TUBE | Raytheon JAN6418 x2 |
SYSTEM | Customized Android 8.1 |
TIMBRE CIRCUIT | Gen3 Vacuum Tube Audio Circuit |
LOSSLESS | DTA bypass Android SRC |
VOL. CONTROL | JRC NJW1195A 4 Channels E-volume |
LPF | Dual Op-Amp x2 |
STORAGE | TF x1 (support up to 1TB) |
MEMORY | 2GB RAM |
FPGA | Re-clock, De-jitter, Re-shaping DDC |
BATTERY | 3.85V 4500mAh (17.3Wh) |
HEAD AMP. | Parallel Amplification, 4 Pieces Of Low Noise Op-Amp, 2 Amplifiers In Parallel |
DISPLAY | 4.1" (720 x 1280) TFT Multi-point Touch Screen |
PHONE OUT | 3.5mm (Single-Ended) 4.4mm (Balanced, Shared) |
BUNDLED PLAYER | Cayin Music App |
LINE OUT | 3.5mm (Single-Ended) 4.4mm (Balanced, Shared) |
PHYSICAL CONTROL | Volume Knob, Power On/Off, Playback Control |
DIGITAL INTERFACE | USB Audio (In And Out) SPDIF Coaxial (USB-embedded) |
COLORED LED | Playback Sampling Rate, Home, Charging Indicator |
USB TYPE-C | USB3.1, OTG Storage, Digital Audio QC3.0 (PD2.0 Not Supported) |
CHASSIS | Sandblasted CNC-machined Aluminum |
DIMENSION | 125 x 65.5 x 19.5 (mm) |
WEIGHT | ~204g (±10g) |
BATTERY DURATION | |
3.5MM (SINGLE-ENDED) | Solid- State Headphone: ≈11.8 Hr Line Out: ≈13.5Hr Modern Headphone: ≈9.4 Hr Line Out: ≈10.8Hr Classic Tube Headphone: ≈9.2Hr Line Out: ≈10.5Hr |
4.4MM (BALANCED) | Solid- State Headphone: ≈9.7 Hr Line Out: ≈13.5H Modern Headphone: ≈8.1Hr Line Out: ≈10.6Hr Classic Tube Headphone: ≈7.6 Hr Line Out: ≈10.3Hr |
Condition: Screen Off, 32Ω, Mid Gain, Volume 30, Playback 44.1kHz WAV Files | |
CHARGING | Standard Charger (5V-2A): ≈3.5 Hr Quick Charge QC3.0: 0-100%~2 Hr 20-80%~1Hr |
USB AUDIO OUT | Connector USB-C PCM: up to 32Bit/768kHz*; DSD: up to DSD512 (Native) or DSD256 (DOP) or PCM88.2kHz (D2P) |
USB AUDIO DAC | Connector USB-C, PCM: up to 32Bit/768kHz*; DSD: up to DSD512 (Native) or DSD256 (DOP) Systems: Windows (drivers required), MacOS, Android (partial), iOS Asynchronous USB Audio Class 2.0 |
S/PDIF COAXIAL | Connector: Embedded into USB-C (75Ω) PCM: up to 24Bit/192kHz; DSD: up to DSD64 (DOP) |
*PCM not support 64kHz sampling* |
OUTPUT | 3.5mm Single-ended 4.4mm Balanced |
3.5MM SINGLE-ENDED SOLID STATE | Power Rating (@32Ω): 250mW Output Impedance: 0.5Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 32Ω, A-Weighted): 0.008% Dynamic Range (A-Weighted): 120dB SNR (20Hz-20kHz, A-weighted): 120dB Channel Separation (@1kHz, 32Ω): 77dB |
3.5MM SINGLE-ENDED VACUUM TUBE | Power Rating (@32Ω): 250mW Output Impedance: 0.5Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 32Ω, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 32Ω): 76dB |
4.4MM BALANCED SOLID STATE | Power Rating (@32Ω): 600mW Output Impedance: 1.0Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 32Ω, A-Weighted): 0.008% Dynamic Range (A-Weighted): 121dB SNR (20Hz-20kHz, A-weighted): 121dB Channel Separation (@1kHz, 32Ω): 116dB |
4.4MM BALANCED VACUUM TUBE | Power Rating (@32Ω): 600mW Output Impedance: 1.0Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 32Ω, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 32Ω): 92dB |
OUTPUT | 3.5mm Single-ended 4.4mm Balanced |
3.5MM SINGLE-ENDED SOLID STATE | Output Level: High: 2.1V, Medium: 1.6V, Low: 1.0V Output Impedance: 100Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 47kΩ, A-Weighted): 0.004% Dynamic Range (A-Weighted): 122dB SNR (20Hz-20kHz, A-weighted): 122dB Channel Separation (@1kHz, 47kΩ): 100dB |
3.5MM SINGLE-ENDED VACUUM TUBE | Output Level: High: 2.1V, Medium: 1.6V, Low: 1.0V Output Impedance: 100Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 47kΩ, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 47kΩ): 96dB |
4.4MM BALANCED SOLID STATE | Output Level: High: 4.2V Medium: 3.2V Low: 2.0V Output Impedance: 200Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 47kΩ, A-Weighted): 0.004% Dynamic Range (A-Weighted): 125dB SNR (20Hz-20kHz, A-weighted): 125dB Channel Separation (@1kHz, 47kΩ): 122dB |
4.4MM BALANCED VACUUM TUBE | Output Level: High: 4.2V Medium: 3.2V Low: 2.0V Output Impedance: 200Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 47kΩ, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 47kΩ): 98dB |
DSD | Format : Bit-Rate : Sampling Freq. DSF : 1bit : 2.8MHz-22.6MHz DFF : 1bit : 2.8MHz-22.6MHz SACD-ISO : 1bit : 2.8MHz Remark : Native, DoP, D2P (88.2kHz) Supports DST Encoded DFF and SACD-ISO |
PCM | Format : Bit-Rate : Sampling Freq. WAV : 16bit - 32bit : 32kHz - 768kHz AIF/AIFF : 16bit - 32bit : 32kHz - 768kHz FLAC : 16bit - 24bit : 32kHz - 192kHz M4A (ALAC) : 16bit - 24bit : 32kHz - 192kHz APE (Fast/Normal/High) : 16bit - 24bit : 32kHz - 768kHz APE (Extra High) : 16bit - 24bit : 32kHz - 192kHz APE (Insane) : 16bit - 24bit : 32kHz - 192kHz WMA Lossless : 16bit - 24bit : 32kHz - 192kHz WMA : 16bit - 24bit : 32kHz - 192kHz MP3 : 8bit - 16bit : 32kHz - 48kHz AAC : 8bit - 16bit : 32kHz - 48kHz OGG : 8bit - 16bit : 32kHz - 48kHz OPUS : 16bit : 32kHz - 48kHz Remark : Supports DTS encoded/ WAV Supports CUE and LRC 64kHz Sampling not supported |

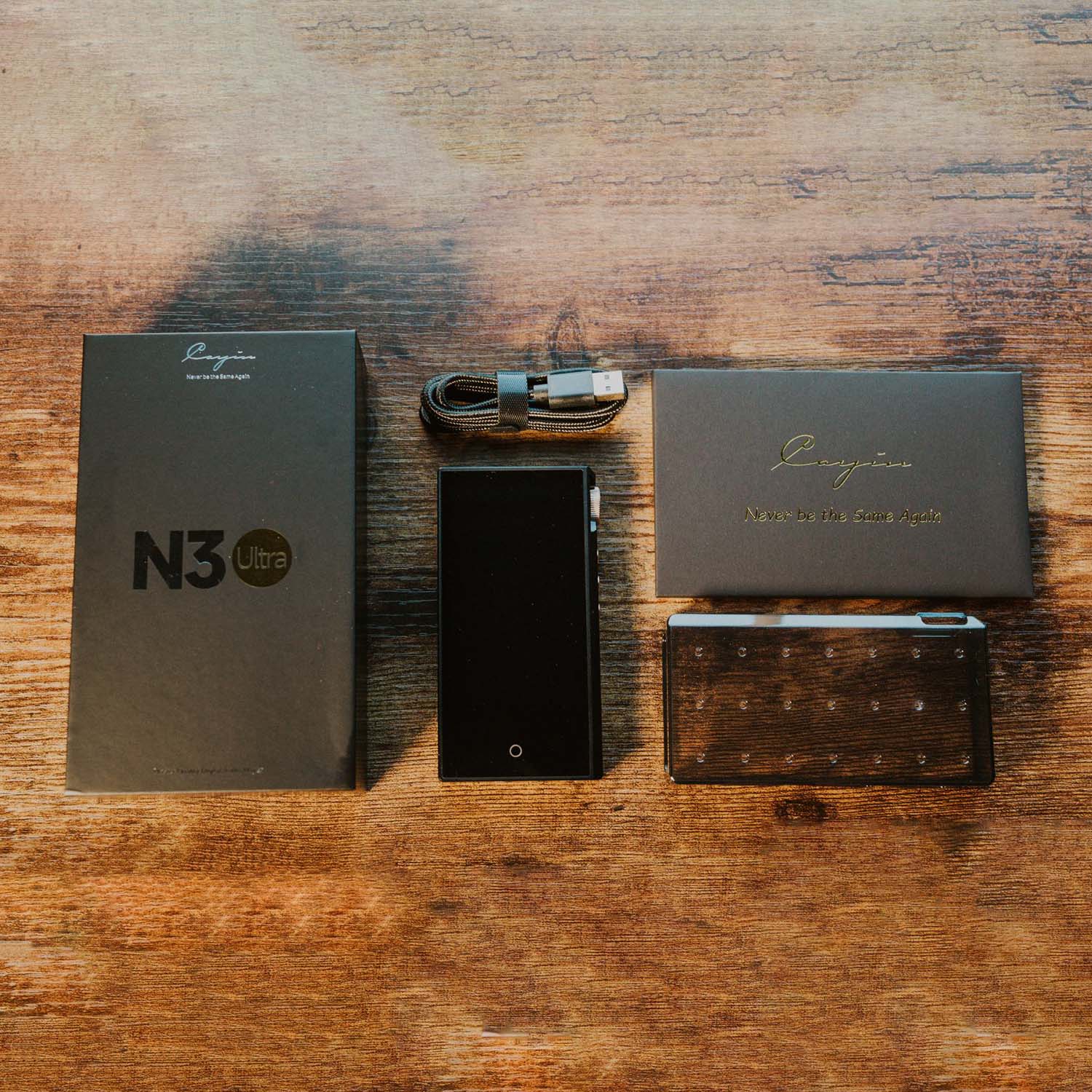

BOX CONTENTS | 1. Cayin N3Ultra Digital Audio Player |
2. N3Ultra Silicon Protective Case | |
3. Temper Glass Screen Protector x1 | |
4. USB-C Cable x1 | |
5. User Manual | |
6. Hi-Res label x2 |
GENERIC NAME | Headphones |
IMPORTER DETAILS | Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
PRESENTING THE CAYIN N3ULTRA - THE ALL-NEW ON-THE-GO MUSIC COMPANION
Cayin launches a digital audio player, the all-new N3Ultra. Crafted with meticulous attention to detail, this portable music player is designed with high-performance components to deliver an exceptional on-the-go music listening experience. The Cayin N3Ultra houses vintage JAN6418 vacuum tubes, providing a warm and rich sound signature. Its dual AK4493SEQ DAC chips ensure high-resolution audio playback, supporting formats up to DSD512 and PCM 768kHz/32Bit. It also features a precision volume controller, customizable parametric EQ, and versatile headphone and line-level outputs that cater to individual preferences, offering a personalized audio journey. This portable excellence provides fast-charging capability and long battery life and is compatible with amplifiers, active speakers, and DAC setups. It is a versatile audio device and an indispensable companion for music enthusiasts seeking uncompromising audio quality and control.
EQUIPPED WITH DUAL AK4493SEQ CHIPSETS FOR EXCEPTIONAL DECODING PERFORMANCE
Cayin has equipped the N3Ultra with exceptional DAC from AKM technologies. The AK4493SEQ chipset had earned its name in the audio-fidelity realm for its capability to deliver detailed, natural sound with clarity and fidelity. The Cayin N3Ultra supports high-resolution audio decoding formats like DSD512 and PCM 768kHz/32Bit, allowing you to listen to music in its purest form. The dual AK4493SEQ chipsets and analog circuits work independently in each channel, ensuring that your Cayin N3Ultra efficiently reduces crosstalk, enhancing audio clarity and stereo separation. The dual AK4493SEQ chipsets in the Cayin N3Ultra operate in Mono mode in fully differential output, providing precise and detailed sound reproduction. This thoughtful design contributes towards a more immersive and lifelike music listening experience with your Cayin N3Ultra.
POWERFUL AMPLIFICATION CAPABILITIES WITH MILITARY-GRADE NOS VACUUM TUBES
Cayin's expertise in tube amplifier engineering is evident in the N3Ultra, which features vintage JAN6418 vacuum tubes and Raytheon military-grade NOS tubes. The former vintage tube amps aim to provide a classic tube sound with rich overtones. And the military-grade NOS tubes from Raytheon ensure high-quality analog outputs across all channels. Unlike traditional setups, the N3Ultra equips Cayin's 3rd generation vacuum tube technology in a two-stage timbre circuit. These tubes enhance the low gain voltage amplification and driving capability. This setup allows you to choose from three distinct timbre options - Classic Tube for a warm and full-bodied sound, Modern Tube for a lively soundstage with impressive linearity and Solid-State for a balanced and clear audio experience. The Cayin N3Ultra caters to your preferences with these sound customisation characteristics, giving you an authentic music listening experience.
CUSTOMIZE THE SOUND OF YOUR MUSIC ALONGWITH PRECISE VOLUME CONTROL AND PEQ ADJUSTMENTS
The Cayin N3Ultra digital audio player provides a unique level of customization through its tube amps, offering three distinct sound signatures. With options like classic tube timbre for a warm and rich sound, modern tube timbre for a lively and linear soundstage and solid-state timbre for a balanced and clear audio experience. Along with this, it features precise volume control and accurate sound-delivering components, along with customizable features. It equips the JRC NJW1195A four-channel volume controller, known for its low noise and distortion, ensuring high-quality sound output. The Cayin N3Ultra also features two accusilicon AS318 femtosecond oscillators, reducing jitter and maintaining signal accuracy with ultra-low phase noise (-100dBC) for an authentic listening experience. The volume control chip minimizes digital artefacts and enhances musicality during playback. Also with precise volume control, the Cayin N3Ultra provides 10-band parametric EQ customization, allowing you to fine-tune sound according to your preferences and listening style taste.
EMBEDDED WITH A MASSIVE 4500MAH BATTERY AND ANDROID-BASED OPERATING SYSTEM
The compact yet powerful Cayin N3Ultra provides a robust battery life with its 3.85V 4500mAH Lithium battery. This efficient power management system provides a playback time of up to 11.8 hours with 3.5mm single-ended IEM in solid-state timbre and 7.6 hours with 4.4mm balanced IEM in vacuum tube timbre. It supports fast charging with QC3.0, allowing you to charge from 20% to 80% in around 1 hour, ensuring minimal downtime. The Cayin N3Ultra runs on an Android-based system with a Qualcomm 425 CPU, delivering a smooth and responsive user interface. Along with all its high-performance features and components, the portable Cayin N3Ultra supports up to 1TB storage expansion via TF card and OTG USB.
OFFERS EASY CONTROLS AND SMART INDICATOR FOR ELEVATED USER EXPERIENCE
For a user-friendly experience, the Cayin N3Ultra features a 4.1" 720x1280 responsive touch screen, physical knobs and buttons for intuitive operation, all in a compact and lightweight design. It also equips a glowing HOME button functioning as a sampling rate indicator. To ensure seamless navigation, it includes a BACK key for easy access to files and menus. Above all, to showcase visual design appeals complementing the CNC precision build, the Cayin N3Ultra features a laser-drilled side-mounted tube window, adding a warm glow to enhance the immersive musical experience during playback.
THOUGHTFUL INPUT AND OUTPUT STAGE FOR CONNECTIVITY WITH VARIOUS DEVICES
The portable Cayin N3Ultra provides versatile headphone and line-level outputs, with single-ended 3.5mm and balanced 4.4mm options. These outputs can produce either vacuum tubes or solid-state timbres, providing diverse sound listening experiences. The Cayin N3Ultra also features dual line outputs, with the 4.4mm balanced output configurable as either a headphone out or line out. You can adjust the output levels for maximum compatibility with various audio devices. The line out provides a clean, unamplified fixed voltage signal, ideal for connecting to external headphone amplifiers or integrated amplifiers in home audio systems. The Cayin N3Ultra equips a versatile connectivity interface, including USB audio input and output and S/PDIF coaxial output. This expands the compatibility of the Cayin N3Ultra to pair with amplifiers, active speakers and DAC setups, making it capable of operating with a diverse range of devices.
DESIGNED WITH SAFETY-ENSURING COMPONENTS FOR SMOOTH OPERATION
The Cayin N3Ultra digital audio player features innovative shock-absorbing mechanisms and suspension design to minimize vibrations and microphonic effects. It utilizes custom-molded shock absorption Silicon housing to shield and hold the JAN6418 vacuum tube, reducing external interference. The device integrates suspension pins into its CNC aluminium frame, providing a vertical suspension effect for the tube, which helps relieve stress and enhances stability. The Cayin N3Ultra equips an inter-stage loop negative feedback (NFB) and FET control for the vacuum tube's power supply, ensuring consistent performance and stability.
DAC | AK4493SEQ x2 (Mono Mode) |
MCU | Snapdragon 425 |
VACUUM TUBE | Raytheon JAN6418 x2 |
SYSTEM | Customized Android 8.1 |
TIMBRE CIRCUIT | Gen3 Vacuum Tube Audio Circuit |
LOSSLESS | DTA bypass Android SRC |
VOL. CONTROL | JRC NJW1195A 4 Channels E-volume |
LPF | Dual Op-Amp x2 |
STORAGE | TF x1 (support up to 1TB) |
MEMORY | 2GB RAM |
FPGA | Re-clock, De-jitter, Re-shaping DDC |
BATTERY | 3.85V 4500mAh (17.3Wh) |
HEAD AMP. | Parallel Amplification, 4 Pieces Of Low Noise Op-Amp, 2 Amplifiers In Parallel |
DISPLAY | 4.1" (720 x 1280) TFT Multi-point Touch Screen |
PHONE OUT | 3.5mm (Single-Ended) 4.4mm (Balanced, Shared) |
BUNDLED PLAYER | Cayin Music App |
LINE OUT | 3.5mm (Single-Ended) 4.4mm (Balanced, Shared) |
PHYSICAL CONTROL | Volume Knob, Power On/Off, Playback Control |
DIGITAL INTERFACE | USB Audio (In And Out) SPDIF Coaxial (USB-embedded) |
COLORED LED | Playback Sampling Rate, Home, Charging Indicator |
USB TYPE-C | USB3.1, OTG Storage, Digital Audio QC3.0 (PD2.0 Not Supported) |
CHASSIS | Sandblasted CNC-machined Aluminum |
DIMENSION | 125 x 65.5 x 19.5 (mm) |
WEIGHT | ~204g (±10g) |
BATTERY DURATION | |
3.5MM (SINGLE-ENDED) | Solid- State Headphone: ≈11.8 Hr Line Out: ≈13.5Hr Modern Headphone: ≈9.4 Hr Line Out: ≈10.8Hr Classic Tube Headphone: ≈9.2Hr Line Out: ≈10.5Hr |
4.4MM (BALANCED) | Solid- State Headphone: ≈9.7 Hr Line Out: ≈13.5H Modern Headphone: ≈8.1Hr Line Out: ≈10.6Hr Classic Tube Headphone: ≈7.6 Hr Line Out: ≈10.3Hr |
Condition: Screen Off, 32Ω, Mid Gain, Volume 30, Playback 44.1kHz WAV Files | |
CHARGING | Standard Charger (5V-2A): ≈3.5 Hr Quick Charge QC3.0: 0-100%~2 Hr 20-80%~1Hr |
USB AUDIO OUT | Connector USB-C PCM: up to 32Bit/768kHz*; DSD: up to DSD512 (Native) or DSD256 (DOP) or PCM88.2kHz (D2P) |
USB AUDIO DAC | Connector USB-C, PCM: up to 32Bit/768kHz*; DSD: up to DSD512 (Native) or DSD256 (DOP) Systems: Windows (drivers required), MacOS, Android (partial), iOS Asynchronous USB Audio Class 2.0 |
S/PDIF COAXIAL | Connector: Embedded into USB-C (75Ω) PCM: up to 24Bit/192kHz; DSD: up to DSD64 (DOP) |
*PCM not support 64kHz sampling* |
OUTPUT | 3.5mm Single-ended 4.4mm Balanced |
3.5MM SINGLE-ENDED SOLID STATE | Power Rating (@32Ω): 250mW Output Impedance: 0.5Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 32Ω, A-Weighted): 0.008% Dynamic Range (A-Weighted): 120dB SNR (20Hz-20kHz, A-weighted): 120dB Channel Separation (@1kHz, 32Ω): 77dB |
3.5MM SINGLE-ENDED VACUUM TUBE | Power Rating (@32Ω): 250mW Output Impedance: 0.5Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 32Ω, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 32Ω): 76dB |
4.4MM BALANCED SOLID STATE | Power Rating (@32Ω): 600mW Output Impedance: 1.0Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 32Ω, A-Weighted): 0.008% Dynamic Range (A-Weighted): 121dB SNR (20Hz-20kHz, A-weighted): 121dB Channel Separation (@1kHz, 32Ω): 116dB |
4.4MM BALANCED VACUUM TUBE | Power Rating (@32Ω): 600mW Output Impedance: 1.0Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 32Ω, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 32Ω): 92dB |
OUTPUT | 3.5mm Single-ended 4.4mm Balanced |
3.5MM SINGLE-ENDED SOLID STATE | Output Level: High: 2.1V, Medium: 1.6V, Low: 1.0V Output Impedance: 100Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 47kΩ, A-Weighted): 0.004% Dynamic Range (A-Weighted): 122dB SNR (20Hz-20kHz, A-weighted): 122dB Channel Separation (@1kHz, 47kΩ): 100dB |
3.5MM SINGLE-ENDED VACUUM TUBE | Output Level: High: 2.1V, Medium: 1.6V, Low: 1.0V Output Impedance: 100Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 47kΩ, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 47kΩ): 96dB |
4.4MM BALANCED SOLID STATE | Output Level: High: 4.2V Medium: 3.2V Low: 2.0V Output Impedance: 200Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 47kΩ, A-Weighted): 0.004% Dynamic Range (A-Weighted): 125dB SNR (20Hz-20kHz, A-weighted): 125dB Channel Separation (@1kHz, 47kΩ): 122dB |
4.4MM BALANCED VACUUM TUBE | Output Level: High: 4.2V Medium: 3.2V Low: 2.0V Output Impedance: 200Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 47kΩ, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 47kΩ): 98dB |
DSD | Format : Bit-Rate : Sampling Freq. DSF : 1bit : 2.8MHz-22.6MHz DFF : 1bit : 2.8MHz-22.6MHz SACD-ISO : 1bit : 2.8MHz Remark : Native, DoP, D2P (88.2kHz) Supports DST Encoded DFF and SACD-ISO |
PCM | Format : Bit-Rate : Sampling Freq. WAV : 16bit - 32bit : 32kHz - 768kHz AIF/AIFF : 16bit - 32bit : 32kHz - 768kHz FLAC : 16bit - 24bit : 32kHz - 192kHz M4A (ALAC) : 16bit - 24bit : 32kHz - 192kHz APE (Fast/Normal/High) : 16bit - 24bit : 32kHz - 768kHz APE (Extra High) : 16bit - 24bit : 32kHz - 192kHz APE (Insane) : 16bit - 24bit : 32kHz - 192kHz WMA Lossless : 16bit - 24bit : 32kHz - 192kHz WMA : 16bit - 24bit : 32kHz - 192kHz MP3 : 8bit - 16bit : 32kHz - 48kHz AAC : 8bit - 16bit : 32kHz - 48kHz OGG : 8bit - 16bit : 32kHz - 48kHz OPUS : 16bit : 32kHz - 48kHz Remark : Supports DTS encoded/ WAV Supports CUE and LRC 64kHz Sampling not supported |
BOX CONTENTS | 1. Cayin N3Ultra Digital Audio Player |
2. N3Ultra Silicon Protective Case | |
3. Temper Glass Screen Protector x1 | |
4. USB-C Cable x1 | |
5. User Manual | |
6. Hi-Res label x2 |
GENERIC NAME | Headphones |
IMPORTER DETAILS | Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
Don't sweat it, this
Cayin - N3Ultra comes with a 1 Year warranty
from Cayin that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about Cayin's warranty in India.
Elevating Hi-Fi Experiences Since 1993
Explore CollectionHave a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is the warranty period on the Cayin N3Ultra and how do I claim warranty?
What tube technology does the Cayin N3Ultra utilize?
How does the Cayin N3Ultra provide customization for sound preferences?
What is the battery life of the Cayin N3Ultra?
What connectivity options does the Cayin N3Ultra offer?
Can the Cayin N3Ultra be paired with external amplifiers or DAC setups?
What is the significance of the glowing HOME button on the Cayin N3Ultra?
This product is rated 4.0 of 5.0 stars.
It has received 1 review.
