FiiO - M15S
Hi-Res Digital Audio PlayerGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 30,803
₹ 2,409
₹ 1,942
6
Low Cost EMI
₹ 15,707
₹ 4,244
₹ 3,433
9
15.99%
₹ 10,678
₹ 6,102
12
15.99%
₹ 8,165
₹ 7,984
18
15.99%
₹ 5,657
₹ 11,820
24
15.99%
₹ 4,406
₹ 15,750
HDFC Bank
3
Low Cost EMI
₹ 30,803
₹ 2,411
₹ 1,942
6
Low Cost EMI
₹ 15,708
₹ 4,246
₹ 3,433
9
16%
₹ 10,678
₹ 6,106
12
16%
₹ 8,166
₹ 7,989
18
16%
₹ 5,657
₹ 11,827
24
16%
₹ 4,407
₹ 15,760
SBI Bank
3
Low Cost EMI
₹ 30,828
₹ 2,486
₹ 1,999
6
Low Cost EMI
₹ 15,663
₹ 3,978
₹ 3,204
9
15%
₹ 10,635
₹ 5,718
12
15%
₹ 8,123
₹ 7,479
18
16%
₹ 5,657
₹ 11,827
24
16%
₹ 4,407
₹ 15,760
Axis Bank
3
Low Cost EMI
₹ 30,803
₹ 2,411
₹ 1,942
6
Low Cost EMI
₹ 15,708
₹ 4,246
₹ 3,433
9
16%
₹ 10,678
₹ 6,106
12
16%
₹ 8,081
₹ 6,970
18
16%
₹ 5,657
₹ 11,827
24
16%
₹ 4,407
₹ 15,760
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 30,702
₹ 2,108
6
14%
₹ 15,618
₹ 3,710
9
16%
₹ 10,678
₹ 6,106
12
16%
₹ 8,166
₹ 7,989
18
16%
₹ 5,657
₹ 11,827
24
16%
₹ 4,407
₹ 15,760
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 30,803
₹ 2,411
6
16%
₹ 15,708
₹ 4,246
9
16%
₹ 10,678
₹ 6,106
12
16%
₹ 8,166
₹ 7,989
18
16%
₹ 5,657
₹ 11,827
24
16%
₹ 4,407
₹ 15,760
RBL Bank
3
13%
₹ 30,652
₹ 1,957
6
14%
₹ 15,618
₹ 3,710
9
15%
₹ 10,635
₹ 5,718
12
15%
₹ 8,123
₹ 7,479
18
15%
₹ 5,615
₹ 11,063
24
15%
₹ 4,364
₹ 14,731
Standard Chartered Bank
3
13%
₹ 30,652
₹ 1,957
6
13%
₹ 15,574
₹ 3,443
9
14%
₹ 10,592
₹ 5,331
12
14%
₹ 8,081
₹ 6,970
INDUSIND Bank
3
14%
₹ 30,702
₹ 2,108
6
14%
₹ 15,618
₹ 3,710
9
15%
₹ 10,635
₹ 5,718
12
15%
₹ 8,123
₹ 7,479
18
15%
₹ 5,615
₹ 11,063
24
15%
₹ 4,364
₹ 14,731
HSBC Bank
3
12.50%
₹ 30,627
₹ 1,881
6
12.50%
₹ 15,551
₹ 3,310
9
13.50%
₹ 10,571
₹ 5,138
12
13.50%
₹ 8,060
₹ 6,716
18
13.50%
₹ 5,551
₹ 9,923
YES Bank
3
13%
₹ 30,652
₹ 1,957
6
13%
₹ 15,574
₹ 3,443
9
14%
₹ 10,592
₹ 5,331
12
14%
₹ 8,081
₹ 6,970
18
15%
₹ 5,615
₹ 11,063
24
15%
₹ 4,364
₹ 14,731
Bank of Baroda
3
13%
₹ 30,652
₹ 1,957
6
14%
₹ 15,618
₹ 3,710
9
14%
₹ 10,592
₹ 5,331
12
15%
₹ 8,123
₹ 7,479
18
15%
₹ 5,615
₹ 11,063
24
16%
₹ 4,407
₹ 15,760
American Express
3
14%
₹ 30,702
₹ 2,108
6
14%
₹ 15,618
₹ 3,710
9
14%
₹ 10,592
₹ 5,331
12
14%
₹ 8,081
₹ 6,970
18
15%
₹ 5,615
₹ 11,063
24
15%
₹ 4,364
₹ 14,731
Talk to a Headphone Guru
Club Audiophile
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Chi-Fi
Excellence
Ideal for Audiophiles
These DAPs are designed for discerning music lovers. If audio quality is important to you, DAPs like these would be ideal.
You can expect these DAPs to present you with a refined listening experience. The audio quality exhibited by these DAPs is a beautiful mix of musicality, technical brilliance and high precision.
These DAPs deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!
Best Suited for Portable Use
For those who value them, being able to carry their favourite DAP when they are on the move is invaluable.
These DAPs offer the ultimate portability experience without sacrificing sound quality. If you’re someone who appreciates cutting-edge engineering, quality sound and portability, then look no further.
Designed to be trusty companions, these DAPs are cleverly engineered with the latest technology to offer the ultimate combination of portability & Hi-Fidelity!
Bluetooth with
LHDC, LDAC, aptX HD & AAC
Battery Life
DAPs with built-in batteries offer easy operation without the annoyance of wires.
Battery life is a measurement of battery performance. It is the amount of time your DAPs will still have enough juice to power your headphones or IEMs. It can be summed up; as how long a battery will last before your DAPs need to be recharged.
Nothing interferes with your music, thanks to the high-performance and long-lasting battery. No interruptions, just pure sonic bliss!

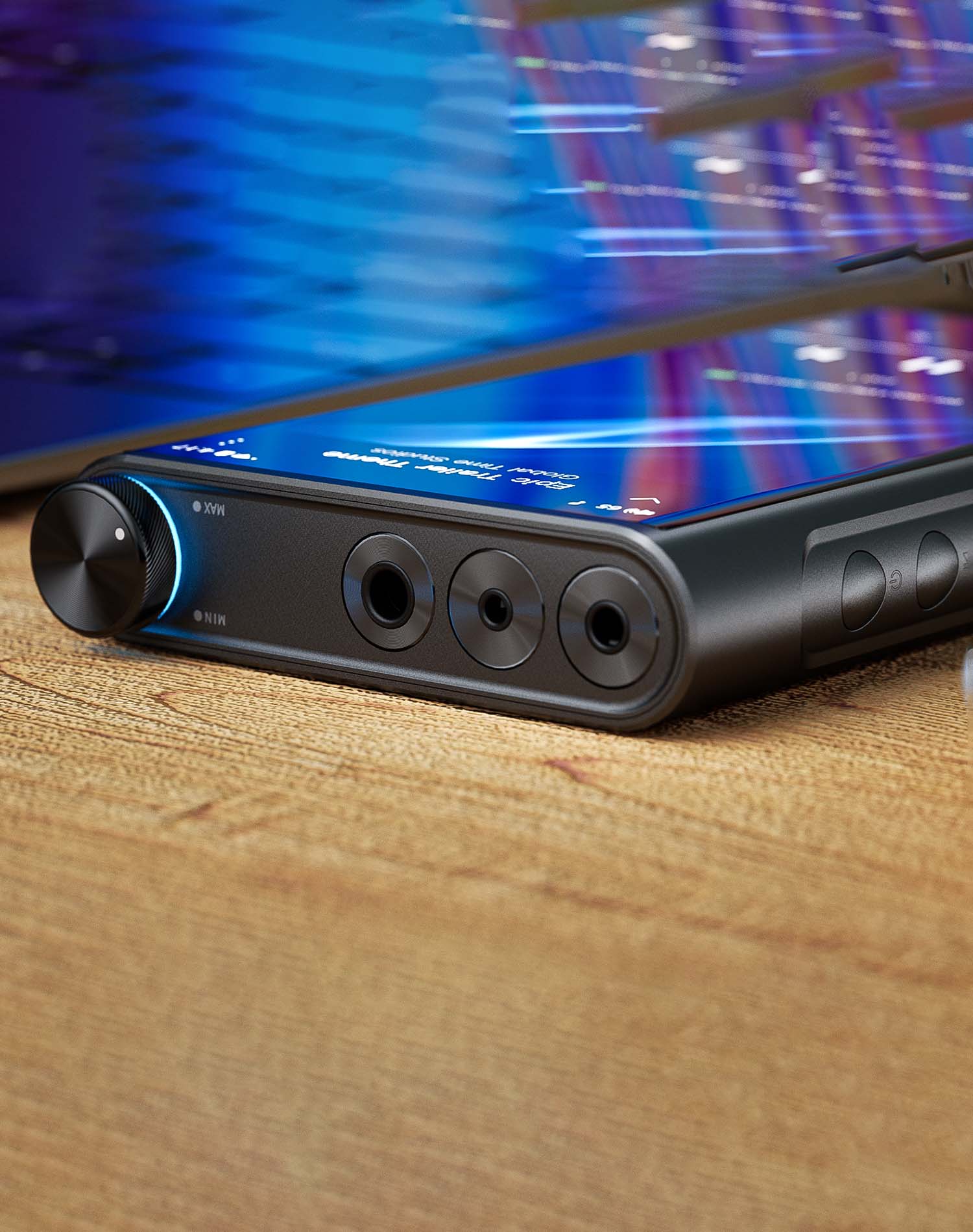

2.5mm and 4.4mm
Balanced Output
ESS Sabre ES9038PRO
DAC Chip
Upto 1200mW+1200mW @ 32Ω
Power Output
Upto 2TB
of Storage
Battery Capacity of
6200 mAh
Volume Controls
DESCRIPTION
FIIO UNVEILS A NEW CHAPTER IN HIGH-END AUDIO
The new M15S starts a new chapter in the FiiO high-end, sharing the same technologies as the portable desktop-grade M17 player and the portable desktop-grade amp Q7 that give you desktop-level performance in a portable package - including desktop mode, dual power supply modes, and five gain levels. The "desktop/portable dual power supply modes," as featured on the portable desktop-grade player M17 and the portable desktop-grade amp Q7 have been well-received by the audiophile community, which is why FiiO sought to put this technology on other products. With the implementation of the dual power supply modes onto the M15S with its more ergonomic design, the M15S is the ideal combination of portability and high performance.

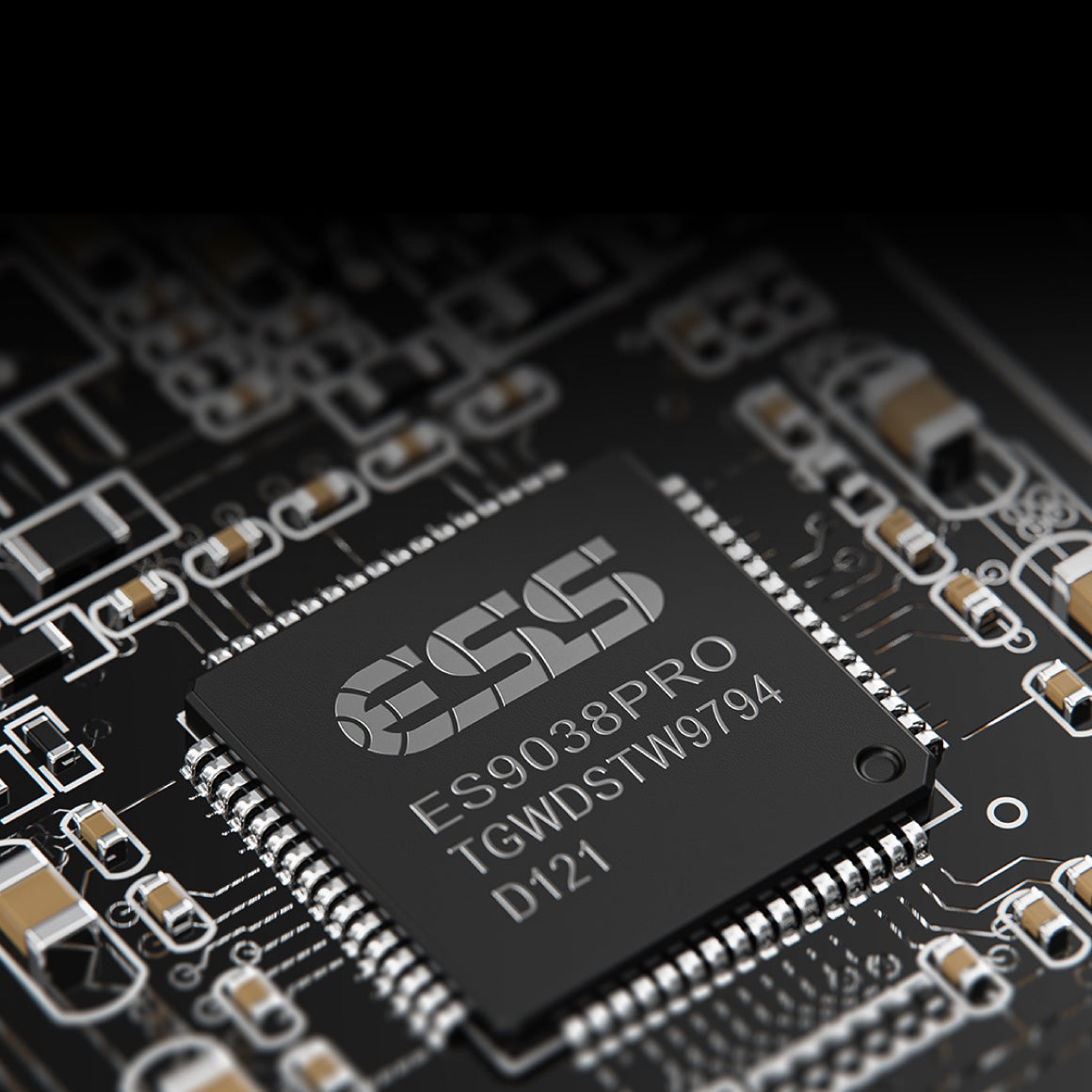

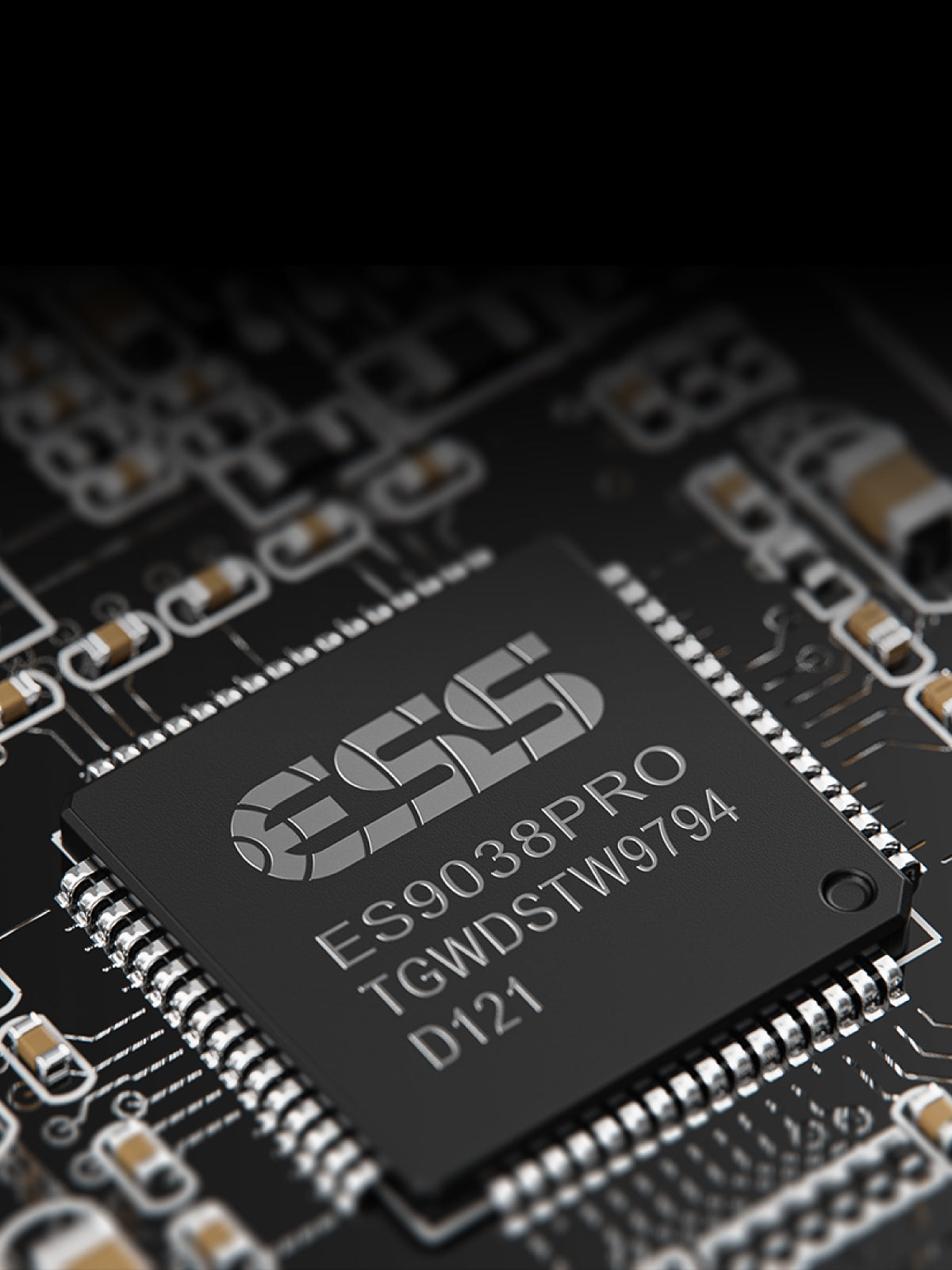

FEATURES ESS SABRE DAC CHIP FOR AN ELITE-LEVEL SONIC PERFORMANCE
The latest and greatest desktop ES9038PRO DAC chip with eight independent D/A converters is employed in the M15S. Each channel uses four D/A converters in parallel to form a fully differential output for a rich and highly resolving sound. The FiiO M15S supports up to 384kHz-32bit/DSD256 natively and has global 8X MQA decoding
EXCEPTIONAL POWER OUTPUT WITH FIVE GAIN-LEVEL SETTINGS
The M15S offers five-level gain settings allowing you to switch between low, medium, high, and over-ear headphone gain settings when using battery power. The enhanced over-ear headphone gain level is also available; when it is under USB power mode, enabling undistorted power output up to 1200mW per channel, enough to drive a wide variety of IEMs and headphones. The FiiO M15S also has a fully separated digital power supply that reduces crosstalk and interference. It also features a multi-stage analogue power supply, high precision and low noise for early signal processing. With the multi-voltage servo power supply for the headphone amp, M15S is capable of driving low and high-impedance loads.

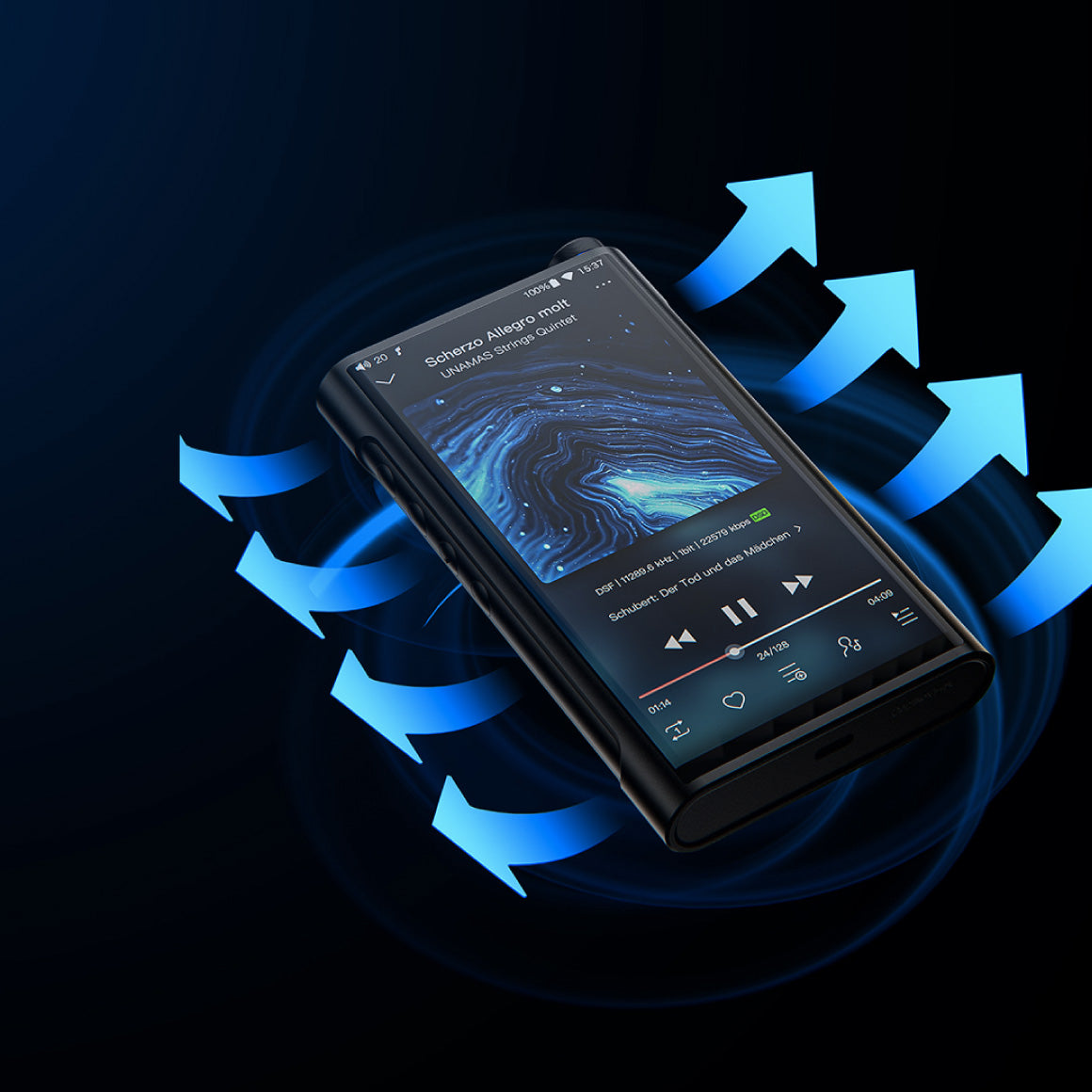

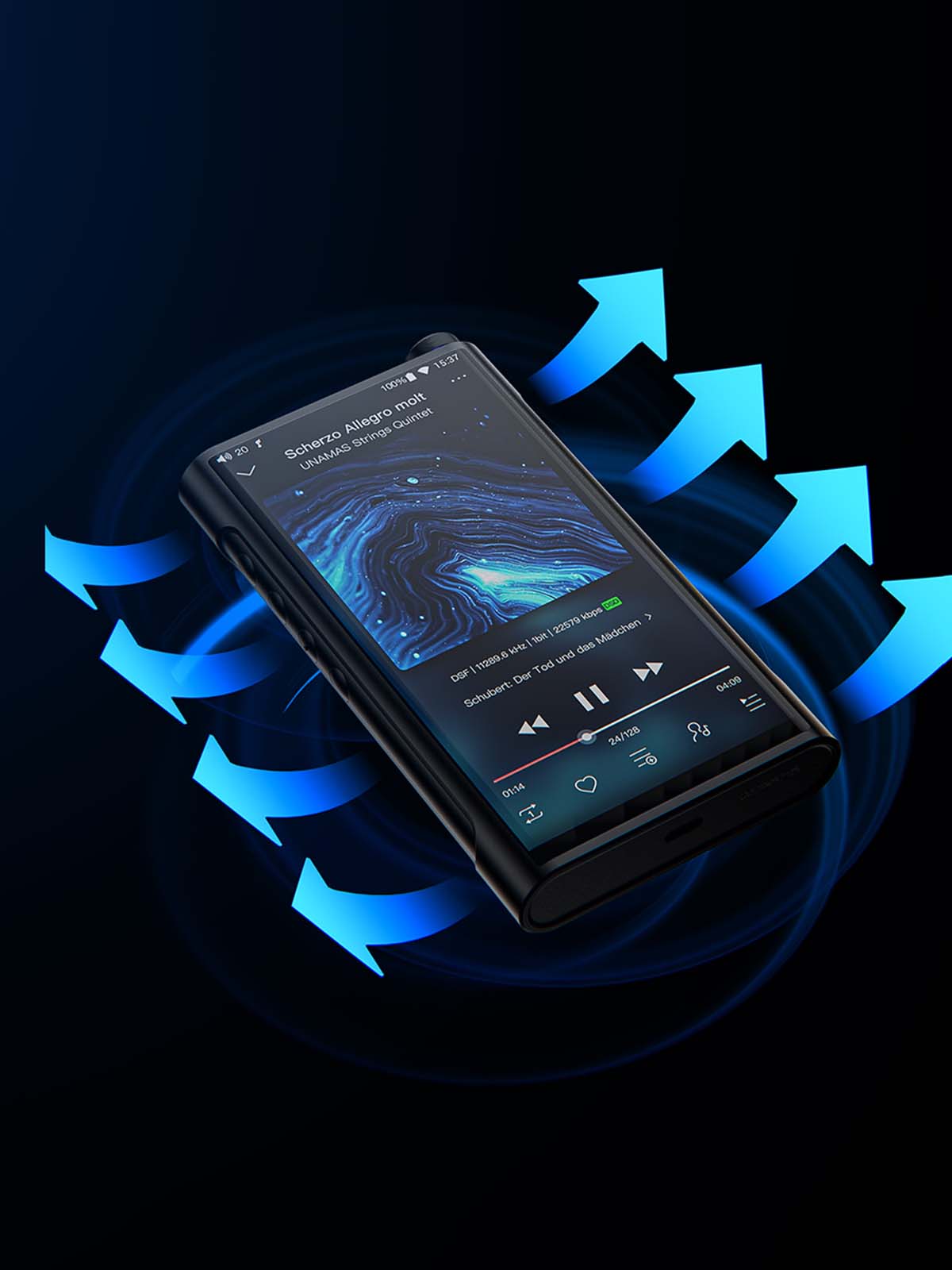

GRAPHENE HEAT DISSIPATION TECHNOLOGY FOR HIGH-POWER AND STABLE OUTPUT
FiiO has incorporated a Graphene heat dissipation technology into the M15S to provide cooling for consistent high-power output. Advanced and highly efficient heat dissipation design allows the M15S to maintain stable temperatures and continuously deliver high power output. The M15S has a dedicated metal shield, graphene, and high thermal conductivity silica gel over hotspots for maximum heat dissipation. To shield from interference as much as possible, the M15S employs a nickel-copper shield. It shields the analogue portion of the audio circuit and the main SoC to ensure the purity of the analogue signals travelling through. In addition, stacked onto the shield are other heat dissipation and shielding materials and wave-absorbing paper. Clean, highly-resolving sound is intended to be produced by premium components and thoughtful shielding design.

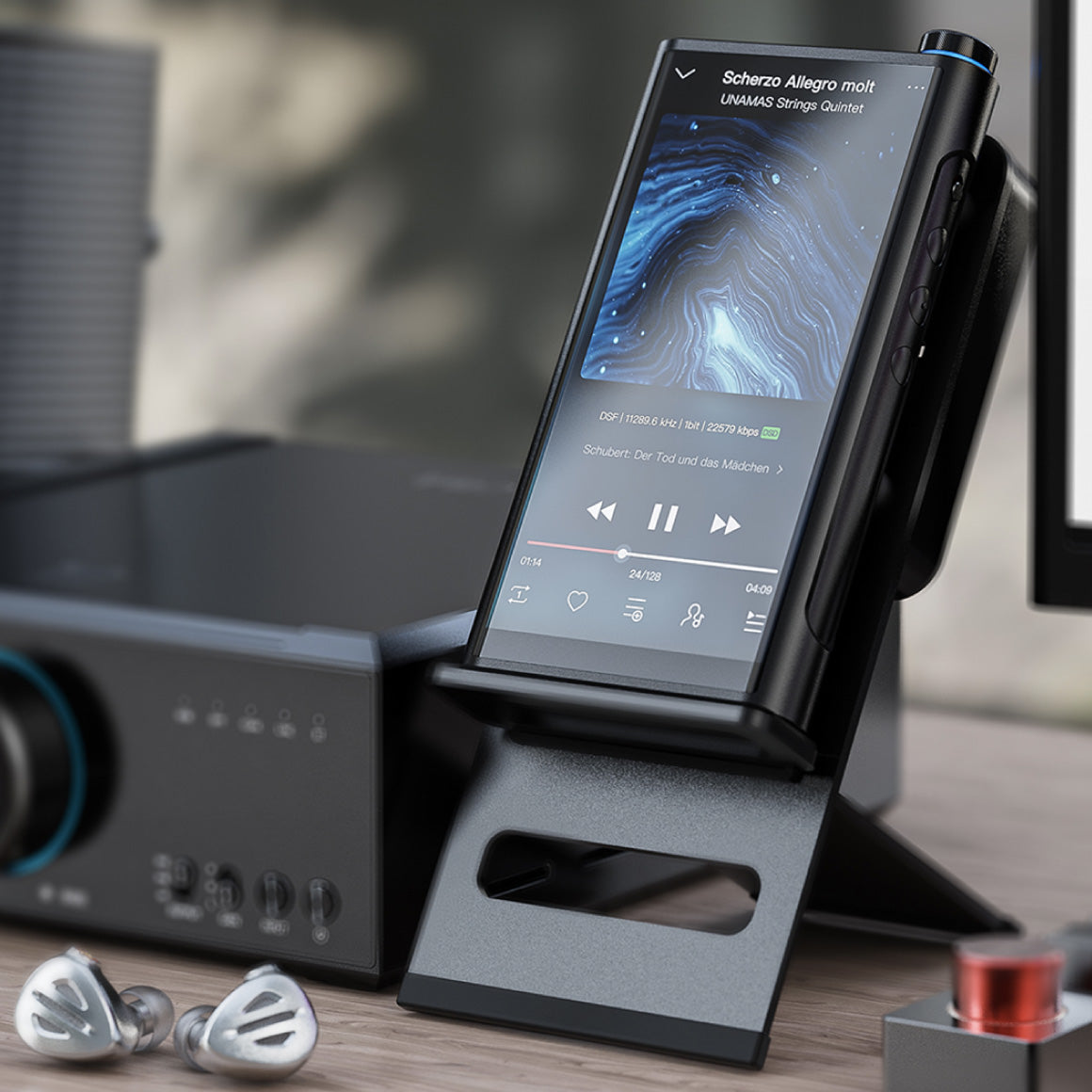

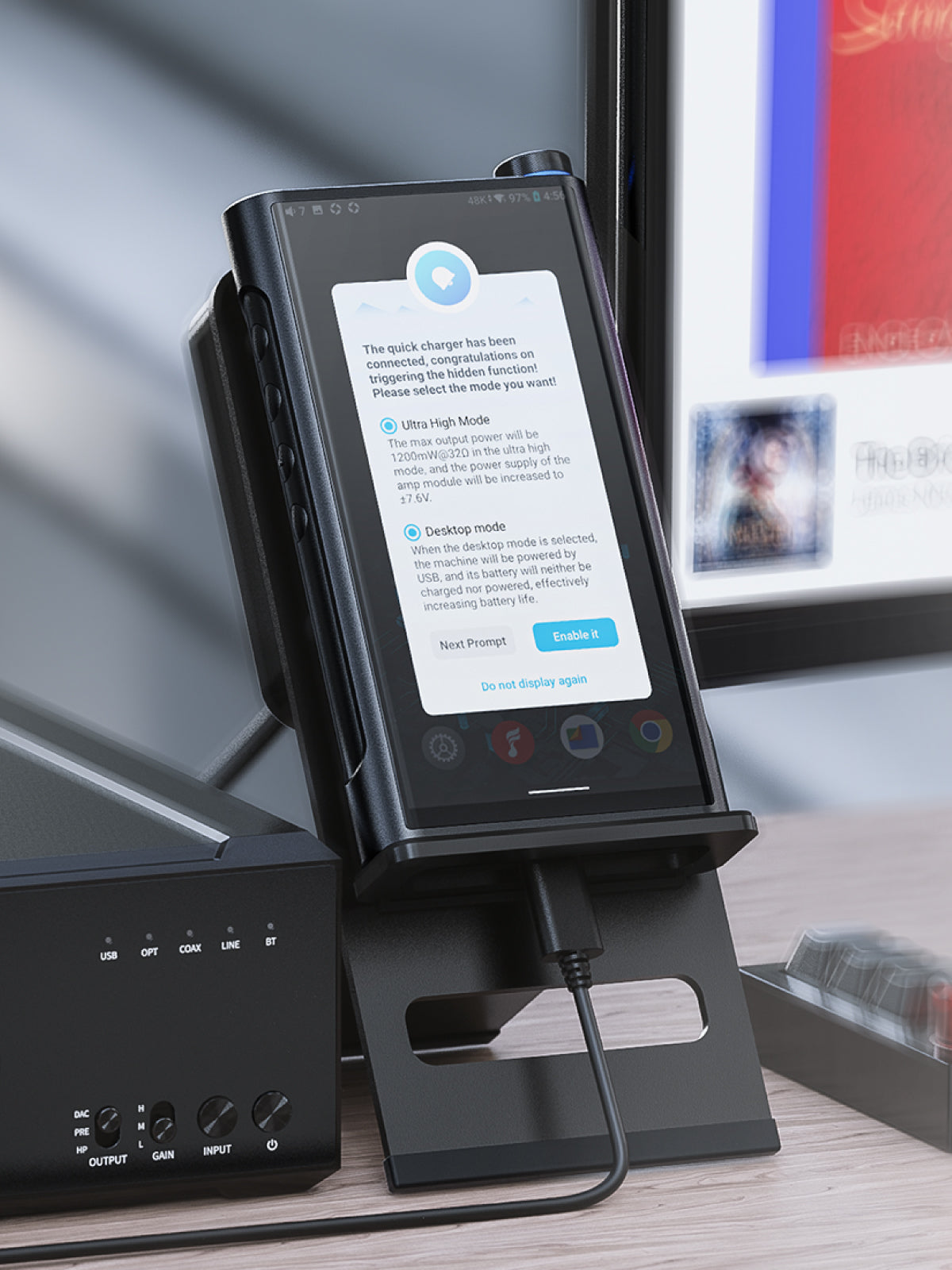

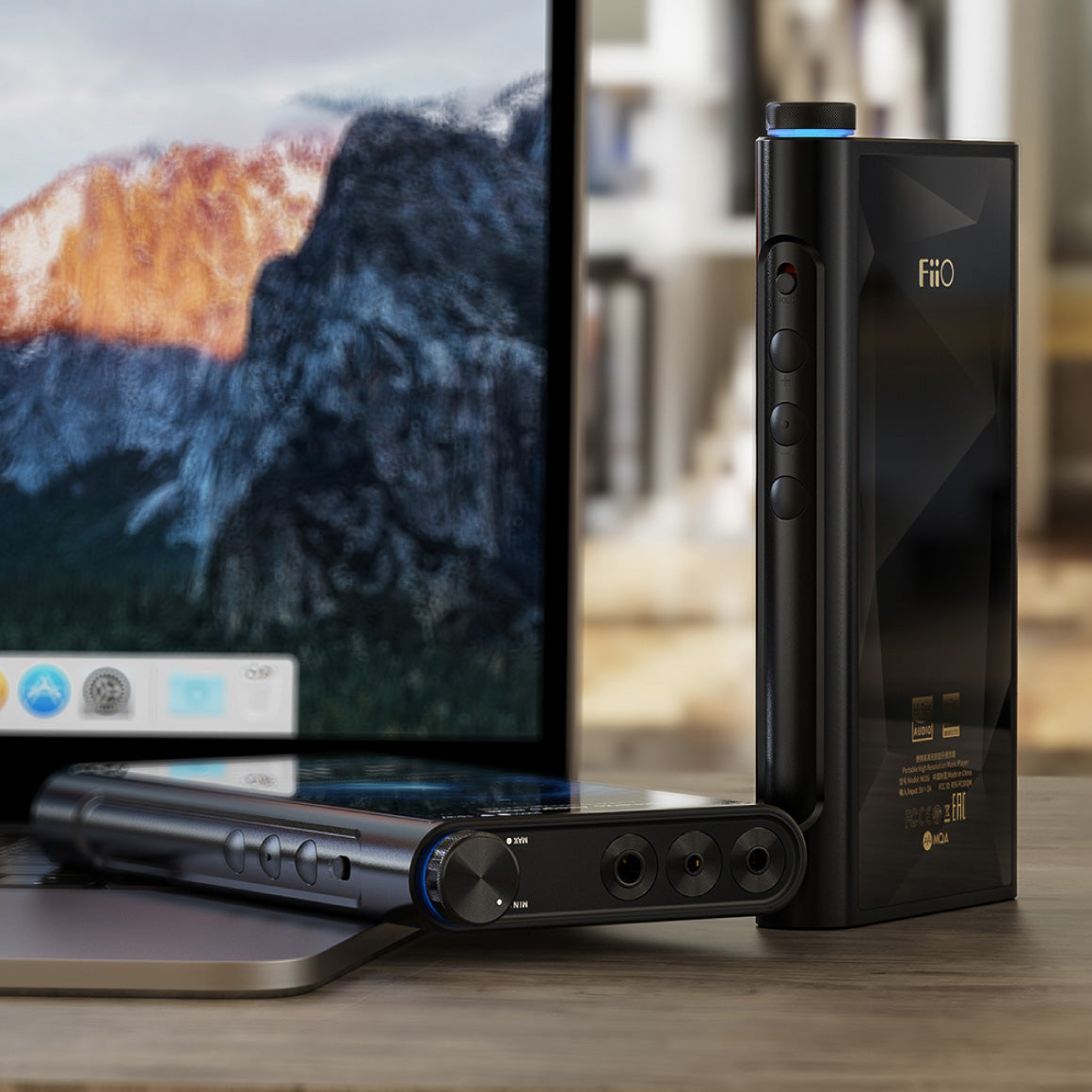

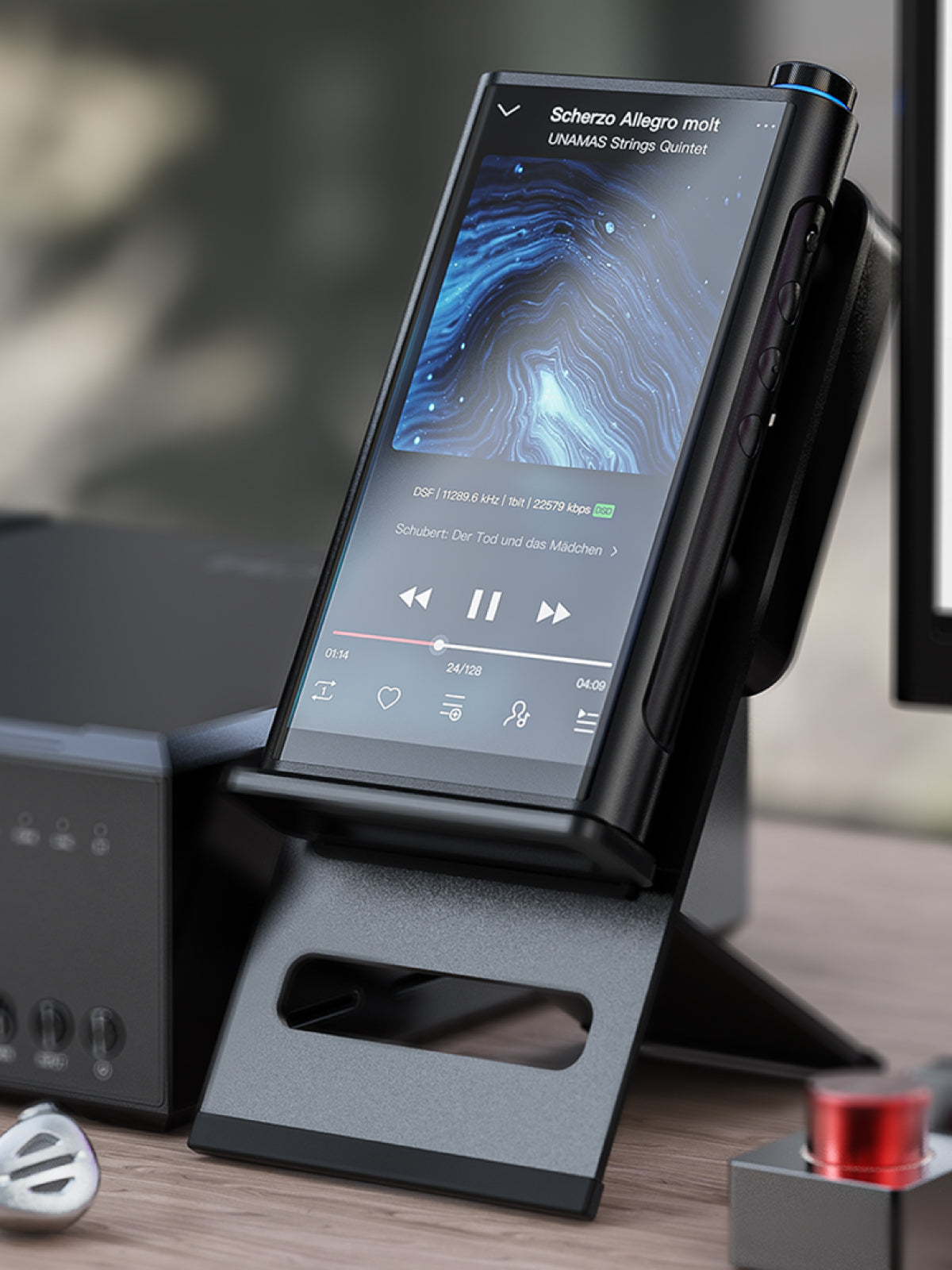

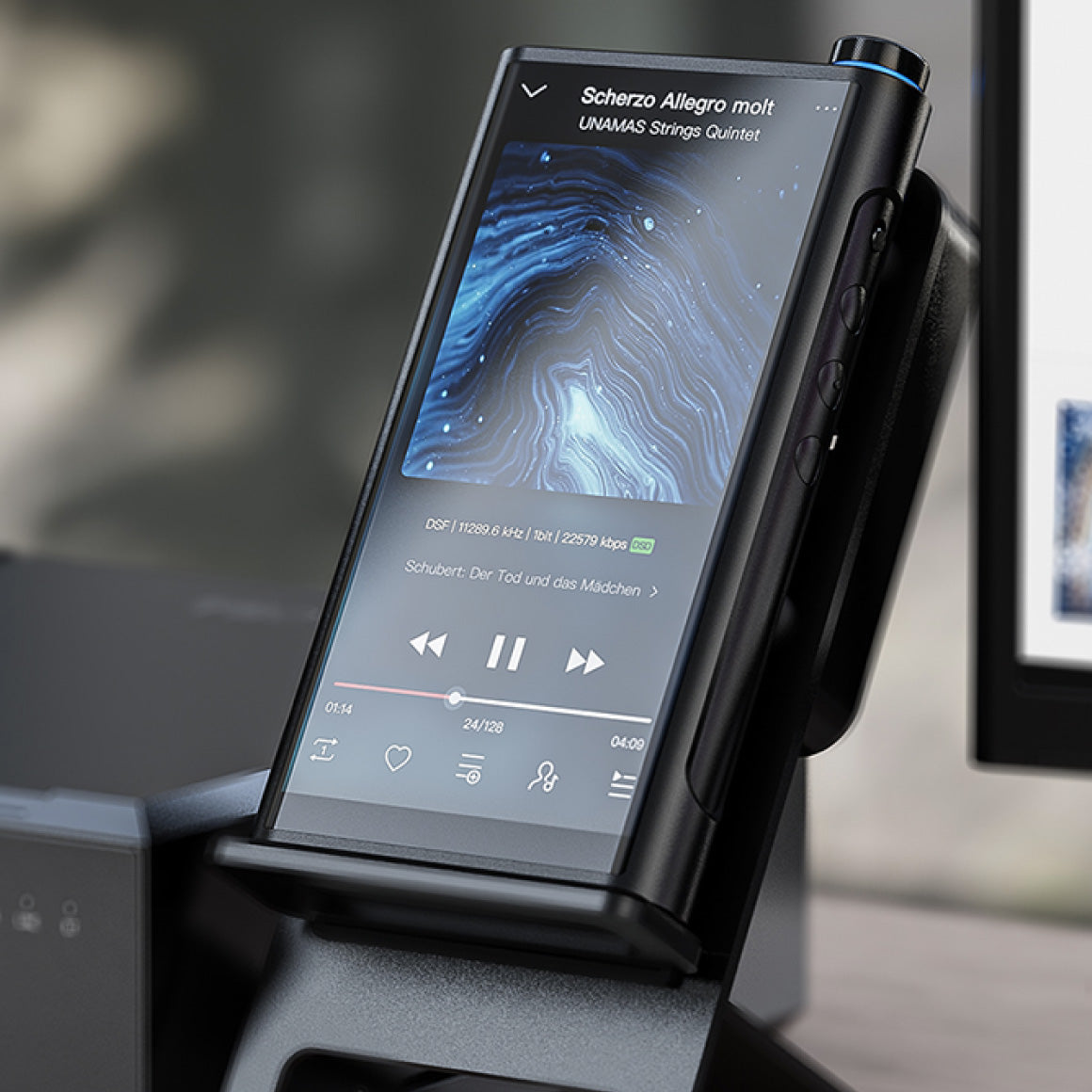

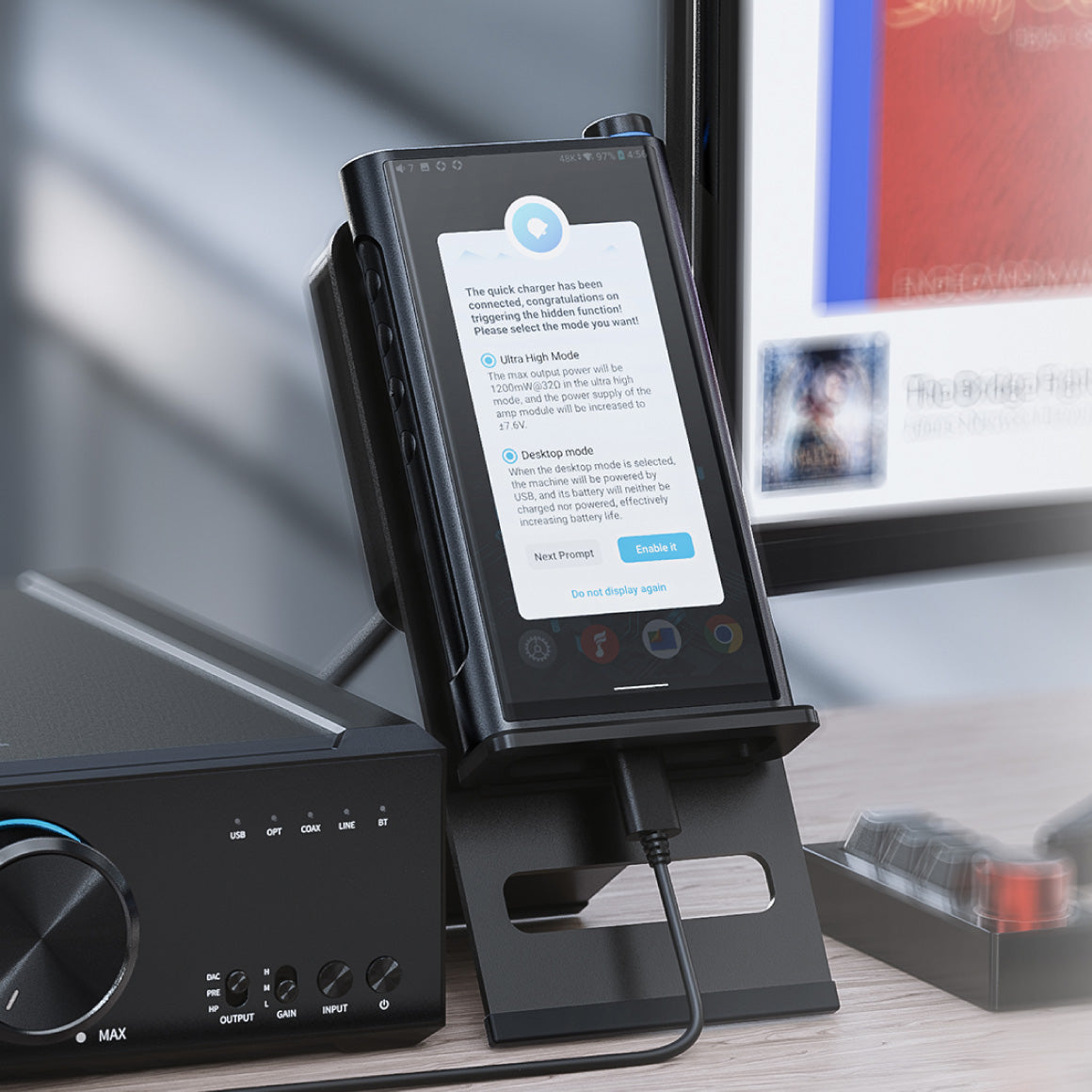

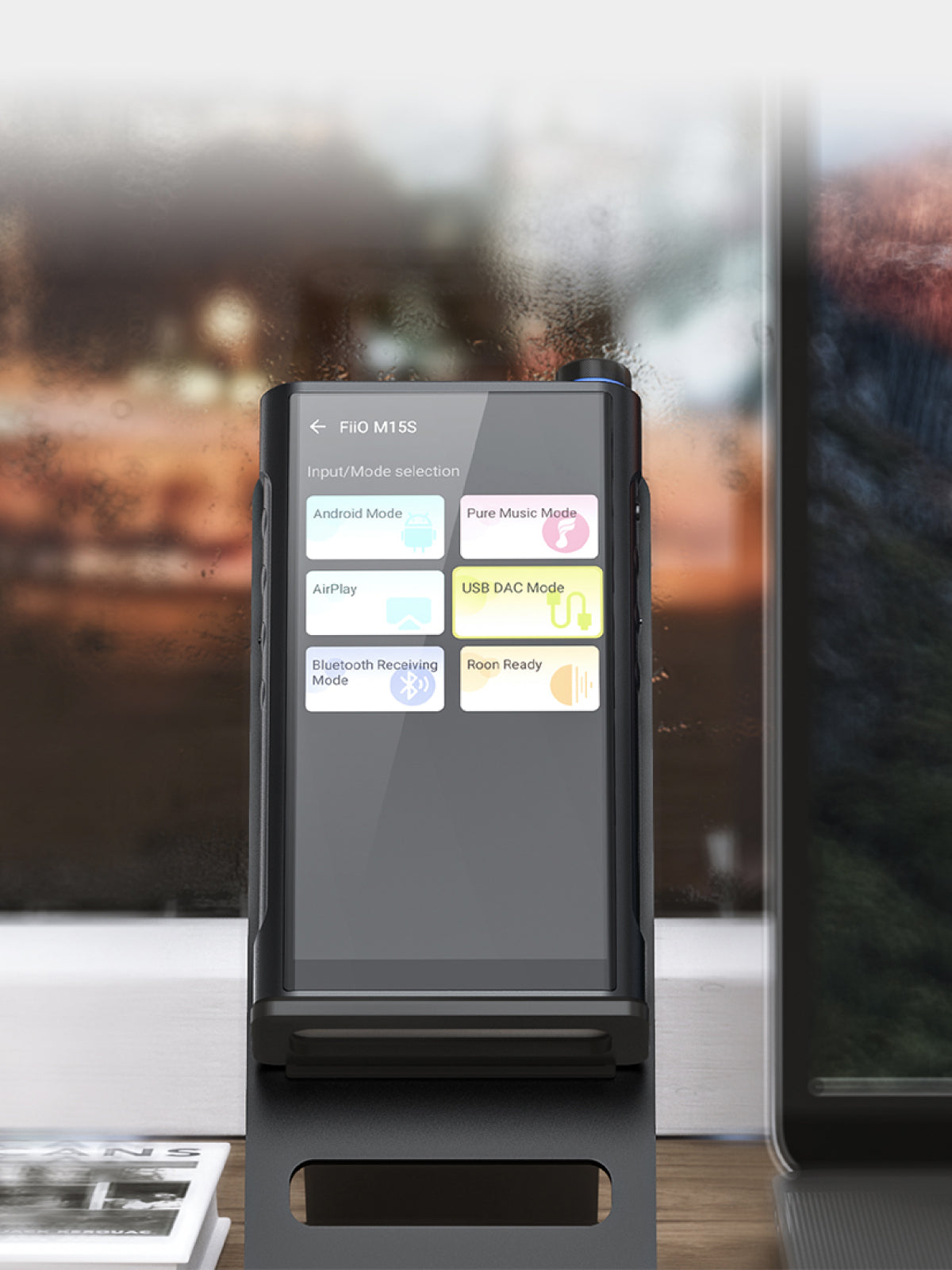

DOUBLES-UP AS A DESKTOP OR PORTABLE MUSIC PLAYER
When in the dedicated desktop mode and under USB fast charging, the M15S will transform essentially into a desktop device and work without the battery. The battery will neither be charged nor discharged, preventing premature degradation of the battery under this mode. The M15S not only features the "desktop/portable dual power supplies" as seen in other FiiO products but it is also equipped with an automatic "auxiliary DC power supply" - the M15S can automatically recognize when fast charging through USB is being used and automatically switches to use the highest-voltage power supply, leading to an increase of 26.67% in power supply for even more power output. Even when not using the fast-charging adapter, the M15S can automatically switch to a higher-voltage power supply that is enough to drive most headphones.
NOTE: Fast charging is activated as soon as it detects QC/PD fast charging through USB.

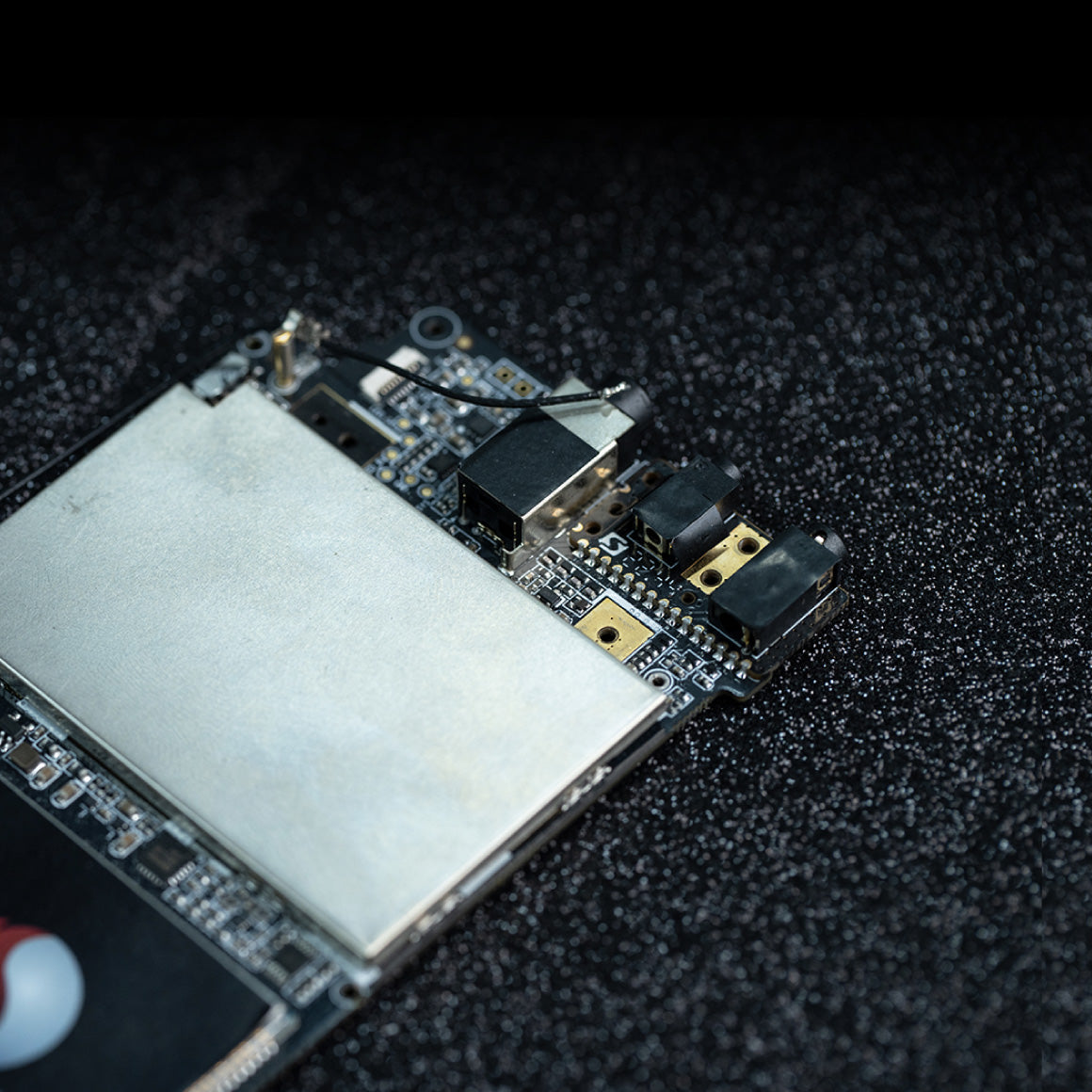

MULTI-STAGE AUDIO CIRCUIT FUSED WITH CRYSTAL OSCILLATORS FOR FAITHFUL REPRODUCTION
The M15S features a multi-stage audio circuit with IV, LPF, gain adjustment and amplifier sections. High-precision and low-noise film resistors ensure more accurate signal reproduction and channel balance. The Panasonic low-loss metalized film capacitors guarantee extremely low harmonic and phase distortion within the LPF part of the circuit. Audio data is passed through a FiiO-developed 4th-gen FPGA with phase-locked loop technology, which works with two custom Japanese NDK femtosecond crystal oscillators to provide a high-precision and low-jitter unified clock source for the entire audio architecture. This design architecture is all done in the pursuit of purer sound.

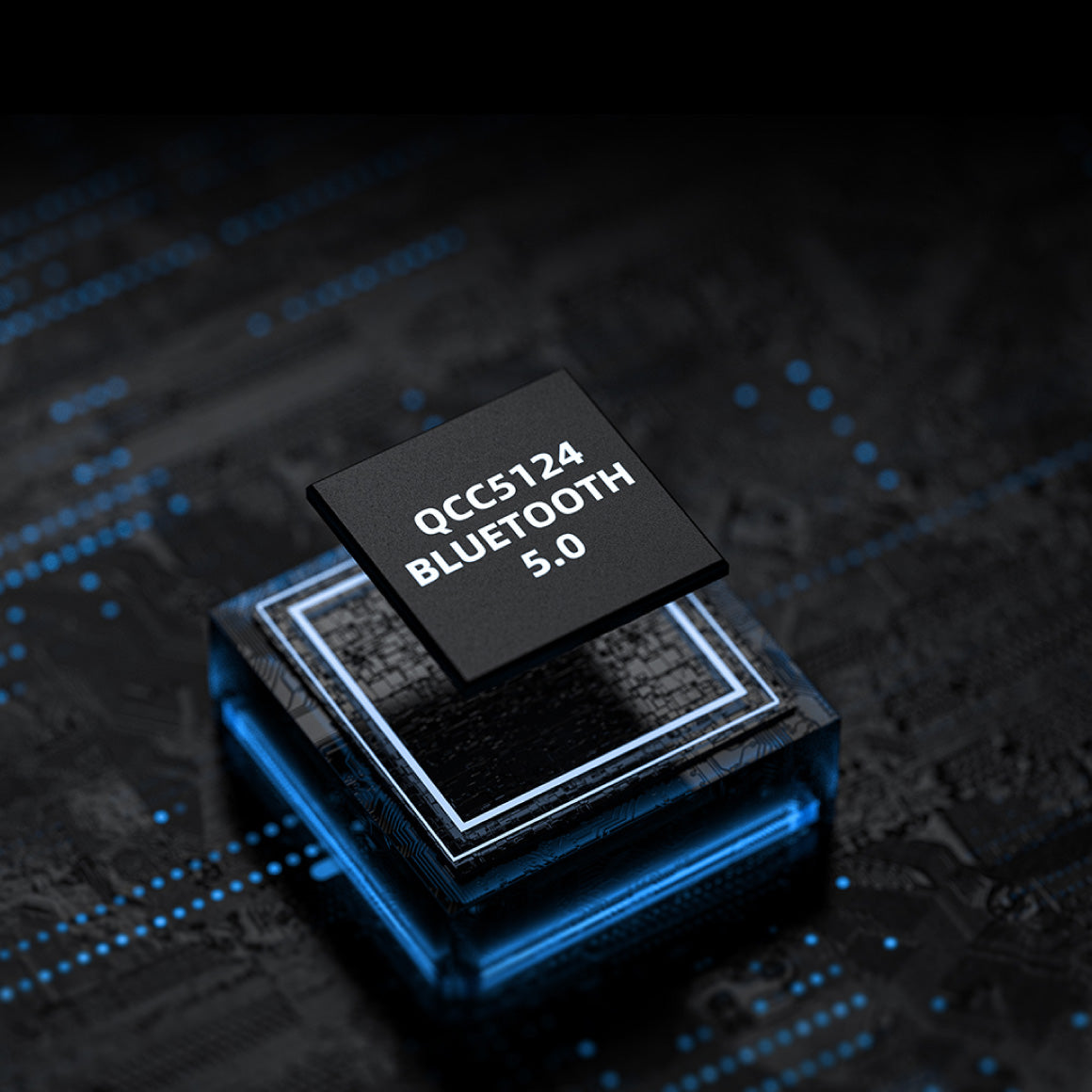

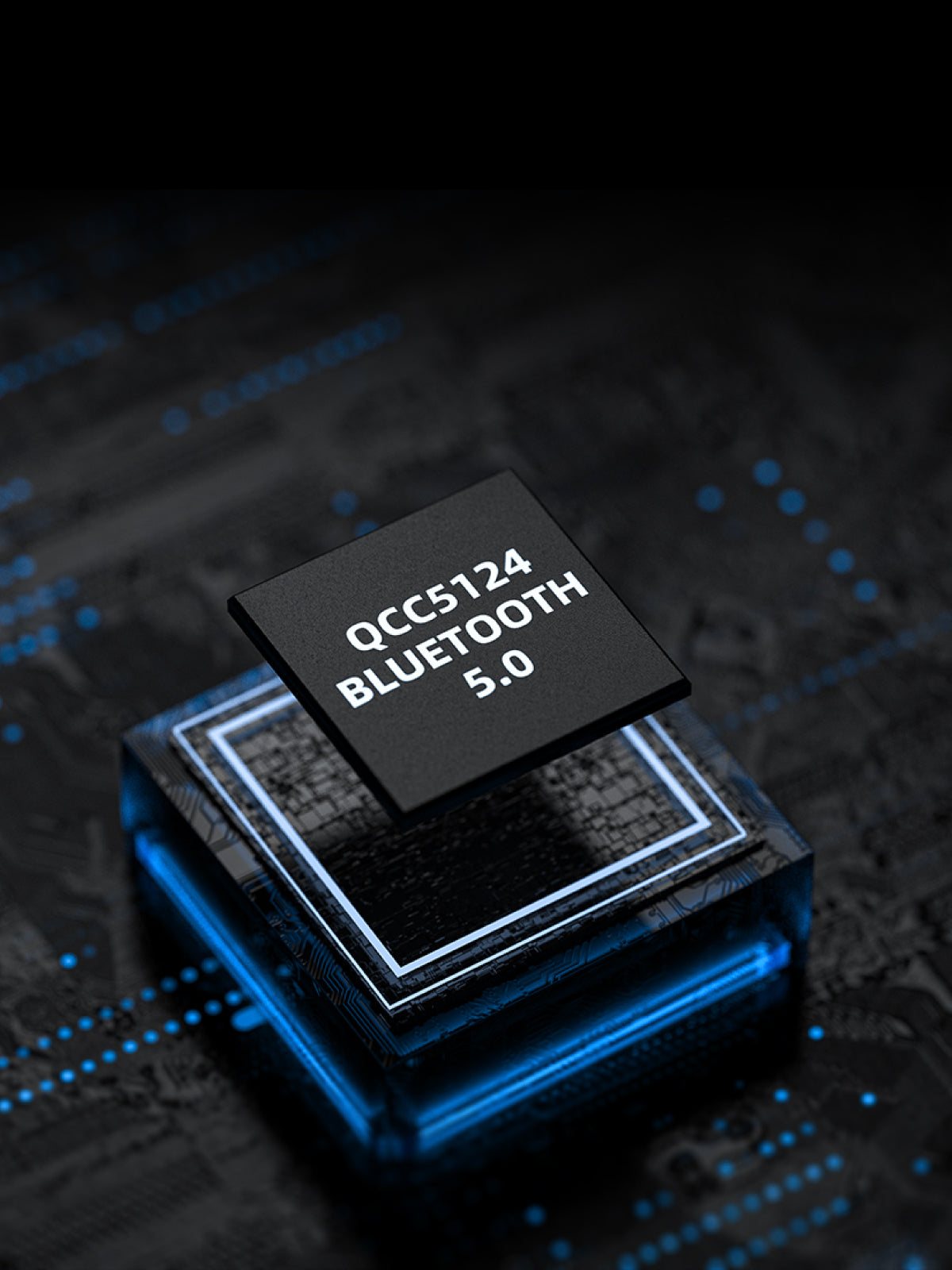

EXPERIENCE MUSIC WIRELESSLY WITH BLUETOOTH AND WIFI SUPPORT
FiiO M15S supports Bluetooth v5.0 and supports the latest Bluetooth codecs. The M15S wireless capabilities include AirPlay, DLNA streaming and transmission, and Bluetooth. The Qualcomm QCC5124 chips, also used in other FiiO products, manage Bluetooth, enabling the M15S to handle 2-way Bluetooth transmission and reception. It supports LDAC, aptX Adaptive, aptX LL, aptX HD, aptX, AAC, and SBC in Bluetooth reception mode. It is compatible with LHDC, LDAC, aptX HD, aptX, AAC, and SBC, just like in Bluetooth transmitter mode. Get a whole new experience by going wireless with the M15S. FiiO M15S also provides dual-band 2.4/5GHz WiFi support with DLNA transmission and reception, AirPlay, WiFi transmission, Roon Ready, etc.

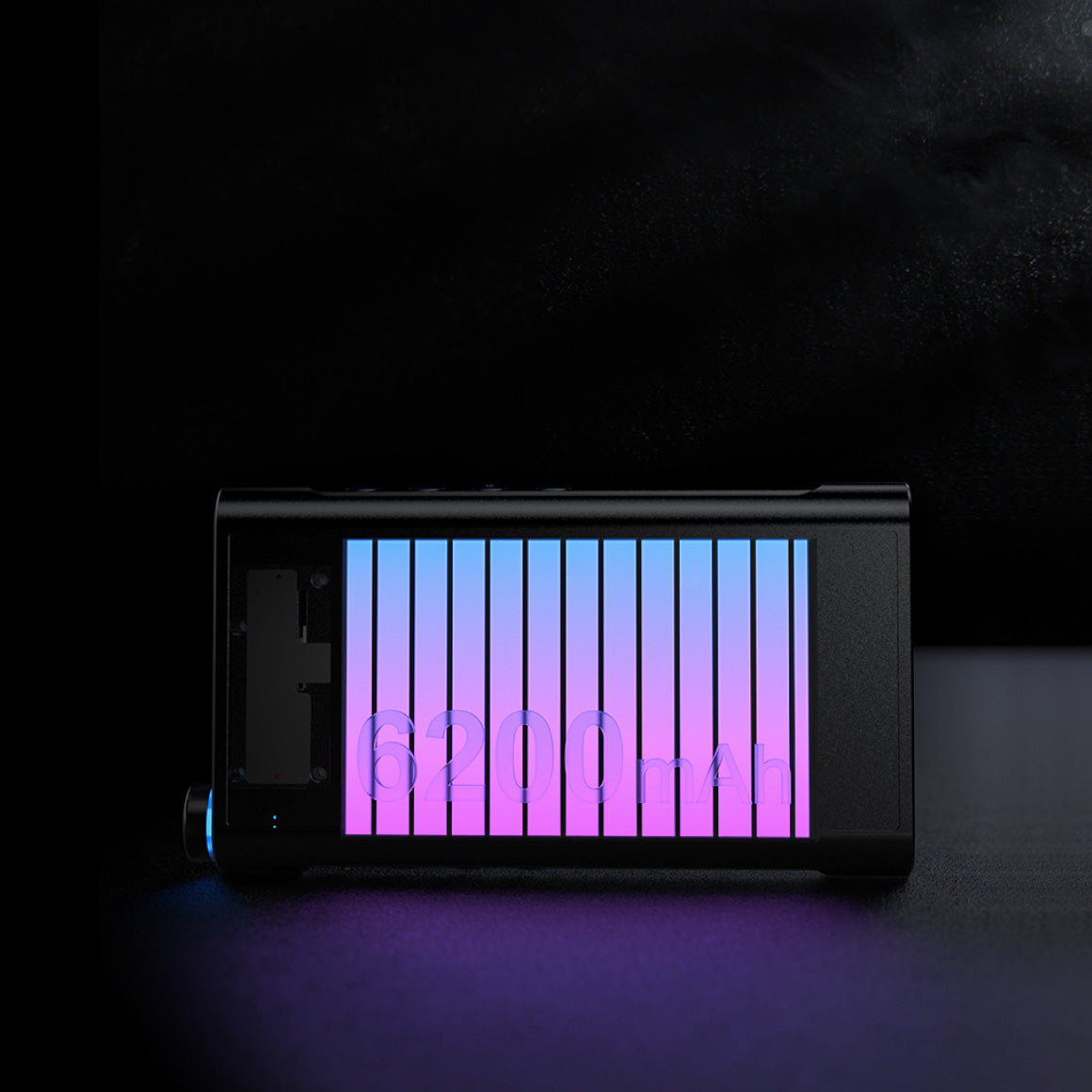

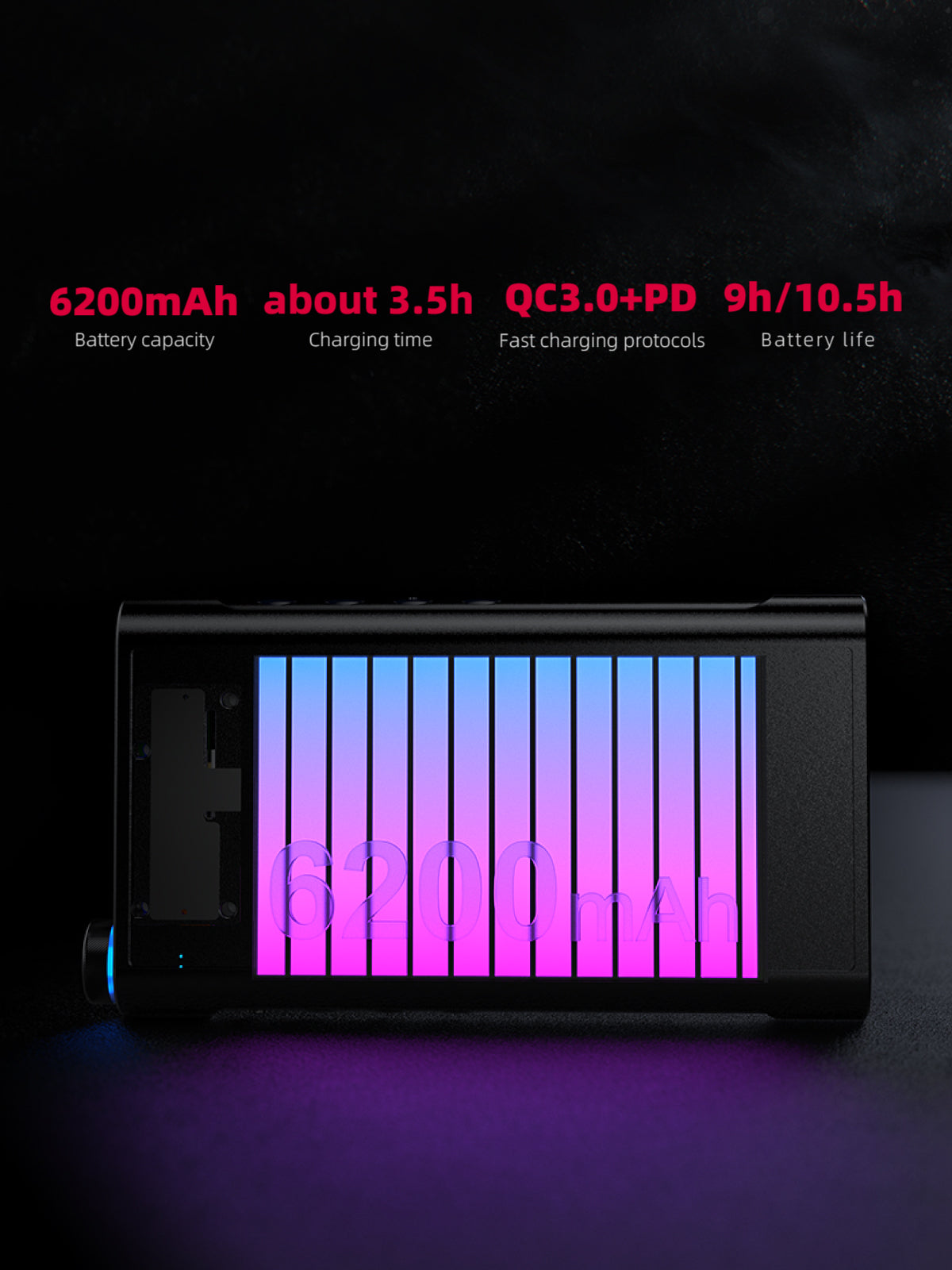

CONTINUOUS PLAYTIME OF 10.5 HOURS ON A SINGLE CHARGE
Despite its portable size, the M15S features a large 6200mAh battery that ensures all-day listening, whether you are using Single-ended or Balanced output. Battery charge optimization and battery protection systems ensure that the battery will last for a long time. It provides a battery life of up to 10.5 hours using the Single-ended headphone out and up to 9 hours using the Balanced connection. You don't have to worry about running out of juice as the M15S supports fast charging and gets fully recharged in approx 3.5 hours.
NOTE: The battery life may vary as per the volume and gain level settings.

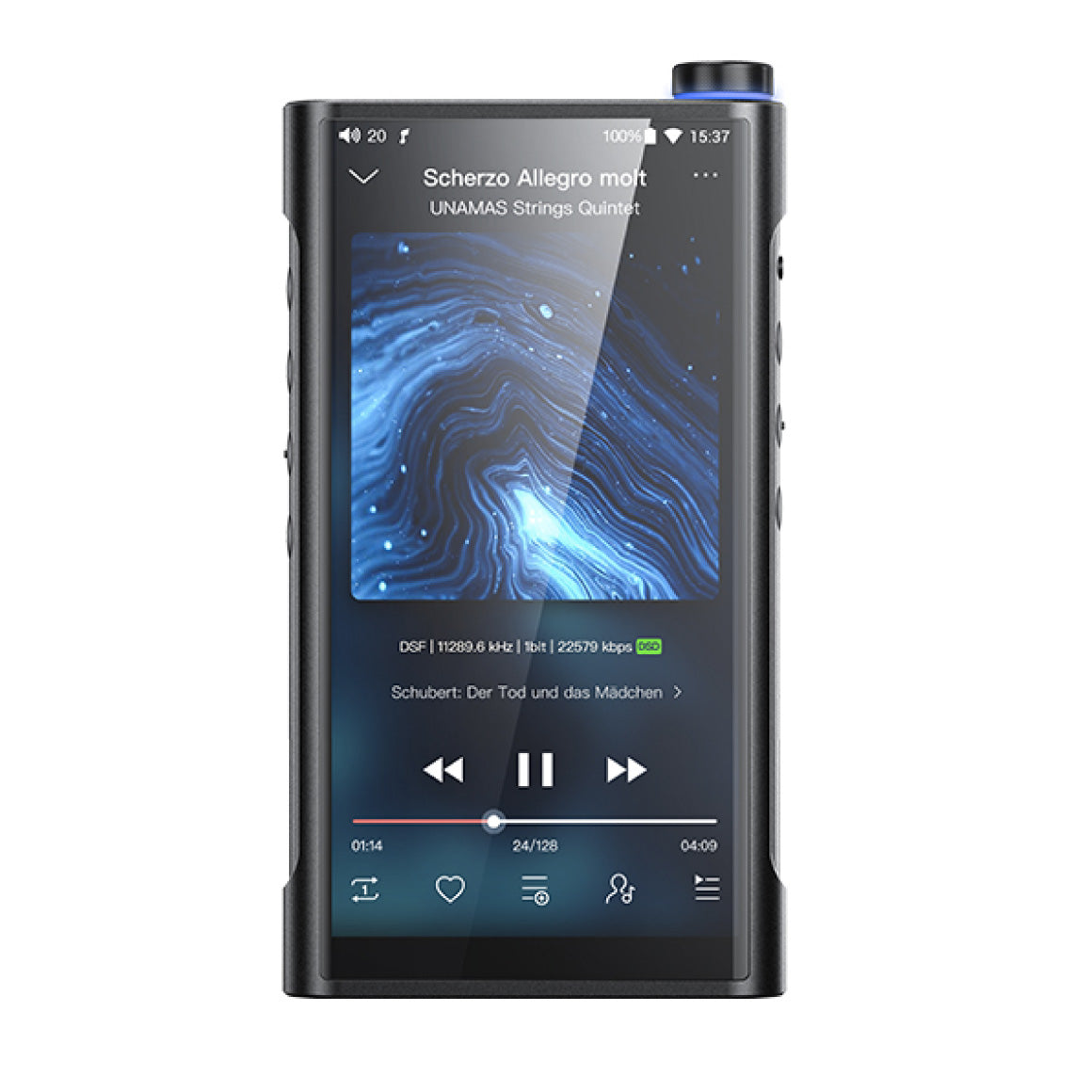

GET THE ULTIMATE AND LIMITLESS PERFORMANCE

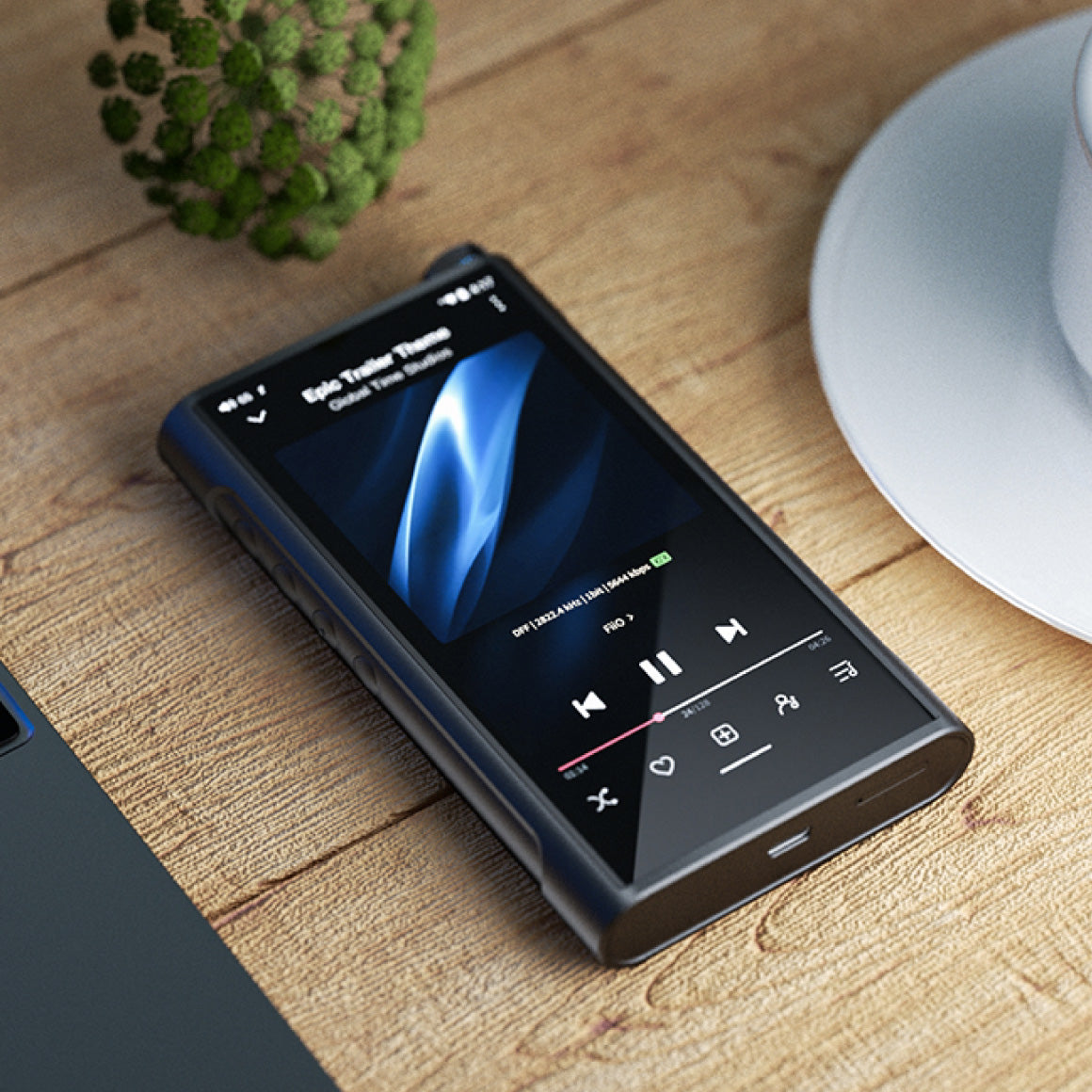

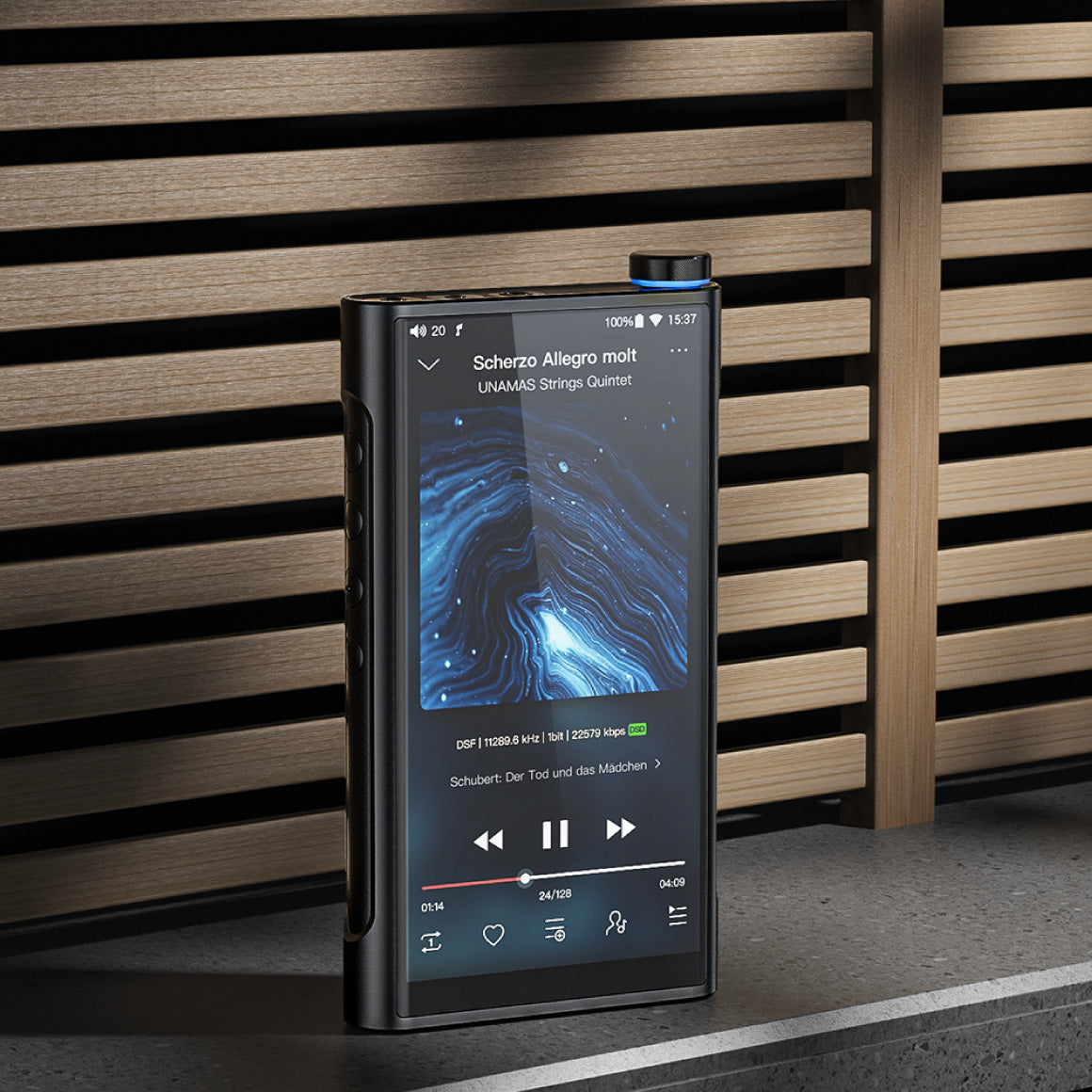

FiiO has included an elegant 5.5-Inch full-fit touch screen (resolution 1440 * 720), which helps you navigate through your settings easily. It features Qualcomm 660 processor and Android 10 OS so that you get the ultimate and limitless experience. With the stable and smooth combination of the Qualcomm Snapdragon 660 and Android 10, you can start listening quickly with the M15S. With the ability to freely install third-party apps and with no global SRC, you can be sure to listen to the music you want in the highest quality. The FiiO M15S has an internal memory of 4GB and internal storage of 64GB (46GB usable) with expandable storage of up to 2TB with the provided TF card slot.

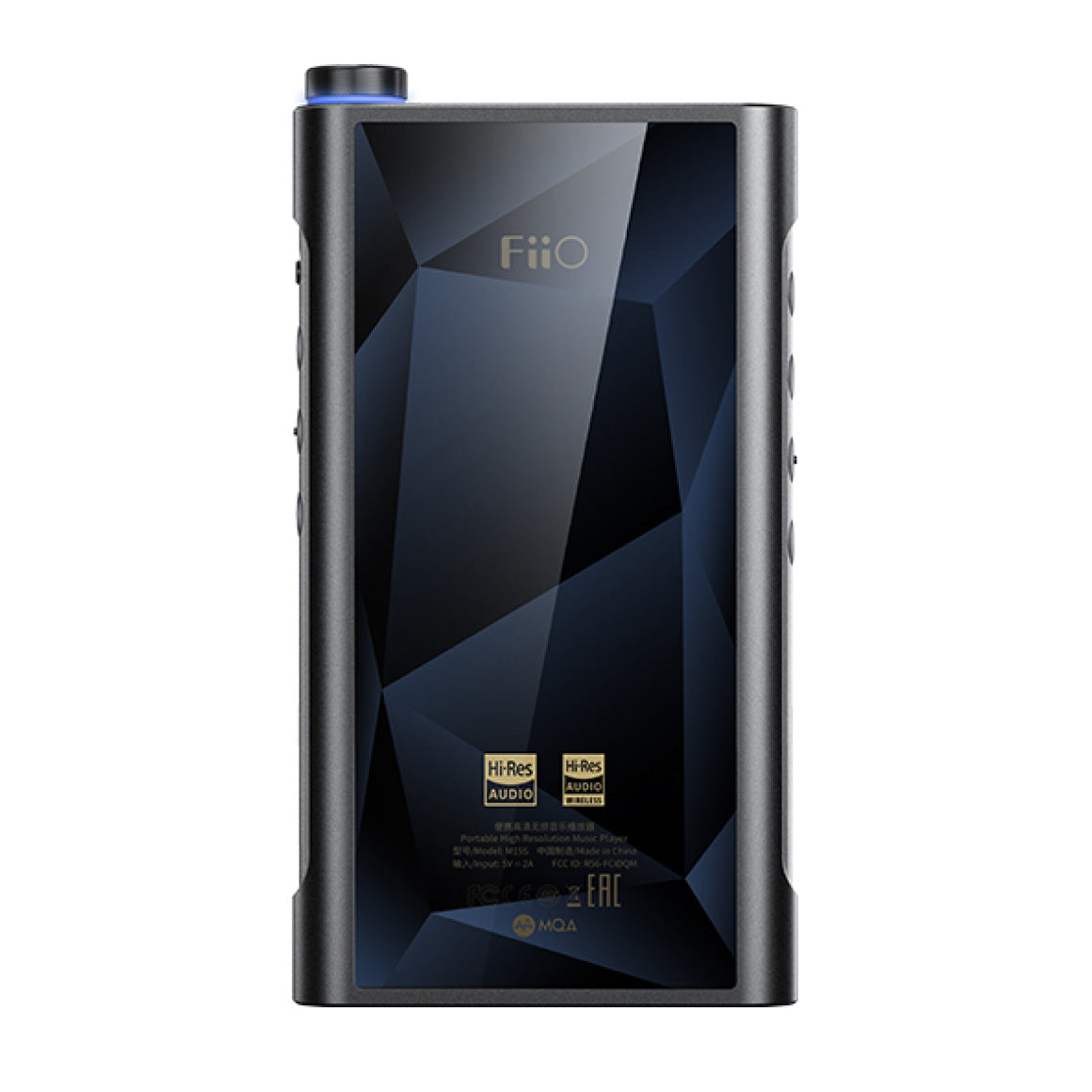

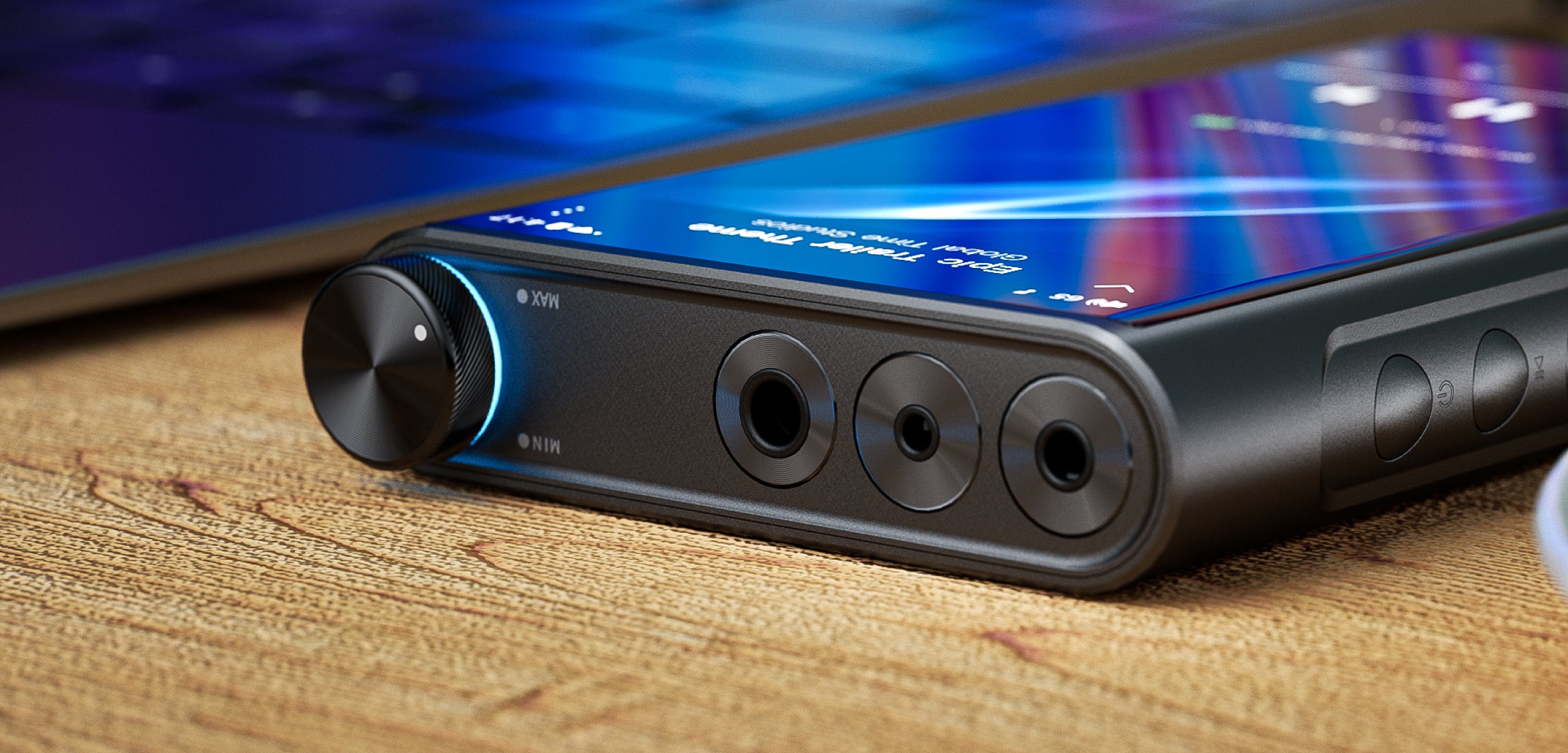

DESIGNED TO IMPRESS WITH MULTIFUNCTION KNOB AND THOUGHTFUL INPUTS AND OUTPUTS

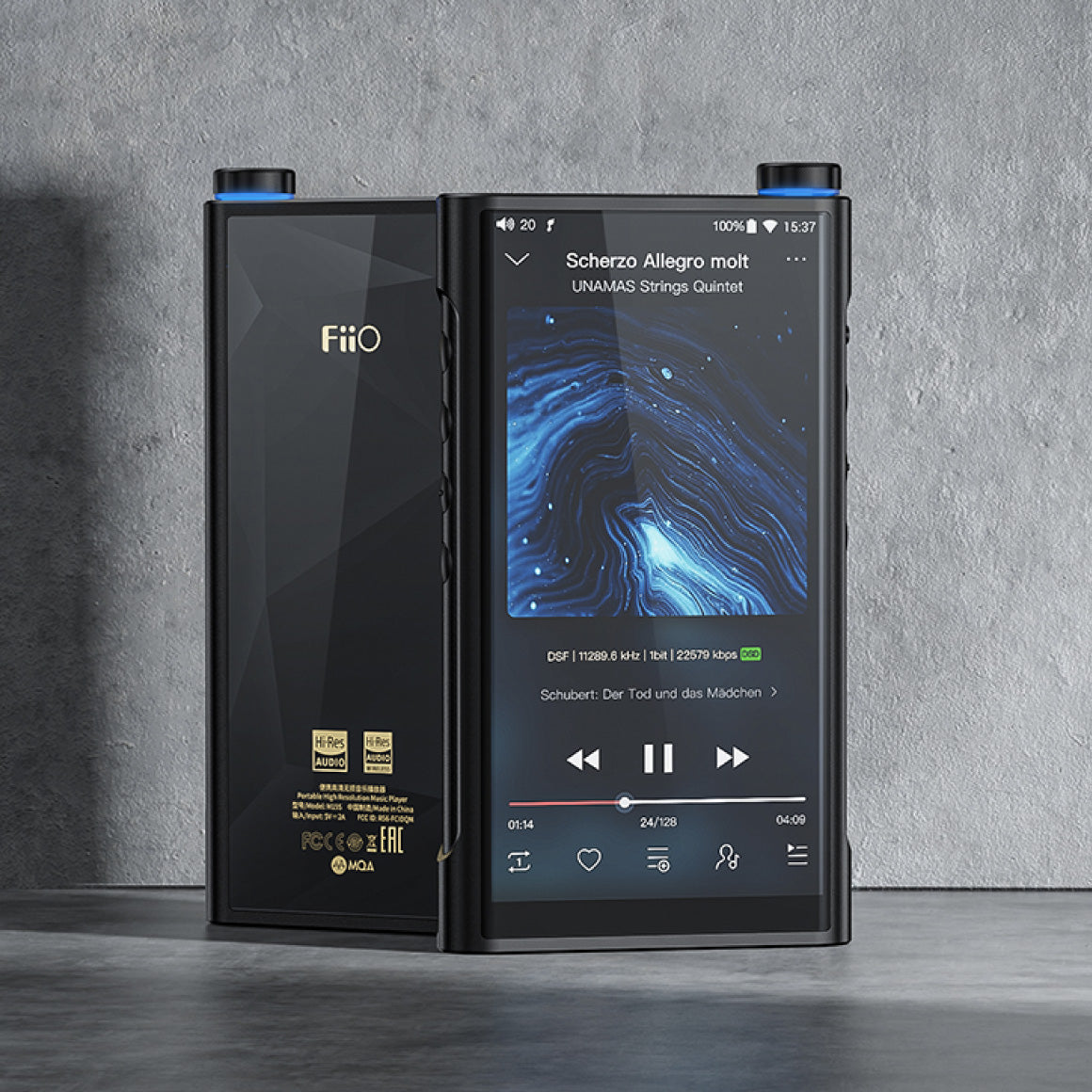

FiiO has built the M15S elegantly and will instantly grab your attention as soon as you pull it out of the box. The M15S features a combination of timeless styling and modern technological touches that give it an elegant appearance that is enjoyable and easy to use. It has a 3.5mm Single-ended headphone output, with line out and coaxial out support and 2.5mm & 4.4mm Balanced headphone outputs. Volume on the M15S can be adjusted either with an analogue potentiometer knob or with buttons, allowing you to fine-tune through the 120 levels. Feel free to turn the volume knob to your heart's content, as the integrated rotary encoder is highly precise. Even if you accidentally drop the device, the encoder is securely fixed, ensuring the continued reliability of the volume knob. The volume knob features RGB lights, which can be customised in brightness, colour, and behaviour under various device statuses.
NOTE: Encoder rated durability > 30000 cycles (360° forward rotation+360° reverse rotation is 1 cycle).
SPECS
MODEL NAME | M15S |

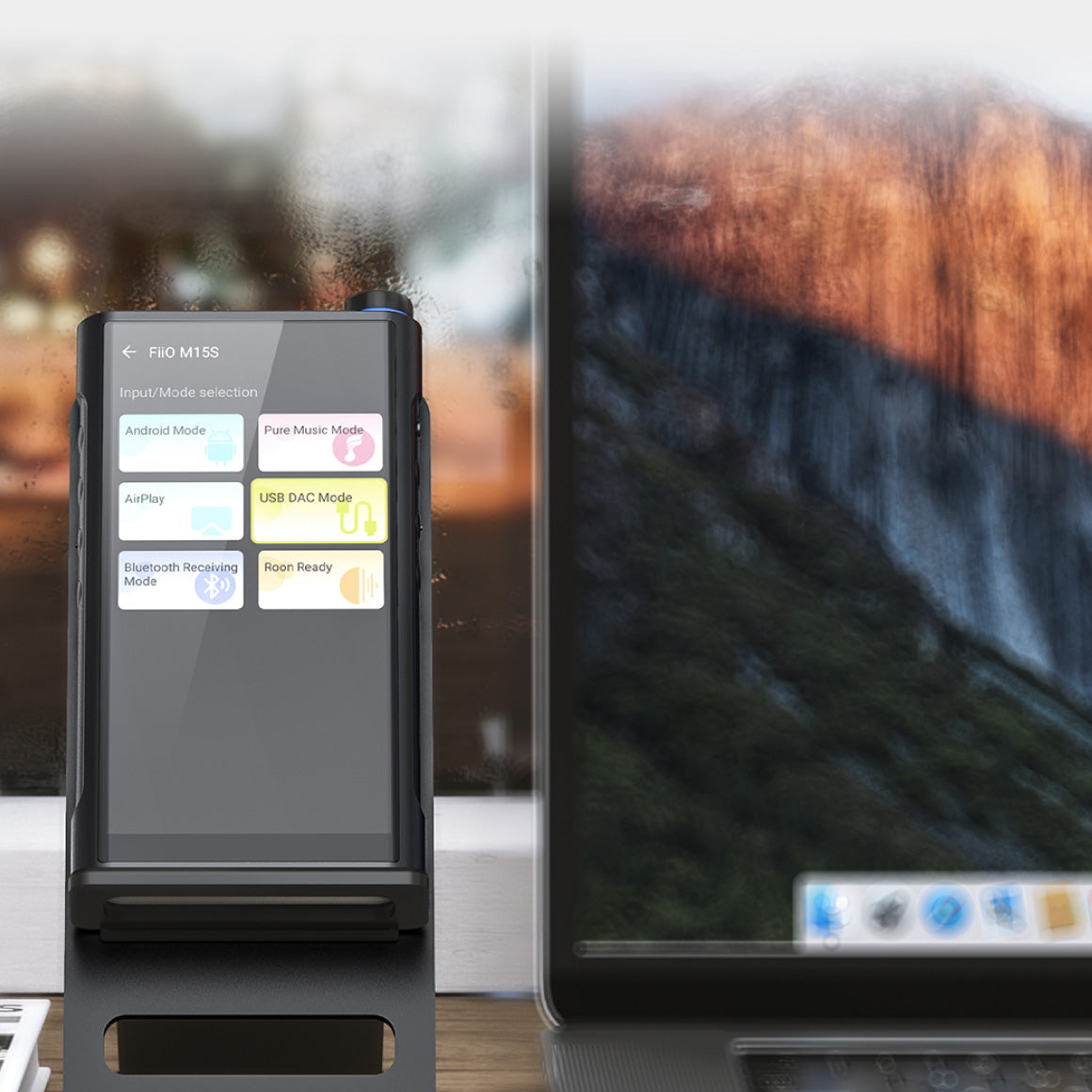

WORKING MODE | Android mode/Pure music mode/USB DAC mode/Bluetooth receiving mode/AirPlay mode/Roon Ready |
COLOR | Black |
SIZE | About 140x80x18.9mm |
SCREEN | 5.5-Inch full-fit screen (resolution 1440 * 720) |
RAM | 4GB |
STORAGE EXPANSION | Single TF card slot, up to 2TB (theoretically) |
HARDWARE | Soc: Snapdragon 660, DAC: ES9038PRO, Amplifier: OPA926 * 2, Crystal Oscillator: NDK Femtosecond Crystal Oscillator * 2 |
WEIGHT | About 345g |
VOLUME CONTROL TYPE | Button control or knob control |
BODY MEMORY/USER FREE SPACE (ROM) | 64GB/About 46GB |
GAIN | Ultra high (Quick charge)/Super high/high/medium/low |
RECOMMENDED HEADPHONE IMPEDANCE | 8 ~ 150Ω (single-ended output)/8 ~ 350Ω (balanced output) |
CHANNEL BALANCE | L20~ R20 (0.5dB per level) |
BUTTON | Physical key |
HEADPHONE OUTPUT | 3.5mm single-ended |
BALANCED OUTPUT | 2.5mm + 4.4mm balanced |
COAXIAL INTERFACE | 3.5 mm (shared with PO port, up to 384kHz-32bit/DSD128) |
USB | Type C USB 3.0 (charging/data transmission) |
LINE OUTPUT PORT | 3.5 mm (shared with PO port) |
BALANCED LINE OUTPUT INTERFACE | 2.5mm balance + 4.4mm balance (shared with PO ports) |
WIFI | 2.4GHz/5GHz, supports DLNA transmission and reception, AirPlay, WiFi transmission, Roon Ready, etc. |
BLUETOOTH RECEPTION (5.0) | SBC, AAC, aptX, aptX HD, aptX LL, LDAC, aptX Adaptive |
MQA | Global 8x decoding |
DOUBLE CLICK TO WAKEUP | Support |
MAXIMUM SUPPORTED SAMPLING RATE | Native: Up to 384kHz-32bit/DSD256 USB DAC up to 384kHz-32bit/DSD256 |
POWER-OFF TIMER | Support power saving shutdown/sleep shutdown |
FIRMWARE UPGRADE | Support local storage upgrade + TF card local upgrade + OTA push upgrade |
BLUETOOTH TRANSMITTER (5.0) | SBC, AAC, aptX, aptX HD, LDAC, LHDC |
FIIO LINK | Android support WiFi and Bluetooth control, iOS support WIFI control |
ALL TO DSD | Support |
USB AUDIO | 768kHz-32bit/DSD512 (DoP/D2P/Native) |
CAR MODE | Can follow the car USB automatic switch machine |
EQ | 10-band dynamic EQ adjustment (± 12dB), built-in 8 preset EQ, support custom EQ |
NAVIGATION CONTROL | Gesture control/2-Bottom navigation/3-Bottom navigation |
POWER SUPPLY | Support QC3.0, QC4.0 and PD2.0 and PD3.0 quick charge |
CHARGING TIME | About 3.5 hours (QC3.0 quick charge mode) |
BATTERY CAPACITY | 6200mAh |
STANDBY TIME | >1000h |
3.5MM HEADPHONE OUTPUT:10.5H | |
VOLUME | 40 |
SCREEN STATUS | Off |
EQ | OFF |
GAIN | Super high |
TRACK FORMATS | MP3 44.1kHz/16bit |
LOAD | 32 Ω |
2.5MM+4.4MM BALANCED OUTPUT:9H | |
VOLUME | 29 |
SCREEN STATUS | Off |
EQ | OFF |
GAIN | Super high |
PLAY TRACKS AND FORMATS | MP3 44.1kHz/16bit |
LOAD | 32Ω |
OUTPUT POWER 1 | L+R≥535mW+535mW(16Ω / THD+N<1%) |
OUTPUT POWER 2 | L+R≥580mW+580mW(32Ω /THD+N<1%) |
OUTPUT POWER 3 | L+R≥93mW+93mW(300Ω / THD+N<1%) |
CROSSTALK | ≥ 80dB(1kHz/32Ω) |
FREQUENCY RESPONSE | 20Hz~20kHz(-0.15dB) 20Hz~50kHz(-1.0dB) |
OUTPUT IMPEDANCE | ≤ 1.4 Ω(32 Ω) |
THD+N | ≤ 0.0005%(1kHz/32Ω) |
SNR | ≥ 122.5dB(A weighted) |
NOISE FLOOR | ≤ 3.2 μV(A weighted) |
PEAK OUTPUT VOLTAGE | 15.0 Vpp |
OUTPUT POWER 1 | L+R≥475mW+475mW(16Ω / THD+N<1%) |
OUTPUT POWER 2 | L+R≥395mW+395mW(32Ω /THD+N<1%) |
OUTPUT POWER 3 | L+R≥57mW+57mW(300Ω / THD+N<1%) |
CROSSTALK | ≥ 80dB(1kHz/32Ω) |
FREQUENCY RESPONSE | 20Hz~20kHz(-0.15dB) 20Hz~50kHz(-1.0dB) |
OUTPUT IMPEDANCE | ≤ 1.4 Ω(32 Ω) |
THD+N | ≤ 0.0005%(1kHz/32Ω) |
SNR | ≥ 121.0dB(A weighted) |
NOISE FLOOR | ≤ 3.2 μV(A weighted) |
PEAK OUTPUT VOLTAGE | 11.7 Vpp |
THD+N | ≤ 0.00034%(1kHz/10kΩ) |
CROSSTALK | ≥ 106dB(1kHz/10kΩ) |
FREQUENCY RESPONSE | 20Hz~20kHz(-0.1dB) 20Hz~50kHz(-0.7dB) |
SNR | ≥ 124.0dB(A-weighted) |
NOISE FLOOR | ≤ 1.2 μV(A weighted) |
LINE OUTPUT LEVEL | 2.0Vrms(1kHz/10kΩ) |
OUTPUT POWER 1 | L+R≥531mW+531mW(16Ω / THD+N<1%) |
OUTPUT POWER 2 | L+R≥1200mW+1200mW(32Ω /THD+N<1%) |
OUTPUT POWER 3 | L+R≥368mW+368mW(300Ω /THD+N<1%) |
DEGREE OF SEPARATION | ≥105.0dB(1kHz/32Ω) |
FREQUENCY RESPONSE | 20Hz~20kHz(-0.15dB) 20Hz~50kHz(-1.0dB) |
OUTPUT IMPEDANCE | ≤ 2.3 Ω(32 Ω) |
THD+N | ≤ 0.00075%(1kHz/32 Ω) |
SNR | ≥ 121.5dB(A weight) |
NOISE FLOOR | ≤ 5.2 μV(A weighting) |
PEAK OUTPUT VOLTAGE | 30.0Vpp |
OUTPUT POWER 1 | L+R≥531mW+531mW(16Ω / THD+N<1%) |
OUTPUT POWER 2 | L+R≥990mW+990mW(32Ω /THD+N<1%) |
OUTPUT POWER 3 | L+R≥226mW+226mW(300Ω /THD+N<1%) |
DEGREE OF SEPARATION | ≥105.6dB(1kHz/32Ω) |
FREQUENCY RESPONSE | 20Hz~20kHz(-0.15dB) 20Hz~50kHz(-1.0dB) |
OUTPUT IMPEDANCE | ≤ 2.3 Ω(32 Ω) |
THD+N | ≤ 0.00075%(1kHz/32 Ω) |
SNR | ≥ 120.5dB(A weight) |
NOISE FLOOR | ≤ 5.2 μV(A weighting) |
PEAK OUTPUT VOLTAGE | 23.7 Vpp |
THD+N | ≤ 0.00031%(1kHz/10 kΩ) |
CROSSTALK | ≥ 106dB(1kHz/10 kΩ) |
FREQUENCY RESPONSE | 20Hz~20kHz(-0.1dB) 20Hz~50kHz(-0.7dB) |
SNR | ≥ 127.7dB(A weight) |
NOISE FLOOR | ≤ 1.7 μV(A weighting) |
LINE OUTPUT LEVEL | 4.0Vrms(1kHz/10kΩ) |
LOSSLESS: | DSD:DSD64/128/256(".iso”,".dsf”,".dff”),DST iSO DXD:352.8K/24bit APE FAST/High/Normal:384kHz/24bit(MAX) APE Extra High:192kHz/24bit(MAX) APE Insane:96kHz/24bit(MAX) Apple Lossless:384kHz/32bit(MAX) AIFF:384kHz/32bit(MAX) FLAC:384kHz/32bit(MAX) WAV:384kHz/32bit(MAX) WMA LOSSLESS:96kHz/24bit(MAX) DTS: 192kHz/24bit(MAX) MQA:Full Decoderer |
LOSSY COMPRESSION: | MP3,OGG,WMA,AAC and other formats |

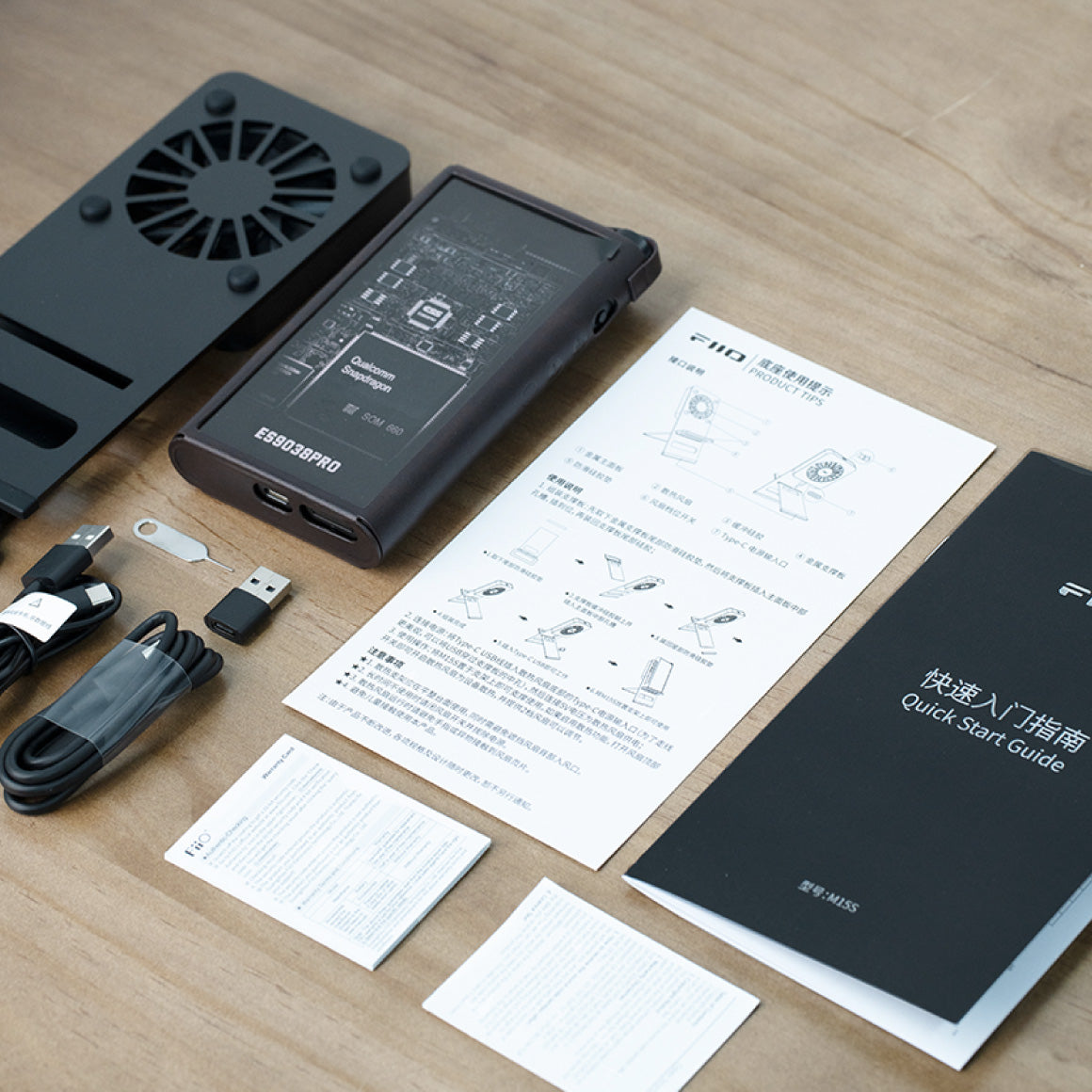

BOX CONTENTS | 1. FiiO M15S |
2. Leather Case x1 | |
3. DK3S heat dissipation dock x1 | |
4. PD charging/data cable x1 | |
5. USB power cable x1 (for heat dissipation dock power supply) | |
6. USB adapter x1 | |
7. Quick start guide x1 | |
8. Warranty card x1 | |
9. Tip card x1 | |
10. Micro SD card removal pin x1 | |
11. GPL manual x1 |
GENERIC NAME | Digital Audio Player |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
User Manual | M15s
Hi-Res Digital Audio Player
|
FIIO UNVEILS A NEW CHAPTER IN HIGH-END AUDIO
The new M15S starts a new chapter in the FiiO high-end, sharing the same technologies as the portable desktop-grade M17 player and the portable desktop-grade amp Q7 that give you desktop-level performance in a portable package - including desktop mode, dual power supply modes, and five gain levels. The "desktop/portable dual power supply modes," as featured on the portable desktop-grade player M17 and the portable desktop-grade amp Q7 have been well-received by the audiophile community, which is why FiiO sought to put this technology on other products. With the implementation of the dual power supply modes onto the M15S with its more ergonomic design, the M15S is the ideal combination of portability and high performance.
FEATURES ESS SABRE DAC CHIP FOR AN ELITE-LEVEL SONIC PERFORMANCE
The latest and greatest desktop ES9038PRO DAC chip with eight independent D/A converters is employed in the M15S. Each channel uses four D/A converters in parallel to form a fully differential output for a rich and highly resolving sound. The FiiO M15S supports up to 384kHz-32bit/DSD256 natively and has global 8X MQA decoding
EXCEPTIONAL POWER OUTPUT WITH FIVE GAIN-LEVEL SETTINGS
The M15S offers five-level gain settings allowing you to switch between low, medium, high, and over-ear headphone gain settings when using battery power. The enhanced over-ear headphone gain level is also available; when it is under USB power mode, enabling undistorted power output up to 1200mW per channel, enough to drive a wide variety of IEMs and headphones. The FiiO M15S also has a fully separated digital power supply that reduces crosstalk and interference. It also features a multi-stage analogue power supply, high precision and low noise for early signal processing. With the multi-voltage servo power supply for the headphone amp, M15S is capable of driving low and high-impedance loads.

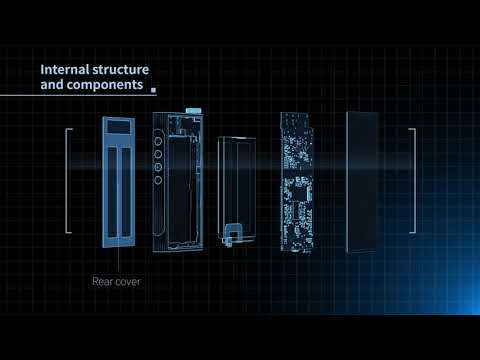

GRAPHENE HEAT DISSIPATION TECHNOLOGY FOR HIGH-POWER AND STABLE OUTPUT
FiiO has incorporated a Graphene heat dissipation technology into the M15S to provide cooling for consistent high-power output. Advanced and highly efficient heat dissipation design allows the M15S to maintain stable temperatures and continuously deliver high power output. The M15S has a dedicated metal shield, graphene, and high thermal conductivity silica gel over hotspots for maximum heat dissipation. To shield from interference as much as possible, the M15S employs a nickel-copper shield. It shields the analogue portion of the audio circuit and the main SoC to ensure the purity of the analogue signals travelling through. In addition, stacked onto the shield are other heat dissipation and shielding materials and wave-absorbing paper. Clean, highly-resolving sound is intended to be produced by premium components and thoughtful shielding design.
DOUBLES-UP AS A DESKTOP OR PORTABLE MUSIC PLAYER
When in the dedicated desktop mode and under USB fast charging, the M15S will transform essentially into a desktop device and work without the battery. The battery will neither be charged nor discharged, preventing premature degradation of the battery under this mode. The M15S not only features the "desktop/portable dual power supplies" as seen in other FiiO products but it is also equipped with an automatic "auxiliary DC power supply" - the M15S can automatically recognize when fast charging through USB is being used and automatically switches to use the highest-voltage power supply, leading to an increase of 26.67% in power supply for even more power output. Even when not using the fast-charging adapter, the M15S can automatically switch to a higher-voltage power supply that is enough to drive most headphones.
NOTE: Fast charging is activated as soon as it detects QC/PD fast charging through USB.
MULTI-STAGE AUDIO CIRCUIT FUSED WITH CRYSTAL OSCILLATORS FOR FAITHFUL REPRODUCTION
The M15S features a multi-stage audio circuit with IV, LPF, gain adjustment and amplifier sections. High-precision and low-noise film resistors ensure more accurate signal reproduction and channel balance. The Panasonic low-loss metalized film capacitors guarantee extremely low harmonic and phase distortion within the LPF part of the circuit. Audio data is passed through a FiiO-developed 4th-gen FPGA with phase-locked loop technology, which works with two custom Japanese NDK femtosecond crystal oscillators to provide a high-precision and low-jitter unified clock source for the entire audio architecture. This design architecture is all done in the pursuit of purer sound.
EXPERIENCE MUSIC WIRELESSLY WITH BLUETOOTH AND WIFI SUPPORT
FiiO M15S supports Bluetooth v5.0 and supports the latest Bluetooth codecs. The M15S wireless capabilities include AirPlay, DLNA streaming and transmission, and Bluetooth. The Qualcomm QCC5124 chips, also used in other FiiO products, manage Bluetooth, enabling the M15S to handle 2-way Bluetooth transmission and reception. It supports LDAC, aptX Adaptive, aptX LL, aptX HD, aptX, AAC, and SBC in Bluetooth reception mode. It is compatible with LHDC, LDAC, aptX HD, aptX, AAC, and SBC, just like in Bluetooth transmitter mode. Get a whole new experience by going wireless with the M15S. FiiO M15S also provides dual-band 2.4/5GHz WiFi support with DLNA transmission and reception, AirPlay, WiFi transmission, Roon Ready, etc.
CONTINUOUS PLAYTIME OF 10.5 HOURS ON A SINGLE CHARGE
Despite its portable size, the M15S features a large 6200mAh battery that ensures all-day listening, whether you are using Single-ended or Balanced output. Battery charge optimization and battery protection systems ensure that the battery will last for a long time. It provides a battery life of up to 10.5 hours using the Single-ended headphone out and up to 9 hours using the Balanced connection. You don't have to worry about running out of juice as the M15S supports fast charging and gets fully recharged in approx 3.5 hours.
NOTE: The battery life may vary as per the volume and gain level settings.
GET THE ULTIMATE AND LIMITLESS PERFORMANCE
FiiO has included an elegant 5.5-Inch full-fit touch screen (resolution 1440 * 720), which helps you navigate through your settings easily. It features Qualcomm 660 processor and Android 10 OS so that you get the ultimate and limitless experience. With the stable and smooth combination of the Qualcomm Snapdragon 660 and Android 10, you can start listening quickly with the M15S. With the ability to freely install third-party apps and with no global SRC, you can be sure to listen to the music you want in the highest quality. The FiiO M15S has an internal memory of 4GB and internal storage of 64GB (46GB usable) with expandable storage of up to 2TB with the provided TF card slot.

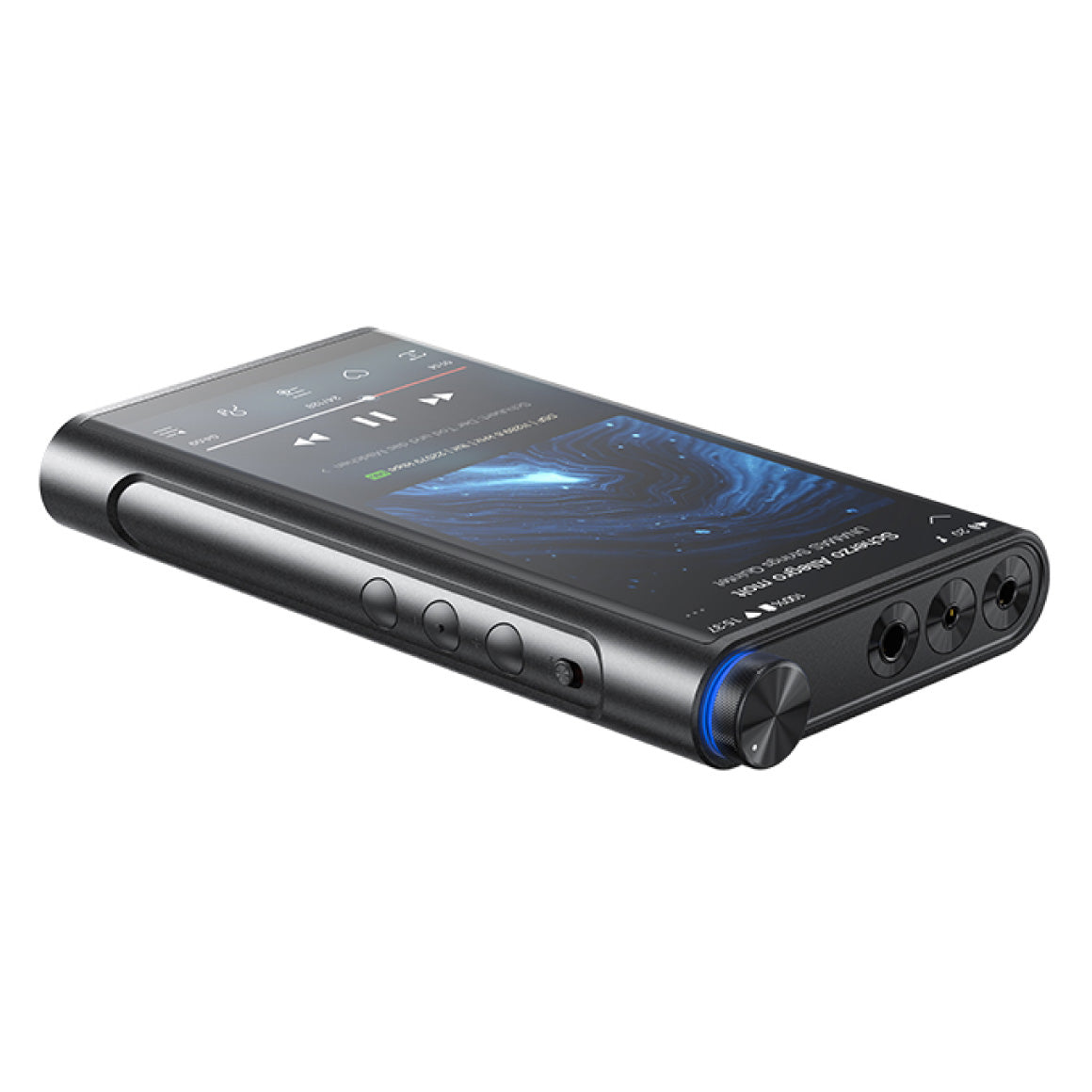

DESIGNED TO IMPRESS WITH MULTIFUNCTION KNOB AND THOUGHTFUL INPUTS AND OUTPUTS
FiiO has built the M15S elegantly and will instantly grab your attention as soon as you pull it out of the box. The M15S features a combination of timeless styling and modern technological touches that give it an elegant appearance that is enjoyable and easy to use. It has a 3.5mm Single-ended headphone output, with line out and coaxial out support and 2.5mm & 4.4mm Balanced headphone outputs. Volume on the M15S can be adjusted either with an analogue potentiometer knob or with buttons, allowing you to fine-tune through the 120 levels. Feel free to turn the volume knob to your heart's content, as the integrated rotary encoder is highly precise. Even if you accidentally drop the device, the encoder is securely fixed, ensuring the continued reliability of the volume knob. The volume knob features RGB lights, which can be customised in brightness, colour, and behaviour under various device statuses.
NOTE: Encoder rated durability > 30000 cycles (360° forward rotation+360° reverse rotation is 1 cycle).
MODEL NAME | M15S |
WORKING MODE | Android mode/Pure music mode/USB DAC mode/Bluetooth receiving mode/AirPlay mode/Roon Ready |
COLOR | Black |
SIZE | About 140x80x18.9mm |
SCREEN | 5.5-Inch full-fit screen (resolution 1440 * 720) |
RAM | 4GB |
STORAGE EXPANSION | Single TF card slot, up to 2TB (theoretically) |
HARDWARE | Soc: Snapdragon 660, DAC: ES9038PRO, Amplifier: OPA926 * 2, Crystal Oscillator: NDK Femtosecond Crystal Oscillator * 2 |
WEIGHT | About 345g |
VOLUME CONTROL TYPE | Button control or knob control |
BODY MEMORY/USER FREE SPACE (ROM) | 64GB/About 46GB |
GAIN | Ultra high (Quick charge)/Super high/high/medium/low |
RECOMMENDED HEADPHONE IMPEDANCE | 8 ~ 150Ω (single-ended output)/8 ~ 350Ω (balanced output) |
CHANNEL BALANCE | L20~ R20 (0.5dB per level) |
BUTTON | Physical key |
HEADPHONE OUTPUT | 3.5mm single-ended |
BALANCED OUTPUT | 2.5mm + 4.4mm balanced |
COAXIAL INTERFACE | 3.5 mm (shared with PO port, up to 384kHz-32bit/DSD128) |
USB | Type C USB 3.0 (charging/data transmission) |
LINE OUTPUT PORT | 3.5 mm (shared with PO port) |
BALANCED LINE OUTPUT INTERFACE | 2.5mm balance + 4.4mm balance (shared with PO ports) |
WIFI | 2.4GHz/5GHz, supports DLNA transmission and reception, AirPlay, WiFi transmission, Roon Ready, etc. |
BLUETOOTH RECEPTION (5.0) | SBC, AAC, aptX, aptX HD, aptX LL, LDAC, aptX Adaptive |
MQA | Global 8x decoding |
DOUBLE CLICK TO WAKEUP | Support |
MAXIMUM SUPPORTED SAMPLING RATE | Native: Up to 384kHz-32bit/DSD256 USB DAC up to 384kHz-32bit/DSD256 |
POWER-OFF TIMER | Support power saving shutdown/sleep shutdown |
FIRMWARE UPGRADE | Support local storage upgrade + TF card local upgrade + OTA push upgrade |
BLUETOOTH TRANSMITTER (5.0) | SBC, AAC, aptX, aptX HD, LDAC, LHDC |
FIIO LINK | Android support WiFi and Bluetooth control, iOS support WIFI control |
ALL TO DSD | Support |
USB AUDIO | 768kHz-32bit/DSD512 (DoP/D2P/Native) |
CAR MODE | Can follow the car USB automatic switch machine |
EQ | 10-band dynamic EQ adjustment (± 12dB), built-in 8 preset EQ, support custom EQ |
NAVIGATION CONTROL | Gesture control/2-Bottom navigation/3-Bottom navigation |
POWER SUPPLY | Support QC3.0, QC4.0 and PD2.0 and PD3.0 quick charge |
CHARGING TIME | About 3.5 hours (QC3.0 quick charge mode) |
BATTERY CAPACITY | 6200mAh |
STANDBY TIME | >1000h |
3.5MM HEADPHONE OUTPUT:10.5H | |
VOLUME | 40 |
SCREEN STATUS | Off |
EQ | OFF |
GAIN | Super high |
TRACK FORMATS | MP3 44.1kHz/16bit |
LOAD | 32 Ω |
2.5MM+4.4MM BALANCED OUTPUT:9H | |
VOLUME | 29 |
SCREEN STATUS | Off |
EQ | OFF |
GAIN | Super high |
PLAY TRACKS AND FORMATS | MP3 44.1kHz/16bit |
LOAD | 32Ω |
OUTPUT POWER 1 | L+R≥535mW+535mW(16Ω / THD+N<1%) |
OUTPUT POWER 2 | L+R≥580mW+580mW(32Ω /THD+N<1%) |
OUTPUT POWER 3 | L+R≥93mW+93mW(300Ω / THD+N<1%) |
CROSSTALK | ≥ 80dB(1kHz/32Ω) |
FREQUENCY RESPONSE | 20Hz~20kHz(-0.15dB) 20Hz~50kHz(-1.0dB) |
OUTPUT IMPEDANCE | ≤ 1.4 Ω(32 Ω) |
THD+N | ≤ 0.0005%(1kHz/32Ω) |
SNR | ≥ 122.5dB(A weighted) |
NOISE FLOOR | ≤ 3.2 μV(A weighted) |
PEAK OUTPUT VOLTAGE | 15.0 Vpp |
OUTPUT POWER 1 | L+R≥475mW+475mW(16Ω / THD+N<1%) |
OUTPUT POWER 2 | L+R≥395mW+395mW(32Ω /THD+N<1%) |
OUTPUT POWER 3 | L+R≥57mW+57mW(300Ω / THD+N<1%) |
CROSSTALK | ≥ 80dB(1kHz/32Ω) |
FREQUENCY RESPONSE | 20Hz~20kHz(-0.15dB) 20Hz~50kHz(-1.0dB) |
OUTPUT IMPEDANCE | ≤ 1.4 Ω(32 Ω) |
THD+N | ≤ 0.0005%(1kHz/32Ω) |
SNR | ≥ 121.0dB(A weighted) |
NOISE FLOOR | ≤ 3.2 μV(A weighted) |
PEAK OUTPUT VOLTAGE | 11.7 Vpp |
THD+N | ≤ 0.00034%(1kHz/10kΩ) |
CROSSTALK | ≥ 106dB(1kHz/10kΩ) |
FREQUENCY RESPONSE | 20Hz~20kHz(-0.1dB) 20Hz~50kHz(-0.7dB) |
SNR | ≥ 124.0dB(A-weighted) |
NOISE FLOOR | ≤ 1.2 μV(A weighted) |
LINE OUTPUT LEVEL | 2.0Vrms(1kHz/10kΩ) |
OUTPUT POWER 1 | L+R≥531mW+531mW(16Ω / THD+N<1%) |
OUTPUT POWER 2 | L+R≥1200mW+1200mW(32Ω /THD+N<1%) |
OUTPUT POWER 3 | L+R≥368mW+368mW(300Ω /THD+N<1%) |
DEGREE OF SEPARATION | ≥105.0dB(1kHz/32Ω) |
FREQUENCY RESPONSE | 20Hz~20kHz(-0.15dB) 20Hz~50kHz(-1.0dB) |
OUTPUT IMPEDANCE | ≤ 2.3 Ω(32 Ω) |
THD+N | ≤ 0.00075%(1kHz/32 Ω) |
SNR | ≥ 121.5dB(A weight) |
NOISE FLOOR | ≤ 5.2 μV(A weighting) |
PEAK OUTPUT VOLTAGE | 30.0Vpp |
OUTPUT POWER 1 | L+R≥531mW+531mW(16Ω / THD+N<1%) |
OUTPUT POWER 2 | L+R≥990mW+990mW(32Ω /THD+N<1%) |
OUTPUT POWER 3 | L+R≥226mW+226mW(300Ω /THD+N<1%) |
DEGREE OF SEPARATION | ≥105.6dB(1kHz/32Ω) |
FREQUENCY RESPONSE | 20Hz~20kHz(-0.15dB) 20Hz~50kHz(-1.0dB) |
OUTPUT IMPEDANCE | ≤ 2.3 Ω(32 Ω) |
THD+N | ≤ 0.00075%(1kHz/32 Ω) |
SNR | ≥ 120.5dB(A weight) |
NOISE FLOOR | ≤ 5.2 μV(A weighting) |
PEAK OUTPUT VOLTAGE | 23.7 Vpp |
THD+N | ≤ 0.00031%(1kHz/10 kΩ) |
CROSSTALK | ≥ 106dB(1kHz/10 kΩ) |
FREQUENCY RESPONSE | 20Hz~20kHz(-0.1dB) 20Hz~50kHz(-0.7dB) |
SNR | ≥ 127.7dB(A weight) |
NOISE FLOOR | ≤ 1.7 μV(A weighting) |
LINE OUTPUT LEVEL | 4.0Vrms(1kHz/10kΩ) |
LOSSLESS: | DSD:DSD64/128/256(".iso”,".dsf”,".dff”),DST iSO DXD:352.8K/24bit APE FAST/High/Normal:384kHz/24bit(MAX) APE Extra High:192kHz/24bit(MAX) APE Insane:96kHz/24bit(MAX) Apple Lossless:384kHz/32bit(MAX) AIFF:384kHz/32bit(MAX) FLAC:384kHz/32bit(MAX) WAV:384kHz/32bit(MAX) WMA LOSSLESS:96kHz/24bit(MAX) DTS: 192kHz/24bit(MAX) MQA:Full Decoderer |
LOSSY COMPRESSION: | MP3,OGG,WMA,AAC and other formats |
BOX CONTENTS | 1. FiiO M15S |
2. Leather Case x1 | |
3. DK3S heat dissipation dock x1 | |
4. PD charging/data cable x1 | |
5. USB power cable x1 (for heat dissipation dock power supply) | |
6. USB adapter x1 | |
7. Quick start guide x1 | |
8. Warranty card x1 | |
9. Tip card x1 | |
10. Micro SD card removal pin x1 | |
11. GPL manual x1 |
GENERIC NAME | Digital Audio Player |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
User Manual | M15s
Hi-Res Digital Audio Player
|
Don't sweat it, this
FiiO - M15S comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
Inspiring Audio Excellence Worldwide
Explore CollectionHave a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
This product is rated 1.0 of 5.0 stars.
It has received 1 review.
