FiiO - FH5s
In-Ears With 2 DD + 2 BA DriversChi-Fi
Excellence
1 Year of
Warranty
2 Dynamic + 2 BA
Drivers
2.5mm & 4.4mm
Balanced Plugs
If you're the kind of person that likes to listen to great quality music on the move, while commuting or during the mid-office breaks, these quad drivers (2BA+2DD) are perfect for you.

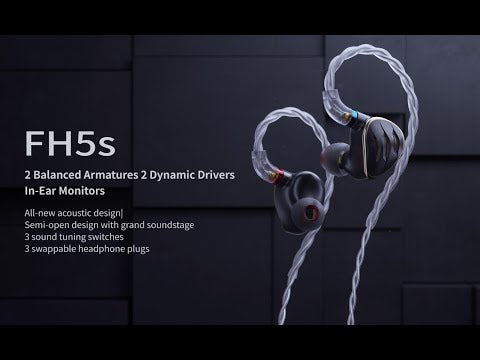

AN ADVANCED AND PROFOUNDLY UPGRADED VERSION OF THE WIDELY POPULAR FIIO FH5
FiiO balanced armature and dynamic driver hybrid earphones have always been highly popular and among the best-selling earphones owing to the great design and audiophile-grade sound. The all-new candidate of this club is the FiiO FH5s, which is an upgrade to the veteran FH5, featuring innovative enhancements of all aspects of the in-ear monitor including its design, comfort and sound quality.




THE FINE-TUNED ACOUSTIC ARCHITECTURE TAKES CARE OF BASS, TREBLE, AND VOCALS DELIVERING A FULL-RANGE AUDIO EXPERIENCE
The FiiO FH5s is an upgraded variant designed for an immersive music listening experience. The third-gen 12mm beryllium-plated with PU gasket Tesla low-frequency dynamic driver, engineered in the FiiO FH5s offers the highest quality bass response. This driver relies on the firm yet flexible polyurethane polymer, beryllium-plated diaphragm dome and Tesla-capable magnets delivering a deep and controlled bass response. FiiO FH5s have a 6mm beryllium-plated dynamic mid-frequency driver that focuses on the low and mid frequencies. Beryllium-plated diaphragm dynamic drivers deliver rich vocals that make you fall in love with your music. Treble is taken care of by the Knowles TWFK-30017 balanced armature driver, which is placed in the sound tube to be as close to your ear to ensure less high-frequency loss and better extension. All the drivers are tuned to work independently to give you the most accurate representation of the recordings across the frequency spectrum.



TRISHELL ACOUSTIC DESIGN: THE TECHNOLOGY USED IN SUPERCARS NOW IN YOUR IN-EARS

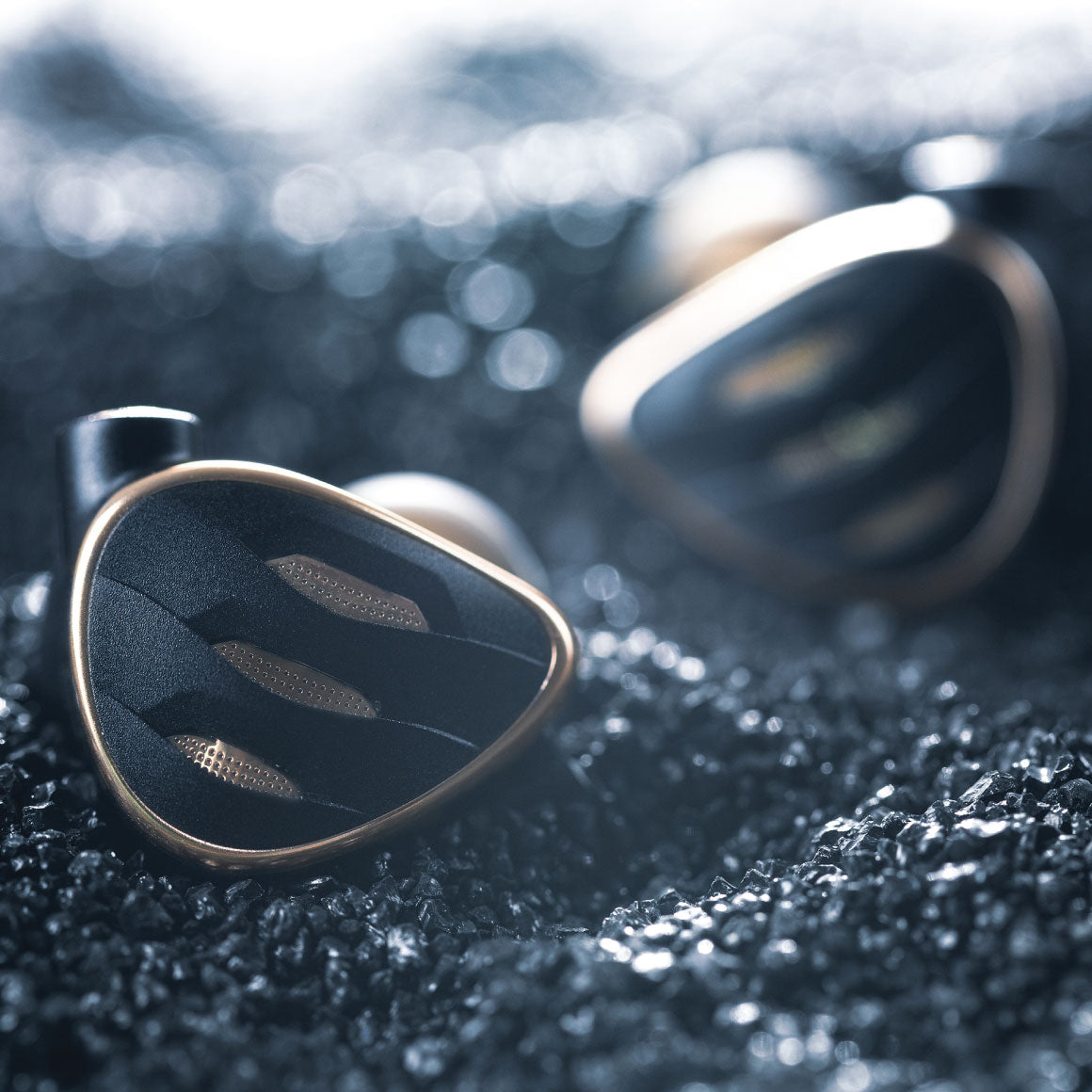

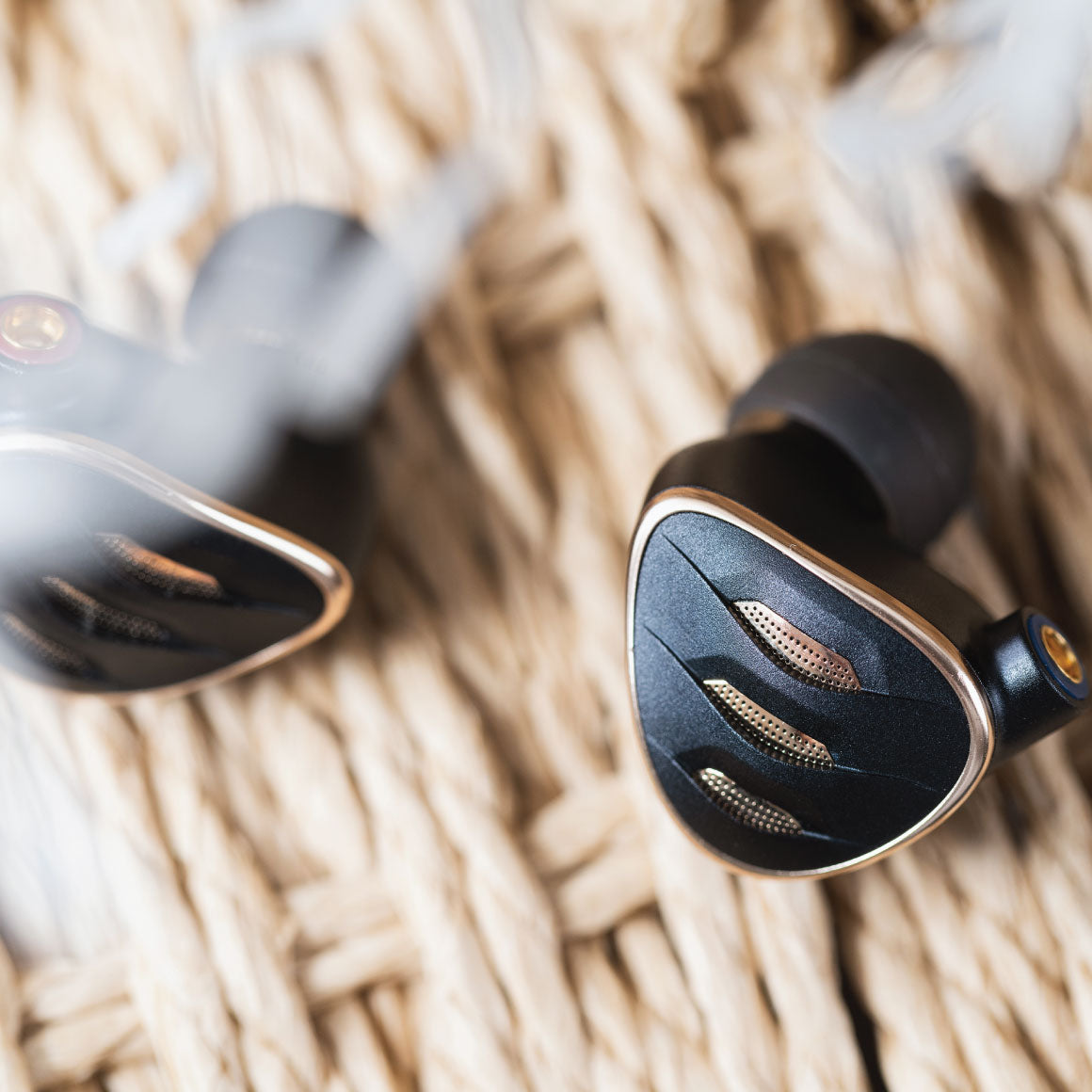

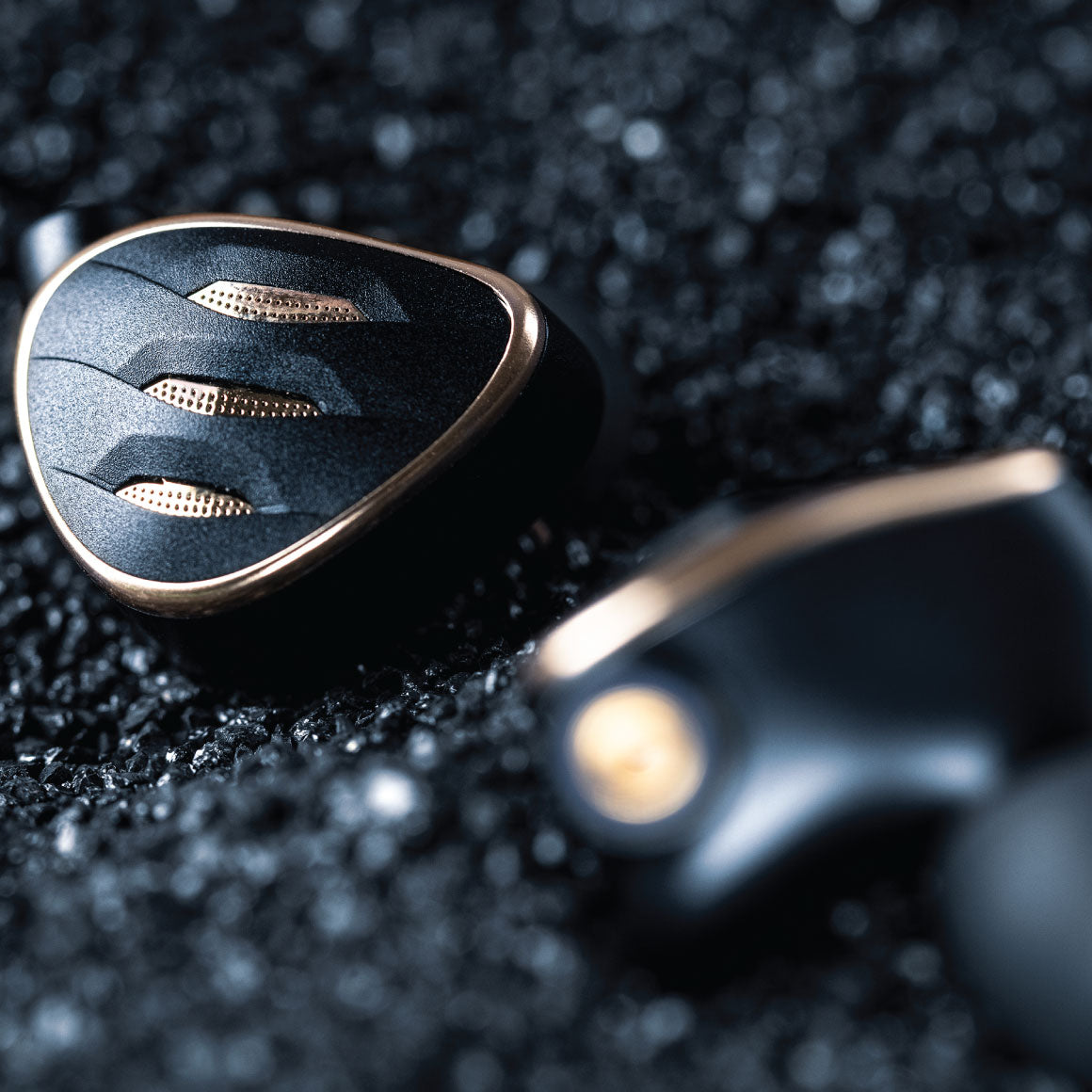

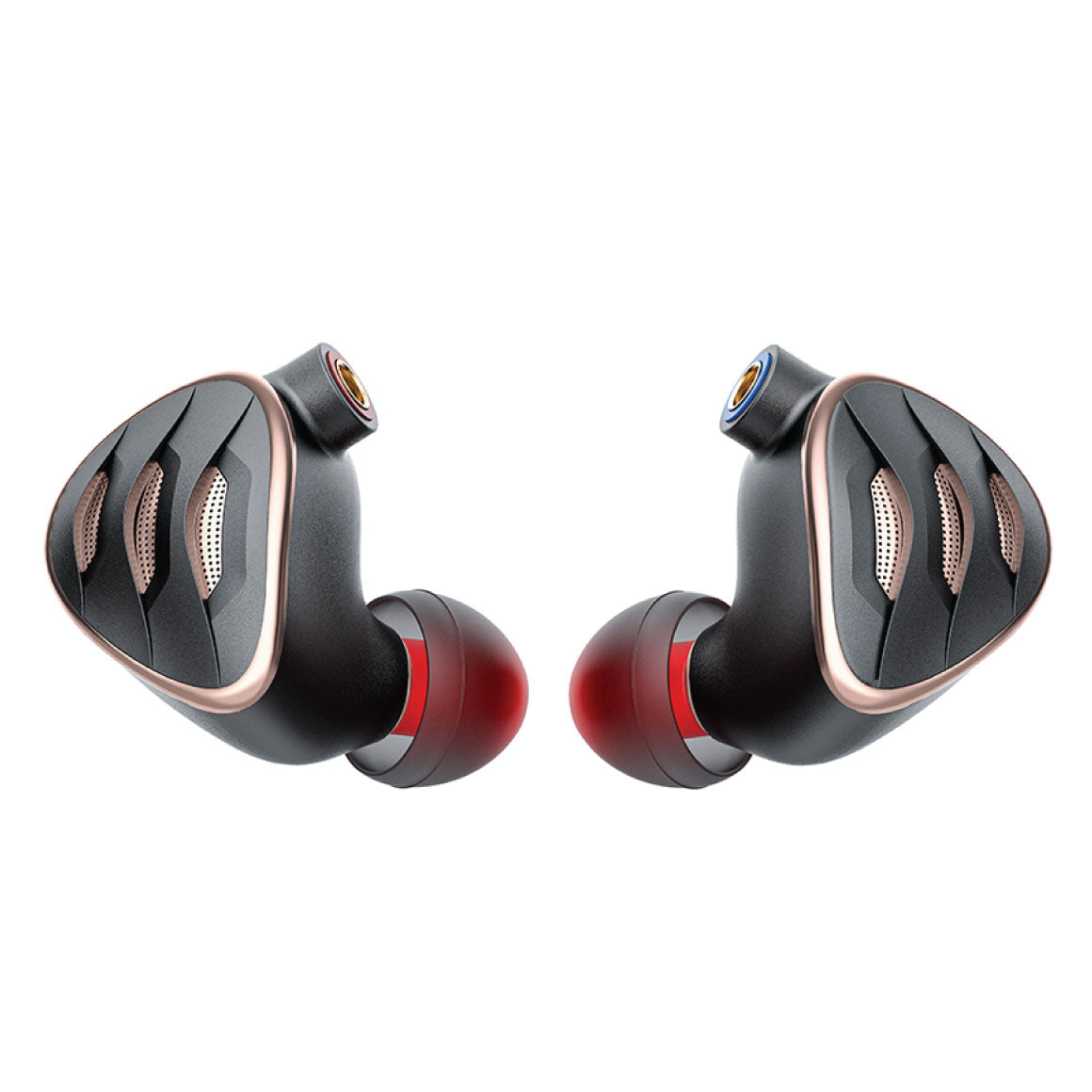

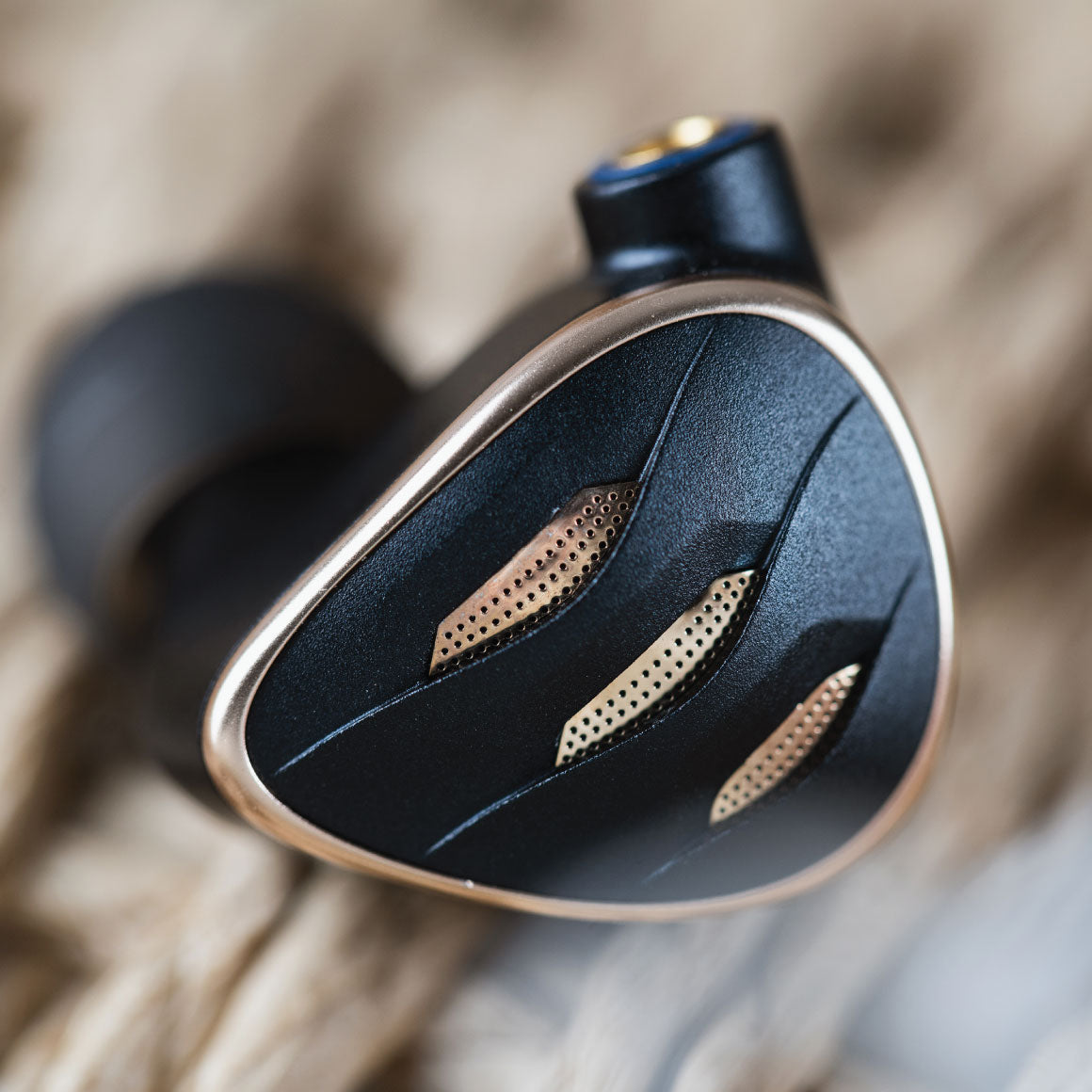

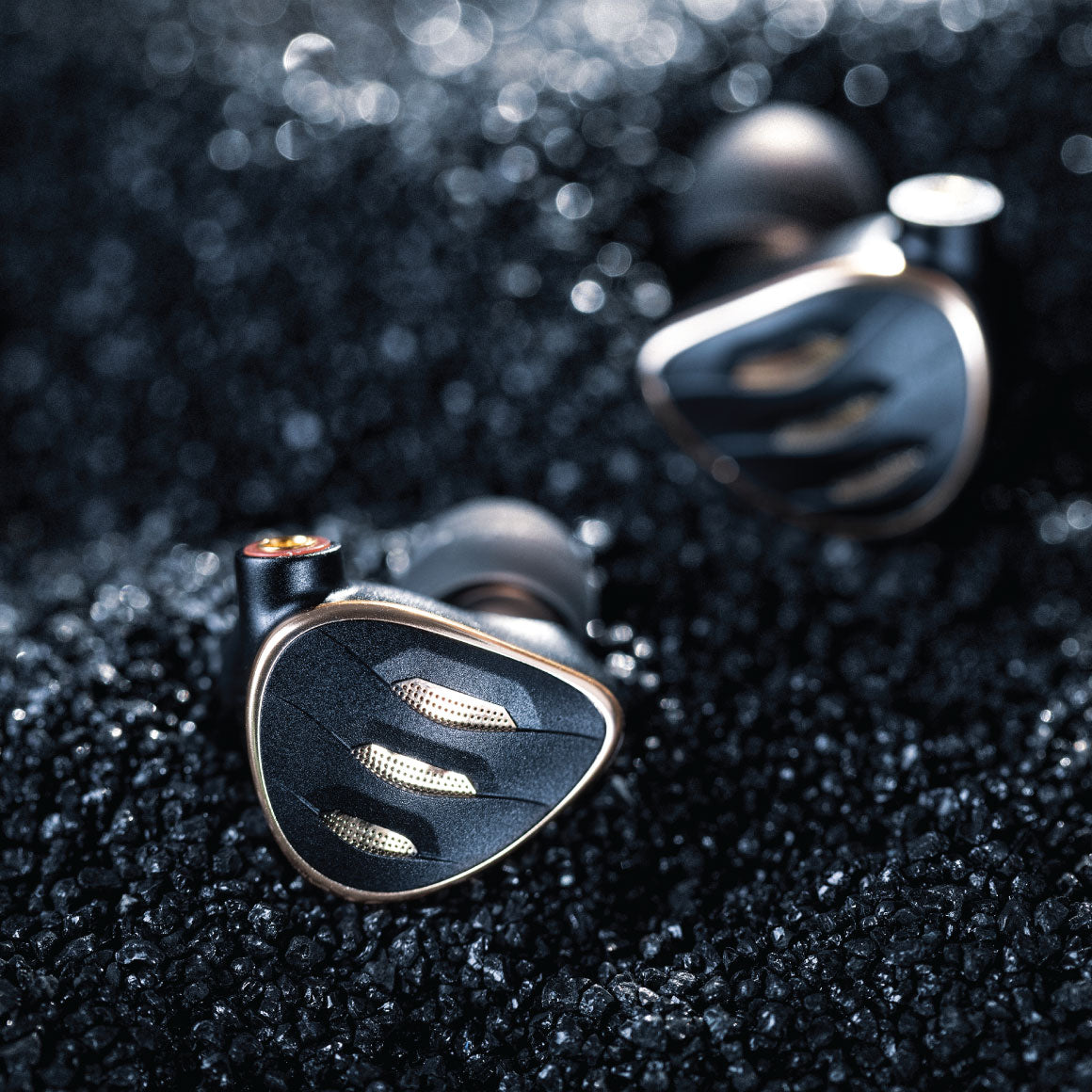

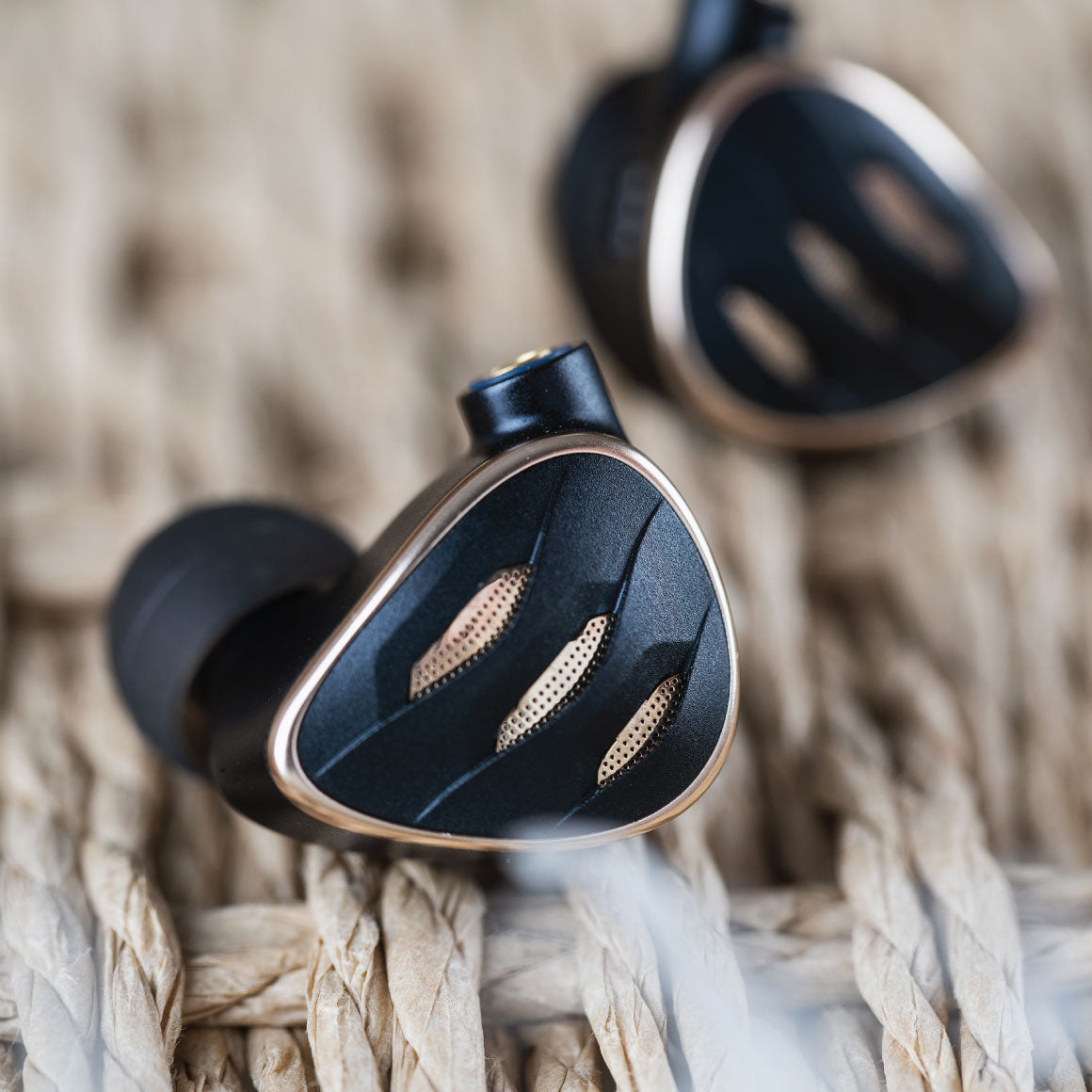

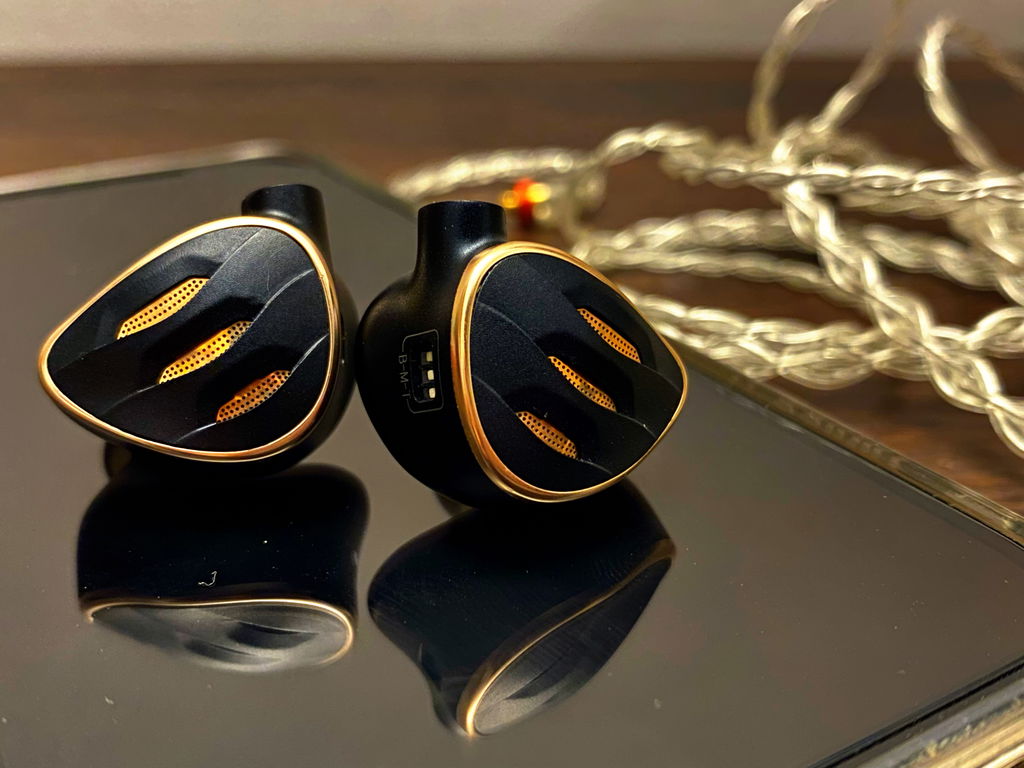

The FiiO FH5s utilise 5-axis CNC machined aluminium-magnesium alloy for their design, which is known as the TRISHELL "sandwich" structural design. To significantly reduce resonance and distortion rear, and front shell bodies are solidly linked together at three points. Exotic supercars with ultra-rigid chassis to enhance performance are the design inspiration for this precise concept. The layered "dragon scales" on the faceplate with open-air mesh guides on the FH5s give it an elegant look. Regardless of the variant you choose, the FH5s have a striking appearance.




BUILT AFTER CONTINUOUSLY WORKING THROUGH USER OPINIONS TO DELIVER THE ABSOLUTE BEST
The two main components of good sound at FiiO have been understanding user opinion data and using excellent materials. FiiO headphones are available in more than 70 countries worldwide, and the company maintains a database of customer feedback that FiiO uses to improve the sound of its headphones. FH5s, an expression of FiiO's best work, was produced as a result of this continually evolving process.



PERSONALISE THE ALREADY EXCELLENT SOUND OF THE SEMI-OPEN DESIGN DELIVERING EXCEPTIONAL SOUNDSTAGE AND IMAGING COUPLED WITH 3 TUNING SWITCHES

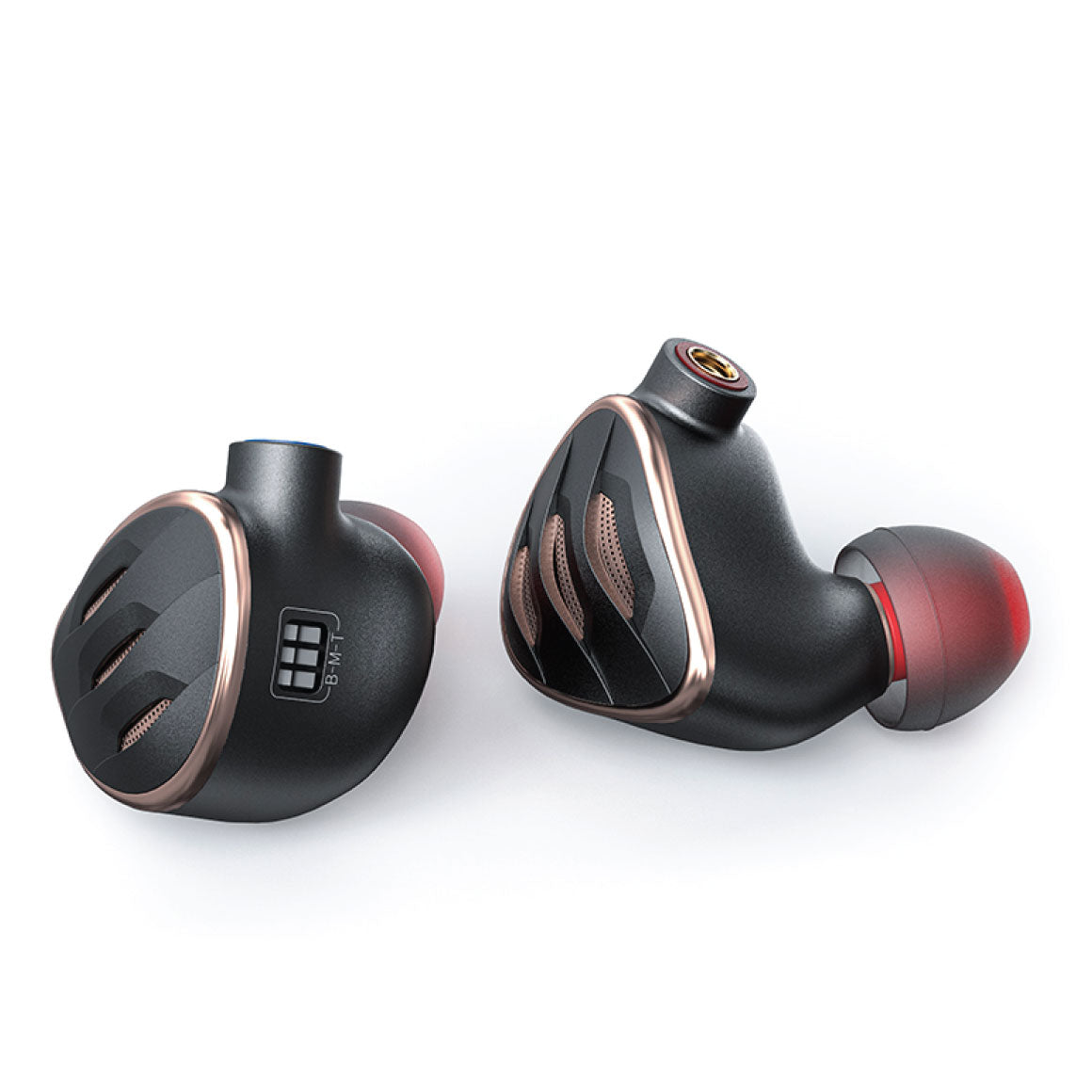

FiiO has had remarkable success in developing a line of IEMs that combines the stunning appearance and superb audio quality. When there are multiple drivers at work, seamless performance becomes a challenge. FiiO has put a lot of effort into tuning each driver in FH5s. Each driver in the FiiO FH5s has been meticulously tuned to focus on the low, mid, high, and ultra-high frequencies. The result is a very holographic and airy sound which lets your music breathe and come alive. Three tuning switches for lows, mids, and highs in the FiiO FH5s propose eight exciting ways to listen to your music. Although the FH5s already have a solid sound signature that would adhere to the sonic preferences of audiophiles, it still has room for customisation. You can further fine-tune the sound using tuning switches so that they match your distinct taste. The computer-refined semi-open design of the FH5s works perfectly to balance the air pressure resulting in a better soundstage and imaging with smooth layering and texture. Through computer simulations, the semi-open design at the rear cavity is improved to ensure that the air pressure at the front and rear cavities are balanced. This design approach produces a more natural sound reproduction and pleasant listening experience.


HI-RES AUDIO-CERTIFIED IEMS WITH ERGONOMIC DESIGN AND LITZ TYPE-2 BRAIDED CABLE WITH SWAPPABLE PLUGS

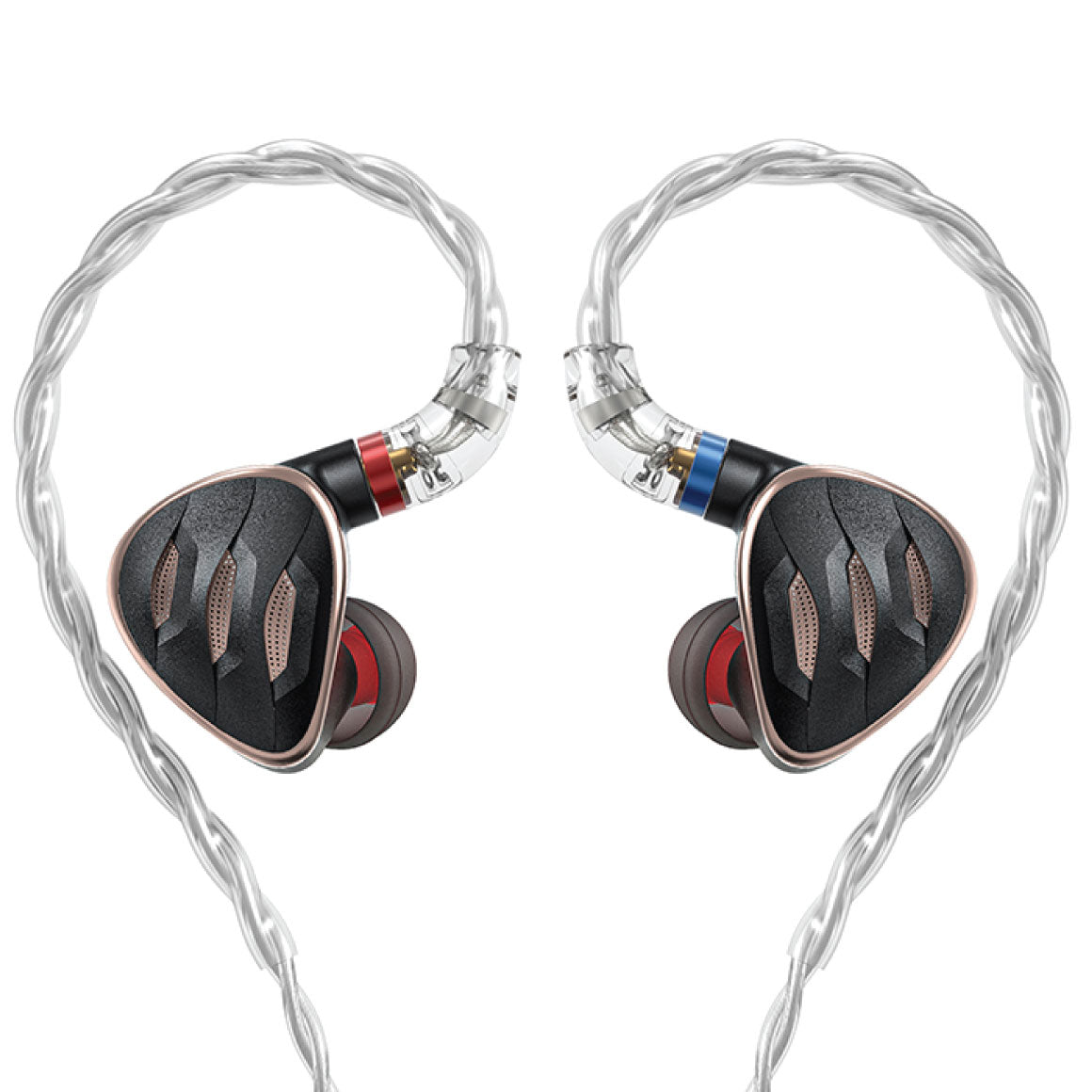

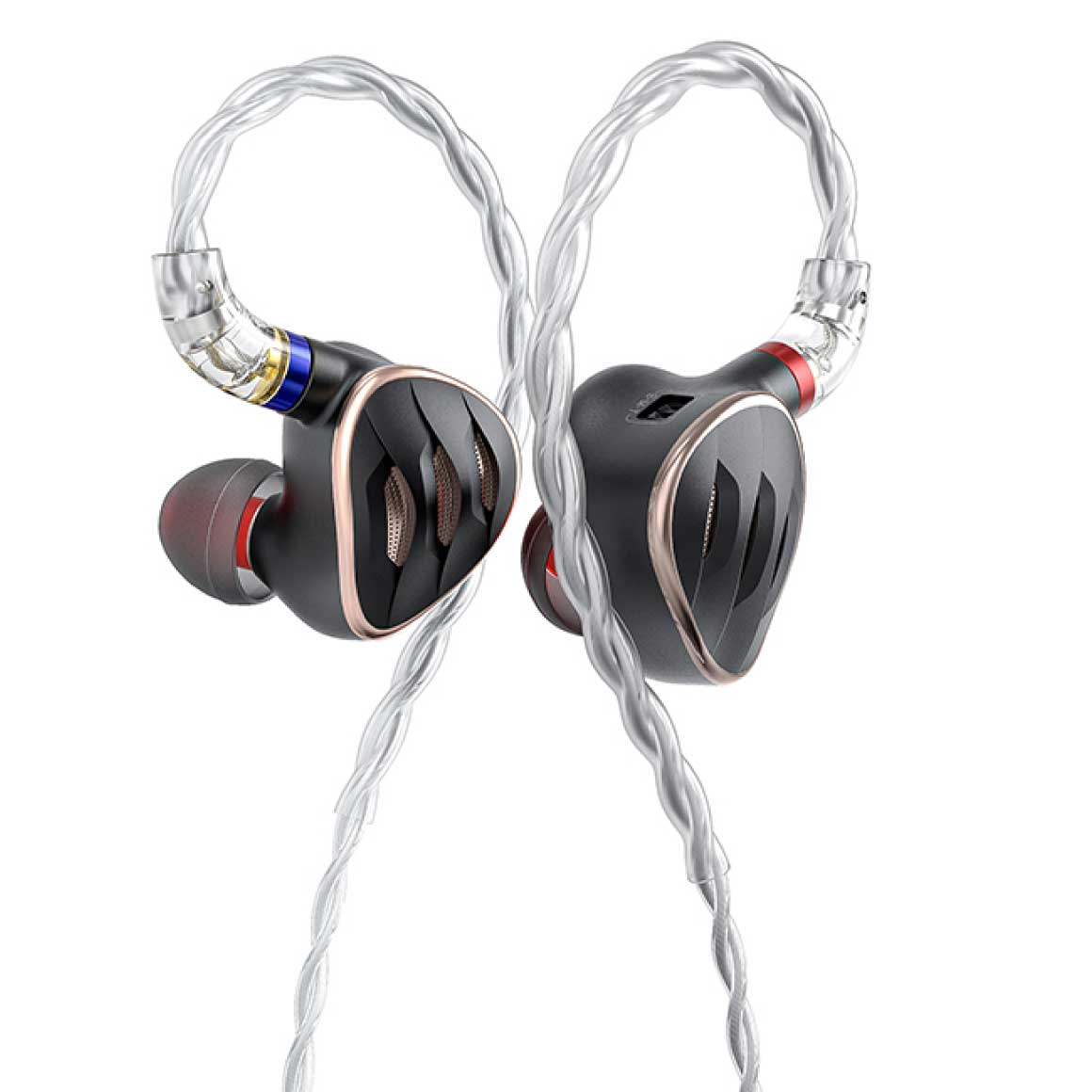

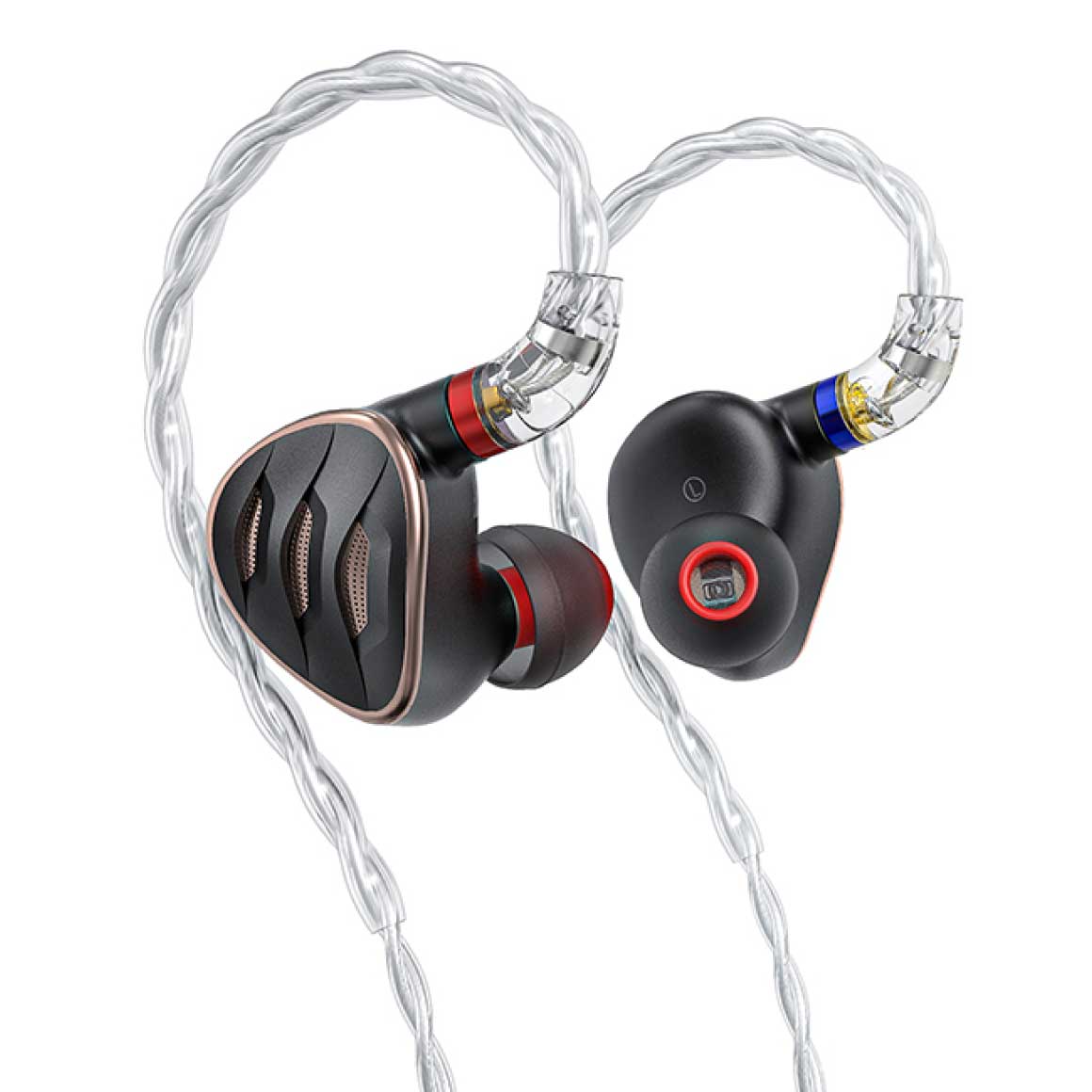

Using the third generation of the ergonomic-curve design, the FiiO FH5s is highly optimised to perfectly fit into the contours of human ears for ultimate user comfort. Designed to satisfy even the most demanding audiophiles, the FH5s is Hi-Res Audio certified. FiiO FH5s are equipped with 4-strand, 120 core, high purity monocrystalline silver-plated copper cable to enhance sound transmission. The extended MMCX connector on this Litz Type 2 braided cable has blue and red markings to help you identify between the right and left earpieces. Additionally, you receive stainless steel twist-lock swappable 2.5, 3.5, and 4.4 audio plugs. This design allows you to pair FH5s to your DAP, DAC & Amp that has balanced outputs making the soundstage even wider and will allow you to push FH5s to their full potential.

BUNDLED WITH A WIDE ARRAY OF ACCESSORIES AND EARPHONE TIPS

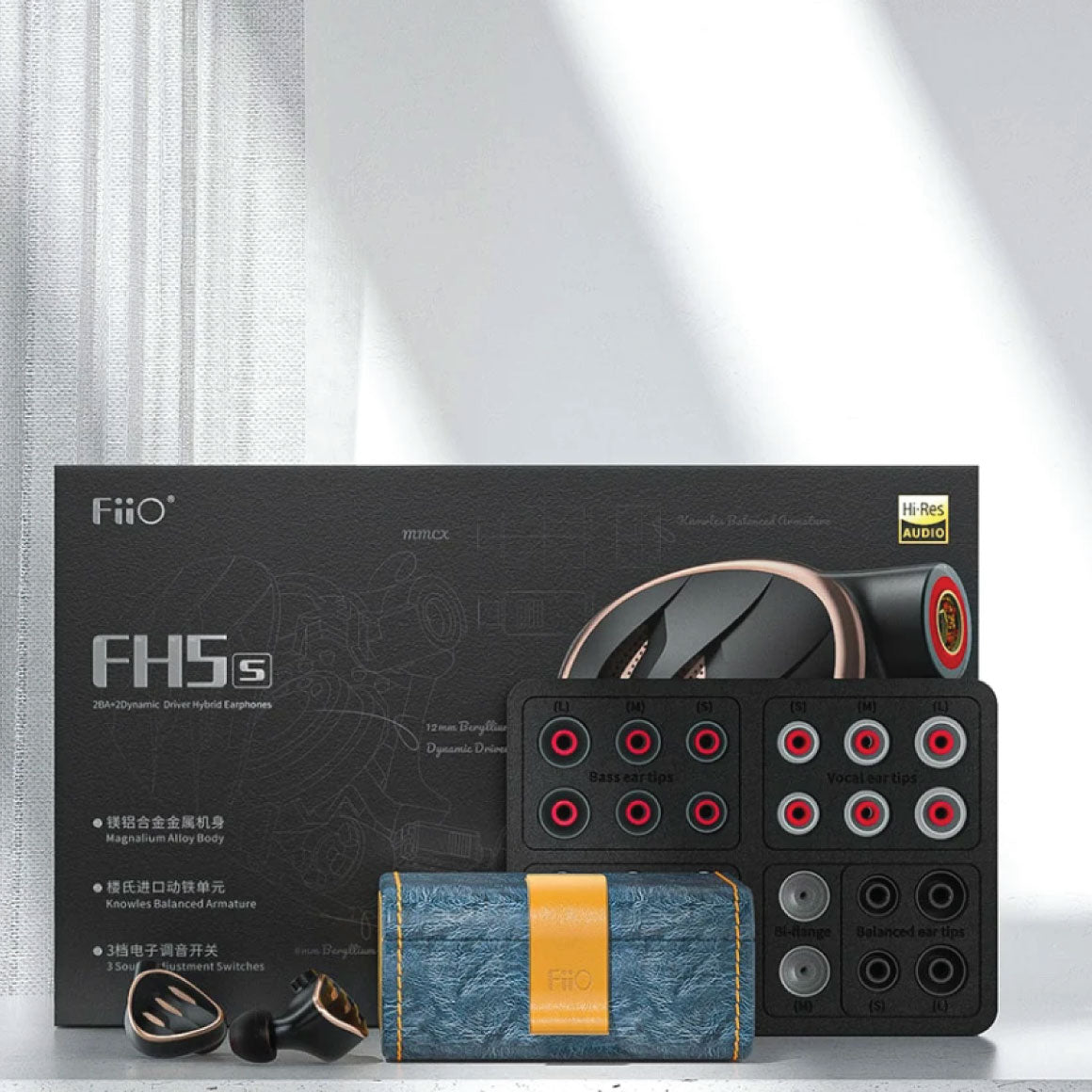

The FiiO FH5s come bundled with loads of accessories like swappable plugs, and a carrying case HB5 to protect your IEMs from moisture and dust. A pair of bi-flange, three pairs of vocal eartips, three pairs of bass eartips, three pairs of balanced eartips, and three pairs of foam eartips are among the variety of eartips included with the FH5s. This enables you to customise the sound of the FH5s and get a great snug fit to utilise the FH5s to their fullest extent. A cleaning brush and an MMCX assist tool are also included with the FiiO FH5s so that you may carefully remove the cable.

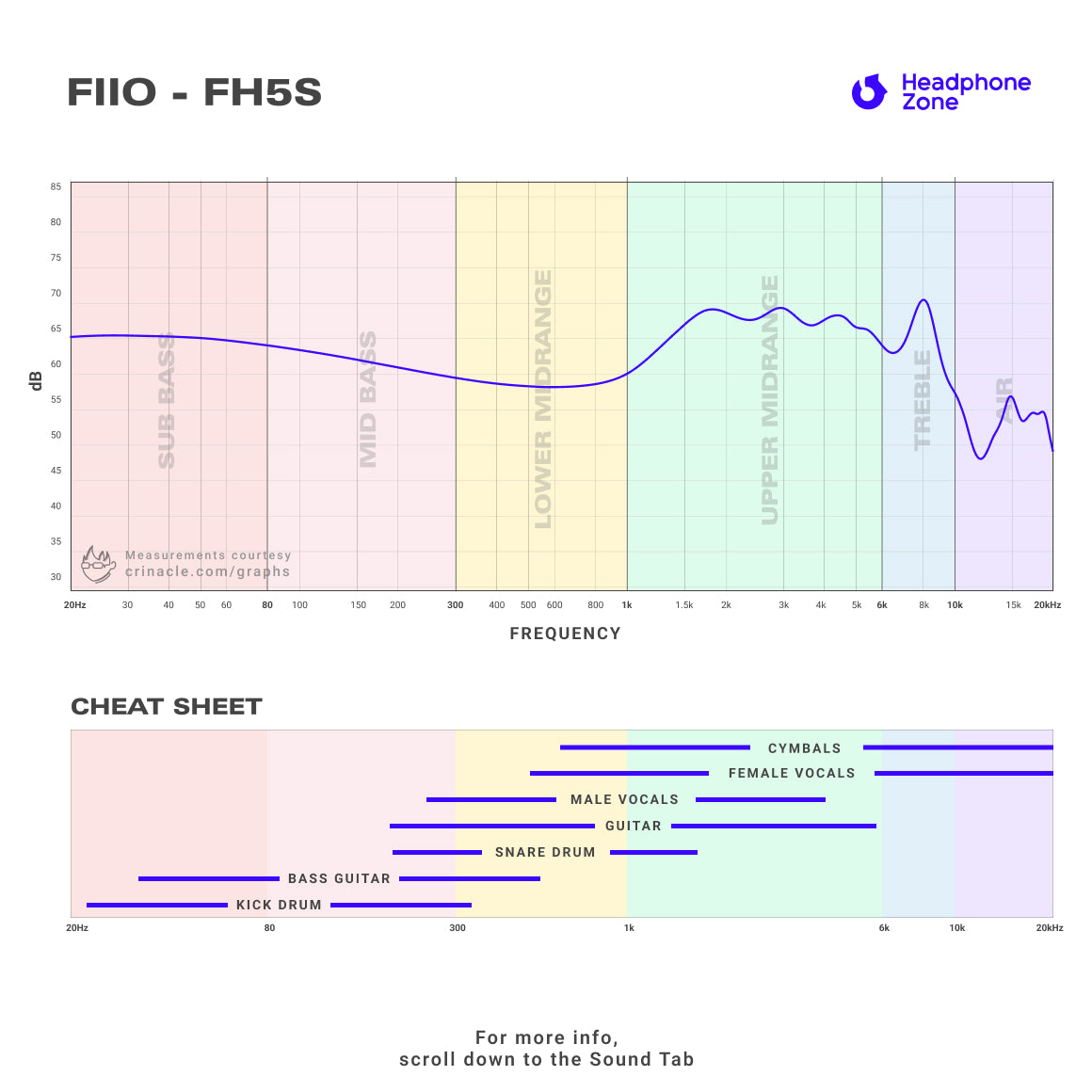

FREQUENCY GRAPH

CHEAT SHEET

Regions of the frequency spectrum
(20Hz - 80 Hz)
(80 Hz - 300 kHz)
(300 Hz - 1000 kHz)
(1 kHz - 6 kHz)
(6 kHz - 10 kHz)
(10 kHz - 20 kHz)
DRIVERS | 2DD+2BA Dynamic Driver |
DRIVERS CONFIGURATION | 12 mm beryllium-plated diaphragm/PU gasket 6 mm Beryllium-plated Diaphragm Knowles TWFK-30017 compound BA |
FREQUENCY RESPONSE | 10 Hz - 40 kHz |
IMPEDANCE | 40Ω(@1 kHz) |
SENSITIVITY | 106 dB/mW |
MAX POWER | 100 mW |
WIRED CONNECTIVITY | 2.5/3.5/4.4 mm gold-plated plug |
COMPATIBILITY | Universal |
MICROPHONE | NA |
CONNECTOR | MMCX |
WEARING STYLE | In-ear |
WEIGHT | 8.8g (single ear unit) |
CABLE | High Purity Monocrystalline Silver-Plated Copper Cable |
CABLE LENGTH | 120cm |

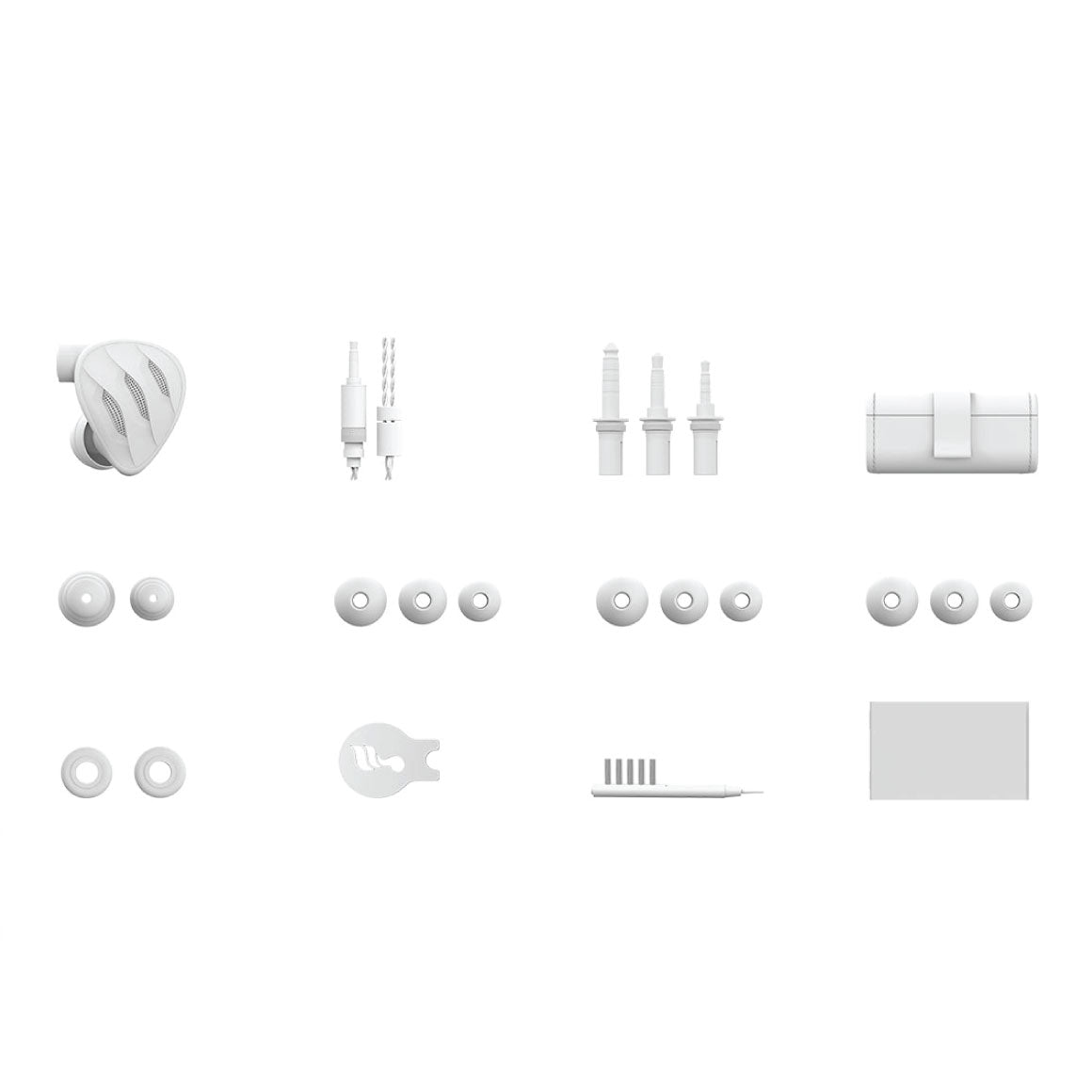

BOX CONTENTS | 1. FiiO FH5S IEMs |
2. Earphone Cable | |
3. Swappable plug | |
4. HB5 PU Leather Carrying Case | |
5. Cleaning Brush | |
6. 1 pair X Bi-flange eartips | |
7. 3 X Bass eartips | |
8. 3 X Balanced eartips | |
9. 3 X Foam eartips | |
10. 3 X Vocal eartips | |
11. MMCX Assist Tool | |
12. User Manual |
GENERIC NAME | Headphones |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
Besides, the FH5s takes advantage of electronic crossover technology and cleverly designs 3 sound tuning switches for bass, mids and highs so to make 8 different music styles possible, which meets different listening needs and different music scenes.
In terms of its color, two of them, Black and Gold, Silver and Gold, eventually became the winners after going through several rounds of trials. Black and Gold, the representative of luxuriousness and elegance, shows the character of maturity and reliability. Silver and Gold, the representative of energy and youth, shows a character of positiveness and enthusiasm.
2.Ensure the tool is parallel to the gap and position it towards the gap between the connector's male and female components until it is in place.
3.Apply pressure by pressing down towards the other end of the tool.
4.The earphone unit will then be detached from the earphone cable.
2. When adjusting it, please hold the earphone tightly, and align the tip of the tuning stick to the switch position to gently toggle the switch.
2.Rotate the female end in an anticlockwise manner until it is tight to lock them.
In general, you can choose some softer songs and keep the volume at a medium level until you are satisfied with the sound performance of the earphones.
