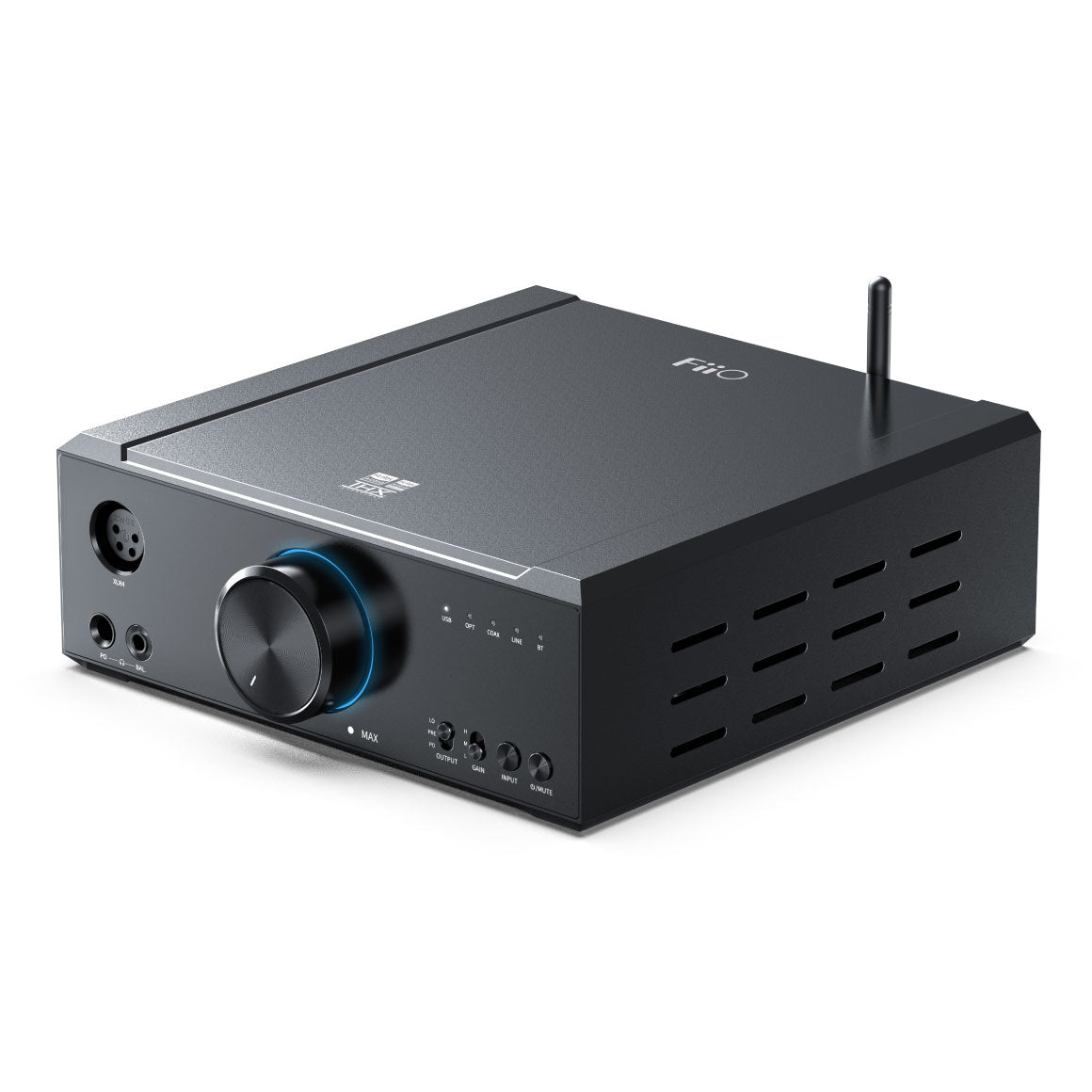

FiiO - K9
Flagship Desktop DAC & AmplifierGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 15,401
₹ 1,205
₹ 971
6
Low Cost EMI
₹ 7,853
₹ 2,122
₹ 1,717
9
15.99%
₹ 5,339
₹ 3,051
12
15.99%
₹ 4,083
₹ 3,992
18
15.99%
₹ 2,828
₹ 5,910
24
15.99%
₹ 2,203
₹ 7,875
HDFC Bank
3
Low Cost EMI
₹ 15,401
₹ 1,205
₹ 971
6
Low Cost EMI
₹ 7,854
₹ 2,123
₹ 1,717
9
16%
₹ 5,339
₹ 3,053
12
16%
₹ 4,083
₹ 3,995
18
16%
₹ 2,828
₹ 5,914
24
16%
₹ 2,203
₹ 7,880
SBI Bank
3
Low Cost EMI
₹ 15,414
₹ 1,243
₹ 1,000
6
Low Cost EMI
₹ 7,831
₹ 1,989
₹ 1,602
9
15%
₹ 5,318
₹ 2,859
12
15%
₹ 4,062
₹ 3,739
18
16%
₹ 2,828
₹ 5,914
24
16%
₹ 2,203
₹ 7,880
Axis Bank
3
Low Cost EMI
₹ 15,401
₹ 1,205
₹ 971
6
Low Cost EMI
₹ 7,854
₹ 2,123
₹ 1,717
9
16%
₹ 5,339
₹ 3,053
12
16%
₹ 4,040
₹ 3,485
18
16%
₹ 2,828
₹ 5,914
24
16%
₹ 2,203
₹ 7,880
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 15,351
₹ 1,054
6
14%
₹ 7,809
₹ 1,855
9
16%
₹ 5,339
₹ 3,053
12
16%
₹ 4,083
₹ 3,995
18
16%
₹ 2,828
₹ 5,914
24
16%
₹ 2,203
₹ 7,880
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 15,401
₹ 1,205
6
16%
₹ 7,854
₹ 2,123
9
16%
₹ 5,339
₹ 3,053
12
16%
₹ 4,083
₹ 3,995
18
16%
₹ 2,828
₹ 5,914
24
16%
₹ 2,203
₹ 7,880
RBL Bank
3
13%
₹ 15,326
₹ 978
6
14%
₹ 7,809
₹ 1,855
9
15%
₹ 5,318
₹ 2,859
12
15%
₹ 4,062
₹ 3,739
18
15%
₹ 2,807
₹ 5,532
24
15%
₹ 2,182
₹ 7,365
Standard Chartered Bank
3
13%
₹ 15,326
₹ 978
6
13%
₹ 7,787
₹ 1,722
9
14%
₹ 5,296
₹ 2,666
12
14%
₹ 4,040
₹ 3,485
INDUSIND Bank
3
14%
₹ 15,351
₹ 1,054
6
14%
₹ 7,809
₹ 1,855
9
15%
₹ 5,318
₹ 2,859
12
15%
₹ 4,062
₹ 3,739
18
15%
₹ 2,807
₹ 5,532
24
15%
₹ 2,182
₹ 7,365
HSBC Bank
3
12.50%
₹ 15,313
₹ 941
6
12.50%
₹ 7,776
₹ 1,655
9
13.50%
₹ 5,285
₹ 2,569
12
13.50%
₹ 4,030
₹ 3,358
18
13.50%
₹ 2,776
₹ 4,962
YES Bank
3
13%
₹ 15,326
₹ 978
6
13%
₹ 7,787
₹ 1,722
9
14%
₹ 5,296
₹ 2,666
12
14%
₹ 4,040
₹ 3,485
18
15%
₹ 2,807
₹ 5,532
24
15%
₹ 2,182
₹ 7,365
Bank of Baroda
3
13%
₹ 15,326
₹ 978
6
14%
₹ 7,809
₹ 1,855
9
14%
₹ 5,296
₹ 2,666
12
15%
₹ 4,062
₹ 3,739
18
15%
₹ 2,807
₹ 5,532
24
16%
₹ 2,203
₹ 7,880
American Express
3
14%
₹ 15,351
₹ 1,054
6
14%
₹ 7,809
₹ 1,855
9
14%
₹ 5,296
₹ 2,666
12
14%
₹ 4,040
₹ 3,485
18
15%
₹ 2,807
₹ 5,532
24
15%
₹ 2,182
₹ 7,365
Talk to a Headphone Guru
Club Audiophile
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Chi-Fi
Excellence
Ideal for Audiophiles
These DAC & Amps are designed for discerning music lovers. If audio quality is important to you, a set of DAC & Amps like these would be ideal.
You can expect these DAC & Amps to present you with a refined listening experience. The audio quality exhibited by these DAC & Amps is a beautiful mix of musicality, technical brilliance and high precision.
These DAC & Amps deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!

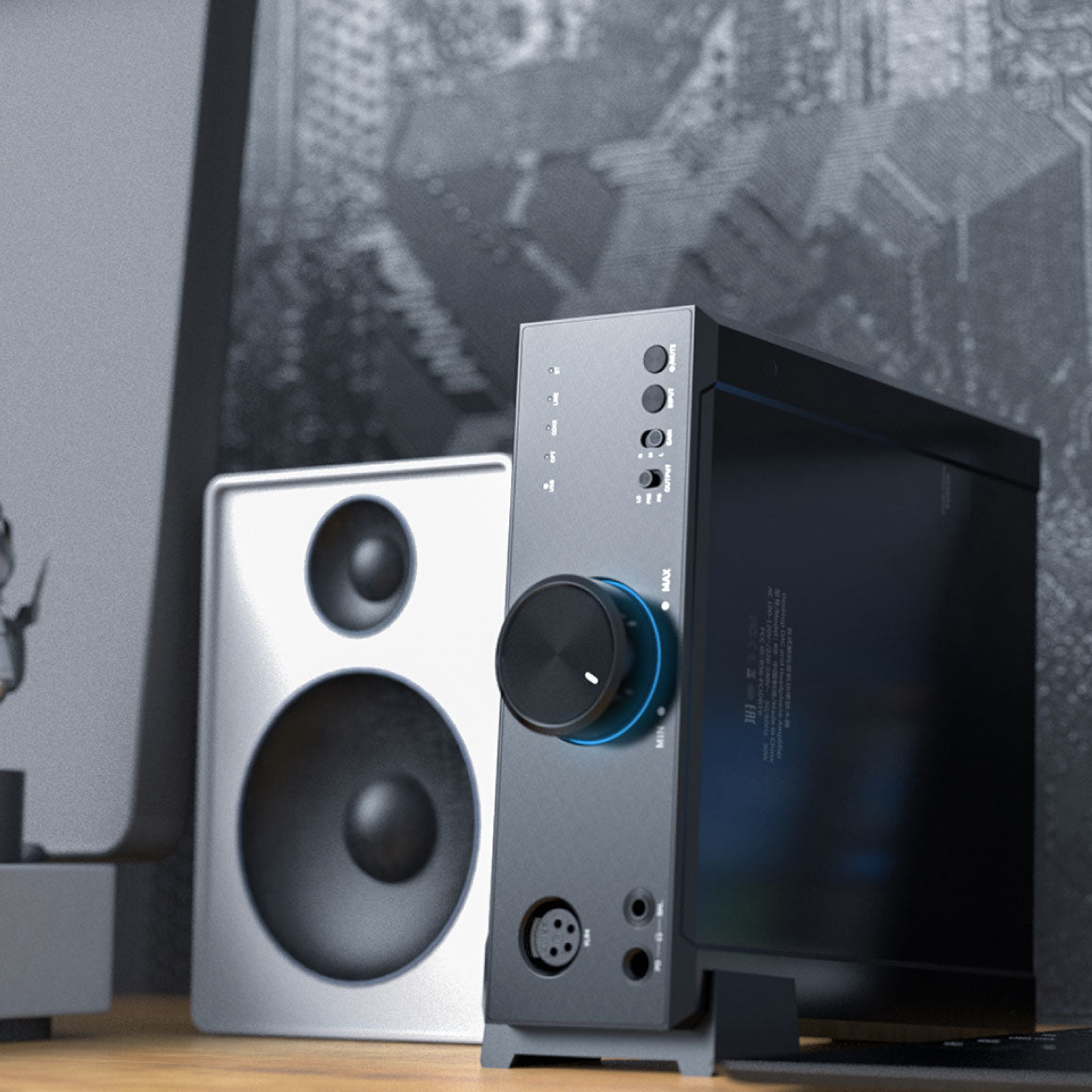

Ideal for
Desktop Use
Bluetooth with
LDAC, aptX HD & aptX Adaptive
4-Pin XLR & 4.4mm
Balanced Output
ESS Sabre ES9068AS
Dual DAC Chip

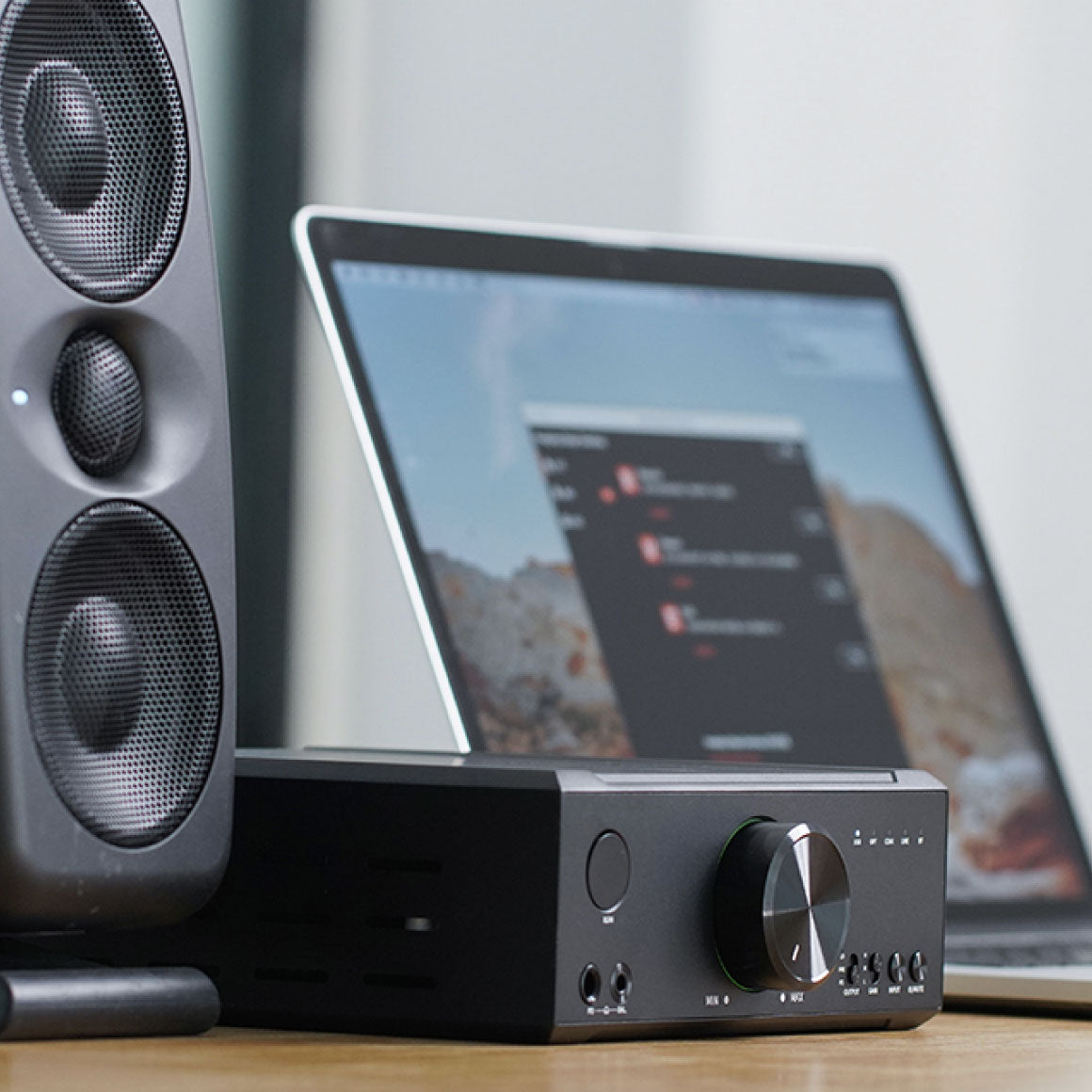

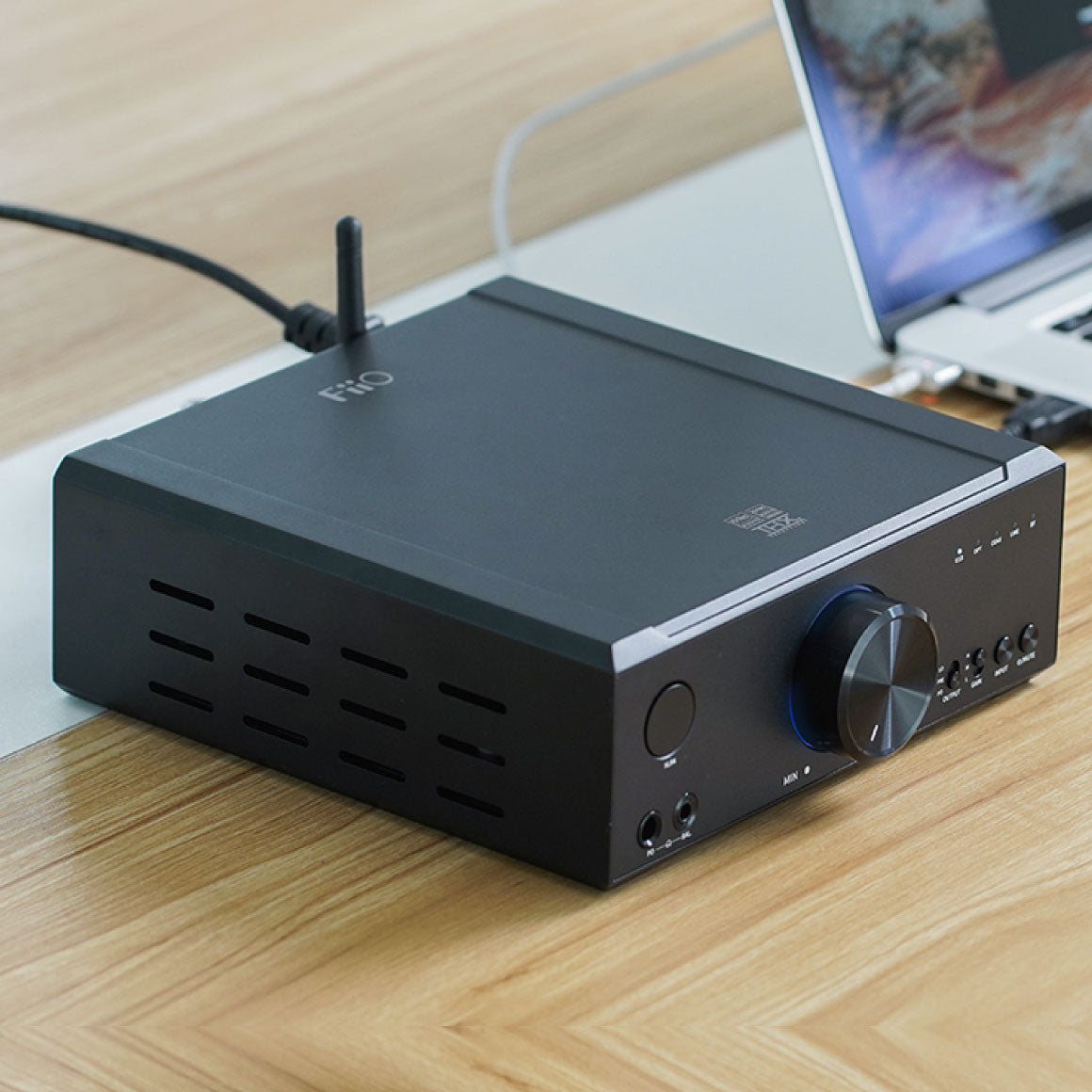

Pair with Laptop via USB
A majority of people use a laptop as the primary source device to listen to music or watch movies. Since the laptop is an essential part of the audio chain there are headphones and devices designed to work a laptop or computer system flawlessly. With the availability of USB connectivity, it becomes easier to pair various devices like an Amp, DAC or even headphones without worrying about drivers or any additional piece of software.
Connect With USB
Optical, Coaxial, RCA & 4.4mm
2W @ 32Ω
Power Output
Metal
Build
Volume Controls
If your DAC & Amps include volume controls or volume rockers, you can easily change the volume with a button press or volume knob turn.
DAC & Amps that have volume controls make its operation incredibly simple; turn up the volume on your smartphone or your source devices and then change the volume on DAC & Amps to the desired level.
This design feature allows you to have complete control over the desired volume according to your listening preferences.
DESCRIPTION
FIIO INTRODUCES THE K9 EQUIPPED WITH A DUAL ESS SABRE CHIP FOR PRISTINE AUDIO
FiiO has recently launched its top-of-the-line desktop DAC and Amplifier, the K9, which comes packed with cutting-edge features and the finest components. The K9 houses dual ES9068AS DAC chips from ESS Sabre, which are high-performance DAC chips that excel in decoding high-resolution audio signals and support various digital filters. With this state-of-the-art DAC chipset, the K9 delivers an exceptional audio performance that is free from any distortions or noise, ensuring a clean and transparent sound output.
HIGHLY CAPABLE THX AAA 788+ AMPLIFIER CIRCUIT DELIVERING CLEAN OUTPUT POWER
The FiiO K9 is a powerful DAC and Amplifier that features the highly capable THX AAA 788+ Amplifier Circuit, delivering a clean output power. It can amplify a wide range of headphones with ease, whether low or high impedance. The K9 comes equipped with THX AAA 788+ chips that provide excellent detail and dynamics and can output up to 780mW at 300 Ohms and 2000mW at 32 Ohms. With this amplifier circuit, you can experience undistorted power output of 1%, which is remarkable.
FULLY BALANCED DESIGN WITH SIX-STAGE CIRCUITRY AND PARTITIONED LAYOUT
The K9 is designed to provide exceptional audio performance, and to achieve this, it utilises a fully balanced design. This design helps reduce interference between different components, preserving all the details and dynamic range in music for an unparalleled audio experience. Additionally, it features a six-stage audio circuitry to ensure top-quality sound performance. The digital and analogue circuits are separated by partitions, allowing clean and unobstructed audio performance. This partitioned layout also separates the power supply, audio signals and analogue signal loops, ensuring the audio output is clean and pristine.
FAST AND RELIABLE HI-RES BLUETOOTH CONNECTIVITY WITH DUAL CLOCK MANAGEMENT
The FiiO K9 features the latest Bluetooth technology to provide Hi-Res quality audio wirelessly, and the device employs the Qualcomm QCC 5124 to handle Bluetooth connectivity with various formats such as AAC, SBC, LDAC, aptX, aptX LL, aptX HD and aptX Adaptive. This chip guarantees reliable and speedy Bluetooth connections that satisfy low latency needs for games/videos and high bitrates for high-resolution audio. The K9 also incorporates a precise and stable dual-mode clock management system for playing Hi-Res audio with lifelike fidelity. The device can support high-res 32-Bit/768kHz PCM and native DSD512 decoding.
ADVANCED POWER DELIVERY SYSTEM WITH MULTIPLE LDO’S FOR LINEAR TRANSMISSION
The FiiO K9 comes with a highly regarded linear power supply that provides ample clean power to the entire system. It has a low-frequency transformer and four large 4700uF capacitors that ensure that the rest of the system gets enough power. The digital and analogue portions of the K9 receive power separately to prevent audio interference between the two circuits. Every stage of the audio circuitry employs ultra-low-noise LDO for voltage regulation. To ensure a clean power supply, the K9 has a total of 18 LDOs. Furthermore, the K9 features three intelligent protection systems that protect against overheating, overload, and DC.

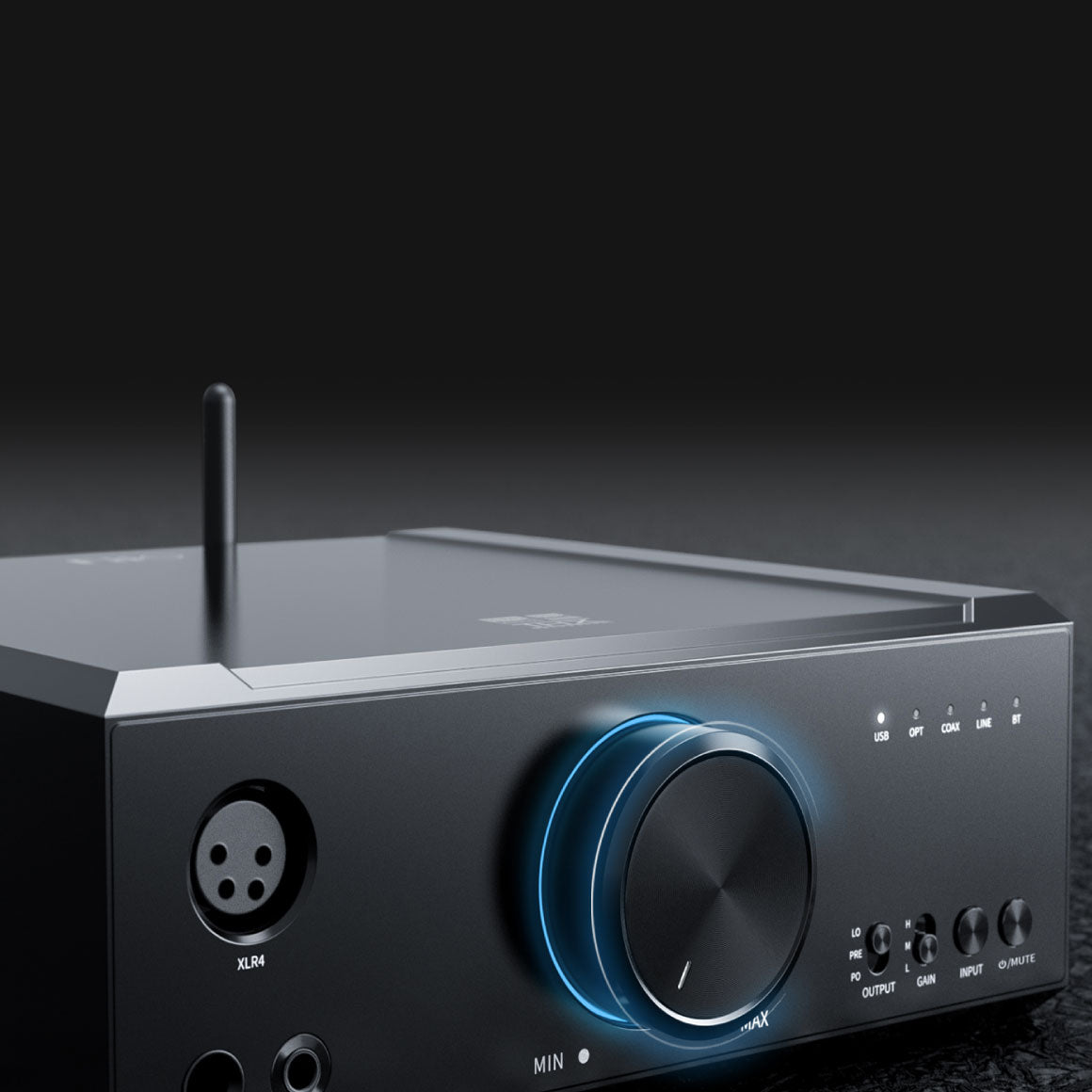

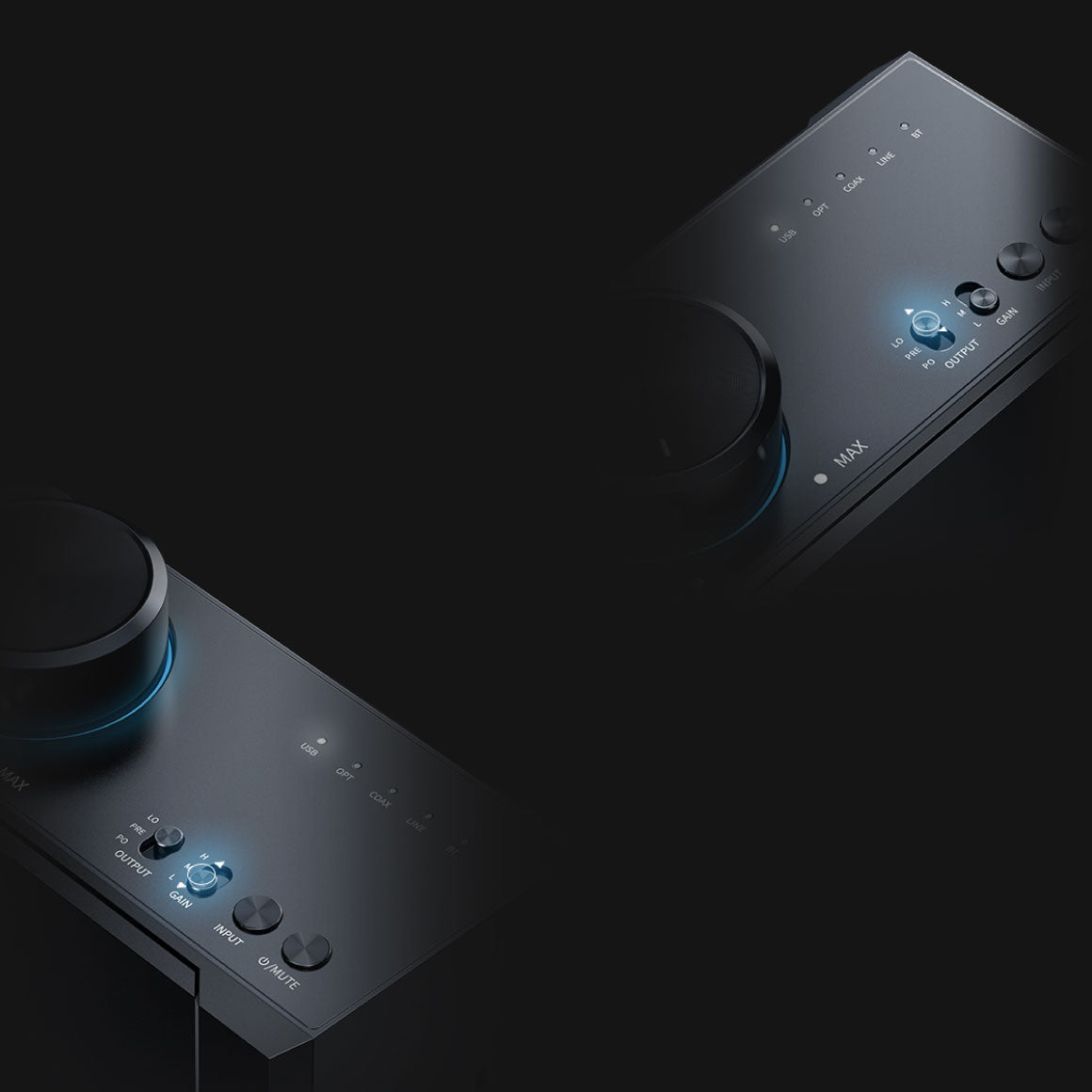

THREE-WAY GAIN SETTINGS WITH ACCURATE VOLUME ADJUSTMENTS BASED ON ADC CURVE
The FiiO K9 allows you to adjust the gain settings to your preference, with options of high, medium, and low. The pure hardware gain circuit ensures that the audio quality remains optimal even when using high-sensitivity headphones on low-gain settings. The volume knob of the K9 utilises the ADC curve reconstruction method for precise volume adjustment, resulting in minimal noise and left-right channel volume imbalances. This feature allows for smooth and consistent changes in volume across all levels.

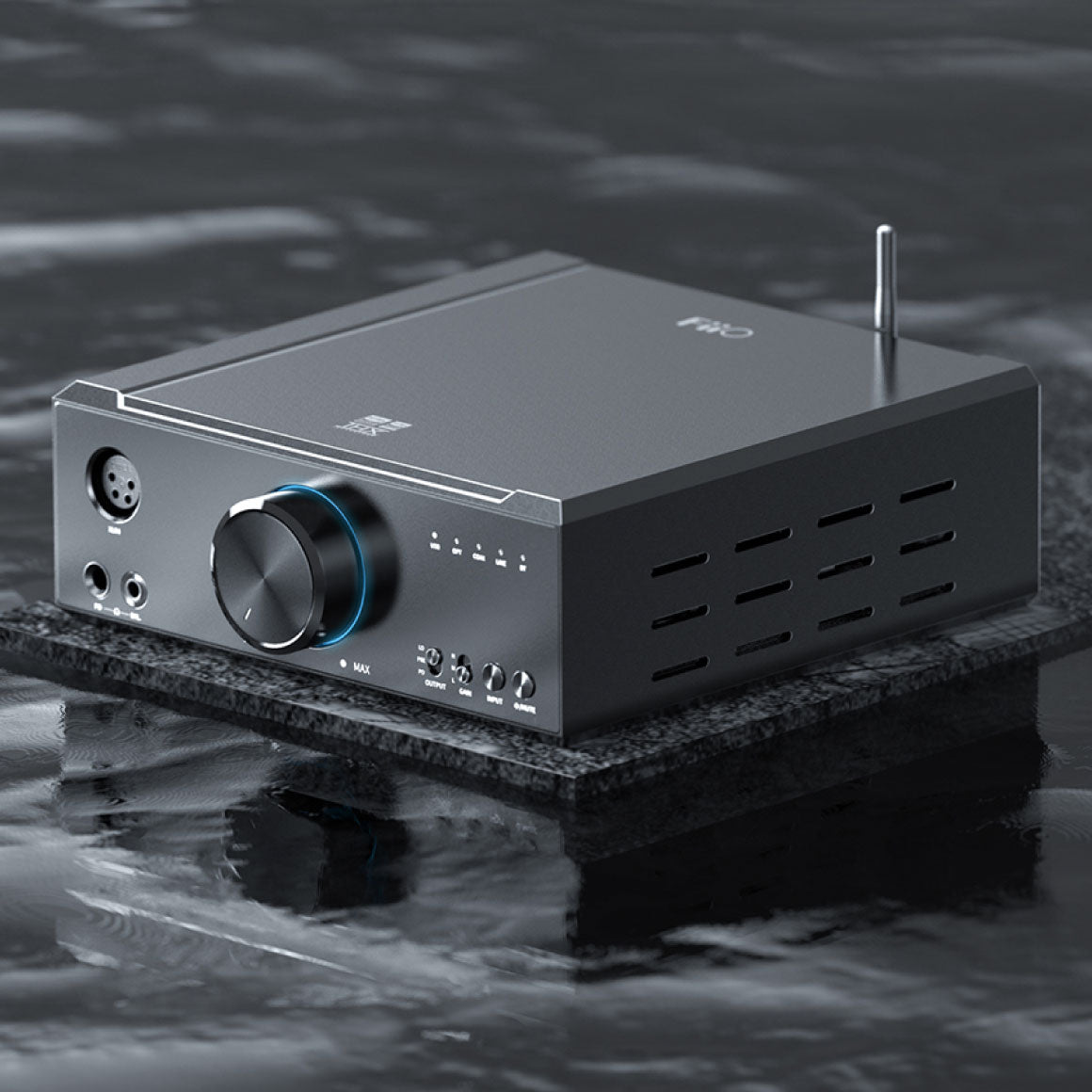

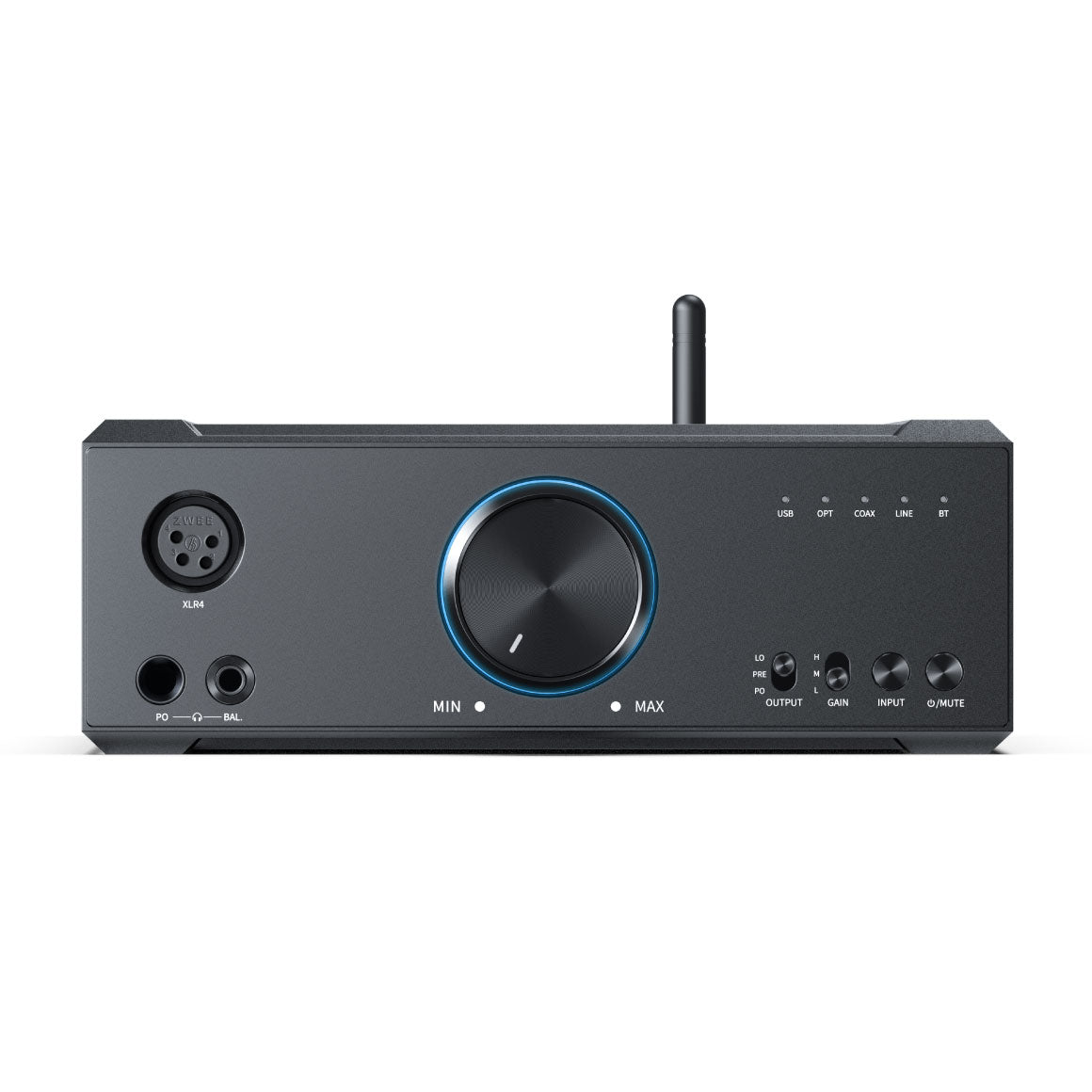

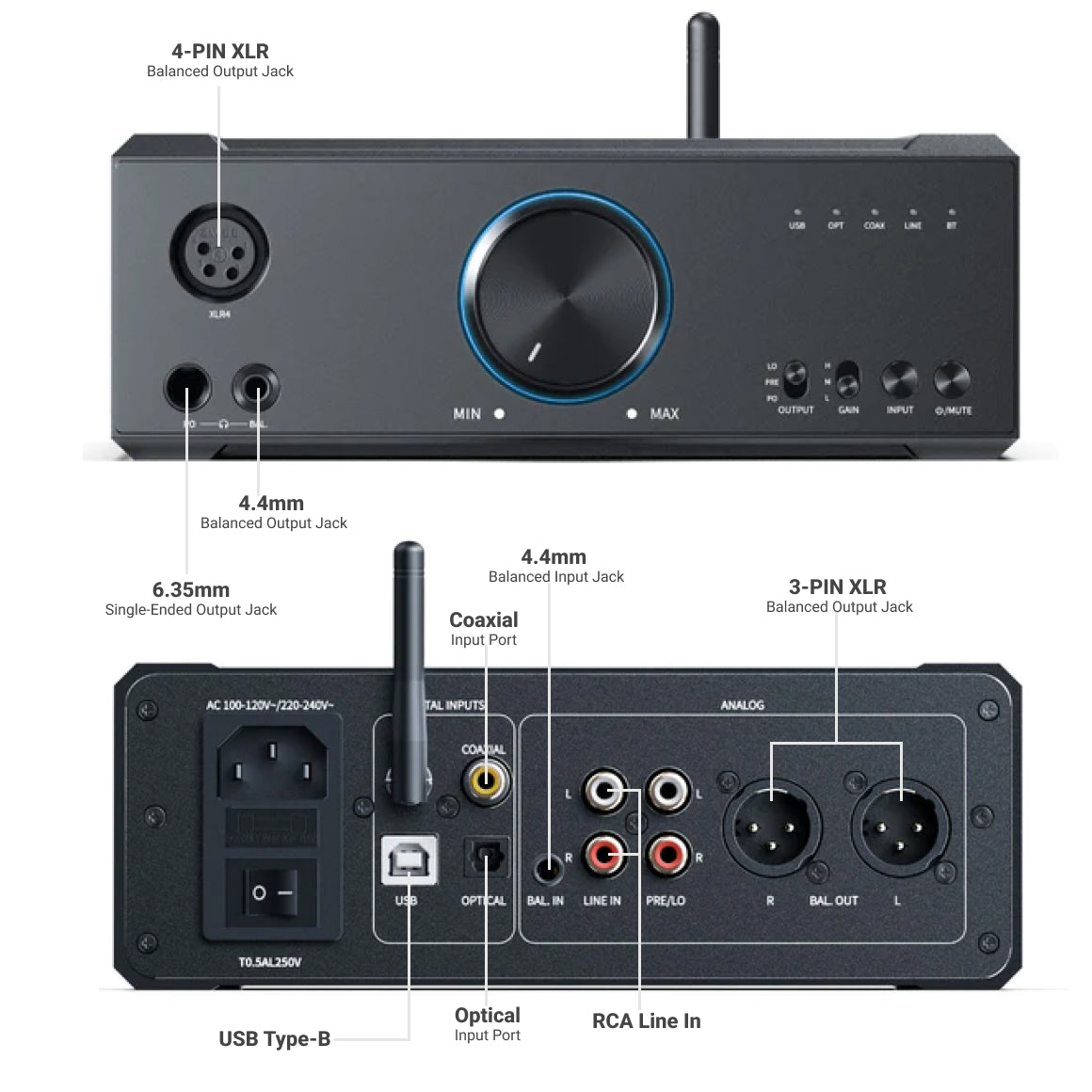

MULTIPLE CONNECTIVITY PORTS HOUSED IN A ELEGANT AND DURABLE ALUMINIUM CHASSIS
The FiiO K9 has a simple yet attractive black all-aluminium exterior that is strong and gives a high-end feel. The controls are well-arranged and easy to understand, ensuring easy operation of the device. The K9 also provides multiple connectivity options, making it convenient to use. The front panel includes XLR-4Pin, 4.4mm Balanced, and 6.35mm Single-Ended headphone outputs, while the rear panel features a 4.4mm Balanced Line In, Coaxial, Optical, RCA, and XLR outputs, which makes it easy to connect external amplifiers and speakers. Furthermore, the K9 supports UAC 1.0 and UAC 2.0 modes for plug-and-play connectivity.

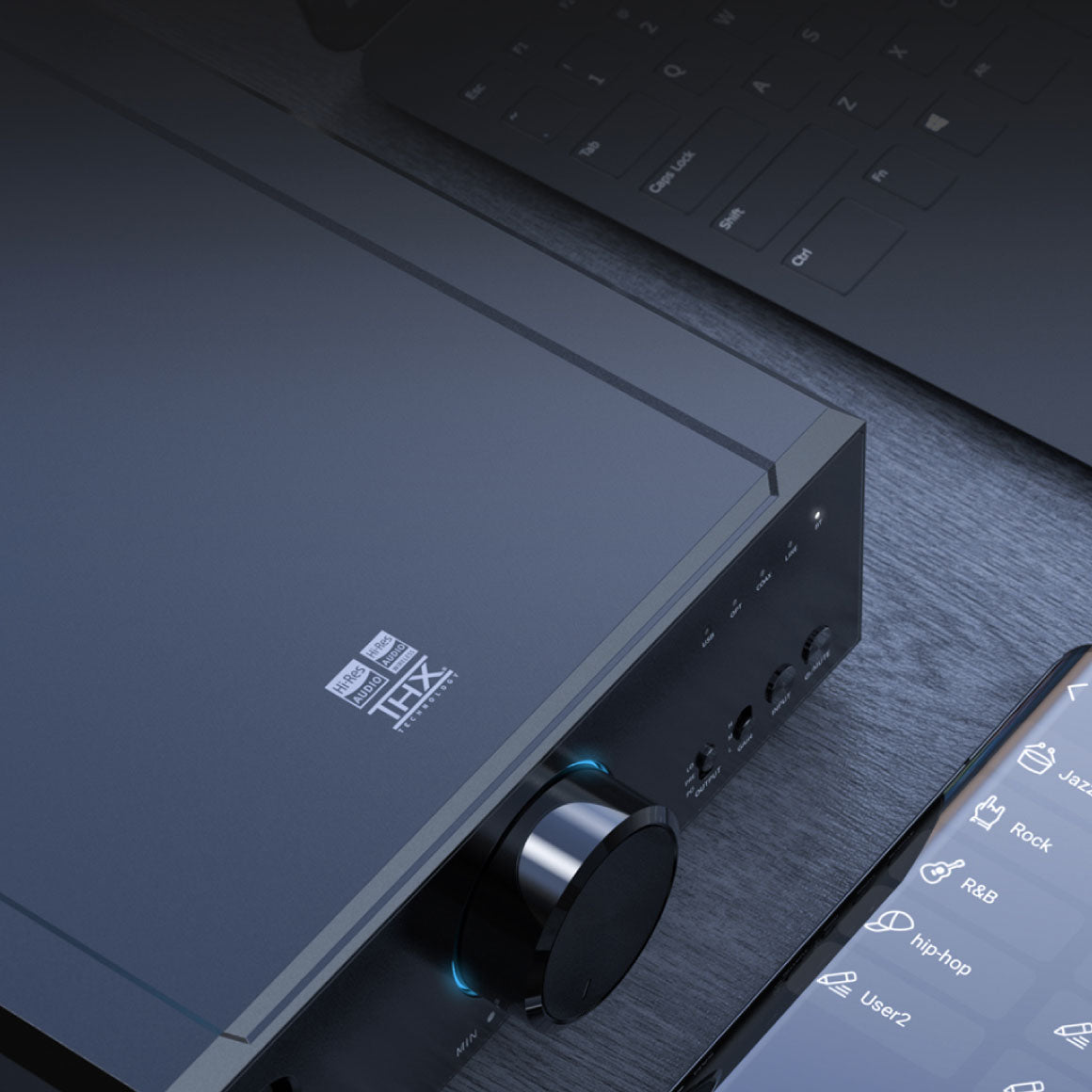

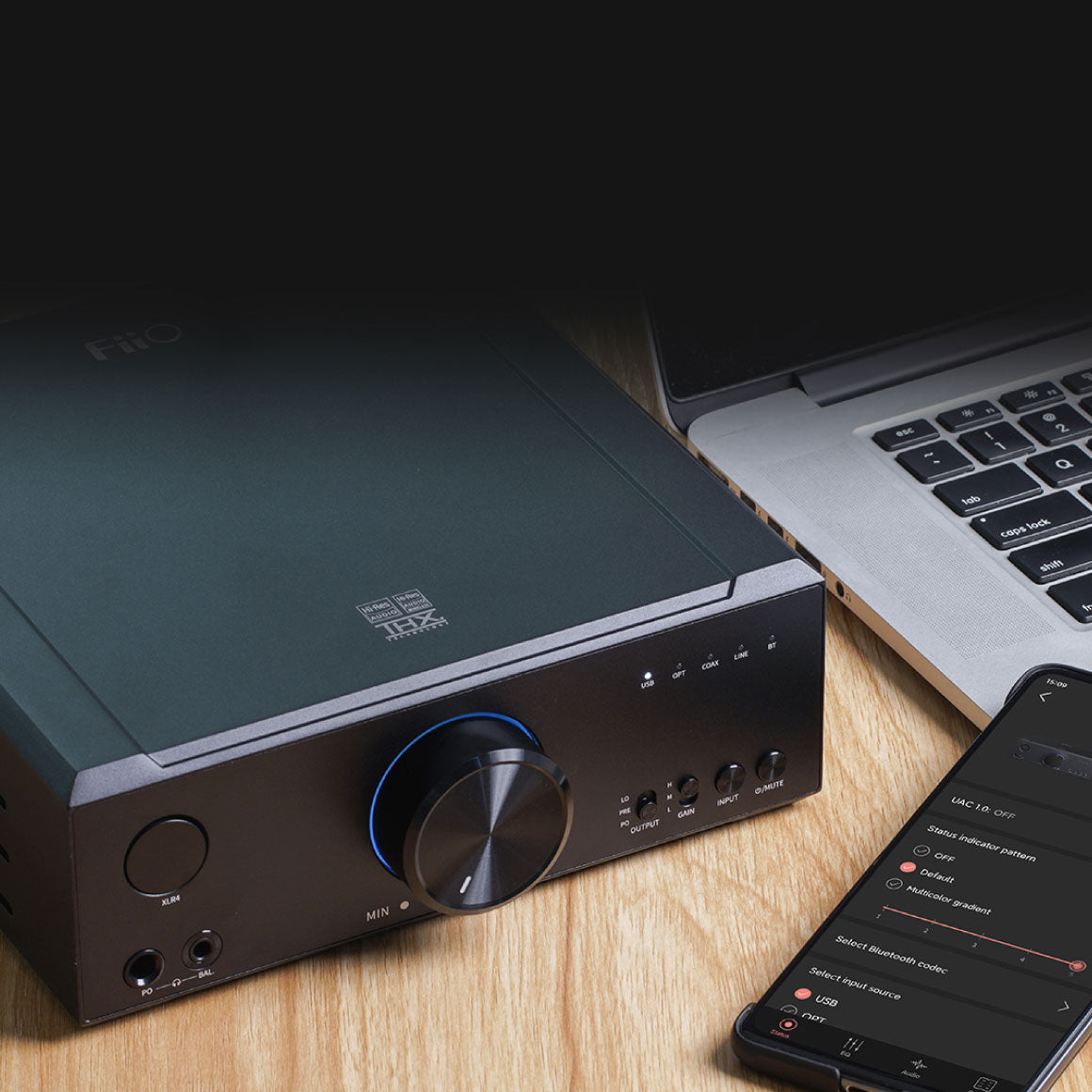

ELEGANT USER INTERFACE WITH DEDICATED APP AND METAL SWITCHES TO CONTROL FEATURES
The FiiO K9 includes a dedicated app that lets you manage various aspects of the device. Using the app, you can adjust EQ profiles and also use the PEQ (Parametric EQ) feature. Additionally, the built-in Bluetooth technology allows you to control functions like channel balance and sleep timer using the FiiO Control App, even when not in Bluetooth mode. The volume knob features RGB indicator lights that change depending on the current playing sampling rate. Furthermore, the FiiO K9 comes bundled with a custom stand that reduces its desktop footprint while improving heat dissipation through convection, making the stand functional and visually appealing.
SPECS
| MODEL | K9 |
| COLOR | Black |
| WEIGHT | Approximately 2660g |
| DAC | ES9068AS*2 |
| DECODING CHIP | XMOS XUF 208 |
| AMPLIFIER | Dual THX AAA 788+ |
| BLUETOOTH CHIP | QCC5124, Bluetooth 5.1 |
| OUTPUTS | 6.35mm/4.4mm/XLR-4/RCA/XLR |
| INPUTS | USB/OPT/COAX/RCA/4.4mm |
| GAIN | L/M/H |
| BLUETOOTH FORMAT INDICATION | Support |
| BLUETOOTH FORMAT SUPPORT | LDAC/atpX Adaptive/aptX HD/aptX/aptX LL AAC/SBC |
| SIZE | 200x 224.5x 72mm (excluding foot pads) |
| DEEP STANDBY | Long press the multi-function key for about 3 seconds |
| BLUETOOTH TRANSMISSION | NA |

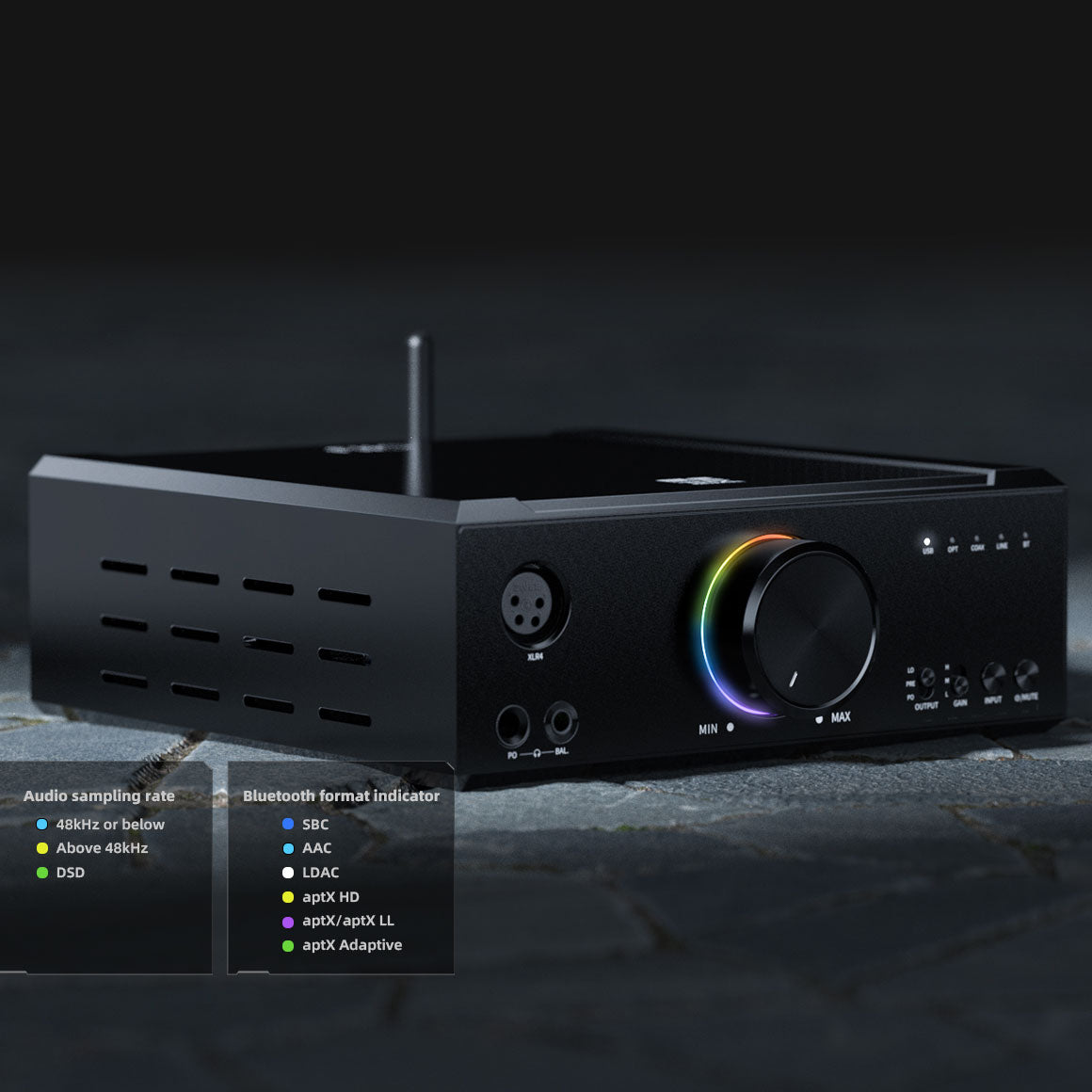

| BLUETOOTH FORMAT INDICATOR | SBC: blue, AAC: cyan, aptX HD: yellow, aptX: purple, aptX LL: purple, LDAC: white, atpX Adaptive: green |
| THE HIGHEST SUPPORTED SAMPLING RATE | 768kHz-32bit/DSD512(USB DAC) 192 kHz-24bit (coaxial) 96 KHz-24bit (fiber) |
| OUTPUT POWER 1 | L+R≥2000mW+2000mW (32Ω balanced/THD+N < 1% |
| OUTPUT POWER 2 | L+R≥780mW+780mW (300Ω balanced/THD+N < 1% |
| SNR | ≥124dB (A-Weighted, UAC) |
| NOISE FLOOR | PO < 4.8μV (A-Weighted, UAC); BAL < 9.3μV (A-Weighted, UAC) |
| OUTPUT IMPEDANCE | < 1Ω (32Ω load) |
| HARDWARE SOLUTION | DAC:ES9068A * 2,USB:XMOS XUF208, Bluetooth: QCC5124,LPF:OPA1612 * 2, Volume IC:NJU72315 * 2,AMP:THX AAA788 + * 2, Transformer: Linear Transformer; |
| VOLUME CONTROL TYPE | analog potentiometer (ADC sampling) |
| CHANNEL BALANCE | L12 ~ R12 (0.5dB per stage) |
| FIIO CONTROL | Support |
| SAMPLING RATE INDICATION | Support |
| FIRMWARE UPGRADE | The system firmware and Bluetooth version can be upgraded through USB |
| LOW POWER REMINDER | NA |
| BLUETOOTH RECEPTION (5.1) | AAC/SBC/aptX/aptX LL/aptX HD/LDAC/atpX Adaptive |
| CHARGING INDICATOR | NA |
| ADAPTATION IMPEDANCE | 16~600 Ω |
| KEY | Solid key + toggle switch |
| SINGLE-ENDED INPUT INTERFACE | RCA socket |
| DIGITAL FIBER INPUT INTERFACE | optical fiber socket |
| BALANCING OUTPUT INTERFACE | 4.4mm socket, XLR4 balanced socket |
| BALANCING LINE OUTPUT INTERFACE | XLR3 balanced socket |
| USB | USB B |
| BALANCING LINE INPUT INTERFACE | 4.4mm balanced socket |
| DIGITAL COAXIAL INPUT INTERFACE | RCA socket |
| HEADSET OUTPUT INTERFACE | Standard 6.35 mm socket |
| SINGLE-ENDED LINE OUTPUT INTERFACE | RCA socket |
| POWER SUPPLY | AC 100-120V ~/AC 220-240V ~ (recommended) |
| CHARGING TIME | NA |
| BATTERY CAPACITY | NA |
| PO BATTERY LIFE | NA |
| DISTORTION PLUS NOISE | <0.00026%(1kHz/10 kΩ/A weighting) |
| CHANNEL SEPARATION | ≥ 111dB (1kHz/10 kΩ) |
| FREQUENCY RESPONSE | 20Hz~50kHz (-1.5dB) |
| SIGNAL-TO-NOISE RATIO | ≥ 119dB (A weight) |
| BOTTOM NOISE | <2.9 μV(A weighting) |
| LINE OUTPUT LEVEL | 2.4Vrms (1kHz/10kΩ) |
| DISTORTION PLUS NOISE | <0.00025%(1kHz/10 kΩ/A weighting) |
| CHANNEL SEPARATION | ≥ 120dB (1kHz/10 kΩ) |
| FREQUENCY RESPONSE | 20Hz~50kHz (-1.5dB) |
| SIGNAL-TO-NOISE RATIO | ≥ 124dB (A weight) |
| BOTTOM NOISE | <3.1 μV(A weighting) |
| LINE OUTPUT LEVEL | 4.8Vrms (1kHz/10kΩ) |
| OUTPUT POWER 1 | ≥1W(16Ω / THD+N<1%,AUX/UAC/SPDIF/BT IN) |
| OUTPUT POWER 2 | ≥1.5W(32Ω /THD+N<1%,AUX/UAC/SPDIF/BT IN) |
| OUTPUT POWER 3 | ≥200mW(300Ω / THD+N<1%,AUX IN) |
| BOTTOM NOISE | <4.8 μV(A weighting) |
| FREQUENCY RESPONSE | 20 Hz~50kHz (-1.5dB) |
| OUTPUT IMPEDANCE | <1 Ω(32 Ω) |
| CHANNEL SEPARATION | ≥ 75dB (1kHz/32 Ω) |
| DISTORTION PLUS NOISE | <0.00028% (1kHz/32 Ω/A weighting) |
| SIGNAL-TO-NOISE RATIO | ≥ 124dB (A weight) |
| PEAK OUTPUT VOLTAGE | >21Vp-p |
| OUTPUT POWER 1 | ≥1W(16Ω / THD+N<1%,AUX/UAC/SPDIF/BT IN) |
| OUTPUT POWER 2 | ≥2W(32Ω / THD+N<1%,AUX/UAC/SPDIF/BT IN) |
| OUTPUT POWER 3 | ≥780mW(300Ω / THD+N<1%,AUX IN) |
| BOTTOM NOISE | <7.1 μV(UAC, gain m, maximum volume) |
| FREQUENCY RESPONSE | 20Hz~50kHz (-1.5dB) |
| OUTPUT IMPEDANCE | <1 Ω(32 Ω) |
| CHANNEL SEPARATION | ≥ 114dB (1kHz/32 Ω) |
| DISTORTION PLUS NOISE | <0.00029% (1kHz/32 Ω/A weighting) |
| SIGNAL-TO-NOISE RATIO | ≥ 119dB (A weight) |
| PEAK OUTPUT VOLTAGE | >42Vp-p |

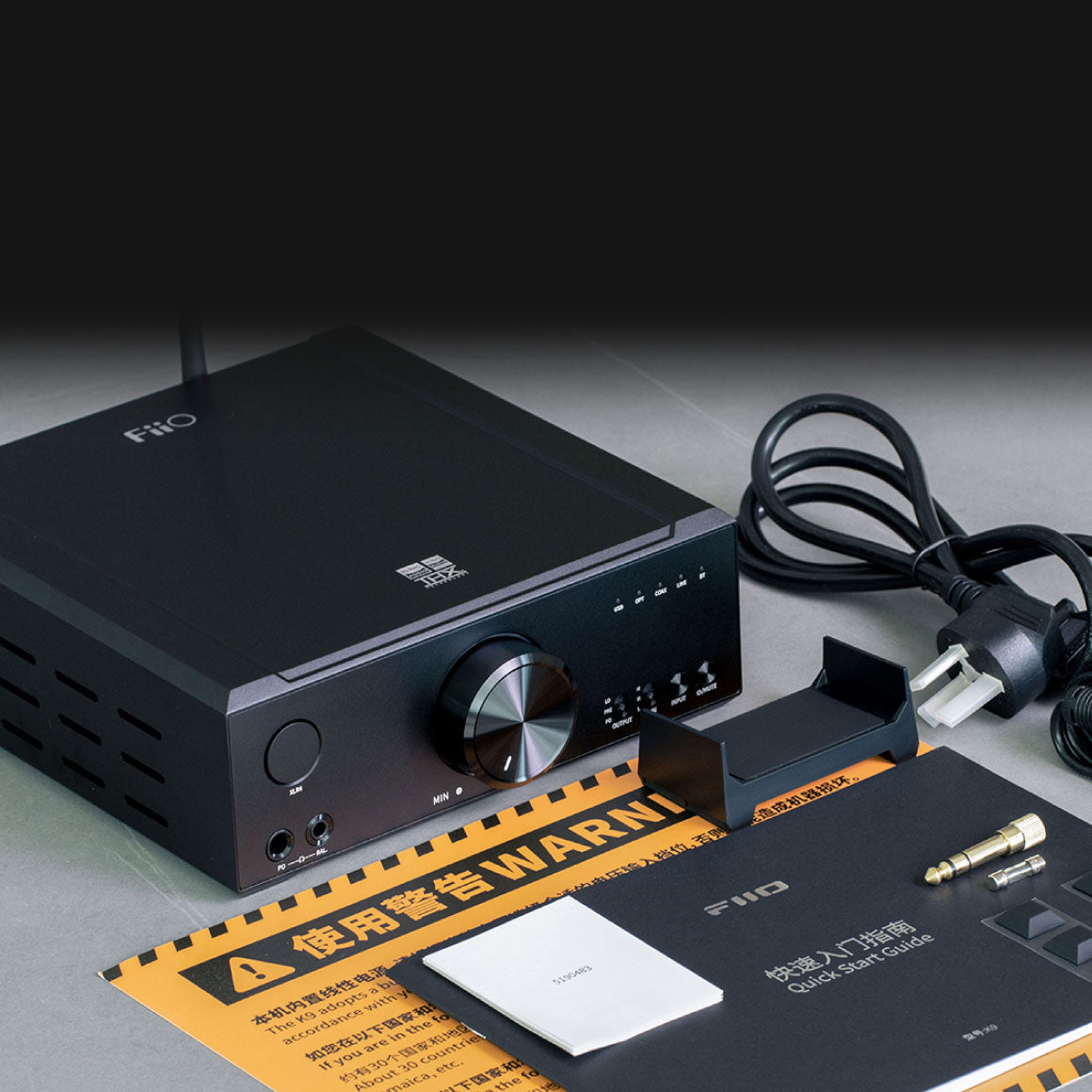

| BOX CONTENT | 1. FiiO K9 |
| 2. Power Cord x1 | |
| 3. Headphone Plug Adapter x1 | |
| 4. USB Data Cable x1 | |
| 5. Feet Pads x6 | |
| 6. Fuse x1 | |
| 7. Stand x1 | |
| 8. Quick Start Guide x1 | |
| 9. Voltage Selection Card x1 | |
| 10. Warranty Card x1 |
| GENERIC NAME | Headphone Amplifier |
| COUNTRY OF ORIGIN | China |
| IMPORTER DETAILS | Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
Quick Start Guide | K9
Flagship Desktop DAC & Amplifier
|
FIIO INTRODUCES THE K9 EQUIPPED WITH A DUAL ESS SABRE CHIP FOR PRISTINE AUDIO
FiiO has recently launched its top-of-the-line desktop DAC and Amplifier, the K9, which comes packed with cutting-edge features and the finest components. The K9 houses dual ES9068AS DAC chips from ESS Sabre, which are high-performance DAC chips that excel in decoding high-resolution audio signals and support various digital filters. With this state-of-the-art DAC chipset, the K9 delivers an exceptional audio performance that is free from any distortions or noise, ensuring a clean and transparent sound output.
HIGHLY CAPABLE THX AAA 788+ AMPLIFIER CIRCUIT DELIVERING CLEAN OUTPUT POWER
The FiiO K9 is a powerful DAC and Amplifier that features the highly capable THX AAA 788+ Amplifier Circuit, delivering a clean output power. It can amplify a wide range of headphones with ease, whether low or high impedance. The K9 comes equipped with THX AAA 788+ chips that provide excellent detail and dynamics and can output up to 780mW at 300 Ohms and 2000mW at 32 Ohms. With this amplifier circuit, you can experience undistorted power output of 1%, which is remarkable.
FULLY BALANCED DESIGN WITH SIX-STAGE CIRCUITRY AND PARTITIONED LAYOUT
The K9 is designed to provide exceptional audio performance, and to achieve this, it utilises a fully balanced design. This design helps reduce interference between different components, preserving all the details and dynamic range in music for an unparalleled audio experience. Additionally, it features a six-stage audio circuitry to ensure top-quality sound performance. The digital and analogue circuits are separated by partitions, allowing clean and unobstructed audio performance. This partitioned layout also separates the power supply, audio signals and analogue signal loops, ensuring the audio output is clean and pristine.
FAST AND RELIABLE HI-RES BLUETOOTH CONNECTIVITY WITH DUAL CLOCK MANAGEMENT
The FiiO K9 features the latest Bluetooth technology to provide Hi-Res quality audio wirelessly, and the device employs the Qualcomm QCC 5124 to handle Bluetooth connectivity with various formats such as AAC, SBC, LDAC, aptX, aptX LL, aptX HD and aptX Adaptive. This chip guarantees reliable and speedy Bluetooth connections that satisfy low latency needs for games/videos and high bitrates for high-resolution audio. The K9 also incorporates a precise and stable dual-mode clock management system for playing Hi-Res audio with lifelike fidelity. The device can support high-res 32-Bit/768kHz PCM and native DSD512 decoding.
ADVANCED POWER DELIVERY SYSTEM WITH MULTIPLE LDO’S FOR LINEAR TRANSMISSION
The FiiO K9 comes with a highly regarded linear power supply that provides ample clean power to the entire system. It has a low-frequency transformer and four large 4700uF capacitors that ensure that the rest of the system gets enough power. The digital and analogue portions of the K9 receive power separately to prevent audio interference between the two circuits. Every stage of the audio circuitry employs ultra-low-noise LDO for voltage regulation. To ensure a clean power supply, the K9 has a total of 18 LDOs. Furthermore, the K9 features three intelligent protection systems that protect against overheating, overload, and DC.
THREE-WAY GAIN SETTINGS WITH ACCURATE VOLUME ADJUSTMENTS BASED ON ADC CURVE
The FiiO K9 allows you to adjust the gain settings to your preference, with options of high, medium, and low. The pure hardware gain circuit ensures that the audio quality remains optimal even when using high-sensitivity headphones on low-gain settings. The volume knob of the K9 utilises the ADC curve reconstruction method for precise volume adjustment, resulting in minimal noise and left-right channel volume imbalances. This feature allows for smooth and consistent changes in volume across all levels.
MULTIPLE CONNECTIVITY PORTS HOUSED IN A ELEGANT AND DURABLE ALUMINIUM CHASSIS
The FiiO K9 has a simple yet attractive black all-aluminium exterior that is strong and gives a high-end feel. The controls are well-arranged and easy to understand, ensuring easy operation of the device. The K9 also provides multiple connectivity options, making it convenient to use. The front panel includes XLR-4Pin, 4.4mm Balanced, and 6.35mm Single-Ended headphone outputs, while the rear panel features a 4.4mm Balanced Line In, Coaxial, Optical, RCA, and XLR outputs, which makes it easy to connect external amplifiers and speakers. Furthermore, the K9 supports UAC 1.0 and UAC 2.0 modes for plug-and-play connectivity.
ELEGANT USER INTERFACE WITH DEDICATED APP AND METAL SWITCHES TO CONTROL FEATURES
The FiiO K9 includes a dedicated app that lets you manage various aspects of the device. Using the app, you can adjust EQ profiles and also use the PEQ (Parametric EQ) feature. Additionally, the built-in Bluetooth technology allows you to control functions like channel balance and sleep timer using the FiiO Control App, even when not in Bluetooth mode. The volume knob features RGB indicator lights that change depending on the current playing sampling rate. Furthermore, the FiiO K9 comes bundled with a custom stand that reduces its desktop footprint while improving heat dissipation through convection, making the stand functional and visually appealing.
| MODEL | K9 |
| COLOR | Black |
| WEIGHT | Approximately 2660g |
| DAC | ES9068AS*2 |
| DECODING CHIP | XMOS XUF 208 |
| AMPLIFIER | Dual THX AAA 788+ |
| BLUETOOTH CHIP | QCC5124, Bluetooth 5.1 |
| OUTPUTS | 6.35mm/4.4mm/XLR-4/RCA/XLR |
| INPUTS | USB/OPT/COAX/RCA/4.4mm |
| GAIN | L/M/H |
| BLUETOOTH FORMAT INDICATION | Support |
| BLUETOOTH FORMAT SUPPORT | LDAC/atpX Adaptive/aptX HD/aptX/aptX LL AAC/SBC |
| SIZE | 200x 224.5x 72mm (excluding foot pads) |
| DEEP STANDBY | Long press the multi-function key for about 3 seconds |
| BLUETOOTH TRANSMISSION | NA |
| BLUETOOTH FORMAT INDICATOR | SBC: blue, AAC: cyan, aptX HD: yellow, aptX: purple, aptX LL: purple, LDAC: white, atpX Adaptive: green |
| THE HIGHEST SUPPORTED SAMPLING RATE | 768kHz-32bit/DSD512(USB DAC) 192 kHz-24bit (coaxial) 96 KHz-24bit (fiber) |
| OUTPUT POWER 1 | L+R≥2000mW+2000mW (32Ω balanced/THD+N < 1% |
| OUTPUT POWER 2 | L+R≥780mW+780mW (300Ω balanced/THD+N < 1% |
| SNR | ≥124dB (A-Weighted, UAC) |
| NOISE FLOOR | PO < 4.8μV (A-Weighted, UAC); BAL < 9.3μV (A-Weighted, UAC) |
| OUTPUT IMPEDANCE | < 1Ω (32Ω load) |
| HARDWARE SOLUTION | DAC:ES9068A * 2,USB:XMOS XUF208, Bluetooth: QCC5124,LPF:OPA1612 * 2, Volume IC:NJU72315 * 2,AMP:THX AAA788 + * 2, Transformer: Linear Transformer; |
| VOLUME CONTROL TYPE | analog potentiometer (ADC sampling) |
| CHANNEL BALANCE | L12 ~ R12 (0.5dB per stage) |
| FIIO CONTROL | Support |
| SAMPLING RATE INDICATION | Support |
| FIRMWARE UPGRADE | The system firmware and Bluetooth version can be upgraded through USB |
| LOW POWER REMINDER | NA |
| BLUETOOTH RECEPTION (5.1) | AAC/SBC/aptX/aptX LL/aptX HD/LDAC/atpX Adaptive |
| CHARGING INDICATOR | NA |
| ADAPTATION IMPEDANCE | 16~600 Ω |
| KEY | Solid key + toggle switch |
| SINGLE-ENDED INPUT INTERFACE | RCA socket |
| DIGITAL FIBER INPUT INTERFACE | optical fiber socket |
| BALANCING OUTPUT INTERFACE | 4.4mm socket, XLR4 balanced socket |
| BALANCING LINE OUTPUT INTERFACE | XLR3 balanced socket |
| USB | USB B |
| BALANCING LINE INPUT INTERFACE | 4.4mm balanced socket |
| DIGITAL COAXIAL INPUT INTERFACE | RCA socket |
| HEADSET OUTPUT INTERFACE | Standard 6.35 mm socket |
| SINGLE-ENDED LINE OUTPUT INTERFACE | RCA socket |
| POWER SUPPLY | AC 100-120V ~/AC 220-240V ~ (recommended) |
| CHARGING TIME | NA |
| BATTERY CAPACITY | NA |
| PO BATTERY LIFE | NA |
| DISTORTION PLUS NOISE | <0.00026%(1kHz/10 kΩ/A weighting) |
| CHANNEL SEPARATION | ≥ 111dB (1kHz/10 kΩ) |
| FREQUENCY RESPONSE | 20Hz~50kHz (-1.5dB) |
| SIGNAL-TO-NOISE RATIO | ≥ 119dB (A weight) |
| BOTTOM NOISE | <2.9 μV(A weighting) |
| LINE OUTPUT LEVEL | 2.4Vrms (1kHz/10kΩ) |
| DISTORTION PLUS NOISE | <0.00025%(1kHz/10 kΩ/A weighting) |
| CHANNEL SEPARATION | ≥ 120dB (1kHz/10 kΩ) |
| FREQUENCY RESPONSE | 20Hz~50kHz (-1.5dB) |
| SIGNAL-TO-NOISE RATIO | ≥ 124dB (A weight) |
| BOTTOM NOISE | <3.1 μV(A weighting) |
| LINE OUTPUT LEVEL | 4.8Vrms (1kHz/10kΩ) |
| OUTPUT POWER 1 | ≥1W(16Ω / THD+N<1%,AUX/UAC/SPDIF/BT IN) |
| OUTPUT POWER 2 | ≥1.5W(32Ω /THD+N<1%,AUX/UAC/SPDIF/BT IN) |
| OUTPUT POWER 3 | ≥200mW(300Ω / THD+N<1%,AUX IN) |
| BOTTOM NOISE | <4.8 μV(A weighting) |
| FREQUENCY RESPONSE | 20 Hz~50kHz (-1.5dB) |
| OUTPUT IMPEDANCE | <1 Ω(32 Ω) |
| CHANNEL SEPARATION | ≥ 75dB (1kHz/32 Ω) |
| DISTORTION PLUS NOISE | <0.00028% (1kHz/32 Ω/A weighting) |
| SIGNAL-TO-NOISE RATIO | ≥ 124dB (A weight) |
| PEAK OUTPUT VOLTAGE | >21Vp-p |
| OUTPUT POWER 1 | ≥1W(16Ω / THD+N<1%,AUX/UAC/SPDIF/BT IN) |
| OUTPUT POWER 2 | ≥2W(32Ω / THD+N<1%,AUX/UAC/SPDIF/BT IN) |
| OUTPUT POWER 3 | ≥780mW(300Ω / THD+N<1%,AUX IN) |
| BOTTOM NOISE | <7.1 μV(UAC, gain m, maximum volume) |
| FREQUENCY RESPONSE | 20Hz~50kHz (-1.5dB) |
| OUTPUT IMPEDANCE | <1 Ω(32 Ω) |
| CHANNEL SEPARATION | ≥ 114dB (1kHz/32 Ω) |
| DISTORTION PLUS NOISE | <0.00029% (1kHz/32 Ω/A weighting) |
| SIGNAL-TO-NOISE RATIO | ≥ 119dB (A weight) |
| PEAK OUTPUT VOLTAGE | >42Vp-p |
| BOX CONTENT | 1. FiiO K9 |
| 2. Power Cord x1 | |
| 3. Headphone Plug Adapter x1 | |
| 4. USB Data Cable x1 | |
| 5. Feet Pads x6 | |
| 6. Fuse x1 | |
| 7. Stand x1 | |
| 8. Quick Start Guide x1 | |
| 9. Voltage Selection Card x1 | |
| 10. Warranty Card x1 |
| GENERIC NAME | Headphone Amplifier |
| COUNTRY OF ORIGIN | China |
| IMPORTER DETAILS | Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
|
Quick Start Guide | K9
Flagship Desktop DAC & Amplifier
|
Don't sweat it, this
FiiO - K9 comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
This product has no reviews yet.
