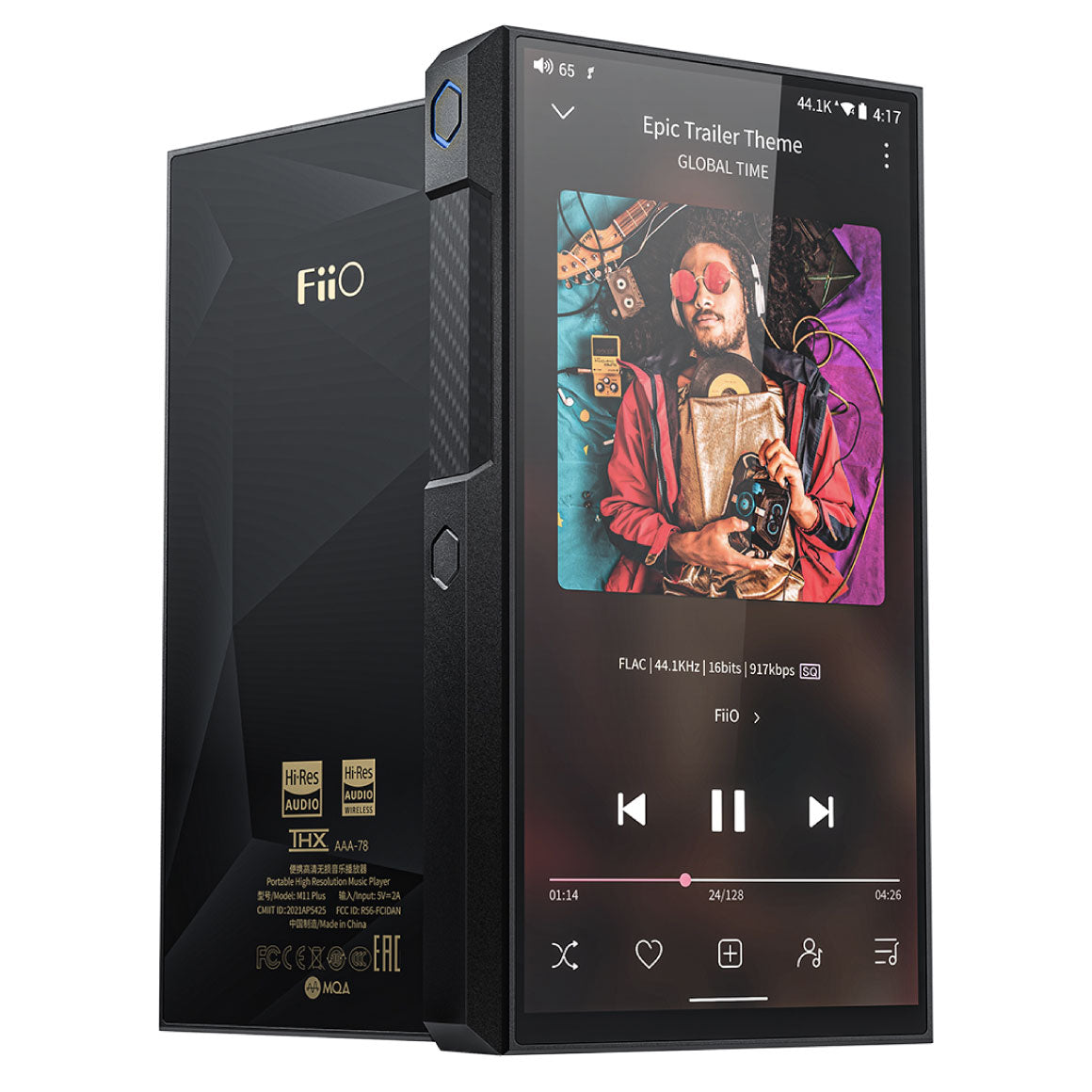

FiiO - M11S

INTRODUCING AN ALL-NEW DIGITAL AUDIO PLAYER IN FIIO'S M SERIES LINE-UP - THE M11S

FiiO's creations have achieved enormous success, a line-up of dependable Digital Audio Players that combine excellent audio quality and extraordinary performance. FiiO's Digital Audio Player line-up has always amazed the critics with its versatility presenting exceptional performance fused with spectacular sound quality. The all-new FiiO M11S joins a line-up of Digital Audio Players, such as the M11 Plus, M15, and the most capable, the M17. All these players achieved remarkable success. Building on the lineage FiiO has developed the all-new M11S to continue the heritage with Hi-Res certification wired and wireless and numerous functionalities. The FiiO M11S has phenomenal specifications with high-performance ES9038Q2M DAC chips, 4th gen FPGA (Field Programmable Gate Arrays) technology, and Audiophile-grade power supply that contribute to its exceptional audio reproduction. The M11S, right out of the box, is a player that captures your attention with its elegant design and superb functionality. The FiiO M11S allows you to access your music in many different ways with its Bluetooth transmission and DLNA/AirPlay (Digital Living Network Alliance) support.

PHENOMENAL AUDIO PERFORMANCE ACHIEVED WITH DUAL DAC ARCHITECTURE FEATURING ESS SABRE DAC CHIPS

The Digital Audio Player's capability highly depends on the DAC chips; that it houses. The DAC chips help determine how successfully the player can convert digital to analogue signals. This design consideration might lead to some interference if the DAC chips are not of the highest calibre. The team of engineers at FiiO considered this design aspect and has included high-performance dual ES9038Q2M DAC chips. The question arises as to why dual DAC chips; when one DAC chip is sufficient to reproduce good quality audio transmission. The engineers have specifically included dual DAC chips, each dedicated to the left and right; channels. This design perspective allows for better reproduction of every last detail in your music. The ES9038Q2M is a 32-Bit stereo low-power audio DAC chip. The ES9038Q2M SABRE Reference DAC is a very high-performance, 32-bit, Stereo audio D/A converter designed for; audiophile-grade portable power-sensitive applications such as digital music players, Blu-ray players, audio pre-amplifiers and A/V receivers, and professional applications such as recording systems, mixer consoles and digital audio workstations. Using the critically acclaimed ESS patented 32-bit HyperStream™ DAC architecture and Time Domain Jitter Eliminator, the ES9038Q2M SABRE32 Reference DAC delivers exceptional sonic performance. These DAC chips allow decoding support up to 384kHz/DSD256 (Direct Stream Digital).

SPECTACULAR AMPLIFICATION ACHIEVED WITH AUDIOPHILE-GRADE COMPONENTS FUSED WITH LINEAR POWER SUPPLY AND FOURTH-GENERATION FPGA TECHNOLOGY

A Digital Audio Player has to have dependable amplification circuitry to support the DAC chips' operability. A team of engineers at FiiO designed the M11S to host I/V OPA1612 and LPF OPA1642 in its amplification circuitry for its advantages and operational capabilities. The OPA1612 bipolar-input operational amplifiers achieve low noise density with an ultralow distortion. The OPA1612 offers a rail-to-rail output swing that increases headroom and maximises dynamic range. The M11S includes OPA926, dedicated op-amps for balanced and unbalanced connections. Under a 32 ohm load, single-ended power output is 200mW while balanced power output is at a healthy 670mW-allowing the M11S to power the most demanding headphones/IEMs. The amplifier and op-amp sections of the M11S are independently powered. These are isolated from each other, ensuring clean and abundant power while resulting in better dynamics. This design consideration enables the M11S to handle any use case scenario. The DAP's Digital Audio Purification System FiiO includes 4th-gen FPGA (Field Programmable Gate Arrays) with phase-locked loop technology. Audio data is passed through a FiiO-developed 4th-gen FPGA with phase-locked loop technology, which works together with two custom femtosecond crystal oscillators to provide a high-precision and low-jitter unified clock source for the entire audio architecture. This design architecture delivers clean and precise audio output without jitter or distortion. Thanks to meticulous design refinement, the M11S has a low noise floor of 1.8°V, 62% lower than the previous generation. Close your eyes and experience the bliss of pure music, unfettered by noise in a pure black background.

FEATURES BLUETOOTH 5.0 WITH LOWER LATENCY AND SMOOTH TRANSMISSION WITH FIVE OPERATING MODES FOR ADDED CONVENIENCE

The world has changed dramatically since wireless technology leapt so that people can stream music without having to deal with cables. With this consideration in mind, the engineers created the M11S with Bluetooth capabilities so that you can stream music wirelessly. The M11S has Bluetooth 5.0 capability allowing for longer transmission distances and stronger signals. Access your music in a variety of ways! With LHDC transmission (Low Latency High-Definition Audio Codec) compatibility for the first time included in a Digital Audio Player, you can receive or transmit Bluetooth audio in numerous formats. You can also use DLNA/AirPlay for even more options. LHDC allows high-resolution audio streaming over Bluetooth. It is a high-quality Bluetooth codec based on the A2DP Bluetooth protocol and allows a bit rate of up to 900 kbps compared to SBC's bit rate of 345 kbps. The M11S supports Bluetooth transmission for the following audio codecs LDAC, LHDC, aptX HD, aptX, AAC, and SBC. Bluetooth reception, it supports LDAC, AAC, and SBC. The M11S also features Android mode allowing you to enjoy many third-party apps and play the way you want. It has a Pure Music option that enables you to be free from the interference of other apps for elite-level musical immersion. Some features include Bluetooth receiving mode that allows you to receive music from other devices like smartphones and USB DAC mode, which enables you to connect to your computer, making it a high-fidelity source. It also features AirPlay mode that Bypasses iPhone Bluetooth AAC limitation.

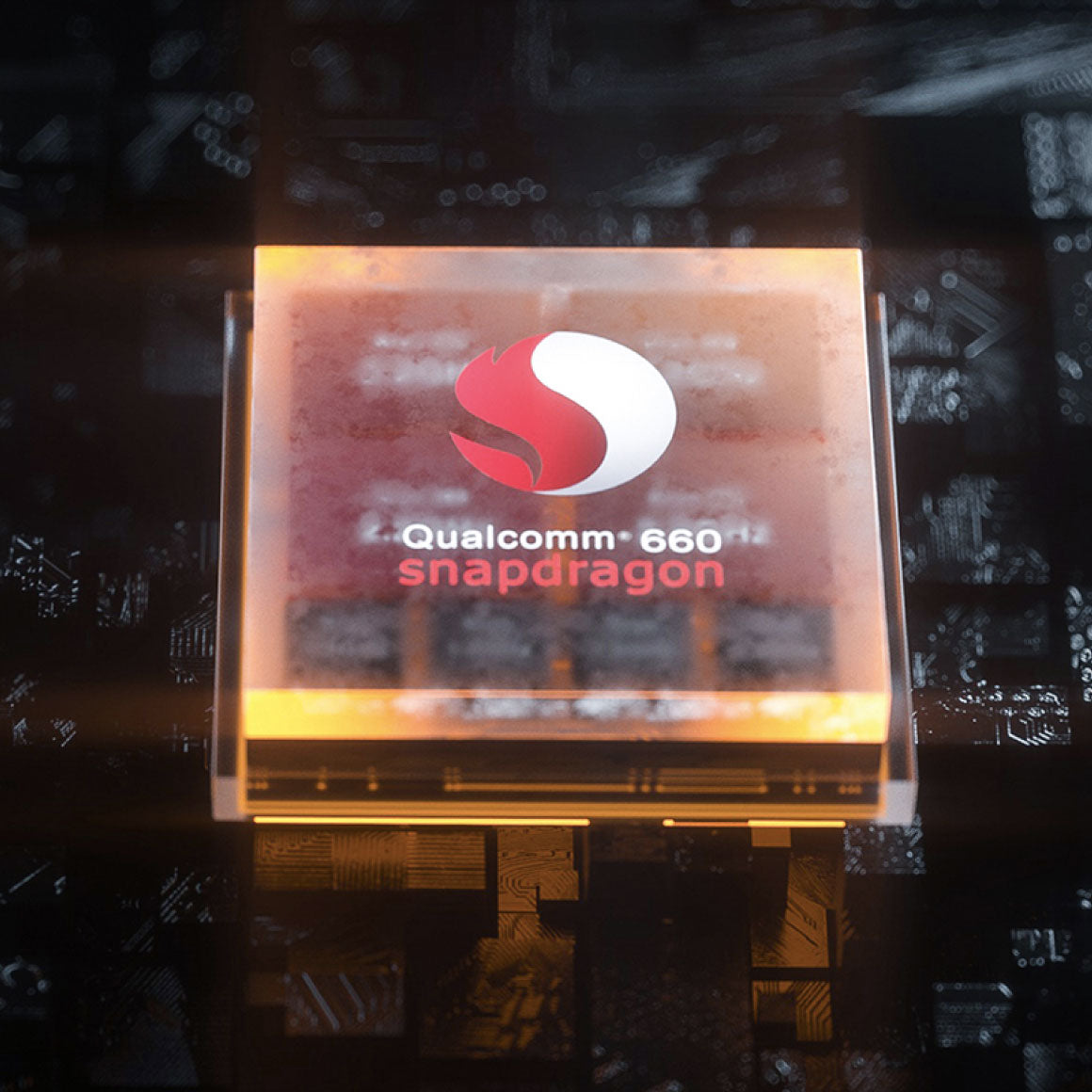

LIQUID SMOOTH PERFORMANCE ACHIEVED WITH QUALCOMM SNAPDRAGON 660 PROCESSOR FUSED WITH ANDROID 10 OS AND MQA SUPPORT

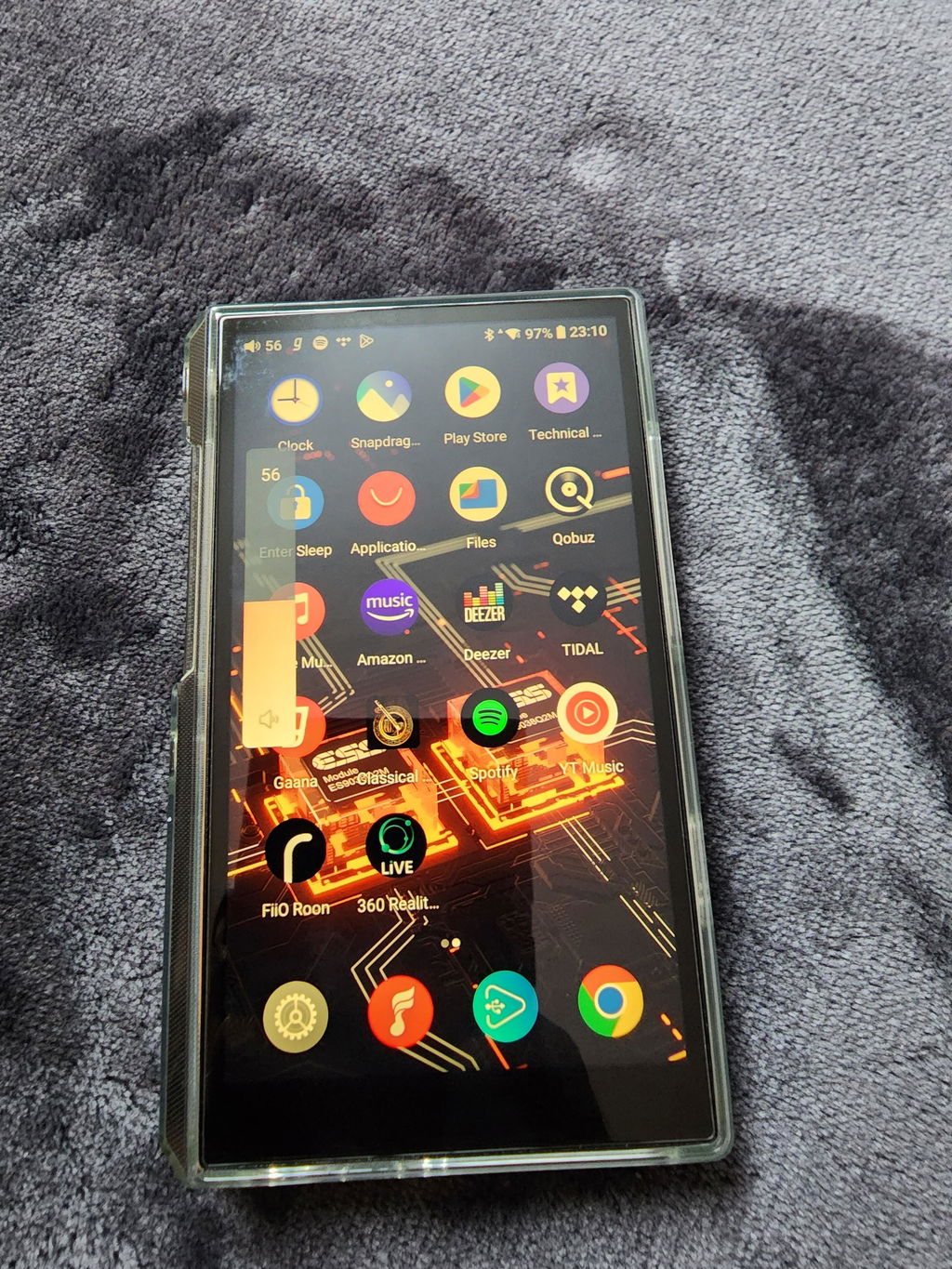

With the Snapdragon 660 CPU built within the M11S, you can experience lightning-fast performance. At the core, the M11S has a Snapdragon 660 with a 4 big/4 small core architecture, the same as in the flagship M17. This architecture allows the M11S to provide a smartphone-like smooth experience for a truly immense performance improvement over the previous generation. Not only can the chip capably handle tasks like watching videos and playing games, but it can also ensure ultra-low power consumption when only listening to music for better battery life. The M11S features Android 10 with no SRC globally and a global SRC bypass (Sample Rate Conversion) at the system level; you can install music streaming apps such as Apple Music and listen in full lossless quality whenever you want. The FiiO M11S, with the latest Android 10 OS support, provides you with the range of media and music applications available in the Google Play store. The pursuit of ultimate sound quality never stops! The M11S supports MQA 8x (Master Quality Authenticated) unfolding for master-level sound, so you can better appreciate the music the way the artist intended. The operation in the field of digital audio players is remarkable, thanks to the powerful performance of this 14-nanometer 8-core CPU! There is enough capacity for a consistent and fast response with 3GB RAM, and the 32GB of inbuilt storage space and an external Micro SD card slot makes it easy to install more apps and store lossless files like MQA, FLAC etc. The FiiO - M11S is as smooth as some of the latest smartphones available on the market, making the user interface lively and fast. MQA technology is built into the M11S, allowing you to replay and stream MQA audio files. MQA 8X (Master Quality Authenticated) captures 100% of the original studio performance and folds the file to make it small enough to stream.

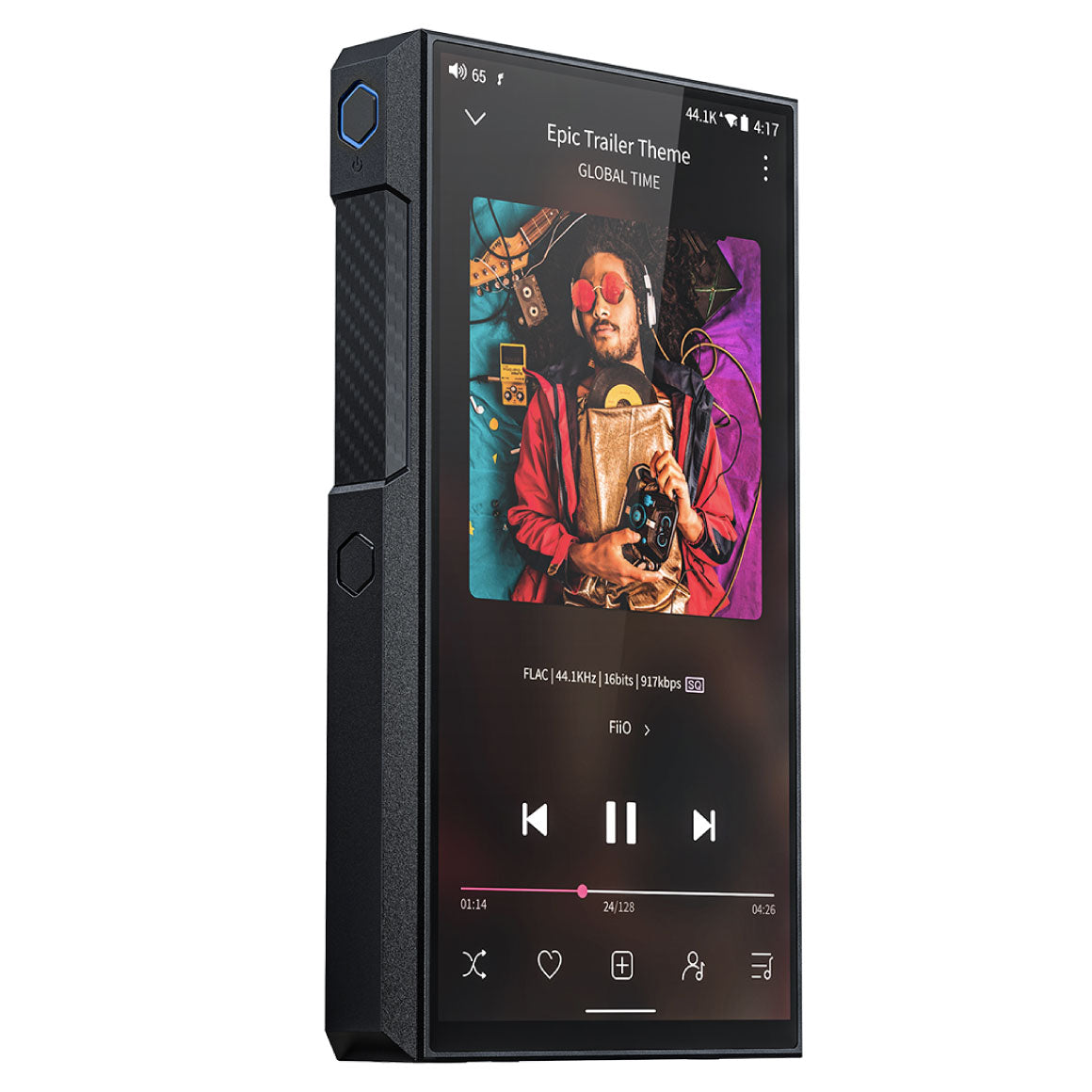

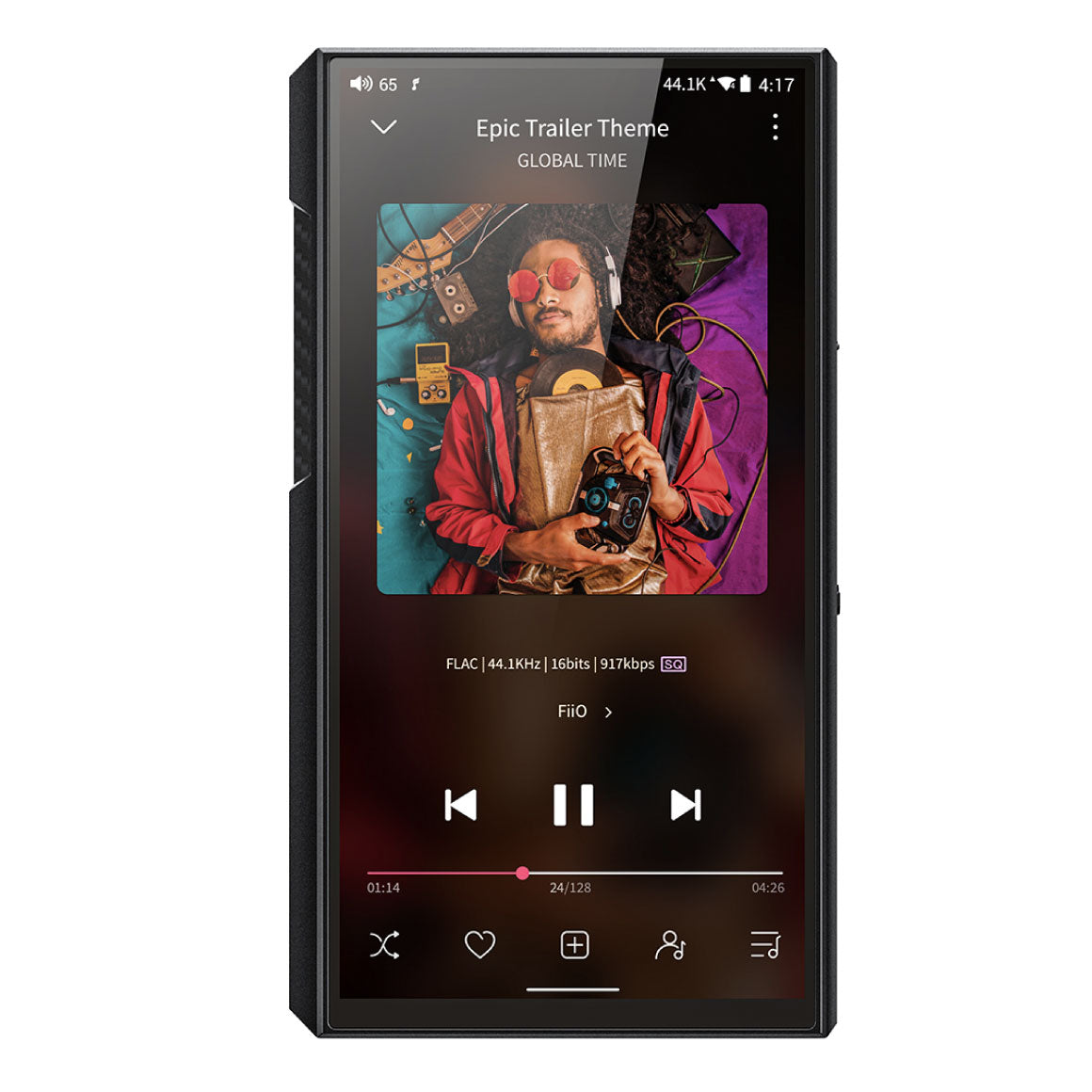

DELIVERS 14 HOURS OF PLAYTIME WITH FAST CHARGING CAPABILITIES AND EMBEDDED WITH 5.0 INCH SCREEN

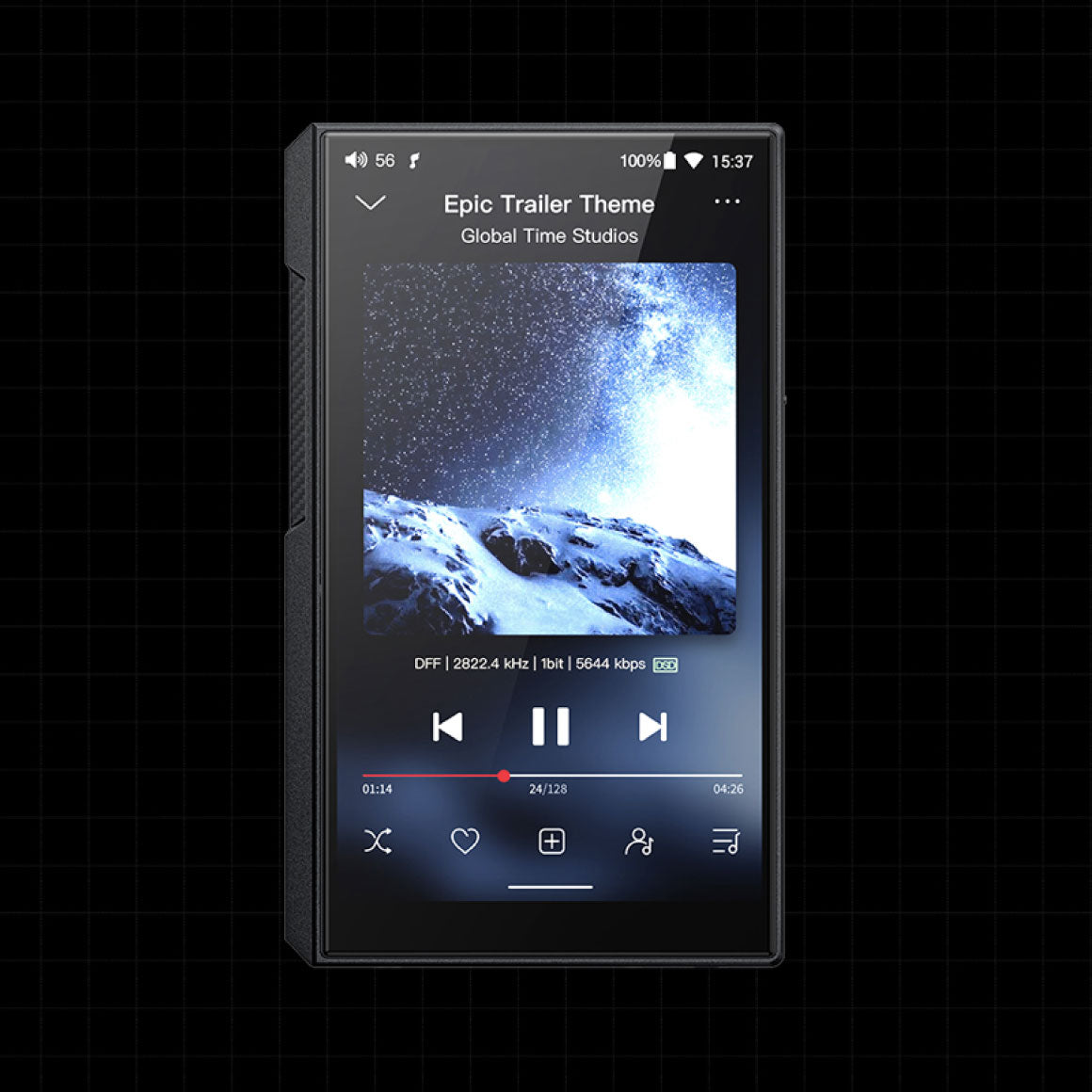

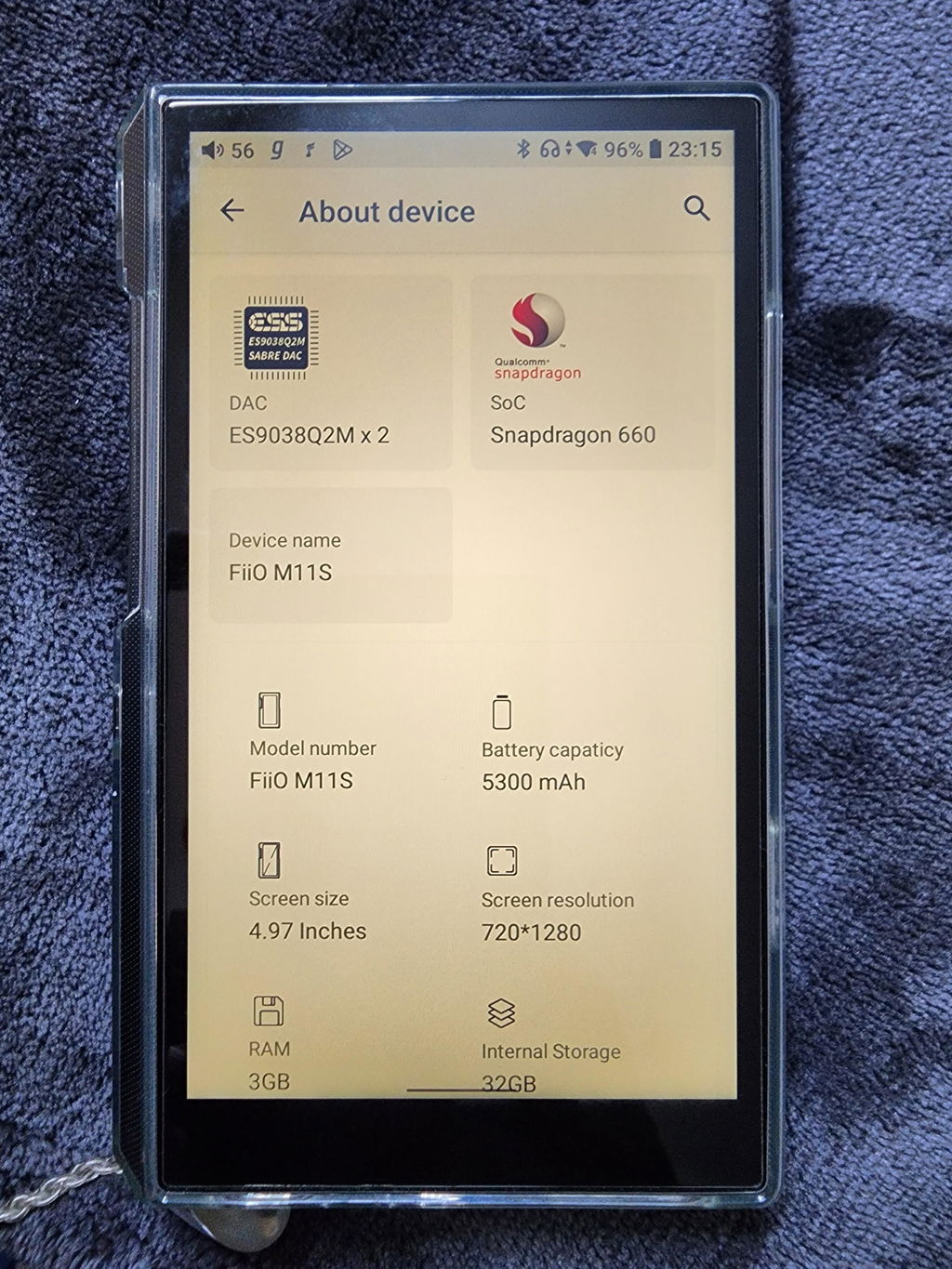

What feature of portable digital audio players is the most crucial? Yes, the way they sound, but you'll need battery life to enjoy uninterrupted listening. The FiiO developers considered this while designing the M11S to support a 5300mAh, 3.8V battery. This large battery with lots of power reserves gives you peace of mind when using the M11S and provides 14 hours of playtime (Single-Ended). And with support for QC 4.0 and PD fast charging, it only takes 3 hours; to fully charge the M11S. What about getting a DAP with a touchscreen and high-resolution display? You have nowhere to look for as the FiiO M11S features a 5-inch full-screen display with a touch panel. The screen resolution is 720*1280 pixels which are bezel-less, with superior colour reproduction.

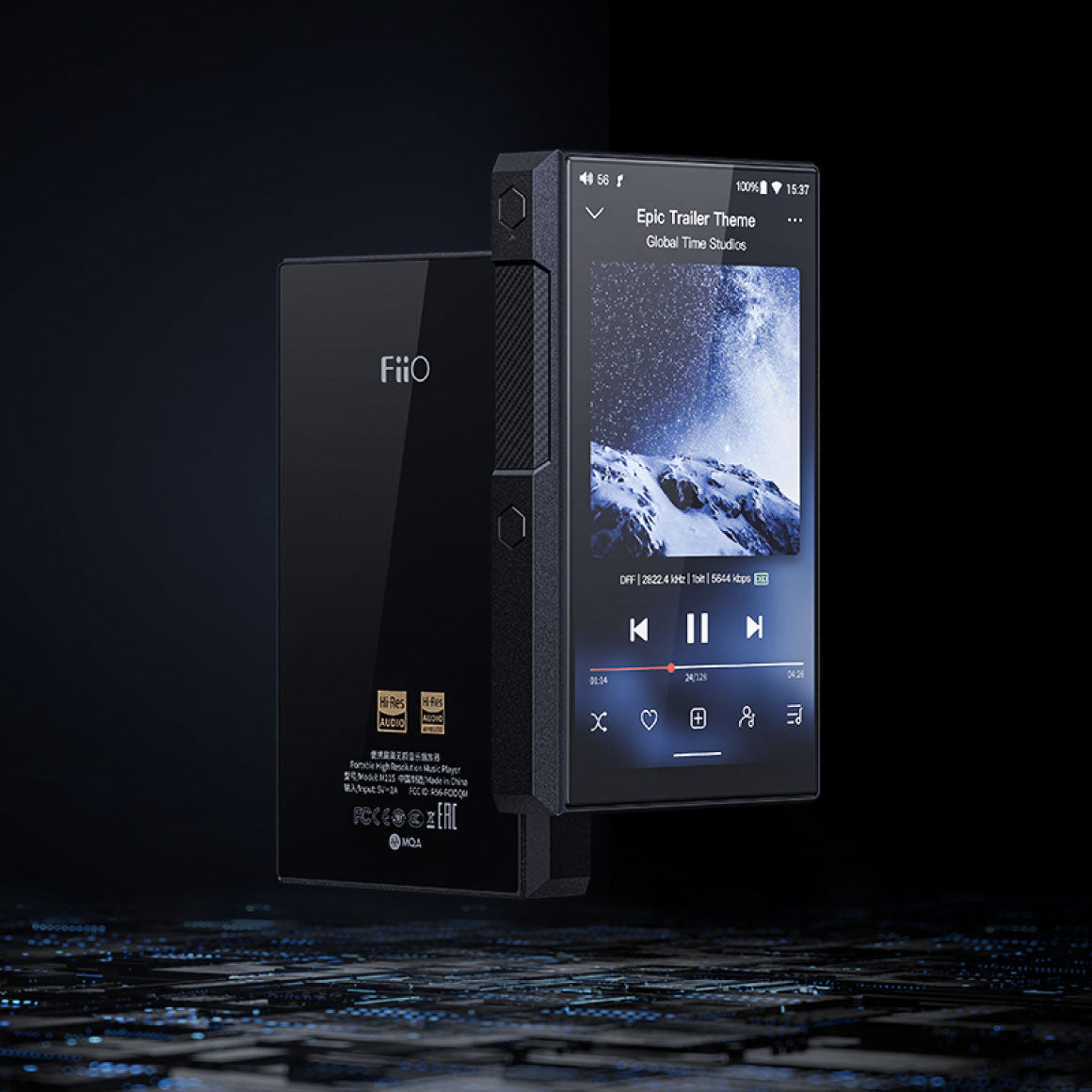

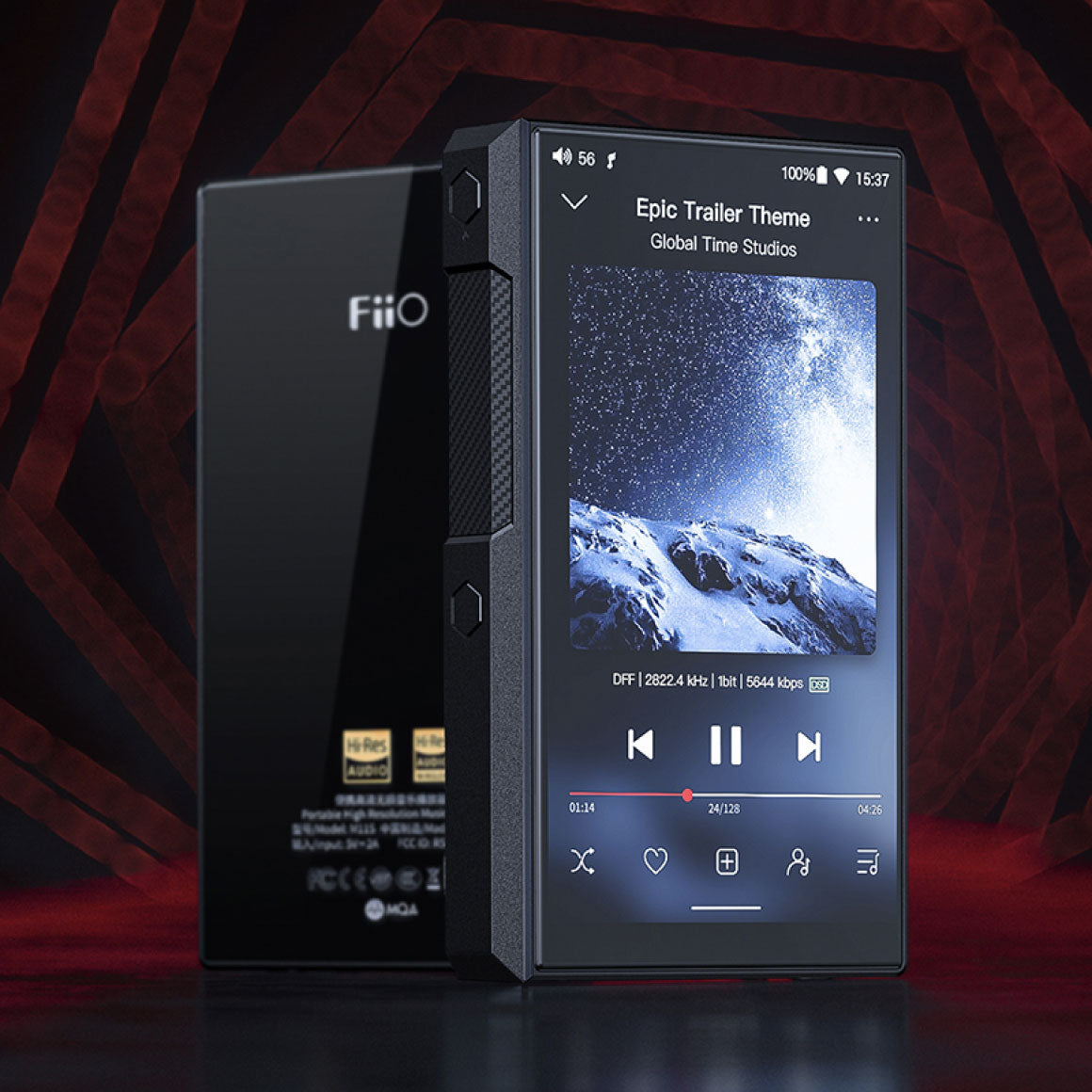

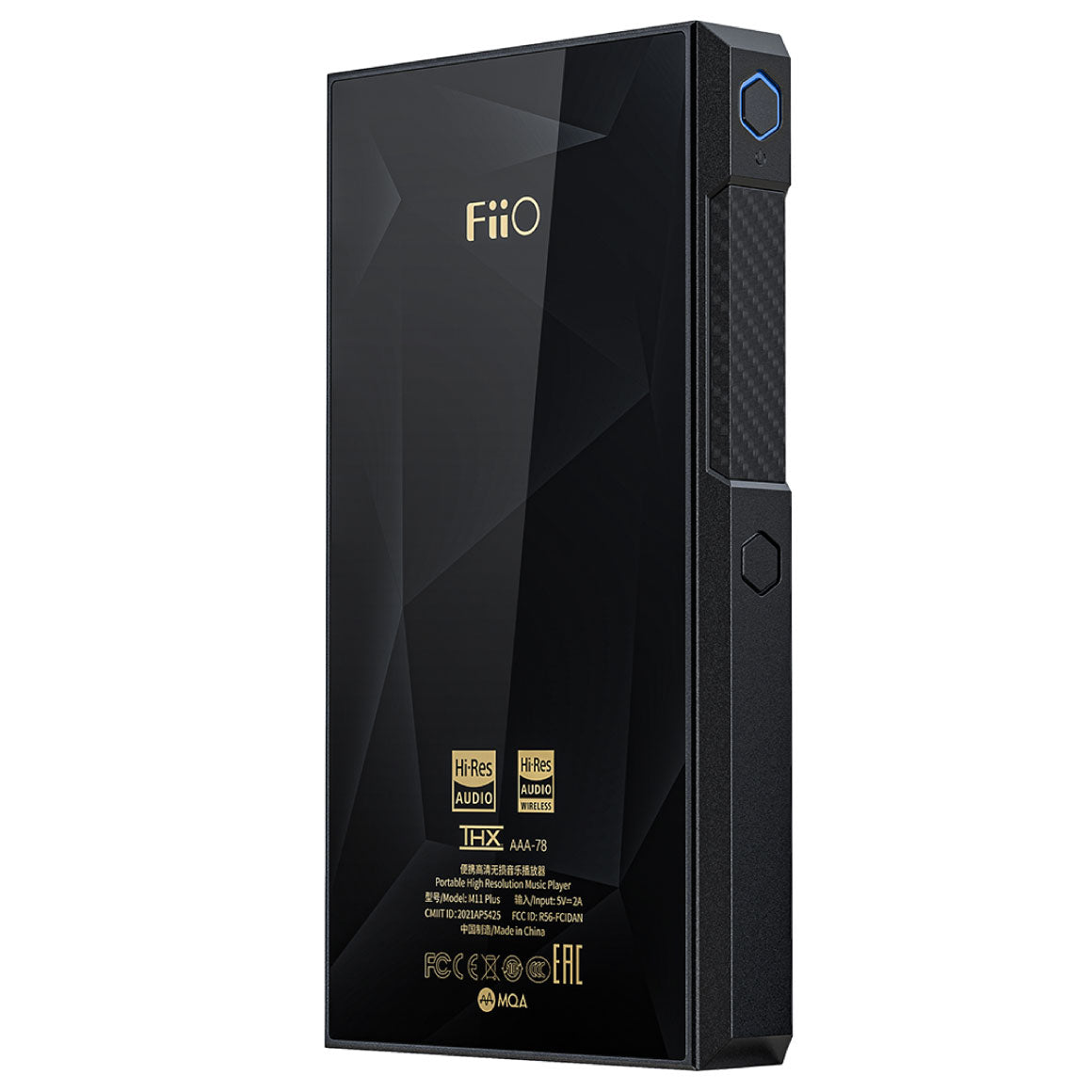

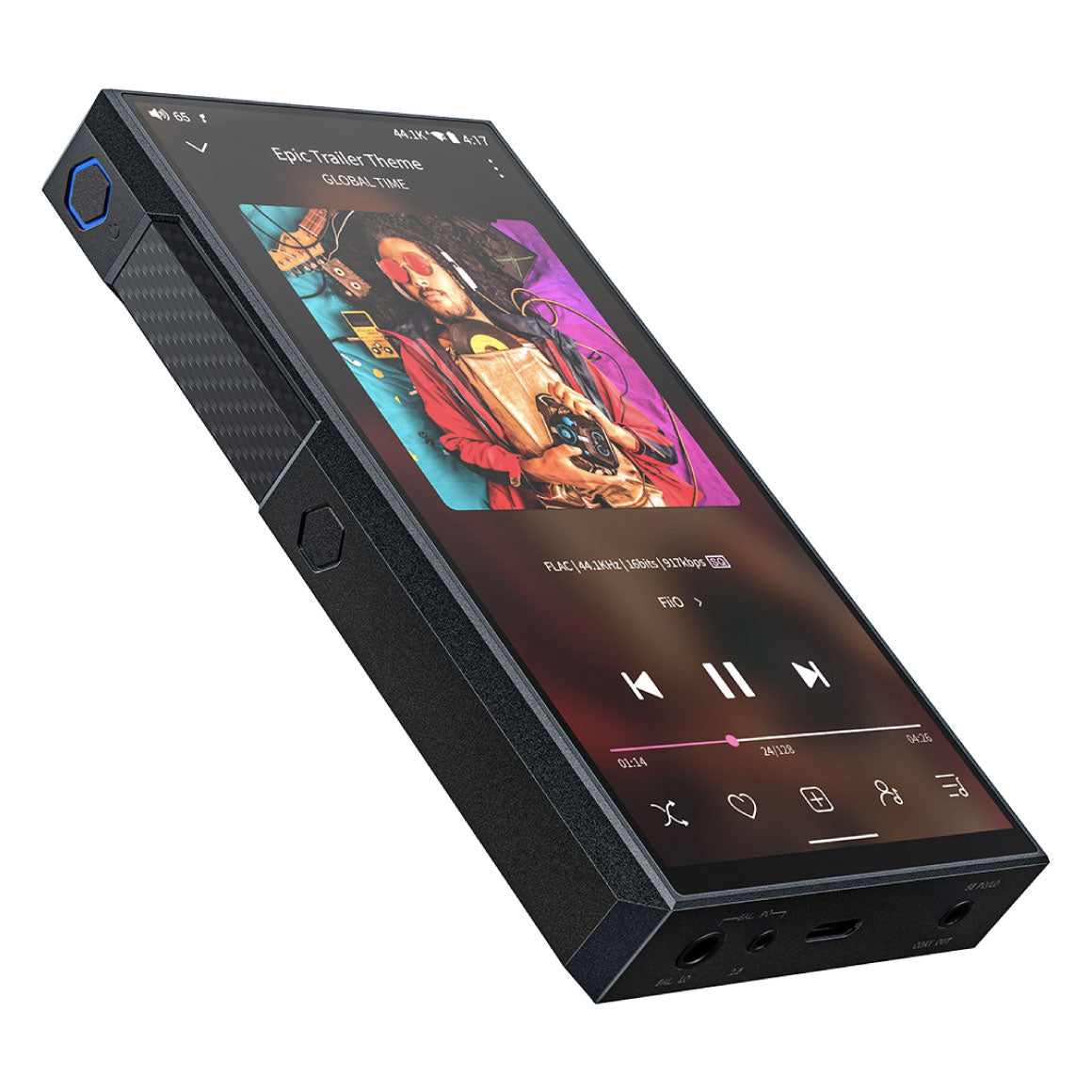

EXCEPTIONAL HONEYCOMB DESIGN WITH ACCESS TO MULTI-FUNCTION KEYS AND THOUGHTFUL INPUTS AND OUTPUTS, AND ACCESSORIES

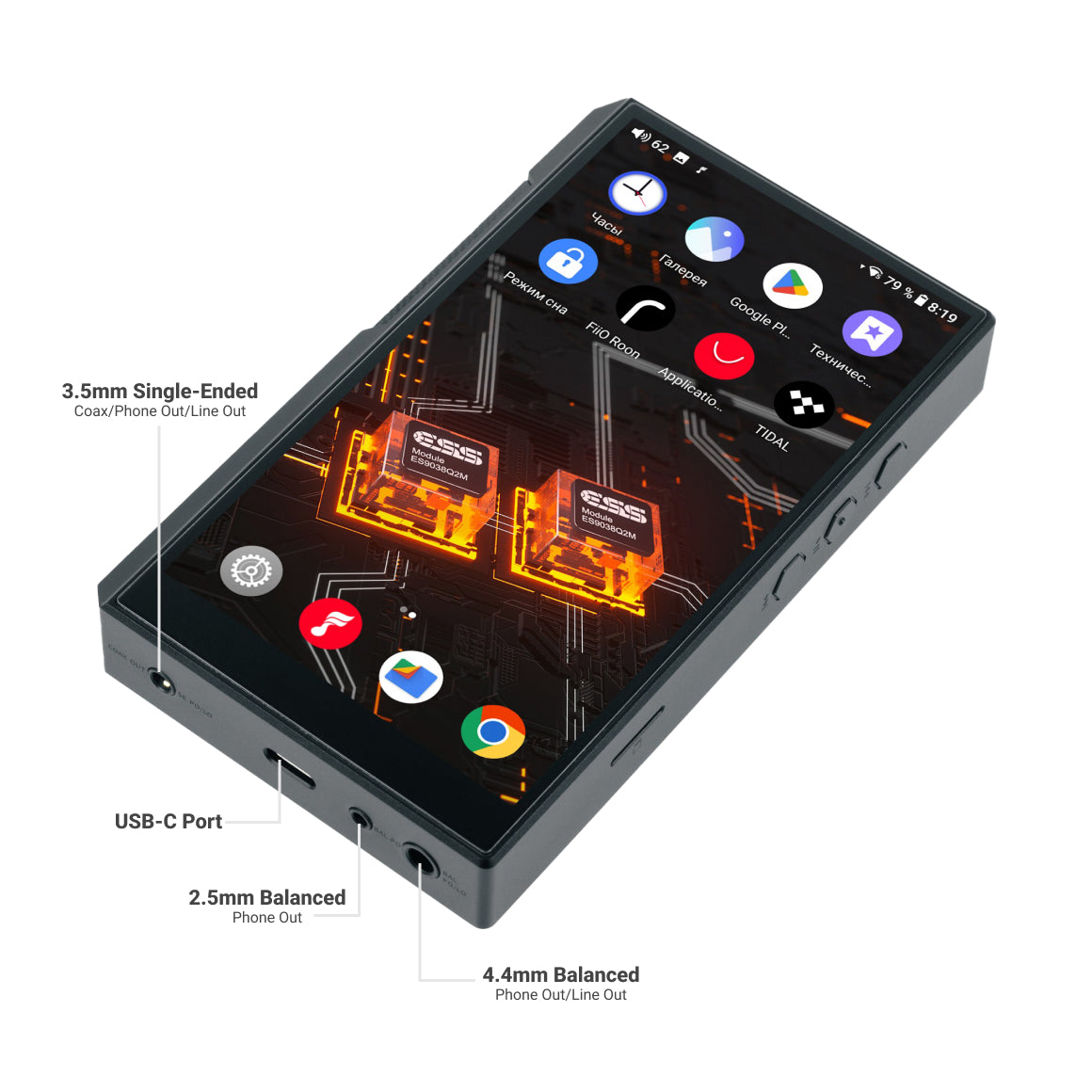

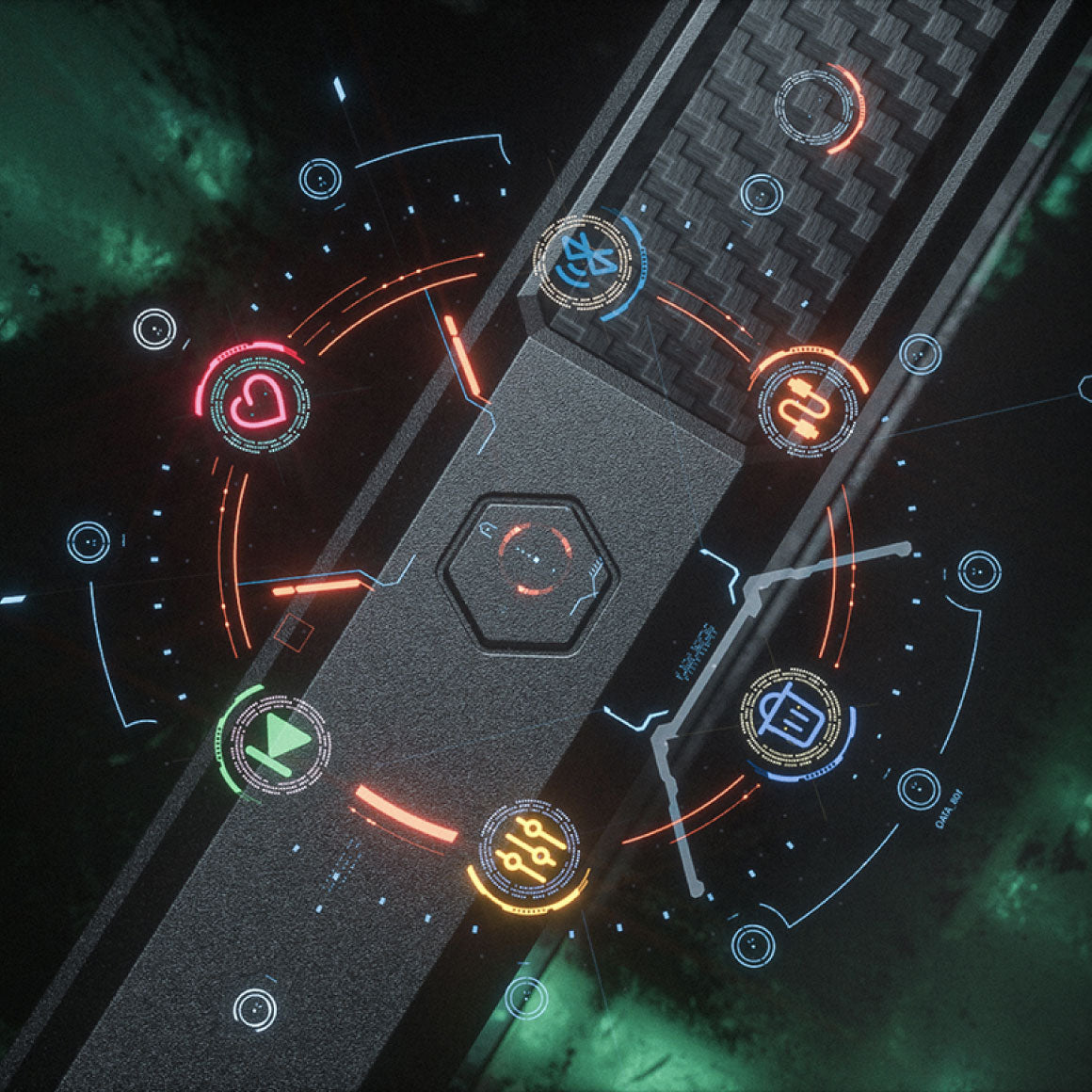

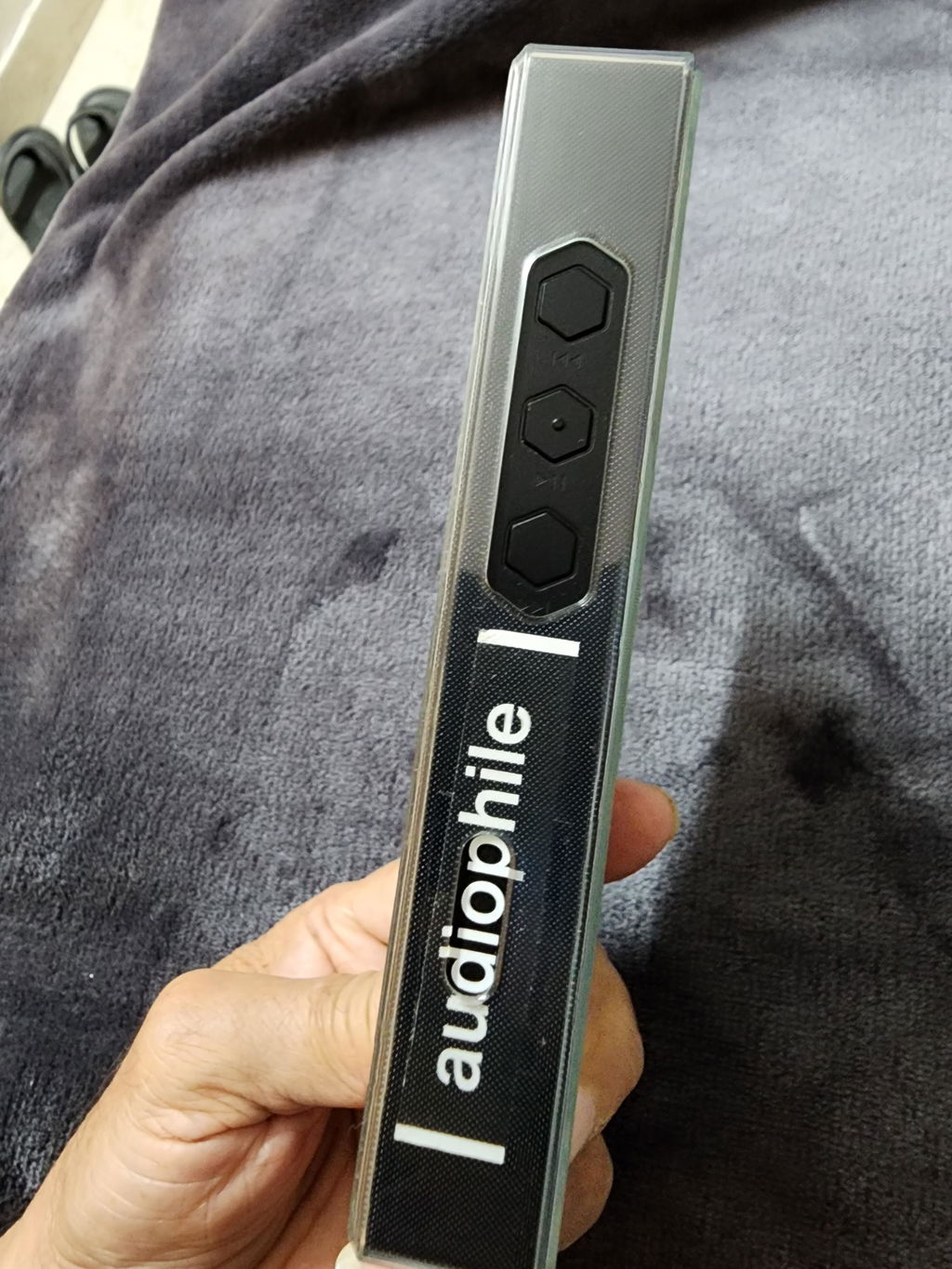

FiiO products have always been known for their exquisite design that appeals to a greater audience. Not only in terms of looks but also in terms of functionality. Their design considerations have proved that great looks and performance go hand in hand. The M11S boasts FiiO's 6th generation honeycomb design with an atmospheric and bold hexagonal structure. The M11S makes a striking impression right out of the box. It hosts FiiO's exclusive multi-function key allowing you to operate multiple functions. You can add a track to your favourite list, play the next random song, one click to play/pause music, delete the current, filter switching, EQ switching, enter USB decoding mode, enter Bluetooth decoding mode, and if you want, you can also disable it. FiiO has included thoughtful inputs and outputs for easy compatibility with all kinds of terminations for the headphones/IEMs. In addition to the 2.5mm/3.5mm/4.4mm outputs, the M11S also features a new balanced line out so you may listen to your music however you like. The USB-C input has multiple functionalities: it can be used for charging the device and can also be used when you want to use M11S as a DAC. The M11S also comes with useful accessories to get you started, like a Tempered glass screen protector (pre-installed at the factory), a Clear case, a USB cable, a Warranty card, a Quick start guide, and a Prompt card.
