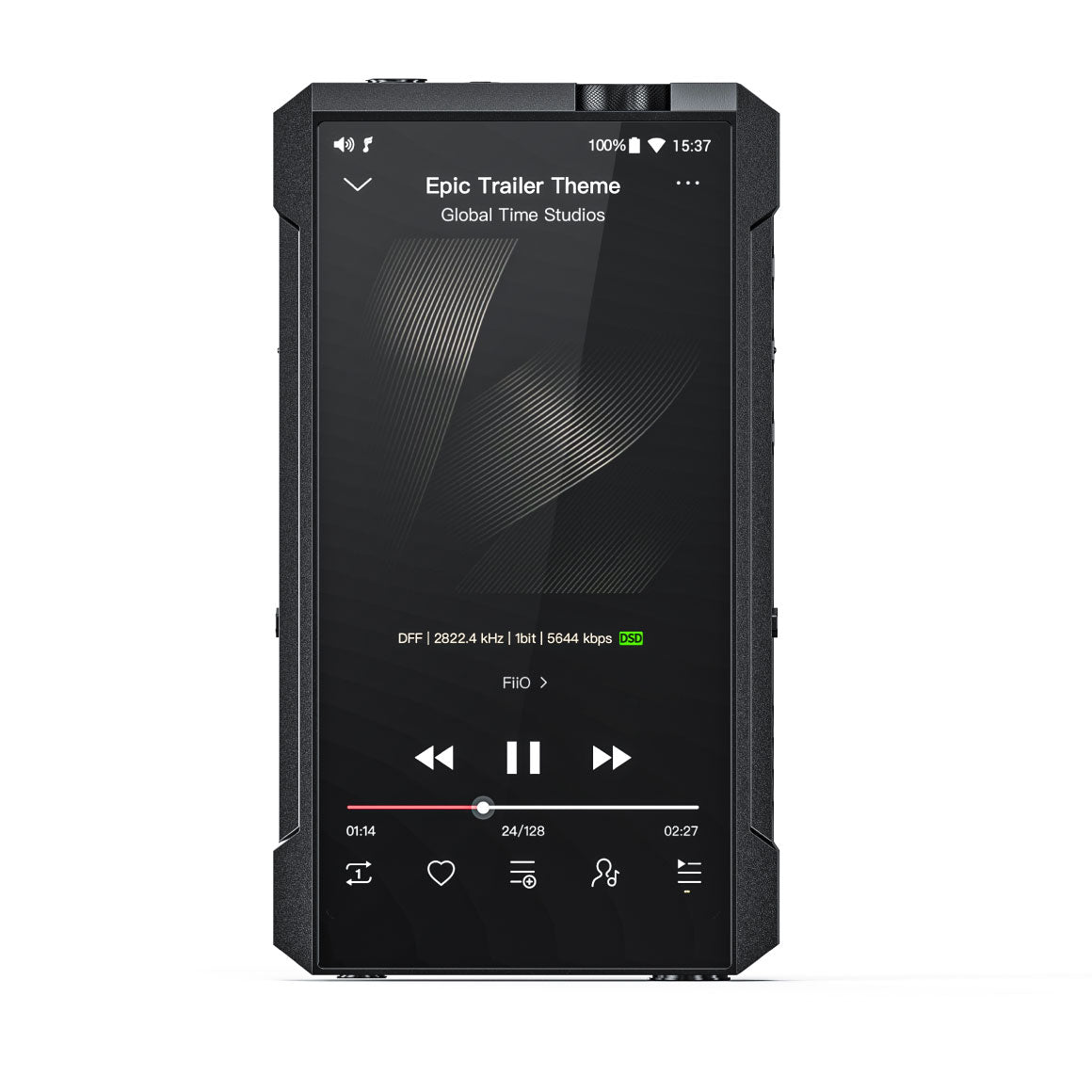

FiiO - M17
Desktop Grade Hi-Res Digital Audio PlayerUnfortunately, even if we desire to, we won't be able to resurrect this product. The Museum is where we pay our respects to end-of-life, old, archived, but not forgotten products. This page was made with a lot of love and will live on for posterity. What to say, we're sentimental people. 😔
While this product is gone forever, here are others we recommend
Customer Reviews

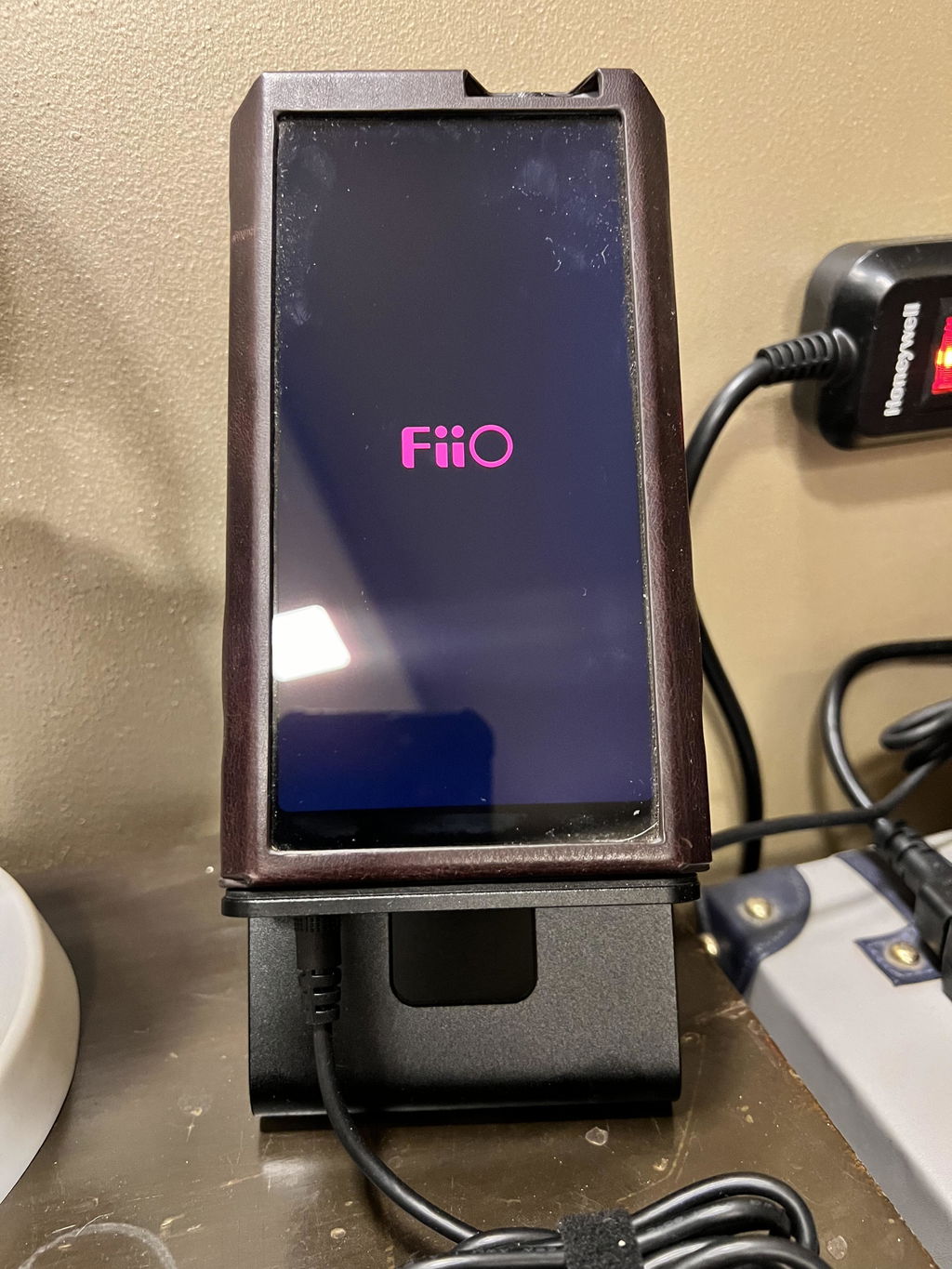

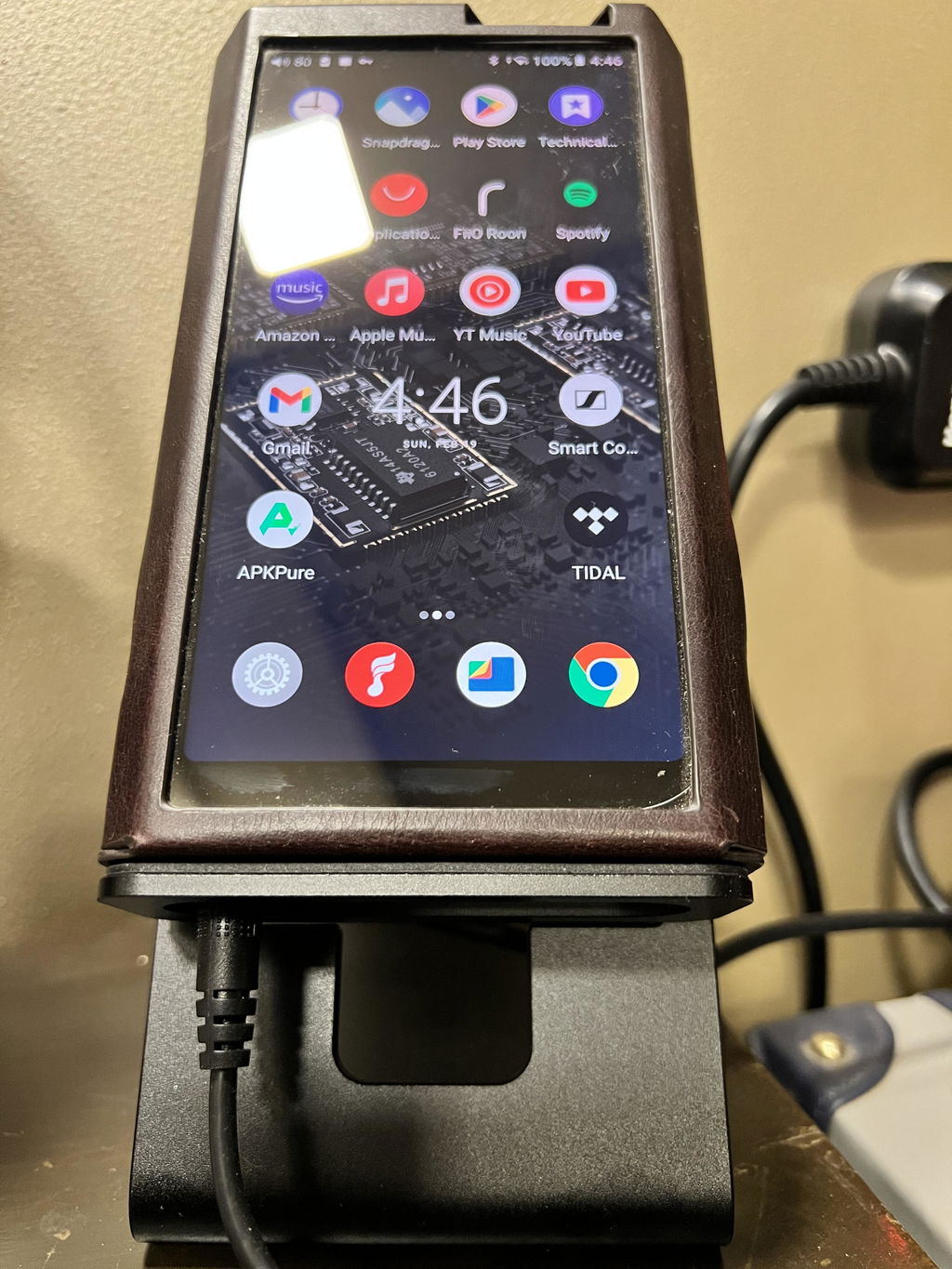

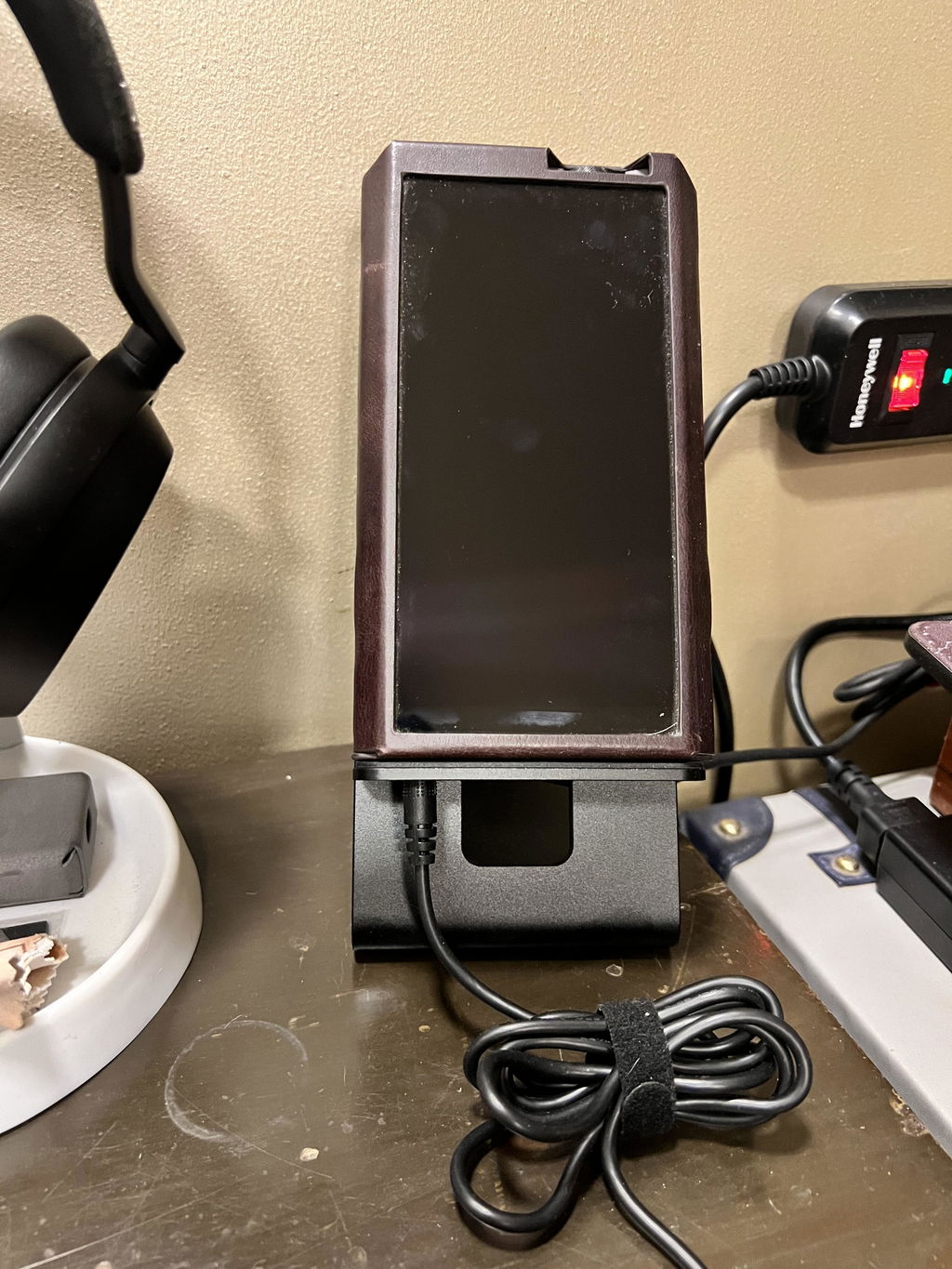

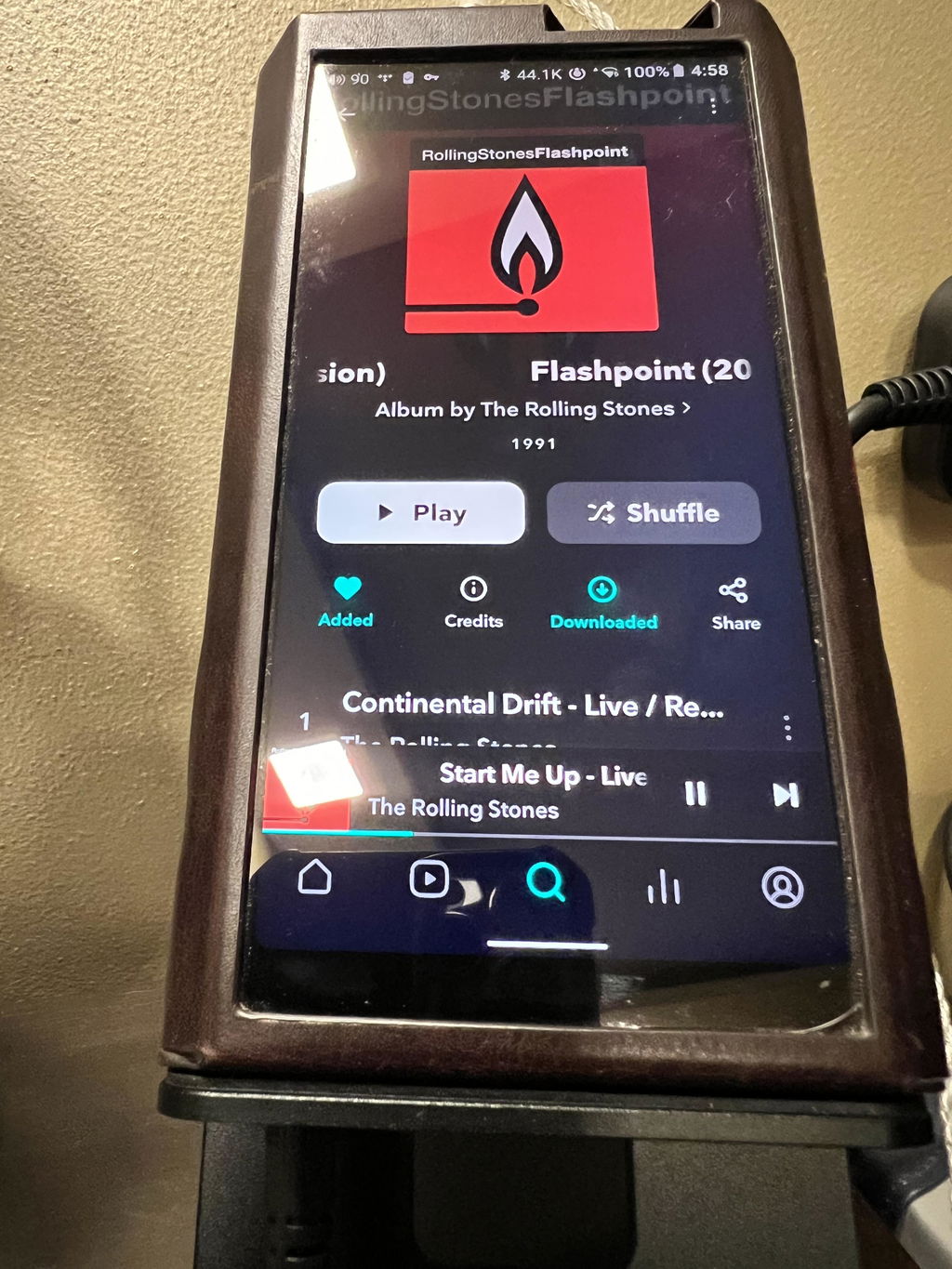

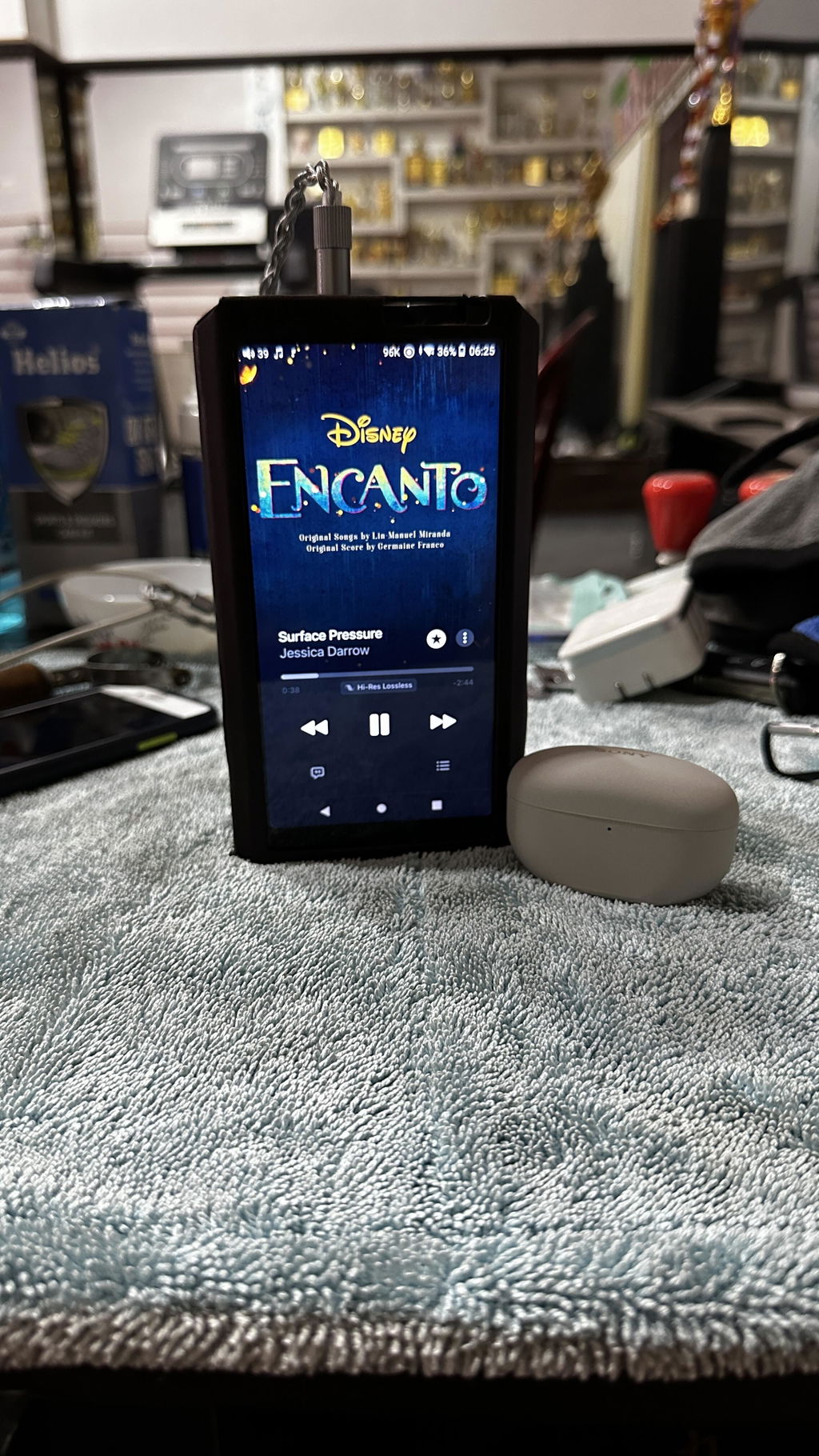

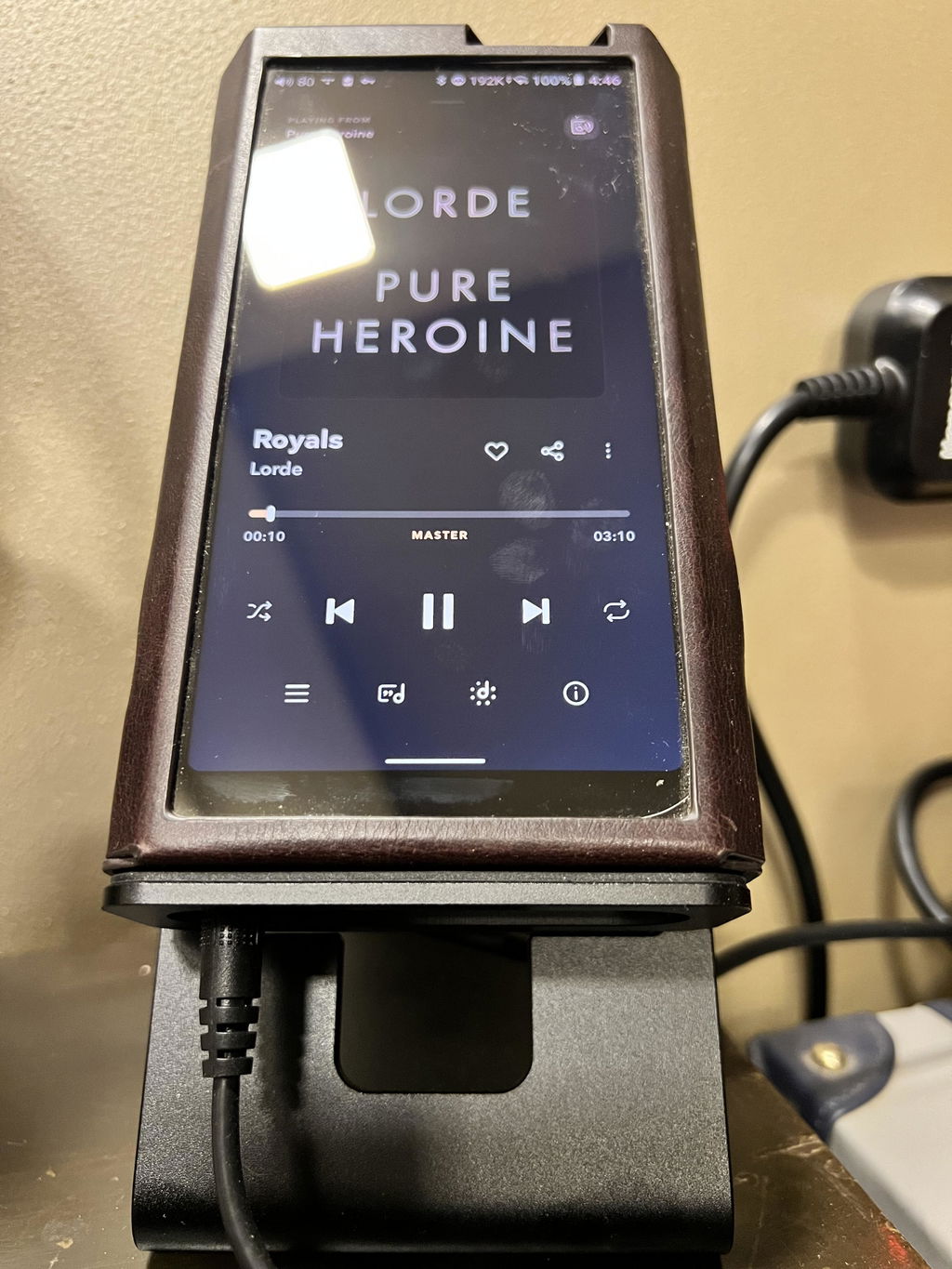

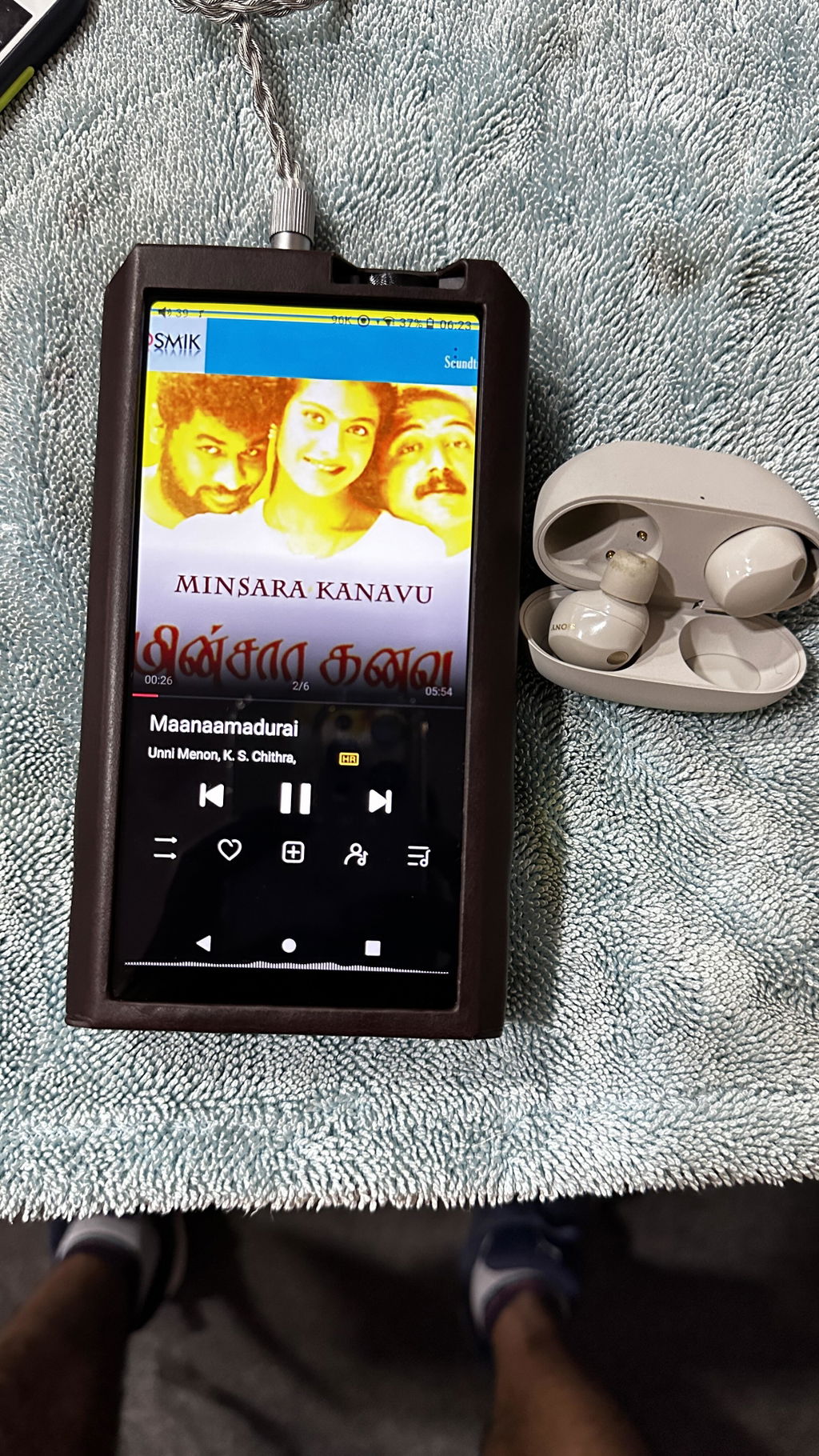

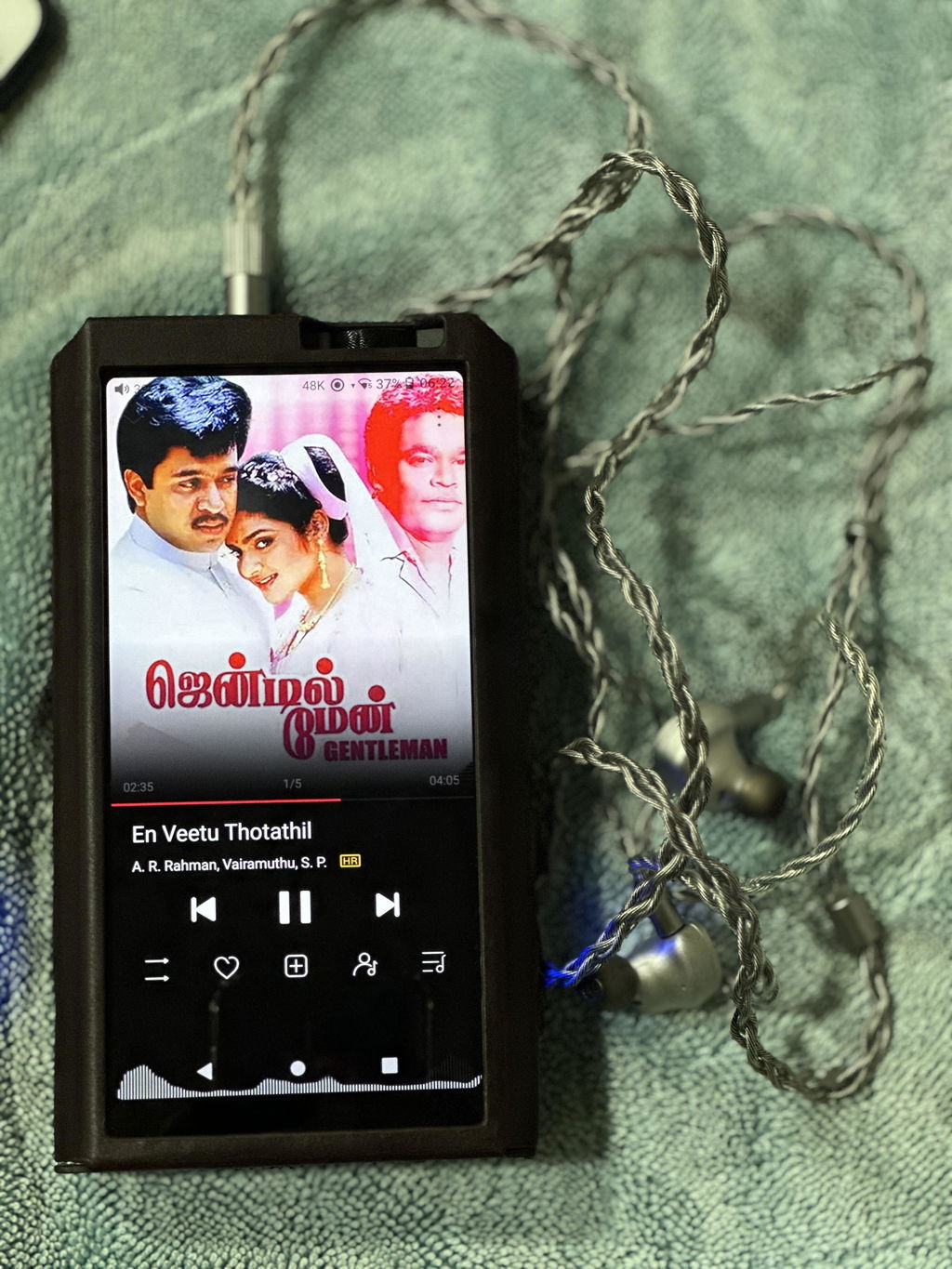

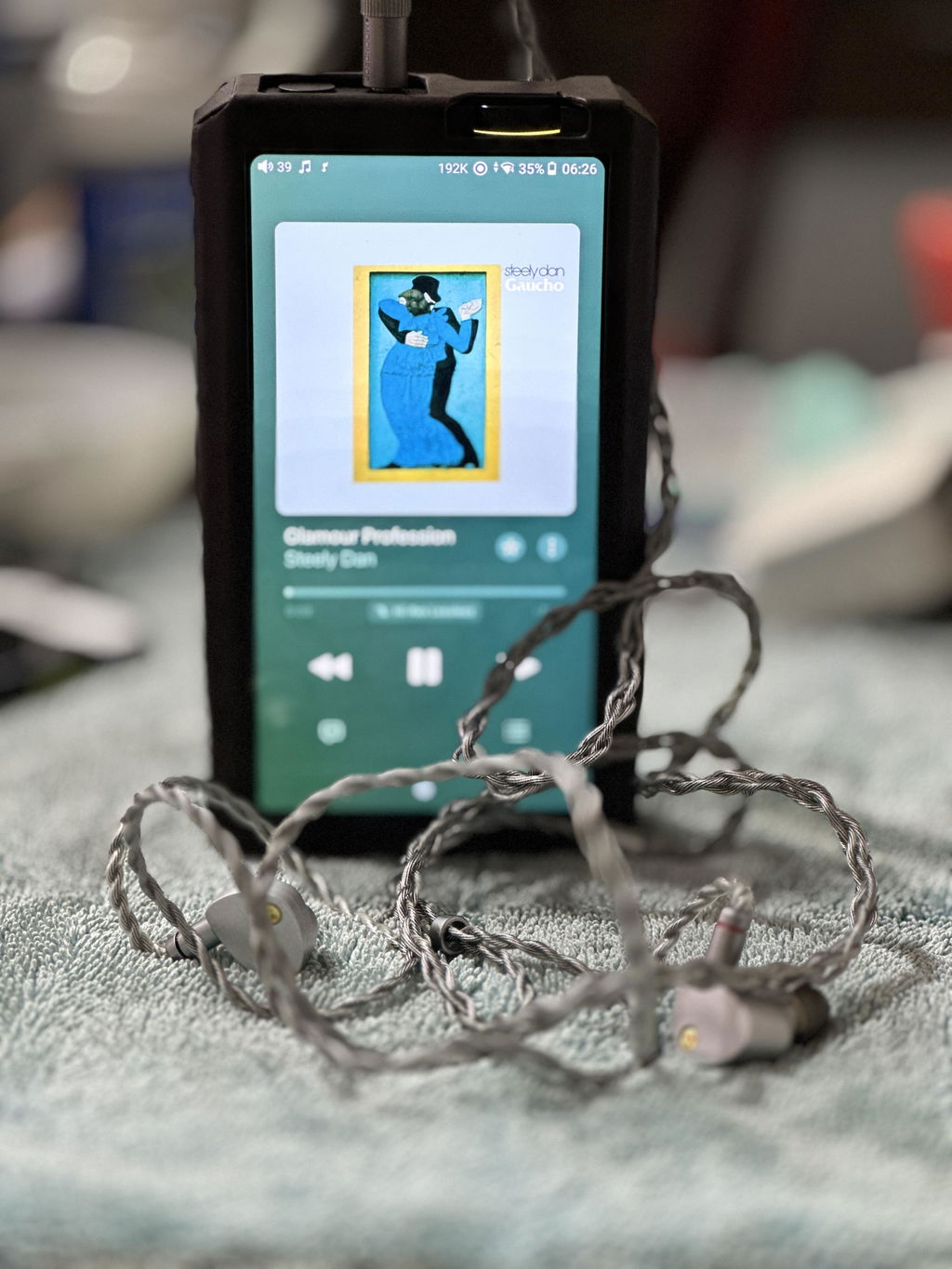

Fantastic feature set, amazing sound quality.Very good dap. I feel very happy. I’m using FiiO M17 in my car Coaxial out put awesome detail 😍.
Hey Prabhakar,
We're thrilled to hear that you're happy with your purchase! Thank you for choosing us and for taking the time to share your kind words! Your satisfaction is our priority!
Just one word- Awesome.
The delivery and packaging are the best ever experiences I have ever had.
The standard of professionalism is top-notch.
The website is the best in any industry, it keeps you glued.
Hey Kailash, thank you so much for the positive feedback! It means a lot to us. We are so happy to know that you are loving our products and services. Keep the music playing!
The smart desktop-class M17 is an entirely new chapter in the digital audio players universe. It has desktop-grade DAC, amplification, power supply, etc. which give it the output power and sound quality to rival and perhaps even surpass highly-regarded desktop systems. The M17 redefines what is possible with portable audio players.
It gives superior resolution and minimal distortion for extremely pure audio reproduction. Desktop-class amplification allows it to drive all types of headphones, even the quirkier ones. Amplification @3W is superior to any other portable DAC.
It has numerous other high points in terms of design, hardware, UI, which makes it stand apart from other competitors. I found it to be better in all respects and performance than A&K &Ultima SP2000T.
The only drawback is its immense size which makes it transportable and not portable. But given the overall package, the Form size can be overlooked.
We really appreciate the genuine feedback, we'll share your thoughts with the brand as well!
This behemoth can be considered a portable desktop DAC. It's huge. Put it in its case (that's part of the SKU) and it's like putting a suit on Hulk. Forget about putting it in any pockets, unless you wear Mario pants/jumpsuit.
Now for the good part: everything else, and most importantly, the sound! Connect it via DC and this hunkachunk can power any headphone you can throw at it. The sound is neutral/natural, just as the producers intended. It also plays DSD audio (DSD256). If you're coming from the M15 -- then this has a snapdragon chipset which allows it to use a higher version of Android (latest build is on Android 10). What this means is that it can use apps such as Apple Music (finally!) out of the box. It's a big thing if you're into streaming services.
TL;DR: Great unit. Huge, but packed with features and superb audio quality. Would not say it's Value for Money, since it's super-duper expensive. But if you save up, it's a worthwhile splurge.
Why FiiO is Special
Designed in China
Established & Reputed
Trust us, our reputation speaks for itself 🏆!
I believe that when a brand has decades of proven excellence, you can invest with confidence knowing your purchase is backed by years of audio engineering expertise. These products come from manufacturers with extensive histories of innovation and unwavering commitment to sonic excellence. Think of them like luxury watch brands - their reputation has been earned through decades of consistent quality and innovation.
With their extensive history of innovation and countless satisfied customers worldwide, you can be confident your investment is backed by proven audio engineering expertise and industry leadership 📈.
When you see "🎖️ Established & Reputed" products, expect time-tested excellence from manufacturers who've consistently demonstrated mastery in audio engineering for generations.
Revered by Audiophiles
Audiophiles can be really picky 😤, and if the audiophile community says something sounds good, you can bet it's exceptional! I believe that earning audiophile reverence is like getting a standing ovation from music critics - it doesn't happen unless you've truly achieved something special. This audio gear has earned widespread acclaim from audiophiles worldwide, a community renowned for exacting standards and unwavering commitment to high-fidelity reproduction.
These discerning enthusiasts particularly value its extraordinary precision in sound reproduction and remarkable capability to create thoroughly immersive listening experiences. The audiophile community's endorsement carries significant weight because of their extensive experience with high-end equipment 🏆.
When you see "🙌🏻 Revered by Audiophiles" products, expect audiophile-grade excellence that satisfies even the most demanding listeners and consistently exceeds the highest standards.
Born in 2007
Why we love this DAP
I Am Worth It
For the most passionate audiophiles who demand nothing less than audio perfection 💎, these exceptional products represent the absolute pinnacle of sound reproduction technology. When I designate something in this category, it means we've identified something truly extraordinary - a piece of equipment that transcends conventional standards of excellence. Think of these as the Rolls-Royce of audio - masterpieces that don't simply meet expectations but establish entirely new benchmarks for what's possible.
These aren't just premium products; they're timeless investments in musical excellence whose value transcends ordinary performance metrics. Each represents a fundamental redefinition of what's achievable in sound reproduction, incorporating innovations and craftsmanship that justify their exclusive status.
When you see "👑 I Am Worth It" products, understand that you're experiencing audio perfection - these masterpieces cater to those who recognise that true excellence knows no compromise.
Serious Audiophiles Only
For those who have ventured deep into high-fidelity audio 🎯, the pursuit of sonic excellence becomes an endless journey of discovery and refinement. I believe that serious audiophiles demand equipment that can satisfy the most exacting standards and deliver performance that pushes boundaries. These products represent the pinnacle of acoustic engineering, incorporating advanced technologies and meticulous craftsmanship that enable them to reproduce music with utmost fidelity.
Each product has undergone rigorous evaluation to ensure it delivers exceptional performance that discerning listeners demand, from precise frequency response to impeccable detail retrieval and sophisticated sound staging. These devices incorporate premium components and engineering excellence that justify their position at the apex of audio performance.
When you encounter "🦈 Serious Audiophiles Only" products, expect uncompromising performance that satisfies the most demanding requirements and elevates critical listening to new heights.
Audiophile Community Favourite
When I see a product that keeps coming up in forums, Reddit threads, and community meet-ups, I know it’s earned its place. "Audiophile Community Favourite" is our way of spotlighting the gear that real listeners — not just reviewers — swear by. 🦋
These are products that enjoy a sort of cult following for all the right reasons: consistently great tuning, build, and value. They're the kind of recommendations you'd get from a friend deep in the hobby. If you're the type who likes going with a proven crowd-pleaser, these picks are beloved by thousands of ears.
When you see '🦋 Audiophile Community Favourite' products, expect reliable recommendations backed by passionate users, often refined over years of trust and love from the community.
Our Team's Favourite
Cause after all, we are audiophiles first 🎧!
In my experience, when our entire team gets excited about something, you know it's genuinely exceptional. This audio gear has captured the hearts and minds of our seasoned experts, distinguishing itself as a standout favourite among people who test hundreds of products every year. Think of it like getting a unanimous recommendation from a panel of audio critics - when everyone agrees, you pay attention.
These selections have not only met but exceeded our rigorous standards, earning enthusiastic endorsement from our audio specialists who've tested everything from budget options to flagship models. When you choose these products, you're selecting gear that has been thoroughly vetted and passionately embraced by genuine experts 🏆.
When you choose "💙 Our Team's Favourite" products, expect expertly vetted excellence backed by genuine enthusiasm from people who live and breathe audio every day.
Use Wirelessly with Bluetooth
I tend to describe Bluetooth audio as wireless freedom with fewer strings attached — literally. When you see Use Wirelessly with Bluetooth, it means you can pair your headphones or IEMs with phones, laptops, or even TVs — all without reaching for a cable 🎶. It’s convenient, clutter-free, and great for everyday listening.
What’s happening behind the scenes is your gear is using Bluetooth codecs like SBC, AAC, LDAC, or aptX to compress and transmit your music wirelessly. Better codecs mean higher quality and lower latency. Of course, there’s a trade-off — Bluetooth won’t match the quality of wired gear, but today’s advancements have made the gap much smaller than before.
When you see '✂️ Use Wirelessly with Bluetooth' products, expect: tangle-free convenience and solid sound quality — great for commuting, workouts, or casual listening.
Battery Life
In my experience, battery life is one of those things that separates a good day from a frustrating one. It's like having a fuel gauge you can rely on — longer battery life means less charging and more uninterrupted music. Whether you're on a flight or just commuting across town, this is one spec you don’t want to overlook 🔋.
Technically, battery life refers to the hours your device can play music on a single charge. Today’s headphones and DACs can range from 4 to 40+ hours, depending on things like Bluetooth codec, volume, and active features like ANC. More battery life also means better travel and portability, though it might come at the cost of size or weight.
When you see '⏳ Battery Life' products, expect: longer listening sessions, fewer charging breaks, and stress-free portability for music that goes the distance.
Battery Capacity
I usually think of battery capacity like the size of your water tank — it determines how long the tap can run before drying up. In audio gear, higher capacity means more playtime, more power for your amp section, and better performance during high-demand usage 🧠. It’s especially important if your gear also powers powerful drivers or amps.
Measured in mAh (milliamp-hours), battery capacity helps you gauge how long your headphones, DAC, or amplifier will last between charges. Devices with higher capacity (like 3500mAh+) are ideal for extended use or when you’re away from a power source. Just know, larger capacity often means longer charging time and a slightly bulkier design.
When you see '🔋 Battery Capacity' products, expect: more power and longer playtimes — ideal for travel, long workdays, or heavy use without worrying about recharging.
Storage
I tend to think of this like carrying your entire music library in your pocket — no cloud, no streaming, no internet required 📀. When you see “Up to 2TB Storage,” you’re looking at gear that lets you store thousands of high-res tracks, albums, and even DSD files offline, ready to play anytime.
Now, here’s what’s actually happening: the device features a microSD card slot that supports cards up to 2TB — that’s a massive amount of local storage. This is especially valuable for portable audio players and offline listeners who prefer to carry their music in the highest quality formats without compromising space. No buffering, no compression — just direct access to your favourite files.
When you see '🐘 Upto 2 TB Storage' products, expect: vast offline music access — perfect for DAP lovers, lossless audio fans, or travel-heavy audiophiles.
Why it Sounds Amazing
DAC Chip
I like to say the DAC chip is the heart of any audio device — it’s the part that actually transforms digital files into music you can hear 🎧. Think of it like a chef decoding a recipe to create a delicious meal. The better the DAC chip, the more faithfully it translates your music. And in my experience, a great DAC can completely change how your headphones sound.
Now, here’s what’s actually happening: a Digital-to-Analog Converter (DAC) takes digital signals (your MP3s, FLACs, or streams) and converts them into an analog waveform your ears can enjoy. Different DAC chips — like those from ESS, AKM, or Cirrus Logic — offer their own sound signatures, levels of clarity, and noise performance. A good DAC ensures accurate timing, minimal distortion, and exceptional resolution.
When you see '⚙️ DAC Chip' products, expect: clean, detailed audio and better synergy with high-quality headphones — perfect for anyone upgrading from average sound to audiophile quality.
Power Output
I like to think of power output in audio gear like engine horsepower, it determines how much muscle your setup really has 💪. Whether you’re trying to drive a pair of power-hungry planar headphones or just want headroom for dynamic peaks, power output is the spec you want to check first.
Technically, it refers to the amount of electrical power (measured in mW or Watts) an amp or DAC/Amp combo can deliver to your headphones. More power means better control, improved dynamics, and the ability to handle demanding gear without distortion. But more isn’t always better, too much power with sensitive IEMs can introduce hiss or harshness.
When you see '🚀 Power Output' products, expect: strong driving capability, better dynamics, and optimal performance with headphones that need serious juice to shine.
Balanced Output
I often say balanced output is like using both hands to carry something heavy — it distributes power evenly and keeps things stable. In audio gear, balanced output helps reduce unwanted noise and interference, especially over longer cables. Think of it as a cleaner, more efficient way to transmit your music, ideal for anyone using high-end DACs, amps, or studio-grade headphones 🎧. You’ll typically find it on gear with XLR or 4.4mm connectors, and it's a must-have if you’re chasing that ultra-clean signal path.
Here’s what’s actually happening: a balanced output uses two separate signals, one inverted, so when interference is picked up along the cable, it gets cancelled out when the signals are recombined. The result? Cleaner audio, better dynamic range, and more power output — especially when paired with balanced headphones. The trade-off? You’ll need gear that supports balanced connections on both ends to really enjoy the benefits.
When you see '⚖️ Balanced Output' products, expect: ultra-low noise, more headroom, and better synergy with high-impedance headphones or sensitive IEMs — ideal for serious listening setups.
FiiO M17 is an end-game DAP. It features every single output with an amplification stage that is capable of tremendous output power. Fused with an Android system, the M17 outperforms any DAP pound for pound.
About RAGHAV SOMANI
Raghav Somani is the Founder & CEO of Headphone Zone. An avid audiophile and musician since 2008, his choice of headphones include STAX Electrostats, Audeze LCD 3, and for music on the go, the JH Audio Roxanne + Astell&Kern SP1000 is never too far away. On his playlist, you'll find A.R. Rahman, Michael Jackson, and the Eagles.
DESCRIPTION
EMBEDDED WITH FLAGSHIP-GRADE DUAL ES9038PRO DAC CHIPS FOR PRISTINE AUDIO
Meet the latest flagship Android music player from FiiO, the M17. Featuring a top
of the line ES9038Pro Dual DAC chipset, the M17 provides you with impeccable high-resolution audio decoding
performance. It is a 32-Bit premium Sabre DAC that delivers excellent high-resolution audio signal decoding
with low distortion and high SNR ratings with decoding support for PCM, DSD and MQA formats natively. FiiO
M17 is designed for audio enthusiasts who give utmost attention to every single detail from their
music.
FEATURING THX-AAA 788+ AMPLIFICATION ARCHITECTURE FOR DESKTOP-GRADE POWER
FiiO partnered with the renowned brand THX to elevate the amplification power for M17. THX is a well-recognised amplifier architecture brand and they have designed and equipped the FiiO M17 with desktop-grade THX-AAA 788+ amplifier architecture which produces a tremendously powerful output with lower distortion and clean background. The M17 is capable of providing up to 3W of power when connected via a DC power supply. On the battery, this output power is controlled for better battery life.
BLAZING FAST PERFORMANCE WITH SNAPDRAGON SOC AND ANDROID 10 OPERATING SYSTEM
FiiO M17 houses Qualcomm's latest Snapdragon 660 SoC chip. This is an eight-core high-performance CPU chip that delivers lightning-fast performance with applications. It also has 4GB of ram that allows for using multiple applications at once. Want to use your favourite media application on the go? The FiiO M17 is loaded with the latest Android 10 OS that provides you with the widest range of media and music applications available with the Google Play store.
EMBEDDED WITH THE FLAGSHIP QCC5124 CHIP AND XMOS CHIP FOR HD BLUETOOTH OPERATION

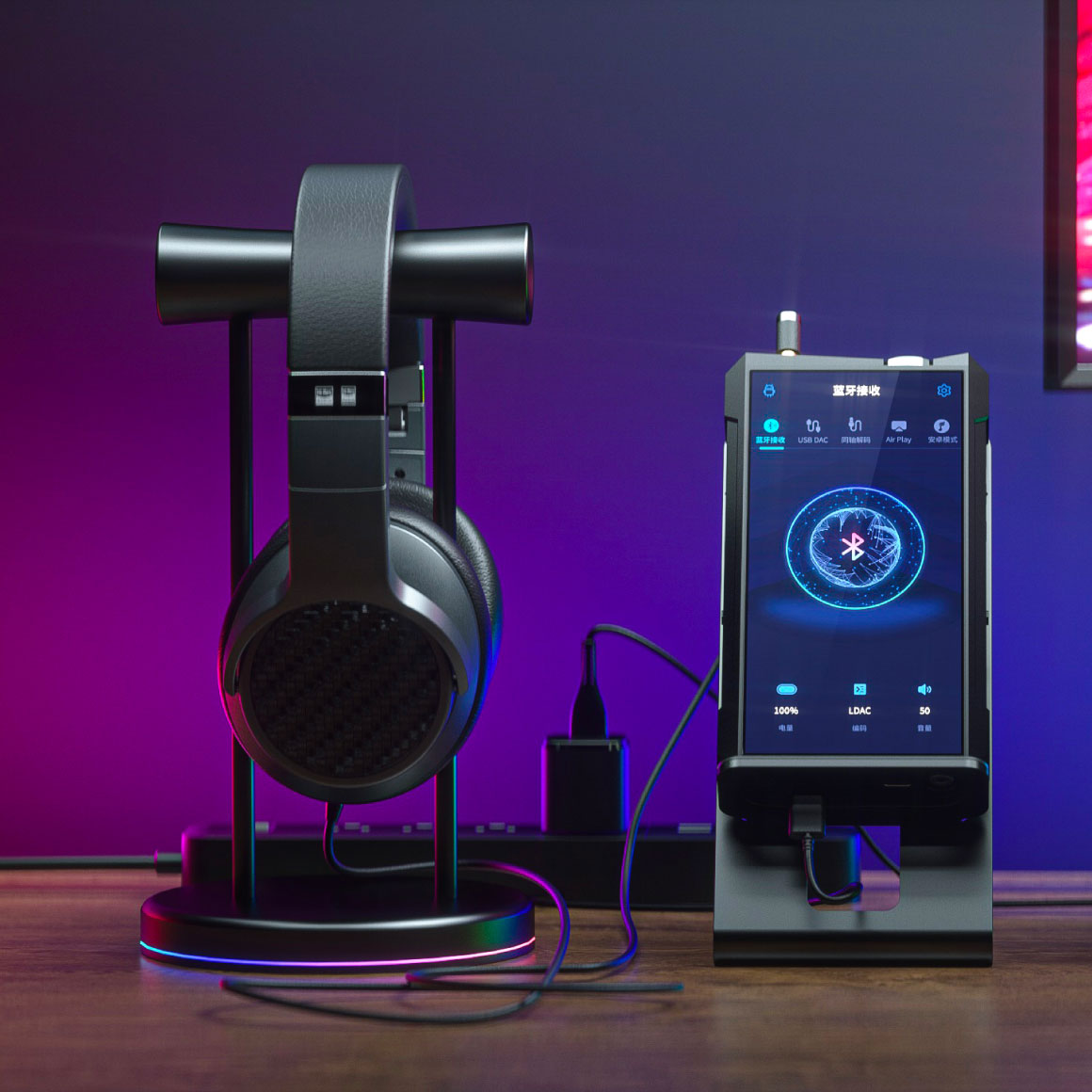

The FiiO M17 has been equipped with the latest flagship grade QCC5124 chip to offer
Bluetooth 5.0 connectivity with support for SBC, AAC, aptX, aptX-HD, aptX-Adaptive and LDAC protocols. The
M17 also features an XMOS receiver chip that works in conjunction with the QCC5124 chip to deliver ultra-low
latency and support for PCM 32bit/768kHz and DSD512 formats. The FiiO M17 also supports MQA unfolding for
master-level sound quality. With these technologies available, you can enjoy your music at the highest
quality wirelessly.

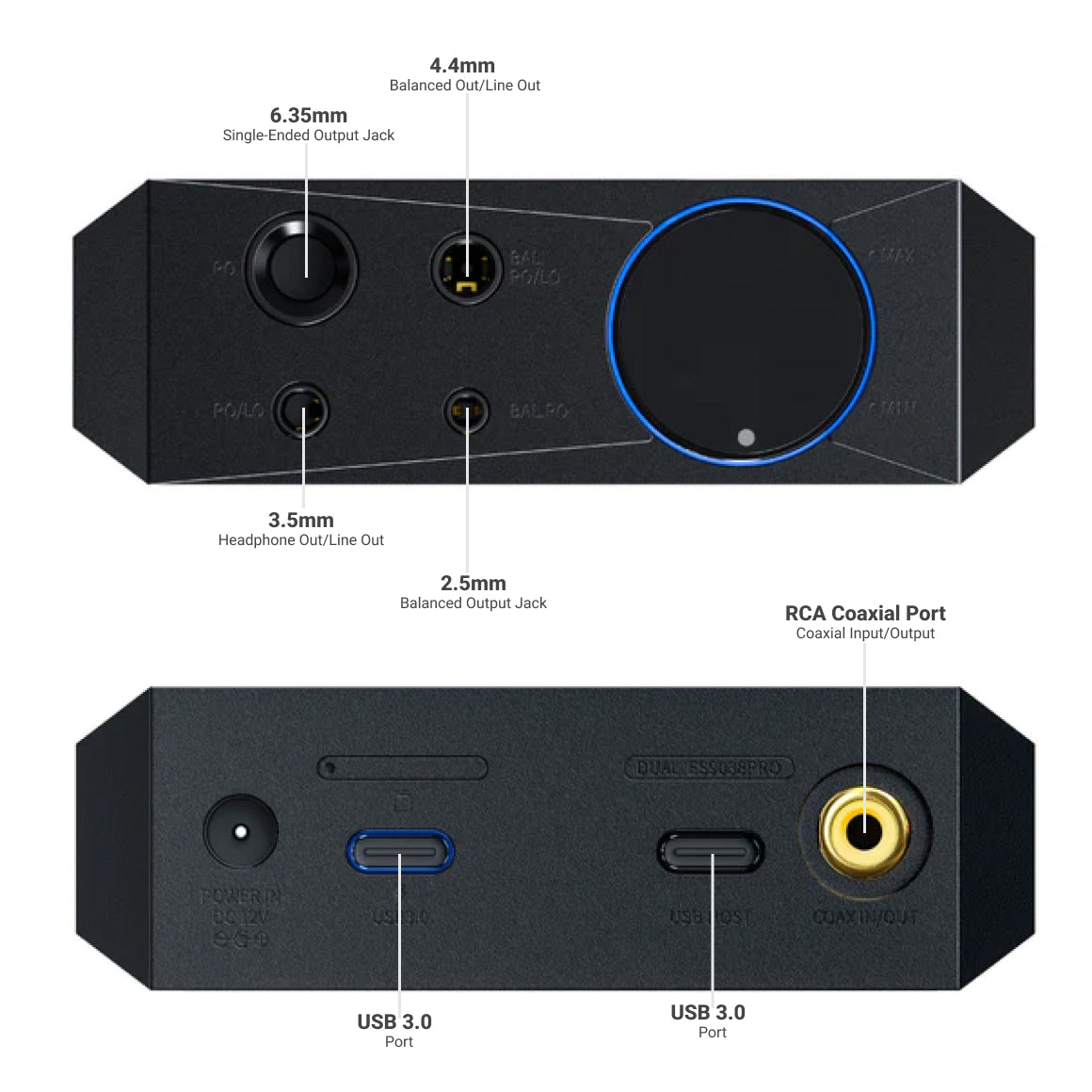

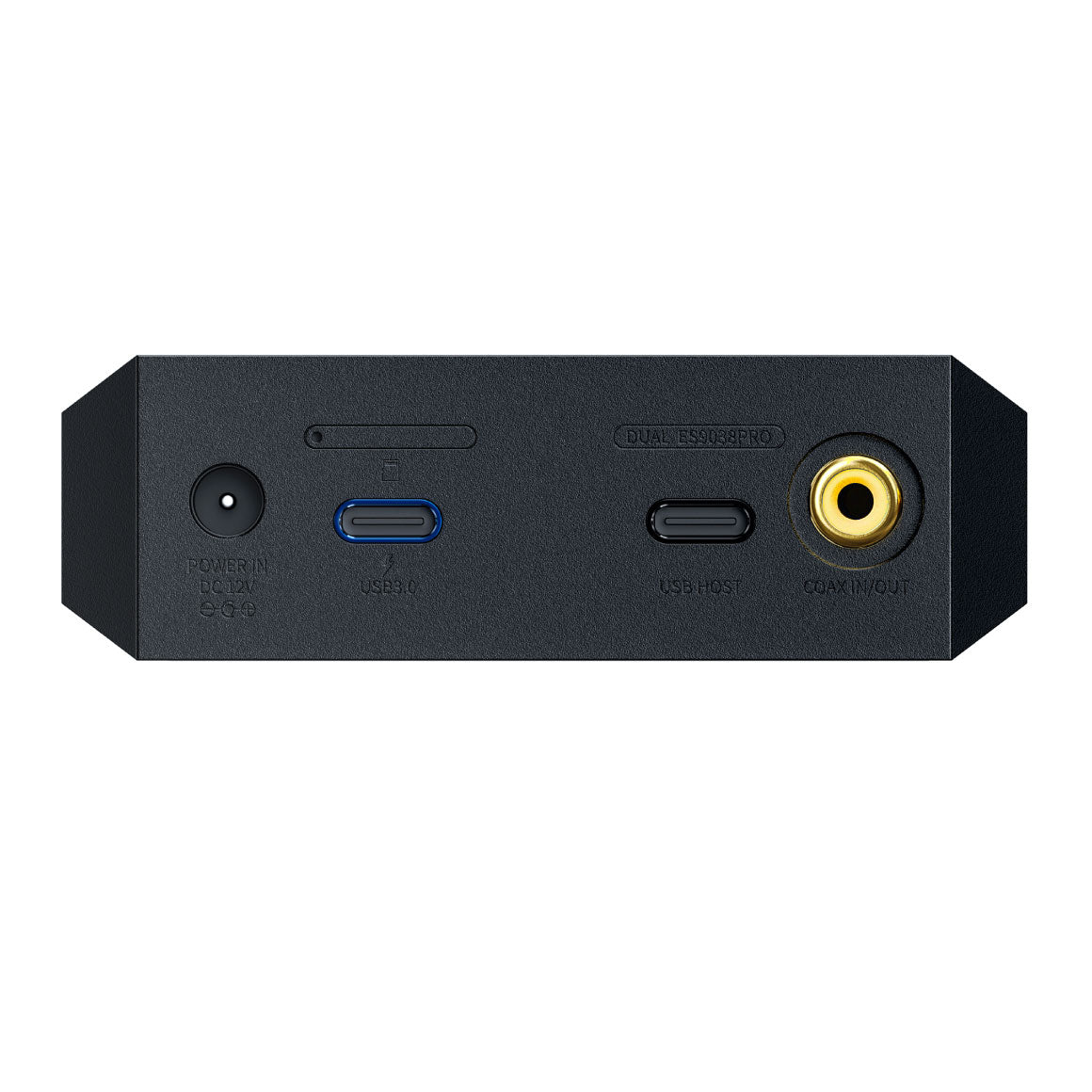

MULTIPLE OUTPUT PORTS WITH POWERFUL DRIVING CAPACITY AND LINE-LEVEL OUTPUT PORTS

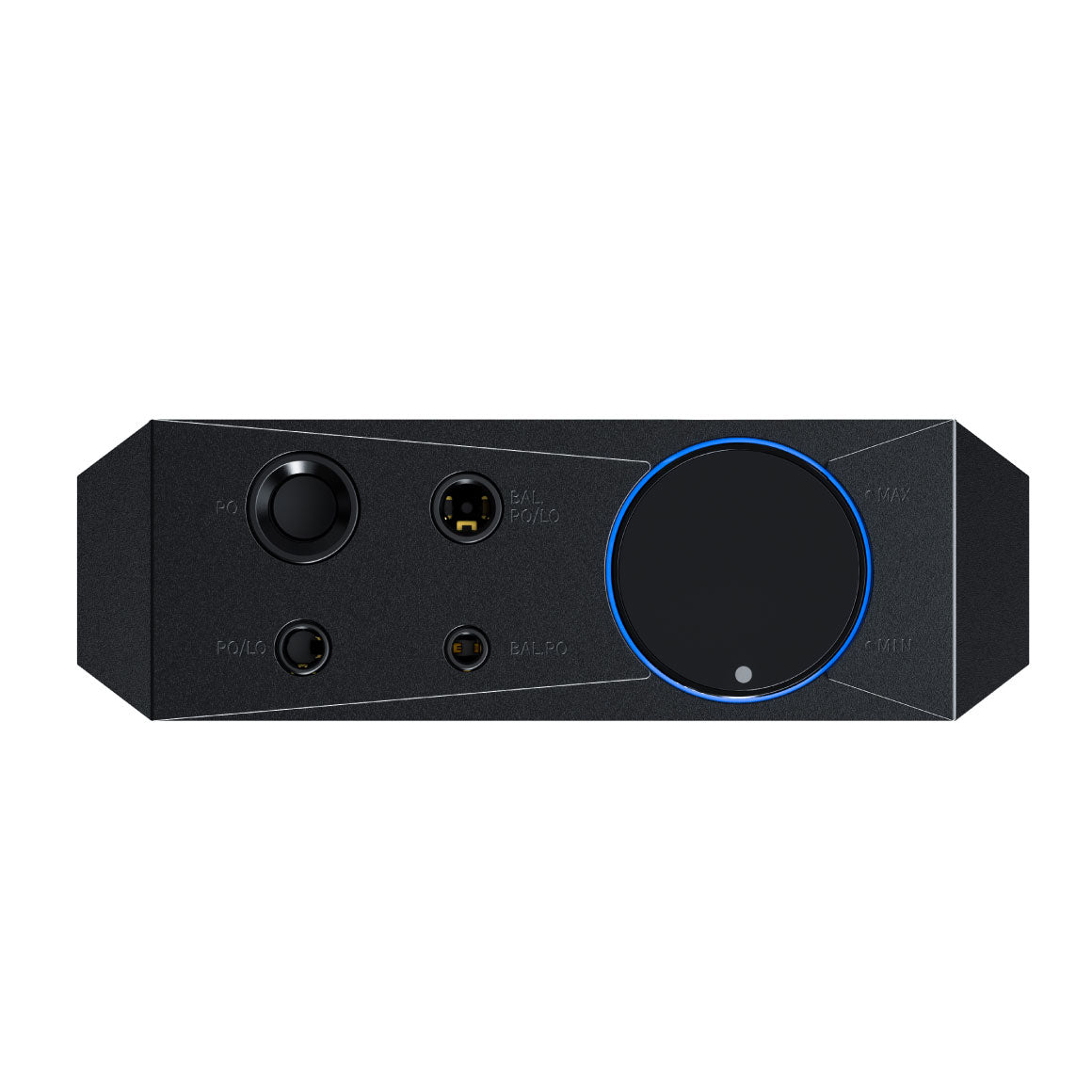

FiiO M17 offers an array of output ports to select. This is implemented in the design, so you do not need to worry about additional connectors and adapters for different devices. The FiiO M17 supports headphone output with 3.5mm and 6.35mm single-ended, as well as 2.5mm and 4.4mm balanced headphone output. The device also has separate single-ended and balanced line-out ports via independent 3.5mm and 4.4mm ports. M17 also features an RCA coaxial port that can act as input and output, depending on your requirement. The M17 is adjusted to provide a powerful output. The device has an output power rating of up to 3000mW per channel in Balanced out and a spectacular 16dB gain level in over-ear headphone mode.
OFFERING DESKTOP-GRADE GAIN CONTROL, POWER SUPPLY AND HEAT DISSIPATION CAPABILITY
The FiiO M17 offers four gain levels when used with battery power. You can toggle between Low, Medium, High and Headphone Mode. When operating in DC mode, super headphone mode gain is unlocked, with desktop-level amplification gain. To provide sufficient power the M17 has been equipped with two power supplies. You can use the M17 on battery power or choose to operate it in DC supply. With DC supply, the voltage is increased by 35% and offers superior performance. To keep the device temperature cool “H” Type heat dissipation and VC liquid cooling technologies are adopted. The M17's 151g unibody aluminium alloy frame also effectively transfers heat out of the device.
CAREFULLY ENGINEERED WITH THE BEST COMPONENTS TO DELIVER SUPERIOR AUDIO PERFORMANCE
The FiiO M17’s design took 1.5 years to complete, going through various design iterations and internal structural design optimisation. The result is a device that makes excellent use of its space. Inside the M17 are carefully stacked analogue and digital boards with tantalum capacitors, ultra-low noise LDO architecture, NDK femtosecond crystal oscillator and gravity sensors. All these components add a solid foundation for smooth audio playback. The PCBs in the M17 is utilised with an immersion gold finish, with the analogue and digital sections physically separated by being on two different boards to reduce interference between the two portions. Seven high conductivity copper alloy shields also provide shielding to reduce internal and external electromagnetic interference.

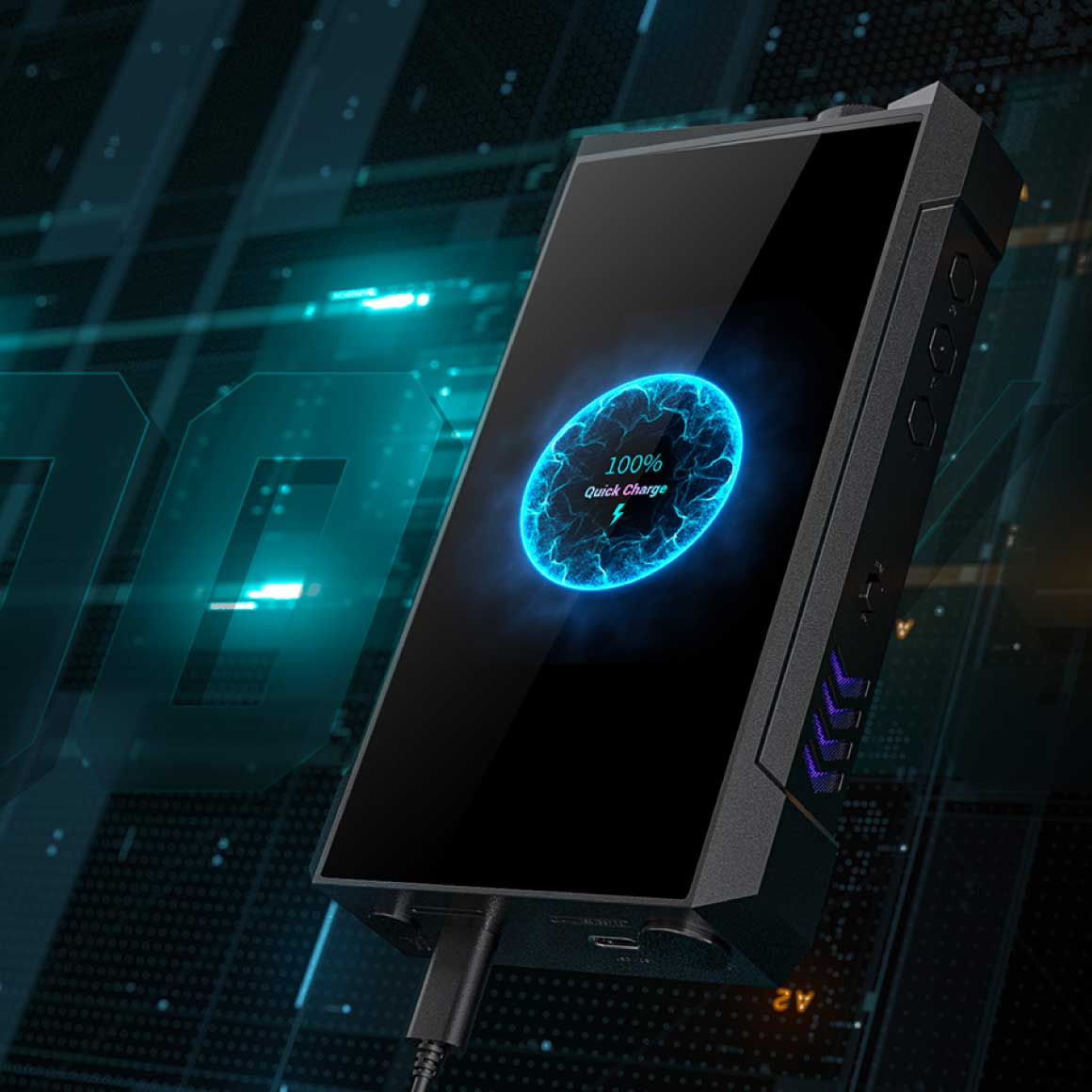

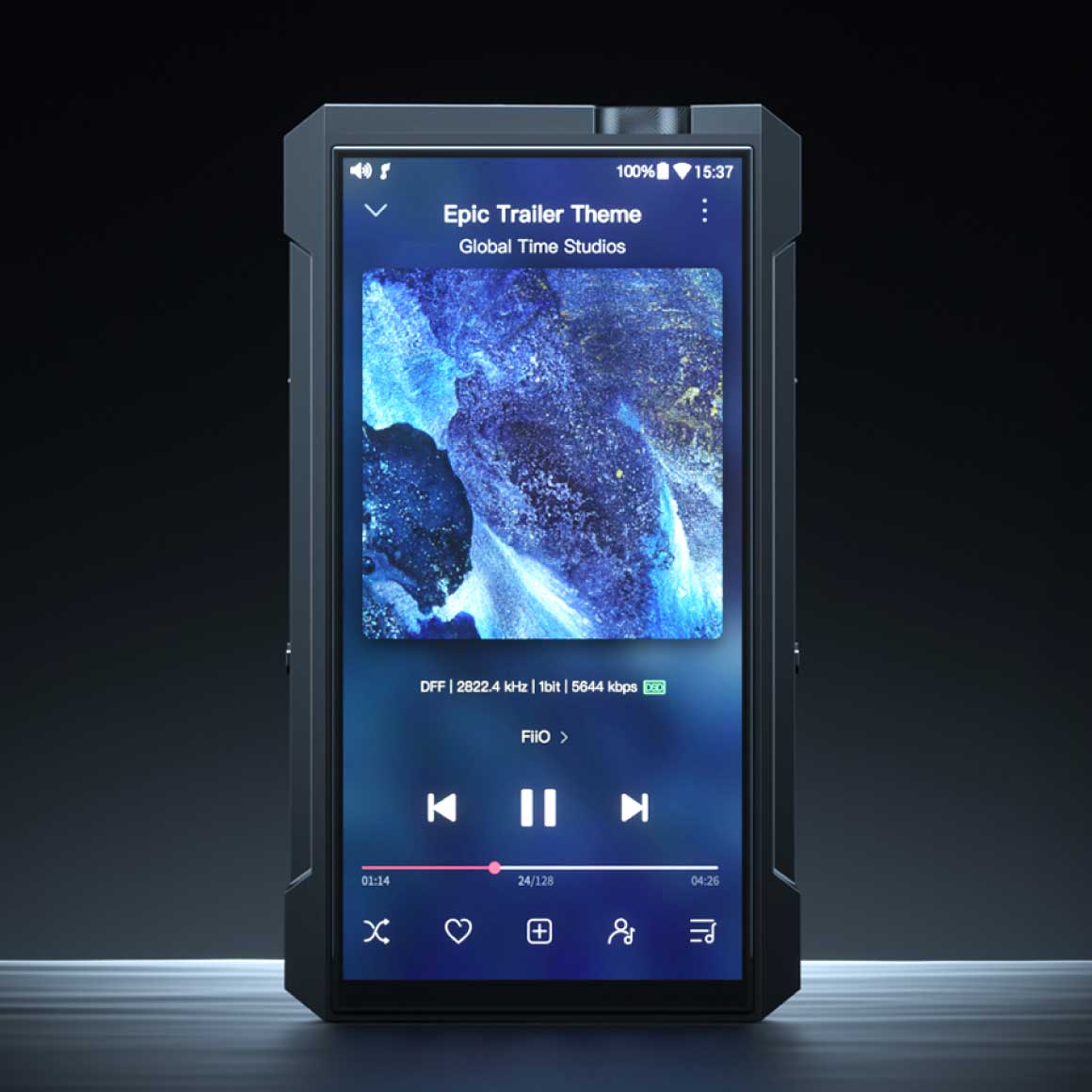

COMES WITH A 5.99” FULL HD IPS DISPLAY AND A MASSIVE 9200mAH BATTERY CAPACITY
FiiO M17 is a highly equipped flagship device that boasts a 5.99” FHD+ display. It produces crisp, high-quality visuals with true to life colours. The 5.99” FHD+ display is more than enough to operate the device with ease. The M17 is embedded with a massive 9200mAH battery with 10 hours of battery life so you don’t run out of juice while listening to your music. The M17 can be operated via the battery mode which also offers quick charging with USB 3.0 or with the included DC12V power adaptor. It provides full performance with the DC power adapter connected.

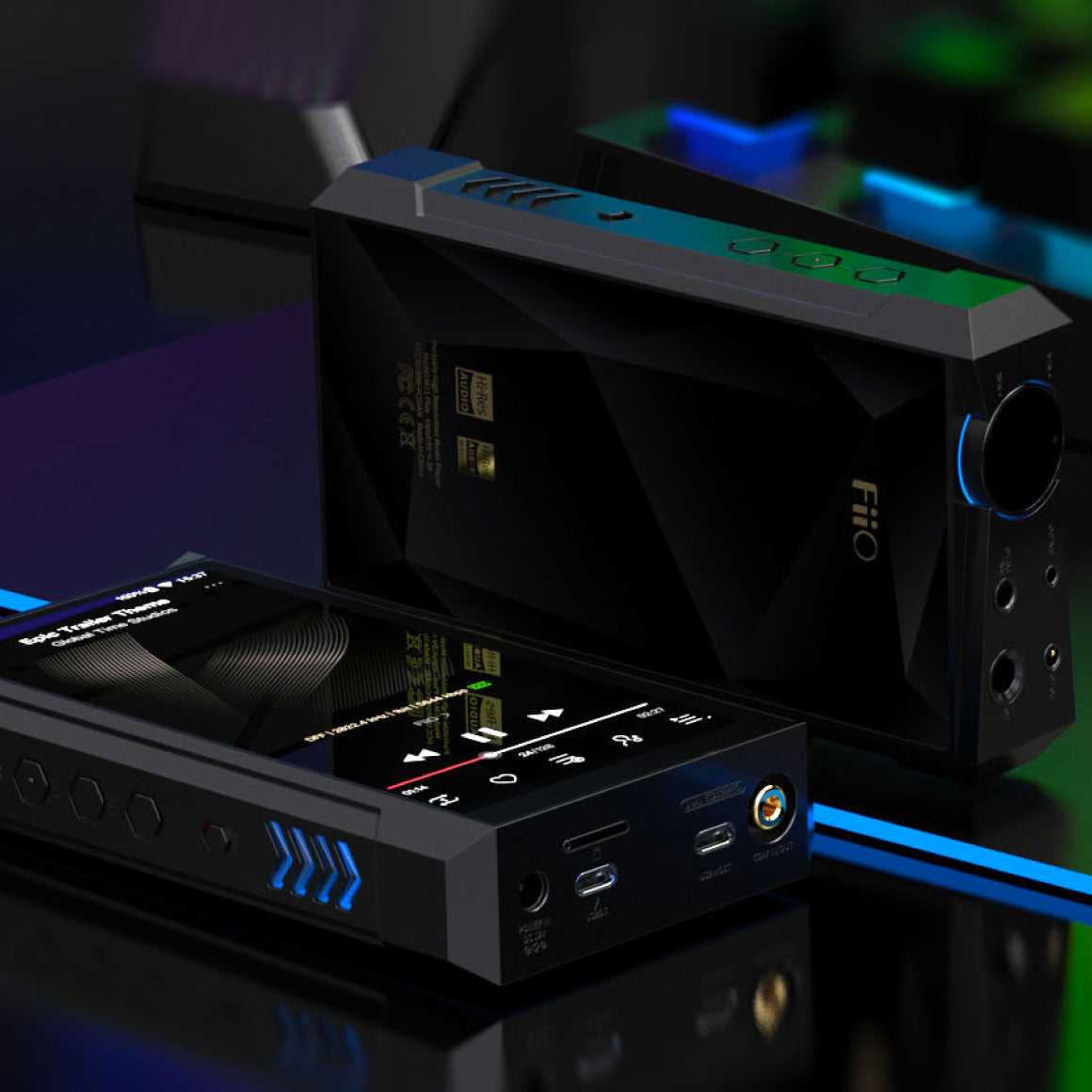

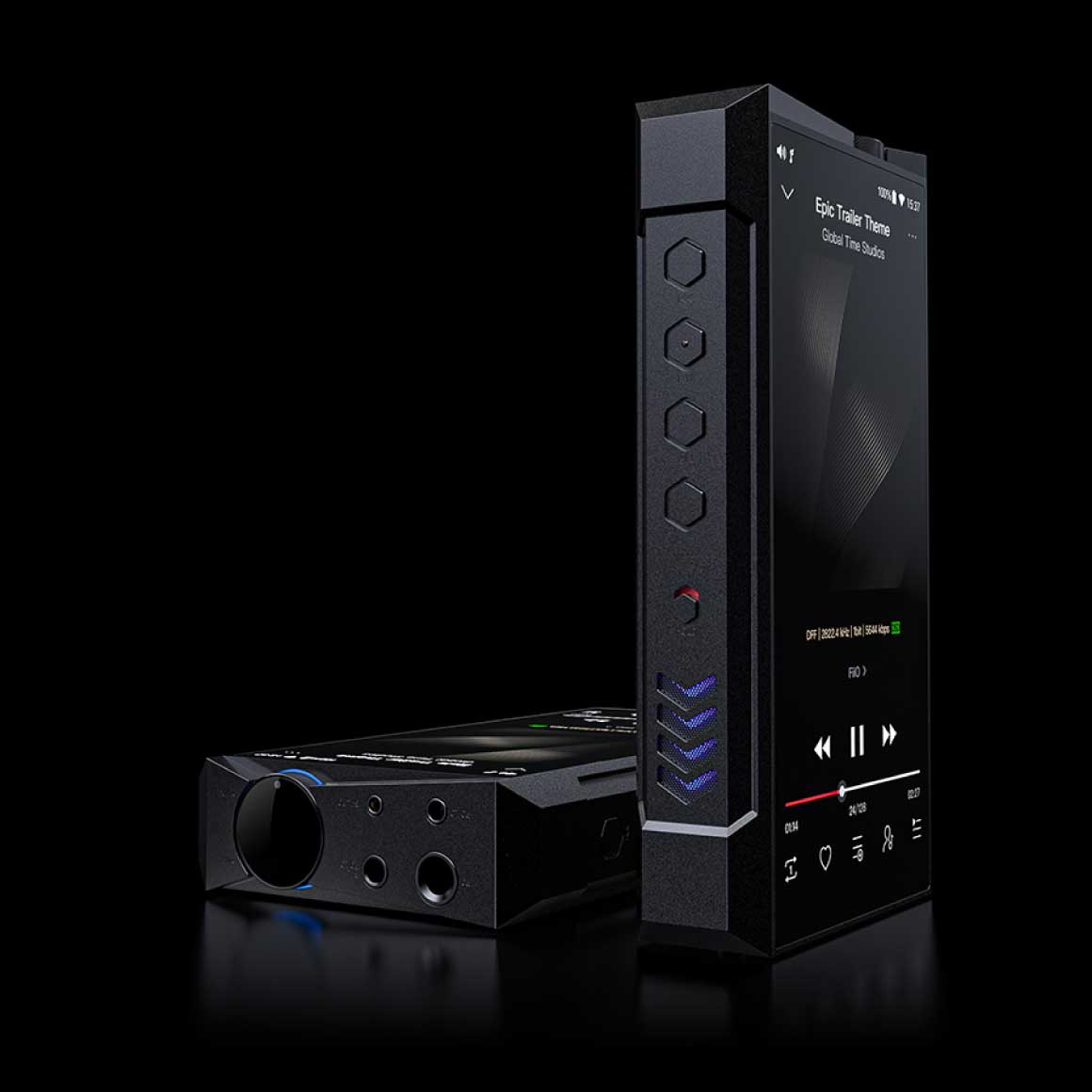

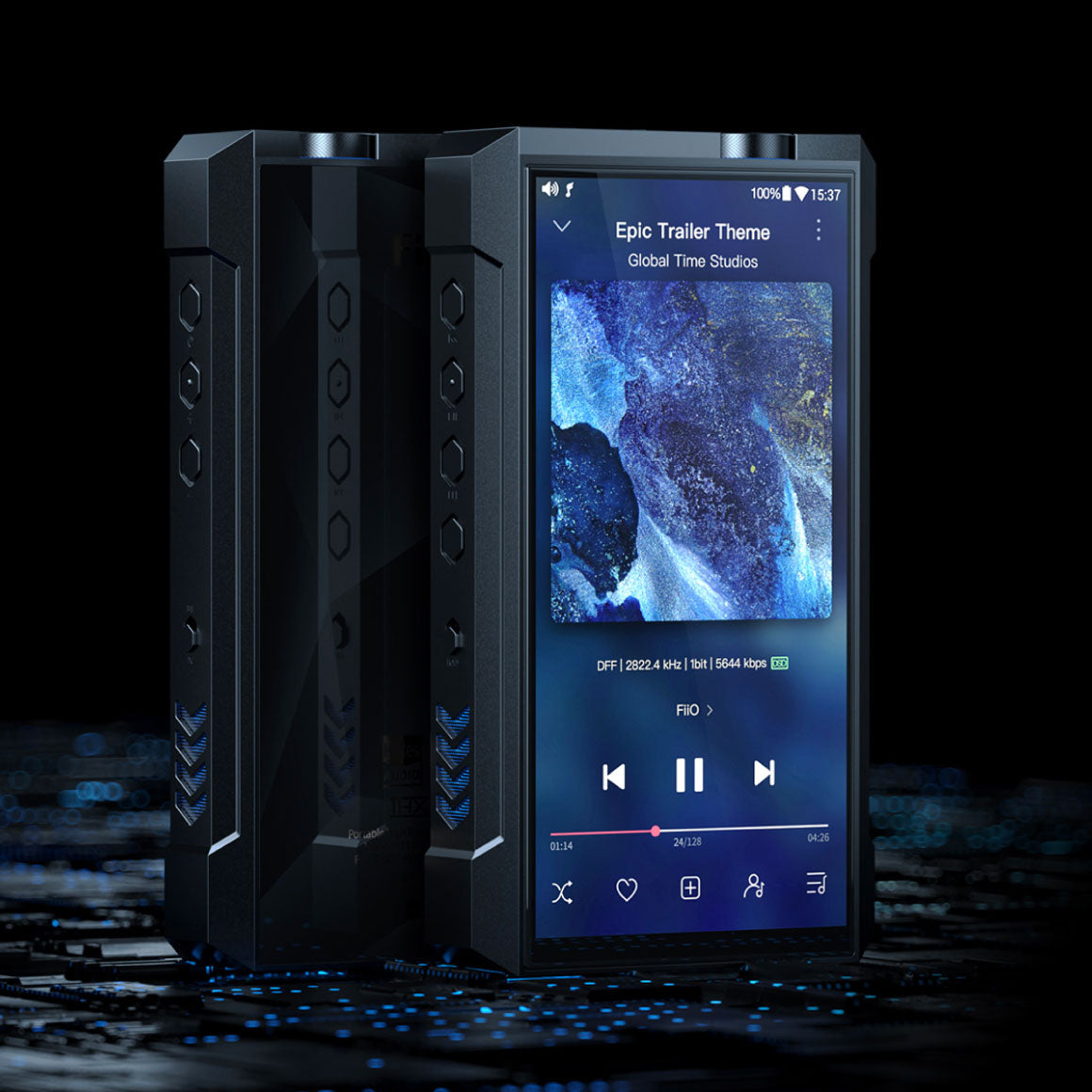

SHOWCASING 7TH GENERATION MECH DESIGN WITH RGB LIGHTS AND DUAL VOLUME CONTROL
The futuristic, seamless, CNC- finished aluminium unibody design of the FiiO M17 evokes a sense of technological wonder. The mech-inspired sharp lines of the body, buttons and atmospheric lights give the M17 a bold and charismatic aura. The M17 features a seven-colour RGB ambient light system with extensive customisation options. Colours can be set to be either fixed, to follow the audio or to follow a cycle. The volume can be adjusted either using an analogue potentiometer knob or using buttons allowing you to quickly and easily go through 120 levels of volume through either method.

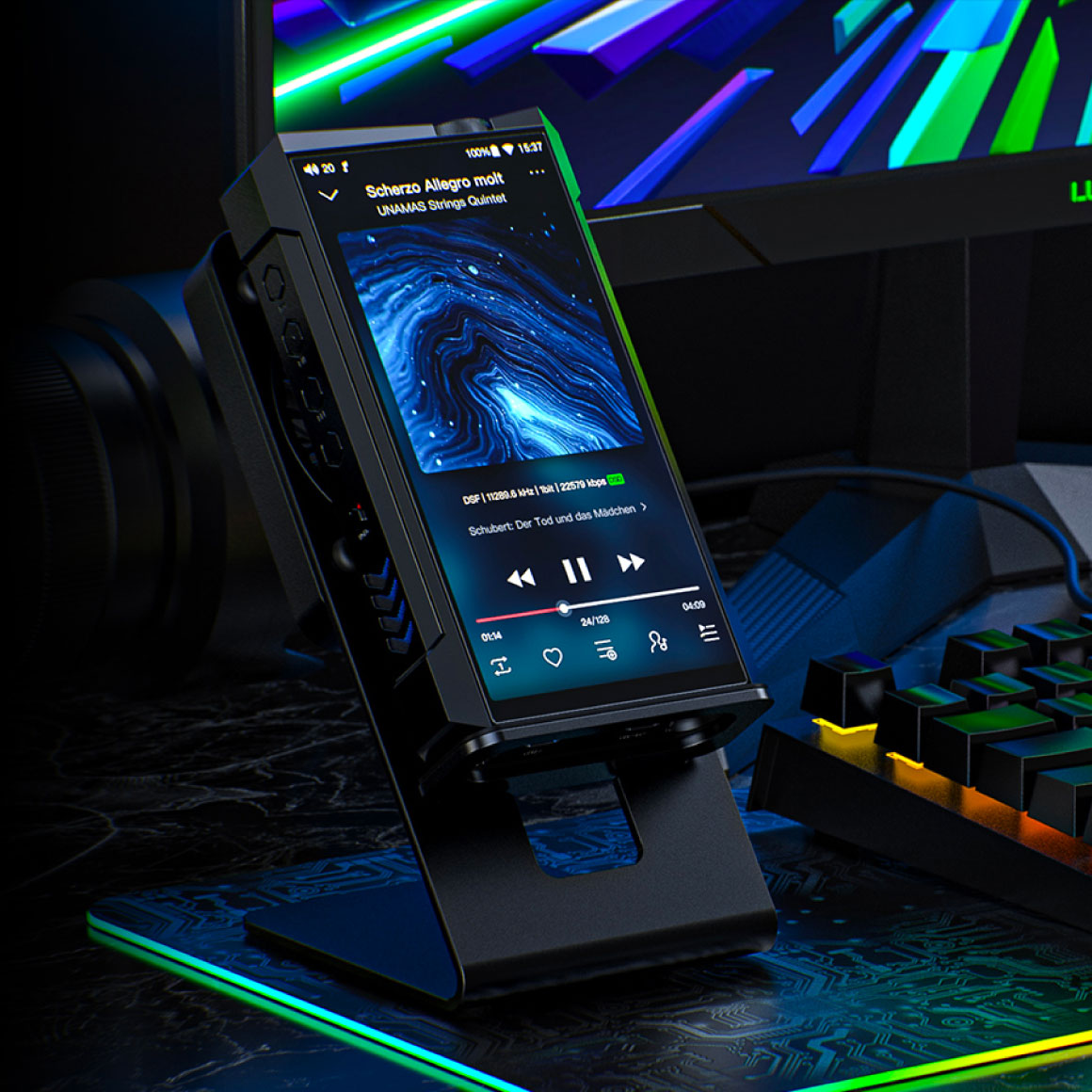

BUNDLED WITH AN ARRAY OF ACCESSORIES TO OFFER A PREMIUM EXPERIENCE
The team at FiiO have bundled the M17 with a variety of accessories to help you make the most of the M17. You will get an external adapter to charge the device, a cooling stand with a fan to keep the device cool, a PET screen protector with an oleophobic layer to protect your screen, a luxurious leather case to store your M17, a Micro-SD card ejector pin, an aluminium dust pin and a USB 3.0 data and power cable. The team at FiiO have included every piece of accessory that you could need to elevate the functioning of the M17.
SPECS
| MODEL | M17 |
| HARDWARE SOLUTION | Soc: Snapdragon 660, DAC: ES9038PRO*2, Amp: THX AAA-788+, Bluetooth: QCC5124, USB: XMOS XUF208, NDK Femtosecond crystal oscillator*2 |
| USER INTERFACE | Android/Pure Music/USB DAC/Bluetooth Receiver/AirPlay mode |
| COLOR | Black |
| SIZE | ≈156.4 * 88.5 * 28mm |
| WEIGHT | ≈610g |
| DISPLAY | 5.99 inches (1080*2160) incell fully fit screen |
| VOLUME CONTROL TYPE | Knob or button control |
| RAM | 4GB |
| ROM | 64GB/≈46GB |
| TF CARD | Single TF card slot, theoretically support up to 2TB |
| GAIN CONTROL | Low/medium/high/Over-ear headphone mode/Enhanced over-ear headphone mode (when connected to DC) |
| CHANNEL BALANCE | L20~R20（0.5dB/level） |
| RECOMMENDED HEADPHONE IMPEDANCE | 16~150Ω (SE output)/16~300Ω (BAL output) |
| BUTTONS | Physical button + analog potentiometer volume knob + HOLD lock switch + BAT/DC switch + touch screen |
| USB | Two-way TYPE C USB3.0（Charging/Data transmisson)，USB HOST Type-C USB2.0 |
| PHONE OUTPUT | 3.5mm single-ended + 6.35mm single-ended + 2.5mm balanced + 4.4mm balanced |
| LINE OUT (LO) | 3.5mm port（shared PO） |
| COAX OUTPUT | RCA socket (coaxial decoding, coaxial output multiplexing) Coaxial decoding supports up to 192kHz-24bit/DSD64 Coaxial output supports up to 384kHz-24bit/DSD128 |
| BALANCED LINE OUT | 4.4mm port（shared 4.4mm balanced PO） |
| WIFI | 2.4GHz/5GHz，DLNA、AirPlay、WiFi music transfer |
| BLUETOOTH TRANSMITTER (5.0) | SBC/AAC/aptX/aptX HD/LDAC |
| BLUETOOTH RECEIVER (5.0) | SBC/AAC/aptX/aptX Low Latency/aptX HD/aptX Adaptive/LDAC |
| FiiO LINK | WiFi and Bluetooth control (Android), Bluetooth control (IOS) |
| MQA | MQA 8x unfold |
| ALL TO DSD | Yes |
| DOUBLE CLICK TO WAKEUP | Not supported, to be upgraded |
| IN-VEHICLE MODE | Would power on/off automatically when vehicle engine starts/stops |
| SAMPLING RATE | Local playback: Up to 384kHz-32bit/DSD256 USB DAC: Up to 768kHz-32bit/DSD512 |
| USB AUDIO | 384kHz-32bit/DSD256 (D2P/DOP) 768kHz-32bit/DSD512 (Native) |
| POWER-OFF TIMERS | Sleep/Idle poweroff |
| EQUALIZER | 10-band EQ (±12dB), 8 presets+custom preset, custom EQ supported |
| FIRMWARE UPGRADE | Supports via zip file + TF card + OTA |
| NAVIGATION CONTROL | Gesture control / 2-Bottom navigation / 3-Bottom navigation |
| POWER SUPPLY | Supports QC3.0, QC4.0 and PD2.0 and PD3.0 fast charge, POWER IN DC 12V |
| BATTERY CAPACITY | 9200mAh |
| CHARGING TIME | About 4.5h (QC fast charge) |
| STANDBY TIME | ＞1000h |
| 3.5MM HEADPHONE OUTPUT：＞10H | |
| VOLUME | 76 |
| GAIN | L |
| SCREEN | Off |
| TEST FILE | MP3 44.1kHz/16bit |
| EQ | Off |
| LOAD | 32Ω |
| 2.5MM + 4.4MM BALANCED OUTPUT：＞8H | |
| VOLUME | 65 |
| GAIN | L |
| SCREEN | Off |
| TEST FILE | MP3 44.1kHz/16bit |
| EQ | Off |
| LOAD | 32Ω |
| PO OUTPUT PARAMETERS (OVER-EAR HEADPHONE MODE） | |
| OUTPUT POWER | ≥740mW（16Ω / THD+N＜1%) ≥500mW（32Ω /THD+N＜1%) ≥63mW（300Ω / THD+N＜1%) |
| NOISE FLOOR | ≤3.5μV（dbA） |
| FREQUENCY RESPONSE | 5Hz~80kHz（-3dB） |
| OUTPUT IMPEDANCE | ≤1Ω（32Ω） |
| CROSSTALK | ≥75dB（1kHz/32Ω） |
| THD+N | ≤0.0007%（1kHz/32Ω） |
| SNR | ≥120dB（dbA） |
| PEAK OUTPUT VOLTAGE | 11.3 Vp-p |
| PO OUTPUT PARAMETERS (ENHANCED OVER-EAR HEADPHONE MODE） |
|
| OUTPUT POWER | ≥1.4W（16Ω / THD+N＜1%) ≥1.1W（32Ω /THD+N＜1%) ≥126mW（300Ω / THD+N＜1%) |
| NOISE FLOOR | ≤3.5μV（dbA） |
| FREQUENCY RESPONSE | 5Hz~80kHz（-3dB） |
| OUTPUT IMPEDANCE | ≤1Ω（32Ω） |
| CROSSTALK | ≥75dB（1kHz/32Ω） |
| THD+N | ≤0.0009%（1kHz/32Ω） |
| SNR | ≥122dB（dbA） |
| PEAK OUTPUT VOLTAGE | 16.9 Vp-p |
| LO OUTPUT PARAMETERS | |
| NOISE FLOOR | ≤2μV（dbA） |
| FREQUENCY RESPONSE | 5Hz~80kHz（-3dB） |
| CROSSTALK | ≥103dB（1kHz/10kΩ） |
| THD+N | ≤0.0006%（1kHz/10kΩ） |
| SNR | ≥120dB（dbA） |
| LO OUTPUT LEVEL | 1.9V（1kHz/10kΩ） |
| PO BALANCED OUTPUT PARAMETERS（OVER-EAR HEADPHONE MODE) | |
| OUTPUT POWER | ≥1.5W（16Ω / THD+N＜1%) ≥3W（32Ω /THD+N＜1%） ≥250mW（300Ω /THD+N＜1%) |
| NOISE FLOOR | ≤7μV（dbA） |
| FREQUENCY RESPONSE | 5Hz~80kHz（-3dB） |
| OUTPUT IMPEDANCE | ≤2Ω（32Ω） |
| CROSSTALK | ≤0.0007%（1kHz/32Ω） |
| THD+N | ≥108dB（1kHz/32Ω） |
| SNR | ≥121dB（dbA） |
| PEAK OUTPUT VOLTAGE | 19.7 Vp-p |
| PO BALANCED OUTPUT PARAMETERS（ENHANCED OVER-EAR HEADPHONE MODE) | |
| OUTPUT POWER | ≥1.5W（16Ω / THD+N＜1%) ≥3W（32Ω /THD+N＜1%） ≥500mW（300Ω /THD+N＜1%) |
| NOISE FLOOR | ≤7μV（dbA） |
| FREQUENCY RESPONSE | 5Hz~80kHz（-3dB） |
| OUTPUT IMPEDANCE | ≤2Ω（32Ω） |
| CROSSTALK | ≤0.0009%（1kHz/32Ω） |
| THD+N | ≥108dB（1kHz/32Ω） |
| SNR | ≥121dB（dbA） |
| PEAK OUTPUT VOLTAGE | 27.7 Vp-p |
| LO BALANCED OUTPUT PARAMETERS（dbA） | |
| NOISE FLOOR | ≤3μV（dbA） |
| FREQUENCY RESPONSE | 5Hz~80kHz（-3dB） |
| CROSSTALK | ≥105dB（1kHz/10kΩ） |
| THD+N | ≤0.0006%（1kHz/10kΩ） |
| SNR | ≥122dB（dbA） |
| LO OUTPUT LEVEL | 3.9V（1kHz/10kΩ） |
| LOSSLESS | DSD：DSD64/128/256 (“.iso”,“.dsf”,“.dff”），DST iSO DXD：352.8kHz/24bit APE FAST/High/Normal：384kHz/24bit（MAX） APE Extra High：192kHz/24bit（MAX） APE Insane：96kHz/24bit（MAX） Apple Lossless：384kHz/32bit（MAX） AIFF：384kHz/32bit（MAX） FLAC：384kHz/32bit（MAX） WAV：384kHz/32bit（MAX） WMA LOSSLESS：96kHz/24bit（MAX） |
| LOSSY | MP3，OGG，WMA，AAC, etc. |
| BOX CONTENTS | 1. FiiO M17 Digital Audio Player |
| 2. External DC Adapter | |
| 3. USB 3.0 Data and Power cable | |
| 4. Cooling stand with fan | |
| 5. Leather Case | |
| 6. PET Screen Protector with Oleophobic layer | |
| 7. Micro-SD card with ejector pin | |
| 8. Aluminum dust plug |
User Manual | M17
Desktop Grade Hi-Res Digital Audio Player
|
EMBEDDED WITH FLAGSHIP-GRADE DUAL ES9038PRO DAC CHIPS FOR PRISTINE AUDIO

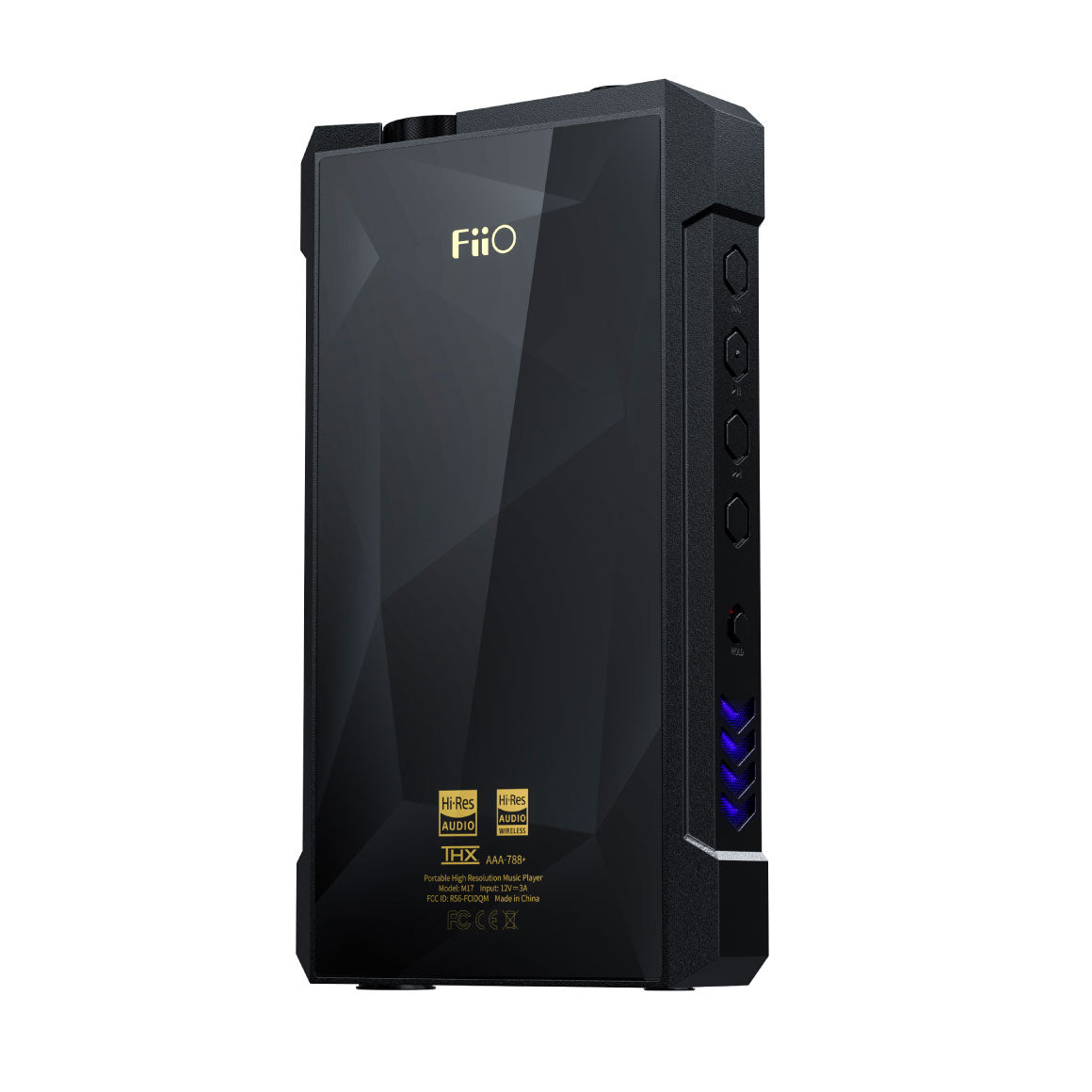

Meet the latest flagship Android music player from FiiO, the M17. Featuring a top
of the line ES9038Pro Dual DAC chipset, the M17 provides you with impeccable high-resolution audio decoding
performance. It is a 32-Bit premium Sabre DAC that delivers excellent high-resolution audio signal decoding
with low distortion and high SNR ratings with decoding support for PCM, DSD and MQA formats natively. FiiO
M17 is designed for audio enthusiasts who give utmost attention to every single detail from their
music.
FEATURING THX-AAA 788+ AMPLIFICATION ARCHITECTURE FOR DESKTOP-GRADE POWER
FiiO partnered with the renowned brand THX to elevate the amplification power for M17. THX is a well-recognised amplifier architecture brand and they have designed and equipped the FiiO M17 with desktop-grade THX-AAA 788+ amplifier architecture which produces a tremendously powerful output with lower distortion and clean background. The M17 is capable of providing up to 3W of power when connected via a DC power supply. On the battery, this output power is controlled for better battery life.
BLAZING FAST PERFORMANCE WITH SNAPDRAGON SOC AND ANDROID 10 OPERATING SYSTEM
FiiO M17 houses Qualcomm's latest Snapdragon 660 SoC chip. This is an eight-core high-performance CPU chip that delivers lightning-fast performance with applications. It also has 4GB of ram that allows for using multiple applications at once. Want to use your favourite media application on the go? The FiiO M17 is loaded with the latest Android 10 OS that provides you with the widest range of media and music applications available with the Google Play store.
EMBEDDED WITH THE FLAGSHIP QCC5124 CHIP AND XMOS CHIP FOR HD BLUETOOTH OPERATION
The FiiO M17 has been equipped with the latest flagship grade QCC5124 chip to offer
Bluetooth 5.0 connectivity with support for SBC, AAC, aptX, aptX-HD, aptX-Adaptive and LDAC protocols. The
M17 also features an XMOS receiver chip that works in conjunction with the QCC5124 chip to deliver ultra-low
latency and support for PCM 32bit/768kHz and DSD512 formats. The FiiO M17 also supports MQA unfolding for
master-level sound quality. With these technologies available, you can enjoy your music at the highest
quality wirelessly.
MULTIPLE OUTPUT PORTS WITH POWERFUL DRIVING CAPACITY AND LINE-LEVEL OUTPUT PORTS
FiiO M17 offers an array of output ports to select. This is implemented in the design, so you do not need to worry about additional connectors and adapters for different devices. The FiiO M17 supports headphone output with 3.5mm and 6.35mm single-ended, as well as 2.5mm and 4.4mm balanced headphone output. The device also has separate single-ended and balanced line-out ports via independent 3.5mm and 4.4mm ports. M17 also features an RCA coaxial port that can act as input and output, depending on your requirement. The M17 is adjusted to provide a powerful output. The device has an output power rating of up to 3000mW per channel in Balanced out and a spectacular 16dB gain level in over-ear headphone mode.

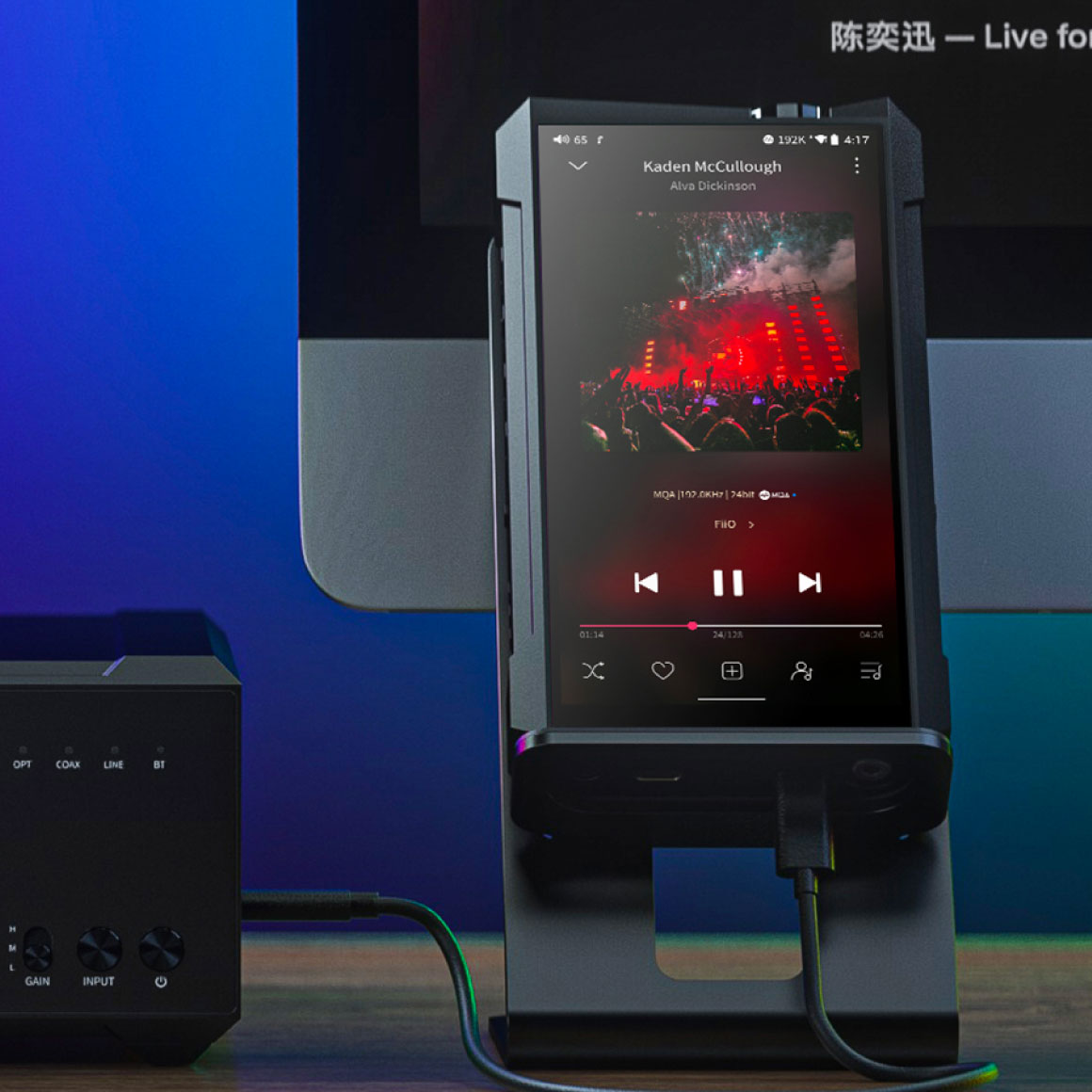

OFFERING DESKTOP-GRADE GAIN CONTROL, POWER SUPPLY AND HEAT DISSIPATION CAPABILITY
The FiiO M17 offers four gain levels when used with battery power. You can toggle between Low, Medium, High and Headphone Mode. When operating in DC mode, super headphone mode gain is unlocked, with desktop-level amplification gain. To provide sufficient power the M17 has been equipped with two power supplies. You can use the M17 on battery power or choose to operate it in DC supply. With DC supply, the voltage is increased by 35% and offers superior performance. To keep the device temperature cool “H” Type heat dissipation and VC liquid cooling technologies are adopted. The M17's 151g unibody aluminium alloy frame also effectively transfers heat out of the device.
CAREFULLY ENGINEERED WITH THE BEST COMPONENTS TO DELIVER SUPERIOR AUDIO PERFORMANCE
The FiiO M17’s design took 1.5 years to complete, going through various design iterations and internal structural design optimisation. The result is a device that makes excellent use of its space. Inside the M17 are carefully stacked analogue and digital boards with tantalum capacitors, ultra-low noise LDO architecture, NDK femtosecond crystal oscillator and gravity sensors. All these components add a solid foundation for smooth audio playback. The PCBs in the M17 is utilised with an immersion gold finish, with the analogue and digital sections physically separated by being on two different boards to reduce interference between the two portions. Seven high conductivity copper alloy shields also provide shielding to reduce internal and external electromagnetic interference.
COMES WITH A 5.99” FULL HD IPS DISPLAY AND A MASSIVE 9200mAH BATTERY CAPACITY
FiiO M17 is a highly equipped flagship device that boasts a 5.99” FHD+ display. It produces crisp, high-quality visuals with true to life colours. The 5.99” FHD+ display is more than enough to operate the device with ease. The M17 is embedded with a massive 9200mAH battery with 10 hours of battery life so you don’t run out of juice while listening to your music. The M17 can be operated via the battery mode which also offers quick charging with USB 3.0 or with the included DC12V power adaptor. It provides full performance with the DC power adapter connected.
SHOWCASING 7TH GENERATION MECH DESIGN WITH RGB LIGHTS AND DUAL VOLUME CONTROL
The futuristic, seamless, CNC- finished aluminium unibody design of the FiiO M17 evokes a sense of technological wonder. The mech-inspired sharp lines of the body, buttons and atmospheric lights give the M17 a bold and charismatic aura. The M17 features a seven-colour RGB ambient light system with extensive customisation options. Colours can be set to be either fixed, to follow the audio or to follow a cycle. The volume can be adjusted either using an analogue potentiometer knob or using buttons allowing you to quickly and easily go through 120 levels of volume through either method.
BUNDLED WITH AN ARRAY OF ACCESSORIES TO OFFER A PREMIUM EXPERIENCE
The team at FiiO have bundled the M17 with a variety of accessories to help you make the most of the M17. You will get an external adapter to charge the device, a cooling stand with a fan to keep the device cool, a PET screen protector with an oleophobic layer to protect your screen, a luxurious leather case to store your M17, a Micro-SD card ejector pin, an aluminium dust pin and a USB 3.0 data and power cable. The team at FiiO have included every piece of accessory that you could need to elevate the functioning of the M17.
| MODEL | M17 |
| HARDWARE SOLUTION | Soc: Snapdragon 660, DAC: ES9038PRO*2, Amp: THX AAA-788+, Bluetooth: QCC5124, USB: XMOS XUF208, NDK Femtosecond crystal oscillator*2 |
| USER INTERFACE | Android/Pure Music/USB DAC/Bluetooth Receiver/AirPlay mode |
| COLOR | Black |
| SIZE | ≈156.4 * 88.5 * 28mm |
| WEIGHT | ≈610g |
| DISPLAY | 5.99 inches (1080*2160) incell fully fit screen |
| VOLUME CONTROL TYPE | Knob or button control |
| RAM | 4GB |
| ROM | 64GB/≈46GB |
| TF CARD | Single TF card slot, theoretically support up to 2TB |
| GAIN CONTROL | Low/medium/high/Over-ear headphone mode/Enhanced over-ear headphone mode (when connected to DC) |
| CHANNEL BALANCE | L20~R20（0.5dB/level） |
| RECOMMENDED HEADPHONE IMPEDANCE | 16~150Ω (SE output)/16~300Ω (BAL output) |
| BUTTONS | Physical button + analog potentiometer volume knob + HOLD lock switch + BAT/DC switch + touch screen |
| USB | Two-way TYPE C USB3.0（Charging/Data transmisson)，USB HOST Type-C USB2.0 |
| PHONE OUTPUT | 3.5mm single-ended + 6.35mm single-ended + 2.5mm balanced + 4.4mm balanced |
| LINE OUT (LO) | 3.5mm port（shared PO） |
| COAX OUTPUT | RCA socket (coaxial decoding, coaxial output multiplexing) Coaxial decoding supports up to 192kHz-24bit/DSD64 Coaxial output supports up to 384kHz-24bit/DSD128 |
| BALANCED LINE OUT | 4.4mm port（shared 4.4mm balanced PO） |
| WIFI | 2.4GHz/5GHz，DLNA、AirPlay、WiFi music transfer |
| BLUETOOTH TRANSMITTER (5.0) | SBC/AAC/aptX/aptX HD/LDAC |
| BLUETOOTH RECEIVER (5.0) | SBC/AAC/aptX/aptX Low Latency/aptX HD/aptX Adaptive/LDAC |
| FiiO LINK | WiFi and Bluetooth control (Android), Bluetooth control (IOS) |
| MQA | MQA 8x unfold |
| ALL TO DSD | Yes |
| DOUBLE CLICK TO WAKEUP | Not supported, to be upgraded |
| IN-VEHICLE MODE | Would power on/off automatically when vehicle engine starts/stops |
| SAMPLING RATE | Local playback: Up to 384kHz-32bit/DSD256 USB DAC: Up to 768kHz-32bit/DSD512 |
| USB AUDIO | 384kHz-32bit/DSD256 (D2P/DOP) 768kHz-32bit/DSD512 (Native) |
| POWER-OFF TIMERS | Sleep/Idle poweroff |
| EQUALIZER | 10-band EQ (±12dB), 8 presets+custom preset, custom EQ supported |
| FIRMWARE UPGRADE | Supports via zip file + TF card + OTA |
| NAVIGATION CONTROL | Gesture control / 2-Bottom navigation / 3-Bottom navigation |
| POWER SUPPLY | Supports QC3.0, QC4.0 and PD2.0 and PD3.0 fast charge, POWER IN DC 12V |
| BATTERY CAPACITY | 9200mAh |
| CHARGING TIME | About 4.5h (QC fast charge) |
| STANDBY TIME | ＞1000h |
| 3.5MM HEADPHONE OUTPUT：＞10H | |
| VOLUME | 76 |
| GAIN | L |
| SCREEN | Off |
| TEST FILE | MP3 44.1kHz/16bit |
| EQ | Off |
| LOAD | 32Ω |
| 2.5MM + 4.4MM BALANCED OUTPUT：＞8H | |
| VOLUME | 65 |
| GAIN | L |
| SCREEN | Off |
| TEST FILE | MP3 44.1kHz/16bit |
| EQ | Off |
| LOAD | 32Ω |
| PO OUTPUT PARAMETERS (OVER-EAR HEADPHONE MODE） | |
| OUTPUT POWER | ≥740mW（16Ω / THD+N＜1%) ≥500mW（32Ω /THD+N＜1%) ≥63mW（300Ω / THD+N＜1%) |
| NOISE FLOOR | ≤3.5μV（dbA） |
| FREQUENCY RESPONSE | 5Hz~80kHz（-3dB） |
| OUTPUT IMPEDANCE | ≤1Ω（32Ω） |
| CROSSTALK | ≥75dB（1kHz/32Ω） |
| THD+N | ≤0.0007%（1kHz/32Ω） |
| SNR | ≥120dB（dbA） |
| PEAK OUTPUT VOLTAGE | 11.3 Vp-p |
| PO OUTPUT PARAMETERS (ENHANCED OVER-EAR HEADPHONE MODE） |
|
| OUTPUT POWER | ≥1.4W（16Ω / THD+N＜1%) ≥1.1W（32Ω /THD+N＜1%) ≥126mW（300Ω / THD+N＜1%) |
| NOISE FLOOR | ≤3.5μV（dbA） |
| FREQUENCY RESPONSE | 5Hz~80kHz（-3dB） |
| OUTPUT IMPEDANCE | ≤1Ω（32Ω） |
| CROSSTALK | ≥75dB（1kHz/32Ω） |
| THD+N | ≤0.0009%（1kHz/32Ω） |
| SNR | ≥122dB（dbA） |
| PEAK OUTPUT VOLTAGE | 16.9 Vp-p |
| LO OUTPUT PARAMETERS | |
| NOISE FLOOR | ≤2μV（dbA） |
| FREQUENCY RESPONSE | 5Hz~80kHz（-3dB） |
| CROSSTALK | ≥103dB（1kHz/10kΩ） |
| THD+N | ≤0.0006%（1kHz/10kΩ） |
| SNR | ≥120dB（dbA） |
| LO OUTPUT LEVEL | 1.9V（1kHz/10kΩ） |
| PO BALANCED OUTPUT PARAMETERS（OVER-EAR HEADPHONE MODE) | |
| OUTPUT POWER | ≥1.5W（16Ω / THD+N＜1%) ≥3W（32Ω /THD+N＜1%） ≥250mW（300Ω /THD+N＜1%) |
| NOISE FLOOR | ≤7μV（dbA） |
| FREQUENCY RESPONSE | 5Hz~80kHz（-3dB） |
| OUTPUT IMPEDANCE | ≤2Ω（32Ω） |
| CROSSTALK | ≤0.0007%（1kHz/32Ω） |
| THD+N | ≥108dB（1kHz/32Ω） |
| SNR | ≥121dB（dbA） |
| PEAK OUTPUT VOLTAGE | 19.7 Vp-p |
| PO BALANCED OUTPUT PARAMETERS（ENHANCED OVER-EAR HEADPHONE MODE) | |
| OUTPUT POWER | ≥1.5W（16Ω / THD+N＜1%) ≥3W（32Ω /THD+N＜1%） ≥500mW（300Ω /THD+N＜1%) |
| NOISE FLOOR | ≤7μV（dbA） |
| FREQUENCY RESPONSE | 5Hz~80kHz（-3dB） |
| OUTPUT IMPEDANCE | ≤2Ω（32Ω） |
| CROSSTALK | ≤0.0009%（1kHz/32Ω） |
| THD+N | ≥108dB（1kHz/32Ω） |
| SNR | ≥121dB（dbA） |
| PEAK OUTPUT VOLTAGE | 27.7 Vp-p |
| LO BALANCED OUTPUT PARAMETERS（dbA） | |
| NOISE FLOOR | ≤3μV（dbA） |
| FREQUENCY RESPONSE | 5Hz~80kHz（-3dB） |
| CROSSTALK | ≥105dB（1kHz/10kΩ） |
| THD+N | ≤0.0006%（1kHz/10kΩ） |
| SNR | ≥122dB（dbA） |
| LO OUTPUT LEVEL | 3.9V（1kHz/10kΩ） |
| LOSSLESS | DSD：DSD64/128/256 (“.iso”,“.dsf”,“.dff”），DST iSO DXD：352.8kHz/24bit APE FAST/High/Normal：384kHz/24bit（MAX） APE Extra High：192kHz/24bit（MAX） APE Insane：96kHz/24bit（MAX） Apple Lossless：384kHz/32bit（MAX） AIFF：384kHz/32bit（MAX） FLAC：384kHz/32bit（MAX） WAV：384kHz/32bit（MAX） WMA LOSSLESS：96kHz/24bit（MAX） |
| LOSSY | MP3，OGG，WMA，AAC, etc. |
| BOX CONTENTS | 1. FiiO M17 Digital Audio Player |
| 2. External DC Adapter | |
| 3. USB 3.0 Data and Power cable | |
| 4. Cooling stand with fan | |
| 5. Leather Case | |
| 6. PET Screen Protector with Oleophobic layer | |
| 7. Micro-SD card with ejector pin | |
| 8. Aluminum dust plug |
|
User Manual | M17
Desktop Grade Hi-Res Digital Audio Player
|
Don't sweat it, this
FiiO - M17 comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
Life Style
VGP 2022 Lifestyle
Nov, 2021
"Yes, it’s expensive and unwieldy – but the FiiO M17 is a great source of music, an excellent desktop DAC and amplifier and a straightforward pleasure to listen to in any circumstance."
Read More
"The FiiO M17 is probably one of the most complete portable audio devices I have reviewed to date. Both headphone and IEM users will find the M17 has both the deftness and the sheer grunt to satisfy both."
Read More
"The FiiO M17 is one of the best all-in-one pieces for audiophile listening you can have, combining the power of a high-class DAC/amp hybrid, and combining it with one of the finest audio players around. "
Read More
"Amazing job by FiiO showcasing on what they are capable of. The FiiO M17 is truly a seducing, alluring device that has certainly caught my heart and ears. Zero complaints for their sound reproduction."
Read MoreHave a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is the warranty on the FiiO M17?
What is the priority of the M17 output ports?
2. When both balanced and single-ended headphones are plugged in, the first plugged-in headset will have a sound, and the status bar will only display the first plugged-in headset icon.
3. The spdif output is controlled by a separate switch. The analog output (PO/LO) and spdif digital output can be output at the same time.
4. According to the Android system's own processing method, Bluetooth transmission and analog output (including SPDIF) will follow the principle of post-access priority.
How to install third-party applications?
1.After connecting the device to a valid WiFi, go to FiiO market, Google Play or other app markets to download and install the app directly.
2.Local installation: copy the APK file to the M17. Go to the file management menu to find the file and install it.
How to enable the USB DAC function?
For Windows computers, please make the settings as the followed steps.
1.Install the FiiO DAC driver in the computer first.
2.Switch the working mode of the M17 to USB DAC mode on the drop-down menu or go to Settings->Mode choose menu to enter the USB DAC mode.
3. Connect the M17 to the computer by the USB port. Select the M17 as the audio input both in the computer and the music app, so it can work.
Notes: When in the USB DAC mode, the M17 does not support Bluetooth transmitting.
How to use the M17 as a Bluetooth receiver?
2. Go to the Bluetooth transmitting list of the mobile phone, and tap the M17 to complete the connection.
How to use the M17 as a Bluetooth transmitter?
1. Go to the Settings->Bluetooth menu to turn on the Bluetooth function.
2.Make the Bluetooth receiving device, such as Bluetooth earphones, enter the pairing state. (Please refer to the user manual of the Bluetooth receiving device about how to enter pairing state.)
3.Go to the Bluetooth device list of the M17->Pair new device to complete the connection.
How to connect the M17 to an external decoder? Does it support USB audio digital output?
1. Enable 'USB output' in FiiO Music app of the M17.
2.Use an OTG cable to connect the M17 and the external decoder.
3.Open FiiO Music app or other music applications to use the M17 as a USB digital output device.
How to make M17 enter enhanced over-ear headphones mode?
1. Connect M17 with the original power adapter of M17;
2. Switch the BAT/DC switch on the side of M17 to DC mode to enter the hidden mode(enhanced over-ear headphones mode).
Note: You can pull down the task bar and modify to other gain modes. The DC power supply is only effective for the enhanced over-ear headphones mode, and the effects of other gain modes remain unchanged.
