Chi-Fi
Excellence
Ideal for Audiophiles
These DAC & Amps are designed for discerning music lovers. If audio quality is important to you, a set of DAC & Amps like these would be ideal.
You can expect these DAC & Amps to present you with a refined listening experience. The audio quality exhibited by these DAC & Amps is a beautiful mix of musicality, technical brilliance and high precision.
These DAC & Amps deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!
Best Suited for Portable Use
For those who value them, being able to carry their favourite DAC & Amp equipment when they are on the move is invaluable.
These DAC & Amps offer the ultimate portability experience without sacrificing sound quality. If you’re someone who appreciates cutting-edge engineering, quality sound and portability, then look no further.
Designed to be trusty companions, these DAC & Amps are cleverly engineered with the latest technology to offer the ultimate combination of portability & Hi-Fidelity!
Ideal for
Desktop Use
Bluetooth with LDAC,
aptX Adaptive, aptX LL, aptX HD
Battery Life
DAC & Amps with built-in batteries offer easy operation without the annoyance of wires.
Battery life is a measurement of battery performance. It is the amount of time your DAC & Amps will still have enough juice to power your headphones or IEMs. It can be summed up; as how long a battery will last before your DAC & Amps need to be recharged.
Nothing interferes with your music, thanks to the high-performance and long-lasting battery. No interruptions, just pure sonic bliss!
4.4mm
Balanced Output
AKM AK4191EQ+AK4499EX
Dual DAC Chip
Upto 1610mW+1610mW @ 32Ω
Power Output

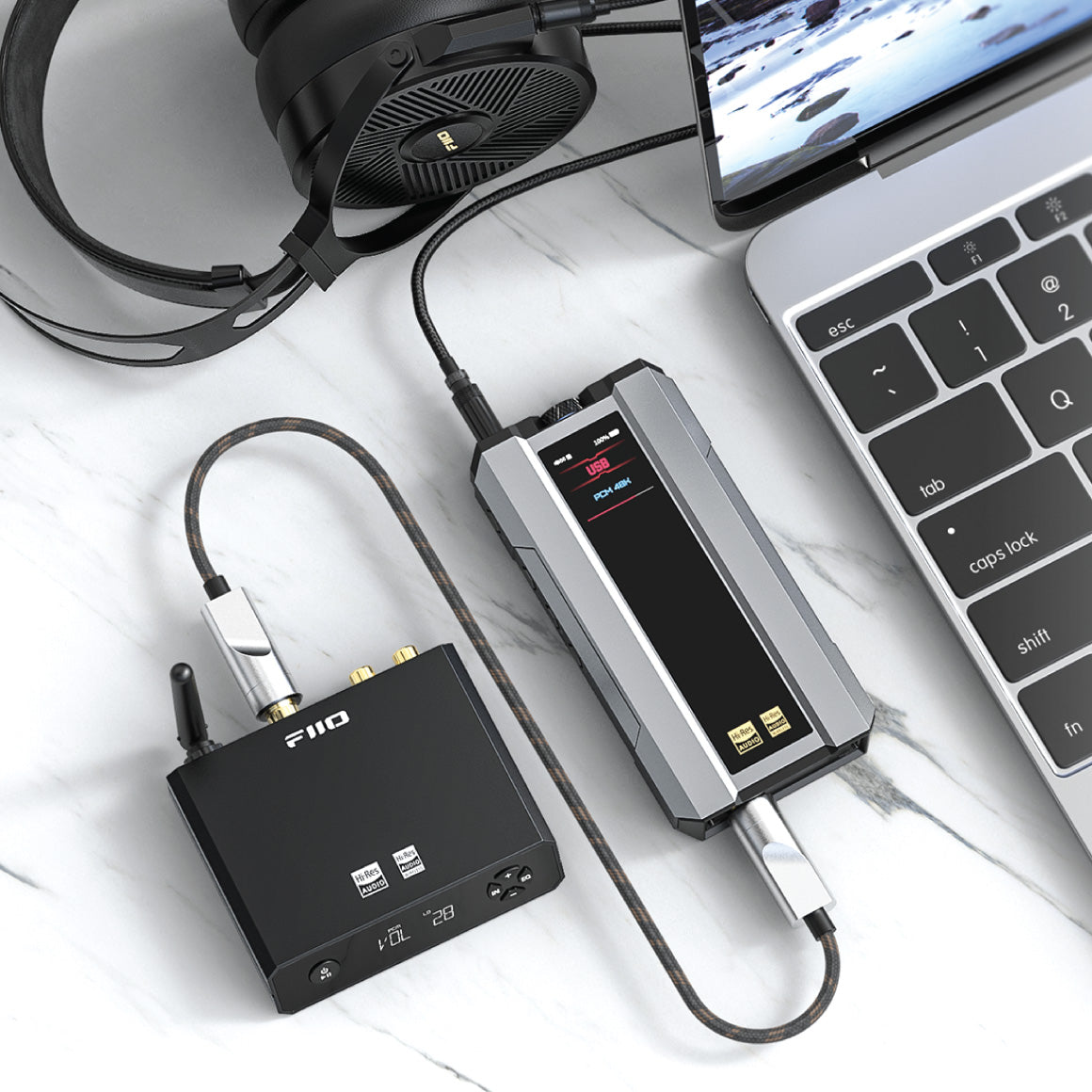

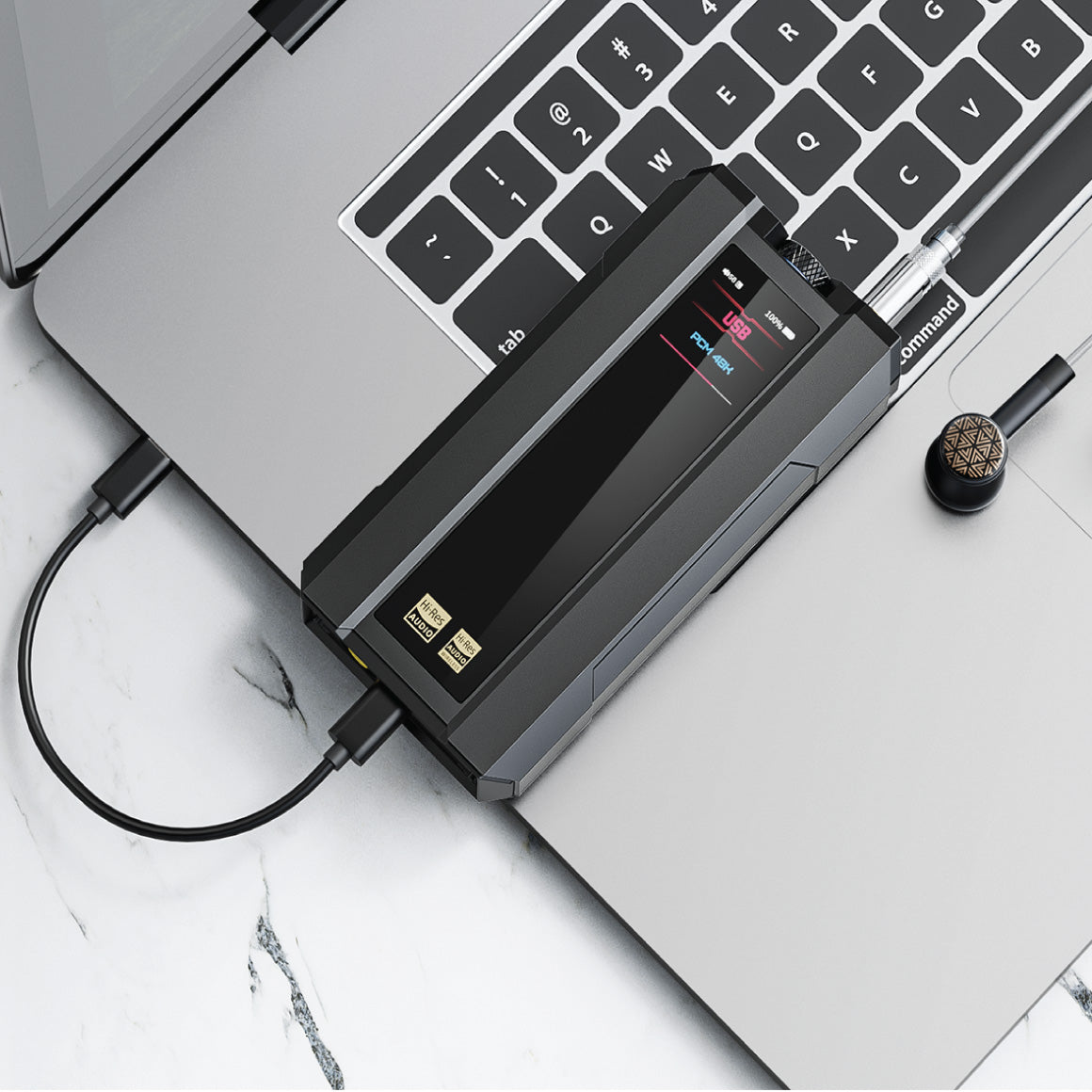

Pair with Laptop via USB
A majority of people use a laptop as the primary source device to listen to music or watch movies. Since the laptop is an essential part of the audio chain there are headphones and devices designed to work a laptop or computer system flawlessly. With the availability of USB connectivity, it becomes easier to pair various devices like an Amp, DAC or even headphones without worrying about drivers or any additional piece of software.
Battery Capacity of
5500mAh
DESCRIPTION
ENJOY DESKTOP-GRADE PERFORMANCE IN A PORTABLE FORM FACTOR WITH THE ALL-NEW FIIO Q15
After four years, FiiO is introducing the upgraded version of the Q5S, the Q15. Combining FiiO's advanced technologies in a user-friendly design, the Q15 offers a more comprehensive performance than any other DAC & Amp in its class. It is carefully designed to meet the diverse needs of both portable and desktop use in a single device. If you desire desktop-grade performance in a compact form factor, the FiiO Q15 is the perfect solution. This portable DAC & Amp features a high-end AKM flagship DAC, a powerful amp section, a five-level gain mode, and various other features. With support for Bluetooth, USB, and Coaxial inputs, it provides convenient connectivity with a range of devices.
FEATURES DUAL AKM DAC CHIPS WORKING IN TANDEM TO DELIVER NATURAL AND REALISTIC SOUND
The team at FiiO have pushed the envelope when it comes to engineering the Q15. The FiiO Q15 stands out among products of similar grade as it incorporates the latest DAC combination from AKM - the AK4191EQ+AK4499EX. These chips deliver exceptional performance in decoding high-resolution audio signals. With the innovative "DWA Routing Technology," the audio performance is significantly enhanced, resulting in a more detailed, natural, and realistic sound that immerses the listener as if they were at a live concert.
1600MW OF POWER DELIVERY WITH 5-LEVEL GAIN, DUAL HEADPHONE OUTPUTS AND DESKTOP MODE
The FiiO Q15 features dual headphone output ports (3.5mm single-ended and 4.4mm balanced), accommodating various headphones and IEMs. With a powerful amp section offering five-level gain modes and a maximum output of 1600mW, it caters to different sensitivity levels. Its well-designed audio circuit ensures ample dynamic range and fidelity, with dedicated IEMs and full-size headphone modes. The device functions as a portable desktop-grade unit, with a desktop mode and a separate Type-C power connector for external power. In this mode, the balanced output provides 1600mW, suitable for driving IEMs and headphones on the go.
EMBEDDED WITH QUALCOMM’S FLAGSHIP BLUETOOTH CHIP AND XMOS 3RD GEN USB PROCESSOR
The FiiO Q15 incorporates Qualcomm's premium QCC5125 chipset, facilitating low-latency wireless Bluetooth connectivity with high-definition codecs such as LDAC, AptX HD, AptX, and others. This allows for high-resolution sound quality even in wireless mode. Additionally, the device employs high-end chips, including the XMOS XU316 16-core 3rd-gen USB chipset for the DAC, supporting high-resolution audio signal decoding with capabilities for 32-bit/768kHz PCM, native DSD512, and full MQA signals.
SELF-DEVELOPED TRIPLE DIGITAL CORES FOR STABLE AND EFFICIENT OPERATION OF THE FIIO Q15
The FiiO Q15 is equipped with triple digital cores, including a TI Cortex M4 processor, XMOS 16-core XU316 with dual audio crystal oscillators, and a Qualcomm QCC5125 Bluetooth chip. This combination enables USB DAC, Bluetooth, and coaxial decoding in a unified device. The USB DAC supports 768kHz/32bit PCM, DSD512, and full MQA decoding, while Bluetooth decoding supports high-res codecs like LDAC and aptX Adaptive. Coaxial decoding supports 92kHz/24bit and DSD64. With digital components comparable to the FiiO Q7, the Q15 utilises the ARM processor to achieve USB, coaxial, and Bluetooth decoding seamlessly, ensuring low latency and efficient processing of digital audio signals.

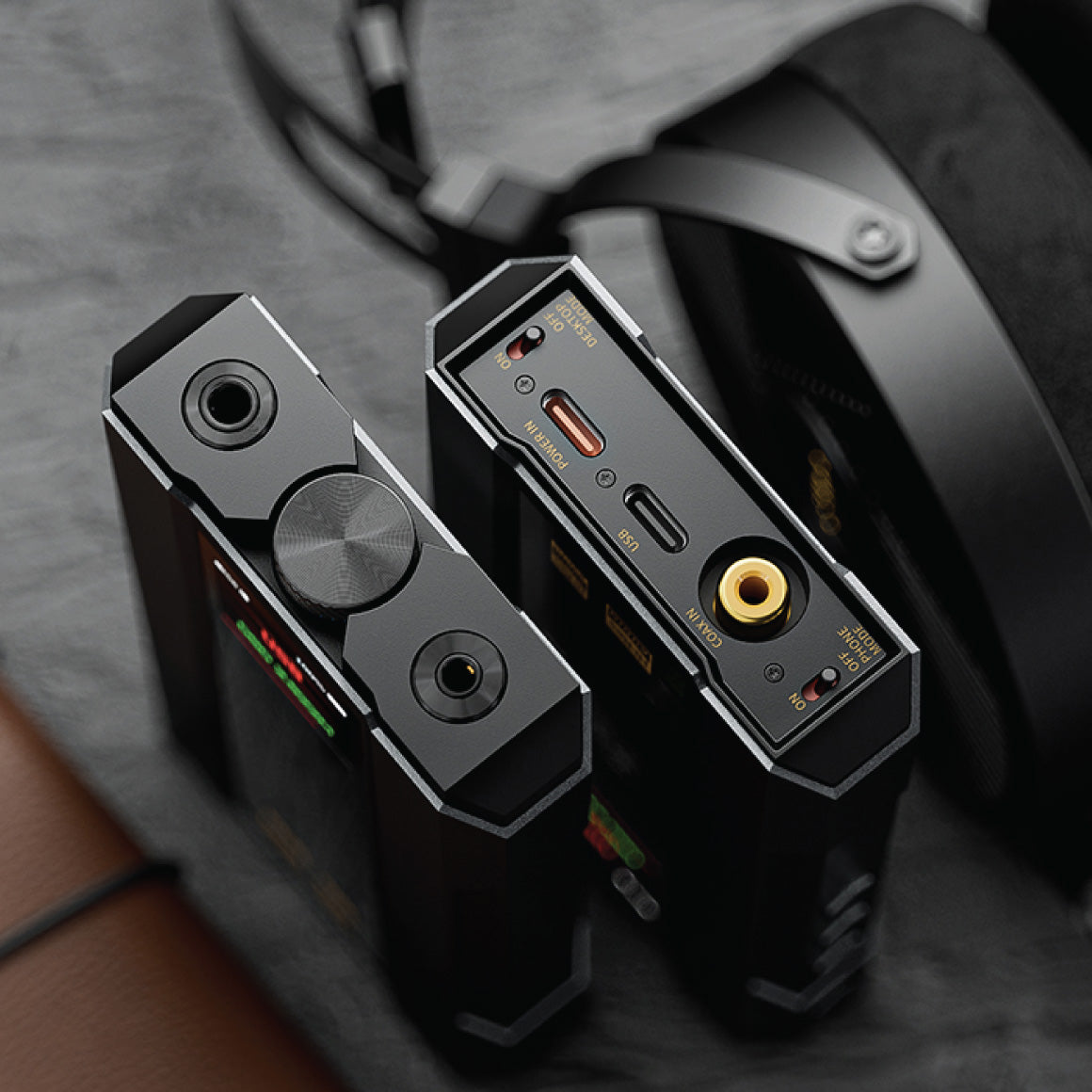

CAREFULLY IMPLEMENTED INPUT STAGE WITH USB, BLUETOOTH AND COAXIAL CONNECTIONS
Effortlessly connect the FiiO Q15 to various devices with its versatile input options. The Q15 supports wireless Bluetooth, wired USB, and wired coaxial modes. Coaxial mode facilitates connection with CD players and other AUX devices, USB allows easy connection with digital media devices, and Bluetooth mode provides a convenient link to smartphones and other wireless devices. This flexibility enables you to enjoy your music conveniently and seamlessly. Additionally, the Q15's coaxial input allows direct connection to digital streamers and CD players, eliminating potential losses associated with indirect connectivity issues.

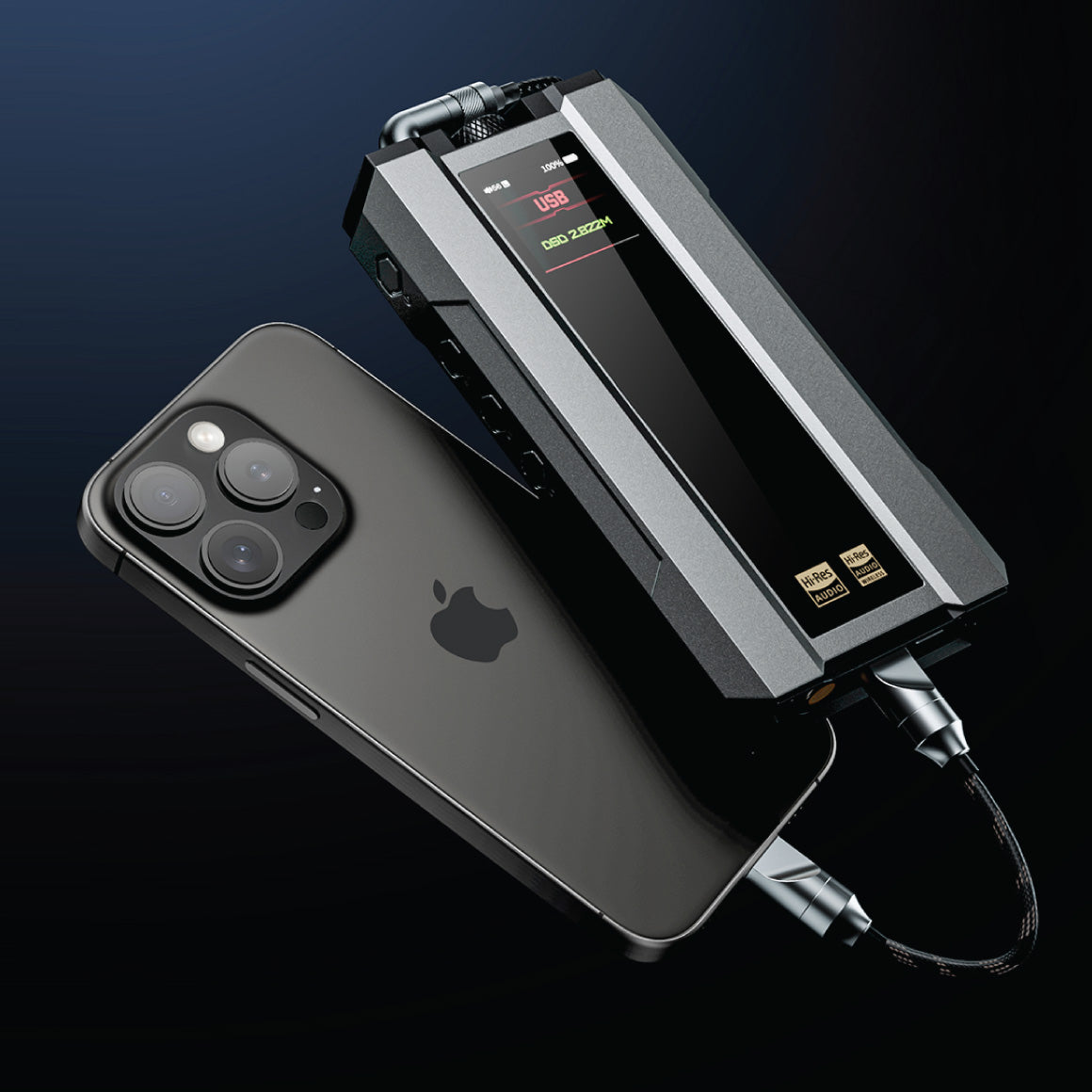

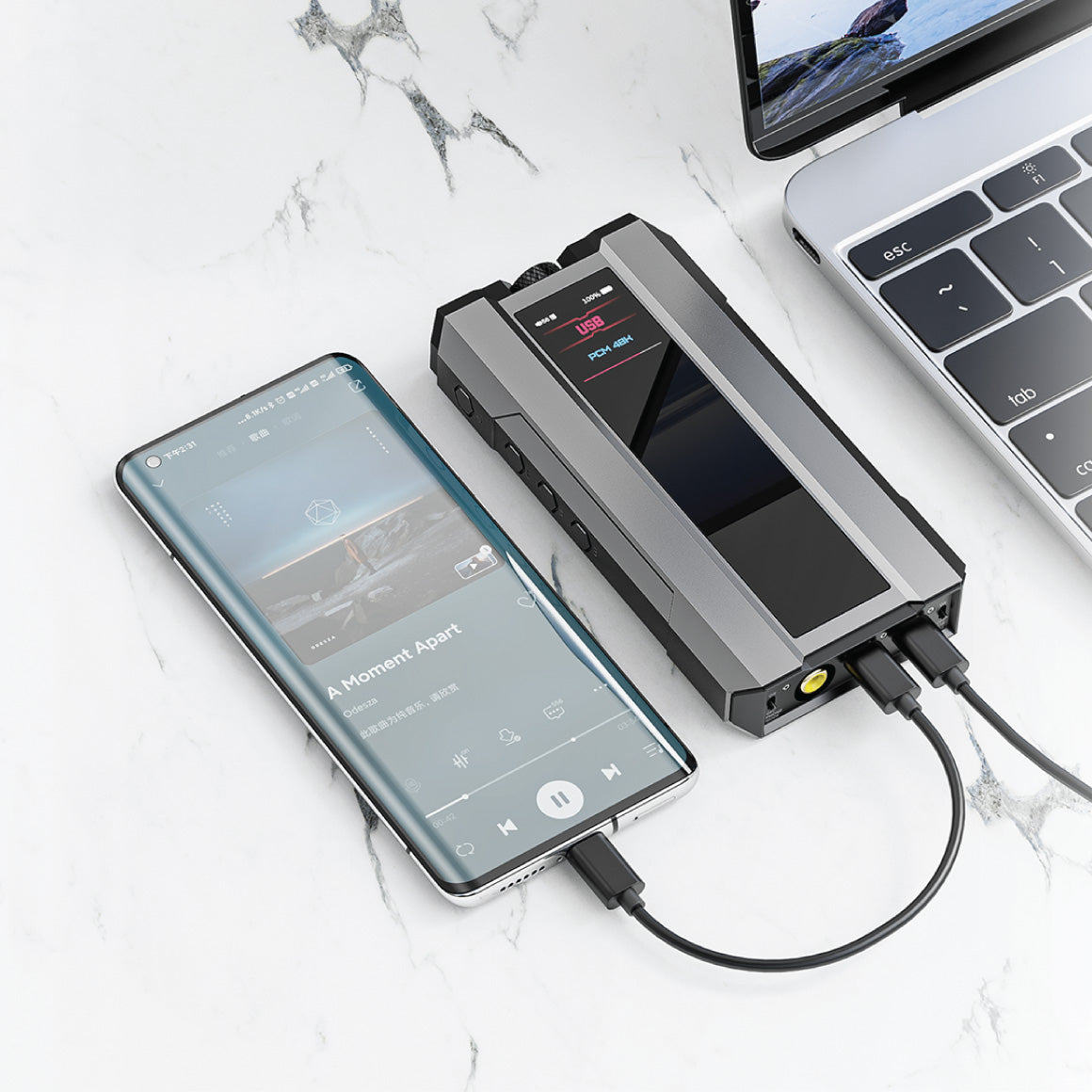

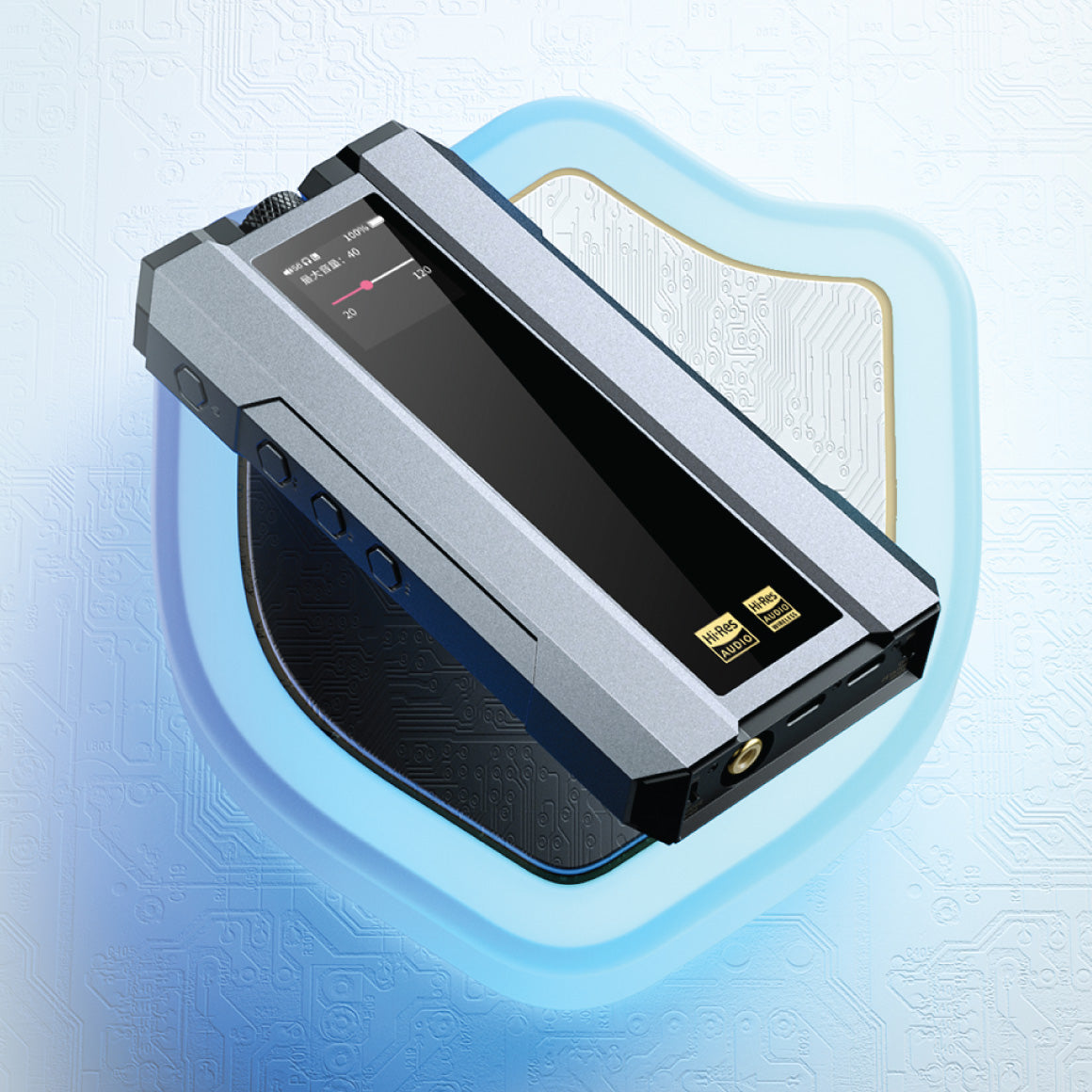

EXCLUSIVE PHONE MODE OPERATION AND BUILT-IN COMPREHENSIVE PROTECTION MECHANISM

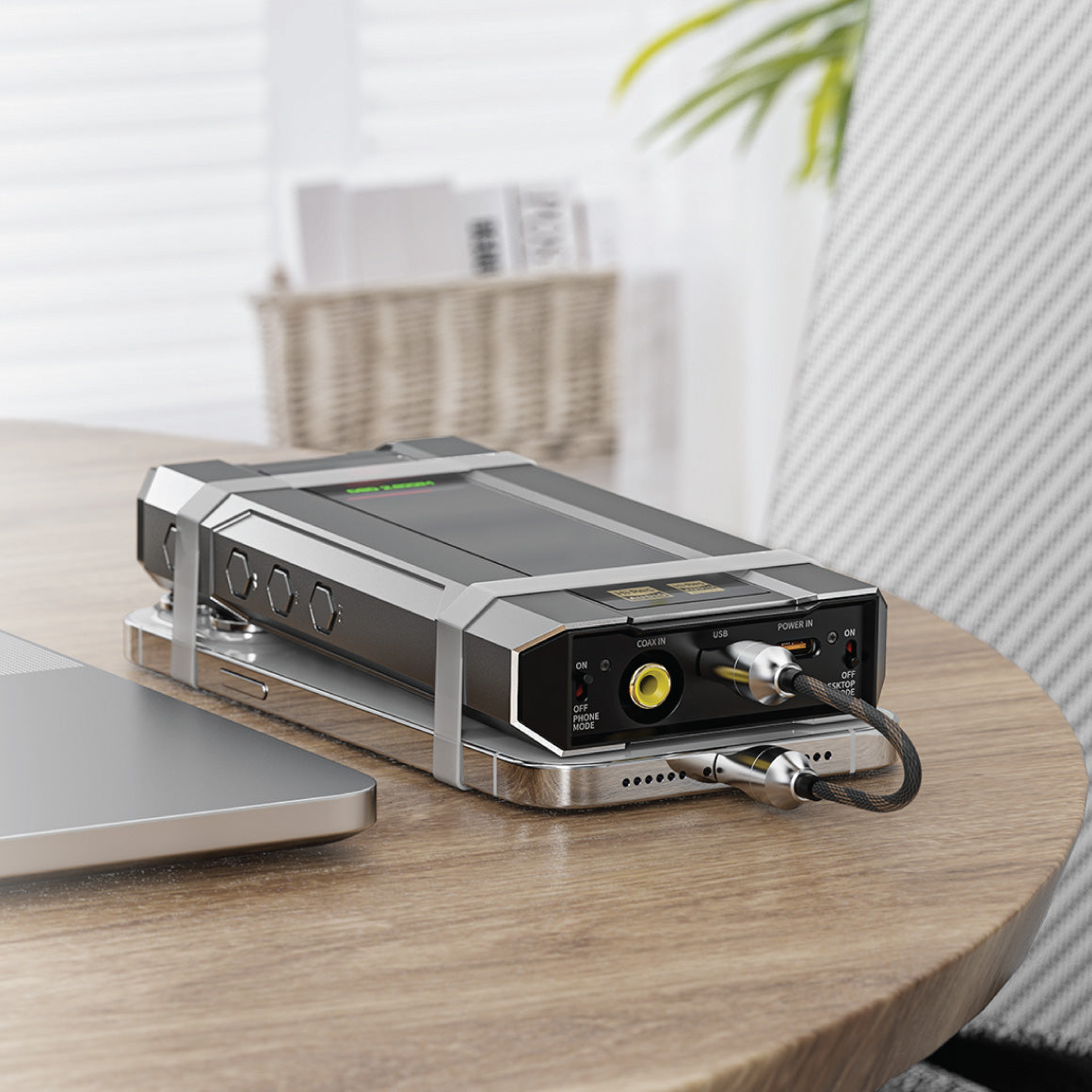

The FiiO Q15 features an exclusive phone mode, easily activated through a standard switch on the device's back. In this mode, the Q15 operates solely on its battery, preserving the smartphone's battery life. This feature ensures prolonged performance and battery longevity for your smartphone. FiiO's engineering incorporates multiple hardware and software protection measures for worry-free sound enjoyment. These include a maximum volume limit to prevent hearing damage, a high-temperature-resistant battery with temperature-based charging control for extended durability, and protection mechanisms against over-heating, over-voltage, and DC issues, ensuring stable power output and headphone safety.
NOTE: If you need to connect to a computer, turn off Phone Mode.
FREEDOM TO CUSTOMISE YOUR SOUND THE WAY YOU WANT WITH A BUILT-IN GLOBAL PEQ
The FiiO Q15 is equipped with seven EQ presets and three customisable PEQ presets that can be applied in both Bluetooth and USB DAC modes. FiiO's self-developed PEQ algorithm and a user-friendly interface allow you to precisely adjust frequencies, gain levels, and bandwidth, enabling fine-tuning for your preferred sound profile. Customisable PEQ, including support for coaxial input, will be available through future firmware updates. USB DAC PEQ supports 192kHz/24bit PCM, with EQ management handled by the XMOS chip. When toggling EQ on and off in USB DAC mode, the USB connection briefly disconnects and automatically reconnects, and tapping "play" restores the output. Furthermore, experience subtle changes in the sound with 7 built-in filters.
15-WAY DIGITAL-ANALOG POWER SUPPLY FUSED WITH HIGH-QUALITY COMPONENTS FOR CLEAN SOUND
Within the FiiO Q15, a sophisticated 15-way digital-analog power supply is incorporated, encompassing systems for the digital segment, analog segment, and headphone amplifiers. The precise regulation involves 21 low-noise LDOS and an ample energy reservoir with 35 low-resistance tantalum capacitors. To minimise crosstalk and shield against external interference, the audio circuit segregates the digital and analog components. FiiO's meticulous selection includes 60 1% precision, low-temperature drift resistors, and 28 wide temperature range NPO capacitors, ensuring the Q15 faithfully reproduces high-quality audio with unparalleled fidelity even in challenging conditions.
PORTABLE DESKTOP-GRADE PERFORMANCE WITH FULL-COLOUR IPS DISPLAY AND VOLUME KNOB
The FiiO Q15 introduces a novel desktop mode, accompanied by a dedicated Type-C power connector. When connected to the PD power adapter, this configuration enables external power, completely bypassing the battery and providing a desktop-like experience on the go. Additionally, the Q15 boasts a 1.3-inch full-colour IPS display, offering a clear view of vital information like working mode, sampling rate, volume level, battery status, gain, and more. The display adapts seamlessly to changes in orientation, ensuring optimal functionality. You can choose when the screen goes to sleep, helping to save power according to your usage habits. Coupled with the versatile volume knob, users can swiftly and accurately perform various functions, including volume adjustment, input switching, and menu settings.

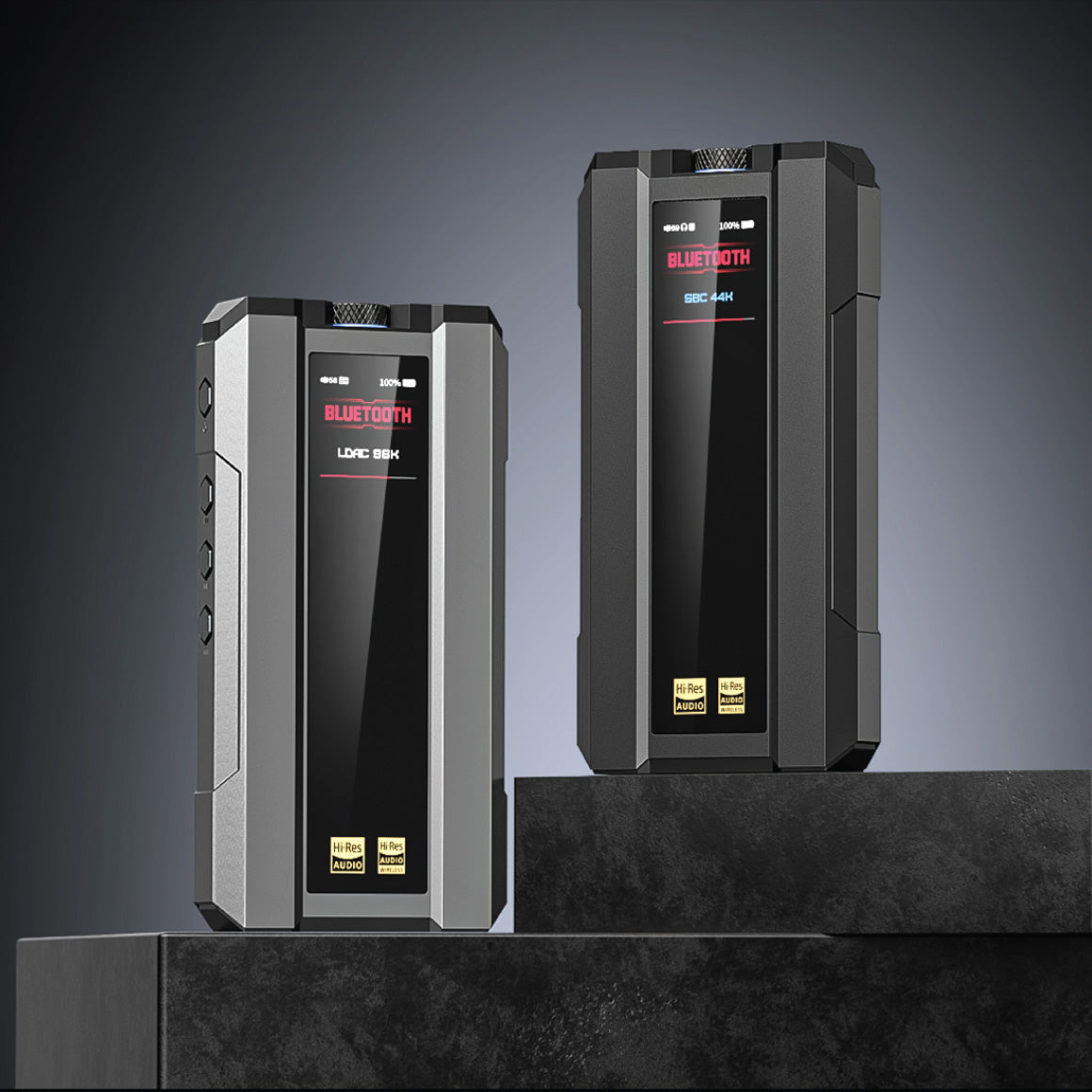

EXPERTLY DESIGNED AND ENGINEERED WITH APP SUPPORT AND AVAILABLE IN TWO COLOURS
The FiiO Q15 introduces AG glass on its back panel, providing anti-scratch and anti-fingerprint properties with a refined touch. Its golden size ratio of 18:9 ensures comfortable handling, whether used on its own or alongside other portable devices. Whether you're on the go or a business trip, maintaining control over your high-quality sound is effortless. The FiiO Control App (for Android, for iOS) facilitates easy management and adjustment of functions. The Q15 is offered in two colours, Black and Titanium Grey, providing options to suit your preference.
SPECS
HARDWARE SOLUTION | DAC: AK4191EQ+AK4499EX USB: XMOS XU316 Bluetooth decoding: QCC5125 |
VOLUME CONTROL | Volume knob |
DRIVER-FREE MODE (SWITCH MODE) | Supported |
MQA | Supports MQA Full Decoder |
GAIN | Ultra High (In Desktop mode, Power in port connected with QC power) /Super High/High/Medium/Low gain mode |

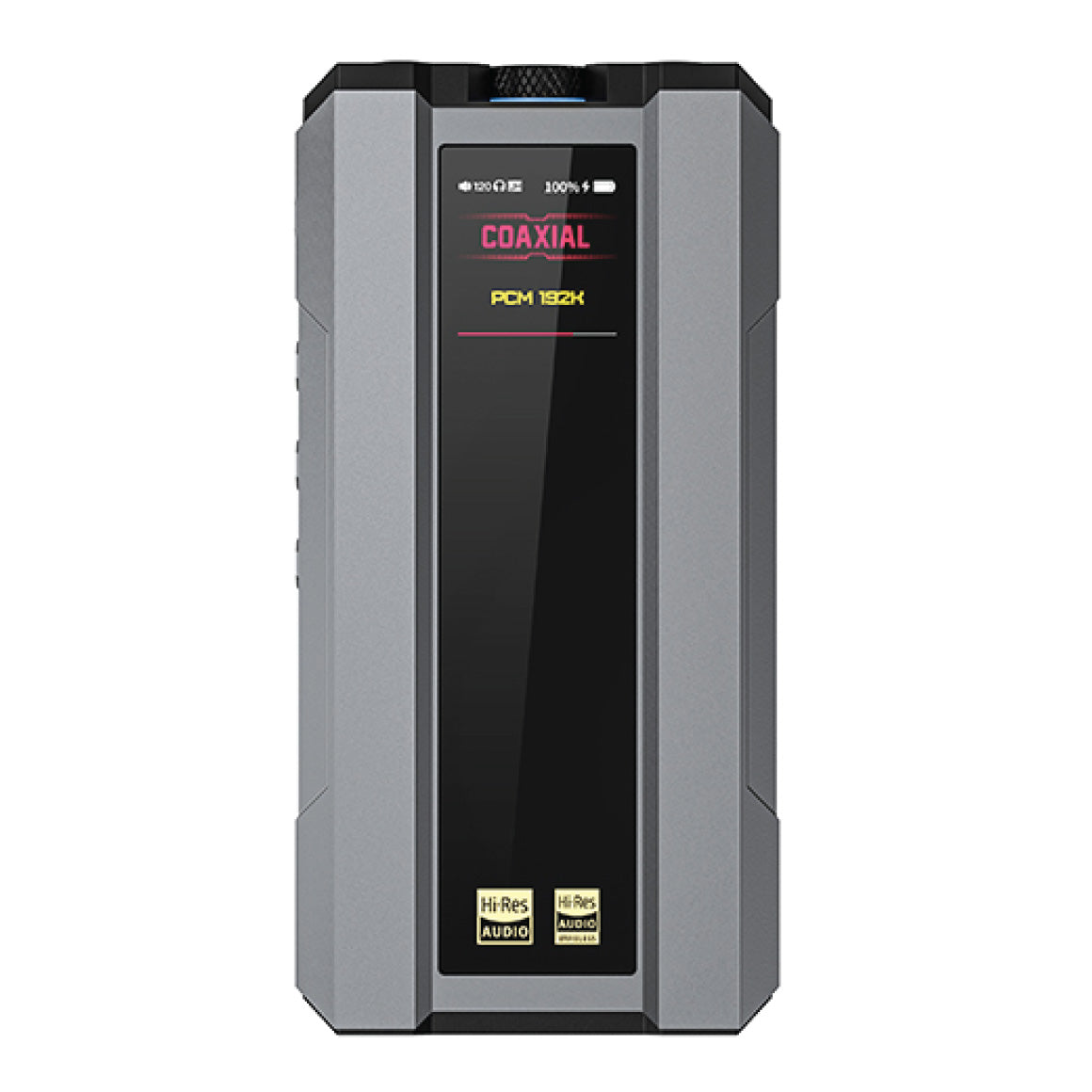

DISPLAY | 1.30-inch TFT (240*240) bezel-less display |
FIIO CONTROL | Supports settings through app |

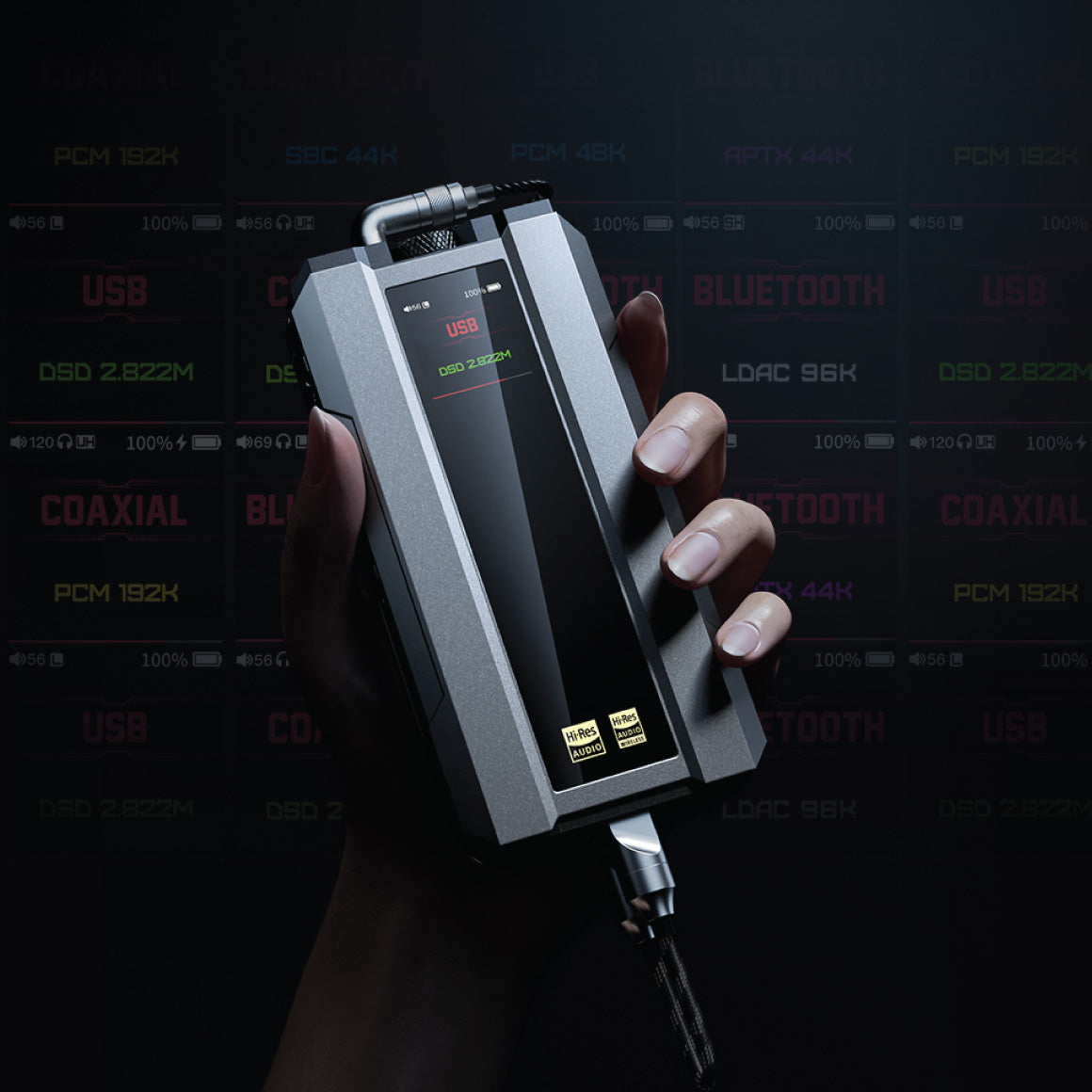

STATUS DISPLAY | On the display: Bluetooth codec, sampling rate, charging status, battery level, volume level, input source, gain level, power mode |
SAMPLE RATE DISPLAY | Cyan: 44.1kHz/48kHz Yellow: 88.2/96/176/352.8/384/705.6/768kHz Green: DSD64/128/256/512 Purple: MQA |
BLUETOOTH CODEC DISPLAY | Blue: SBC Cyan: AAC Purple: aptX/aptX LL Yellow: aptX HD White: LDAC Green: aptX Adaptive |
BLUETOOTH RECEPTION (5.1) | AAC/SBC/aptX/aptX LL/aptX Adaptive/aptX HD/LDAC |
CHANNEL BALANCE | <0.2dB |
MAX SAMPLING RATE | USB DAC: Up to PCM 768kHz/32bit, native DSD512 Coaxial decoding: Up to PCM 192kHz/24bit, DoP DSD64 |
RECOMMENDED IMPEDANCE | PO:8~150Ω BAL:8~350Ω |
FIRMWARE UPGRADE | Bluetooth firmware supports upgrade through OTA XMOS/system firmware supports upgrade through USB |

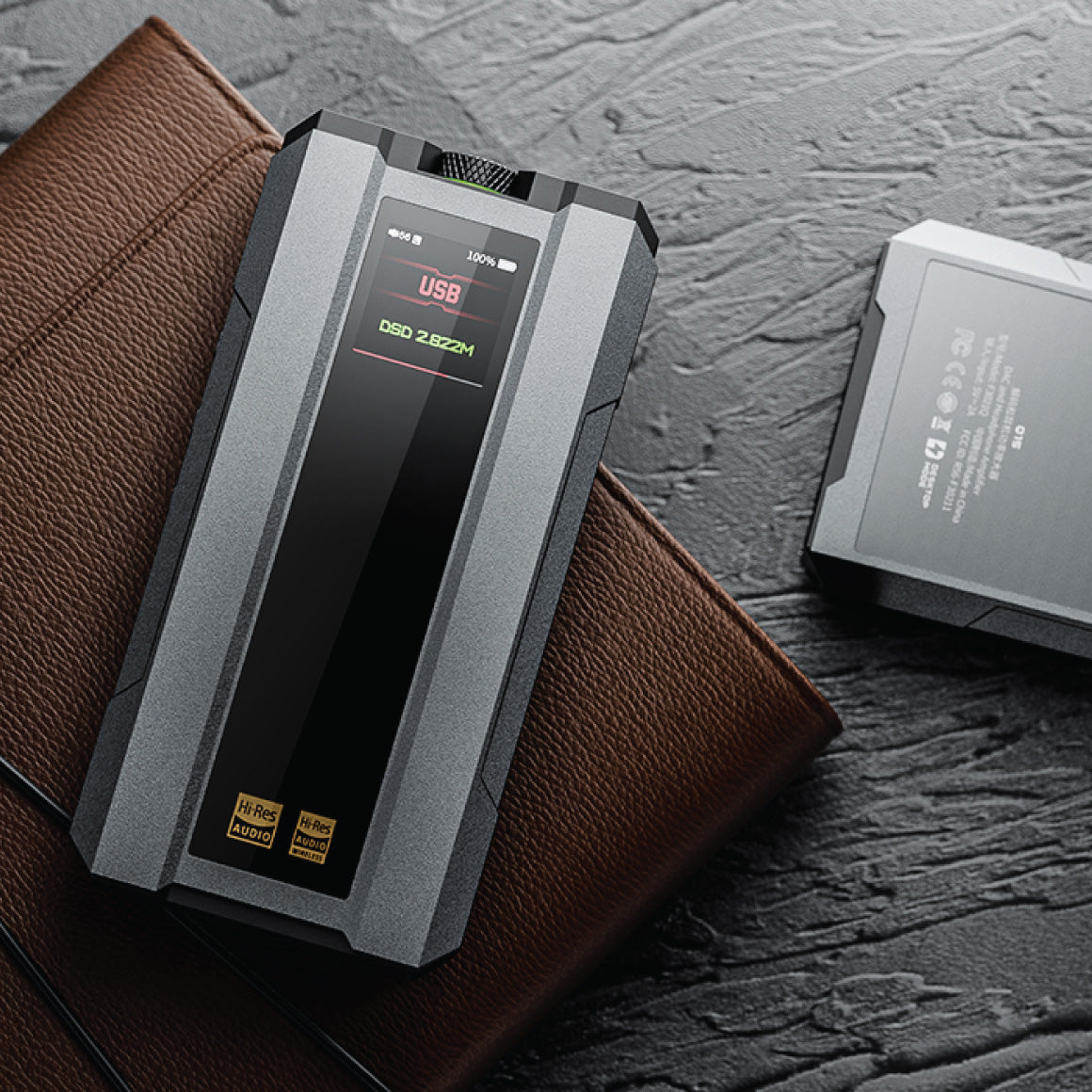

COLOR | Black/ Titanium |
WEIGHT | About 305g |
DIMENSIONS | About 143.5x71.75x21.75mm |

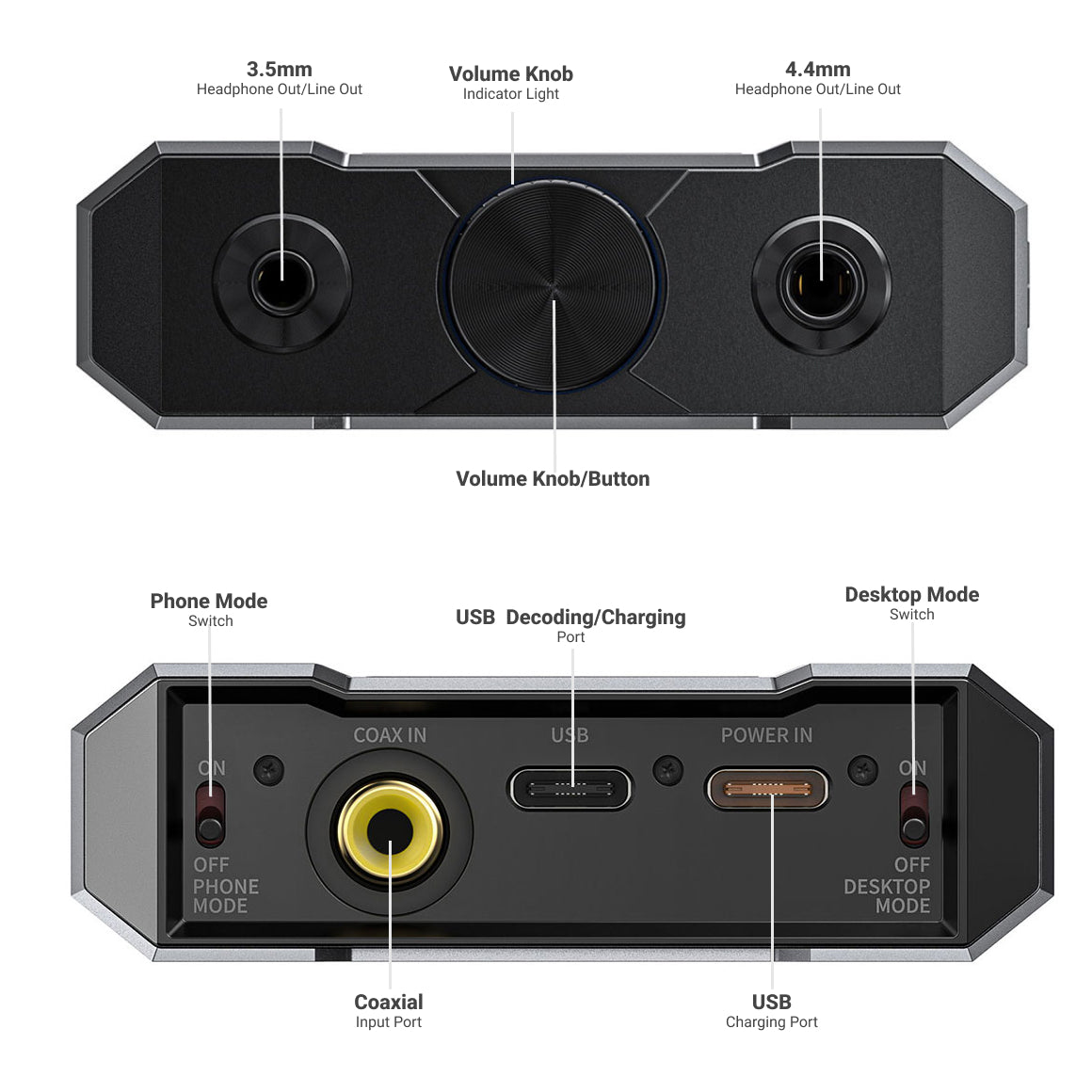

BUTTONS | Power button*1, Play/Pause*1, Previous track*1, Next track*1, Encoder knob (with confirm button) *1 |
HEADPHONE OUTPUT | Standard 3.5mm port |
LINE-OUT OUTPUT | Standard 3.5mm port (shared PO) |
DIGITAL COAXIAL INPUT | RCA port |
USB | Type-C USB2.0*2 Black USB (charging/data transfer), orange POWER IN (charging) |
BALANCED HEADPHONE OUTPUT | Standard 4.4mm port |
BALANCED LINE-OUT OUTPUT | Standard 4.4mm port (shared 4.4mm BAL headphone out) |
TOGGLE SWITCH | PHONE MODE switch*1;DESKTOP MODE switch*1 |
POWER SUPPLY | Supports PD fast charging and ordinary charging |
CHARGING TIME | About 3.5h (PD fast charge) |
BATTERY CAPACITY | 5500mAh lithium polymer battery |
AUDIO INPUT | 3.5mm headphone out: ≥9h: USB decoding/coaxial decoding 4.4mm BAL headphone out: ≥8h: USB decoding/coaxial decoding 3.5mm headphone out: ≥9h: Bluetooth 4.4mm BAL headphone out: ≥8h: Bluetooth |
VOLUME LEVEL | 3.5mm headphone out: ≥9h: L40 4.4mm BAL headphone out: ≥8h: L 34 3.5mm headphone out: ≥9h: L 40 4.4mm BAL headphone out: ≥8h: L 34 |
DISPLAY STATUS | 3.5mm headphone out: ≥9h : OFF 4.4mm BAL headphone out: ≥8h: OFF 3.5mm headphone out: ≥9h : OFF 4.4mm BAL headphone out: ≥8h: OFF |
LOAD | 3.5mm headphone out: ≥9h : 32 Ω 4.4mm BAL headphone out: ≥8h: 32 Ω 3.5mm headphone out: ≥9h : 32 Ω 4.4mm BAL headphone out: ≥8h: 32 Ω |
GAIN LEVEL | 3.5mm headphone out: ≥9h: Super High Gain mode 4.4mm BAL headphone out: ≥8h: BSuper High Gain mode 3.5mm headphone out: ≥9h: Super High Gain mode 4.4mm BAL headphone out: ≥8h: Super High Gain mode |
PLAYING TRACK AND FORMAT | 3.5mm headphone out: ≥9h: MP3 44.1KHz/16bit 4.4mm BAL headphone out: ≥8h: MP3 44.1KHz/16bit 3.5mm headphone out: ≥9h: MP3 44.1KHz/16bit 4.4mm BAL headphone out: ≥8h: MP3 44.1KHz/16bit |
CHARGING SWITCH | 3.5mm headphone out: ≥9h: OFF 4.4mm BAL headphone out: ≥8h: OFF |
BLUETOOTH CODEC | 3.5mm headphone out: ≥9h: AAC 4.4mm BAL headphone out: ≥8h: AAC |
BASS/EQ | 3.5mm headphone out: ≥9h: OFF 4.4mm BAL headphone out: ≥8h: OFF |
OUTPUT POWER | L+R≥750mW+750mW (16Ω, THD+N<1%) L+R≥625mW+625mW (32Ω, THD+N<1%) L+R≥85mW+85mW (300Ω,THD+N<1%) |
SNR | ≥ 123dB (A-weighted) |
FREQUENCY RESPONSE | 20Hz~80kHz: damping<3dB 20Hz~20kHz: damping<0.1dB |
OUTPUT IMPEDANCE | <1Ω |
CROSSTALK | ≥ 72dB |
PEAK OUTPUT VOLTAGE | 14.5Vp-p |
THD+N & NOISE | <0.0005%(1kHz/-9dB @ 32Ω) <0.0004%(1kHz/-6dB @ 300 Ω) |
NOISE FLOOR | <3.1uV (A-weighted) |
OUTPUT POWER | L+R≥520mW+520mW (16Ω,THD+N<1%) L+R≥400mW+400mW (32Ω,THD+N<1%) L+R≥55mW+55mW (300Ω,THD+N<1%) |
SNR | ≥ 121dB (A-weighted) |
FREQUENCY RESPONSE | 20Hz~80kHz: damping<3dB 20Hz~20kHz: damping<0.1dB |
OUTPUT IMPEDANCE | <1Ω |
CROSSTALK | ≥ 72dB |
PEAK OUTPUT VOLTAGE | 11.5Vp-p |
THD+N & NOISE | <0.00045%(1kHz/-7dB @ 32Ω) <0.0004%(1kHz/-4dB @ 300 Ω) |
NOISE FLOOR | <3uV (A-weighted) |
THD+N & NOISE | <0.00042%(1kHz/-4dB @ 10KΩ) |
CROSSTALK | ≥ 105dB |
FREQUENCY RESPONSE | 20Hz~80kHz: damping<3dB 20Hz~20kHz: damping<0.1dB |
SNR | ≥ 123dB (A-weighted) |
NOISE FLOOR | <1.6uV (A-weighted) |
LINE OUTPUT LEVEL | 2Vrms |
OUTPUT POWER | L+R≥635mW+635mW (16Ω,THD+N<1%) L+R≥1610mW+1610mW (32Ω,THD+N<1%) L+R≥340mW+340mW (300Ω,THD+N<1%) |
SNR | ≥ 123dB (A-weighted) |
FREQUENCY RESPONSE | 20Hz~80kHz: damping<3dB 20Hz~20kHz: damping<0.1dB |
OUTPUT IMPEDANCE | <1.5Ω |
CROSSTALK | ≥ 113dB |
PEAK OUTPUT VOLTAGE | 29Vp-p |
THD+N & NOISE | <0.00055%(1kHz/-14dB @ 32Ω) <0.0003%(1kHz/-2dB @ 300 Ω) |
NOISE FLOOR | <4.8uV (A-weighted) |
OUTPUT POWER | L+R≥675mW+675mW (16Ω,THD+N<1%) L+R≥1060mW+1060mW (32Ω,THD+N<1%) L+R≥215mW+215mW (300Ω,THD+N<1%) |
SNR | ≥ 121dB (A-weighted) |
FREQUENCY RESPONSE | 20Hz~80kHz: damping<3dB 20Hz~20kHz: damping<0.1dB |
OUTPUT IMPEDANCE | <1.5Ω |
CROSSTALK | ≥ 113dB |
PEAK OUTPUT VOLTAGE | 23Vp-p |
THD+N & NOISE | <0.00055%(1kHz/-13dB @ 32Ω) <0.00025%(1kHz/-4.5dB@300Ω) |
NOISE FLOOR | <4.8uV (A-weighted) |
THD+N & NOISE | <0.00027%(1kHz/-5dB @ 10KΩ) |
CROSSTALK | ≥ 105dB |
FREQUENCY RESPONSE | 20Hz~80kHz: damping<3dB 20Hz~20kHz: damping<0.1dB |
SNR | ≥ 126dB (A-weighted) |
NOISE FLOOR | <1.8uV (A-weighted) |
LINE OUTPUT LEVEL | 4Vrms |

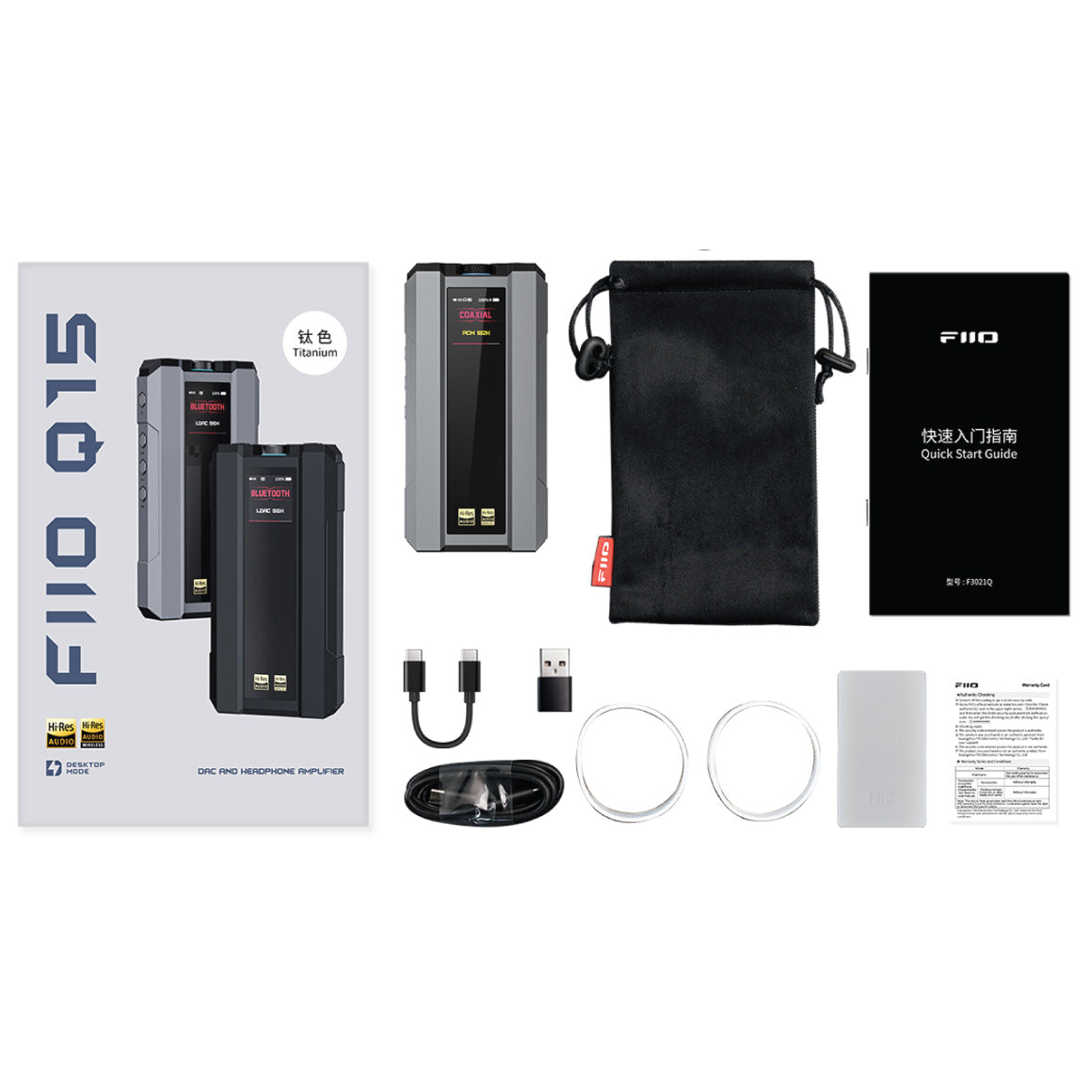

BOX CONTENTS | 1. FiiO Q15 |
2. Dual Type-C fast charging data cable | |
3. Dual Type-C short data cable | |
4. Type-A to C adapter | |
5. Storage bag x1 | |
6. Silicone pad x1 | |
7. PE film (Pre-applied) | |
8. Silicone ring x2 | |
9. Manual x1 | |
10. Warranty Card x1 |
GENERIC NAME | Headphone Amplifier |
IMPORTER DETAILS | Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
ENJOY DESKTOP-GRADE PERFORMANCE IN A PORTABLE FORM FACTOR WITH THE ALL-NEW FIIO Q15
After four years, FiiO is introducing the upgraded version of the Q5S, the Q15. Combining FiiO's advanced technologies in a user-friendly design, the Q15 offers a more comprehensive performance than any other DAC & Amp in its class. It is carefully designed to meet the diverse needs of both portable and desktop use in a single device. If you desire desktop-grade performance in a compact form factor, the FiiO Q15 is the perfect solution. This portable DAC & Amp features a high-end AKM flagship DAC, a powerful amp section, a five-level gain mode, and various other features. With support for Bluetooth, USB, and Coaxial inputs, it provides convenient connectivity with a range of devices.
FEATURES DUAL AKM DAC CHIPS WORKING IN TANDEM TO DELIVER NATURAL AND REALISTIC SOUND
The team at FiiO have pushed the envelope when it comes to engineering the Q15. The FiiO Q15 stands out among products of similar grade as it incorporates the latest DAC combination from AKM - the AK4191EQ+AK4499EX. These chips deliver exceptional performance in decoding high-resolution audio signals. With the innovative "DWA Routing Technology," the audio performance is significantly enhanced, resulting in a more detailed, natural, and realistic sound that immerses the listener as if they were at a live concert.
1600MW OF POWER DELIVERY WITH 5-LEVEL GAIN, DUAL HEADPHONE OUTPUTS AND DESKTOP MODE
The FiiO Q15 features dual headphone output ports (3.5mm single-ended and 4.4mm balanced), accommodating various headphones and IEMs. With a powerful amp section offering five-level gain modes and a maximum output of 1600mW, it caters to different sensitivity levels. Its well-designed audio circuit ensures ample dynamic range and fidelity, with dedicated IEMs and full-size headphone modes. The device functions as a portable desktop-grade unit, with a desktop mode and a separate Type-C power connector for external power. In this mode, the balanced output provides 1600mW, suitable for driving IEMs and headphones on the go.
EMBEDDED WITH QUALCOMM’S FLAGSHIP BLUETOOTH CHIP AND XMOS 3RD GEN USB PROCESSOR
The FiiO Q15 incorporates Qualcomm's premium QCC5125 chipset, facilitating low-latency wireless Bluetooth connectivity with high-definition codecs such as LDAC, AptX HD, AptX, and others. This allows for high-resolution sound quality even in wireless mode. Additionally, the device employs high-end chips, including the XMOS XU316 16-core 3rd-gen USB chipset for the DAC, supporting high-resolution audio signal decoding with capabilities for 32-bit/768kHz PCM, native DSD512, and full MQA signals.
SELF-DEVELOPED TRIPLE DIGITAL CORES FOR STABLE AND EFFICIENT OPERATION OF THE FIIO Q15
The FiiO Q15 is equipped with triple digital cores, including a TI Cortex M4 processor, XMOS 16-core XU316 with dual audio crystal oscillators, and a Qualcomm QCC5125 Bluetooth chip. This combination enables USB DAC, Bluetooth, and coaxial decoding in a unified device. The USB DAC supports 768kHz/32bit PCM, DSD512, and full MQA decoding, while Bluetooth decoding supports high-res codecs like LDAC and aptX Adaptive. Coaxial decoding supports 92kHz/24bit and DSD64. With digital components comparable to the FiiO Q7, the Q15 utilises the ARM processor to achieve USB, coaxial, and Bluetooth decoding seamlessly, ensuring low latency and efficient processing of digital audio signals.

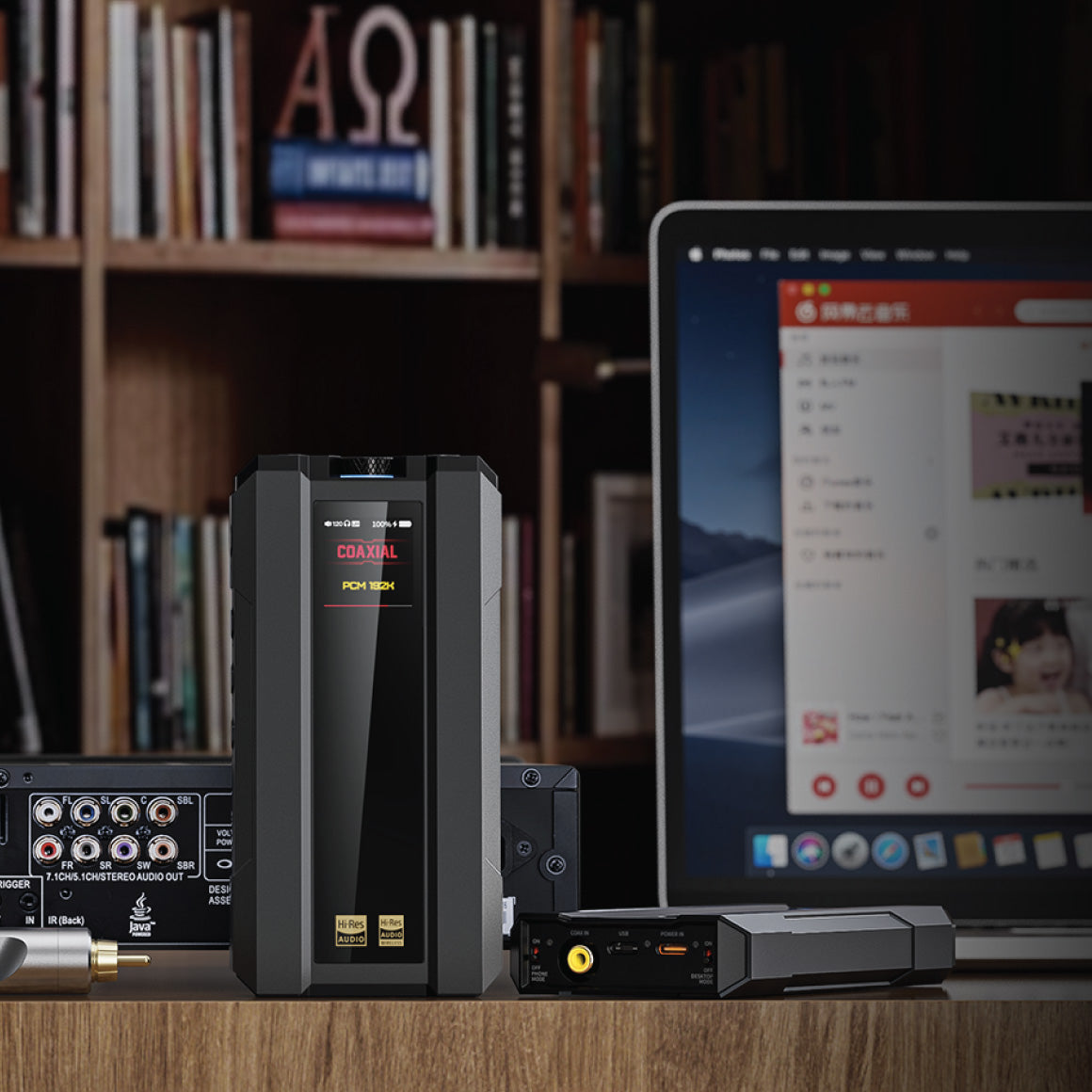

CAREFULLY IMPLEMENTED INPUT STAGE WITH USB, BLUETOOTH AND COAXIAL CONNECTIONS
Effortlessly connect the FiiO Q15 to various devices with its versatile input options. The Q15 supports wireless Bluetooth, wired USB, and wired coaxial modes. Coaxial mode facilitates connection with CD players and other AUX devices, USB allows easy connection with digital media devices, and Bluetooth mode provides a convenient link to smartphones and other wireless devices. This flexibility enables you to enjoy your music conveniently and seamlessly. Additionally, the Q15's coaxial input allows direct connection to digital streamers and CD players, eliminating potential losses associated with indirect connectivity issues.
EXCLUSIVE PHONE MODE OPERATION AND BUILT-IN COMPREHENSIVE PROTECTION MECHANISM
The FiiO Q15 features an exclusive phone mode, easily activated through a standard switch on the device's back. In this mode, the Q15 operates solely on its battery, preserving the smartphone's battery life. This feature ensures prolonged performance and battery longevity for your smartphone. FiiO's engineering incorporates multiple hardware and software protection measures for worry-free sound enjoyment. These include a maximum volume limit to prevent hearing damage, a high-temperature-resistant battery with temperature-based charging control for extended durability, and protection mechanisms against over-heating, over-voltage, and DC issues, ensuring stable power output and headphone safety.
NOTE: If you need to connect to a computer, turn off Phone Mode.
FREEDOM TO CUSTOMISE YOUR SOUND THE WAY YOU WANT WITH A BUILT-IN GLOBAL PEQ
The FiiO Q15 is equipped with seven EQ presets and three customisable PEQ presets that can be applied in both Bluetooth and USB DAC modes. FiiO's self-developed PEQ algorithm and a user-friendly interface allow you to precisely adjust frequencies, gain levels, and bandwidth, enabling fine-tuning for your preferred sound profile. Customisable PEQ, including support for coaxial input, will be available through future firmware updates. USB DAC PEQ supports 192kHz/24bit PCM, with EQ management handled by the XMOS chip. When toggling EQ on and off in USB DAC mode, the USB connection briefly disconnects and automatically reconnects, and tapping "play" restores the output. Furthermore, experience subtle changes in the sound with 7 built-in filters.
15-WAY DIGITAL-ANALOG POWER SUPPLY FUSED WITH HIGH-QUALITY COMPONENTS FOR CLEAN SOUND
Within the FiiO Q15, a sophisticated 15-way digital-analog power supply is incorporated, encompassing systems for the digital segment, analog segment, and headphone amplifiers. The precise regulation involves 21 low-noise LDOS and an ample energy reservoir with 35 low-resistance tantalum capacitors. To minimise crosstalk and shield against external interference, the audio circuit segregates the digital and analog components. FiiO's meticulous selection includes 60 1% precision, low-temperature drift resistors, and 28 wide temperature range NPO capacitors, ensuring the Q15 faithfully reproduces high-quality audio with unparalleled fidelity even in challenging conditions.
PORTABLE DESKTOP-GRADE PERFORMANCE WITH FULL-COLOUR IPS DISPLAY AND VOLUME KNOB
The FiiO Q15 introduces a novel desktop mode, accompanied by a dedicated Type-C power connector. When connected to the PD power adapter, this configuration enables external power, completely bypassing the battery and providing a desktop-like experience on the go. Additionally, the Q15 boasts a 1.3-inch full-colour IPS display, offering a clear view of vital information like working mode, sampling rate, volume level, battery status, gain, and more. The display adapts seamlessly to changes in orientation, ensuring optimal functionality. You can choose when the screen goes to sleep, helping to save power according to your usage habits. Coupled with the versatile volume knob, users can swiftly and accurately perform various functions, including volume adjustment, input switching, and menu settings.

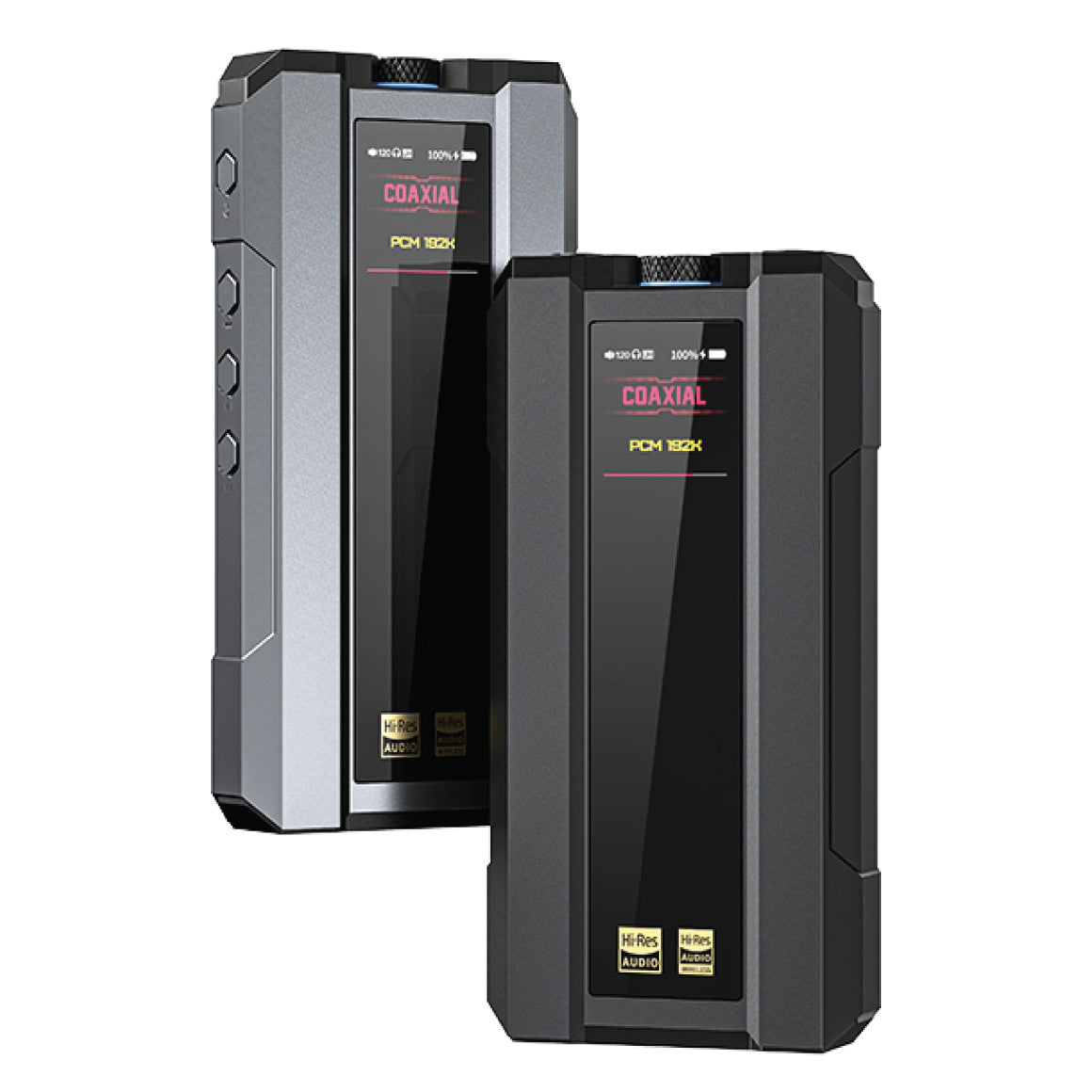

EXPERTLY DESIGNED AND ENGINEERED WITH APP SUPPORT AND AVAILABLE IN TWO COLOURS

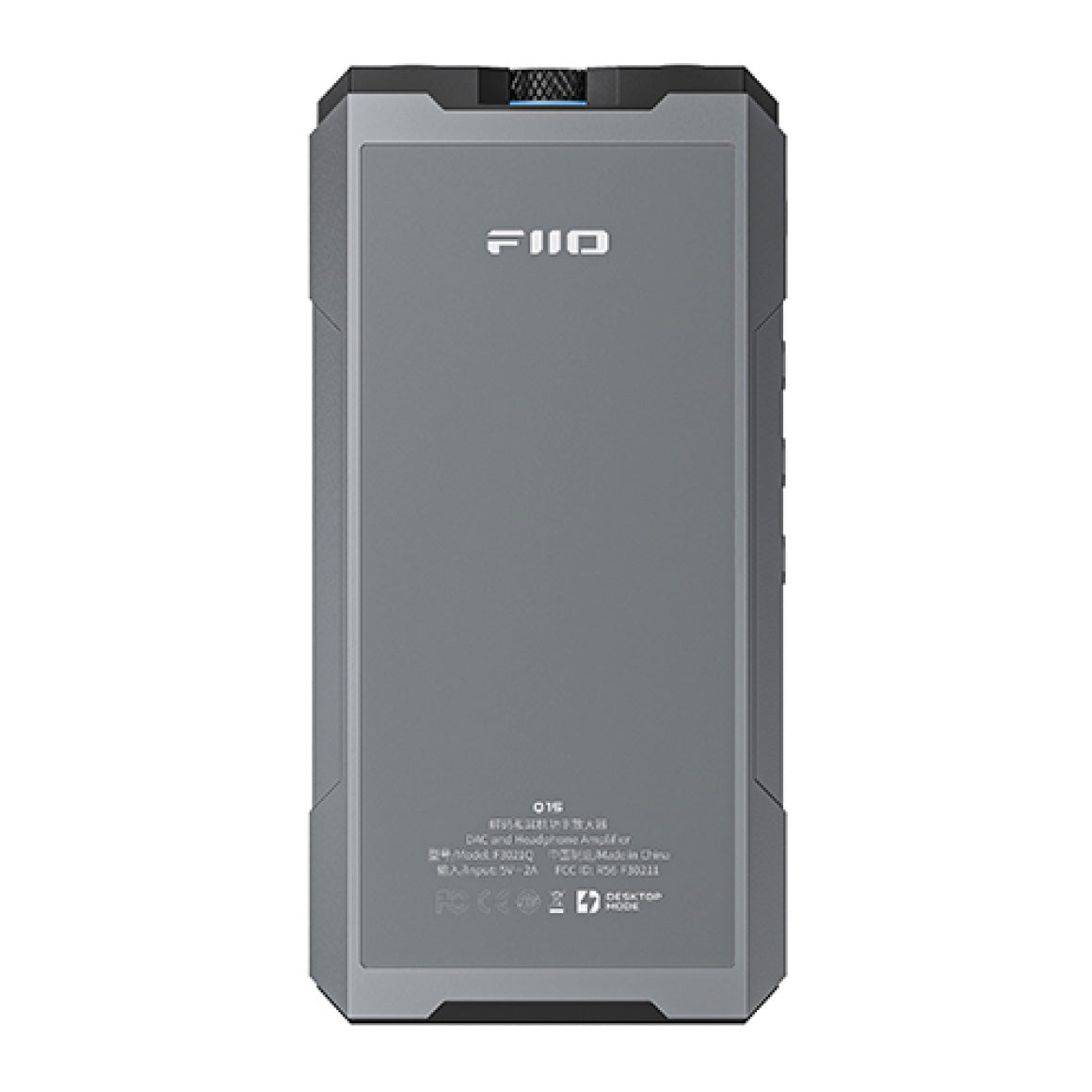

The FiiO Q15 introduces AG glass on its back panel, providing anti-scratch and anti-fingerprint properties with a refined touch. Its golden size ratio of 18:9 ensures comfortable handling, whether used on its own or alongside other portable devices. Whether you're on the go or a business trip, maintaining control over your high-quality sound is effortless. The FiiO Control App (for Android, for iOS) facilitates easy management and adjustment of functions. The Q15 is offered in two colours, Black and Titanium Grey, providing options to suit your preference.
HARDWARE SOLUTION | DAC: AK4191EQ+AK4499EX USB: XMOS XU316 Bluetooth decoding: QCC5125 |
VOLUME CONTROL | Volume knob |
DRIVER-FREE MODE (SWITCH MODE) | Supported |
MQA | Supports MQA Full Decoder |
GAIN | Ultra High (In Desktop mode, Power in port connected with QC power) /Super High/High/Medium/Low gain mode |
DISPLAY | 1.30-inch TFT (240*240) bezel-less display |
FIIO CONTROL | Supports settings through app |
STATUS DISPLAY | On the display: Bluetooth codec, sampling rate, charging status, battery level, volume level, input source, gain level, power mode |
SAMPLE RATE DISPLAY | Cyan: 44.1kHz/48kHz Yellow: 88.2/96/176/352.8/384/705.6/768kHz Green: DSD64/128/256/512 Purple: MQA |
BLUETOOTH CODEC DISPLAY | Blue: SBC Cyan: AAC Purple: aptX/aptX LL Yellow: aptX HD White: LDAC Green: aptX Adaptive |
BLUETOOTH RECEPTION (5.1) | AAC/SBC/aptX/aptX LL/aptX Adaptive/aptX HD/LDAC |
CHANNEL BALANCE | <0.2dB |
MAX SAMPLING RATE | USB DAC: Up to PCM 768kHz/32bit, native DSD512 Coaxial decoding: Up to PCM 192kHz/24bit, DoP DSD64 |
RECOMMENDED IMPEDANCE | PO:8~150Ω BAL:8~350Ω |
FIRMWARE UPGRADE | Bluetooth firmware supports upgrade through OTA XMOS/system firmware supports upgrade through USB |
COLOR | Black/ Titanium |
WEIGHT | About 305g |
DIMENSIONS | About 143.5x71.75x21.75mm |
BUTTONS | Power button*1, Play/Pause*1, Previous track*1, Next track*1, Encoder knob (with confirm button) *1 |
HEADPHONE OUTPUT | Standard 3.5mm port |
LINE-OUT OUTPUT | Standard 3.5mm port (shared PO) |
DIGITAL COAXIAL INPUT | RCA port |
USB | Type-C USB2.0*2 Black USB (charging/data transfer), orange POWER IN (charging) |
BALANCED HEADPHONE OUTPUT | Standard 4.4mm port |
BALANCED LINE-OUT OUTPUT | Standard 4.4mm port (shared 4.4mm BAL headphone out) |
TOGGLE SWITCH | PHONE MODE switch*1;DESKTOP MODE switch*1 |
POWER SUPPLY | Supports PD fast charging and ordinary charging |
CHARGING TIME | About 3.5h (PD fast charge) |
BATTERY CAPACITY | 5500mAh lithium polymer battery |
AUDIO INPUT | 3.5mm headphone out: ≥9h: USB decoding/coaxial decoding 4.4mm BAL headphone out: ≥8h: USB decoding/coaxial decoding 3.5mm headphone out: ≥9h: Bluetooth 4.4mm BAL headphone out: ≥8h: Bluetooth |
VOLUME LEVEL | 3.5mm headphone out: ≥9h: L40 4.4mm BAL headphone out: ≥8h: L 34 3.5mm headphone out: ≥9h: L 40 4.4mm BAL headphone out: ≥8h: L 34 |
DISPLAY STATUS | 3.5mm headphone out: ≥9h : OFF 4.4mm BAL headphone out: ≥8h: OFF 3.5mm headphone out: ≥9h : OFF 4.4mm BAL headphone out: ≥8h: OFF |
LOAD | 3.5mm headphone out: ≥9h : 32 Ω 4.4mm BAL headphone out: ≥8h: 32 Ω 3.5mm headphone out: ≥9h : 32 Ω 4.4mm BAL headphone out: ≥8h: 32 Ω |
GAIN LEVEL | 3.5mm headphone out: ≥9h: Super High Gain mode 4.4mm BAL headphone out: ≥8h: BSuper High Gain mode 3.5mm headphone out: ≥9h: Super High Gain mode 4.4mm BAL headphone out: ≥8h: Super High Gain mode |
PLAYING TRACK AND FORMAT | 3.5mm headphone out: ≥9h: MP3 44.1KHz/16bit 4.4mm BAL headphone out: ≥8h: MP3 44.1KHz/16bit 3.5mm headphone out: ≥9h: MP3 44.1KHz/16bit 4.4mm BAL headphone out: ≥8h: MP3 44.1KHz/16bit |
CHARGING SWITCH | 3.5mm headphone out: ≥9h: OFF 4.4mm BAL headphone out: ≥8h: OFF |
BLUETOOTH CODEC | 3.5mm headphone out: ≥9h: AAC 4.4mm BAL headphone out: ≥8h: AAC |
BASS/EQ | 3.5mm headphone out: ≥9h: OFF 4.4mm BAL headphone out: ≥8h: OFF |
OUTPUT POWER | L+R≥750mW+750mW (16Ω, THD+N<1%) L+R≥625mW+625mW (32Ω, THD+N<1%) L+R≥85mW+85mW (300Ω,THD+N<1%) |
SNR | ≥ 123dB (A-weighted) |
FREQUENCY RESPONSE | 20Hz~80kHz: damping<3dB 20Hz~20kHz: damping<0.1dB |
OUTPUT IMPEDANCE | <1Ω |
CROSSTALK | ≥ 72dB |
PEAK OUTPUT VOLTAGE | 14.5Vp-p |
THD+N & NOISE | <0.0005%(1kHz/-9dB @ 32Ω) <0.0004%(1kHz/-6dB @ 300 Ω) |
NOISE FLOOR | <3.1uV (A-weighted) |
OUTPUT POWER | L+R≥520mW+520mW (16Ω,THD+N<1%) L+R≥400mW+400mW (32Ω,THD+N<1%) L+R≥55mW+55mW (300Ω,THD+N<1%) |
SNR | ≥ 121dB (A-weighted) |
FREQUENCY RESPONSE | 20Hz~80kHz: damping<3dB 20Hz~20kHz: damping<0.1dB |
OUTPUT IMPEDANCE | <1Ω |
CROSSTALK | ≥ 72dB |
PEAK OUTPUT VOLTAGE | 11.5Vp-p |
THD+N & NOISE | <0.00045%(1kHz/-7dB @ 32Ω) <0.0004%(1kHz/-4dB @ 300 Ω) |
NOISE FLOOR | <3uV (A-weighted) |
THD+N & NOISE | <0.00042%(1kHz/-4dB @ 10KΩ) |
CROSSTALK | ≥ 105dB |
FREQUENCY RESPONSE | 20Hz~80kHz: damping<3dB 20Hz~20kHz: damping<0.1dB |
SNR | ≥ 123dB (A-weighted) |
NOISE FLOOR | <1.6uV (A-weighted) |
LINE OUTPUT LEVEL | 2Vrms |
OUTPUT POWER | L+R≥635mW+635mW (16Ω,THD+N<1%) L+R≥1610mW+1610mW (32Ω,THD+N<1%) L+R≥340mW+340mW (300Ω,THD+N<1%) |
SNR | ≥ 123dB (A-weighted) |
FREQUENCY RESPONSE | 20Hz~80kHz: damping<3dB 20Hz~20kHz: damping<0.1dB |
OUTPUT IMPEDANCE | <1.5Ω |
CROSSTALK | ≥ 113dB |
PEAK OUTPUT VOLTAGE | 29Vp-p |
THD+N & NOISE | <0.00055%(1kHz/-14dB @ 32Ω) <0.0003%(1kHz/-2dB @ 300 Ω) |
NOISE FLOOR | <4.8uV (A-weighted) |
OUTPUT POWER | L+R≥675mW+675mW (16Ω,THD+N<1%) L+R≥1060mW+1060mW (32Ω,THD+N<1%) L+R≥215mW+215mW (300Ω,THD+N<1%) |
SNR | ≥ 121dB (A-weighted) |
FREQUENCY RESPONSE | 20Hz~80kHz: damping<3dB 20Hz~20kHz: damping<0.1dB |
OUTPUT IMPEDANCE | <1.5Ω |
CROSSTALK | ≥ 113dB |
PEAK OUTPUT VOLTAGE | 23Vp-p |
THD+N & NOISE | <0.00055%(1kHz/-13dB @ 32Ω) <0.00025%(1kHz/-4.5dB@300Ω) |
NOISE FLOOR | <4.8uV (A-weighted) |
THD+N & NOISE | <0.00027%(1kHz/-5dB @ 10KΩ) |
CROSSTALK | ≥ 105dB |
FREQUENCY RESPONSE | 20Hz~80kHz: damping<3dB 20Hz~20kHz: damping<0.1dB |
SNR | ≥ 126dB (A-weighted) |
NOISE FLOOR | <1.8uV (A-weighted) |
LINE OUTPUT LEVEL | 4Vrms |
BOX CONTENTS | 1. FiiO Q15 |
2. Dual Type-C fast charging data cable | |
3. Dual Type-C short data cable | |
4. Type-A to C adapter | |
5. Storage bag x1 | |
6. Silicone pad x1 | |
7. PE film (Pre-applied) | |
8. Silicone ring x2 | |
9. Manual x1 | |
10. Warranty Card x1 |
GENERIC NAME | Headphone Amplifier |
IMPORTER DETAILS | Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
Don't sweat it, this
FiiO - Q15 comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
Inspiring Audio Excellence Worldwide
Explore CollectionHFN Recommended
Headfonia
Nov, 2023
"The FiiO Q15 sounds great, has more than enough power that you might need, and features options that are even absent from the Q7 making it the best DAC/AMP I own."
Read More"Q15 is a very versatile devices that can be used in all kinds of scenario, and I can whole heartedly recommend the Q15 for its asking price. "
Read MoreHave a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is the warranty period on the FiiO Q15 and how do I claim warranty?
What are the power delivery capabilities of the FiiO Q15, and how does it accommodate different headphones?
Does the FiiO Q15 support wireless connectivity, and what Bluetooth codecs are included?
How does the FiiO Q15 handle different input modes, including USB, Bluetooth, and Coaxial?
What is the purpose of the exclusive phone mode, and how does it impact battery life?
How is the power supply implemented in the FiiO Q15, and what components contribute to clean sound?
Can the FiiO Q15 be used as a portable desktop-grade unit?
What additional features are offered, and what app support is available for the FiiO Q15?
This product is rated 4.7 of 5.0 stars.
It has received 3 reviews.
