Bluetooth with LDAC,
aptX HD, SBC & AAC
ESS Sabre ES9038PRO
Dual DAC Chip
Connect With USB-B/C, Optical,
Coaxial, I2S & AES
S.M.S.L INTRODUCES THE WIDELY AWAITED HI-RES CERTIFIED DAC - THE SU-10
The brand S.M.S.L is well-known in the high-end audio industry. It specialises in desktop audio equipment and provides a selection of desktop decoders, headphone amplifiers, power amplifiers, etc. S.M.S.L wanted to come up with something cleaner and more precise. S.M.S.L is pleased to present the brand-new SU-10, their newest flagship desktop DAC. The S.M.S.L SU-10 is a feature-rich Desktop DAC with dual ES9038PRO DAC chips incorporated in its circuitry. It supports DoP (DSD Over PCM) and native DSD (Direct Stream Digital), with PCM (Pulse Code Modulation) up to 768kHz and DSD up to DSD512. It is also equipped with Bluetooth 5.0 and supports industry-leading Bluetooth codecs. The S.M.S.L SU-10 is also Hi-Res certified by JAS.
FEATURES DUAL DAC CHIPS FROM ESS SABRE WITH BLUETOOTH 5.0 AND MQA SUPPORT
SU-10 hosts dual high-end ES9038PRO D/A chips from ESS Sabre and uses all 16 channels, with a total of 21pcs OPA1612A op-amp. With the third-generation ES9038PRO circuit design, the distortion is as low as 0.00005% (at 5.3V output), which makes the SU-10 more stable. It also features a high-performance power supply system with noise as low as 1uVrms. It supports DoP (DSD Over PCM) and native DSD (Direct Stream Digital), with PCM (Pulse Code Modulation) up to 768kHz and DSD up to DSD512. The SU-10 supports Bluetooth 5.0 with Qualcomm's latest chipset and codec support like LDAC, aptX/HD, AAC, and SBC. It also supports MQA & MQA-CD (Master Quality Authenticated). Your CD player's digital output (optical or coaxial) can be connected to SU-10. Its MQA decoder can restore the original high-resolution signal heard in the studio and confirm it using the authentication signature. The SU-10 also offers seven digital filters for PCM signal allowing you to get a suitable sound timbre.
3RD GENERATION XMOS USB PROCESSOR FUSED WITH CK-03 CLOCK ARCHITECTURE TO REDUCE JITTER
S.M.S.L SU-10 utilises a 3rd generation XMOS XU316 USB processor that allows you to experience a "true" 32-bit USB performance. It supports high-resolution PCM up to 768kHz, Native DSD512, and DoP (DSD Over PCM) signal decoding support. USB, Optical, Coaxial, I2S, AES support DSD, Coaxial, Optical and AES support DOP64. To get the best possible "performance," there are two dedicated power supplies for the digital and analogue units. The SU-10 offers a stable, dependable, and effective performance thanks to its multiple low noise-regulated power supply. S.M.S.L has equipped the SU-10 with their in-house developed brand-new; CK-03 clock architecture that lowers the clock jitter.

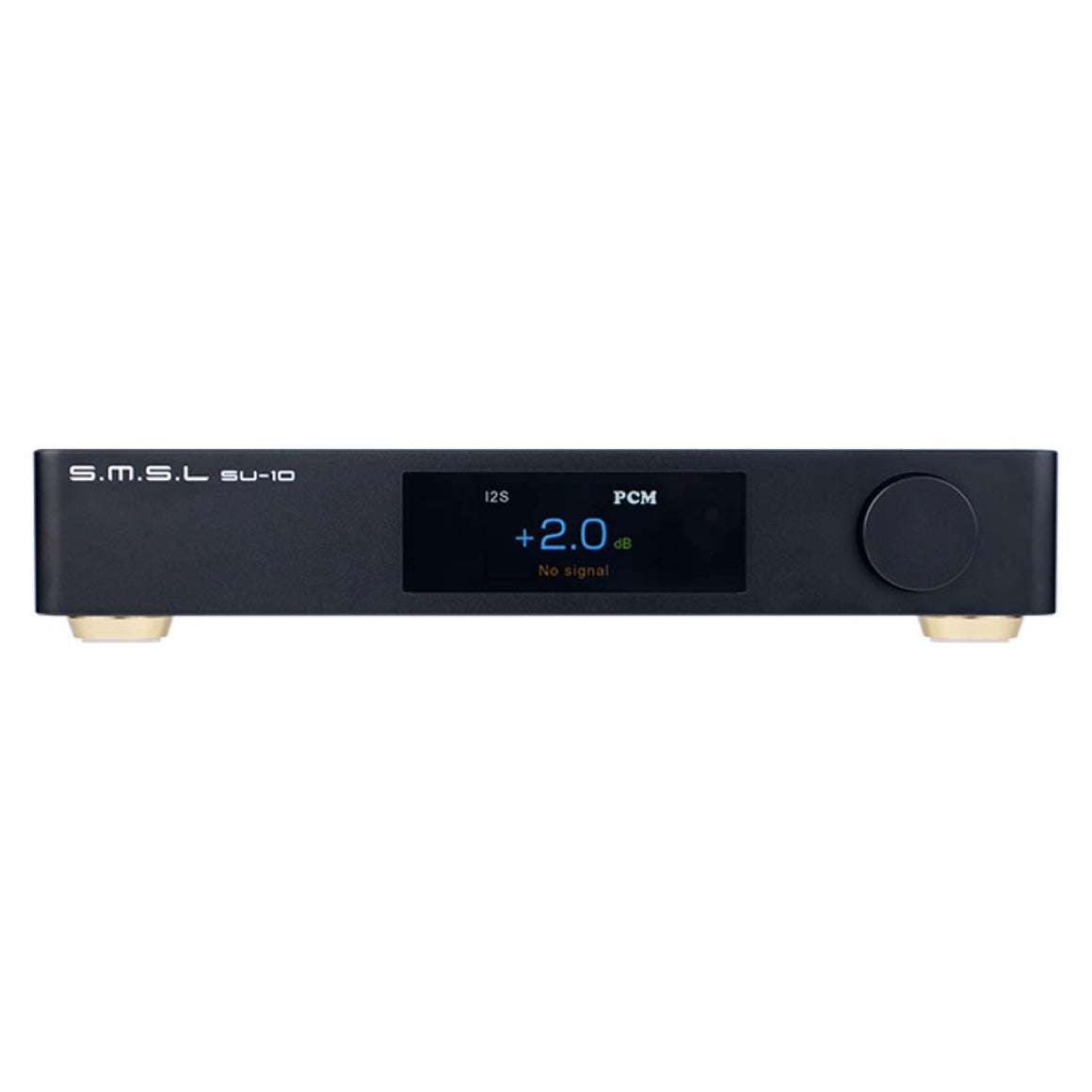

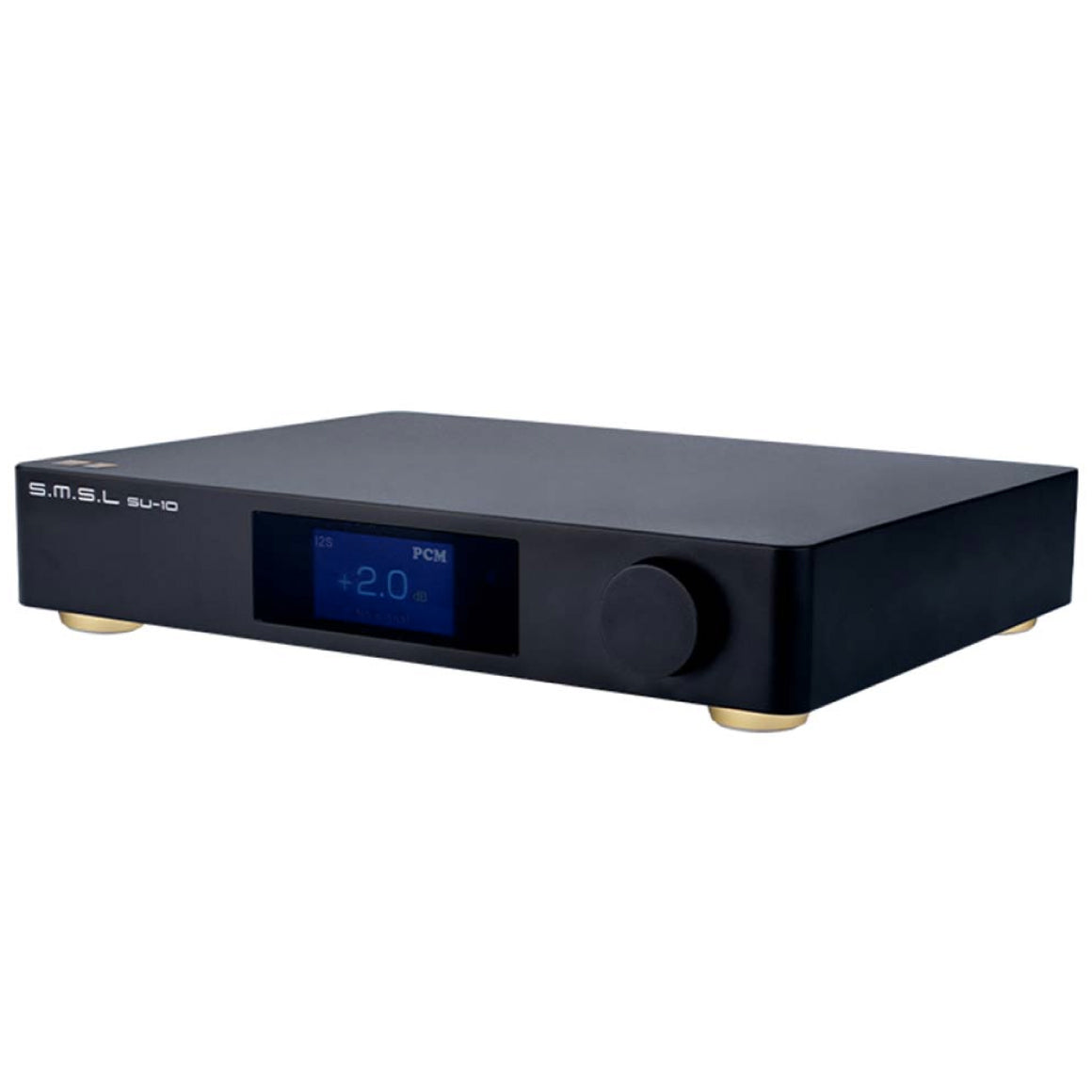

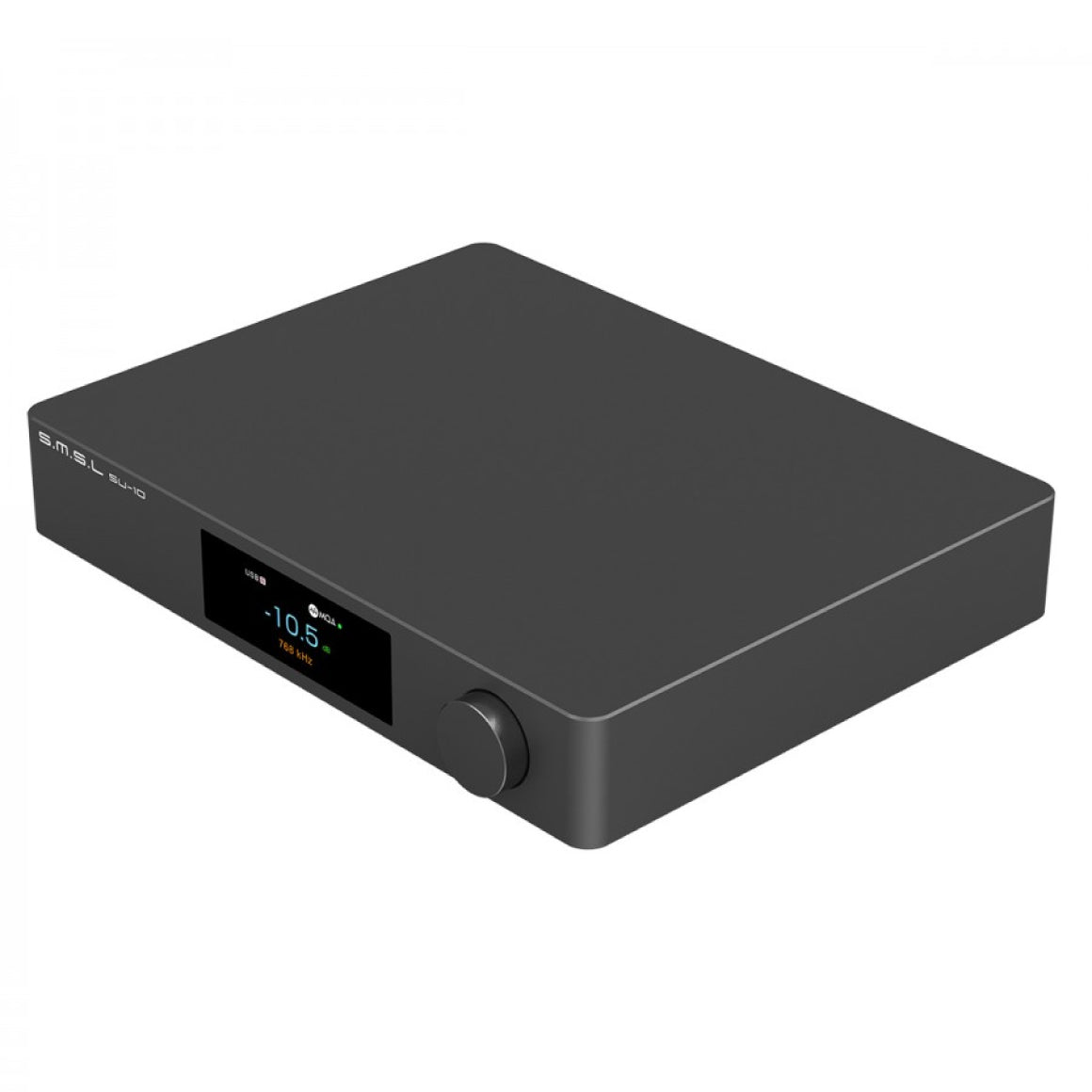

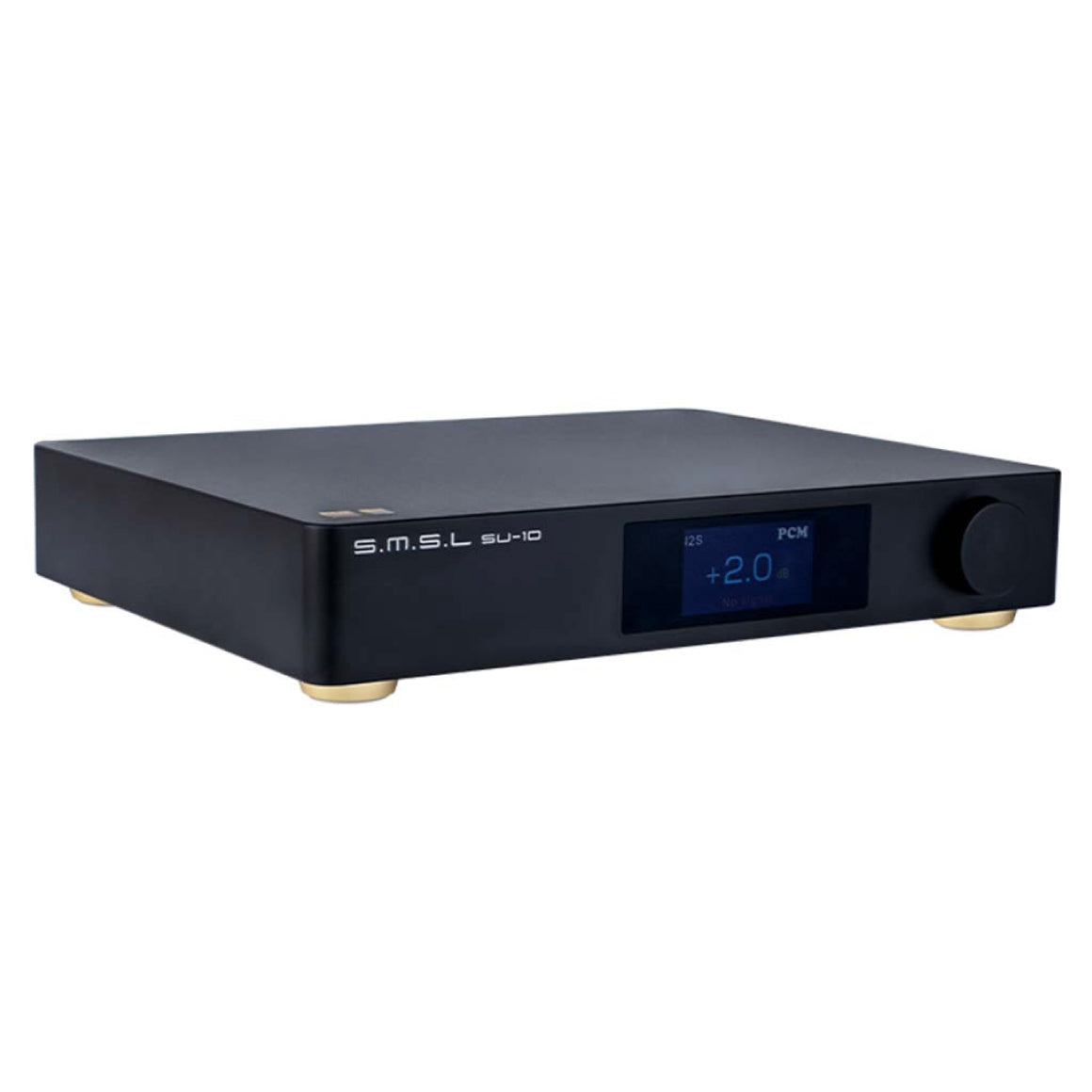

PRECISE CNC MILLED ALUMINUM ALLOY SHELL WITH FULLY FITTED COLOURFUL DISPLAY
S.M.S.L has designed the SU-10 with an exquisitely finished aluminium alloy chassis. It has a "spectacular" look with its fully fitted colourful display. It is worth mentioning that the outer finish is anodized and chamfered, bringing a "delicate" smooth finish and reliable durability. Employing a fully fitted tempered glass display panel, the S.M.S.L features a fully "fitted" screen with first-class texture with higher light transmittance. This high-grade and durable SU-10 highlights simplicity and beauty.

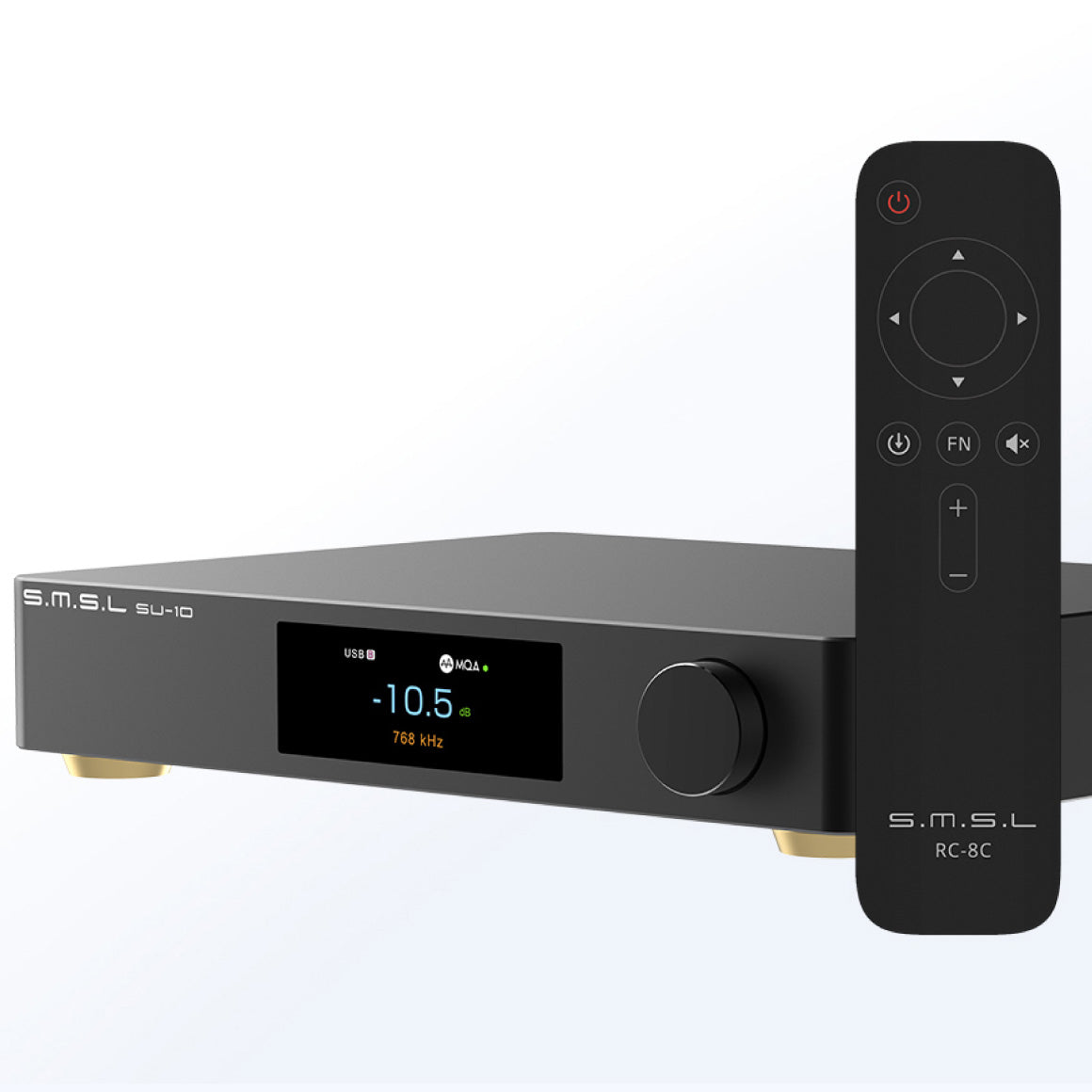

EQUIPPED WITH REMOTE AND THOUGHTFUL INPUTS AND OUTPUTS

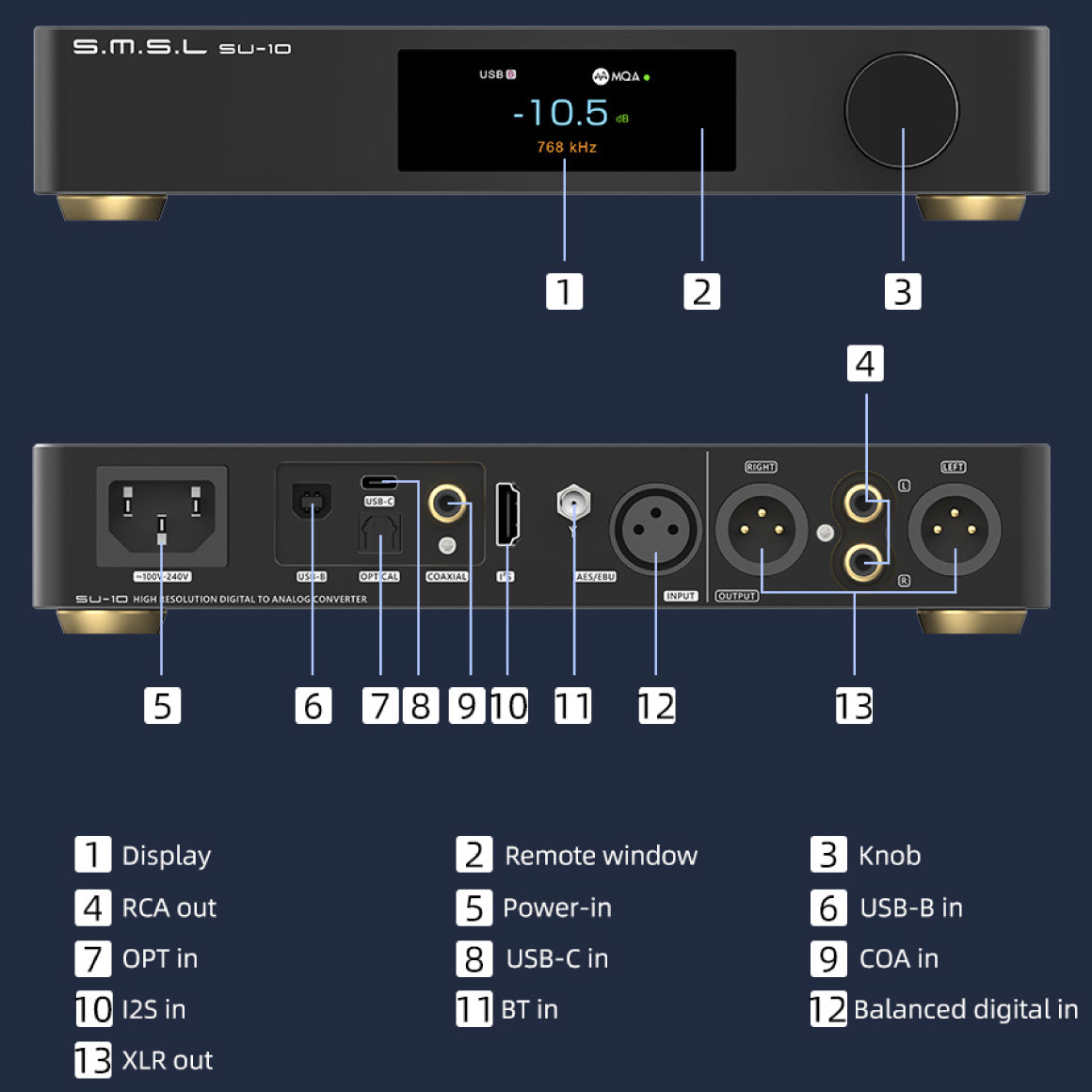

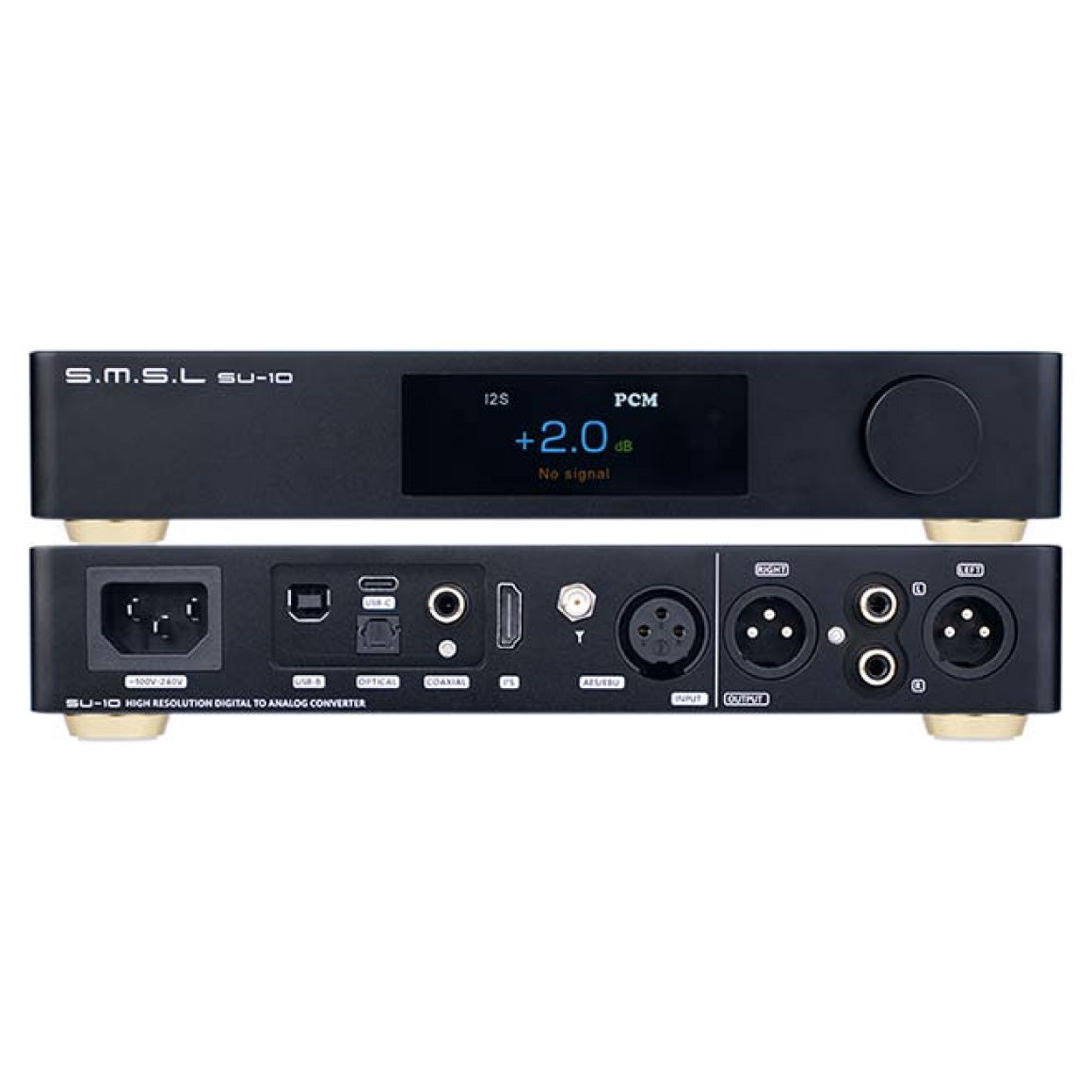

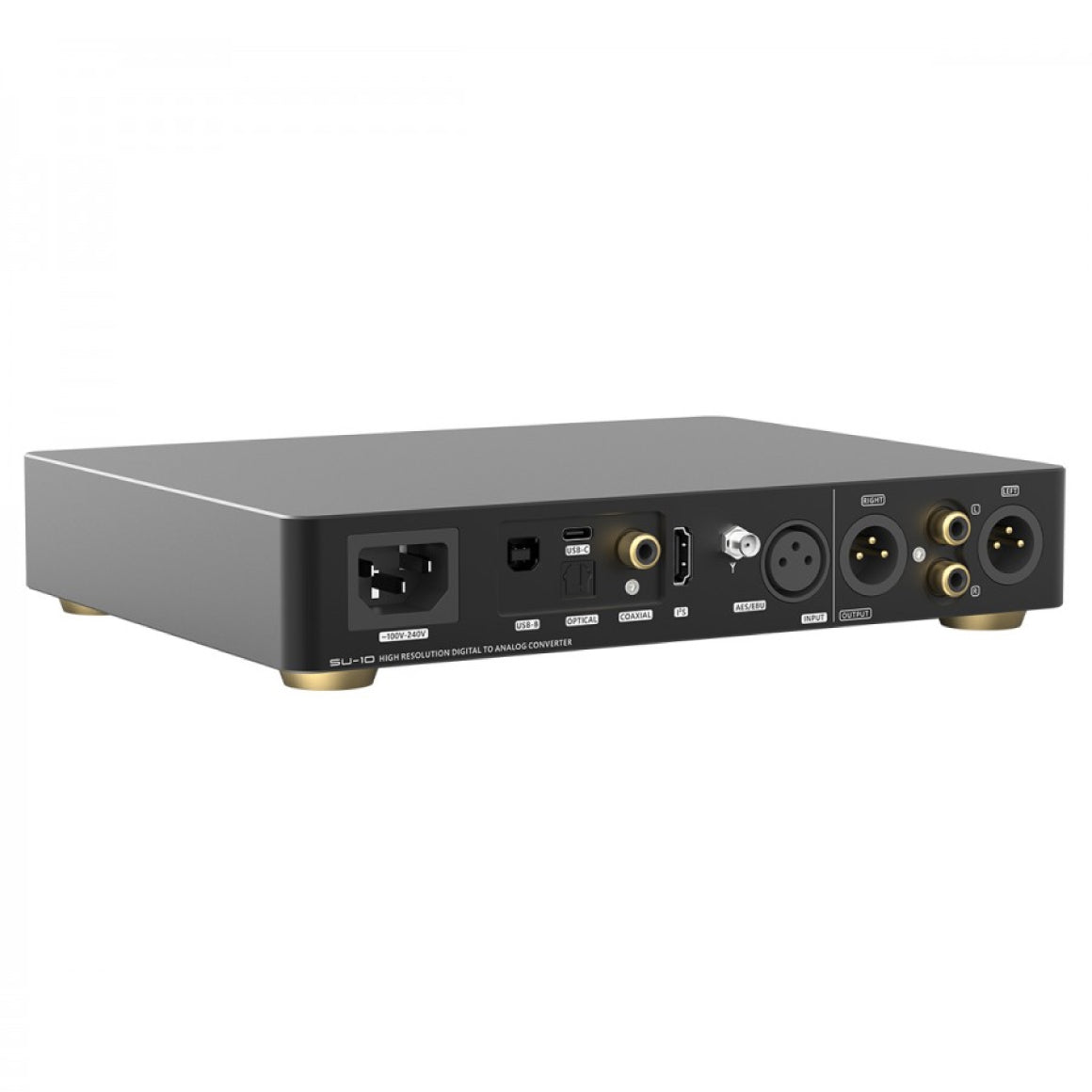

The S.M.S.L SU-10 also comes equipped with a fully functional remote, allowing you to control various functions from the comfort of your couch. The SU-10 also comes with "functional" inputs and outputs. The front panel consists of a knob, display and "remote" window. The rear panel has an RCA out, power-IN, USB-B IN, OPT IN, USB-C IN, COA IN, I2S IN, Bluetooth IN, Balanced digital IN (AES), and XLR out.
|INPUTS||USB / Optical / Coaxial / Bluetooth/ I²S / AES|
|OUTPUTS||RCA / XLR|
|LINE OUTPUT AMPLITUDE||XLR - 5.1Vrms
RCA - 2.6Vrms
|DYNAMIC RANGE||XLR - 135dB
RCA - 128dB
|SNR||XLR - 135dB
RCA - 128dB
|USB SPEC||USB 2.0 Asynchronization|
|USB COMPATIBILITY||Windows 7 / 8 / 8.1 / 10(Needs Driver)
Mac OSX10.6 or Later、Linux(Driverless)
|MQA DECODER||USB / Optical / Coaxial / I²S / AES|
|MQA-CD DECODER||Optical / Coaxial / AES|
|SAMPLING RATE & BIT WIDTH||USB PCM - 44.1 ~ 768kHz(32bit)
DSD - 2.8224 ~ 22.5792MHz(1bit)
Optical / Coaxial - 44.1 ~ 192kHz(24bit)
DoP - DoP256(USB),DoP64(Optical / Coaxial / AES)

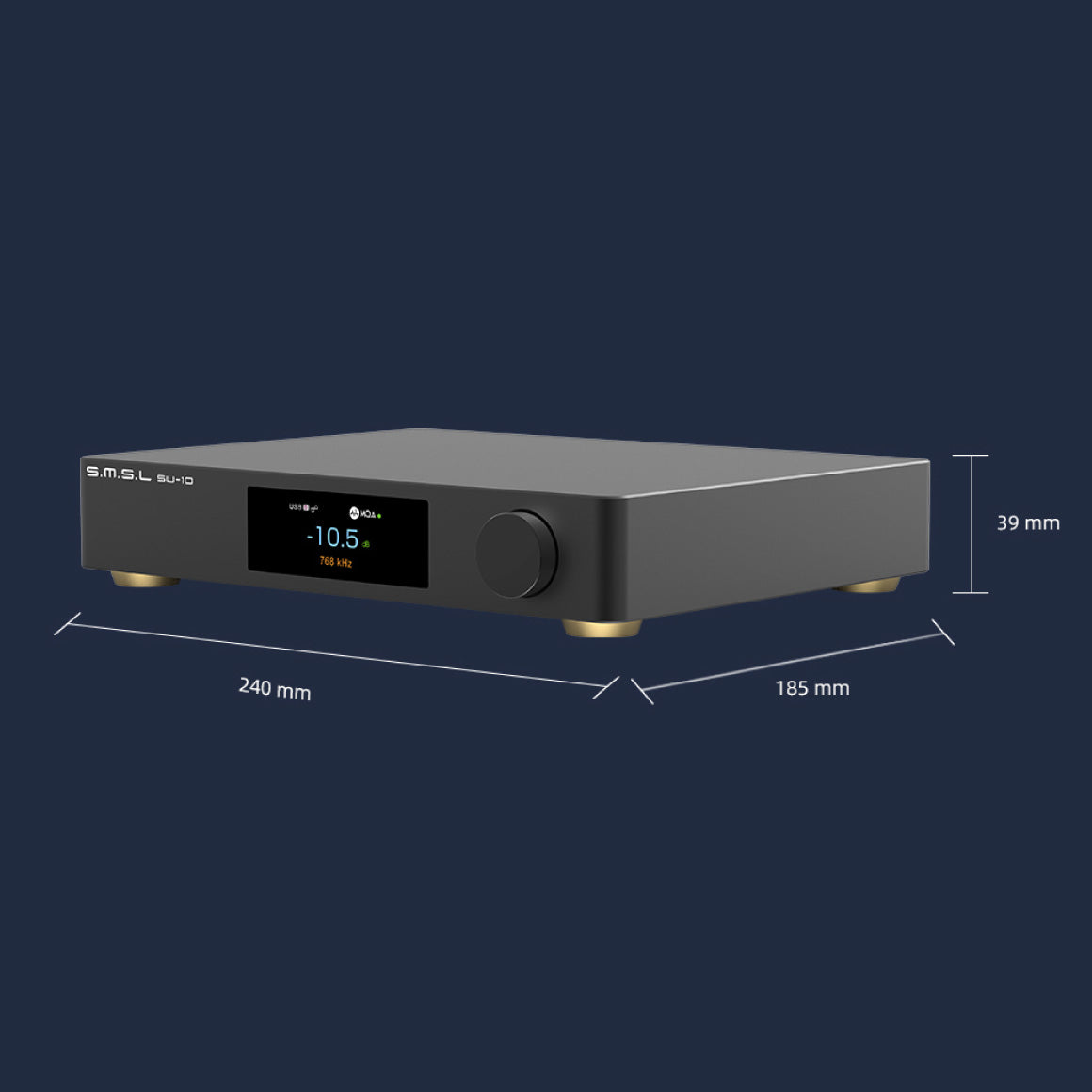

|SIZE||240 x 185 x 39mm (WxHxD)|
|BOX CONTENTS||1. S.M.S.L SU-10 DAC|
|2. 1 X Remote Control|
|GENERIC NAME||Digital Audio Converter|
|IMPORTER DETAILS||Importers Name: Ferrari Video
Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020
Contact No: 044-24420733
Using two high-end ES9038PRO D/A chips from ESS, and using all 16 channels, up to 21 OPA1612A operational amplifiers in total;
Combined with a high-performance power supply system, the noise is as low as 1uVrms;
The 3rd ES9038PRO circuit design has a surprisingly low distortion of 0.00005% and is more stable;
The new self-developed CK-03 clock processing circuit greatly reduces clock jitter;
Use USB XMOS XU-316, a 32-bit USB scheme, which supports DoP and native DSD, with PCM up to 768kHz and DSD up to DSD512;
USB, Optical, Coaxial, I2S, AES support DSD, Coaxial , Optical and AES support DOP64;
Use tempered glass display panel for higher light transmission and longer service life;
Built-in shielded, low noise power supply processing, while improving power efficiency, lower power consumption;
Two sets of linear power are used to supply to the digital and analog units respectively. Equipped with multiple low-noise regulated power for providing S.M.S.L SU-10 a stable, reliable, efficient and low-noise power supply system;
Qualcomm's latest Bluetooth chip supports LDAC, APTX/HD, SBC, AAC;
High quality gold-plated input and output jacks;
21 high-end dual op-amps OPA1612 and a lot of audio grade components are used;
JAS Hi-Res certification;
Equipped with full-function remote control
USB TYPE C
1 Year Warranty
Don't sweat it, this S.M.S.L - SU-10 comes with a warranty
from S.M.S.L that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about S.M.S.L's warranty in India.
"The SU-10 is an excellently engineered DAC. It aims to squeeze the last bit of performance available. Such improvement is limited by how well I can measure it due to analyzer noise itself. We clearly have state of the art performance here."Read More
"SU-10 provides up to 7 kinds of filters, giving variable sound timbre, suitable for the majority of users. With multiple low-noise regulated power supplies, provide the SU-10 with a stable, reliable, efficient, and low-noise power supply system."Read More
