TOPPING

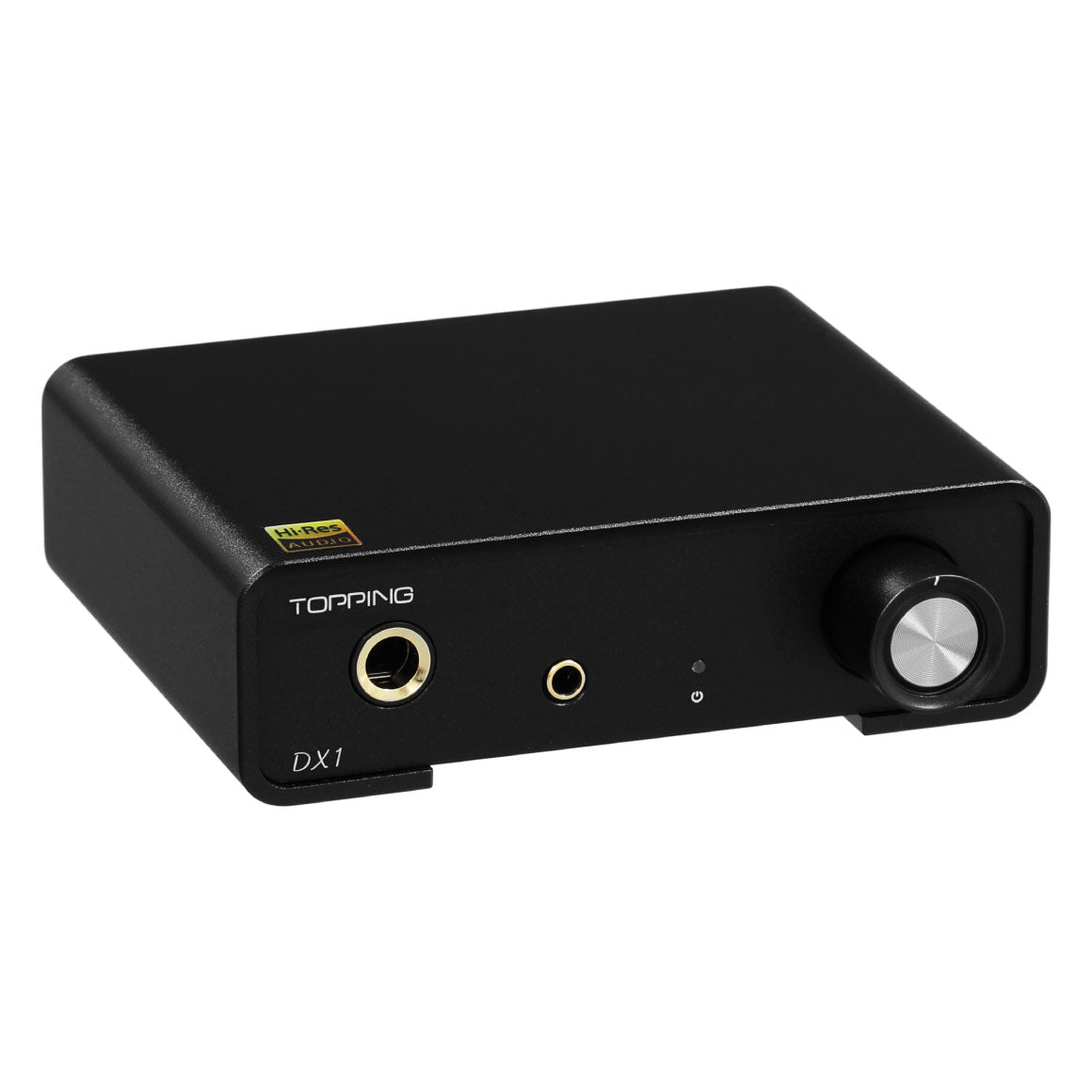

TOPPING - DX1
Desktop DAC & Amp24 Hours
Delivery
Chi-Fi
Excellence
Ideal for
Desktop Use
AKM AK4493S
DAC Chip
Connect With
USB
280mW x 2 @ 32Ω
Power Output

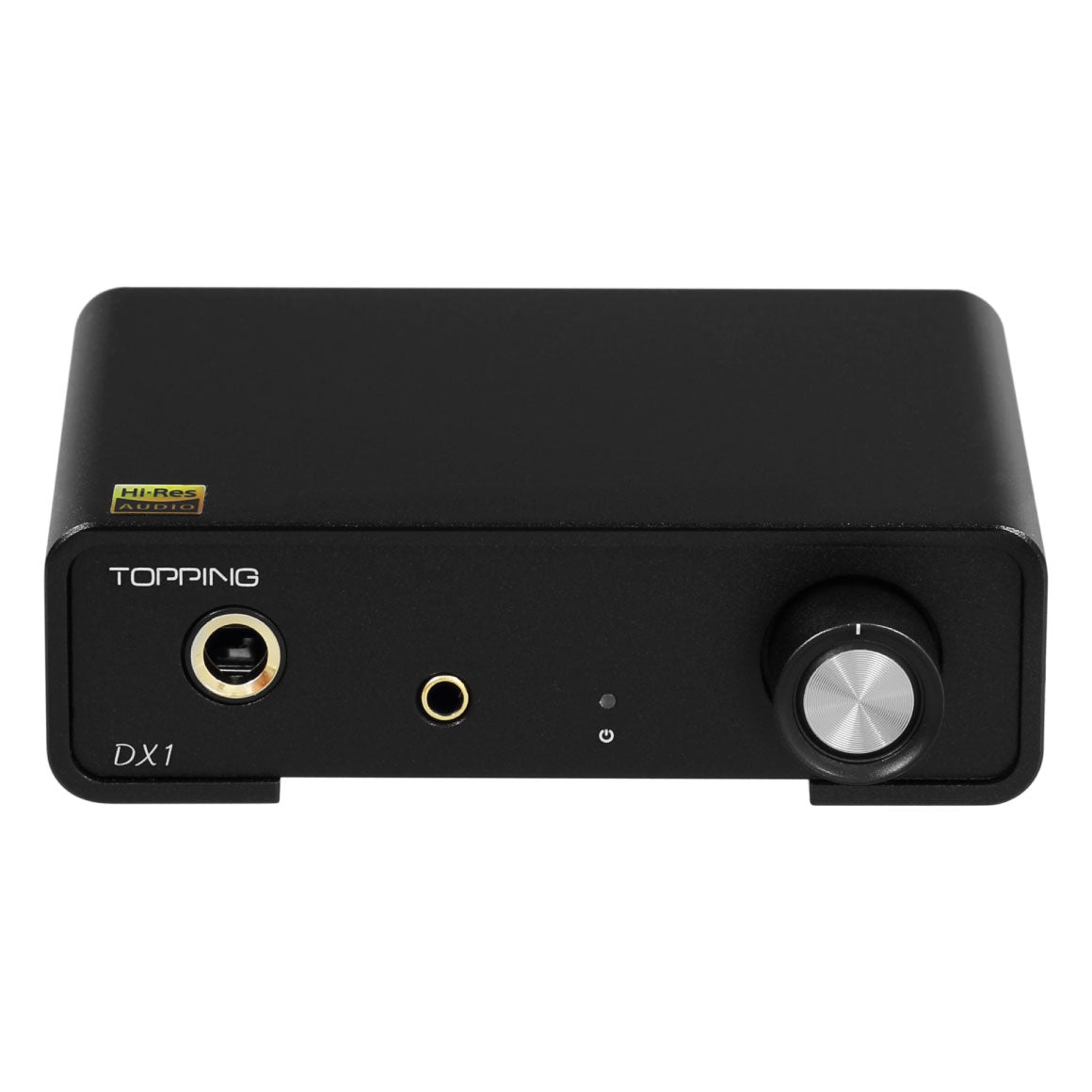

TOPPING PRESENTS THE ALL-NEW AND HIGHLY DEPENDABLE DAC & AMP - THE DX1
TOPPING is a well-established brand in the HiFi audio industry. The brand is mainly known for its wide range of desktop audio gears like DACs, AMPs, and all-in-One DAC & Amp devices. TOPPING has released their all-new Desktop DAC & Amp, the TOPPING DX1. It delivers Hi-Res audio with PCM, DSD (Native), and DSD (DoP) decoding capabilities. It also has sufficient power output to drive your headphones and in-ear monitors.


FEATURES AK4493S DAC CHIP FUSED WITH XMOS XU208 FOR HI-RES DIGITAL AUDIO DECODING
TOPPING has trusted the newest generation of AKM DAC chips for the latest DX1. They have a new AK4493S DAC chip from AKM Technologies that replaces the original AK4493. It’s a 32-Bit DAC that benefits from AKM’s Velvet Sound Technology, delivering a silky smooth sound experience. This premium DAC chip is supported by XMOS XU208, a high-performance 8-core USB receiver that enables high-resolution audio. It is capable of decoding 16bit-32-Bit/44.1kHz-384kHz PCM (Pulse Code Modulation), Native DSD64-DSD256 (Direct Stream Digital), and DoP (DSD Over PCM) DSD64-DSD128 signals via USB connection.

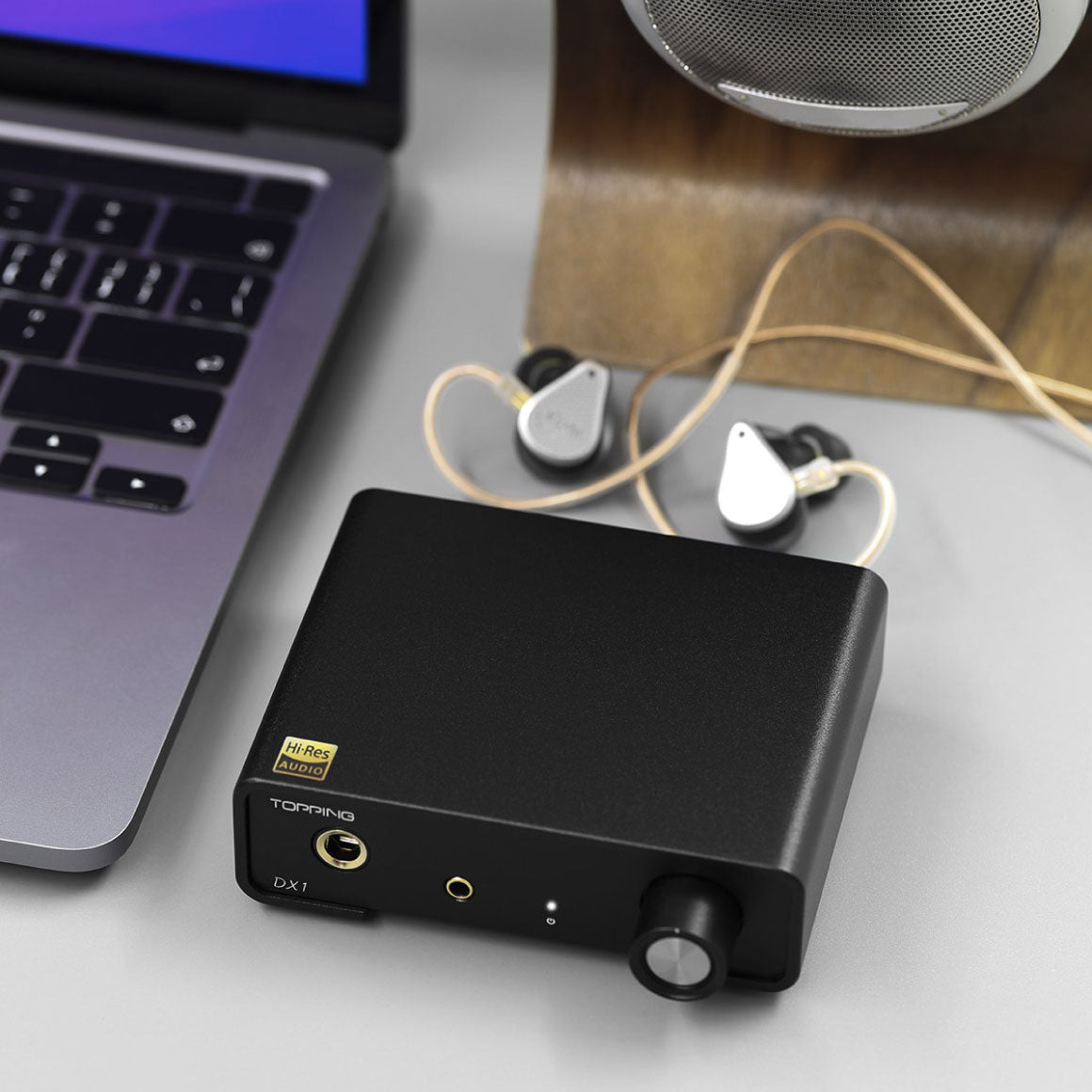

TURN YOUR DEVICES INTO HI-FI SOURCES WITHOUT ANY HASSLE
TOPPING has designed the DX1 to be widely compatible with your sources. The best part is that you don’t need any additional power adapter for the DX1. It takes power input directly from the connected source device. DX1 has a wide range of compatibility: Windows 10, 11, Mac, Linux, iOS, and Android can be plugged in and played. Only for Windows ASIO applications; there is a need for driver installation and set-up. The USB hardware is based on XMOS XU208 and Thesycon custom driver (applicable to Windows, other systems are free of driver), which is stable and reliable.


DISCRETE LNRD CIRCUIT FOR A JITTER-FREE AUDIO EXPERIENCE
The DAC & Amps circuit's components do produce a minimal amount of noise. To reduce the noise introduced by the USB Power, TOPPING has designed a Discrete LNRD "circuit" (Low Noise Reference Driver). The Discrete LNRD circuit filters out the noise and interference of USB 5V power and provides a stable and clean power supply of ultra-low noise reference level for DX1. With this technology, the noise of the DAC part is lower than 2.0uV, and the noise of the AMP part is <1.0uV. Even high-sensitive IEMs will not be bothered by noise. To make the DX1 even more versatile, DX1 has been designed to work effortlessly without requiring an additional power adapter. Only one USB cable can complete the power supply and data transmission.

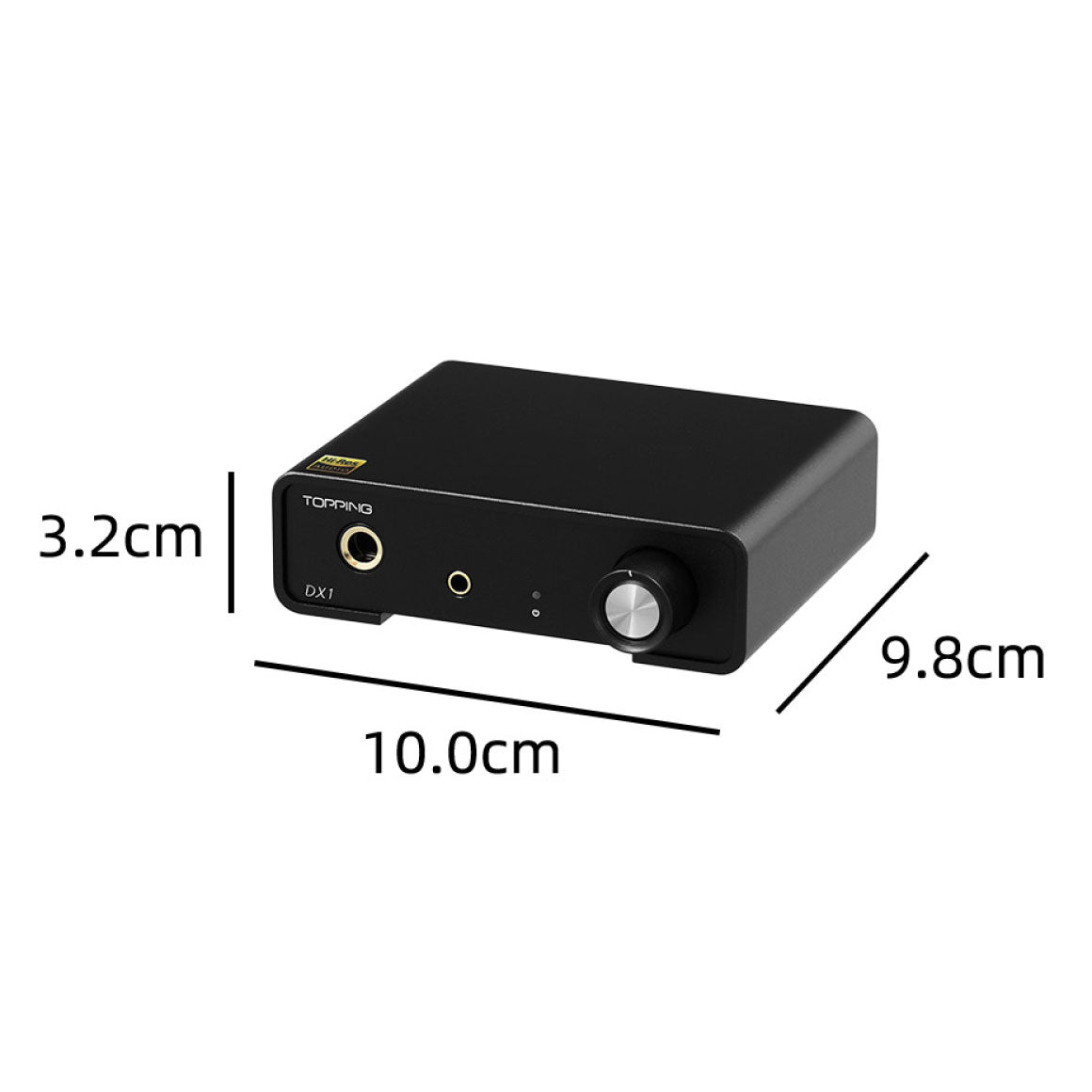

SMALL IN SIZE WITH MASSIVE POWER AND TWO-LEVEL GAIN SETTINGS

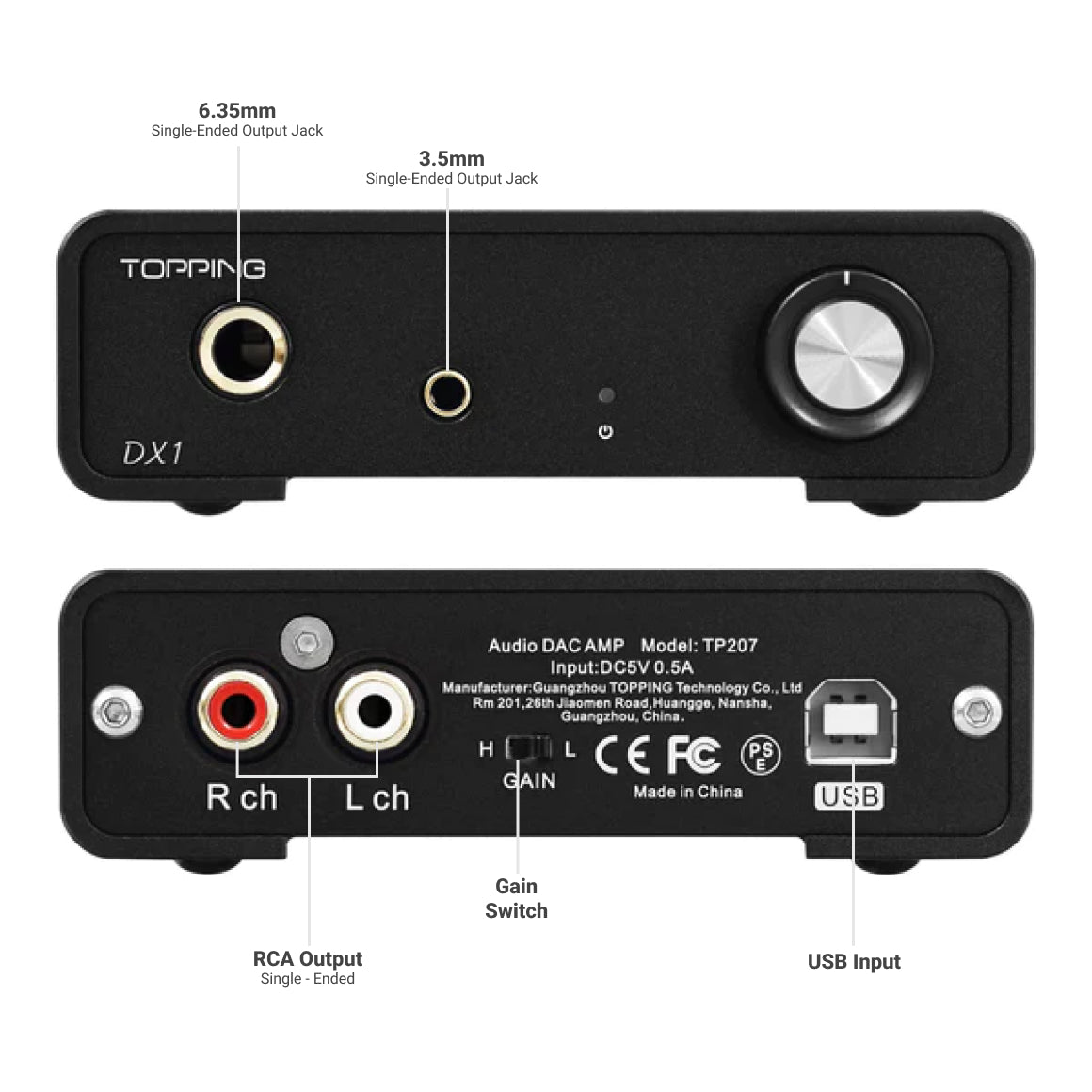

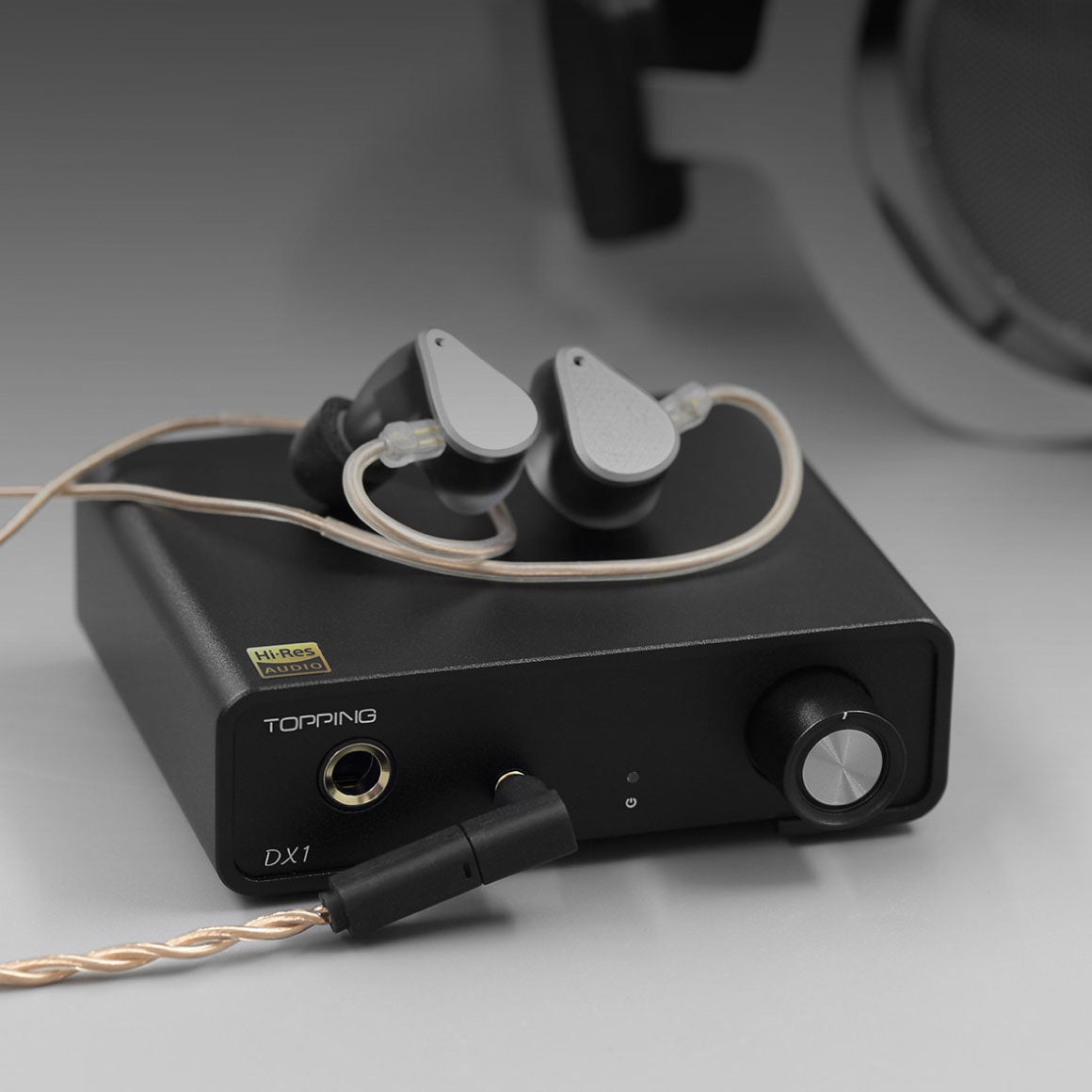

Don’t get fooled by the compact size and form factor of the DX1. This compact DAC & Amp houses boatloads of power to drive most of your IEMs and even some headphones. With a professionally designed headphone amp architecture, the DX1 has 6.35mm and 3.5mm single-ended outputs with a power output rating of up to 280mW @32Ω of impedance load. TOPPING DX1 offers two gain settings, greatly expanding the range of headphone adaptation. With these gain settings, you can power your in-ear monitors and headphones with aplomb.



USB IN | PCM: 44.1kHz-384kHz/ 16bit-32bit DSD (Native): DSD64-DSD256 DSD (DoP): DSD64-DSD128 |
THD+N@1 kHz (A-WT) | <0.0002% |
THD@20-20 kHz 90 KBW | <0.0006% |
SNR@1 kHz (A-WT) | 120 dB |
DYNAMIC RANGE @1 KHZ (A-WT) | 120 dB |
FREQUENCY RESPONSE | 20Hz - 20kHz (±0.3dB) 20Hz - 40kHz (±0.7dB) |
OUTPUT LEVEL | 2.0Vrms @ 0dBFS |
NOISE (A-WT) | <2.0 uVrms |
CHANNEL CROSSTALK @1 KHZ | -112dB |
CHANNEL BALANCE | 0.3 dB |
OUTPUT IMPEDANCE | 22Ω |
THD+N@1 kHz (A-WT) | <0.0003% @ Output = 200mW (32Ω) <0.0002% @ Output = 45mW (300Ω) |
THD@20-20 kHz 90 KBW | <0.003% @ Output = 200mW (32Ω) <0.001% @ Output = 45mW (300Ω) |
SNR @ MAX OUT 1kHz (A-WT) | 118dB |
DYNAMIC RANGE @ 1kHz (A-WT) | 118dB |
FREQUENCY RESPONSE | 20Hz - 20kHz (±0.3dB) 20Hz - 40kHz (±0.7dB) |
OUTPUT LEVEL | 2.2Vpp @ G=L 11Vpp @ G=H |
NOISE (A-WT) | <1.0uVrms |
CHANNEL CROSSTALK @1 KHZ | -86dB |
GAIN | -2dB (Vrms/FS) @ G=L 12dB (Vrms/FS) @ G=H |
OUTPUT IMPEDANCE | < 0.7Ω |
OUTPUT POWER | 280 mW x 2 @ 32Ω THD+N <0.1% 190 mW x 2 @ 64Ω THD+N <0.1% 51 mW x 2 @300Ω THD+N <0.1% |
ADAPTER IMPEDANCE | >8Ω |
BOX CONTENTS | 1. TOPPING DX1 |
2. USB Cable | |
3. User manual | |
4. Warranty card |


GENERIC NAME | Headphone Amplifier |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
1 Year Warranty
Don't sweat it, this TOPPING - DX1 comes with a warranty
from TOPPING that covers manufacturing defects.
