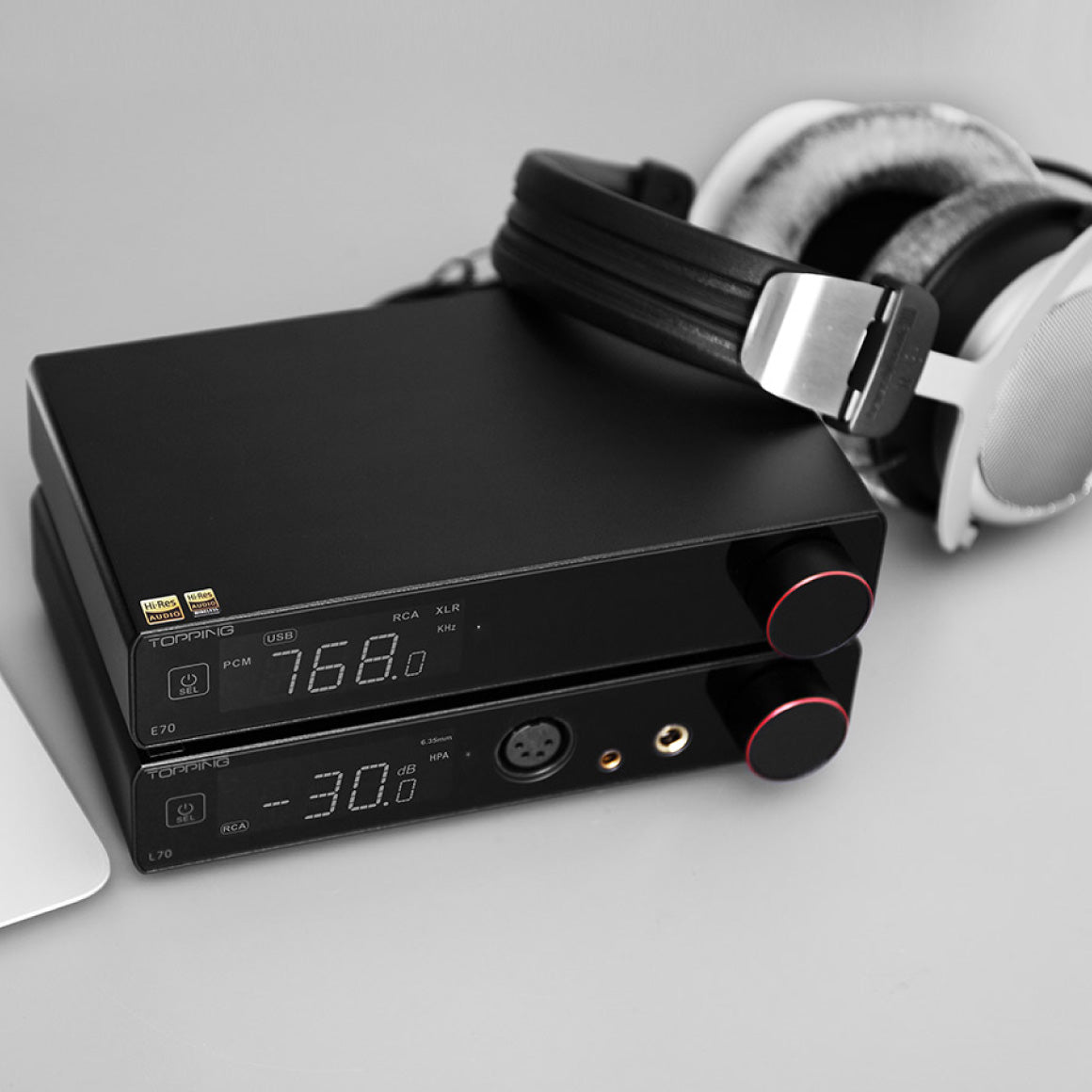

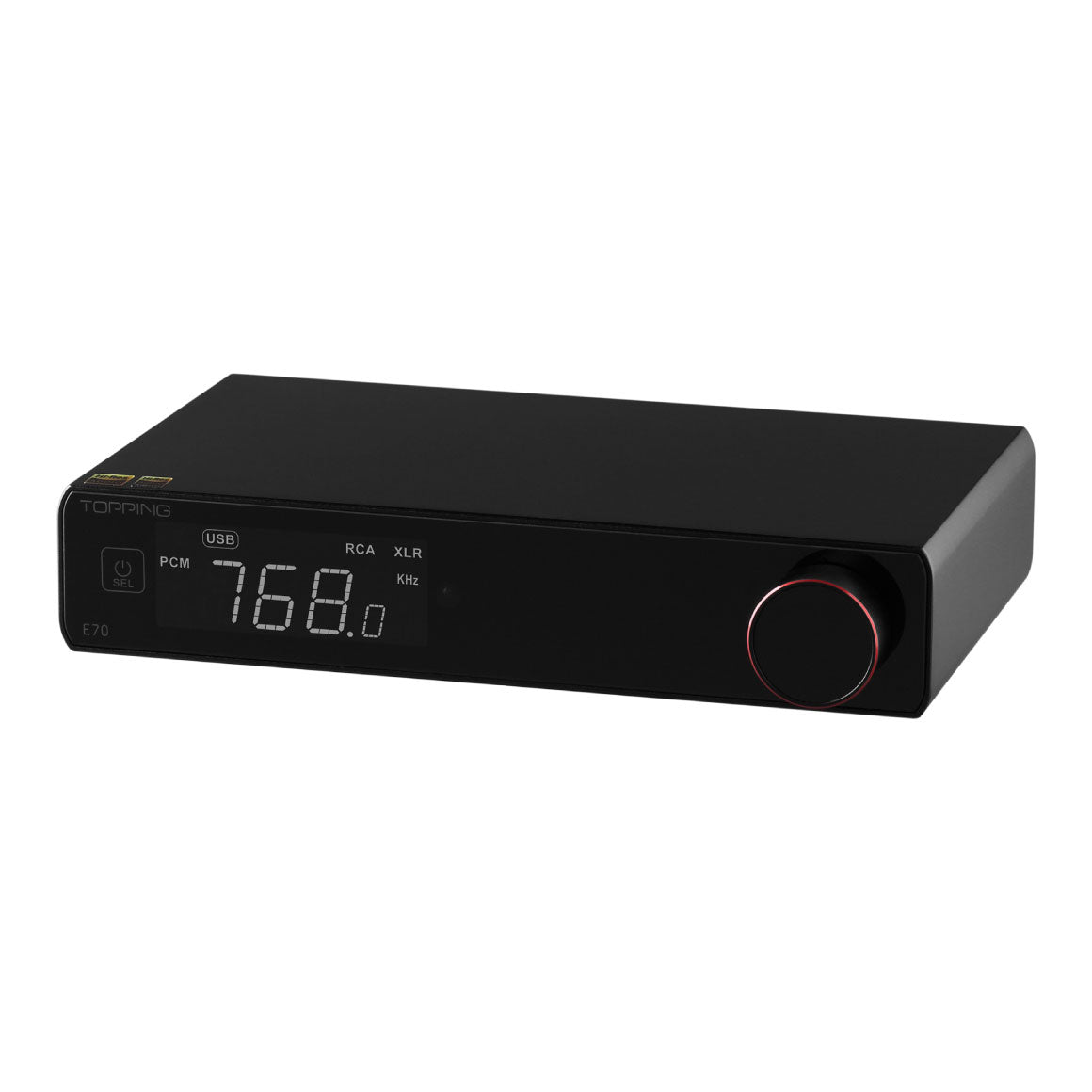

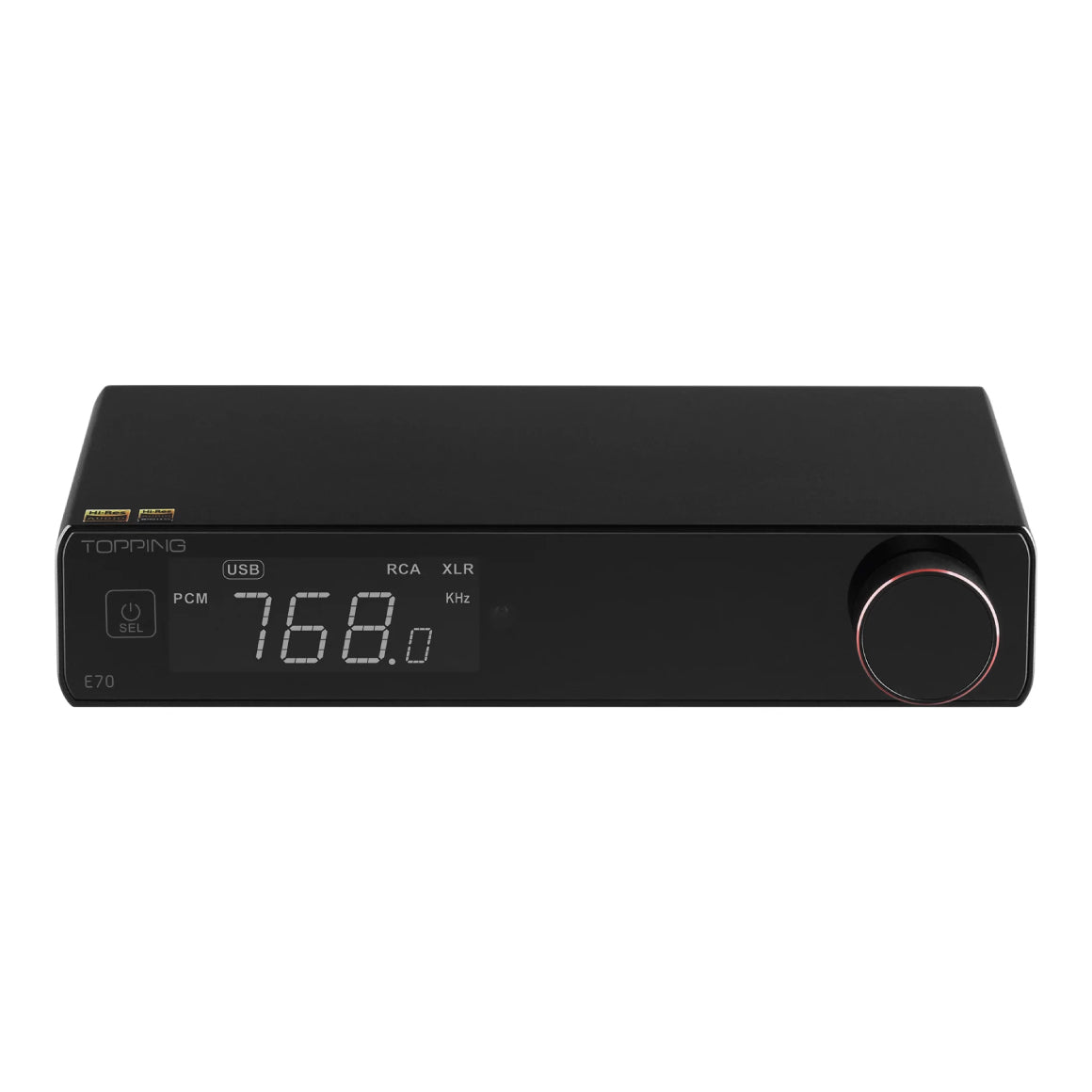

Topping - E70
Desktop DAC + PreampGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods &
Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 10,952
₹ 857
₹ 690
6
Low Cost EMI
₹ 5,585
₹ 1,509
₹ 1,221
9
15.99%
₹ 3,797
₹ 2,170
12
15.99%
₹ 2,903
₹ 2,839
18
15.99%
₹ 2,011
₹ 4,202
24
15.99%
₹ 1,567
₹ 5,600
HDFC Bank
3
Low Cost EMI
₹ 10,952
₹ 857
₹ 690
6
Low Cost EMI
₹ 5,585
₹ 1,510
₹ 1,221
9
16%
₹ 3,797
₹ 2,171
12
16%
₹ 2,903
₹ 2,841
18
16%
₹ 2,011
₹ 4,205
24
16%
₹ 1,567
₹ 5,603
SBI Bank
3
Low Cost EMI
₹ 10,961
₹ 884
₹ 711
6
Low Cost EMI
₹ 5,569
₹ 1,414
₹ 1,139
9
15%
₹ 3,781
₹ 2,033
12
15%
₹ 2,888
₹ 2,659
18
16%
₹ 2,011
₹ 4,205
24
16%
₹ 1,567
₹ 5,603
Axis Bank
3
Low Cost EMI
₹ 10,952
₹ 857
₹ 690
6
Low Cost EMI
₹ 5,585
₹ 1,510
₹ 1,221
9
16%
₹ 3,797
₹ 2,171
12
16%
₹ 2,873
₹ 2,478
18
16%
₹ 2,011
₹ 4,205
24
16%
₹ 1,567
₹ 5,603
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 10,916
₹ 750
6
14%
₹ 5,553
₹ 1,319
9
16%
₹ 3,797
₹ 2,171
12
16%
₹ 2,903
₹ 2,841
18
16%
₹ 2,011
₹ 4,205
24
16%
₹ 1,567
₹ 5,603
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 10,952
₹ 857
6
16%
₹ 5,585
₹ 1,510
9
16%
₹ 3,797
₹ 2,171
12
16%
₹ 2,903
₹ 2,841
18
16%
₹ 2,011
₹ 4,205
24
16%
₹ 1,567
₹ 5,603
RBL Bank
3
13%
₹ 10,898
₹ 696
6
14%
₹ 5,553
₹ 1,319
9
15%
₹ 3,781
₹ 2,033
12
15%
₹ 2,888
₹ 2,659
18
15%
₹ 1,996
₹ 3,934
24
15%
₹ 1,552
₹ 5,238
Standard Chartered Bank
3
13%
₹ 10,898
₹ 696
6
13%
₹ 5,537
₹ 1,224
9
14%
₹ 3,766
₹ 1,895
12
14%
₹ 2,873
₹ 2,478
INDUSIND Bank
3
14%
₹ 10,916
₹ 750
6
14%
₹ 5,553
₹ 1,319
9
15%
₹ 3,781
₹ 2,033
12
15%
₹ 2,888
₹ 2,659
18
15%
₹ 1,996
₹ 3,934
24
15%
₹ 1,552
₹ 5,238
HSBC Bank
3
12.50%
₹ 10,889
₹ 669
6
12.50%
₹ 5,529
₹ 1,177
9
13.50%
₹ 3,758
₹ 1,827
12
13.50%
₹ 2,866
₹ 2,388
18
13.50%
₹ 1,974
₹ 3,528
YES Bank
3
13%
₹ 10,898
₹ 696
6
13%
₹ 5,537
₹ 1,224
9
14%
₹ 3,766
₹ 1,895
12
14%
₹ 2,873
₹ 2,478
18
15%
₹ 1,996
₹ 3,934
24
15%
₹ 1,552
₹ 5,238
Bank of Baroda
3
13%
₹ 10,898
₹ 696
6
14%
₹ 5,553
₹ 1,319
9
14%
₹ 3,766
₹ 1,895
12
15%
₹ 2,888
₹ 2,659
18
15%
₹ 1,996
₹ 3,934
24
16%
₹ 1,567
₹ 5,603
American Express
3
14%
₹ 10,916
₹ 750
6
14%
₹ 5,553
₹ 1,319
9
14%
₹ 3,766
₹ 1,895
12
14%
₹ 2,873
₹ 2,478
18
15%
₹ 1,996
₹ 3,934
24
15%
₹ 1,552
₹ 5,238
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
While this product is out of stock, consider...
Why Topping is Special
Designed in China
Established & Reputed
Trust us, our reputation in the audio world speaks for itself!
This headphone or gear comes from a well-respected brand known for its high-quality audio equipment, so you can be confident in your purchase.
If you see a product marked as “🎖️ Established & Reputed”, it means you're getting a top-tier device from a brand that's earned its stripes in the audio industry.
Revered by Audiophiles
Audiophiles can be really picky and tough to impress and if the audiophile community says something sounds good, you can bet it's great!
This headphone or gear has gained recognition and admiration from audiophiles, who are known for their discerning taste in high-fidelity audio. They appreciate its precision, attention to detail and its ability to deliver an immersive sonic experience.
If you see a product marked as "🙌🏻 Revered by Audiophiles", it means that it meets the highest standards of sound quality and performance, making it a top choice for anyone who values exceptional audio experiences.
Specialist
A masterpiece from the experts who know audio inside and out!
This headphone or gear is crafted by specialists who know their stuff, ensuring every detail is perfect.
If you see a product marked as “🌟 Specialist”, it means you're choosing a device designed by experts who specialize in creating this specific category of device.
Why we love this DAC/Amp
Value for Money
Great sound always doesn't have to come with a fancy price tag.
Every once in a while we come across a product that give you a lot more value for the price.
If you see products marked as "🥜 Value For Money" you can be sure you're getting a great bang for your buck.
For Enthusiasts on a Budget
We are here to help you find the best bang for your buck.
This headphone or gear is made for all passionate hobbyists who want top-notch gear without breaking the bank.
If you see a product marked as “🪴 For Enthusiasts on a Budget”, get ready to indulge in your music with high-quality, affordable products that keep your wallet happy and your enthusiasm alive!
Incredibly Popular
Some things deserve all the attention.
This headphone or gear is a crowd favourite, winning over fans everywhere with its undeniable audio quality.
If you see products marked as “🥇 Incredibly Popular”, you’re opting for a tried-and-true choice that’s loved by many, ensuring you're getting something that’s proven to be awesome and widely acclaimed.
For Audiophiles at Home
Cause music hit differently when you are in your own space.
This headphone or gear is perfect for those who demand exceptional sound quality in their personal sanctuary.
If you see products marked as “🏠 For Audiophiles at Home”, get ready to transform your living space into an audiophile's paradise, with rich, immersive sound that makes every listening session a masterpiece.
Use Wirelessly with Bluetooth
Enjoy the convenience of seamless wireless connectivity
This headphone or gear indicates that the product supports wireless connectivity via Bluetooth, freeing you from the tangles of cords and cables.
If you see products marked as “✂️ Use Wirelessly with Bluetooth”, enjoy the freedom to stream music, make calls, and more, all without being tethered to your device, giving you the flexibility to move around and multitask with ease.
Connect With Cable
This device comes with multiple connectivity options. Be sure to check if your source and output support these input and output options.
Why it Sounds Amazing
DAC Chip
Know the secret to your pristine audio.
This headphone or gear reveals the secret sauce behind superior audio quality, highlighting the presence of a high-performance DAC chip for pristine sound reproduction.
If you see products marked as “⚙️ DAC Chip”, expect to experience your music with unparalleled clarity, detail, and fidelity, ensuring that every note and nuance is faithfully reproduced for your listening pleasure.
Sampling Rate And Bit Depth
Ever wonder how those ones and zeros on your computer magically transform into the rich melodies that fill your room?
The secret lies in a tiny device called a Digital-to-Analog Converter (DAC). Think of it as a translator, taking the digital code of your music and meticulously sculpting it back into a smooth, analog wave that your speakers can understand. But just like a sculptor needs the right tools, achieving audio nirvana with a DAC depends on two key factors: sampling rate and bit depth.
Sampling Rate:
Imagine your favourite song as a complex rollercoaster track. The sampling rate refers to how often the DAC takes measurements of this digital track, measured in kHz (kilohertz) or thousands of times per second. A higher sampling rate, like 96 kHz, is like taking a ton of pictures of the track, capturing every twist and turn with incredible detail. Lower rates, like the standard 44.1 kHz used in CDs, are like taking snapshots at a theme park – fun, but you might miss some of the subtler details that make the ride truly exhilarating.
Bit Depth:
Now, think about the sculptor's tools. Bit depth refers to the precision of each measurement the DAC takes. Imagine the number of colours available to the sculptor. With higher bit depth (e.g., 24 bits compared to 16 bits), each measurement can capture a wider range of values. This allows the DAC to recreate subtler variations in the sound wave, resulting in richer and more nuanced audio. It's like having a broader colour palette for building a more detailed and lifelike sculpture of the sound.
DESCRIPTION
TOPPING INTRODUCES THE ALL-NEW HIGH-PERFORMANCE AND HI-RES CERTIFIED DAC - THE E70
TOPPING has been the pioneer in producing some of the cleanest and distortion-free DACs. Their line-up of DACs like the E30, E30 II, D50S, D30 Pro, and E50 have all been well-received and widely accepted in the audiophile community. Their entire line-up of DACs is clean and precise, with spectacular digital to-analogue conversion capabilities. To improve "TOPPING" wanted; to create something incredibly sensational while maintaining the characteristics of their earlier generations of DACs. This design aspect led to the birth of the TOPPING E70, a fully balanced and Hi-Res certified Desktop DAC. The E70 expands on its predecessors' strengths while retaining all their positive qualities to raise the bar for audio performance. The E70 hosts an ES9028PRO flagship-grade DAC chipset in its circuitry. It also hosts an XMOS XU316 USB processor that allows you to play Hi-Res files and supports decoding up to 32-bit/768kHz PCM and Native DSD512 audio signals. The E70 also includes Bluetooth 5.1 support to save you from the inconvenience of cables. When used wirelessly or "wired," the TOPPING E70 is a versatile, Hi-Res-certified device that offers clean audio reproduction.
FEATURES A DAC CHIP FROM ESS SABRE THAT DELIVERS AN UNPRECEDENTED DIGITAL-TO-ANALOGUE CONVERSION
TOPPING is known to include high-grade components in its products. Given the success TOPPING has had in designing and creating amplifiers and DACs over the years, TOPPING's engineers decided it was time to create something truly exceptional. These elements were considered; by a team of engineers that integrated the flagship DAC chip, "ES9028PRO," into the E70's circuitry. The SABRE® ES9028PRO HyperStream® II 8-channel audio DAC is a high-performance 32-bit solution designed specifically for audiophile and studio equipment applications. In the application of E70, every "4" channel is connected in parallel as one channel, achieving high performance and high sound quality. The ES9028PRO DAC chip supports 44.1kHz-768kHz/16bit-32bit and Native DSD64-DSD512 (Direct Stream Digital). It also enables DSD(DoP) DSD64-DSD256 (DSD Over PCM). A brand-new I/V conversion circuit allows for better-quality audio reproduction. The unique circuit design provides a lower distortion and less noise. Engulf yourself in pure sonic tranquillity with the all-new TOPPING E70 Hi-Res Digital To Analogue converter.
EXPERIENCE PURE SONIC DELIVERY WIRED OR WIRELESSLY WITH USB AND BLUETOOTH SUPPORT
With the introduction of wireless technology, the audio industry has grown by leaps and bounds. Earlier products had wireless functionality, but they did not sound great. TOPPING engineers considered this aspect and have designed the E70 to incorporate a QCC5125 chipset enabling Bluetooth 5.1 support. E70 has the certification of Hi-Res Audio Wireless & LDAC and supports Bluetooth codecs like LDAC (24bit96kHz), aptX Adaptive, aptX HD, aptX LL, aptX, AAC, and SBC. To get even better sound quality from Bluetooth, TOPPING engineers abandoned the built-in DAC of QCC5125 while connecting its digital signal to ES9028PRO to decode. For you to use the E70 in wired mode, "TOPPING" has incorporated the newest XMOS XU316 chipset. The USB hardware based on the newest XMOS XU316 and Thesycon custom driver (applicable to Windows, other systems are plug and play) makes the E70 stable and reliable. With; USB IN E70 supports up to 44.1kHz-768kHz/16bit-32bit PCM (Pulse Code Modulation) and Native DSD64-DSD512 (Direct Stream Digital). It also supports DSD(DoP) DSD64-DSD256 (DSD Over PCM). With COAX/OPT-IN it supports PCM up to 44.1kHz-192kHz/16bit-24bit and DSD(DoP) DSD64. The Optical and Coaxial input of E70 supports up to PCM 24 bit 192kHz and DSD DoP64 audio, which is suitable for digital turntables, disk players, set-top boxes, and gaming consoles.
NOTE: USB input of E70 has a wide range of compatibility: Windows 10, Windows 11, MAC, Linux, iOS, and Android plug-and-play. Only for Windows ASIO applications; you need to install the driver and set it up.
DOUBLES-UP AS A PREAMPLIFIER FUSED WITH A 12V TRIGGER INTERFACE
In addition to the DAC mode with a fixed output level, the E70 also has a DAC + preamplifier mode. In this mode, you can control the output volume from -99dB to 0dB by the knob or remote control. This design provides greater convenience when connected to a power amplifier or monitor speakers. The TOPPING E70 also hosts a 12V Trigger interface. The 12V Trigger interface on the E70 can be configured for active control (Trigger out) or passive control (Trigger in). With only one easy-to-obtain 3.5mm to 3.5mm cable, the E70 can be turned on and off synchronously with other devices equipped with a 12V Trigger interface. With this setup, you can connect E70 to the TOPPING L70 professional-grade headphone amplifier, and you can form your desktop audio chain. TOPPING has also kept the THD+N of the E70 to be lower than 0.00006% (A-weighted), enabling music to be accurate in every detail.
EQUIPPED WITH A REMOTE WITH SELECTABLE OUTPUTS AND AUTO ON/OFF FUNCTIONALITY, MAKING IT IDEAL FOR THE L70

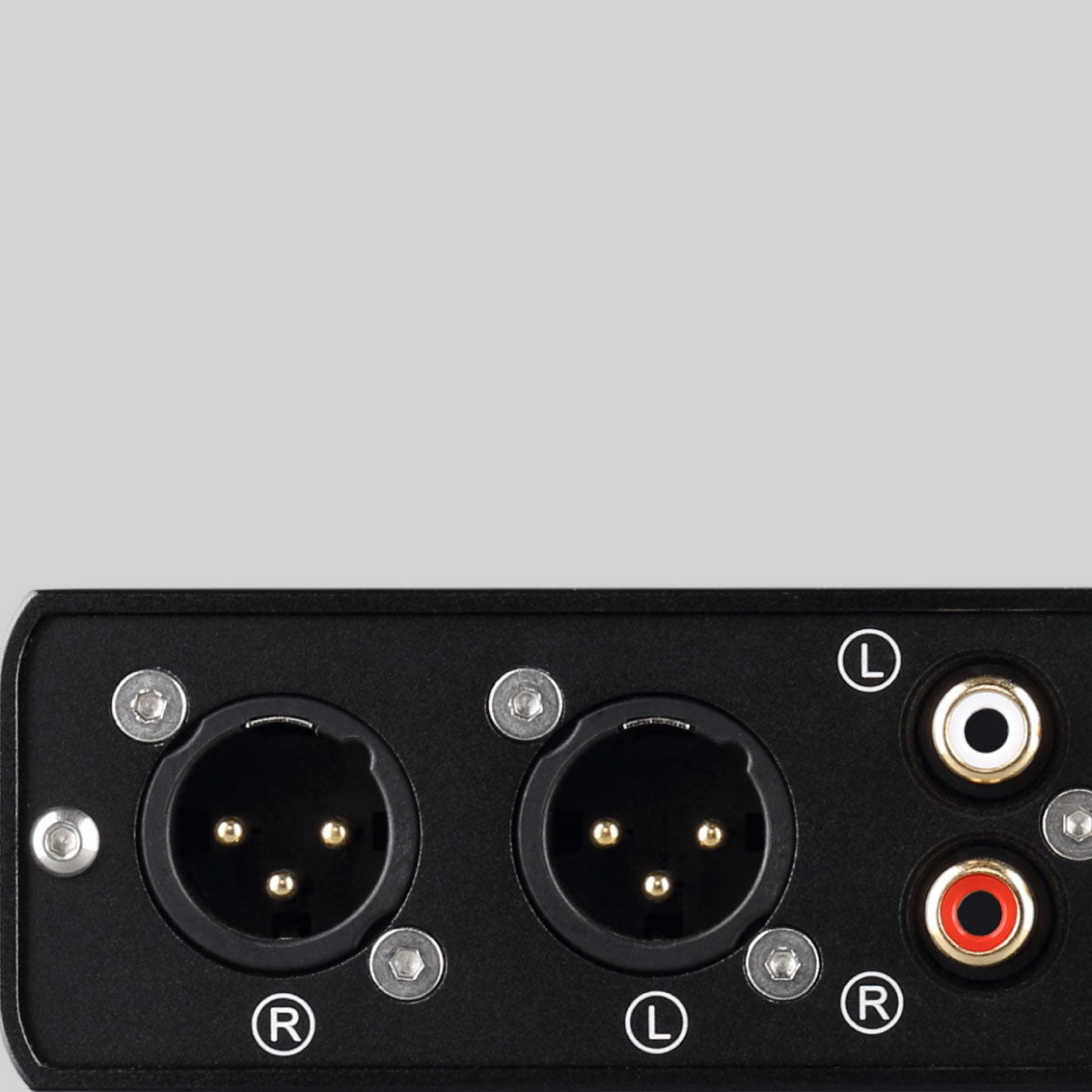

E70 has a balanced XLR output and single-ended RCA output. You can choose "XLR only", "RCA only", or "XLR+RCA" output for different applications. Additionally, TOPPING has added the Auto On/Off functionality to the E70, which will turn ON and set to the input where the signal is valid automatically. When E70's selection is not "valid" for 1 minute, E70 will turn OFF automatically. TOPPING was on the spree of designing the E70 to be the most versatile device and has included a fully functional remote for you to have; control over the device from the comfort of your couch. The E70 has USB, Coaxial, Optical, USB, and Bluetooth, as inputs and selectable RCA & XLR outputs. The engineers at TOPPING understood that in addition to the more versatile XLR 4V and RCA 2V outputs, there are also extensive needs for XLR 5V and RCA 2.5V. When XLR 4V and RCA 2V are selected, more devices can be adapted when XLR 5V and RCA 2.5V are enabled; the performance improves by leaps and bounds with these functionalities. To get you started TOPPING has also designed their versatile headphone amplifier, the L70, to be a perfect match for the E70. The TOPPING L70 is suitable for almost all kinds of headphones. The TOPPING "E70" and "L70" can be switched ON and OFF through the 12V Trigger interface. Also, the L70 can be synchronised with the automatic or manual ON/OFF of the E70.
SPECS
USB IN | PCM: 44.1kHz-768kHz/
16bit-32bit DSD(Native): DSD64-DSD512 DSD(DoP): DSD64-DSD256 |
COAX/OPT IN | PCM: 44.1kHz-192kHz/
16bit-24bit
DSD(DoP): DSD64 |
BT IN: | AAC/SBC/APTX/ APTX LL/ APTX HD/ APTX-Adaptive/LDAC |
THD+N @1KHZ (A-WT) | <0.00008% |
THD+N @20-20KHZ 90KBW (NO-WT) | <0.0007% |
SNR @1KHZ (A-WT) | 126dB |
DYNAMIC RANGE @1KHZ (A-WT) | 126dB |
FREQUENCY RESPONSE | 20Hz-20kHz(±0.2dB) 20Hz-40kHz(±0.4dB) |
OUTPUT LEVEL | 2.1Vrms @0dBFS (4V Mode) 2.5Vrms @0dBFS (5V Mode) |
NOISE (A-WT) | <1.3uVrms |
CHANNEL CROSSTALK | -133dB @1kHz |
CHANNEL BALANCE | 0.3dB |
OUTPUT IMPEDANCE | 50Ω |
THD+N @1KHZ (A-WT) | <0.00006% |
THD+N @20-20KHZ 90KBW (NO-WT) | <0.0002% |
SNR @1KHZ (A-WT) | 132dB |
DYNAMIC RANGE @1KHZ (A-WT) | 132dB |
FREQUENCY RESPONSE | 20Hz-20kHz(±0.2dB) 20Hz-40kHz(±0.4dB) |
OUTPUT LEVEL | 4.2Vrms @0dBFS (4V Mode) 5.0Vrms @0dBFS (5V Mode) |
NOISE (A-WT) | <1.3uVrms |
CHANNEL CROSSTALK | -149dB @1kHz |
CHANNEL BALANCE | 0.3dB |
OUTPUT IMPEDANCE | 100Ω |

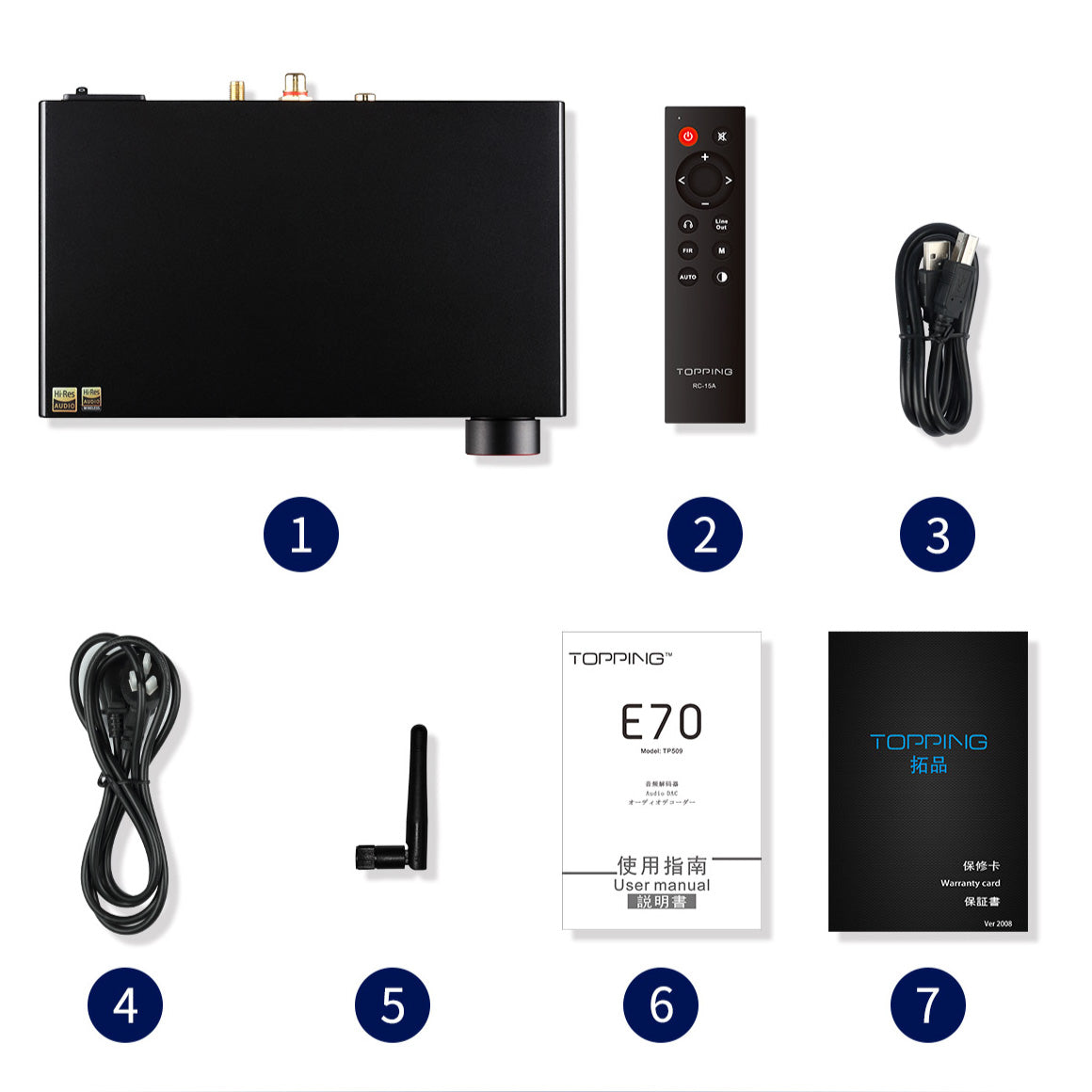

BOX CONTENTS | 1. TOPPING E70 |

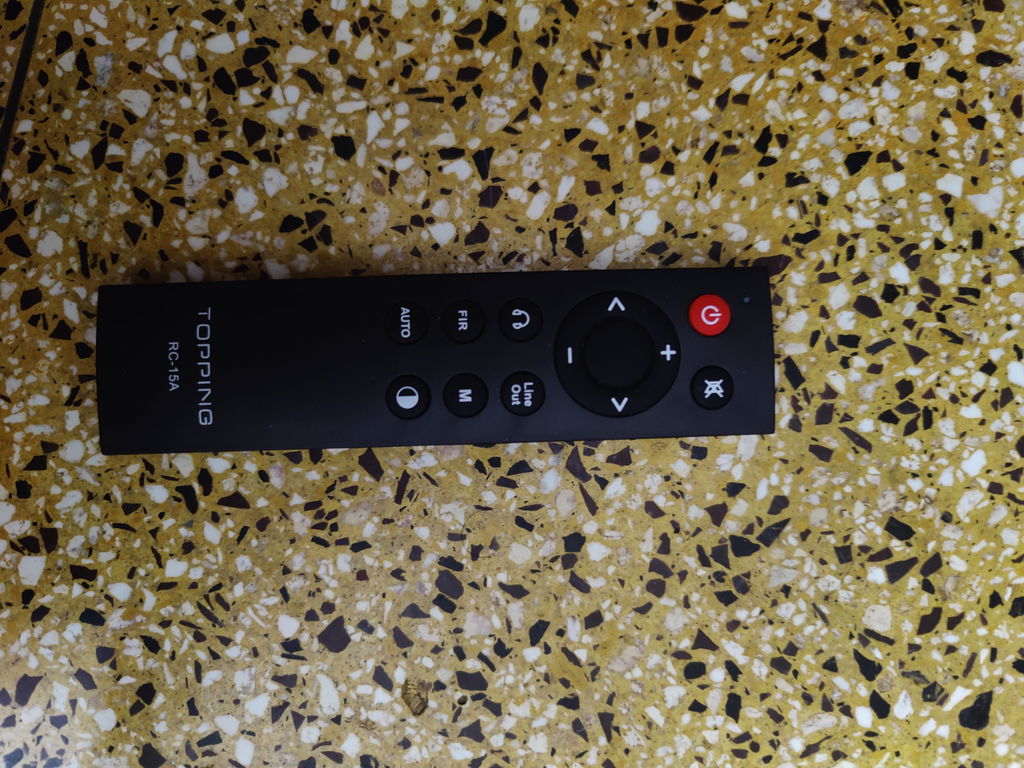

2. Remote Control | |
3. USB Cable | |
4. AC Cable | |
5. Bluetooth Antenna | |
6. User Manual | |
7. Warranty Card |
OTHER DETAILS
GENERIC NAME | DAC & Amp |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
PACKAGE CONTENTS | TOPPING E70 Remote ControL, USB Cable AC Cable Bluetooth Antenna User ManuaL, Warranty Card |
User Manual | E70
Desktop DAC + Preamp
|
FAQs
What is the warranty on the TOPPING E70?
TOPPING E70 comes with a 1 year warranty on the Amp/DAC and 6 months warranty on the battery.
Where is TOPPING brand based?
TOPPING is a brand based in Guangzhou, China.
What are the stand-out features of this DAC?
Premium ES9028PRO DAC Chipset.
Latest Bluetooth V5.1 connectivity.
Hi-Res LDAC Transmission.
XMOS XU316 USB Processor.
Supports Hi-Resolution 32-Bit/768kHz PCM and Native DSD512 Audio Signals.
Brand New I/V Conversion Circuit.
Ultra-Low THD+N Performance.
Selectable RCA & XLR Outputs.
Ultra-Low Noise Preamp Function.
Fully-Functional Remote Control.
Multiple Input Options(USB, Coaxial, Optical, USB, Bluetooth).
Automatic On/Off Function With All Inputs.
12V Trigger Interface.
Preamp Function.
Hi-Res Audio & Hi-Res Audio Wireless Certified.
What are the DAC chips incorporated in the TOPPING E70?
The TOPPING E70 features the flagship DAC chip from ESS Sabre, the ES9028PRO.
What are the sampling and decoding rates supported by TOPPING E70?
With; USB IN TOPPING E70 supports up to 44.1kHz-768kHz/16bit-32bit PCM (Pulse Code Modulation) and Native DSD64-DSD512 (Direct Stream Digital). It also supports DSD(DoP) DSD64-DSD256 (DSD Over PCM). With COAX/OPT-IN it supports PCM up to 44.1kHz-192kHz/16bit-24bit and DSD(DoP) DSD64. The optical and coaxial input of TOPPING E70 supports up to PCM 24-bit/192kHz and DSD Dop64 audio, which is suitable for digital turntables, disk players, set-top boxes, and gaming consoles.
What is the XMOS chip used in TOPPING E70?
The USB hardware on the TOPPING E70 has XMOS XU316 and Thesycon custom driver.
What are the various audio codecs supported by TOPPING E70?
TOPPING E70 has the certification of Hi-Res Audio Wireless & LDAC and supports Bluetooth codecs like LDAC (24bit96kHz), aptX Adaptive, aptX HD, aptX LL, aptX, AAC, and SBC
Can the volume be adjusted using the remote?
Yes, The TOPPING E70 has a built-in volume control function that can adjust the volume from -99dB to 0dB by using the remote control, so you can directly connect TOPPING E70 to a power amplifier or active speakers and control the volume of TOPPING E70 through the remote control.
What is the auto On/Off functionality like on TOPPING E70?
The TOPPING E70 has auto On/Off functionality. It will automatically turn ON and set to the input to which the signal is valid. And when the TOPPING E70's selection is not valid for 1 minute, TOPPING E70 will turn OFF automatically.

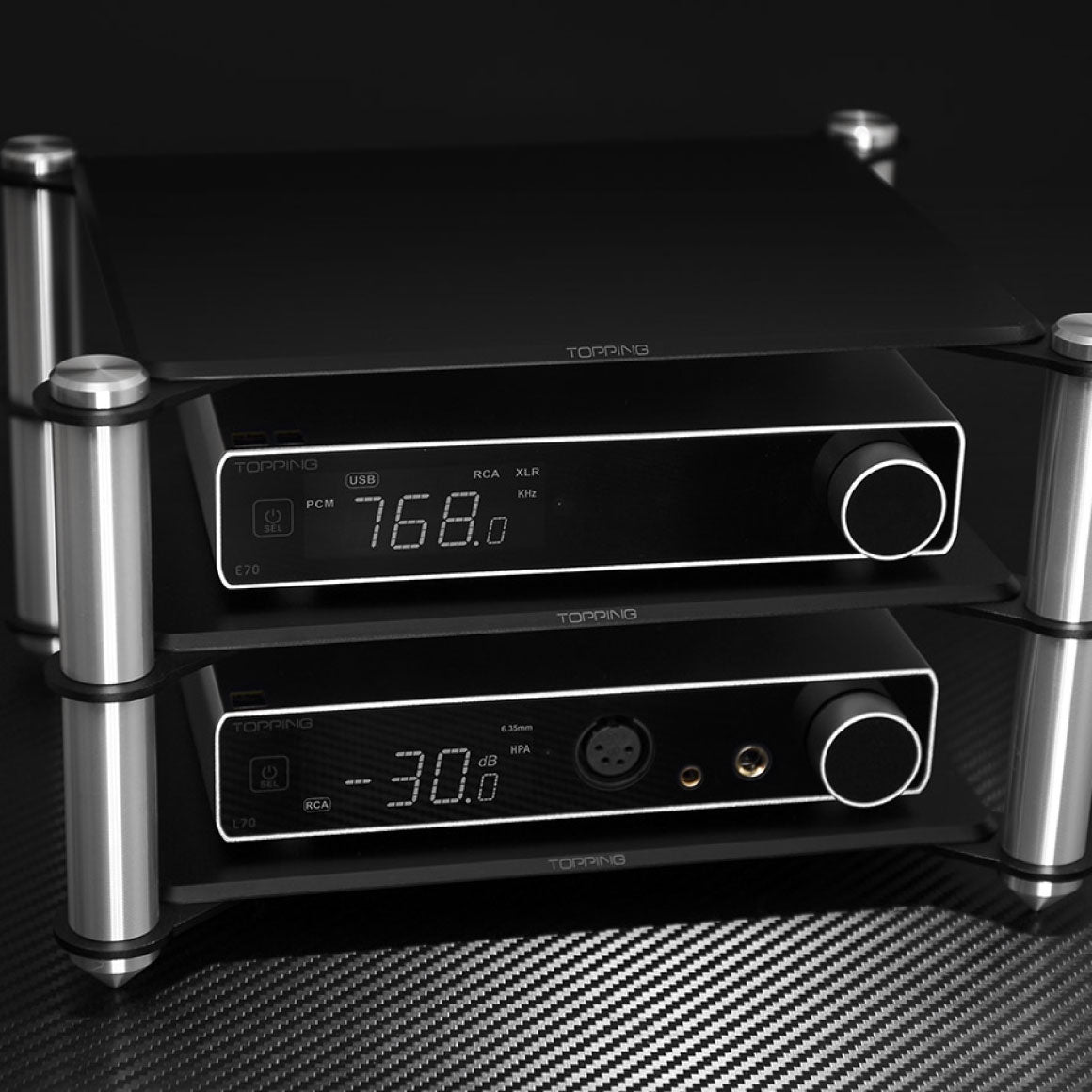

Is it compatible with the TOPPING L70 headphone amplifier?
To get you started TOPPING has also designed their versatile headphone amplifier, the TOPPING L70, to to be a perfect match for the TOPPING E70. The TOPPING L70 is suitable for almost all kinds of headphones.

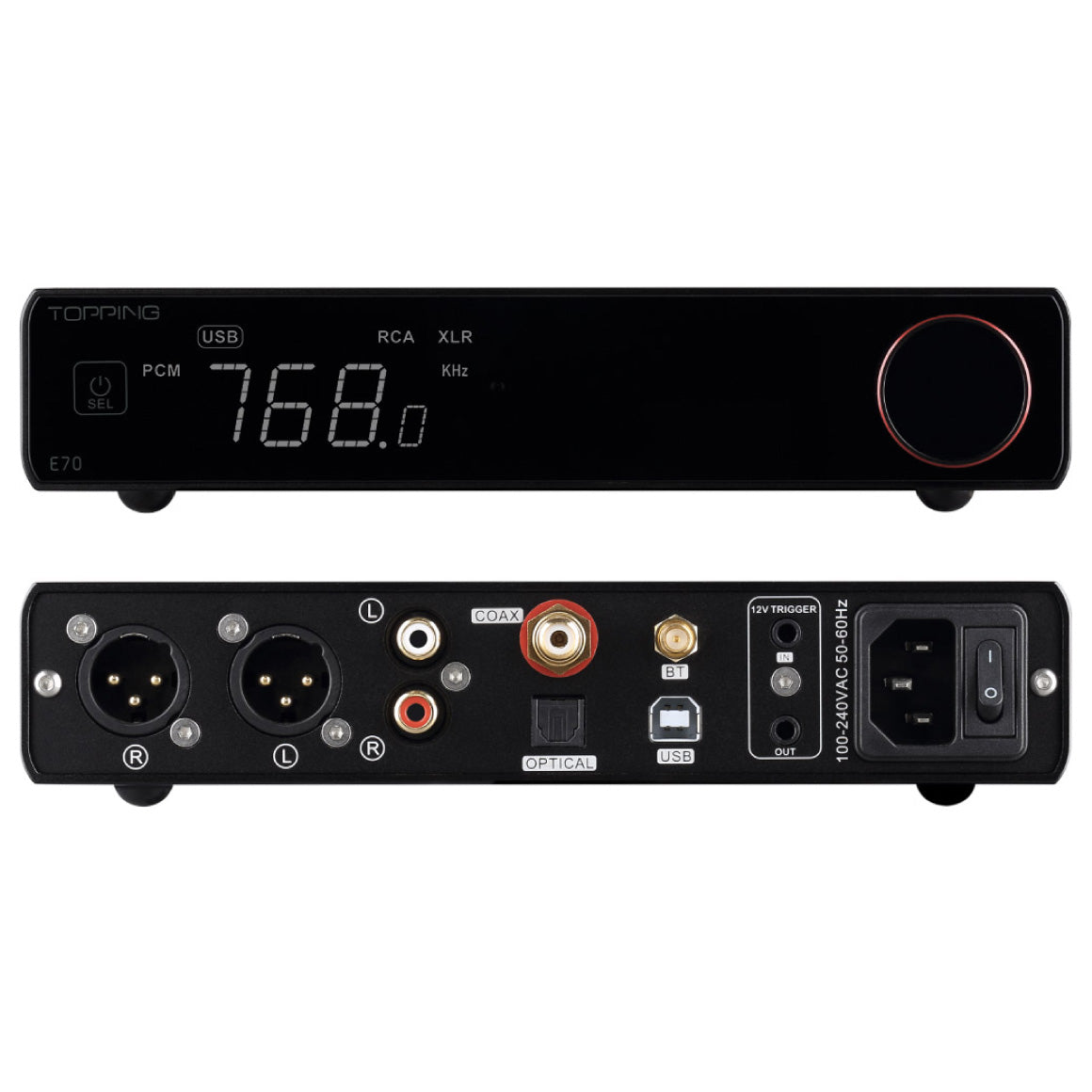

What are the various inputs and outputs like on TOPPING E70?
The TOPPING E70 includes USB, Coaxial, Optical, USB, and Bluetooth, as inputs and selectable RCA & XLR outputs.
What does the package include?
You will be greeted by the TOPPING E70. The package also includes a remote control, USB cable, AC cable, Bluetooth antenna, user manual, and warranty card.
TOPPING INTRODUCES THE ALL-NEW HIGH-PERFORMANCE AND HI-RES CERTIFIED DAC - THE E70
TOPPING has been the pioneer in producing some of the cleanest and distortion-free DACs. Their line-up of DACs like the E30, E30 II, D50S, D30 Pro, and E50 have all been well-received and widely accepted in the audiophile community. Their entire line-up of DACs is clean and precise, with spectacular digital to-analogue conversion capabilities. To improve "TOPPING" wanted; to create something incredibly sensational while maintaining the characteristics of their earlier generations of DACs. This design aspect led to the birth of the TOPPING E70, a fully balanced and Hi-Res certified Desktop DAC. The E70 expands on its predecessors' strengths while retaining all their positive qualities to raise the bar for audio performance. The E70 hosts an ES9028PRO flagship-grade DAC chipset in its circuitry. It also hosts an XMOS XU316 USB processor that allows you to play Hi-Res files and supports decoding up to 32-bit/768kHz PCM and Native DSD512 audio signals. The E70 also includes Bluetooth 5.1 support to save you from the inconvenience of cables. When used wirelessly or "wired," the TOPPING E70 is a versatile, Hi-Res-certified device that offers clean audio reproduction.
FEATURES A DAC CHIP FROM ESS SABRE THAT DELIVERS AN UNPRECEDENTED DIGITAL-TO-ANALOGUE CONVERSION
TOPPING is known to include high-grade components in its products. Given the success TOPPING has had in designing and creating amplifiers and DACs over the years, TOPPING's engineers decided it was time to create something truly exceptional. These elements were considered; by a team of engineers that integrated the flagship DAC chip, "ES9028PRO," into the E70's circuitry. The SABRE® ES9028PRO HyperStream® II 8-channel audio DAC is a high-performance 32-bit solution designed specifically for audiophile and studio equipment applications. In the application of E70, every "4" channel is connected in parallel as one channel, achieving high performance and high sound quality. The ES9028PRO DAC chip supports 44.1kHz-768kHz/16bit-32bit and Native DSD64-DSD512 (Direct Stream Digital). It also enables DSD(DoP) DSD64-DSD256 (DSD Over PCM). A brand-new I/V conversion circuit allows for better-quality audio reproduction. The unique circuit design provides a lower distortion and less noise. Engulf yourself in pure sonic tranquillity with the all-new TOPPING E70 Hi-Res Digital To Analogue converter.
EXPERIENCE PURE SONIC DELIVERY WIRED OR WIRELESSLY WITH USB AND BLUETOOTH SUPPORT
With the introduction of wireless technology, the audio industry has grown by leaps and bounds. Earlier products had wireless functionality, but they did not sound great. TOPPING engineers considered this aspect and have designed the E70 to incorporate a QCC5125 chipset enabling Bluetooth 5.1 support. E70 has the certification of Hi-Res Audio Wireless & LDAC and supports Bluetooth codecs like LDAC (24bit96kHz), aptX Adaptive, aptX HD, aptX LL, aptX, AAC, and SBC. To get even better sound quality from Bluetooth, TOPPING engineers abandoned the built-in DAC of QCC5125 while connecting its digital signal to ES9028PRO to decode. For you to use the E70 in wired mode, "TOPPING" has incorporated the newest XMOS XU316 chipset. The USB hardware based on the newest XMOS XU316 and Thesycon custom driver (applicable to Windows, other systems are plug and play) makes the E70 stable and reliable. With; USB IN E70 supports up to 44.1kHz-768kHz/16bit-32bit PCM (Pulse Code Modulation) and Native DSD64-DSD512 (Direct Stream Digital). It also supports DSD(DoP) DSD64-DSD256 (DSD Over PCM). With COAX/OPT-IN it supports PCM up to 44.1kHz-192kHz/16bit-24bit and DSD(DoP) DSD64. The Optical and Coaxial input of E70 supports up to PCM 24 bit 192kHz and DSD DoP64 audio, which is suitable for digital turntables, disk players, set-top boxes, and gaming consoles.
NOTE: USB input of E70 has a wide range of compatibility: Windows 10, Windows 11, MAC, Linux, iOS, and Android plug-and-play. Only for Windows ASIO applications; you need to install the driver and set it up.
DOUBLES-UP AS A PREAMPLIFIER FUSED WITH A 12V TRIGGER INTERFACE
In addition to the DAC mode with a fixed output level, the E70 also has a DAC + preamplifier mode. In this mode, you can control the output volume from -99dB to 0dB by the knob or remote control. This design provides greater convenience when connected to a power amplifier or monitor speakers. The TOPPING E70 also hosts a 12V Trigger interface. The 12V Trigger interface on the E70 can be configured for active control (Trigger out) or passive control (Trigger in). With only one easy-to-obtain 3.5mm to 3.5mm cable, the E70 can be turned on and off synchronously with other devices equipped with a 12V Trigger interface. With this setup, you can connect E70 to the TOPPING L70 professional-grade headphone amplifier, and you can form your desktop audio chain. TOPPING has also kept the THD+N of the E70 to be lower than 0.00006% (A-weighted), enabling music to be accurate in every detail.
EQUIPPED WITH A REMOTE WITH SELECTABLE OUTPUTS AND AUTO ON/OFF FUNCTIONALITY, MAKING IT IDEAL FOR THE L70
E70 has a balanced XLR output and single-ended RCA output. You can choose "XLR only", "RCA only", or "XLR+RCA" output for different applications. Additionally, TOPPING has added the Auto On/Off functionality to the E70, which will turn ON and set to the input where the signal is valid automatically. When E70's selection is not "valid" for 1 minute, E70 will turn OFF automatically. TOPPING was on the spree of designing the E70 to be the most versatile device and has included a fully functional remote for you to have; control over the device from the comfort of your couch. The E70 has USB, Coaxial, Optical, USB, and Bluetooth, as inputs and selectable RCA & XLR outputs. The engineers at TOPPING understood that in addition to the more versatile XLR 4V and RCA 2V outputs, there are also extensive needs for XLR 5V and RCA 2.5V. When XLR 4V and RCA 2V are selected, more devices can be adapted when XLR 5V and RCA 2.5V are enabled; the performance improves by leaps and bounds with these functionalities. To get you started TOPPING has also designed their versatile headphone amplifier, the L70, to be a perfect match for the E70. The TOPPING L70 is suitable for almost all kinds of headphones. The TOPPING "E70" and "L70" can be switched ON and OFF through the 12V Trigger interface. Also, the L70 can be synchronised with the automatic or manual ON/OFF of the E70.
USB IN | PCM: 44.1kHz-768kHz/
16bit-32bit DSD(Native): DSD64-DSD512 DSD(DoP): DSD64-DSD256 |
COAX/OPT IN | PCM: 44.1kHz-192kHz/
16bit-24bit
DSD(DoP): DSD64 |
BT IN: | AAC/SBC/APTX/ APTX LL/ APTX HD/ APTX-Adaptive/LDAC |
THD+N @1KHZ (A-WT) | <0.00008% |
THD+N @20-20KHZ 90KBW (NO-WT) | <0.0007% |
SNR @1KHZ (A-WT) | 126dB |
DYNAMIC RANGE @1KHZ (A-WT) | 126dB |
FREQUENCY RESPONSE | 20Hz-20kHz(±0.2dB) 20Hz-40kHz(±0.4dB) |
OUTPUT LEVEL | 2.1Vrms @0dBFS (4V Mode) 2.5Vrms @0dBFS (5V Mode) |
NOISE (A-WT) | <1.3uVrms |
CHANNEL CROSSTALK | -133dB @1kHz |
CHANNEL BALANCE | 0.3dB |
OUTPUT IMPEDANCE | 50Ω |
THD+N @1KHZ (A-WT) | <0.00006% |
THD+N @20-20KHZ 90KBW (NO-WT) | <0.0002% |
SNR @1KHZ (A-WT) | 132dB |
DYNAMIC RANGE @1KHZ (A-WT) | 132dB |
FREQUENCY RESPONSE | 20Hz-20kHz(±0.2dB) 20Hz-40kHz(±0.4dB) |
OUTPUT LEVEL | 4.2Vrms @0dBFS (4V Mode) 5.0Vrms @0dBFS (5V Mode) |
NOISE (A-WT) | <1.3uVrms |
CHANNEL CROSSTALK | -149dB @1kHz |
CHANNEL BALANCE | 0.3dB |
OUTPUT IMPEDANCE | 100Ω |
BOX CONTENTS | 1. TOPPING E70 |
2. Remote Control | |
3. USB Cable | |
4. AC Cable | |
5. Bluetooth Antenna | |
6. User Manual | |
7. Warranty Card |
OTHER DETAILS
GENERIC NAME | DAC & Amp |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
PACKAGE CONTENTS | TOPPING E70 Remote ControL, USB Cable AC Cable Bluetooth Antenna User ManuaL, Warranty Card |
User Manual | E70
Desktop DAC + Preamp
|
What is the warranty on the TOPPING E70?
TOPPING E70 comes with a 1 year warranty on the Amp/DAC and 6 months warranty on the battery.
Where is TOPPING brand based?
TOPPING is a brand based in Guangzhou, China.
What are the stand-out features of this DAC?
Premium ES9028PRO DAC Chipset.
Latest Bluetooth V5.1 connectivity.
Hi-Res LDAC Transmission.
XMOS XU316 USB Processor.
Supports Hi-Resolution 32-Bit/768kHz PCM and Native DSD512 Audio Signals.
Brand New I/V Conversion Circuit.
Ultra-Low THD+N Performance.
Selectable RCA & XLR Outputs.
Ultra-Low Noise Preamp Function.
Fully-Functional Remote Control.
Multiple Input Options(USB, Coaxial, Optical, USB, Bluetooth).
Automatic On/Off Function With All Inputs.
12V Trigger Interface.
Preamp Function.
Hi-Res Audio & Hi-Res Audio Wireless Certified.
What are the DAC chips incorporated in the TOPPING E70?
The TOPPING E70 features the flagship DAC chip from ESS Sabre, the ES9028PRO.
What are the sampling and decoding rates supported by TOPPING E70?
With; USB IN TOPPING E70 supports up to 44.1kHz-768kHz/16bit-32bit PCM (Pulse Code Modulation) and Native DSD64-DSD512 (Direct Stream Digital). It also supports DSD(DoP) DSD64-DSD256 (DSD Over PCM). With COAX/OPT-IN it supports PCM up to 44.1kHz-192kHz/16bit-24bit and DSD(DoP) DSD64. The optical and coaxial input of TOPPING E70 supports up to PCM 24-bit/192kHz and DSD Dop64 audio, which is suitable for digital turntables, disk players, set-top boxes, and gaming consoles.
What is the XMOS chip used in TOPPING E70?
The USB hardware on the TOPPING E70 has XMOS XU316 and Thesycon custom driver.
What are the various audio codecs supported by TOPPING E70?
TOPPING E70 has the certification of Hi-Res Audio Wireless & LDAC and supports Bluetooth codecs like LDAC (24bit96kHz), aptX Adaptive, aptX HD, aptX LL, aptX, AAC, and SBC
Can the volume be adjusted using the remote?
Yes, The TOPPING E70 has a built-in volume control function that can adjust the volume from -99dB to 0dB by using the remote control, so you can directly connect TOPPING E70 to a power amplifier or active speakers and control the volume of TOPPING E70 through the remote control.
What is the auto On/Off functionality like on TOPPING E70?
The TOPPING E70 has auto On/Off functionality. It will automatically turn ON and set to the input to which the signal is valid. And when the TOPPING E70's selection is not valid for 1 minute, TOPPING E70 will turn OFF automatically.
Is it compatible with the TOPPING L70 headphone amplifier?
To get you started TOPPING has also designed their versatile headphone amplifier, the TOPPING L70, to to be a perfect match for the TOPPING E70. The TOPPING L70 is suitable for almost all kinds of headphones.
What are the various inputs and outputs like on TOPPING E70?
The TOPPING E70 includes USB, Coaxial, Optical, USB, and Bluetooth, as inputs and selectable RCA & XLR outputs.
What does the package include?
You will be greeted by the TOPPING E70. The package also includes a remote control, USB cable, AC cable, Bluetooth antenna, user manual, and warranty card.
Don't sweat it, this
Topping - E70 comes with a 1 Year warranty
from TOPPING that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about TOPPING's warranty in India.
The Audiophile's Choice For Precision and Accuracy
Explore CollectionHFN Recommended
Headfonia
Nov, 2022
"The E70 & L70 are an impressive duo and Topping seems to have thought of everything. With improvements based on user feedback, it’s safe to say that this is a uniquely excellent option in this price range."

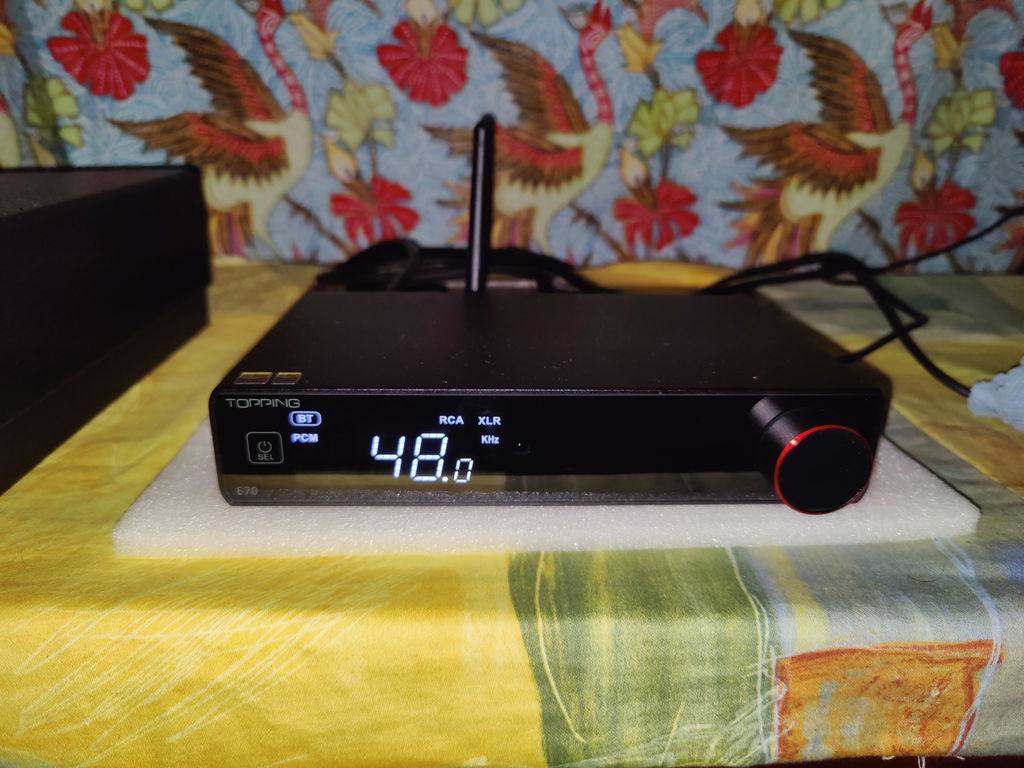

Read MoreThis product is rated 5.0 of 5.0 stars.
It has received 1 review.
