Chi-Fi
Excellence
Ideal for Audiophiles
These DAC & Amps are designed for discerning music lovers. If audio quality is important to you, a set of DAC & Amps like these would be ideal.
You can expect these DAC & Amps to present you with a refined listening experience. The audio quality exhibited by these DAC & Amps is a beautiful mix of musicality, technical brilliance and high precision.
These DAC & Amps deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!
Ideal for
Indoor Use
Pair with Laptop via USB
A majority of people use a laptop as the primary source device to listen to music or watch movies. Since the laptop is an essential part of the audio chain there are headphones and devices designed to work a laptop or computer system flawlessly. With the availability of USB connectivity, it becomes easier to pair various devices like an Amp, DAC or even headphones without worrying about drivers or any additional piece of software.
Connect With Coaxial
TOSLink, AES/EBU
DESCRIPTION

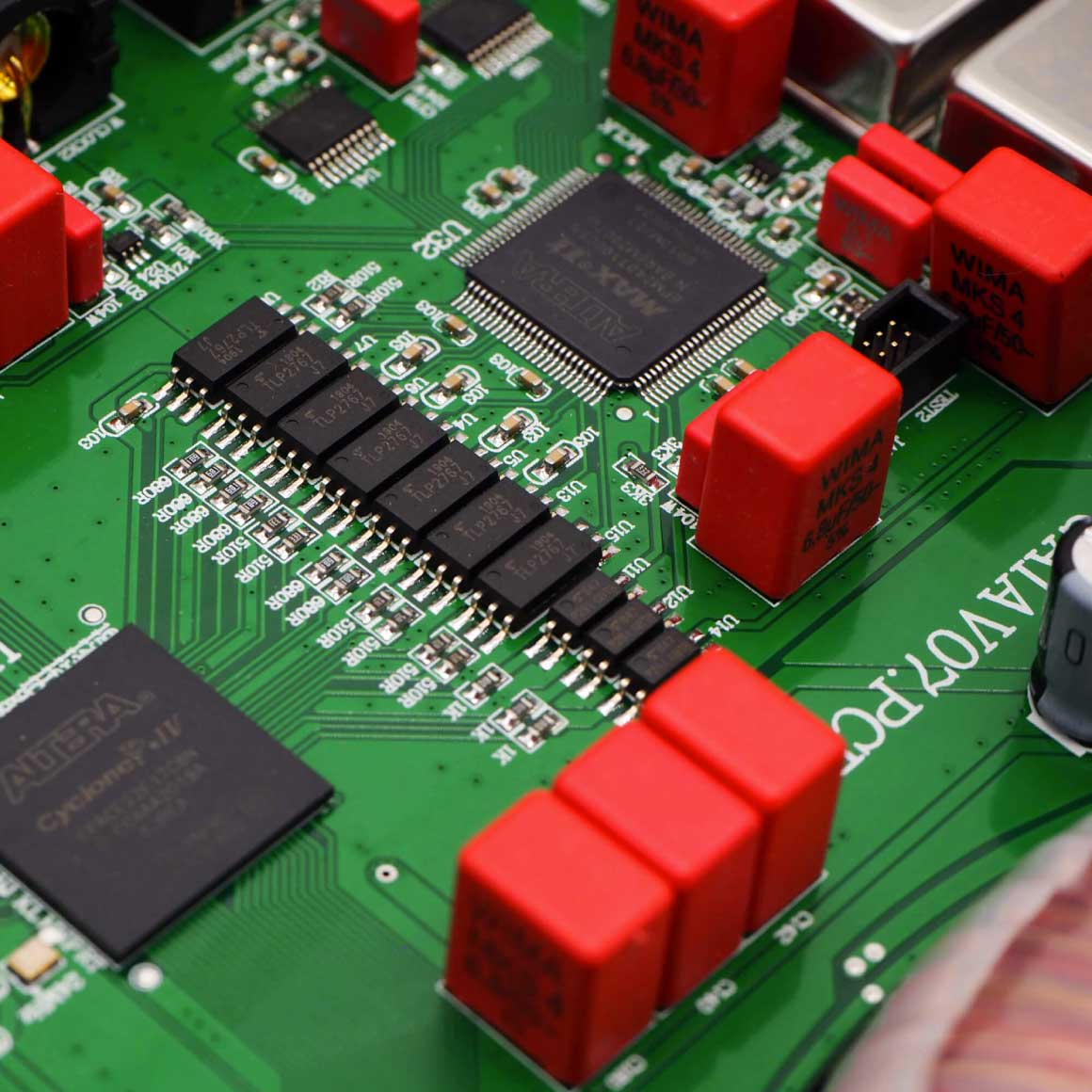

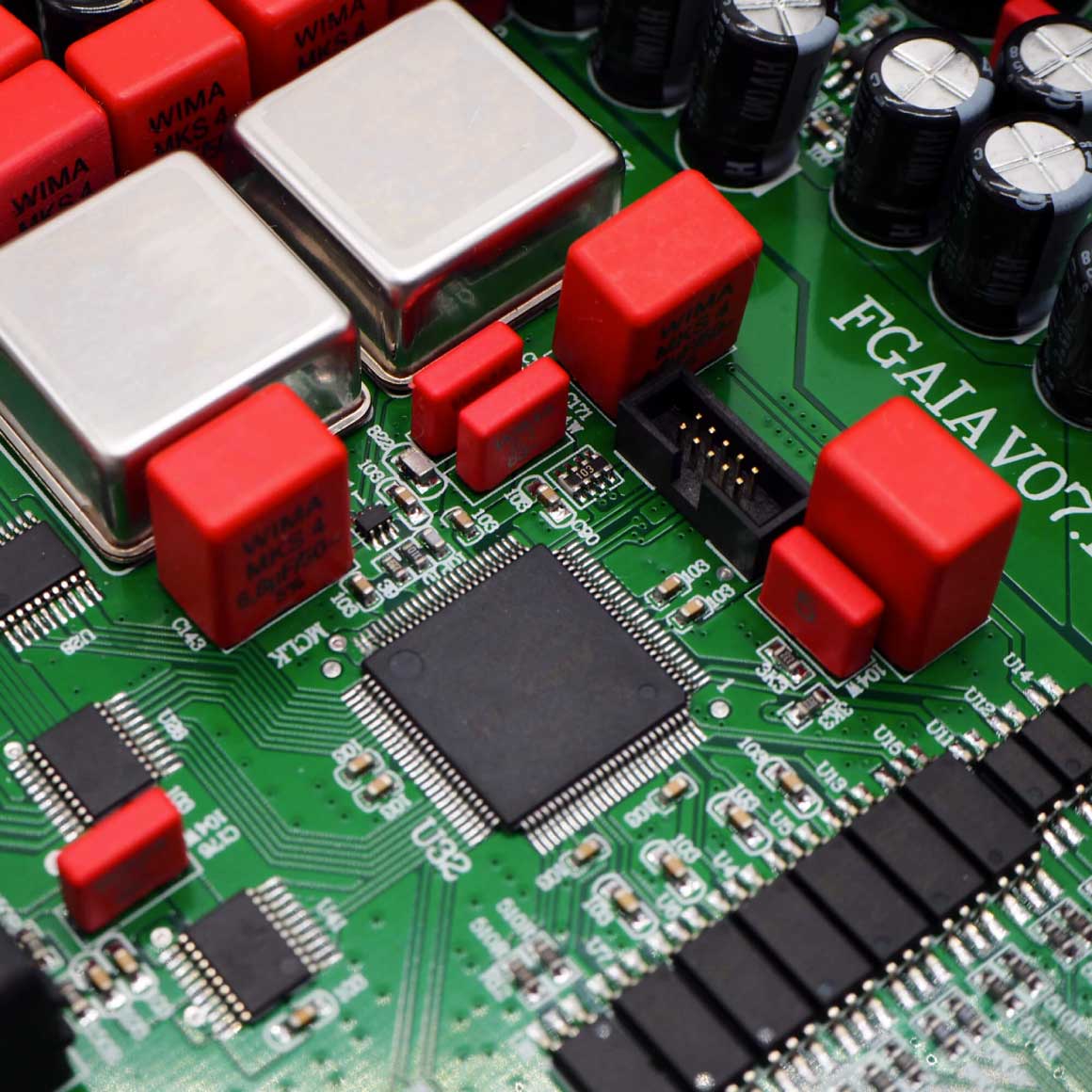

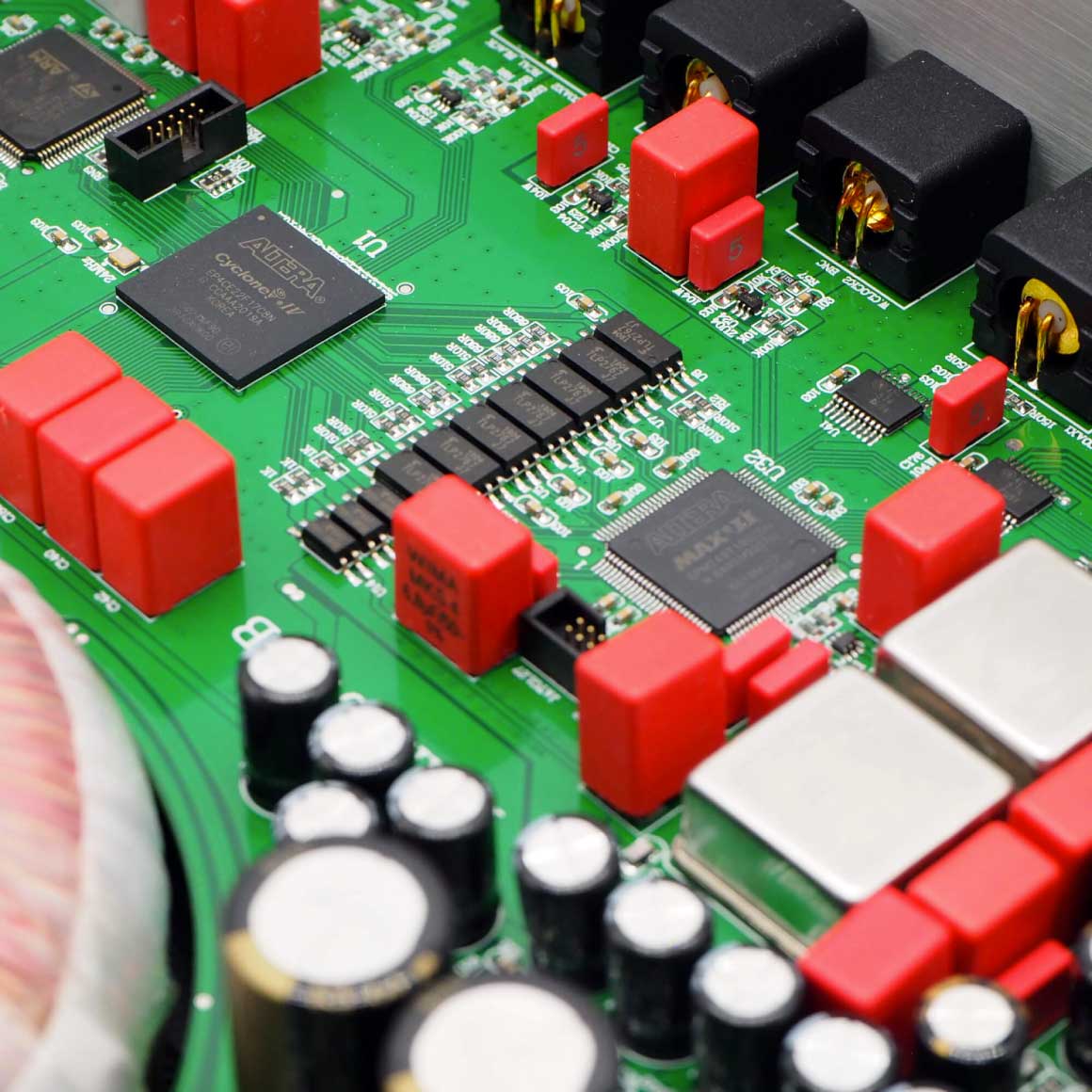

Top Of The Line DDC Embedded With Proprietary FPGA DSP Processing
The DENAFRIPS GAIA is a flagship Digital To Digital Converter (DDC). It took about 3 years to perfect the development of the device and it leverages the technologies found in the companies award-winning DAC, namely, Proprietary FPGA DSP Processing, FIFO Buffer & Reclocking. Along with Industry Leading USB Audio Interface Solution via STM32F466 Advanced AMR based MCU.

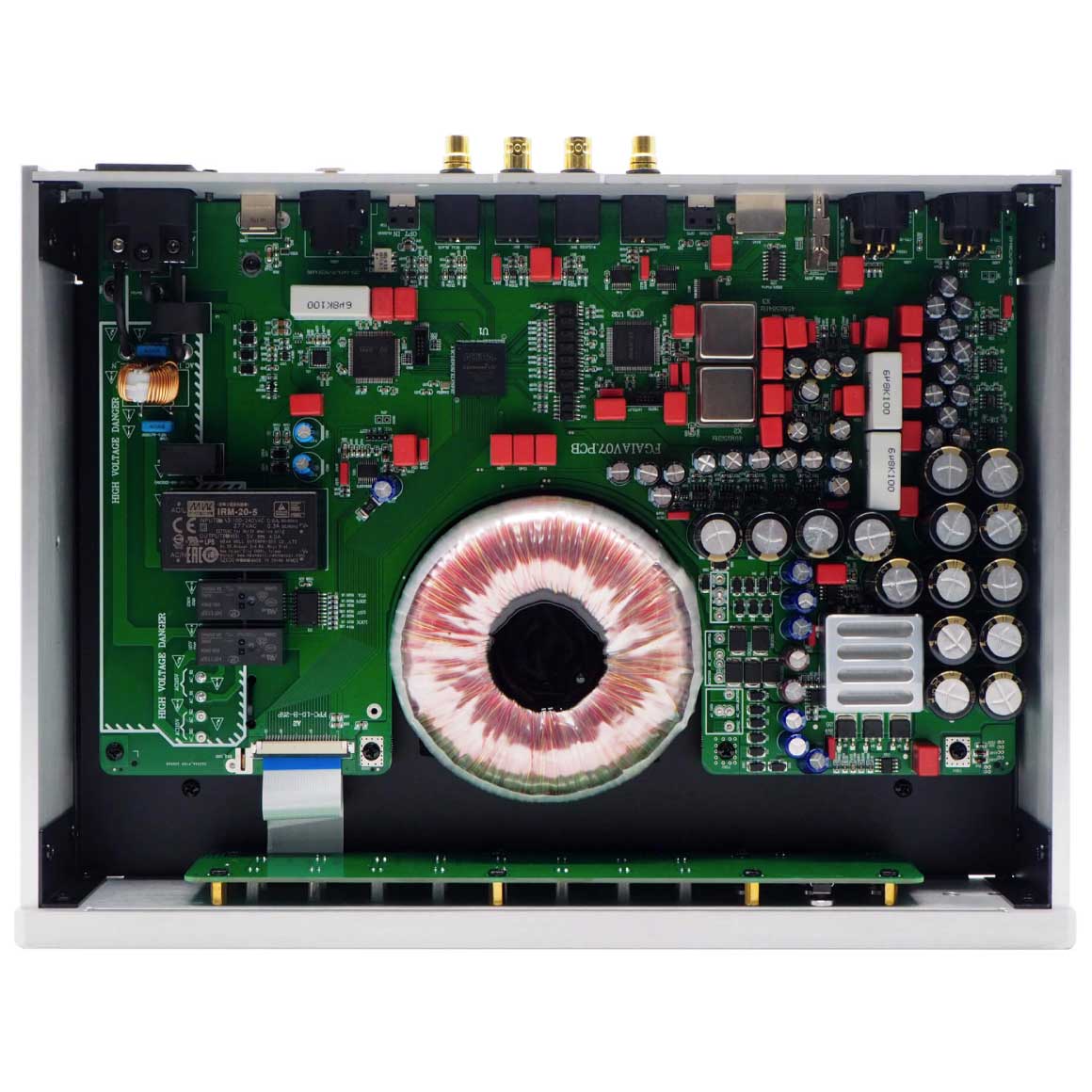

State Of The Art Circuit Design For Clean Sound
DENAFRIP GAIA embeds more than 8 sets of Ultra Low Noise, Precision Linear Power Regulars along with an oversized O-Core Transformer. This design decision delivers clean power to the digital circuitry effortlessly.
Connectivity Options Including USB + SPIDF
The team at DENAFRIPS decided not to limit the GAIA to processing only the USB signal. They raised the bar. The GAIA accepts USB and SPDIF (Coax, TOSLink, AES/EBU) inputs. These digital signal data-streams will be FIFO buffered and reclocked via the Precision Oven Controlled Crystal Oscillator OCXO. This process eliminates the jitter to a negligible level, ensuring the digital output signal is free from harmful jitter noise. The use of OCXO plays an important role here.
Advanced Converters For Greater Sound Fidelity
If you are on the lookout for a Digital to Digital Converter that can potentially improve the sonic performance of your system, look no further. GAIA is the best companion that works with most DAC brands & models in the market. Set it up in your system to hear the difference.
SPECS
D/D CONVERTER | Proprietary FPGA DSP Processing Architecture FIFO Buffer and Reclock with Internal Crystal Precision Oven Controlled Crystal Oscillator OCXO Optical Isolated All Digital Input Interfaces Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU Licensed Thesycon USB Driver For Windows Platform Driverless On Mac & Linux Dual AES/EBU Output Supported External Clocks Input Supported |
DSD | DSD64 (DoP) on Coax/AES/Opt Input & Output Upto DSD512 On USB Input & I²S Output |
PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input & Output Up to 768KHz On USB Input & Up to 384KHz on I²S Output |

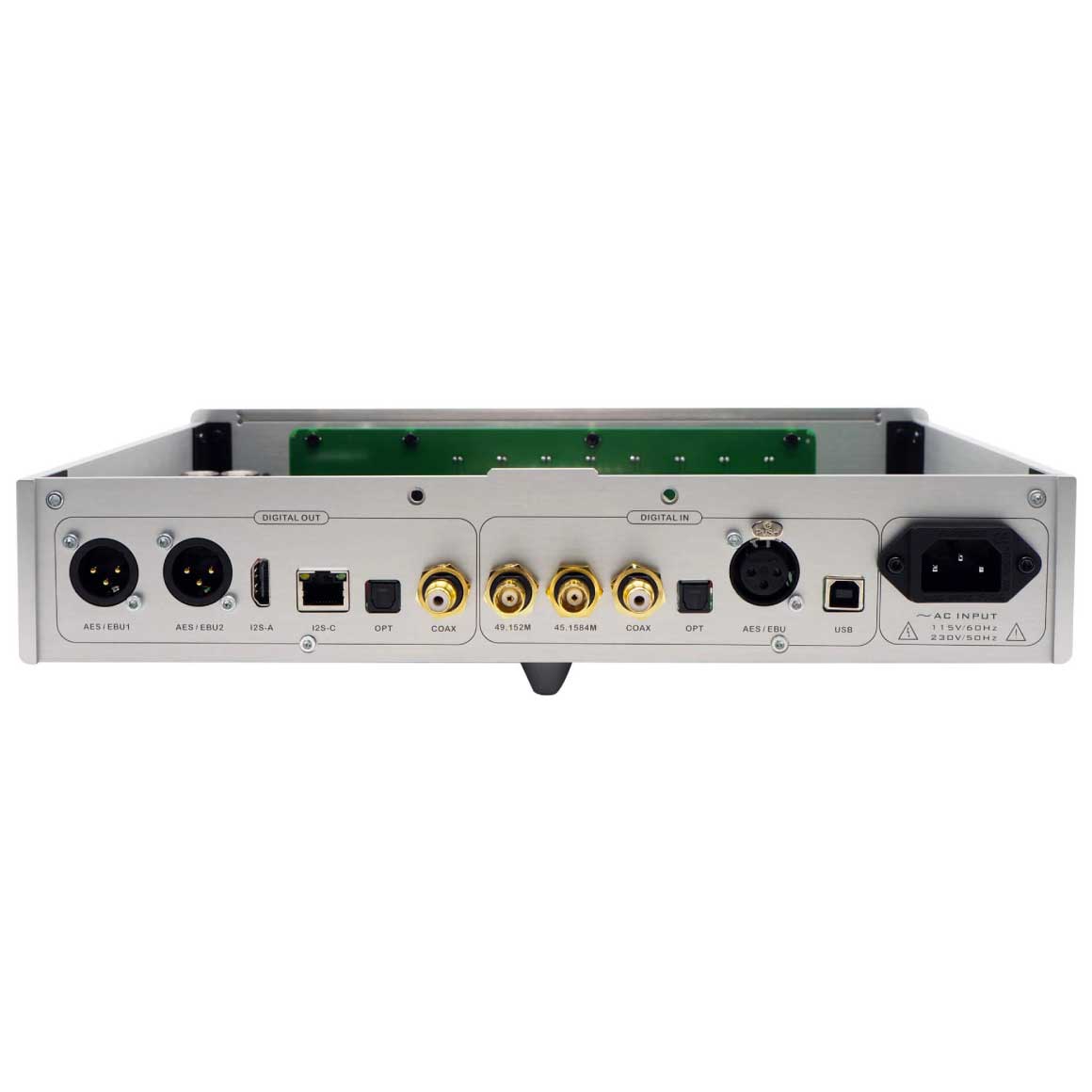

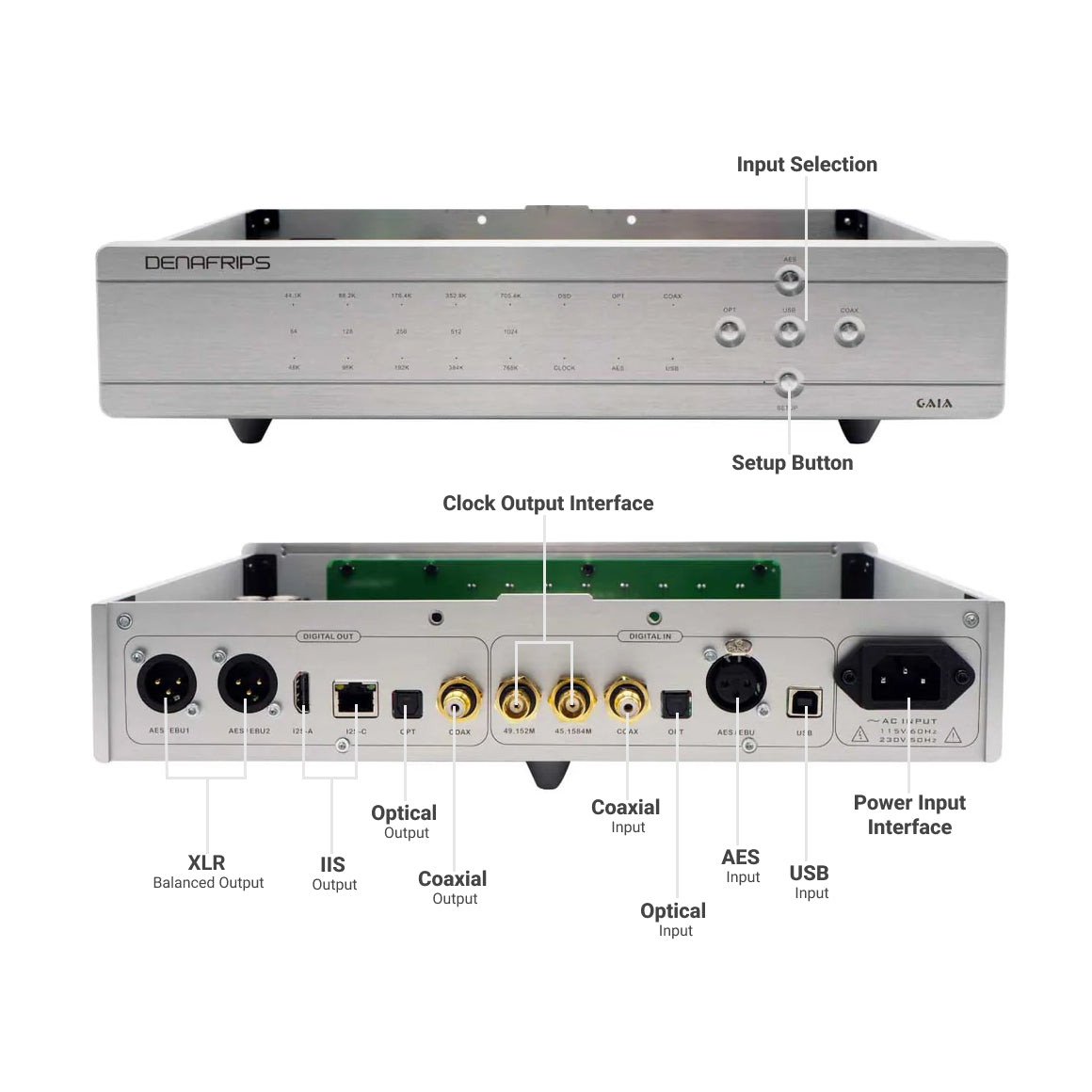

DIGITAL INPUT | Coax SPDIF via RCA TOSLink x 1 AES/EBU x 1 USB2.0 Type B |
EXTERNAL CLOCK INPUT | 45.1548MHz 49.152Mhz |
DIGITAL OUTPUT | Coax SPDIF via RCA TOSLink x 1 AES/EBU x 2 I²S HDMI LVDS Standard I²S RJ45 LVCMOS Standard |
AC POWER REQUIREMENT | 100-240VAC, 50/60Hz (Worldwide Voltage) |
POWER CONSUMPTION | ≤20W |
DIMENSIONS | 340W x 260D x 66H mm (Feet +18mm) |
WEIGHT | 6Kg |
BOX CONTENTS | 1. DENAFRIPS GAIA |
2. User Manual |
OTHER DETAILS
GENERIC NAME | Digital To Digital Converter |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 340 x 260 x 66 mm |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Vinshine Audio PTE. LTD. Address: 33 Ubi Ave 3 Vertex, Tower A #07-62, Singapore 408868 |
PACKAGE CONTENTS | DENAFRIPS GAIA User Manual |
FAQs
What is the warranty period on Denafrips GAIA and how do I claim warranty?
All Denafrips products come with a 1 year warranty. Read more on warranty claim here.
What are the digital inputs for the Denafrips GAIA?
Denafrips GAIA comes with Coax SPDIF via RCA, TOSLink x 1, AES/EBU x 1 and USB2.0 Type B Digital input.
Top Of The Line DDC Embedded With Proprietary FPGA DSP Processing
The DENAFRIPS GAIA is a flagship Digital To Digital Converter (DDC). It took about 3 years to perfect the development of the device and it leverages the technologies found in the companies award-winning DAC, namely, Proprietary FPGA DSP Processing, FIFO Buffer & Reclocking. Along with Industry Leading USB Audio Interface Solution via STM32F466 Advanced AMR based MCU.
State Of The Art Circuit Design For Clean Sound
DENAFRIP GAIA embeds more than 8 sets of Ultra Low Noise, Precision Linear Power Regulars along with an oversized O-Core Transformer. This design decision delivers clean power to the digital circuitry effortlessly.
Connectivity Options Including USB + SPIDF
The team at DENAFRIPS decided not to limit the GAIA to processing only the USB signal. They raised the bar. The GAIA accepts USB and SPDIF (Coax, TOSLink, AES/EBU) inputs. These digital signal data-streams will be FIFO buffered and reclocked via the Precision Oven Controlled Crystal Oscillator OCXO. This process eliminates the jitter to a negligible level, ensuring the digital output signal is free from harmful jitter noise. The use of OCXO plays an important role here.
Advanced Converters For Greater Sound Fidelity
If you are on the lookout for a Digital to Digital Converter that can potentially improve the sonic performance of your system, look no further. GAIA is the best companion that works with most DAC brands & models in the market. Set it up in your system to hear the difference.
D/D CONVERTER | Proprietary FPGA DSP Processing Architecture FIFO Buffer and Reclock with Internal Crystal Precision Oven Controlled Crystal Oscillator OCXO Optical Isolated All Digital Input Interfaces Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU Licensed Thesycon USB Driver For Windows Platform Driverless On Mac & Linux Dual AES/EBU Output Supported External Clocks Input Supported |
DSD | DSD64 (DoP) on Coax/AES/Opt Input & Output Upto DSD512 On USB Input & I²S Output |
PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input & Output Up to 768KHz On USB Input & Up to 384KHz on I²S Output |
DIGITAL INPUT | Coax SPDIF via RCA TOSLink x 1 AES/EBU x 1 USB2.0 Type B |
EXTERNAL CLOCK INPUT | 45.1548MHz 49.152Mhz |
DIGITAL OUTPUT | Coax SPDIF via RCA TOSLink x 1 AES/EBU x 2 I²S HDMI LVDS Standard I²S RJ45 LVCMOS Standard |
AC POWER REQUIREMENT | 100-240VAC, 50/60Hz (Worldwide Voltage) |
POWER CONSUMPTION | ≤20W |
DIMENSIONS | 340W x 260D x 66H mm (Feet +18mm) |
WEIGHT | 6Kg |
BOX CONTENTS | 1. DENAFRIPS GAIA |
2. User Manual |
OTHER DETAILS
GENERIC NAME | Digital To Digital Converter |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 340 x 260 x 66 mm |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Vinshine Audio PTE. LTD. Address: 33 Ubi Ave 3 Vertex, Tower A #07-62, Singapore 408868 |
PACKAGE CONTENTS | DENAFRIPS GAIA User Manual |
What is the warranty period on Denafrips GAIA and how do I claim warranty?
All Denafrips products come with a 1 year warranty. Read more on warranty claim here.
What are the digital inputs for the Denafrips GAIA?
Denafrips GAIA comes with Coax SPDIF via RCA, TOSLink x 1, AES/EBU x 1 and USB2.0 Type B Digital input.
