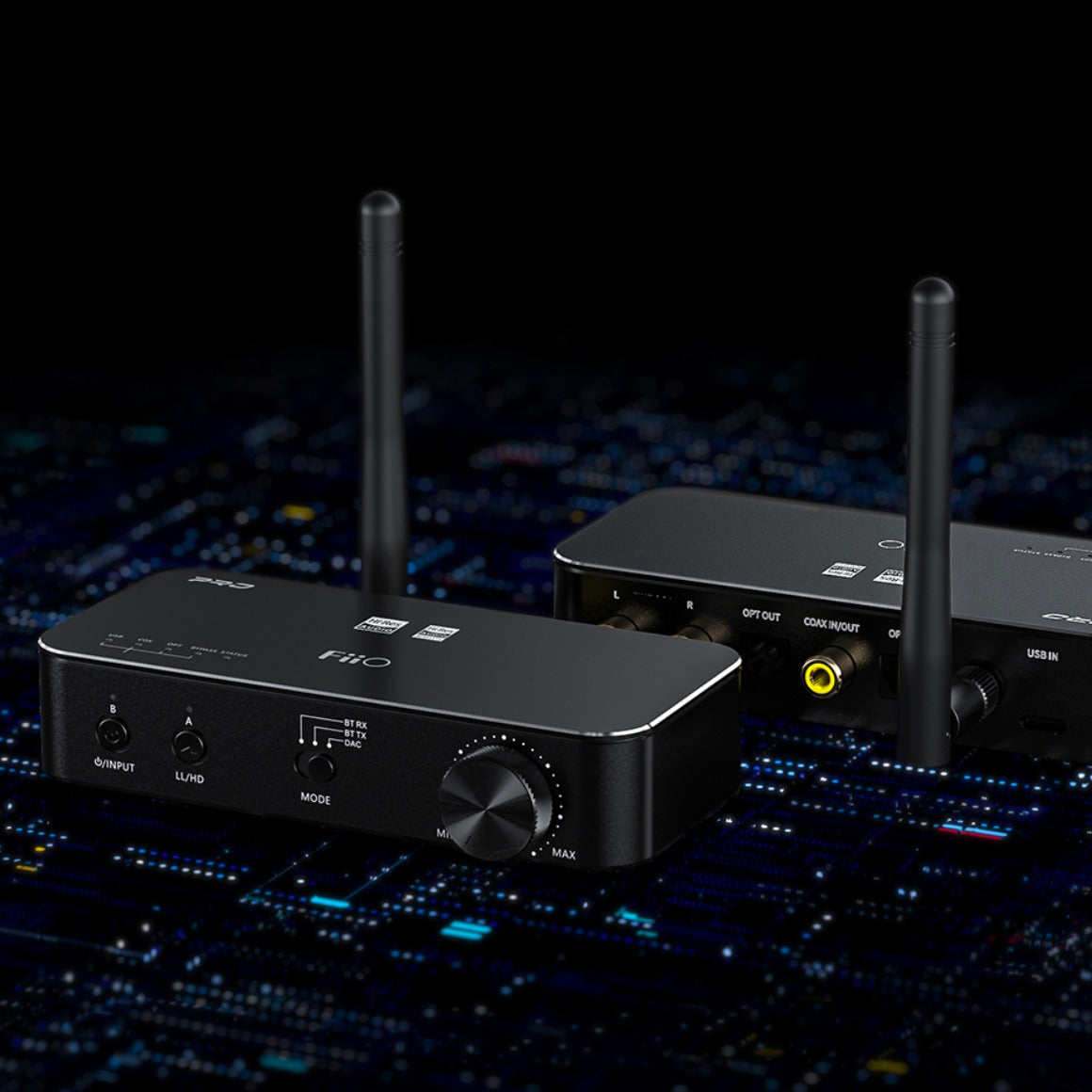

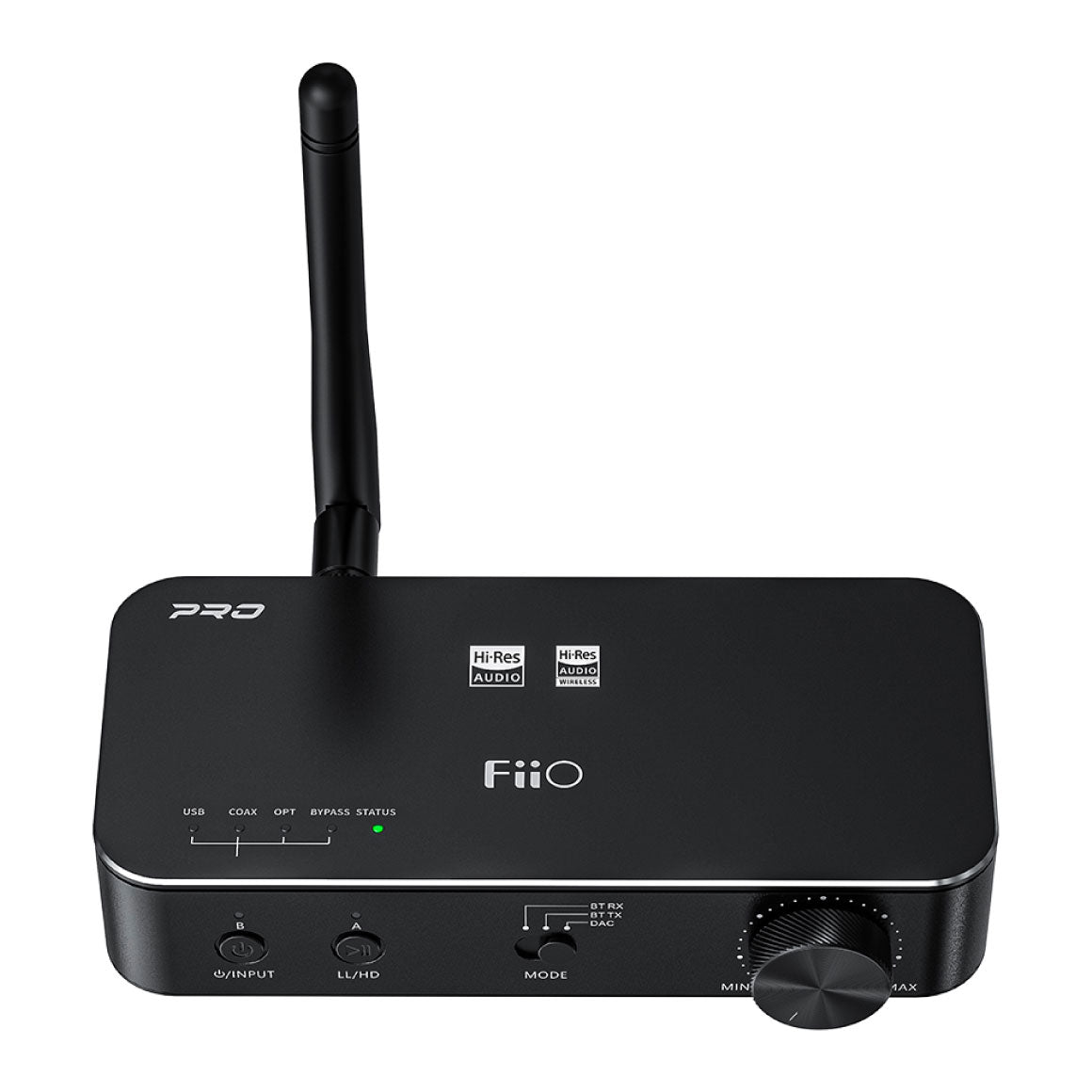

PRESENTING THE UPGRADED BTA30 PRO BLUETOOTH TRANSCEIVER TO THE WIDELY POPULAR BTA30
FiiO BTA30 Pro utilises Bluetooth 5.0 with support for the SBC/AAC/aptX/aptX LL/aptX HD/LDAC high-resolution codecs- and even supports transmitting and receiving LDAC. The aptX LL is also supported and prioritised for satisfying low-latency gaming. These high-definition Bluetooth formats cover a wider range and have faster transmission rates for up to 30 metres for a more exhilarating experience. Along with Bluetooth 5.0 connectivity, the BTA30 Pro also offers three modes of operation - RX mode for receiving Bluetooth, TX mode for transmitting via Bluetooth and DAC mode for using the BTA30 Pro in a wired setup as a DAC. All you need to do is connect your phone and turn it into a jukebox in wired mode. With the inclusion of Bluetooth 5.0 connectivity, you can also use the BTA 30 Pro as a streamer and listen to your favourite music effortlessly.

BLUETOOTH 5.0 CONNECTIVITY WITH SEAMLESS TRANSMISSION AND STREAMING CAPABILITIES
FiiO BTA30 Pro utilises Bluetooth 5.0 with support for the SBC/AAC/aptX/aptX LL/aptX HD/LDAC high-resolution codecs- and even supports transmitting and receiving LDAC. The aptX LL is also supported and prioritised for satisfying low-latency gaming. These high-definition Bluetooth formats cover a wider range and have faster transmission rates for up to 30 metres for a more exhilarating experience. Along with Bluetooth 5.0 connectivity, the BTA30 Pro also offers three modes of operation - RX mode for receiving Bluetooth, TX mode for transmitting via Bluetooth and DAC mode for using the BTA30 Pro in a wired setup as a DAC. All you need to do is connect your phone and turn it into a jukebox in wired mode. With the inclusion of Bluetooth 5.0 connectivity, you can also use the BTA 30 Pro as a streamer and listen to your favourite music effortlessly.




DIGITAL REJUVENATION WITH THREE MODES OF OPERATION FOR EASE OF USE

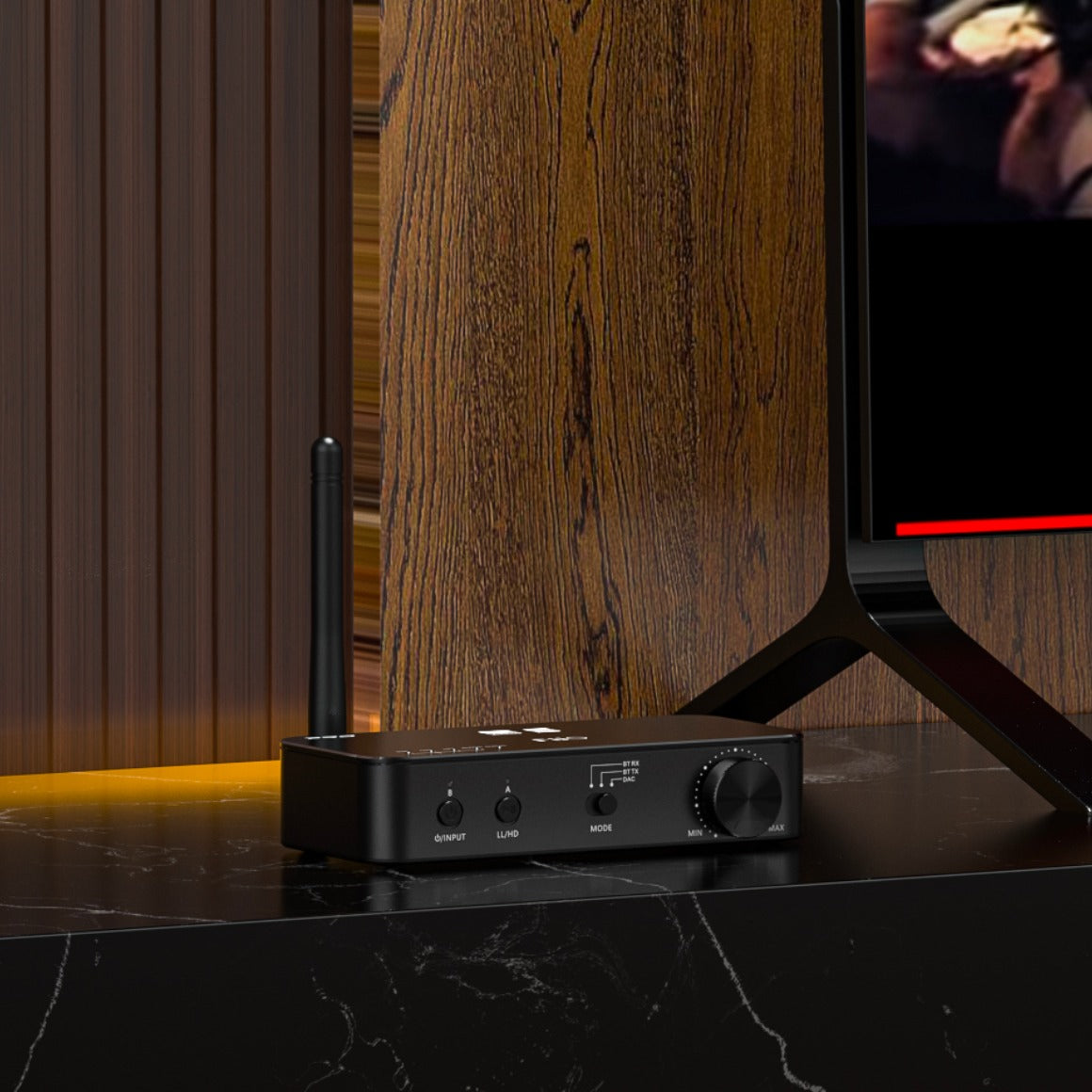

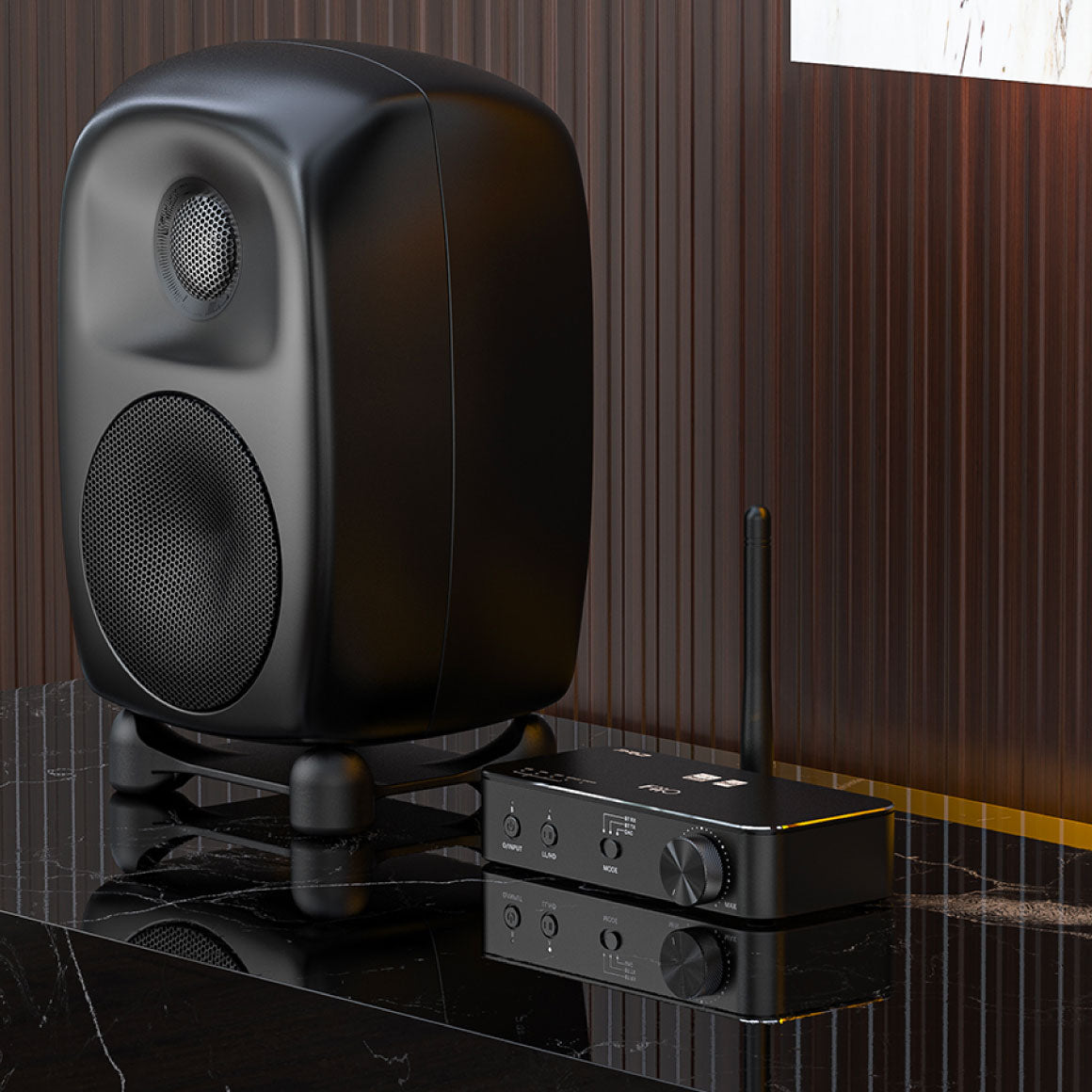

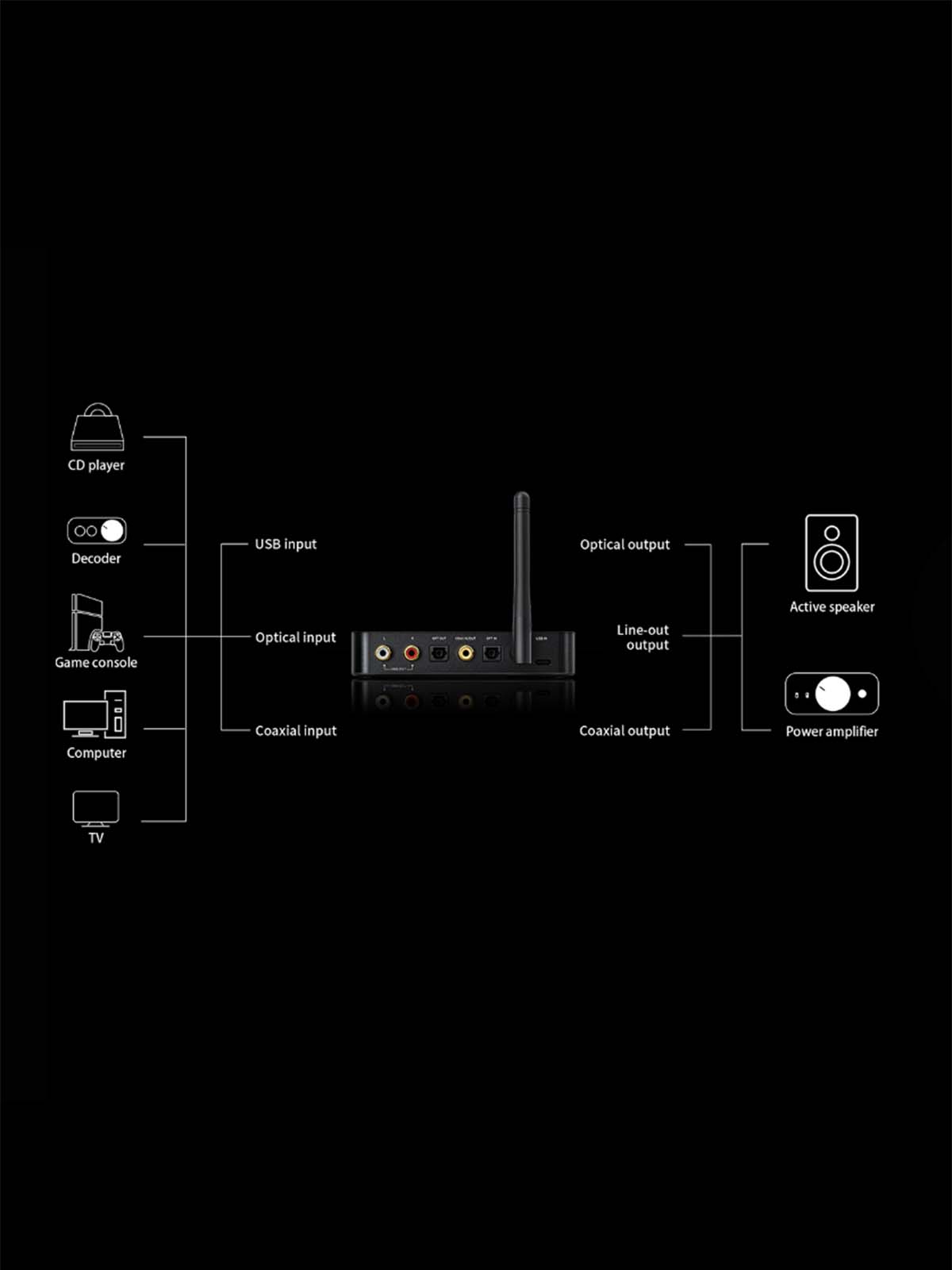

Connect your phone or music player to the BTA30 Pro via Bluetooth, and then connect the BTA30 Pro to your non-Bluetooth audio system to enjoy music wirelessly. The digital output of a TV, CD player or computer may be connected to the BTA30 Pro, which then transmits sound to your Bluetooth headphones for a truly cinematic listening experience (including any format with any input). Supported formats include LDAC, aptX HD, aptX LL, and SBC; Optical, coaxial, and USB inputs all support LDAC. The BTA30 Pro can be used as a DAC to transform digital audio into a high-quality analogue signal when connected to a computer or other devices. Optical input supports 96kHz/24bit, while coaxial input provides native DoP128 up to 384kHz/24bit. DoP256 and 384kHz/32bit are supported for USB input. It supports driverless UAC1.0 and UAC2.0 (configured on the app), and any DAC mode input is capable of RCA line output. Coaxial output cannot be used with coaxial input. Bypass mode can be operated with optical input in transmitting and DAC modes.

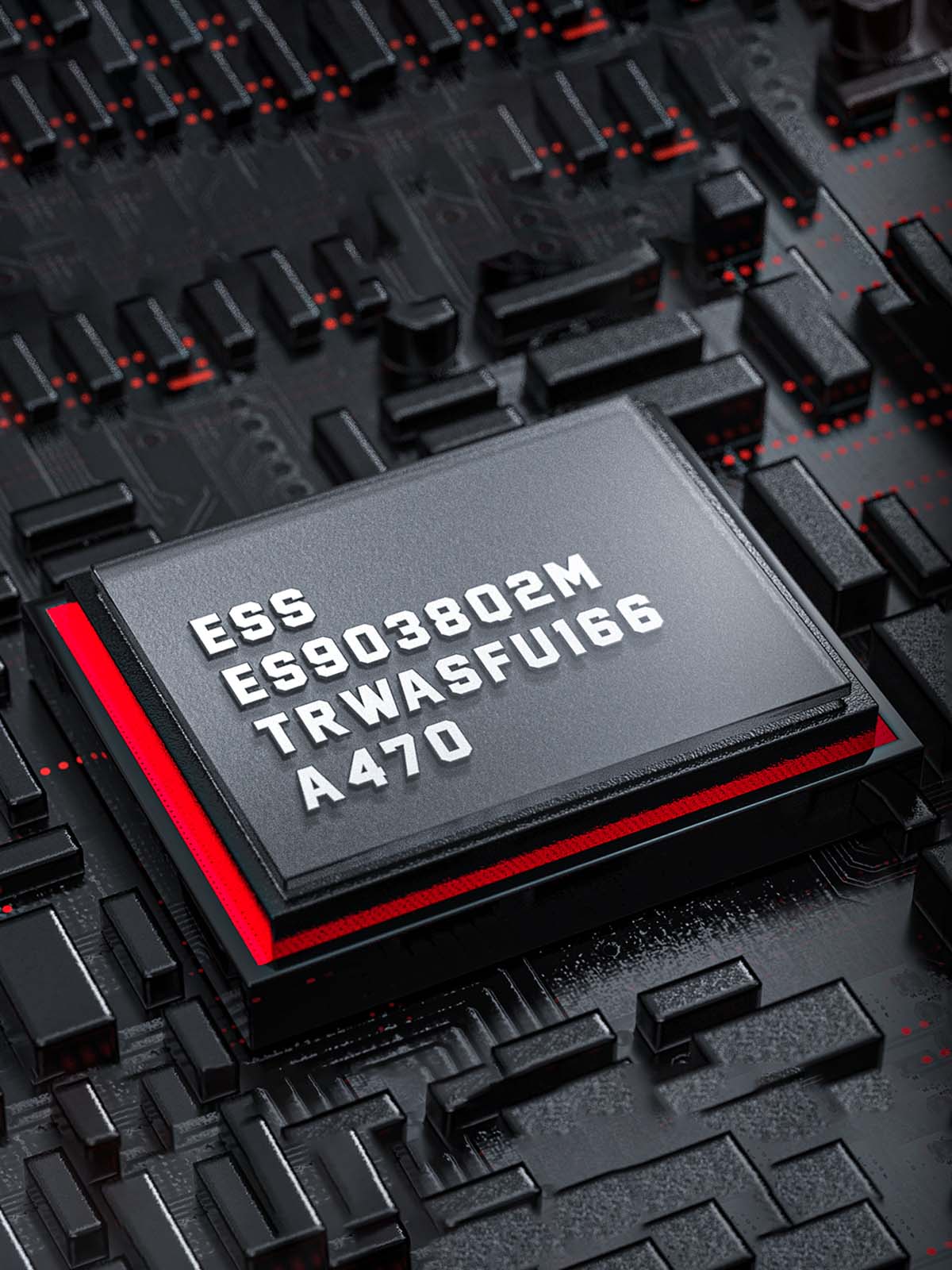

EMBEDDED WITH SABRE ES9038Q2M DAC CHIP FOR PRISTINE AUDIO REPRODUCTION
FiiO BTA30 Pro utilises the power of a trusted ES9038Q2M DAC chip from Sabre technologies. It is a 32-bit DAC chip that provides high-resolution audio signal decoding with utmost precision and quality. The BTA30 Pro and its premium Sabre DAC chip enable high-resolution audio signal decoding. The newest XMOS XU208 USB receiver supports Native DSD512 decoding over the USB connection and 32-bit/384kHz decoding for the BTA30 Pro DAC.



OFFERING BYPASS FUNCTIONALITY AND ACCURATE VOLUME ADJUSTMENT
FiiO BTA30 Pro offers more versatility with the new Bypass mode, allowing you to connect to several different devices at the same time. When in Bluetooth transmitting mode Bypass mode allows for optical input to optical/Bluetooth output simultaneously. In DAC mode, Bypass mode makes it possible for optical input to the optical output. FiiO BTA30 Pro is amongst the very few Bluetooth desktop devices that incorporate pro-level audio volume adjustment methods. ADC curve reconstruction results in precisely controlled and balanced volume in the analogue and digital domains.



MULTIPLE INPUT CONNECTIVITY OPTIONS WITH DUAL HI-RES CERTIFICATION

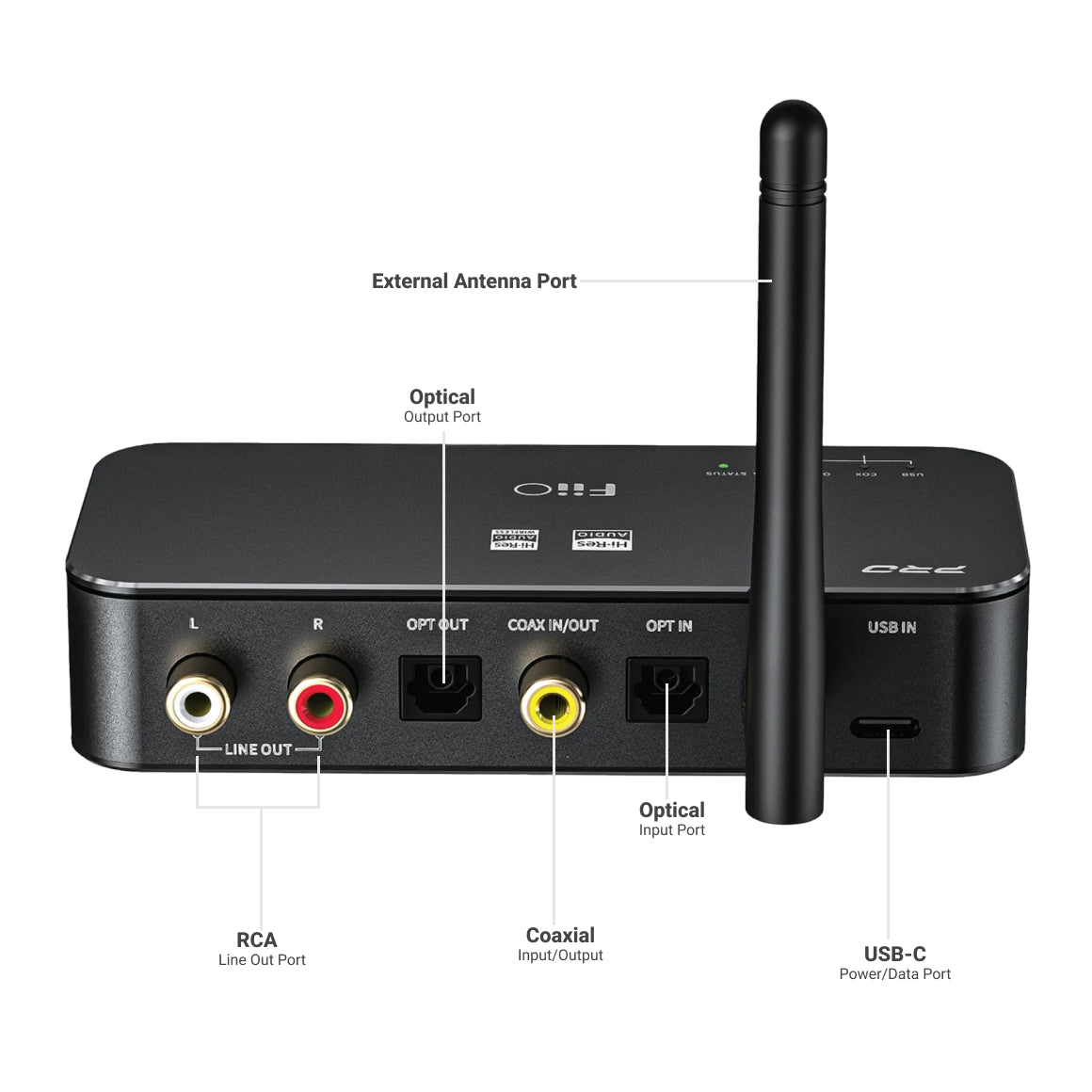

FiiO BTA30 Pro not only supports Bluetooth and USB as input ports but also offers SPDIF coaxial, Optical digital inputs and an RCA input connection. BTA30 Pro can serve as a high-fidelity desktop DAC if you require it to be. Along with multiple connectivity options the BTA30 Pro has dual Hi-Res Audio certification by the Japan Audio Society. Not only does the BTA30 Pro have the Hi-Res Audio certification but it also has achieved Hi-Res Audio Wireless certification for guaranteed excellent performance.

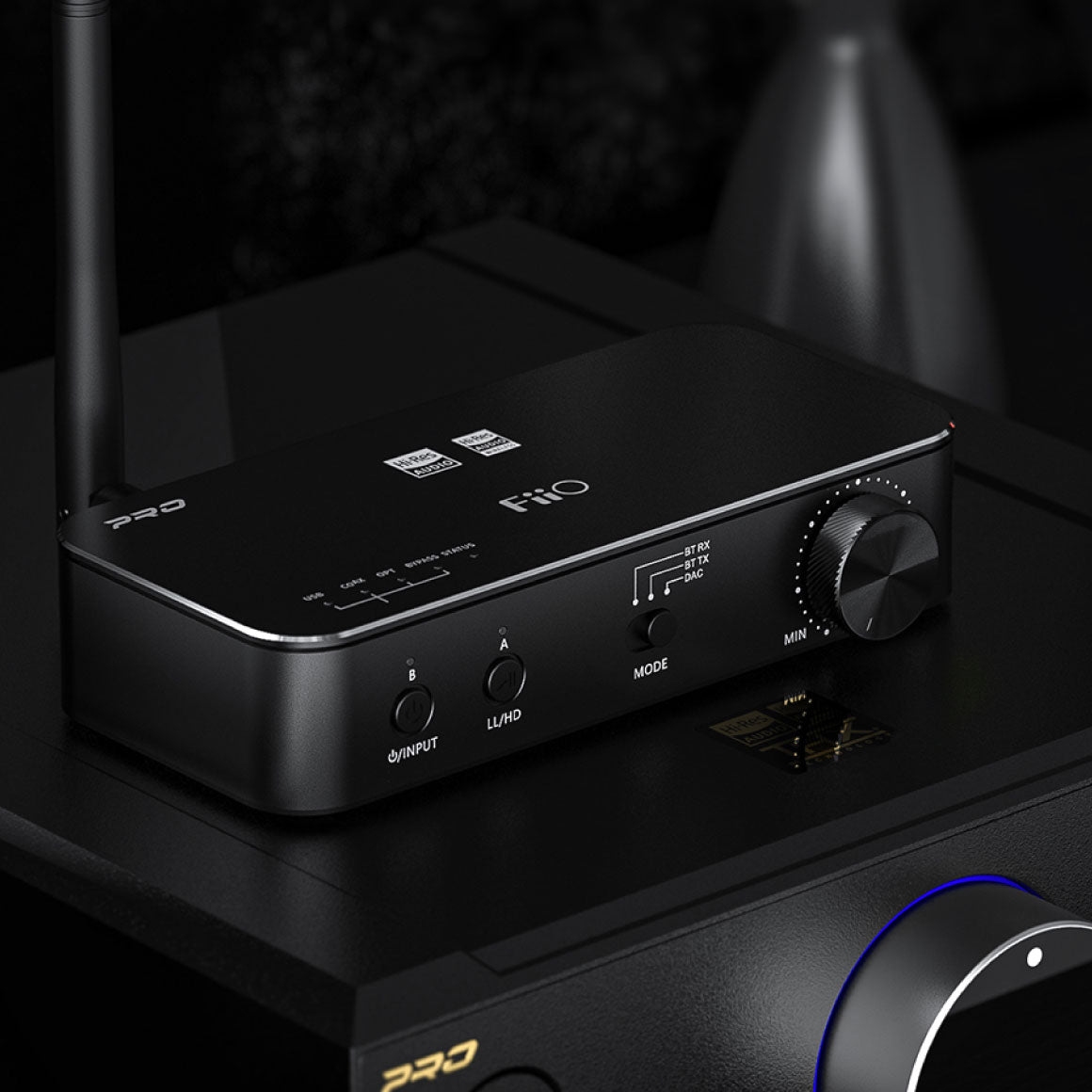

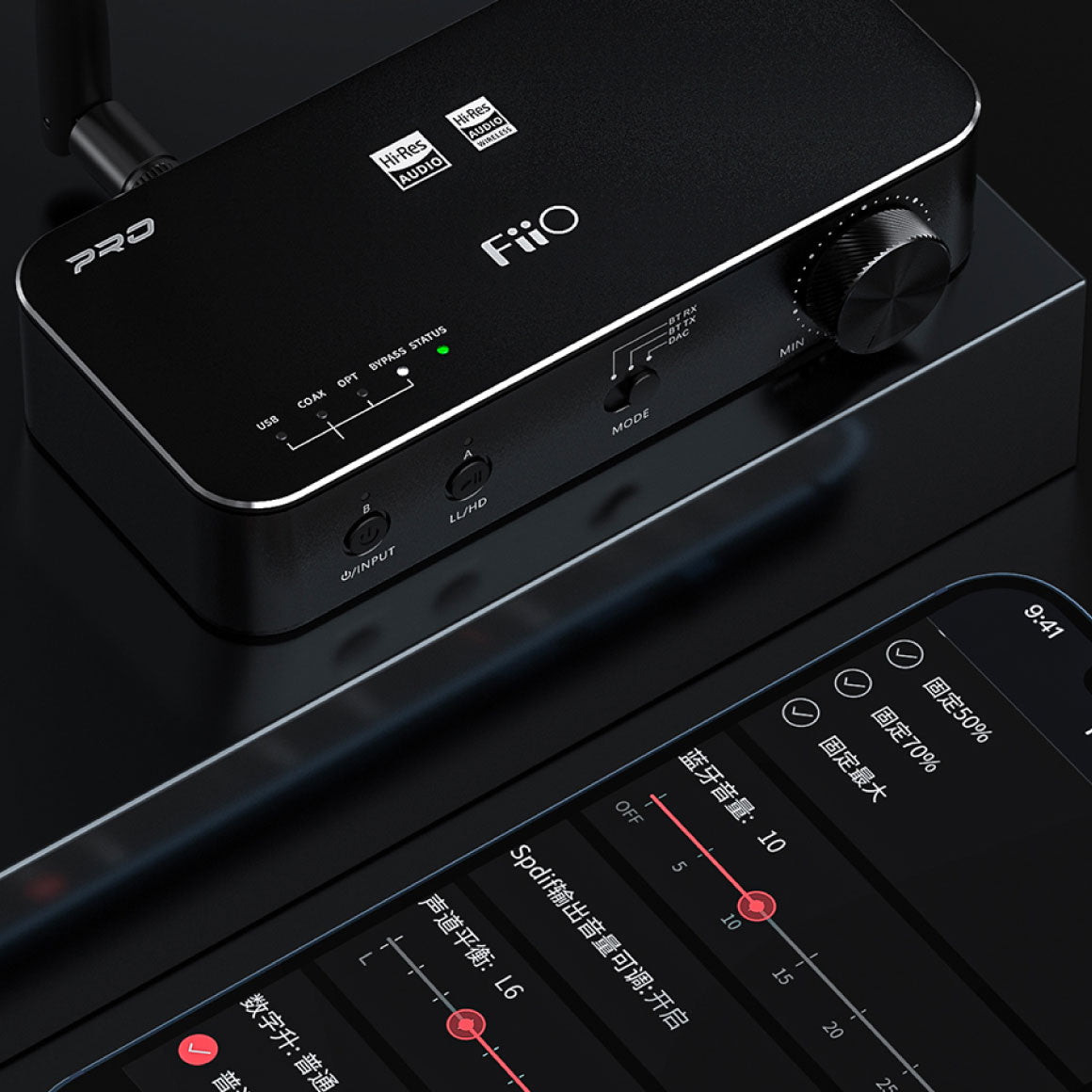

A CLASS-LEADING BUILD WITH AN ALUMINIUM ALLOY BODY COUPLED WITH RGB INDICATOR LIGHT AND A DEDICATED APP FOR EASY OPERABILITY

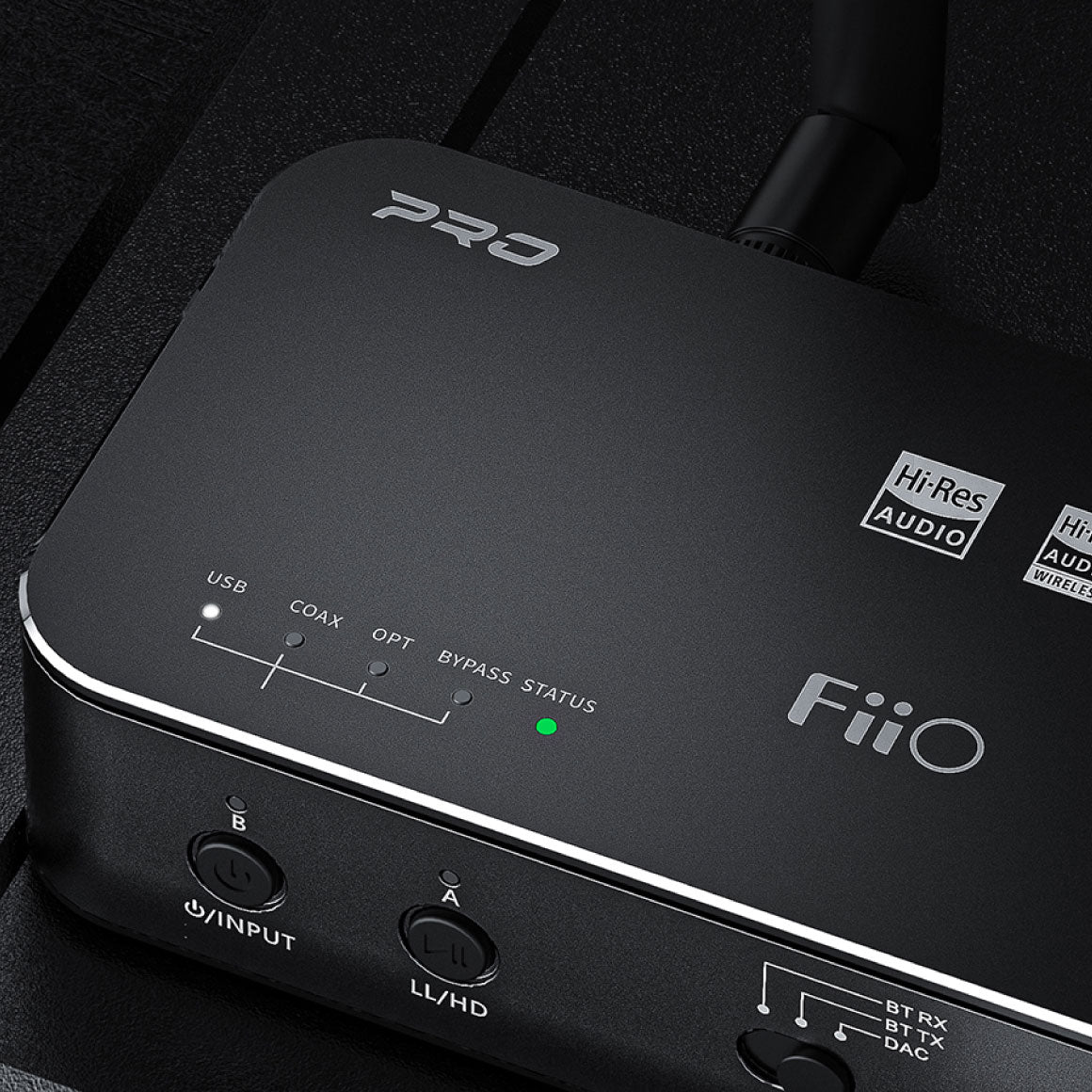

FiiO products have always had exceptional build quality, which exudes exquisite appearance and solid build quality. The FiiO BTA30 Pro Transceiver exudes confidence thanks to its construction and premium connectors. Its sturdy body is made of an aluminium alloy, which gives it a glossy finish and a silky feel. The BTA30 Pro has a strategically placed RGB indicator light that aids in identifying the available audio playback formats. Thanks to the logical, uniform button layout, and the clear indicator lights, it is easy to operate. For added convenience, the BTA30 Pro can be controlled using the FiiO music or FiiO Control App.




MODEL | BTA30 Pro |
COLOR | Black |
WEIGHT | ≈145g |
BLUETOOTH CONNECTION INDICATOR | Yes |
FIRMWARE UPGRADE | System firmware and Bluetooth version can be upgraded through USB |
BLUETOOTH TRANSMIT | SBC/aptX/aptX HD/aptX LL/LDAC |
STATUS INDICATOR | SBC: Blue AAC: Teal AptX: Purple AptX HD: Yellow AptX LL: Green LDAC: White |
MAX SUPPORTED SAMPLING RATE | 384kHz-32bit/DoP256(USB DAC) 384kHz-24bit/DoP128(Coaxial) 96KHz-24bit(Optical) |
HARDWARE SOLUTION | DAC: ES9038Q2M,USB: XMOS XU208 , BT: CSR8675,DSP:CT7302EL |
VOLUME CONTROL | Potentiometer(ADC Sampling) |
FIIO CONTROL | Yes |
SAMPLING RATE INDICATOR | Yes |
BLUETOOTH RECEIVE (5.0) | SBC/AAC/aptX/aptX HD/LDAC |
INPUT SOURCE INDICATOR | USB IN/COAX IN/OPT IN/BYPASS separate indicator |
BUTTONS | Physical key + Toggle switch |
COAXIAL INPUT | RCA (input/output shared) |
OPTICAL INPUT | Optical fiber socket |
ANALOG OUTPUT (LO) | RCA |
USB | Two-way TYPE C USB2.0 (Charging/Data transmisson) |
COAXIAL OUTPUT | RCA (input/output shared) |
OPTICAL OUTPUT | Optical fiber socket |
USB POWER | DC5V 2A(recommended) |
THD+N | <0.001%(1kHz/10kΩ) |
CROSSTALK | ≥112dB (1kHz/10kΩ) |
FREQUENCY RESPONSE | 5Hz~90kHz (-3dB) |
SNR | ≥118dB |
FLOOR NOISE | <4μV |
LO LEVEL | 3Vrms (1kHz/10kΩ) |
THD+N | <0.003%(1kHz/10kΩ) |
CROSSTALK | ≥110dB (1kHz/10kΩ) |
SNR | ≥116dB |
FLOOR NOISE | <5μV |
LO LEVEL | 2.7Vrms (1kHz/10kΩ) |
THD+N | <0.046%(1kHz/10kΩ) |
CROSSTALK | ≥110dB (1kHz/10kΩ) |
SNR | ≥116dB |
FLOOR NOISE | <5μV |
LO LEVEL | 3Vrms (1kHz/10kΩ) |

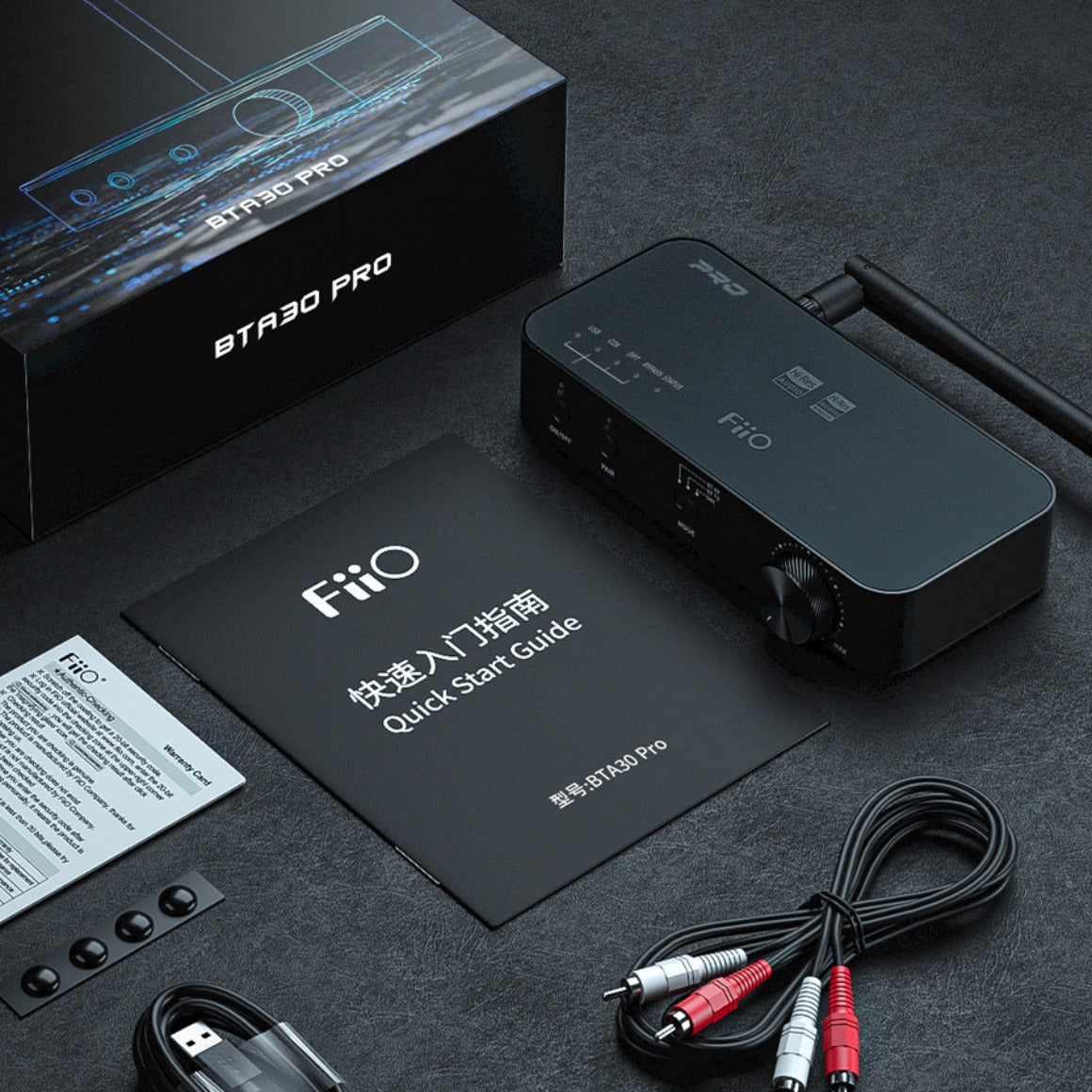

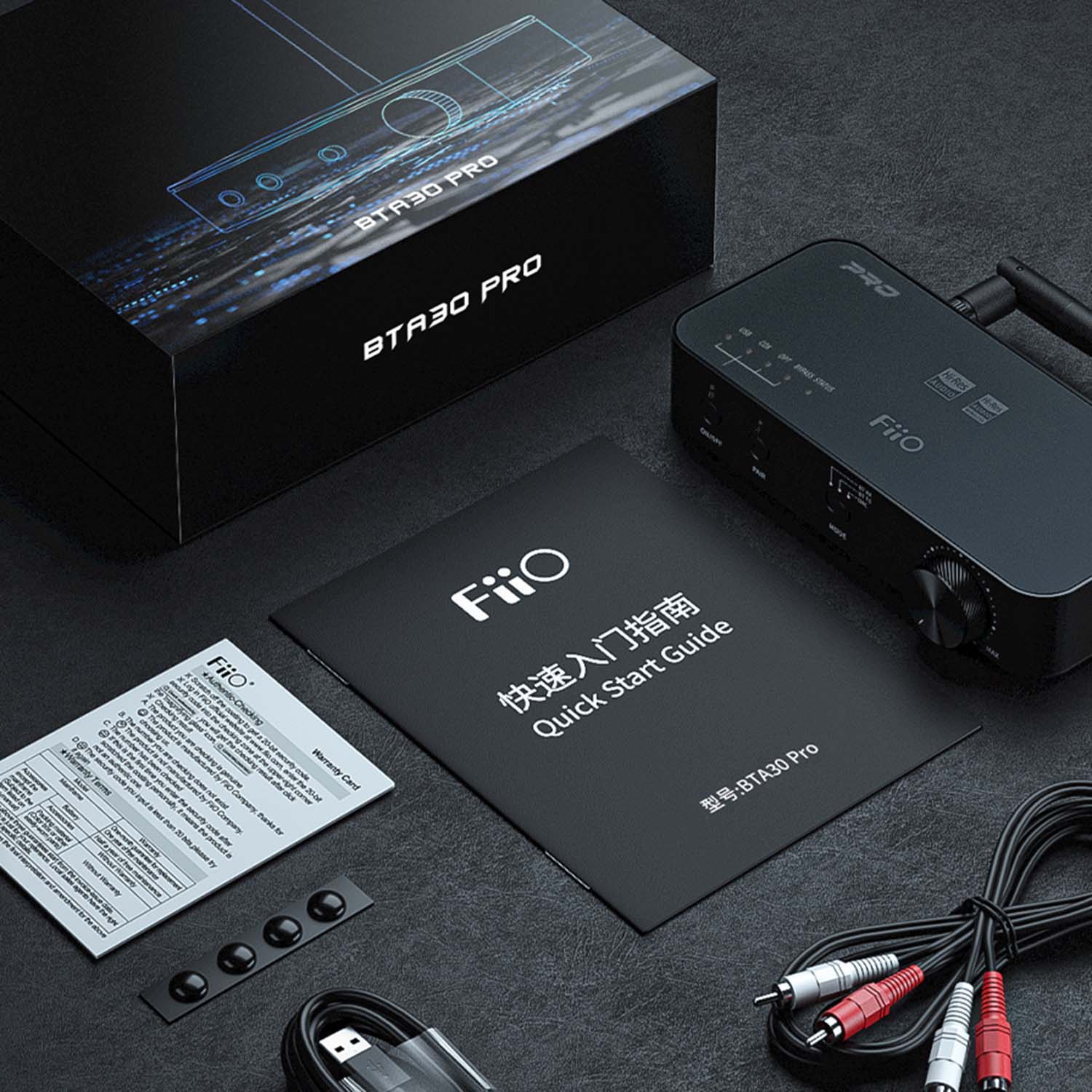

BOX CONTENTS | 1. FiiO BTA30 Pro |
2. Type-C Cable | |
3. RCA Cable | |
4. Isolation feet | |
5. User Manual | |
6. Warranty Card |
GENERIC NAME | Bluetooth Transmitter |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
Double press button LL/HD again to disable aptX LL First. Light SYATUS will stay constantly on following the corresponding Bluetooth codec after the device is reconnected. At this time, all supported codecs will be enabled. Short press button LL/HD to successively switch the codec.
TX (Bluetooth transmitting): connect the BTA30 Pro to the Bluetooth receiving device, Device 1 (PAIR1 is prior as default), and hold button C for about 3s to enter the pairing state again. The BTA30 Pro will automatically search for Device 2 and start to pair with it.
*When working in LDAC and aptX LL codec in TX mode, the BTA30 Pro cannot be connected to two Bluetooth devices simultaneously.
1. The XMOS chip easily handles a wide variety of audio formats up to 384kHz/32-bit PCM and native DSD256, allowing you to enjoy it worry-free.
2. Responsible for digital-to-analog conversion is the excellent ES9038Q2M, letting you easily hear every small detail in your music and providing a wider dynamic range than with portable audio products.

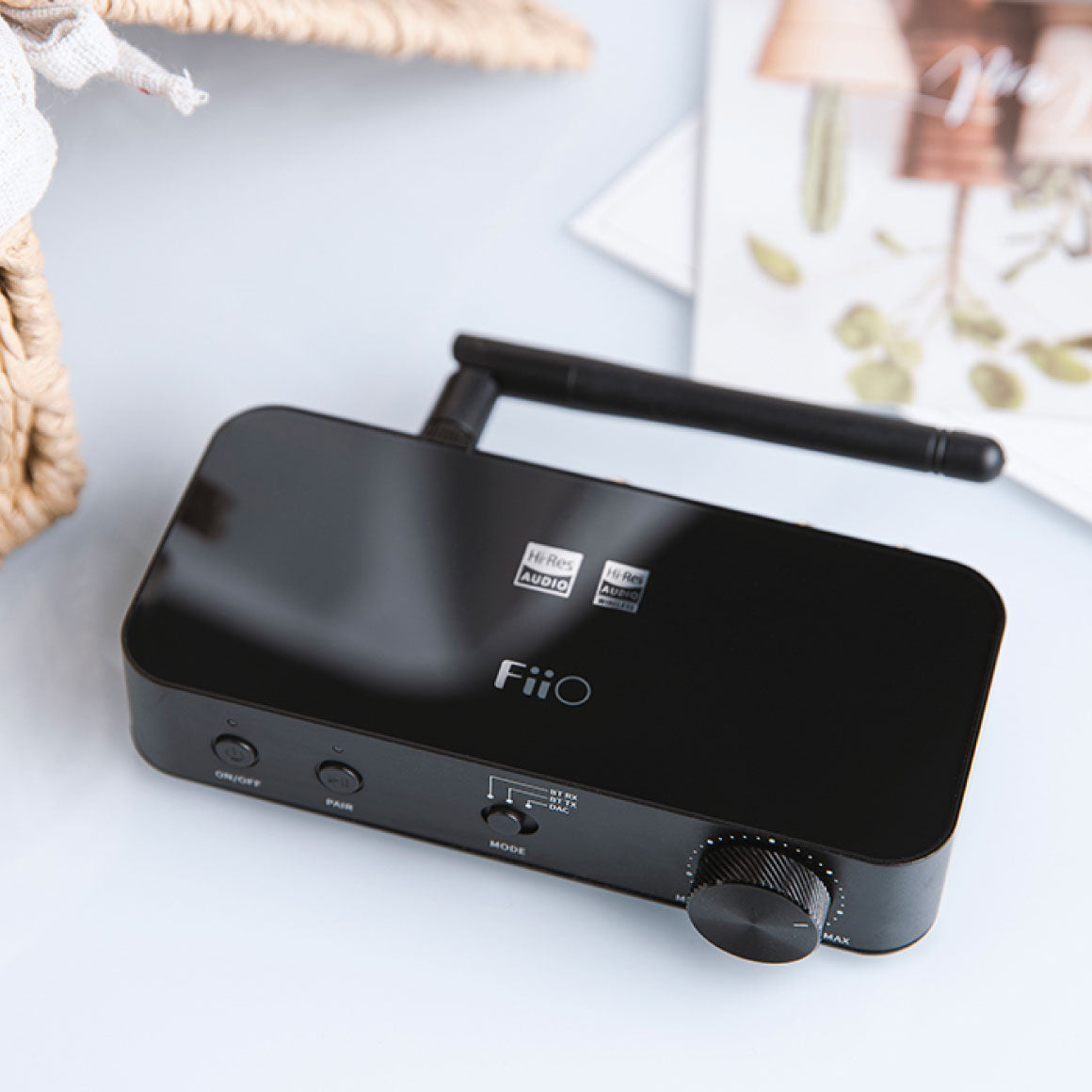

3. The strong aluminum alloy body gives the BTA30 Pro luxurious shininess along with a silky-smooth texture, making it a handsome addition to your home.
Greatly enhanced functions
1. New Bypass mode: In DAC mode, Bypass mode makes possible optical input to optical output.When in Bluetooth Transmitting Mode, Bypass mode allows for optical input to optical/Bluetooth output at the same time.
2. New one-button switching between input sources, with the current input source easily distinguished by a readily visible light.
3. Adds LDAC transmitting support in USB input mode.

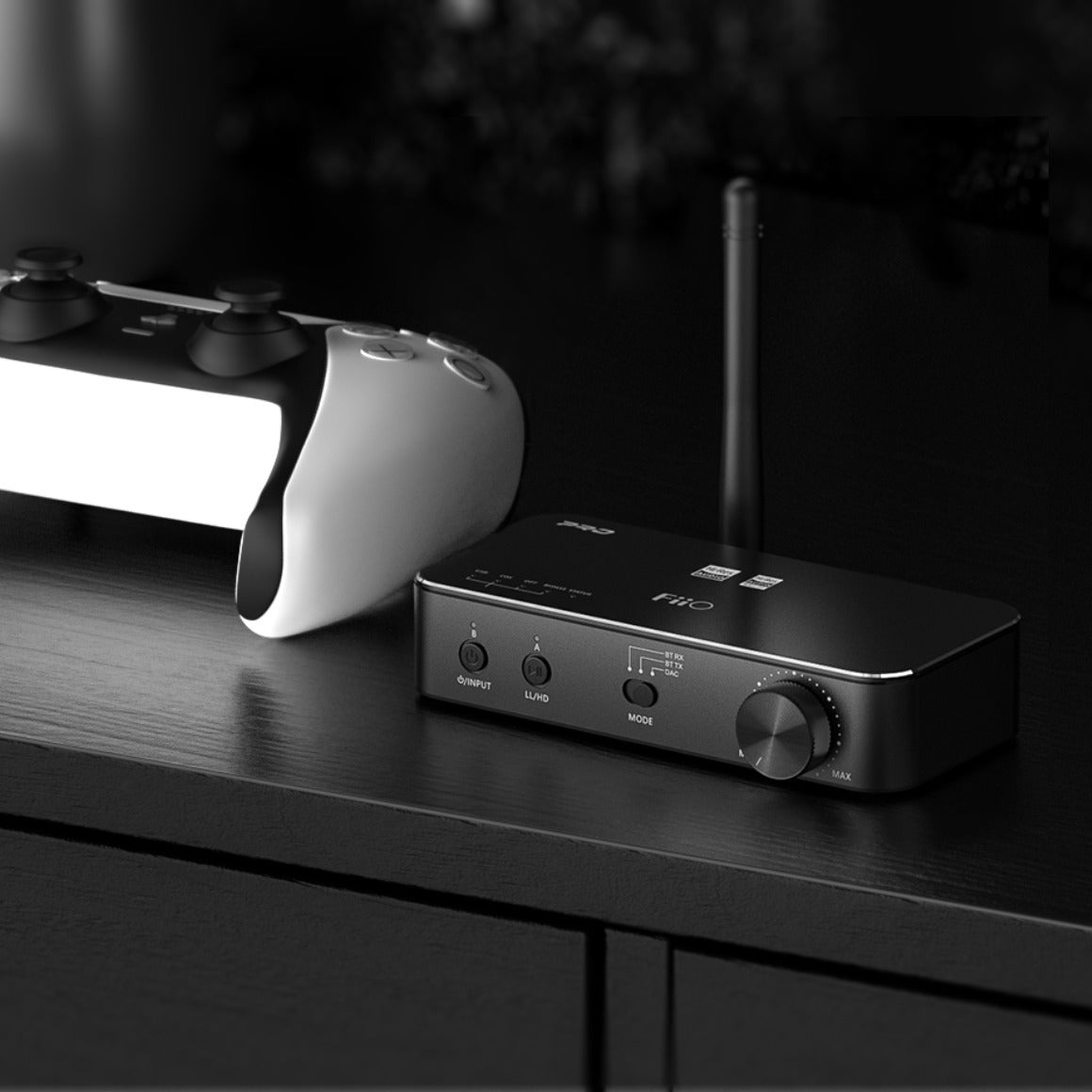

4. New apTX LL first mode: The aptX LL is supported and prioritized for satisfying low-latency gaming.
5. Under the mode of USB in and Bluetooth out, the volume knob can work.
Optimized Experience
1. Two new buttons allow you to manually choose which of the two Bluetooth devices you want to connect to in Bluetooth transmitting mode.
2. Multiple indicators, work status is clear at a glance
3. The coaxial and USB input support higher sampling rate: The coaxial input supports up to 384kHz/24bit and DSD128. The optical input supports up to 96kHz/24bit. The USB input supports up to 384kHz/32bit and DSD256.
2. Hold button INPUT or LL/HD buttons for about 3s until Light STATUS flashes alternately in red and blue. Now the BTA30 Pro has entered pairing mode
3. Set the Bluetooth headphone/speaker in pairing mode. The connection will work soon.
*When first power on or restart after clearing the pairing, the BTA30 Pro will enter pairing mode automatically.
2. Hold button INPUT or LL/HD buttons for about 3s until Light STATUS flashes alternately in red and blue. Now the BTA30 Pro has entered pairing mode
3. Turn on the Bluetooth function in the mobile then search and select the BTA30 Pro to get the connection work.
*When first power on or restart after clearing the pairing, the BTA30 Pro will enter pairing mode automatically.
2. It can be charged with a 5V adapter, or 5V power supplies of any kind, like the USB of a computer/TV.
3. The Android mobile phones could output and power the BTA30 Pro via USB.
4. The iOS device could not power the BTA30 Pro via USB.
