1 Year of
ESS Sabre ES9219C
Dual DAC Chips
HIGH-PERFORMANCE AUDIO CHIPS OFFERING PCM AND DSD SUPPORT

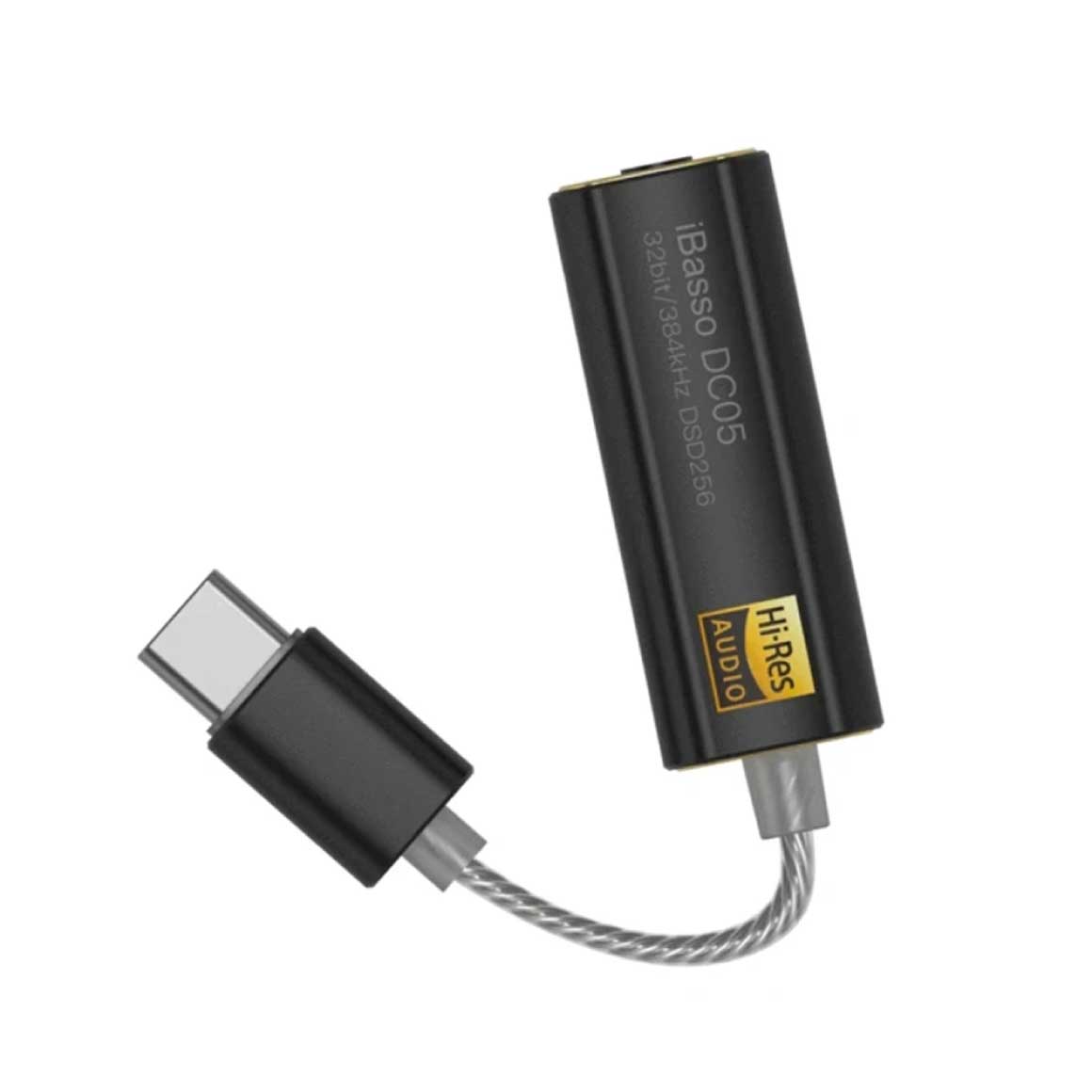

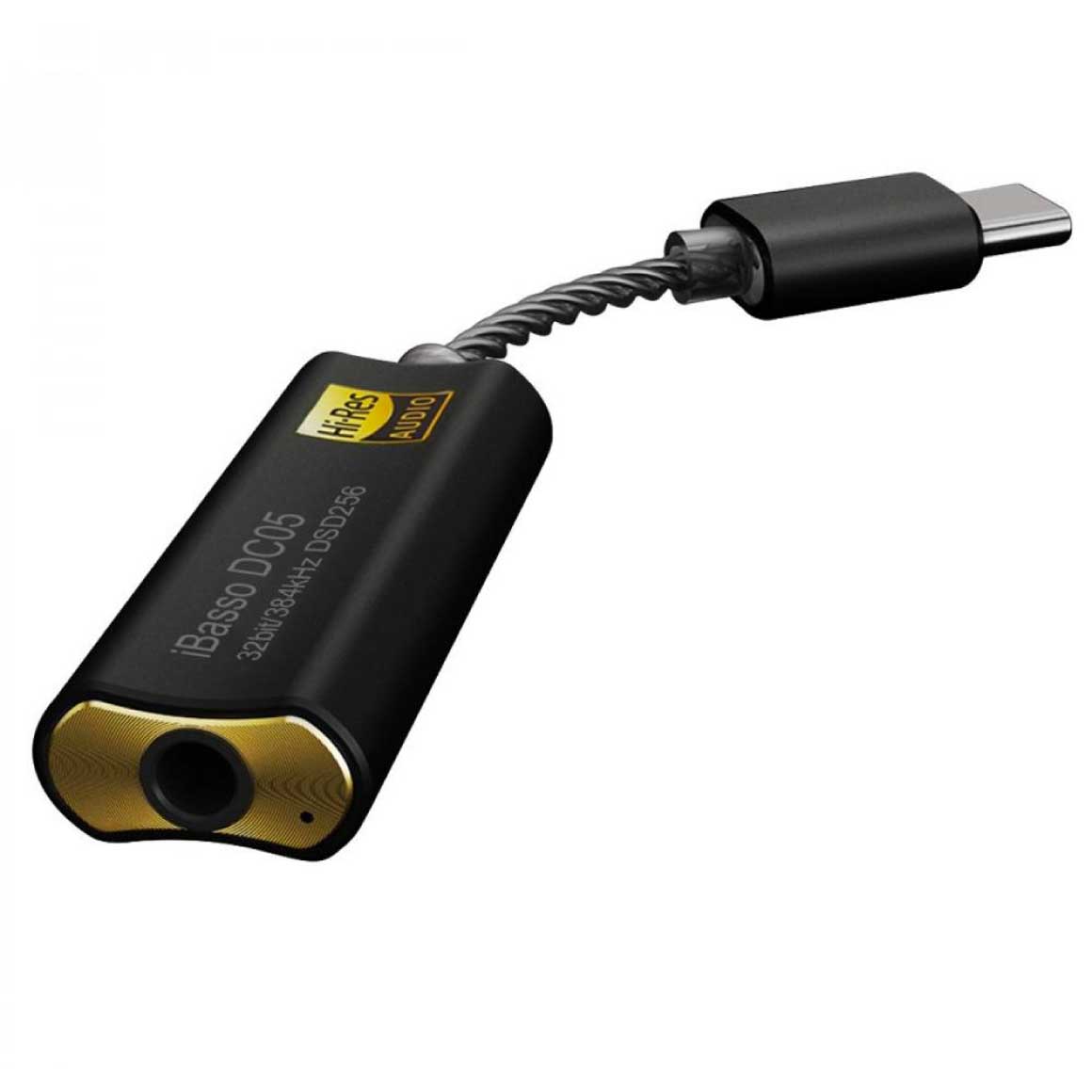

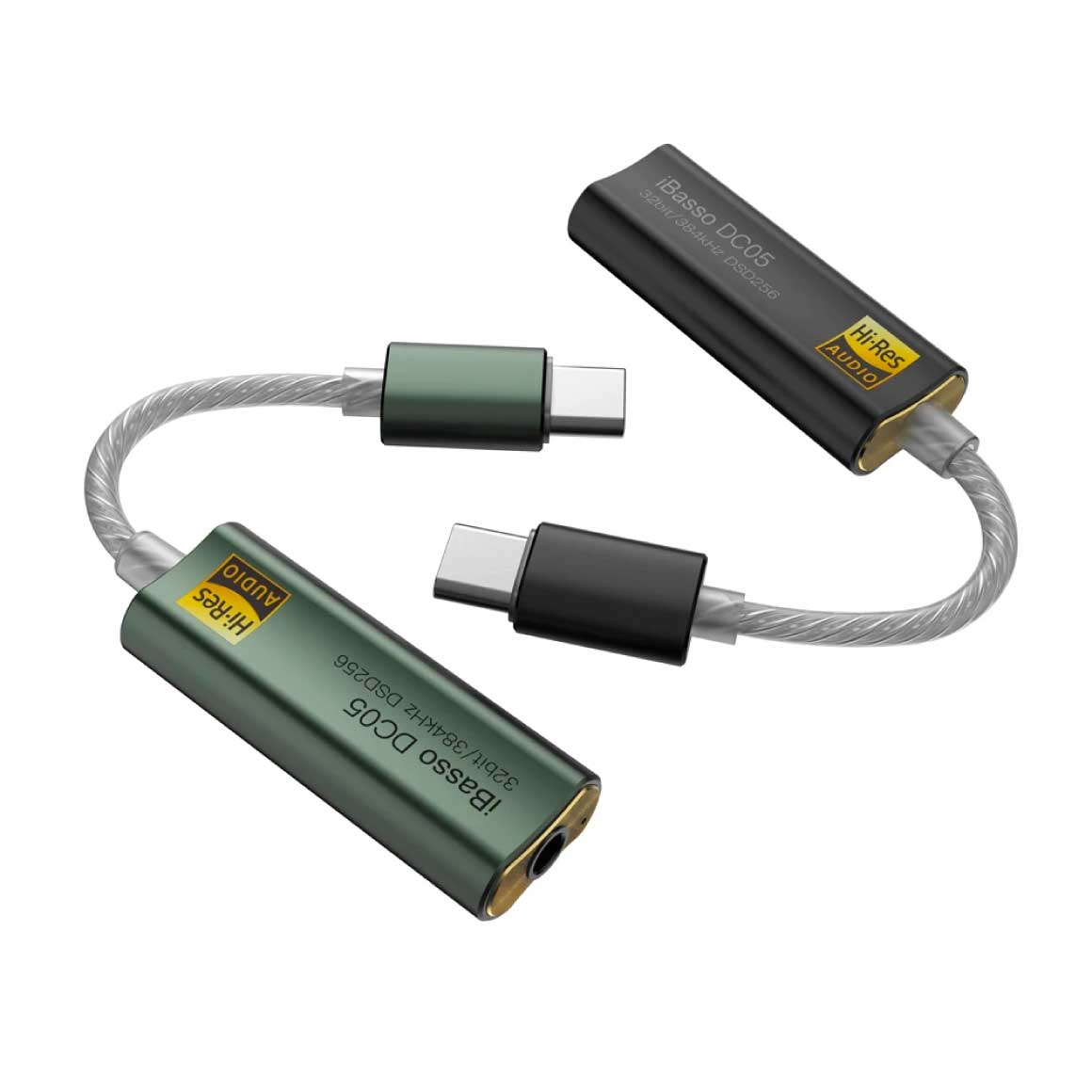

iBasso DC05 is part of a new generation of headphone Amp/DAC focusing on High Definition audio. The iBasso DC05 features dual ES9219C high-performance audio chips. These audio chips are capable of decoding PCM 32bit/384kHz and DSD256 natively. This gives you the freedom to play the highest quality of files, allowing you to enjoy rich and precise audio, enriching the listening experience.
ARTEFACT FREE AUDIO TRANSMISSION WITH QUAD DAC+ TECHNOLOGY
iBasso DC05 has been engineered to give you the best sound reproduction. To achieve this the device embeds a pair of 32bit DAC ES9219C chips and they integrate the Quad DAC+ technology as well as a headphone amplifier and a dynamic range enhancement (DRE). The combination of Quad DAC+, Time Domain Jitter Eliminator and HyperStream III architecture delivers a dynamic range of 121dB and an excellent THD+N level.
POWERFUL OUTPUT CAPABILITY WITH PRECISE VOLUME ADJUSTMENT
The iBasso DC05 adapter has a powerful output voltage of up to 2Vrms (300Ω load) and 1.73Vrms (32Ω load) load. It produces a power of up to 80mW at 32 Ohms load which is more than enough to power your IEMs with ease. iBasso has also developed a volume control application that uses the UAC2.0 protocol to enable 64-step volume control by hardware while lowering the noise floor and providing much better audio performance.
EASY TO CARRY DESIGN FUSED WITH TYPE-C TO 3.5MM CONNECTOR
iBasso DC05 is a portable device with a small footprint, making it easy to carry with you. Alongside being compact, the iBasso DC05 can also connect to most smartphones with a USB Type-C connector and offers plug and play support. That means you need to plug in and start enjoying your music, with no hassle of drivers or any other obstruction. It will allow you to enjoy your music in very high quality anywhere. The USB Type-C connection terminates to a 3.5mm single-ended connector to connect your headphones or IEMs.
|OUTPUT||1x Jack 3.5mm|
|DAC CHIP||2x ESS ES9219C|
|THD+N||< 0.00056% @ 32‰ã_|
|SUPPLY VOLTAGE||2Vrms @ 300‰ã_ |
1.73Vrms @ 32‰ã_
|OUTPUT POWER||140mW@16Ω |
|FREQUENCY RESPONSE||20Hz-40kHz (-0.5dB)|
|OUTPUT IMPEDANCE||< 0.5‰ã_|
|PCM||PCM up to 32bit 384kHz|
|DSD||Native DSD up to 256|
|BOX CONTENTS||1. iBasso DC05|
|2. USB-C to USB-A adapter|
|GENERIC NAME||Headphone Amplifier|
|IMPORTER DETAILS||Importers Name: Ferrari Video
Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020
Contact No: 044-24420733
1 Year Warranty
Don't sweat it, this iBasso - DC05 comes with a warranty
from iBasso that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about iBasso's warranty in India.
Ibasso 5 + Maze Rai Solo + LG G8X... Whatta perfect combo when u play WAVs, that I can Feel in Recording Studio.
Kudos to HeadphoneZone🎧
I don't have prior experience of individual DAC, but after pairing IBASSO DC05, with my smartphone and Audio Technica M40, i noticed significant Improvement in overall audio, even seems it unlocked some more frequencies and i am able to hear some more instruments in same songs i was listening earlier, dac is quite compact to carry, thanks headphonezone to bring such good products.
Yesterday got my Ibasso DC05. listened whole day plugging those.
Noticed few things:
Performance is better in PC, just plug in play. Synergy, vocals, thumping bass everything is there, very much enjoyable.
Playing DSD is a hassle in windows, can't get foobar2000 working(any suggestions or tutorial to do it properly will be helpful), anyway installed JRiver media center(only 30 days trial after paid), works flawlessly and was able to play native DSD (some test files and 1,2 songs found on internet), FLACs (possible with most players though) easily. didn't find any noticable difference with the pair of devices I have.
But with phone things are different, first thing for most streaming apps don't use the external DAC. For my smartphone I found except loudness there's nothing to notice in sound quality unless I have local FLACs and using HIBY music player, otherwise that I found streaming apps are not using the DAC, the synergy, sound signature was not there at all while using with phone. Phones equaliser, volume adjustment, adjust sounds to earphone... options are working with DAC plugged in, which should not work with DAC in the first place, so thinking that phones DAC is processing the audio and just bypassing it (a wild guess, because sound signature is literally same to my phone just a bit louder).
Power usage wise didn't find any problems, not so power hungry.
Sound signature is mostly neutral and a bit forward I would say (headphones which I have is nowhere accurate sounding, but enjoyable- OneOdio Pro50's ), bass is tight, with some bass heavy headphones it can rumble your ears, and when the time of high frequencies came they shines, the sparkle is enjoyable not painful at all, Laal ishq by Arijit , is soo soo enjoyable.
bought it from Headphone Zone, and thanks to them for delivering these in two days (i live in a remote area).
Devices- Redmi note 10 PM, ibasso DC05, OneOdio pro50's.

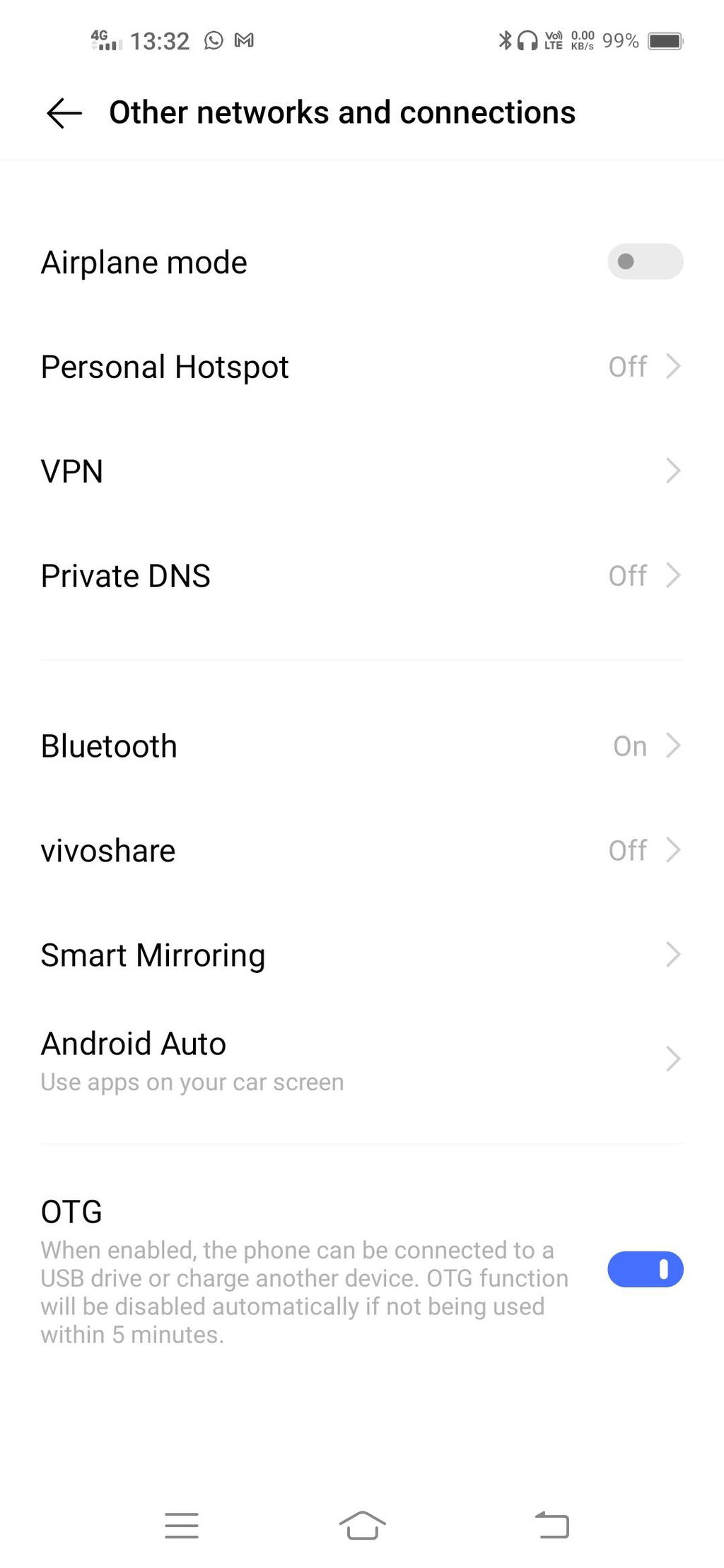

4th picture: controls which I talked about above.
Something to add-on, and found while extensive use is that it heats up more while using with phone rather than PC, and suggest to use it with PC to bring the most out of it. And yes it can make a difference in your normal earphones/headphones too.
Hi Sayantan Mondal,
We are so happy you took out time & elaborately reviewed the product. We are sure this will help our customers to make an even better & informed decision.
This is the first dac adapter I have bought in my entire life, it is my pleasure to say that it is one of my best purchases till date, the amplification is just bang on, gives a lot of juice to my phone's audio, I am using it with oneplus 6 smartphone, it has drastically improved the audio quality which I really needed to improve cause evryone knows oneplus audio is not that good infact any smartphone's audio is not that great. The last thing is the build quality is just great cause offcourse its casing is metal and the type c wire is fucking great.I just love this product and carry it with me all the time.
Thank you Headphone zone for this awesome product.
Looking forward to do more business in the future with you guys.
Performance with my Philips SHP 9500 is incredible. Ibasso is not well optimised for Android. It performs a bit better in laptop. Did not bring much difference in my KZ IEMs.
Few months ago I bought UA1 Pro. Soon I realised it was a big mistake. The vocals were absolutely bad and rough, with overly boosted treble, sharp ear hurting.
Ibasso dc05 has the same dac chip x2. I was afraid it may suffer the same problems. When I first started to use it, this too had sharp treble but soon I found as the dc05 heated up considerably the sound signature started to balance out. So I turned on the DAC in dsd256 mode and burnt whole night. By next morning when I listened it was more warmer and nice smooth vocals. The treble is there but the sharpness receded for good.
Still I should say dc05 has a V shaped sound signature brighter than neutral with more bass beats than neutral too.
Overall Ibasso has done an impressive job too takle the shortcomings of a ESS chip and made a impressive dongle.
No compatibility issues with windows or Android. For Android use of neutron player or having root access is necessary to bypass Android limitations
Thank you for your elaborative & honest review & ratings, Aryan!
Sounds musical and well balanced, heats up a bit which i think is common for dacs. Overall i would say it's a decent amp dac for the price, nothing extraordinary, does the job you can't expect much at this price point it's one of the best out there if not the best.
