DESCRIPTION

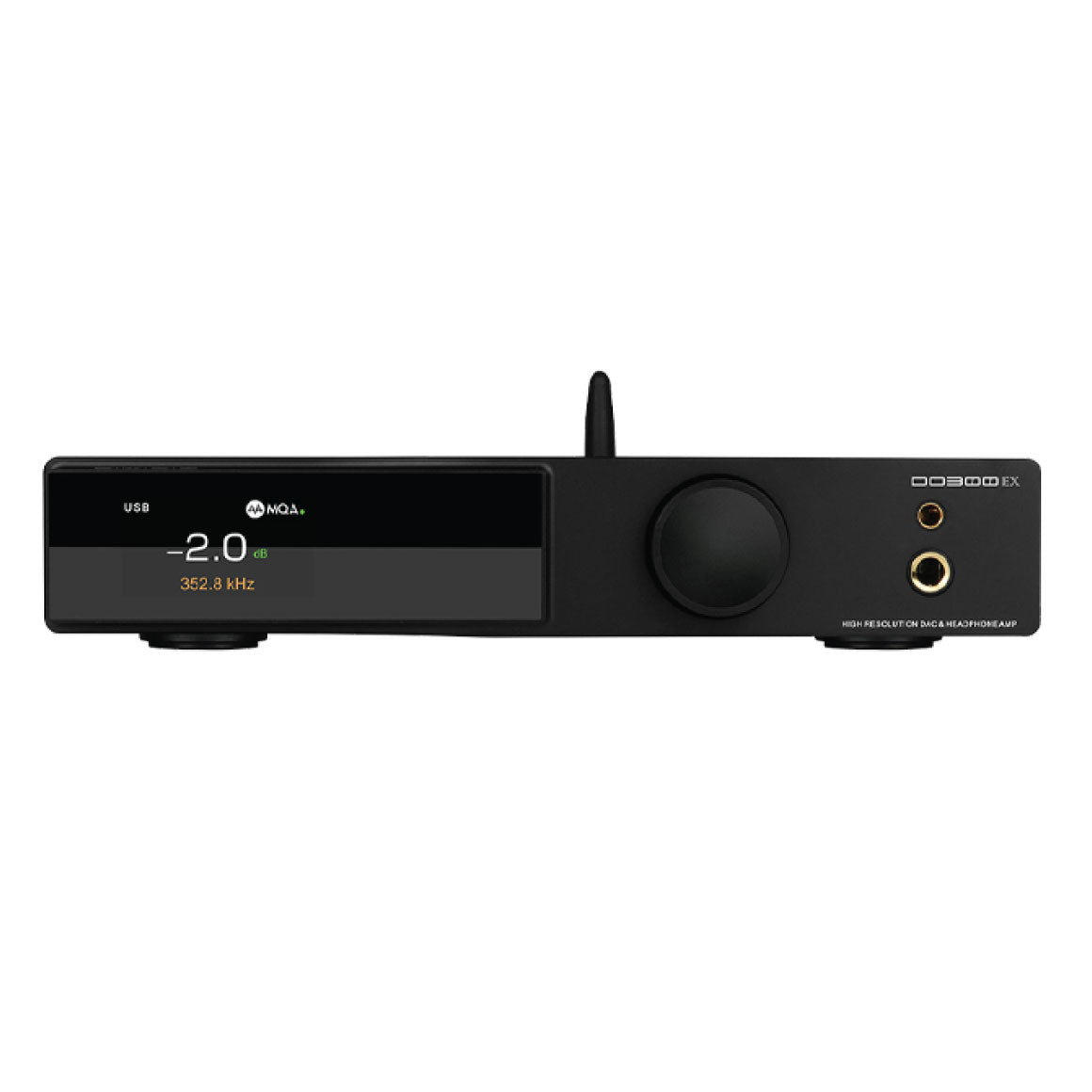

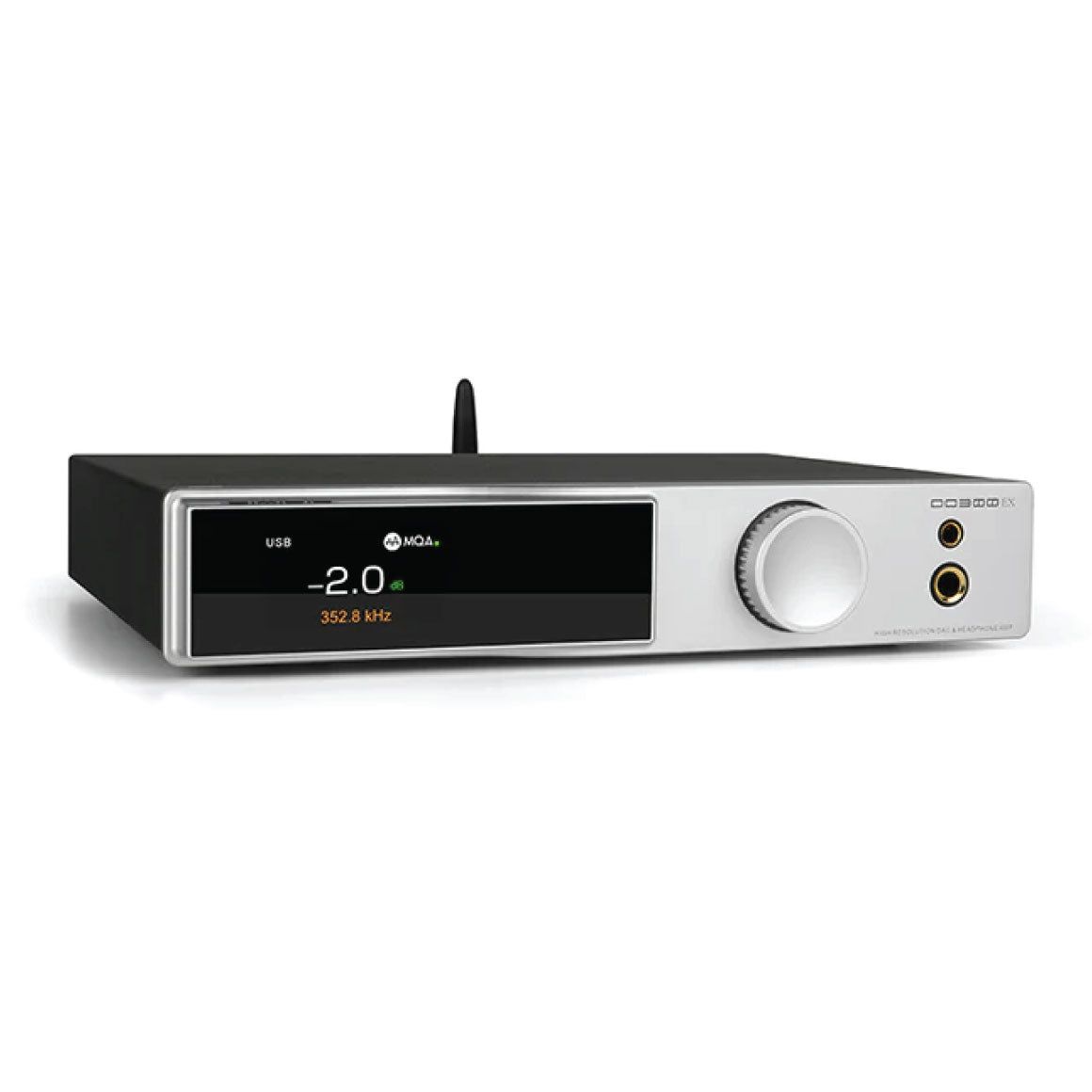

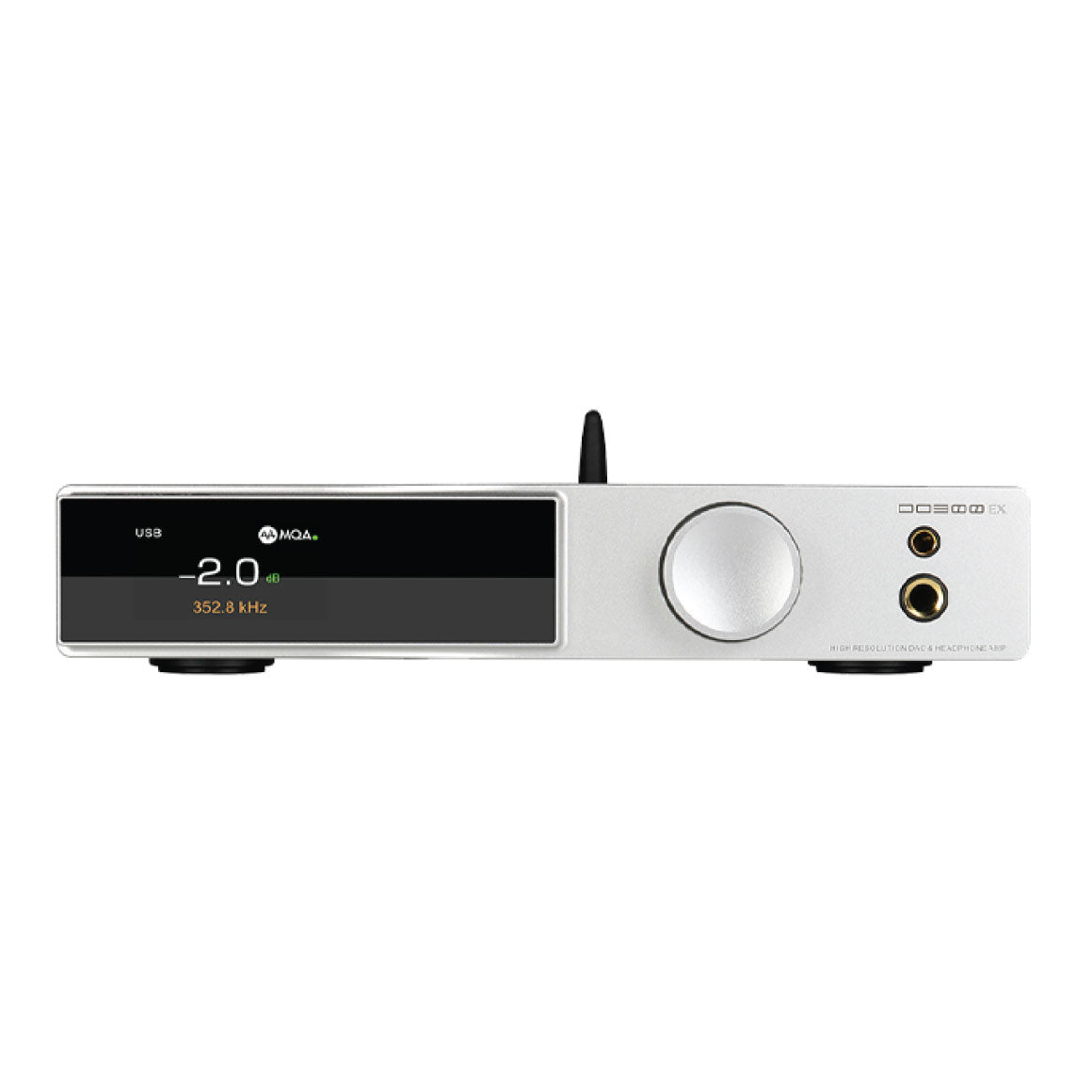

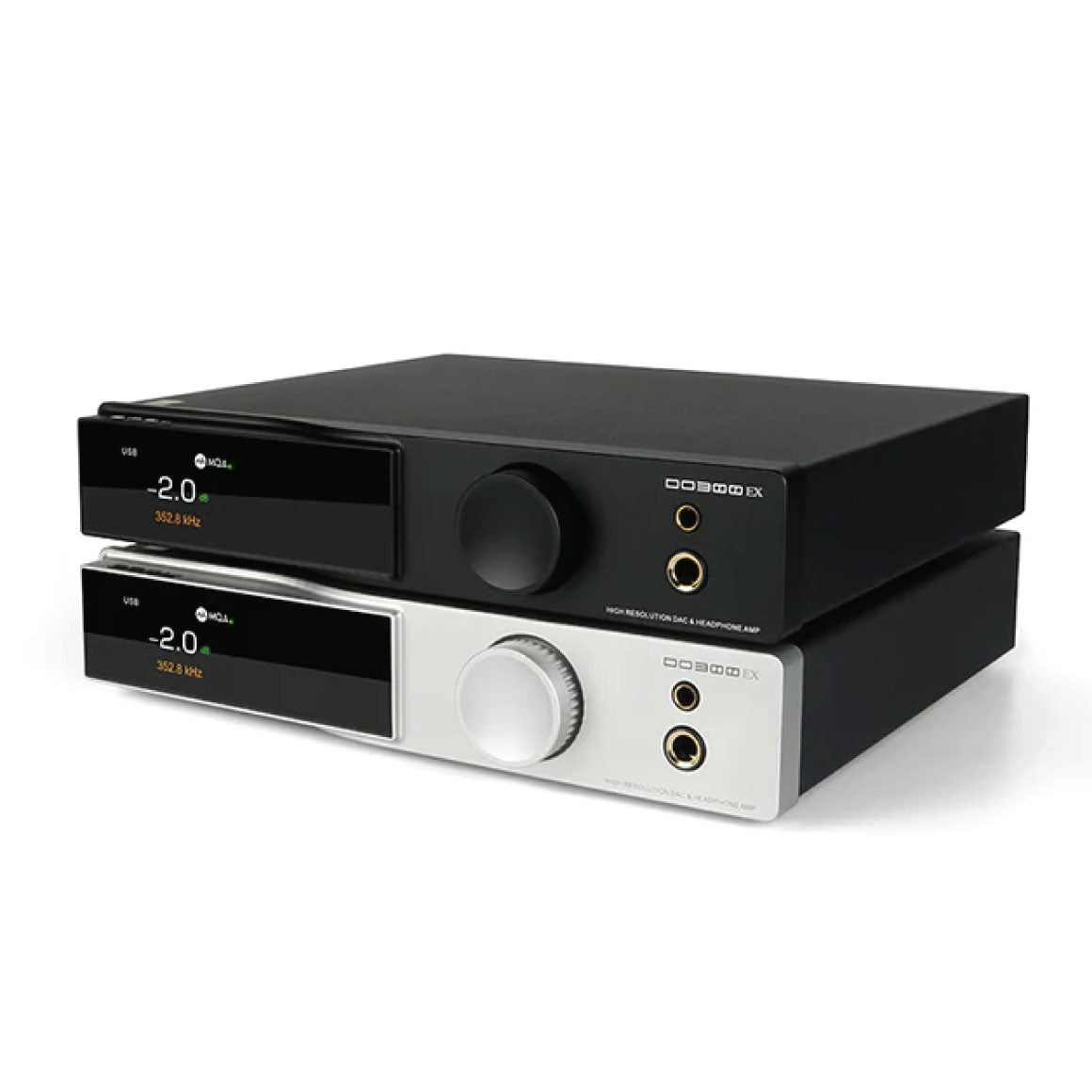

SMSL INTRODUCES ITS LATEST FLAGSHIP-GRADE DESKTOP DAC & AMP - THE DO300EX
The SMSL DO300EX stands as a newly introduced flagship desktop DAC&Amp,
incorporating high-end hardware such as the flagship AK4499EX+AK4191 DAC chipset and a 3rd-generation XMOS
XU316 USB processor. Meticulously designed to provide a delightful, musical experience with a lush tone, the
DO300EX supports advanced PCM and Native DSD audio signal decoding, ensuring robust output strength.
Delivering up to 2W of pristine output power at a 16Ω impedance load, it allows you to immerse yourself
fully in your music. Revel in an elevated musical experience with the SMSL DO300EX.
FEATURES AKM’S LATEST FLAGSHIP DAC CHIPSET TO DELIVER ACCURATE SOUND
The SMSL DO300EX introduces the excellence of AKM's newest flagship DAC configuration. This DAC & Amp showcases an advanced AK4499EX+AK4191 DAC setup, delivering outstanding performance in decoding high-resolution PCM and native DSD audio signals. Notably, it supports MQA hardware decoding and achieves an impressively low distortion rate of 0.00006% (-124dB), ensuring unparalleled audio purity and precision. Immerse yourself in audio perfection with MQA-CD support. This advanced encoding technology maintains the highest quality while preserving intricate details and dynamic range, ensuring an authentic and immersive listening experience.
EMBEDDED WITH THE LATEST 3RD GENERATION 16-CORE XMOS XU-316 PROCESSOR
The core USB master chipset at the heart of the SMSL DO300EX DAC&Amp is the 3rd
generation XMOS XU316 USB processor. This chipset facilitates seamless signal transmission through the USB
input, supporting high-resolution PCM up to 32-bit/768kHz and Native DSD512 audio signals. Additionally, it
offers native MQA decoding. The utilisation of the third-generation XMOS XU-316 ensures an uncompromising
standard of quality and performance. With its array of 16-core high-end independent control chips and
5*0PA1612A, you can be confident that every nuance of audio detail is handled with precision.
POWERFUL AMPLIFICATION STAGE FUSED WITH DUAL HEADPHONE OUTPUT PORTS
The SMSL DO300EX is equipped with a potent headphone amplification stage, delivering robust output power of up to 2W at a 16Ω impedance load and 1W at a 32Ω impedance load. Elevate your listening experience with the integrated high-performance stereo headphone amplifier. The device offers both 4.4mm balanced and 6.35mm single-ended headphone output modes, providing users with versatile options. With precise volume adjustment, the DO300EX accommodates both high-sensitivity and low-sensitivity IEMs and headphones seamlessly.

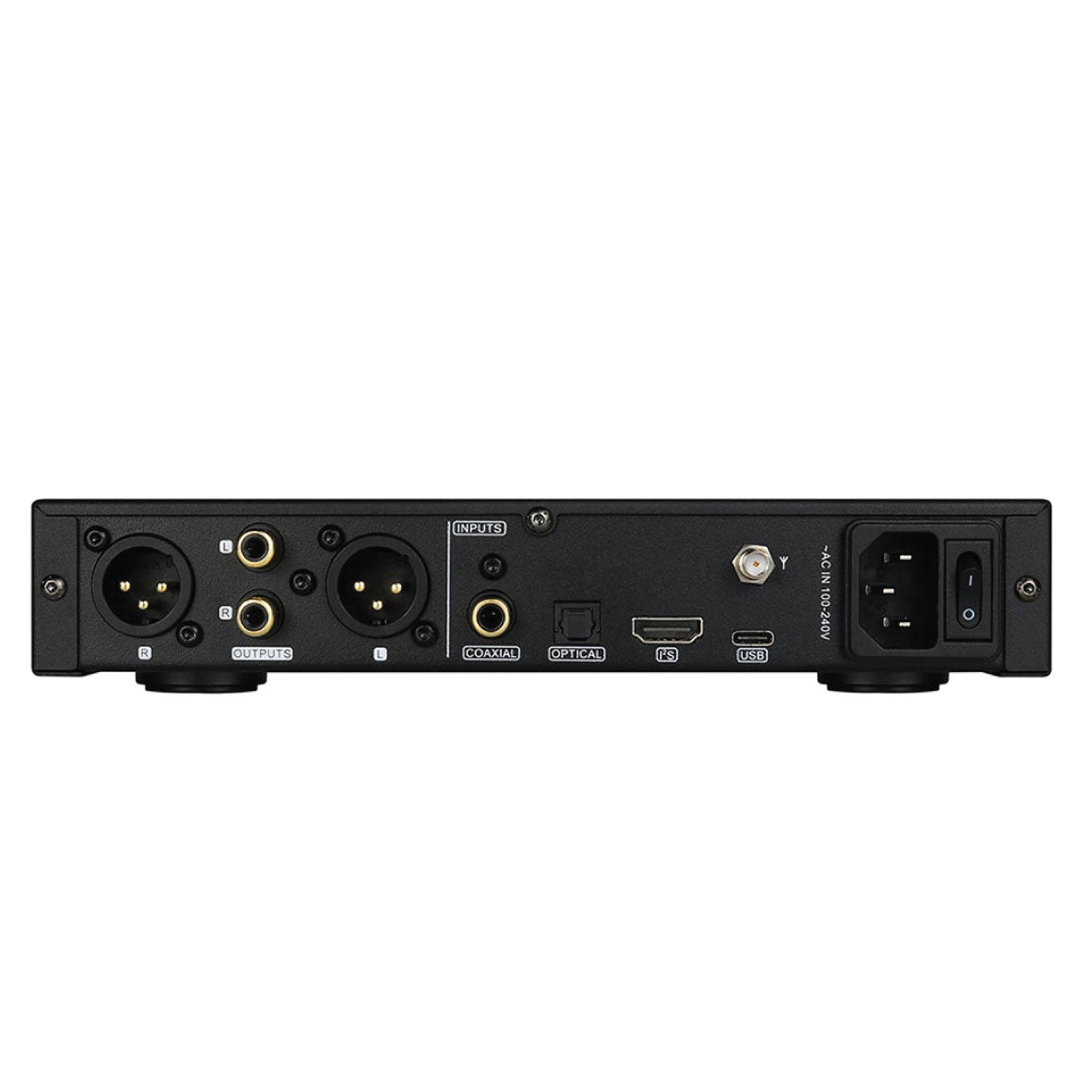

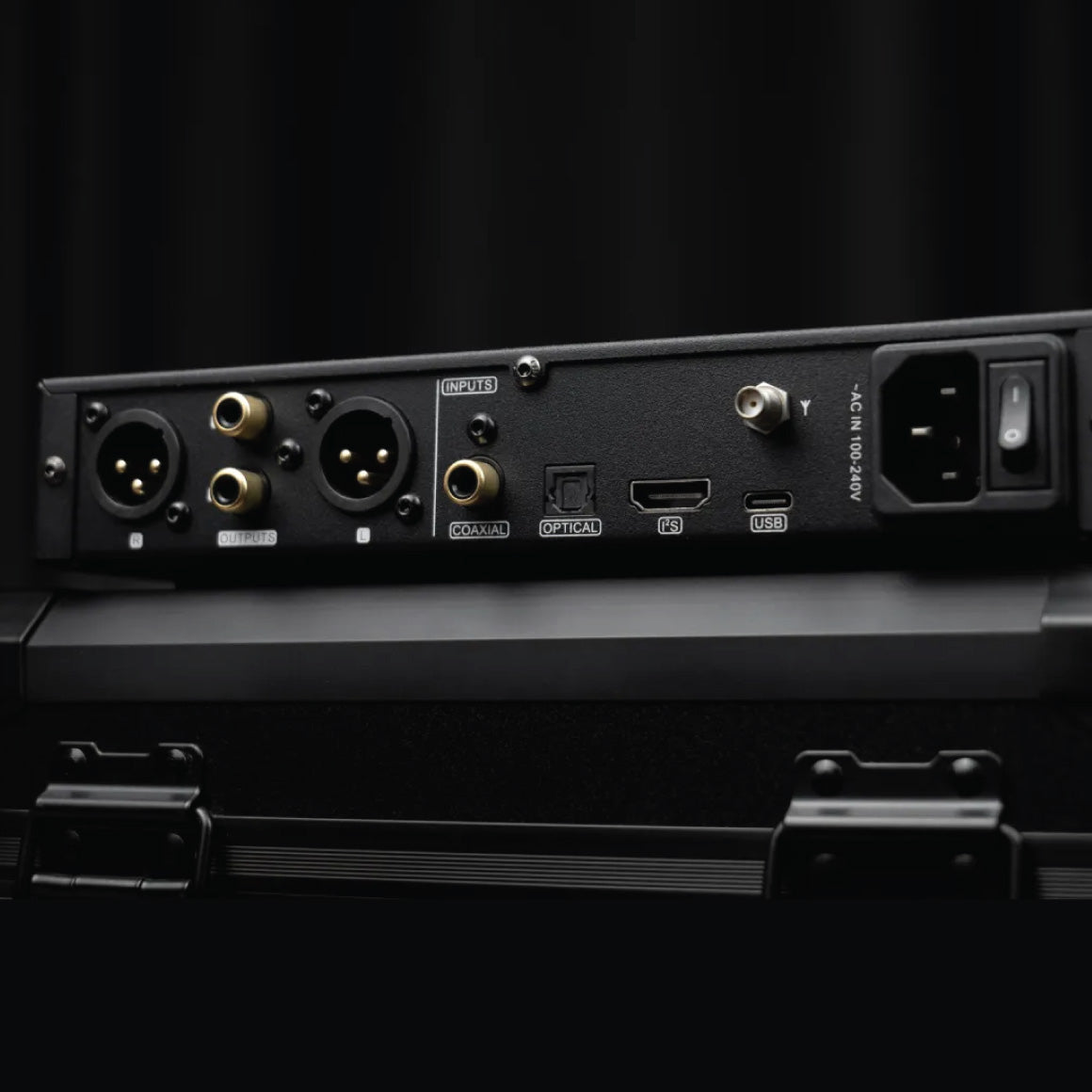

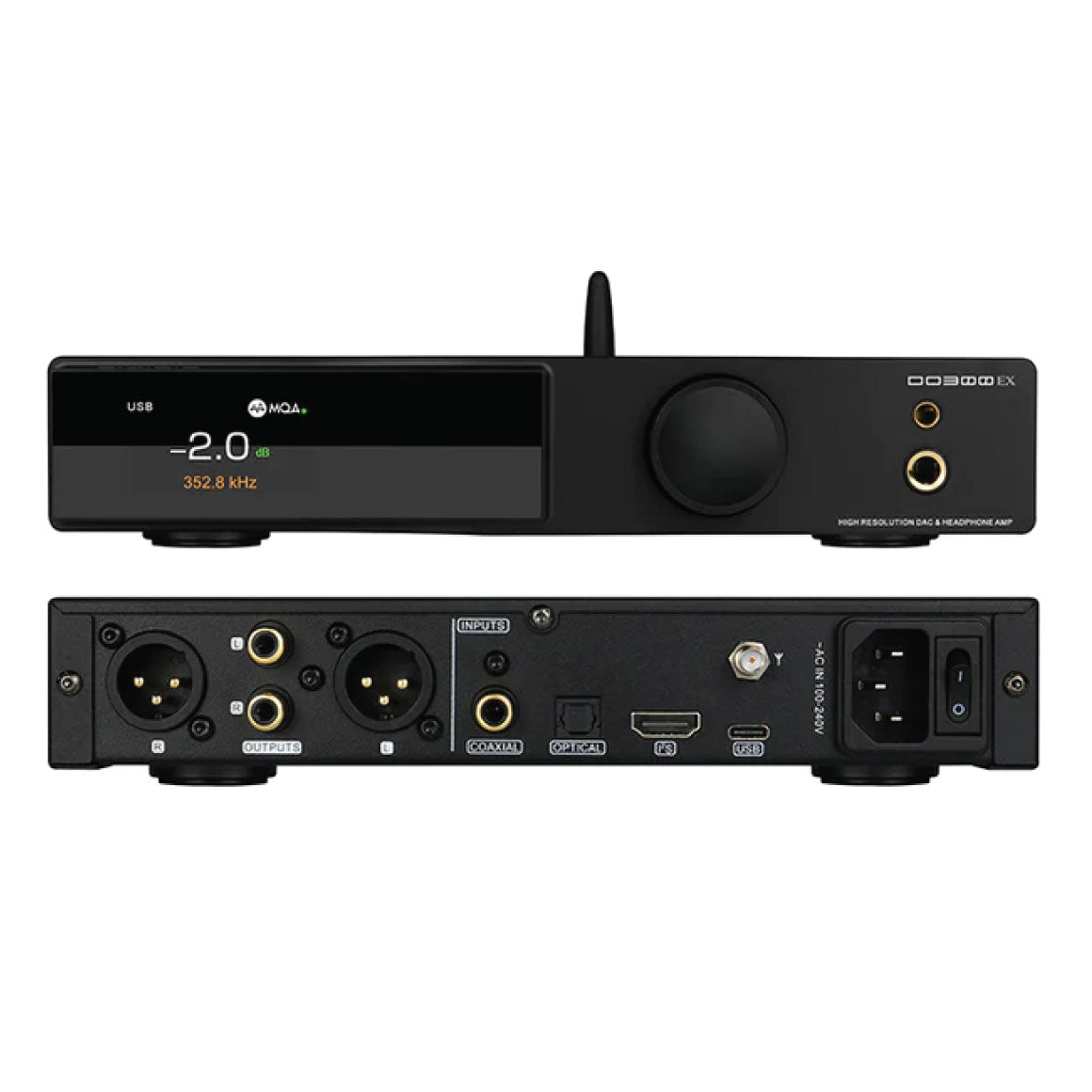

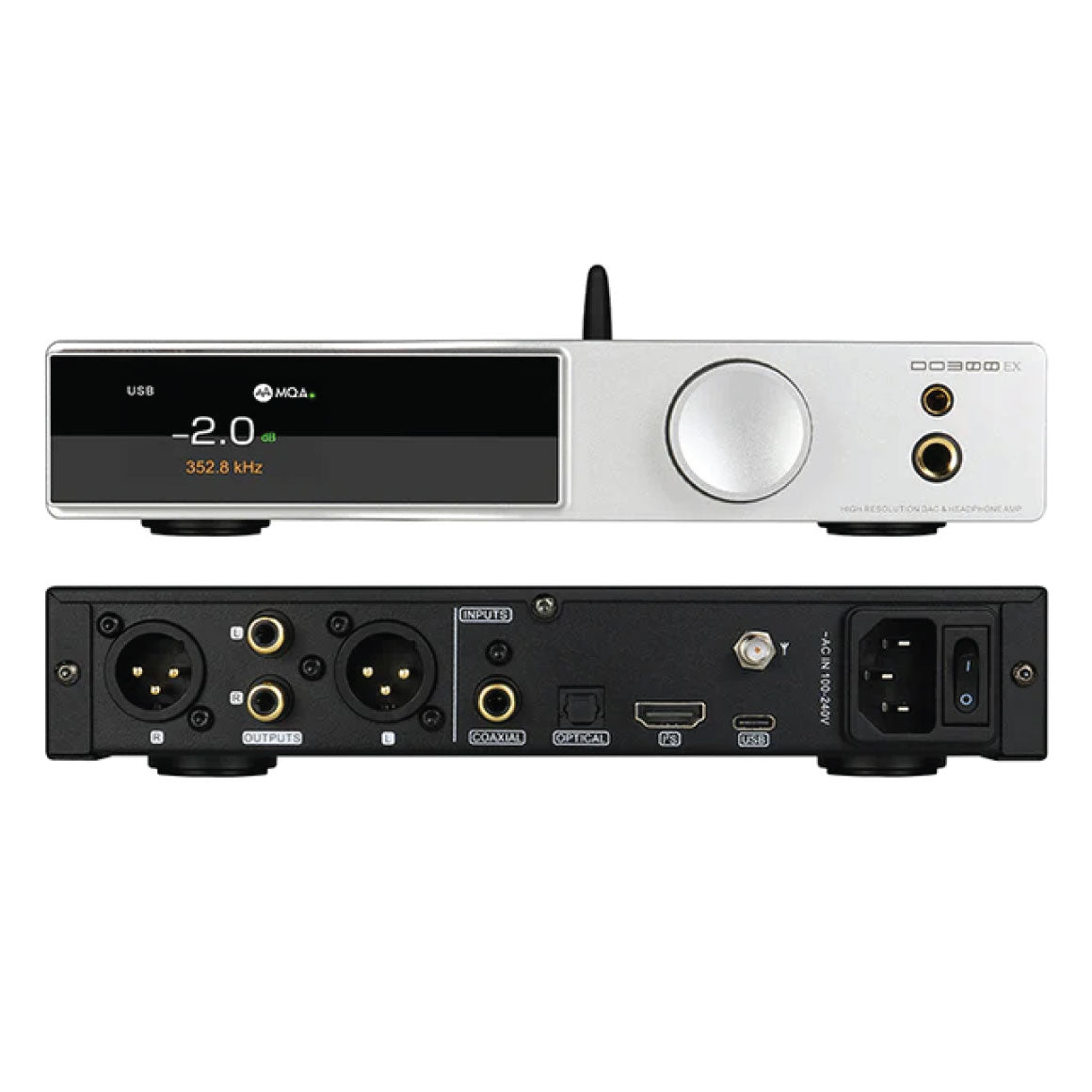

CAREFULLY THOUGHT OUT INPUT AND OUTPUTS WITH BLUETOOTH CONNECTIVITY
Experience enhanced flexibility through a variety of input and output choices with
the SMSL DO300EX. This device boasts five inputs, including USB, Bluetooth, Optical, Coaxial, and I2S
(HDMI), providing seamless connectivity to your preferred audio sources. It is equipped with two headphone
outputs (4.4mm, 6.35mm) and 2 Line Outputs (XLR, RCA), featuring a PRE MODE for added adaptability. The SMSL
DO300EX supports a hi-resolution wireless Bluetooth connection, ensuring stable and lag-free Bluetooth V5.1
connectivity with advanced codecs like LDAC 24bit/96kHz, APTX/HD, SBC, and AAC. This enables you to connect
wirelessly to your devices without compromising audio quality.

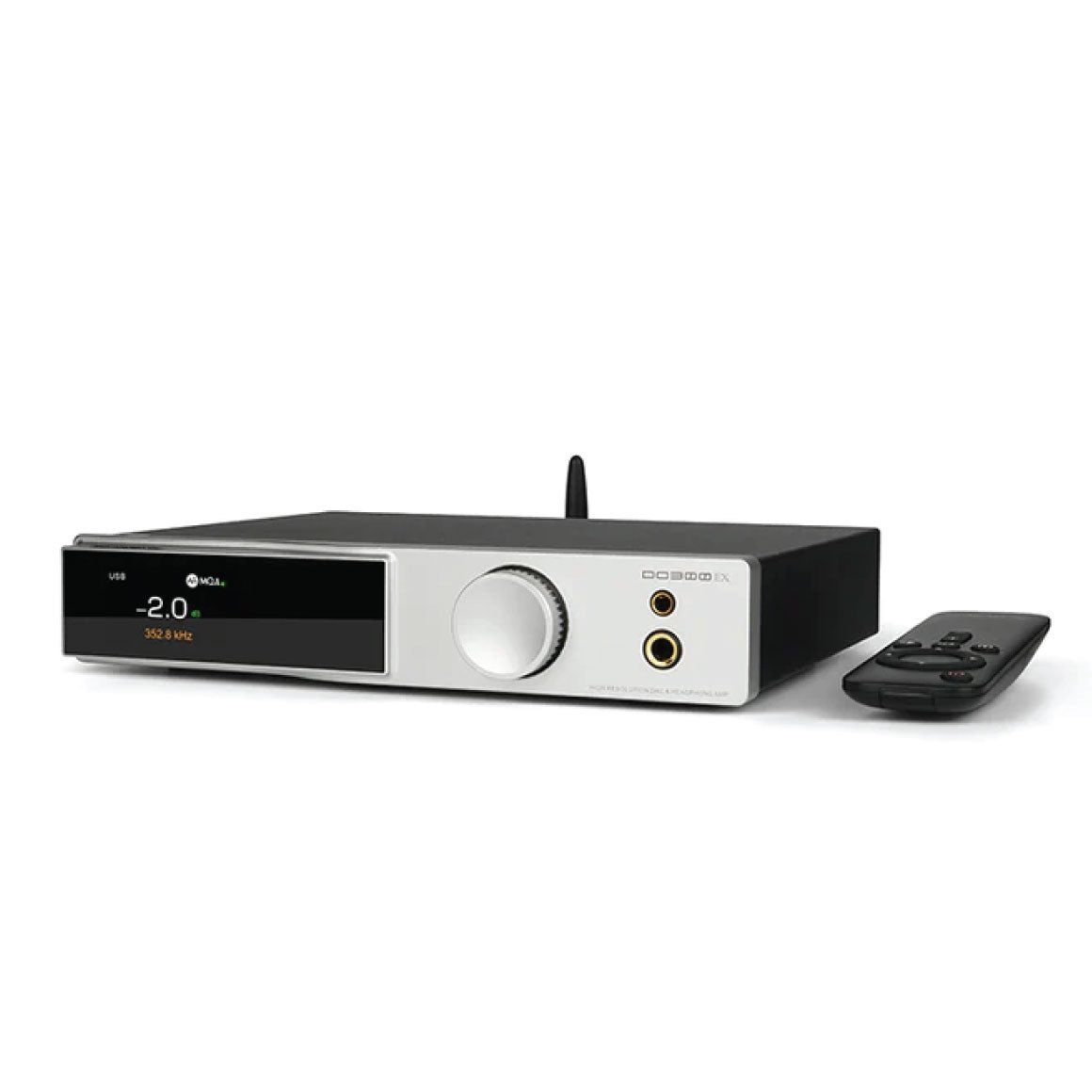

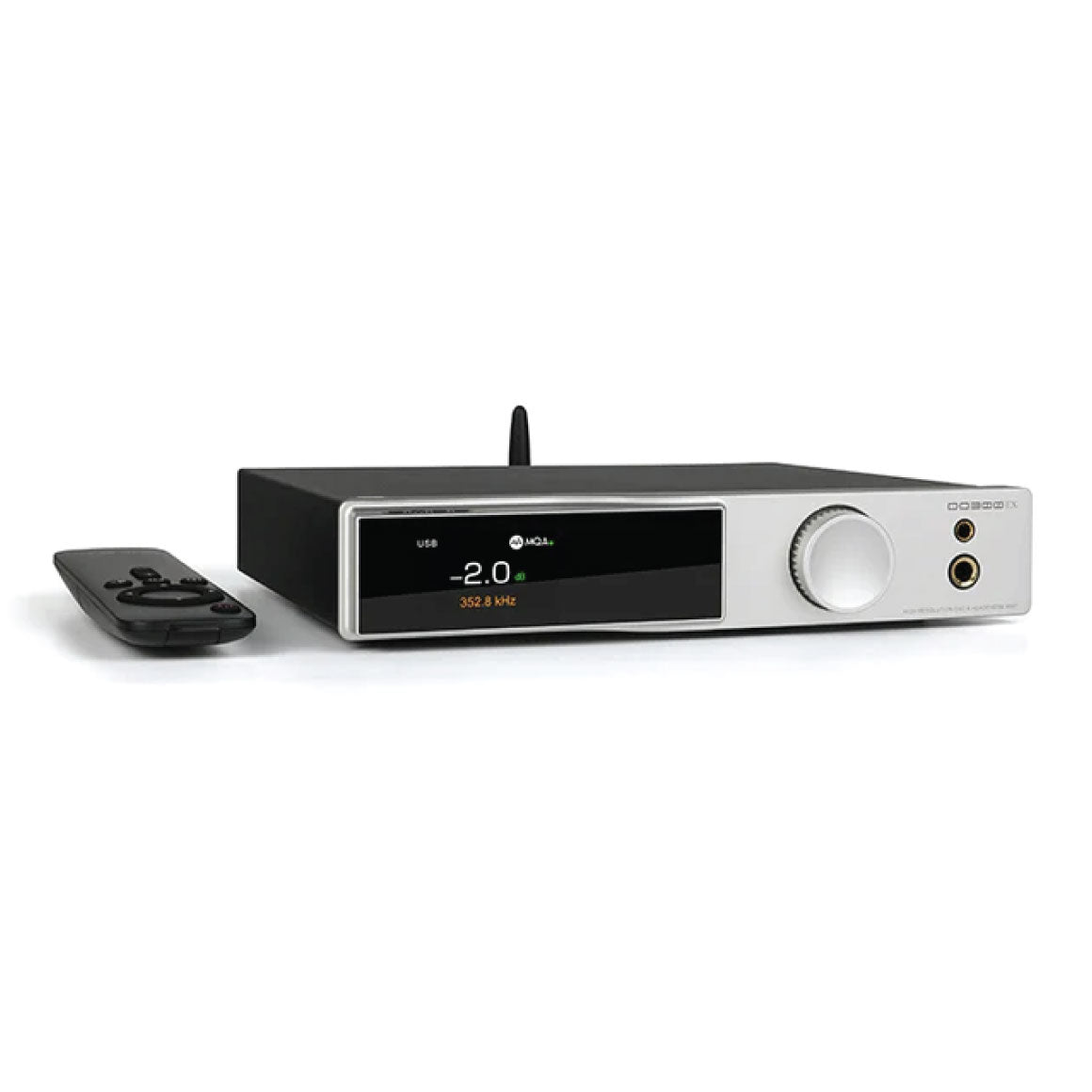

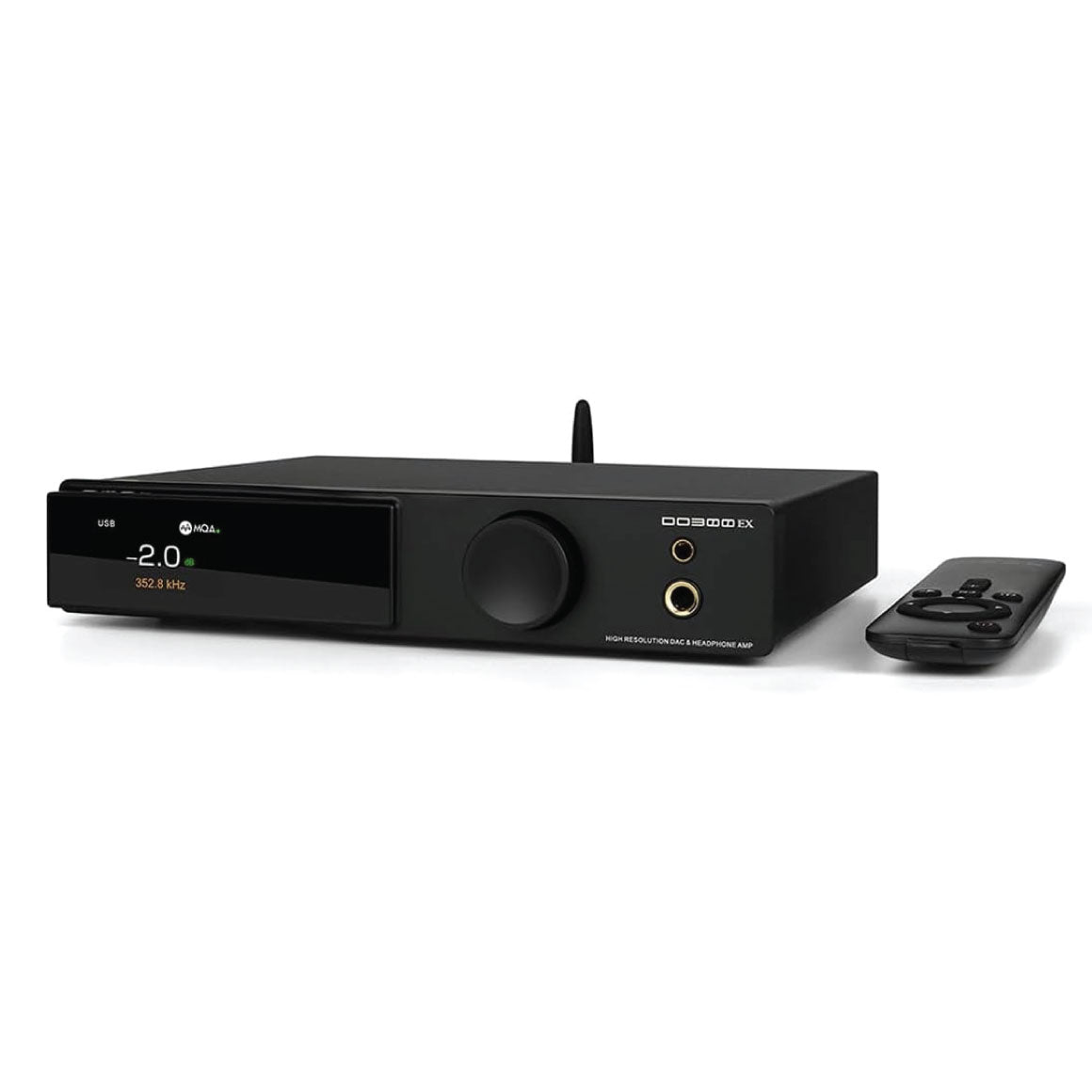

DESIGNED WITH LOW NOISE POWER SUPPLY AND BUNDLED WITH REMOTE CONTROL
SMSL has integrated the DO300EX with an internal low-noise power supply unit, ensuring sufficient power distribution to various analogue and digital components. This meticulous design guarantees a clean and precise output with a reduced noise floor, enhancing overall audio quality while optimising energy efficiency. Step into the future of audio with the DO300EX, showcasing a striking floating display window design. The tempered glass fully bonded colour IPS display not only adds an element of sophistication but also supports an independent DOP display function, allowing for accurate decoding format judgment. The retro function knob design complements the overall aesthetics. Seamlessly control your audio experience with the included SMSL remote, crafted for superior feel and quality. It provides function control, allowing you to fine-tune your sound to perfection.
SPECS
| PRODUCT MODEL | DO300EX |
| INPUTS | USB / Optical / Coaxial / Bluetooth / I²S |
| OUTPUTS | RCA / XLR / 4.4mm+6.35mm Headphone Jack |
| LINE OUTPUTS AMPLITUDE |
XLR - 5.2Vrms RCA - 2.5Vrms |
| HEADPHONE OUTPUT POWER | 2W *2(16Ω), 1W *2(32Ω) |
| THD+N | 0.00006%(-124dB)(UN-WTD) HPA THD+N:0.0001%(-120dB)(UN-WTD) |
| OUTPUT IMPEDANCE | XLR - 200Ω RCA -100Ω HPA - near 0Ω |
| DYNAMIC RANGE | XLR - 132dB HPA - 127dB |
| SNR | XLR - 132dB HPA - 127dB |
| HPA GAIN CONTROL | LOW - 0dB HIGH - +7dB |
| USB TRANSMISSOON | Asynchronization |
| USB COMPATIBILITY | Windows 7 / 8 / 8.1 / 10 / 11(Need Driver) Mac OSX、Linux(Driverless) |
| SAMPLING RATE & BIT WIDTH | USB: PCM 44.1~768kHz(32bit) Optical/coaxial: 44.1~192kHz(24bit) DSD: 2.8224~22.5792MHz(1bit) DOP:DOP64(OPT/COAX)/DOP64~DOP256(USB) |
| MQA DECODER | USB / Optical / Coaxial |
| MQA-CD DECODER | Optical / Coaxial |
| BLUETOOTH SPECIFICATION(5.1) | Supports SBC,AAC,aptX,aptX HD,LDAC(24bit / 96kHz) |
| POWER CONSUMPTION | < 20W |
| STANDBY POWER | < 0.5W |
| SIZE | 222 x 39 x 207mm (WxHxD) |
| WEIGHT | 1.54kg/3.40lbs |
| BOX CONTENTS | 1. S.M.S.L DO300EX |
| 2. AC Power Cable | |
| 3. Bluethooth Antenna | |
| 4. USB Cable | |
| 5. Remote Control | |
| 6. Warranty Card | |
| 7. User Manual |
OTHER DETAILS
| GENERIC NAME | DAC & Amp |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
| PACKAGE CONTENTS | S.M.S.L DO300EX AC Power Cable Bluethooth Antenna USB Cable Remote Control Warranty Card User Manual |
User Manual | DO300EX
Desktop DAC & Amp
|
SMSL INTRODUCES ITS LATEST FLAGSHIP-GRADE DESKTOP DAC & AMP - THE DO300EX
The SMSL DO300EX stands as a newly introduced flagship desktop DAC&Amp,
incorporating high-end hardware such as the flagship AK4499EX+AK4191 DAC chipset and a 3rd-generation XMOS
XU316 USB processor. Meticulously designed to provide a delightful, musical experience with a lush tone, the
DO300EX supports advanced PCM and Native DSD audio signal decoding, ensuring robust output strength.
Delivering up to 2W of pristine output power at a 16Ω impedance load, it allows you to immerse yourself
fully in your music. Revel in an elevated musical experience with the SMSL DO300EX.
FEATURES AKM’S LATEST FLAGSHIP DAC CHIPSET TO DELIVER ACCURATE SOUND
The SMSL DO300EX introduces the excellence of AKM's newest flagship DAC configuration. This DAC & Amp showcases an advanced AK4499EX+AK4191 DAC setup, delivering outstanding performance in decoding high-resolution PCM and native DSD audio signals. Notably, it supports MQA hardware decoding and achieves an impressively low distortion rate of 0.00006% (-124dB), ensuring unparalleled audio purity and precision. Immerse yourself in audio perfection with MQA-CD support. This advanced encoding technology maintains the highest quality while preserving intricate details and dynamic range, ensuring an authentic and immersive listening experience.
EMBEDDED WITH THE LATEST 3RD GENERATION 16-CORE XMOS XU-316 PROCESSOR
The core USB master chipset at the heart of the SMSL DO300EX DAC&Amp is the 3rd
generation XMOS XU316 USB processor. This chipset facilitates seamless signal transmission through the USB
input, supporting high-resolution PCM up to 32-bit/768kHz and Native DSD512 audio signals. Additionally, it
offers native MQA decoding. The utilisation of the third-generation XMOS XU-316 ensures an uncompromising
standard of quality and performance. With its array of 16-core high-end independent control chips and
5*0PA1612A, you can be confident that every nuance of audio detail is handled with precision.
POWERFUL AMPLIFICATION STAGE FUSED WITH DUAL HEADPHONE OUTPUT PORTS
The SMSL DO300EX is equipped with a potent headphone amplification stage, delivering robust output power of up to 2W at a 16Ω impedance load and 1W at a 32Ω impedance load. Elevate your listening experience with the integrated high-performance stereo headphone amplifier. The device offers both 4.4mm balanced and 6.35mm single-ended headphone output modes, providing users with versatile options. With precise volume adjustment, the DO300EX accommodates both high-sensitivity and low-sensitivity IEMs and headphones seamlessly.
CAREFULLY THOUGHT OUT INPUT AND OUTPUTS WITH BLUETOOTH CONNECTIVITY
Experience enhanced flexibility through a variety of input and output choices with
the SMSL DO300EX. This device boasts five inputs, including USB, Bluetooth, Optical, Coaxial, and I2S
(HDMI), providing seamless connectivity to your preferred audio sources. It is equipped with two headphone
outputs (4.4mm, 6.35mm) and 2 Line Outputs (XLR, RCA), featuring a PRE MODE for added adaptability. The SMSL
DO300EX supports a hi-resolution wireless Bluetooth connection, ensuring stable and lag-free Bluetooth V5.1
connectivity with advanced codecs like LDAC 24bit/96kHz, APTX/HD, SBC, and AAC. This enables you to connect
wirelessly to your devices without compromising audio quality.
DESIGNED WITH LOW NOISE POWER SUPPLY AND BUNDLED WITH REMOTE CONTROL
SMSL has integrated the DO300EX with an internal low-noise power supply unit, ensuring sufficient power distribution to various analogue and digital components. This meticulous design guarantees a clean and precise output with a reduced noise floor, enhancing overall audio quality while optimising energy efficiency. Step into the future of audio with the DO300EX, showcasing a striking floating display window design. The tempered glass fully bonded colour IPS display not only adds an element of sophistication but also supports an independent DOP display function, allowing for accurate decoding format judgment. The retro function knob design complements the overall aesthetics. Seamlessly control your audio experience with the included SMSL remote, crafted for superior feel and quality. It provides function control, allowing you to fine-tune your sound to perfection.
| PRODUCT MODEL | DO300EX |
| INPUTS | USB / Optical / Coaxial / Bluetooth / I²S |
| OUTPUTS | RCA / XLR / 4.4mm+6.35mm Headphone Jack |
| LINE OUTPUTS AMPLITUDE |
XLR - 5.2Vrms RCA - 2.5Vrms |
| HEADPHONE OUTPUT POWER | 2W *2(16Ω), 1W *2(32Ω) |
| THD+N | 0.00006%(-124dB)(UN-WTD) HPA THD+N:0.0001%(-120dB)(UN-WTD) |
| OUTPUT IMPEDANCE | XLR - 200Ω RCA -100Ω HPA - near 0Ω |
| DYNAMIC RANGE | XLR - 132dB HPA - 127dB |
| SNR | XLR - 132dB HPA - 127dB |
| HPA GAIN CONTROL | LOW - 0dB HIGH - +7dB |
| USB TRANSMISSOON | Asynchronization |
| USB COMPATIBILITY | Windows 7 / 8 / 8.1 / 10 / 11(Need Driver) Mac OSX、Linux(Driverless) |
| SAMPLING RATE & BIT WIDTH | USB: PCM 44.1~768kHz(32bit) Optical/coaxial: 44.1~192kHz(24bit) DSD: 2.8224~22.5792MHz(1bit) DOP:DOP64(OPT/COAX)/DOP64~DOP256(USB) |
| MQA DECODER | USB / Optical / Coaxial |
| MQA-CD DECODER | Optical / Coaxial |
| BLUETOOTH SPECIFICATION(5.1) | Supports SBC,AAC,aptX,aptX HD,LDAC(24bit / 96kHz) |
| POWER CONSUMPTION | < 20W |
| STANDBY POWER | < 0.5W |
| SIZE | 222 x 39 x 207mm (WxHxD) |
| WEIGHT | 1.54kg/3.40lbs |
| BOX CONTENTS | 1. S.M.S.L DO300EX |
| 2. AC Power Cable | |
| 3. Bluethooth Antenna | |
| 4. USB Cable | |
| 5. Remote Control | |
| 6. Warranty Card | |
| 7. User Manual |
OTHER DETAILS
| GENERIC NAME | DAC & Amp |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
| PACKAGE CONTENTS | S.M.S.L DO300EX AC Power Cable Bluethooth Antenna USB Cable Remote Control Warranty Card User Manual |
|
User Manual | DO300EX
Desktop DAC & Amp
|
Don't sweat it, this
S.M.S.L - DO300EX comes with a 1 Year warranty
from S.M.S.L that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about S.M.S.L's warranty in India.
"The DO300EX features remarkably high measurements on paper and offers a remote for easy navigation. I can honestly say that they are on a winning streak, and I hope that they continue designing brilliant devices"
Read More
"The best-sounding SMSL DAC I’ve ever heard by some margin,a beautiful yet minimal design,a lot of functionality,and all this at a price that I would easily call a bargain,the SMSL DO300EX gets my highest recommendation possible."
Read MoreHave a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is the warranty period on the S.M.S.L DO300EX and how do I claim warranty?
What is the key feature of the S.M.S.L DO300EX?
What DAC chipset does the S.M.S.L DO300EX use, and what makes it stand out?
What USB processor is at the core of the S.M.S.L DO300EX, and what capabilities does it offer?
How powerful is the headphone amplification stage of the S.M.S.L DO300EX?
What connectivity options does the S.M.S.L DO300EX offer?
How does the S.M.S.L DO300EX ensure clean power distribution and reduced noise?
What display features does the S.M.S.L DO300EX offer, and how is it controlled?
This product has no reviews yet.
