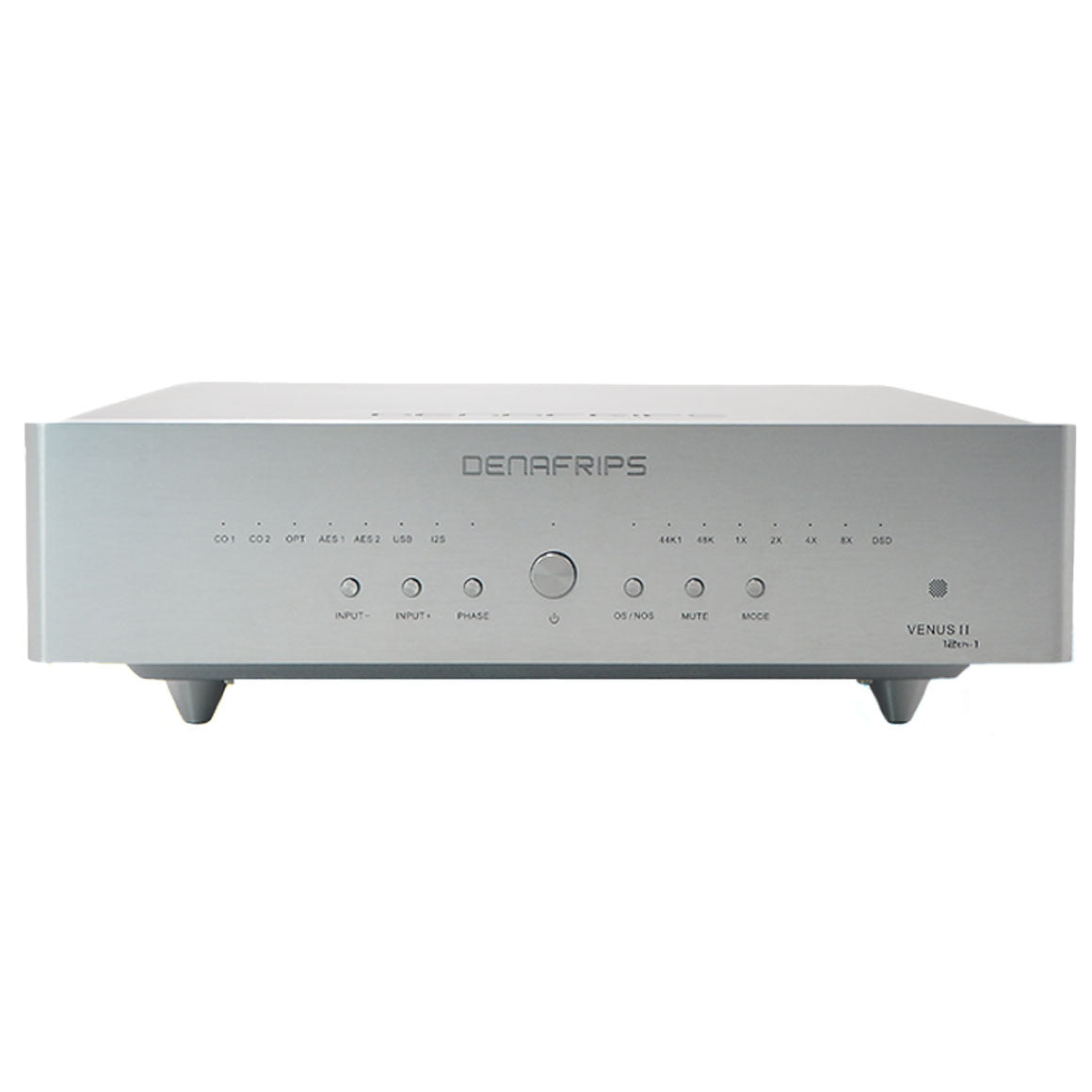

DENAFRIPS CELEBRATES 12 YEARS OF AUDIO EXCELLENCE WITH THE RELEASE OF VENUS II 12TH-1
Established in 2012 and based in the scenic city of Guangzhou, DENAFRIPS specialises in crafting premium audio equipment with a core philosophy that top-tier audio gear can be affordable. Dedicated to audio excellence, DENAFRIPS has gained a loyal following among audiophiles, particularly for their acclaimed line of R-2R DACs. Their product range includes DACs, DDCs, Pre-amplifiers, Power Amplifiers, and Headphone Amplifiers. The DACs from DENAFRIPS have made a significant impact in the high-end audio realm. Marking 12 years of digital audio excellence, the Venus II 12th-1 Anniversary Edition showcases performance enhancements at the component level, offering discernible improvements for seasoned audiophiles. For music enthusiasts in search of high-quality, expressive, and analogue-like sound, the Venus II 12th-1 DAC stands as a valuable addition to any audio system.
TRUE BALANCED R-2R ARCHITECTURE & UPDATED INTERNALS FOR PURE ANALOGUE SOUND
The Venus II 12th-1 stands as a true balanced, dual-mono R-2R Ladder Network Arrays DAC. Each channel incorporates an independent high-speed FPGA for digital signal decoding, utilising 4 sets of 0.005% R-2R networks. This design choice ensures minimal linearity error, high decoding speed, and low digital noise. It guarantees not only very low distortion in the audio signal but also a quiet, black background, enhancing the listening experience. All digital inputs undergo FIFO buffering and reclocking by the onboard TCXO (Temperature Compensated Crystal Oscillator). The DAC's exceptional rejection of word-clock jitter reduces dependence on source equipment clock quality. The Venus II 12th-1 can elevate the sound quality of consumer-grade computers and CD players to a high-end level. It caters to discerning audiophiles and music lovers who prioritise micro and macro details, expansive soundstage, imaging, and a touch of warmth for musicality.

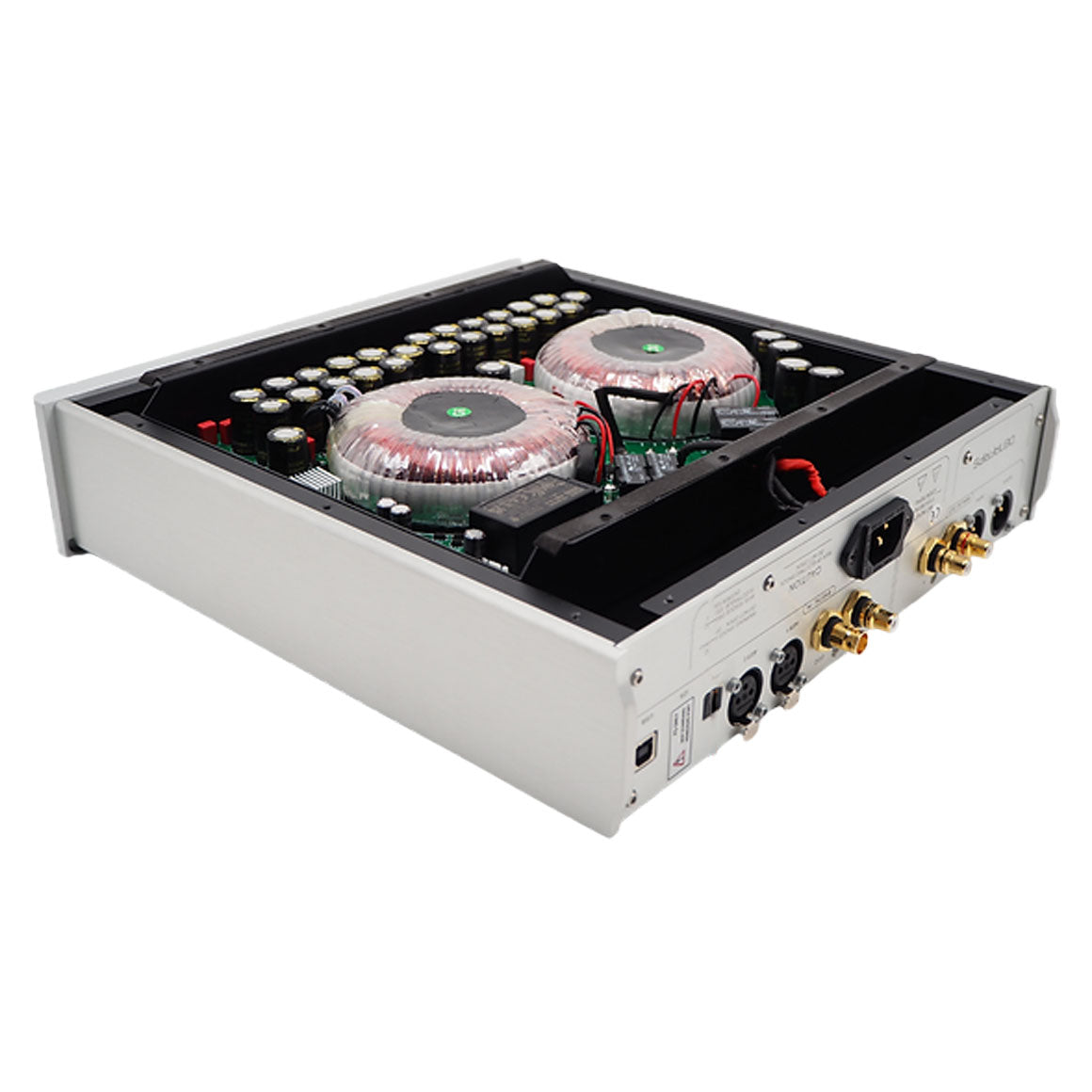

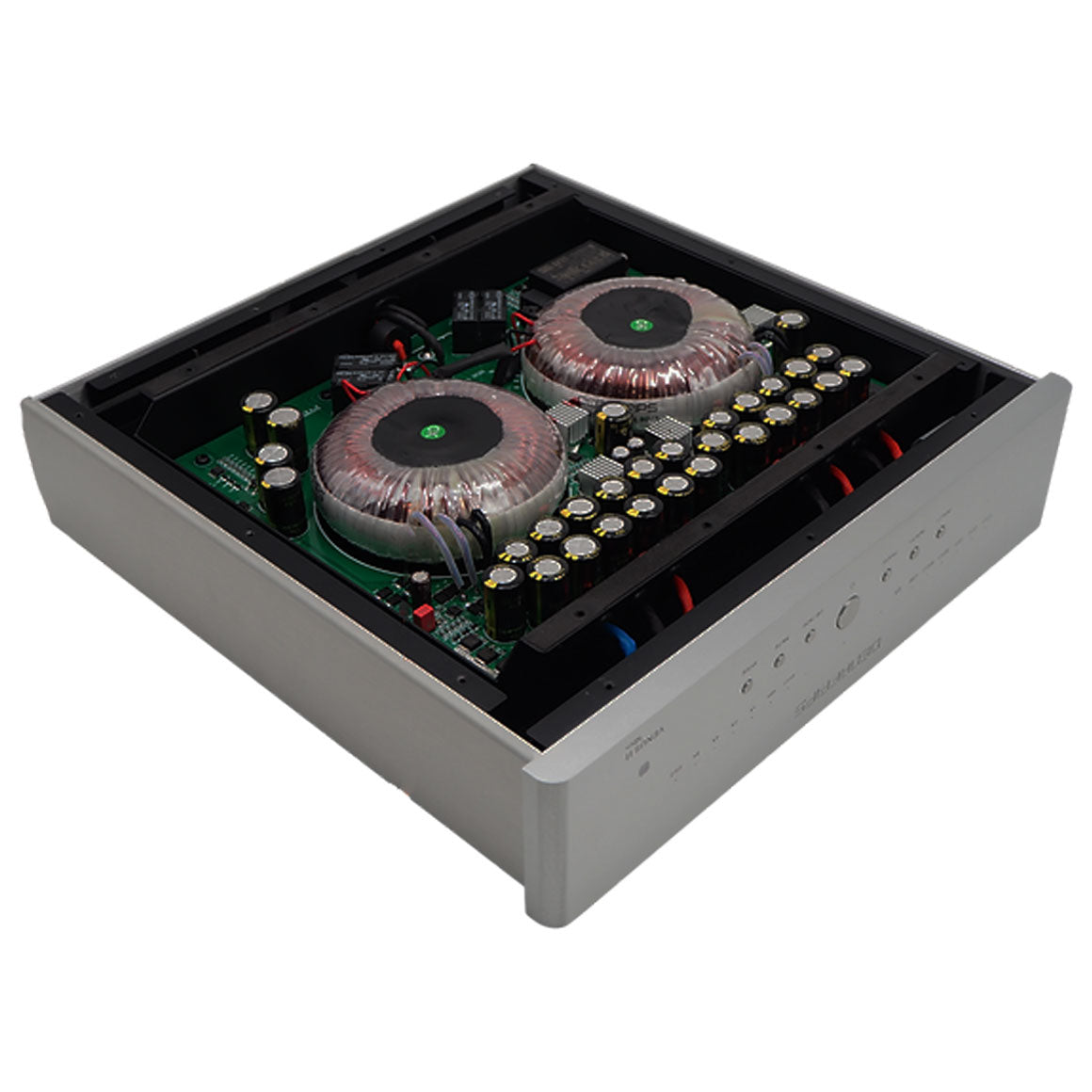

ENHANCED LINEAR POWER SUPPLY FUSED WITH MU-METAL DIVIDER AND 0-CORE TRANSFORMERS
Clean power equates to the foundation of good sound. A dedicated linear power supply unit, enclosed in a robust 1.5mm thick metal alloy case beneath the DENAFRIPS Venus II 12th-1 DAC motherboard, incorporates a box-within-box design with an MU-Metal divider. This configuration eliminates issues associated with dual-box solutions and showcases DENAFRIPS' meticulous attention to premium DAC design. The setup includes robust dual O-Core Transformers (80VA x 2) for both Digital and Analog sections, Ultra-Low ESR, Long Endurance Reservoir Capacitors, and a multi-stage super-linear power supply. This design ensures an ultra-precise, low-ripple power supply for charging up the DAC. In the VENUS II 12TH-1, DENAFRIPS introduces a simplified AC main power socket, not as a cost-cutting measure but as a testament to their commitment to high-quality power supply as a fundamental element for superior sound. To achieve this, DENAFRIPS customises the AC mains power socket in-house using UPOCC gold-plated copper. The non-switched AC mains socket in the VENUS II 12TH-1 is a deliberate step towards achieving an exceptional level of perfection.

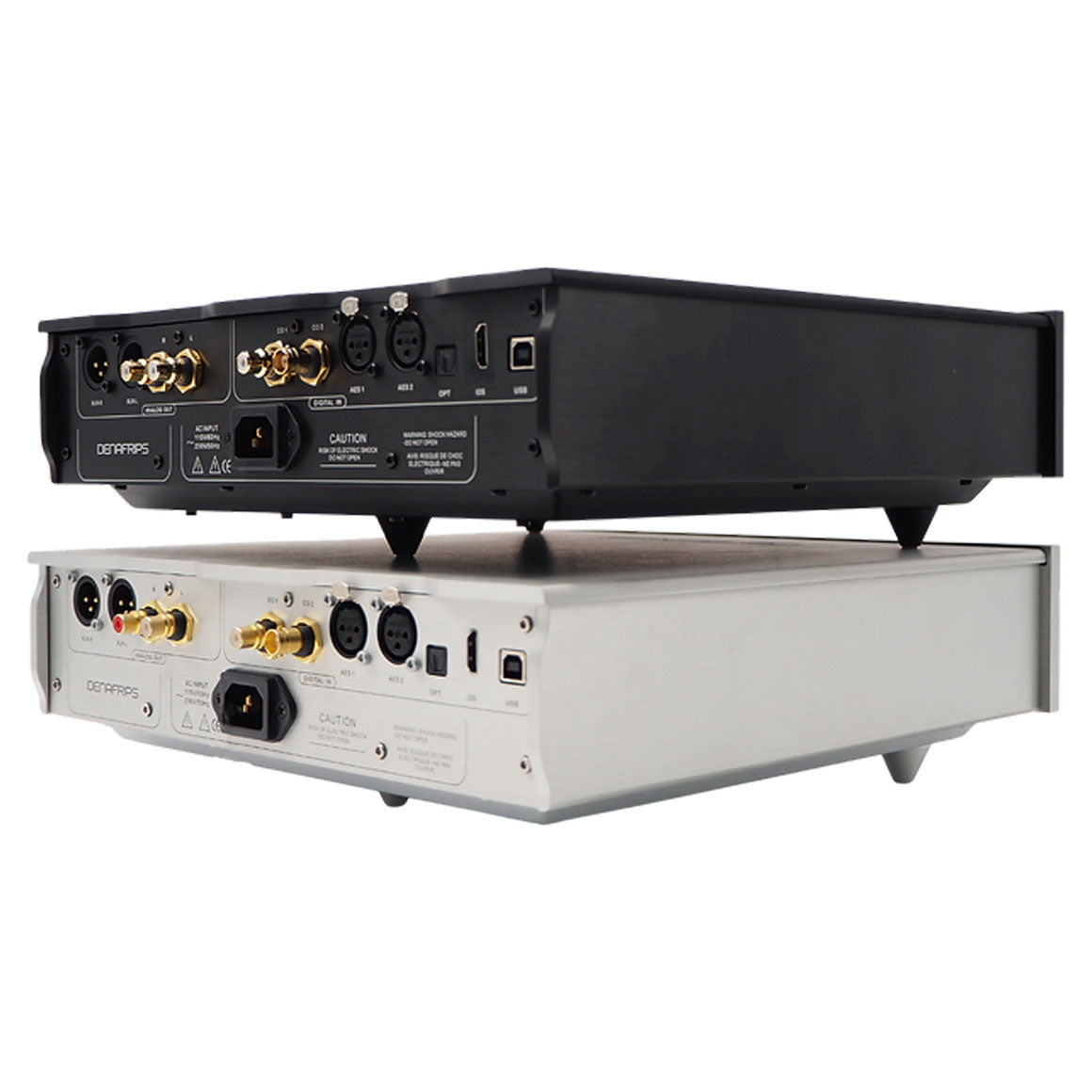

EXPERTLY DESIGNED TO BE SCALABLE WITH THOUGHTFULLY IMPLEMENTED INPUTS & OUTPUTS
The DENAFRIPS Venus II 12th-1 now boasts an anodised aluminium chassis available in both silver and black colour options, catering to those who prefer a more compact DAC with a silver finish. Building upon the success of its predecessor, the Venus II 12th-1 enhances the already impressive build quality of the Venus II 12th. This new iteration includes an I²S input and has undergone a redesign of both the back and front panels. The I²S connection enables compatibility with the DENAFRIPS DDC (Digital To Digital Converter) and other I²S transport options. The front panel incorporates input selection buttons for USB, COAX, OPT, I2S, OS/NOS, Phase, and Mute. Meanwhile, the rear panel has been upgraded to offer XLR and RCA as analogue outputs and Coax, Optical, I²S, and USB as inputs, providing increased flexibility for the Venus II 12th-1.
SPECS
R-2R DAC | Proprietary R2R + DSD Architecture True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters) Low Thermal Effect, High Precision Hand-Matched 0.005% Resistors |
HIGHLIGHTS | Encapsulated Ultra Low Noise Power Supply Temperature Compensated Crystal Oscillator TCXO Adaptive FIFO Buffer and Reclocking DSD1024, PCM1536 Supports On USB & I²S Input Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU Licensed Thesycon USB Driver For Windows Platform Driverless On Mac & Linux Dual AES/EBU Input Supports Sharp/Slow Filters Option I²S Pinout Configuration I²S DSD Channel Swap Configuration |
DSD | DSD64 / 2.8224MHz (DoP) on Coax/AES/Opt Input DSD1024 / 45.1584MHz * On USB & I²S Input Only |
PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input 1536kHz* On USB & I²S Input |
NOTE : USB Firmware V3.4.1 - PCM1536 / DSD1024 supports disabled for compatibility with macOS | |
DIGITAL INPUT | Coax 1 via RCA Coax 2 via BNC 75 Ω TOSLink x 1 AES EBU x 2 USB2.0 Type B I²S via HDMI LVDS |
ANALOG OUTPUT | RCA at 2.0Vrms, 625 Ω XLR at 4.0Vrms, 1250 Ω |
SAMPLING MODE | Non-Oversampling NOS Oversampling OS |
AC POWER REQUIREMENT | 100-240VAC, 50/60Hz (Worldwide Voltage) |
POWER CONSUMPTION | ≤20W |
FREQUENCY RESPONSE | 20-70KHz -3dB |
THD+N | 0.0020% |
S/N RATIO | 120dB |
DYNAMIC RANGE | >121dB |
STEREO CROSSTALK | -110dB |
DIMENSIONS | 320 x 330 x 80 mm |
WEIGHT | 8.5 Kg |
BOX CONTENTS | 1. DENAFRIPS VENUS II 12th-1 |
2. User Manual |
OTHER DETAILS
GENERIC NAME | Digital Audio Converter |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Vinshine Audio PTE. LTD. Address: 33 Ubi Ave 3 Vertex, Tower A #07-62, Singapore 408868 |
PACKAGE CONTENTS | DENAFRIPS VENUS II 12th-1 User Manual |
User Manual | VENUS II 12th-1
Desktop R-2R Digital to Analog Converter (DAC)
|
DENAFRIPS CELEBRATES 12 YEARS OF AUDIO EXCELLENCE WITH THE RELEASE OF VENUS II 12TH-1
Established in 2012 and based in the scenic city of Guangzhou, DENAFRIPS specialises in crafting premium audio equipment with a core philosophy that top-tier audio gear can be affordable. Dedicated to audio excellence, DENAFRIPS has gained a loyal following among audiophiles, particularly for their acclaimed line of R-2R DACs. Their product range includes DACs, DDCs, Pre-amplifiers, Power Amplifiers, and Headphone Amplifiers. The DACs from DENAFRIPS have made a significant impact in the high-end audio realm. Marking 12 years of digital audio excellence, the Venus II 12th-1 Anniversary Edition showcases performance enhancements at the component level, offering discernible improvements for seasoned audiophiles. For music enthusiasts in search of high-quality, expressive, and analogue-like sound, the Venus II 12th-1 DAC stands as a valuable addition to any audio system.
TRUE BALANCED R-2R ARCHITECTURE & UPDATED INTERNALS FOR PURE ANALOGUE SOUND
The Venus II 12th-1 stands as a true balanced, dual-mono R-2R Ladder Network Arrays DAC. Each channel incorporates an independent high-speed FPGA for digital signal decoding, utilising 4 sets of 0.005% R-2R networks. This design choice ensures minimal linearity error, high decoding speed, and low digital noise. It guarantees not only very low distortion in the audio signal but also a quiet, black background, enhancing the listening experience. All digital inputs undergo FIFO buffering and reclocking by the onboard TCXO (Temperature Compensated Crystal Oscillator). The DAC's exceptional rejection of word-clock jitter reduces dependence on source equipment clock quality. The Venus II 12th-1 can elevate the sound quality of consumer-grade computers and CD players to a high-end level. It caters to discerning audiophiles and music lovers who prioritise micro and macro details, expansive soundstage, imaging, and a touch of warmth for musicality.
ENHANCED LINEAR POWER SUPPLY FUSED WITH MU-METAL DIVIDER AND 0-CORE TRANSFORMERS
Clean power equates to the foundation of good sound. A dedicated linear power supply unit, enclosed in a robust 1.5mm thick metal alloy case beneath the DENAFRIPS Venus II 12th-1 DAC motherboard, incorporates a box-within-box design with an MU-Metal divider. This configuration eliminates issues associated with dual-box solutions and showcases DENAFRIPS' meticulous attention to premium DAC design. The setup includes robust dual O-Core Transformers (80VA x 2) for both Digital and Analog sections, Ultra-Low ESR, Long Endurance Reservoir Capacitors, and a multi-stage super-linear power supply. This design ensures an ultra-precise, low-ripple power supply for charging up the DAC. In the VENUS II 12TH-1, DENAFRIPS introduces a simplified AC main power socket, not as a cost-cutting measure but as a testament to their commitment to high-quality power supply as a fundamental element for superior sound. To achieve this, DENAFRIPS customises the AC mains power socket in-house using UPOCC gold-plated copper. The non-switched AC mains socket in the VENUS II 12TH-1 is a deliberate step towards achieving an exceptional level of perfection.
EXPERTLY DESIGNED TO BE SCALABLE WITH THOUGHTFULLY IMPLEMENTED INPUTS & OUTPUTS
The DENAFRIPS Venus II 12th-1 now boasts an anodised aluminium chassis available in both silver and black colour options, catering to those who prefer a more compact DAC with a silver finish. Building upon the success of its predecessor, the Venus II 12th-1 enhances the already impressive build quality of the Venus II 12th. This new iteration includes an I²S input and has undergone a redesign of both the back and front panels. The I²S connection enables compatibility with the DENAFRIPS DDC (Digital To Digital Converter) and other I²S transport options. The front panel incorporates input selection buttons for USB, COAX, OPT, I2S, OS/NOS, Phase, and Mute. Meanwhile, the rear panel has been upgraded to offer XLR and RCA as analogue outputs and Coax, Optical, I²S, and USB as inputs, providing increased flexibility for the Venus II 12th-1.
R-2R DAC | Proprietary R2R + DSD Architecture True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters) Low Thermal Effect, High Precision Hand-Matched 0.005% Resistors |
HIGHLIGHTS | Encapsulated Ultra Low Noise Power Supply Temperature Compensated Crystal Oscillator TCXO Adaptive FIFO Buffer and Reclocking DSD1024, PCM1536 Supports On USB & I²S Input Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU Licensed Thesycon USB Driver For Windows Platform Driverless On Mac & Linux Dual AES/EBU Input Supports Sharp/Slow Filters Option I²S Pinout Configuration I²S DSD Channel Swap Configuration |
DSD | DSD64 / 2.8224MHz (DoP) on Coax/AES/Opt Input DSD1024 / 45.1584MHz * On USB & I²S Input Only |
PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input 1536kHz* On USB & I²S Input |
NOTE : USB Firmware V3.4.1 - PCM1536 / DSD1024 supports disabled for compatibility with macOS | |
DIGITAL INPUT | Coax 1 via RCA Coax 2 via BNC 75 Ω TOSLink x 1 AES EBU x 2 USB2.0 Type B I²S via HDMI LVDS |
ANALOG OUTPUT | RCA at 2.0Vrms, 625 Ω XLR at 4.0Vrms, 1250 Ω |
SAMPLING MODE | Non-Oversampling NOS Oversampling OS |
AC POWER REQUIREMENT | 100-240VAC, 50/60Hz (Worldwide Voltage) |
POWER CONSUMPTION | ≤20W |
FREQUENCY RESPONSE | 20-70KHz -3dB |
THD+N | 0.0020% |
S/N RATIO | 120dB |
DYNAMIC RANGE | >121dB |
STEREO CROSSTALK | -110dB |
DIMENSIONS | 320 x 330 x 80 mm |
WEIGHT | 8.5 Kg |
BOX CONTENTS | 1. DENAFRIPS VENUS II 12th-1 |
2. User Manual |
OTHER DETAILS
GENERIC NAME | Digital Audio Converter |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Vinshine Audio PTE. LTD. Address: 33 Ubi Ave 3 Vertex, Tower A #07-62, Singapore 408868 |
PACKAGE CONTENTS | DENAFRIPS VENUS II 12th-1 User Manual |
User Manual | VENUS II 12th-1
Desktop R-2R Digital to Analog Converter (DAC)
|
