iBasso

iBasso - AMP18

Balanced Amp Card For DX340
Sale price₹ 26,999 Regular priceMRP: ₹ 27,999
Sold out
GET 18% GST INPUT

One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.

Don't let the GST input go to waste especially if you can avail an offset.

All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.

Simply enter your GST number at the time of checkout.

Browse EMI Plans

Low Cost EMI Options through Credit Cards


Other EMI Options through Credit Cards

Expected to be restocked by Mid May

Talk to a Headphone Guru

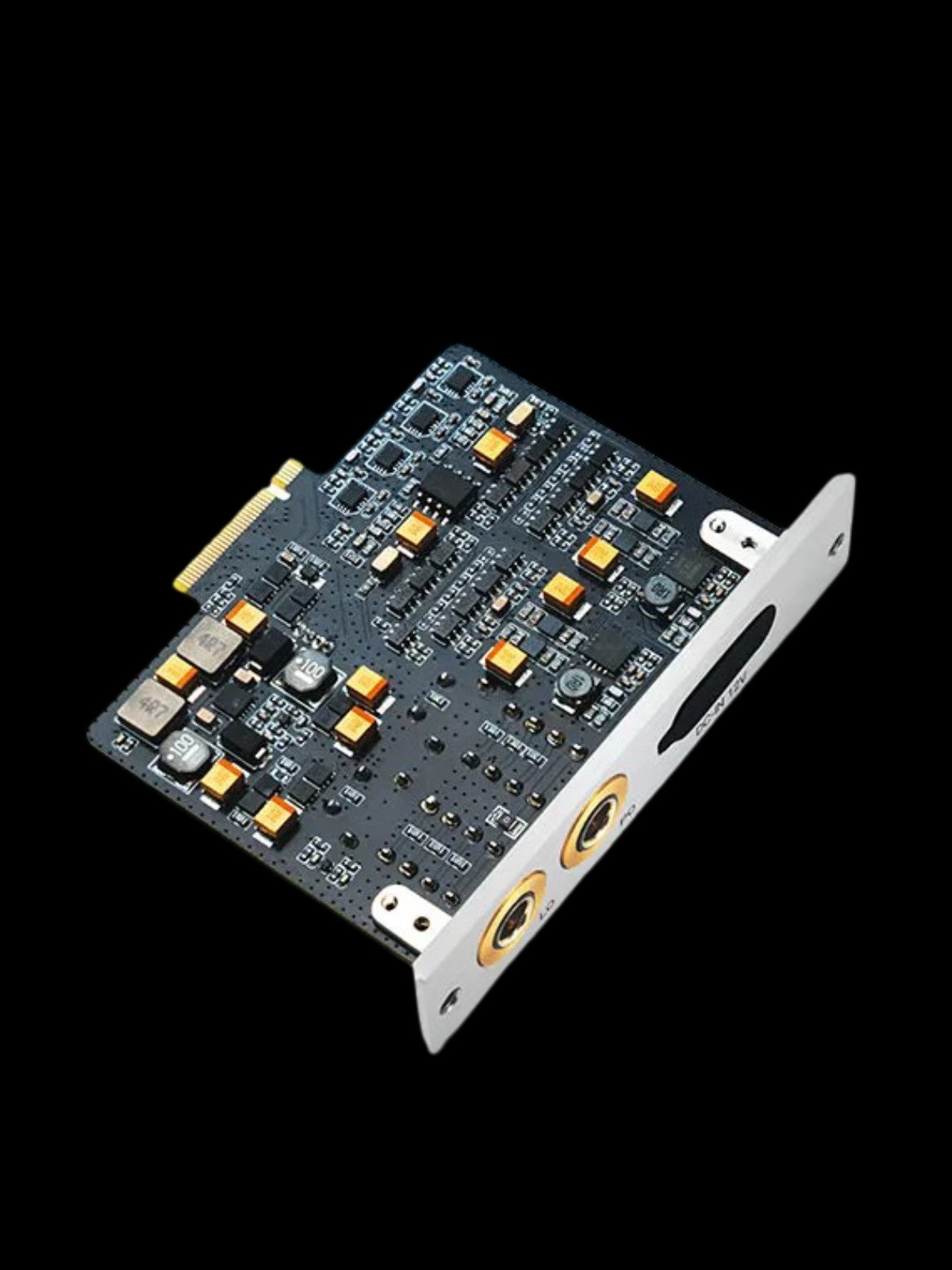

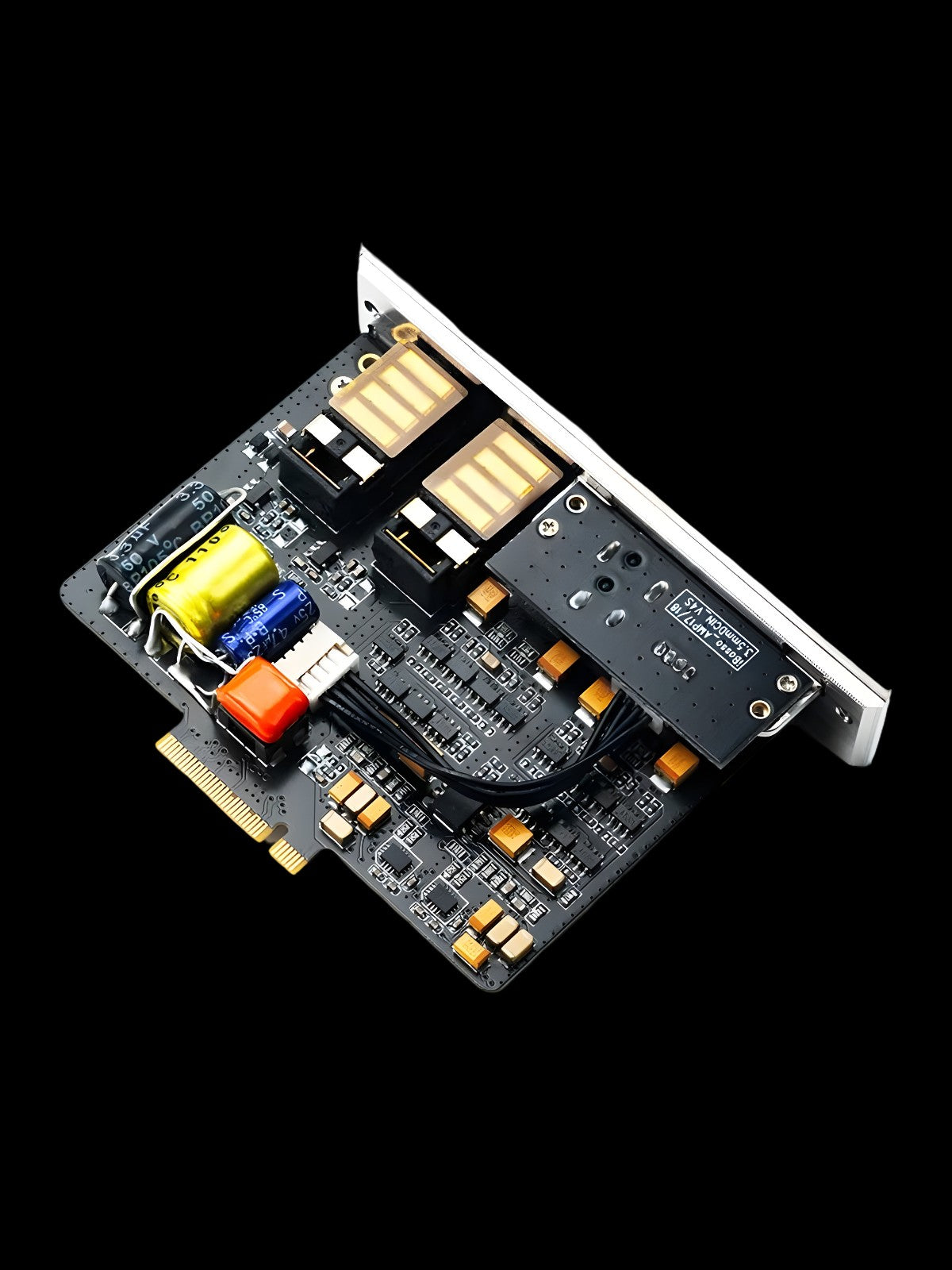

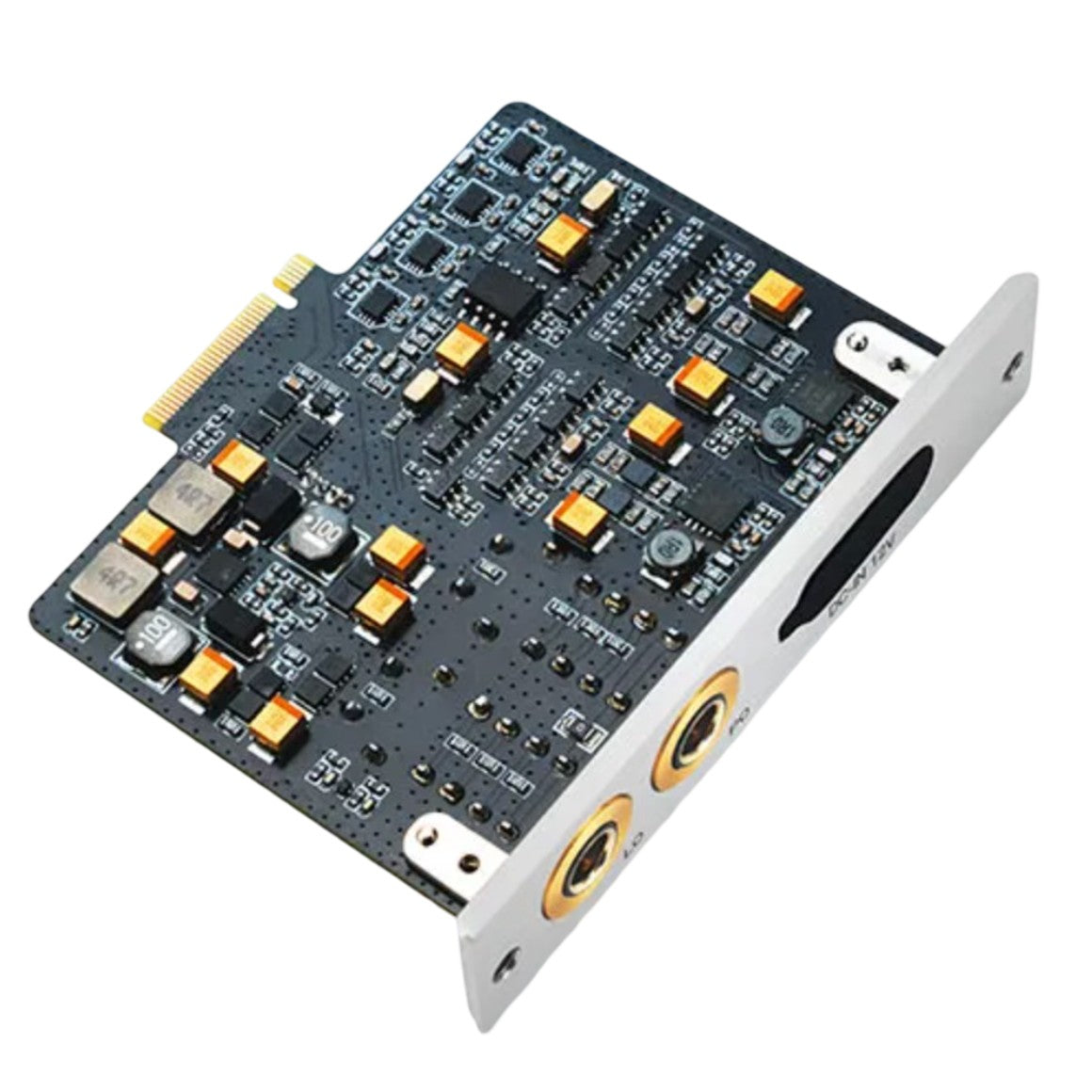

iBasso Presents The AMP18 - A Powerful Amp Card For The DX Series

iBasso presents the AMP18, a flagship-grade amplifier module engineered to redefine portable amplification through advanced transistor design and precision circuit architecture. Combining high-current output capability with refined signal control, it delivers exceptional driving power, dynamic accuracy, and analog-like musicality. Built for demanding headphones and high-resolution listening, the AMP18 stands as a powerful evolution in modular amplifier performance.

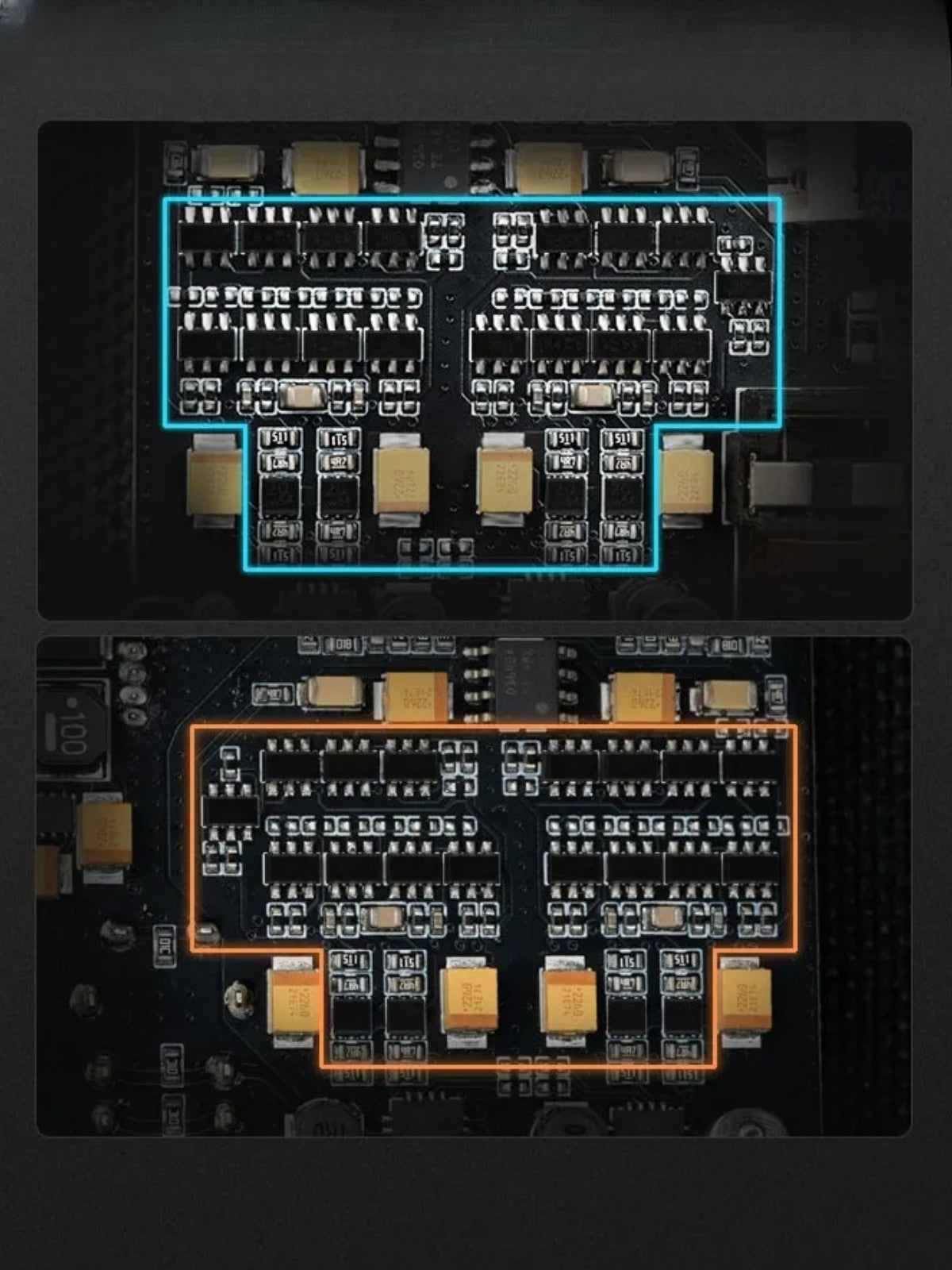

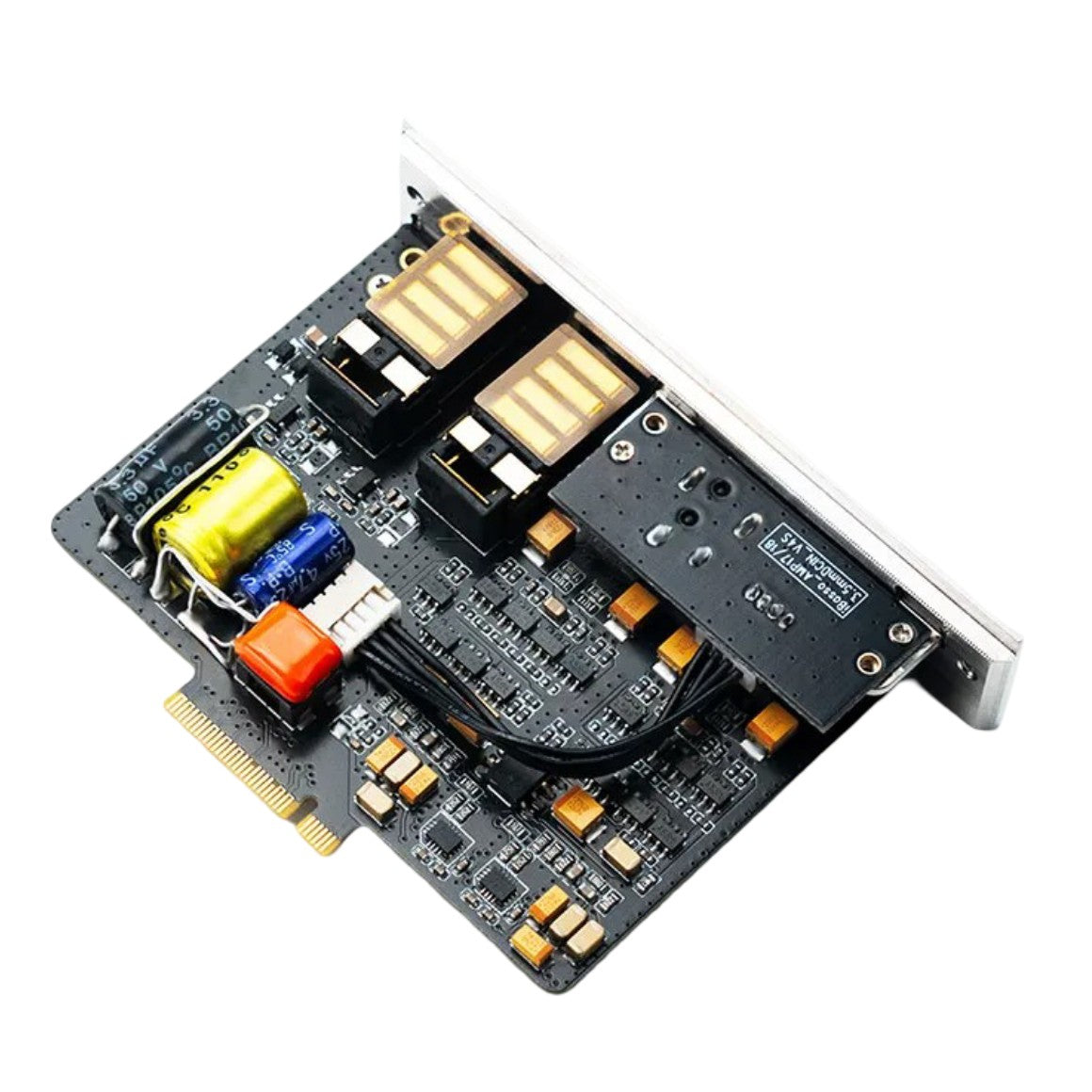

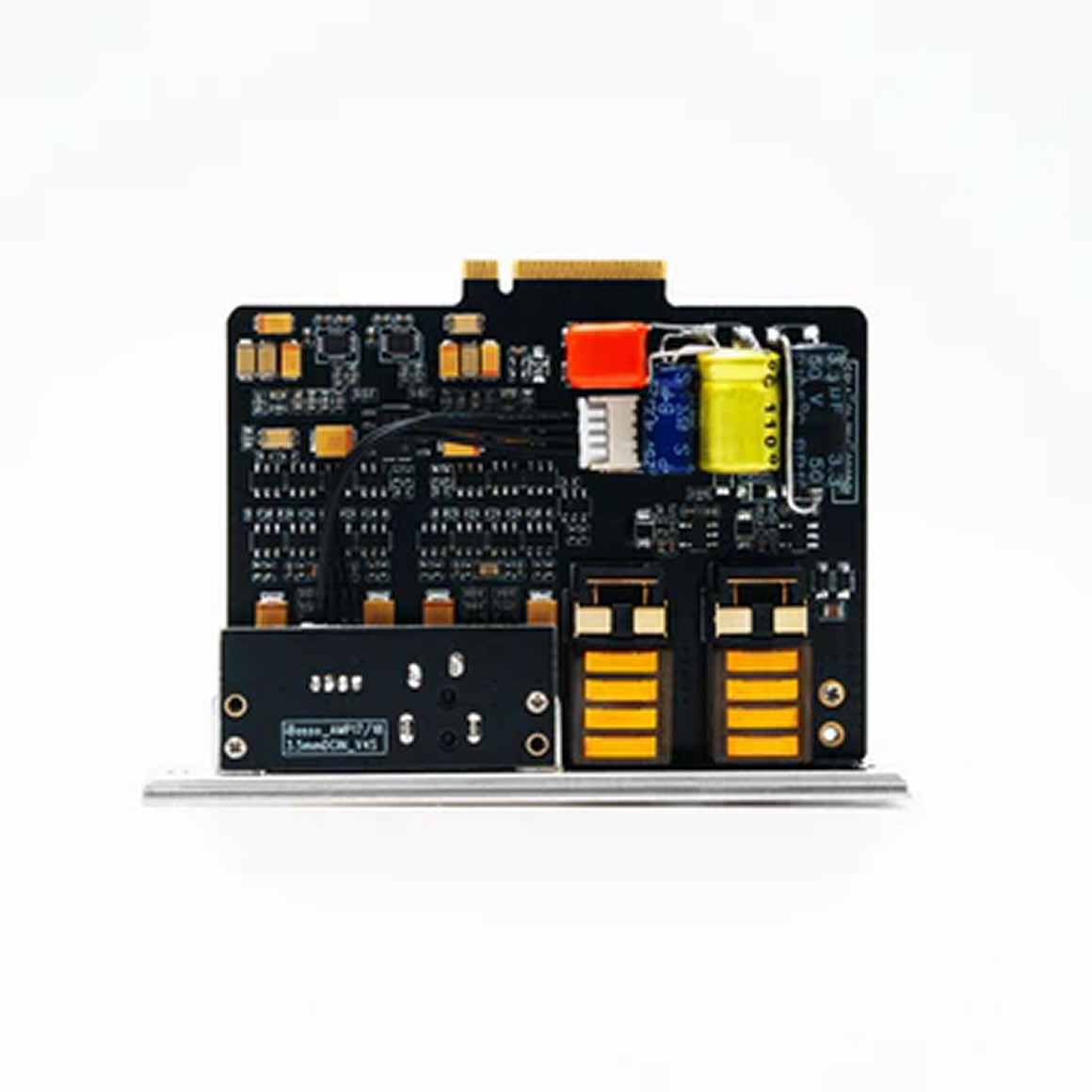

Implements 80-Transistor Matrix Architecture For High Current Output & Driving Power

iBasso AMP18 implements an advanced 80-transistor matrix formed by 40 dual transistors, overcoming the spatial limitations of compact AMP card designs. Supported by an optimised circuit layout and high-quality components, this architecture delivers higher current output, improved low-impedance compatibility, and enhanced overall performance.

Integrates Cascaded Current Feedback Circuit For Precise Transient Response

iBasso AMP18 integrates a cascaded current feedback circuit that avoids transient distortion caused by traditional large-loop deep negative feedback designs. This ensures faster signal transmission, preserving dynamic range and delivering clean, impactful reproduction of sudden audio transients without loss of detail.

Employs Two-Stage Amplification Architecture For Accurate Signal Restoration

iBasso AMP18 employs a two-stage amplification structure where operational amplifiers and transistors work in tandem to restore audio signal details with precision. The first stage ensures low-noise accuracy, while the second stage boosts drive capability, preventing signal attenuation and maintaining clarity across the frequency range.

Incorporates Complementary Output Circuit For Reduced Distortion & Natural Output

iBasso AMP18 incorporates a complementary output circuit that minimises asymmetrical distortion commonly found in conventional transistor stages. By enabling symmetrical amplification of positive and negative waveforms, it ensures complete waveform reproduction, reducing clipping and delivering a more natural and refined listening experience.

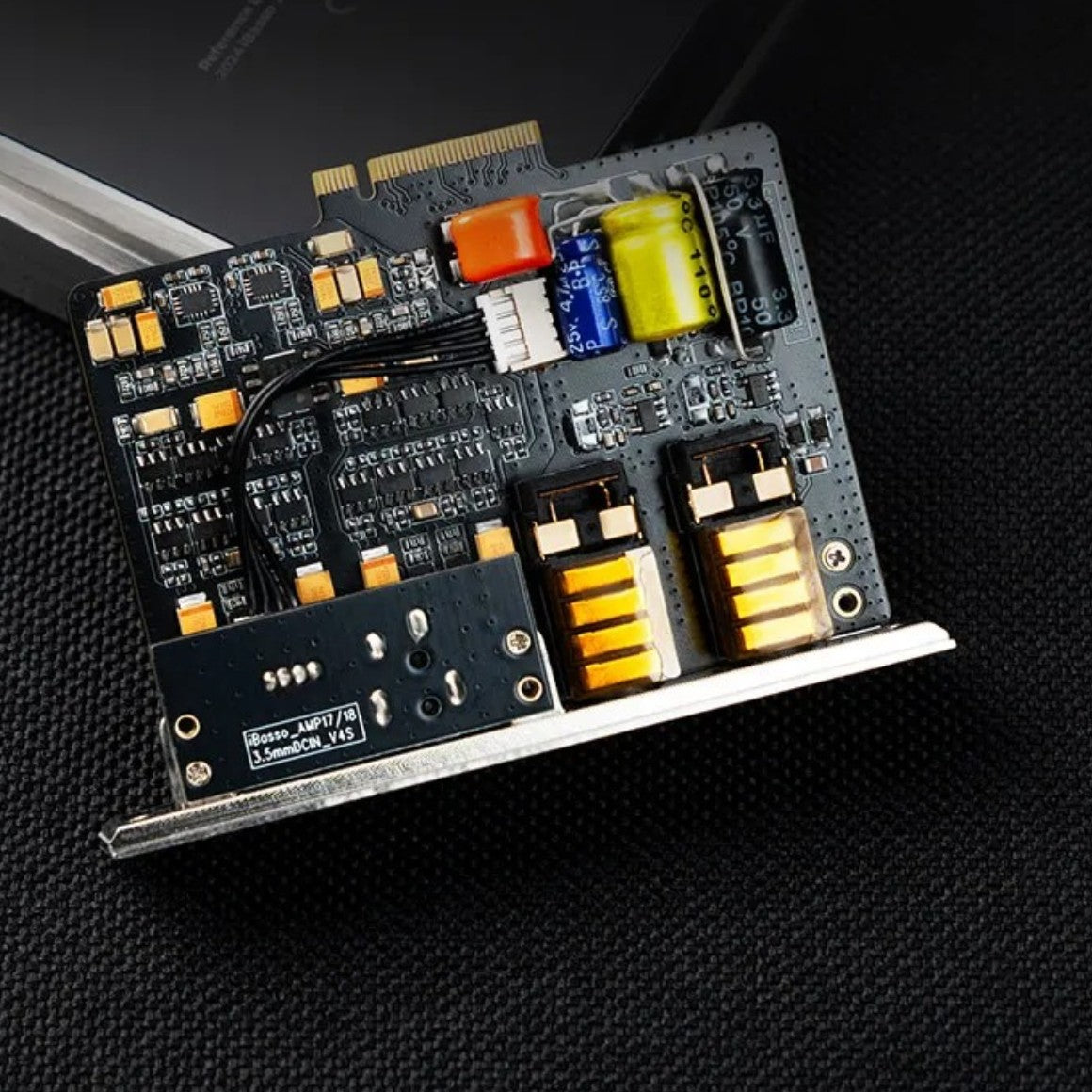

Supports DC 12V External Power For High Voltage Swing & Enhanced Output Power

iBasso AMP18 supports an external DC 12V power supply, enabling a ±12V voltage swing and delivering up to 1740mW + 1740mW @ 32Ω in super gain mode. This substantial power output allows it to drive a wide range of headphones and IEMs with authority, producing deep bass, full-bodied mids, and extended treble performance.

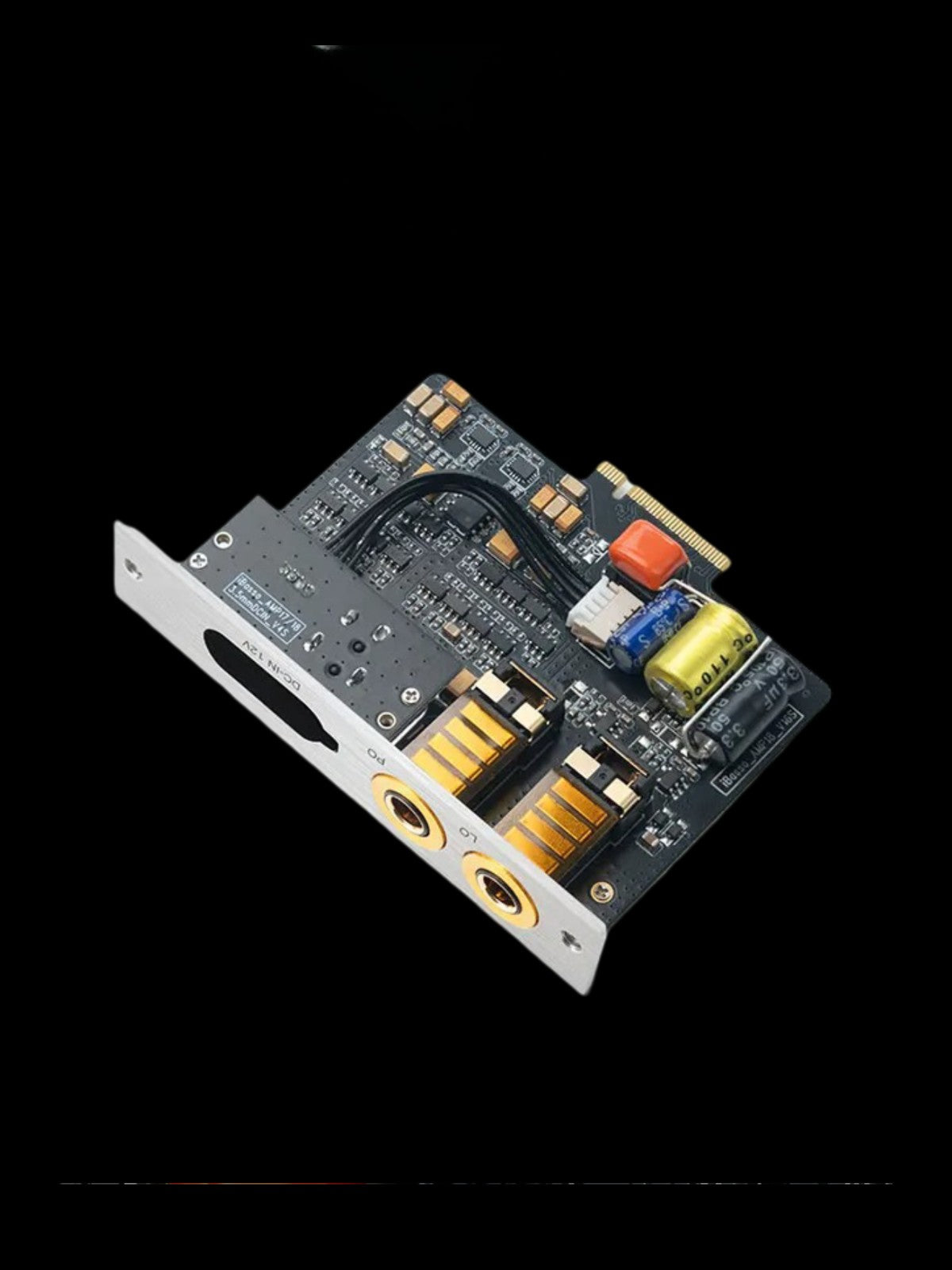

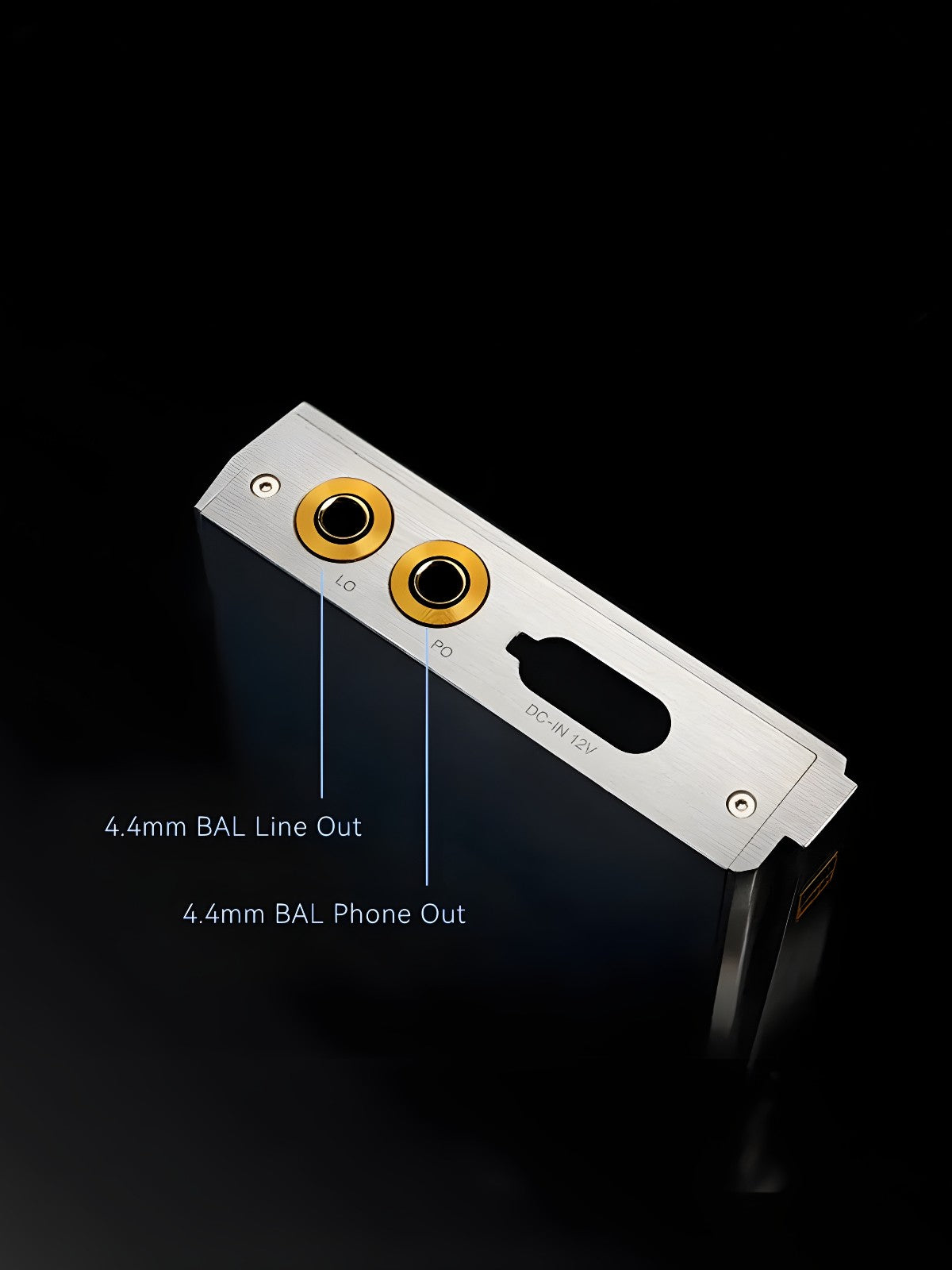

Equips Dual 4.4mm Balanced Outputs With Dedicated Line-Out Functionality

iBasso AMP18 equips dual 4.4mm balanced outputs that function as both headphone out and dedicated line-out. The balanced interface enhances compatibility and driving performance, while the dedicated line-out provides a clean signal source for integration into larger HiFi systems.

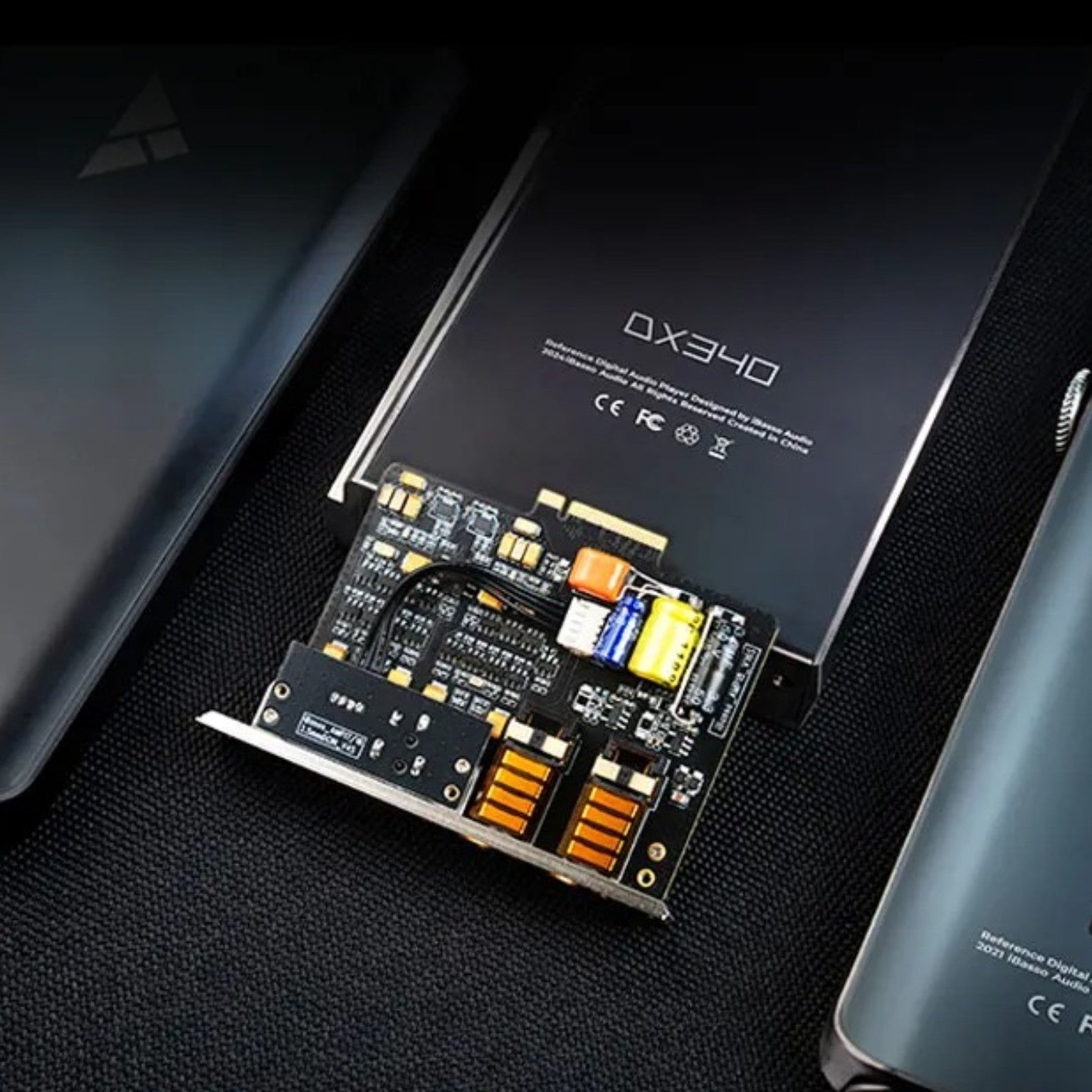

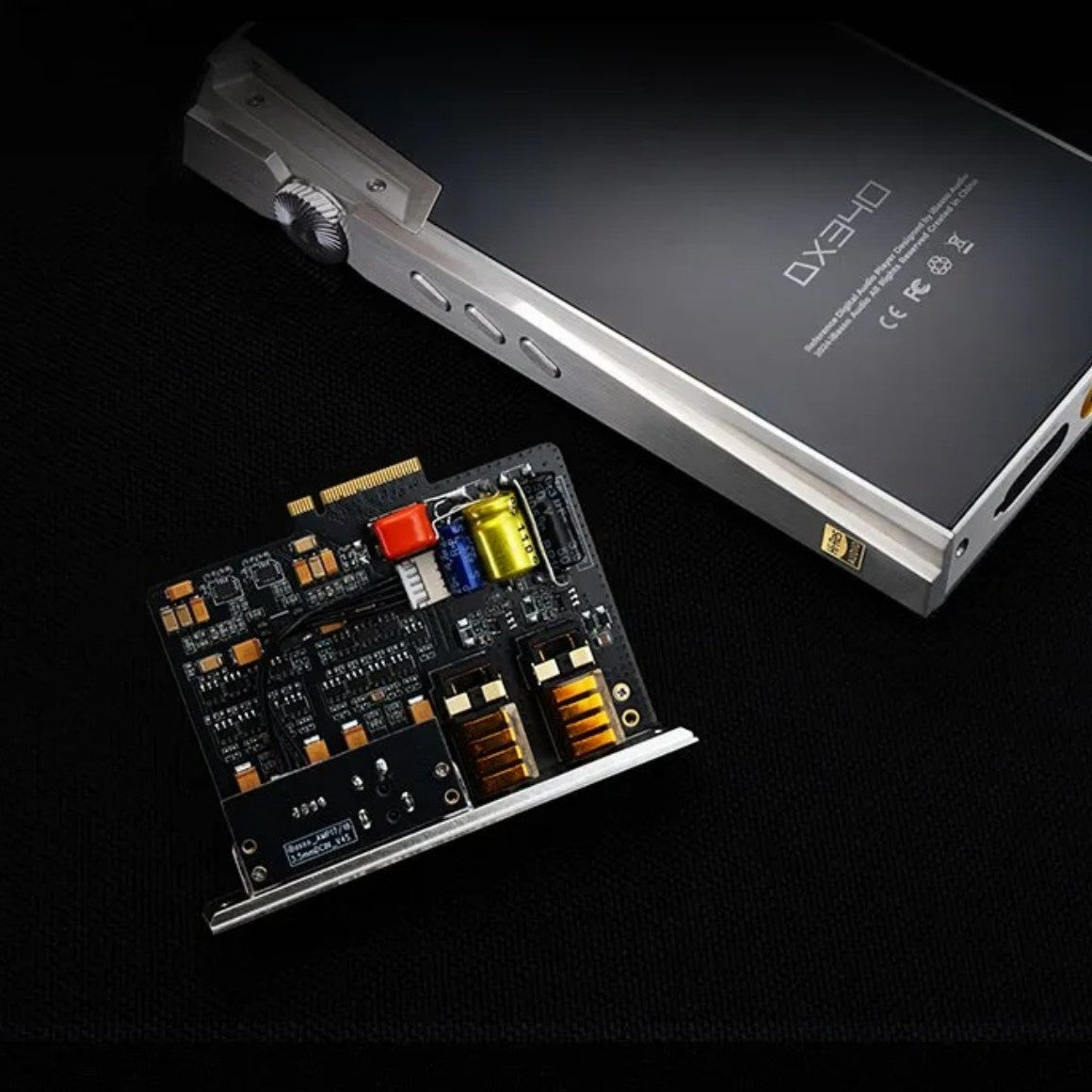

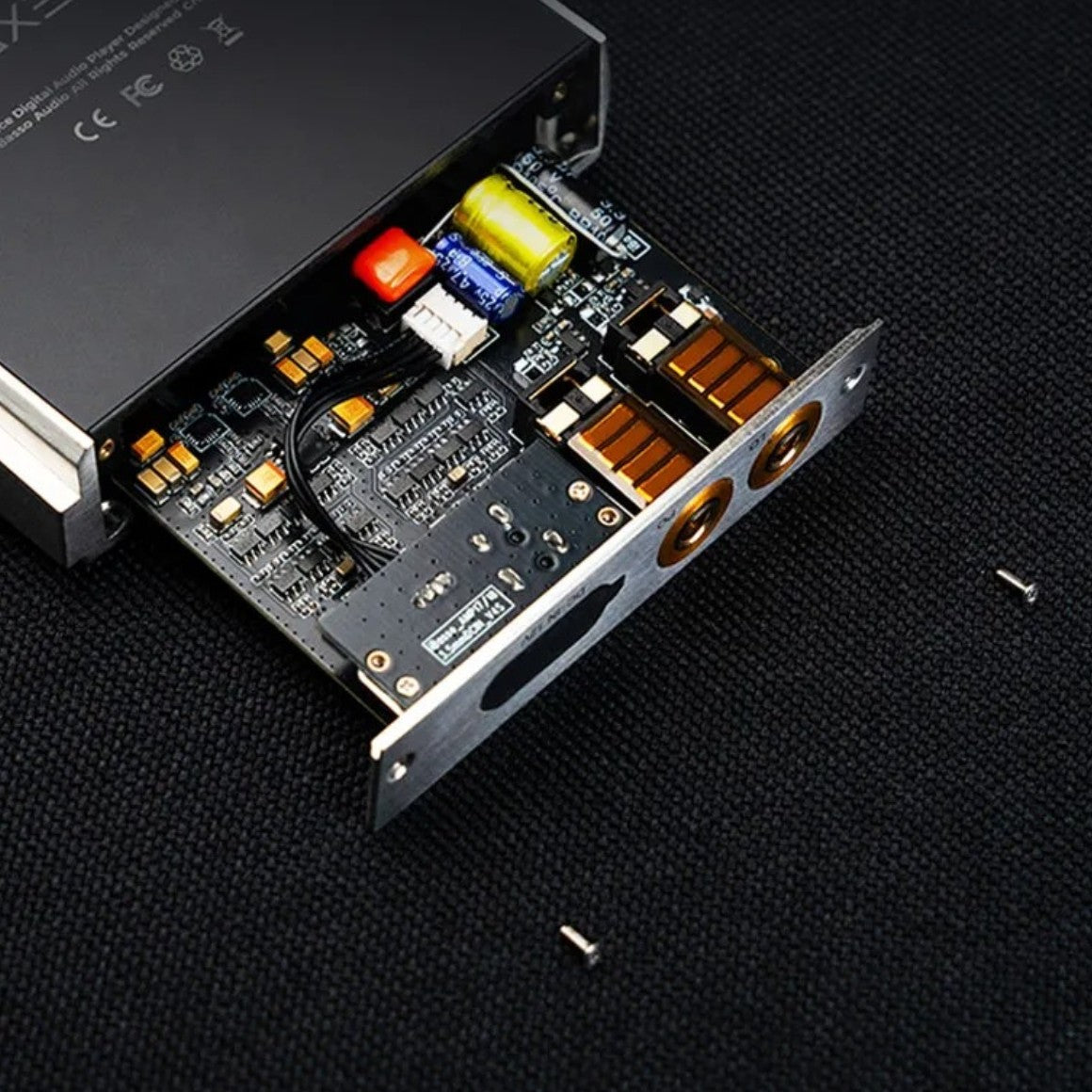

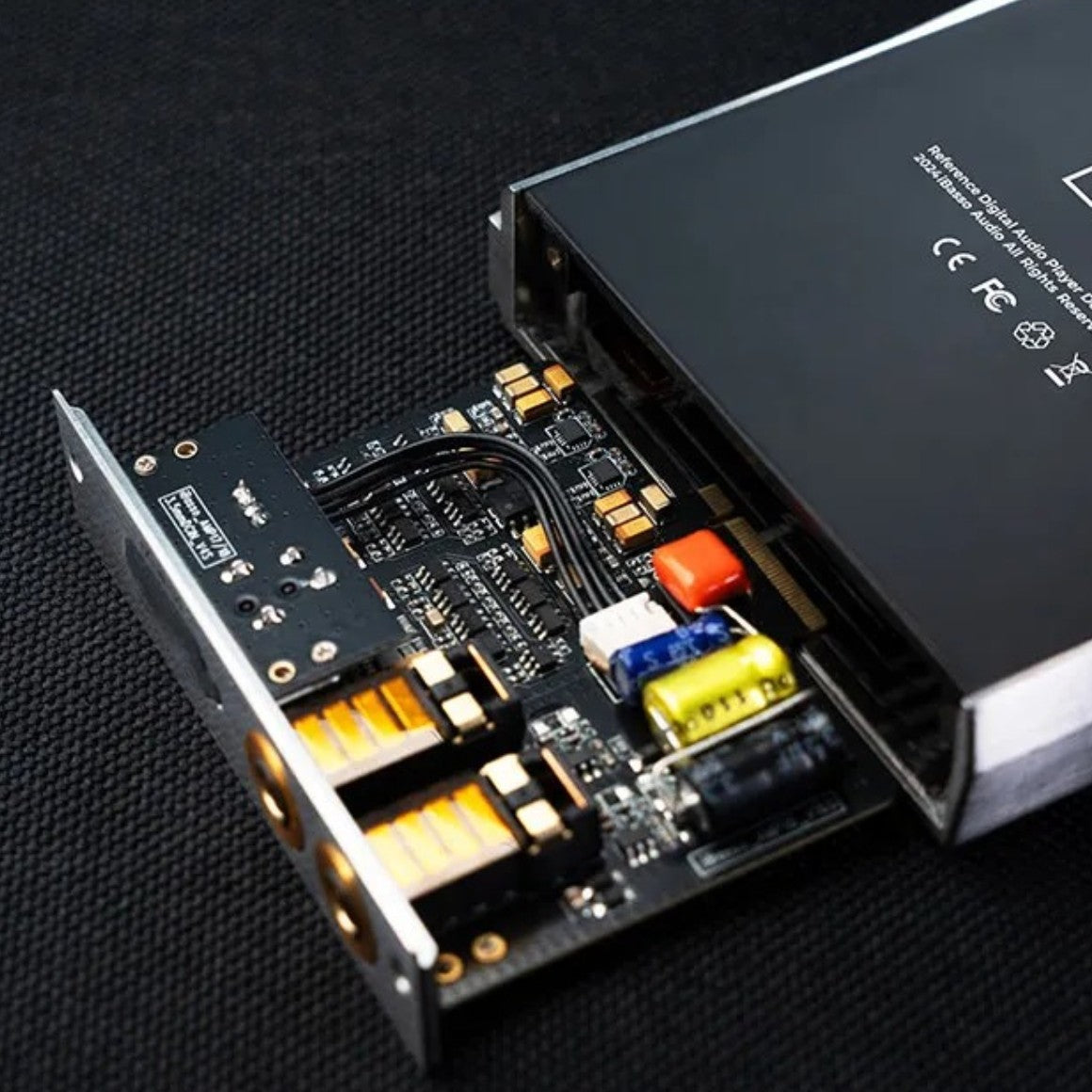

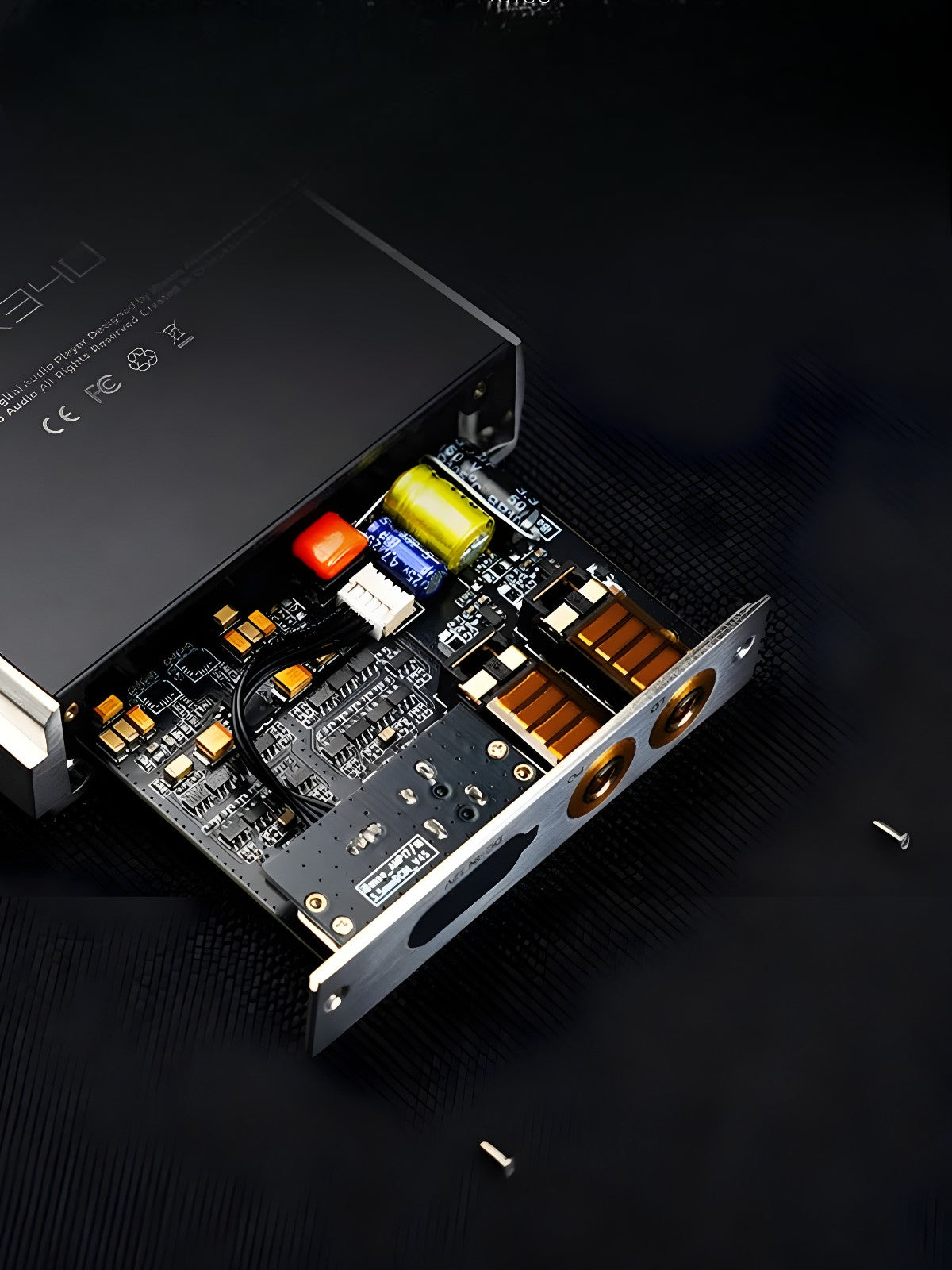

Ensures Broad Compatibility With DX300, DX320 & DX340 Series Players

iBasso AMP18 ensures seamless compatibility with DX300, DX320, and DX340 digital audio players, delivering a significant upgrade in overall performance. When paired with supported devices, it revitalises the sound output, offering a more dynamic and engaging listening experience, with note that DC 12V support requires DX340 firmware updates while DX300 and DX320 do not support external 12V power input.

Implements 80-Transistor Matrix Architecture For High Current Output & Driving Power

iBasso AMP18 implements an advanced 80-transistor matrix formed by 40 dual transistors, overcoming the spatial limitations of compact AMP card designs. Supported by an optimised circuit layout and high-quality components, this architecture delivers higher current output, improved low-impedance compatibility, and enhanced overall performance.

Integrates Cascaded Current Feedback Circuit For Precise Transient Response

iBasso AMP18 integrates a cascaded current feedback circuit that avoids transient distortion caused by traditional large-loop deep negative feedback designs. This ensures faster signal transmission, preserving dynamic range and delivering clean, impactful reproduction of sudden audio transients without loss of detail.

Employs Two-Stage Amplification Architecture For Accurate Signal Restoration

iBasso AMP18 employs a two-stage amplification structure where operational amplifiers and transistors work in tandem to restore audio signal details with precision. The first stage ensures low-noise accuracy, while the second stage boosts drive capability, preventing signal attenuation and maintaining clarity across the frequency range.

Incorporates Complementary Output Circuit For Reduced Distortion & Natural Output

iBasso AMP18 incorporates a complementary output circuit that minimises asymmetrical distortion commonly found in conventional transistor stages. By enabling symmetrical amplification of positive and negative waveforms, it ensures complete waveform reproduction, reducing clipping and delivering a more natural and refined listening experience.

Supports DC 12V External Power For High Voltage Swing & Enhanced Output Power

iBasso AMP18 supports an external DC 12V power supply, enabling a ±12V voltage swing and delivering up to 1740mW + 1740mW @ 32Ω in super gain mode. This substantial power output allows it to drive a wide range of headphones and IEMs with authority, producing deep bass, full-bodied mids, and extended treble performance.

Equips Dual 4.4mm Balanced Outputs With Dedicated Line-Out Functionality

iBasso AMP18 equips dual 4.4mm balanced outputs that function as both headphone out and dedicated line-out. The balanced interface enhances compatibility and driving performance, while the dedicated line-out provides a clean signal source for integration into larger HiFi systems.

Ensures Broad Compatibility With DX300, DX320 & DX340 Series Players

iBasso AMP18 ensures seamless compatibility with DX300, DX320, and DX340 digital audio players, delivering a significant upgrade in overall performance. When paired with supported devices, it revitalises the sound output, offering a more dynamic and engaging listening experience, with note that DC 12V support requires DX340 firmware updates while DX300 and DX320 do not support external 12V power input.

All You Need To Know About The iBasso AMP18

4.4mm Balanced Phone Out
THD+N:
-114dB (No Load)
-105dB (300 Ohms Load)
-93dB (32 Ohms Load)
Dynamic Range: 123dB
Signal-to-Noise Ratio: 122dB
Maximum Output Power:
1740mW + 1740mW @ 32 Ohms (12V DC Power Supply)
1170mW + 1170mW @ 32 Ohms (Battery Power)
Crosstalk: 122dB
Frequency Response: 10Hz – 40kHz ±0.9dB
Output Impedance: 1.2 Ohms
4.4mm Balanced Line Out
THD+N: -110dB (No Load)
Dynamic Range: 123dB
Signal-to-Noise Ratio: 123dB
Crosstalk: 114dB
Box Contents
1. iBasso AMP18


1 Year Warranty

Don't sweat it, this iBasso - AMP18 comes with a 1 Year warranty from iBasso that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.

Read more about iBasso's warranty in India.

Great Products with Outstanding Performance

Founded in 2008, iBasso is a digital audio product manufacturer from China. The company started by manufacturing digital audio players and amplifiers and today even manufactures DACs and IEMs for audiophiles. iBasso, over time, has become one of the most acclaimed brands for those seeking budget-friendly, yet high-performance gear. iBasso DACs have gained popularity over the years and are a part of many music enthusiasts' collections.

Explore Collection

Have a question? Get in touch!

Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.

Our customer support is available Monday to Friday: 11am-6pm.Average answer time: 2-3 Hours

Other Details

Generic Name Other Accessories
Importer Details Importers Name: Ferrari Video
Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020
Contact No: 044-24420733
Net Quantity 1
Manufacturer Details Name: iBasso Audio
Address: RM 803 8/F, Easey commercial building, 253-261 Henessy Road WanChai, HongKong
Package Contents iBasso AMP18
