ENHANCE THE MAGIC OF YOUR VINYL SET-UP

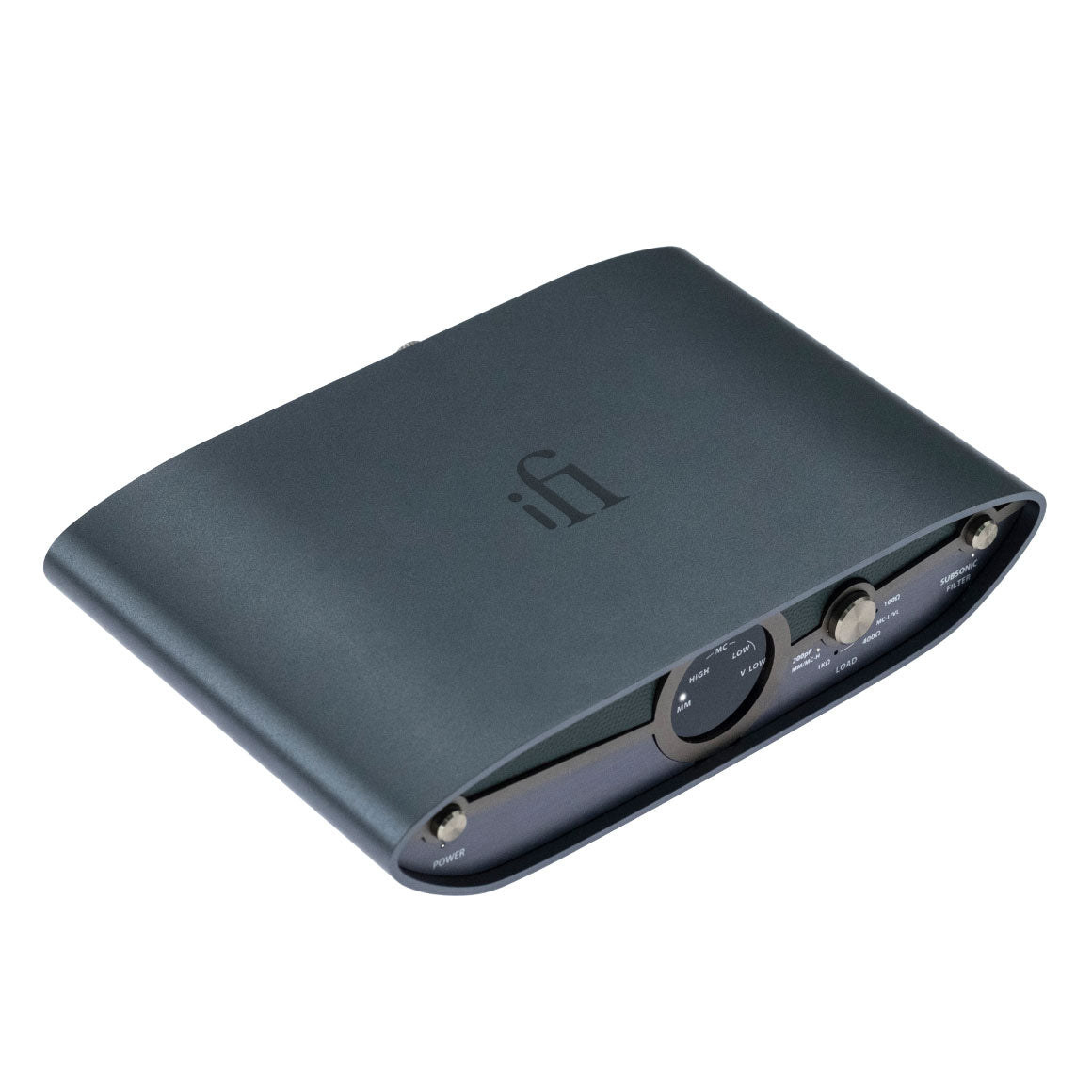

Improve your existing vinyl set-up with the iFi audio ZEN Phono. This phono stage features some of the tech used in the ultra-fidelity AMR PH-77 and iFi iPhono siblings. It packs some seriously awesome audio components and circuitry that's going to keep you wanting to listen to just 'one' more song.
NO MATTER HOW BIG YOUR SET-UP GROWS, IT'LL HANDLE IT
Unlike other entry-level phono stages, the ZEN Phono uses MM/MC, high/low and very low, to handle just about any cartridge. Expect a gain that goes from 36dB till 72dB while retaining a super-silent noise floor of -151dBV. No matter how big your set-up grows, the ZEN Phono will always be there for you.
ENJOY THE BASS WITHOUT THE RUMBLES
Here's good news for those who don't want to compromise on the bass. Normal sub-sonic filters tend to get rid of the bass while removing the rumble. The ZEN Phono uses an AI sub-sonic filter that addresses these rumble and wrap issues without having any effect on the bass or causing phase issues.
HIGH-END PERFORMANCE WITH MINIMAL DISTORTION
The iFi ZEN Phono has an incredible RIAA EQ tolerance level (+/- 0.15dB) that's on par with hand-selected capacitors. This is thanks to the parallel TDK C0G (Class 1 ceramic) capacitors in the EQ circuit. These capacitors offer high stability and low distortion and are better than polystyrene capacitors. The end result: Performance that's better than phono stages worth over a thousand dollars.
GET RID OF NOISE WITH CLEAN POWER SUPPLY
Flagship phono amplifiers create their own power supply off the mains, like a mains regenerator. Doing away with this would result in extra hissing and noise along with the signal. The ZEN Phono uses its own high-tech 1.2MHz clean power supply (20,000x mains frequency of 60Hz). This means a 10uF filtering capacitor = 200,000uF at lower, audible frequencies. This is equivalent to the level of noise filtration done by the highly effective LC filtering circuits found in classic Tube Amps. Furthermore, the PCB is isolated to prevent noise pollution in the analogue stage. This is quieter than some Stereophile Class A+ phonos which are -131dBV.
HIGH-QUALITY COMPONENTS FOR FANTASTIC PERFORMANCE
The iFi ZEN Phono uses high-end circuit components. The balanced circuit (almost unheard of at this price point) is effective in reducing noise and crosstalk and is much more superior in comparison to the traditional single-ended circuit approach. A custom OV Series operational-amplifier contributes to the extremely low noise, low distortion (0.0001%) and wide bandwidth. The Panasonic ECPU capacitors are made from 3,500 layers of ultra-thin dielectrics that's less than 0.5μm thick. It offers class-leading Equivalent Series Resistance (ESR), low impedance and vanishingly low distortion.

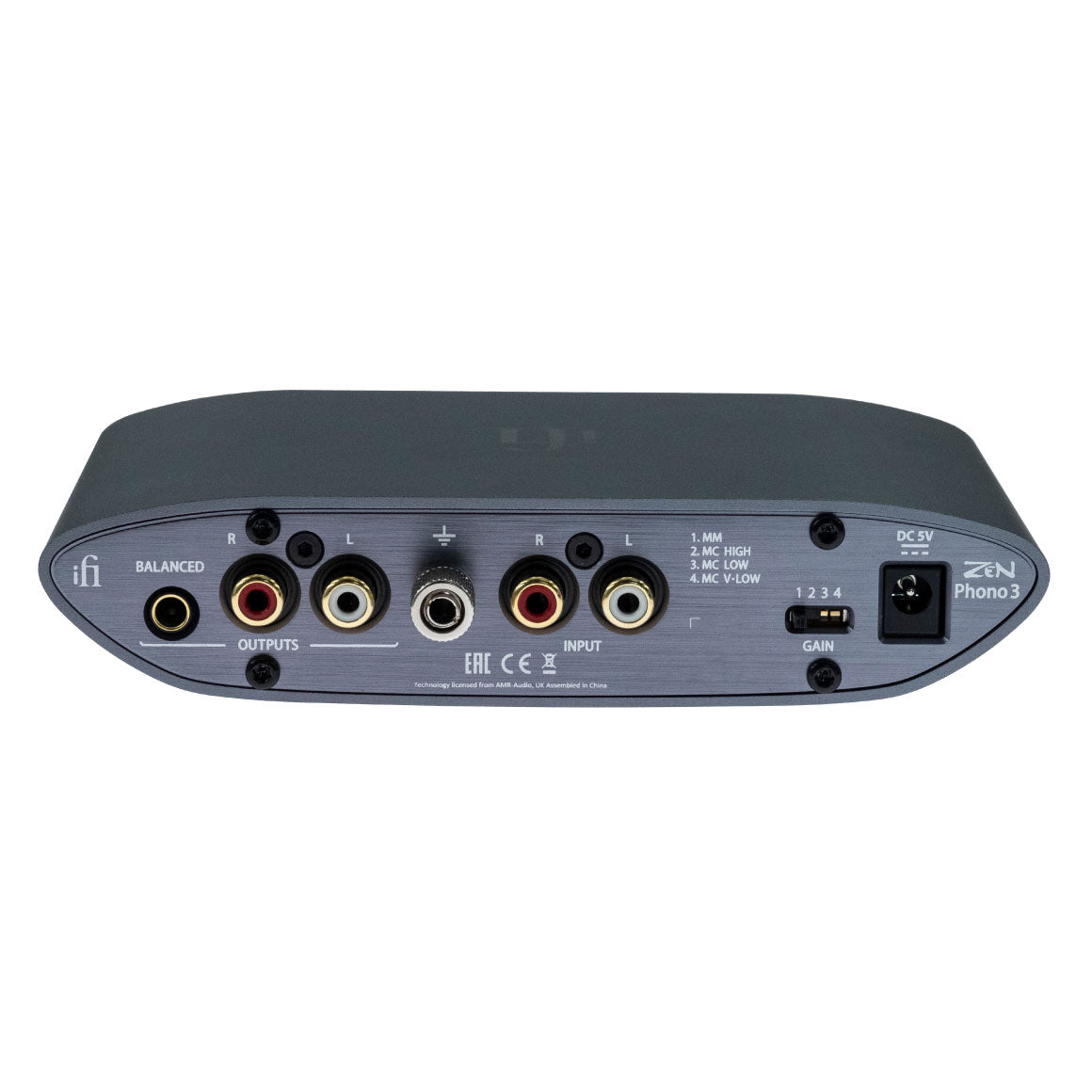

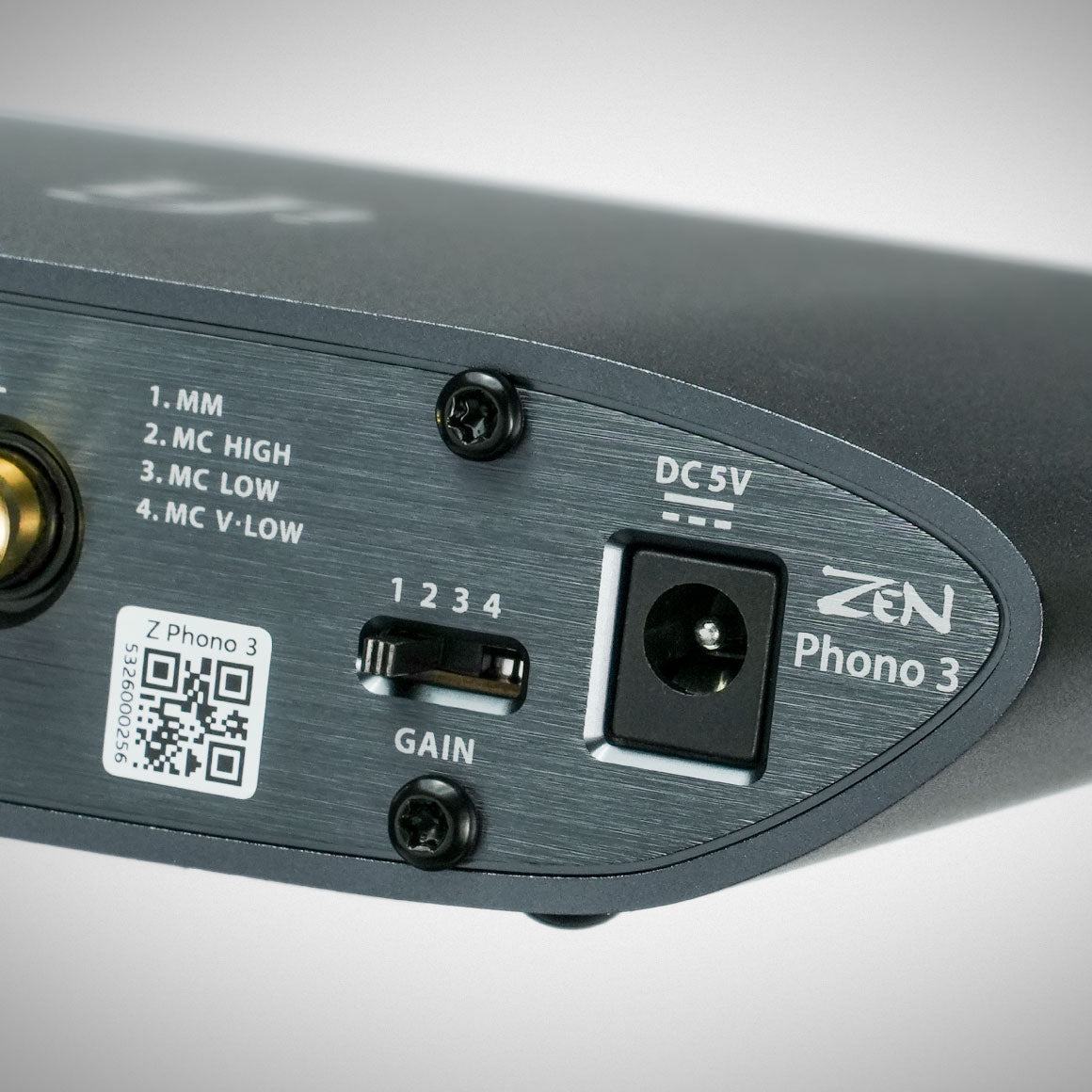

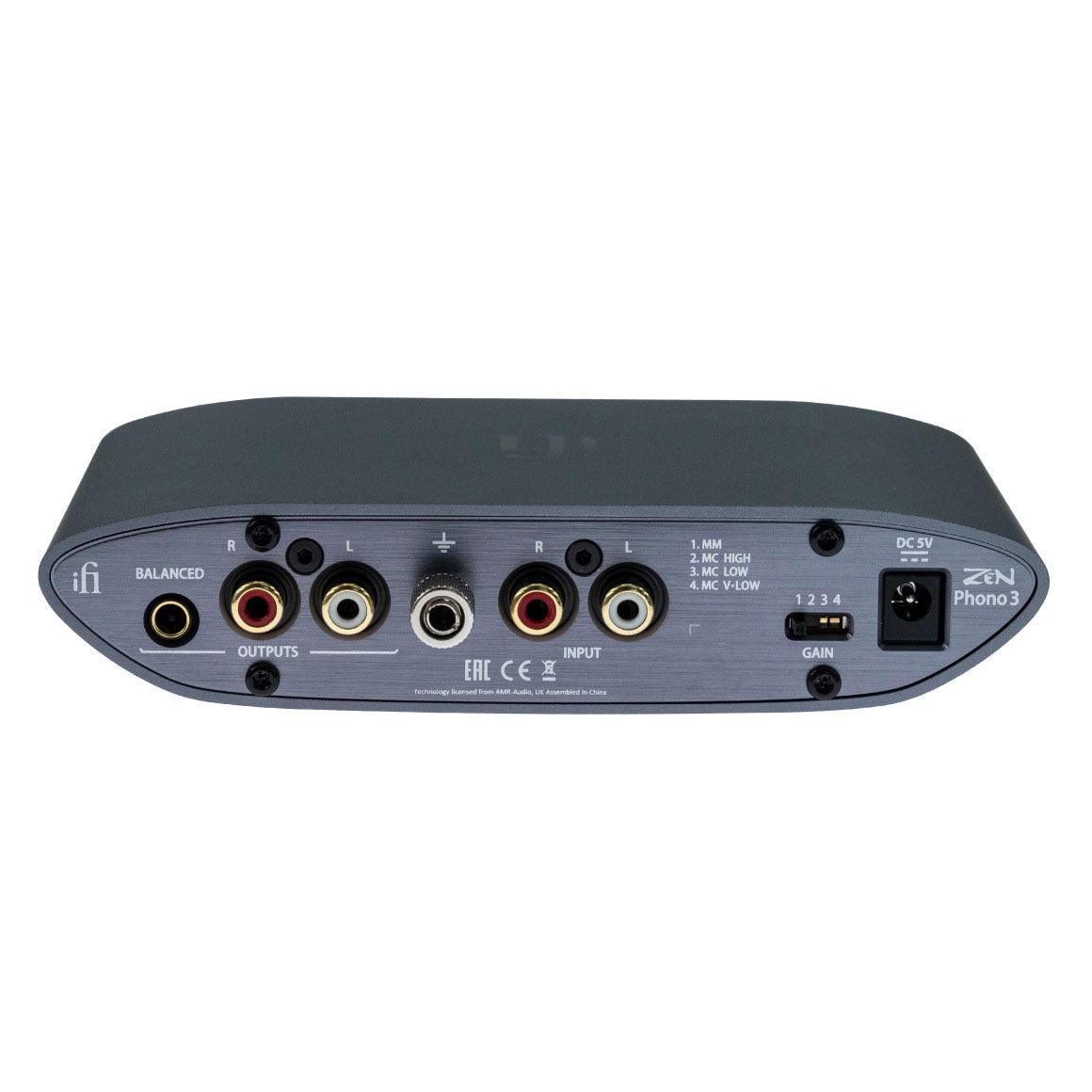

|GAIN SETTINGS||MC (v lo)@ - 72dB (+/- 1dB)
MC (lo) - 60dB (+/- 1dB)
MC (hi) - 48dB (+/- 1dB)
MM - 36dB (+/- 1dB)
|AL SUB-SONIC FILTER||Remedies only the 'warp' in LPs - No negative impact to bass response|
|MAX OUTPUT VOLTAGE (RMS)||20v RMS bal output into 100k (< 1% THD & N)|
|13.5V RMS bal output into 600R (< 1% THD & N)|
|OUTPUT IMPEDANCE||BAL: 200 Ohm resistive ; SE: 100 Ohm resistive|
|INPUT IMPEDANCE||MM: 47K Ohms (Load: 110pF)|
|MC High: 47K Ohms|
|MC Low: 1K Ohms|
|MC V Low: 110 Ohms|
|SIGNAL/NOISE RATIO||94dB(A) MM re 2V BAL/1V UNBAL
80dB(unweighted 80kHz BW) MM re 2V BAL/1V UNBAL
84dB(A) MC Hi re 2V BAL/1V UNBAL
71dB(unweighted 80kHz BW) MM re 2V BAL/1V UNBAL
90dB(A) MC lo re 2V BAL/1V UNBAL
79dB(unweighted 80kHz BW) MC lo re 2V BAL/1V UNBAL
79dB(A) MC vlo re 2V BAL/1V UNBAL
69dB(unweighted 80kHz BW) MC vlo re 2V BAL/1V UNBAl
|EIN (EQUIVALENT INPUT NOISE)||0.6nV|/Hz (unweighted) MC lo/vlo -151dBV (A weighted)
|6.5nV|/Hz (unweighted) MM/MC hi -130dBV (A weighted)
|HARMONIC DISTORTION||< -110dB / 0.0003% MM re 2V BAL/1V UNBAL
< -80dB / 0.01% MC lo re 2V BAL/1V UNBAL
< -86dB / 0.005% MC vlo re 2V BAL/1V UNBAL
|DIMENSIONS||158 x117 x35 mm
6.2" x 4.6" x 1.4"
|POWER SUPPLY||DC 5V / 500mA|
|WEIGHT||515g (1.14 Ibs)|

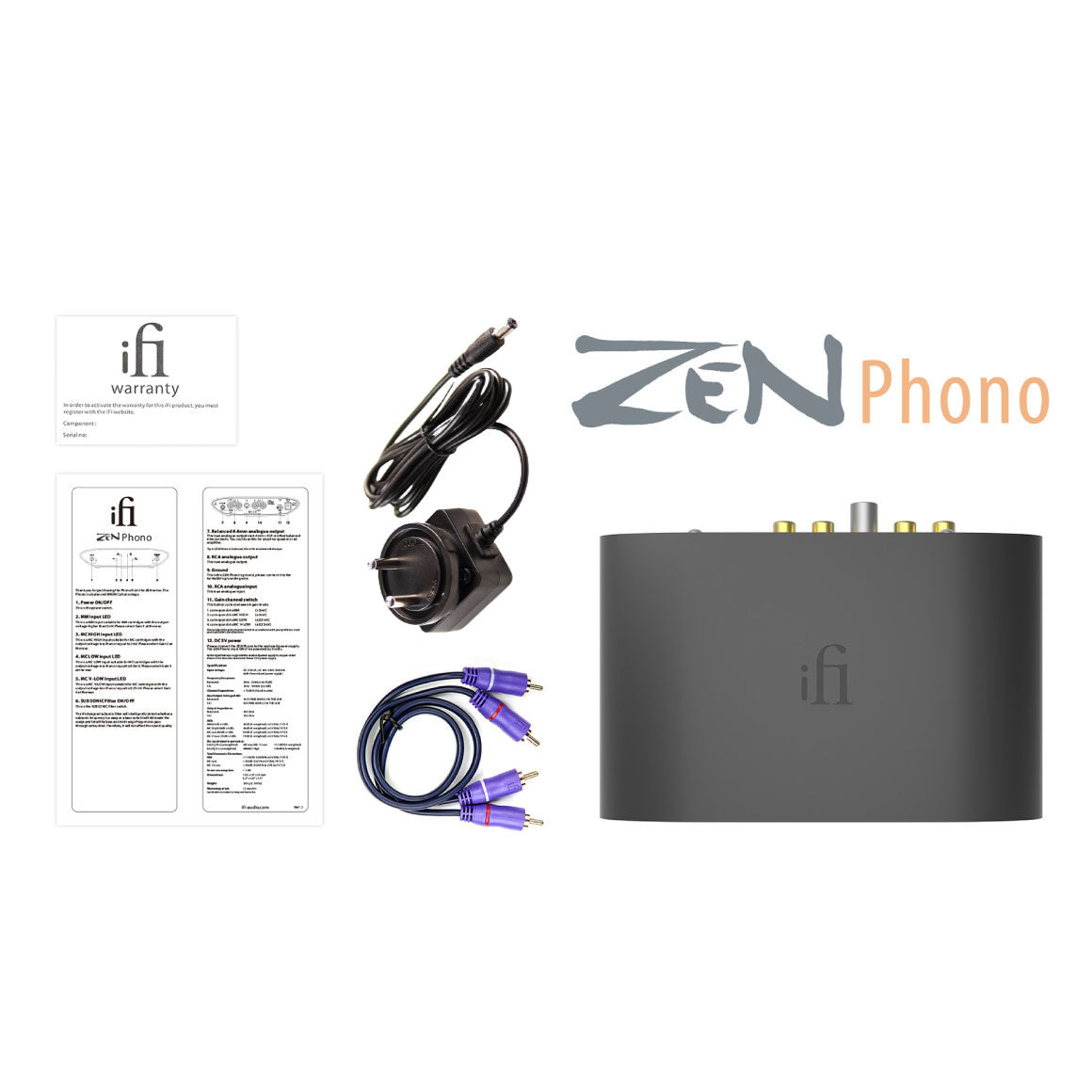

1. iFi Audio ZEN Phono
2. 1 x Power Adapter
*Power adapter will be shipped separately.
3. 1 x RCA Cable
4. 1 x User Manual
5. 1 x Instruction card
|GENERIC NAME||Headphone Amplifier|
|COUNTRY OF ORIGIN||China|
|IMPORTER DETAILS||Importers Name: Ferrari Video
Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020
Contact No: 044-24420733
