2.5mm & 4.4mm
ESS Sabre ES9219C
Dual DAC Chip
Upto 240mW @ 32Ω
Battery Capacity of

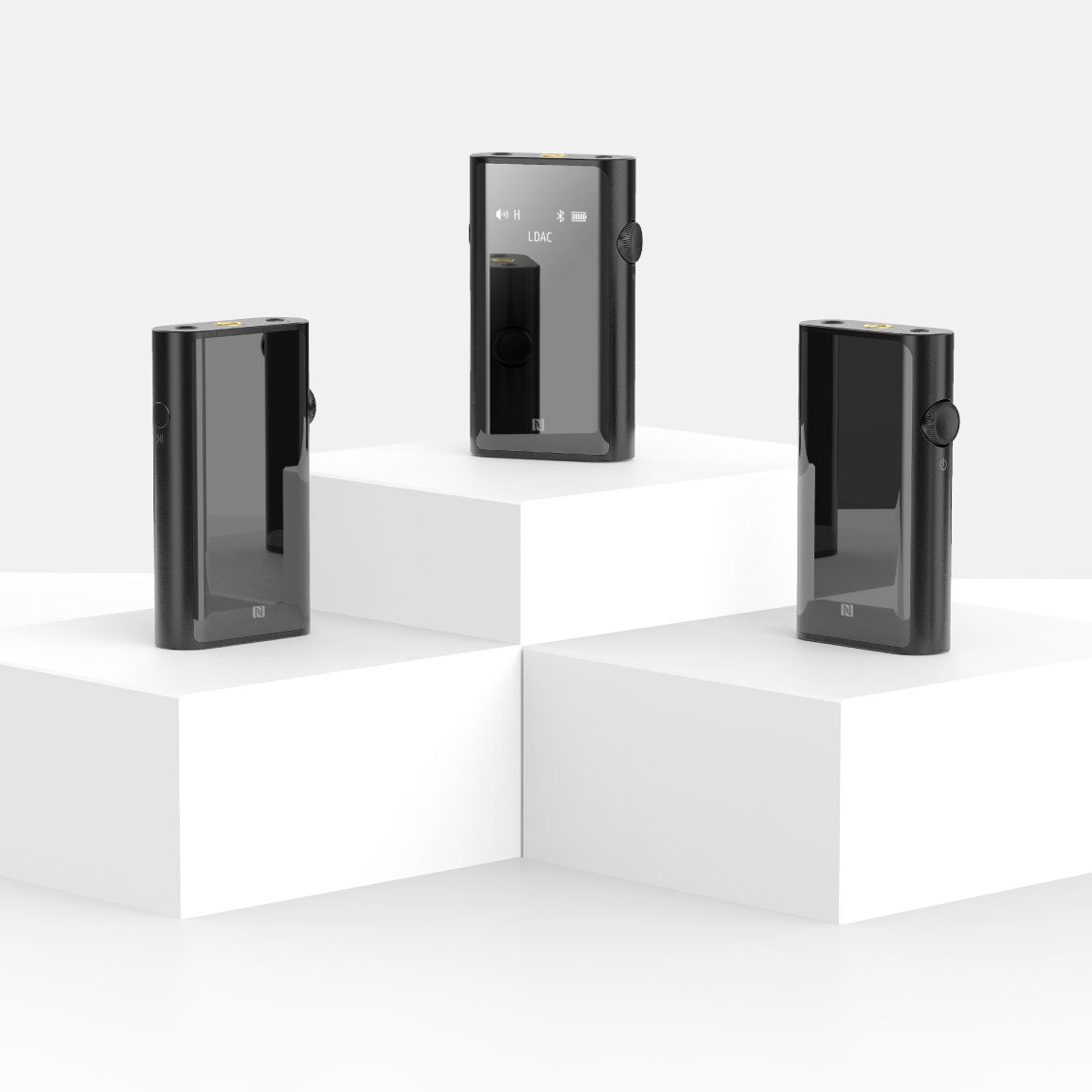

UPGRADE TO THE ALL-NEW SHANLING UP5 SUCCESSOR TO WIDELY POPULAR UP4
Shanling has been making waves with their portable DAC & Amp setups. They have had success with Shanling UP4 and have now come up with their older brother Shanling UP5. It is based on the UP4 but with additional functionality and cosmetic improvements. The main changes from the UP4 are MQA support and an OLED screen. There is more to it than you can expect from such an ultra-portable device. You may connect your Shanling UP5 to practically any device to experience high-quality audio.
EMBEDDED WITH DUAL ESS SABRE DAC CHIPS, FPGA AND KDS CRYSTAL OSCILLATORS TO DELIVER HI-RES AUDIO
The Shanling UP5 is equipped with two high-precision ESS SABRE ES9219C DAC chips that enable Hi-Res audio and produce flawless sound quality. Make your games sound like never before with the UP5 at your fingertips. It also incorporates FPGA and Crystal Oscillators in its circuitry, which boost sound quality even more with improved algorithms and high-quality oscillators that enhance clock signal accuracy and performance when decoding both PCM and DSD data. The Shanling UP5 can easily play lossless files without any jitter or distortion.
EXPERIENCE HI-FIDELITY AUDIO WITH THE LATEST QUALCOMM AND XMOS USB CHIPS CAPABLE OF 16X MQA PLAYBACK
Enjoy your MQA files in the top 16x MQA quality when using UP5 over its USB input and with an app supporting the MQA playback. UP5 player includes MQA technology, which allows you to play back MQA audio files and streams, delivering the sound of the original master recording. The Qualcomm QCC5120 Bluetooth 5.0 chipset transmits Hi-Res music to the UP5 wirelessly. It also ensures connection quality with a transmission distance of up to 10m, rapid pairing, and problem-free compatibility with a wide range of devices and Bluetooth codecs like LDAC, LHDC, aptX HD, aptX LL, aptX, AAC, and SBC. It also has a USB input, which allows you to use it as an external sound card for your computer or other devices. By adding the XMOS XUF208 USB chip, UP5 can serve as a high-quality asynchronous USB DAC/AMP, with support of Hi-Res playback up to DSD256 & 32bit/384kHz and Type-C interface, supporting both UAC1.0 and UAC2.0 protocols.
SCALE UP YOUR CALL QUALITY WITH KNOWLES SISONIC MICROPHONE AND CAR MODE FUNCTIONALITY
What if your portable DAC & Amp includes a microphone? Yes, be ready as you will be amazed that UP5 has embedded Knowles Sisonic microphone to provide an uninterrupted and smooth calling experience. The UP5 distinguishes itself from the typical microphone that is included in your headphones by providing clear sound for your calls and video chats, as well as cVc 8.0 noise reduction and advanced DSP for the elimination of background noise. An omnidirectional microphone picks up sound from every angle. It records the signal with the same power whether you are in front, behind, or on one side of the mic. This is unlike directional microphones, which have a pick-up pattern that only catches sound from one direction. With the car mode, you will have a friend on long road trips. Connect UP5 to the AUX port for automatic charge detection, transforming it into the ideal Bluetooth receiver for your car stereo system.

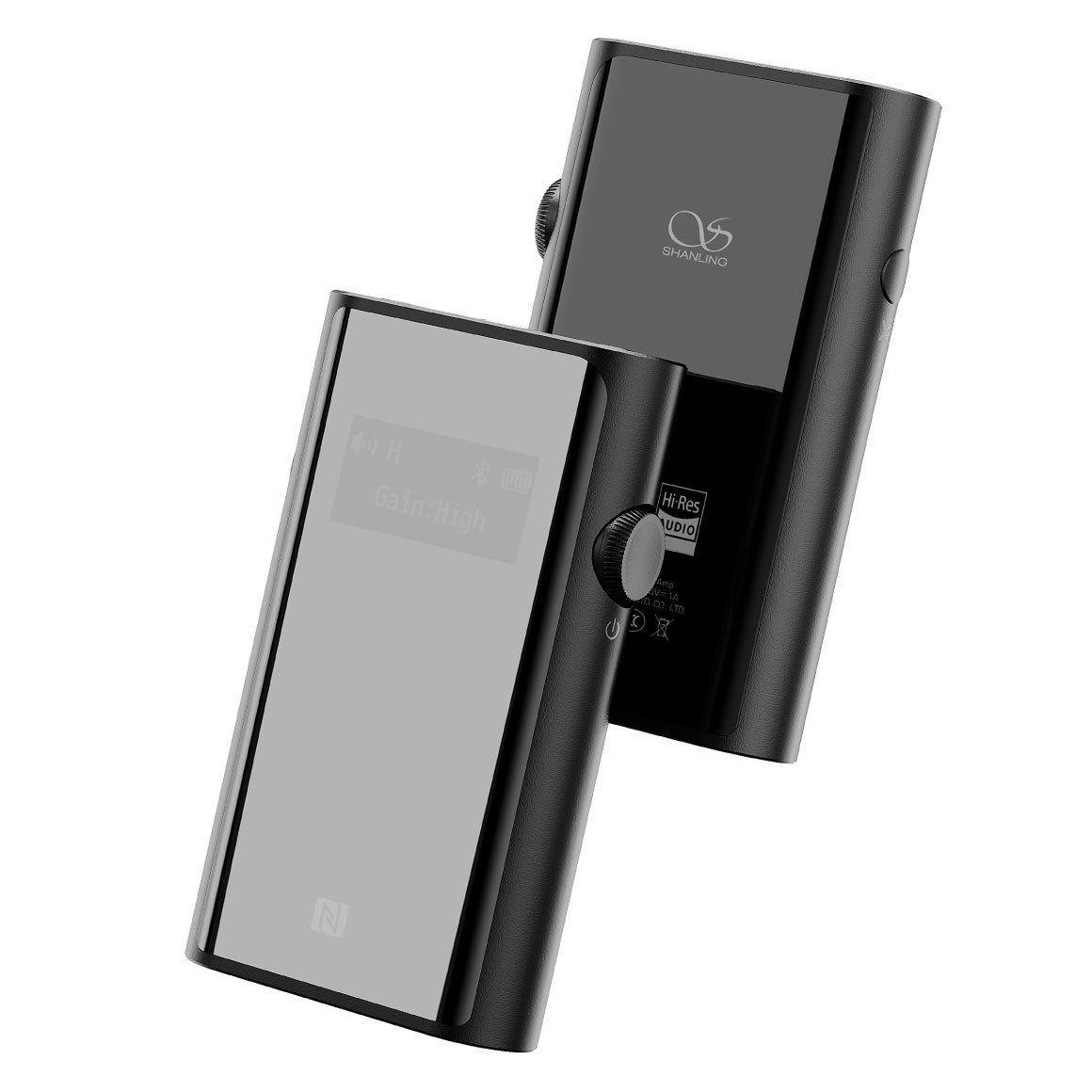

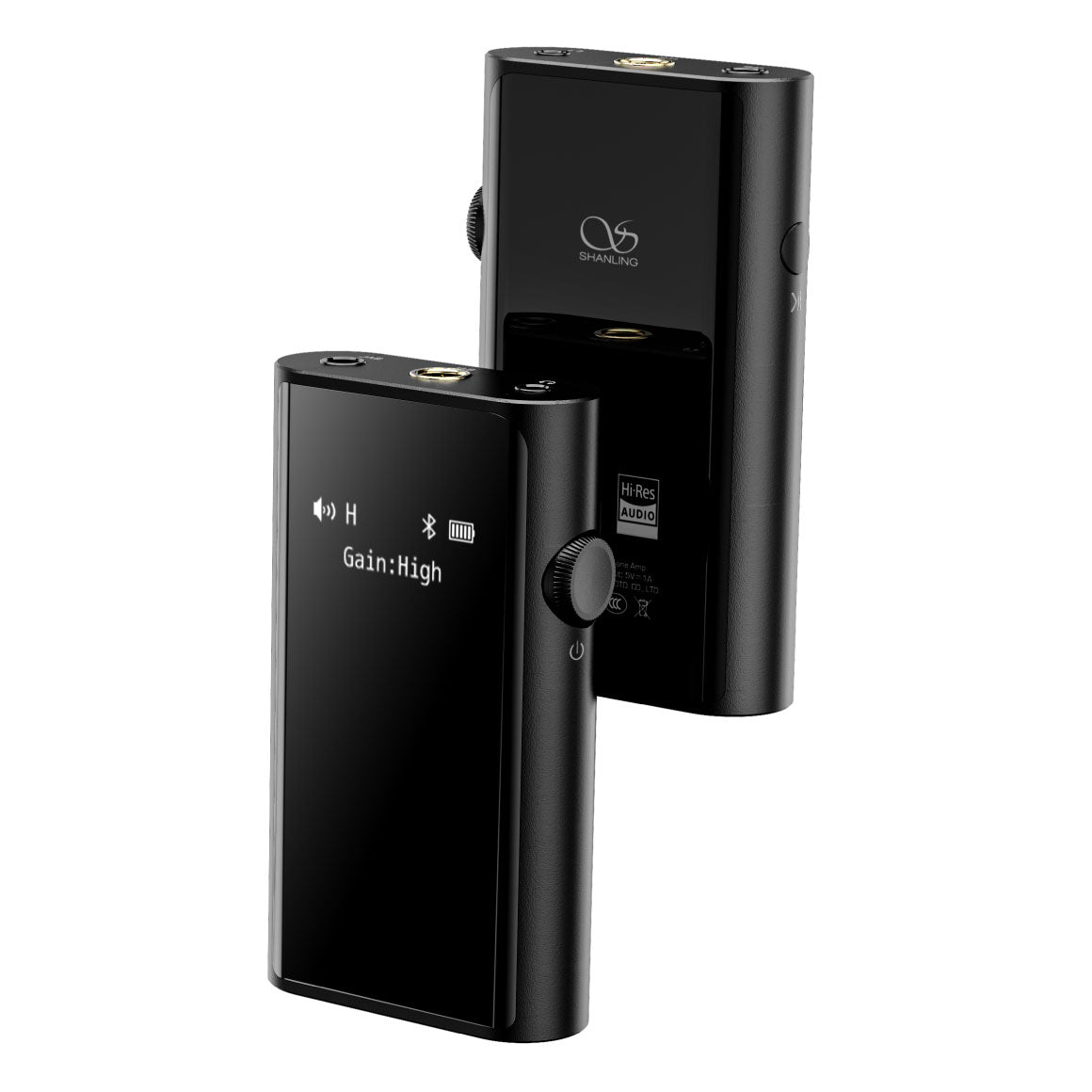

QUICK ACCESS TO ALL THE IMPORTANT INFORMATION IN ONE PLACE WITH THE ALL-NEW OLED DISPLAY

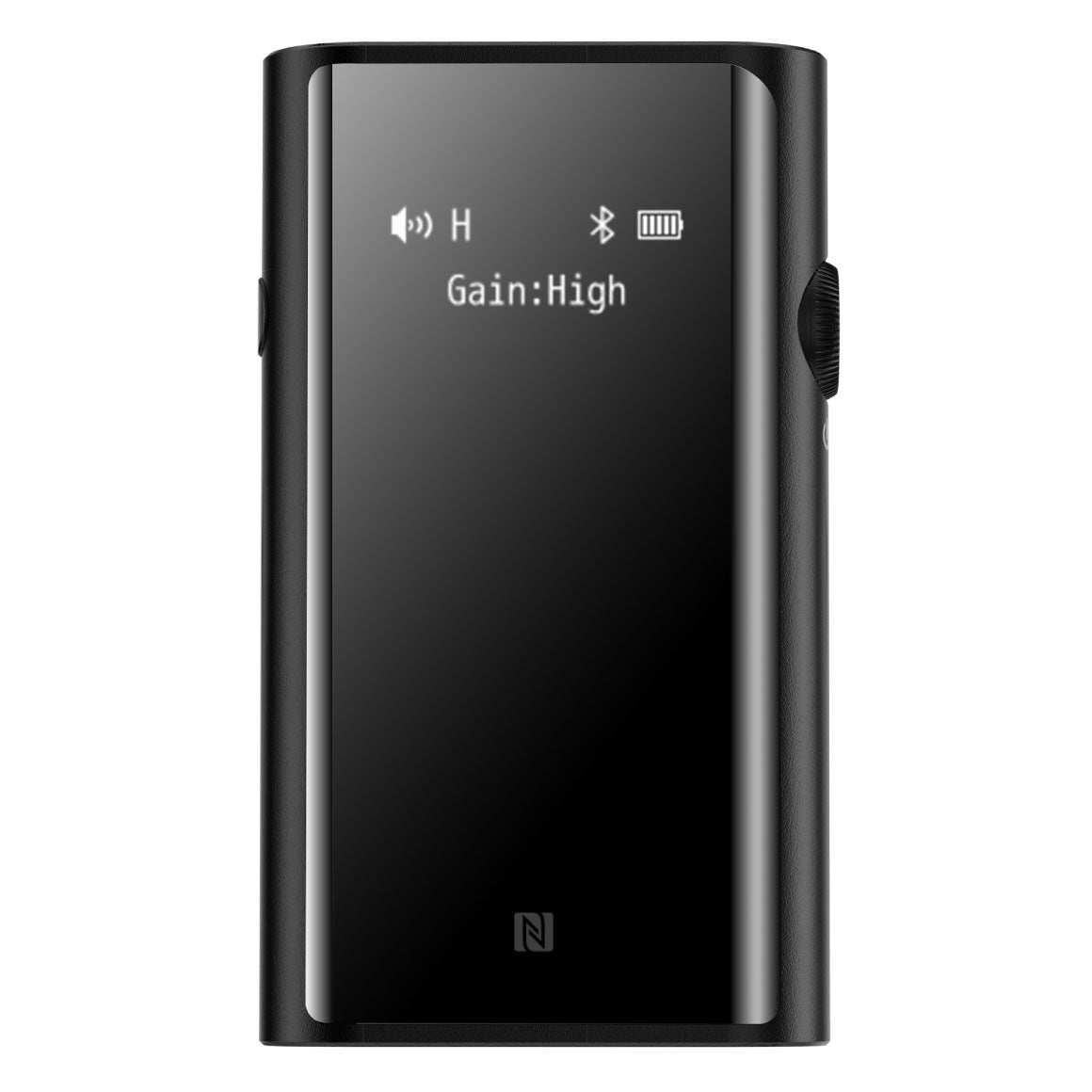

Shanling has updated the UP5 to incorporate the all-new OLED display, which was not a part of the UP4 design, so yes, given the features and functionality, it is a candidate if you are looking to upgrade from the UP4. With a 0.96-inch OLED screen, the UP5 has instant access to all of the device's critical information and settings such as Charging, Codec, EQ, Volume, Gain, and Car mode, which are all displayed on the screen.
GROOVE ON TO YOUR MUSIC FOR UP TO 15 HOURS ON A SINGLE CHARGE
Bring the show on the road with UP5, the slickest portable DAC & Amp from Shanling. UP5 offers 15 Hours SE and 11 Hours balanced of portable playtime on a single charge and 100 hours standby with a whopping 680mAh battery. UP5 becomes the ideal companion for on-the-go music listening due to its compact size. In 2hrs, the UP5 gets fully charged. UP5 has a battery indicator to keep you notified of the amount of juice left in the device. The recommended charger compatible with UP5 is DC5V/1A.
EASY MATCH WITH ALL HEADPHONES WITH COMPANION APP, NFC PAIRING AND OTHER CONNECTIVITY OPTIONS

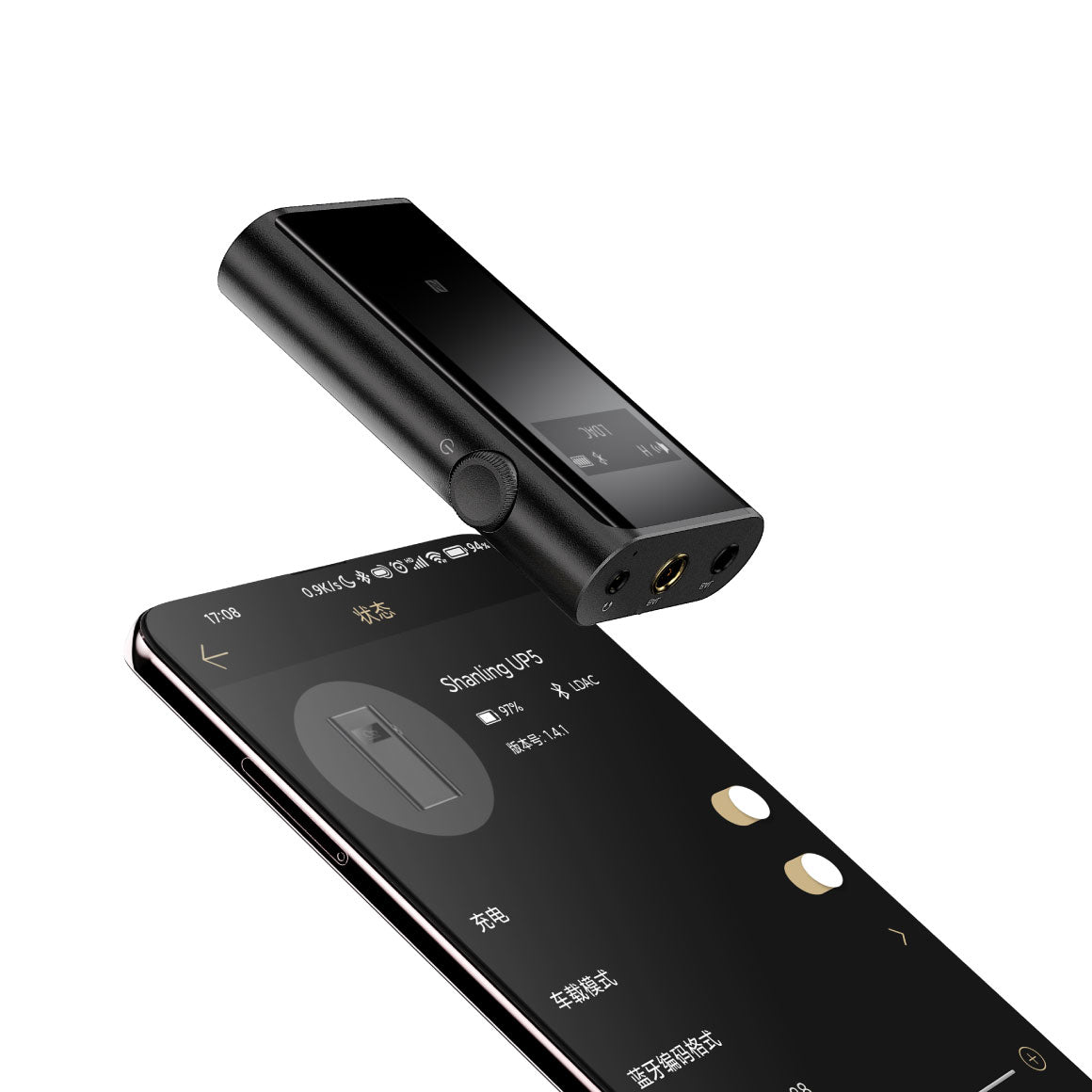

Shanling has a long history of producing devices that deliver superior sound quality and look exemplary. The UP5 features a wide range of output capabilities allowing you to experience unrivalled compatibility with all your headphones and IEMs. The UP5 consists of trifecta outputs containing balanced and unbalanced connections, 3.5mm (SE), 2.5mm and 4.4mm balanced outputs. The 3.5mm connection also has extra power due to the dual DAC mode design. The output power delivered by UP5 is 90mW @32Ohms (3.5mm, Single DAC mode), 112mW@32Ohms (SE, dual DAC) and 240mW@32Ohms (Balanced). The UP5 also includes NFC pairing capability, so all you need to do is bring a device that supports NFC and you are good to go. Connect your UP5 to the companion app to gain access to even more features and firmware updates. UP5 can be used with any Android smartphone using the provided high-quality USB-C to USB-C cable.
DEDICATED BUTTONS AND A MULTI-FUNCTIONAL WHEEL AT YOUR FINGERTIPS
On the left panel of UP5, there is a playback button that you can use for a wide range of functionality such as Play/pause (single short press), Next song (double short press), Previous song ( Triple short press), Open menu (long press for 2 seconds), and Exit menu (long press for 2 seconds). On the front panel, you will find an OLED display and NFC function. On the right side of the UP5, there is a multi-function wheel that can be used to power on (long press for 3 seconds), power off (long press for 3 seconds), lock screen (single short push), and Pairing (long-press the wheel until the device enters pairing mode). Answering and rejecting calls (single short press), rejecting a call (double short press), phone and UP5 call switch (double short press during a call), and putting an end to a conversation are among the other functions (single short press). Toggle the menu (Single short press), (Turn the wheel) to increase or reduce volume (turn clockwise or counterclockwise).
|BLUETOOTH CODECS||LDAC, LHDC, aptX HD, aptX Low Latency, aptX, AAC, SBC|
|BLUETOOTH CHIP||Qualcomm QCC5120|
|AUDIO CHIP||ESS Sabre ES9219C X 2|
|USB INPUT CHIP||Xmos XU208|
|BLUETOOTH VERSION||Bluetooth v5.0|
|TRANSMISSION DISTANCE||Up to 10 meters|
|MICROPHONE||Knowles SiSonic microphone|
|OUTPUT POWER||90mW @32 (3.5mm, single DAC mode)
112 mW @ 32 (3.5mm, dual DAC mode)
240 mW @32 (2.5mm & 4.4mm Balanced)
|SIGNAL TO NOISE RATIO||120dB (Single-ended)
|CHANNEL SEPARATING||70dB @32 (Single-ended)
108dB @32 (Balanced)
|THD+N||0.0018 % (LDAC / A-W / 0.5V / 32Ω)
0.0035 % (others / A-W / 0.5V / 32Ω)
|BATTERY LIFE||15 hours (single-ended)
11 hours (balanced)
|CHARGING TIME||2 hours|
|RECOMMENDED CHARGER||DC 5V/ 1A|
|USB INPUT||Type-C interface, supporting both UAC 1.0 and UAC 2.0|
|VOLUME ADJUSTMENT||Use the scroll wheel to adjust the volume separately from the phone|
|OUTPUTS||3.5mm\2.5mm\4.4mm, support car AUX|
|SIZE||68mm * 39mm * 14.5mm|
|BOX CONTAINS||1. Shanling UP5 Portable Amp|

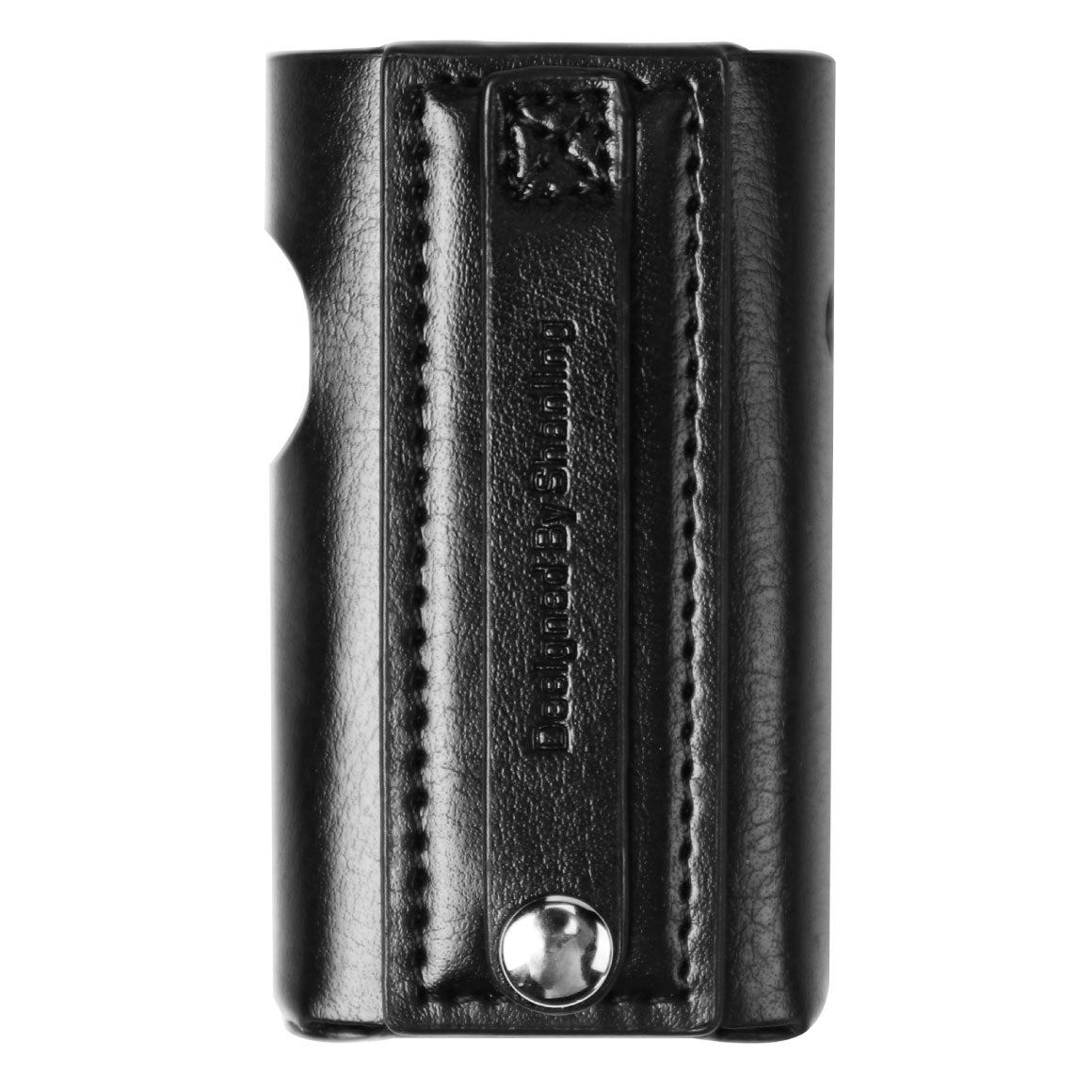

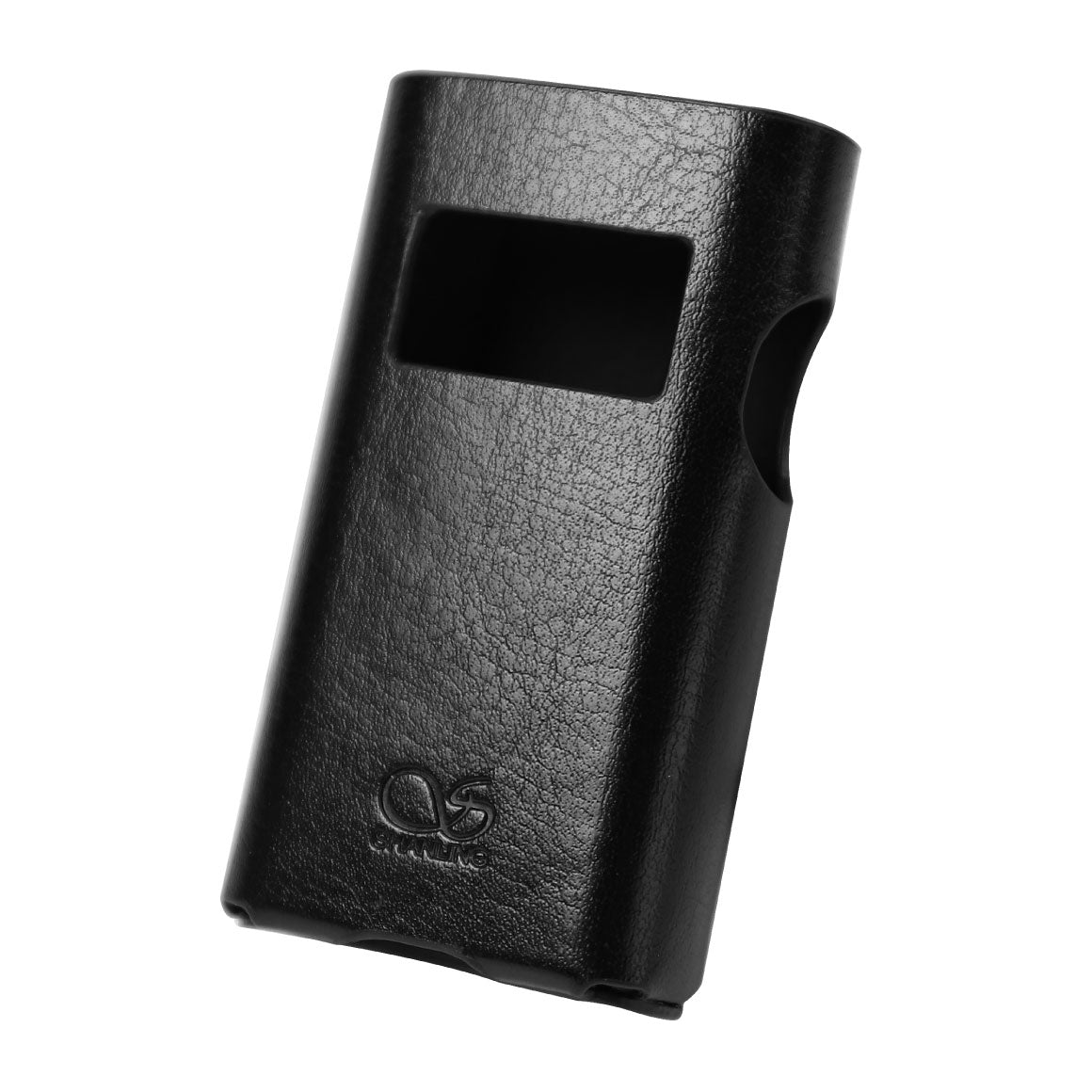

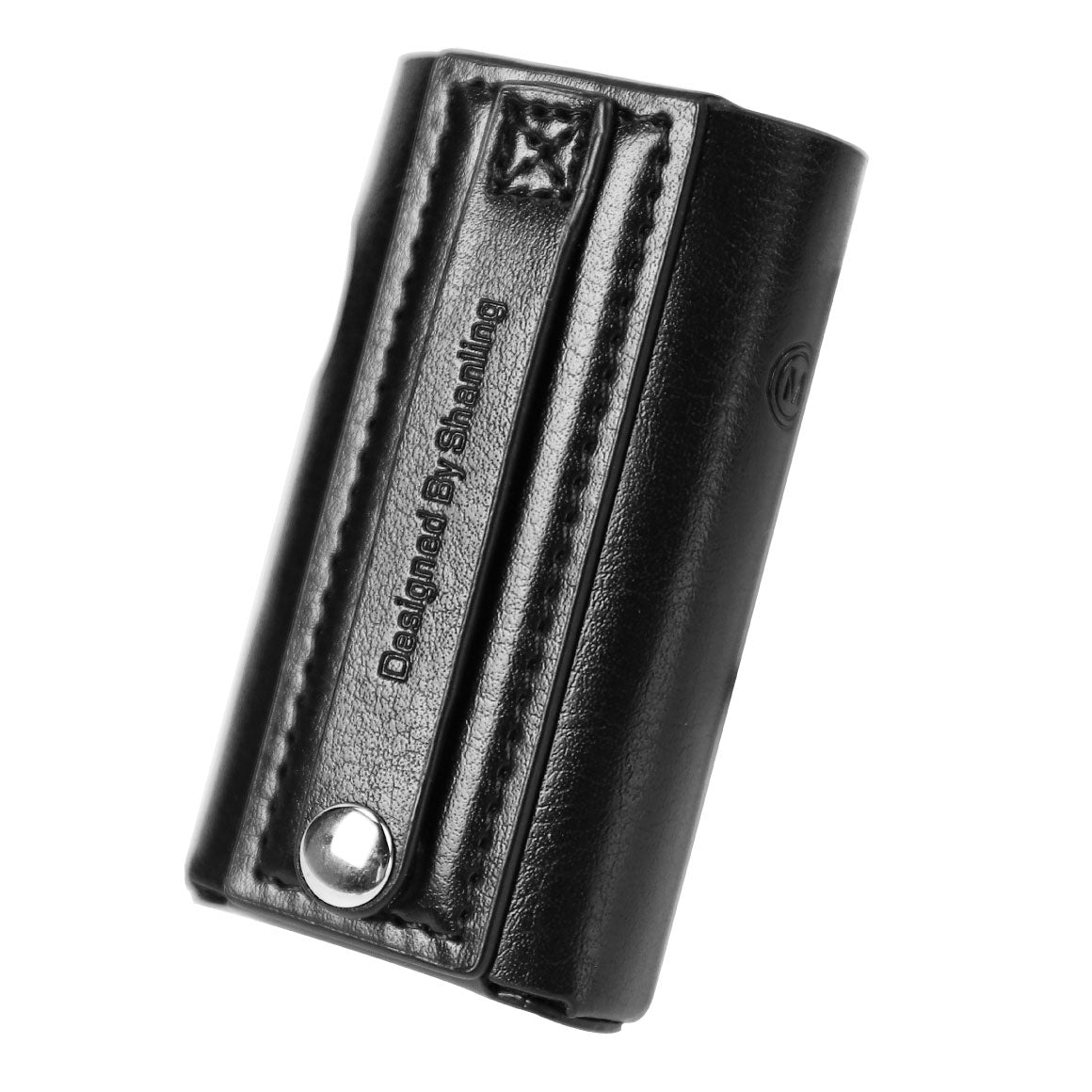

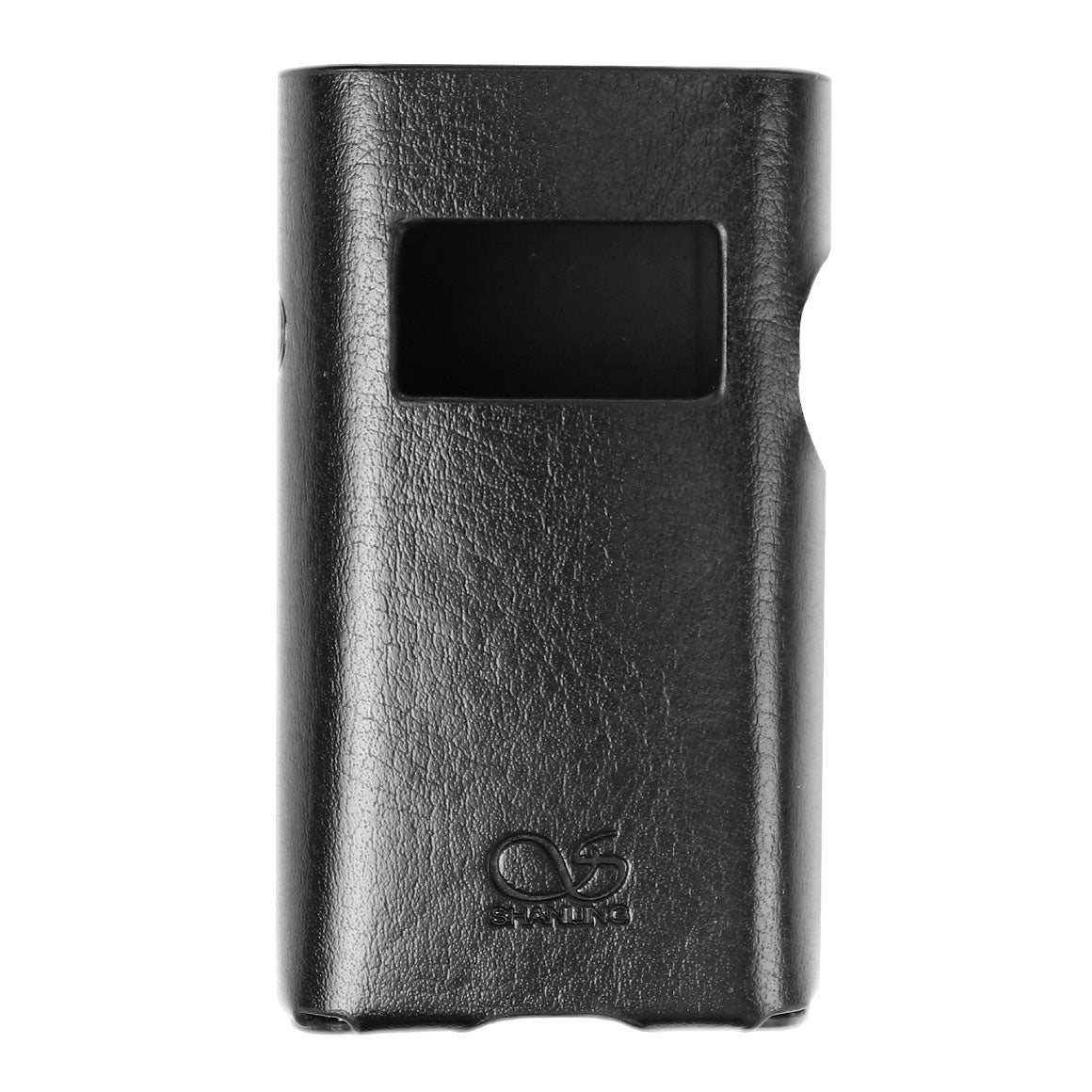

|2. High-quality leather case|
|3. USB C-to-C Cable|
|4. User Manual|
|GENERIC NAME||Headphone Amplifier|
|IMPORTER DETAILS||Importers Name: Ferrari Video
Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020
Contact No: 044-24420733
30 Years of Shanling: Engineering Audio Products for Hi-Fi Music Enjoyment
Shanling was established in 1988 when it began developing audio products and launched its first-ever Hi-Fi stereo amplifier. Since its beginning, Shanling has continuously developed new products and has incorporated multiple patented technologies like the SONY LDAC, Bluetooth BQB, Hi-Res from Japanese Audio Association, Microsoft HDCD, Dolby Digital, DTS, DVD, SACD, CD patent and more. For more than 30 years Shanling employees have upheld the spirit of integrity, innovation, team spirit and hard work.
Shanling is Powered by Excellence and Customer Satisfaction
Excellence in quality and customer satisfaction has always been the driving force for Shanling. Shanling is from China - headquartered in Shenzhen with a factory in Dongguan. Their product range consists of Hi-Res portable music players, portable amplifiers, Hi-Fi headphones, SACD/CD players, Hi-Fi amplifiers, power conditioners and more. By maintaining a strong relationship with the high-end manufacturers over the years, Shanling today enjoys the position of being one of the most reputed companies in the industry.
Exceptional Digital Audio Players with Cutting-Edge Audio Technologies
Shanling is known for the incorporation of cutting edge technology and that's evident in all the audio players developed by Shanling. Each Shanling audio player features high-end specs including the ESS DAC Chip, Qualcomm aptX, Retina HD display and a strong battery life. The M series of digital audio players like the Shanling M0, M2s, M3s are prime examples of their performance and price and therefore have been highly popular.
Cerfied Hi-Res Audio by the Japan Audio Society
High-Res Audio certified by the Japan Audio Society has been consistent among all the Shanling digital audio players. All these Hi-Res DAPs go through severe tests to get the great sound. The DAPs are designed to support all the high-res audio files including the DSD format. The Shanling UP2 is a brilliantly crafted DAC/AMP which has been highly popular among the users.
XMOS USB Input - With support up to DSD256 & 32/384 PCM
ESS ES9219C - With MQA support.
Output Trifecta - 3.5 + 2.5 + 4.4
OLED Display - For easier control over the settings.
FPGA & Crystal Oscillators - Improving sound quality.
Car mode - Your companion for long road trips.
2. The battery life time is tested in the laboratory state using SBC codec. Battery life can differ due to a range of external factors.
3. The screen will light up while charging. It will display a message when charging is finished.
