DESCRIPTION
PRESENTING THE ALL-NEW SHANLING M5 ULTRA DIGITAL AUDIO PLAYER - YOUR ON-THE-GO MUSIC COMPANION
Shanling introduces the M5 Ultra, an all-new Hi-Res Audio and Hi-Res Audio Wireless
certified digital audio player inspired by the Flagship Shanling M9 Plus. This portable, on-the-go music
companion houses the flagship AKM AK4499EX DAC & AK4191 Modulator from AKM, along with XMOS USB DAC XU316
chipset that provides Hi-Res 32 bit / 768 kHz & DSD512 decoding support. For powerful amplification,
Shanling has equipped the M5 Ultra with a Texas Instruments TPA6120A2 chipset and low-pass filter OPA2211
Op-Amp, with up to 1100 mW power output. The Shanling M5 Ultra features dual headphone outputs—a 3.5mm
single-ended and a 4.4mm balanced output—as well as two-way Bluetooth 5.2 and Wi-Fi connectivity. It runs on
the in-house developed MTouch OS paired with the Ingenic X2000 chipset. It offers versatility with three
gain levels and six digital filters and provides up to 11 hours of playback and 528 hours of standby. The
Wi-Fi capabilities of the Shanling M5 Ultra include support for DLNA, Airplay and Synclink. The Shanling M5
Ultra's modern design aesthetic houses all its high-performance components and exceptional features.



ACCURATE AUDIO DECODING WITH THE HIGH-PERFORMANCE AK4499EX DAC CHISEPT AND AK4191 MODULATOR
The Shanling M5 Ultra equips the high-performance AKM AK4499EX DAC chipset and the AK4191 Modulator, delivering exceptional audio in your music listening experience. This DAC chipset has exceptional Hi-Res 32 bit / 768 kHz & DSD512 decoding capability. This flagship Japanese chipset is renowned for its ability to decode music with precision, resulting in a sound signature that is warm, smooth, dynamic and flowing. These characteristics contribute to a rich and immersive audio experience that captures the nuances of your music with remarkable accuracy. Along with this powerful DAC chipset, the Shanling M5 Ultra features XMOS XU316 USB input, also functioning as a USB DAC. The Shanling M5 Ultra acts as a high-fidelity DAC, enabling the playback of high-resolution audio with an expansive dynamic range of 121 dB. This wide dynamic range means that the Shanling M5 Ultra can deliver subtle details and powerful dynamics in sound, resulting in a more engaging and lifelike music listening experience.


POWERFUL AMPLIFICATION WITH TEXAS INSTRUMENTS TPA6120A2 AND OPA2211 OP-AMP CHIPSETS
Shanling has embedded the M5 Ultra with a powerful amplification chipset from Texas Instruments, featuring the TPA6120A2 amplifier that adds extra driving power for outstanding audio performance. It includes a low-pass filter with the OPA2211 op-amp to ensure minimal noise levels and a clear sound output. The balanced output can deliver up to 1100 mW at 32 Ohms and it offers three-gain stage settings that allow seamless switching between headphones and IEMs. It also provides six digital filters, allowing you to tailor the audio output according to your preference or the characteristics of your headphones or IEMs. The Shanling M5 Ultra features an illuminated potentiometer volume wheel for accurate volume control, which is visually appealing with customizable blue and orange lighting options. The Shanling M5 Ultra provides an output impedance of 6.6 Ohms, a frequency response range of 20Hz to 40kHz (-0.1dB) and a low THD+N of 0.00079%, excels in delivering exceptional audio quality, making it a versatile and high-performing choice for audiophiles.





ENGINEERED WITH HIGH-QUALITY COMPONENTS FOR SUSTAINED PEAK PERFORMANCE
The internal design of the Shanling M5 Ultra incorporates premium components aimed at providing an advanced and high-fidelity audio listening experience. It includes high-precision resistors with 0.01% accuracy for improved thermal stability, ensuring precise audio reproduction. The Shanling M5 Ultra features a 3rd generation FPGA and upgraded Japanese KDS active crystal oscillators that enhance performance when decoding PCM or DSD data, delivering better accuracy and overall sound quality. Its I/V conversion circuit is inspired by high-end designs and adapted from the M9 Plus model, contributing to exceptional audio output. It also features Panasonic tantalum and Elna Silmic II capacitors, known for their reliability and high-end Hi-Fi performance, further elevating the audio quality. These components work harmoniously to provide audiophiles with an elevated music-listening experience, reflecting Shanling's dedication to top-notch audio design and engineering.

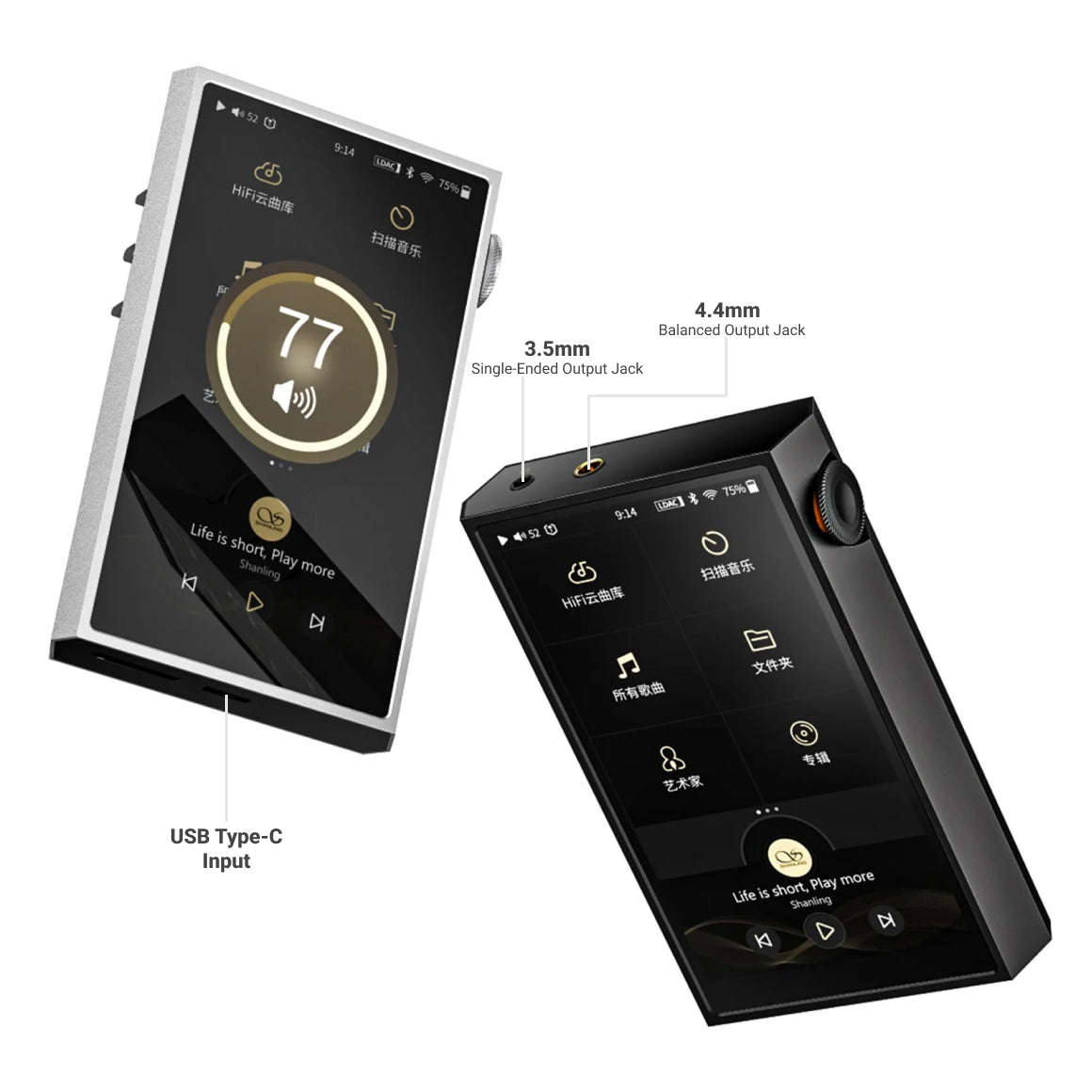

DUAL HEADPHONE OUTPUTS, BLUETOOTH 5.2 AND WIFI FOR SEAMLESS CONNECTIVITY
The Shanling M5 Ultra equips dual headphone outputs, a 3.5mm single-ended and a
4.4mm balanced output. The Shanling M5 Ultra features an upgraded Bluetooth 5.2 technology offering two-way
connections and supporting various codecs such as LDAC, aptX HD, aptX, AAC and SBC. This ensures that your
Shanling M5 Ultra seamlessly connects with your Bluetooth devices and also functions as a high-fidelity
Bluetooth DAC & Amp. The Eddict Player Companion App, accessible on Android and iOS, allows remote control
of playback and MicroSD card browsing when paired with Synclink. The Shanling M5 Ultra can integrate into
larger audio setups with Wi-Fi connectivity, DLNA and Airplay, making it a versatile and user-friendly
portable music player with comprehensive connectivity and control features.



OFFERING UP TO 11 HOURS OF MUSIC PLAYBACK WITH 6000 MAH BATTERY
The Shanling M5 Ultra, as a portable music player, features a robust power supply to support its high-performance audio components. It features a plus-sized 6000 mAh battery, specifically designed to meet the power demands of high-fidelity audio playback. This battery is managed efficiently by a proprietary PMU chip, ensuring optimal power management. The Shanling M5 Ultra can provide up to 11 hours of continuous playback on single-ended output, making it ideal for extended listening sessions. On balanced output, the Shanling M5 Ultra offers 9 hours of music playback time and an impressive standby duration of up to 528 hours, highlighting its energy-efficient construction. It supports rapid 15W charging and further enhances convenience by swiftly replenishing the battery when required. This blend of a durable battery and effective power management makes the Shanling M5 Ultra a dependable companion for music lovers on the move.

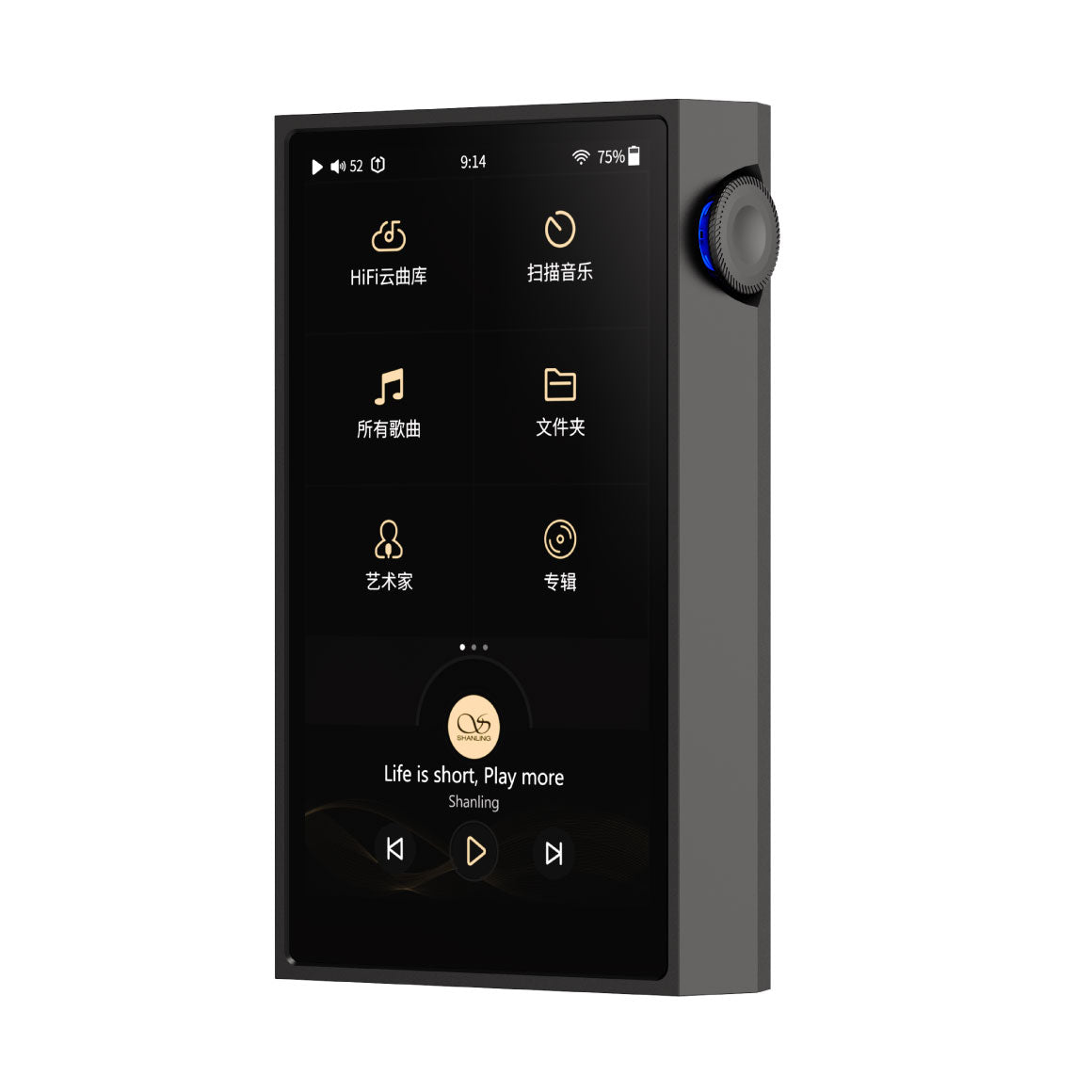

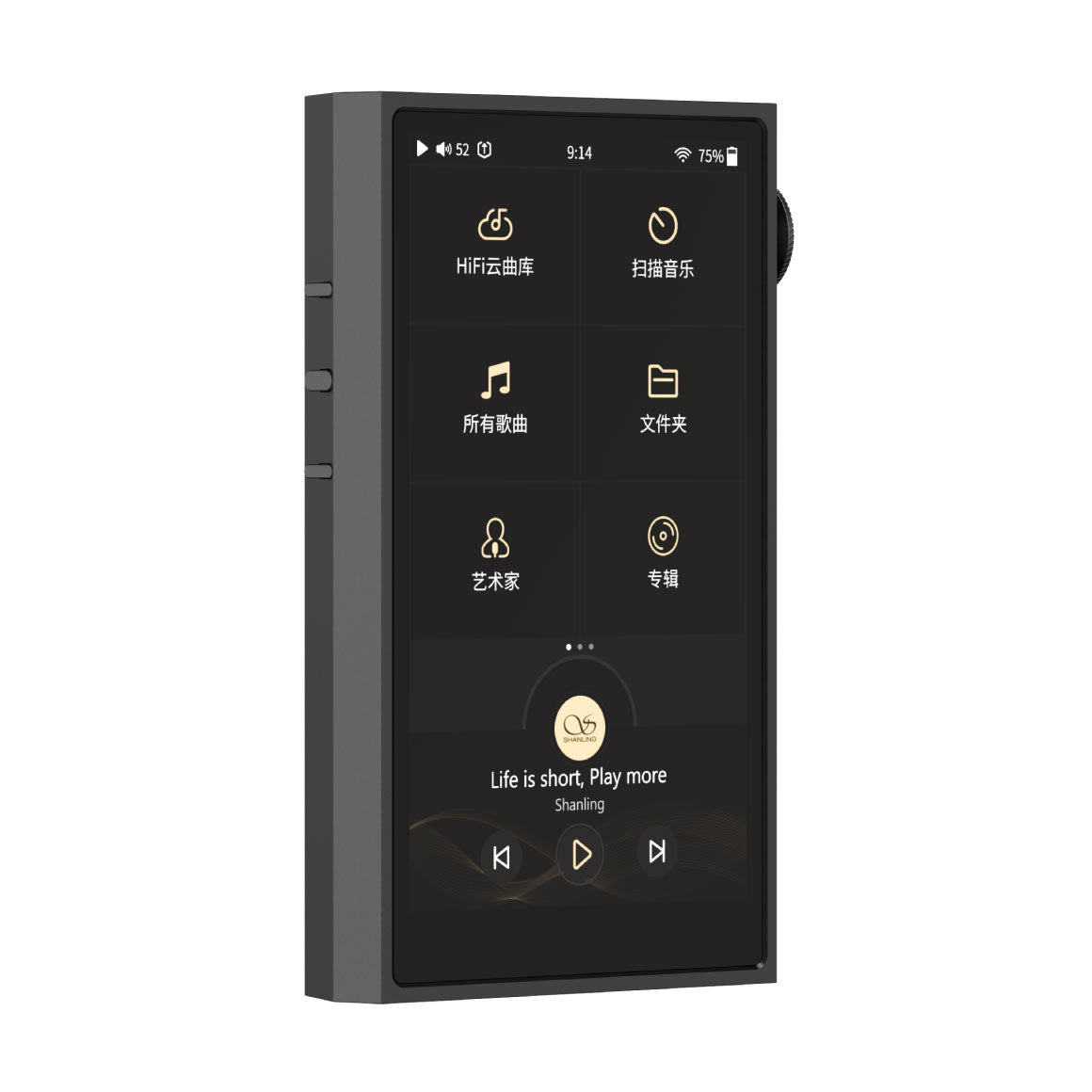

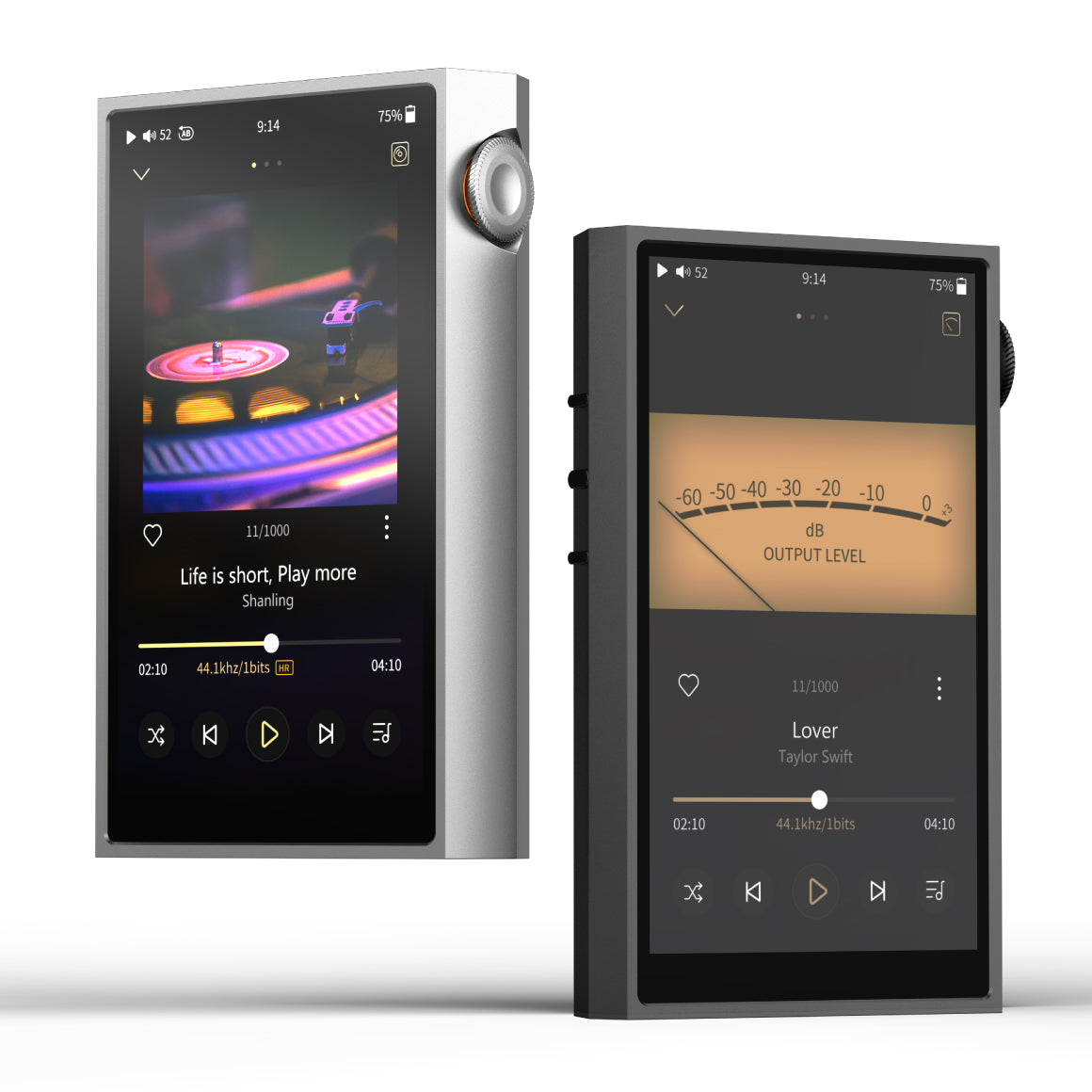

SMOOTH USER INTERFACE WITH MTOUCH OPERATING SYSTEM AND INGENIC X2000 CHIPSET
The Shanling M5 Ultra runs on the in-house MTouch OS, which represents the latest generation of their operating system dedicated to pure audio playback. With over six years of development and continuous improvements, MTouch OS offers a simple and fast interface designed for music enthusiasts. The Shanling M5 Ultra features an Ingenic X2000 that powers the operating system, serving as the central component of the MTouch platform. This chipset ensures a nimble and responsive music-focused experience and reduces power consumption and minimal heat generation, enhancing overall performance and user comfort during extended music-listening sessions.

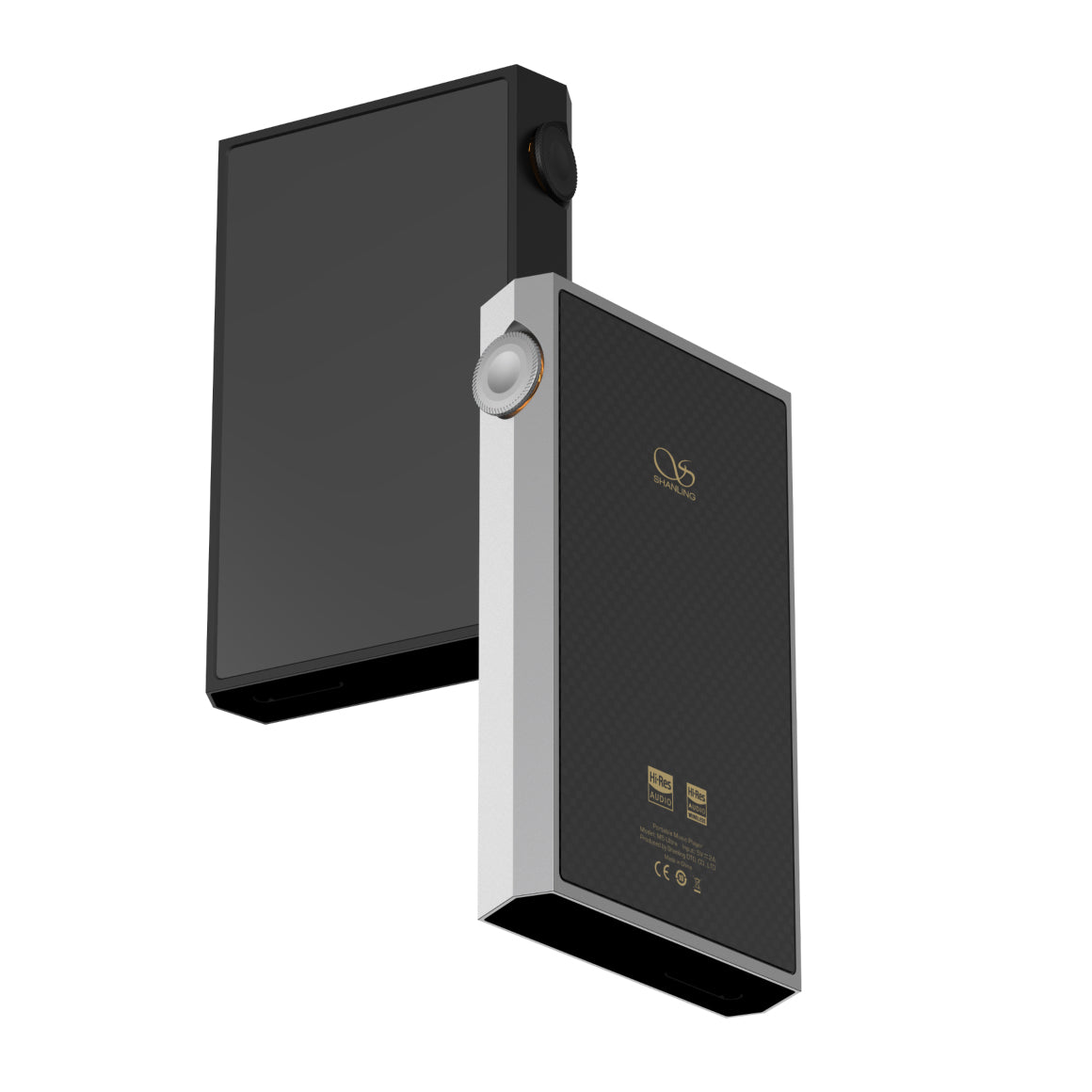

SHOWCASING A MODERN AESTHETIC METAL BUILD AND COMES BUNDLED WITH ACCESSORIES
The Shanling M5 Ultra's aesthetic design is not only eye-catching but also functional, housing a plethora of high-performance and quality components. It features a new body design with modern and sharp light-bending angles, deviating from the classic Shanling style to embrace a contemporary look with irregular shapes and pronounced edges. This new design strategy features a body crafted from aluminium and is available in two colour variants - black and silver. The Shanling M5 Ultra features a 4.7-inch HD touchscreen, enhancing usability and visual appeal. Also, Shanling has bundled the M5 Ultra with accessories like a USB A to C cable, rear and front glass protectors and manuals.



SPECS
DIMENSIONS | 120*75*19.5mm |
HEADPHONE OUTPUT | 3.5mm Single ended 4.4mm Balanced |
SCREEN | 4.7-inch 720*1280 Touch Screen |
WEIGHT | 247g |
DAC | AKM AK4191EQ + AK4499EX |
BATTERY LIFE | 11h (Single-ended) 9h (Balanced) 32h (Bluetooth transmitter) |
STORAGE | MicroSD Card slot |
SUPPORT BLUETOOTH 5.2 | Transmit: LDAC, aptX HD, aptX, AAC, SBC Receive: LDAC, aptX HD, aptX, AAC, SBC |
HI-RES AUDIO SUPPORT | 768 kHz / 32 bit, DSD 512 |
AUDIO FORMAT SUPPORT | DSD (".iso",".dsf",".dff") *DST not supported. iso/dxd / ape/flac/wav / aiff /alf/mp3/wma/aac/ogg/alac/mp2/m4a/ac3/m3u/m3u8/opus |
OUTPUT POWER | Low Gain: 23mW@32Ω Medium Gain: 92mW@32Ω High Gain: 315mW@32Ω |
FREQUENCY RESPONSE | 20Hz - 40kHz (-0.1dB) |
THD + N | 0.0009% |
CHANNEL SEPARATION | 75dB@32Ω |
DYNAMIC RANGE | 121 dB |
SIGNAL-TO-NOISE | 121 dB |
OUTPUT IMPEDANCE | 4.7Ω |
OUTPUT POWER | Low gain: 70mW@32Ω Medium Gain: 280mW@32Ω High gain: 1100mW@32Ω |
FREQUENCY RESPONSE | 20Hz - 40kHz (-0.1dB) |
THD + N | 0.0007% |
CHANNEL SEPARATION | 110dB@32Ω |
DYNAMIC RANGE | 124 dB |
SIGNAL-TO-NOISE | 124 dB |
OUTPUT IMPEDANCE | 6.6Ω |
BOX CONTENTS | 1. Shanling M5 Ultra |
2. USB A to C Cable | |
3. Rear And Front Glass Protectors | |
4. Manuals |
OTHER DETAILS
GENERIC NAME | Digital Audio Player |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Shenzhen Shanling Digital Technology Development Co., Ltd Address: No. 10, Chiwan 1 Road, Shekou District of Shenzhen City, P.R.C. |
PACKAGE CONTENTS | Shanling M5 Ultra USB A To C Cable Rear And Front Glass ProtectorS, Manuals |
![]() Hi-Res Digital Audio Player
|
PRESENTING THE ALL-NEW SHANLING M5 ULTRA DIGITAL AUDIO PLAYER - YOUR ON-THE-GO MUSIC COMPANION
Shanling introduces the M5 Ultra, an all-new Hi-Res Audio and Hi-Res Audio Wireless
certified digital audio player inspired by the Flagship Shanling M9 Plus. This portable, on-the-go music
companion houses the flagship AKM AK4499EX DAC & AK4191 Modulator from AKM, along with XMOS USB DAC XU316
chipset that provides Hi-Res 32 bit / 768 kHz & DSD512 decoding support. For powerful amplification,
Shanling has equipped the M5 Ultra with a Texas Instruments TPA6120A2 chipset and low-pass filter OPA2211
Op-Amp, with up to 1100 mW power output. The Shanling M5 Ultra features dual headphone outputs—a 3.5mm
single-ended and a 4.4mm balanced output—as well as two-way Bluetooth 5.2 and Wi-Fi connectivity. It runs on
the in-house developed MTouch OS paired with the Ingenic X2000 chipset. It offers versatility with three
gain levels and six digital filters and provides up to 11 hours of playback and 528 hours of standby. The
Wi-Fi capabilities of the Shanling M5 Ultra include support for DLNA, Airplay and Synclink. The Shanling M5
Ultra's modern design aesthetic houses all its high-performance components and exceptional features.



ACCURATE AUDIO DECODING WITH THE HIGH-PERFORMANCE AK4499EX DAC CHISEPT AND AK4191 MODULATOR
The Shanling M5 Ultra equips the high-performance AKM AK4499EX DAC chipset and the AK4191 Modulator, delivering exceptional audio in your music listening experience. This DAC chipset has exceptional Hi-Res 32 bit / 768 kHz & DSD512 decoding capability. This flagship Japanese chipset is renowned for its ability to decode music with precision, resulting in a sound signature that is warm, smooth, dynamic and flowing. These characteristics contribute to a rich and immersive audio experience that captures the nuances of your music with remarkable accuracy. Along with this powerful DAC chipset, the Shanling M5 Ultra features XMOS XU316 USB input, also functioning as a USB DAC. The Shanling M5 Ultra acts as a high-fidelity DAC, enabling the playback of high-resolution audio with an expansive dynamic range of 121 dB. This wide dynamic range means that the Shanling M5 Ultra can deliver subtle details and powerful dynamics in sound, resulting in a more engaging and lifelike music listening experience.


POWERFUL AMPLIFICATION WITH TEXAS INSTRUMENTS TPA6120A2 AND OPA2211 OP-AMP CHIPSETS
Shanling has embedded the M5 Ultra with a powerful amplification chipset from Texas Instruments, featuring the TPA6120A2 amplifier that adds extra driving power for outstanding audio performance. It includes a low-pass filter with the OPA2211 op-amp to ensure minimal noise levels and a clear sound output. The balanced output can deliver up to 1100 mW at 32 Ohms and it offers three-gain stage settings that allow seamless switching between headphones and IEMs. It also provides six digital filters, allowing you to tailor the audio output according to your preference or the characteristics of your headphones or IEMs. The Shanling M5 Ultra features an illuminated potentiometer volume wheel for accurate volume control, which is visually appealing with customizable blue and orange lighting options. The Shanling M5 Ultra provides an output impedance of 6.6 Ohms, a frequency response range of 20Hz to 40kHz (-0.1dB) and a low THD+N of 0.00079%, excels in delivering exceptional audio quality, making it a versatile and high-performing choice for audiophiles.





ENGINEERED WITH HIGH-QUALITY COMPONENTS FOR SUSTAINED PEAK PERFORMANCE
The internal design of the Shanling M5 Ultra incorporates premium components aimed at providing an advanced and high-fidelity audio listening experience. It includes high-precision resistors with 0.01% accuracy for improved thermal stability, ensuring precise audio reproduction. The Shanling M5 Ultra features a 3rd generation FPGA and upgraded Japanese KDS active crystal oscillators that enhance performance when decoding PCM or DSD data, delivering better accuracy and overall sound quality. Its I/V conversion circuit is inspired by high-end designs and adapted from the M9 Plus model, contributing to exceptional audio output. It also features Panasonic tantalum and Elna Silmic II capacitors, known for their reliability and high-end Hi-Fi performance, further elevating the audio quality. These components work harmoniously to provide audiophiles with an elevated music-listening experience, reflecting Shanling's dedication to top-notch audio design and engineering.



DUAL HEADPHONE OUTPUTS, BLUETOOTH 5.2 AND WIFI FOR SEAMLESS CONNECTIVITY
The Shanling M5 Ultra equips dual headphone outputs, a 3.5mm single-ended and a
4.4mm balanced output. The Shanling M5 Ultra features an upgraded Bluetooth 5.2 technology offering two-way
connections and supporting various codecs such as LDAC, aptX HD, aptX, AAC and SBC. This ensures that your
Shanling M5 Ultra seamlessly connects with your Bluetooth devices and also functions as a high-fidelity
Bluetooth DAC & Amp. The Eddict Player Companion App, accessible on Android and iOS, allows remote control
of playback and MicroSD card browsing when paired with Synclink. The Shanling M5 Ultra can integrate into
larger audio setups with Wi-Fi connectivity, DLNA and Airplay, making it a versatile and user-friendly
portable music player with comprehensive connectivity and control features.



OFFERING UP TO 11 HOURS OF MUSIC PLAYBACK WITH 6000 MAH BATTERY
The Shanling M5 Ultra, as a portable music player, features a robust power supply to support its high-performance audio components. It features a plus-sized 6000 mAh battery, specifically designed to meet the power demands of high-fidelity audio playback. This battery is managed efficiently by a proprietary PMU chip, ensuring optimal power management. The Shanling M5 Ultra can provide up to 11 hours of continuous playback on single-ended output, making it ideal for extended listening sessions. On balanced output, the Shanling M5 Ultra offers 9 hours of music playback time and an impressive standby duration of up to 528 hours, highlighting its energy-efficient construction. It supports rapid 15W charging and further enhances convenience by swiftly replenishing the battery when required. This blend of a durable battery and effective power management makes the Shanling M5 Ultra a dependable companion for music lovers on the move.



SMOOTH USER INTERFACE WITH MTOUCH OPERATING SYSTEM AND INGENIC X2000 CHIPSET
The Shanling M5 Ultra runs on the in-house MTouch OS, which represents the latest generation of their operating system dedicated to pure audio playback. With over six years of development and continuous improvements, MTouch OS offers a simple and fast interface designed for music enthusiasts. The Shanling M5 Ultra features an Ingenic X2000 that powers the operating system, serving as the central component of the MTouch platform. This chipset ensures a nimble and responsive music-focused experience and reduces power consumption and minimal heat generation, enhancing overall performance and user comfort during extended music-listening sessions.



SHOWCASING A MODERN AESTHETIC METAL BUILD AND COMES BUNDLED WITH ACCESSORIES

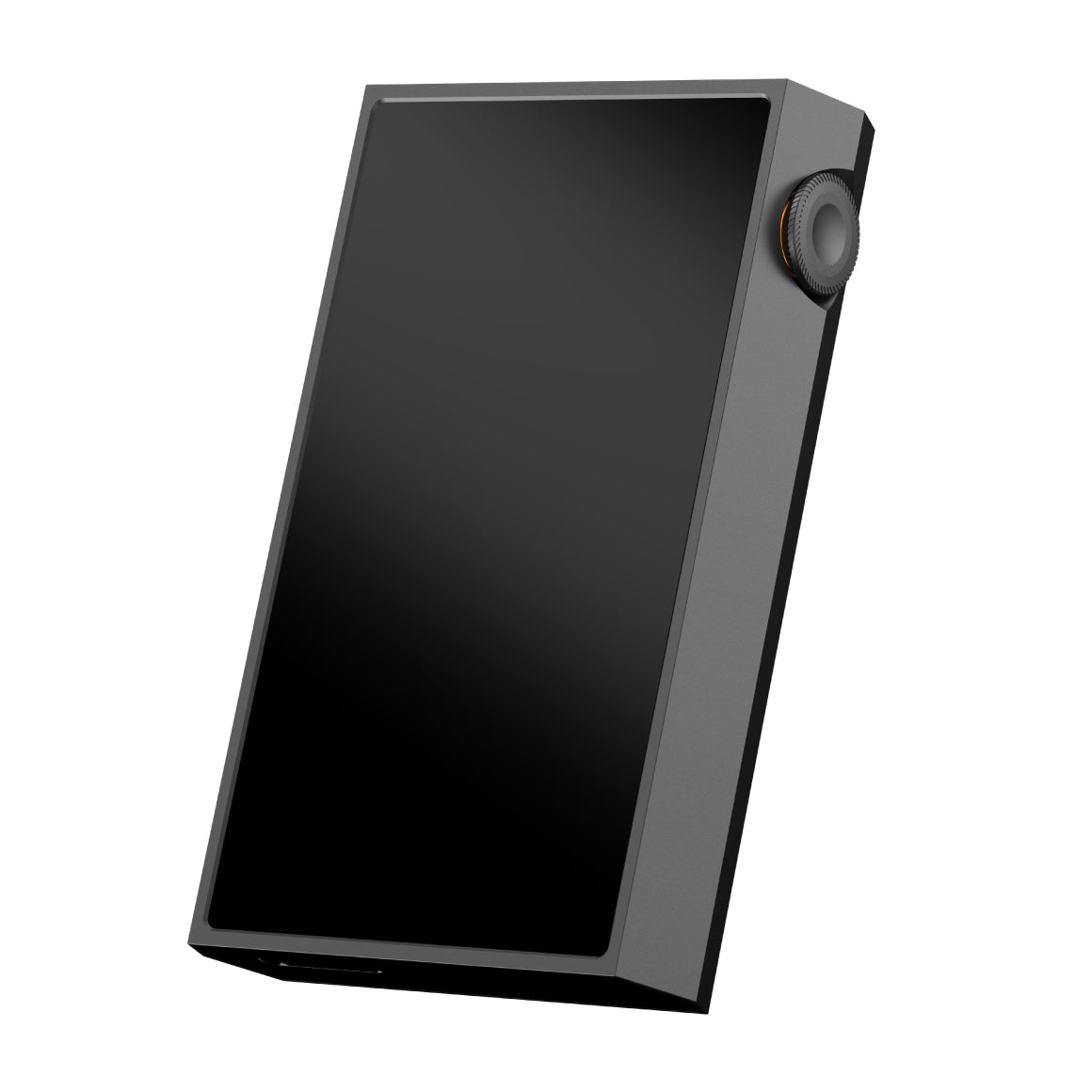

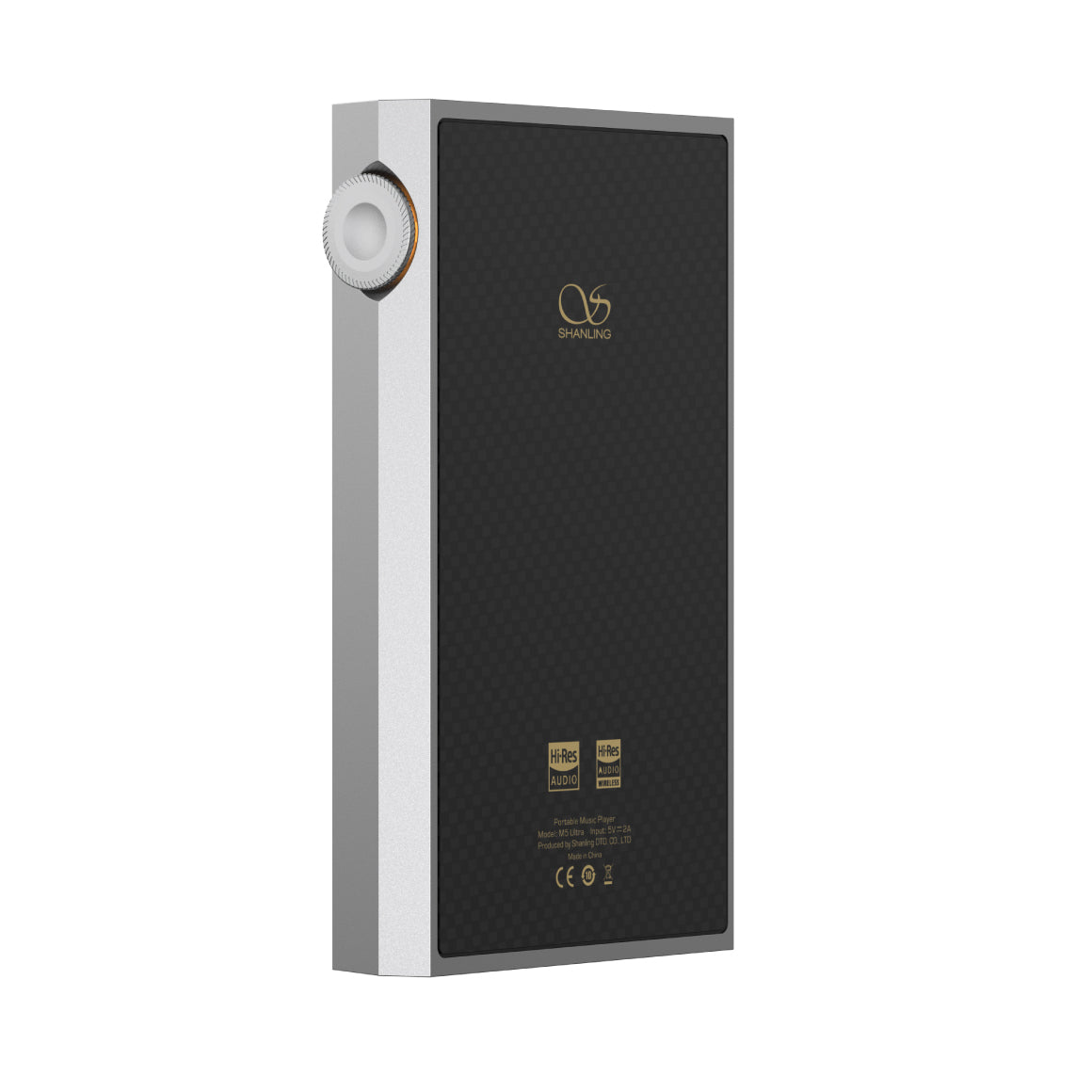

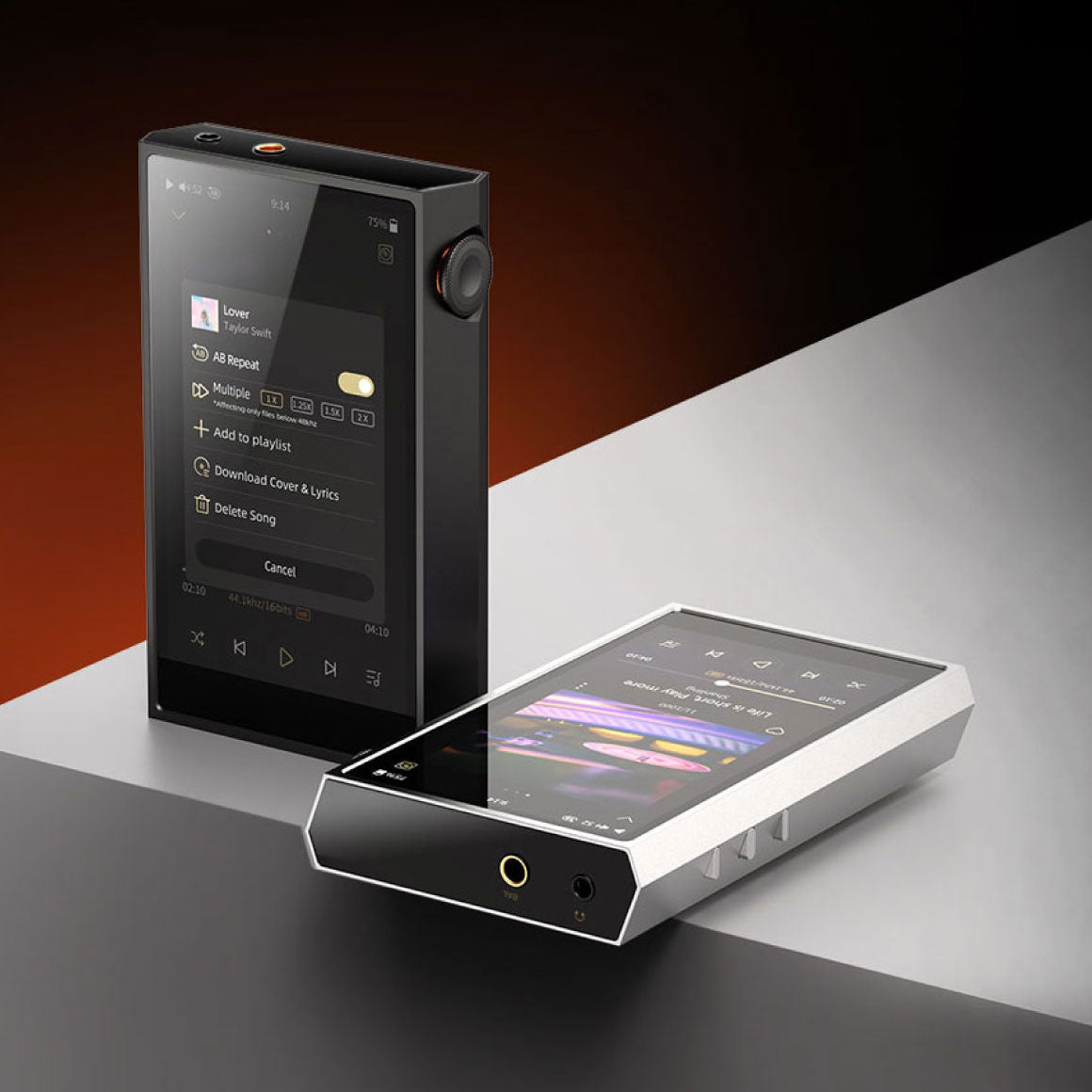

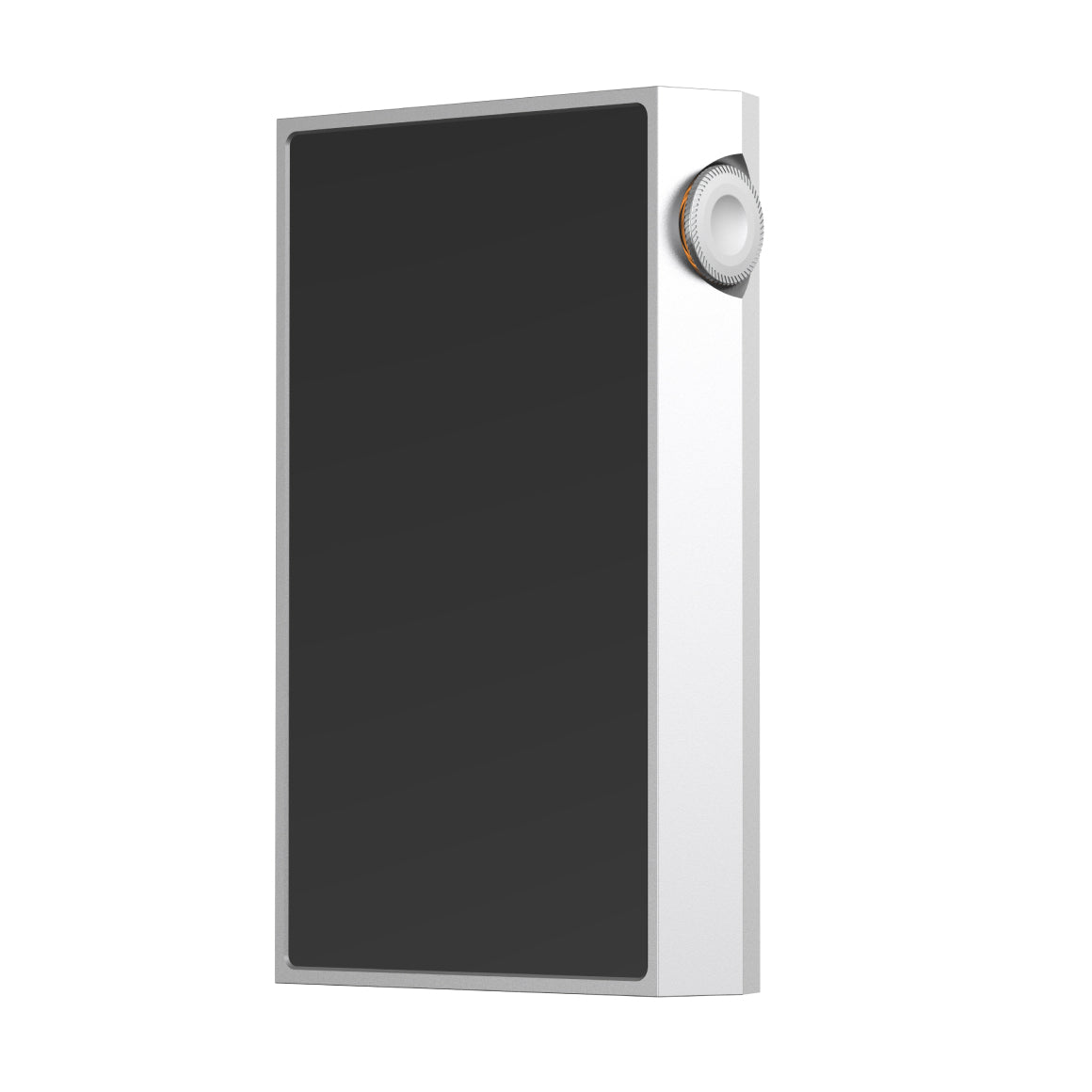

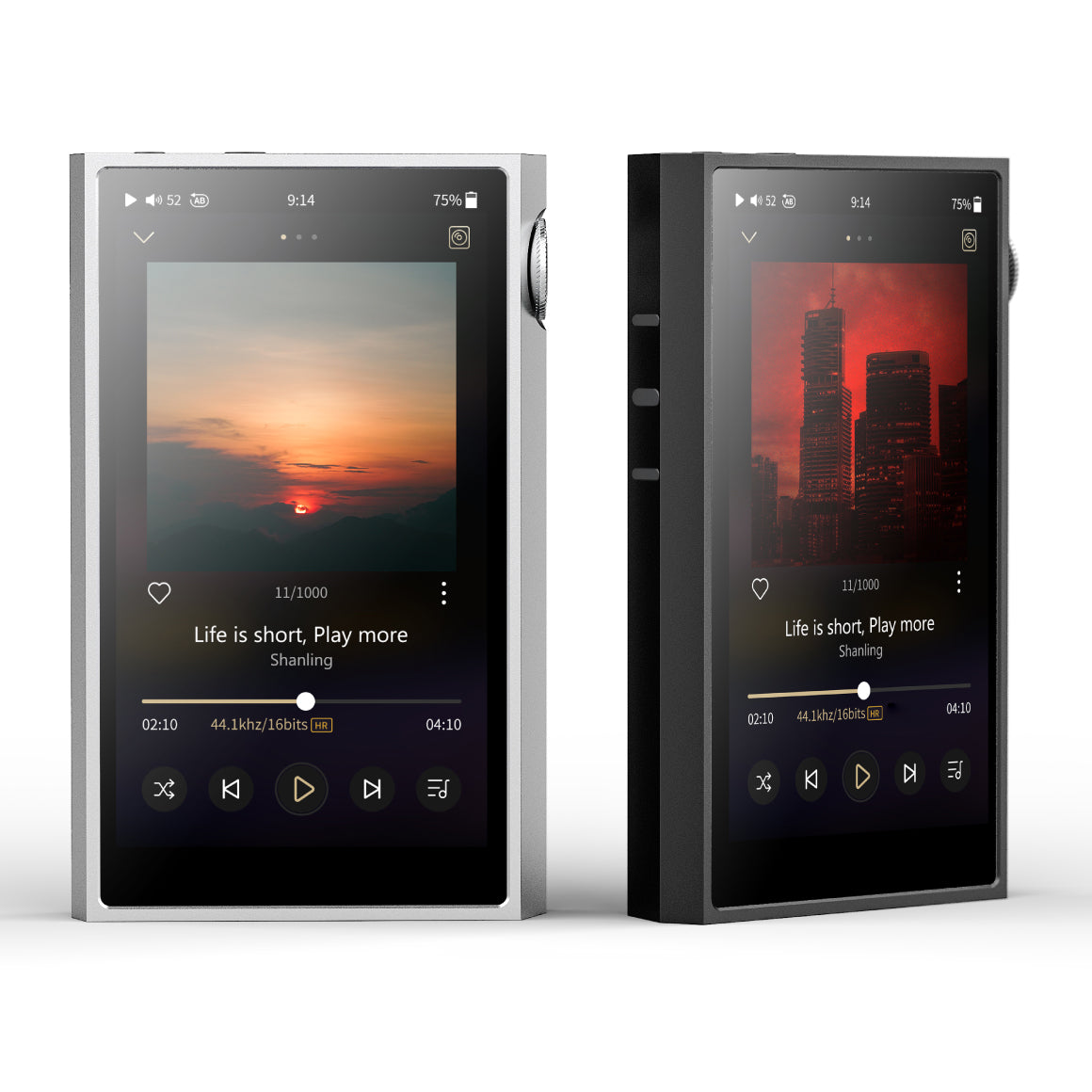

The Shanling M5 Ultra's aesthetic design is not only eye-catching but also functional, housing a plethora of high-performance and quality components. It features a new body design with modern and sharp light-bending angles, deviating from the classic Shanling style to embrace a contemporary look with irregular shapes and pronounced edges. This new design strategy features a body crafted from aluminium and is available in two colour variants - black and silver. The Shanling M5 Ultra features a 4.7-inch HD touchscreen, enhancing usability and visual appeal. Also, Shanling has bundled the M5 Ultra with accessories like a USB A to C cable, rear and front glass protectors and manuals.



DIMENSIONS | 120*75*19.5mm |
HEADPHONE OUTPUT | 3.5mm Single ended 4.4mm Balanced |
SCREEN | 4.7-inch 720*1280 Touch Screen |
WEIGHT | 247g |
DAC | AKM AK4191EQ + AK4499EX |
BATTERY LIFE | 11h (Single-ended) 9h (Balanced) 32h (Bluetooth transmitter) |
STORAGE | MicroSD Card slot |
SUPPORT BLUETOOTH 5.2 | Transmit: LDAC, aptX HD, aptX, AAC, SBC Receive: LDAC, aptX HD, aptX, AAC, SBC |
HI-RES AUDIO SUPPORT | 768 kHz / 32 bit, DSD 512 |
AUDIO FORMAT SUPPORT | DSD (".iso",".dsf",".dff") *DST not supported. iso/dxd / ape/flac/wav / aiff /alf/mp3/wma/aac/ogg/alac/mp2/m4a/ac3/m3u/m3u8/opus |
OUTPUT POWER | Low Gain: 23mW@32Ω Medium Gain: 92mW@32Ω High Gain: 315mW@32Ω |
FREQUENCY RESPONSE | 20Hz - 40kHz (-0.1dB) |
THD + N | 0.0009% |
CHANNEL SEPARATION | 75dB@32Ω |
DYNAMIC RANGE | 121 dB |
SIGNAL-TO-NOISE | 121 dB |
OUTPUT IMPEDANCE | 4.7Ω |
OUTPUT POWER | Low gain: 70mW@32Ω Medium Gain: 280mW@32Ω High gain: 1100mW@32Ω |
FREQUENCY RESPONSE | 20Hz - 40kHz (-0.1dB) |
THD + N | 0.0007% |
CHANNEL SEPARATION | 110dB@32Ω |
DYNAMIC RANGE | 124 dB |
SIGNAL-TO-NOISE | 124 dB |
OUTPUT IMPEDANCE | 6.6Ω |
BOX CONTENTS | 1. Shanling M5 Ultra |
2. USB A to C Cable | |
3. Rear And Front Glass Protectors | |
4. Manuals |
OTHER DETAILS
GENERIC NAME | Digital Audio Player |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Shenzhen Shanling Digital Technology Development Co., Ltd Address: No. 10, Chiwan 1 Road, Shekou District of Shenzhen City, P.R.C. |
PACKAGE CONTENTS | Shanling M5 Ultra USB A To C Cable Rear And Front Glass ProtectorS, Manuals |
![]() Hi-Res Digital Audio Player
|
Don't sweat it, this
Shanling - M5 Ultra comes with a 1 Year warranty
from Shanling that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about Shanling's warranty in India.

Have a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.

What is the warranty period on the Shanling M5 Ultra and how do I claim warranty?
Can the Shanling M5 Ultra function as a USB DAC?
How does the dual headphone output feature work?
What are the advantages of Bluetooth 5.2 connectivity?
Does it come with companion apps?
How does it manage power consumption during playback?
Is it compatible with streaming services like Spotify or Tidal?
