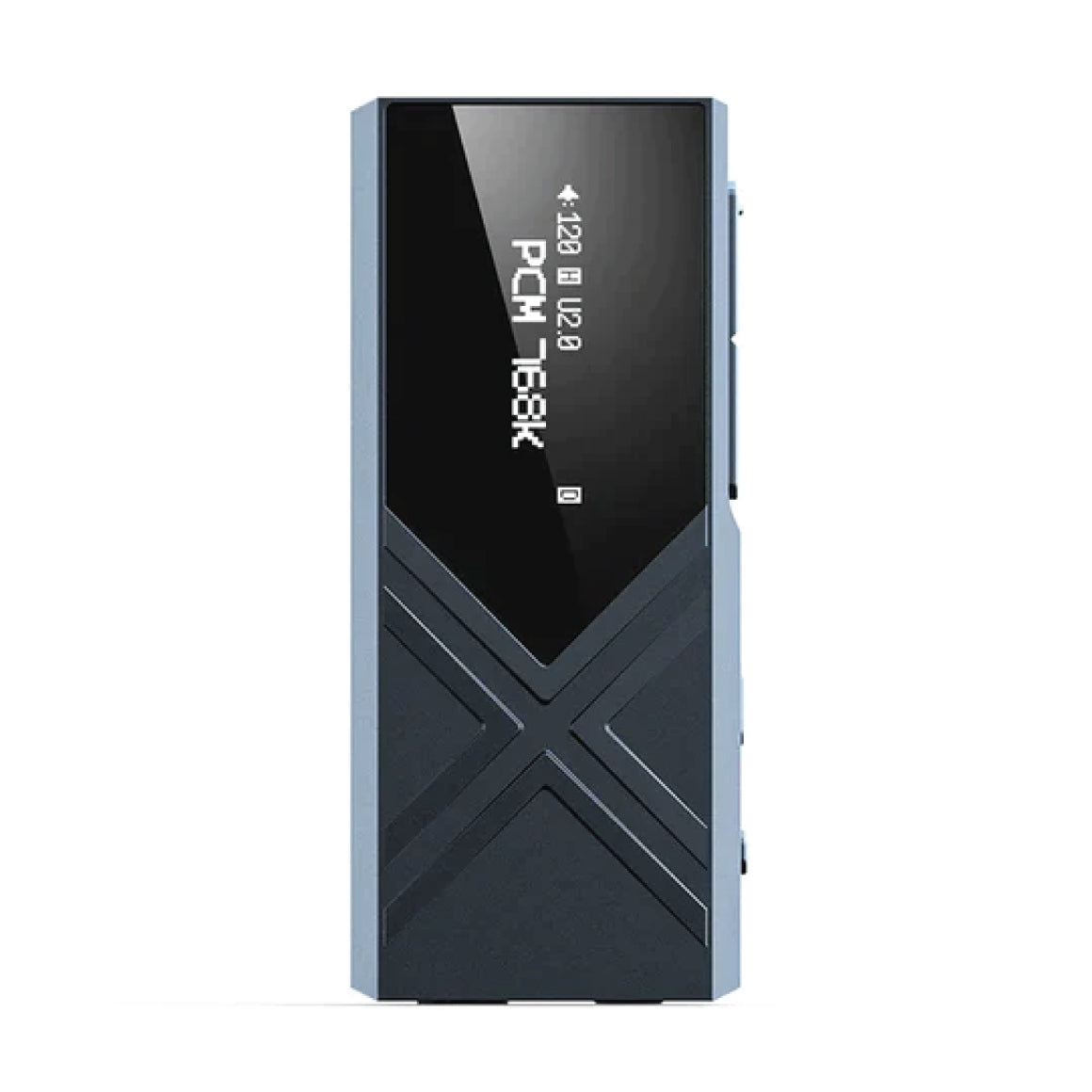

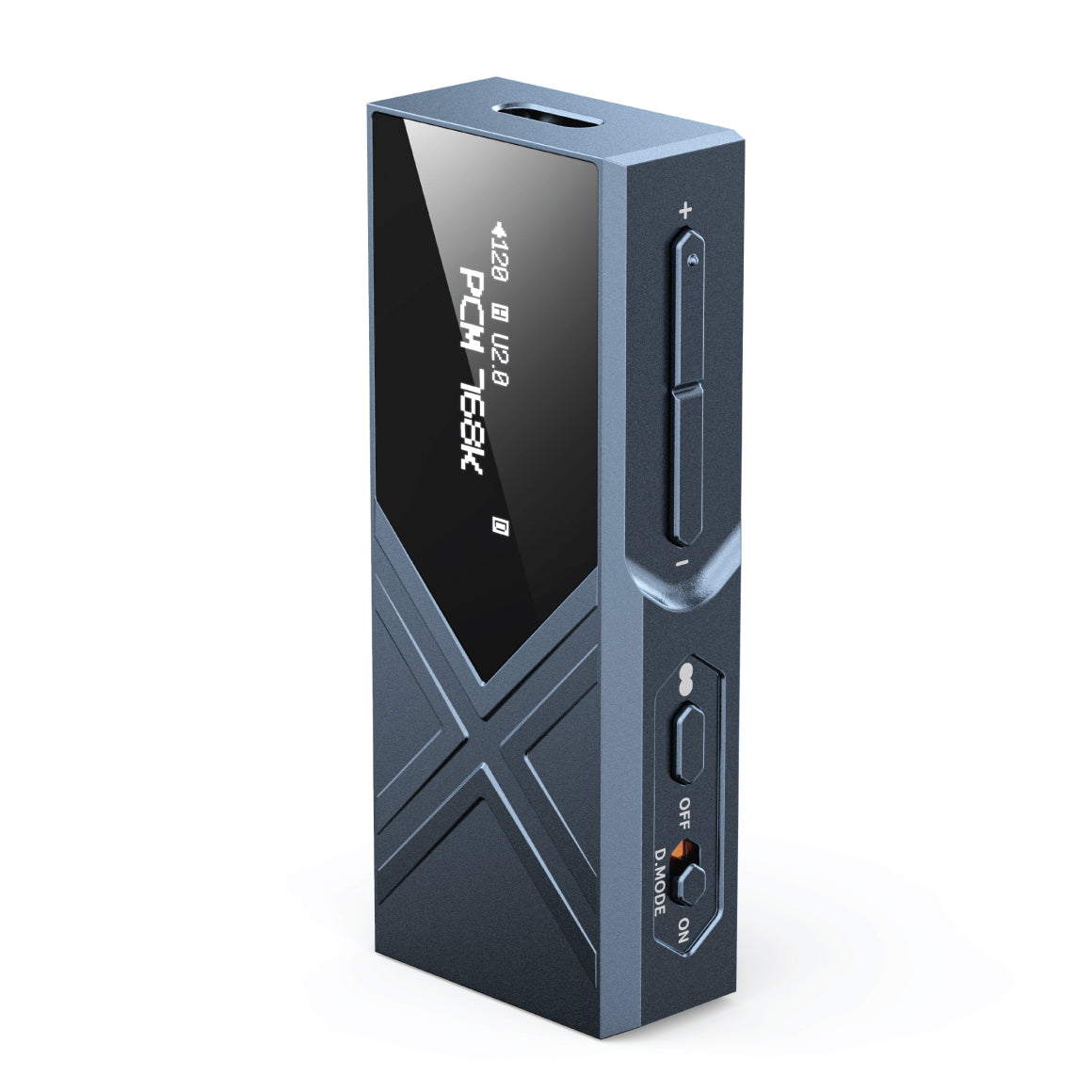

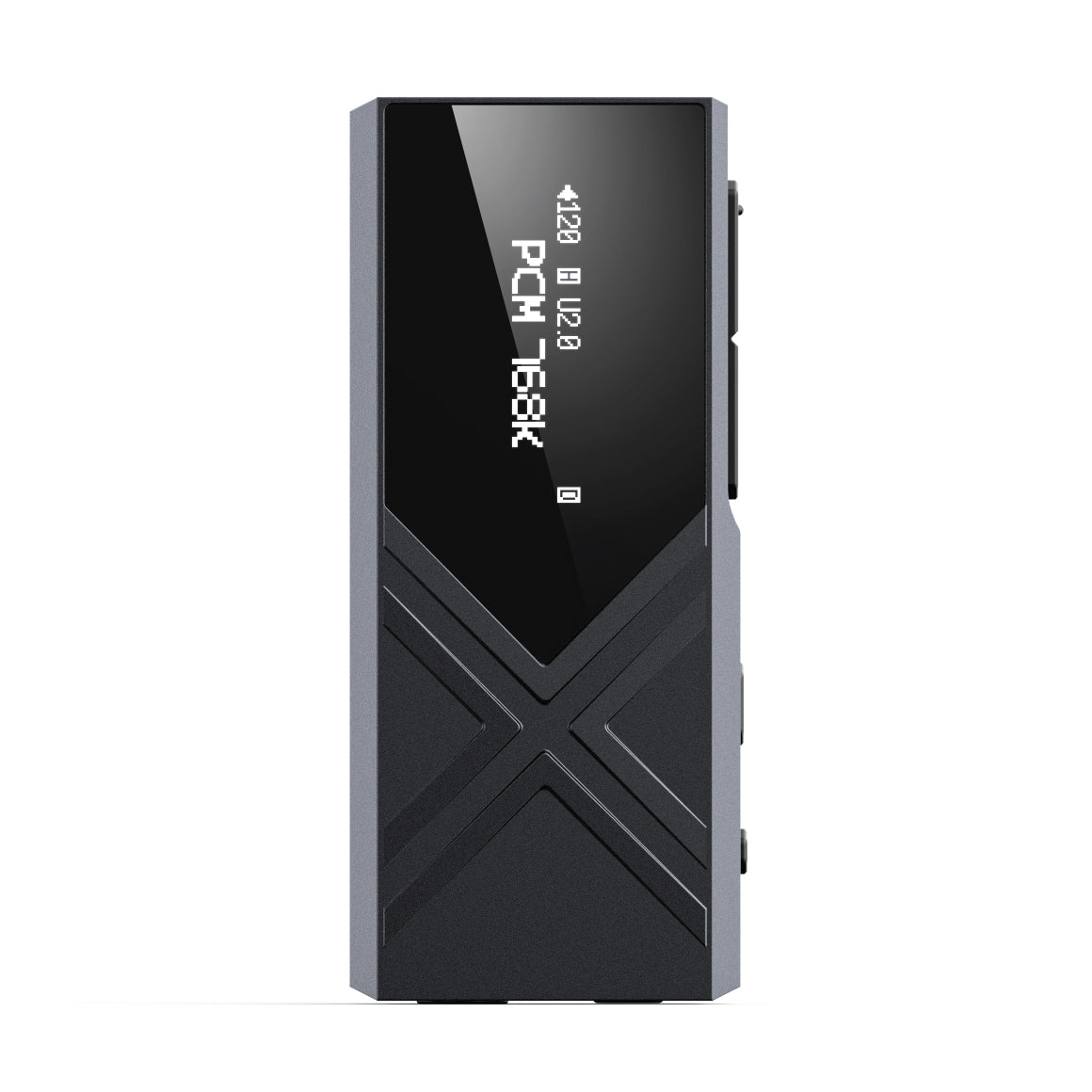

FiiO - KA17
Portable USB DAC & AmpGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 4,791
₹ 375
₹ 302
6
Low Cost EMI
₹ 2,443
₹ 660
₹ 534
9
15.99%
₹ 1,661
₹ 949
12
15.99%
₹ 1,270
₹ 1,242
18
15.99%
₹ 880
₹ 1,839
24
15.99%
₹ 685
₹ 2,450
HDFC Bank
3
Low Cost EMI
₹ 4,791
₹ 375
₹ 302
6
Low Cost EMI
₹ 2,443
₹ 661
₹ 534
9
16%
₹ 1,661
₹ 950
12
16%
₹ 1,270
₹ 1,243
18
16%
₹ 880
₹ 1,840
24
16%
₹ 685
₹ 2,451
SBI Bank
3
Low Cost EMI
₹ 4,795
₹ 387
₹ 311
6
Low Cost EMI
₹ 2,436
₹ 619
₹ 498
9
15%
₹ 1,654
₹ 889
12
15%
₹ 1,264
₹ 1,163
18
16%
₹ 880
₹ 1,840
24
16%
₹ 685
₹ 2,451
Axis Bank
3
Low Cost EMI
₹ 4,791
₹ 375
₹ 302
6
Low Cost EMI
₹ 2,443
₹ 661
₹ 534
9
16%
₹ 1,661
₹ 950
12
16%
₹ 1,257
₹ 1,084
18
16%
₹ 880
₹ 1,840
24
16%
₹ 685
₹ 2,451
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 4,776
₹ 328
6
14%
₹ 2,429
₹ 577
9
16%
₹ 1,661
₹ 950
12
16%
₹ 1,270
₹ 1,243
18
16%
₹ 880
₹ 1,840
24
16%
₹ 685
₹ 2,451
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 4,791
₹ 375
6
16%
₹ 2,443
₹ 661
9
16%
₹ 1,661
₹ 950
12
16%
₹ 1,270
₹ 1,243
18
16%
₹ 880
₹ 1,840
24
16%
₹ 685
₹ 2,451
RBL Bank
3
13%
₹ 4,768
₹ 304
6
14%
₹ 2,429
₹ 577
9
15%
₹ 1,654
₹ 889
12
15%
₹ 1,264
₹ 1,163
18
15%
₹ 873
₹ 1,721
24
15%
₹ 679
₹ 2,291
Standard Chartered Bank
3
13%
₹ 4,768
₹ 304
6
13%
₹ 2,422
₹ 536
9
14%
₹ 1,648
₹ 829
12
14%
₹ 1,257
₹ 1,084
INDUSIND Bank
3
14%
₹ 4,776
₹ 328
6
14%
₹ 2,429
₹ 577
9
15%
₹ 1,654
₹ 889
12
15%
₹ 1,264
₹ 1,163
18
15%
₹ 873
₹ 1,721
24
15%
₹ 679
₹ 2,291
HSBC Bank
3
12.50%
₹ 4,764
₹ 293
6
12.50%
₹ 2,419
₹ 515
9
13.50%
₹ 1,644
₹ 799
12
13.50%
₹ 1,254
₹ 1,045
18
13.50%
₹ 863
₹ 1,544
YES Bank
3
13%
₹ 4,768
₹ 304
6
13%
₹ 2,422
₹ 536
9
14%
₹ 1,648
₹ 829
12
14%
₹ 1,257
₹ 1,084
18
15%
₹ 873
₹ 1,721
24
15%
₹ 679
₹ 2,291
Bank of Baroda
3
13%
₹ 4,768
₹ 304
6
14%
₹ 2,429
₹ 577
9
14%
₹ 1,648
₹ 829
12
15%
₹ 1,264
₹ 1,163
18
15%
₹ 873
₹ 1,721
24
16%
₹ 685
₹ 2,451
American Express
3
14%
₹ 4,776
₹ 328
6
14%
₹ 2,429
₹ 577
9
14%
₹ 1,648
₹ 829
12
14%
₹ 1,257
₹ 1,084
18
15%
₹ 873
₹ 1,721
24
15%
₹ 679
₹ 2,291
Talk to a Headphone Guru
Club Audiophile
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Chi-Fi
Excellence
Ideal for Audiophiles
These DAC & Amps are designed for discerning music lovers. If audio quality is important to you, a set of DAC & Amps like these would be ideal.
You can expect these DAC & Amps to present you with a refined listening experience. The audio quality exhibited by these DAC & Amps is a beautiful mix of musicality, technical brilliance and high precision.
These DAC & Amps deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!
Best Suited for Portable Use
For those who value them, being able to carry their favourite DAC & Amp equipment when they are on the move is invaluable.
These DAC & Amps offer the ultimate portability experience without sacrificing sound quality. If you’re someone who appreciates cutting-edge engineering, quality sound and portability, then look no further.
Designed to be trusty companions, these DAC & Amps are cleverly engineered with the latest technology to offer the ultimate combination of portability & Hi-Fidelity!
Ideal for Commuting
If you’re someone who enjoys listening to music while commuting. These portable Amps & DACs allow you to listen to your favourite track without compromising on the audio quality
Ideal for Gaming
Sometimes, DAC & Amps embed a built-in microphone so you can use it while gaming. If you are someone working from home, or a professional gamer, you'll benefit from a DAC & Amp with a microphone.
You can expect these DAC & Amps to offer brilliant microphone quality and clear audio so that teammates can hear you at the other end. Just plug them in, and game your way to victory!
4.4mm
Balanced Output
ESS Sabre ES9069Q
Dual DAC Chip
Upto 650mW+650mW @32Ω
Power Output
Pair with Laptop via USB
A majority of people use a laptop as the primary source device to listen to music or watch movies. Since the laptop is an essential part of the audio chain there are headphones and devices designed to work a laptop or computer system flawlessly. With the availability of USB connectivity, it becomes easier to pair various devices like an Amp, DAC or even headphones without worrying about drivers or any additional piece of software.
Connect With
USB-C
Metal
Build
DESCRIPTION
FIIO PRESENTS THE ALL-NEW AND UPGRADED PORTABLE DAC & AMP - THE FIIO KA17
FiiO launches the all-new portable DAC & Amp, the KA17, equipped with dual channel flagship ES9069Q DAC chipset. This portable DAC & Amp also features a robust desktop mode with 650mW+650mW output, efficiently providing power to most IEMs and headphones. Along with this, FiiO KA17 is incorporated with a professional grade XMOS 16 core XU316 processor and allows ten-segment high-precision PEQ adjustments to tune to your preferred style. FiiO has equipped a fully balanced THX AAA 78 amp circuit in the KA17. It features an anti-crosstalk design to separate digital and analogue boards to ensure accuracy and preserve the dynamics of the original audio signal. These are some feature sets that FiiO brings to the table with the KA17.

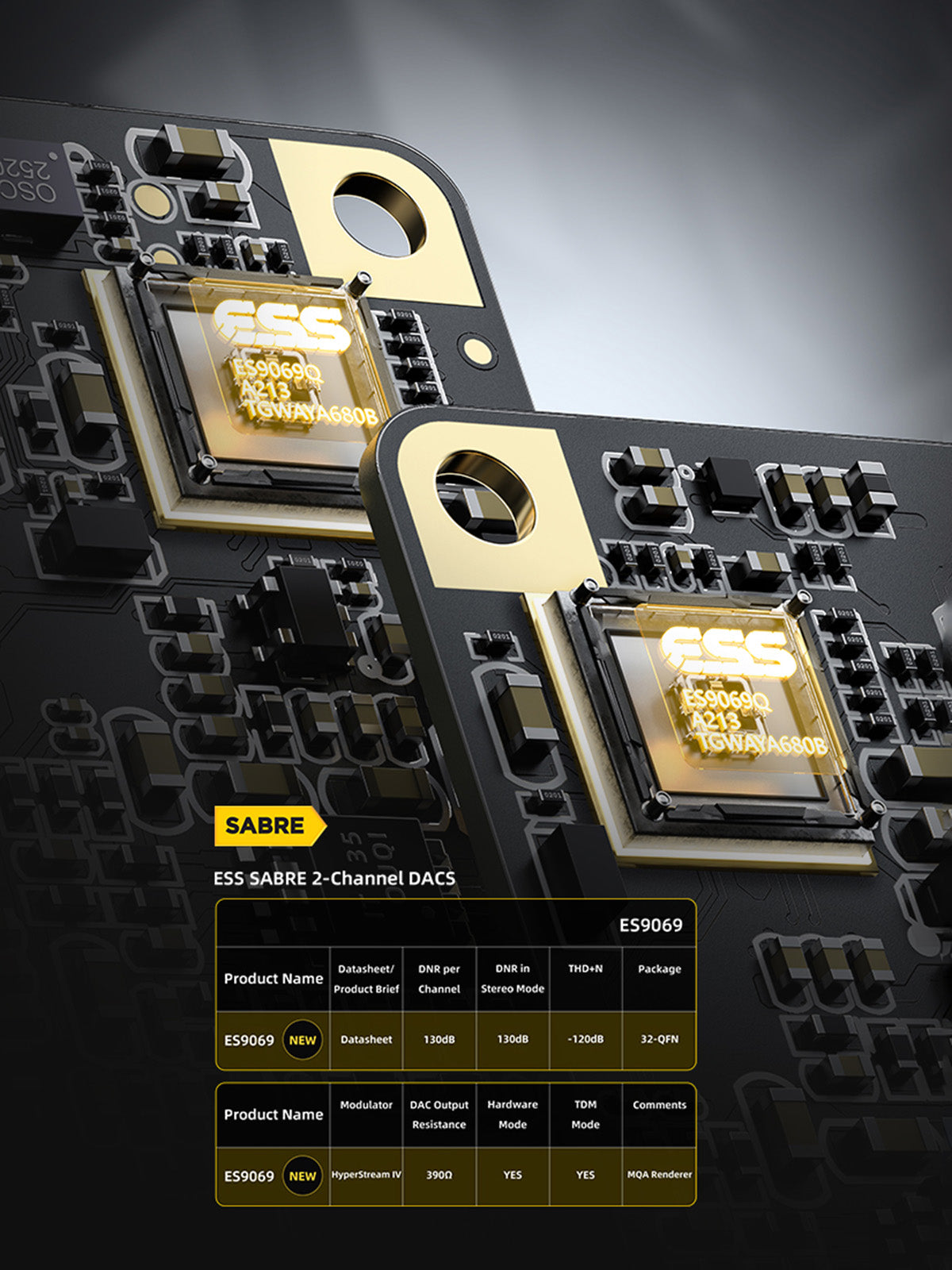

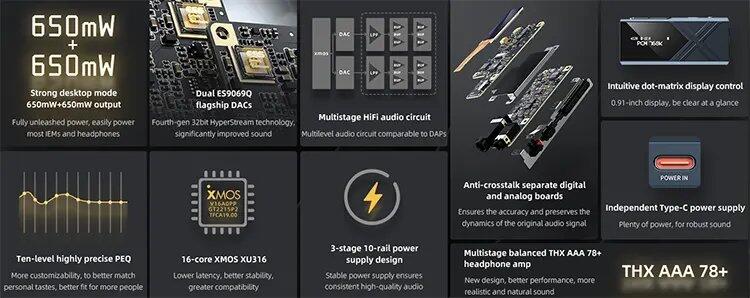

EXCELLENT AUDIO PERFORMANCE WITH THE FLAGSHIP ESS SABRE ES9069Q DUAL DAC CHIPSET UNIT
The FiiO KA17 showcases the new ESS ES9069Q flagship dual DAC chipset. This DAC chip unit is powered by the fourth-generation HyperStream modular technology that processes 32-bit audio data. FiiO KA17 provides better performance with this DAC chipset, lowering the power consumption and digital noise compared to the previous generation DAC chips. The dual ES9069Q DAC chipset supplies power in a four-way core design, which results in excellent performance in delivering DNR of 130dB and THD+N up to 120dB in the sound produced to you. The ESS Sabre developed DAC chipset has a day output resistance of 39ohms and supports hardware and TDM mode.

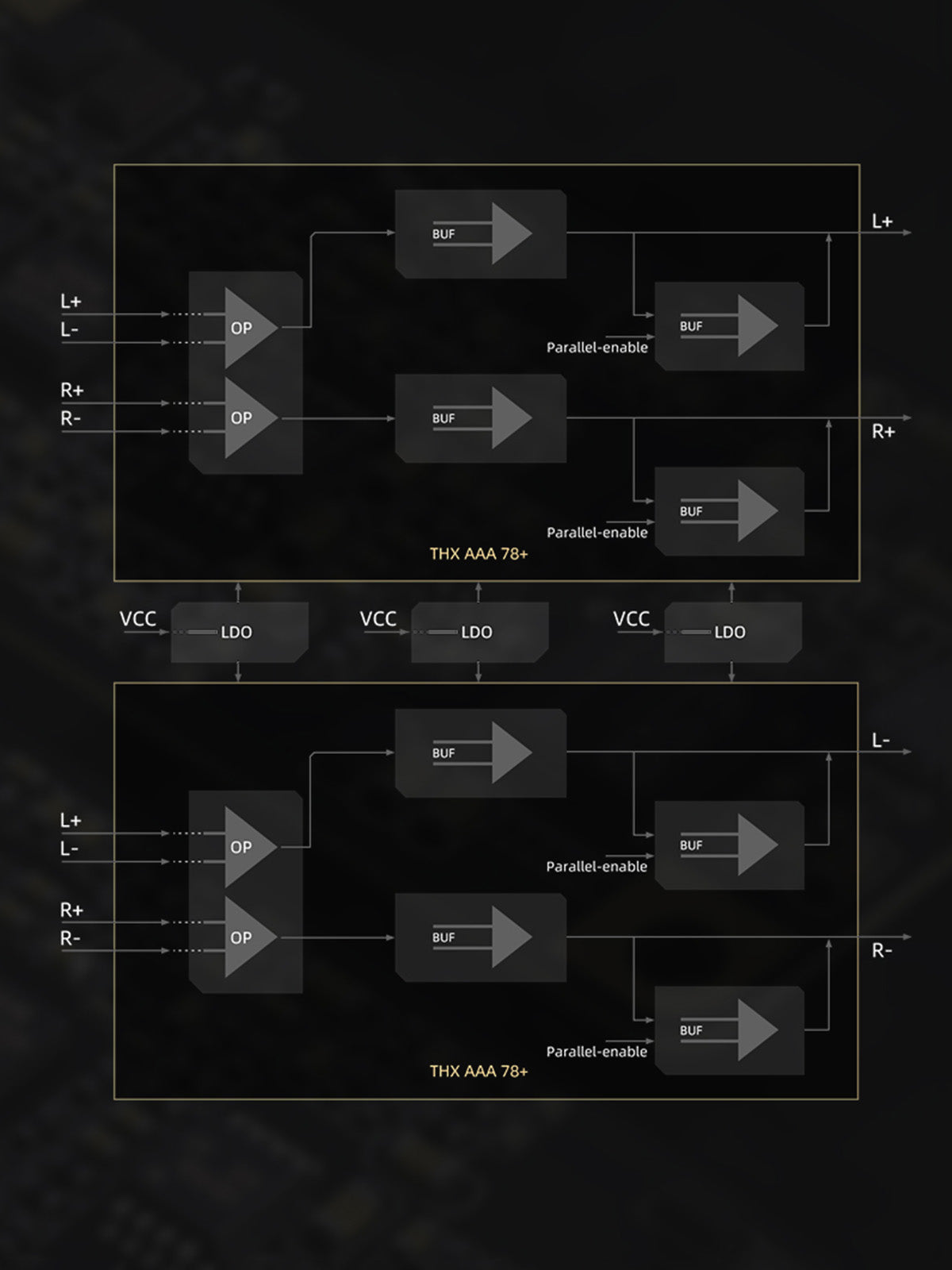

FEATURING THE ALL-NEW THX AAA 78+ HEADPHONE AMPLIFICATION TO DELIVER REFINED SOUND
The compact yet elegant FiiO KA17 aims to deliver pure and refined sound in your music, hence it equips the all-new THX AAA 78+ headphone amp design. The THX AAA 78 headphone amp proved its capability in the mid to high-end M11 Pro and M11 plus players. FiiO featured the upgraded THX AAA 78+ in the KA17 for elevated sound delivery in your audio. The THX AAA 78+ amp design in the KA17 works in conjunction with the eight op-amps in a 4-channel fully balanced configuration, allowing greater power output and more detailed and realistic sound. The FiiO KA17 delivers powerful, clean, and accurate audio to your IEMs and headphones with this high-end sound processing factory, the THX AAA 78+ headphone amp.

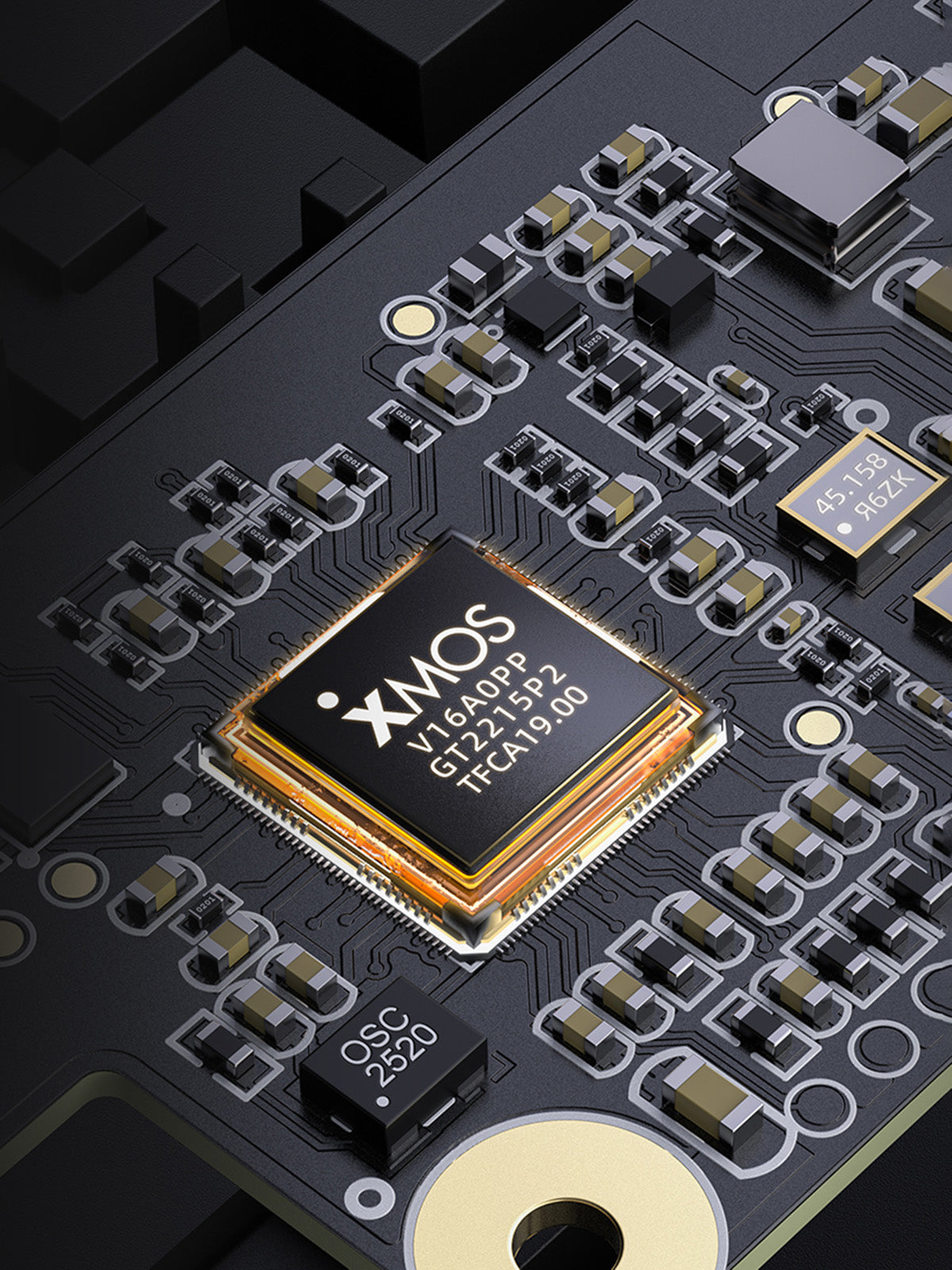

EQUIPPED WITH AUDIOPHILE-GRADE 16 CORE XMOS XU316 FOR OUTSTANDING DATA PROCESSING CAPABILITY
FiiO has engineered the processing core of the KA17 with the audiophile-grade 16-core XMOS XU316 integrated circuit. This processing circuit handles the USB duties in the KA17, which is not embedded in many audio dongles. FiiO is equipped with XMOS XU316 chipset, aiming to provide lower latency and deliver a stable signal transmission. This chipset offers lower latency, more stable audio transference and better compatibility, supporting up to 768kHz/32bit, native DSD512 decoding, and MQA full decoding. This chipset also aims to provide better compatibility than usually implemented USB control chipsets. The FiiO KA17, featuring the XMOS XU316 and paired with dual crystal oscillators, is qualified to process data from various digital audio sources with different sampling rates. The FiiO KA17 aims to deliver outstanding processing performance with this circuit design.

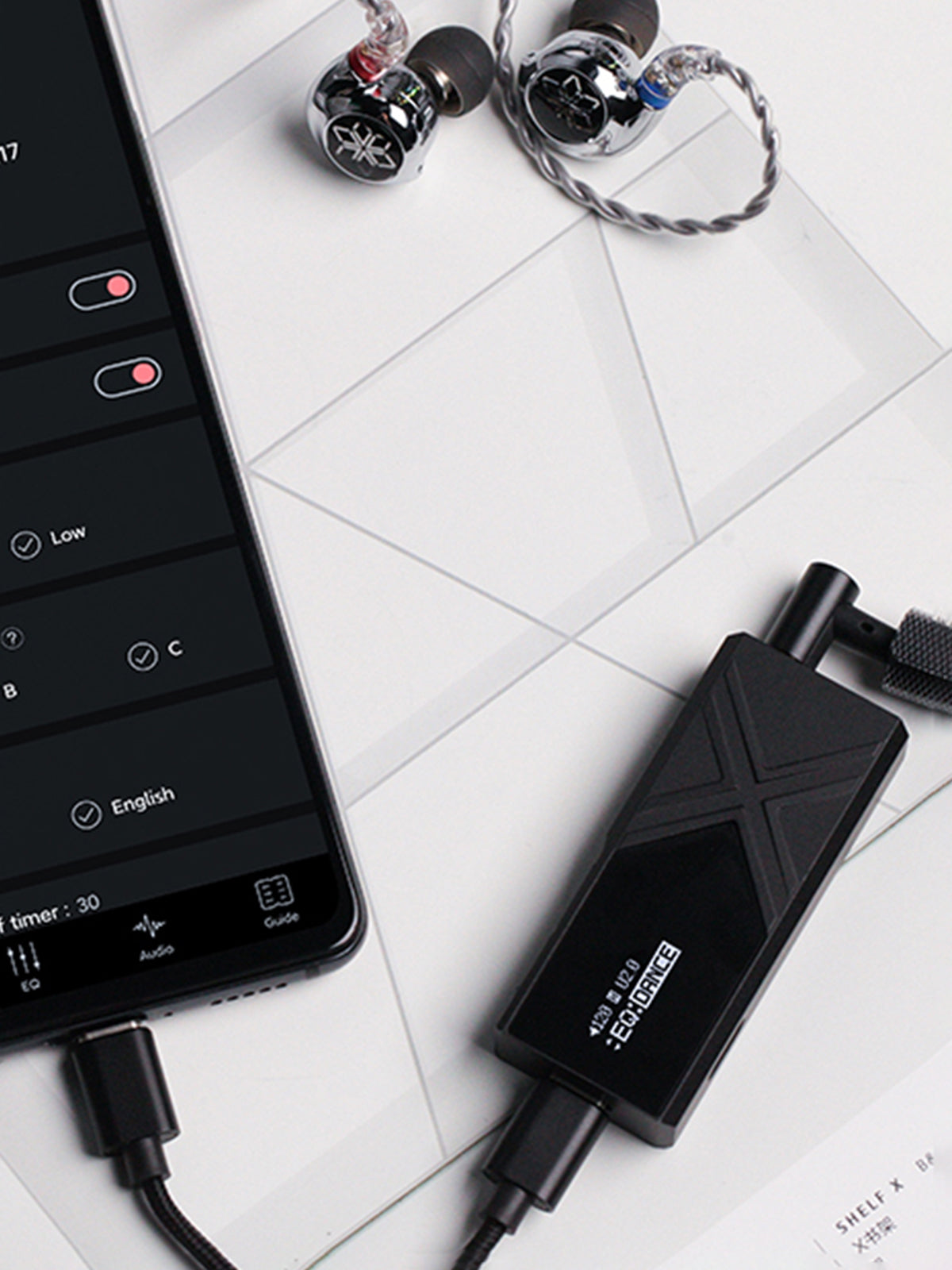

TEN-LEVEL HIGHLY PRECISE PEQ ADJUSTMENT ALLOWS YOU TO CUSTOMISE TO YOUR PREFERRED LISTENING PREFERENCE
FiiO featured the XMOS XU316 chipset in the KA17, which unlocked the possibility of developing precise PEQ adjustment settings with ten customisable frequency bands in your KA17. This self-developed PEQ algorithm and interface of FiiO in the KA17 allows you to fine-tune the frequency, gain levels and bandwidth of each PEQ band, permitting you to dial in the sound you prefer to listen to your music. The PEQ adjustment supports up to PCM 192kHz/24bit formatting. The FiiO KA17 offers exceptional sound personalisation options with this feature to elevate your music listening experience.

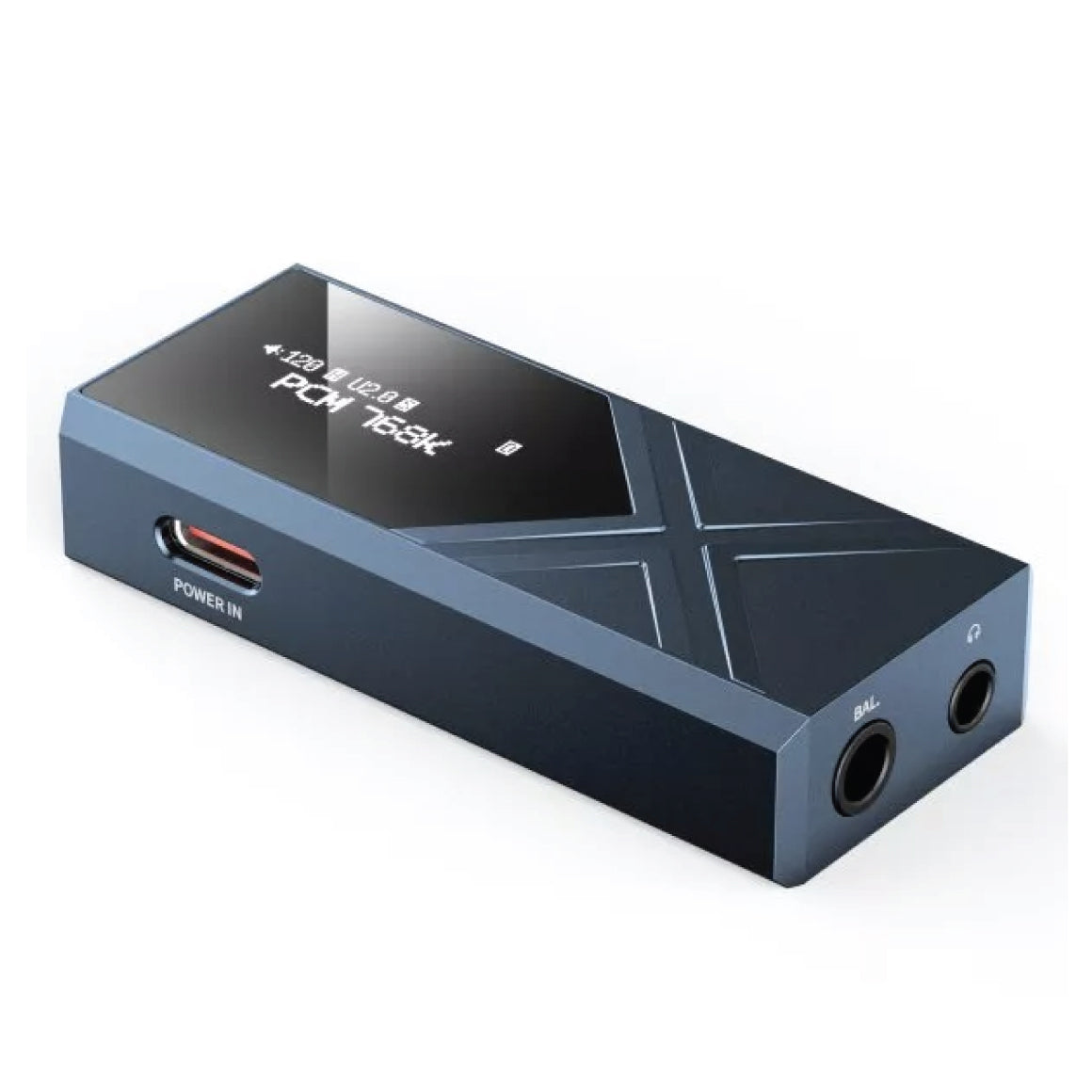

MULTISTAGE AUDIO CIRCUIT WITH 4.4 BALANCED OUTPUT AND SEPARATE DIGITAL AND ANALOG BOARDS FOR BETTER PERFORMANCE
FiiO has featured a 4.4mm balanced output that works well with the audio circuits in the KA17, providing a high-fidelity listening experience. Along with LPF voltage amplification, BUF current expansion and the upgraded THX AAA 78+ working together, the KA17 can reproduce the detail and dynamics in your music just like a dedicated digital audio player. The FiiO engineers have also featured separate digital and analogue boards and each circuit board is placed separately with a shielding cover for total isolation. This layout ensures that the digital and analogue portions of the audio circuit do not interfere with each other, enabling accurate processing of audio signals.
FURNISHED WITH A 3-STAGE, 10-RAIL ROBUST POWER-SUPPLY CIRCUIT IN A COMPACT DESIGN
Fiio KA17 has a robust power supply in a compact design. It is assembled in a three-main stage design. The initial stage consists of filtering coupled with overvoltage protection, the second stage works on DC-DC conversion and the third stage delivers LDO voltage stabilization. Each stage works on specific aspects of the audio circuit, which are digital conversion, digital-to-analogue conversion, and analogue signal conversion. The power supply is subsided into ten smaller rails, like the ones found in desktop headphone amplifiers, to ensure resilience and high-quality sound output.

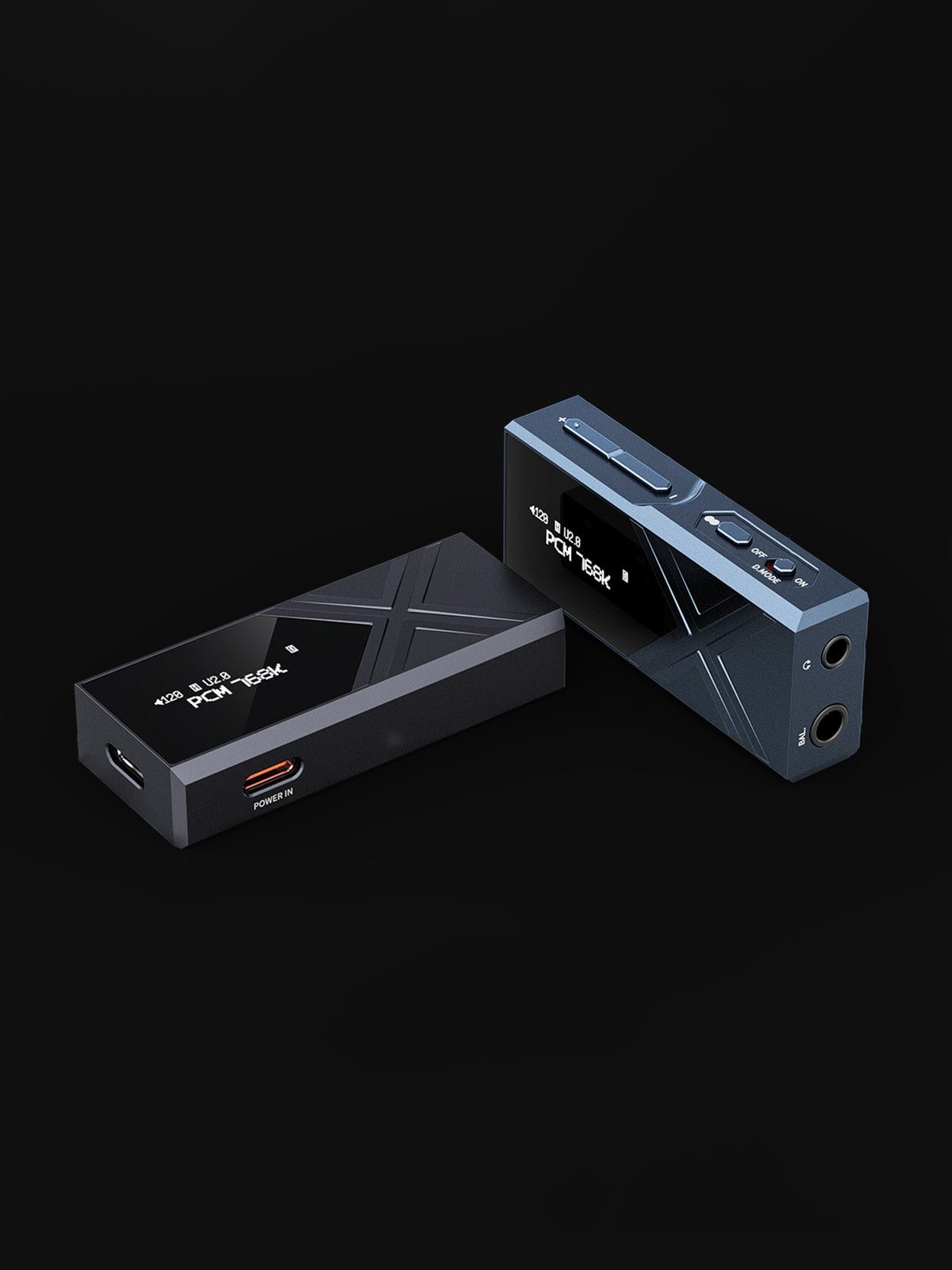

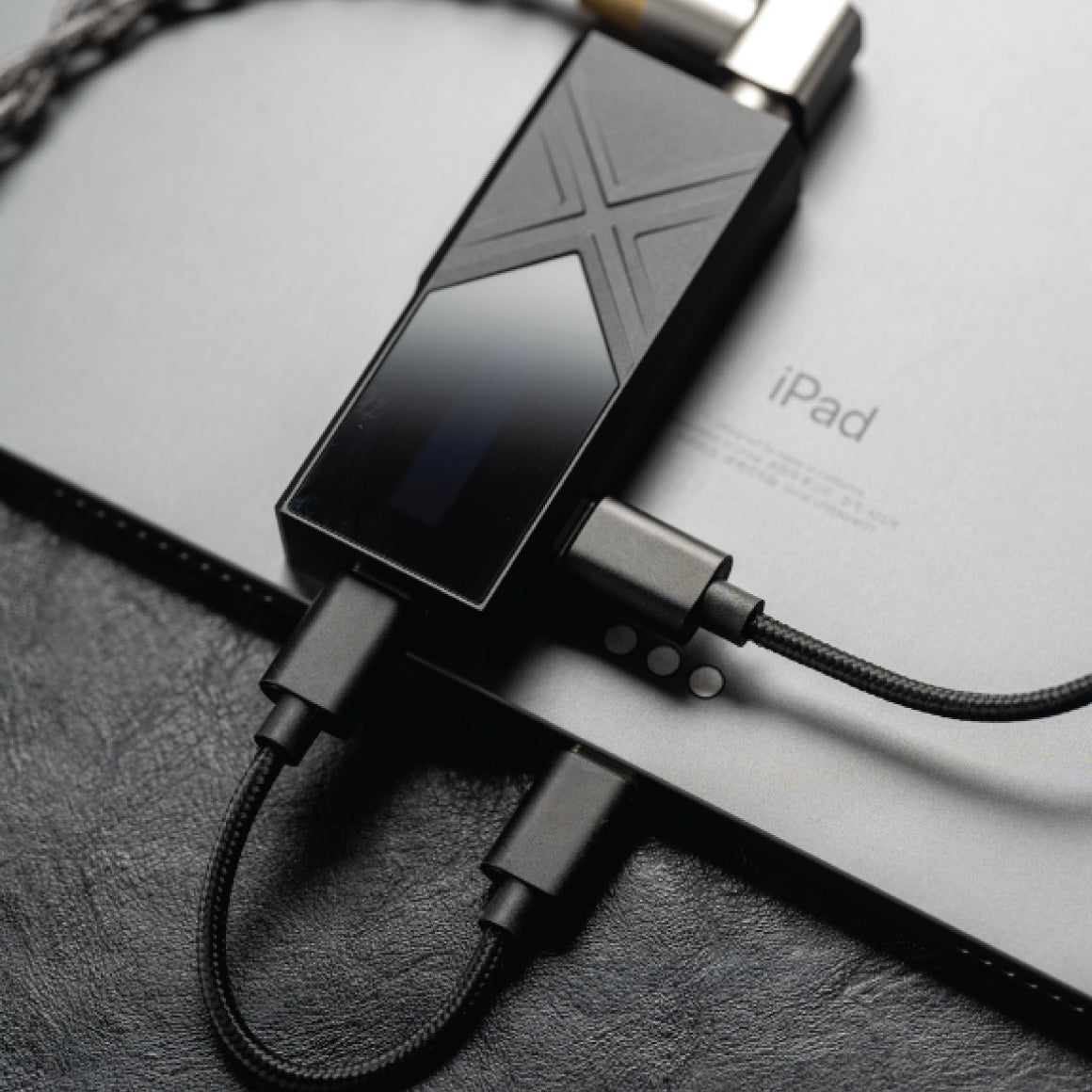

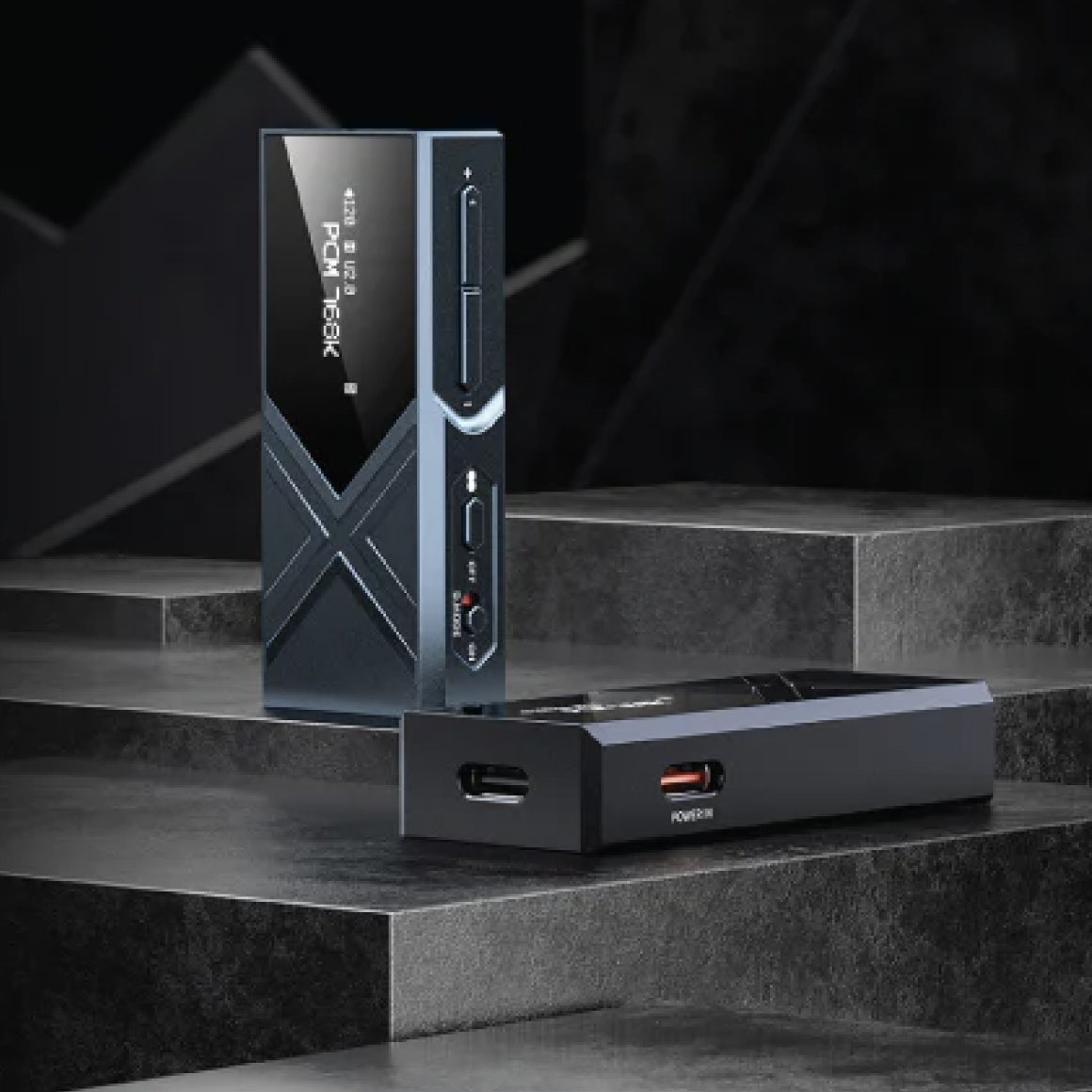

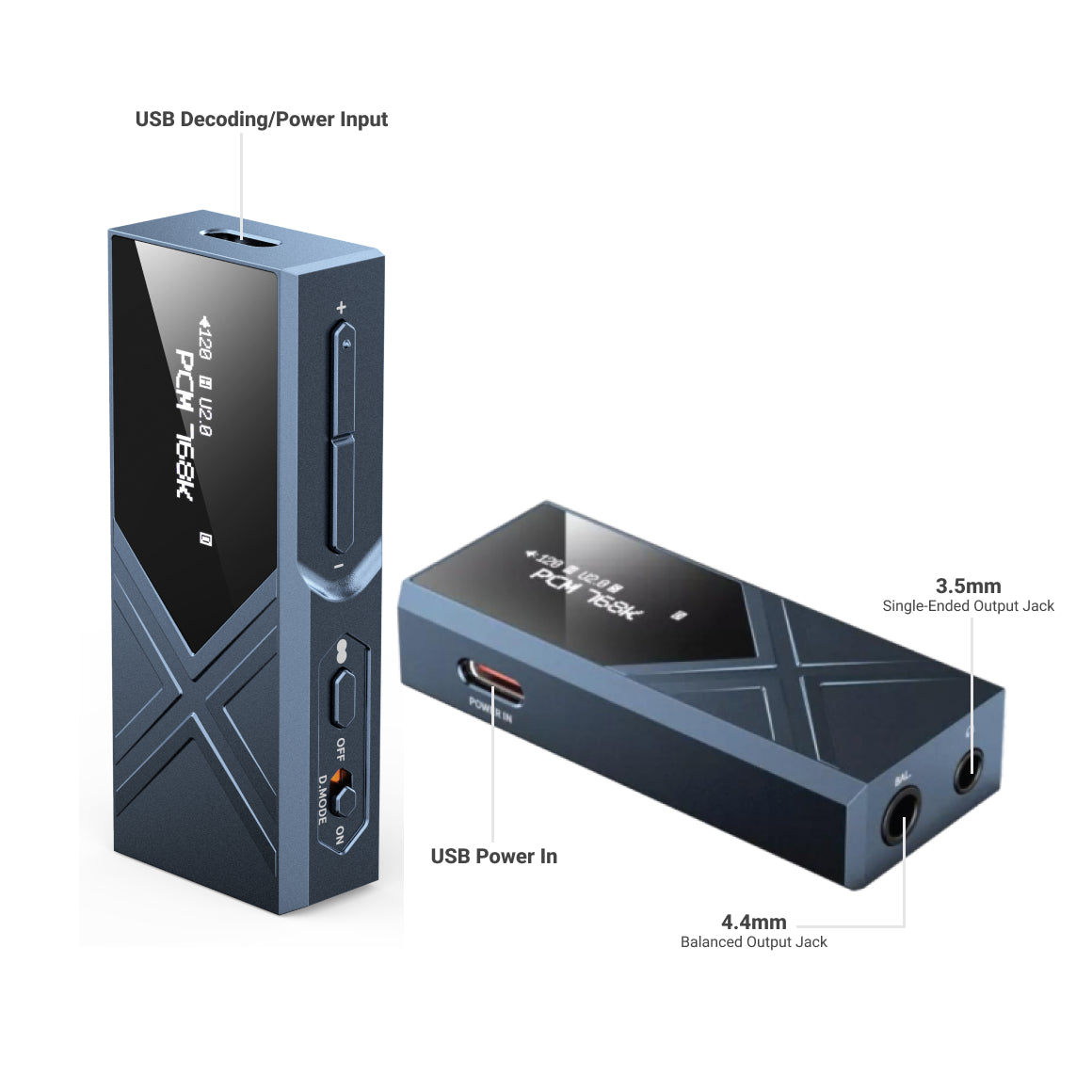

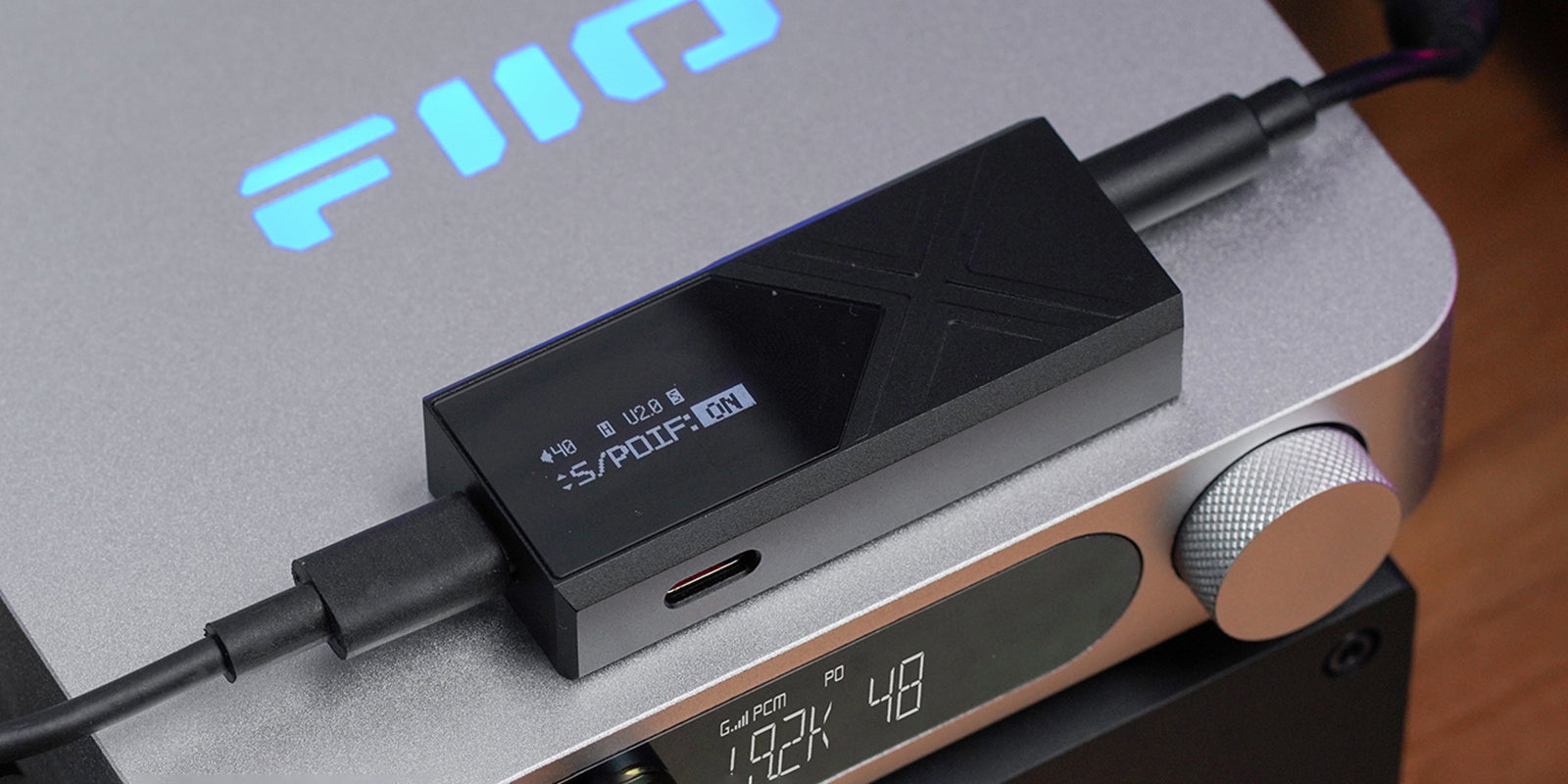

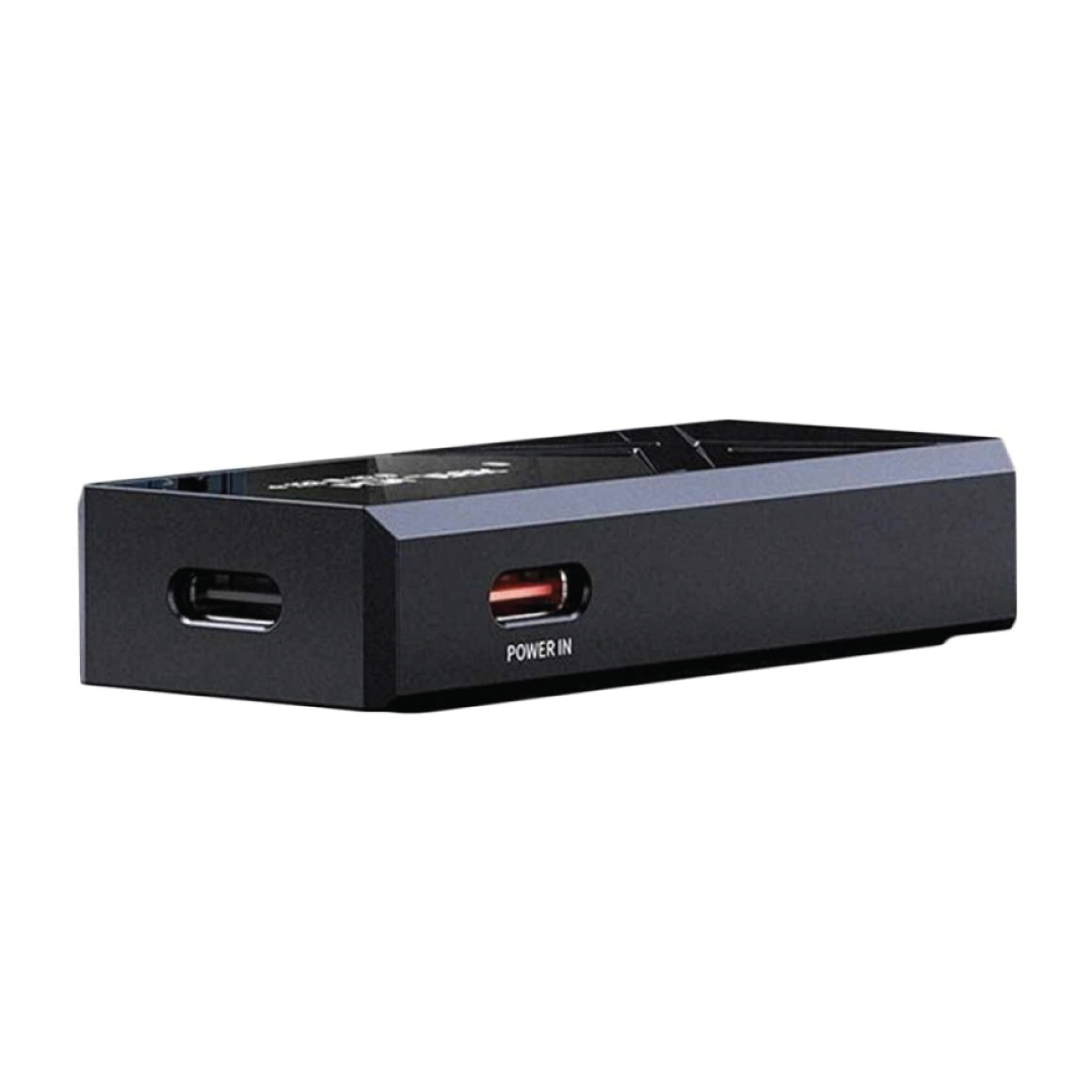

FEATURES A USB TYPE C PORT AND SPDIF OUTPUT FOR INDEPENDENT POWER SUPPLY

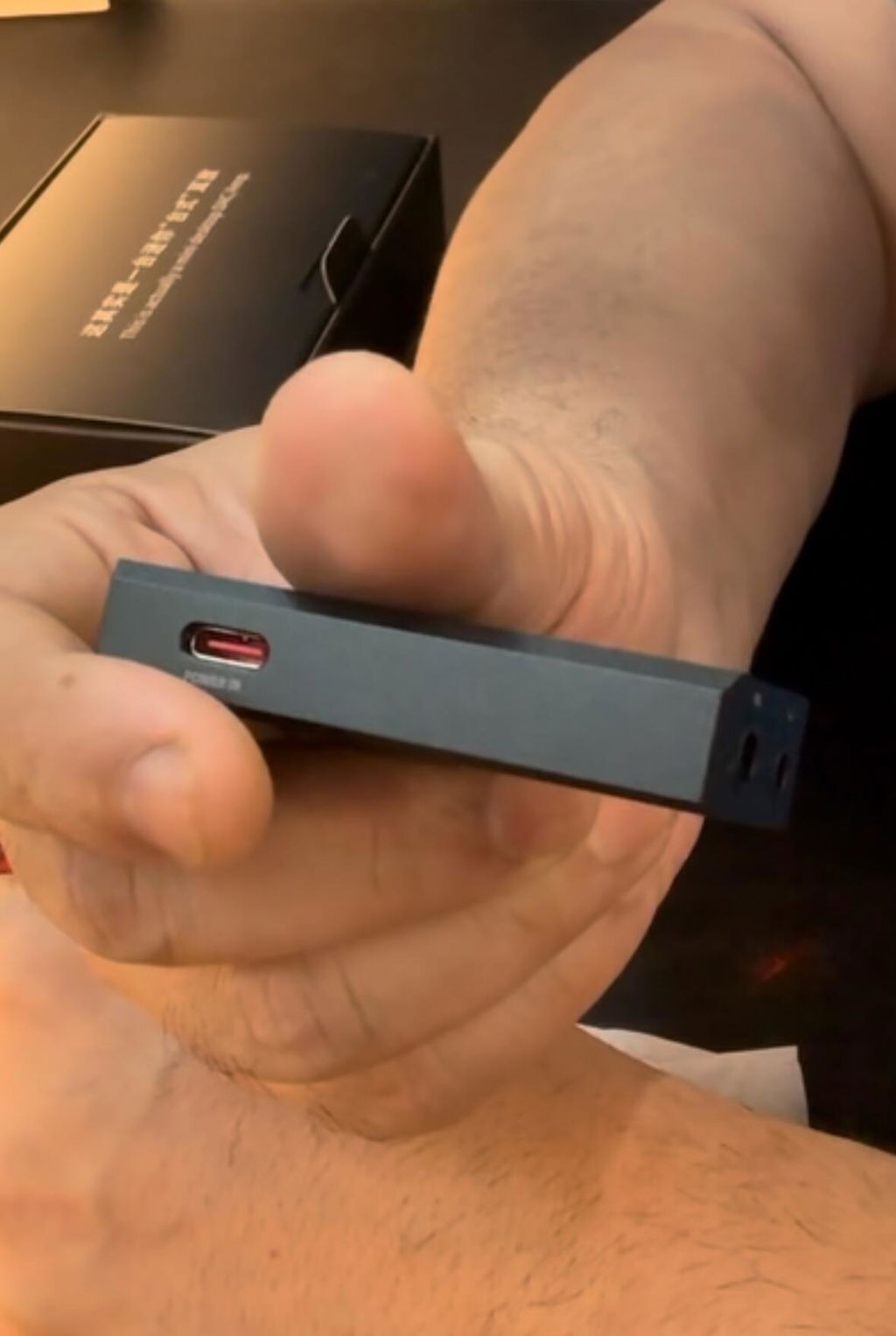

FiiO features two USB Type-C ports for independent power supply in the KA17. One is the typical port used to connect to other devices such as phones, tablets and computers. The orange port on the side is provided for an external power supply. When an external power supply is connected to this port, the KA17 can achieve higher power output and better performance without consuming the battery of your phone or other connected device. FiiO has also featured SPDIF output in the KA17 supported by the 3.5mm headphone jack, with which you can transform it into a digital jukebox. The SPDIF output supports a 96kHz/32bit sample rate. You can connect to an external high-end DAC for flexibility and better sound quality. With sufficient USB power supply input and desktop mode enabled, the KA17's four THX headphone amps work together parallelly for more significant current and overall power output. The result is up to 270mW+270mW power output for single-ended out and up to 650mW+650mW power output for balanced out.

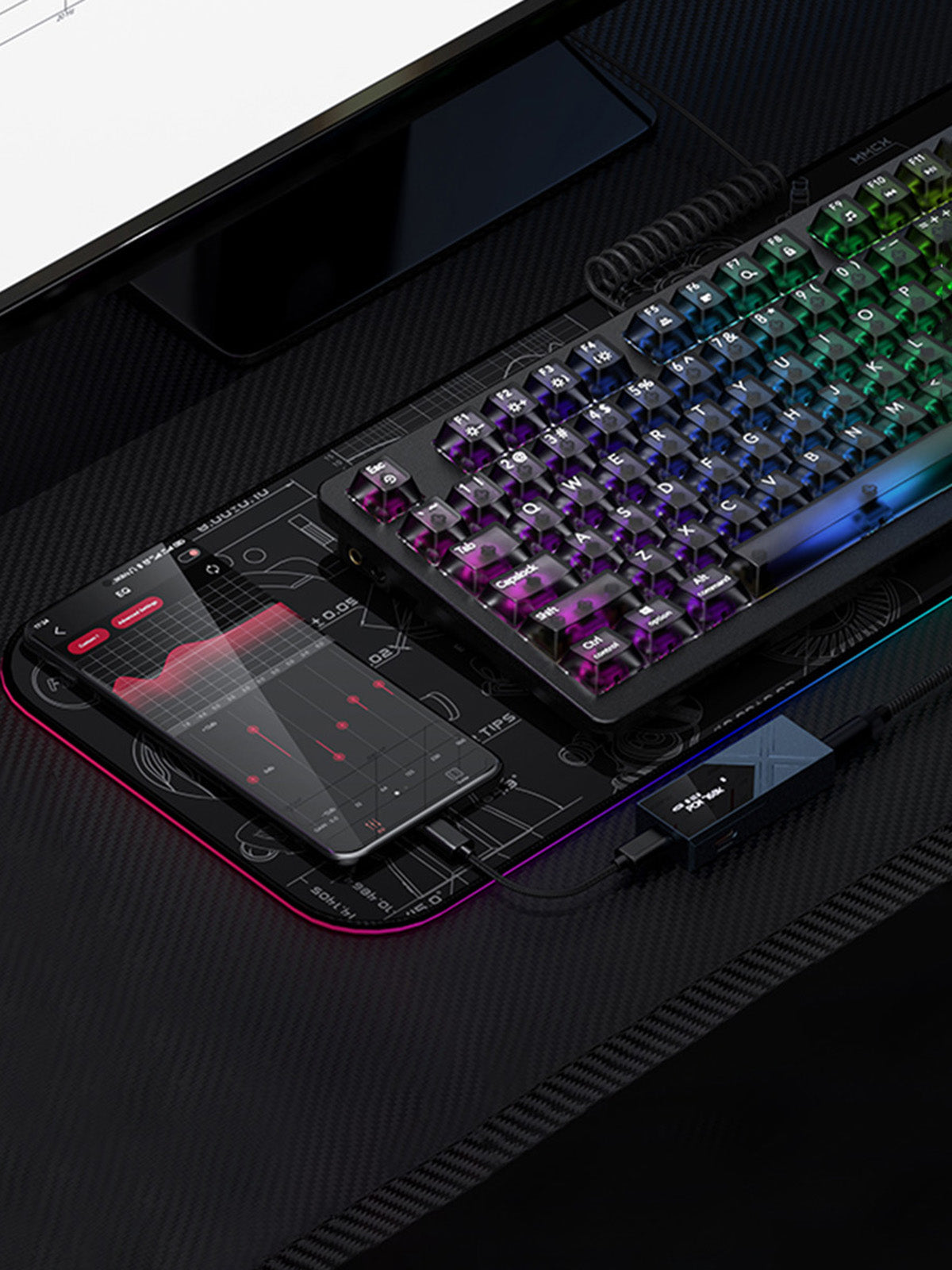

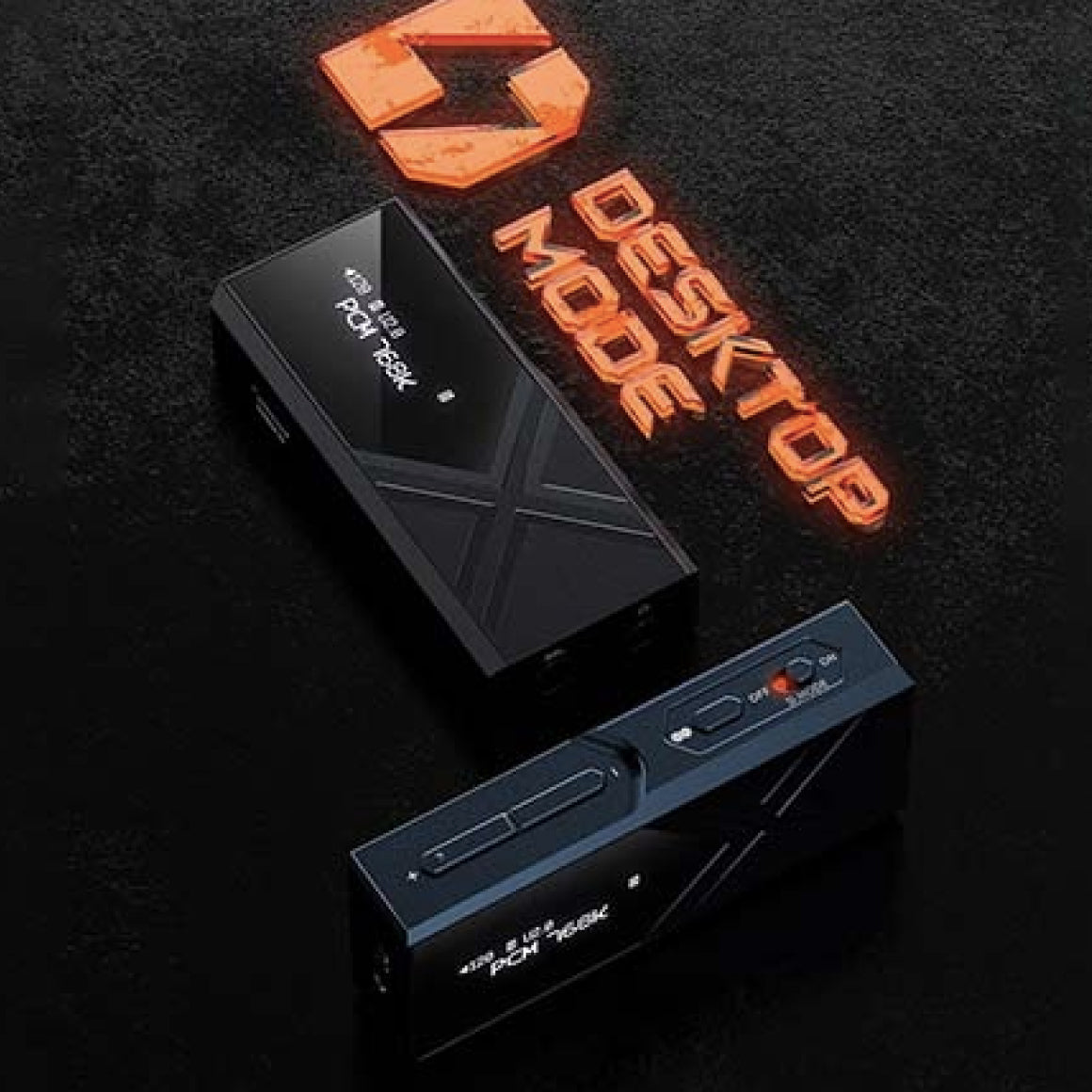

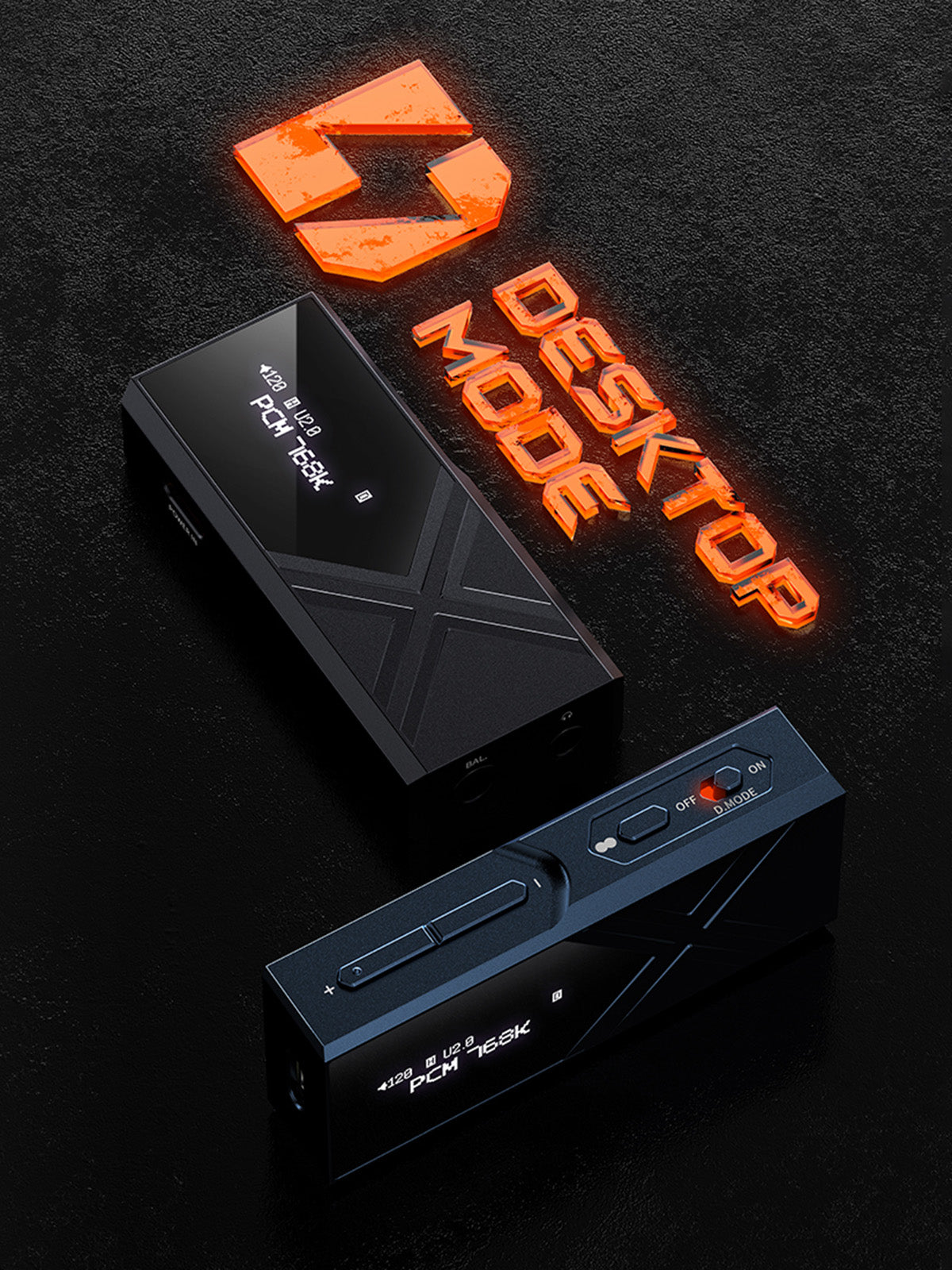

PROVISIONED WITH DESKTOP MODE, UAC1.0 DRIVER-FREE MODE AND ANDROID FIIO CONTROL APPLICATION SUPPORT

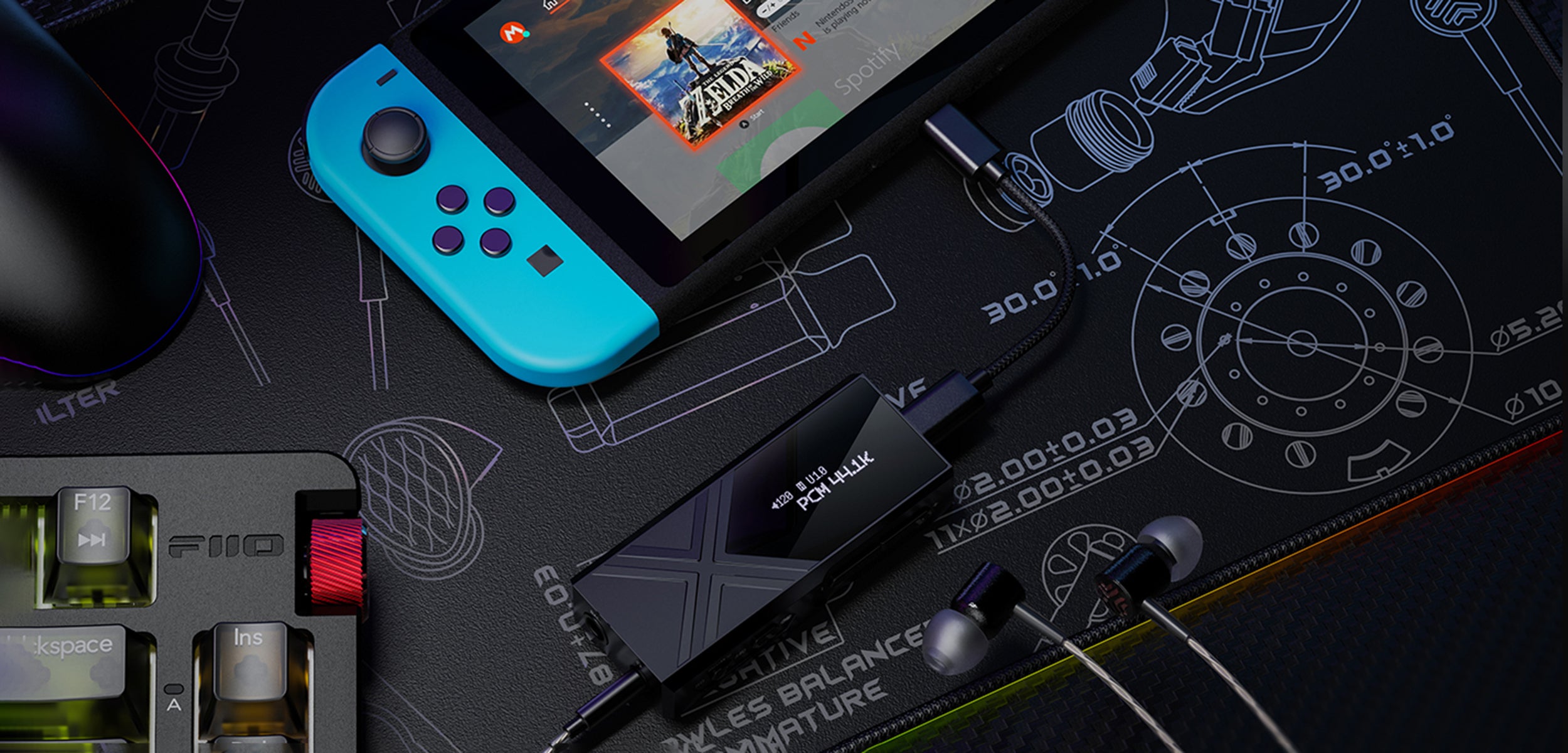

The FiiO KA17 features desktop mode, taking your jamming sessions to the next level. The desktop mode is refined with the release of various products, such as the portable yet desktop-grade M17, Q7, M15S, Q15 and KA13. And now the perfected desktop mode has found its way to the KA17. The FIIO KA17 features a special desktop mode, activated using the dedicated D.Mode switch. Enable the desktop mode, and the KA17 will automatically adjust the DAC, amplifier power supply, and amplifier power output to unleash the potential with greater power output. The FiiO KA17 also supports the Android FiiO control App. FiiO has also featured a UAC1.0 Driver-free mode, which allows you to plug in and enjoy your gaming sessions. The FiiO Control App's control over KA17 is supported only on Android Devices. To download the app click here.

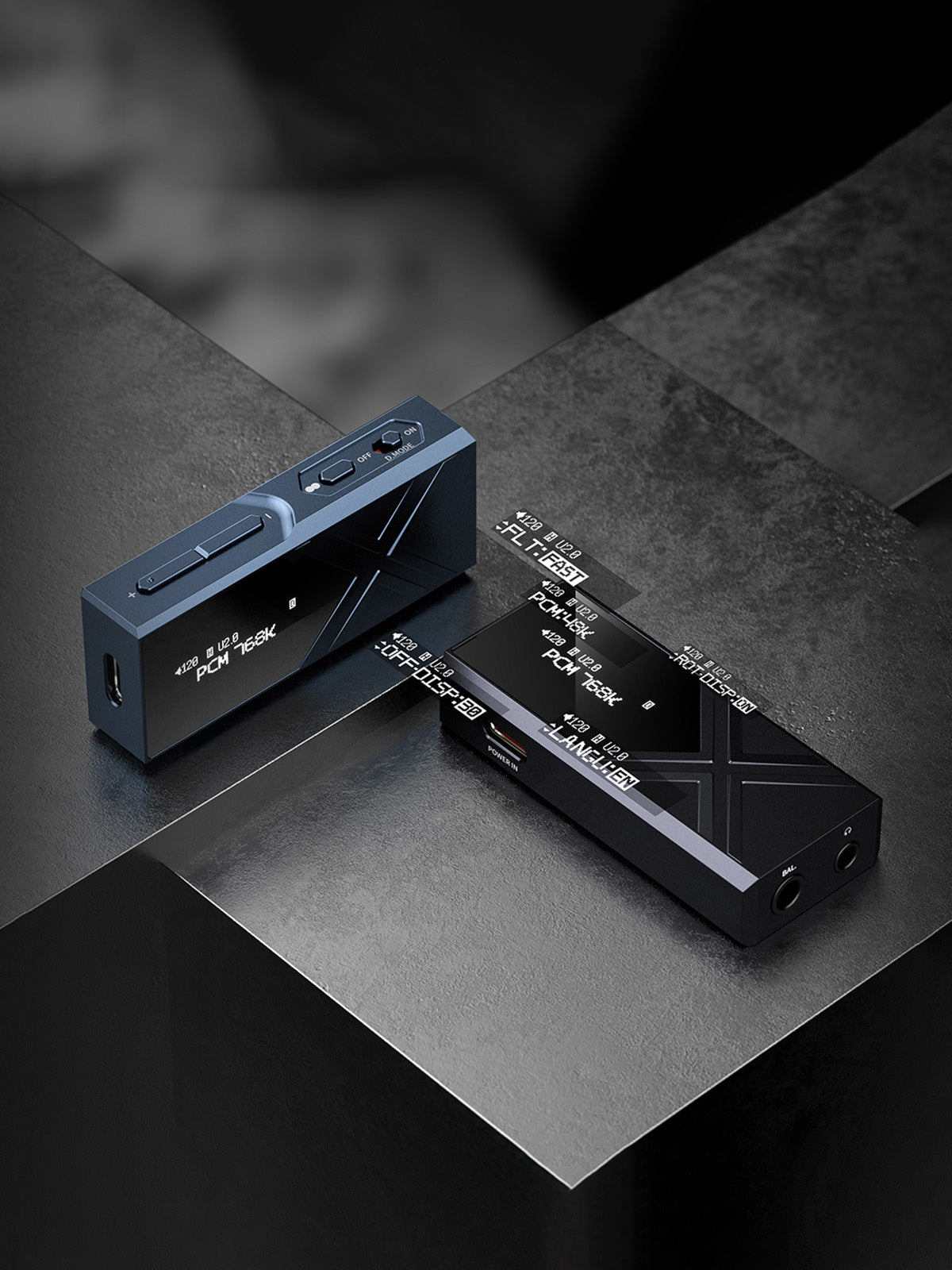

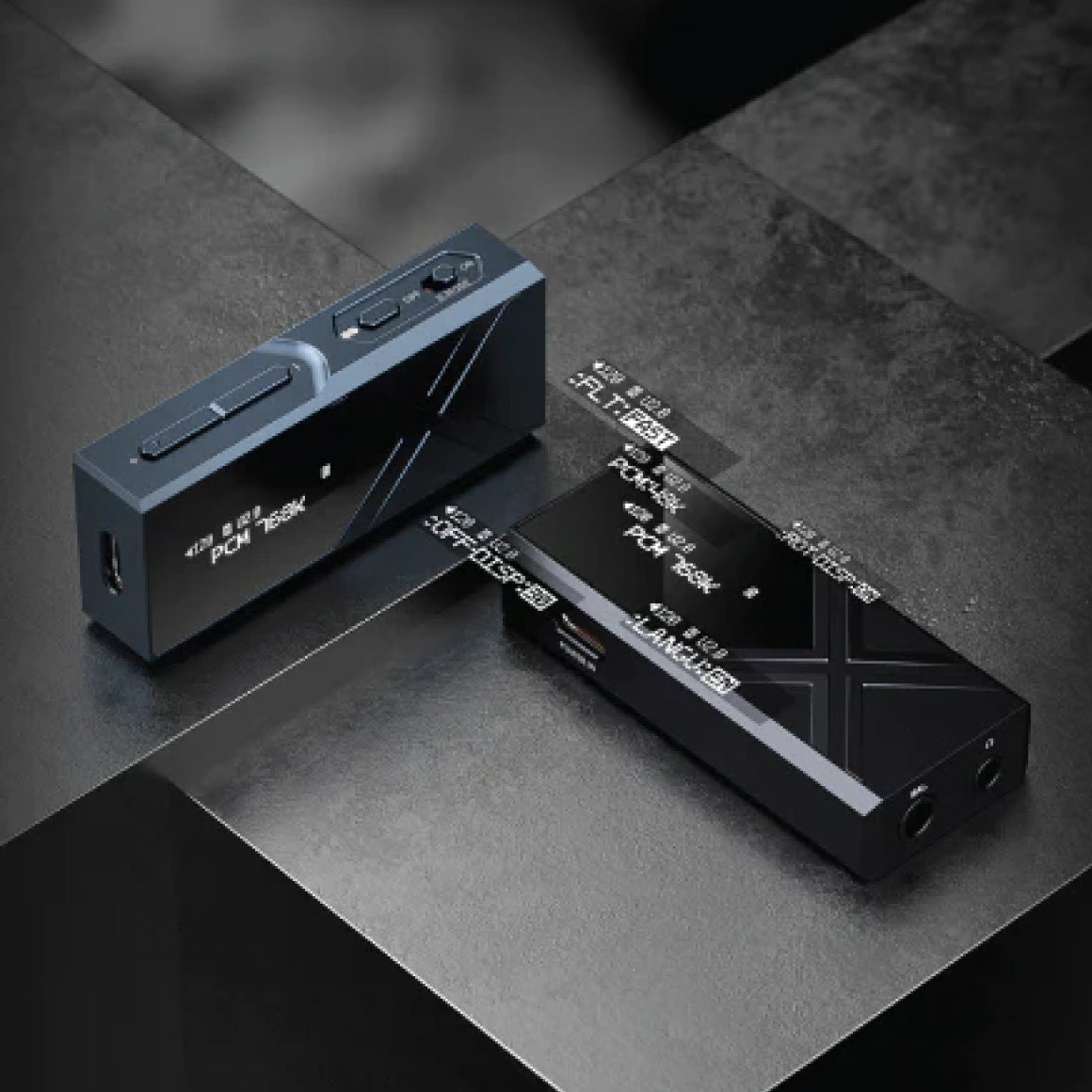

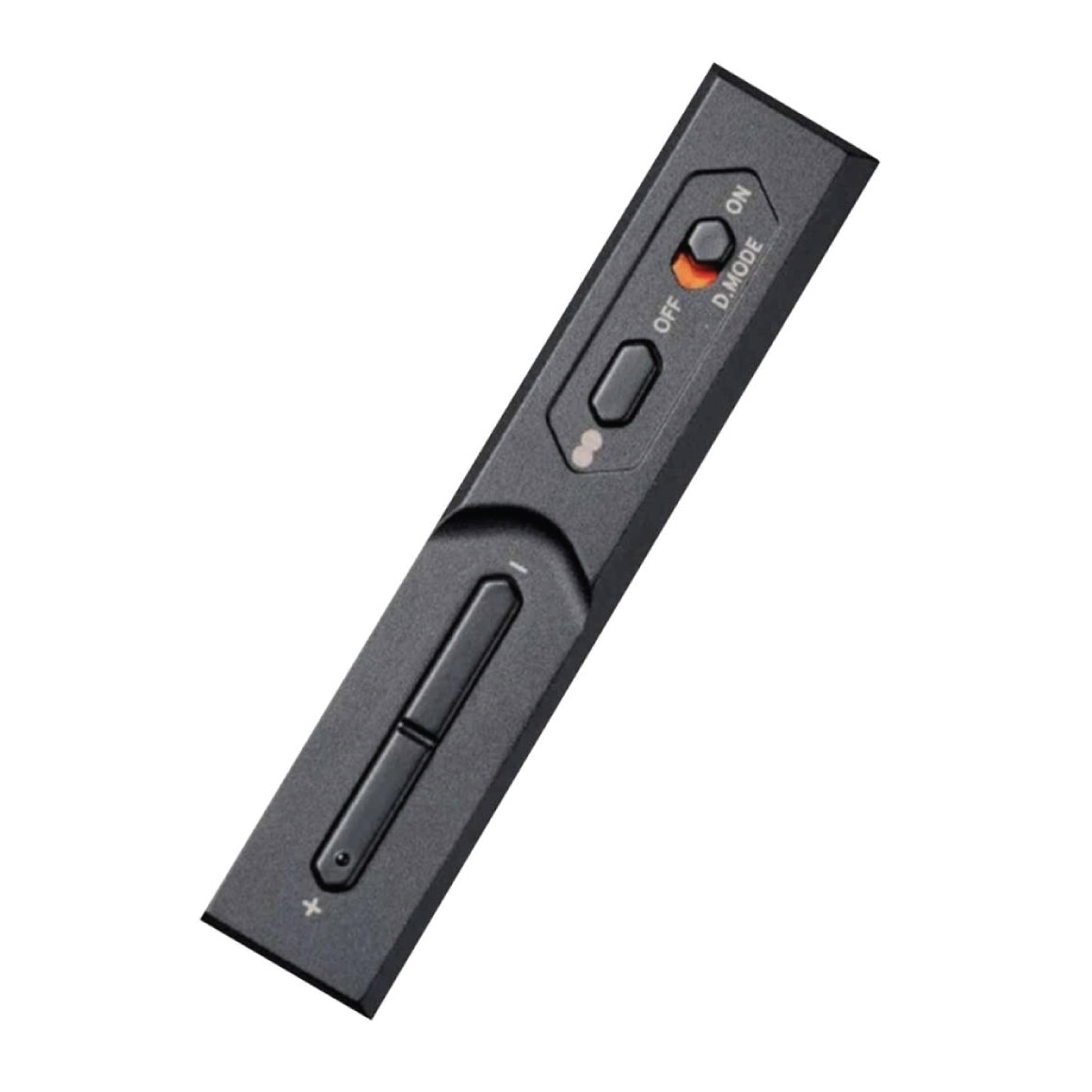

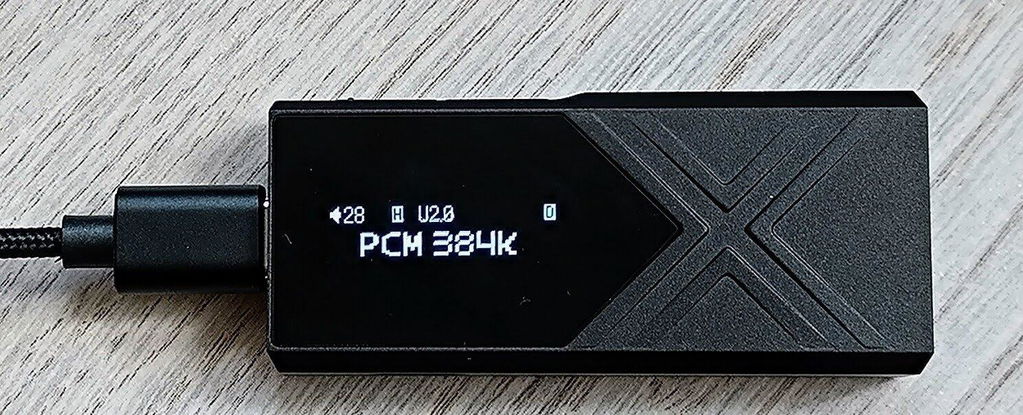

SHOWCASING AN AESTHETIC DESIGN WITH VARIOUS BUILT-IN FEATURES FOR CONVENIENCE

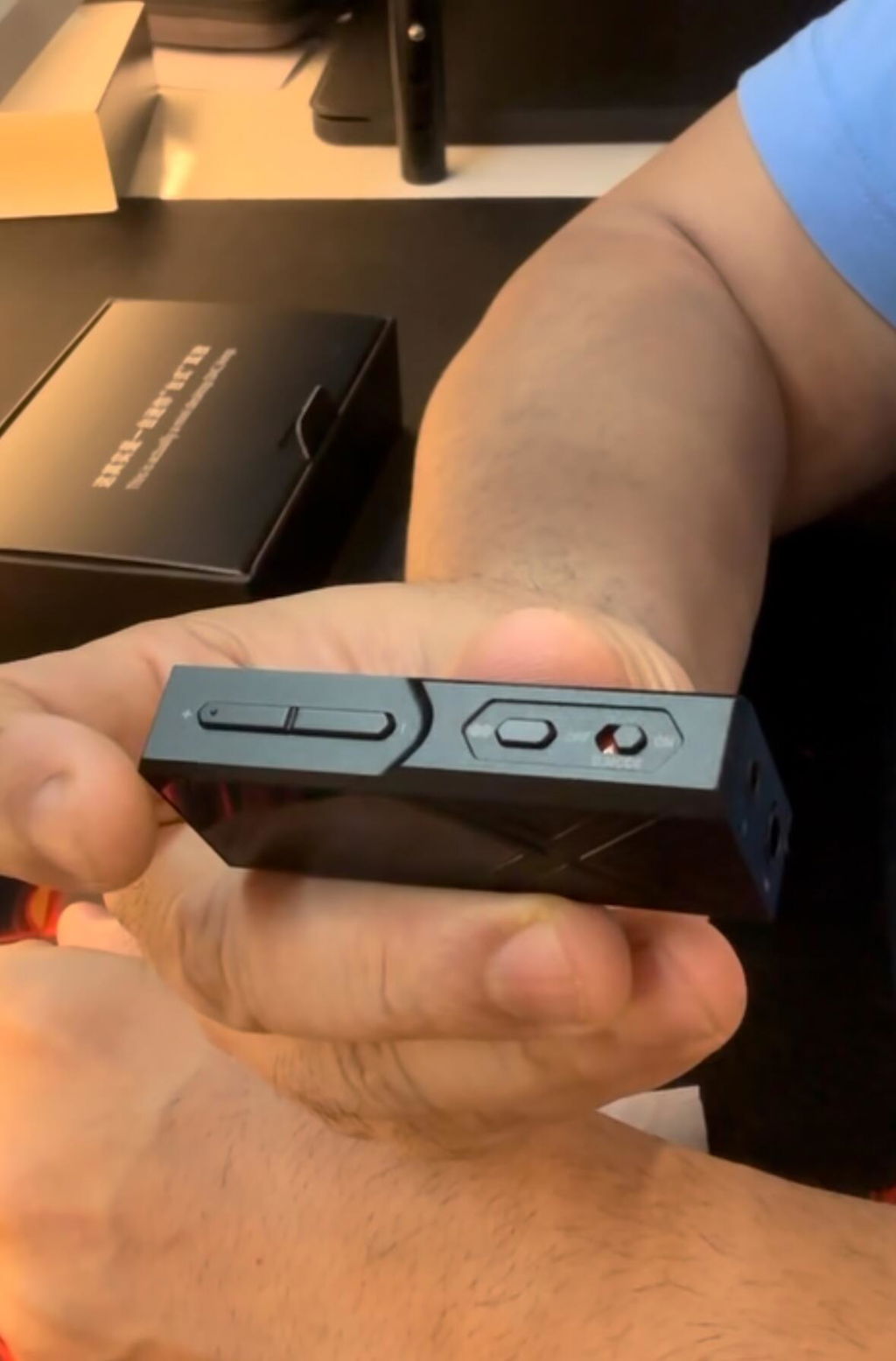

The design aesthetics of the FiiO KA17 features some convenient functions in the build, that not only serve its purpose as a portable device but also provide a classy feel in hand. The FiiO KA17 equips an intuitive dot-matrix display with a 0.91-inch control that can indicate different functions. The FiiO KA17 crafted with aluminium alloy chassis and coupled with physical buttons, allows you to efficiently customize various settings such as screen orientation, filters, adjust volume, sleep timer and many other functions. FiiO offers two colour variants - black and blue for the KA17, with a matching leather case that protects the device with style.
SPECS
| NAME/MODEL | KA17 |
| HARDWARE SOLUTION | DAC: ES9069Q*2, USB Decoding: XMOS XU316*1 |
| VOLUME CONTROL | Physical Buttons |
| WEIGHT | About 33.5g |
| DIMENSIONS | About 64×27.7×12.7mm |
| DRIVER-FREE MODE (SWITCH MODE) | Supported |
| DESKTOP MODE | Supported |
| MQA | Supported MQA Full Decoding |
| CHANNEL BALANCE | ＜0.2dB |
| GAIN LEVEL | L/H |
| STATUS DISPLAY | On The Display: Transfer Format, Volume Level, Gain Level, USB Mode, Sampling Rate, Etc. |
| DISPLAY | 0.91-inch OLED Display |
| FIRMWARE UPGRADE | Supports Upgrade Through USB |
| MAX SUPPORTED SAMPLING RATE | PCM: Supported Up To 768kHz/32bit DSD: Supported Up To SD512 (Native), DOP256 SPDIF: Supported Up To 96kHz/24bit |
| RECOMMENDED IMPEDANCE | PO: 8~150Ω
BAL: 8~300Ω |
| POWER SUPPLY | DC 5V ≥1A |
| BUTTON | Multifunction Button*1; Volume Up/Down*1 |
| USB | Type-C USB2.0 (Power Supply/Data Transfer)/USB Type-C POWER IN (Orange, Powering) |
| HEADPHONE OUTPUT | Standard 3.5mm Port (PO/Coaxial Out Shared) |
| BAL OUTPUT | Standard 4.4mm Port |
| TOGGLE SWITCH | Desktop Mode Switch*1 |
| OUTPUT POWER | L+R≥320mW+320mW (16Ω, THD+N＜1%) L+R≥270mW+270mW (32Ω, THD+N＜1%) L+R≥30mW +30mW (300Ω, THD+N＜1%) |
| THD+N & NOISE | ＜0.0015% (1kHz/-15dB@32Ω) |
| FREQUENCY RESPONSE | 20Hz~50kHz: damping＜0.5dB 20Hz~20KHz: damping＜0.1dB |
| OUTPUT IMPEDANCE | ＜1Ω |
| CROSSTALK | ≥75dB |
| OUTPUT AMPLITUDE | 3Vrms |
| SNR | ≥123dB (A-weighted) |
| NOISE FLOOR | ＜2.1uV (A-weighted) |
| OUTPUT POWER | L+R≥460mW+460mW (16Ω, THD+N＜1%) L+R≥650mW+650mW (32Ω, THD+N＜1%) L+R≥90mW+90mW (300Ω, THD+N＜1%) |
| THD+N | ＜0.0004% (1kHz/-8dB@32Ω) |
| FREQUENCY RESPONSE | 20Hz~50kHz: damping＜0.5dB 20Hz~20KHz: damping＜0.1dB |
| OUTPUT IMPEDANCE | ＜1.5Ω |
| CROSSTALK | ≥114dB |
| OUTPUT AMPLITUDE | 4.5Vrms |
| SNR | ≥126dB (A-weighted) |
| NOISE FLOOR | ＜2.2uV (A-weighted) |
| OUTPUT POWER | L+R≥110mW+110mW (16Ω, THD+N＜1%) L+R≥140mW+140mW (32Ω, THD+N＜1%) L+R≥20mW +20mW (300Ω, THD+N＜1%) |
| THD+N | ＜0.0015% (1kHz/-10dB@32Ω) |
| FREQUENCY RESPONSE | 20Hz~50kHz: damping＜0.5dB 20Hz~20KHz: damping＜0.1dB |
| OUTPUT IMPEDANCE | ＜1Ω |
| CROSSTALK | ≥80dB |
| OUTPUT AMPLITUDE | 2Vrms |
| SNR | ≥120dB (A-weighted) |
| NOISE FLOOR | ＜2.0uV (A-weighted) |
| OUTPUT POWER | L+R≥150mW+150mW (16Ω, THD+N＜1%) L+R≥300mW+300mW (32Ω, THD+N＜1%) L+R≥30mW+30mW (300Ω, THD+N＜1%) |
| THD+N | ＜0.0005% (1kHz/-3.5dB@32Ω) |
| FREQUENCY RESPONSE | 20Hz~50kHz: damping＜0.5dB 20Hz~20KHz: damping＜0.1dB |
| OUTPUT IMPEDANCE | ＜1.5Ω |
| CROSSTALK | ≥110dB |
| OUTPUT AMPLITUDE | 3Vrms |
| SNR | ≥120dB (A-weighted) |
| NOISE FLOOR | ＜2.2uV (A-weighted) |

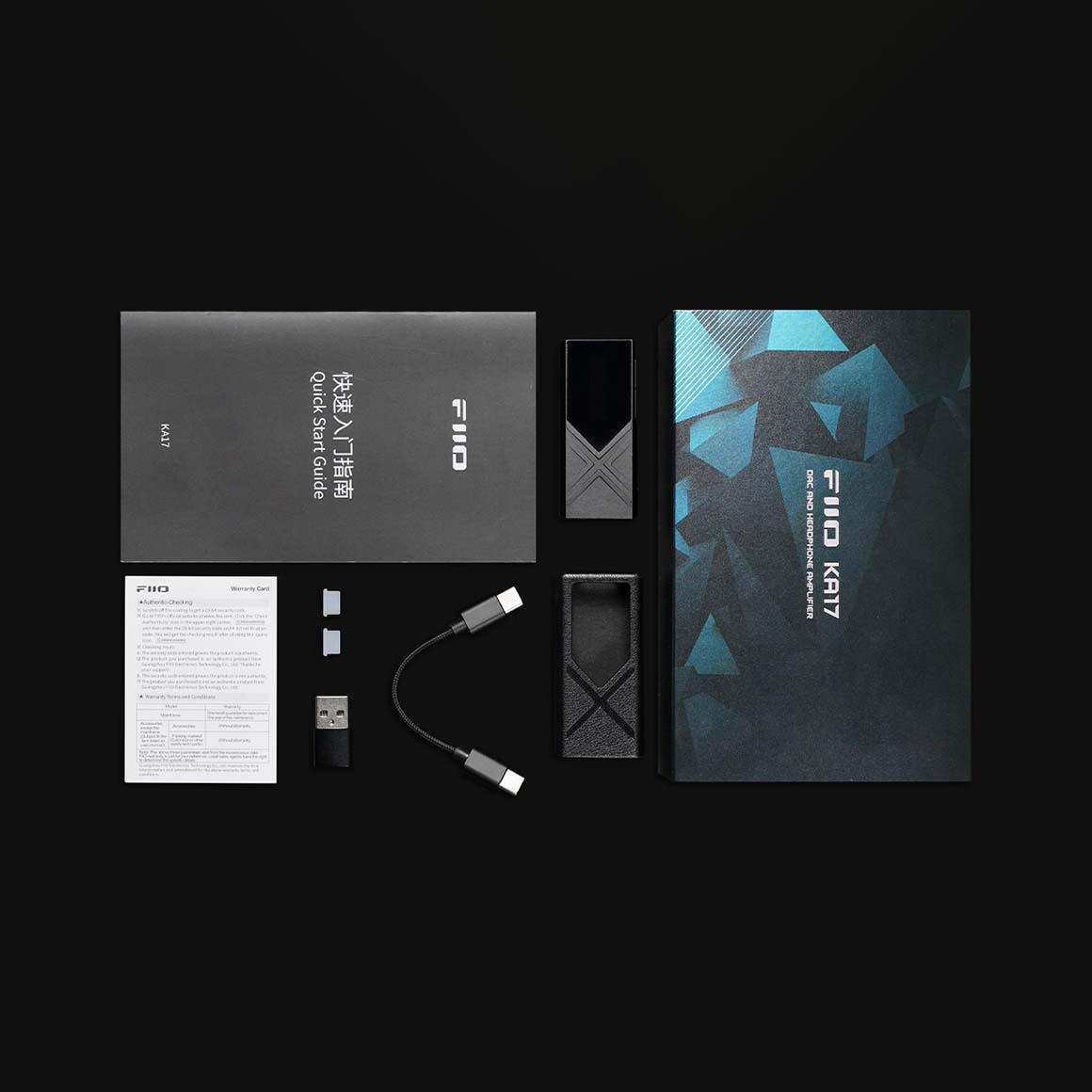

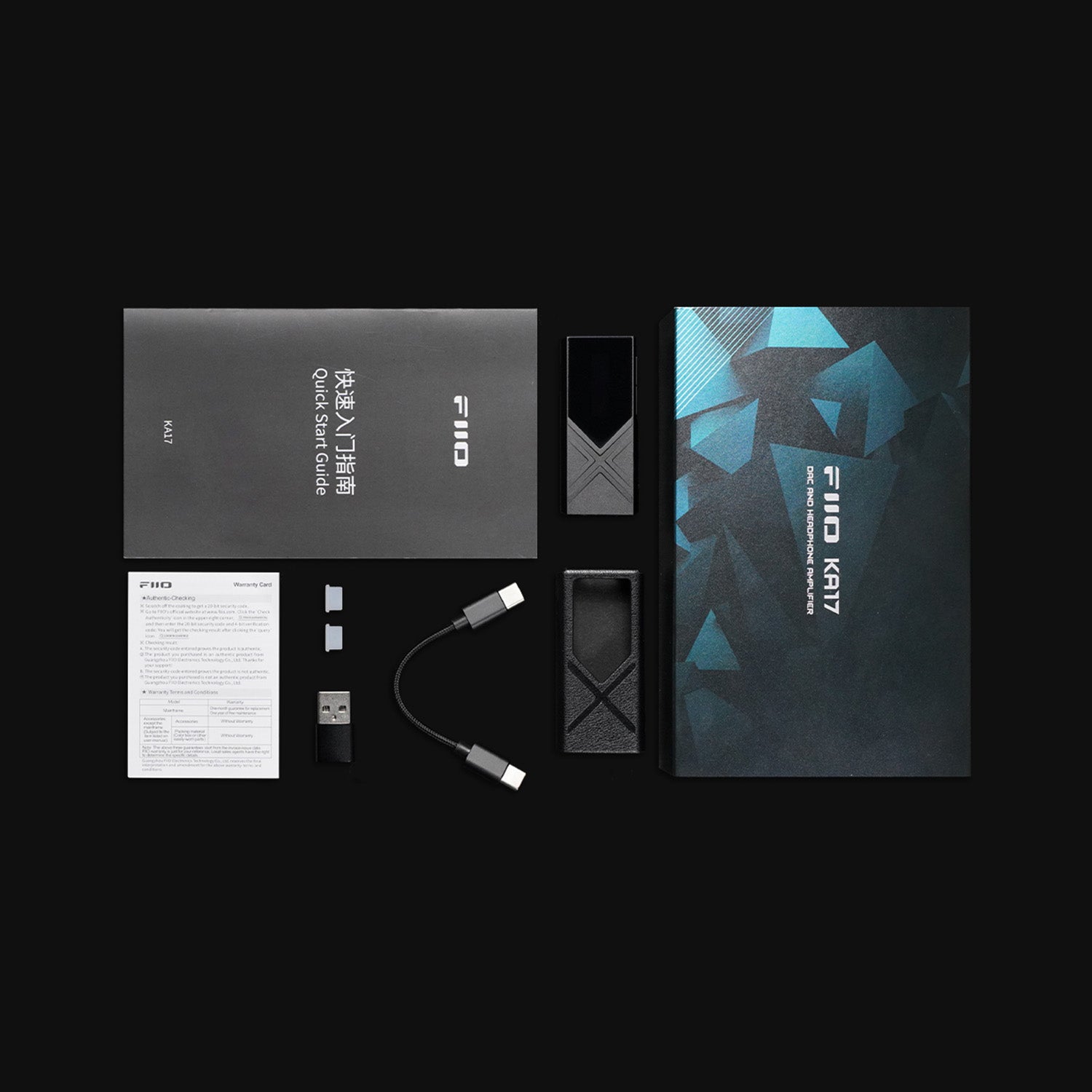

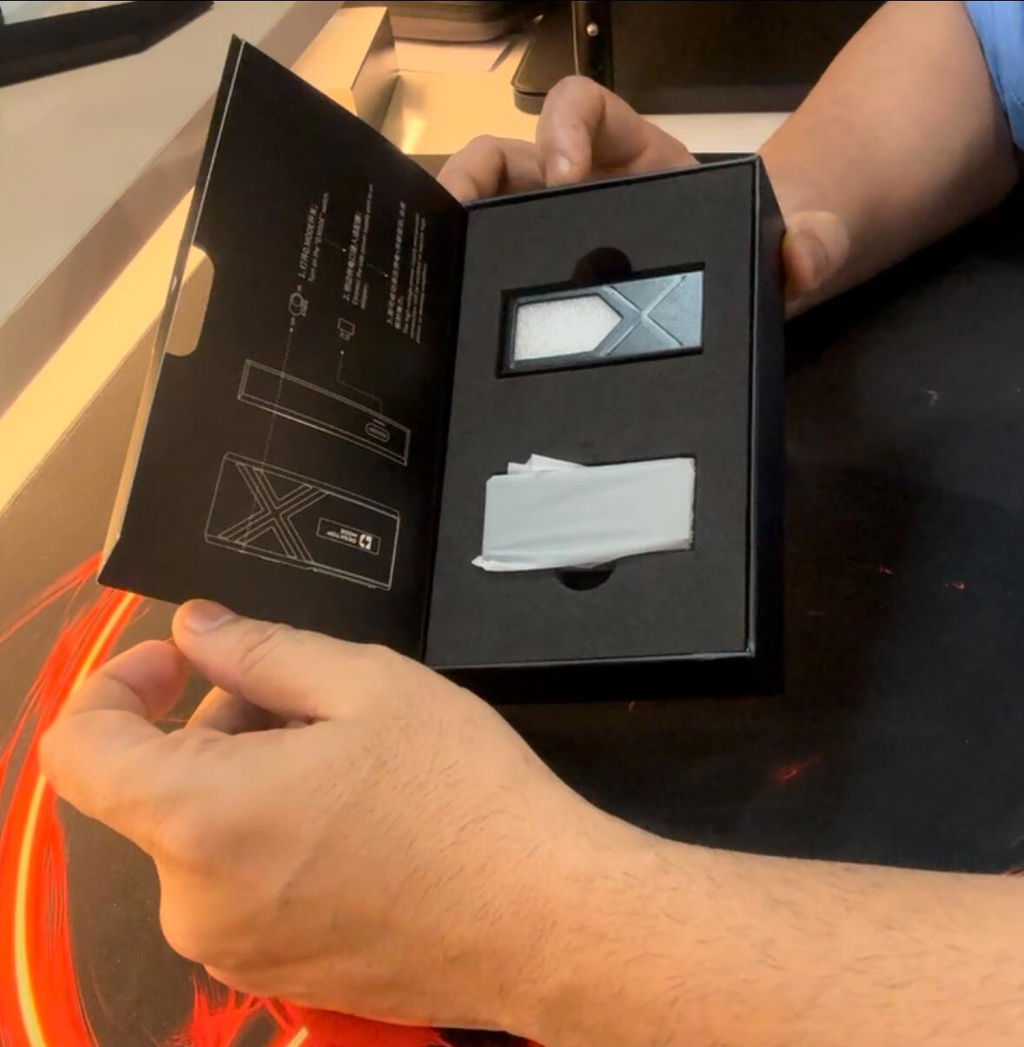

| BOX CONTENTS | 1. FiiO KA17 |
| 2. Dual Type-C to OTG Short Data Cable*1 | |
| 3. USB Dustproof Plug Cover*2 | |
| 4. USB Type A-C adapter*1 | |
| 5. Quick start guide*1 | |

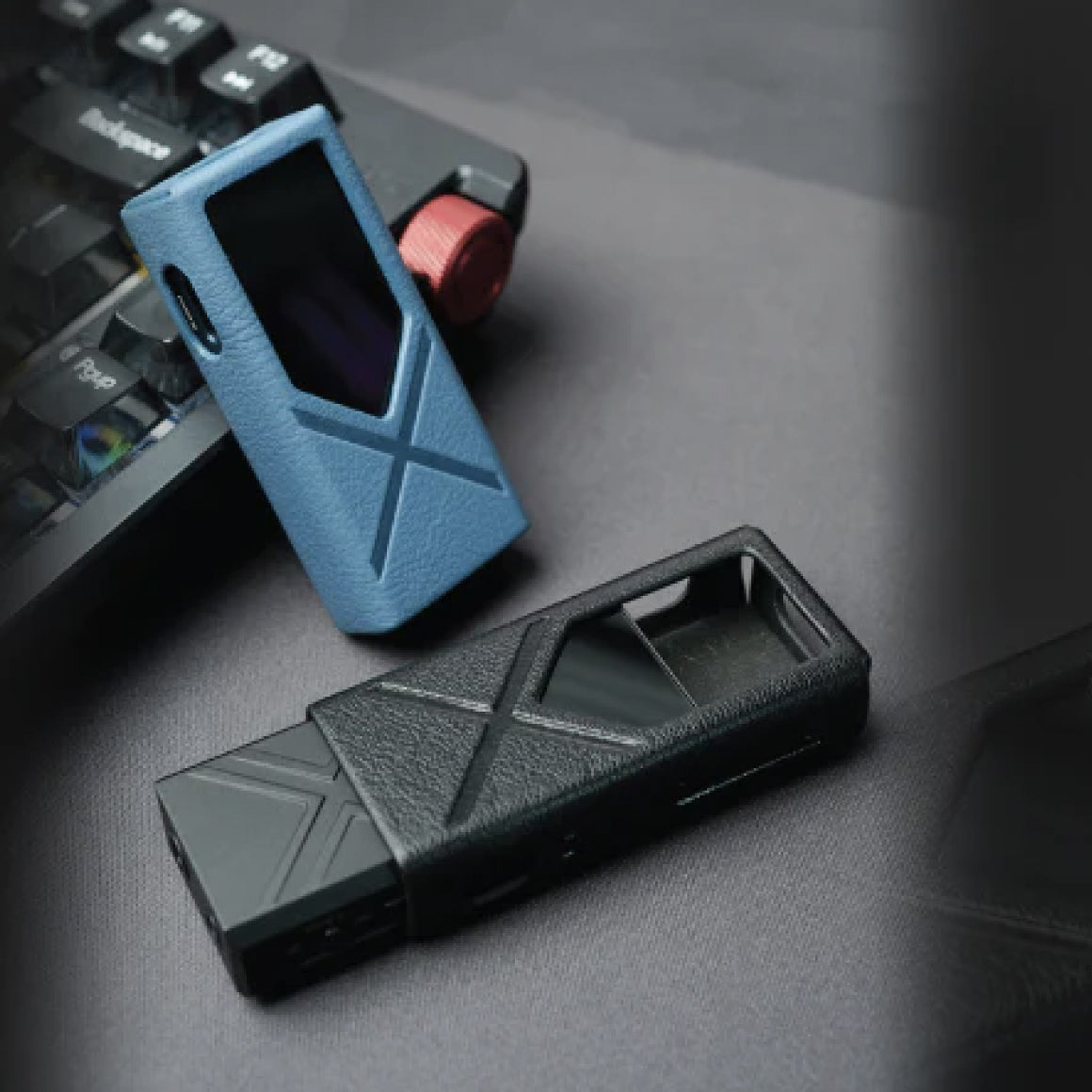

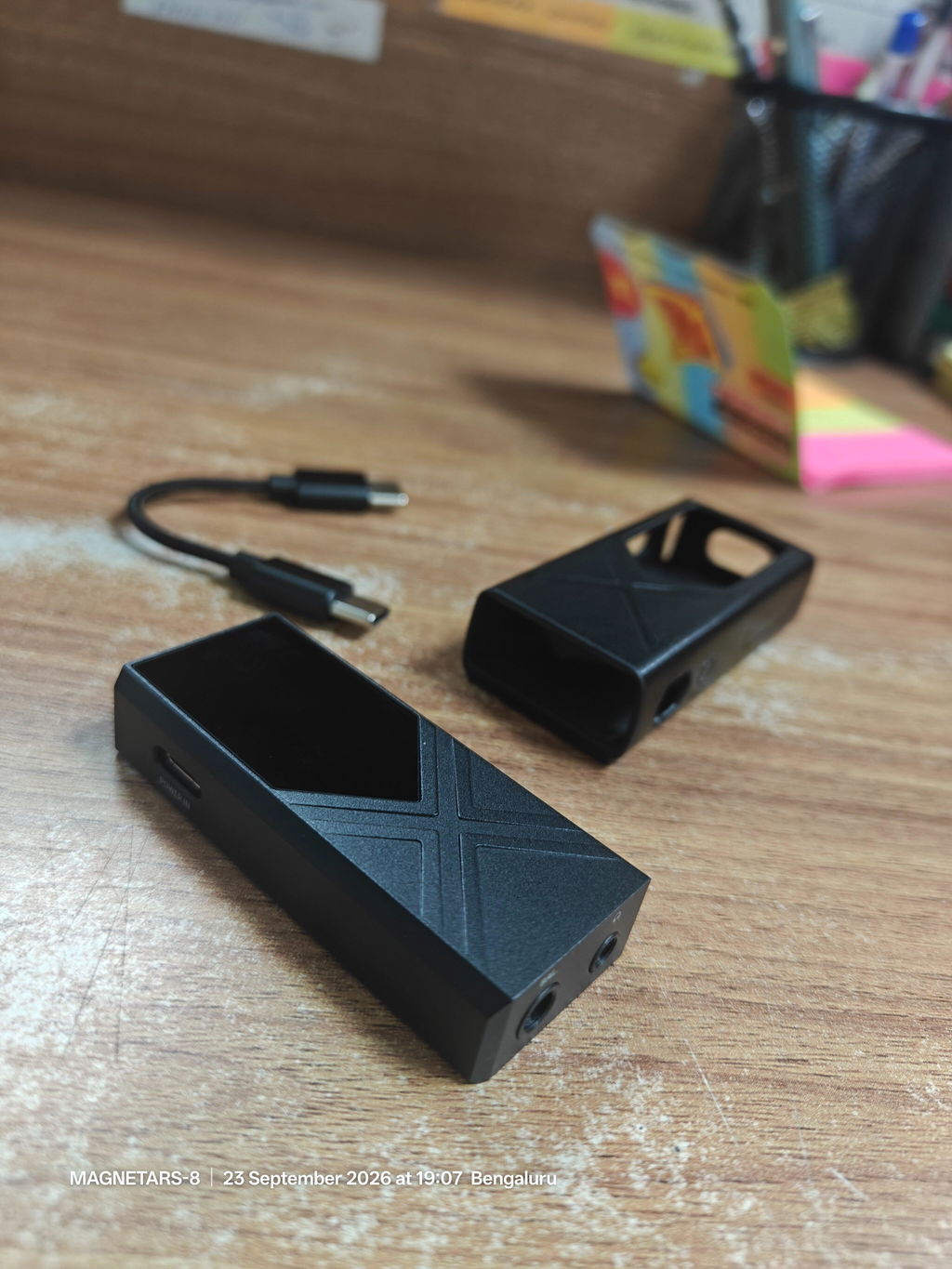

| 6. Leatherette Case*1 | |
| 7. Warranty Card*1 |
| GENERIC NAME | Headphone Amplifier |
| IMPORTER DETAILS | Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
User Manual | KA17
Portable USB DAC & Amp
|
FIIO PRESENTS THE ALL-NEW AND UPGRADED PORTABLE DAC & AMP - THE FIIO KA17
FiiO launches the all-new portable DAC & Amp, the KA17, equipped with dual channel flagship ES9069Q DAC chipset. This portable DAC & Amp also features a robust desktop mode with 650mW+650mW output, efficiently providing power to most IEMs and headphones. Along with this, FiiO KA17 is incorporated with a professional grade XMOS 16 core XU316 processor and allows ten-segment high-precision PEQ adjustments to tune to your preferred style. FiiO has equipped a fully balanced THX AAA 78 amp circuit in the KA17. It features an anti-crosstalk design to separate digital and analogue boards to ensure accuracy and preserve the dynamics of the original audio signal. These are some feature sets that FiiO brings to the table with the KA17.
EXCELLENT AUDIO PERFORMANCE WITH THE FLAGSHIP ESS SABRE ES9069Q DUAL DAC CHIPSET UNIT
The FiiO KA17 showcases the new ESS ES9069Q flagship dual DAC chipset. This DAC chip unit is powered by the fourth-generation HyperStream modular technology that processes 32-bit audio data. FiiO KA17 provides better performance with this DAC chipset, lowering the power consumption and digital noise compared to the previous generation DAC chips. The dual ES9069Q DAC chipset supplies power in a four-way core design, which results in excellent performance in delivering DNR of 130dB and THD+N up to 120dB in the sound produced to you. The ESS Sabre developed DAC chipset has a day output resistance of 39ohms and supports hardware and TDM mode.
FEATURING THE ALL-NEW THX AAA 78+ HEADPHONE AMPLIFICATION TO DELIVER REFINED SOUND
The compact yet elegant FiiO KA17 aims to deliver pure and refined sound in your music, hence it equips the all-new THX AAA 78+ headphone amp design. The THX AAA 78 headphone amp proved its capability in the mid to high-end M11 Pro and M11 plus players. FiiO featured the upgraded THX AAA 78+ in the KA17 for elevated sound delivery in your audio. The THX AAA 78+ amp design in the KA17 works in conjunction with the eight op-amps in a 4-channel fully balanced configuration, allowing greater power output and more detailed and realistic sound. The FiiO KA17 delivers powerful, clean, and accurate audio to your IEMs and headphones with this high-end sound processing factory, the THX AAA 78+ headphone amp.
EQUIPPED WITH AUDIOPHILE-GRADE 16 CORE XMOS XU316 FOR OUTSTANDING DATA PROCESSING CAPABILITY
FiiO has engineered the processing core of the KA17 with the audiophile-grade 16-core XMOS XU316 integrated circuit. This processing circuit handles the USB duties in the KA17, which is not embedded in many audio dongles. FiiO is equipped with XMOS XU316 chipset, aiming to provide lower latency and deliver a stable signal transmission. This chipset offers lower latency, more stable audio transference and better compatibility, supporting up to 768kHz/32bit, native DSD512 decoding, and MQA full decoding. This chipset also aims to provide better compatibility than usually implemented USB control chipsets. The FiiO KA17, featuring the XMOS XU316 and paired with dual crystal oscillators, is qualified to process data from various digital audio sources with different sampling rates. The FiiO KA17 aims to deliver outstanding processing performance with this circuit design.
TEN-LEVEL HIGHLY PRECISE PEQ ADJUSTMENT ALLOWS YOU TO CUSTOMISE TO YOUR PREFERRED LISTENING PREFERENCE
FiiO featured the XMOS XU316 chipset in the KA17, which unlocked the possibility of developing precise PEQ adjustment settings with ten customisable frequency bands in your KA17. This self-developed PEQ algorithm and interface of FiiO in the KA17 allows you to fine-tune the frequency, gain levels and bandwidth of each PEQ band, permitting you to dial in the sound you prefer to listen to your music. The PEQ adjustment supports up to PCM 192kHz/24bit formatting. The FiiO KA17 offers exceptional sound personalisation options with this feature to elevate your music listening experience.
MULTISTAGE AUDIO CIRCUIT WITH 4.4 BALANCED OUTPUT AND SEPARATE DIGITAL AND ANALOG BOARDS FOR BETTER PERFORMANCE
FiiO has featured a 4.4mm balanced output that works well with the audio circuits in the KA17, providing a high-fidelity listening experience. Along with LPF voltage amplification, BUF current expansion and the upgraded THX AAA 78+ working together, the KA17 can reproduce the detail and dynamics in your music just like a dedicated digital audio player. The FiiO engineers have also featured separate digital and analogue boards and each circuit board is placed separately with a shielding cover for total isolation. This layout ensures that the digital and analogue portions of the audio circuit do not interfere with each other, enabling accurate processing of audio signals.
FURNISHED WITH A 3-STAGE, 10-RAIL ROBUST POWER-SUPPLY CIRCUIT IN A COMPACT DESIGN
Fiio KA17 has a robust power supply in a compact design. It is assembled in a three-main stage design. The initial stage consists of filtering coupled with overvoltage protection, the second stage works on DC-DC conversion and the third stage delivers LDO voltage stabilization. Each stage works on specific aspects of the audio circuit, which are digital conversion, digital-to-analogue conversion, and analogue signal conversion. The power supply is subsided into ten smaller rails, like the ones found in desktop headphone amplifiers, to ensure resilience and high-quality sound output.
FEATURES A USB TYPE C PORT AND SPDIF OUTPUT FOR INDEPENDENT POWER SUPPLY
FiiO features two USB Type-C ports for independent power supply in the KA17. One is the typical port used to connect to other devices such as phones, tablets and computers. The orange port on the side is provided for an external power supply. When an external power supply is connected to this port, the KA17 can achieve higher power output and better performance without consuming the battery of your phone or other connected device. FiiO has also featured SPDIF output in the KA17 supported by the 3.5mm headphone jack, with which you can transform it into a digital jukebox. The SPDIF output supports a 96kHz/32bit sample rate. You can connect to an external high-end DAC for flexibility and better sound quality. With sufficient USB power supply input and desktop mode enabled, the KA17's four THX headphone amps work together parallelly for more significant current and overall power output. The result is up to 270mW+270mW power output for single-ended out and up to 650mW+650mW power output for balanced out.
PROVISIONED WITH DESKTOP MODE, UAC1.0 DRIVER-FREE MODE AND ANDROID FIIO CONTROL APPLICATION SUPPORT
The FiiO KA17 features desktop mode, taking your jamming sessions to the next level. The desktop mode is refined with the release of various products, such as the portable yet desktop-grade M17, Q7, M15S, Q15 and KA13. And now the perfected desktop mode has found its way to the KA17. The FIIO KA17 features a special desktop mode, activated using the dedicated D.Mode switch. Enable the desktop mode, and the KA17 will automatically adjust the DAC, amplifier power supply, and amplifier power output to unleash the potential with greater power output. The FiiO KA17 also supports the Android FiiO control App. FiiO has also featured a UAC1.0 Driver-free mode, which allows you to plug in and enjoy your gaming sessions. The FiiO Control App's control over KA17 is supported only on Android Devices. To download the app click here.
SHOWCASING AN AESTHETIC DESIGN WITH VARIOUS BUILT-IN FEATURES FOR CONVENIENCE
The design aesthetics of the FiiO KA17 features some convenient functions in the build, that not only serve its purpose as a portable device but also provide a classy feel in hand. The FiiO KA17 equips an intuitive dot-matrix display with a 0.91-inch control that can indicate different functions. The FiiO KA17 crafted with aluminium alloy chassis and coupled with physical buttons, allows you to efficiently customize various settings such as screen orientation, filters, adjust volume, sleep timer and many other functions. FiiO offers two colour variants - black and blue for the KA17, with a matching leather case that protects the device with style.
| NAME/MODEL | KA17 |
| HARDWARE SOLUTION | DAC: ES9069Q*2, USB Decoding: XMOS XU316*1 |
| VOLUME CONTROL | Physical Buttons |
| WEIGHT | About 33.5g |
| DIMENSIONS | About 64×27.7×12.7mm |
| DRIVER-FREE MODE (SWITCH MODE) | Supported |
| DESKTOP MODE | Supported |
| MQA | Supported MQA Full Decoding |
| CHANNEL BALANCE | ＜0.2dB |
| GAIN LEVEL | L/H |
| STATUS DISPLAY | On The Display: Transfer Format, Volume Level, Gain Level, USB Mode, Sampling Rate, Etc. |
| DISPLAY | 0.91-inch OLED Display |
| FIRMWARE UPGRADE | Supports Upgrade Through USB |
| MAX SUPPORTED SAMPLING RATE | PCM: Supported Up To 768kHz/32bit DSD: Supported Up To SD512 (Native), DOP256 SPDIF: Supported Up To 96kHz/24bit |
| RECOMMENDED IMPEDANCE | PO: 8~150Ω
BAL: 8~300Ω |
| POWER SUPPLY | DC 5V ≥1A |
| BUTTON | Multifunction Button*1; Volume Up/Down*1 |
| USB | Type-C USB2.0 (Power Supply/Data Transfer)/USB Type-C POWER IN (Orange, Powering) |
| HEADPHONE OUTPUT | Standard 3.5mm Port (PO/Coaxial Out Shared) |
| BAL OUTPUT | Standard 4.4mm Port |
| TOGGLE SWITCH | Desktop Mode Switch*1 |
| OUTPUT POWER | L+R≥320mW+320mW (16Ω, THD+N＜1%) L+R≥270mW+270mW (32Ω, THD+N＜1%) L+R≥30mW +30mW (300Ω, THD+N＜1%) |
| THD+N & NOISE | ＜0.0015% (1kHz/-15dB@32Ω) |
| FREQUENCY RESPONSE | 20Hz~50kHz: damping＜0.5dB 20Hz~20KHz: damping＜0.1dB |
| OUTPUT IMPEDANCE | ＜1Ω |
| CROSSTALK | ≥75dB |
| OUTPUT AMPLITUDE | 3Vrms |
| SNR | ≥123dB (A-weighted) |
| NOISE FLOOR | ＜2.1uV (A-weighted) |
| OUTPUT POWER | L+R≥460mW+460mW (16Ω, THD+N＜1%) L+R≥650mW+650mW (32Ω, THD+N＜1%) L+R≥90mW+90mW (300Ω, THD+N＜1%) |
| THD+N | ＜0.0004% (1kHz/-8dB@32Ω) |
| FREQUENCY RESPONSE | 20Hz~50kHz: damping＜0.5dB 20Hz~20KHz: damping＜0.1dB |
| OUTPUT IMPEDANCE | ＜1.5Ω |
| CROSSTALK | ≥114dB |
| OUTPUT AMPLITUDE | 4.5Vrms |
| SNR | ≥126dB (A-weighted) |
| NOISE FLOOR | ＜2.2uV (A-weighted) |
| OUTPUT POWER | L+R≥110mW+110mW (16Ω, THD+N＜1%) L+R≥140mW+140mW (32Ω, THD+N＜1%) L+R≥20mW +20mW (300Ω, THD+N＜1%) |
| THD+N | ＜0.0015% (1kHz/-10dB@32Ω) |
| FREQUENCY RESPONSE | 20Hz~50kHz: damping＜0.5dB 20Hz~20KHz: damping＜0.1dB |
| OUTPUT IMPEDANCE | ＜1Ω |
| CROSSTALK | ≥80dB |
| OUTPUT AMPLITUDE | 2Vrms |
| SNR | ≥120dB (A-weighted) |
| NOISE FLOOR | ＜2.0uV (A-weighted) |
| OUTPUT POWER | L+R≥150mW+150mW (16Ω, THD+N＜1%) L+R≥300mW+300mW (32Ω, THD+N＜1%) L+R≥30mW+30mW (300Ω, THD+N＜1%) |
| THD+N | ＜0.0005% (1kHz/-3.5dB@32Ω) |
| FREQUENCY RESPONSE | 20Hz~50kHz: damping＜0.5dB 20Hz~20KHz: damping＜0.1dB |
| OUTPUT IMPEDANCE | ＜1.5Ω |
| CROSSTALK | ≥110dB |
| OUTPUT AMPLITUDE | 3Vrms |
| SNR | ≥120dB (A-weighted) |
| NOISE FLOOR | ＜2.2uV (A-weighted) |
| BOX CONTENTS | 1. FiiO KA17 |
| 2. Dual Type-C to OTG Short Data Cable*1 | |
| 3. USB Dustproof Plug Cover*2 | |
| 4. USB Type A-C adapter*1 | |
| 5. Quick start guide*1 | |

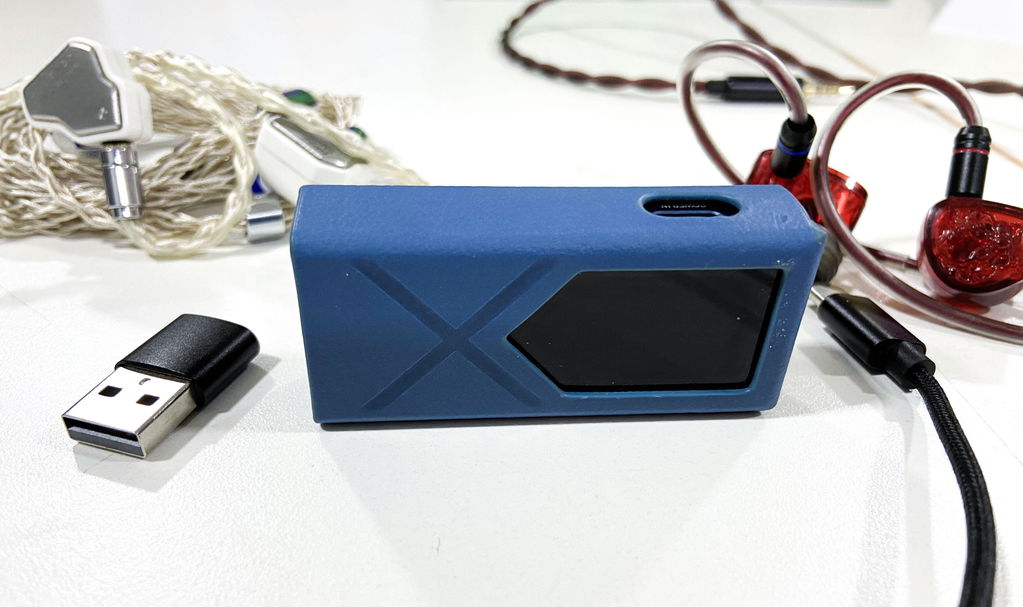

| 6. Leatherette Case*1 | |
| 7. Warranty Card*1 |
| GENERIC NAME | Headphone Amplifier |
| IMPORTER DETAILS | Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
|
User Manual | KA17
Portable USB DAC & Amp
|
Don't sweat it, this
FiiO - KA17 comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
"perfect quality of workmanship, excellent sound,dynamics and consistency of sound,sound stage,number of functions High Price performance ratio Good dynamics Very good synergy with warm and neutral IEMs/Headphones"
Read MoreHave a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is the warranty period on the FiiO KA17 and how do I claim warranty?
What role does the XMOS XU316 chipset play in the FiiO KA17?
How does the PEQ adjustment feature enhance the listening experience with the FiiO KA17?
What amplification technology does the FiiO KA17 employ?
What should I do if the FiiO KA17 works abnormally?
How does the FiiO KA17 provide flexibility in power supply and connectivity?
1.Poor connection issue:
1.Please reconnect the USB power and replug the headphones to use it.
2.3.5mm headphone out no output:1.The SPDIF output may be turned on: you can set SPDIF to OFF in the menu to check again.
3.SPDIF out no output:
1.SPDIF out is not supported when EQ is on. If the spdif out has no output, please set EQ to off in the menu.
The following are some other abnormal tips that may appear in FiiO KA17:
If the display shows 'Output error', the FiiO KA17 will stop outputting. Please disconnect the USB power supply, unplug the headphones, and then reconnect the USB power and replug the headphones to use it.
2.If the display shows 'Over temperature', the FiiO KA17 is overheating abnormally. Please disconnect the USB power supply and try again after it cools down. It is suggested to enable the Desktop mode in non-high temperature environments.
3.If the display shows 'Powerless', it means that the power supply of the current USB port is insufficient and the output power is limited.
What special modes and application support does the FiiO KA17 offer?
This product has no reviews yet.
