PRESENTING THE FIRST-EVER COLLABORATION BETWEEN 7HZ X CRINACLE - THE SALNOTES DIOKO
7HZ is a brand founded in 2012 by a team of engineers and audio enthusiasts who came together to break into the realm of audio products. The engineers at 7HZ strive to provide effective setups, enhancing drivers' inherent skills and pushing their limits to make them shine. 7HZ Timeless brought in a revolution as it was the first-ever Planar IEM from the company that was tuned to perfection. The most unbiased IEM and headphone reviewer, who goes by the name Crinacle, is well known to audiophiles. His collaboration with 7HZ is here to astound you. Crinacle is a well-known reviewer and critic in the audio industry who maintains a database of more than 1000+ tested and measured IEMs online. With the launch of the new 7HZ Crinacle Salnotes Dioko, 7Hz has now joined the list of companies that Crinacle has collaborated with, including Moondrop, FiiO, Courageous Audio, and Witness Audio to name a few.



14.6MM DUAL-CAVITY PLANAR DIAPHRAGM DRIVER TUNED BY CRINACLE TO DELIVER BALANCED AUDIO ACROSS THE FREQUENCY SPECTRUM
The 7HZ Crinacle Salnotes Dioko earphone is a cost-effective performer with a newly created 14.6mm dual-cavity planar diaphragm driver. This planar magnetic diaphragm has been developed and engineered to utilise the most effective ribbon distribution and magnetic circuit structure for a precise sound. The planar magnetic diaphragm driver's speed creates an audiophile sound character and provides astounding clarity and detail in every note. The 14.6mm diaphragm size further increases the surface area to reduce harmonic distortion, enabling audio resolution at all volume levels. A superb driver cannot provide exceptional sound without the proper tuning. Because of this, 7HZ and renowned audio reviewer Crinacle have collaborated to bring in the precisely tuned 7HZ Crinacle Salnotes Dioko. Crinacle is a pioneer in the Hi-Fi audio industry and has the most expertise in fine-tuning measurements in in-ear monitors. An integrative tuning method has been incorporated in 7HZ Crinacle Salnotes Dioko to offer tonal balance throughout the frequency range.


STRUCTURAL TUNING MECHANICS COUPLED WITH N55 MAGNET, DOUBLE-SIDED ARRAY DESIGNED FOR PROFESSIONAL AND STUDIO USAGE
The highest performing N55 magnet is incorporated in the 7HZ Crinacle Salnotes Dioko driver's double-sided array arrangement. This powerful magnet maximises the effective magnetic flux to more efficiently drive the current when combined with developed magnetic circuit construction. The Salnotes Dioko delivers a tight, organic, and transparent sound. The Dioko's bass is powerful yet keeps a balanced midrange for monitor-like precision thanks to structural tuning mechanisms. The Salnotes Dioko's treble is organic, but it also fully embodies the planar driver's attributes of flawless detail presentation and airiness. The Salnotes Dioko's tuning is based on Crinacle's description of a natural and balanced earphone, making it ideal for studio and professional use. The versatility of 7HZ Crinacle Salnotes Dioko will also please the most demanding audiophiles as it presents a coherent and cohesive approach for audio delivery.

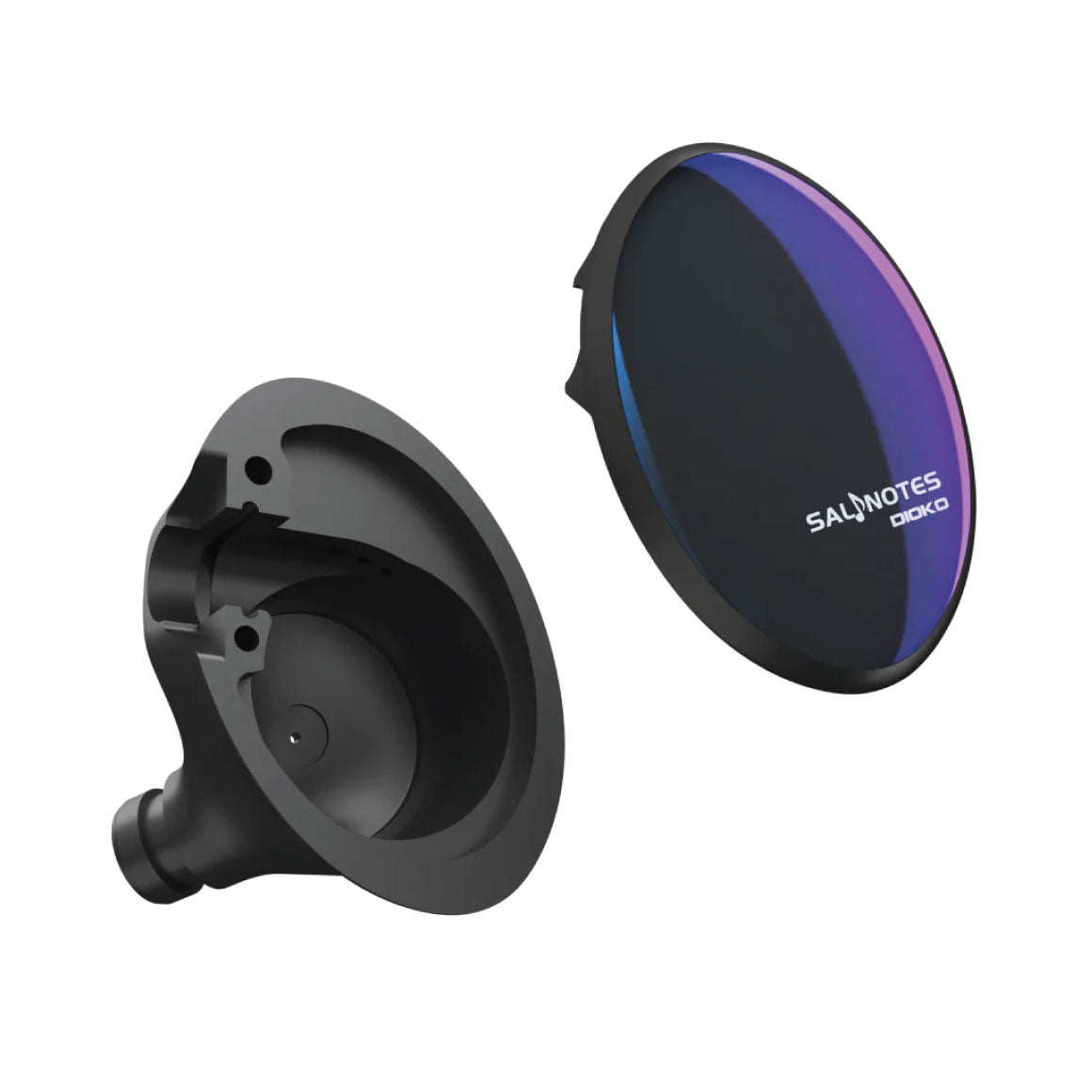

ELEGANT LOOKS WITH TEMPERED GLASS & SAPPHIRE COATING COUPLED WITH FINE-TUNED CNC-MACHINED ALUMINUM SHELL
7Hz IEMs have had attractive visuals, such as the well-known 7Hz Timeless and Eternal. The 7HZ Crinacle Salnotes Dioko continues in the same vein and is the definition of beauty and elegance. It has tempered glass, and its surface has a sapphire coating and anti-fingerprint treatment. In addition to being durable and drop-proof, it also possesses a beautiful jewellery-like attractiveness. The 7HZ Crinacle Salnotes Dioko has an intricately CNC-machined body made of aviation-grade aluminium, making it sturdy and portable for daily use. You can concentrate on your music because of the sound isolation offered by the metal housing. The shell surface has also undergone a level of oxidation treatment, making it robust and wear-resistant.

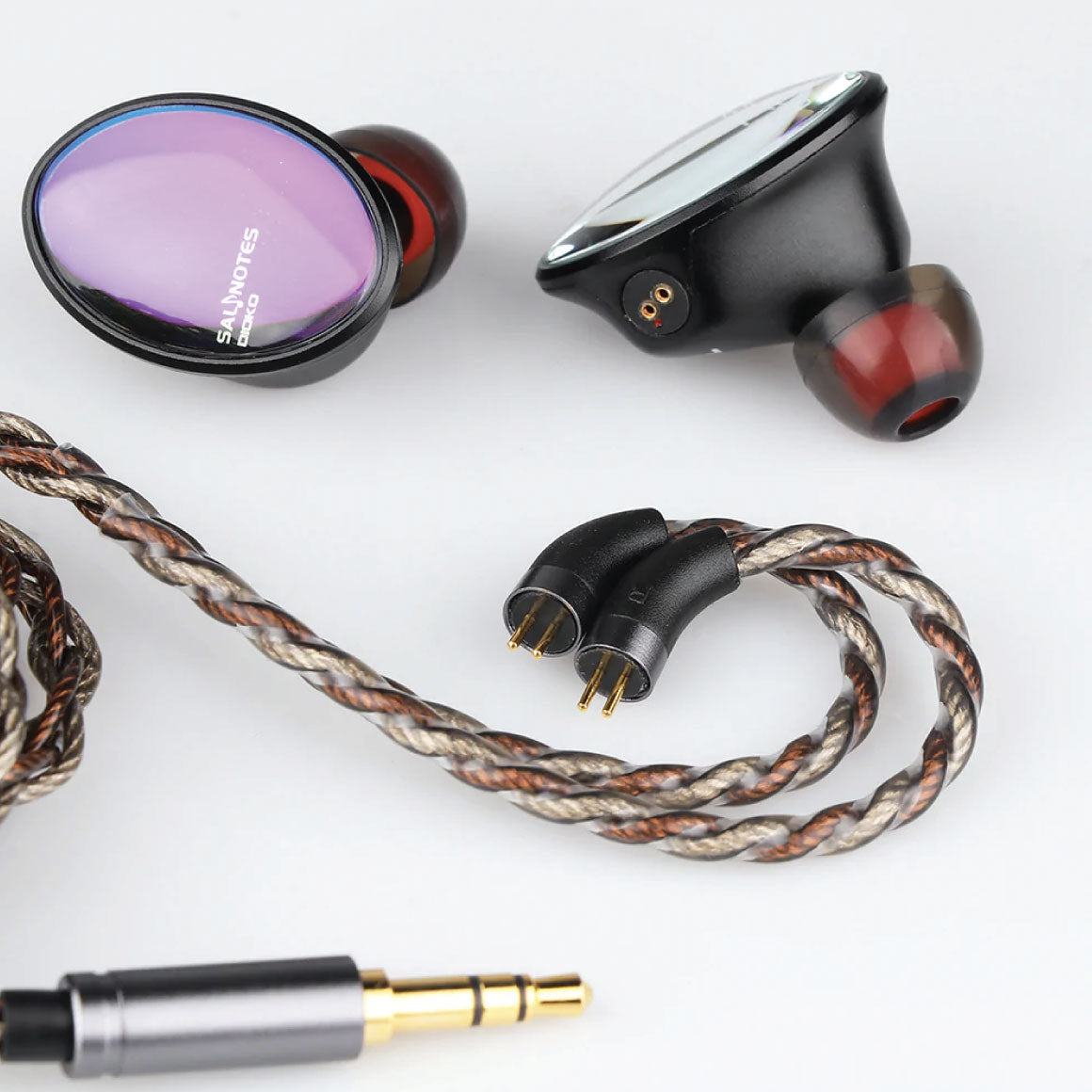

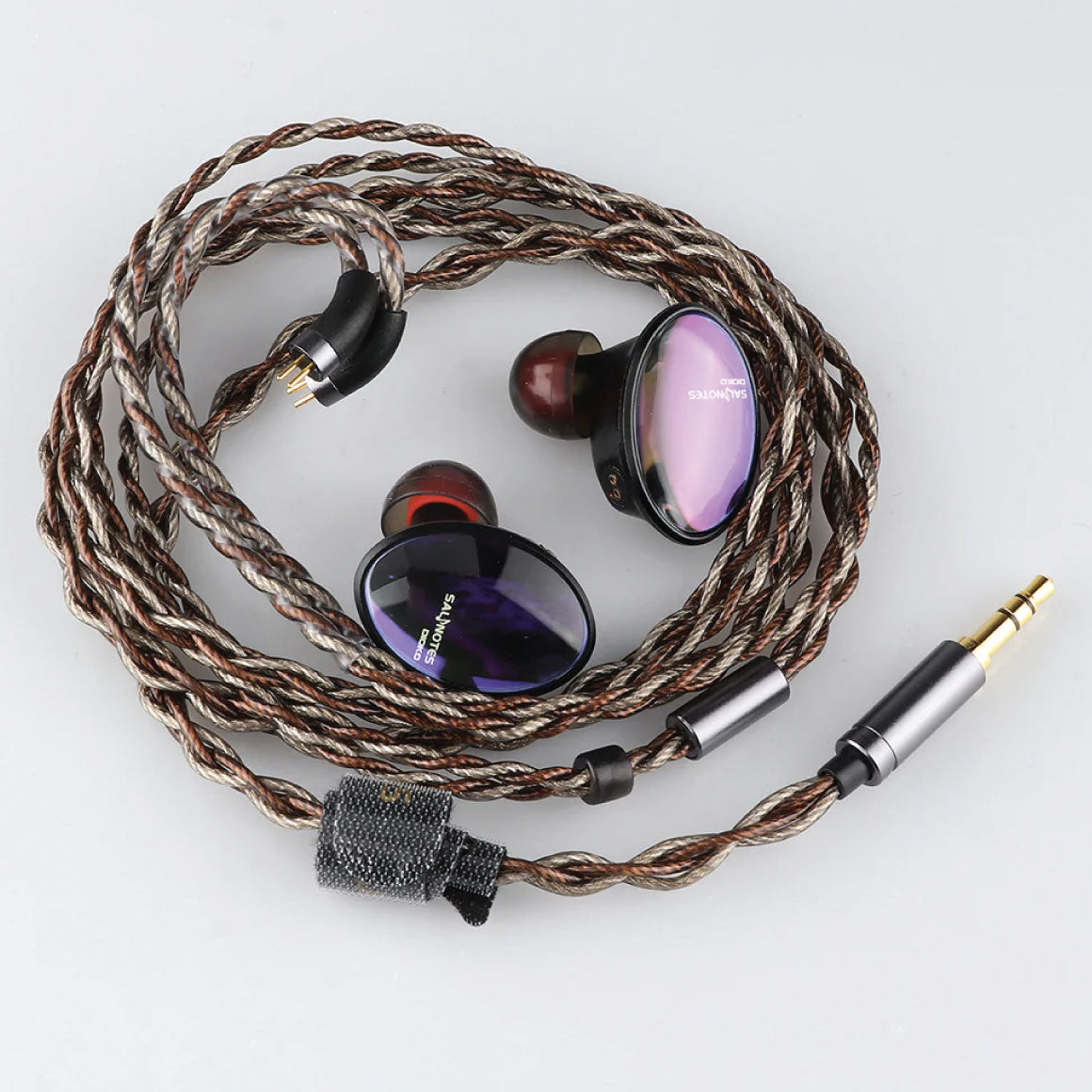

FEATURING A PREMIUM COPPER AND SILVER-PLATED CABLE AND A WIDE ARRAY OF ACCESSORIES

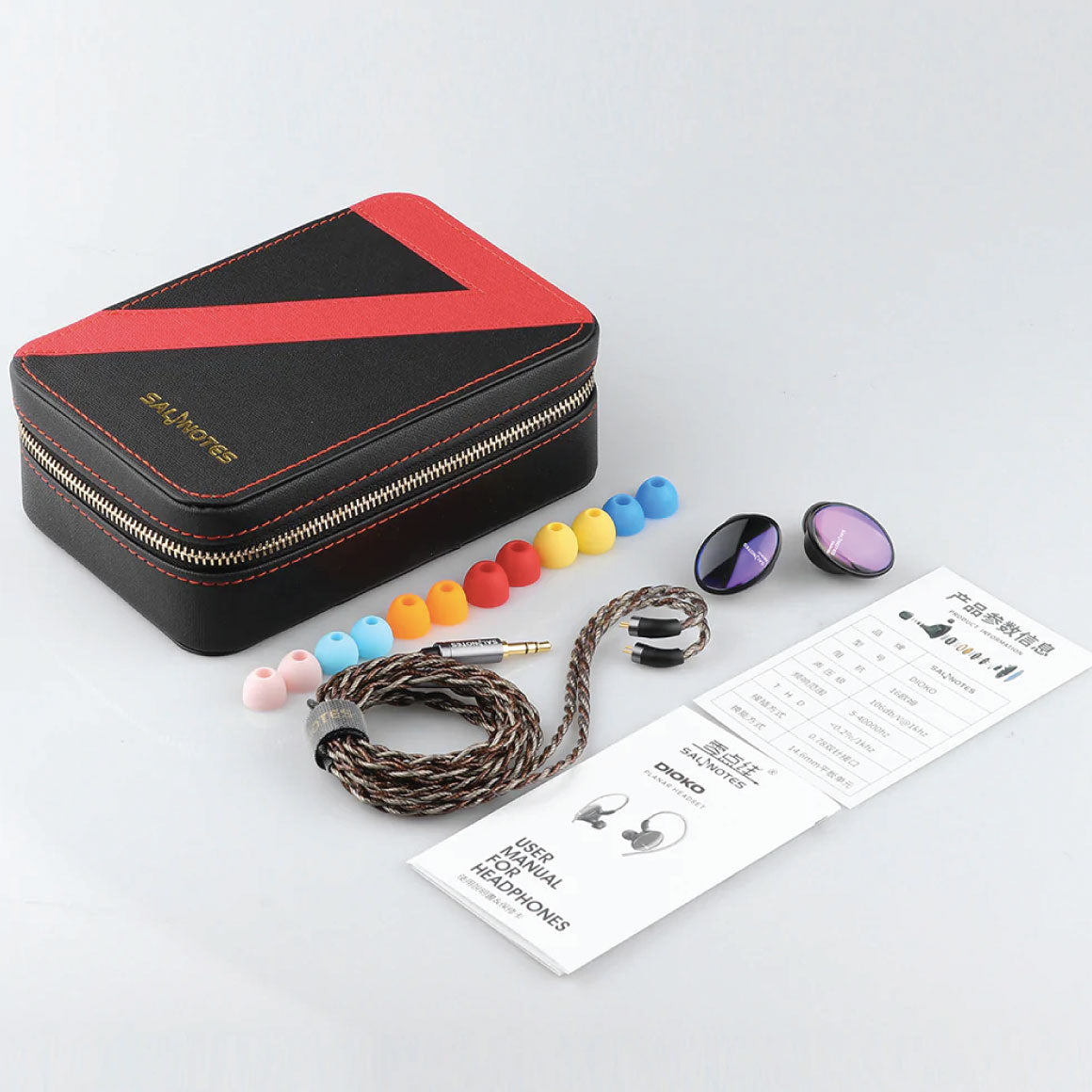

Salnotes Dioko's cable has been designed by 7HZ to maximise the IEM's full potential. Another notable feature of the Salnotes Dioko is the 4-core Litz construction cable, which combines copper and silver-plated copper wires. With 216 individually coated strands, it provides a clear tone for the Salnotes Dioko to ensure high-quality sound transmission. The mix of copper and silver-plated copper results in a more dynamic sound that emphasises the bass's punch and the treble's airiness. The blend of copper and silver adds warmness and clarity to the presentation of sound elevating its sonic performance by tenfolds. Additionally, a personalised, large-capacity storage box is included in the package that shields the IEMs from dust and dings. It also has a practical approach to protecting your IEMs from moisture build-up and gives you the confidence that your 7HZ Crinacle Salnotes Dioko will last you for years. The 7HZ Crinacle Salnotes Dioko comes with a wide array of colourful eartips to ensure the perfect fit for the contour of your ears. The eartips offer passive noise isolation to ensure that you will have no issues with background noise interrupting your listening sessions.

FREQUENCY GRAPH

CHEAT SHEET

Regions of the frequency spectrum
(20Hz - 80 Hz)
(80 Hz - 300 kHz)
(300 Hz - 1000 kHz)
(1 kHz - 6 kHz)
(6 kHz - 10 kHz)
(10 kHz - 20 kHz)
DRIVERS | 14.6mm planar magnetic drivers |
IMPEDANCE | 16Ω |
SENSITIVITY | 106dB/v@1kHz |
THD | ≤0.2%/1khz |
FREQUENCY RESPONSE | 5 - 40000Hz |
WIRED CONNECTIVITY | 3.5mm |
PIN TYPE | 0.78mm 2-Pin |
MICROPHONE | No |
COMPATIBILITY | Universal |
WEARING STYLE | In-Ear |
DETACHABLE CABLE | Yes |
HOUSING MATERIAL | Aluminum |
CABLE | OCC copper and silver-plated OCC copper |
BOX CONTENTS | 1. 7HZ x Crinacle Salnotes Dioko |
2. Replacement Eartips | |
3. Earphone Cable | |
4. Manual |
GENERIC NAME | Headphones |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
