Headphone GuruAPPRECIATE THE EXCELLENCE OF PURE BALANCED SOUND WITH A POWERFUL 12MM DYNAMIC DRIVER
FiiO has had great success in creating a line-up of IEMs that combine excellent audio quality and great looks. FiiO's dynamic driver line-up has always amazed the critics with its single DD setup that presents exceptional tonality and clarity with smooth bass texture. FiiO leaves no stones unturned to offer the absolute best, particularly with its flagship products like the FiiO FD5. These premium IEMs feature a large 12mm dynamic driver that uses N52 magnets with a high magnetic flux of 1.5 Tesla, to produce a thumping bass response and high-frequency audio resolution. This single-driver structure encourages accurate sound positioning with transparency, wide soundstage and high-class dynamics.



BREAKTHROUGH 12MM DD BERYLLIUM COATED WITH DIAMOND-LIKE CARBON (DLC) DIAPHRAGM DELIVERING DISTORTION-FREE BALANCED AUDIO
FiiO has done a remarkable job since its launch in 2007, building its hard-earned reputation through innovative in-house R&D, quality products, and extensive industry accolades. One of the FiiO FD5 breakthroughs is their newly designed 12mm Beryllium coated Diamond-like Carbon (DLC) diaphragm which is large compared to other IEM drivers in their line-up. This diaphragm resists ripple-like movements, its rigidity allows it to be more responsive and accurate. This driver employs lots of cool tech like an N52 magnet with a 1.5 Tesla magnetic Flux. A Japan Daikoku copper-clad aluminium voice coil. These materials contribute much-needed rigidity and flexibility that reduces unnecessary vibrations while making the driver more responsive to voice coil movements. This is why you get to hear your music in great detail without any distortion with the FiiO FD5.



HIGH-END AUDIO-INSPIRED ACOUSTIC PRISM & VOLCANIC FIELD FOR ACCURATE SOUNDSTAGE AND IMAGING
The FiiO FD5 has an independently created Acoustic Prism System to remove challenges caused by delays in various sound waves. A conical device is positioned close to the front end of the driver's diaphragm to precisely control the direction of sound waves. As a result, there is less high-frequency standing and more widespread sound wave diffusion. The use of a "Volcanic Field" minimises low-frequency standing waves, reduces distortion, and improves the diffusion of bass waves. The conical device controls and creates different wavelengths that improves imaging. As a result, the listening experience is soothing and less fatiguing. Due to its semi-open design, the FD3 PRO offers good soundstage and imaging capabilities. With the recording in mind, you'll be able to visualise and place each instrument.

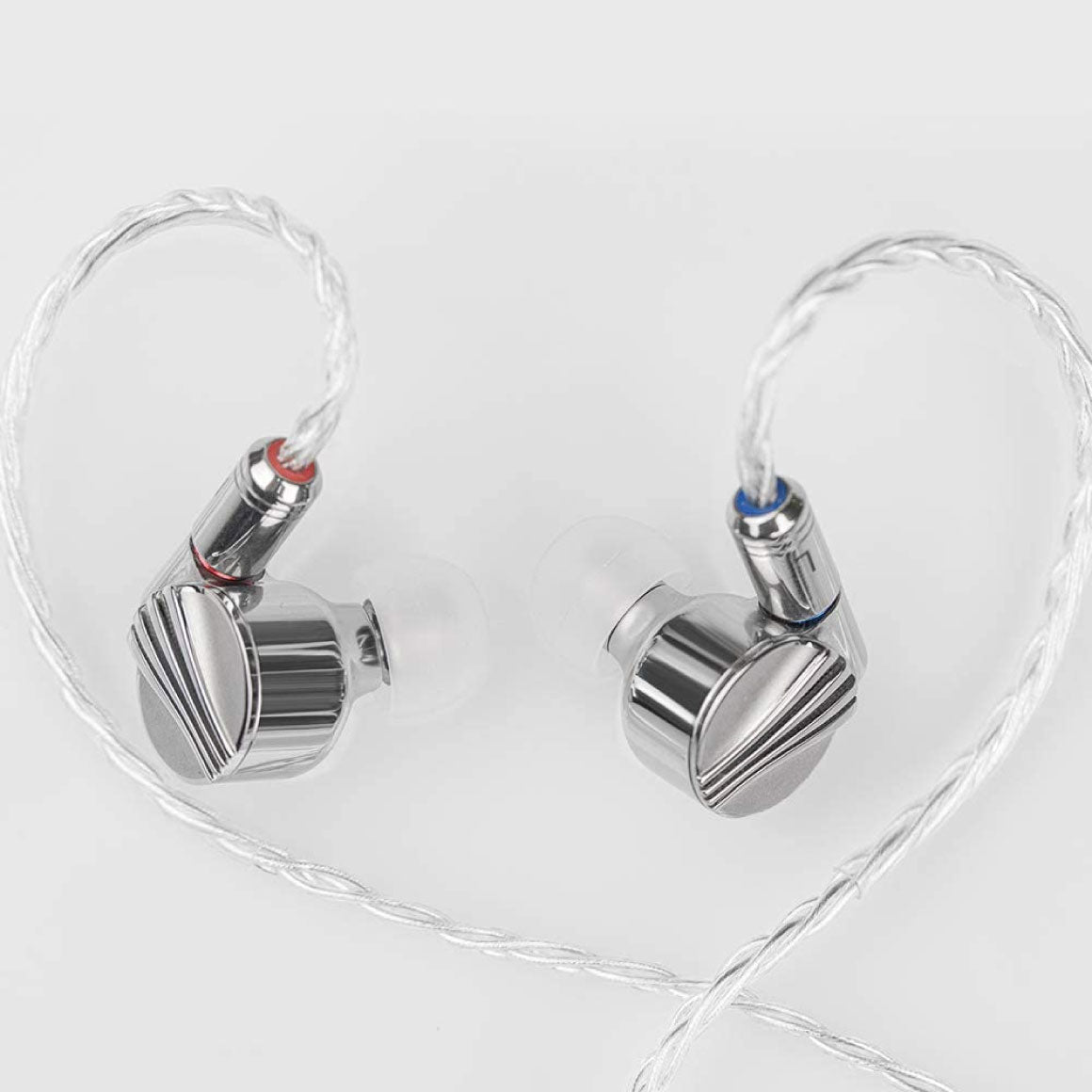

SPORTING A THIRD-GENERATION CURVE-SHAPED BODY AND A PRESSURE-RELIEVING SEMI-OPEN DESIGN FOR SUPERIOR COMFORT
By adopting a semi-open design, the FiiO FD5 relieves air pressure on the ear that benefits music listeners to have a comfortable listening experience even during extended hours. This means that you get to enjoy your music without feeling fatigued. The curved cylindrical design of the FD5 is a benefit for acoustics. It reduces unwanted resonances and the reflection of sound waves propagating through the tubes. These curves are paired with exquisite faceplates to amplify the beauty of these IEMs.

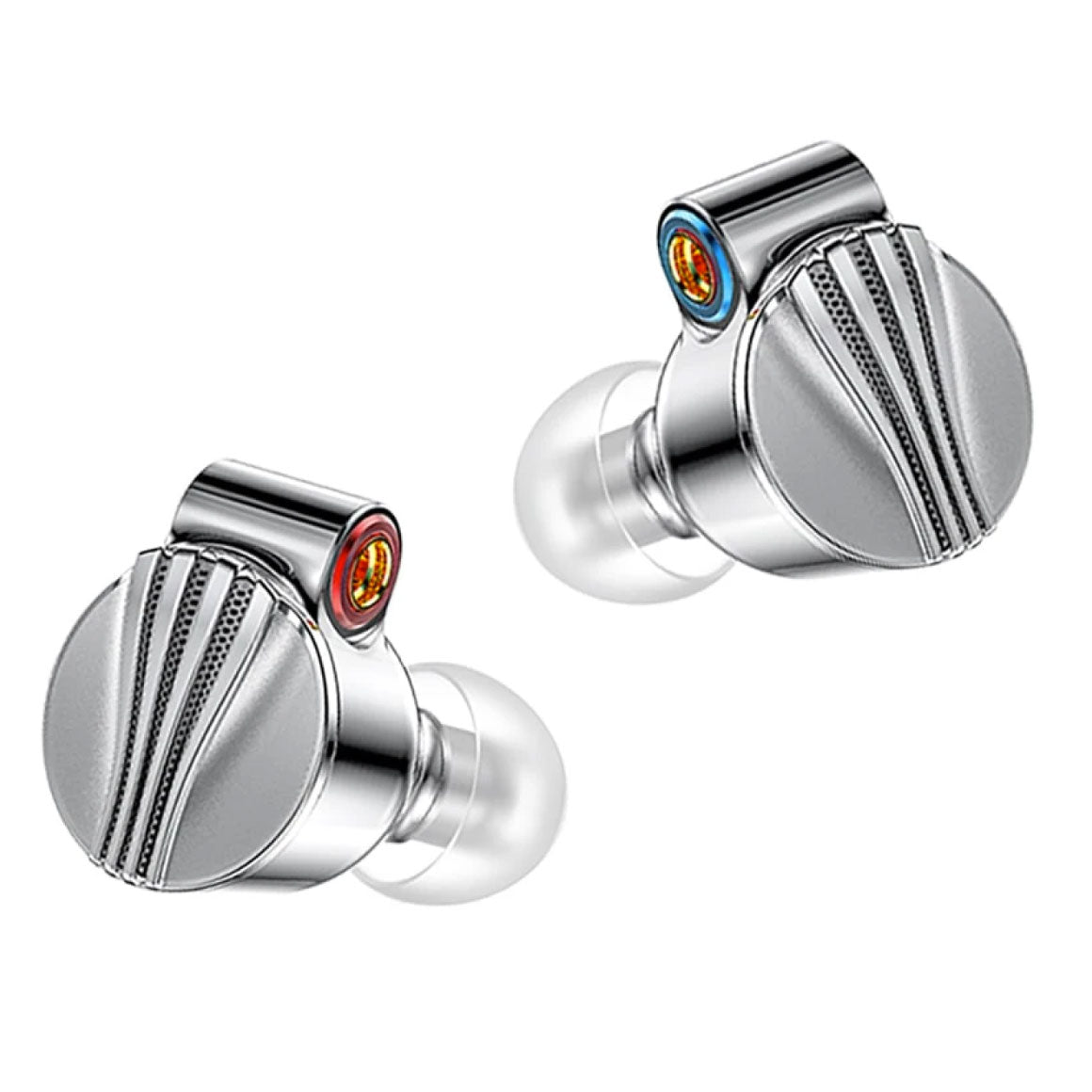

EXPERIENCE AUDIO LIKE NEVER BEFORE WITH 3D EMBOSSED STAINLESS STEEL FACEPLATES AND INTERCHANGEABLE SOUND TUBES

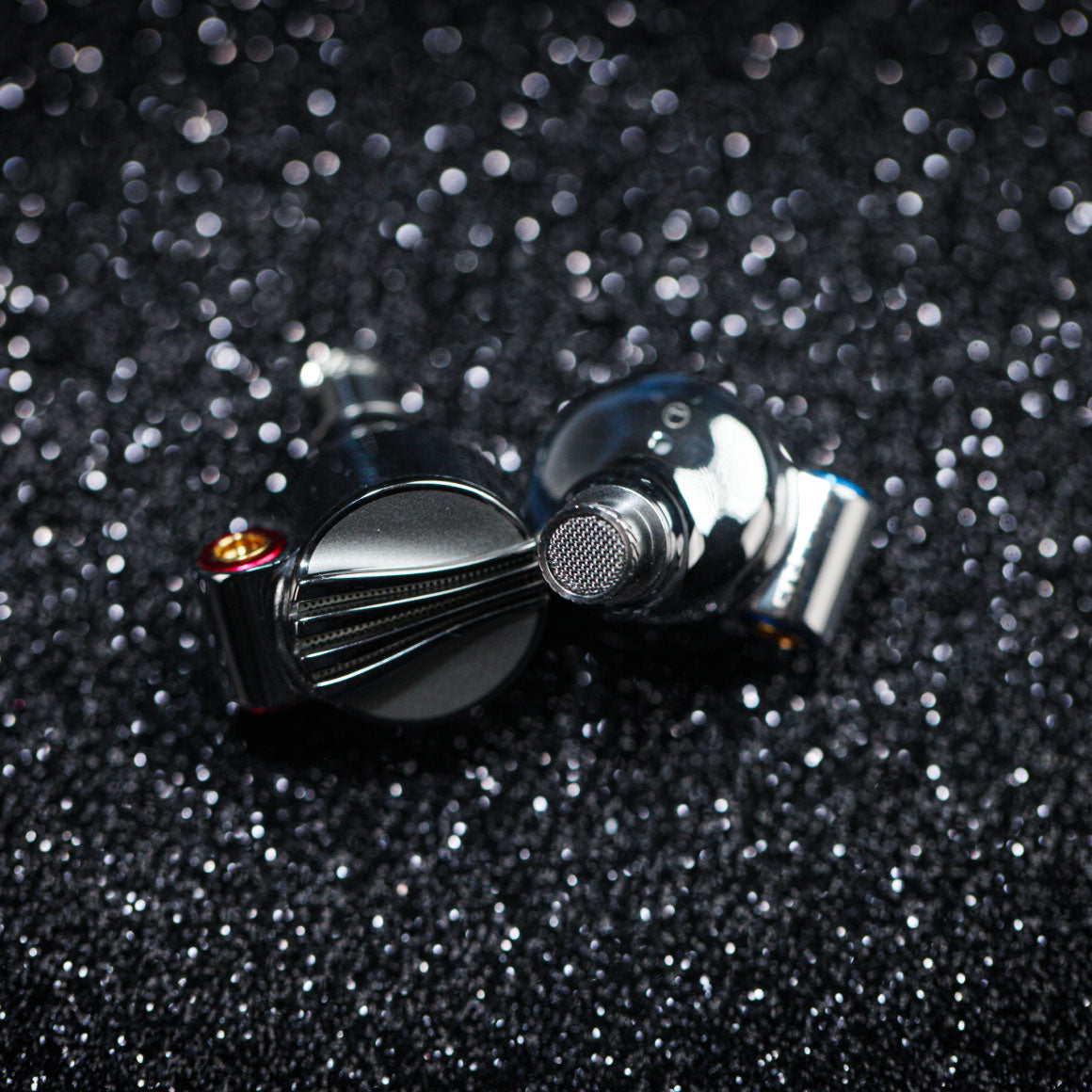

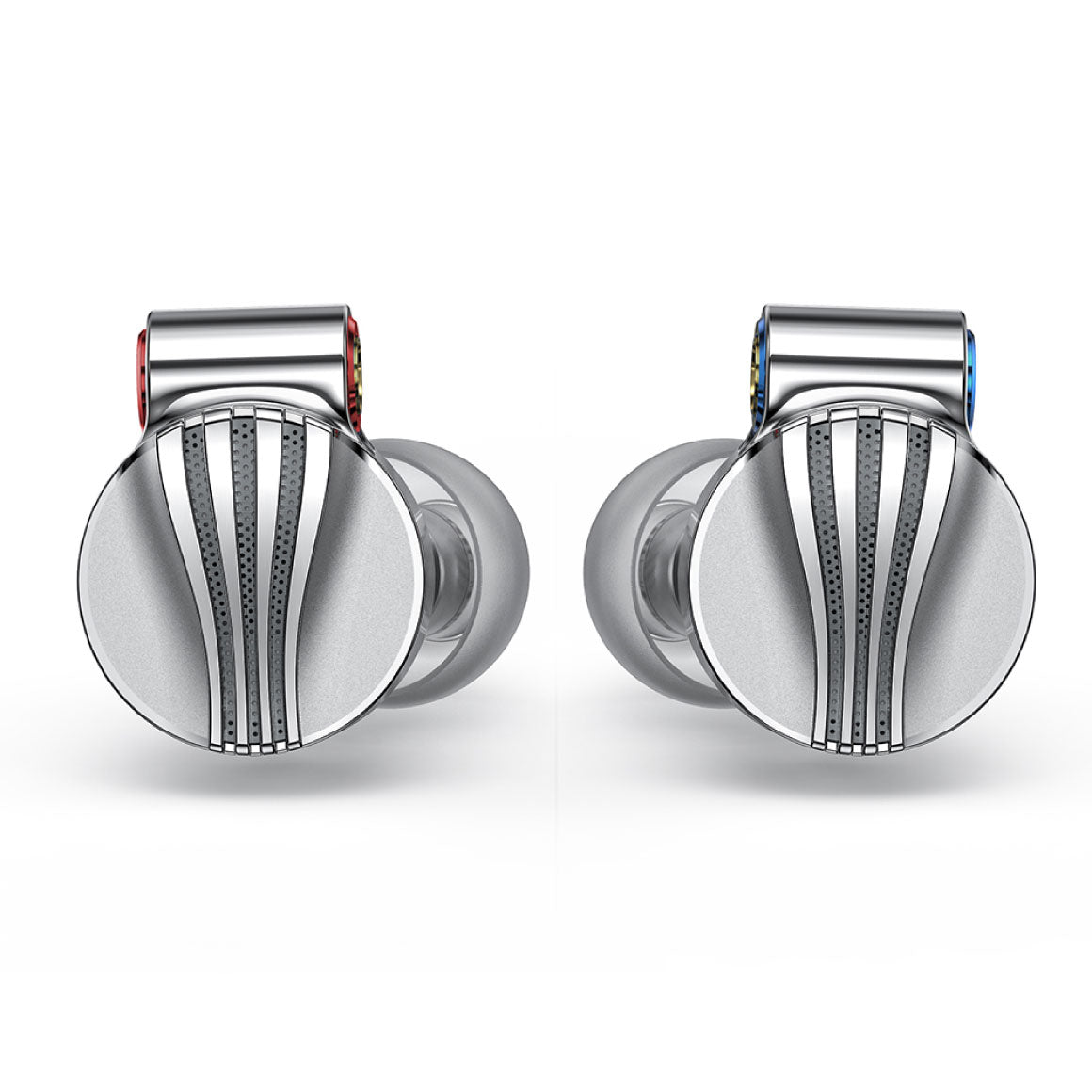

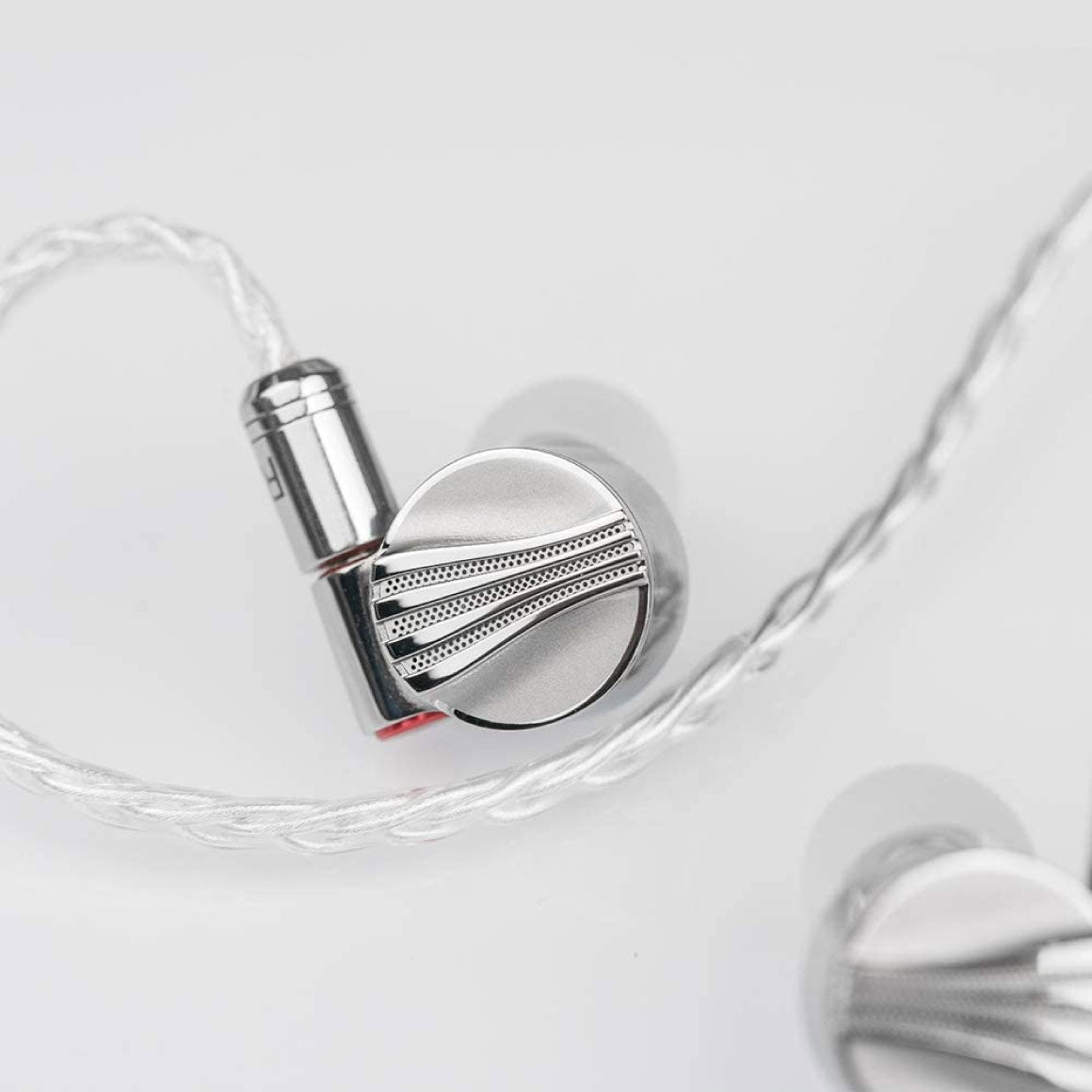

The 3D embossed stainless steel faceplate adds a luxurious feel to the FiiO FD5. Apart from making these IEMs look impressive, the robust faceplates decrease harmonic distortion and reflections of sound waves within its body. These faceplates are in striking contrast with the otherwise chrome-finished body of the FD5. For adjusting the frequency response of the earphones, the FD5 also has replaceable sound tubes. You can nearly always switch between interchangeable sound tubes available in small and large sizes. You can customise the sound tubes to your preferences to improve your listening experience. The small one emphasises the bass while the large one balances the sound. For a sound-elevating fit, it is suggested to utilise the small sound tube with triple-flange eartips.

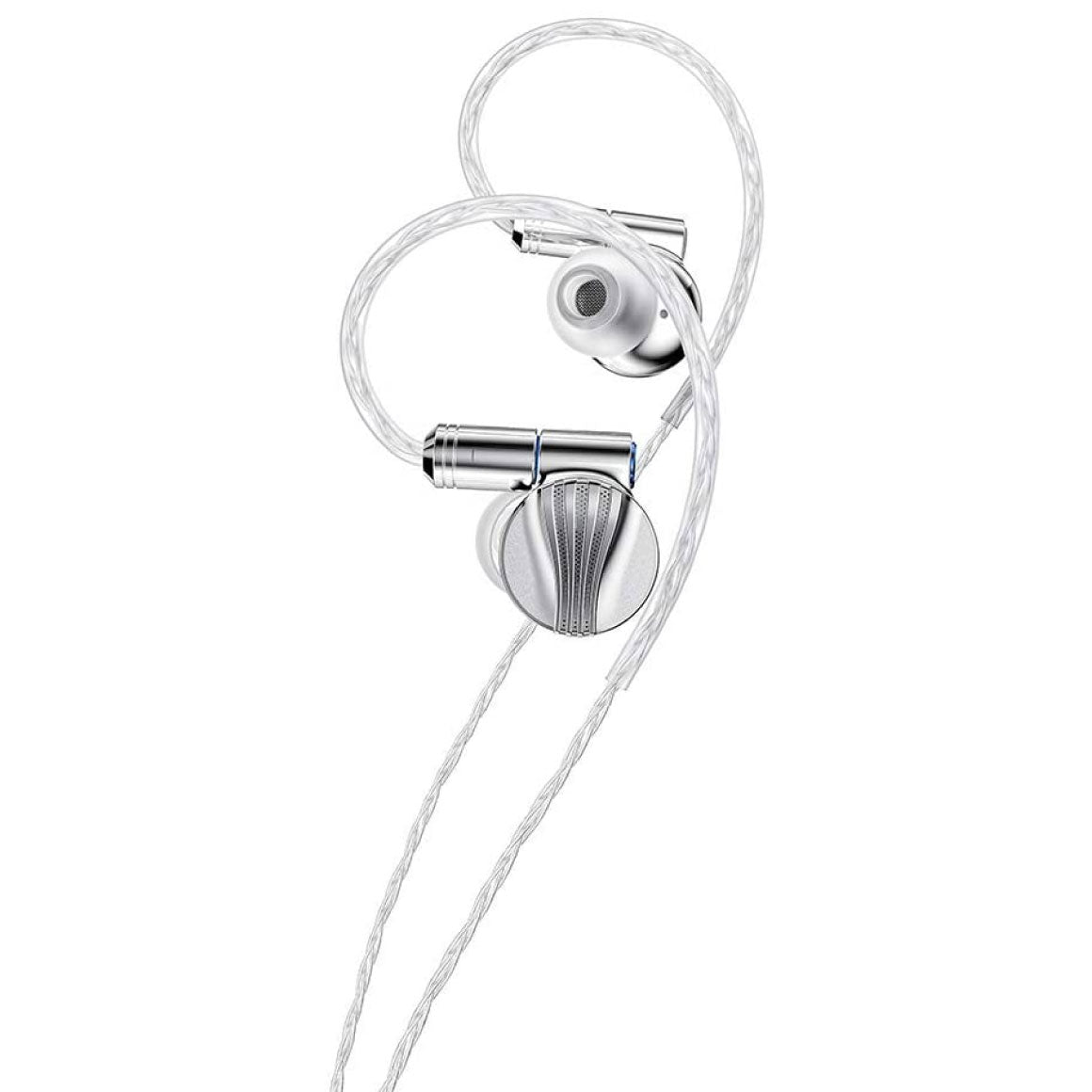

8 STRANDS OF MONOCRYSTALLINE SILVER-PLATED COPPER CABLE AND INTERCHANGEABLE AUDIO JACKS

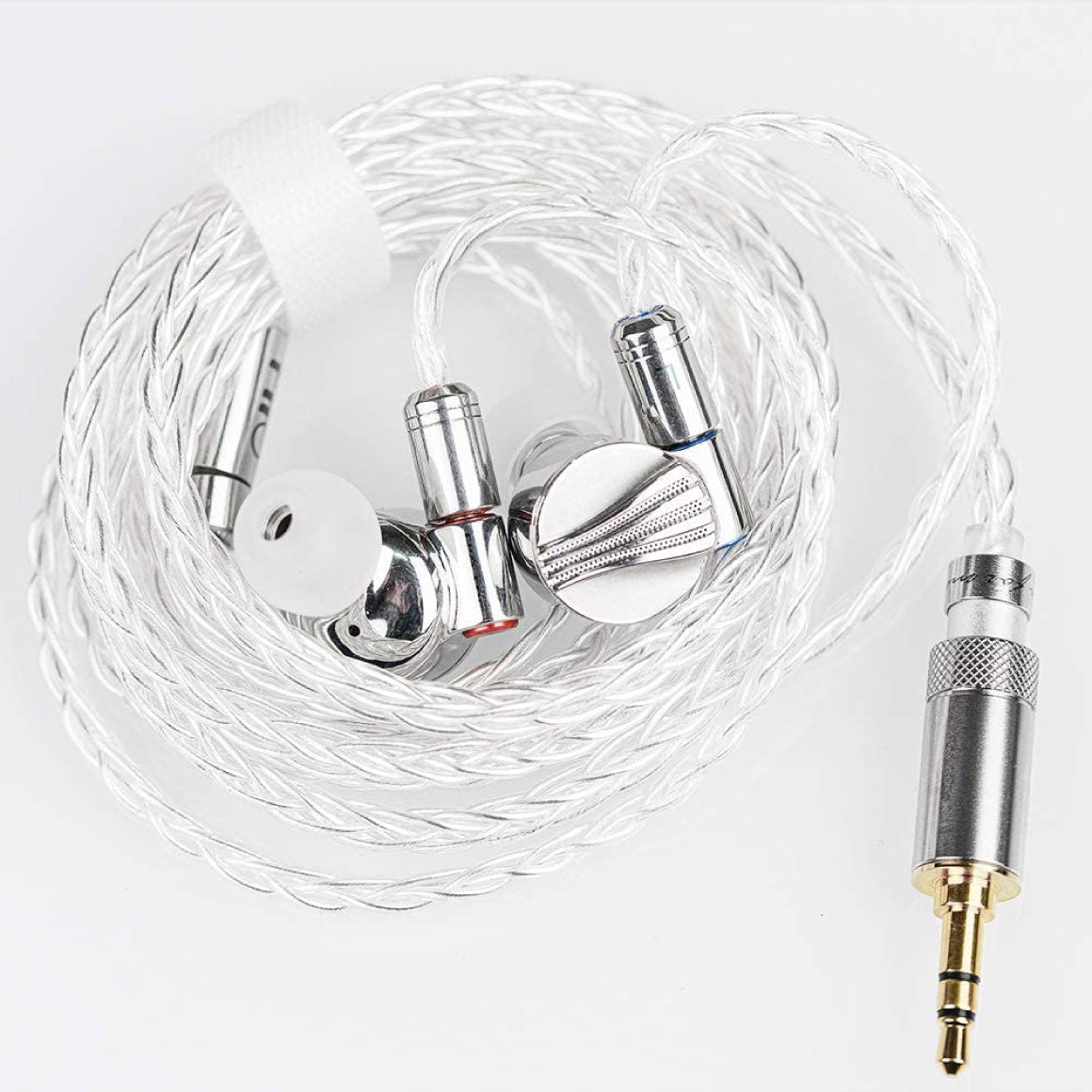

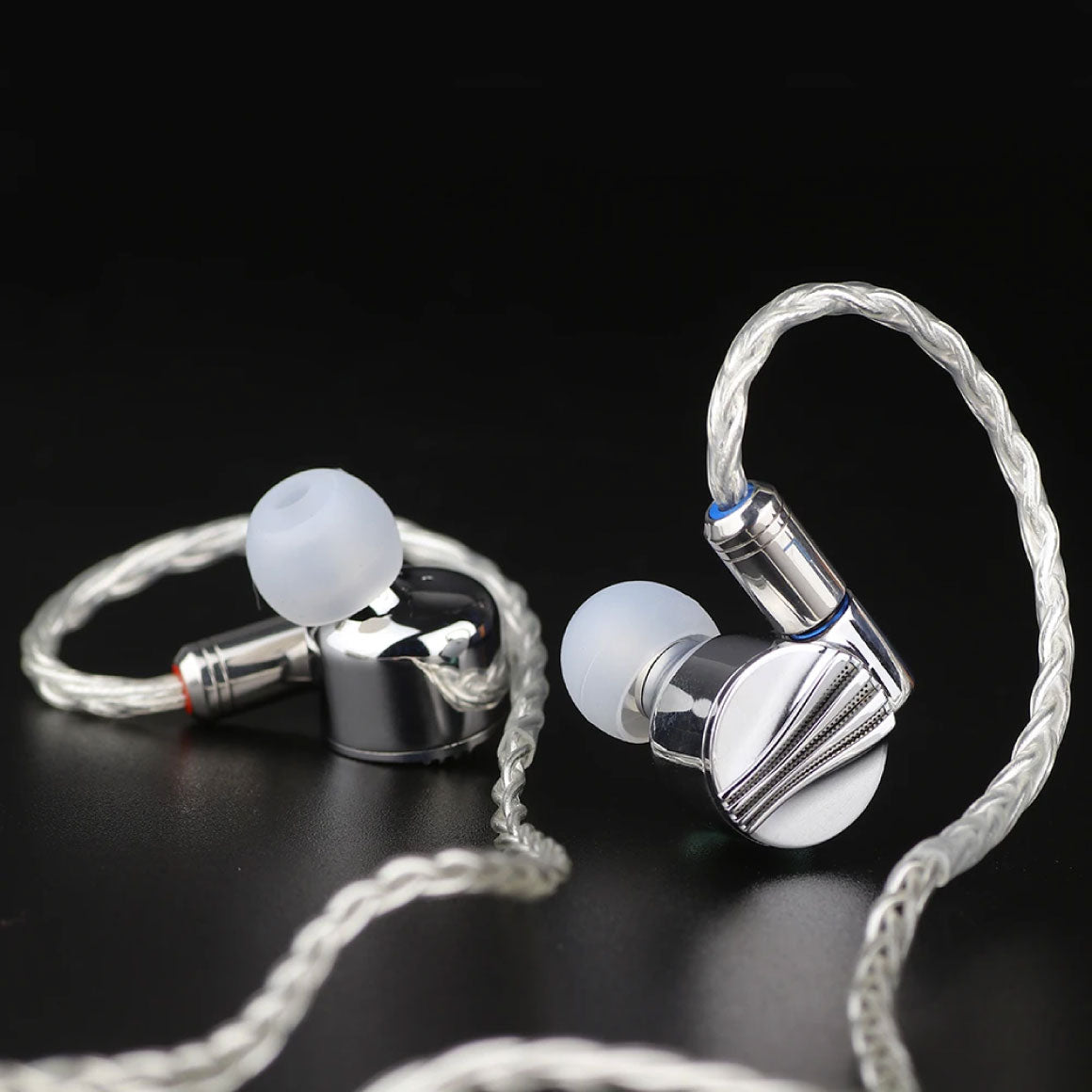

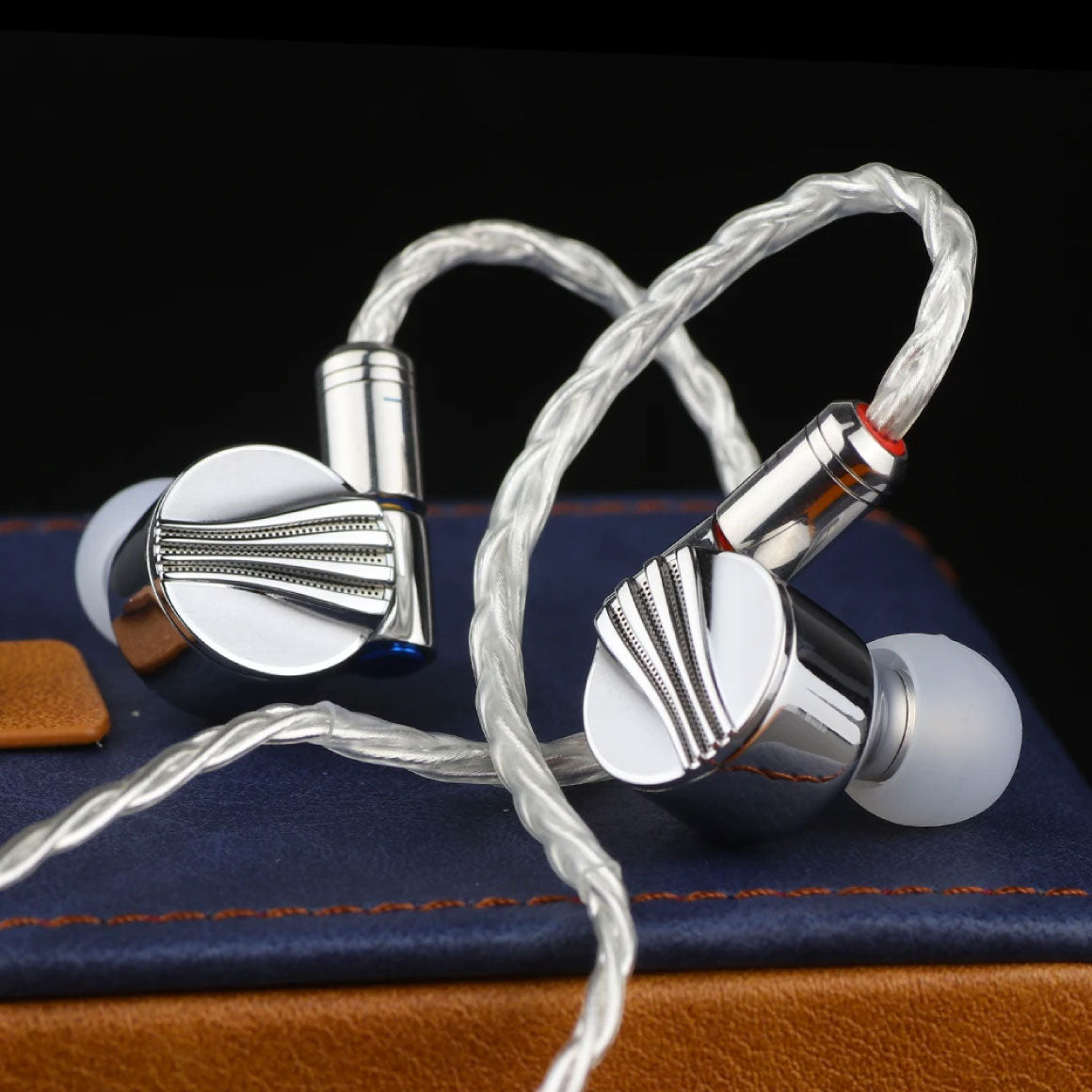

FiiO FD5 Pro comes with a carefully engineered cable that enhances the listening experience. FiiO FD5 Pro is equipped with 8 strands of monocrystalline silver-plated copper cable and an expanded MMCX connector. This Litz cable faithfully transmits sound in the highest quality. It incorporates interchangeable audio plugs for 2.5mm/3.5mm/4.4mm. The additional benefit of having interchangeable termination plugs is that you can plug the FD3 PRO in a balanced DAC & Amp with a 2.5mm or 4.4mm pentaconn output. The clarity, detail, and tone will be enhanced as a result. The soundstage will open, giving the impression that you are watching a live performance while seated in a concert hall.

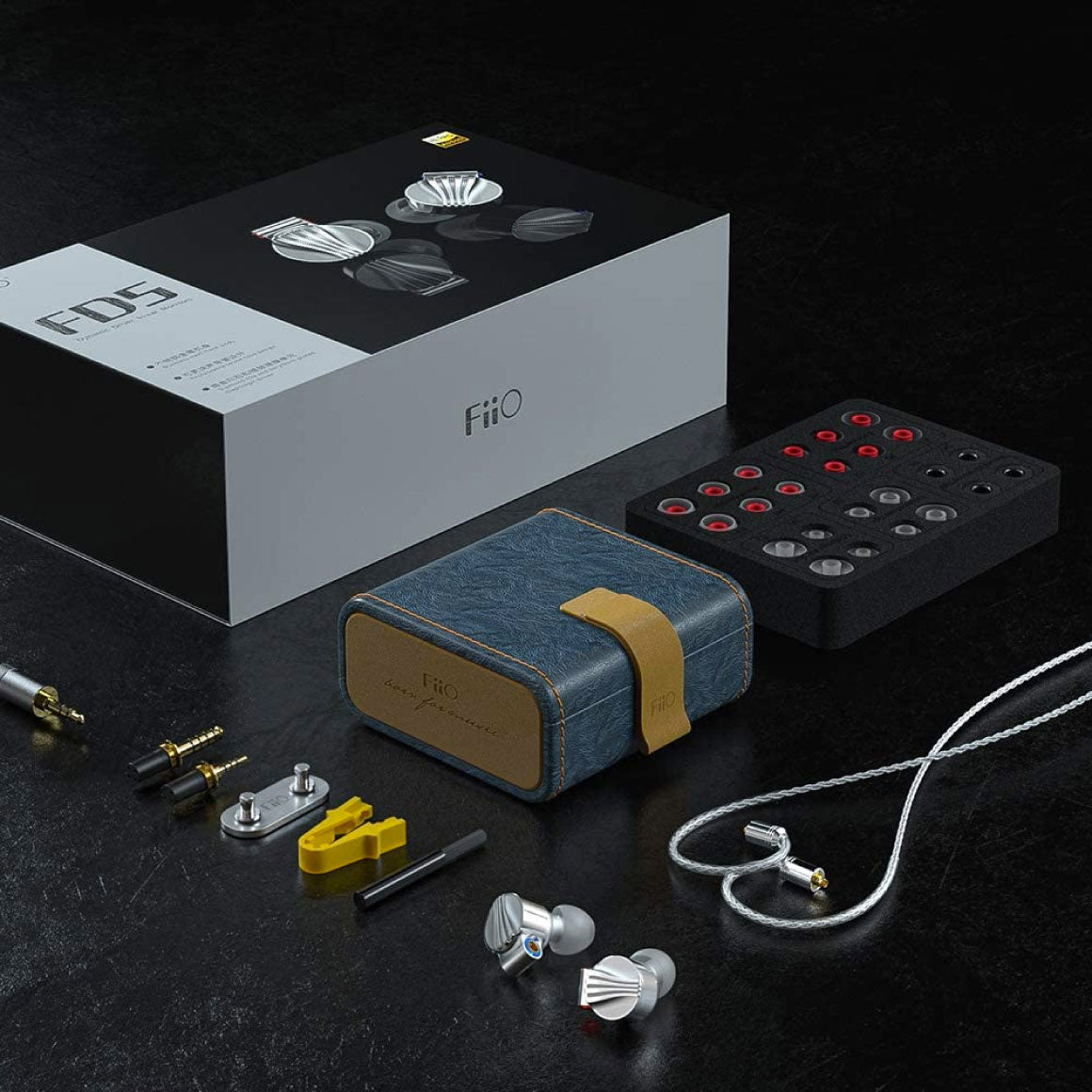

HIGH-RES AUDIO CERTIFIED & MATCHED WITH A ROBUST HB5 STORAGE CASE AND ACCESSORIES
The FiiO FD5 has received the "High-Res Audio '' certification, demonstrating its capacity to produce detailed and lifelike sound. You can store/carry these earphones safely inside the HB5 storage case that comes included in the box. The FD5's accessories have been carefully thought out. The included MMCX clips greatly facilitate detaching the MMCX cables. The FD5 comes in with loads of accessories some of which include an earphone cable, Final MMCX ASSIST interchangeable audio jack and interchangeable sound tubes. The FD5 has five sets of eartips, one for bass (SML), balanced eartips (SML), vocal-centric eartips (SML), 4 sets of foam eartips, and triple flange eartips (SL). The package also includes a cleaning tool to keep the nozzle wax free.




DRIVERS | Dynamic |
DRIVERS CONFIGURATION | 12 mm Beryllium-coated diamond-like carbon (DLC) dynamic driver |
FREQUENCY RESPONSE | 10 Hz ~ 40 kHz |
IMPEDANCE | 32Ω@1 kHz |
SENSITIVITY | 109dB@1 mW |
MAX POWER | 100 mW |
WIRED CONNECTIVITY | 3.5 mm TRS 2.5 mm TRRS balanced 4.4 mm TRRRS Pentaconn |
MICROPHONE | No |
CONNECTOR | MMCX |
WEARING STYLE | In-Ear |
DETACHABLE CABLE | Yes |
CABLE | 8 strands of monocrystalline silver-plated copper cable |
CABLE LENGTH | 120cm |
WEIGHT | about 11g |
BOX CONTENTS | 1. FiiO FD5 IEMs |
2. 8-strand, monocrystalline, silver-plated, copper MMC terminated cable | |
3. HB5 Storage Case | |
4. Final MMCX Assist Interchangeable Audio Jack - 2.5 mm, 3.5 mm, and 4.4 mm | |
5. Interchangeable sound tubes—2 (1-large, 1-small) | |
6. Bass eartips (S, M, L) | |
7. Balanced eartips (S, M, L) | |
8. Vocal eartips (S, M, L) | |
9. Triple-flange tips (S, L) | |
10. Foam tips (S, M, L) | |
11. Cleaning brush |
GENERIC NAME | Headphones |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
The FD5 is composed of a 12mm dynamic driver with its diaphragm using beryllium-coated diamond-like carbon (DLC). It is designed with an outer-magnet field, up to 1.5 Tesla magnetic flux.
Included cable:
--It comes with an 8-stranded high purity monocrystalline silver-plated copper cable with 152 cores Litz braided.
--Expanded MMCX connector, stainless steel shell, and classic left blue and right red unit markers.
--Designed with an interchangeable plug, the FD5 can suit different devices with its 2.5/3.5/4.4mm plugs./p>
--A high-purity monocrystalline silver-plated copper cable with 2.5/3.5/4.4mm interchangeable plugs.
--5 sets of ear tips (3 balanced pairs, 3 bass pairs, 3 vocal pairs, 2 memory foam pairs, 2 tri-flange pairs)
--1 storage case HB5 and 1 cleaning brush.
--An MMCX clip which can help to detach the MMCX connector easily.
1. The small hole of the front cavity is used to relieve pressures. It can help to moderate pressures that happened to the ear canal when putting the FD5 inside the ears. If the front hole is blocked, it would enhance the bass performance. However, hearing fatigue would also be caused easily due to increasing pressures in the ear canal. 2. The dynamic driver diaphragm of the FD5 used beryllium-coated DLC. Therefore, if the front pressure-relief hole is blocked, it would possibly lead to transformation to the beryllium-plated diaphragm and thus bring abnormality to the sound performance.
The advantage of the net holes on the front faceplate
The FD5 adopts a semi-open design. Through the small hole, it can relieve air pressure on the ear quickly on leading to more natural, comfortable and long listening sessions.
The advantage of the volcanic field system
The volcanic field system is an anti-standing wave structure we designed for the rear cavity of the FD5. By reversely preventing harmful standing waves, it plays an important role in enhancing bass diffusion at the rear cavity, reducing standing waves and distortion, thus achieving clearer sound.
Right/R: red

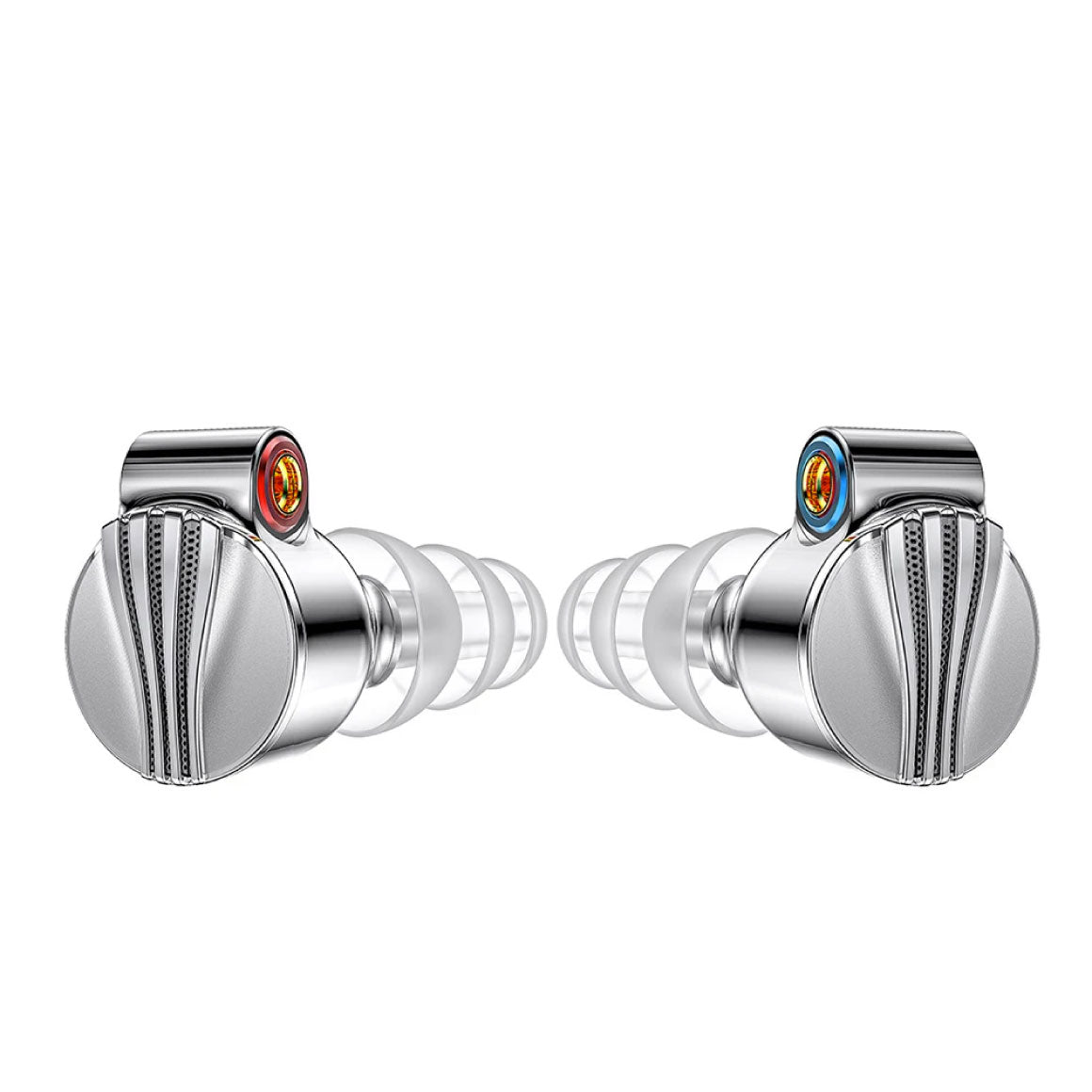

The FD5 has unit markers on the earphones: blue L on the left side and red R on the right. Other than the letter marker, there is corresponding colors at the position of the MMCX connector, left blue and right red. Please fit the correct channel according to the indication markers when changing the cable.
