Chi-Fi
Excellence
1 Year of
Warranty
Ideal for
Indoor Use
4-Pin XLR
Balanced Output
Connect With
3-Pin XLR & RCA
3W x 2 @ 32Ω
Power Output
THXAAA-888 HEADPHONE AMP POWERED WITH THE THX AAA TECHNOLOGY
Adopting the certified THX-888 module, the SMSL SH-9 delivers exceptional sonic performance empowering you to access high fidelity sound at your convenience. Moreover, the use of patented feed-forward error correction topology reduces colouration and distortion so that you get to experience pure, natural sound. The combination of THX-certified THXAAA-888 circuit, Bipolar linear amplifier circuit with patented feed-forward error correction topology eliminates all kinds of distortion and harmonic intermodulation.

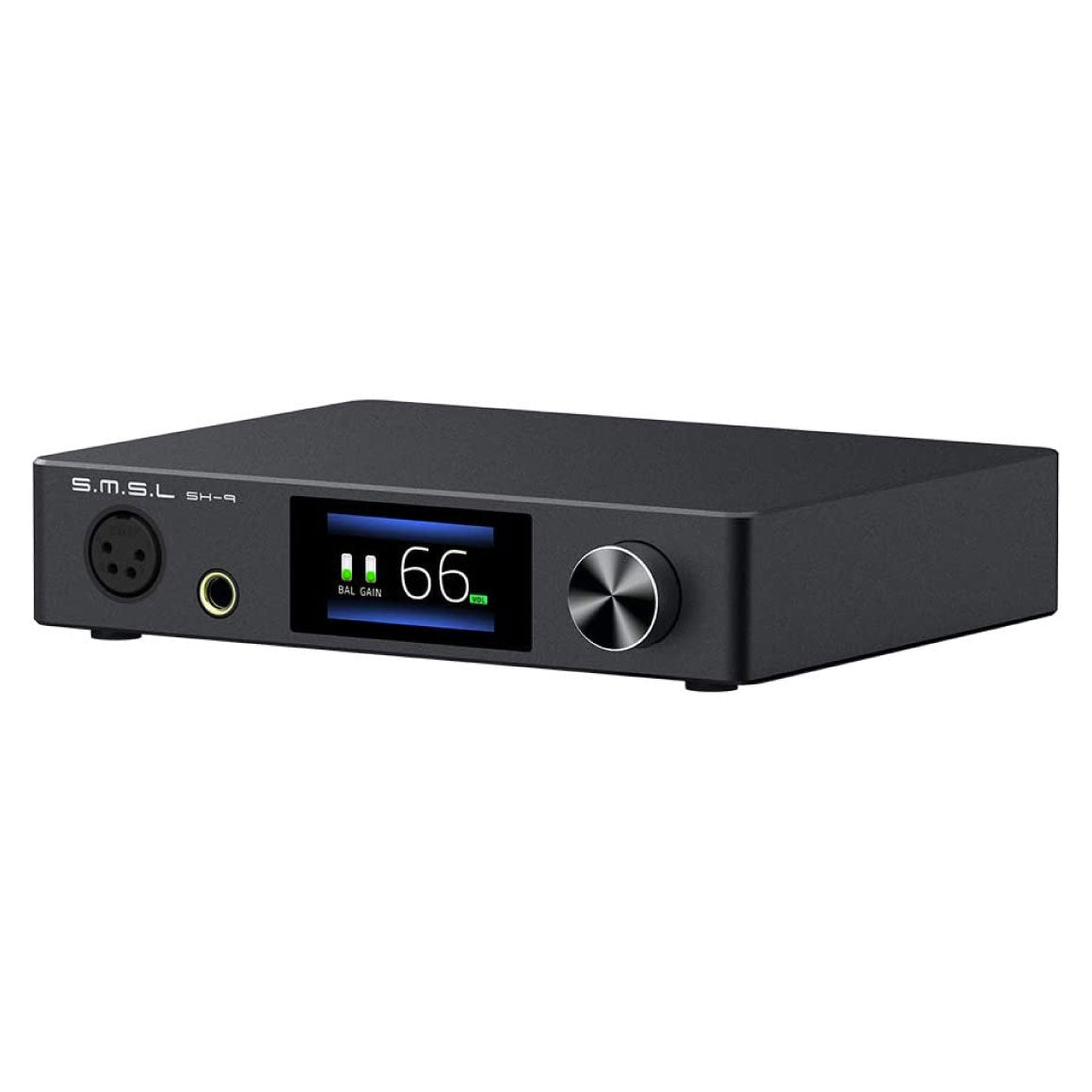

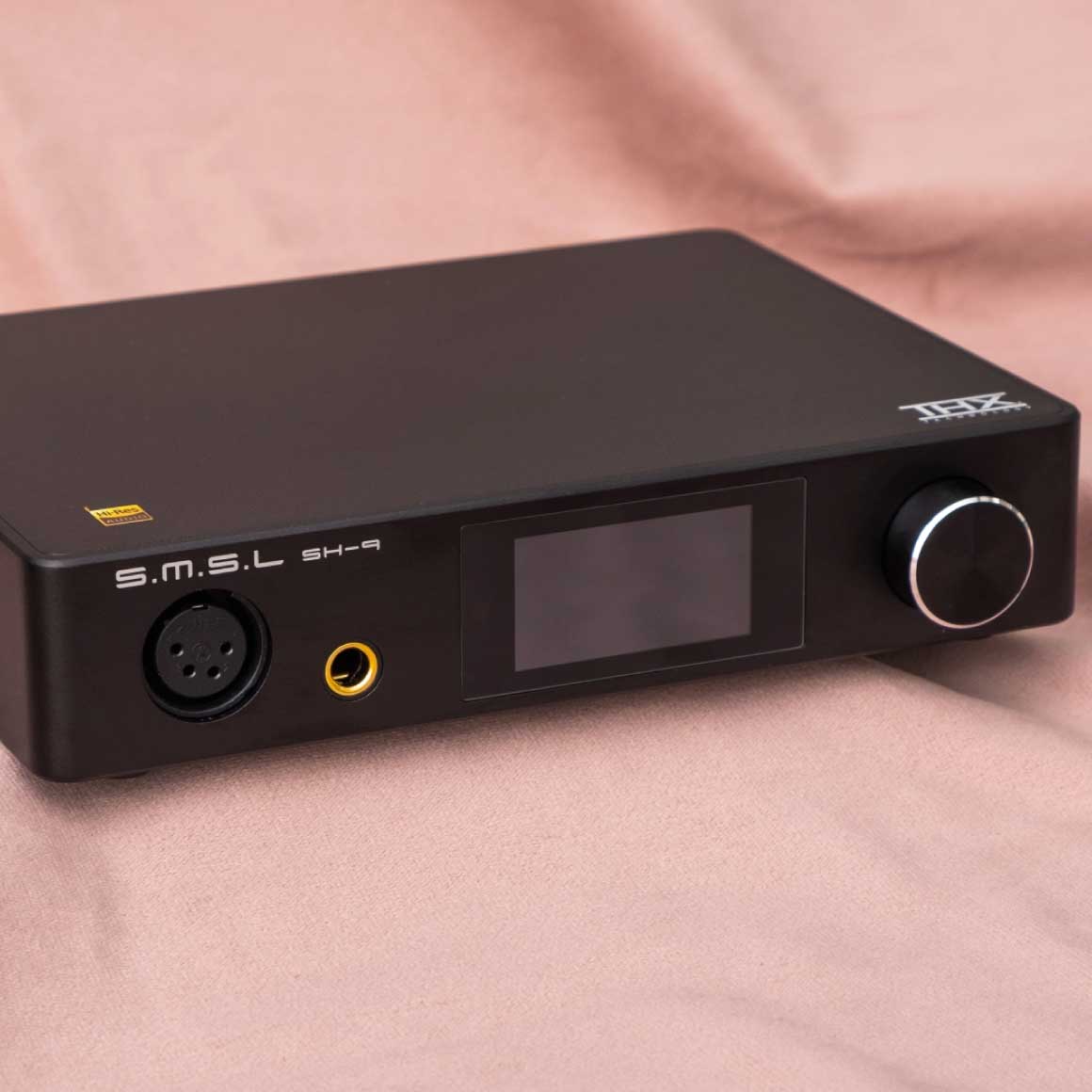

A PERFECT DESKTOP SYSTEM WITH AN ULTRA-COMPACT ALUMINUM DESIGN

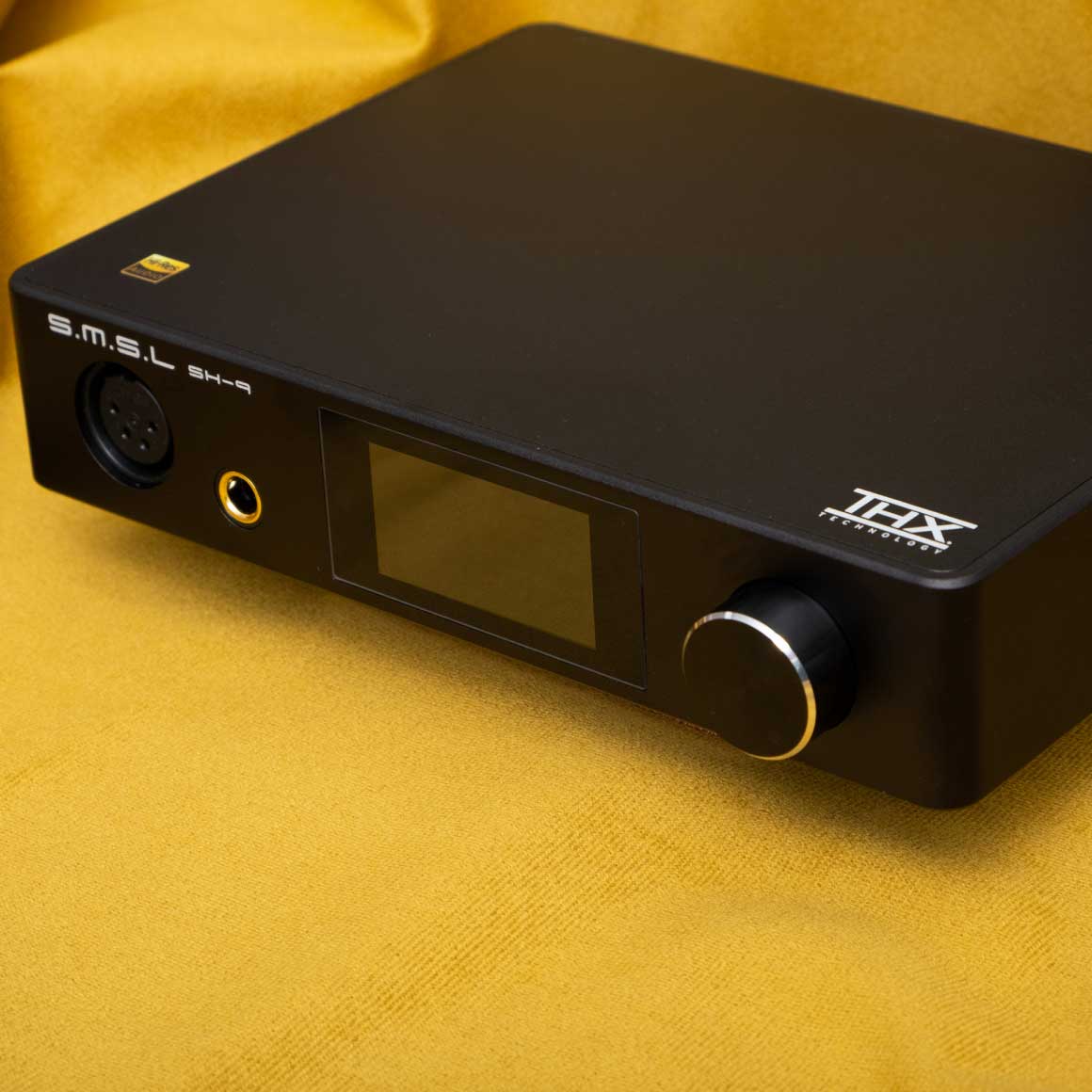

Made out of precise CNC milled Aluminium Alloy, the body of the SMSL SH-9 sports an anodized and chamfered finish that not only adds to the charm but also makes the SH-9 durable. With high precision resistors, the SH-9 takes care of the temperature. You also get a high-quality 256 Bit high precision and low noise 256 level relay volume control with the SMSL SH-9. With S.M.S.L Patented 24W low noise high-efficiency power backup, the SH-9 delivers superb power-efficient performance.
NOTE: In a real case scenario, extra bits are not eliminated to provide more linear volume.




DISTORTION-FREE SOUND AND HIGH POWER FOR HIGH-QUALITY PURE SOUND

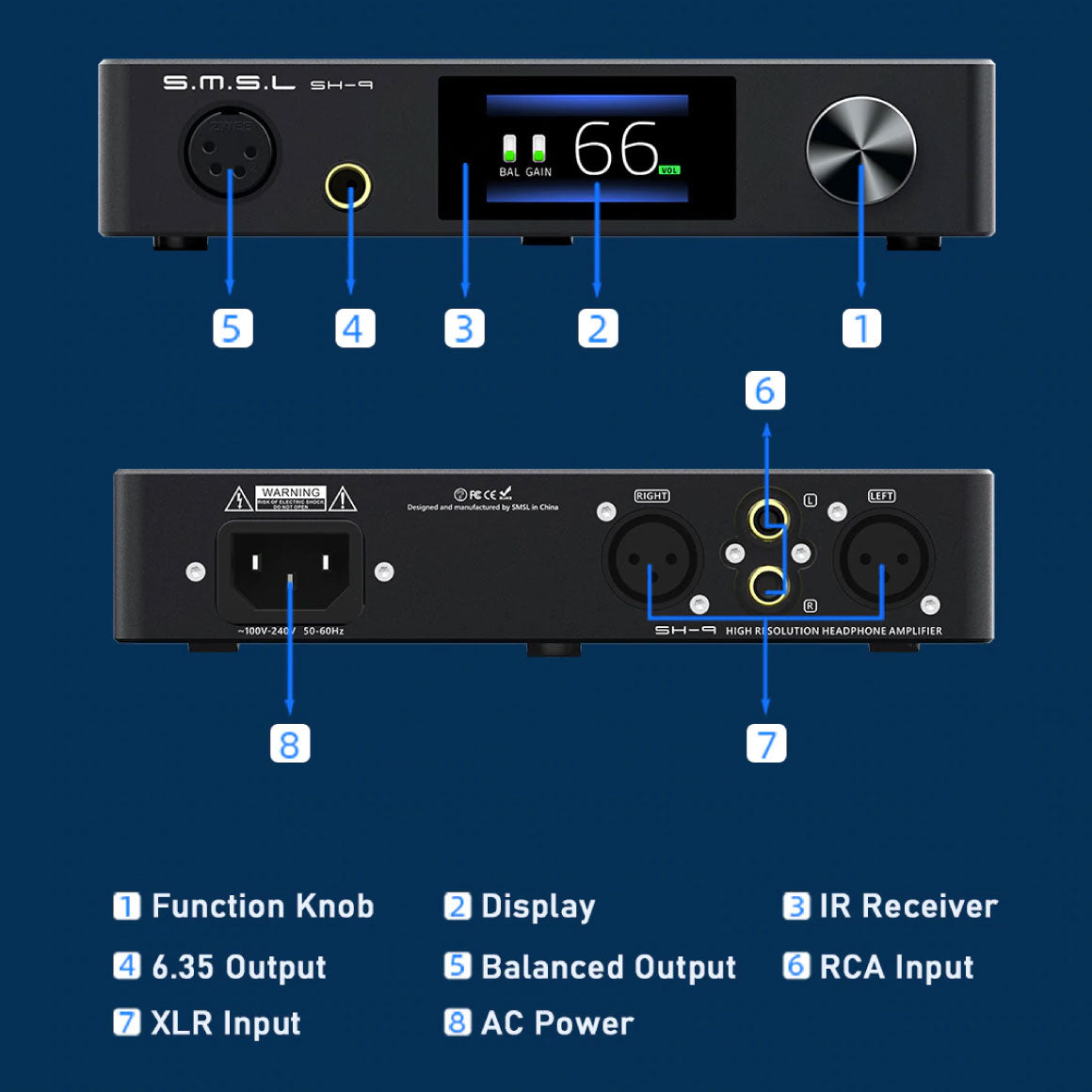

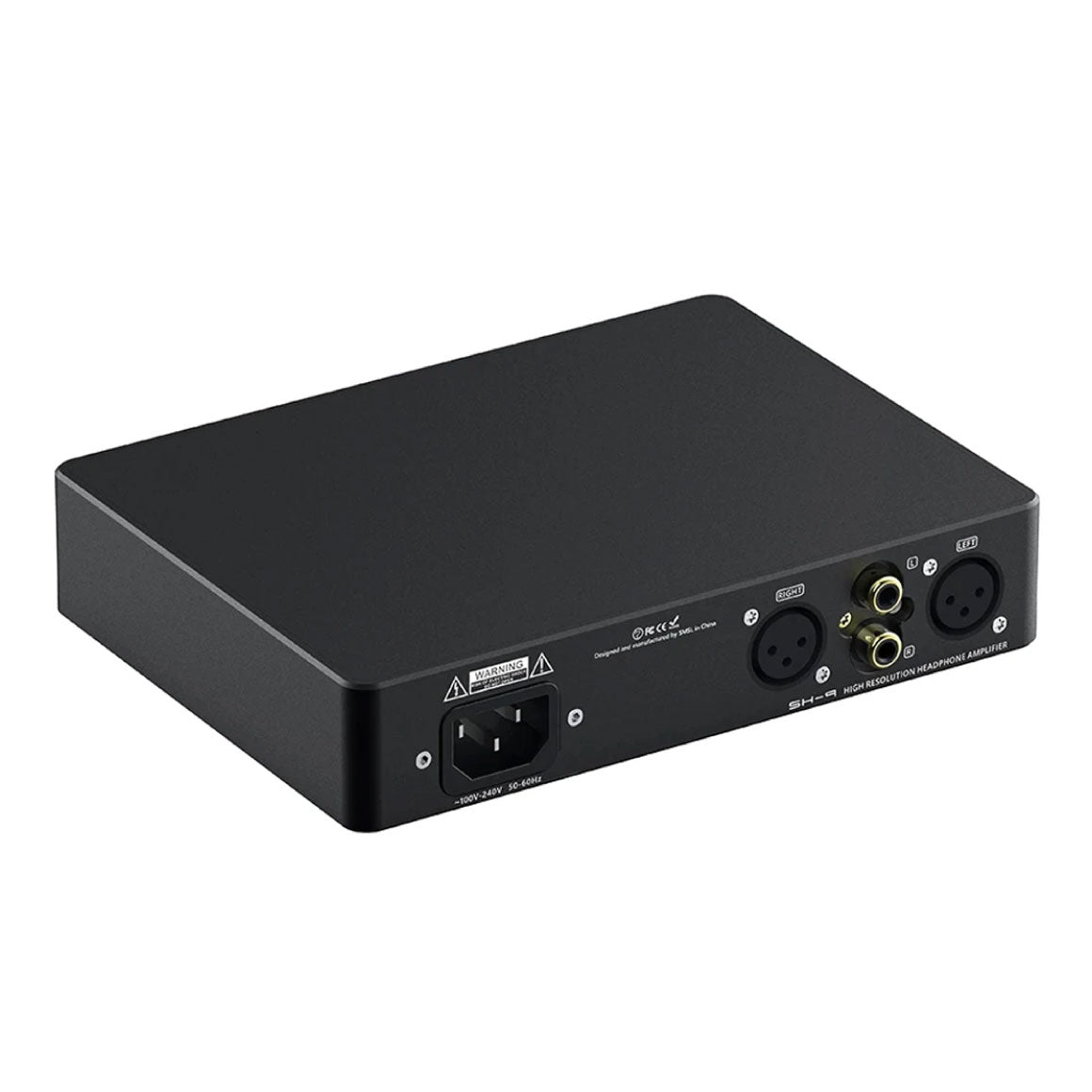

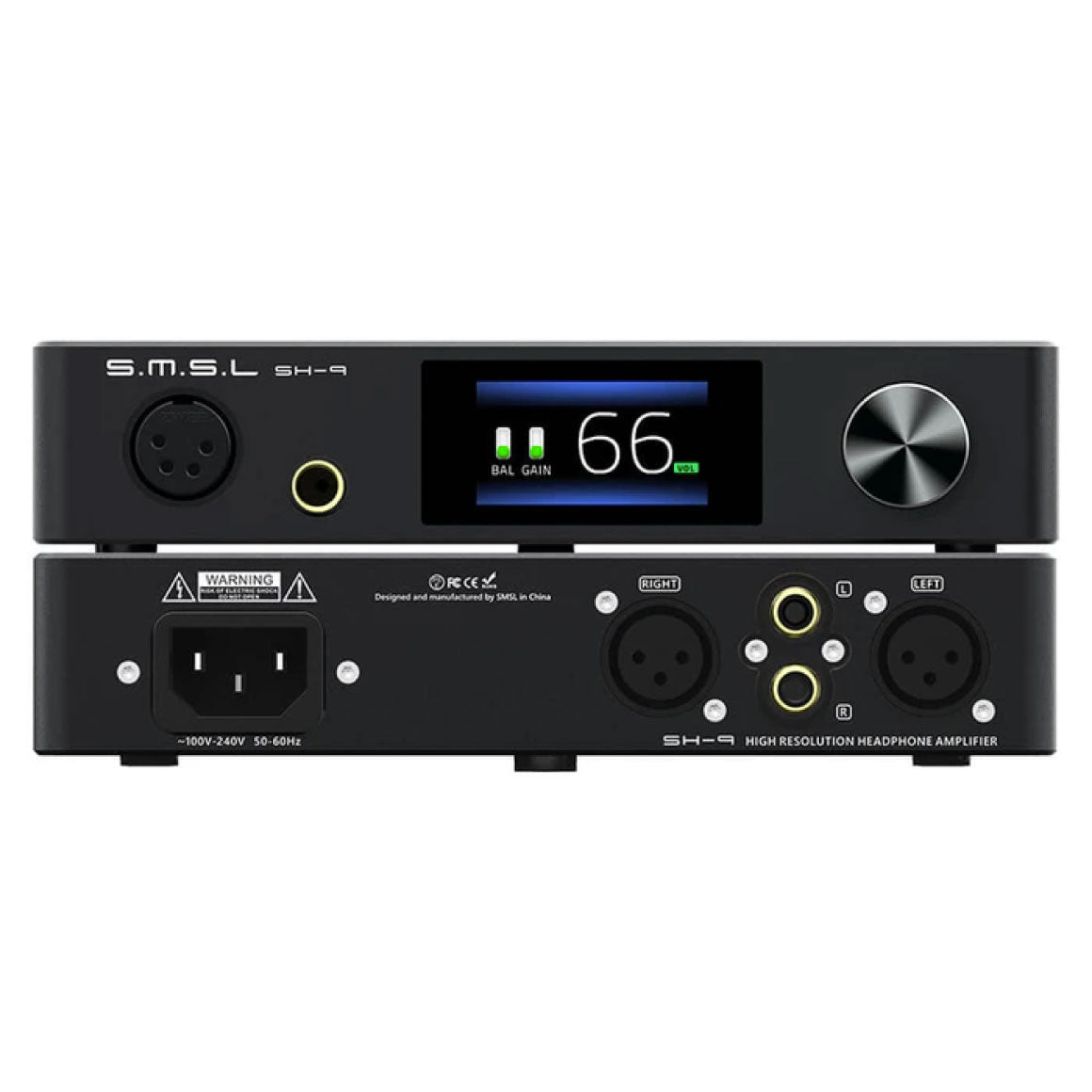

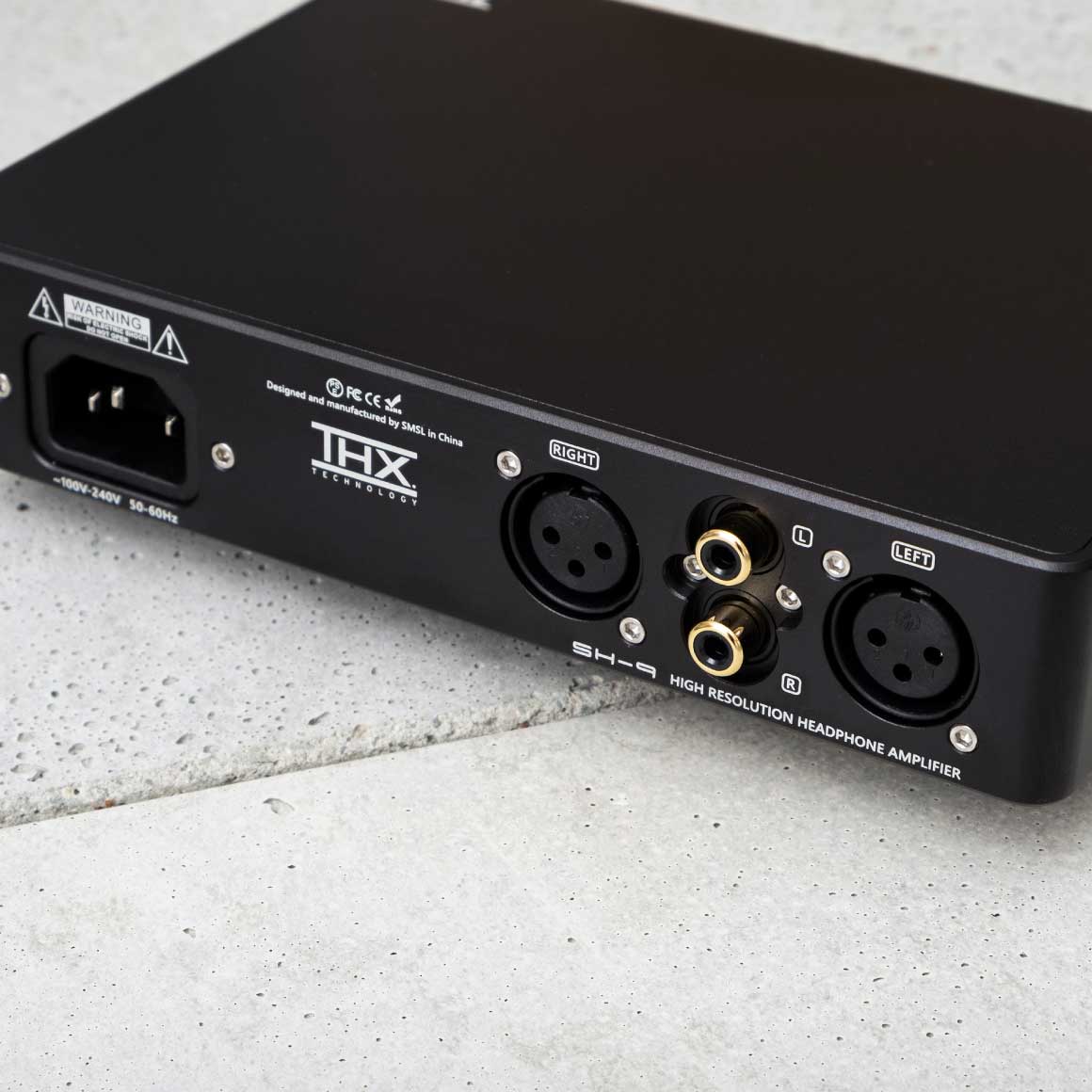

With THD ≤0.00006 and SNR >137dB, the SMSL SH-9 ensures noise/distortion-free sound for the best possible music listening. This incredible Amp comes with a function knob, display, RCA input, balanced stereo line input and an IR receiver and also supports 6.35mm output and a balanced RCA input and a 3-Pin XLR balanced output. It can produce power of up 6 Watts into 16 Ohm, 3 Watts into 32 Ohm Headphones and comes with 2 positions with switchable gain control. The thermal protection on the Amp protects DC, over-voltage, over-current and short-circuit.




INPUTS | Balanced x1, Unbalanced x1 |
OUTPUTS | Balanced x1, Unbalanced x1 |
OUTPUT POWER | 6W x 2 (16Ω) 3W x 2 (32Ω) 440 mW x 2 (300Ω) 220 mW x 2 (600Ω) |
SNR | 137dB, A-Weighted |
REMAINING NOISE | 1.9uV, A-Weighted |
THD+N | -123dB, 0.00006% (A-weighted) |
THD+N | -117dB, 0.00013% (20-20 kHz, 32Ω, -3dB) |
THD | -125, 0.00006% (1 kHz, 16Ω, -3dB) |
INPUT IMPEDANCE | 47kΩ |
OUTPUT IMPEDANCE | Near 0Ω |
FREQUENCY RESPONSE | 0.1Hz-500kHz (-3dB) |
GAIN | Low (+0dB), High (+10dB) |
VOLTAGE & FREQUENCY | AC100-240V, 50-60 Hz |
ENERGY CONSUMPTION | 24W |
STANDBY POWER | <0.1W |
DIMENSIONS | 187.5x154x40(mm) |
PACKAGING DIMENSIONS | 282x232x79(mm) |
WEIGHT | 790g |
BOX CONTENTS | 1. S.M.S.L SH-9 THX AAA-888 Balanced Headphone Amp |

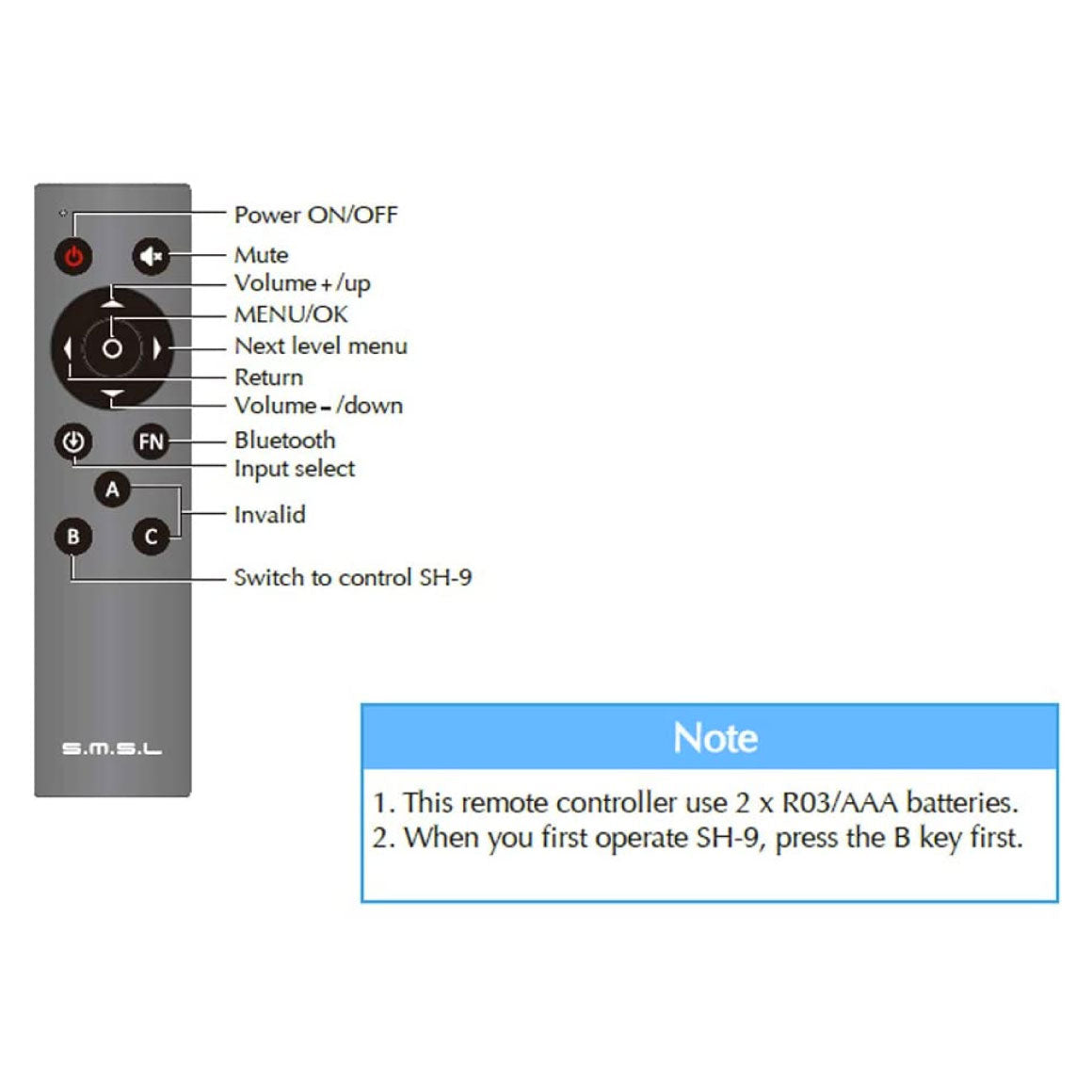

2. Remote Control |


GENERIC NAME | Headphone Amplifier |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
1 Year Warranty
Don't sweat it, this S.M.S.L - SH-9 comes with a warranty
from S.M.S.L that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about S.M.S.L's warranty in India.
