4.4mm3.5mm Pro & 4-Pin XLR
PAIR SE AND BAL HEADPHONES OF YOUR CHOICE WITH 3 GAIN MODES

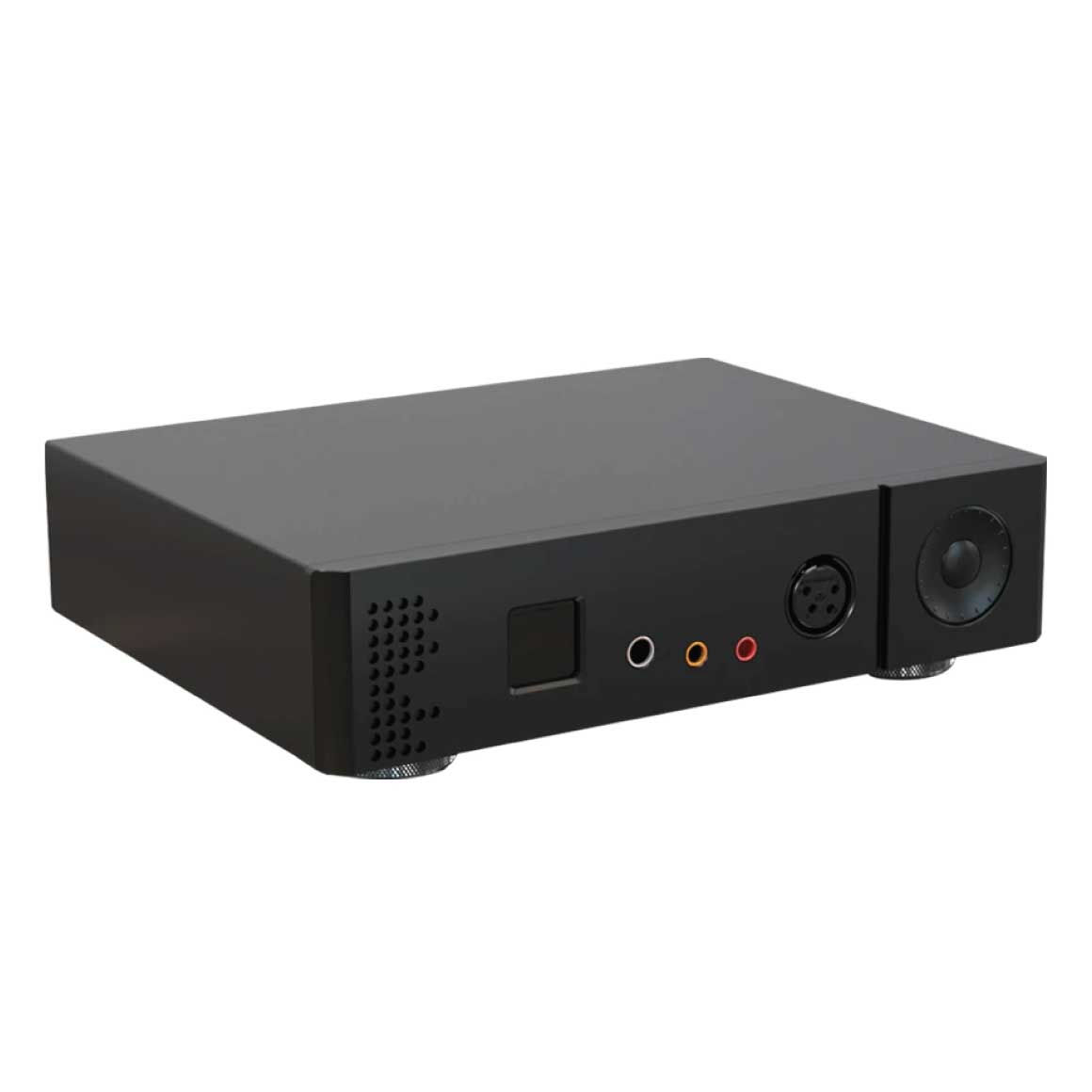

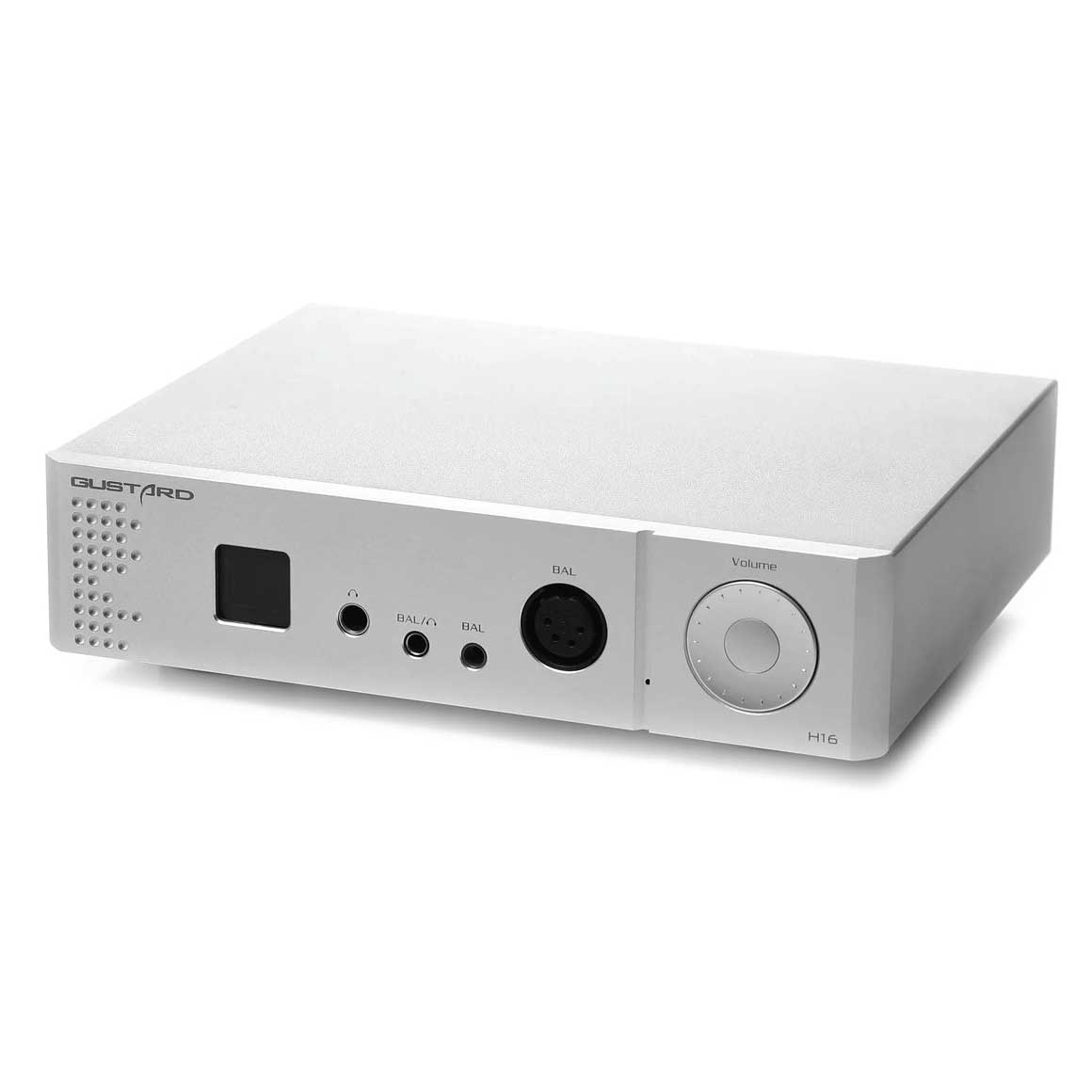

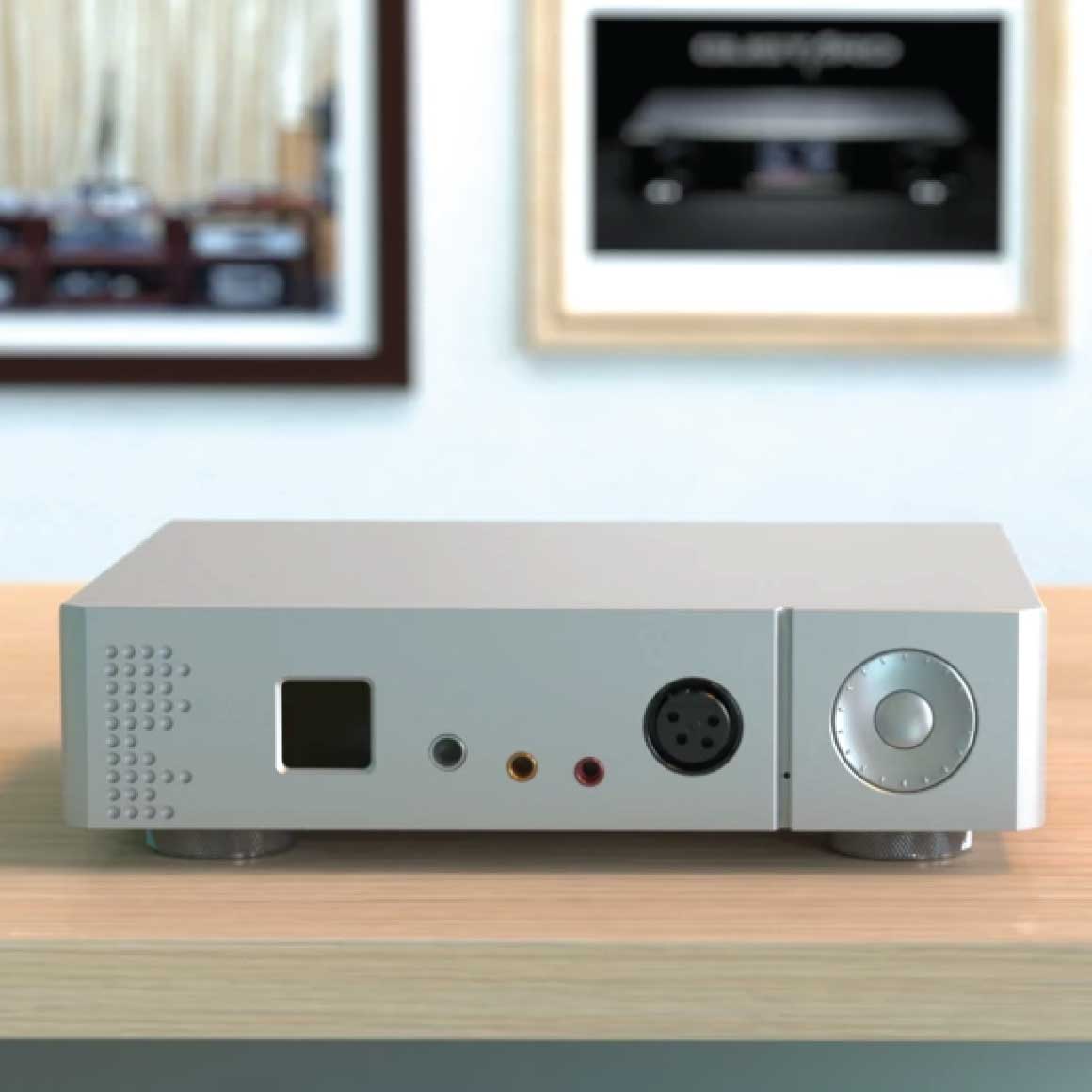

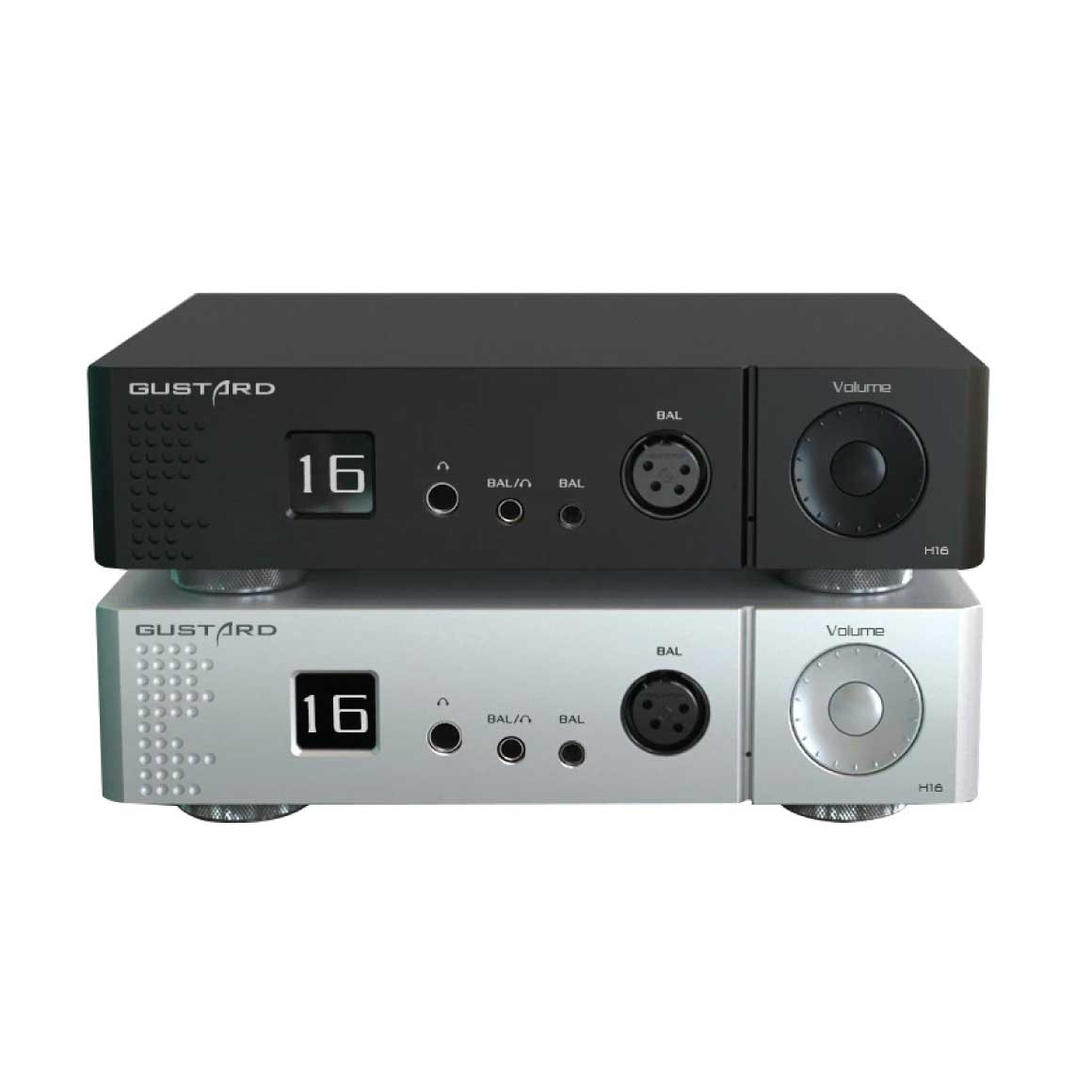

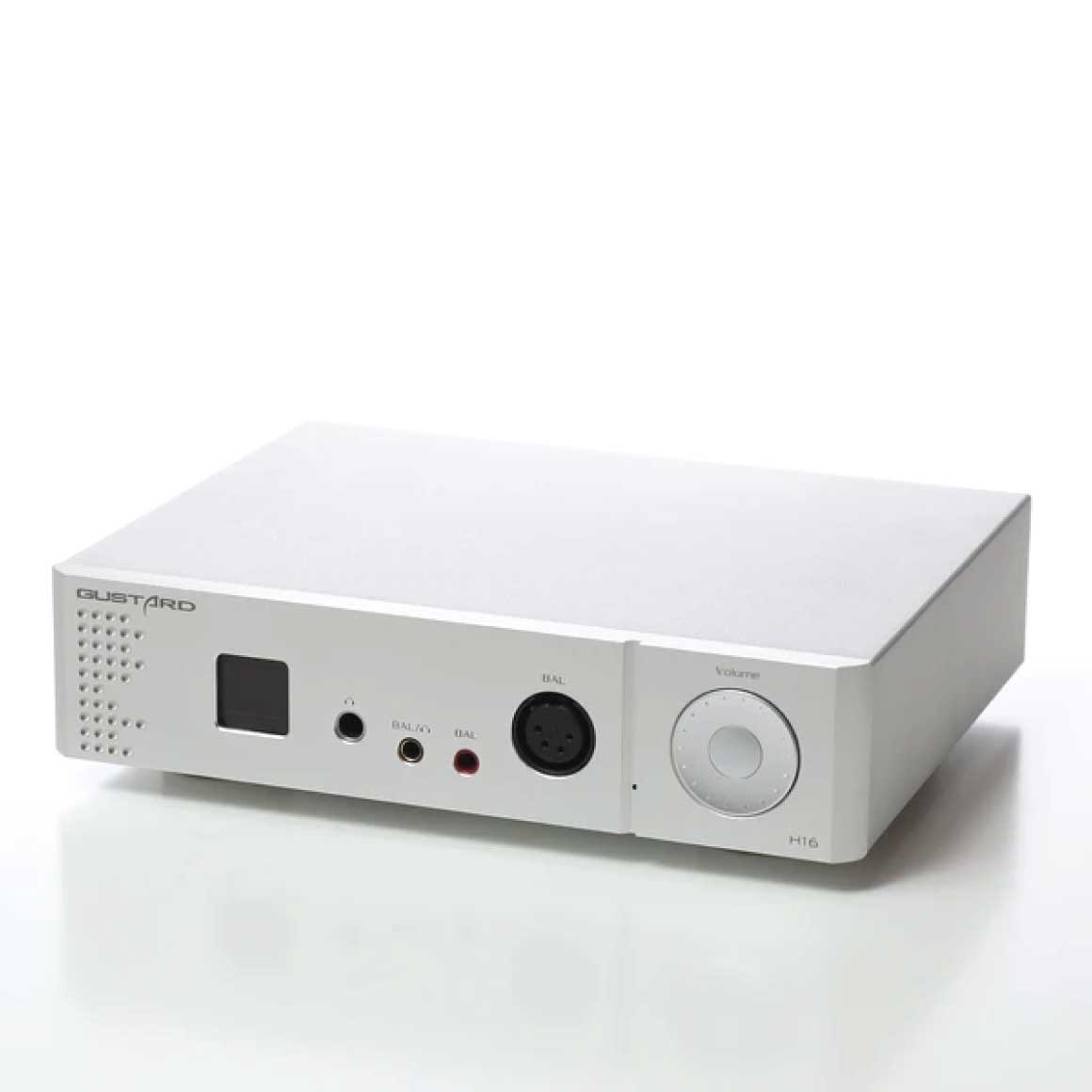

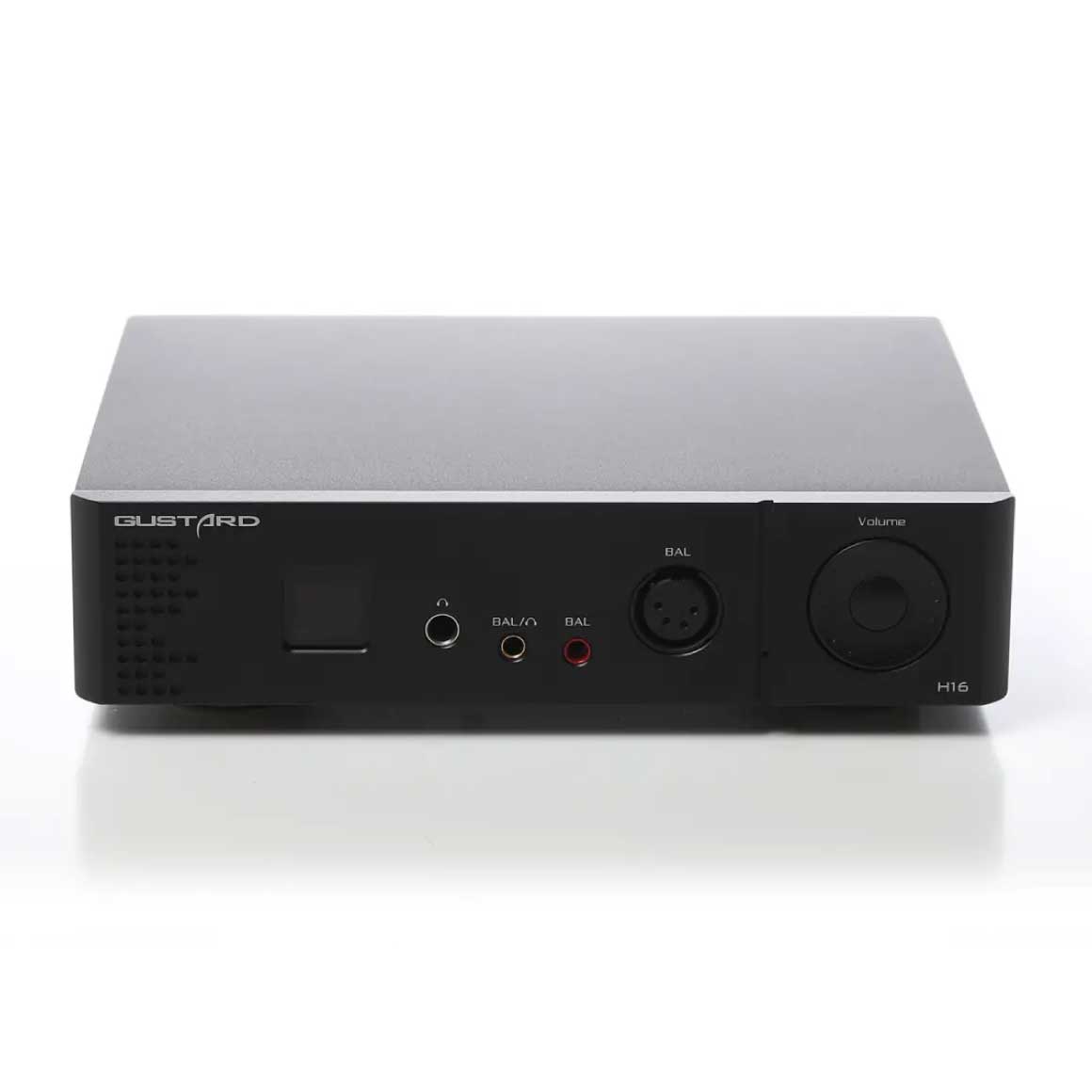

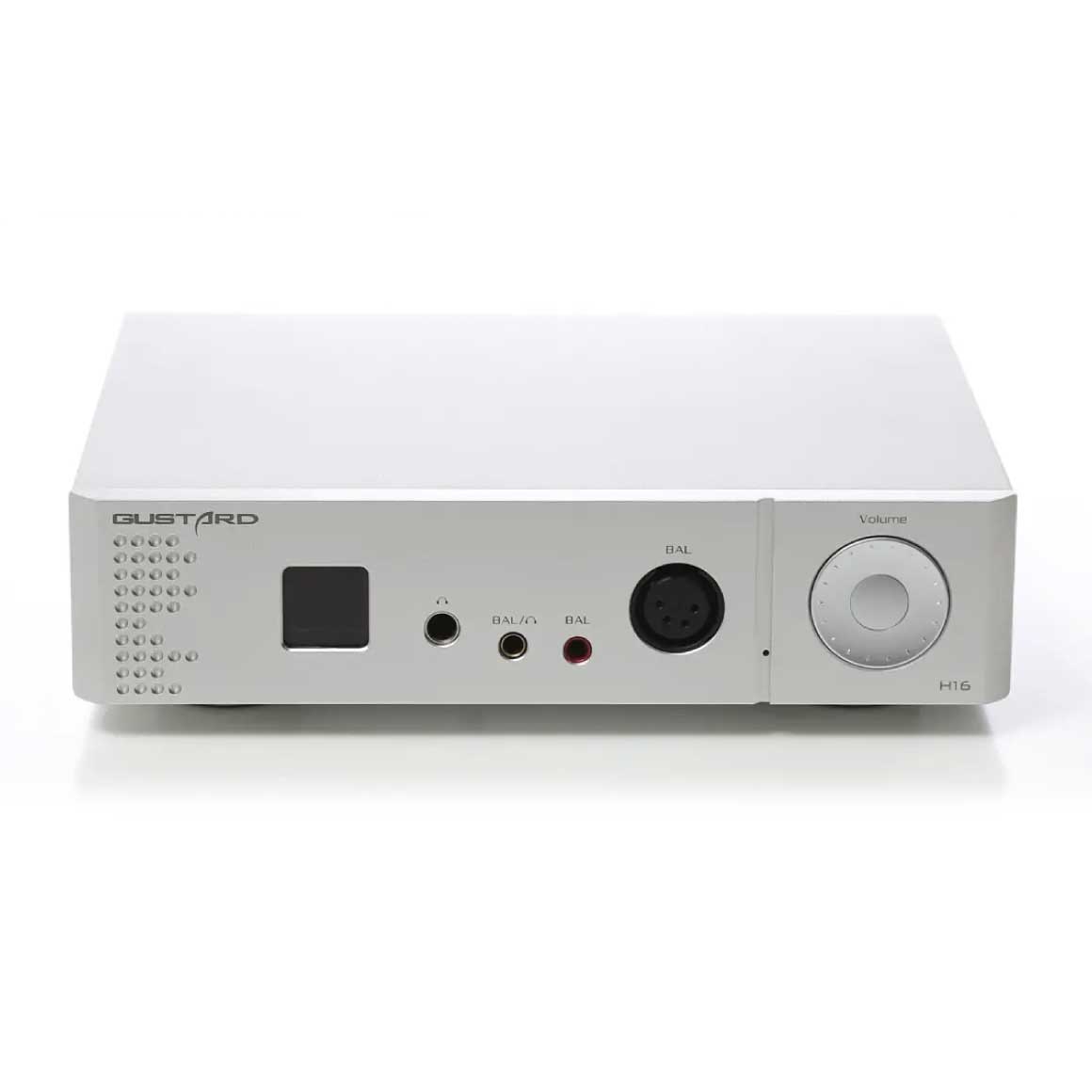

Designed to drive regular headphones seamlessly, the GUSTARD H16 comes with a 3-stage gain adjustment setting making it a perfect match for small earphones as well as big ones. While the GUSTARD H16 can easily drive balanced headphones, it also manages to get the best possible performance from single-ended high-impedance headphones as well.
SUPPORTS VOLUME CONTROL AND A HOST OF BALANCED/UNBALANCED OUTS

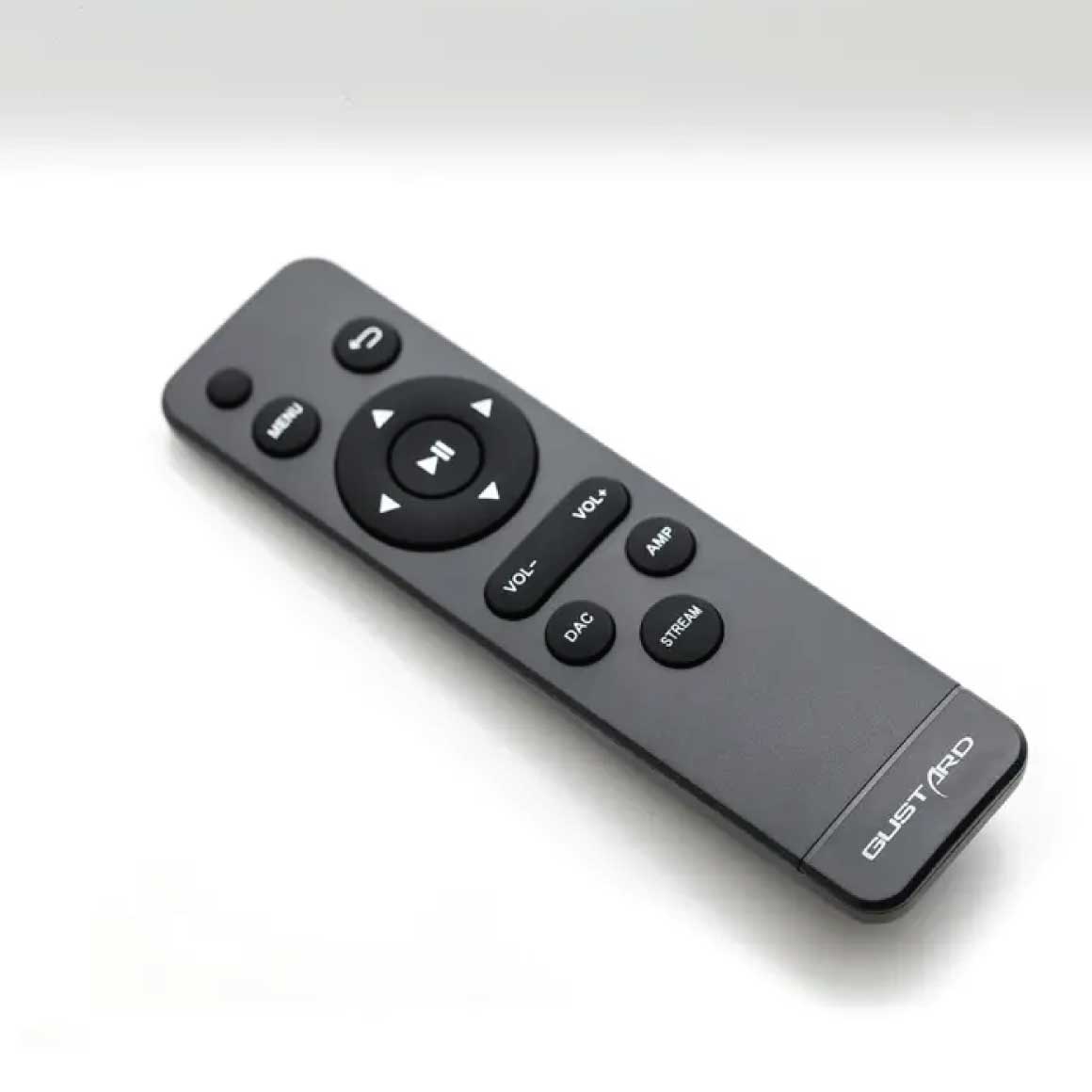

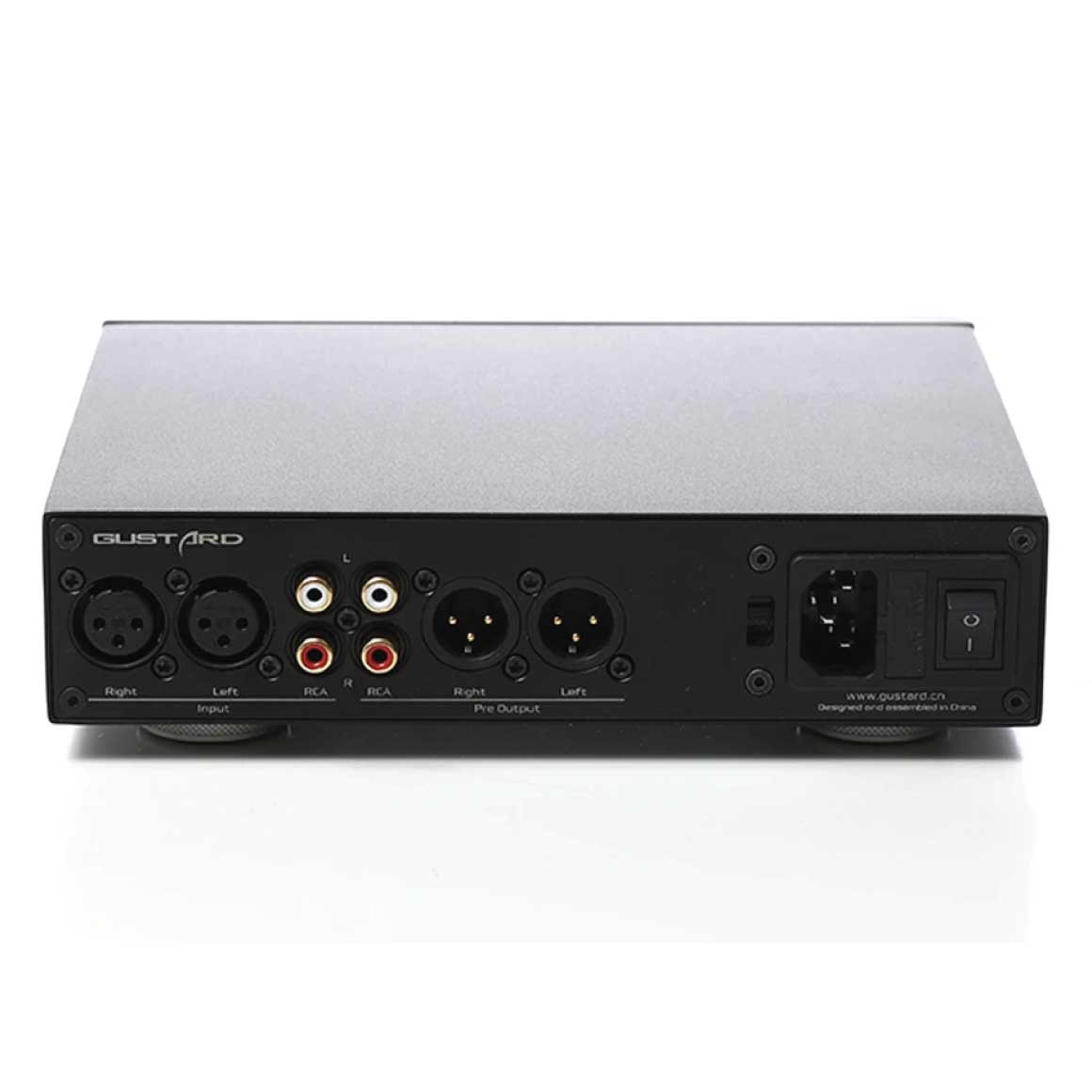

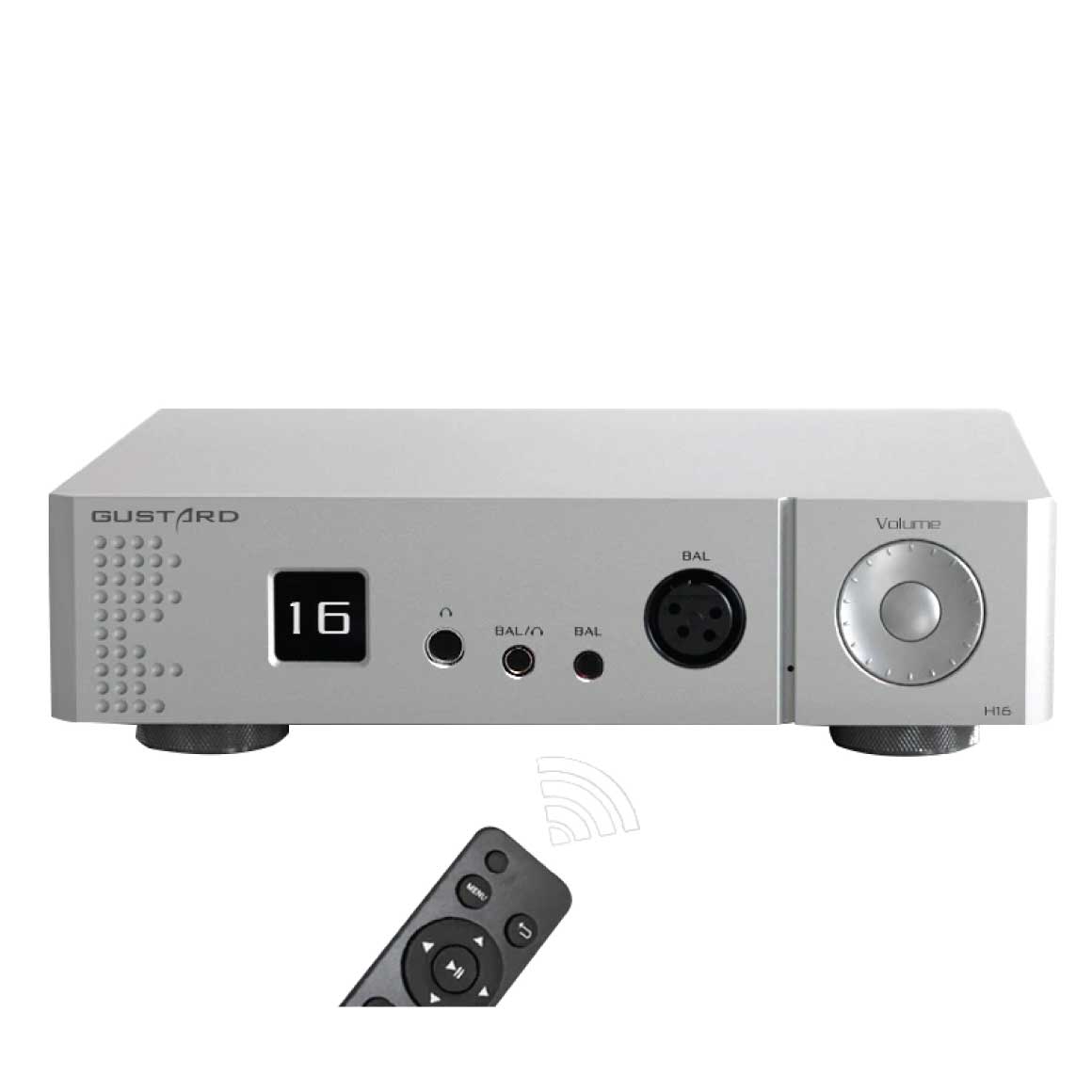

Equipped with a pre-amplifier output and remote control, the H16 can be paired with active speakers to be used as a volume controller. With a separate design for balanced and single-ended, there is a range of unbalanced and balanced audio outputs to choose from like the 6.35mm, 3.5pro, 4.4 and XLR output.
NOISE-FREE, RELIABLE OPERATION WITH VOLUME CONTROL & A TAIWAN-MADE DECODER
Get rid of noise bias with matrix relay powered volume control, this ensures that the volume levels on both the right and the left are the same and free of noise. The use of Taiwan made mechanical decoder enables smooth, accurate and stable operation. It adopts a human-computer interaction system.
QUALITY AUDIO AND LINEAR POWER SUPPLY WITH TOROIDAL TRANSFORMER
Be rest assured of linear power supply and high-quality audio with the in-built toroidal transformer. Adopting OPA1642 and OPA1678 to match impedance, the input buffer of the Gustard H16 is compatible and convenient for multiple front ends. The pre-amplification and drive circuit rely on the combination of LME49724+LME49722 for excellent performance.
|ONE SET OF RCA STANDARD INPUT,TYPICAL INPUT SENSITIVITY||2Vrms; input impedance 4.7kΩ|
|ONE SET OF XLR BALANCED INPUT,TYPICAL INPUT SENSITIVITY||+18dBu maximum + 26dBu;input impedance 10kΩ|
|SIGNAL TO NOISE RATIO||120 dB|
|THD + N||<0.0004%|
|CHANNEL CROSSTALK||-120 dB@1 kHz|
|SINGLE PORT OUTPUT IMPEDANCE
|BALANCE PORT OUTPUT IMPEDANCE
|SIGNAL TO NOISE RATIO||>118dB|
|THD + N(1 kHz)||<0.0005%@3700 mW into 640 LOAD|
|IMD||<0.0005% @3700 mW into 640 LOAD|
|CHANNEL CROSSTALK||-118dB@1 kHz|
|MAXIMUM UNDISTORTED OUTPUT POWER||3700 mW into 64Ω LOAD balanced output|
|AC POWER SUPPLY||AC 115V/230V 50/60Hz|
|DIMENSIONS||220 mm*50 mm*170 mm|
|LOAD POWER||64Ω 3700 mW
|BOX CONTENTS||1. GUSTARD H16 Headphone Amplifier|
|2. 1 X Remote Control|
|3. Warranty Card|
|GENERIC NAME||Headphone Amplifier|
|COUNTRY OF ORIGIN||China|
|IMPORTER DETAILS||Importers Name: Ferrari Video
Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020
Contact No: 044-24420733
2 Year Warranty
Don't sweat it, this GUSTARD - H16 comes with a warranty
from GUSTARD that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about GUSTARD's warranty in India.
"It sounds better after warming up.Specially treble & mids get a tiny bit refined.The bass of this amp is very impressive.Bass is not too much or boomy.The bass is more resolving & has more energy & attack."Read More

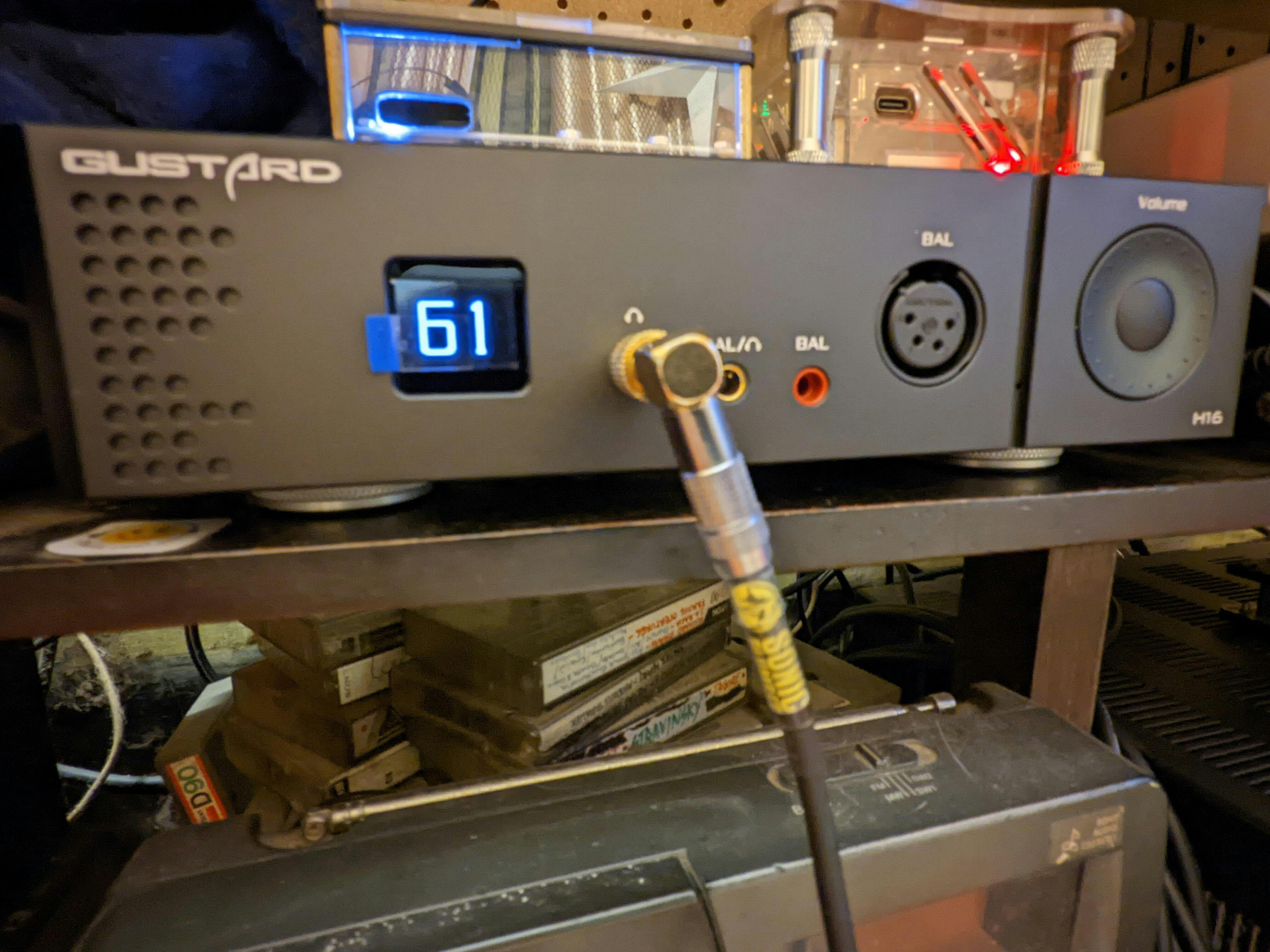

Recently moved my LCD X headphones from the dragonfly cobalt to a Gustard H16 amp paired with the Allo Revolution Dac. Both are being fed by a Pi4 streamer as a Roon endpoint. The whole system has turned out to be such a musical, full of life and absolutely fatigue free listening experience. I have spent unplanned long hours into the night just wanting more of just this joy of listening, the LCD X are flowing, the gustard is definitely adding a lot of warmth and air, making these headphone open up to their best performance. Overall super satisfied with this purchase and thank you headphone zone for making this happen. Thrilled with the addition of this amp.
When I first listened to the amp initially it seemed mid forward and power starved with the Sundaras but as time progresses, with burn in its starting to show its true colours. Beautiful smooth analog and organic sound without any emphasis. It actually has the ability to make my cans vanish and let the pure music flow. Comparing with my Magni 3 plus, this sounds a touch more refined and spacious. A solid amp hopefully to last a long time I hope.
