Burson Audio - Conductor 3X Reference
Desktop Headphone Amp + Pre-Amp & DACUnfortunately, even if we desire to, we won't be able to resurrect this product. The Museum is where we pay our respects to end-of-life, old, archived, but not forgotten products. This page was made with a lot of love and will live on for posterity. What to say, we're sentimental people. 😔
While this product is gone forever, here are others we recommend
This product is rated 5.0 of 5.0 stars.
It has received 1 review.
Designed in
Australia
Ideal for Audiophiles
Ideal for
Indoor Use
Bluetooth with
aptX HD & LDAC
4-Pin XLR
Balanced Output
ESS Sabre 9038Q2M
Dual DAC Chip
Metal
Build

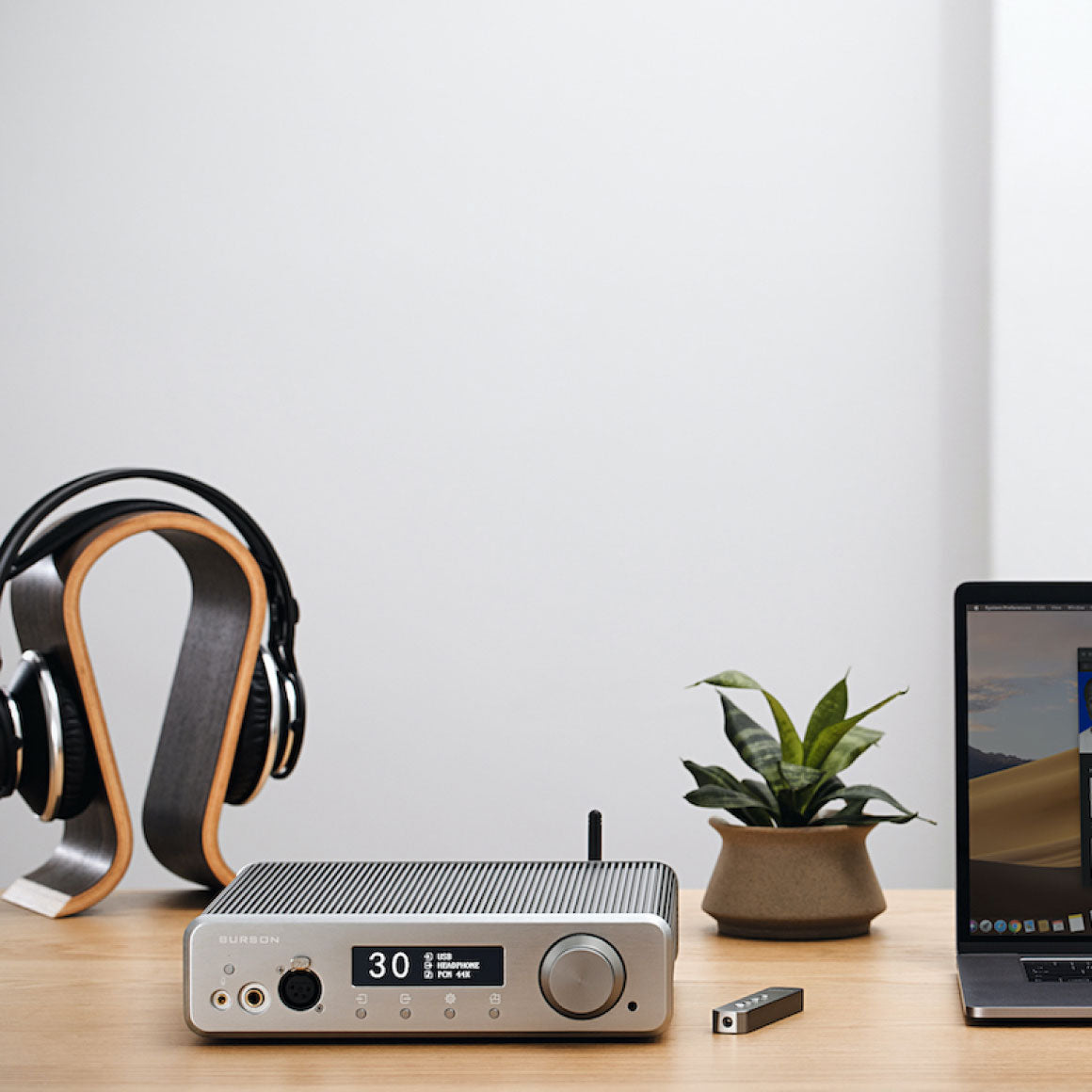

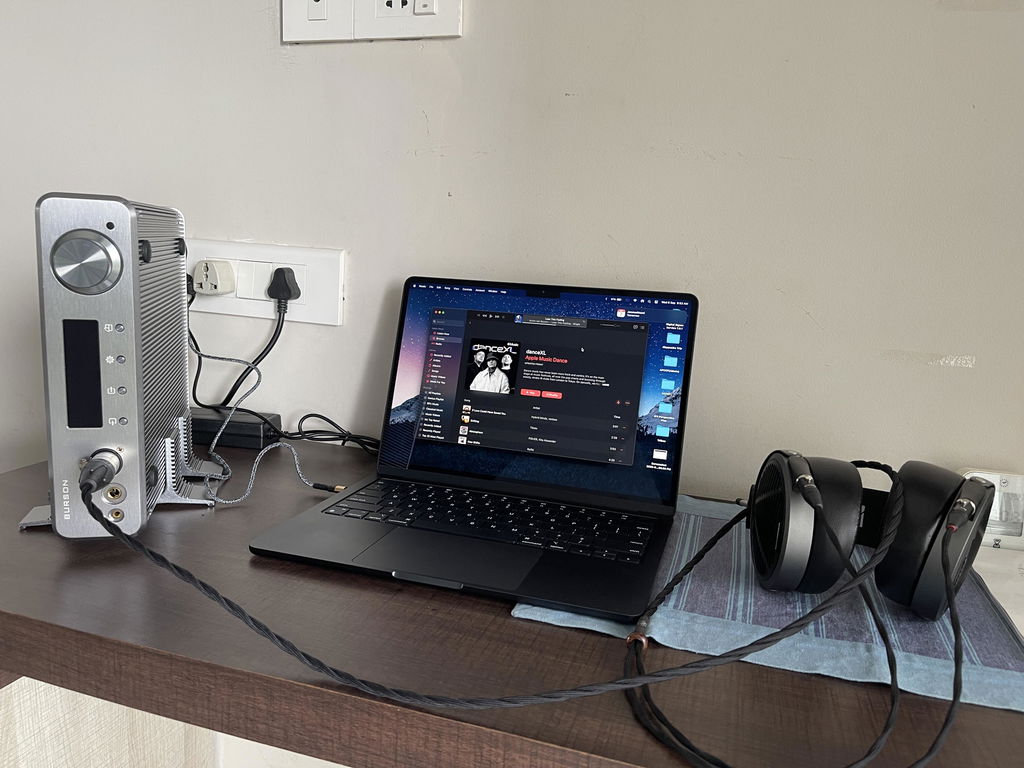

Pair with Laptop via USB
A majority of people use a laptop as the primary source device to listen to music or watch movies. Since the laptop is an essential part of the audio chain there are headphones and devices designed to work a laptop or computer system flawlessly. With the availability of USB connectivity, it becomes easier to pair various devices like an Amp, DAC or even headphones without worrying about drivers or any additional piece of software.
Connect With USB,
Optical Toslink, XLR
Upto 5W @ 32Ω
Power Output
Volume Controls
DESCRIPTION
GROOVE ON HIGH-FIDELITY AUDIO WITH THE BURSON AUDIO CONDUCTOR 3X REFERENCE
Burson Audio is challenging the status quo by pushing the boundaries of audio excellence via innovation. They're known in the audio industry for using discrete audio opamps in their products' audio signal chain. Burson Audio developed its own Max Current Power Supply (MCPS), which is embedded in all of its products. It needed a herculean effort to design an amplifier that was sleek and capable of delivering audiophile-grade performance. You'll never want to add another machine to your desktop with Conductor 3X Reference at your table. It is the ultimate all-in-one, proving that something so simple to use can deliver full-range sound and supreme performance. Burson Audio has done it again with the all-new Conductor 3X Reference.
HIGH FIDELITY AUDIO CONVERSION WITH CLASS-LEADING AUDIO ARCHITECTURE
Burson Audio as a company has a reputation for building some of the most elegant
and high-performing DAC & Amps. The Conductor 3X Reference took three years to develop. Conductor 3X
Reference is embedded with the industry-leading SABRE32/ESS9038Q2M DAC and XMOS USB receiver chips. It has
two ESS9038 DAC chips, and its USB receiver comes with a bespoke driver from Thesycon, Germany. The result
is unrivaled processing power, capable of flawlessly reproducing DSD512 and 32bit/768kHz audio. The

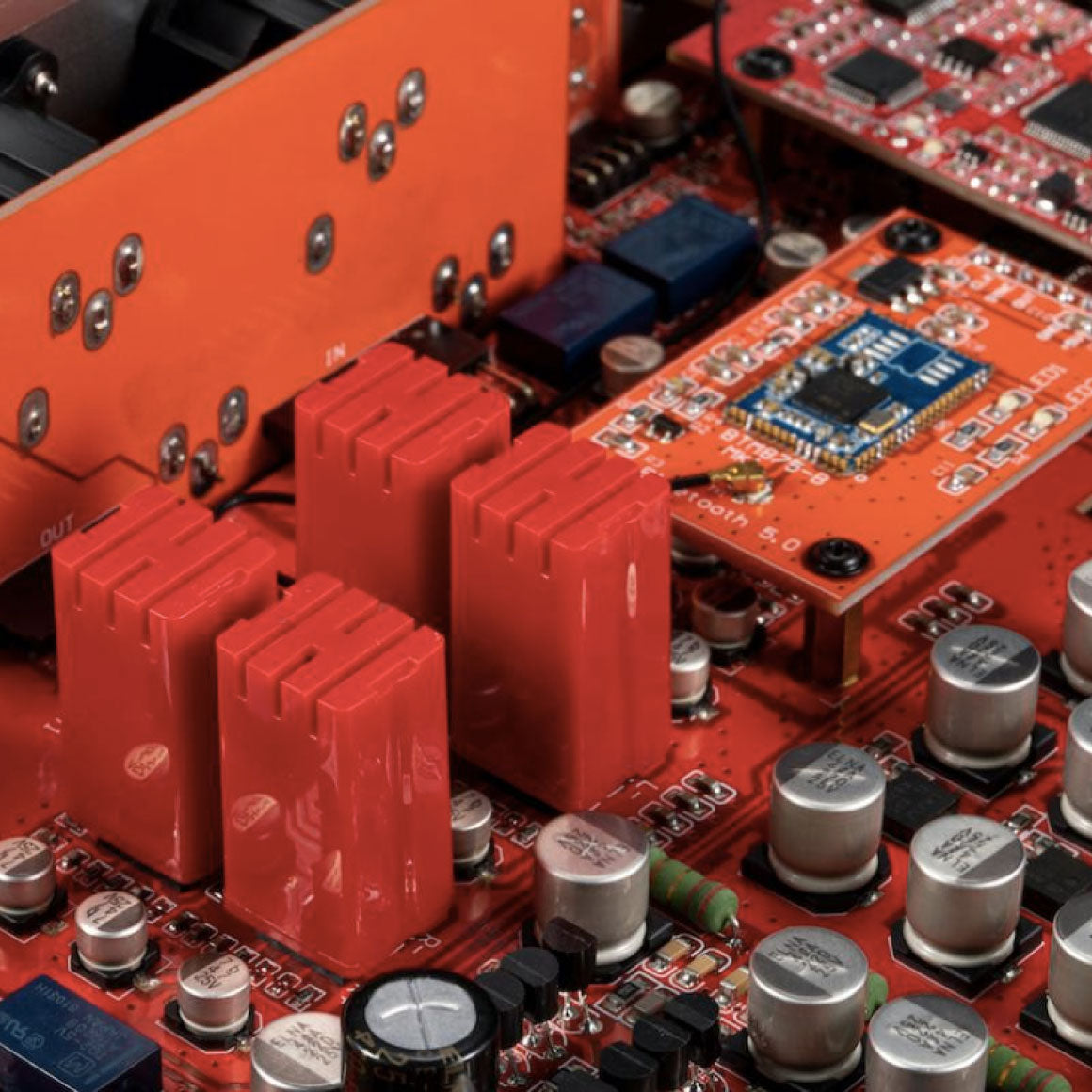

Conductor 3X Reference is also equipped with a Qualcomm/CSR8675 Bluetooth 5.0 receiver with LDAC and aptX HD
audio codecs. It takes Bluetooth playback to new heights in terms of sound quality and ease of use.
FEATURES 7.5W CLASS-A AMPLIFICATION STAGE TO DELIVER A PRISTINE AUDIO EXPERIENCE
The first and most profound impression of the Conductor 3X Reference is its overwhelming energy. The Burson Conductor 3X Reference pushes 7.5W power Class A XLR, 3.7W SE (3XR) and 7.5W Class A SE (3R). It energizes every note and space with absolute control and accuracy. The Conductor 3X is uncompromising, with one DAC chip per channel. Class-A and using top-quality components throughout, including Neutrik XLR connectors. By incorporating a fully balanced design, the Conductor 3X achieves ultra-low output impedance. The Conductor 3X Reference is an excellent improvement for single-ended audio systems.

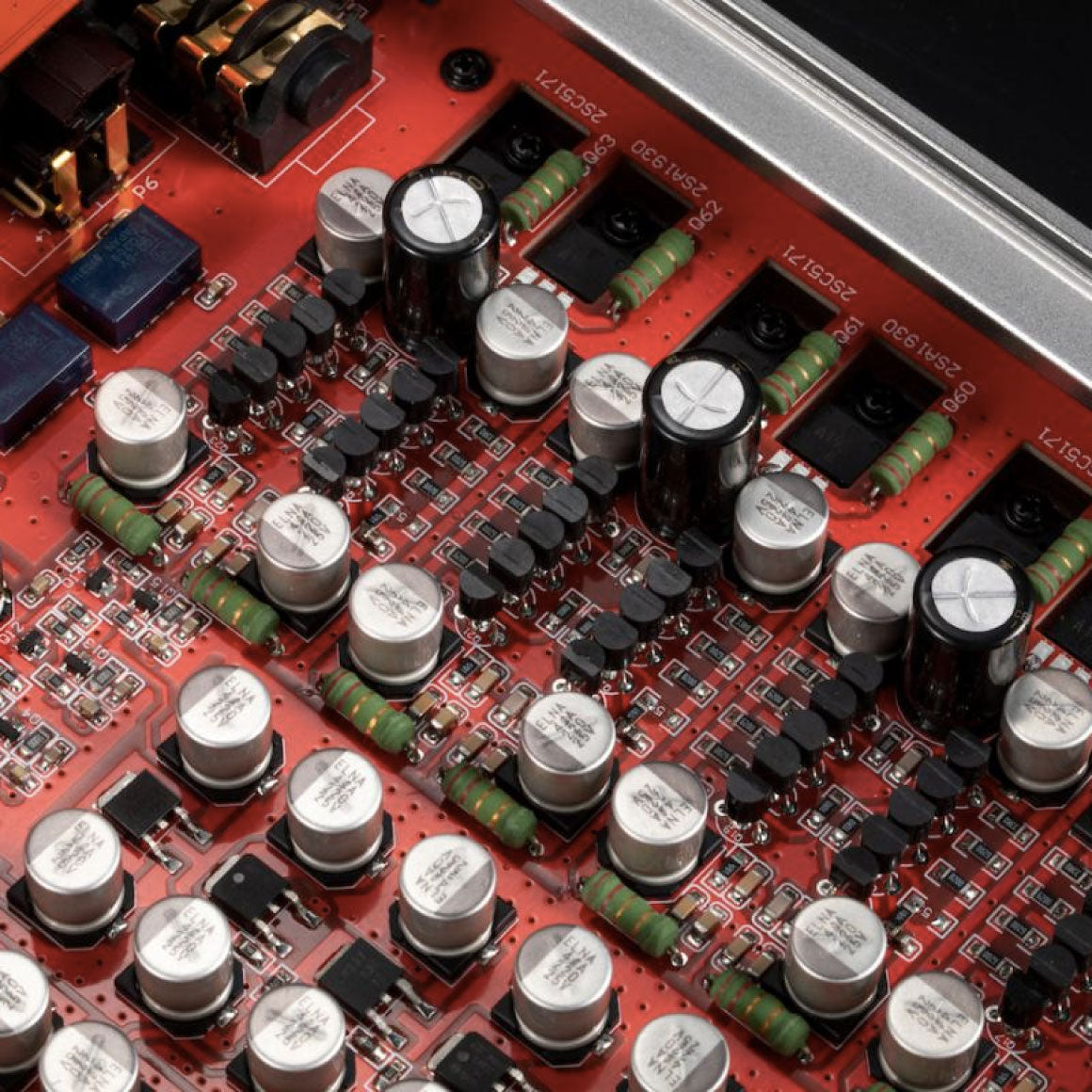

MODULAR DESIGN WITH DISCRETE OP-AMP ROLLING CAPABILITIES FOR CUSTOMIZING YOUR SOUND
For over 15 years' Burson Audio has been pushing its opamps' sound quality and presentation to new highs with each new revision. Burson Audio builds discrete circuits for specific applications rather than the jack-of-all-trades-master-of-none specs. Conventional IC opamp is a single piece of silicon with more components on a signal path that worsens the sound quality. Burson Discrete opamps are designed for audio amplification only. They manually desolder a transistor or resistor which leads to not having many components in a signal path that delivers clean and crisp audio. Burson Discrete OpAmps sound much more transparent and accurate than any IC OpAmps. The OpAmps are also upgradeable, allowing you to customize the sound of your system. The Conductor Performance comes with Burson V6 Vivid discrete opamps, The V6 Vivid is dynamic, transparent, and exciting. From its incredible dynamic range, and three-dimensional soundstage to its ability to reproduce the finest micro details. It invites you to witness that moment of recording. But Burson Audio does not dictate your listening experience. The Conductor encourages opamp rolling with gold-plated DIP8 sockets along its signal path. With hundreds of audio opamps out there, you have the freedom to tailor your listening experience to your preference.

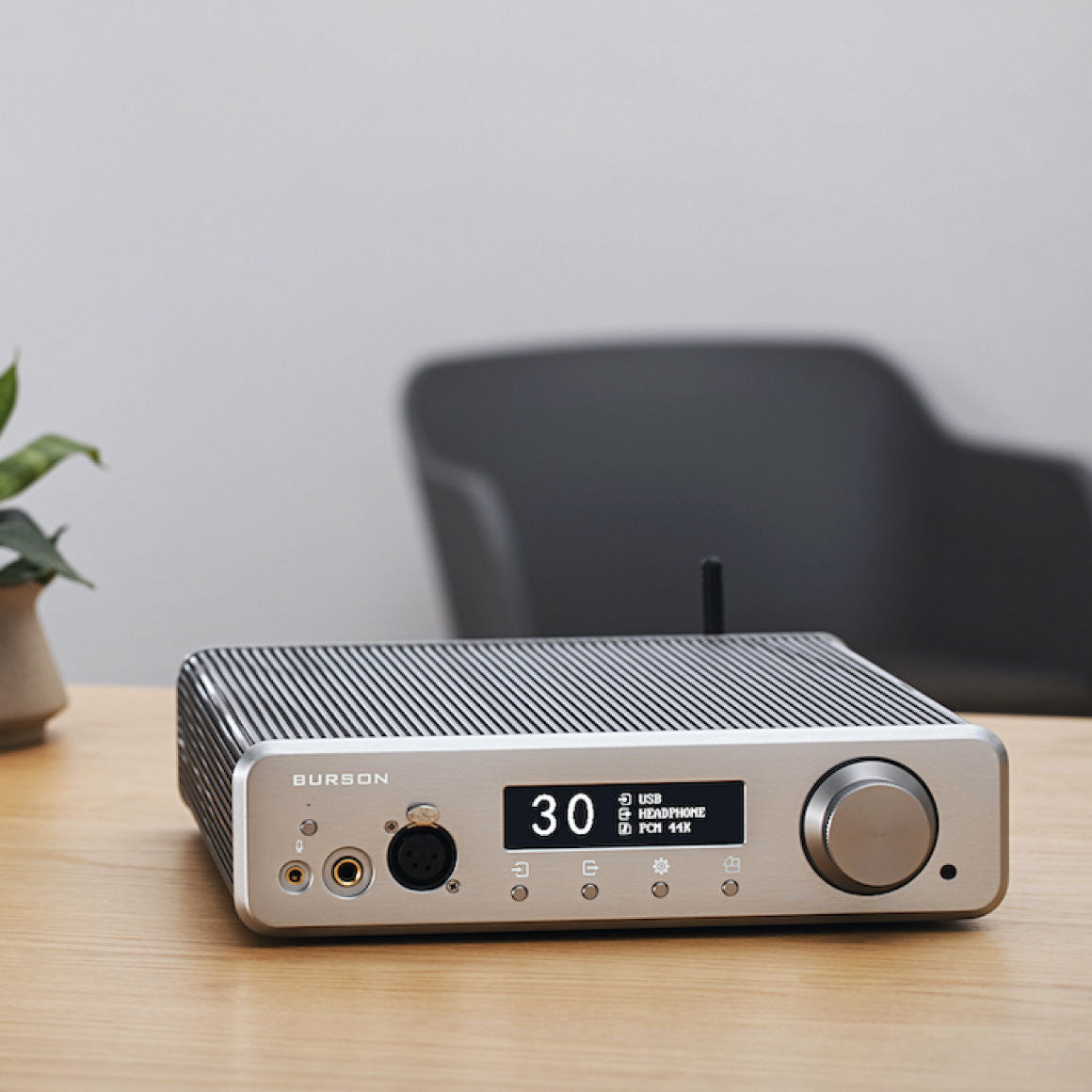

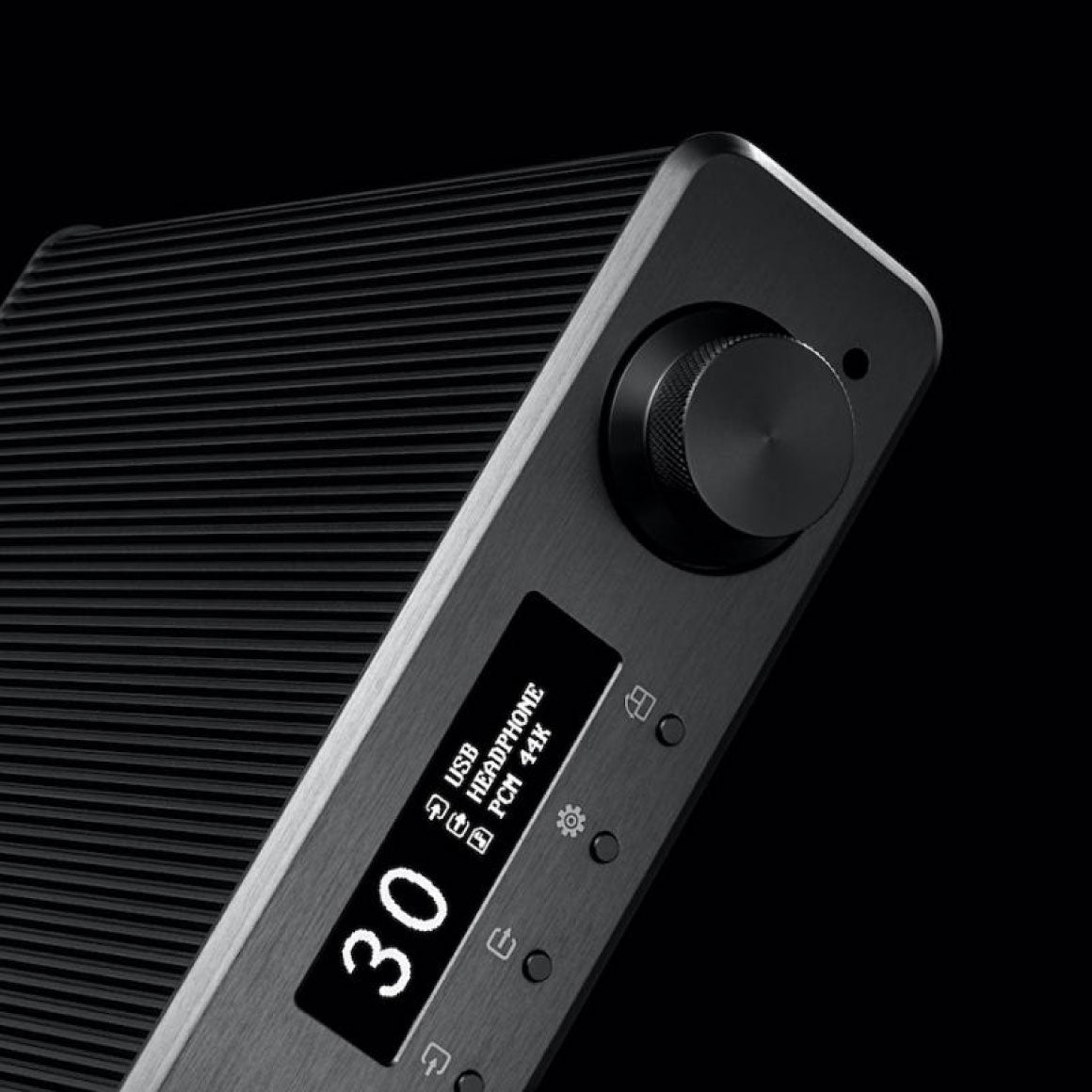

ALL-NEW OLED DISPLAY AND INTERFACE PROGRAM INTEGRATED FOR EASY USER EXPERIENCE
The Conductor 3X Reference has five sets of MCPS, which implies that the Display/Functionality, DAC, and analog left and right are powered separately. The all-new OLED display and interface program provides a soothing and easy user experience. It has a machined solid aluminum knob that feels exquisite. The Max Current Power Supply (MCPS) increases the voltage frequency from 50Hz to 170kHz. Its low impedance means that output transistors receive enough energy quickly.

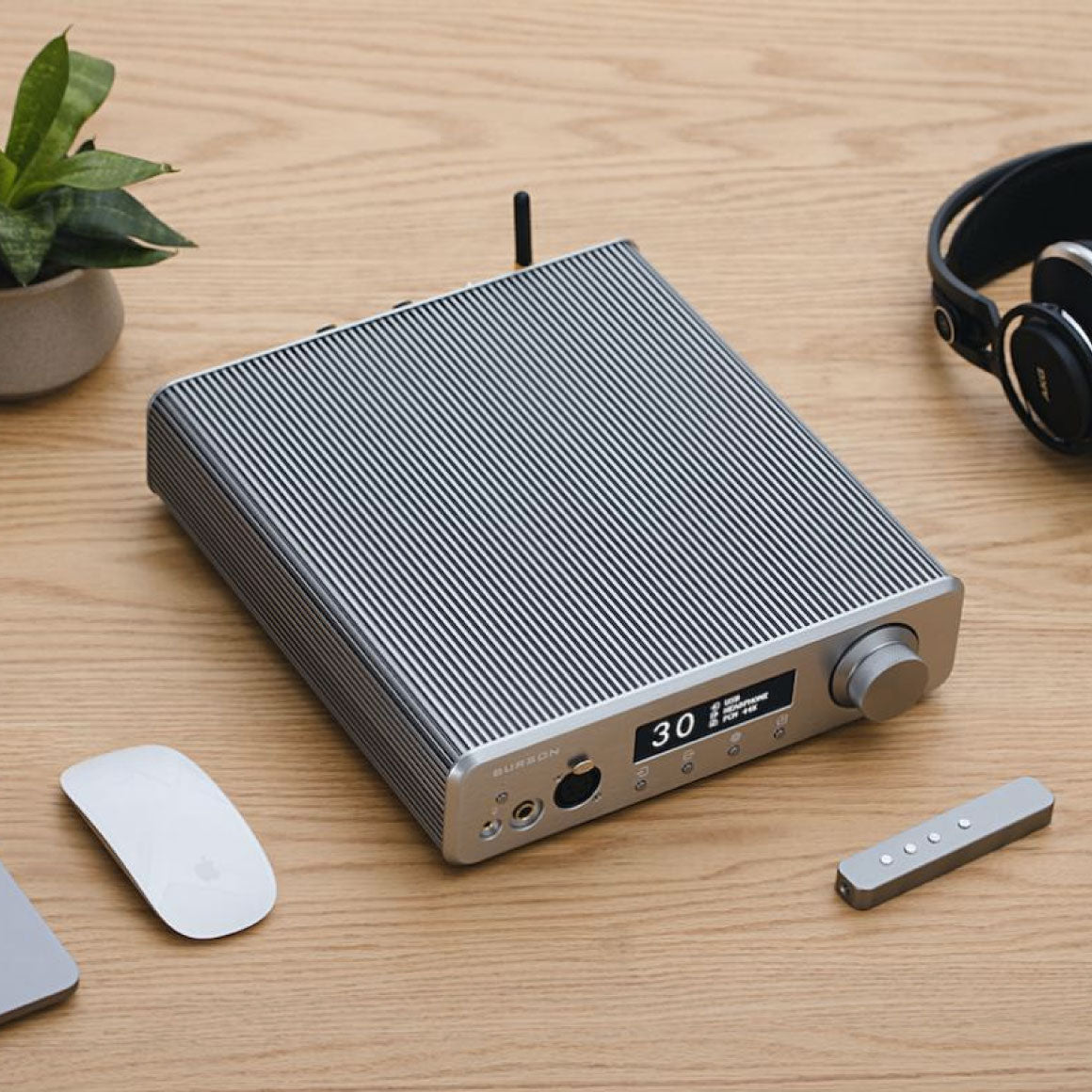

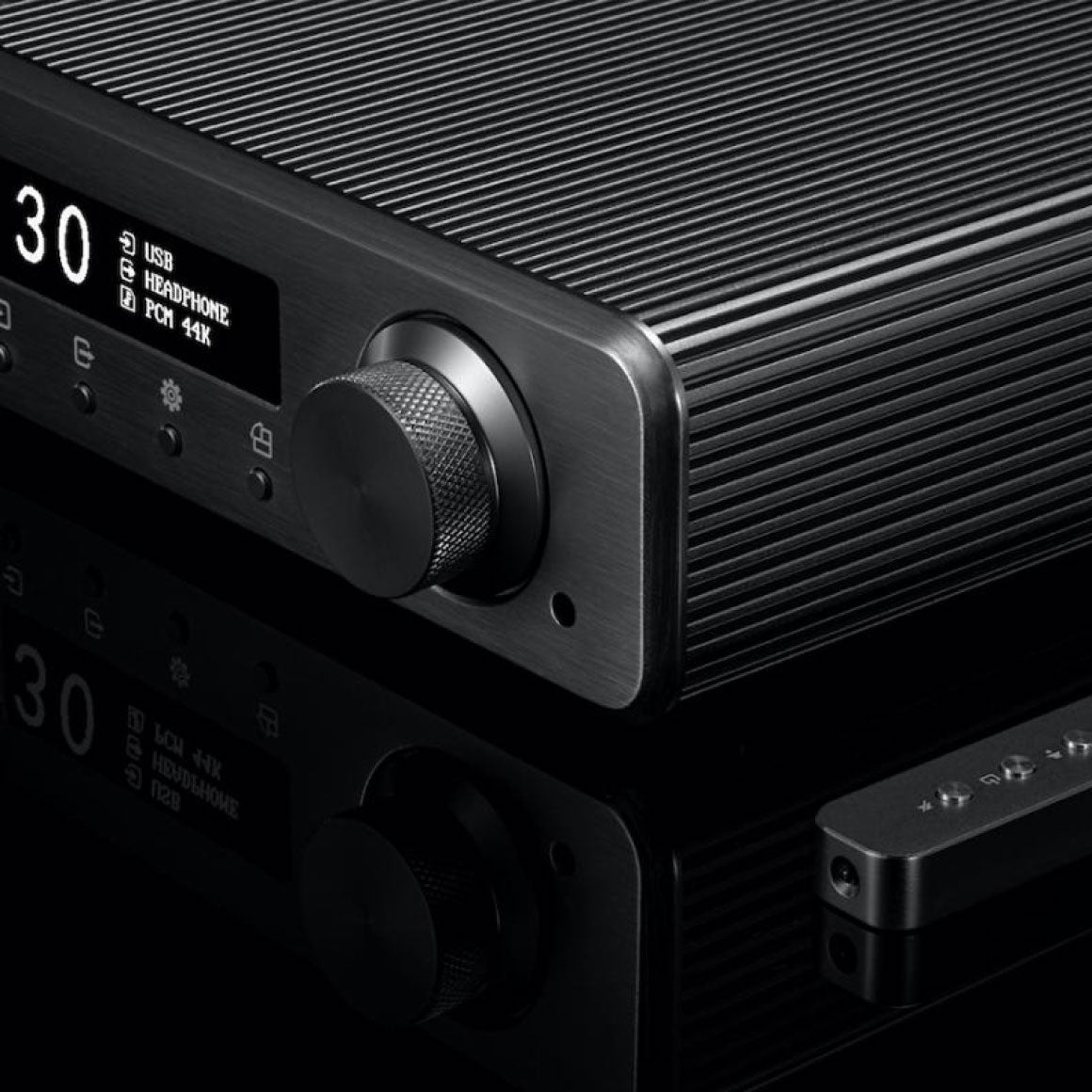

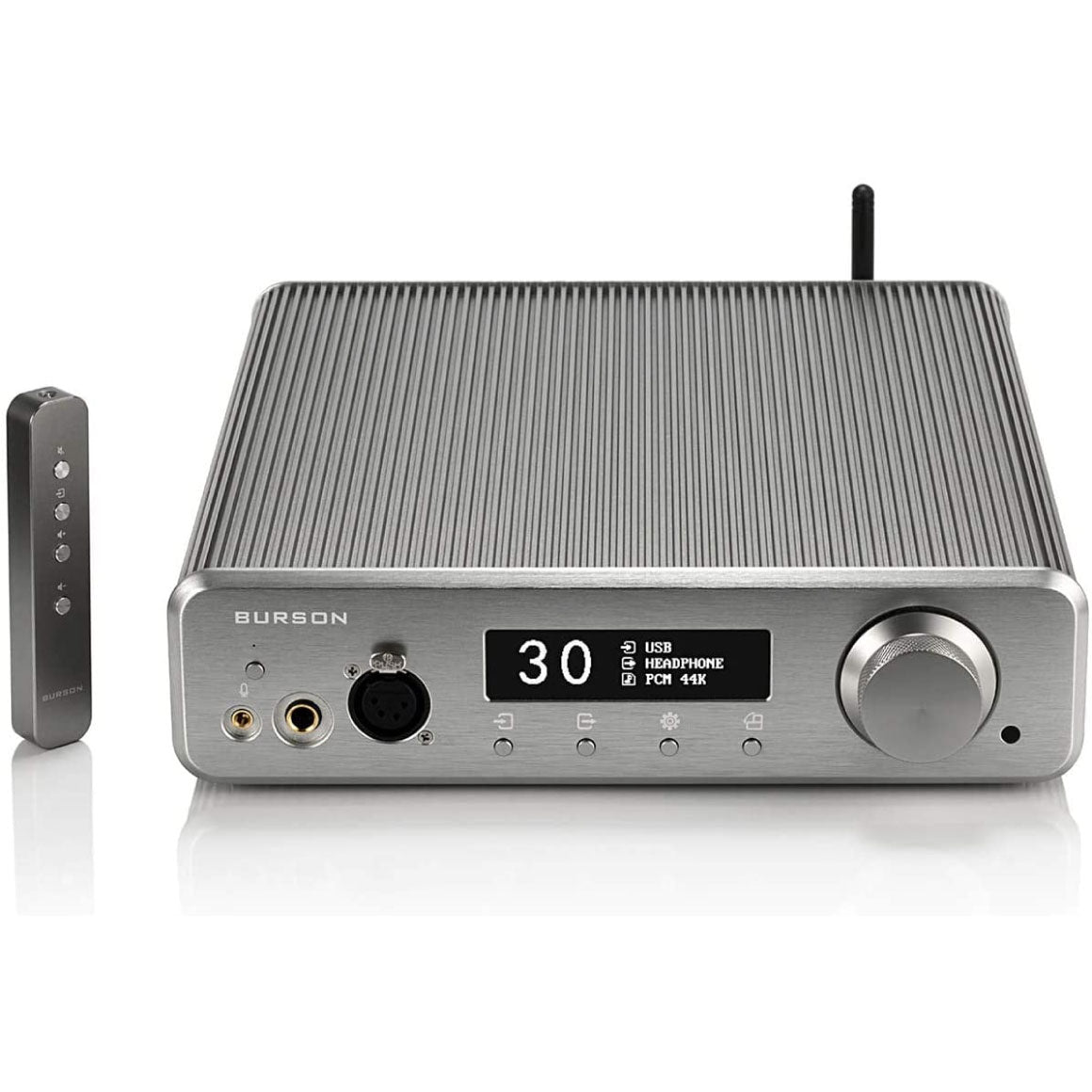

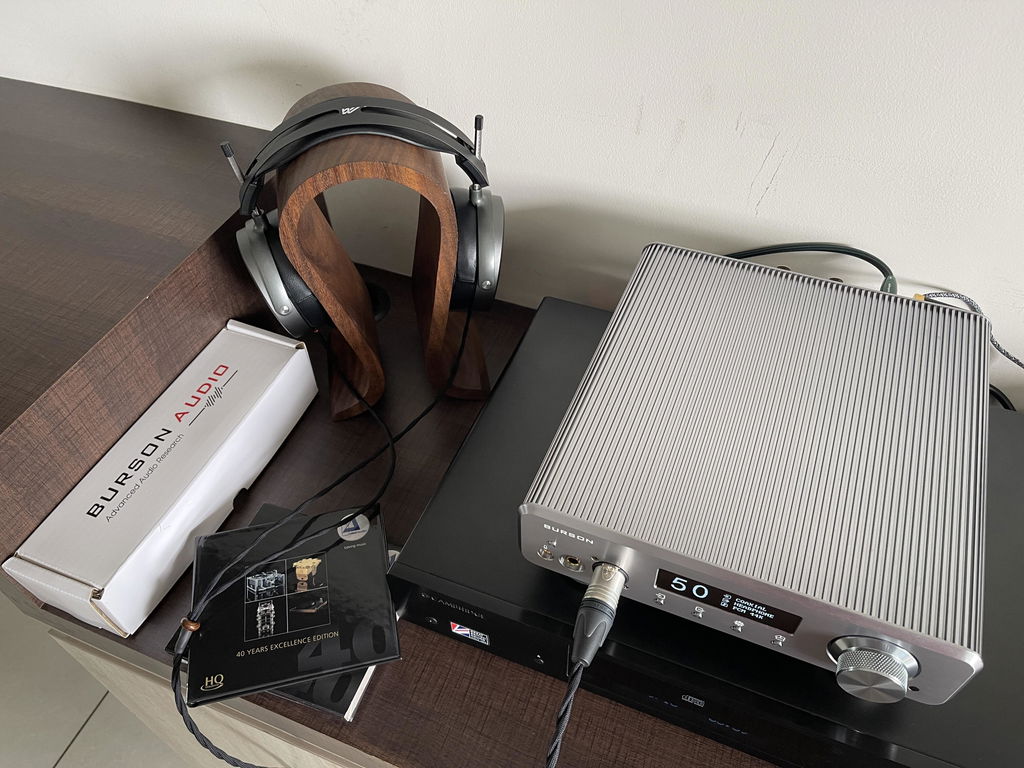

A CLASS-LEADING BUILD QUALITY WITH THE COOL CASE AND A REMOTE
Let's face it, the majority of audio equipment cases are unappealing and inconvenient. They frequently have exposed screws, sharp corners, and dull hues. Class-A amplifiers even have finger-cutting heat sinks! that detract from the look of any living room. Conductor 3X Reference is composed of high-density aluminum that has been space-grey electroplated. Only four visible screws are visible beneath the Cool Case's belly. It also functions as a unitary heatsink that is 300% more efficient than prior Conductors. It's audio jewelry at its finest, and it both looks and sounds great. Conductor 3X Reference comes with machined aluminum remote control for easy operability and a microphone built-in.
SPECS
INPUT IMPEDANCE | 40 KOhms |
FREQUENCY RESPONSE | ± 1 dB 0 – 58Khz |
THD | <0.0015% |
OUTPUT IMPEDANCE (HEADPHONE AMP) | 0.5 Ohm |
OUTPUT IMPEDANCE (PRE OUT / DAC OUT) | 1 Ohm / 25 Ohm |

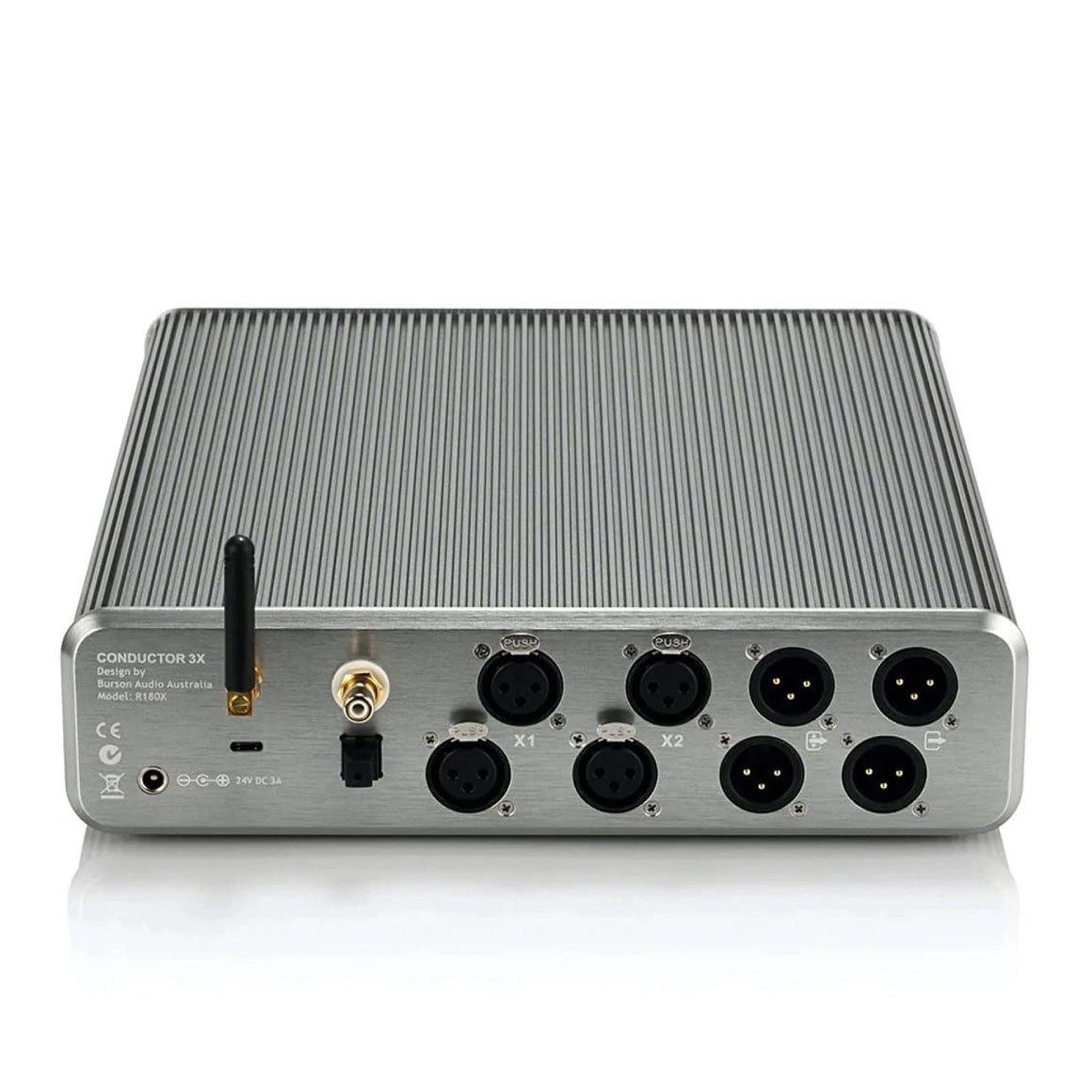

INPUTS | 2 x XLR line-level input, USB, Optical Toslink, BlueTooth 5.0, microphone |
OUTPUTS | 1 x XLR Pre Amp, 1 X Line Level DAC Out, 1 x 6.3mm & 1 x XLR Headphone Jack |
WEIGHT | App. 5 kg |
DIMENSIONS | 255mm x 270mm x 70mm |
IMPEDANCE/POWER - XLR/SE/SIGNAL TO NOISE RATIO/SEPARATION | 16 Ohm/7.5/3.75W/96db/99% |
32 Ohm/75/2.5W/98db/99% | |
100 Ohm/1.75/0.88W/95db/99% | |
150 Ohm/1.16/0.58W/96db/99% | |
300 Ohm/0.58/0.3W/96db/99.50% |
CHANNEL SEPARATION | 142 dB @ 1KHz, 135 dB @ 20KHz |
THD+N | 0.0005% @ 1KHz, 0dBFS |
COAX & TOSLINK / SPDIF | up to 24bit 192K |
DESKTOP OS | Windows XP, 7, 8, 10 Mac OSX |
DESKTOP OS | iOS* , Android (OTG support) |
PCM SUPPORT | PCM ≤ 768kHz @ 16, 24 or 32bits |
NATIVE DSD | Native DSD 64 / 128 / 256 / 512 |
DSD OVER PCM | DoP64 / DoP128 / DoP256/Dop512 |
BLUETOOTH INPUT | Bluetooth 5.0 aptX HD (Qualcomm CSR8675) |
BOX CONTENTS | 1. Burson Audio Conductor 3X Reference (R-180X) |
2. Remote Control | |
3. Power Cable | |
4. USB Cable | |
5. 24V Power Unit |
User Manual | Conductor 3X Reference
Desktop Headphone Amp + Pre-Amp & DAC
|
GROOVE ON HIGH-FIDELITY AUDIO WITH THE BURSON AUDIO CONDUCTOR 3X REFERENCE
Burson Audio is challenging the status quo by pushing the boundaries of audio excellence via innovation. They're known in the audio industry for using discrete audio opamps in their products' audio signal chain. Burson Audio developed its own Max Current Power Supply (MCPS), which is embedded in all of its products. It needed a herculean effort to design an amplifier that was sleek and capable of delivering audiophile-grade performance. You'll never want to add another machine to your desktop with Conductor 3X Reference at your table. It is the ultimate all-in-one, proving that something so simple to use can deliver full-range sound and supreme performance. Burson Audio has done it again with the all-new Conductor 3X Reference.
HIGH FIDELITY AUDIO CONVERSION WITH CLASS-LEADING AUDIO ARCHITECTURE
Burson Audio as a company has a reputation for building some of the most elegant
and high-performing DAC & Amps. The Conductor 3X Reference took three years to develop. Conductor 3X
Reference is embedded with the industry-leading SABRE32/ESS9038Q2M DAC and XMOS USB receiver chips. It has
two ESS9038 DAC chips, and its USB receiver comes with a bespoke driver from Thesycon, Germany. The result
is unrivaled processing power, capable of flawlessly reproducing DSD512 and 32bit/768kHz audio. The
Conductor 3X Reference is also equipped with a Qualcomm/CSR8675 Bluetooth 5.0 receiver with LDAC and aptX HD
audio codecs. It takes Bluetooth playback to new heights in terms of sound quality and ease of use.
FEATURES 7.5W CLASS-A AMPLIFICATION STAGE TO DELIVER A PRISTINE AUDIO EXPERIENCE
The first and most profound impression of the Conductor 3X Reference is its overwhelming energy. The Burson Conductor 3X Reference pushes 7.5W power Class A XLR, 3.7W SE (3XR) and 7.5W Class A SE (3R). It energizes every note and space with absolute control and accuracy. The Conductor 3X is uncompromising, with one DAC chip per channel. Class-A and using top-quality components throughout, including Neutrik XLR connectors. By incorporating a fully balanced design, the Conductor 3X achieves ultra-low output impedance. The Conductor 3X Reference is an excellent improvement for single-ended audio systems.
MODULAR DESIGN WITH DISCRETE OP-AMP ROLLING CAPABILITIES FOR CUSTOMIZING YOUR SOUND
For over 15 years' Burson Audio has been pushing its opamps' sound quality and presentation to new highs with each new revision. Burson Audio builds discrete circuits for specific applications rather than the jack-of-all-trades-master-of-none specs. Conventional IC opamp is a single piece of silicon with more components on a signal path that worsens the sound quality. Burson Discrete opamps are designed for audio amplification only. They manually desolder a transistor or resistor which leads to not having many components in a signal path that delivers clean and crisp audio. Burson Discrete OpAmps sound much more transparent and accurate than any IC OpAmps. The OpAmps are also upgradeable, allowing you to customize the sound of your system. The Conductor Performance comes with Burson V6 Vivid discrete opamps, The V6 Vivid is dynamic, transparent, and exciting. From its incredible dynamic range, and three-dimensional soundstage to its ability to reproduce the finest micro details. It invites you to witness that moment of recording. But Burson Audio does not dictate your listening experience. The Conductor encourages opamp rolling with gold-plated DIP8 sockets along its signal path. With hundreds of audio opamps out there, you have the freedom to tailor your listening experience to your preference.
ALL-NEW OLED DISPLAY AND INTERFACE PROGRAM INTEGRATED FOR EASY USER EXPERIENCE
The Conductor 3X Reference has five sets of MCPS, which implies that the Display/Functionality, DAC, and analog left and right are powered separately. The all-new OLED display and interface program provides a soothing and easy user experience. It has a machined solid aluminum knob that feels exquisite. The Max Current Power Supply (MCPS) increases the voltage frequency from 50Hz to 170kHz. Its low impedance means that output transistors receive enough energy quickly.
A CLASS-LEADING BUILD QUALITY WITH THE COOL CASE AND A REMOTE
Let's face it, the majority of audio equipment cases are unappealing and inconvenient. They frequently have exposed screws, sharp corners, and dull hues. Class-A amplifiers even have finger-cutting heat sinks! that detract from the look of any living room. Conductor 3X Reference is composed of high-density aluminum that has been space-grey electroplated. Only four visible screws are visible beneath the Cool Case's belly. It also functions as a unitary heatsink that is 300% more efficient than prior Conductors. It's audio jewelry at its finest, and it both looks and sounds great. Conductor 3X Reference comes with machined aluminum remote control for easy operability and a microphone built-in.
INPUT IMPEDANCE | 40 KOhms |
FREQUENCY RESPONSE | ± 1 dB 0 – 58Khz |
THD | <0.0015% |
OUTPUT IMPEDANCE (HEADPHONE AMP) | 0.5 Ohm |
OUTPUT IMPEDANCE (PRE OUT / DAC OUT) | 1 Ohm / 25 Ohm |
INPUTS | 2 x XLR line-level input, USB, Optical Toslink, BlueTooth 5.0, microphone |
OUTPUTS | 1 x XLR Pre Amp, 1 X Line Level DAC Out, 1 x 6.3mm & 1 x XLR Headphone Jack |
WEIGHT | App. 5 kg |
DIMENSIONS | 255mm x 270mm x 70mm |
IMPEDANCE/POWER - XLR/SE/SIGNAL TO NOISE RATIO/SEPARATION | 16 Ohm/7.5/3.75W/96db/99% |
32 Ohm/75/2.5W/98db/99% | |
100 Ohm/1.75/0.88W/95db/99% | |
150 Ohm/1.16/0.58W/96db/99% | |
300 Ohm/0.58/0.3W/96db/99.50% |
CHANNEL SEPARATION | 142 dB @ 1KHz, 135 dB @ 20KHz |
THD+N | 0.0005% @ 1KHz, 0dBFS |
COAX & TOSLINK / SPDIF | up to 24bit 192K |
DESKTOP OS | Windows XP, 7, 8, 10 Mac OSX |
DESKTOP OS | iOS* , Android (OTG support) |
PCM SUPPORT | PCM ≤ 768kHz @ 16, 24 or 32bits |
NATIVE DSD | Native DSD 64 / 128 / 256 / 512 |
DSD OVER PCM | DoP64 / DoP128 / DoP256/Dop512 |
BLUETOOTH INPUT | Bluetooth 5.0 aptX HD (Qualcomm CSR8675) |
BOX CONTENTS | 1. Burson Audio Conductor 3X Reference (R-180X) |
2. Remote Control | |
3. Power Cable | |
4. USB Cable | |
5. 24V Power Unit |
User Manual | Conductor 3X Reference
Desktop Headphone Amp + Pre-Amp & DAC
|
Don't sweat it, this
Burson Audio - Conductor 3X Reference comes with a 3 Year warranty
from Burson Audio that covers manufacturing defects.
