The Burson V6 Dual is a direct replacement of the following Opamps: AD823, AD823AN, AD8066, AD8620, AD712, AD827, C4570, JRC4556AD, JRC4580, JRC5532, JRC5532D, JRC5532, LF353, LM4562, LME49860, LM833N, LME49720, MUSES8920, NE5532, NEC4520, NEC4570, NJM2068D, NJM2114, NJM2214D, NJM4558, NJM4558D, NJM4560, NJM5532, NJM4558P, OP275, OPA1612, OPA2277PA, OPA2132, OPA2134, OPA2604, JRC4558, RC4558D, RC4558P, TL052, TL072, MUSES01, MUSES02, MUSES8820, MUSES8920, MUSES8832 and BA15532.
The Burson V6 Single is a direct replacement of the following Opamps: NE5534, JRC5534, LT1122, TL071, OPA134, OPA627, AD811, AD829, AD844, OPA604, AD8610, AD711, AD797, LME49990 and LME49710.
INSTANTLY UPGRADE YOUR SOUND WITH THE BURSON SUPREME SOUND OPAMP V6
Opamps are an integral part of many types of audio equipment, including DACs, Pre-Amps, Studio Mixing Consoles to PC Sound Cards. They’re as crucial to audio gear as the audio signal conversion chips. Inferior Opamps distort audio signals, regardless of the analytical capability of the associated gear and quality Opamps significantly upgrade the sound. Understanding this Burson Audio presents the Supreme Sound Opamp V6 - an easy way to elevate your sound in your existing equipment. For nearly 20 years, Australia-based Burson Audio has been known for its R&D in audio Opamp technology, and the company’s V6 Opamps are among the most versatile and recognised in the world. You can use them to replace the standard IC Opamps in your equipment and hear the performance leap instantly.
EMBEDDED WITH THE FINEST COMPONENTS FOR INCREDIBLE PERFORMANCE AND QUALITY
The Burson Supreme Sound Opamp V6 is specifically designed to optimise audio performance, and they are the finest Opamps you can add to your equipment. To overcome many limitations associated with ICs, the team have utilised high-quality discrete components. The Burson V6 discrete AOPs are now as stable on the unity gain stage buffers as they function on the current-voltage I/V stages of the DAC stages. The Burson V6 is now equipped with 0.5% metal film resistors and two hand-sorted FET stages. The Vivid version brings more definition, and the classic version brings more timbre. These also feature a new protection system allowing for the reliability of these discrete, high-performance AOPs. The Burson Supreme Sound Opamp V6 is designed to survive any upside-down DIP 8 mounting accident.
DELIVERS HIGH RESOLUTION, DYNAMIC AND BALANCED SOUND WITH A UNIQUE CHARACTERISTIC
The Burson Supreme Sound Opamp V6 is dynamic, transparent and exciting. It is the V5 sound improved in all aspects. From its incredible dynamic range, three-dimensional soundstage to its ability to reproduce micro details. It invites you to witness the moment of recording. Play your favourite track, and suddenly you are in the best seat in the house. The V6 Classic deviates from its V5 foundation with an entirely different output stage design, it is intimate, exquisite and very engaging. The music shines through a pitch-black background and brings openness, timbre, dynamics and sound image in three dimensions.
UNDERTAKE THE DIY UPGRADE WITH AN EASY TO INSTALL, PLUG-IN UPGRADE DESIGN

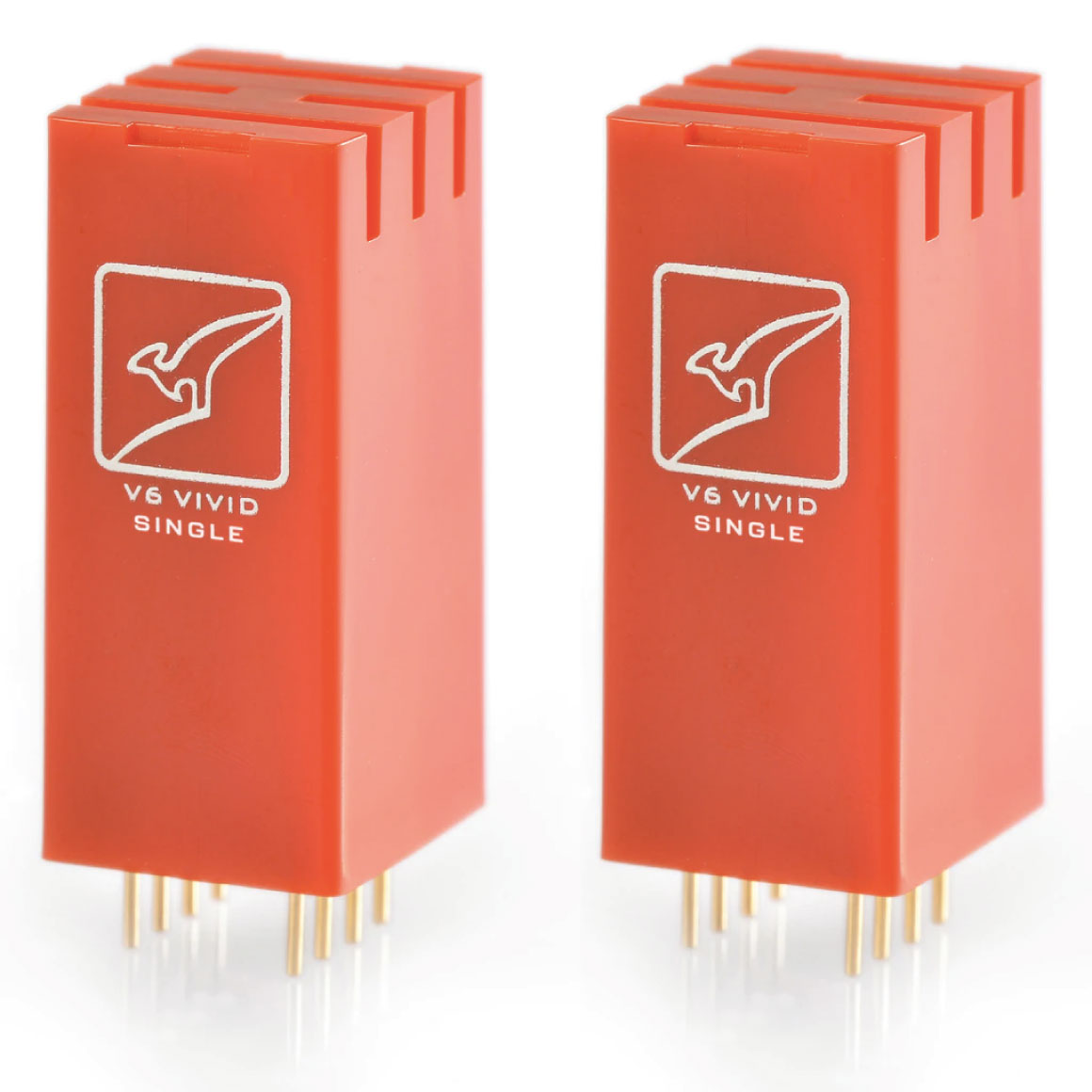

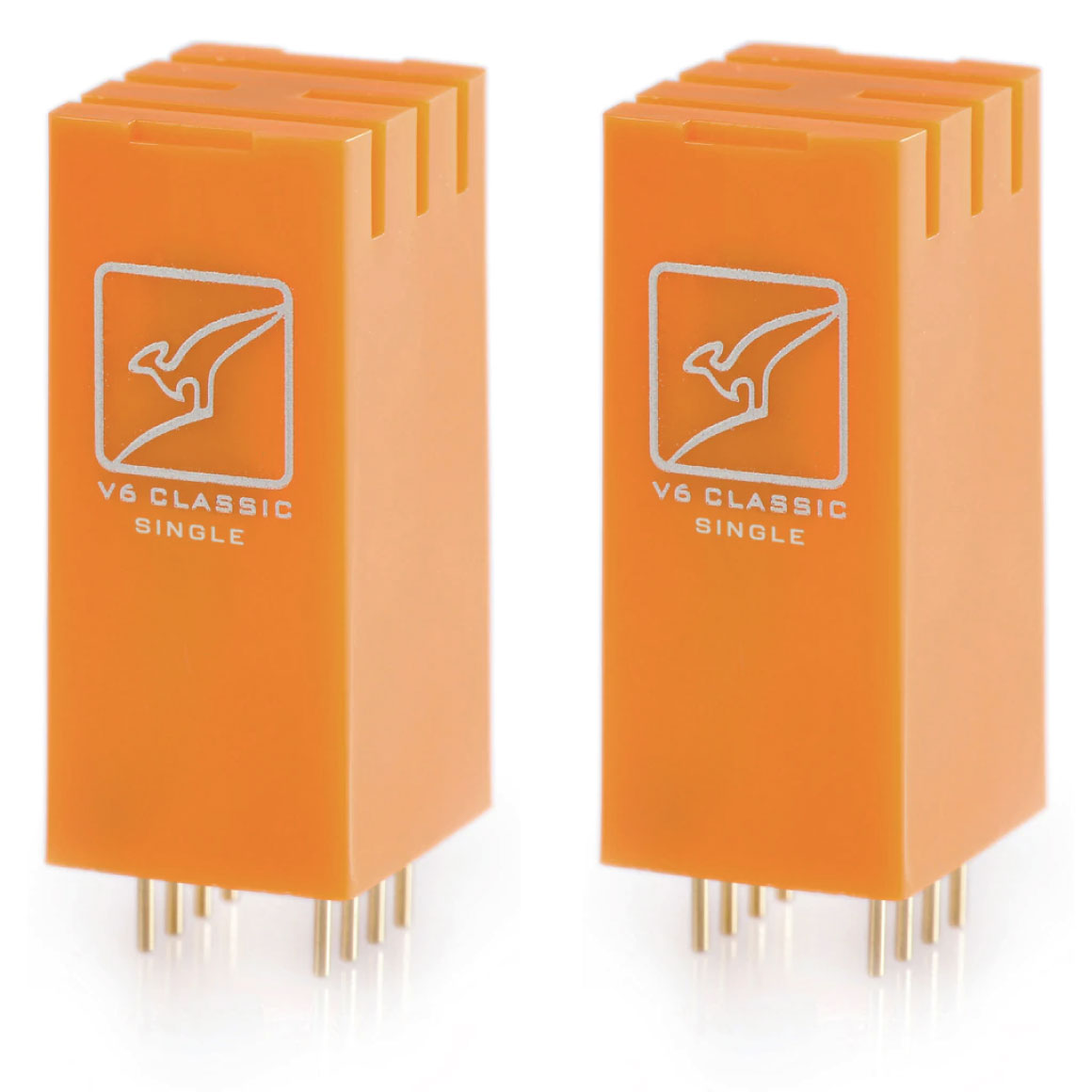

Similar to the size of a typical DIP8 Opamp, the V6 is the easiest plug-in upgrade for any audio project. The Burson Supreme Sound Opamp V6 is a fun upgrade with serious performance capabilities. You get the option to select two versions of the V6 Opamp best suited for your device. You can choose the V6 Vivid or the V6 Classic depending on your needs and compatibility with your equipment. The Burson Supreme Opamp is a drop-in replacement for the IC inside your devices. Pull out the existing IC opamp from its DIP socket, plug in the V6 Vivid or Classic as per the equipment, and you'll instantly hear more detail and impact, and a much larger soundstage. The V6 are the only opamps in the world with reverse voltage protection. While other opamps are instantly damaged if reversely installed, the V6 is designed to survive such accidents unscathed. The V6 Vivid and V6 Classic are the results of over 12 years of research and six generations of designs. They are the most refined we have ever created.
|SUPPLY VOLTAGE||Min : +/-3 V
Typ : +/-15V
Max : +/- 17V
|OPERATING AMBIENT TEMPERATURE||Min : –25°C
Max : 52°C
|STORAGE TEMPERATURE RANGE||Min : –65°C
Max : 80°C
|DUAL OPAMP||AD823, AD823AN, AD8066, AD8620, AD712, AD827, C4570, JRC4556AD, JRC4580, JRC5532, JRC5532D, JRC5532, LF353, LM4562, LME49860, LM833N, LME49720, MUSES8920, NE5532, NEC4520, NEC4570, NJM2068D, NJM2114, NJM2214D, NJM4558, NJM4558D, NJM4560, NJM5532, NJM4558P, OP275, OPA1612, OPA2277PA, OPA2132, OPA2134, OPA2604, JRC4558, RC4558D, RC4558P, TL052, TL072, MUSES01, MUSES02, MUSES8820, MUSES8920, MUSES8832, BA15532|
|SINGLE OPAMP||NE5534, JRC5534, LT1122, TL071, OPA134, OPA627, AD811, AD829, AD844, OPA604, AD8610, AD711, AD797, LME49990, LME49710|
|DIMENSIONS||10 × 10 × 5 cm|
|QUIESCENT CURRENT (MA)||Typ : Single - 8mA
Dual - 16mA
|INPUT OFFSET VOLTAGE (MV) (RS = 0)||Min : 0.007mV
Typ : 0.13mV
|INPUT OFFSET CURRENT (MA)||Min : 0.05mA
Typ : 0.1mA
Max : 0.12mA
|INPUT BIAS CURRENT (μA)||Min : 101μA
Typ : 170μA
Max : 270μA
|COMMON-MODE REJECTION RATIO||Typ : 99dB|
|POWER SUPPLY REJECTION RATIO||Typ : 11 μV/V|
|**Testing Temperature 25°C Supply Voltage +/-15V|
|OPEN-LOOP GAIN (DB)||Typ : 70dB|
|OPEN-LOOP BANDWIDTH (DB) (RL=600Ω)||Typ : 46Khz|
|GAIN BANDWIDTH PRODUCT (MHZ) (@ 100KHZ)||Typ : 52 MHz|
|SLEW RATE ( V/μS) (F = 10KHZ; RS = 2KΩ)||Min : 36V/μS
Max : 49V/μS
|CROSSTALK DISTORTION (DB)(DUAL OPAMP) (fF= 1KHZ; RS = 600Ω)||Typ : >93dB|
|TOTAL HARMONIC DISTORTION (%) 1KHZ @ 2V OUTPUT||Typ : 0.02%
1Khz @ 2V output; RL=600Ω
|OUTPUT IMPEDANCE (OHM)||Typ : 0.5Ω
AV = 30dB Closed-loop f = 10kHz, RL = 600Ω
|BOX CONTENTS||1. Burson Audio Supreme Sound Opamp V6|
|GENERIC NAME||Other Accessories|
|IMPORTER DETAILS||Importers Name: Ferrari Video
Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020
Contact No: 044-24420733
