FiiO - Q7
Portable Desktop Grade DAC & AmpUnfortunately, even if we desire to, we won't be able to resurrect this product. The Museum is where we pay our respects to end-of-life, old, archived, but not forgotten products. This page was made with a lot of love and will live on for posterity. What to say, we're sentimental people. 😔
While this product is gone forever, here are others we recommend
Customer Reviews

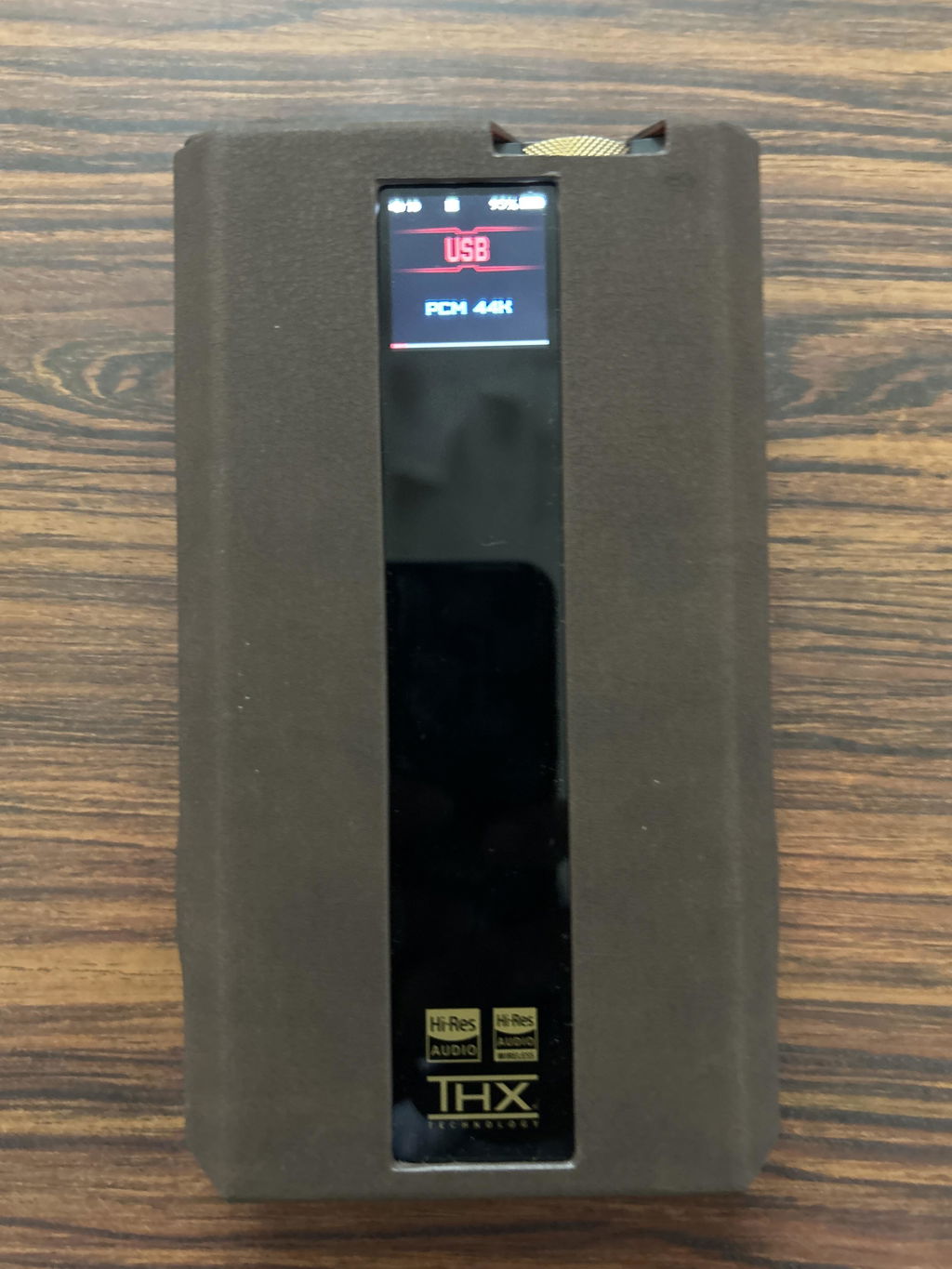

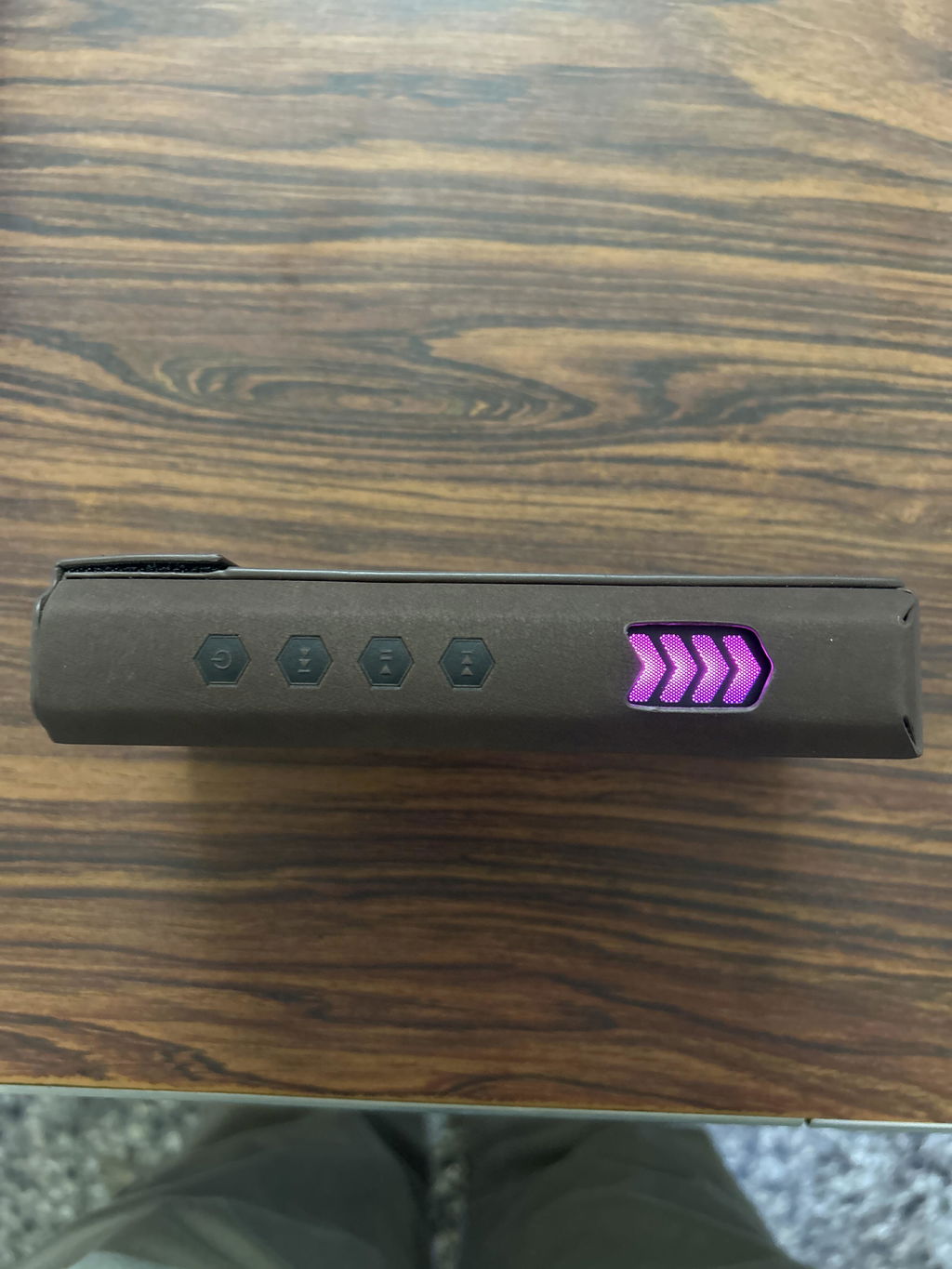

Appearence:
look itself is mesmerising
-neat finish

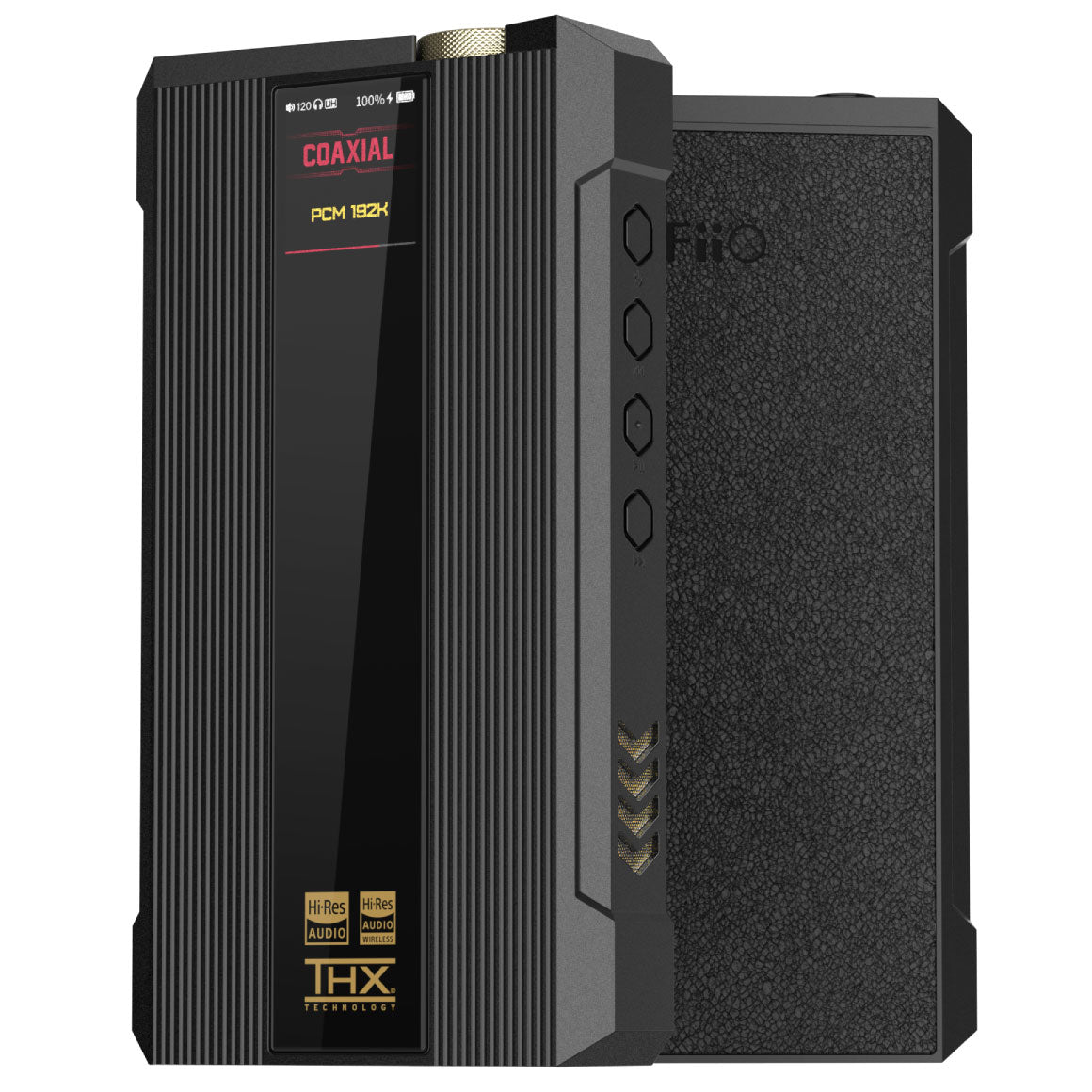

- good leather cover
- all options for input and output
- huge battery backup
- extreme gain
- ergonomics
Sound:
-awesome sound stage
-clarity
-instrument separation
- able to hear and visualise the artist
Sum total- Awesome for an audiophile
Cons-price and heavy but portable
Thanks Raghav and Ian for helping me to narrow down on choices on DAP . You will not repent for your purchase.🙏🙏❤️❤️🌺🌺💐👋
Hey Vinayaka, thank you so much for the amazing feedback! It means a lot to us. We are so happy to hear that you are loving our products and services.
I saw the Zeus review where he hated the ergonomics but I went for it anyways to power my HEDD Headphone and boy is it powerful at 2 W. The ultragain is great but not required as it is better without forcing the sound. i listen on Medium and its more than enough. I use it in my music studio with SPDIF and the sound is awesome on my HEDD phones. Miles better than my Gustard H16 which is itself quite remarkable. The battery is great, the DAC is M17 equivalent, what else can anyone else ask for? Pefection and bravo, Fiio for your best effort and you have succeeded. A true gem and I recommend it highly.
Hey there, thanks a lot for the amazing review. We are so glad that you are enjoying it! Keep the music playing.
Why FiiO is Special
Designed in China
Established & Reputed
Trust us, our reputation in the audio world speaks for itself!
This headphone or gear comes from a well-respected brand known for its high-quality audio equipment, so you can be confident in your purchase.
If you see a product marked as “🎖️ Established & Reputed”, it means you're getting a top-tier device from a brand that's earned its stripes in the audio industry.
Revered by Audiophiles
Audiophiles can be really picky and tough to impress and if the audiophile community says something sounds good, you can bet it's great!
This headphone or gear has gained recognition and admiration from audiophiles, who are known for their discerning taste in high-fidelity audio. They appreciate its precision, attention to detail and its ability to deliver an immersive sonic experience.
If you see a product marked as "🙌🏻 Revered by Audiophiles", it means that it meets the highest standards of sound quality and performance, making it a top choice for anyone who values exceptional audio experiences.
Born in 2007
Why we love this DAC/Amp
Premium Economy
Sensible spending and class above in quality.
This headphone or gear offers top-notch sound and performance without much impact on your pocket, promising a delightful experience that exceeds your expectations at an economical price point.
If you see a product marked as “💎 Premium Economy," it indicates that you're getting a high-quality audio product with exceptional sound clarity and reliable performance, all at a budget-friendly price.
Serious Audiophiles Only
Diving deeper into exploring the hobby is never enough.
If you're an audiophile on a hunt for a device that meets your high standards, this is one such headphone or gear designed for discerning audiophiles like you in mind.
If you see a product marked with “🦈 Serious Audiophiles Only" we assure you that this device can match your depth of knowledge and expertise to take your passion for audio to the next level.
For Audiophiles On-the-Go
Are you an audiophile looking to carry your music with you wherever you go?
This headphone or gear is portable and is designed to deliver top-notch audio quality on the move, ensuring your favourite tracks sound their best no matter where you are.
If you see a product marked "🛺 For Audiophiles On-the-Go", it means this product is perfectly portable, turning every journey into a musical adventure with studio-quality sound!
Use Wirelessly with Bluetooth
Enjoy the convenience of seamless wireless connectivity
This headphone or gear indicates that the product supports wireless connectivity via Bluetooth, freeing you from the tangles of cords and cables.
If you see products marked as “✂️ Use Wirelessly with Bluetooth”, enjoy the freedom to stream music, make calls, and more, all without being tethered to your device, giving you the flexibility to move around and multitask with ease.
Battery Life
No need to be connected to the power socket with these devices.
This headphone or gear promises long-lasting battery performance, ensuring your device keeps up with your adventures without missing a beat.
If you see products marked as “⏳ Battery Life”, be rest assured that you'll enjoy extended usage time, whether it's for uninterrupted music playback, extended gaming sessions, or all-day productivity, keeping you powered up throughout your day.
Battery Capacity
Power that keeps your music going.
This headphone or gear has ample battery capacity, promising you plenty of juice to power through your day with gusto.
If you see products marked as “🔋 Battery Capacity”, rejoice in the knowledge that your device is equipped with a robust battery, providing you with extended usage time and reducing the frequency of recharges, so you can focus on your favourite tracks.
Connect With Cable
This device comes with multiple connectivity options. Be sure to check if your source and output support these input and output options.
Why it Sounds Amazing
DAC Chip
Know the secret to your pristine audio.
This headphone or gear reveals the secret sauce behind superior audio quality, highlighting the presence of a high-performance DAC chip for pristine sound reproduction.
If you see products marked as “⚙️ DAC Chip”, expect to experience your music with unparalleled clarity, detail, and fidelity, ensuring that every note and nuance is faithfully reproduced for your listening pleasure.
Power Output
When you need that juice to get the best out of your products.
This headphone or gear packs a punch, revealing the product's impressive power output capabilities, ensuring it can handle even the most demanding products with ease.
If you see products marked as “🚀 Power Output”, you're in for a treat with robust performance for driving high-fidelity products without breaking a sweat.
Balanced Output
Upgrading from single-ended to balanced can be the easiest way to improve your sound.
This DAC, Amp or Hi-Res player offers a balanced output, ensuring pristine audio quality with minimised interference and enhanced clarity for your listening pleasure.
If you see a product marked as "⚖️ Balanced Output”, get ready for a symphony of crystal-clear tunes, free from any unwanted noise drama!
DESCRIPTION

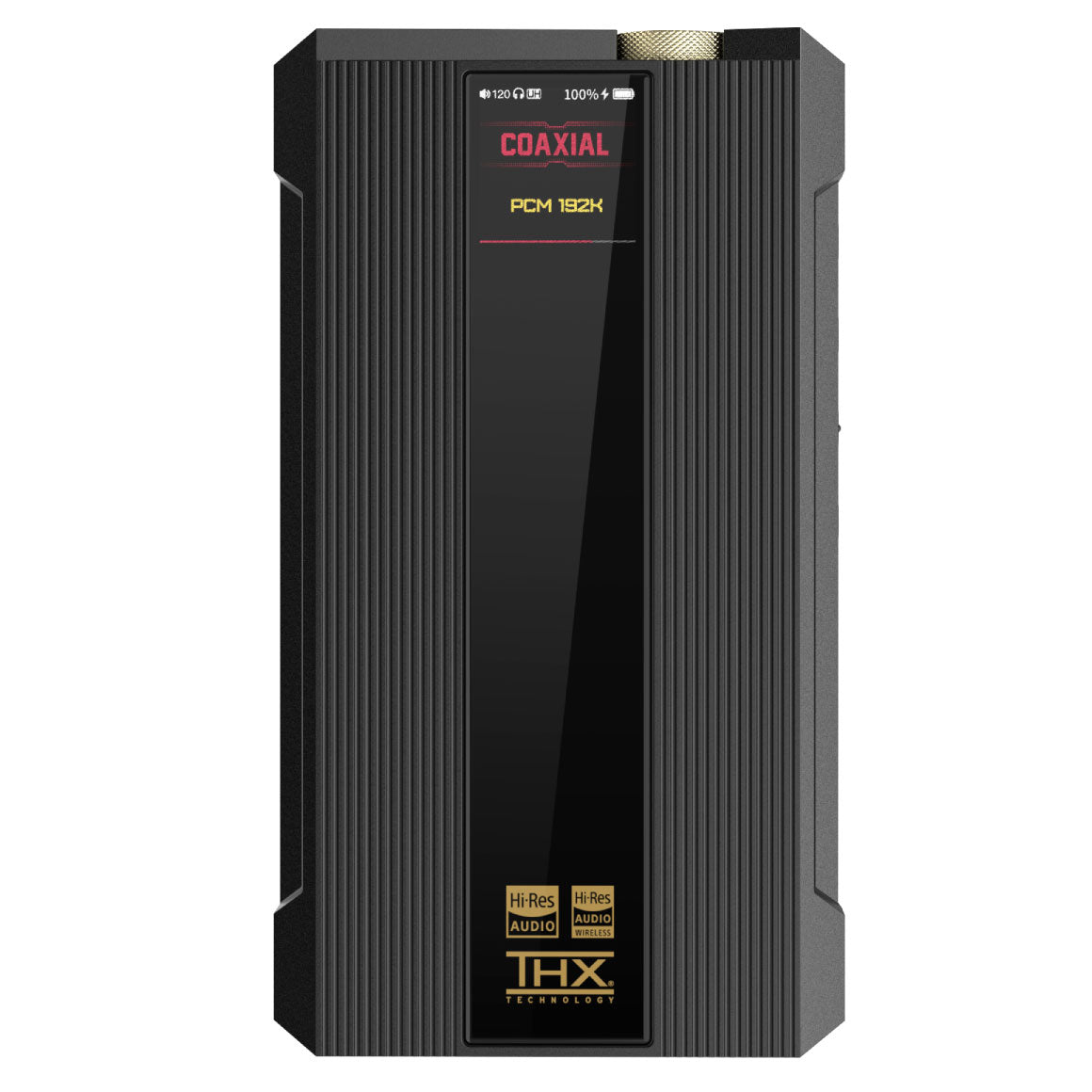

FIIO SETS A NEW BENCHMARK WITH THEIR ALL-NEW Q7 - A PORTABLE-DESKTOP-CLASS DAC & AMP
FiiO is known for amazing the critics with their desktop-grade and portable DAC & Amps. FiiO had designed the M17 to be a portable/desktop-class digital audio player, which was a game changer in terms of performance and catering to portable and desktop needs. FiiO was on a quest to create something akin to the M17 after it achieved all of its success. Years of research and development gave birth to the all-new Q7 portable/desktop-class headphone amplifier and DAC. The Q7 is everything that you will ever need for your arsenal of headphones and in-ear monitors. It uses all the latest tech, like the flagship ESS ES9038PRO DAC Chipset fused with dual THX AAA 788+ headphone amp circuits. It supports Bluetooth and also doubles up as a USB DAC & Amp. FiiO has designed the Q7 to be compatible with most gears offering 3.5mm, 6.35mm Single-ended, 4.4mm, and 2.5mm Balanced outputs. It also has a whopping power output of 3000mW which will be more than sufficient to power your demanding headphone and in-ear monitors. Experience the all-new Q7, which shines in all its glory to provide you with the best possible audio reproduction.
DESKTOP-GRADE DECODING WITH ESS SABRE & XMOS CHIPSET AND MQA SUPPORT
The Q7 uses a single ES9038PRO chipset 4-channel implementation in parallel for one differential output for excellent resolution, combined with an XU316 USB stage for digital decoding. The digital input bridge has a dual clocking design with ultra-low latency, 768kHz, DSD512 (Direct Stream Digital), and full MQA decoding (Master Quality Authenticated). Q7 can decode up to 768k/32bit, DSD512 with USB, 192k/24bit, DSD64 with coaxial, and 96k/24bit with optical thanks to the high-end DAC chipset ES9038PRO and XMOS XU316. For discerning audiophiles, the Q7 is also capable of 8x MQA support. Again upgraded in the Q7 is FiiO's self-developed digital control core centre. This control chip is powered by an ARM Cortex M4 processor that efficiently handles clock management, USB decoding, and optical decoding to optimise sound quality. To further enhance the audio quality, the digital and analogue sections are physically separated on different boards with shield covers to achieve an extremely pure sound for a superb listening experience.

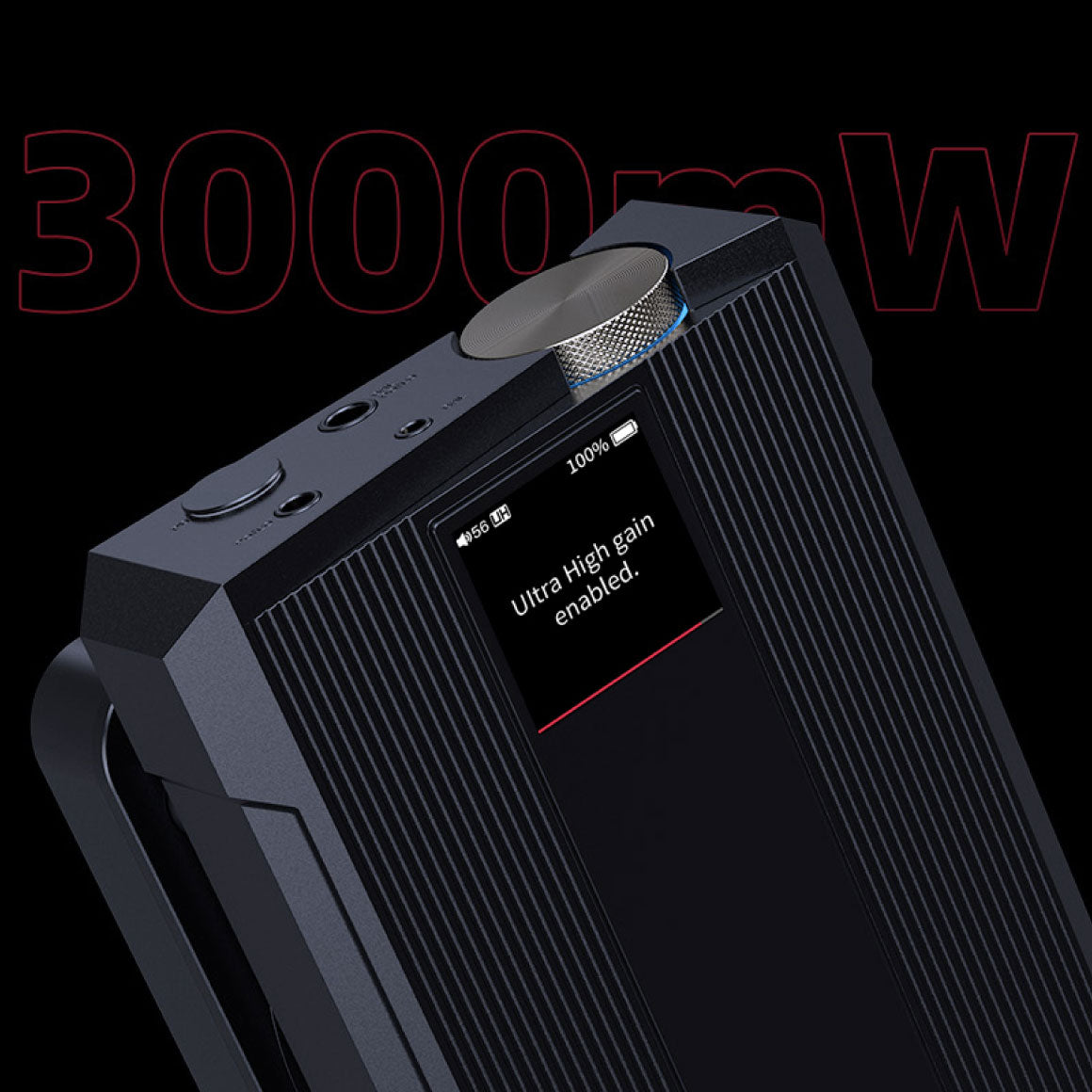

INCREDIBLE POWER WITH DESKTOP-TIER THX AAA 788+ AMP AND FIVE-LEVEL GAIN MODES
FiiO has designed the Q7 combining desktop and portable rigs into one unlike never before. The Q7 is a portable amplifier packed with parts "designed" for desktop amps, making it a true fusion of "portable" and desktop amps. The Q7 redefines what a portable amp can be and sets a new benchmark for FiiO products but for all audio products. While portable in size, the Q7 features desktop-level amplification with 100% more power under a DC power supply in "Enhanced over-ear headphone mode" - up to 3000mW of power. The Q7 can output up to 1500mW in portable mode, hence the 100% improvement in "Enhanced over-ear headphone mode". The THX AAA 788+ amp designed for desktop usage is featured in a 4-way truly balanced amplifier circuit. With five levels of mixed gain, the Q7 can power the most demanding headphones for a pure listening experience.
FEATURES QUALCOMM QCC5124 FOR HI-RES BLUETOOTH RECEPTION WITH BLUETOOTH 5.0 SUPPORT

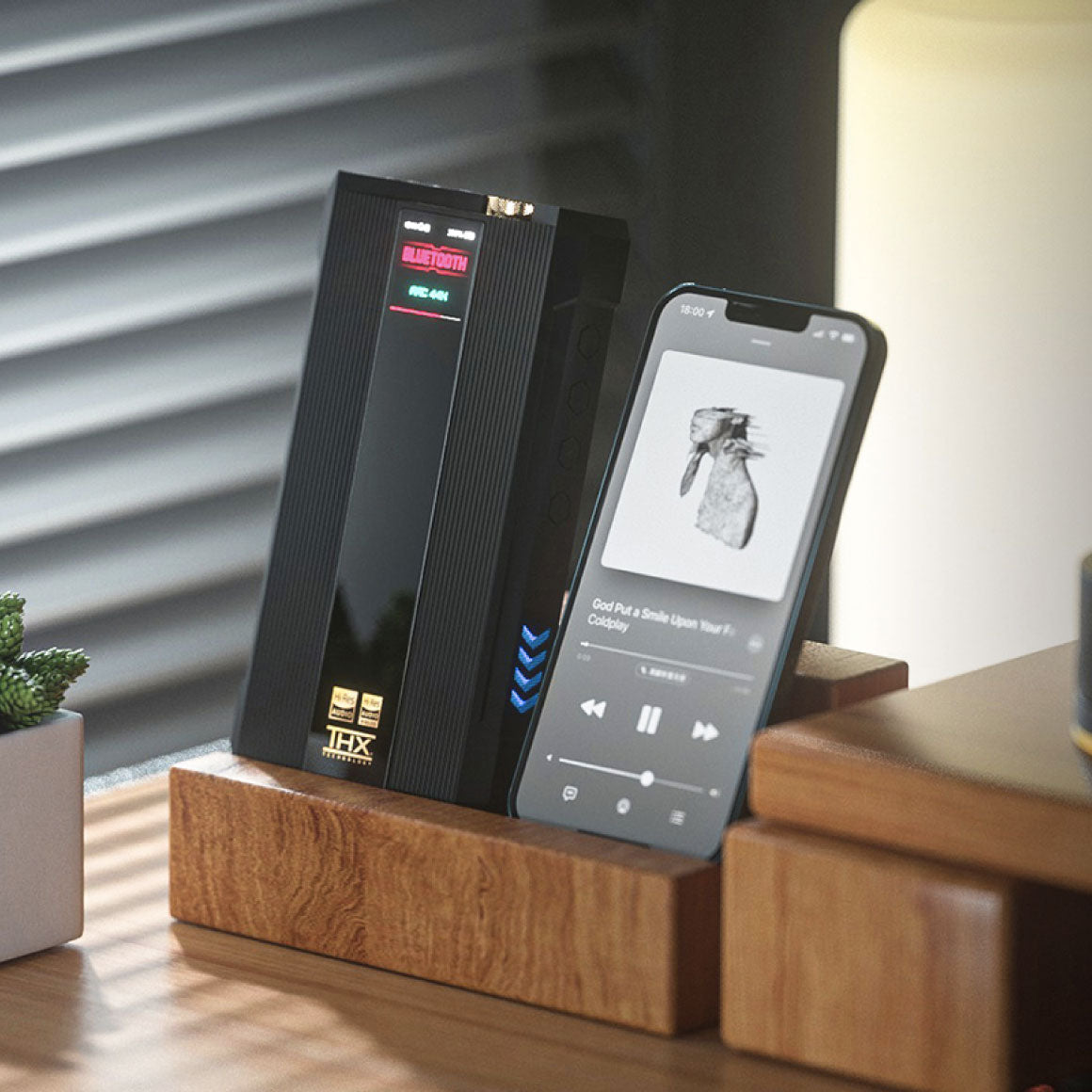

The FiiO Q7 is equipped with Qualcomm's QCC5124 chipset that enables it to act as a Bluetooth receiver with support for Hi-Res Bluetooth codecs like LDAC, aptX adaptive, aptX LL, aptX HD, AAC, and SBC. It supports Bluetooth 5.0, so you will never experience any latency or interruptions in signal loss. The Q7 will also notify you with colours for different Bluetooth codecs like White: LDAC, Green: aptX adaptive, Yellow: aptX HD, Purple: aptX/aptX LL, Cyan: AAC, and Blue: SBC.
DUAL POWER SUPPLY MODES FOR ULTIMATE STABILITY AND CONVENIENCE
The Q7 has a desktop-caliber power supply with dual power supply modes for plentiful and continuous energy. The Q7 operates in either DC or battery-powered modes. Under the battery-powered "mode," the 9200mAh battery allows the Q7 to output up to 1500mW of power. Under the DC power supply mode, the battery is "bypassed" to protect battery life, while the custom 24W low-noise power supply drives a wide variety of headphones effortlessly. The Q7 also has a precisely-regulated power supply for ultimate stability. The 5-stage audio circuit features 20 LDOS and a 470mF high-capacity ultra-low ESR supercapacitor to provide endless reserves of power to maintain stable, high-quality audio at all times.
EXPERIENCE UNINTERRUPTED LISTENING WITH 11 HOURS OF PLAYTIME
The Q7 is capable of operating in two modes, DC or battery-powered. To get the best possible experience from the Q7 when "operated" in battery power mode, FiiO has incorporated a massive 9200 mAh battery that enables 11 hours of continuous playtime. The Q7 offers a playtime of ＞11 h (USB IN), ＞11 h (OPT-IN), ＞11 h (COAX IN), and ＞11 h (Bluetooth IN). The Q7 also features a 5-segment battery display and % to keep you updated on the battery status.
DESKTOP-LEVEL CONNECTIVITY WITH BRAND NEW DESIGN AND SUPPORT FOR CONTROL APP

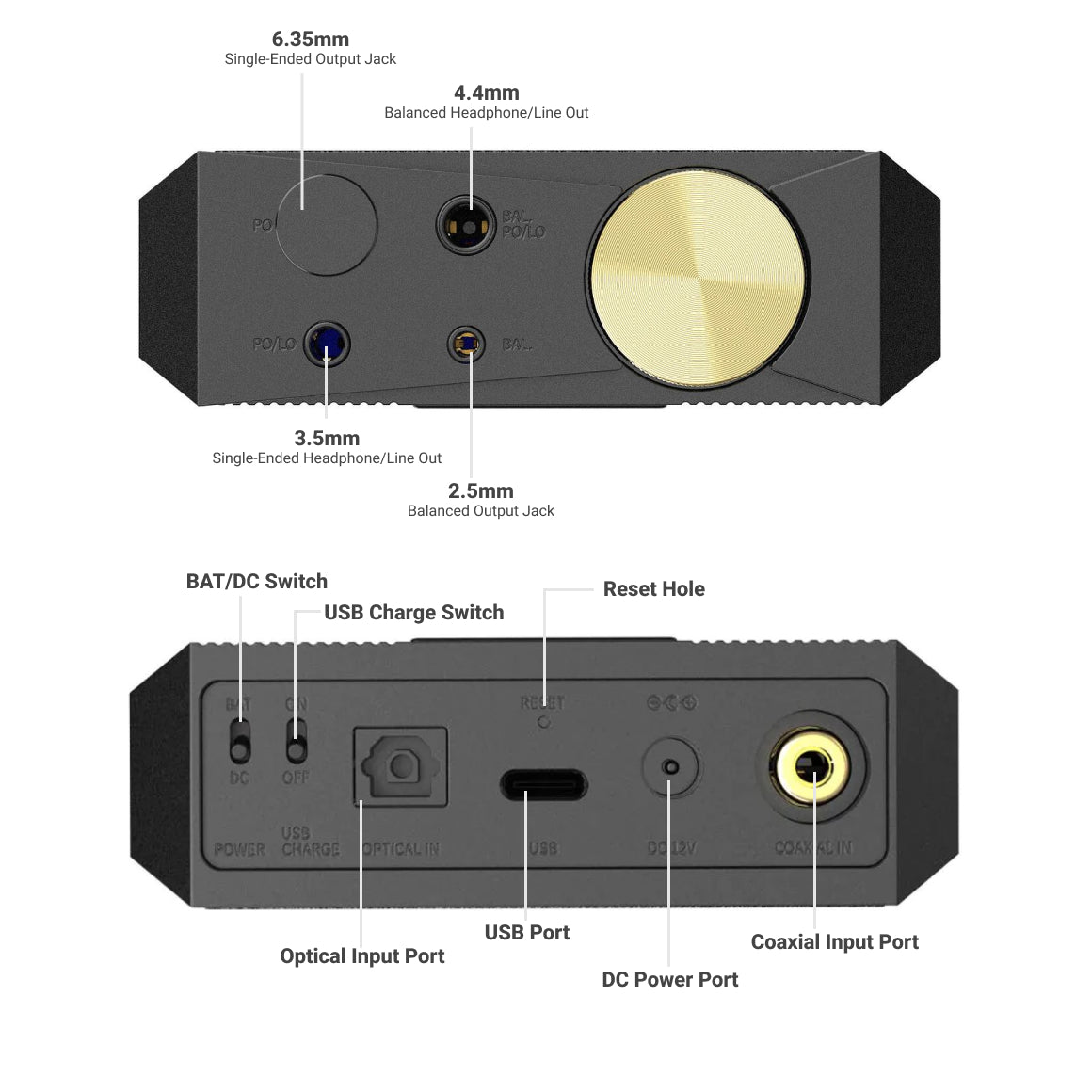

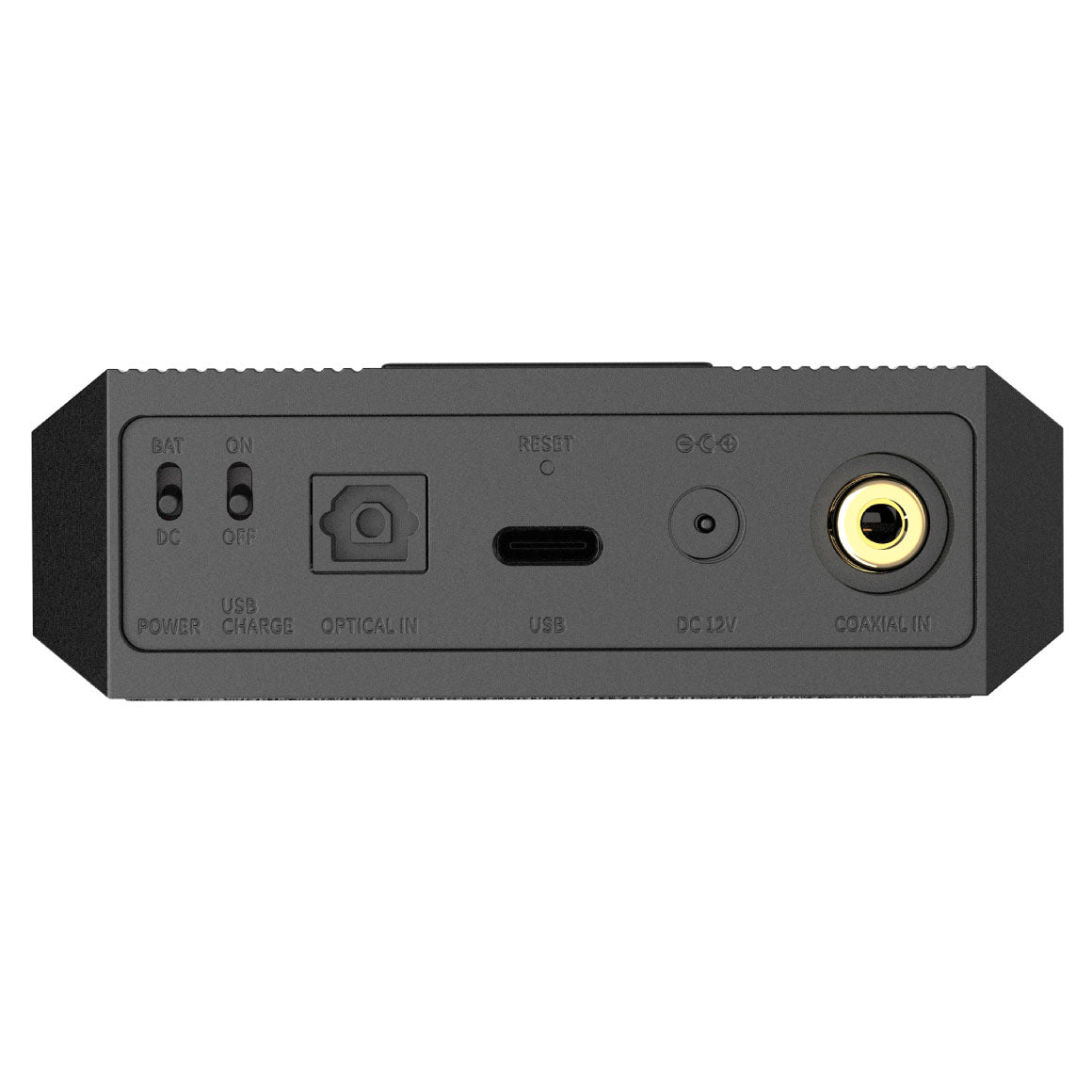

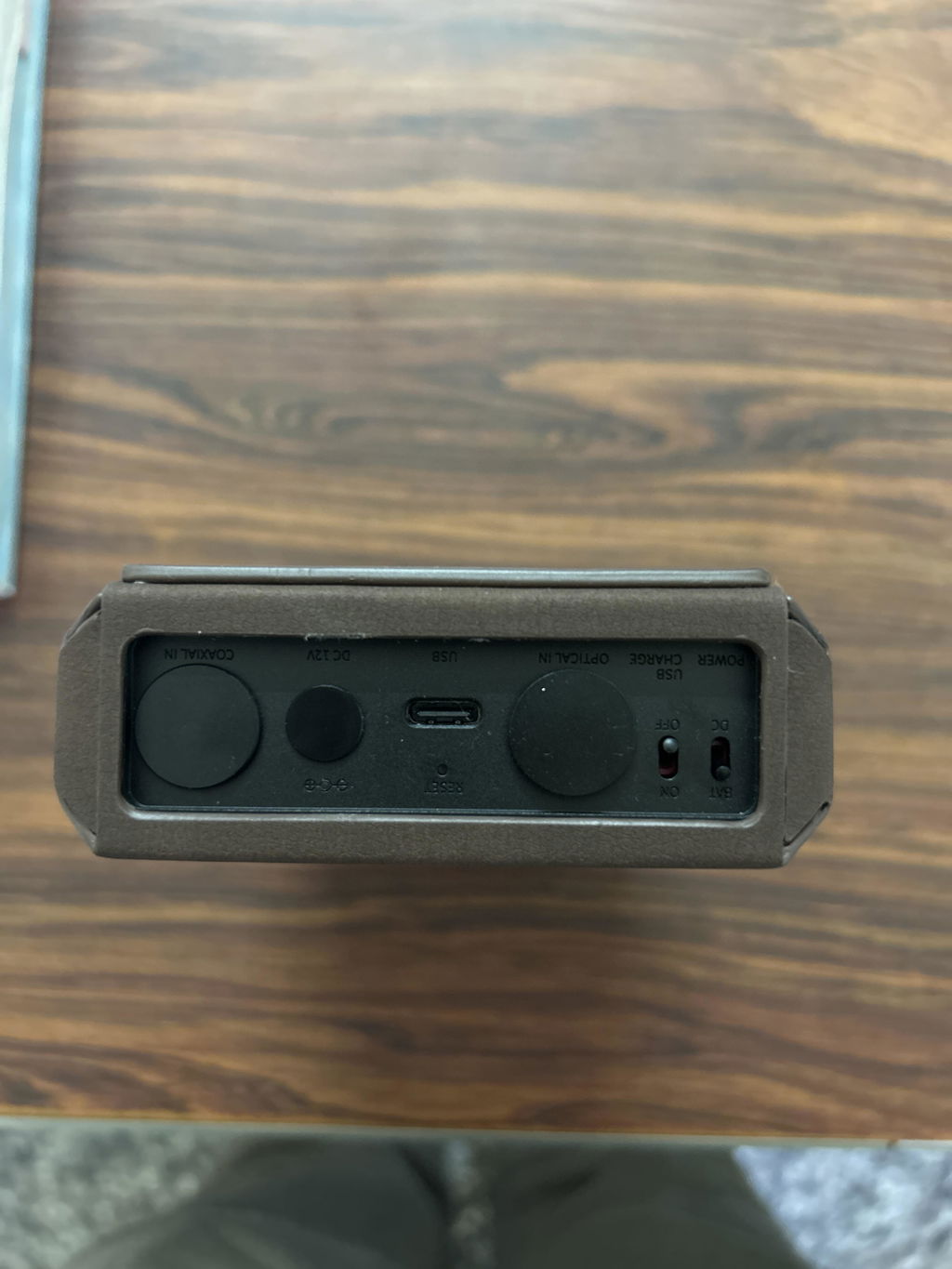

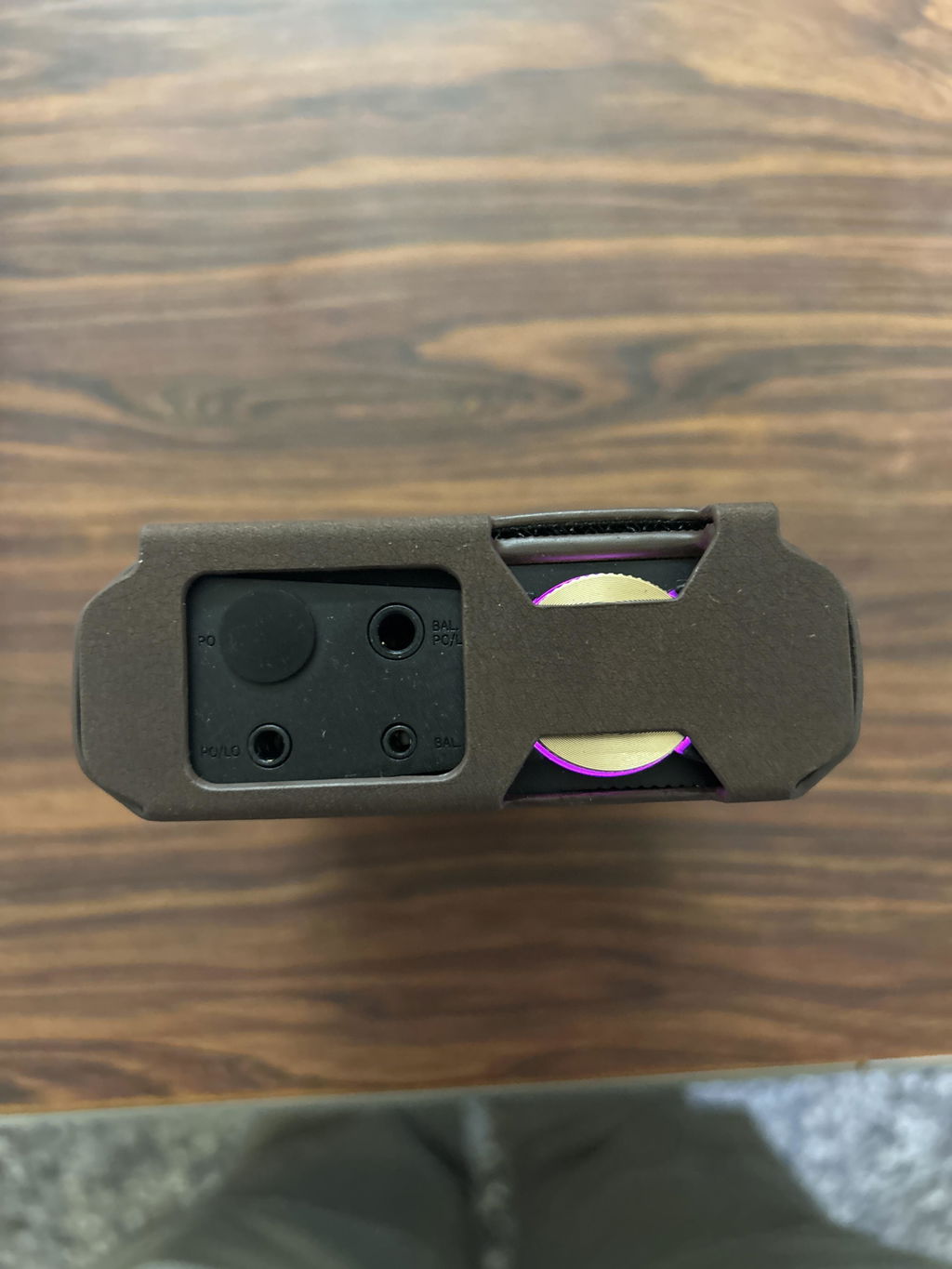

The Q7 is equipped to handle any situation - with USB, optical and coaxial inputs; two single-ended (6.35mm and 3.5mm) and two balanced outputs (4.4mm and 2.5mm); and LO output (Line Output). The Q7 continues FiiO's modern design language, featuring a bold next-gen mech design complemented by tasteful colour lights for a thoroughly technologically modern appearance. With the FiiO Control App, the adjustable settings are at your fingertips. Change the Bluetooth format, RGB lights, and sound channel balance.
FULL-COLOUR DISPLAY FOR A HIGH-DEFINITION EXPERIENCE FUSED WITH A MULTI-FUNCTION KNOB

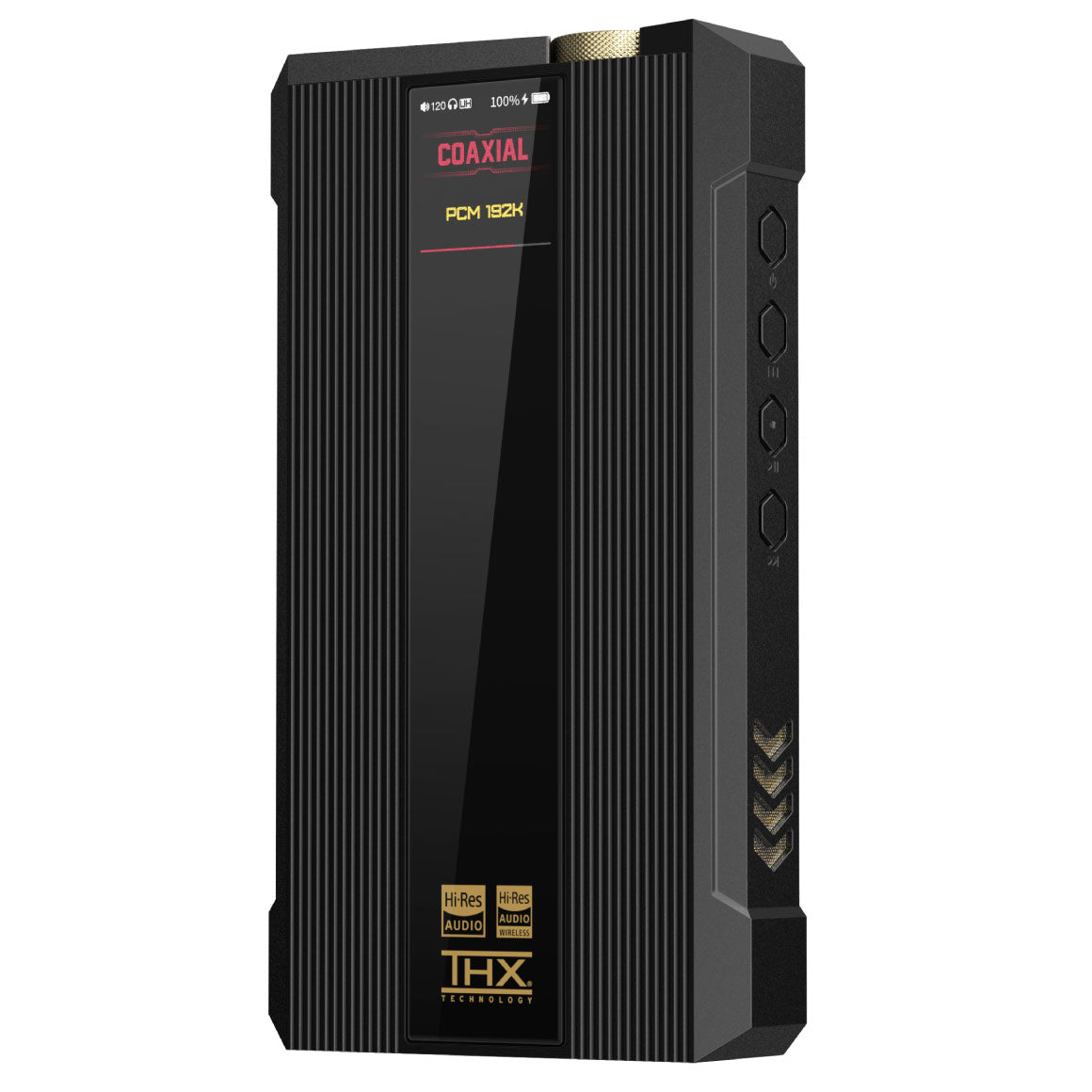

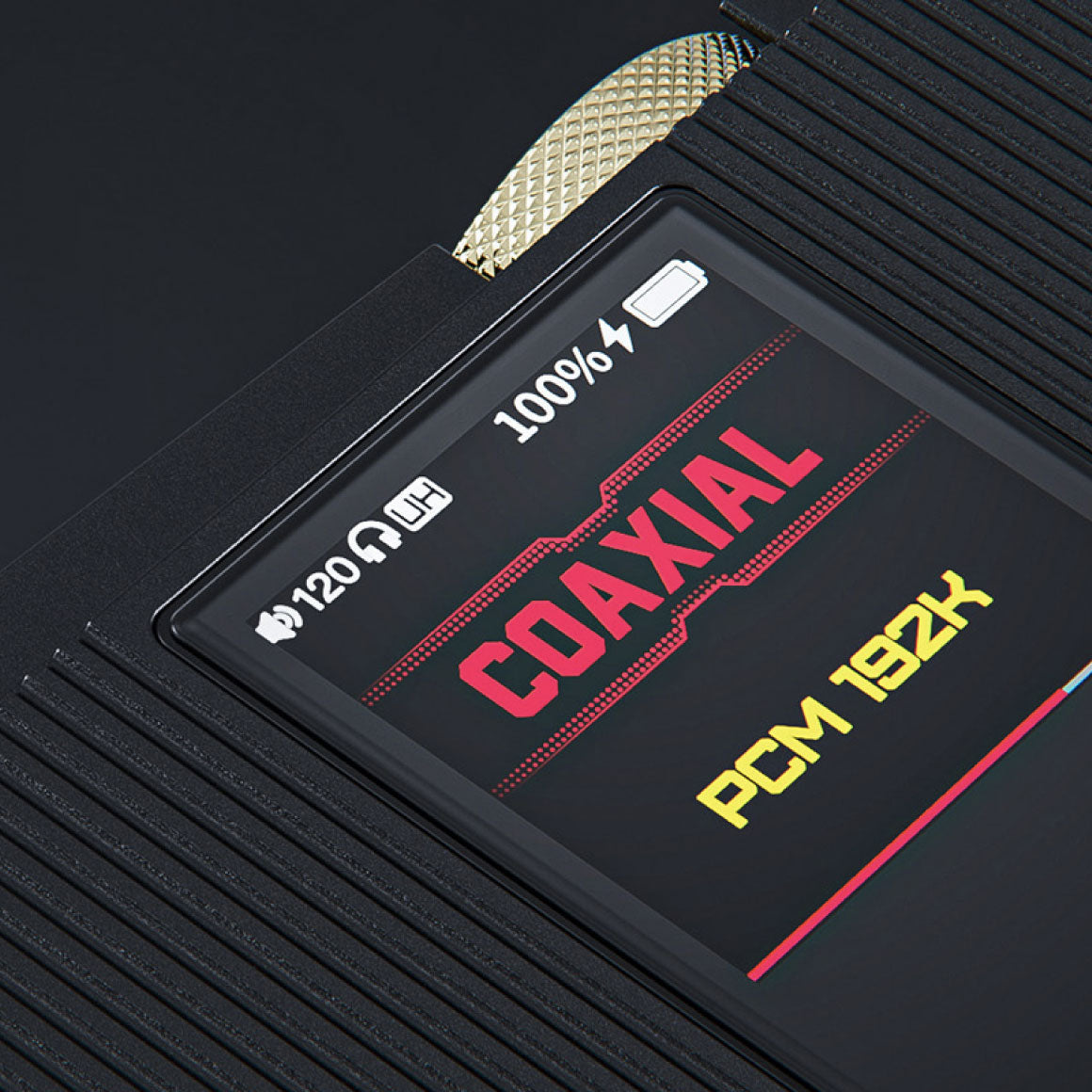

The Q7 features a 1.3-inch full-colour display that lets you quickly know information such as audio format and sampling rates with a simple glance. In the Q7, the knob is full of new tricks allowing you to quickly and precisely adjust the volume, select the input, and even go through the menu settings. Also quite handy is the ability to tweak the "volume" with the knob when the screen is off. Let your eyes enjoy a delightful experience on par with your ears!

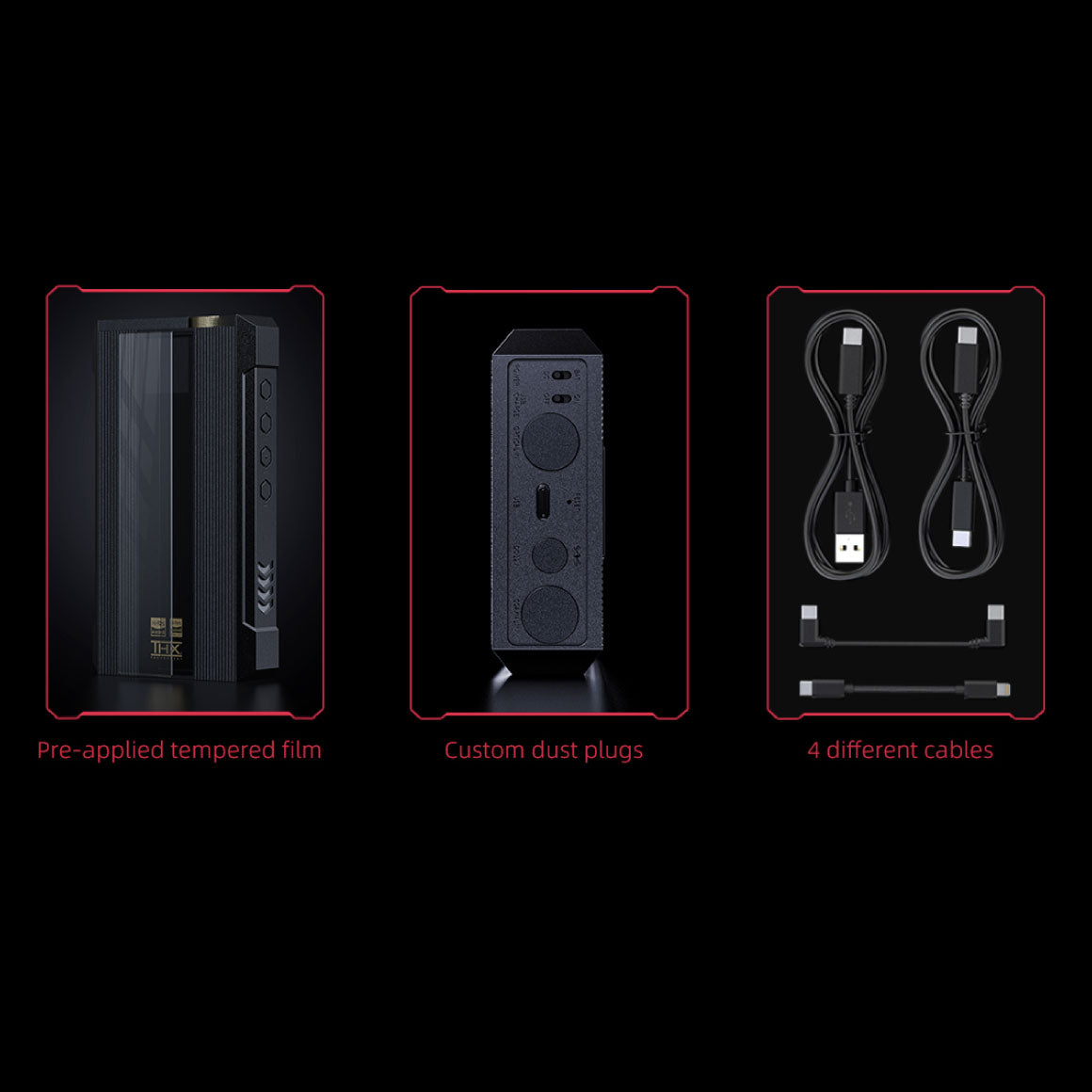

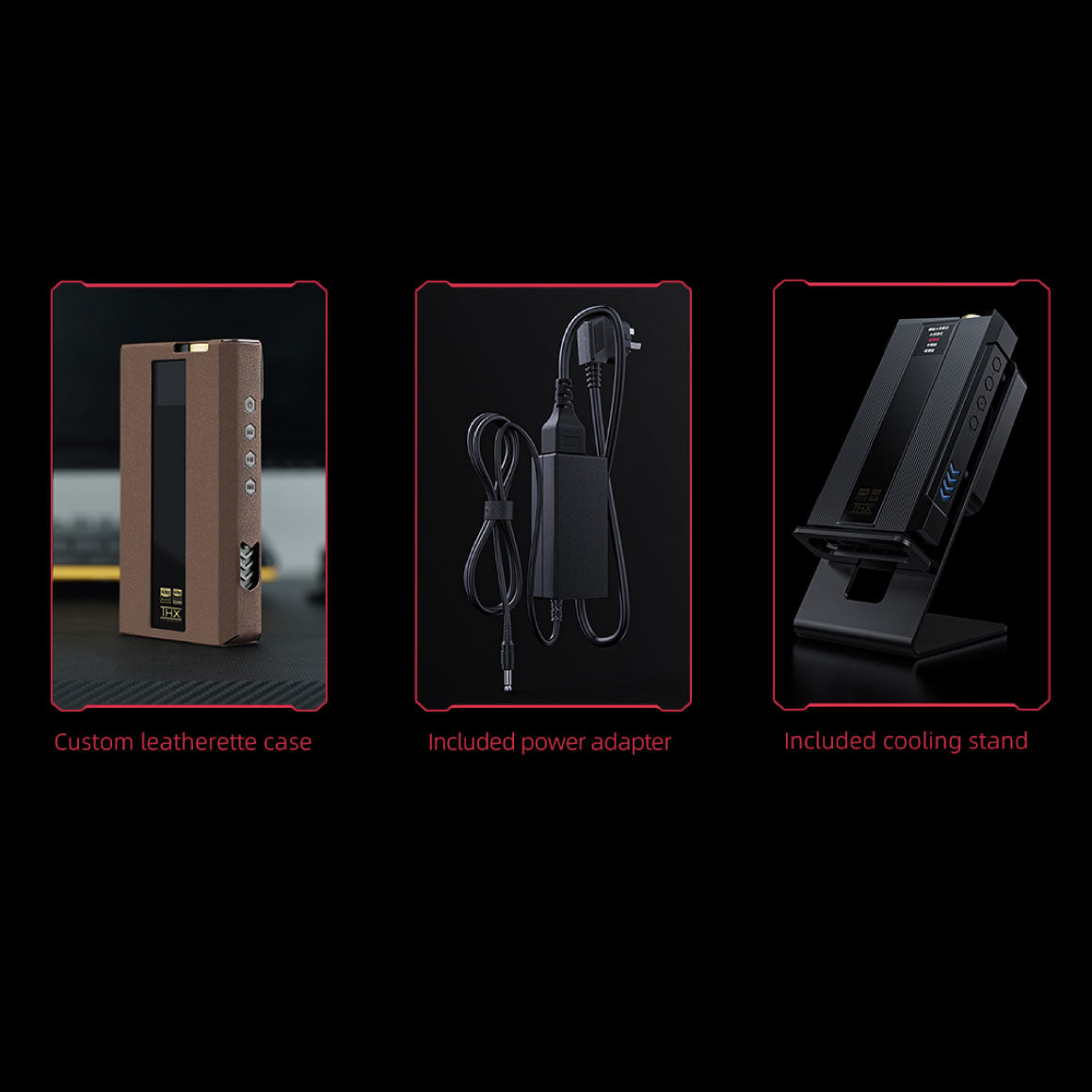

BUNDLED WITH ACCESSORIES TO GET YOU STARTED

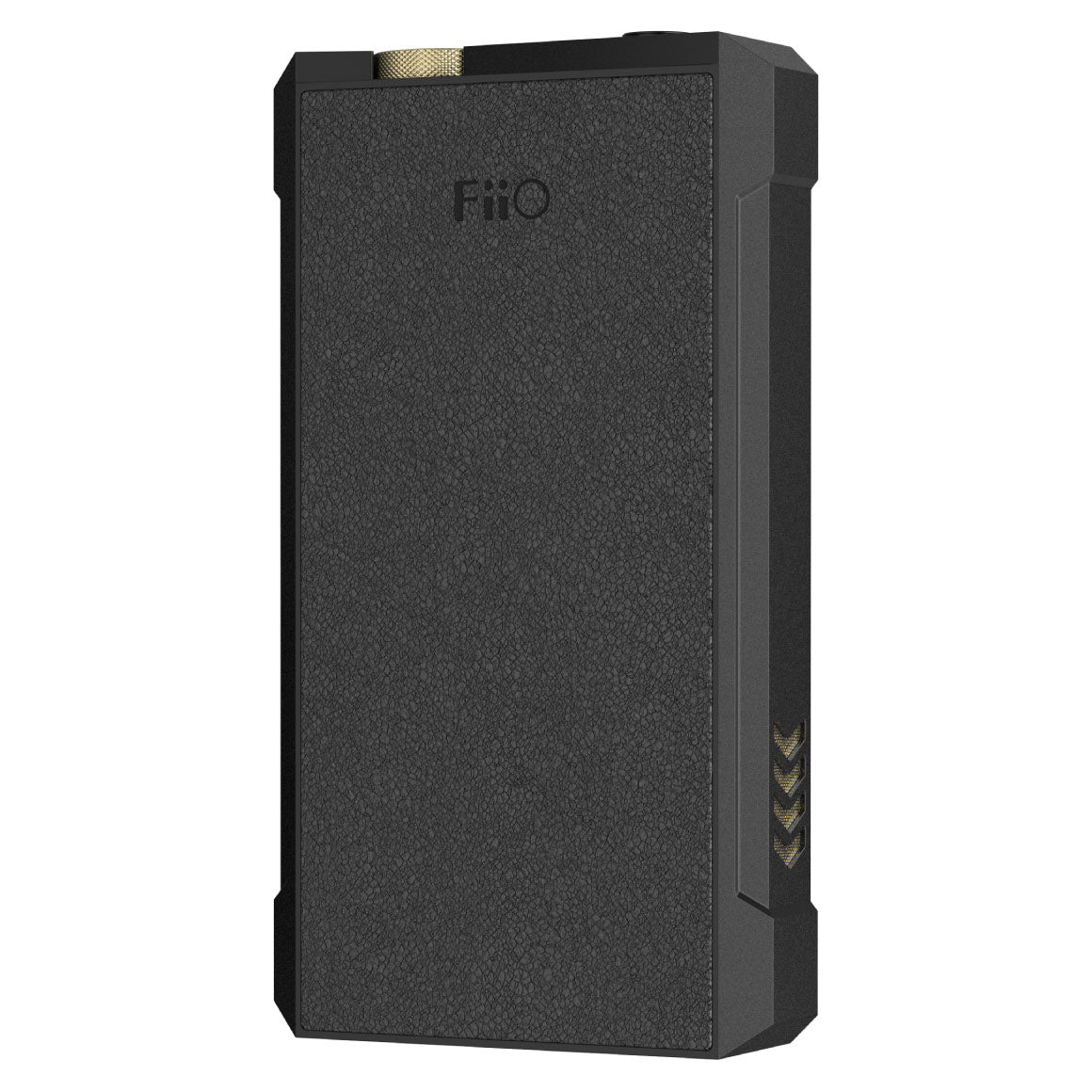

FiiO has always been known to provide thoughtful accessories, and the Q7 is no different. It comes bundled with a cooling stand, power adapter, and AC power cord when you want to operate it in DC mode. It also includes numerous cables like USB power cables, AC power cords, Type-C to Type-C data cables (long), Type-C to Type-C data cables (short), and Lightning to Type-C cables. True to FiiO's heritage, the Q7; also comes with many accessories, including pre-applied tempered film, a leatherette case, and dust plugs. You'll be set up; in no time with the Q7.
SPECS
| MODEL | Q7 |
| HARDWARE SOLUTION | DAC: ES9038Pro USB: XMOS XU316 AMP：THX_AAA_788+*2 BT：QCC5124 |
| COLOR | Black |
| VOLUME CONTROL | Knob |
| WEIGHT | ≈620g |
| DIMENSIONS | ≈158.4x88.5x28.3mm |
| MQA | 8x |
| DRIVER-FREE MODE | Y |
| GAIN | Ultra High(DC mode)/Super High/H/M/L |
| SCREEN | 1.30-inch TFT (240*240) full-fit screen |

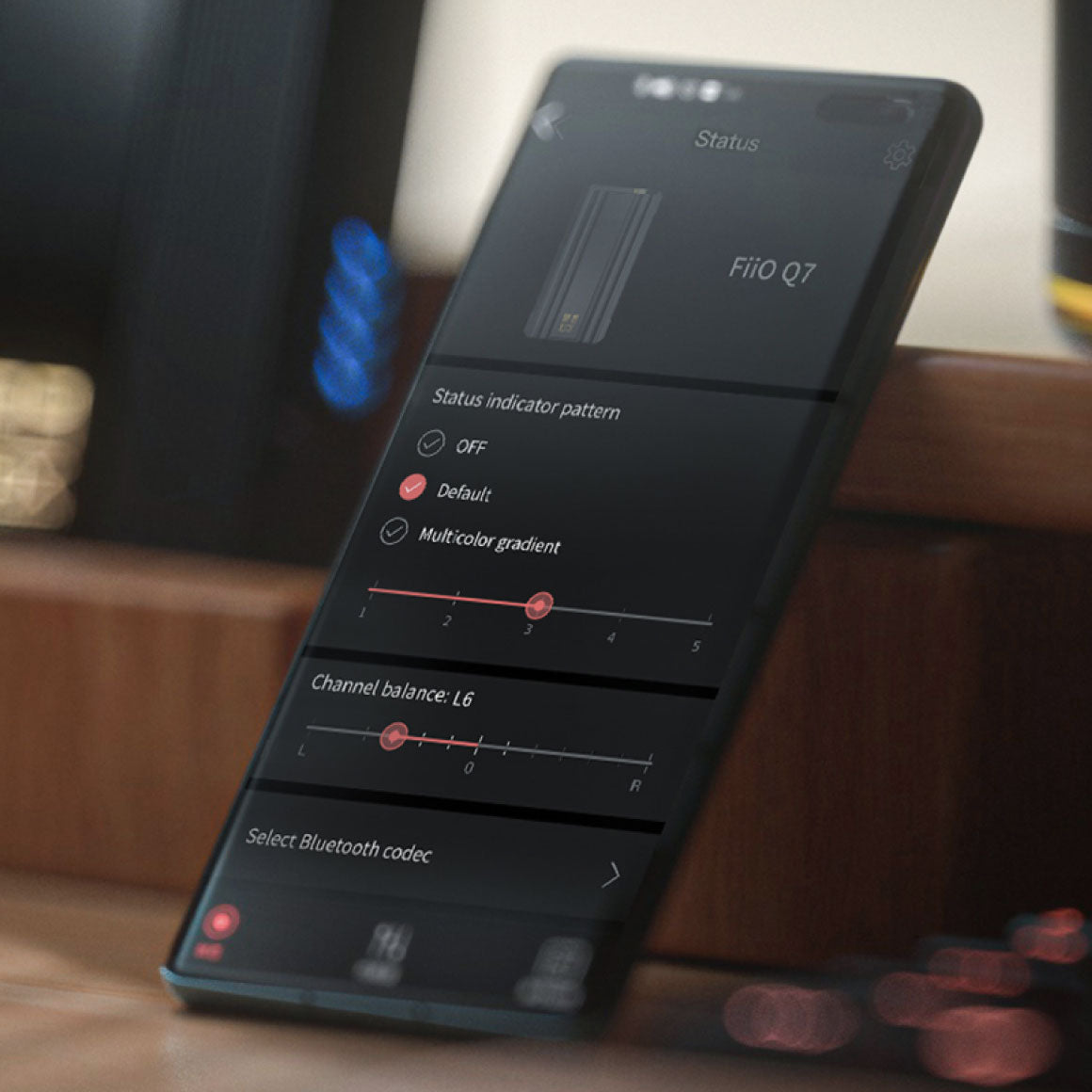

| FIIO CONTROL | Y |
| STATUS INDICATION | hi |
| SAMPLING RATE INDICATION | Blue: 44.1KHz/48KHz Yellow: 88.2/96/176/352.8/384/705.6/768KHz Green: DSD64/128/256/512 Magenta: MQA |
| BLUETOOTH CODEC INDICATION | Blue: SBC Cyan: AAC Purple: aptX/aptX LL Yellow: aptX HD White: LDAC Green: aptX adaptive |
| CHANNEL BALANCE | ≤0.2 dB |
| BLUETOOTH CODEC (5.0) | AAC/SBC/aptX/aptX LL/aptX adaptive/aptX HD/LDAC |
| MAXIMUM SAMPLING RATE/DSD | USB DAC：768kHz/32bit；DSD512(Native) COAX：192kHz/24bit；DSD64（DOP） OPT：96kHz/24bit |
| FIRMWARE UPGRADE | Bluetooth firmware can be upgraded via OTA XMOS/system firmware can be upgraded via USB |
| RECOMMENDED HEADPHONE IMPEDANCE | PO：16~150Ω BAL：16~300Ω |
| BUTTONS | Power button *1 Play/Pause*1 Previous track *1 Next track*1 Volume knob+OK button*1 |
| USB | TYPE C USB2.0 |

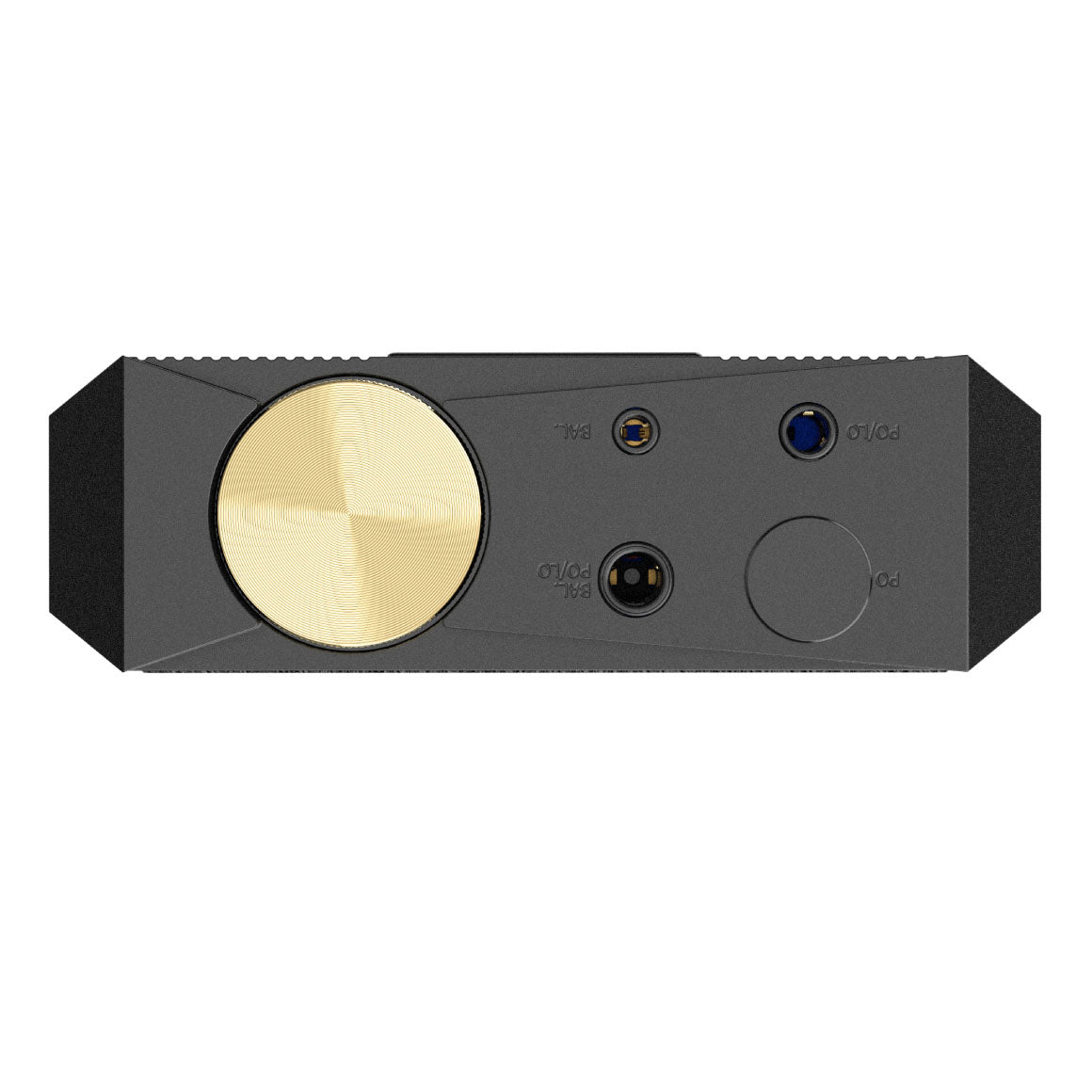

| PO | 3.5mm + 6.35mm |
| BAL PO | 4.4mm+ 2.5mm |
| LO | 3.5 mm (shared with PO) |
| BAL LO | 4.4 mm (shared with PO) |
| OPT IN | Toslink |
| COAX OUT | RCA |
| DC POWER | Φ6.2mm DC |
| SWITCHES | Charge*1；Power*1 |
| POWER SUPPLY | PD 9V (Quick charge)、 DC 12V/2A |
| BATTERY CAPACITY | 9200mAh lithium polymer battery |
| CHARGING TIME | ≈4.5H |
| 3.5MM PO：≥11H | |
| AUDIO IN | USB DAC/OPT/COAX |
| GAIN | Super High |
| VOLUME | 35 |
| TRACK | MP3 44.1KHz/16bit |
| SCREEN | OFF |
| CHARGE | OFF |
| LOAD | 32Ω |
| 4.4MM PO：≥9H | |
| AUDIO IN | USB DAC/OPT/COAX |
| GAIN | Super High |
| VOLUME | 29 |
| TRACK | MP3 44.1KHz/16bit |
| SCREEN | OFF |
| CHARGE | OFF |
| LOAD | 32Ω |
| 3.5MM PO：≥11H | |
| AUDIO IN | BT |
| BT CODEC | aptX |
| VOLUME | 32 |
| GAIN | Super High |
| SCREEN | OFF |
| TRACK | MP3 44.1KHz/16bit |
| BASS/EQ | OFF |
| CHARGE | OFF |
| LOAD | 32Ω |
| 4.4MM PO：≥9H | |
| AUDIO IN | BT |
| BT CODEC | aptX |
| VOLUME | 26 |
| GAIN | Super High |
| SCREEN | OFF |
| TRACK | MP3 44.1KHz/16bit |
| BASS/EQ | OFF |
| LOAD | 32Ω |
| OUTPUT POWER | 1500mW (16Ω，THD+N＜1%) 1100mW (32Ω，THD+N＜1%) 130mW (300Ω，THD+N＜1%） |
| OUTPUT IMPEDANCE | ＜1.2Ω |
| CROSSTALK | ≥75dB |
| PEAK OUTPUT VOLTAGE | 17.8Vp-p |
| SNR | ≥125dB (dbA) |
| THD+N | ＜0.0005%(1kHz/-10dB@32Ω) ＜0.0003%(1kHz/-6dB@300Ω) |
| FREQUENCY RESPONSE | 5Hz~80kHz：±3dB 20Hz~20KHz：±0.1dB |
| NOISE FLOOR | ＜2.8uV（dbA） |
| OUTPUT POWER | 750mW (16Ω，THD+N＜1%) 550mW (32Ω，THD+N＜1%) 65mW (300Ω，THD+N＜1%） |
| OUTPUT IMPEDANCE | ＜1.2Ω |
| CROSSTALK | ≥75dB |
| PEAK OUTPUT VOLTAGE | 12.4Vp-p |
| SNR | ≥122dB (dbA) |
| THD+N | ＜0.0005%(1kHz/-10dB@32Ω) ＜0.0003%(1kHz/-4dB@300Ω) |
| FREQUENCY RESPONSE | 5Hz~80kHz：±3dB 20Hz~20KHz：±0.1dB |
| NOISE FLOOR | ＜2.8uV（dbA） |
| THD+N | ＜0.0004%(1kHz/-4dB@10KΩ) |
| SNR | ≥118dB (dbA) |
| CROSSTALK | ≥99dB |
| NOISE FLOOR | ＜3.5uV（dbA） |
| FREQUNECY RESPONSE | 5Hz~80kHz：±3dB 20Hz~20KHz：±0.1dB |
| OUTPUT LEVEL | 2V |
| OUTPUT POWER | 1500mW (16Ω，THD+N＜1%) 3000mW (32Ω，THD+N＜1%) 500mW (300Ω，THD+N＜1%） |
| OUTPUT IMPEDANCE | ＜1.7Ω |
| CROSSTALK | ≥114dB |
| OUTPUT LEVEL | 35.3Vp-p |
| SNR | ≥125dB (dbA) |
| THD+N | ＜0.0005%(1kHz/-16dB@32Ω) ＜0.0003%(1kHz/-2dB@300Ω) |
| FREQUENCY RESPONSE | 20Hz~80kHz：±3dB 20Hz~20KHz：±0.1dB |
| NOISE FLOOR | ＜4.5uV（dbA） |
| OUTPUT POWER | 1500mW (16Ω，THD+N＜1%) 1500mW (32Ω，THD+N＜1%) 260mW (300Ω，THD+N＜1%） |
| OUTPUT IMPEDANCE | ＜2.2Ω |
| CROSSTALK | ≥114dB |
| PEAK OUTPUT VOLTAGE | 25Vp-p |
| SNR | ≥125dB (dbA) |
| THD+N | ＜0.0005%(1kHz/-10dB@32Ω) ＜0.0003%(1kHz/-0dB@300Ω) |
| FREQUENCY RESPONSE | 5Hz~80kHz：±3dB 20Hz~20KHz：±0.1dB |
| NOISE FLOOR | ＜4.5uV（dbA） |
| THD+N | ＜0.0003%(1kHz/0dB@10KΩ) |
| SNR | ≥128dB (dbA) |
| CROSSTALK | ≥106dB |
| NOISE FLOOR | ＜2uV（dbA |
| FREQUENCY RESPONSE | 20Hz~80kHz：±3dB 20Hz~20KHz：±0.1dB |
| OUTPUT LEVEL | 4V |
| BOX CONTENTS | 1. FiiO Q7 |
| 2. Leatherette Case | |
| 3. Cooling Stand | |
| 4. USB Power Cable | |
| 5. Power Adaptor | |
| 6. AC Power Cord | |
| 7. USB Adaptor | |
| 8. Type-C to Type-C data cable (long) | |
| 9. Type-C to Type-C data cable (short) | |
| 10. Lightning to Type-C cable | |
| 11. Quick Start Guide | |
| 12. Warranty Card |
Quick Start Guide | Q7
Portable Desktop Grade DAC & Amp
|
FAQs
What is the warranty on the FiiO Q7?
All FiiO Q7 products come with a year warranty. You can simply get in touch with us to claim the warranty.Click here.
Where is the FiiO brand based?
FiiO is a brand based in China.
How to get started with FiiO Q7 quickly?
Basic introduction
The FiiO Q7 is a DAC/Amp, whose function is to input digital signals, and output analog PO/LO signals after decoding. It features 4 kinds of common headphone connectors and supports 5 kinds of gain levels. After connecting to a DC power supply, it can enable the fifth Enhanced over-ear headphone gain mode. Both USB and DC power supplies are supported.
Mode switch
There are four decoding modes- USB, Bluetooth, coaxial and optical. Long press the power button on the side to turn on the device. Rotate the golden volume knob to switch modes, single press the knob to enter the corresponding mode. Connect the input signal cable, and connect the headphones or a power amplifier to experience wonderful music.
Settings
Long press the knob to enter the menu; short press to choose; long press the knob to exit the menu or return to the previous page.

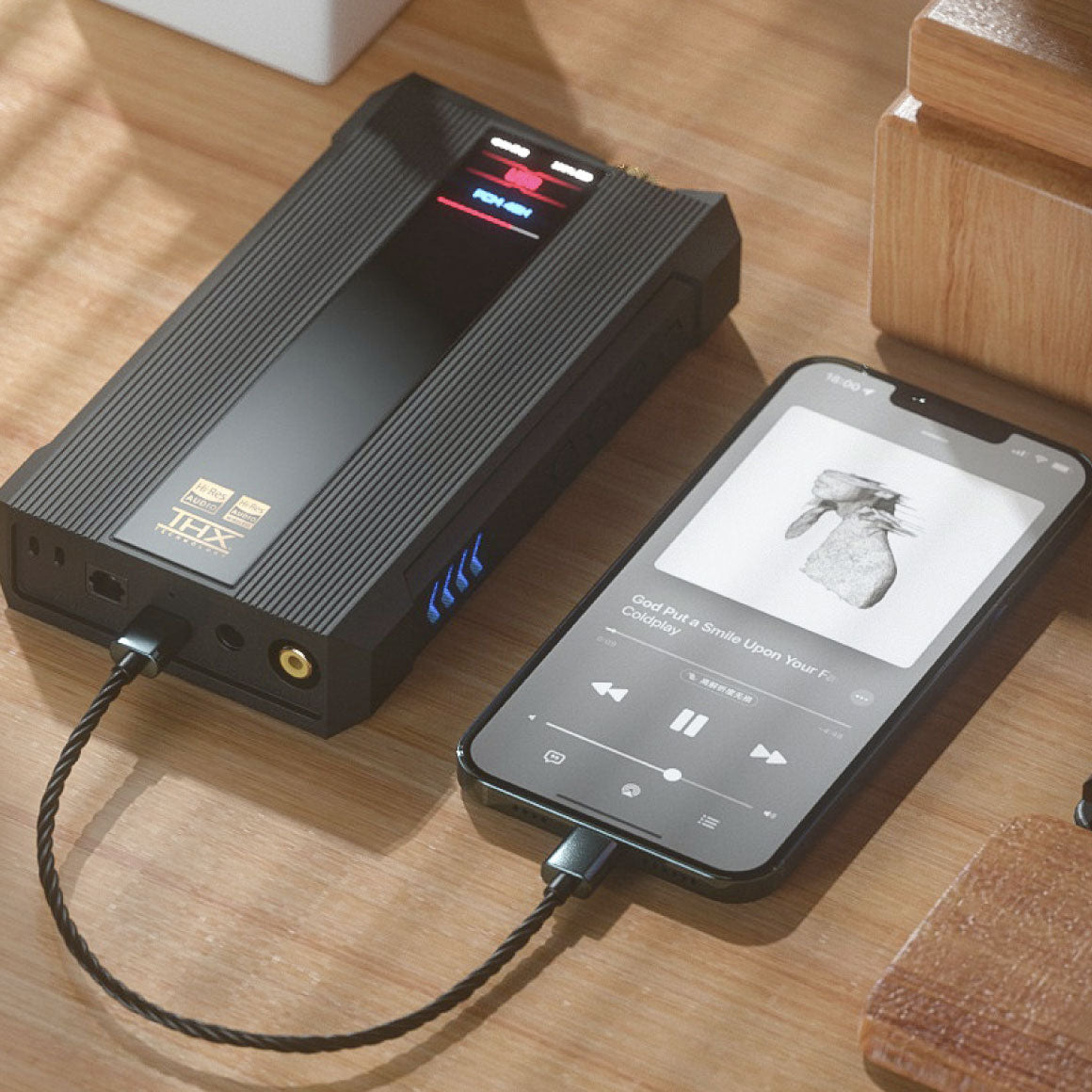

How to decode a mobile phone?
(1) Switch the USB charging switch to OFF;
(2) Switch the knob to the USB menu, short press the knob to enter the USB decoding mode;
(3) Use a USB cable to connect the mobile phone to the Q7, and then connect the output port of the Q7 to headphones or speakers.
How to use the Bluetooth mode?
(1) Switch the Q7 to Bluetooth mode;
(2) Press and hold the Play button on the side to enter the pairing state with red and blue lights flashing. In the Bluetooth list on the mobile phone, choose the Q7.
(3) After the Q7 is connected to headphones, the Bluetooth receiving function can be used.
How to enable the Enhanced over-ear headphone mode?
Set the toggle switch at the bottom of the FiiO Q7 to 'DC', and set 'Enable Ultra High Gain' to 'Auto On' in the menu. After being connected to the supplied power adapter, the Q7 will enter DC mode automatically. And the Enhanced over-ear headphone mode will be enabled.
(1) The internal battery of the Q7 will be disabled automatically (not charging or discharging to better protect the battery);
(2) When using an external DC power supply, the gain level will go to the highest. The power supply of the amp part is directly supplied by DC, and the output power is the strongest.
(3) It is recommended to use it with headphones, and pay attention to the volume to avoid sudden volume changes and hearing damage.Note: If it is not set to 'Auto-turn on', you can manually switch to the Ultra High Gain in the menu after plugging in the DC power supply.
How to access the settings menu in FiiO Q7?
【Call up the menu】
If the display is off, please press the power button on the side to wake it up.
(1) Activate menu: While the device powers on and is not on the menu page, hold the volume knob for about 2 seconds.
(2) Exit menu: On the menu page, hold the volume knob for about 2 seconds.
(3) Return to the previous menu step by step: On the menu page, hold the volume knob to return to the previous menu; short press to enter the next menu or confirm.
(4) Confirm menu: Short press the knob on the menu page.
(5) Switch submenus: Rotate the knob on the menu page.
【Introduction to the submenus】
(1) Gain: supports, Low, Medium, High and Over-ear headphone gains. In DC-powered mode, it can enable Ultra High Gain.
(2) Single-ended output: LO or PO
(3) Balanced output: LO or PO
(4) Line-out volume: adjustable or fixed volumes
(5) Max volume: self-defined from 20 to 120 levels, invalid to fixed volume under line-out output
(6) Enable Ultra High Gain: set to auto-on or enable it manually
(7) Filter: original 7 filters of the DAC chip
(8) Dimmer: adjustable brightness 1~5 levels
(9) Screen timeout: adjustable 5-30 seconds
(10) USB mode: UAC1.0- driverless mode; UAC2.0: high bit-rate transmission mode
(11) Language/语言: switch between Chinese and English
(12) Factory reset: clear configuration record; the Q7 will turn off after factory reset
(13) Firmware version: Check the firmware version of the Q7; the XMOS version should be checked on the driver panel of your computer
How to use the FiiO Q7 as a USB DAC for a computer?
(1) On the homepage, short press the volume knob to enter the working mode menu. Rotate the knob of the Q7 to USB, and short press the knob to enter the USB decoding mode.
(2) Use a USB cable to connect the Q7 to the computer, and connect the output port of the Q7 to headphones or a speaker.
(3) Choose the corresponding output on the music app. The Q7 will losslessly decode the audio signal transmitted through the computer.
【Windows】
(1) When the Q7 is in UAC 1.0 mode, no driver is required. Just select the Q7 as the default audio output device after connecting it to the computer.
(2) When using the UAC 2.0 mode,Windows supports UAC 2.0 mode: When first connecting, please go to our website to download the USB DAC driver, and install it as the instruction to enable the USB DAC function.
It is recommended to use the v5.30 version. And if you are using a Win7 computer, please use the v4.47 version.
(Download it at https://forum.fiio.com/note/showNoteContent.do?id=202105191527366657910&tid=17)(3) The following instruction takes Windows 7 as an example to introduce how to install the USB DAC driver on the computer, and use the DAC to play songs: https://forum.fiio.com/note/showNoteContent.do?id=202106181129330797039&tid=17
【MacBook】
MacBook runs driver-free. Just directly choose the FiiO Q7 as the output device. Due to system reasons, the output sampling rate of MacBook will not follow the song automatically. It needs to be adjusted in Midi.The following instruction takes MacBook as an example to introduce how to install the USB DAC driver on the computer, and use the DAC to play songs: (Download it at http://https://forum.fiio.com/note/showNoteContent.do?id=202105191616354037331)
How about the decoding ability of the FiiO Q7?
USB decoding mode: up to 768k/32bit, DSD512
Coaxial decoding mode: up to 192k/24bit, DSD64
Optical decoding mode: up to 96k/24bit
Bluetooth receiving mode: supports LDAC/aptX HD/aptX Adaptive/aptX LL//aptX/AAC/SBC

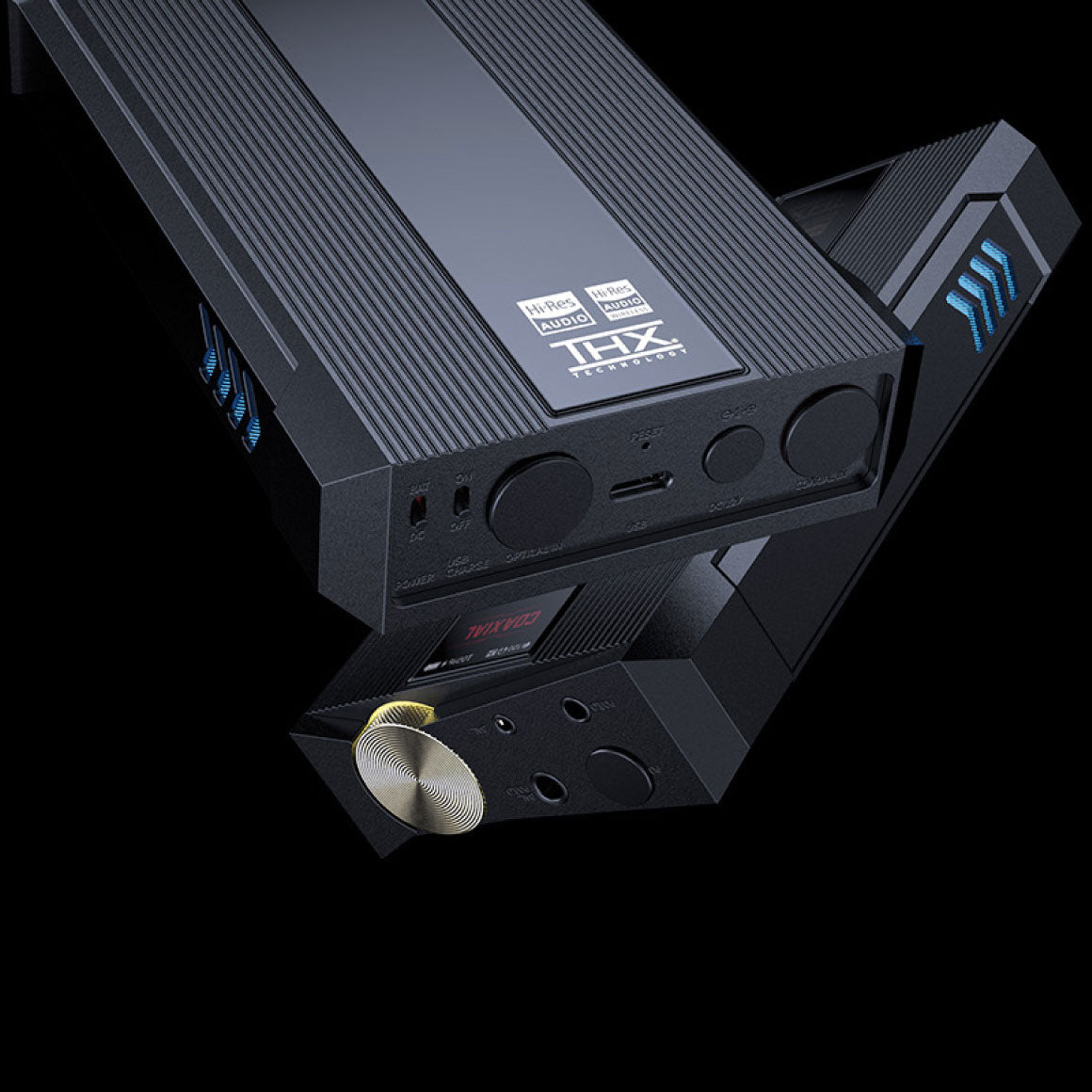

FIIO SETS A NEW BENCHMARK WITH THEIR ALL-NEW Q7 - A PORTABLE-DESKTOP-CLASS DAC & AMP
FiiO is known for amazing the critics with their desktop-grade and portable DAC & Amps. FiiO had designed the M17 to be a portable/desktop-class digital audio player, which was a game changer in terms of performance and catering to portable and desktop needs. FiiO was on a quest to create something akin to the M17 after it achieved all of its success. Years of research and development gave birth to the all-new Q7 portable/desktop-class headphone amplifier and DAC. The Q7 is everything that you will ever need for your arsenal of headphones and in-ear monitors. It uses all the latest tech, like the flagship ESS ES9038PRO DAC Chipset fused with dual THX AAA 788+ headphone amp circuits. It supports Bluetooth and also doubles up as a USB DAC & Amp. FiiO has designed the Q7 to be compatible with most gears offering 3.5mm, 6.35mm Single-ended, 4.4mm, and 2.5mm Balanced outputs. It also has a whopping power output of 3000mW which will be more than sufficient to power your demanding headphone and in-ear monitors. Experience the all-new Q7, which shines in all its glory to provide you with the best possible audio reproduction.
DESKTOP-GRADE DECODING WITH ESS SABRE & XMOS CHIPSET AND MQA SUPPORT
The Q7 uses a single ES9038PRO chipset 4-channel implementation in parallel for one differential output for excellent resolution, combined with an XU316 USB stage for digital decoding. The digital input bridge has a dual clocking design with ultra-low latency, 768kHz, DSD512 (Direct Stream Digital), and full MQA decoding (Master Quality Authenticated). Q7 can decode up to 768k/32bit, DSD512 with USB, 192k/24bit, DSD64 with coaxial, and 96k/24bit with optical thanks to the high-end DAC chipset ES9038PRO and XMOS XU316. For discerning audiophiles, the Q7 is also capable of 8x MQA support. Again upgraded in the Q7 is FiiO's self-developed digital control core centre. This control chip is powered by an ARM Cortex M4 processor that efficiently handles clock management, USB decoding, and optical decoding to optimise sound quality. To further enhance the audio quality, the digital and analogue sections are physically separated on different boards with shield covers to achieve an extremely pure sound for a superb listening experience.
INCREDIBLE POWER WITH DESKTOP-TIER THX AAA 788+ AMP AND FIVE-LEVEL GAIN MODES
FiiO has designed the Q7 combining desktop and portable rigs into one unlike never before. The Q7 is a portable amplifier packed with parts "designed" for desktop amps, making it a true fusion of "portable" and desktop amps. The Q7 redefines what a portable amp can be and sets a new benchmark for FiiO products but for all audio products. While portable in size, the Q7 features desktop-level amplification with 100% more power under a DC power supply in "Enhanced over-ear headphone mode" - up to 3000mW of power. The Q7 can output up to 1500mW in portable mode, hence the 100% improvement in "Enhanced over-ear headphone mode". The THX AAA 788+ amp designed for desktop usage is featured in a 4-way truly balanced amplifier circuit. With five levels of mixed gain, the Q7 can power the most demanding headphones for a pure listening experience.
FEATURES QUALCOMM QCC5124 FOR HI-RES BLUETOOTH RECEPTION WITH BLUETOOTH 5.0 SUPPORT
The FiiO Q7 is equipped with Qualcomm's QCC5124 chipset that enables it to act as a Bluetooth receiver with support for Hi-Res Bluetooth codecs like LDAC, aptX adaptive, aptX LL, aptX HD, AAC, and SBC. It supports Bluetooth 5.0, so you will never experience any latency or interruptions in signal loss. The Q7 will also notify you with colours for different Bluetooth codecs like White: LDAC, Green: aptX adaptive, Yellow: aptX HD, Purple: aptX/aptX LL, Cyan: AAC, and Blue: SBC.
DUAL POWER SUPPLY MODES FOR ULTIMATE STABILITY AND CONVENIENCE
The Q7 has a desktop-caliber power supply with dual power supply modes for plentiful and continuous energy. The Q7 operates in either DC or battery-powered modes. Under the battery-powered "mode," the 9200mAh battery allows the Q7 to output up to 1500mW of power. Under the DC power supply mode, the battery is "bypassed" to protect battery life, while the custom 24W low-noise power supply drives a wide variety of headphones effortlessly. The Q7 also has a precisely-regulated power supply for ultimate stability. The 5-stage audio circuit features 20 LDOS and a 470mF high-capacity ultra-low ESR supercapacitor to provide endless reserves of power to maintain stable, high-quality audio at all times.
EXPERIENCE UNINTERRUPTED LISTENING WITH 11 HOURS OF PLAYTIME
The Q7 is capable of operating in two modes, DC or battery-powered. To get the best possible experience from the Q7 when "operated" in battery power mode, FiiO has incorporated a massive 9200 mAh battery that enables 11 hours of continuous playtime. The Q7 offers a playtime of ＞11 h (USB IN), ＞11 h (OPT-IN), ＞11 h (COAX IN), and ＞11 h (Bluetooth IN). The Q7 also features a 5-segment battery display and % to keep you updated on the battery status.
DESKTOP-LEVEL CONNECTIVITY WITH BRAND NEW DESIGN AND SUPPORT FOR CONTROL APP
The Q7 is equipped to handle any situation - with USB, optical and coaxial inputs; two single-ended (6.35mm and 3.5mm) and two balanced outputs (4.4mm and 2.5mm); and LO output (Line Output). The Q7 continues FiiO's modern design language, featuring a bold next-gen mech design complemented by tasteful colour lights for a thoroughly technologically modern appearance. With the FiiO Control App, the adjustable settings are at your fingertips. Change the Bluetooth format, RGB lights, and sound channel balance.
FULL-COLOUR DISPLAY FOR A HIGH-DEFINITION EXPERIENCE FUSED WITH A MULTI-FUNCTION KNOB
The Q7 features a 1.3-inch full-colour display that lets you quickly know information such as audio format and sampling rates with a simple glance. In the Q7, the knob is full of new tricks allowing you to quickly and precisely adjust the volume, select the input, and even go through the menu settings. Also quite handy is the ability to tweak the "volume" with the knob when the screen is off. Let your eyes enjoy a delightful experience on par with your ears!
BUNDLED WITH ACCESSORIES TO GET YOU STARTED
FiiO has always been known to provide thoughtful accessories, and the Q7 is no different. It comes bundled with a cooling stand, power adapter, and AC power cord when you want to operate it in DC mode. It also includes numerous cables like USB power cables, AC power cords, Type-C to Type-C data cables (long), Type-C to Type-C data cables (short), and Lightning to Type-C cables. True to FiiO's heritage, the Q7; also comes with many accessories, including pre-applied tempered film, a leatherette case, and dust plugs. You'll be set up; in no time with the Q7.
| MODEL | Q7 |
| HARDWARE SOLUTION | DAC: ES9038Pro USB: XMOS XU316 AMP：THX_AAA_788+*2 BT：QCC5124 |
| COLOR | Black |
| VOLUME CONTROL | Knob |
| WEIGHT | ≈620g |
| DIMENSIONS | ≈158.4x88.5x28.3mm |
| MQA | 8x |
| DRIVER-FREE MODE | Y |
| GAIN | Ultra High(DC mode)/Super High/H/M/L |
| SCREEN | 1.30-inch TFT (240*240) full-fit screen |
| FIIO CONTROL | Y |
| STATUS INDICATION | hi |
| SAMPLING RATE INDICATION | Blue: 44.1KHz/48KHz Yellow: 88.2/96/176/352.8/384/705.6/768KHz Green: DSD64/128/256/512 Magenta: MQA |
| BLUETOOTH CODEC INDICATION | Blue: SBC Cyan: AAC Purple: aptX/aptX LL Yellow: aptX HD White: LDAC Green: aptX adaptive |
| CHANNEL BALANCE | ≤0.2 dB |
| BLUETOOTH CODEC (5.0) | AAC/SBC/aptX/aptX LL/aptX adaptive/aptX HD/LDAC |
| MAXIMUM SAMPLING RATE/DSD | USB DAC：768kHz/32bit；DSD512(Native) COAX：192kHz/24bit；DSD64（DOP） OPT：96kHz/24bit |
| FIRMWARE UPGRADE | Bluetooth firmware can be upgraded via OTA XMOS/system firmware can be upgraded via USB |
| RECOMMENDED HEADPHONE IMPEDANCE | PO：16~150Ω BAL：16~300Ω |
| BUTTONS | Power button *1 Play/Pause*1 Previous track *1 Next track*1 Volume knob+OK button*1 |
| USB | TYPE C USB2.0 |
| PO | 3.5mm + 6.35mm |
| BAL PO | 4.4mm+ 2.5mm |
| LO | 3.5 mm (shared with PO) |
| BAL LO | 4.4 mm (shared with PO) |
| OPT IN | Toslink |
| COAX OUT | RCA |
| DC POWER | Φ6.2mm DC |
| SWITCHES | Charge*1；Power*1 |
| POWER SUPPLY | PD 9V (Quick charge)、 DC 12V/2A |
| BATTERY CAPACITY | 9200mAh lithium polymer battery |
| CHARGING TIME | ≈4.5H |
| 3.5MM PO：≥11H | |
| AUDIO IN | USB DAC/OPT/COAX |
| GAIN | Super High |
| VOLUME | 35 |
| TRACK | MP3 44.1KHz/16bit |
| SCREEN | OFF |
| CHARGE | OFF |
| LOAD | 32Ω |
| 4.4MM PO：≥9H | |
| AUDIO IN | USB DAC/OPT/COAX |
| GAIN | Super High |
| VOLUME | 29 |
| TRACK | MP3 44.1KHz/16bit |
| SCREEN | OFF |
| CHARGE | OFF |
| LOAD | 32Ω |
| 3.5MM PO：≥11H | |
| AUDIO IN | BT |
| BT CODEC | aptX |
| VOLUME | 32 |
| GAIN | Super High |
| SCREEN | OFF |
| TRACK | MP3 44.1KHz/16bit |
| BASS/EQ | OFF |
| CHARGE | OFF |
| LOAD | 32Ω |
| 4.4MM PO：≥9H | |
| AUDIO IN | BT |
| BT CODEC | aptX |
| VOLUME | 26 |
| GAIN | Super High |
| SCREEN | OFF |
| TRACK | MP3 44.1KHz/16bit |
| BASS/EQ | OFF |
| LOAD | 32Ω |
| OUTPUT POWER | 1500mW (16Ω，THD+N＜1%) 1100mW (32Ω，THD+N＜1%) 130mW (300Ω，THD+N＜1%） |
| OUTPUT IMPEDANCE | ＜1.2Ω |
| CROSSTALK | ≥75dB |
| PEAK OUTPUT VOLTAGE | 17.8Vp-p |
| SNR | ≥125dB (dbA) |
| THD+N | ＜0.0005%(1kHz/-10dB@32Ω) ＜0.0003%(1kHz/-6dB@300Ω) |
| FREQUENCY RESPONSE | 5Hz~80kHz：±3dB 20Hz~20KHz：±0.1dB |
| NOISE FLOOR | ＜2.8uV（dbA） |
| OUTPUT POWER | 750mW (16Ω，THD+N＜1%) 550mW (32Ω，THD+N＜1%) 65mW (300Ω，THD+N＜1%） |
| OUTPUT IMPEDANCE | ＜1.2Ω |
| CROSSTALK | ≥75dB |
| PEAK OUTPUT VOLTAGE | 12.4Vp-p |
| SNR | ≥122dB (dbA) |
| THD+N | ＜0.0005%(1kHz/-10dB@32Ω) ＜0.0003%(1kHz/-4dB@300Ω) |
| FREQUENCY RESPONSE | 5Hz~80kHz：±3dB 20Hz~20KHz：±0.1dB |
| NOISE FLOOR | ＜2.8uV（dbA） |
| THD+N | ＜0.0004%(1kHz/-4dB@10KΩ) |
| SNR | ≥118dB (dbA) |
| CROSSTALK | ≥99dB |
| NOISE FLOOR | ＜3.5uV（dbA） |
| FREQUNECY RESPONSE | 5Hz~80kHz：±3dB 20Hz~20KHz：±0.1dB |
| OUTPUT LEVEL | 2V |
| OUTPUT POWER | 1500mW (16Ω，THD+N＜1%) 3000mW (32Ω，THD+N＜1%) 500mW (300Ω，THD+N＜1%） |
| OUTPUT IMPEDANCE | ＜1.7Ω |
| CROSSTALK | ≥114dB |
| OUTPUT LEVEL | 35.3Vp-p |
| SNR | ≥125dB (dbA) |
| THD+N | ＜0.0005%(1kHz/-16dB@32Ω) ＜0.0003%(1kHz/-2dB@300Ω) |
| FREQUENCY RESPONSE | 20Hz~80kHz：±3dB 20Hz~20KHz：±0.1dB |
| NOISE FLOOR | ＜4.5uV（dbA） |
| OUTPUT POWER | 1500mW (16Ω，THD+N＜1%) 1500mW (32Ω，THD+N＜1%) 260mW (300Ω，THD+N＜1%） |
| OUTPUT IMPEDANCE | ＜2.2Ω |
| CROSSTALK | ≥114dB |
| PEAK OUTPUT VOLTAGE | 25Vp-p |
| SNR | ≥125dB (dbA) |
| THD+N | ＜0.0005%(1kHz/-10dB@32Ω) ＜0.0003%(1kHz/-0dB@300Ω) |
| FREQUENCY RESPONSE | 5Hz~80kHz：±3dB 20Hz~20KHz：±0.1dB |
| NOISE FLOOR | ＜4.5uV（dbA） |
| THD+N | ＜0.0003%(1kHz/0dB@10KΩ) |
| SNR | ≥128dB (dbA) |
| CROSSTALK | ≥106dB |
| NOISE FLOOR | ＜2uV（dbA |
| FREQUENCY RESPONSE | 20Hz~80kHz：±3dB 20Hz~20KHz：±0.1dB |
| OUTPUT LEVEL | 4V |
| BOX CONTENTS | 1. FiiO Q7 |
| 2. Leatherette Case | |
| 3. Cooling Stand | |
| 4. USB Power Cable | |
| 5. Power Adaptor | |
| 6. AC Power Cord | |
| 7. USB Adaptor | |
| 8. Type-C to Type-C data cable (long) | |
| 9. Type-C to Type-C data cable (short) | |
| 10. Lightning to Type-C cable | |
| 11. Quick Start Guide | |
| 12. Warranty Card |
|
Quick Start Guide | Q7
Portable Desktop Grade DAC & Amp
|
What is the warranty on the FiiO Q7?
All FiiO Q7 products come with a year warranty. You can simply get in touch with us to claim the warranty.Click here.
Where is the FiiO brand based?
FiiO is a brand based in China.
How to get started with FiiO Q7 quickly?
Basic introduction
The FiiO Q7 is a DAC/Amp, whose function is to input digital signals, and output analog PO/LO signals after decoding. It features 4 kinds of common headphone connectors and supports 5 kinds of gain levels. After connecting to a DC power supply, it can enable the fifth Enhanced over-ear headphone gain mode. Both USB and DC power supplies are supported.
Mode switch
There are four decoding modes- USB, Bluetooth, coaxial and optical. Long press the power button on the side to turn on the device. Rotate the golden volume knob to switch modes, single press the knob to enter the corresponding mode. Connect the input signal cable, and connect the headphones or a power amplifier to experience wonderful music.
Settings
Long press the knob to enter the menu; short press to choose; long press the knob to exit the menu or return to the previous page.
How to decode a mobile phone?
(1) Switch the USB charging switch to OFF;
(2) Switch the knob to the USB menu, short press the knob to enter the USB decoding mode;
(3) Use a USB cable to connect the mobile phone to the Q7, and then connect the output port of the Q7 to headphones or speakers.
How to use the Bluetooth mode?
(1) Switch the Q7 to Bluetooth mode;
(2) Press and hold the Play button on the side to enter the pairing state with red and blue lights flashing. In the Bluetooth list on the mobile phone, choose the Q7.
(3) After the Q7 is connected to headphones, the Bluetooth receiving function can be used.
How to enable the Enhanced over-ear headphone mode?
Set the toggle switch at the bottom of the FiiO Q7 to 'DC', and set 'Enable Ultra High Gain' to 'Auto On' in the menu. After being connected to the supplied power adapter, the Q7 will enter DC mode automatically. And the Enhanced over-ear headphone mode will be enabled.
(1) The internal battery of the Q7 will be disabled automatically (not charging or discharging to better protect the battery);
(2) When using an external DC power supply, the gain level will go to the highest. The power supply of the amp part is directly supplied by DC, and the output power is the strongest.
(3) It is recommended to use it with headphones, and pay attention to the volume to avoid sudden volume changes and hearing damage.Note: If it is not set to 'Auto-turn on', you can manually switch to the Ultra High Gain in the menu after plugging in the DC power supply.
How to access the settings menu in FiiO Q7?
【Call up the menu】
If the display is off, please press the power button on the side to wake it up.
(1) Activate menu: While the device powers on and is not on the menu page, hold the volume knob for about 2 seconds.
(2) Exit menu: On the menu page, hold the volume knob for about 2 seconds.
(3) Return to the previous menu step by step: On the menu page, hold the volume knob to return to the previous menu; short press to enter the next menu or confirm.
(4) Confirm menu: Short press the knob on the menu page.
(5) Switch submenus: Rotate the knob on the menu page.
【Introduction to the submenus】
(1) Gain: supports, Low, Medium, High and Over-ear headphone gains. In DC-powered mode, it can enable Ultra High Gain.
(2) Single-ended output: LO or PO
(3) Balanced output: LO or PO
(4) Line-out volume: adjustable or fixed volumes
(5) Max volume: self-defined from 20 to 120 levels, invalid to fixed volume under line-out output
(6) Enable Ultra High Gain: set to auto-on or enable it manually
(7) Filter: original 7 filters of the DAC chip
(8) Dimmer: adjustable brightness 1~5 levels
(9) Screen timeout: adjustable 5-30 seconds
(10) USB mode: UAC1.0- driverless mode; UAC2.0: high bit-rate transmission mode
(11) Language/语言: switch between Chinese and English
(12) Factory reset: clear configuration record; the Q7 will turn off after factory reset
(13) Firmware version: Check the firmware version of the Q7; the XMOS version should be checked on the driver panel of your computer
How to use the FiiO Q7 as a USB DAC for a computer?
(1) On the homepage, short press the volume knob to enter the working mode menu. Rotate the knob of the Q7 to USB, and short press the knob to enter the USB decoding mode.
(2) Use a USB cable to connect the Q7 to the computer, and connect the output port of the Q7 to headphones or a speaker.
(3) Choose the corresponding output on the music app. The Q7 will losslessly decode the audio signal transmitted through the computer.
【Windows】
(1) When the Q7 is in UAC 1.0 mode, no driver is required. Just select the Q7 as the default audio output device after connecting it to the computer.
(2) When using the UAC 2.0 mode,Windows supports UAC 2.0 mode: When first connecting, please go to our website to download the USB DAC driver, and install it as the instruction to enable the USB DAC function.
It is recommended to use the v5.30 version. And if you are using a Win7 computer, please use the v4.47 version.
(Download it at https://forum.fiio.com/note/showNoteContent.do?id=202105191527366657910&tid=17)(3) The following instruction takes Windows 7 as an example to introduce how to install the USB DAC driver on the computer, and use the DAC to play songs: https://forum.fiio.com/note/showNoteContent.do?id=202106181129330797039&tid=17
【MacBook】
MacBook runs driver-free. Just directly choose the FiiO Q7 as the output device. Due to system reasons, the output sampling rate of MacBook will not follow the song automatically. It needs to be adjusted in Midi.The following instruction takes MacBook as an example to introduce how to install the USB DAC driver on the computer, and use the DAC to play songs: (Download it at http://https://forum.fiio.com/note/showNoteContent.do?id=202105191616354037331)
How about the decoding ability of the FiiO Q7?
USB decoding mode: up to 768k/32bit, DSD512
Coaxial decoding mode: up to 192k/24bit, DSD64
Optical decoding mode: up to 96k/24bit
Bluetooth receiving mode: supports LDAC/aptX HD/aptX Adaptive/aptX LL//aptX/AAC/SBC
Don't sweat it, this
FiiO - Q7 comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
AMPLIFIER CATEGORY
(Above 75 thousand yen)
VGP 2023
Oct, 2022
"The FiiO Q7 SRP is on point for me. This is an offering drenched in value if you need a transportable amp and DAC with huge power and loads of I/O options in a relatively compact and attractively made form factor. ”
Read More
"As the Q7 boasts a good amount of power for its range. With all of its input options, the Q7 can have a ton of uses as a portable system. Great sound resolution Expanded soundstage, MQA decoding, Variety of inputs and outputs."
Read More
