DESCRIPTION

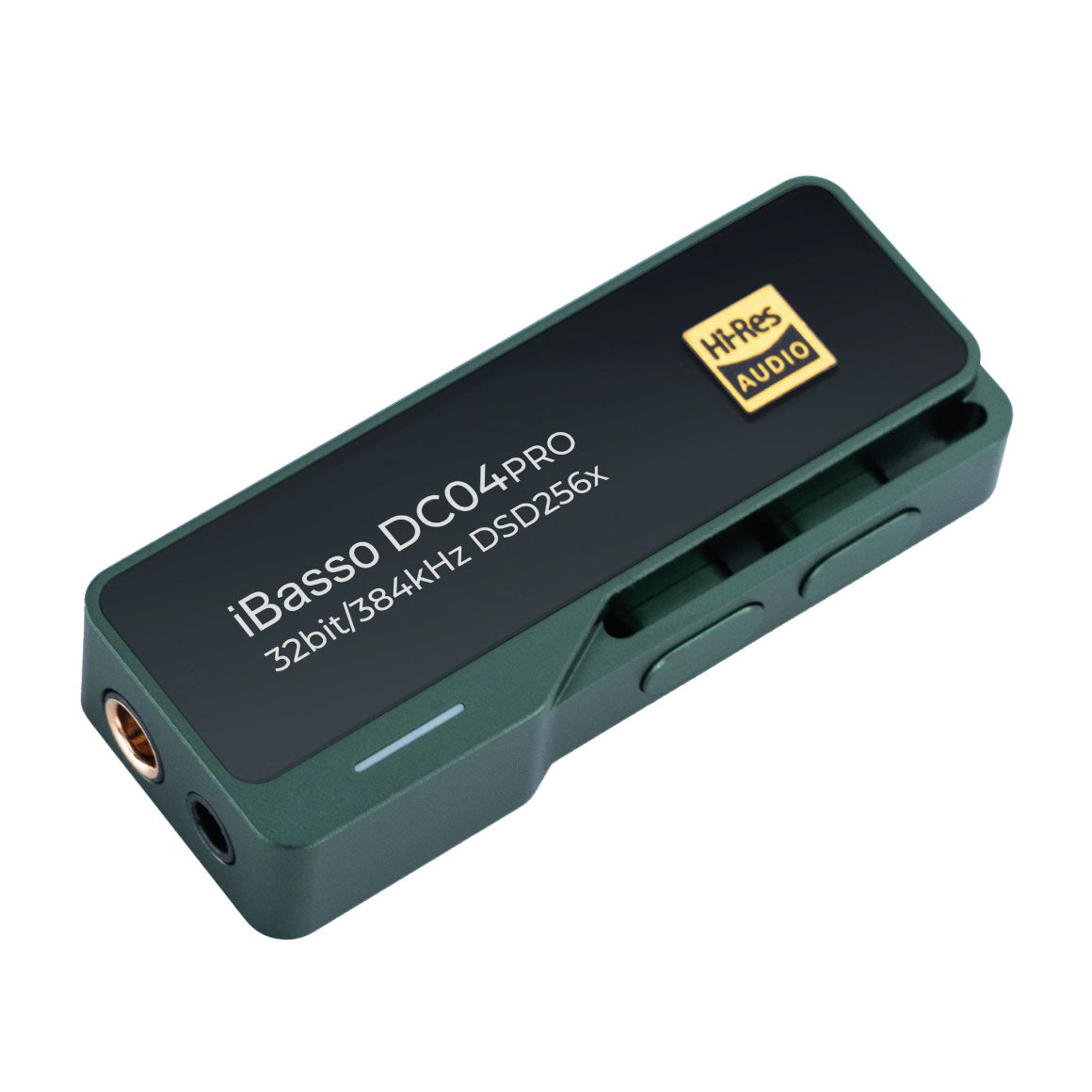

IBASSO INTRODUCES DC04 PRO, A WORTHY UPGRADE TO THE WIDELY POPULAR DC04
iBasso is a well-reputed brand in the industry. They are mainly known for their wide range of portable audio gears, including IEMs, USB DAC/AMPs, DAPs, etc. The DC04 was a "great" portable Balanced USB DAC & Amp that took the industry by storm, but the only caveat was that it only had a Balanced 4.4mm output. iBasso, with their all-new DC04PRO, has addressed that and has included a 3.5mm Single-Ended in addition to the 4.4mm Balanced output. The DC04, however, garnered high-level praise from the audiophile community. iBasso wanted to continue the spree and develop something "powerful," "durable," and "versatile," which gave birth to DC04PRO. The iBasso DC04PRO is a worthy upgrade and packs a punch with its extraordinary performing capabilities. With premium dual CS43131 DAC chips from Cirrus Logics, the DC04PRO brings flagship-level performance to your smartphones. For "clear" and "accurate" audio signal decoding, a high-performance KDS femtosecond crystal oscillator is incorporated into its design. The iBasso DC04PRO offers a high-quality experience by supporting high-resolution PCM and DSD signals. Perceive music differently with the brand-new iBasso DC04PRO!
DUAL CIRRUS LOGIC DAC CHIP AND HIGH-QUALITY COMPONENTS DELIVER EXCEPTIONAL SONIC PERFORMANCE
The Cirrus Logic CS43131 dual DAC chips, which are of the highest calibre and provide unmatched digital-to-analogue conversion, are found in the DC04PRO. With Master HiFi™ technology, the DAC from Cirrus Logic offers "amazing" performance and fantastic sound. With iBasso's extensive investment in research and development and well-selected parts, the DC04PRO is a "wonderful" and affordable standout USB DAC & Amp. iBasso DC04PRO promises ultimate high-resolution audio performance with its dual DAC arrangement supporting PCM (Pulse Code Modulation) up to 32bit/384kHz and Native DSD (Direct Stream Digital) up to 256x. iBasso has dual CS43131 DAC chips allowing the DC04PRO to achieve class-leading performance with ultra-low distortion and high SNR ratings. The CS43131 is a premium 32-Bit DAC supporting 32-Bit Hi-Res signal decoding. The DC04PRO hosts a KDS femtosecond oscillator, which reduces phase noise and provides a more accurate clock reference for the DAC. The DC04PRO brings pure and transparent music replay. The ultra-low noise LDO having a 100dB Power Supply Rejection Ratio ensures the power purity for the DAC chips. The result is exceptional sound quality with a clean and black background for the DC04PRO.
DUAL OPERATIONAL AMPLIFIERS FUSED WITH FPGA TECH DELIVER CLEAN AMPLIFICATION
The iBasso DC04PRO utilises dual RT6863 chips, creating a 4-way fully balanced amp featuring ultra-low distortion. With an output current of up to 100mA and working at a 10V voltage swing, the DC04PRO output reaches 280mW@32 Ohms. A team of engineers at iBasso wanted to make the DC04PRO unique in every aspect. For this reason, the DC04PRO houses an in-house developed FPGA algorithm. This FPGA tech has never been used in a dongle DAC before. Together with the KDS femtosecond oscillator, the jitter is well-controlled. This design aspect makes the sound reproduction more distortion-free and enhances the audio quality. With the well-designed analogue circuit, the DC04PRO renders your audio full-bodied with emotional impact. You can say goodbye to the thin and cold digital sound of smartphones!
LOWER POWER CONSUMPTION WITH NANOVOLT LEVEL NOISE FLOOR
The iBasso DC04PRO consumes less power and provides a power-saving mode option. When using normal mode balanced output, the power consumption is 650mW; the single-ended output will turn off the unused half of the AMP, lowering the power consumption to only 550mW. When the power saving mode is on, it turns off and bypasses the AMP section, with output directly from the DAC's internal AMP. In this mode, the power consumption is as low as 410mW. Compared with the power consumption of similar dongles, which can be as high as 700 to 800mW, the power consumption and heat generation of DC04PRO are lower, enhancing long-term listening. The quality of the power supply directly affects the sound quality in no small way. The iBasso DC04PRO utilises a synchronous DC-DC converter and low-noise, high-speed LDO, ensuring sufficient high-purity power for the dongle, bringing a dynamic and powerful sound to your music. It also has an unprecedented power supply for a Dongle DAC & Amp and factors out less power from your source or master device.

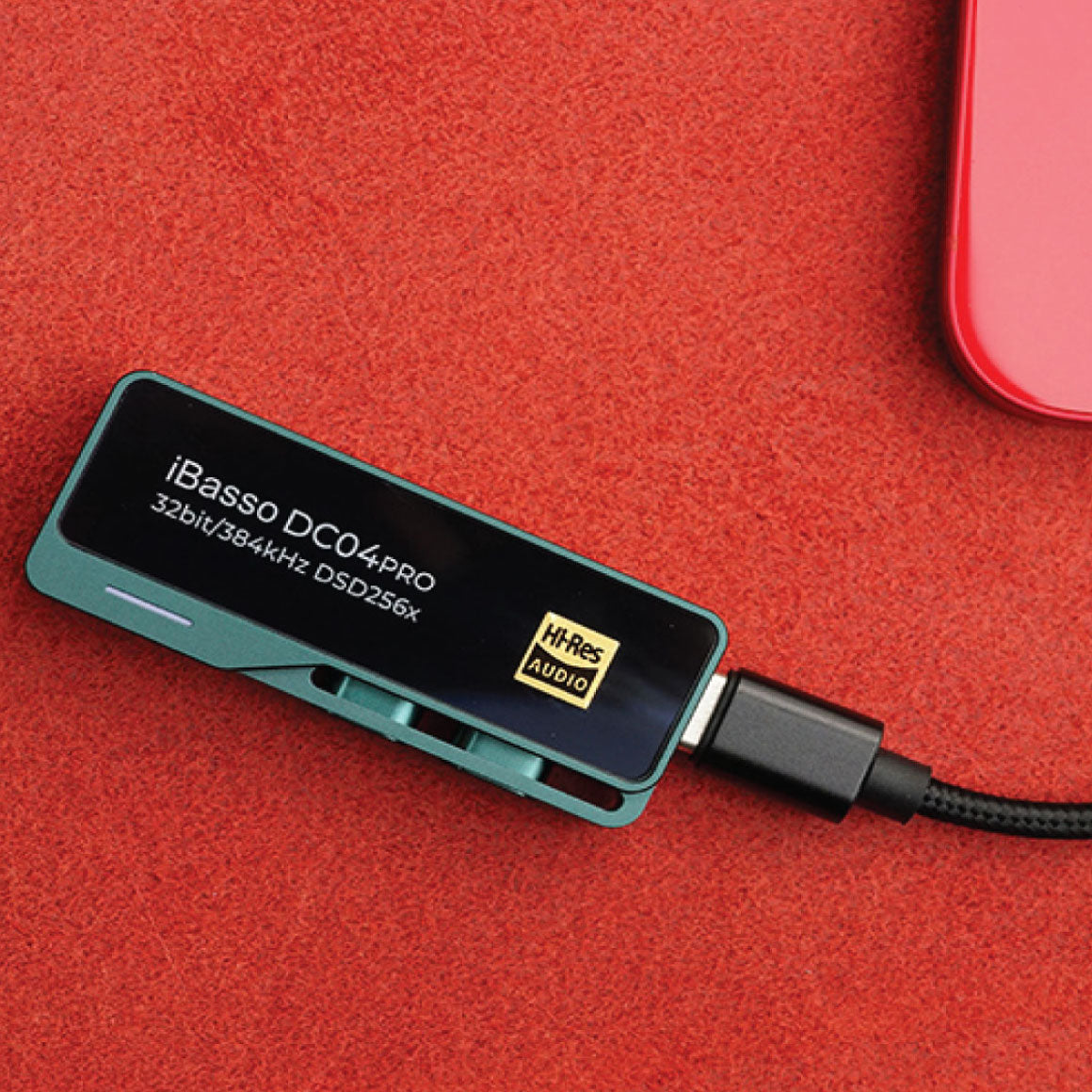

WIDE COMPATIBILITY WITH SOURCES AND SUPPORT FOR COMPANION APP
The iBasso DC04PRO adopts a type-C interface with a standard sound card chip compatible with most Android phones and tablets. It is also compatible with Mac/Windows computers through the C-A adapter, realising external decoding. It also has an interchangeable cable design for adaptation and easy plug-and-play functionality. The iBasso DC04PRO supports the latest version of the UAC application with advanced features. It has five optional digital filters, three gain levels, 100-level volume adjustment(using hardware keys), two options for output mode, a power saver (On/Off), and 20 steps L/R balancer. The DC04PRO has a detachable cable design and comes standard with a USB-C to USB-C cable compatible with most Android devices. It also comes with a USB-A adapter for connecting to PCs. The iBasso DC04PRO is also compatible with iOS devices with a USB-C to lightning cable (separately purchased). You will feel completely immersed in whatever you're doing, whether watching a movie, playing a video game, or listening to music—the unlimited entertainment provided by outstanding sound will only enhance your experience!

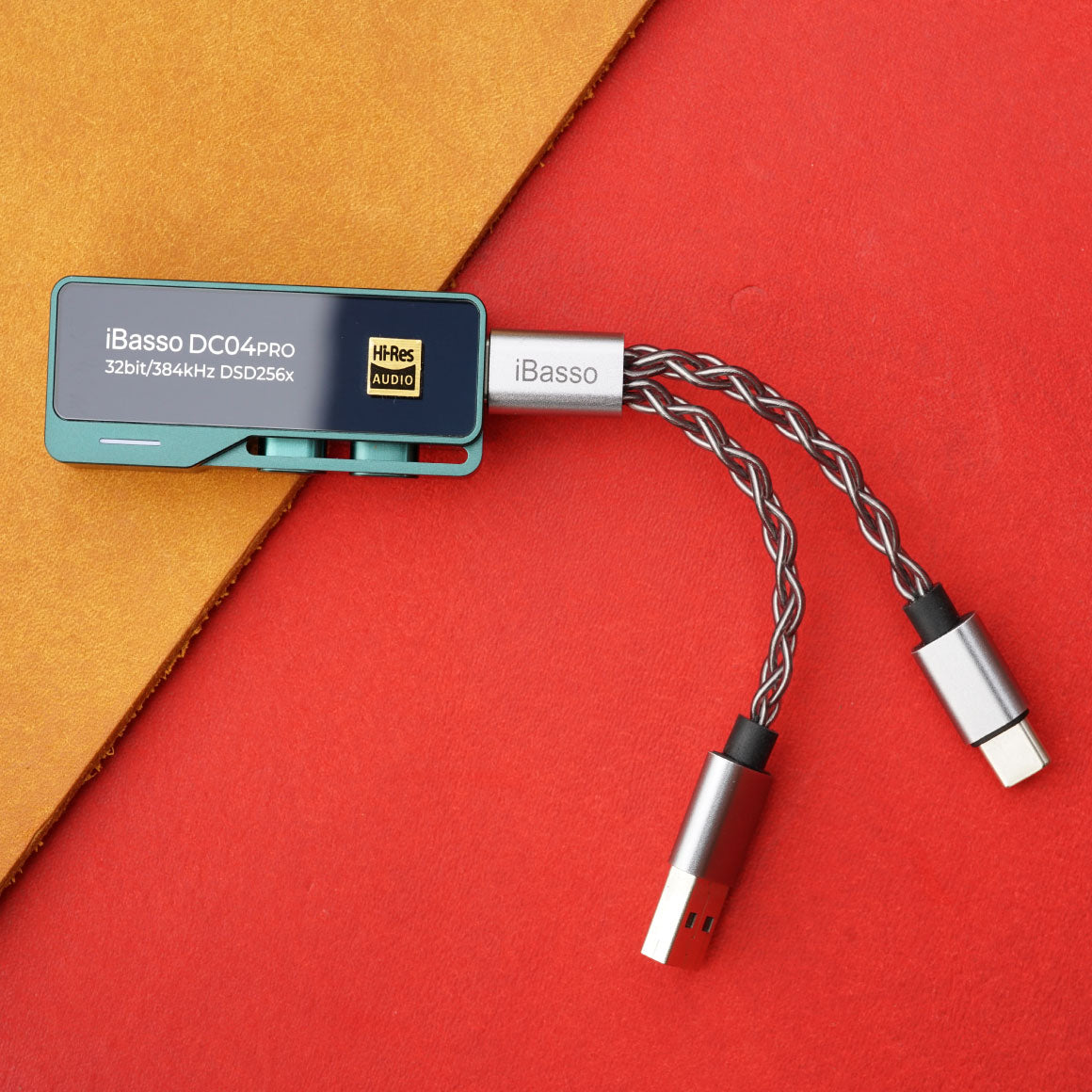

NOTE: The bottom cable in the picture is the CB18, it is not included in the package. The CB18 and USB-C to lightning cable needs to be purchased separately.

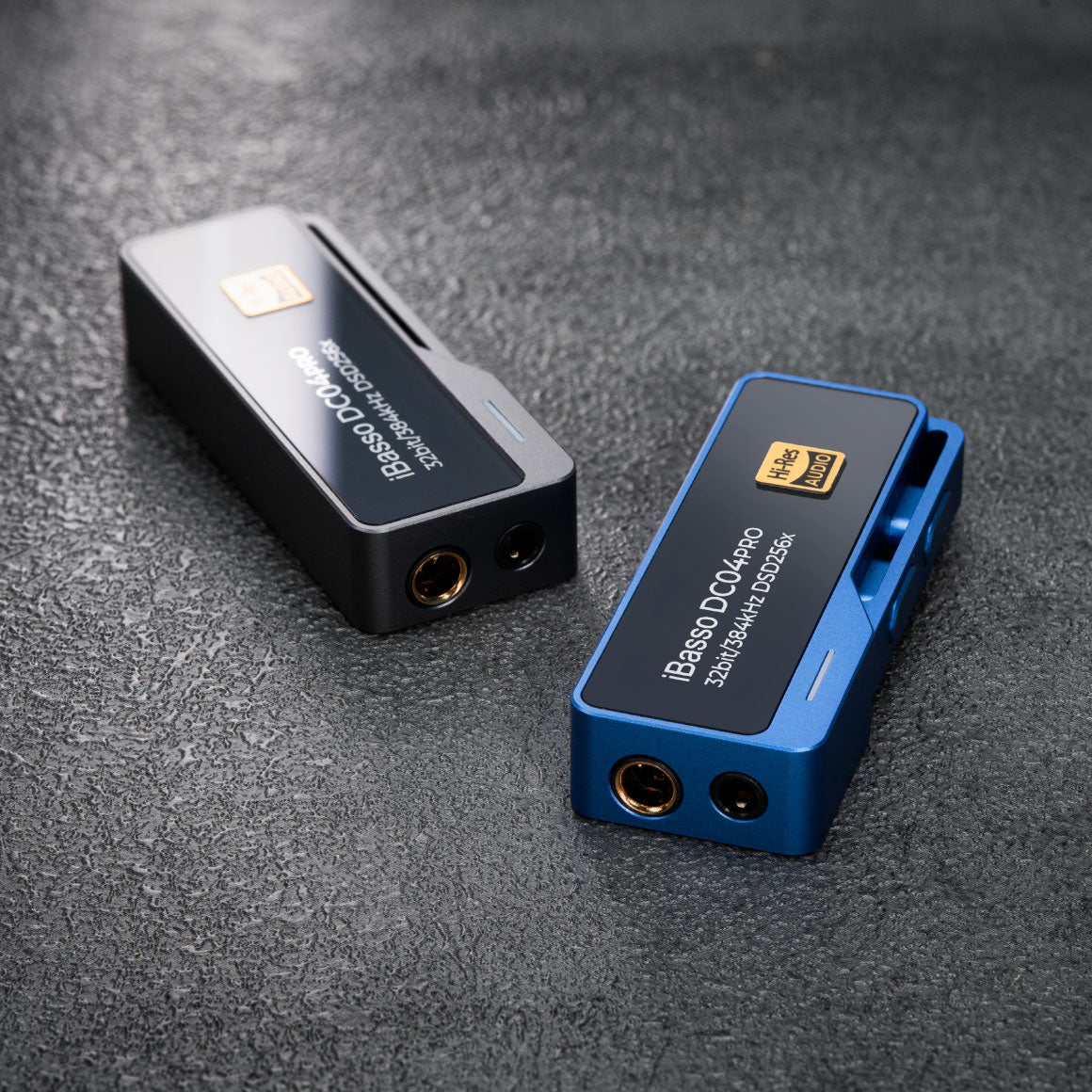

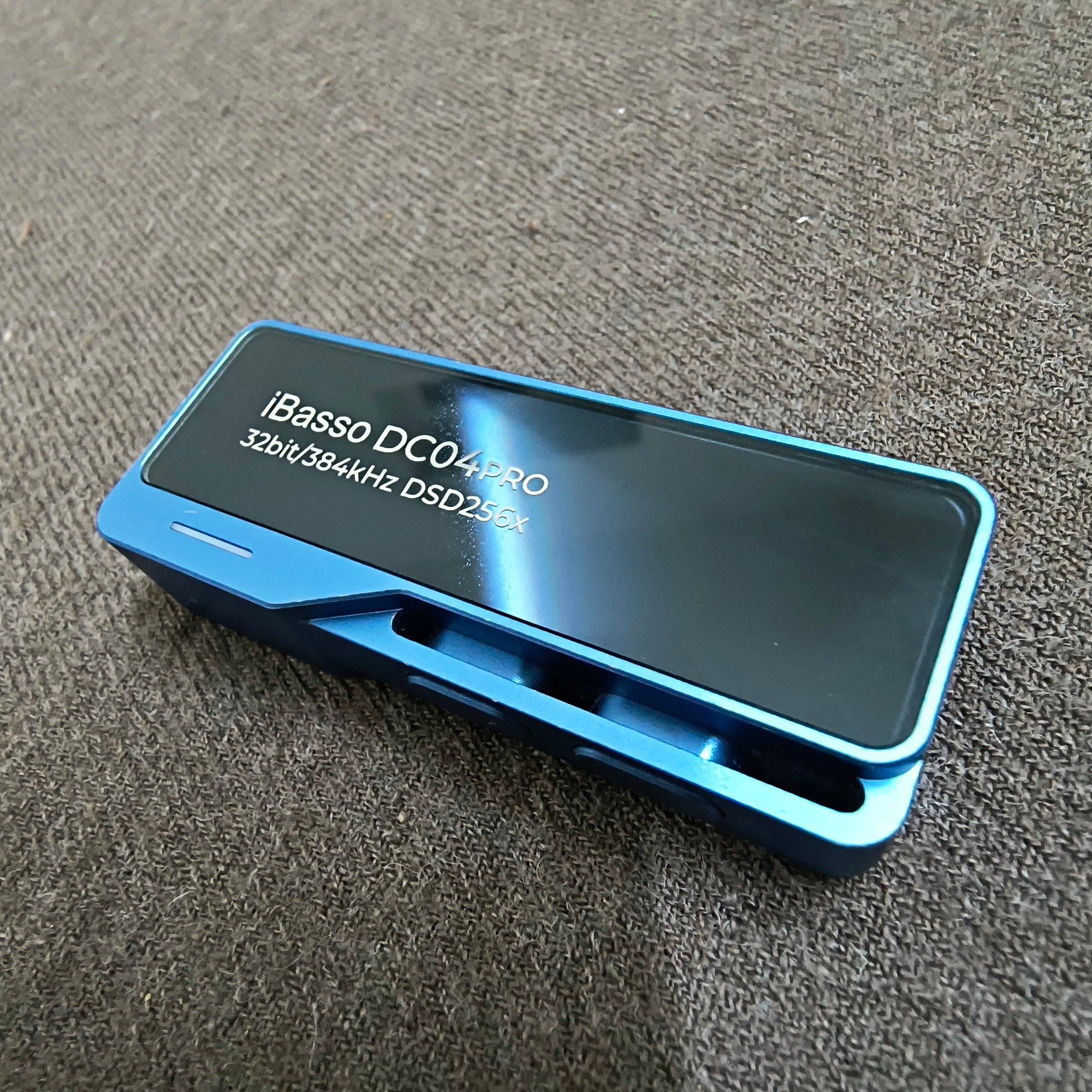

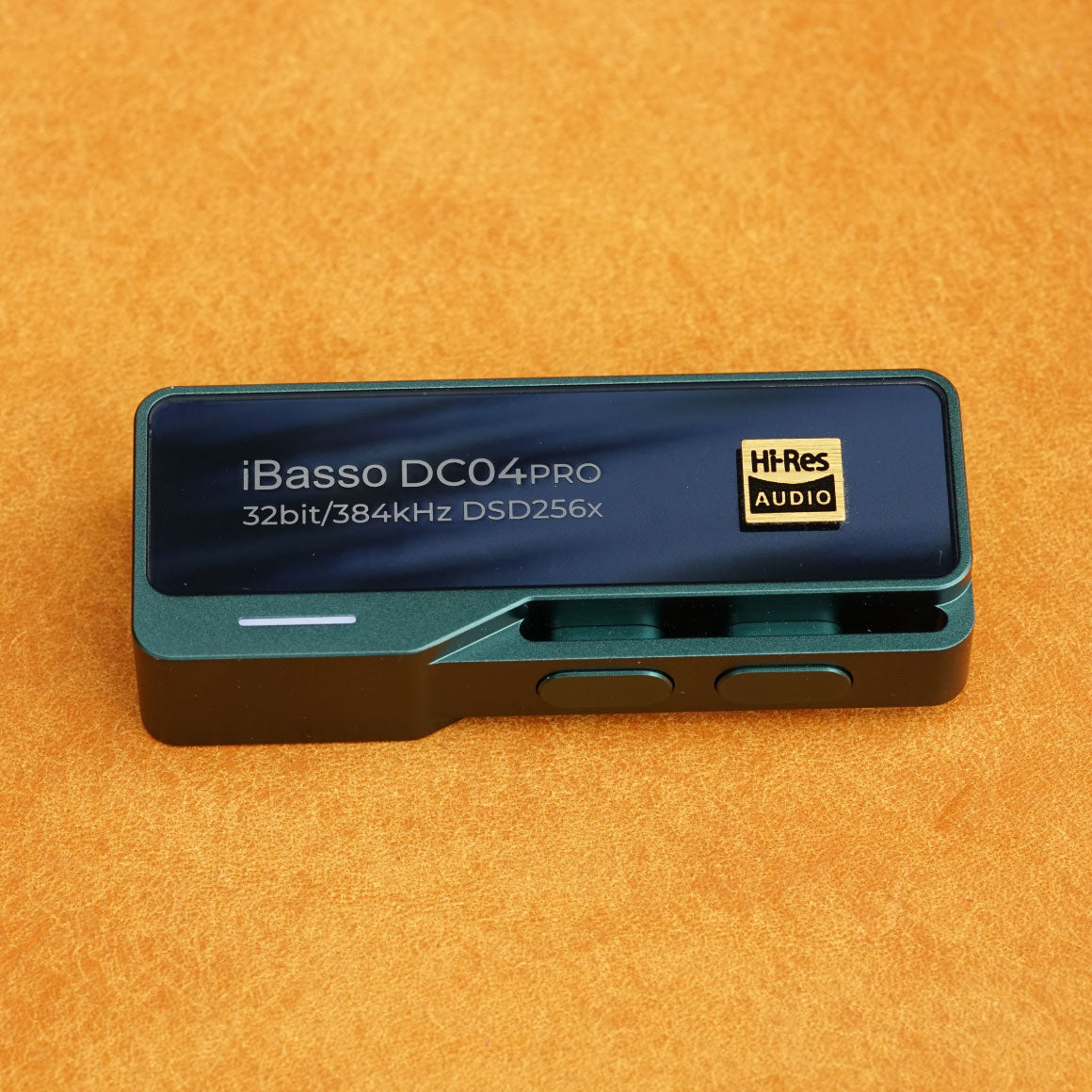

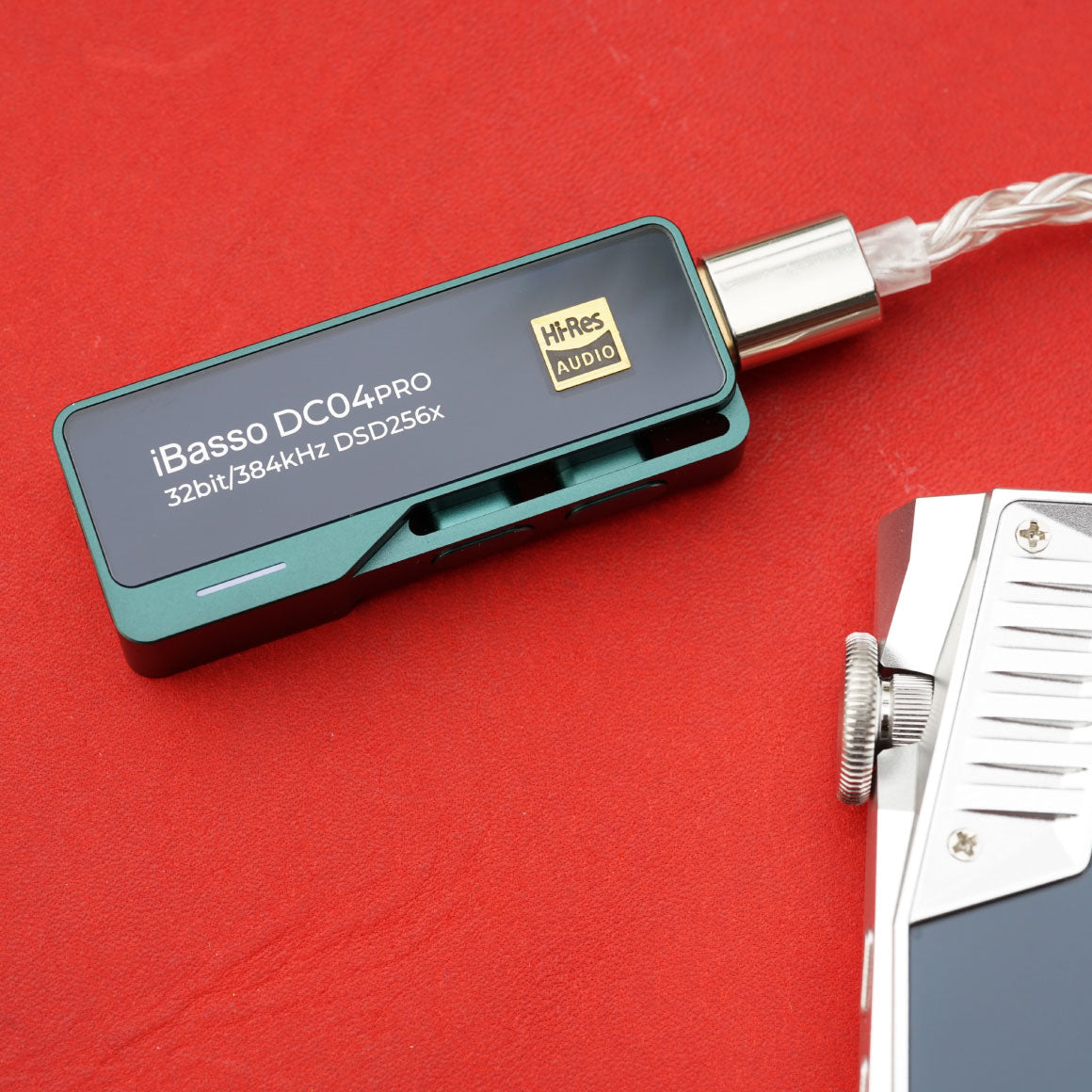

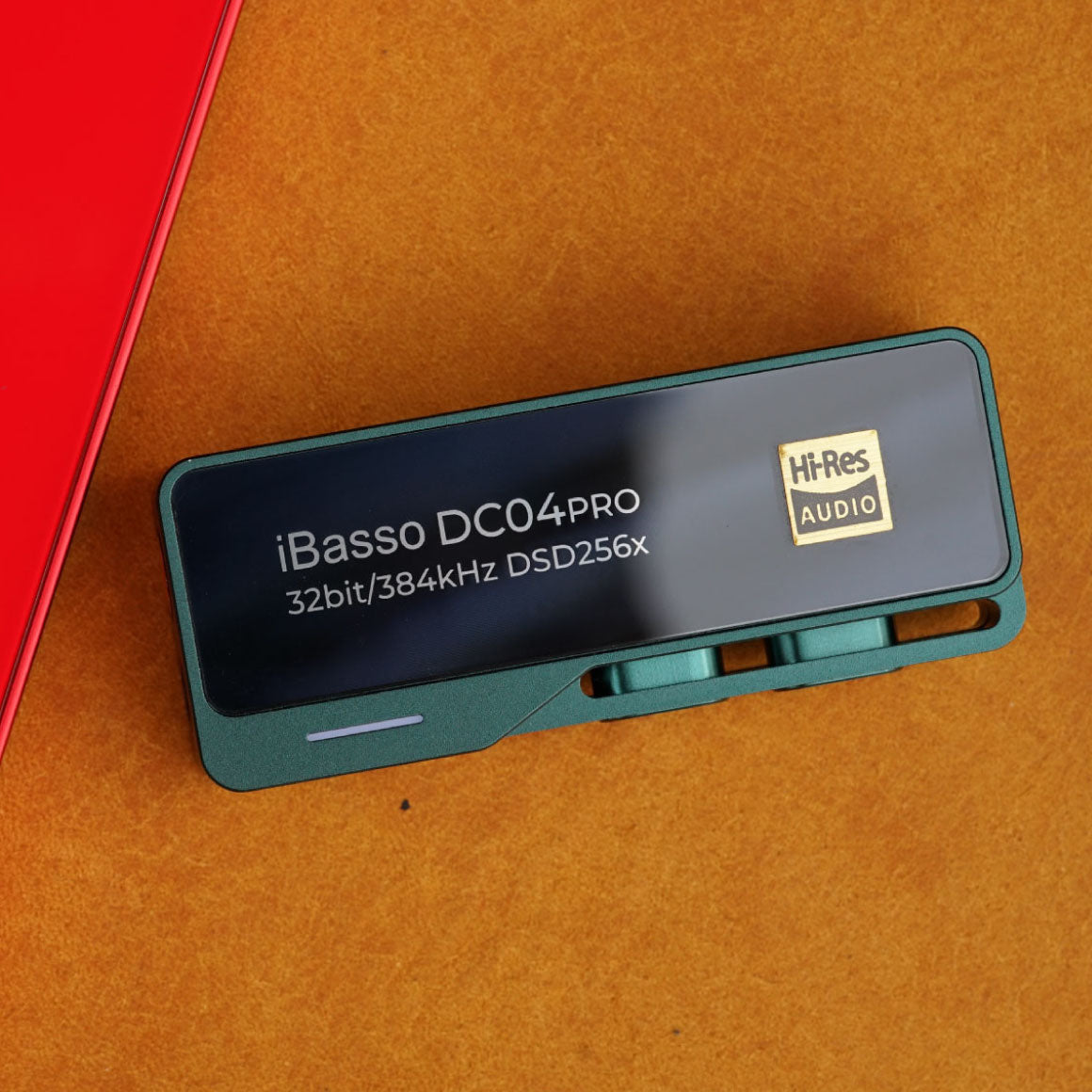

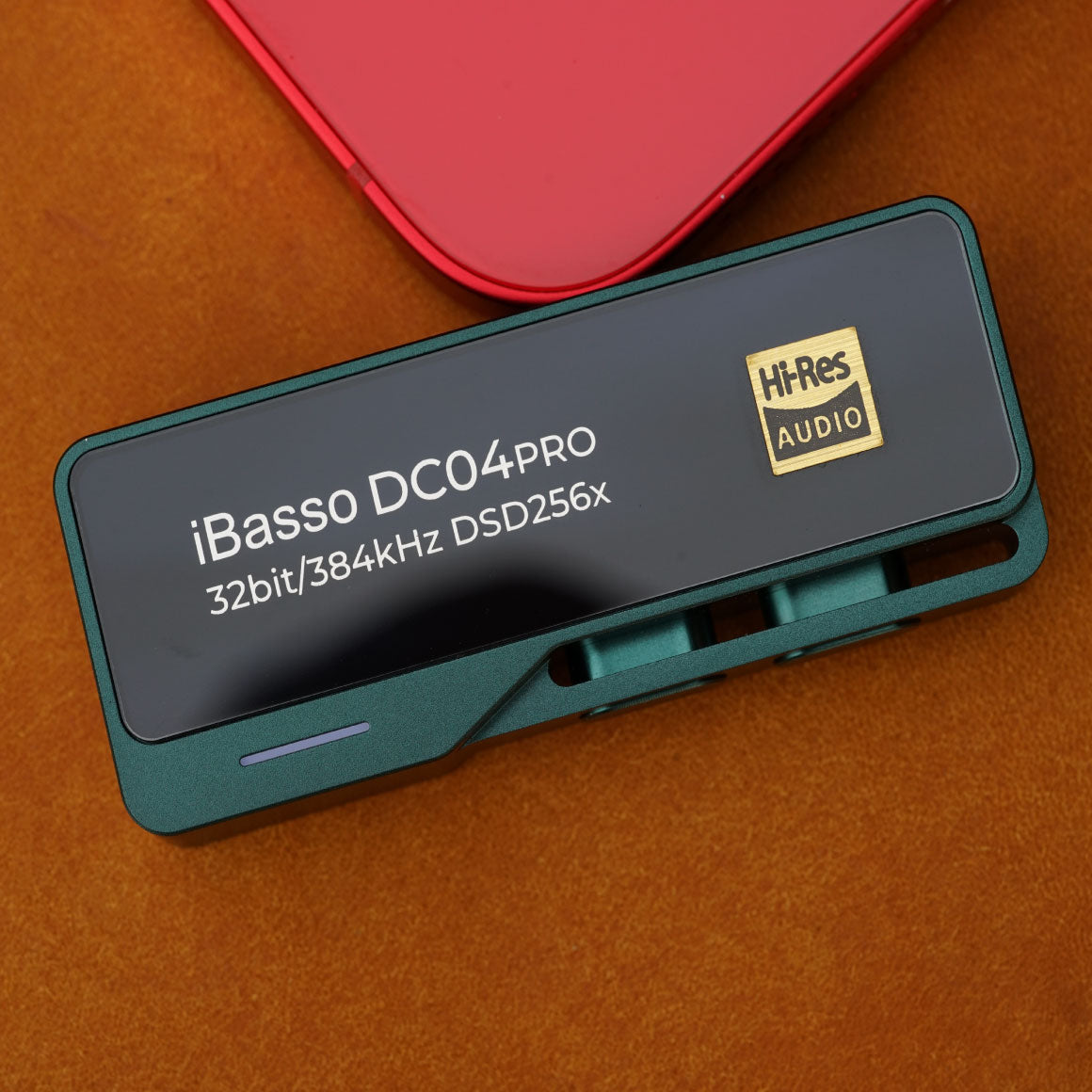

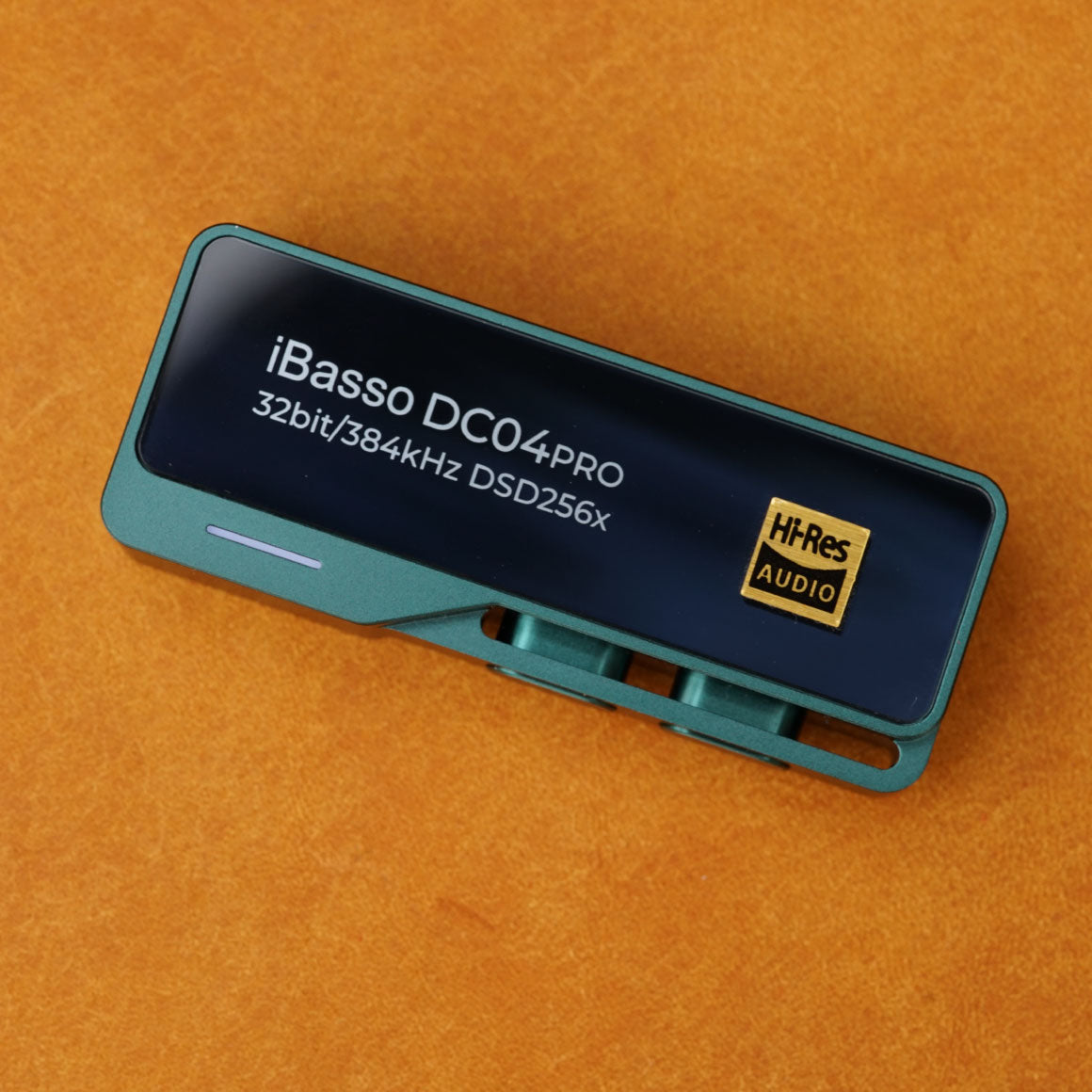

EYE-CATCHING LOOKS WITH CNC ALUMINUM CASE & TEMPERED GLASS PANELS WITH PLAY MODE INDICATOR
The iBasso DC04PRO case is made from a solid piece of CNC-machined aluminium alloy. The hollow design of the volume guard requires complex steps during machining to achieve its good form and function. Using tempered glass panels, the DC04PRO is both aesthetically appealing and conveys the quality of the build. Grey and Blue colours are available to meet individual preferences. iBasso has included a 3.5mm Single-Ended and 4.4mm Pentaconn Balanced headphone output, which enables you to turn your smartphone into a Hi-Res audio player. The lack of many smartphones to work as high-quality music players is transformed by the DC04PRO. The iBasso DC04PRO was born for HiFi enthusiasts who are accustomed to listening to music on smartphones and wish to have no compromise on sound quality. The 3.5mm universal interface has excellent compatibility, convenience, and support. The iBasso DC04PRO also has a multi-colour indicator that indicates various operation modes: Red - Standby, Blue - DSD, and Green - PCM.
SPECS
| THD+N | 0.00013% (300Ω load) |
| OUTPUT LEVEL | 3.0Vrms (32Ω load) 4.0Vrms (300Ω load) |
| S/N | 131dBA |
| DYNAMIC RANGE | 128dBA |
| FREQUENCY RESPONSE | 20Hz~40kHz ±0.5dB |
| OUTPUT IMPEDANCE | <0.4Ω |
| THD+N | 0.00018% (300Ω load) |
| OUTPUT LEVEL | 2.0Vrms (32Ω load) 2.0Vrms (300Ω load) |
| S/N | 127dBA |
| DYNAMIC RANGE | 126dBA |
| FREQUENCY RESPONSE | 20Hz~40kHz ±0.5dB |
| OUTPUT IMPEDANCE | <0.2Ω |
| DAC CHIPSET | Dual Cirrus Logic CS43131 |
| PCM | Up to 32bit/384kHz |
| DSD | Native DSD up to 256x |
| SIZE | 59mm*23.4mm*12.1mm |
| WEIGHT | 21g |
| WHAT YOU WILL GET | 1. iBasso DC04 PRO |
| 2. USB-C to C cable | |
| 3. USB C to A adapter | |
| 4. User manual | |
| WHAT YOU WILL NOT GET | 1. Original packaging of iBasso DC04 PRO |
OTHER DETAILS
| GENERIC NAME | Headphone Amplifier |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
FAQs
What is the warranty period on the iBasso DC04 PRO?
iBasso DC04 PRO comes with 1 year of warranty. Information on claiming warranty can be read here
Where is the iBasso brand based?
iBasso is a product manufacturer based in China.
What are the feature sets like on iBasso DC04 PRO?
Flagship-grade Dual DAC Arrangement
Dual CS43131 DAC chips.
KDS Femtosecond Crystal Oscillator
In-house developed FPGA algorithm
Dual RT6863 amplification chips
Ultra-Clean performance with low Distortion and output impedance
Powerful output
Single-Ended 3.5mm and 4.4mm Balanced headphone output
Ultra-low noise floor
Physical volume keys
Supports iBasso application
CNC Machined aluminium alloy body
Rich in-hand feel with Double-sided tempered glass panels.
How is iBasso DC04 PRO different from the DC04?
The noticeable change is that the DC04 has attached cable while the DC04PRO has detachable cable. Both these units use the same DAC chip configuration but they differ in power output capabilities. The DC04 only offered Balanced 4.4mm output however the DC04PRO offers 3.5mm Single-Ended as well as 4.4mm Balanced headphone outputs. The DC04PRO also has more power as compared to the DC04. Also, the DC04PRO comes with interchangeable cables. Aesthetically, the DC04PRO shines a lot having CNC machined frame and tempered glass with play mode indicator. The DC04PRO in all aspects is a worthy upgrade to the DC04 if you are someone looking for great sound and versatility in a compact package.
What is iBasso DC04 PRO on the whole?
The DC04PRO is an ultra-portable USB DAC & Amp.
What are the DAC chips used?
The iBasso DC04 PRO features dual CS43131 DAC chips.
What are the sampling rates supported?
iBasso iBasso DC04 PRO promises ultimate high-resolution audio performance with its dual DAC arrangement supporting PCM (Pulse Code Modulation) up to 32bit/384kHz and Native DSD (Direct Stream Digital) up to 256x.
Does it support microphone pass-through?
No, it does not support microphone pass-through.
Will it support earphones/headphones with a microphone?
It will use your phone's microphone rather than your earphones/headphones' microphone. The other person over the call might feel that the voice is coming from a distance.
Is it compatible with iOS devices?
Yep! It is compatible with iOS devices but you will have to purchase a USB-C to lightning cable separately.
What does the multi-colour indicator indicate?
The iBasso DC04 PRO also has a multi-colour indicator that indicates various operation modes: Red - Standby, Blue - DSD, and Green - PCM.

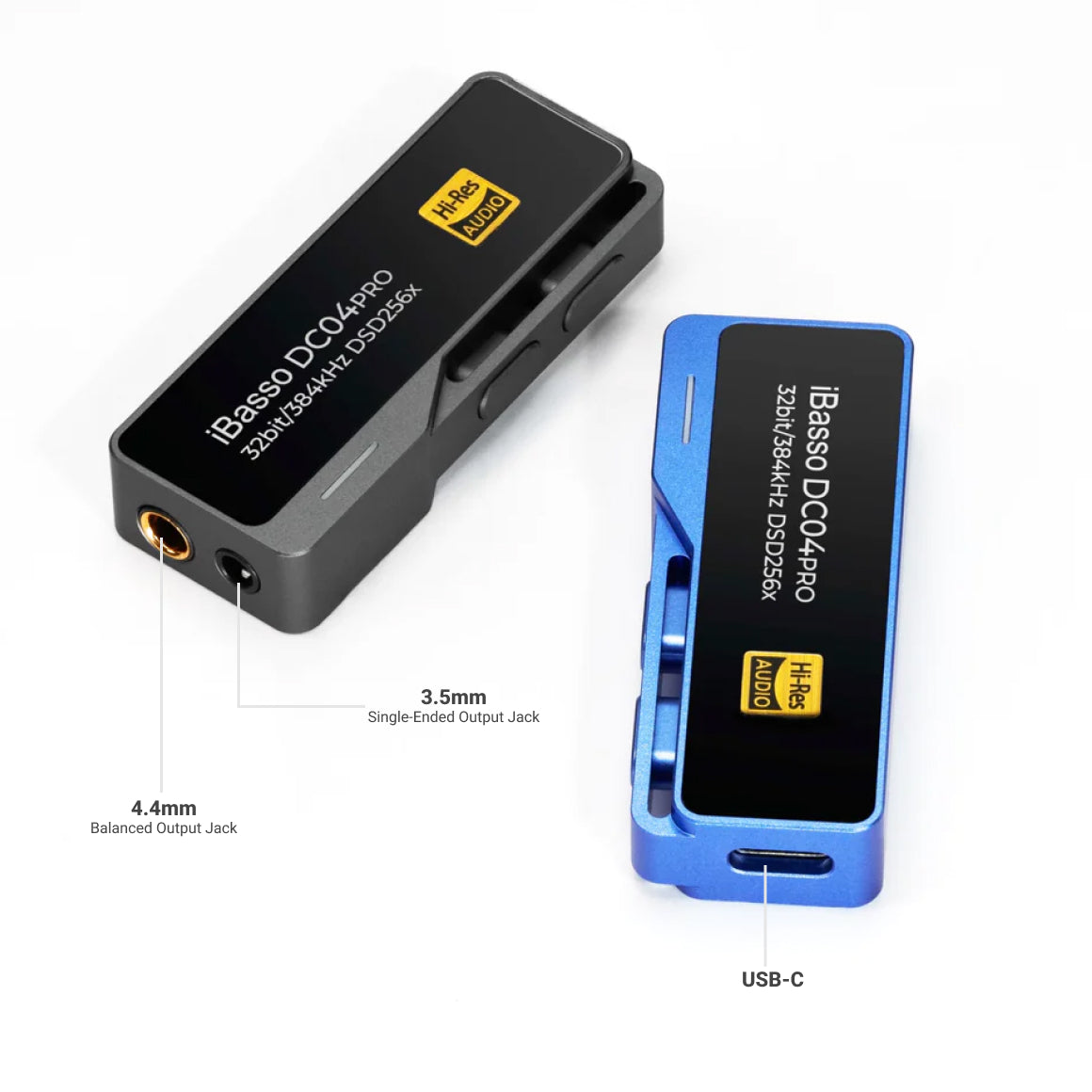

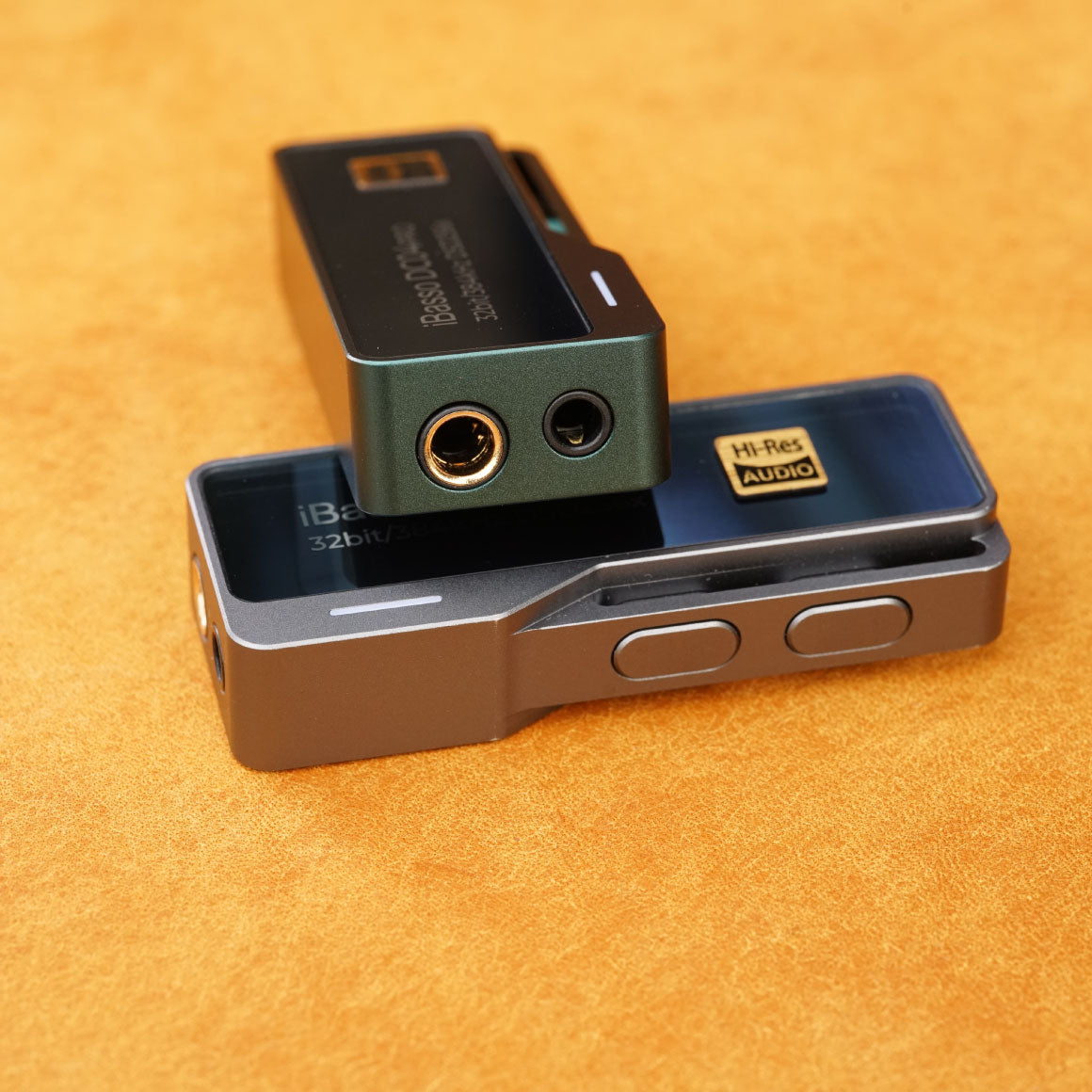

What are the outputs like on iBasso DC04 PRO?
It offers a 3.5mm Single-Ended and 4.4mm Balanced headphone output ports.
What is the power output like on iBasso DC04 PRO?
It offers an output power of 280mW@32 Ohms.
What are the operating principles?
The iBasso DC04 PRO is plug-and-play on Android Smartphones and tablets with Android 5.1 and above without installing drivers or third-party APPS (due to the Android device's system or hardware limitation, there may be a low compatibility issue with some smartphones or tablets). On some Android devices, it may be necessary to manually turn on the OTG function in the system settings. The DC04PRO is plug-and-play on Mac and Win10 computers. For WinXP, Win7, and Win8 systems, please download the driver from our website www.iBasso.comunder Downloads. Once properly installed, the DC04PRO can be used as a USB sound card. iPhone's volume control is only 16 steps. DC04PRO can achieve 100 steps of adjustment with the volume button. Therefore, using the DCO4PRO with an iPhone, will achieve finer volume adjustments.
What does the package include?
iBasso DC04 PRO, USB-C to C cable, USB C to A adapter, User manual.
Headphone Zone Certified Unboxed Units
Unboxed units are as good as new products with the product's packaging being unavailable. These products give you the same satisfaction of new products - but at down-to-earth prices. Usually, the product's packaging may have gotten damaged in transit. Customers use a product once or twice and then return it with opened up packaging.
Customer Returns
Returned headphones are fully functional products that have left the warehouse and therefore can no longer be sold as new as their packaging has been opened. The product may have been used once or twice by the customer who returned it.
Transit Damages
Sometimes we receive headphones in damaged packaging due to shipping accidents. These are brand new headphones with cosmetic flaws on the packaging.
Save Upto 15%
Since you won't get the original packaging, we give you a good discount compared to a new headphone.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.
Original Warranty
All unboxed headphones carry the same warranty period as a brand new headphone would.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Unboxed Products or new products.
Unchanged Replacement Policy
Received a defective Unboxed unit? Return it under our Replacement Policy.
All Original Accessories
The unboxed headphones itself comes with all original accessories.

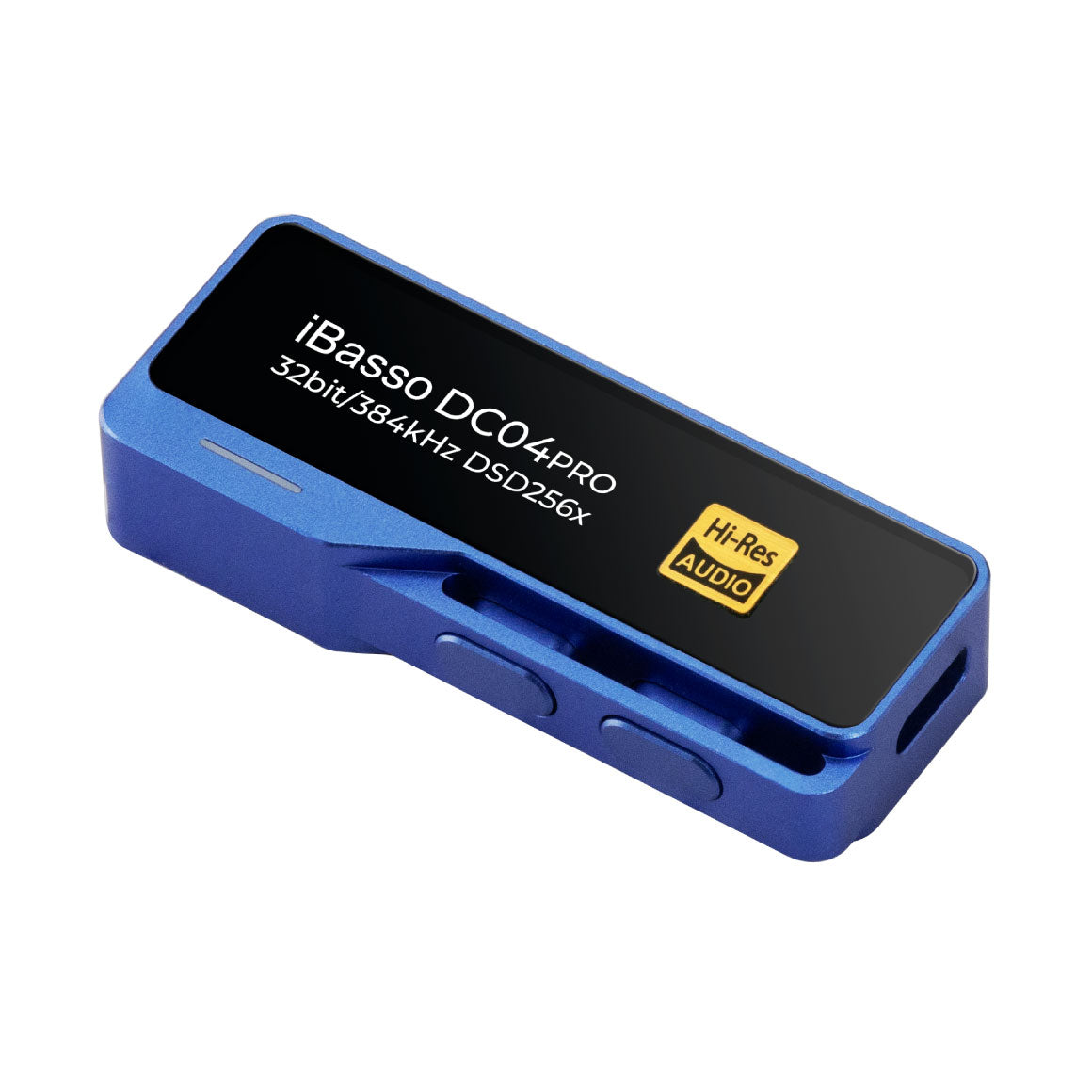

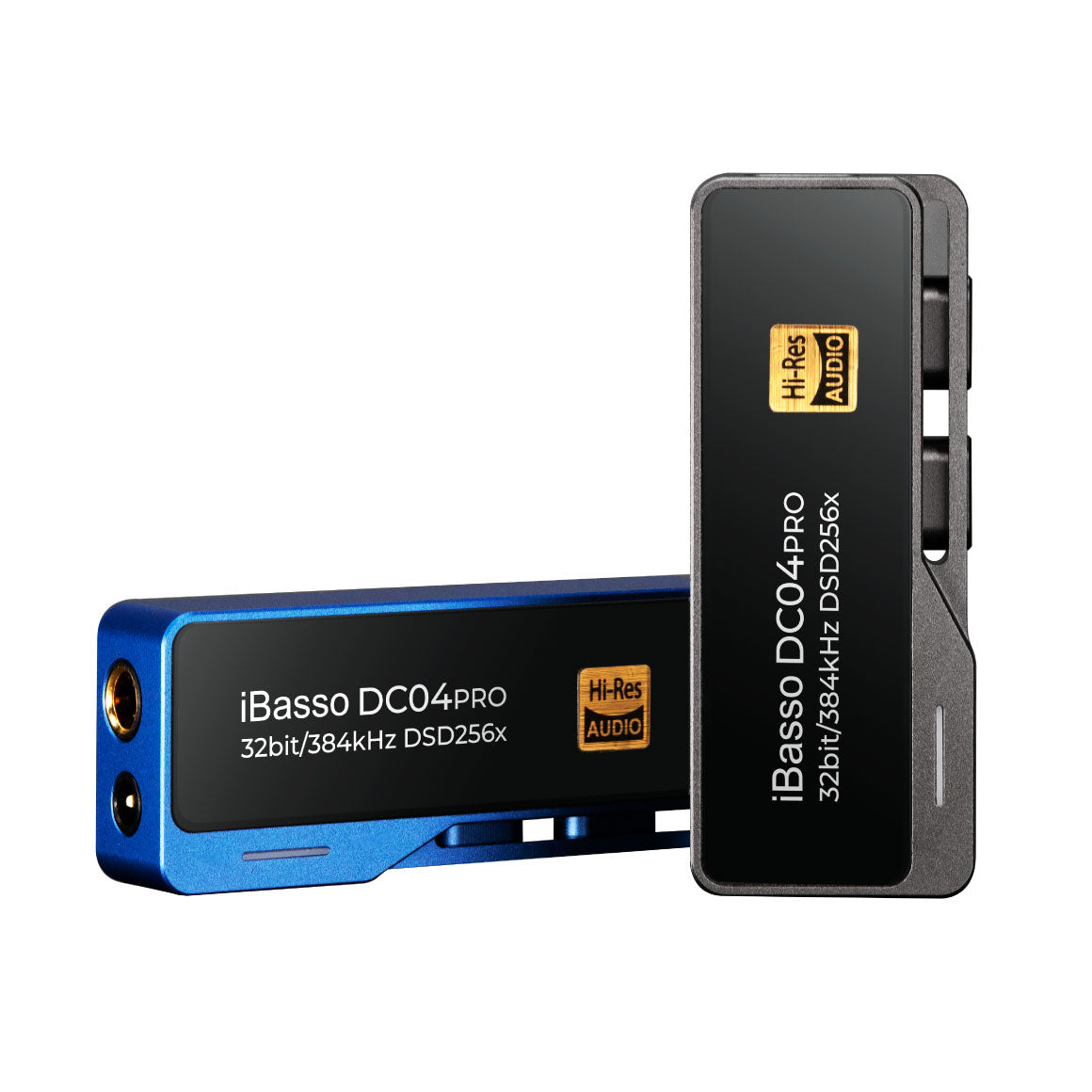

IBASSO INTRODUCES DC04 PRO, A WORTHY UPGRADE TO THE WIDELY POPULAR DC04
iBasso is a well-reputed brand in the industry. They are mainly known for their wide range of portable audio gears, including IEMs, USB DAC/AMPs, DAPs, etc. The DC04 was a "great" portable Balanced USB DAC & Amp that took the industry by storm, but the only caveat was that it only had a Balanced 4.4mm output. iBasso, with their all-new DC04PRO, has addressed that and has included a 3.5mm Single-Ended in addition to the 4.4mm Balanced output. The DC04, however, garnered high-level praise from the audiophile community. iBasso wanted to continue the spree and develop something "powerful," "durable," and "versatile," which gave birth to DC04PRO. The iBasso DC04PRO is a worthy upgrade and packs a punch with its extraordinary performing capabilities. With premium dual CS43131 DAC chips from Cirrus Logics, the DC04PRO brings flagship-level performance to your smartphones. For "clear" and "accurate" audio signal decoding, a high-performance KDS femtosecond crystal oscillator is incorporated into its design. The iBasso DC04PRO offers a high-quality experience by supporting high-resolution PCM and DSD signals. Perceive music differently with the brand-new iBasso DC04PRO!
DUAL CIRRUS LOGIC DAC CHIP AND HIGH-QUALITY COMPONENTS DELIVER EXCEPTIONAL SONIC PERFORMANCE
The Cirrus Logic CS43131 dual DAC chips, which are of the highest calibre and provide unmatched digital-to-analogue conversion, are found in the DC04PRO. With Master HiFi™ technology, the DAC from Cirrus Logic offers "amazing" performance and fantastic sound. With iBasso's extensive investment in research and development and well-selected parts, the DC04PRO is a "wonderful" and affordable standout USB DAC & Amp. iBasso DC04PRO promises ultimate high-resolution audio performance with its dual DAC arrangement supporting PCM (Pulse Code Modulation) up to 32bit/384kHz and Native DSD (Direct Stream Digital) up to 256x. iBasso has dual CS43131 DAC chips allowing the DC04PRO to achieve class-leading performance with ultra-low distortion and high SNR ratings. The CS43131 is a premium 32-Bit DAC supporting 32-Bit Hi-Res signal decoding. The DC04PRO hosts a KDS femtosecond oscillator, which reduces phase noise and provides a more accurate clock reference for the DAC. The DC04PRO brings pure and transparent music replay. The ultra-low noise LDO having a 100dB Power Supply Rejection Ratio ensures the power purity for the DAC chips. The result is exceptional sound quality with a clean and black background for the DC04PRO.
DUAL OPERATIONAL AMPLIFIERS FUSED WITH FPGA TECH DELIVER CLEAN AMPLIFICATION
The iBasso DC04PRO utilises dual RT6863 chips, creating a 4-way fully balanced amp featuring ultra-low distortion. With an output current of up to 100mA and working at a 10V voltage swing, the DC04PRO output reaches 280mW@32 Ohms. A team of engineers at iBasso wanted to make the DC04PRO unique in every aspect. For this reason, the DC04PRO houses an in-house developed FPGA algorithm. This FPGA tech has never been used in a dongle DAC before. Together with the KDS femtosecond oscillator, the jitter is well-controlled. This design aspect makes the sound reproduction more distortion-free and enhances the audio quality. With the well-designed analogue circuit, the DC04PRO renders your audio full-bodied with emotional impact. You can say goodbye to the thin and cold digital sound of smartphones!
LOWER POWER CONSUMPTION WITH NANOVOLT LEVEL NOISE FLOOR
The iBasso DC04PRO consumes less power and provides a power-saving mode option. When using normal mode balanced output, the power consumption is 650mW; the single-ended output will turn off the unused half of the AMP, lowering the power consumption to only 550mW. When the power saving mode is on, it turns off and bypasses the AMP section, with output directly from the DAC's internal AMP. In this mode, the power consumption is as low as 410mW. Compared with the power consumption of similar dongles, which can be as high as 700 to 800mW, the power consumption and heat generation of DC04PRO are lower, enhancing long-term listening. The quality of the power supply directly affects the sound quality in no small way. The iBasso DC04PRO utilises a synchronous DC-DC converter and low-noise, high-speed LDO, ensuring sufficient high-purity power for the dongle, bringing a dynamic and powerful sound to your music. It also has an unprecedented power supply for a Dongle DAC & Amp and factors out less power from your source or master device.

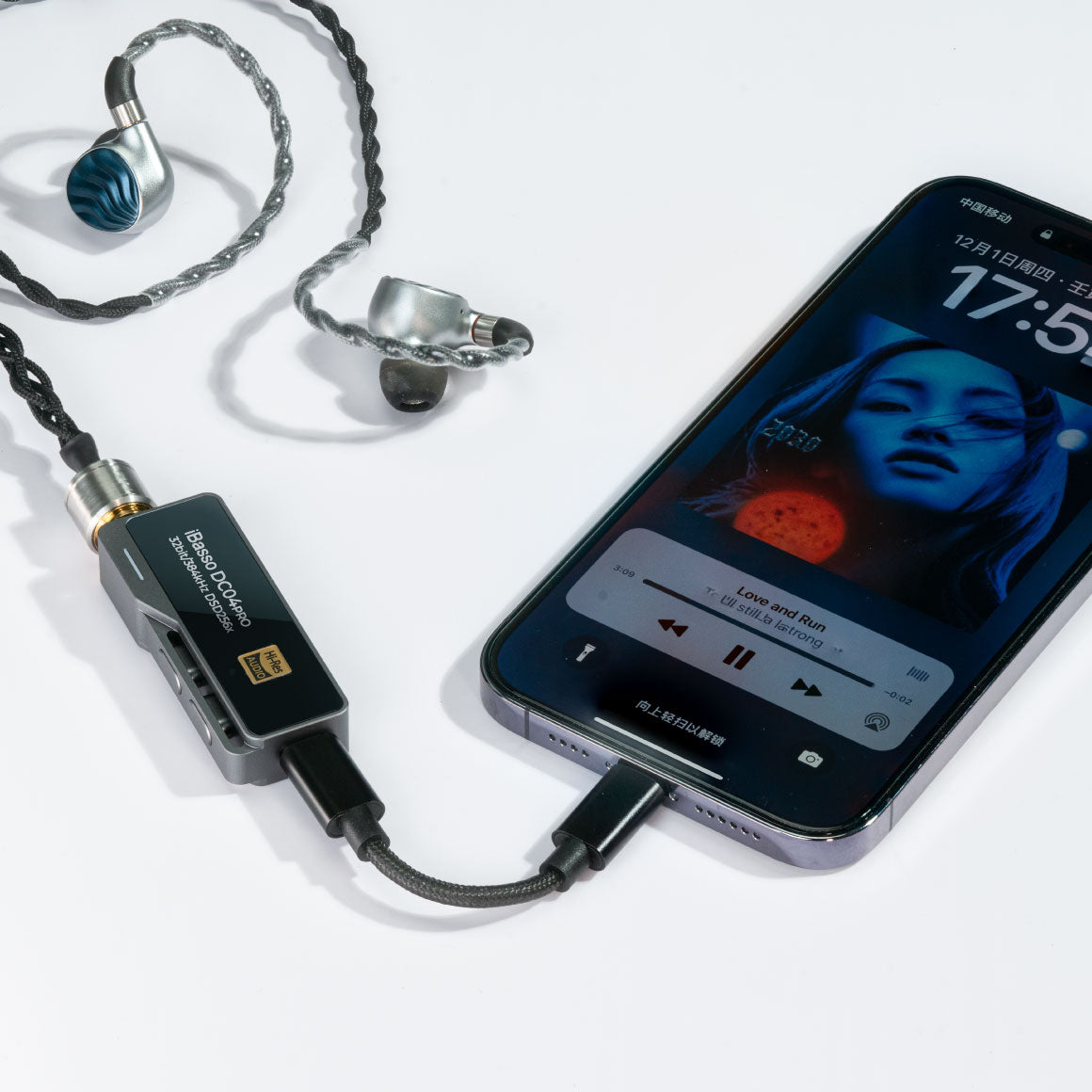

WIDE COMPATIBILITY WITH SOURCES AND SUPPORT FOR COMPANION APP

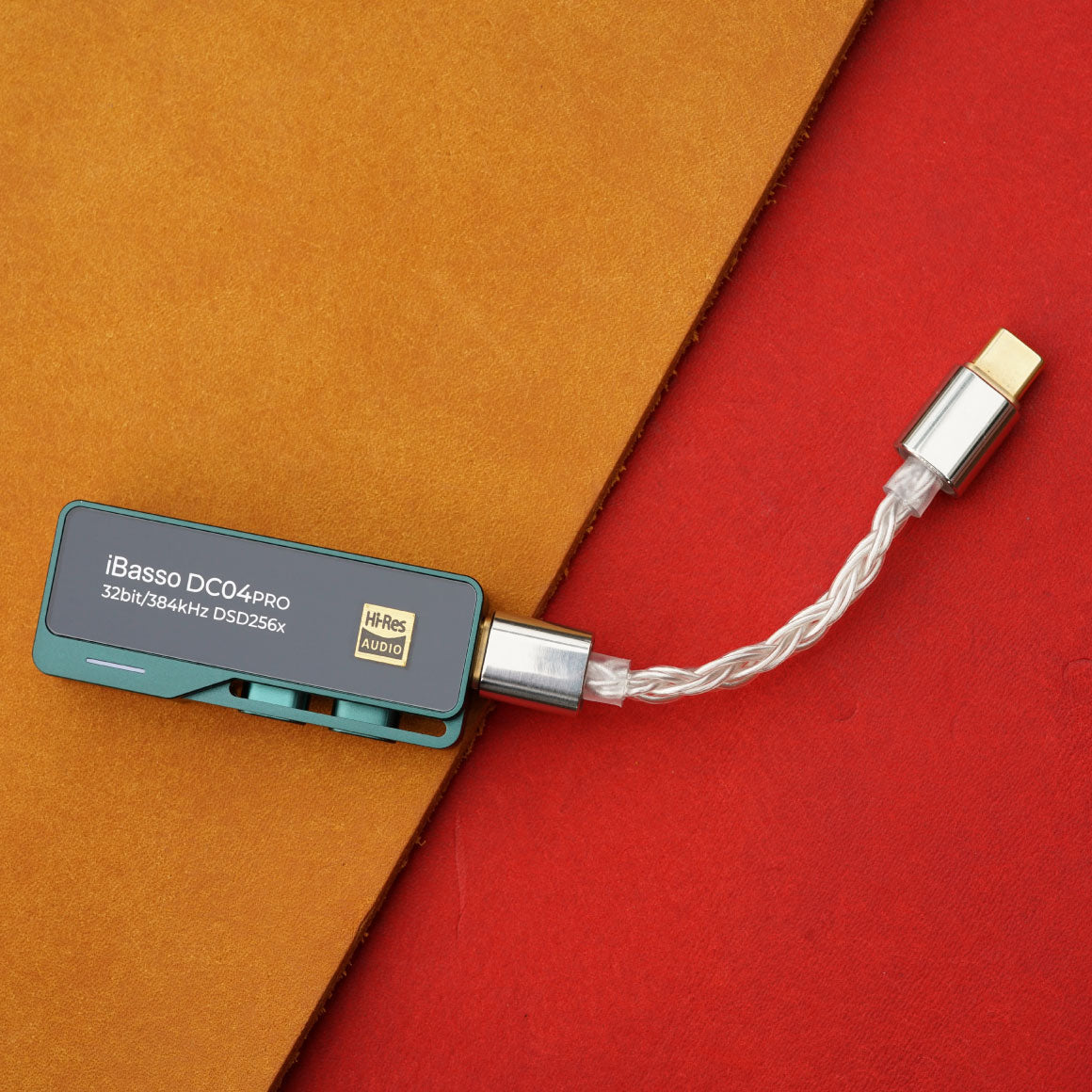

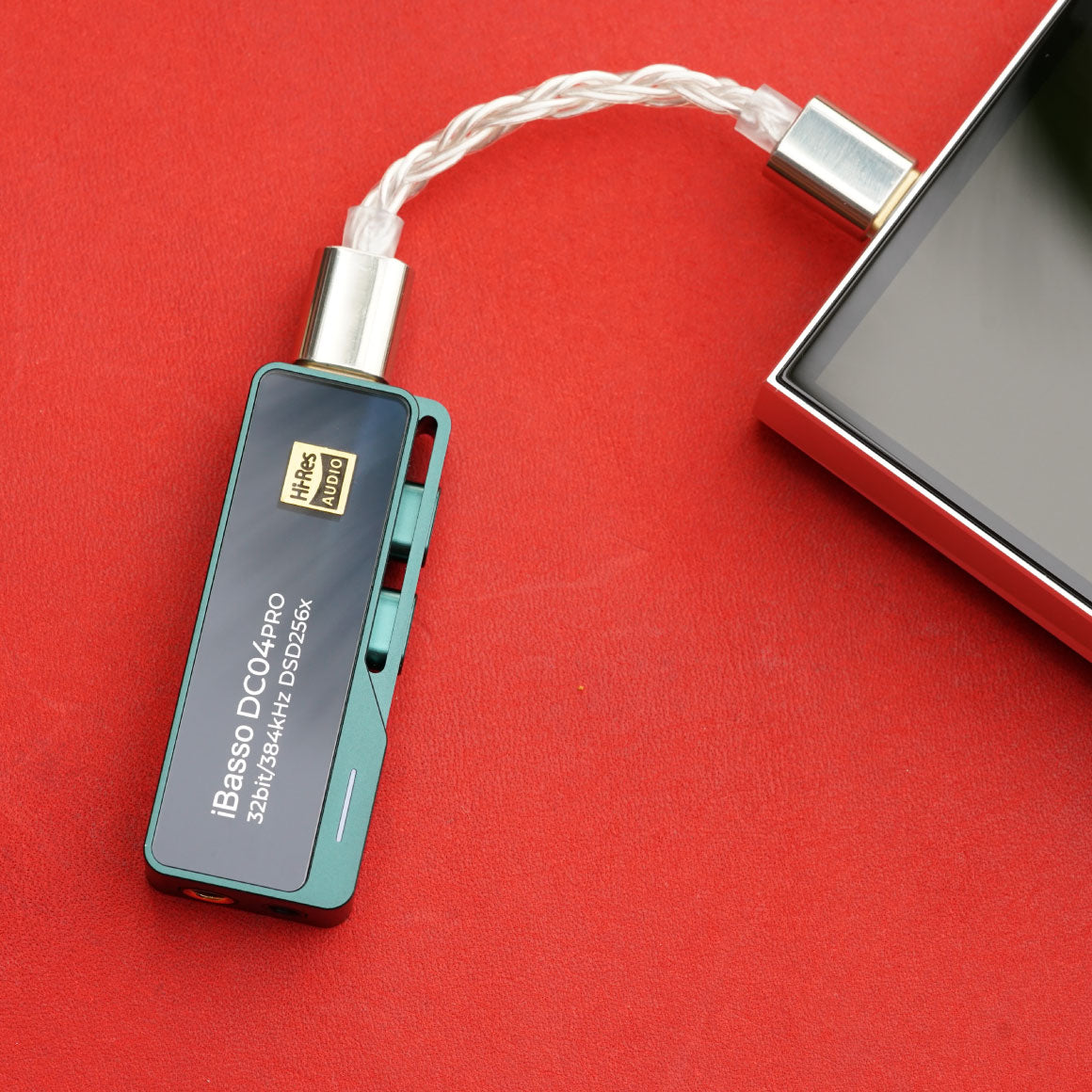

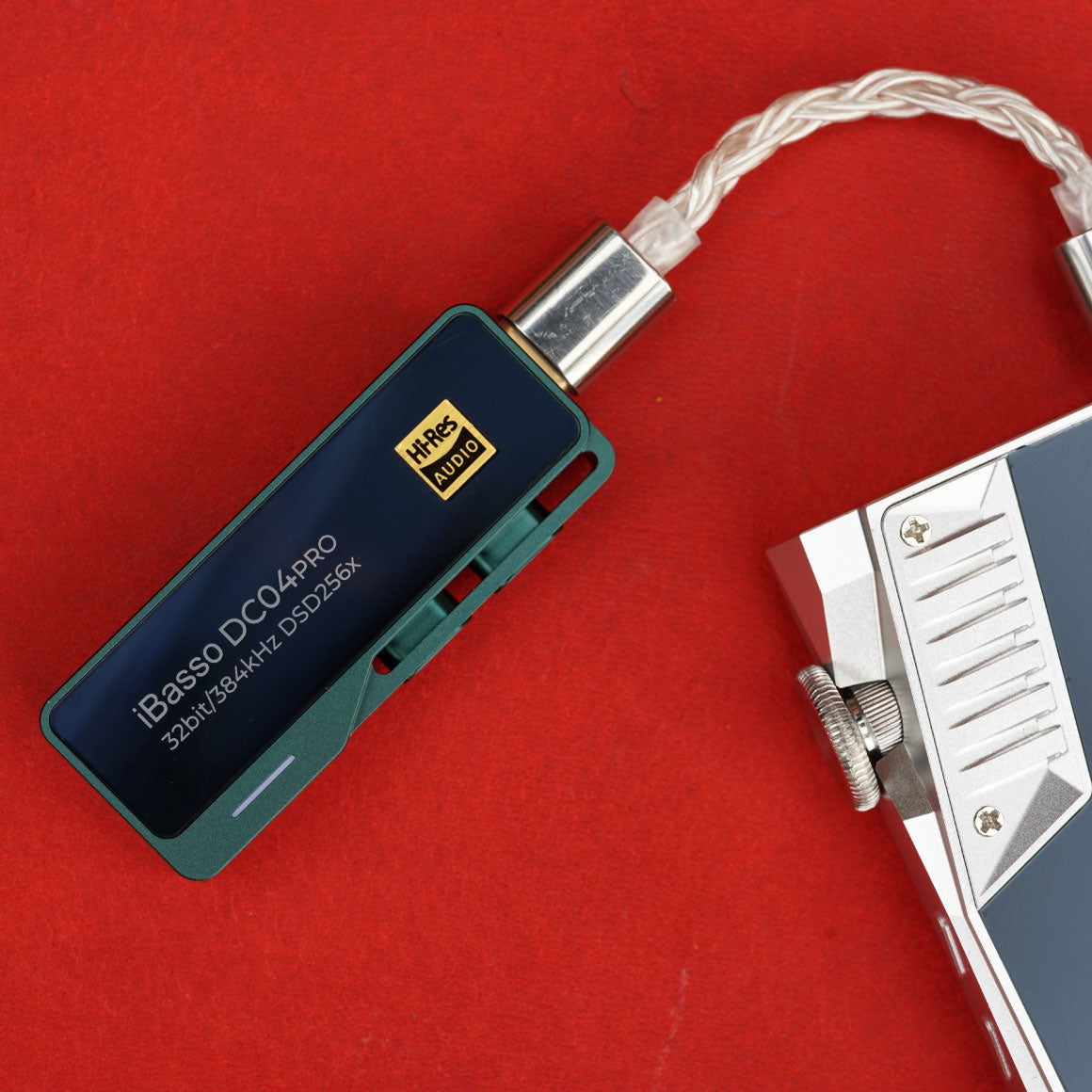

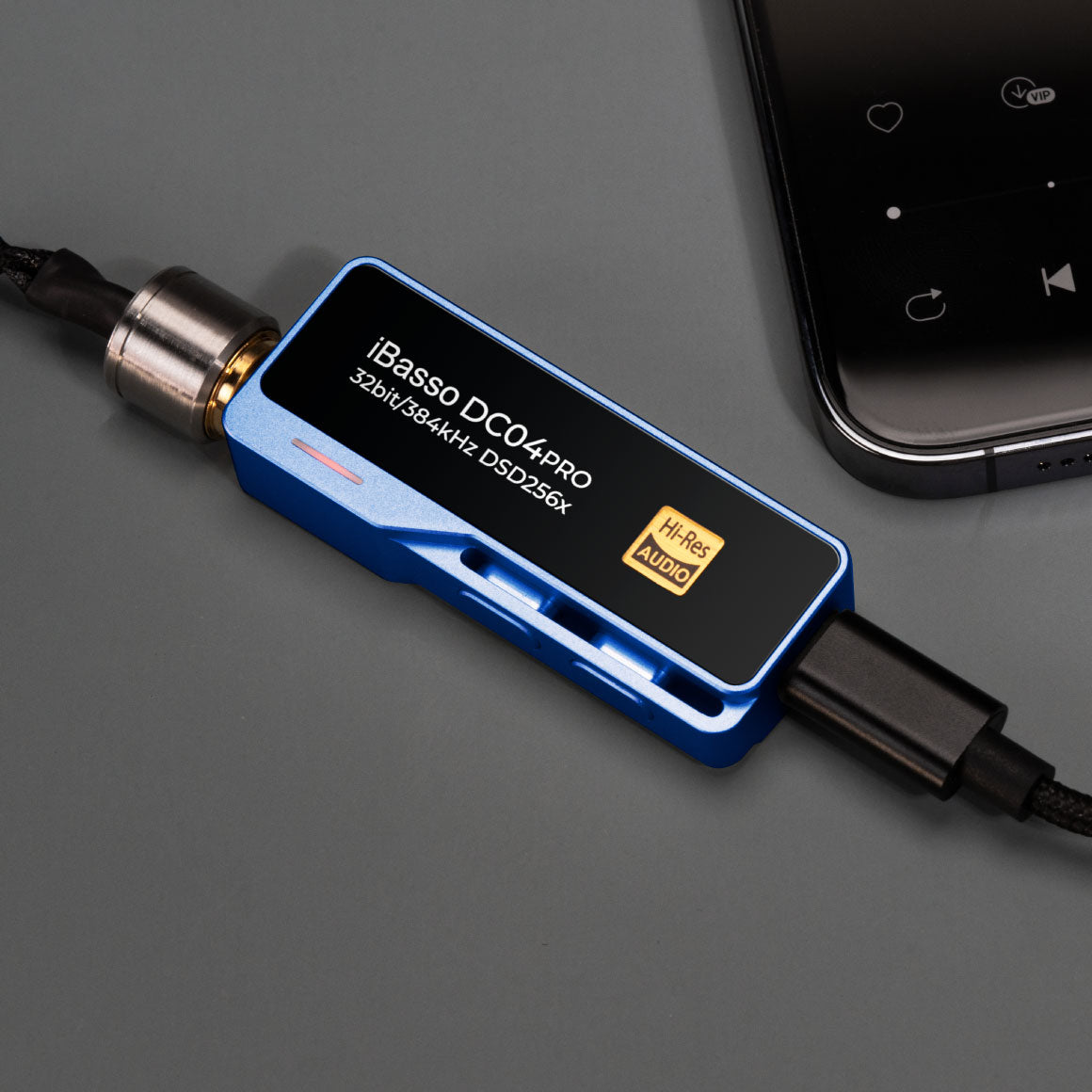

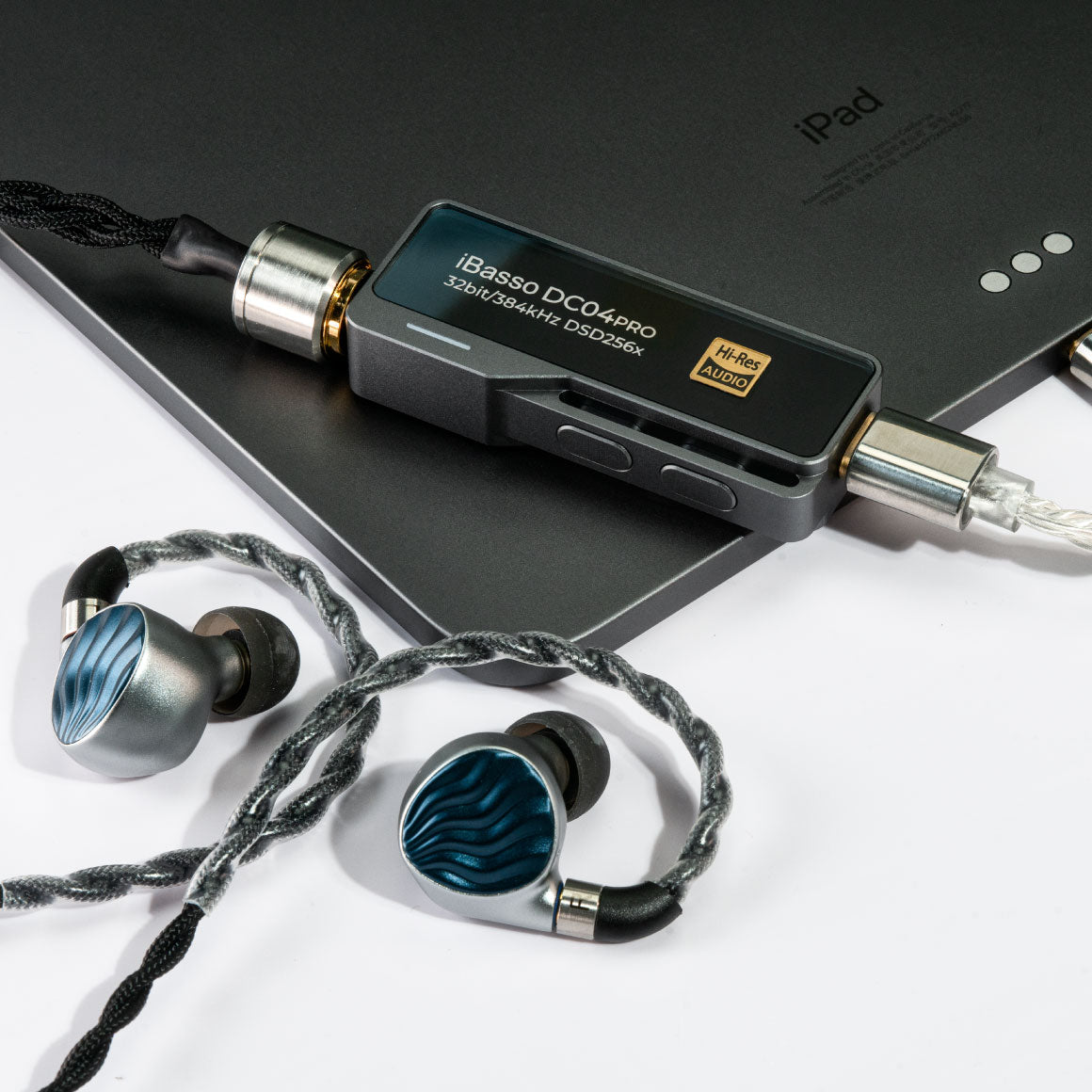

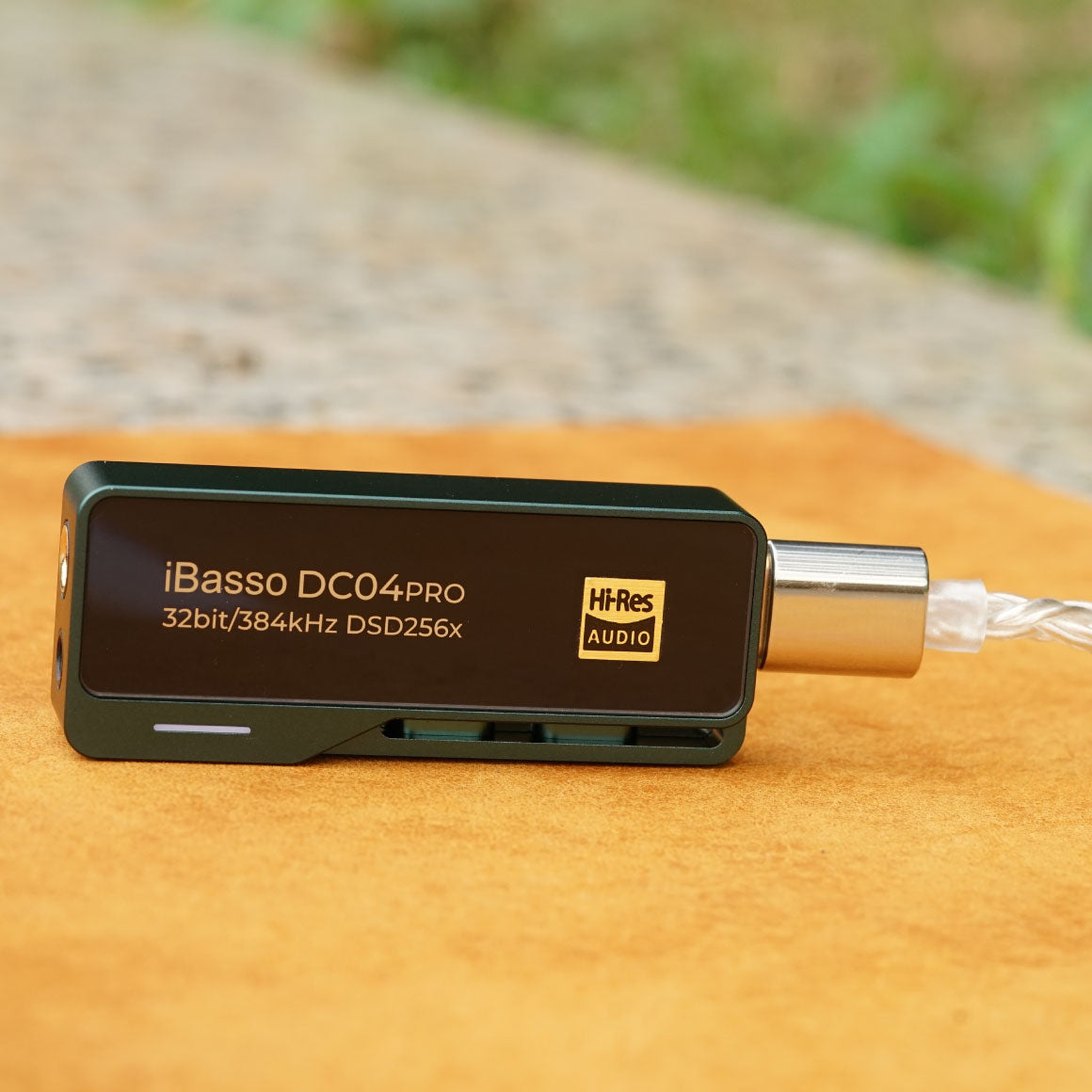

The iBasso DC04PRO adopts a type-C interface with a standard sound card chip compatible with most Android phones and tablets. It is also compatible with Mac/Windows computers through the C-A adapter, realising external decoding. It also has an interchangeable cable design for adaptation and easy plug-and-play functionality. The iBasso DC04PRO supports the latest version of the UAC application with advanced features. It has five optional digital filters, three gain levels, 100-level volume adjustment(using hardware keys), two options for output mode, a power saver (On/Off), and 20 steps L/R balancer. The DC04PRO has a detachable cable design and comes standard with a USB-C to USB-C cable compatible with most Android devices. It also comes with a USB-A adapter for connecting to PCs. The iBasso DC04PRO is also compatible with iOS devices with a USB-C to lightning cable (separately purchased). You will feel completely immersed in whatever you're doing, whether watching a movie, playing a video game, or listening to music—the unlimited entertainment provided by outstanding sound will only enhance your experience!
NOTE: The bottom cable in the picture is the CB18, it is not included in the package. The CB18 and USB-C to lightning cable needs to be purchased separately.

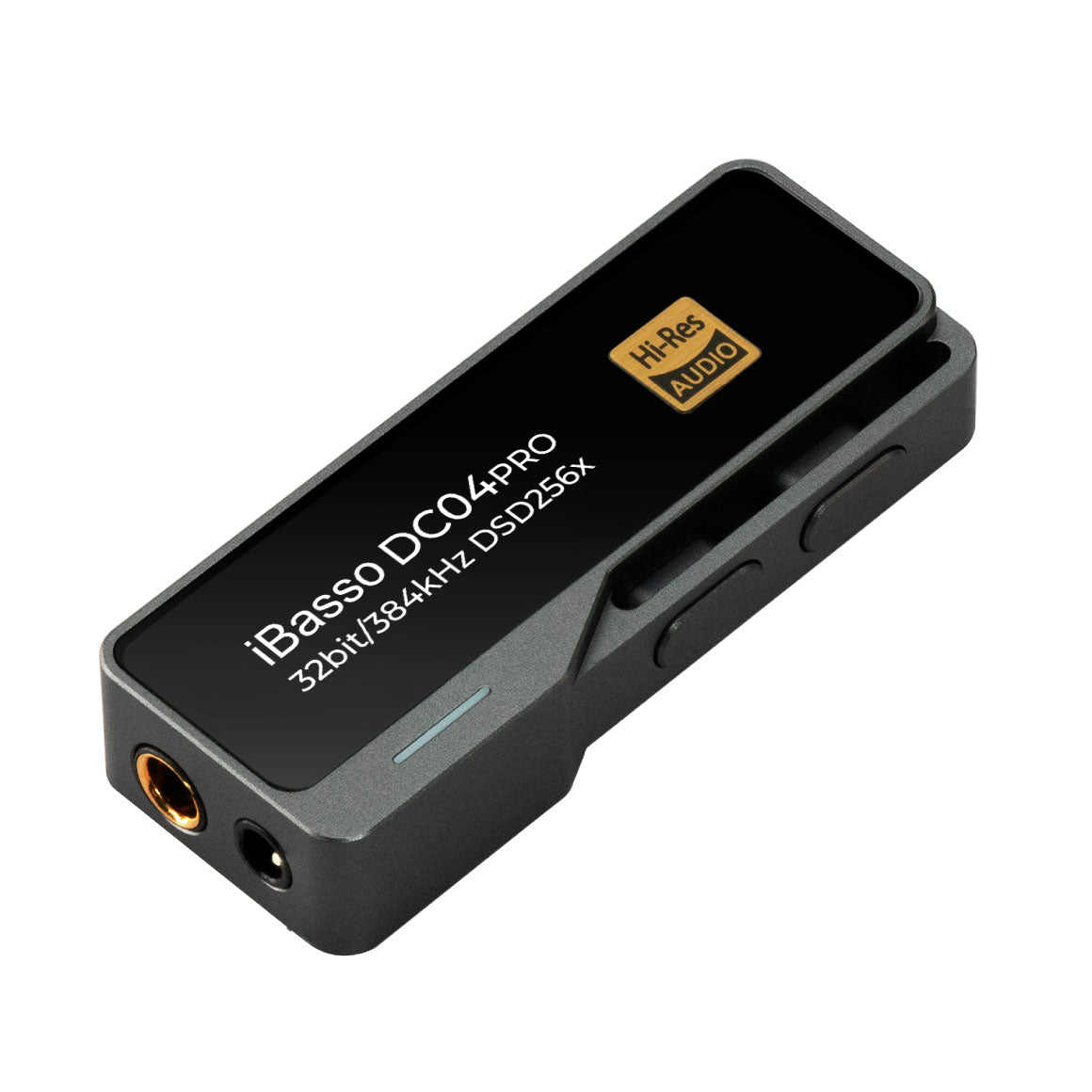

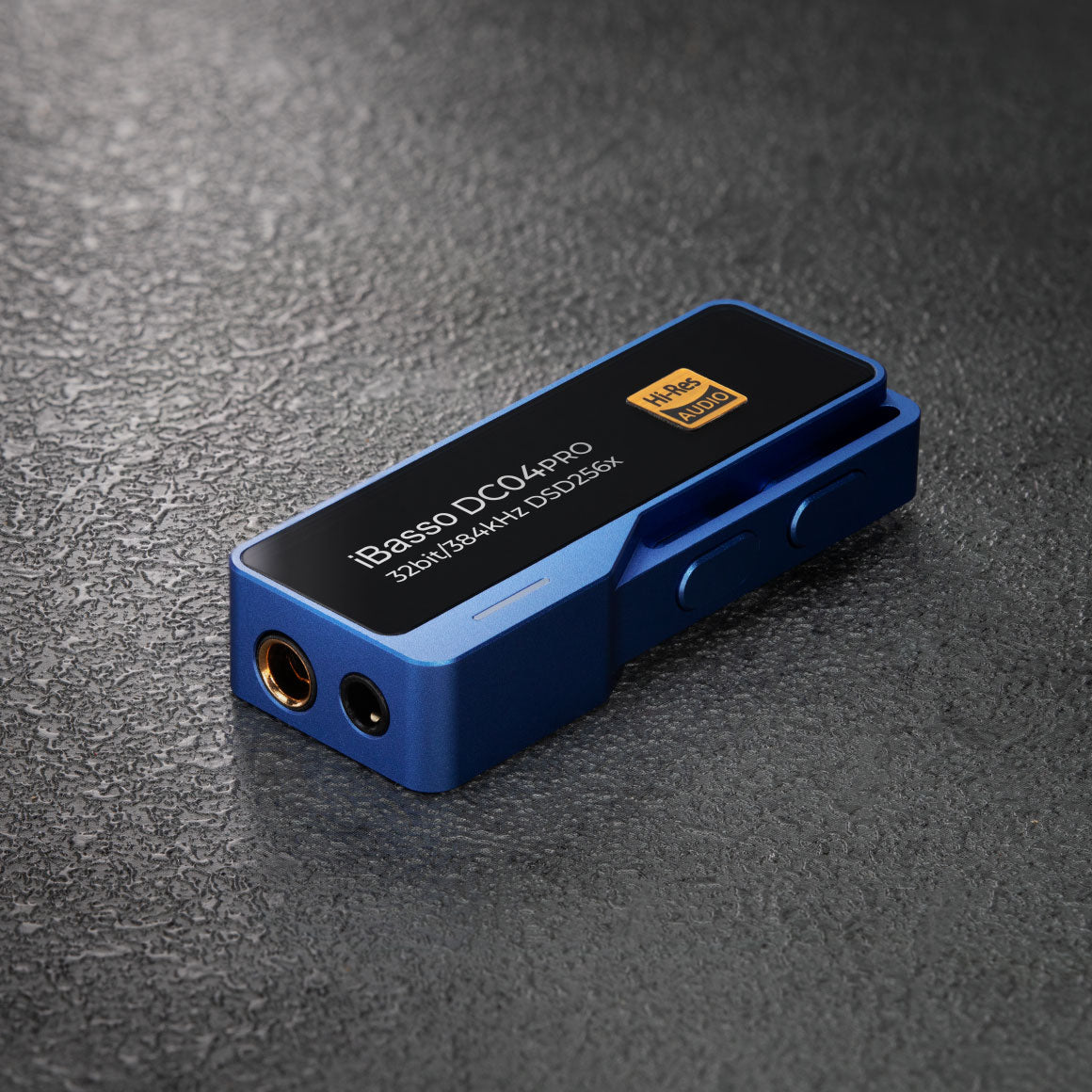

EYE-CATCHING LOOKS WITH CNC ALUMINUM CASE & TEMPERED GLASS PANELS WITH PLAY MODE INDICATOR

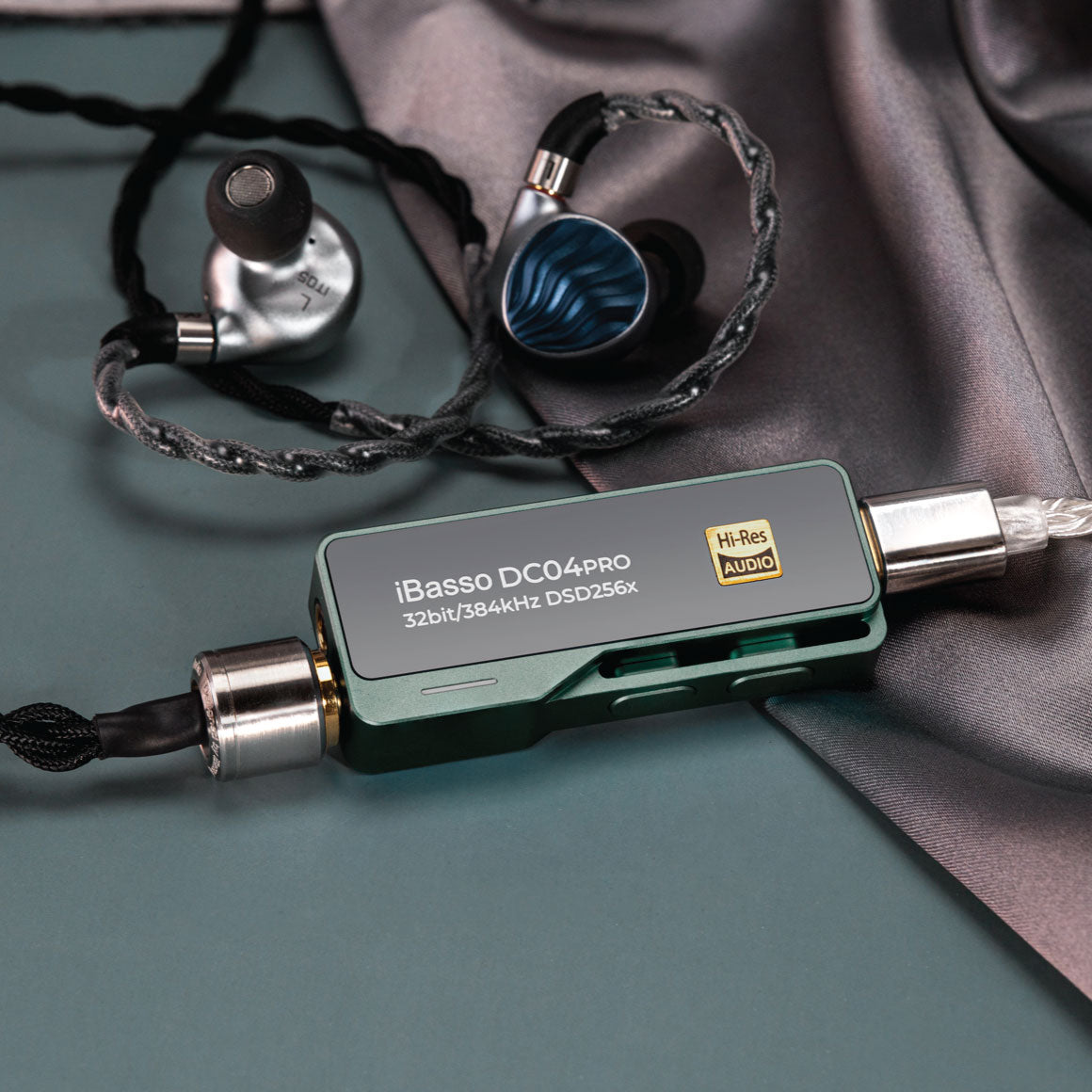

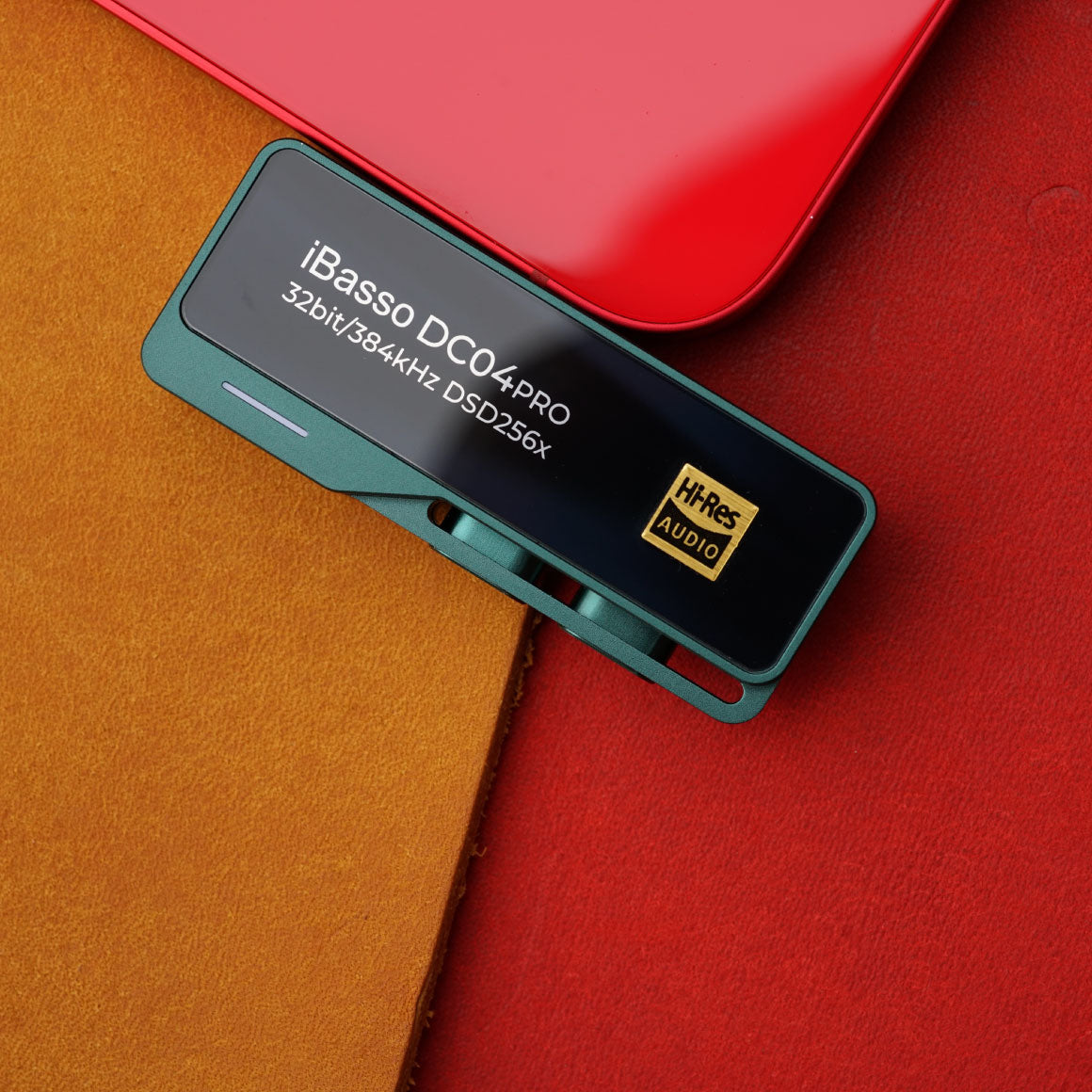

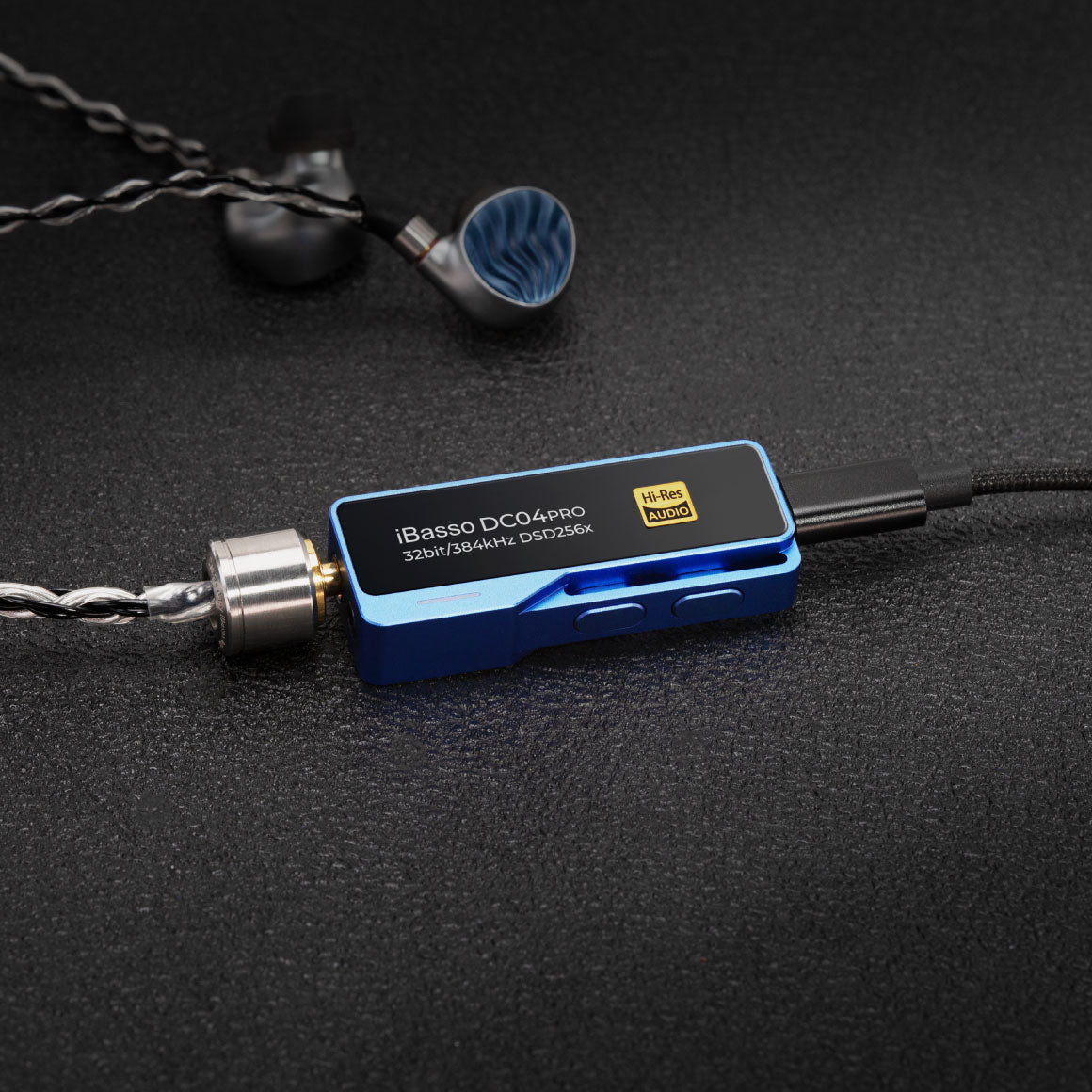

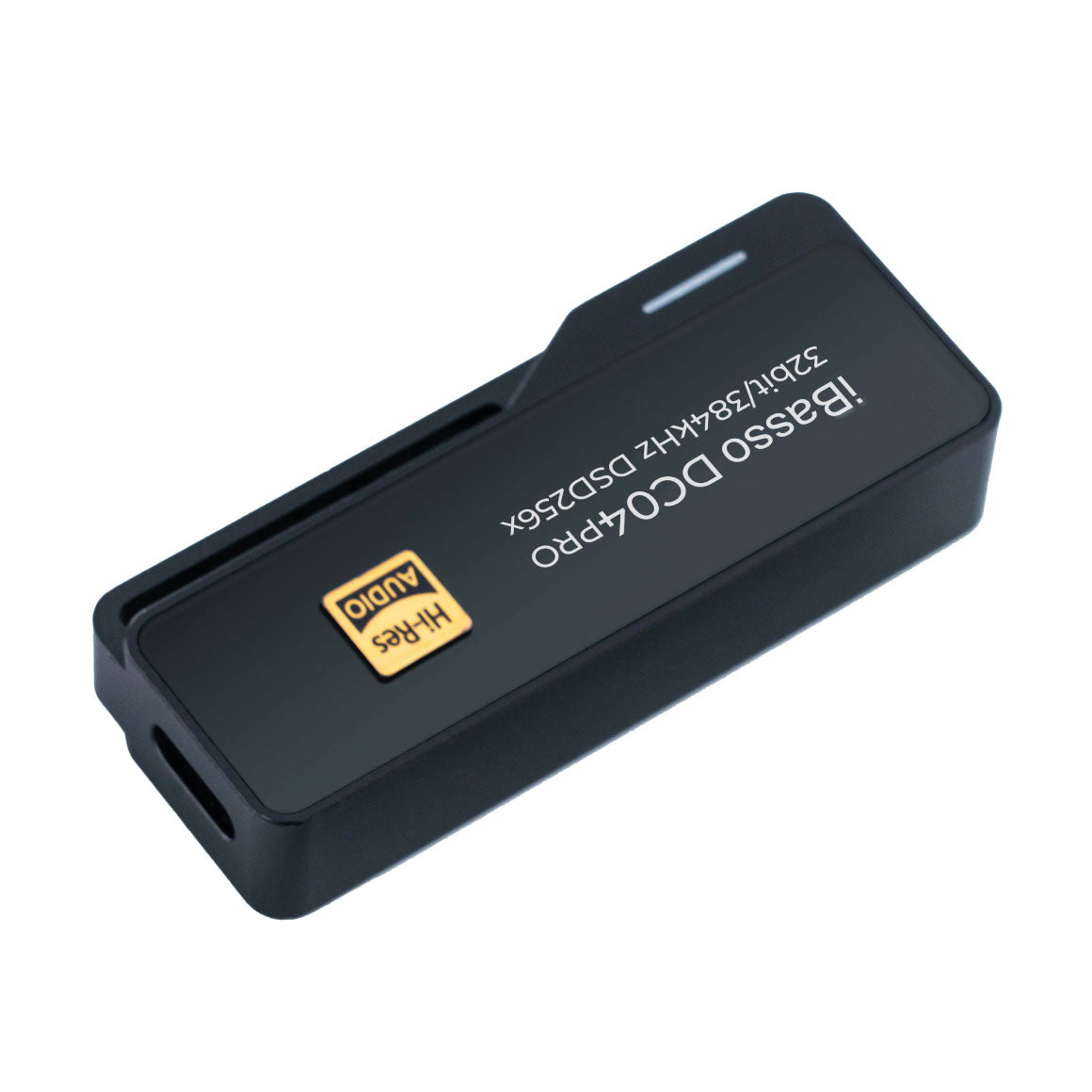

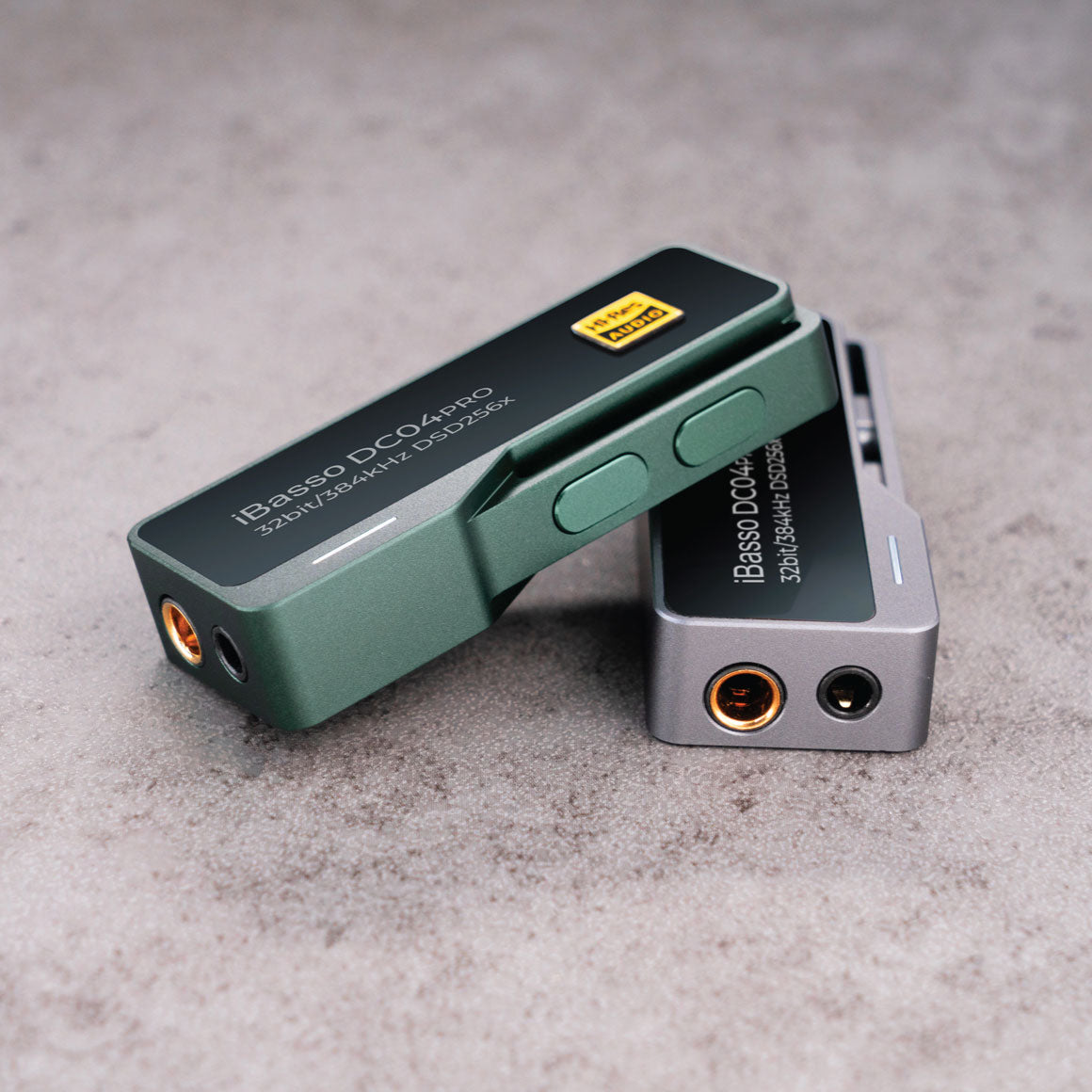

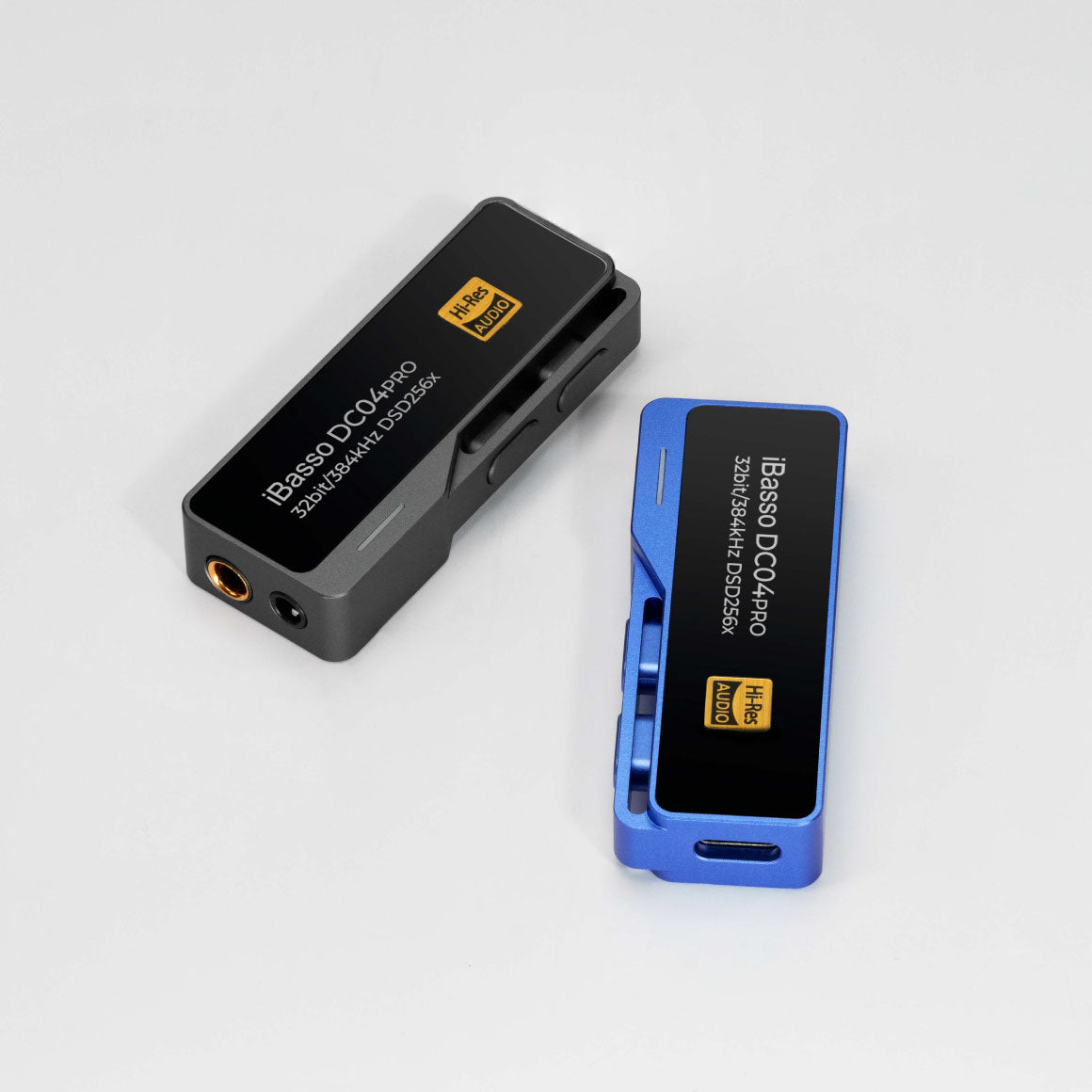

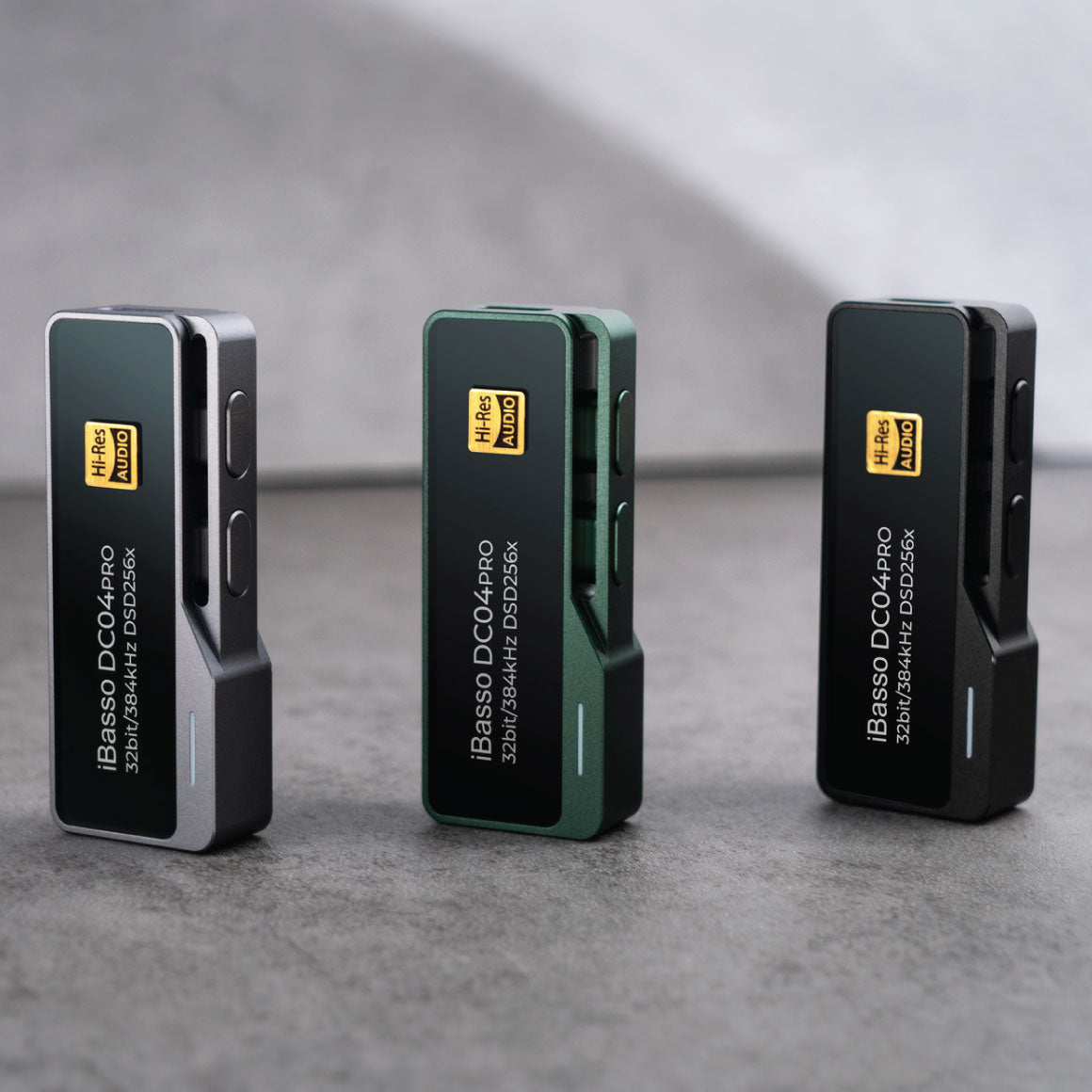

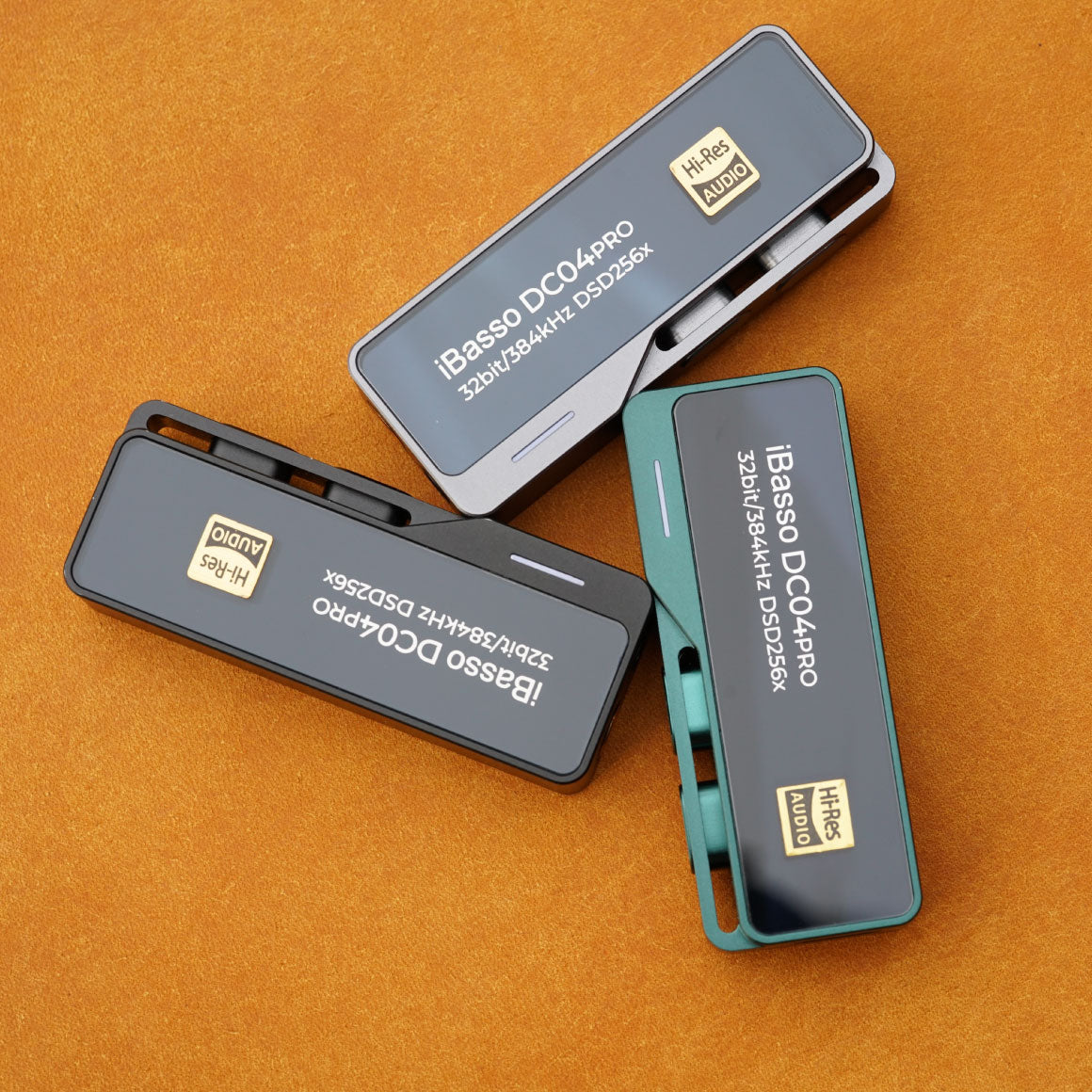

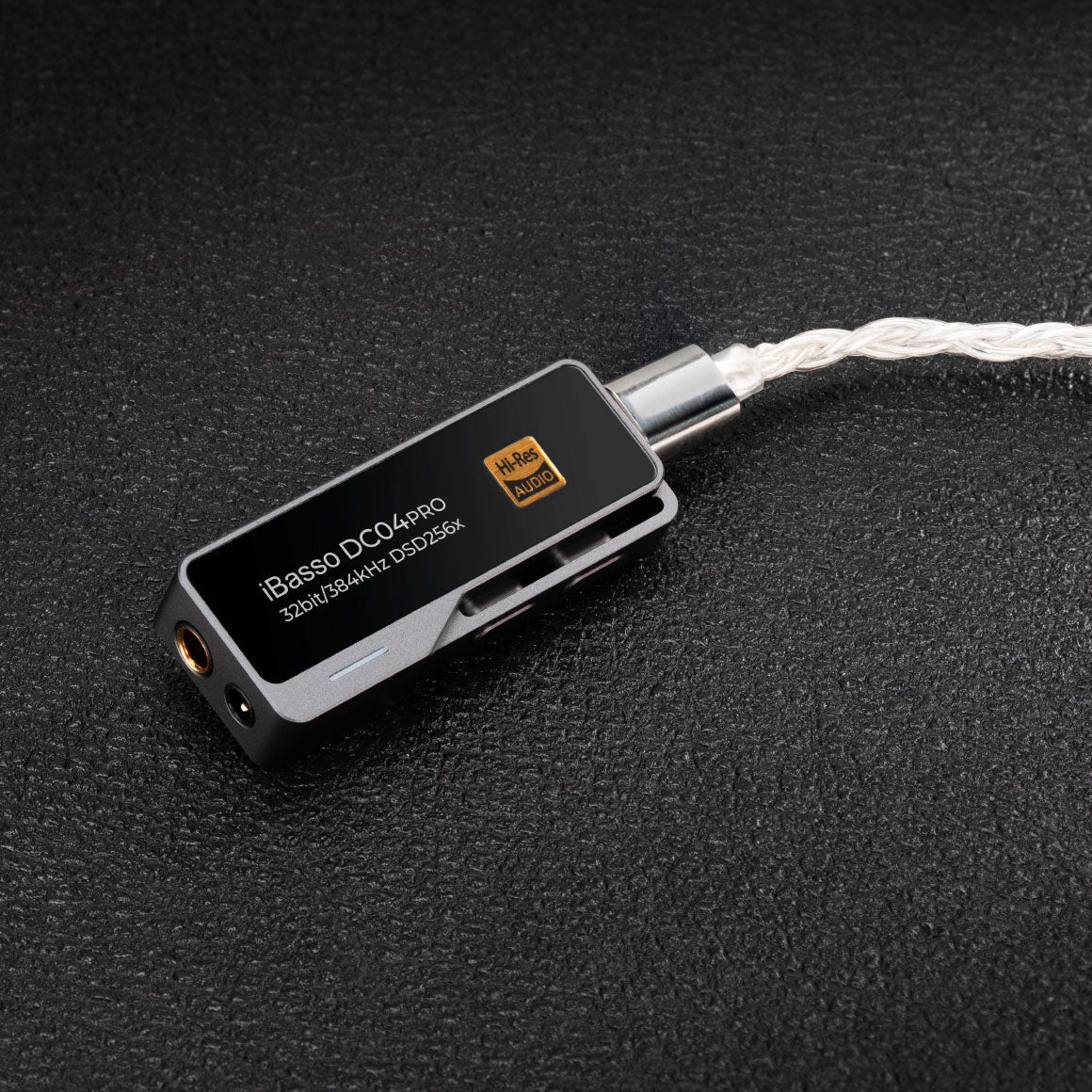

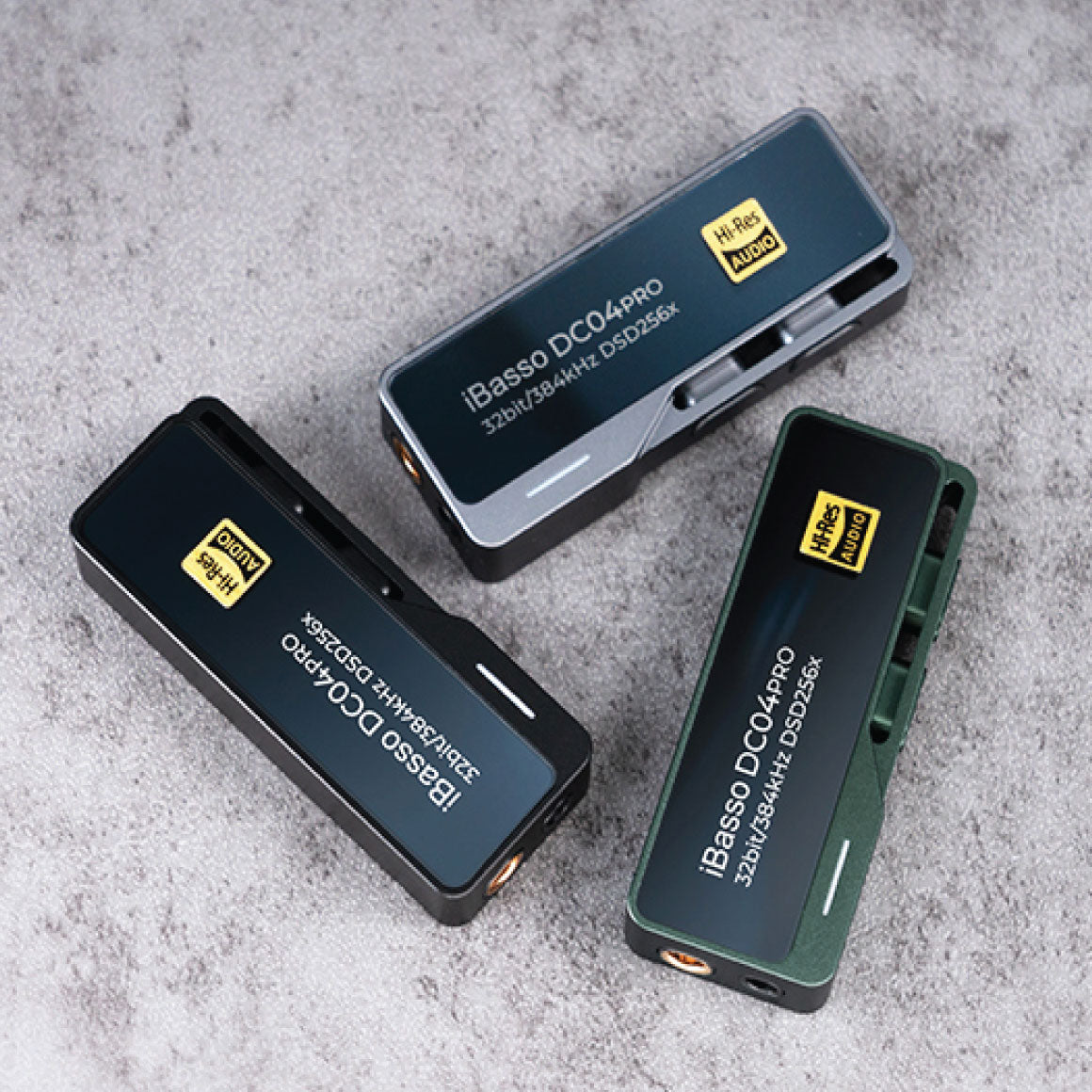

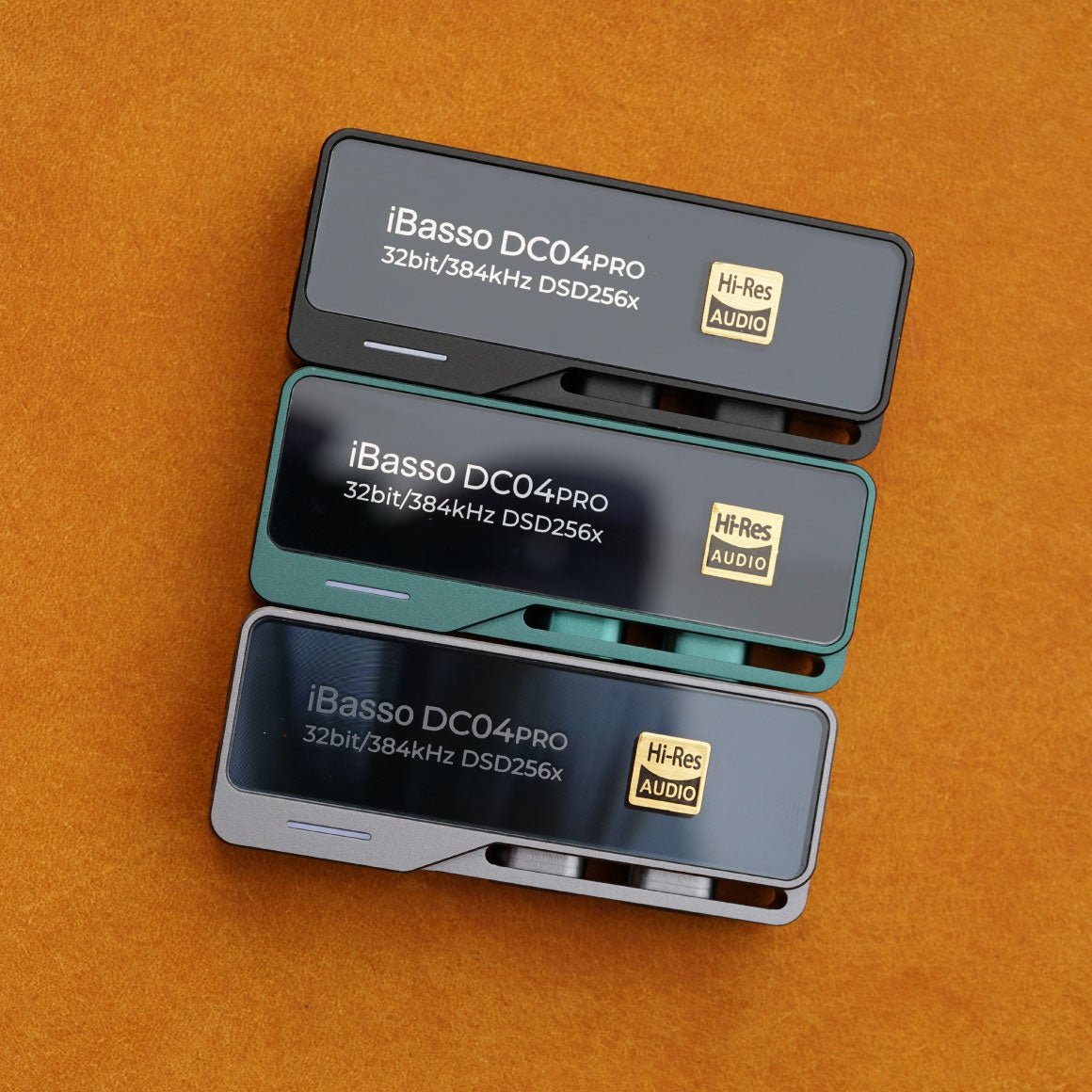

The iBasso DC04PRO case is made from a solid piece of CNC-machined aluminium alloy. The hollow design of the volume guard requires complex steps during machining to achieve its good form and function. Using tempered glass panels, the DC04PRO is both aesthetically appealing and conveys the quality of the build. Grey and Blue colours are available to meet individual preferences. iBasso has included a 3.5mm Single-Ended and 4.4mm Pentaconn Balanced headphone output, which enables you to turn your smartphone into a Hi-Res audio player. The lack of many smartphones to work as high-quality music players is transformed by the DC04PRO. The iBasso DC04PRO was born for HiFi enthusiasts who are accustomed to listening to music on smartphones and wish to have no compromise on sound quality. The 3.5mm universal interface has excellent compatibility, convenience, and support. The iBasso DC04PRO also has a multi-colour indicator that indicates various operation modes: Red - Standby, Blue - DSD, and Green - PCM.
| THD+N | 0.00013% (300Ω load) |
| OUTPUT LEVEL | 3.0Vrms (32Ω load) 4.0Vrms (300Ω load) |
| S/N | 131dBA |
| DYNAMIC RANGE | 128dBA |
| FREQUENCY RESPONSE | 20Hz~40kHz ±0.5dB |
| OUTPUT IMPEDANCE | <0.4Ω |
| THD+N | 0.00018% (300Ω load) |
| OUTPUT LEVEL | 2.0Vrms (32Ω load) 2.0Vrms (300Ω load) |
| S/N | 127dBA |
| DYNAMIC RANGE | 126dBA |
| FREQUENCY RESPONSE | 20Hz~40kHz ±0.5dB |
| OUTPUT IMPEDANCE | <0.2Ω |
| DAC CHIPSET | Dual Cirrus Logic CS43131 |
| PCM | Up to 32bit/384kHz |
| DSD | Native DSD up to 256x |
| SIZE | 59mm*23.4mm*12.1mm |
| WEIGHT | 21g |
| WHAT YOU WILL GET | 1. iBasso DC04 PRO |
| 2. USB-C to C cable | |
| 3. USB C to A adapter | |
| 4. User manual | |
| WHAT YOU WILL NOT GET | 1. Original packaging of iBasso DC04 PRO |
OTHER DETAILS
| GENERIC NAME | Headphone Amplifier |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
What is the warranty period on the iBasso DC04 PRO?
iBasso DC04 PRO comes with 1 year of warranty. Information on claiming warranty can be read here
Where is the iBasso brand based?
iBasso is a product manufacturer based in China.
What are the feature sets like on iBasso DC04 PRO?
Flagship-grade Dual DAC Arrangement
Dual CS43131 DAC chips.
KDS Femtosecond Crystal Oscillator
In-house developed FPGA algorithm
Dual RT6863 amplification chips
Ultra-Clean performance with low Distortion and output impedance
Powerful output
Single-Ended 3.5mm and 4.4mm Balanced headphone output
Ultra-low noise floor
Physical volume keys
Supports iBasso application
CNC Machined aluminium alloy body
Rich in-hand feel with Double-sided tempered glass panels.
How is iBasso DC04 PRO different from the DC04?
The noticeable change is that the DC04 has attached cable while the DC04PRO has detachable cable. Both these units use the same DAC chip configuration but they differ in power output capabilities. The DC04 only offered Balanced 4.4mm output however the DC04PRO offers 3.5mm Single-Ended as well as 4.4mm Balanced headphone outputs. The DC04PRO also has more power as compared to the DC04. Also, the DC04PRO comes with interchangeable cables. Aesthetically, the DC04PRO shines a lot having CNC machined frame and tempered glass with play mode indicator. The DC04PRO in all aspects is a worthy upgrade to the DC04 if you are someone looking for great sound and versatility in a compact package.
What is iBasso DC04 PRO on the whole?
The DC04PRO is an ultra-portable USB DAC & Amp.
What are the DAC chips used?
The iBasso DC04 PRO features dual CS43131 DAC chips.
What are the sampling rates supported?
iBasso iBasso DC04 PRO promises ultimate high-resolution audio performance with its dual DAC arrangement supporting PCM (Pulse Code Modulation) up to 32bit/384kHz and Native DSD (Direct Stream Digital) up to 256x.
Does it support microphone pass-through?
No, it does not support microphone pass-through.
Will it support earphones/headphones with a microphone?
It will use your phone's microphone rather than your earphones/headphones' microphone. The other person over the call might feel that the voice is coming from a distance.
Is it compatible with iOS devices?

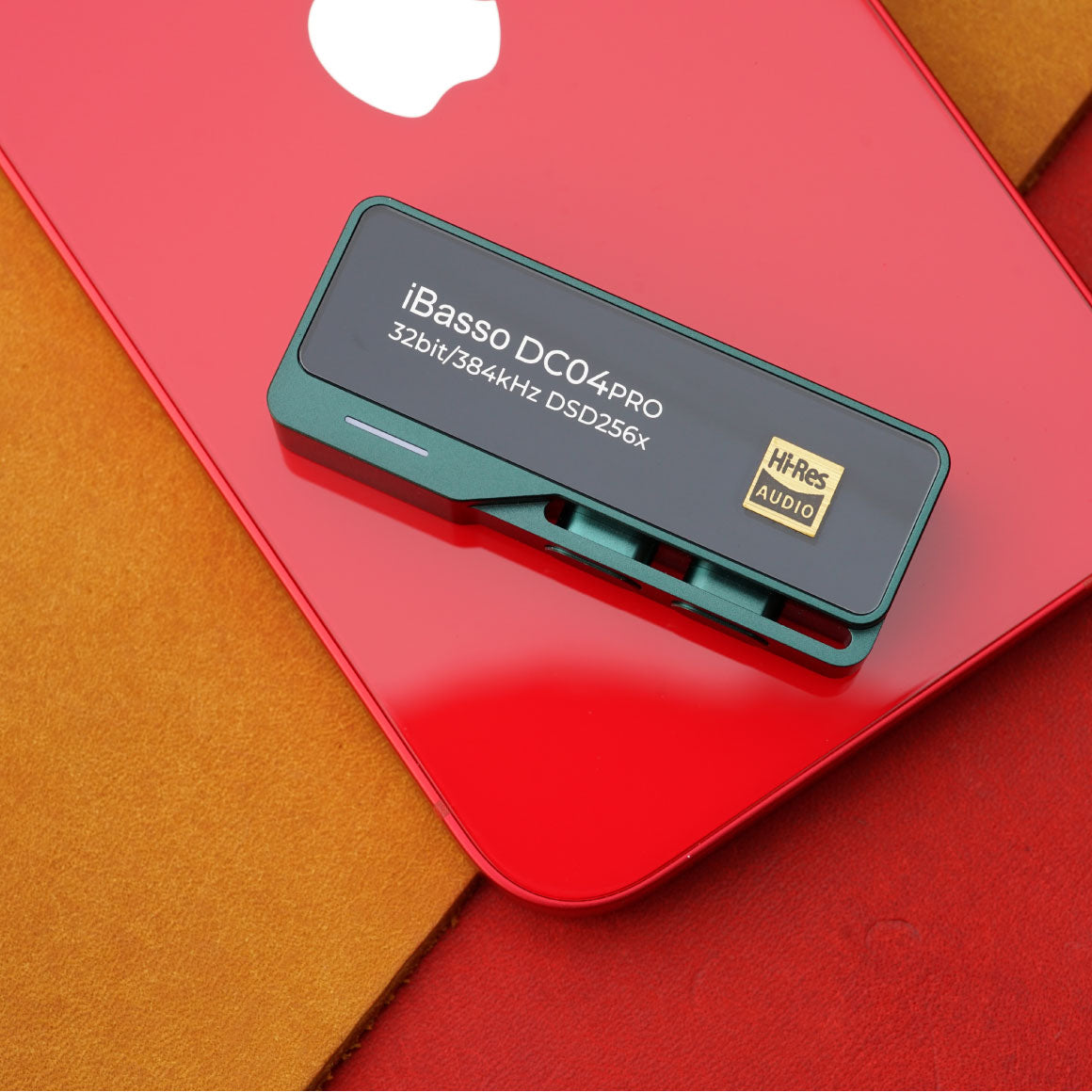

Yep! It is compatible with iOS devices but you will have to purchase a USB-C to lightning cable separately.
What does the multi-colour indicator indicate?

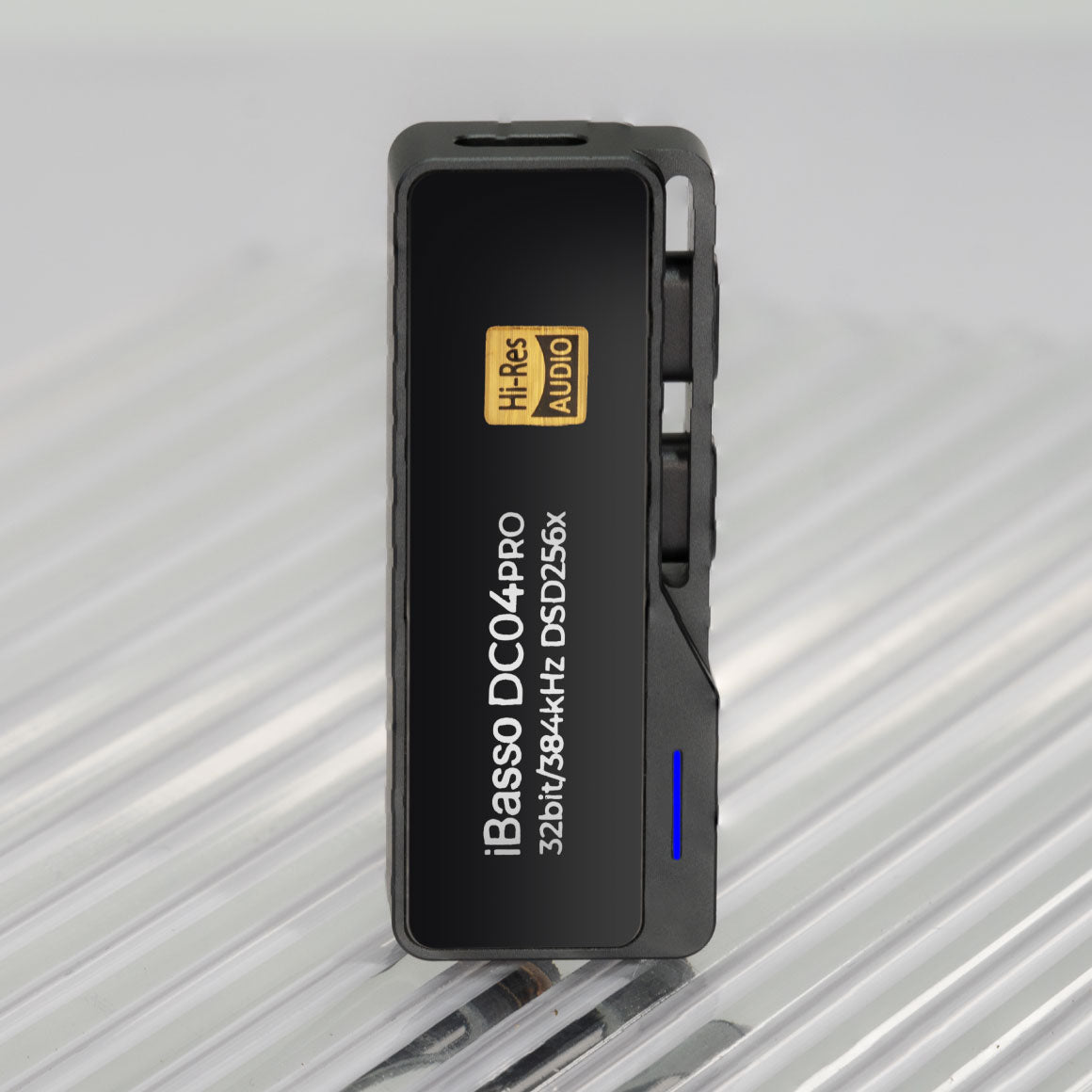

The iBasso DC04 PRO also has a multi-colour indicator that indicates various operation modes: Red - Standby, Blue - DSD, and Green - PCM.
What are the outputs like on iBasso DC04 PRO?
It offers a 3.5mm Single-Ended and 4.4mm Balanced headphone output ports.
What is the power output like on iBasso DC04 PRO?
It offers an output power of 280mW@32 Ohms.
What are the operating principles?
The iBasso DC04 PRO is plug-and-play on Android Smartphones and tablets with Android 5.1 and above without installing drivers or third-party APPS (due to the Android device's system or hardware limitation, there may be a low compatibility issue with some smartphones or tablets). On some Android devices, it may be necessary to manually turn on the OTG function in the system settings. The DC04PRO is plug-and-play on Mac and Win10 computers. For WinXP, Win7, and Win8 systems, please download the driver from our website www.iBasso.comunder Downloads. Once properly installed, the DC04PRO can be used as a USB sound card. iPhone's volume control is only 16 steps. DC04PRO can achieve 100 steps of adjustment with the volume button. Therefore, using the DCO4PRO with an iPhone, will achieve finer volume adjustments.
What does the package include?
iBasso DC04 PRO, USB-C to C cable, USB C to A adapter, User manual.
Don't sweat it, this
iBasso - DC04 PRO (Unboxed) comes with a 1 Year warranty
from iBasso that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about iBasso's warranty in India.
This product is rated 5.0 of 5.0 stars.
It has received 1 review.
Customer Reviews

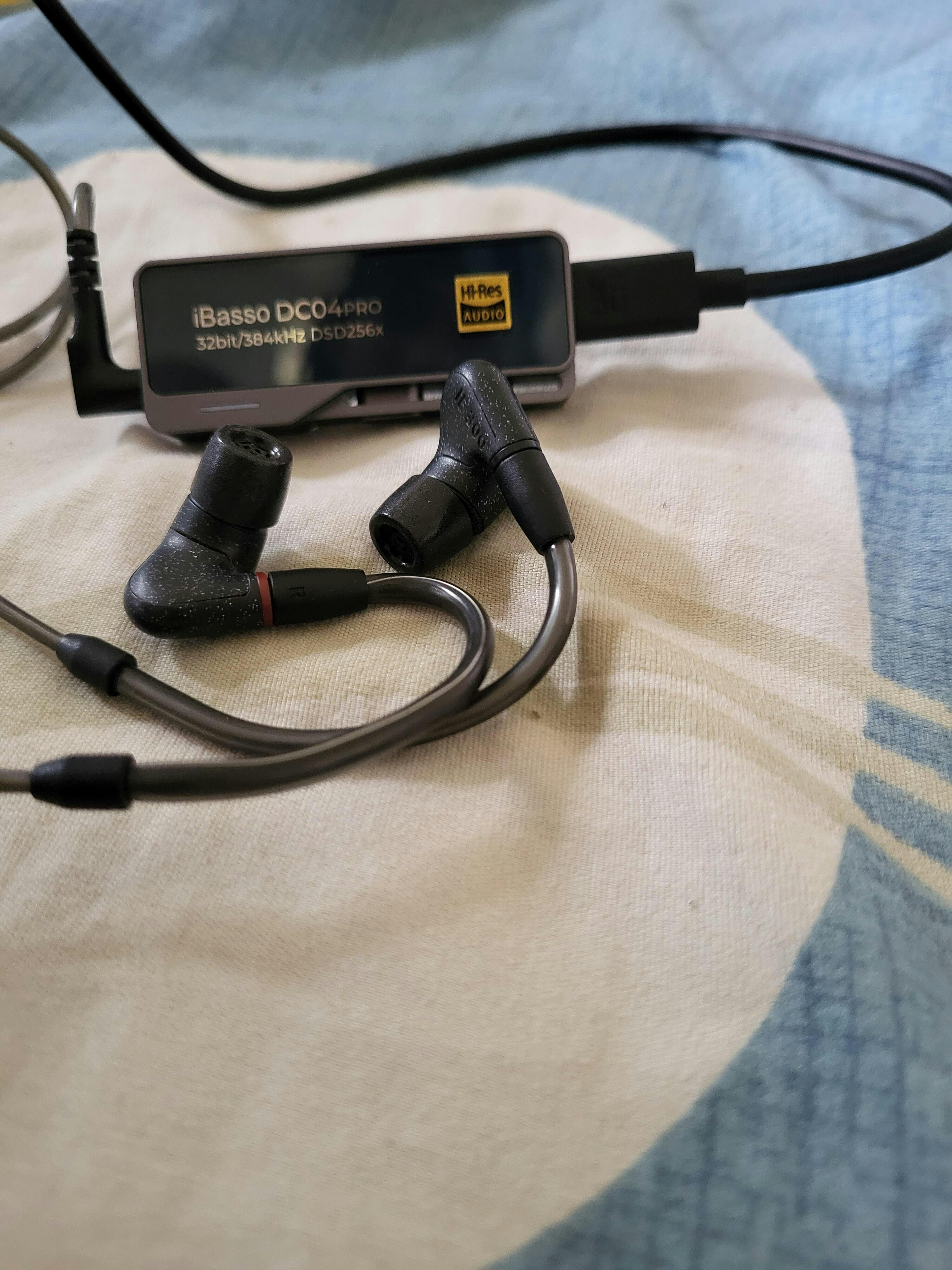

neutral sounding dac, very less distortion at high volume in NOS mode, soundstage is also above average i wish a litle bit more
