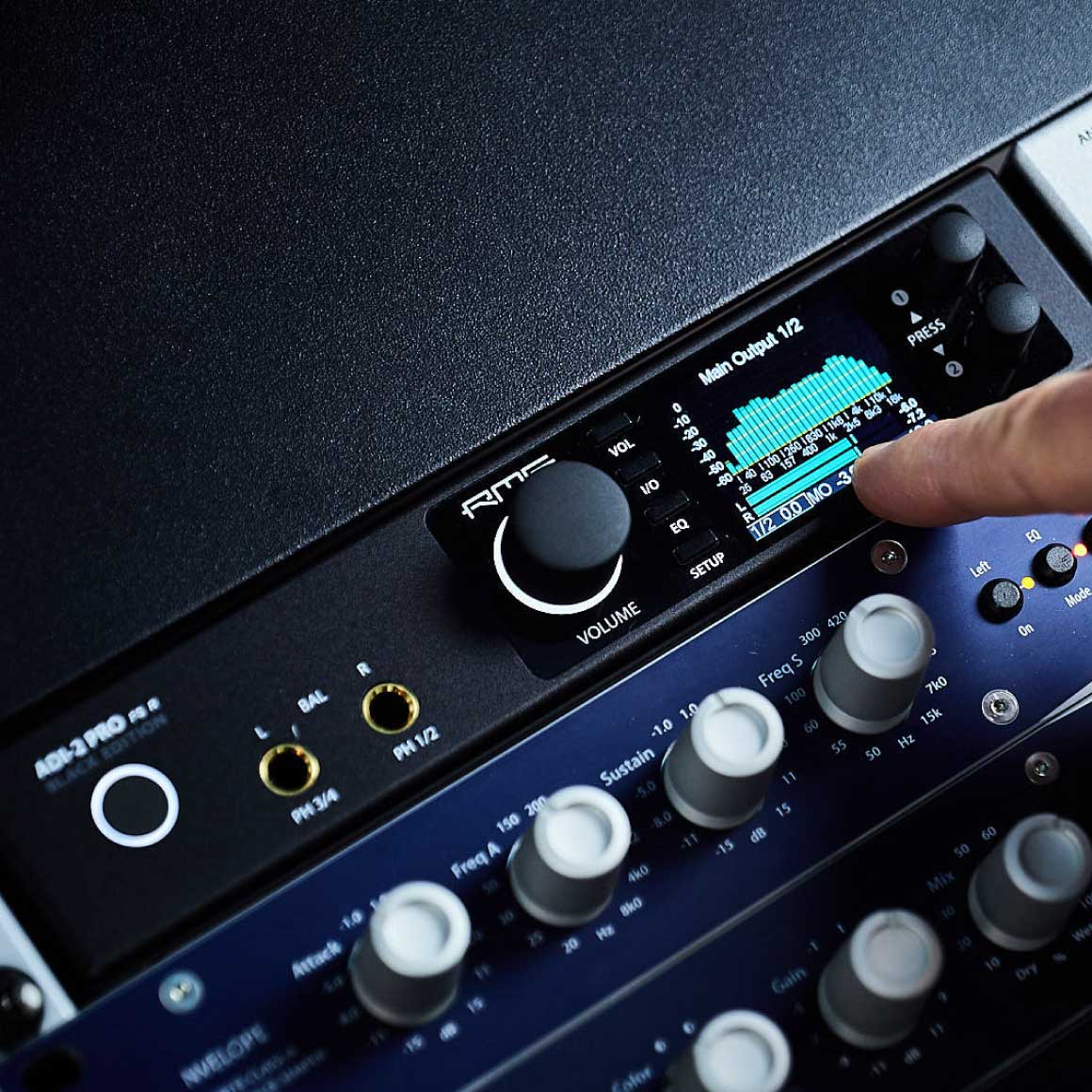

RME - ADI-2 Pro FS R Black Edition
Reference Grade Audio Converter With Steadyclock Fs TechnologyGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods &
Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 58,183
₹ 4,550
₹ 3,667
6
Low Cost EMI
₹ 29,669
₹ 8,016
₹ 6,485
9
15.99%
₹ 20,169
₹ 11,526
12
15.99%
₹ 15,423
₹ 15,081
18
15.99%
₹ 10,685
₹ 22,326
24
15.99%
₹ 8,323
₹ 29,750
HDFC Bank
3
Low Cost EMI
₹ 58,184
₹ 4,553
₹ 3,667
6
Low Cost EMI
₹ 29,670
₹ 8,021
₹ 6,485
9
16%
₹ 20,170
₹ 11,533
12
16%
₹ 15,424
₹ 15,091
18
16%
₹ 10,686
₹ 22,341
24
16%
₹ 8,324
₹ 29,769
SBI Bank
3
Low Cost EMI
₹ 58,232
₹ 4,696
₹ 3,776
6
Low Cost EMI
₹ 29,586
₹ 7,514
₹ 6,051
9
15%
₹ 20,089
₹ 10,801
12
15%
₹ 15,344
₹ 14,127
18
16%
₹ 10,686
₹ 22,341
24
16%
₹ 8,324
₹ 29,769
Axis Bank
3
Low Cost EMI
₹ 58,184
₹ 4,553
₹ 3,667
6
Low Cost EMI
₹ 29,670
₹ 8,021
₹ 6,485
9
16%
₹ 20,170
₹ 11,533
12
16%
₹ 15,264
₹ 13,166
18
16%
₹ 10,686
₹ 22,341
24
16%
₹ 8,324
₹ 29,769
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 57,994
₹ 3,982
6
14%
₹ 29,501
₹ 7,009
9
16%
₹ 20,170
₹ 11,533
12
16%
₹ 15,424
₹ 15,091
18
16%
₹ 10,686
₹ 22,341
24
16%
₹ 8,324
₹ 29,769
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 58,184
₹ 4,553
6
16%
₹ 29,670
₹ 8,021
9
16%
₹ 20,170
₹ 11,533
12
16%
₹ 15,424
₹ 15,091
18
16%
₹ 10,686
₹ 22,341
24
16%
₹ 8,324
₹ 29,769
RBL Bank
3
13%
₹ 57,899
₹ 3,697
6
14%
₹ 29,501
₹ 7,009
9
15%
₹ 20,089
₹ 10,801
12
15%
₹ 15,344
₹ 14,127
18
15%
₹ 10,605
₹ 20,897
24
15%
₹ 8,243
₹ 27,825
Standard Chartered Bank
3
13%
₹ 57,899
₹ 3,697
6
13%
₹ 29,417
₹ 6,504
9
14%
₹ 20,008
₹ 10,070
12
14%
₹ 15,264
₹ 13,166
INDUSIND Bank
3
14%
₹ 57,994
₹ 3,982
6
14%
₹ 29,501
₹ 7,009
9
15%
₹ 20,089
₹ 10,801
12
15%
₹ 15,344
₹ 14,127
18
15%
₹ 10,605
₹ 20,897
24
15%
₹ 8,243
₹ 27,825
HSBC Bank
3
12.50%
₹ 57,851
₹ 3,554
6
12.50%
₹ 29,375
₹ 6,251
9
13.50%
₹ 19,967
₹ 9,705
12
13.50%
₹ 15,224
₹ 12,686
18
13.50%
₹ 10,486
₹ 18,744
YES Bank
3
13%
₹ 57,899
₹ 3,697
6
13%
₹ 29,417
₹ 6,504
9
14%
₹ 20,008
₹ 10,070
12
14%
₹ 15,264
₹ 13,166
18
15%
₹ 10,605
₹ 20,897
24
15%
₹ 8,243
₹ 27,825
Bank of Baroda
3
13%
₹ 57,899
₹ 3,697
6
14%
₹ 29,501
₹ 7,009
9
14%
₹ 20,008
₹ 10,070
12
15%
₹ 15,344
₹ 14,127
18
15%
₹ 10,605
₹ 20,897
24
16%
₹ 8,324
₹ 29,769
American Express
3
14%
₹ 57,994
₹ 3,982
6
14%
₹ 29,501
₹ 7,009
9
14%
₹ 20,008
₹ 10,070
12
14%
₹ 15,264
₹ 13,166
18
15%
₹ 10,605
₹ 20,897
24
15%
₹ 8,243
₹ 27,825
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Designed in
Germany
Ideal for Audiophiles
These DAC & Amps are designed for discerning music lovers. If audio quality is important to you, a set of DAC & Amps like these would be ideal.
You can expect these DAC & Amps to present you with a refined listening experience. The audio quality exhibited by these DAC & Amps is a beautiful mix of musicality, technical brilliance and high precision.
These DAC & Amps deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!
For Studio & Professionals
As the name implies, anything branded as studio headphones is designed especially for a studio setting with a particular focus on accuracy and transparency for monitoring and mixing.
These headphones present an accurate image of your music than ordinary headphones, allowing you to hear every nuance and aspect of your music. Therefore, having a good set of studio headphones is just as important as any other gear in your studio.
These headphones provide a fresh perspective to that mix you’ve spent hours mastering and recording, essentially giving you another set of ears.
Ideal for
Indoor Use
6.3mm
Balanced Output
DAC Chip
You may not even realise it, but most of us use a digital-to-analogue converter (commonly known as a DAC) daily. Built into your computers, tablets and smartphones, a DAC is fundamental to unlocking the convenience of digital music. Any device that acts as a digital sound source will need a DAC to convert digital audio to analog. A DAC converts the digital information stored in “0s and 1s” into an analog signal that's passed to speakers or headphones and ultimately our ear. In short, DACs play a large part in making digital music hearable.While this technical process is undoubtedly impressive, the DAC embedded into your smartphones or laptops is nowhere good enough to listen to your favourite music recordings in high quality. So, if you want to listen to music in high quality, an external DAC is essential to allow headphones or speakers to perform at their potential. An external DAC, first and foremost, will improve audio quality dramatically.
Connect With XLR/TRS, 9-pin
(AES/EBU) & Optical, USB
Volume Controls
If your DAC & Amps include volume controls or volume rockers, you can easily change the volume with a button press or volume knob turn.
DAC & Amps that have volume controls make its operation incredibly simple; turn up the volume on your smartphone or your source devices and then change the volume on DAC & Amps to the desired level.
This design feature allows you to have complete control over the desired volume according to your listening preferences.
DESCRIPTION
RME PRESENTS THE SPECIAL EDITION ADI-2 PRO FS R WITH IMPROVED PERFORMANCE
RME introduces the special edition ADI-2 Pro FS R, featuring a new and improveddesign with enhanced performance, complete with an IR remote control. The new ADI-2 Pro FS R Black Editionfeatures the AK4493 chip with slightly improved specs and improved performance by reducing the THD andincreasing the signal-to-noise ratio by 3dB whilst converting signals from digital to the analogue domain.The premium-grade circuit design provides 2.5dB of analogue headroom, with the digital headroom going up to+4 dBFS, ensuring the best possible performance. RME ADI-2 Pro FS R showcases the industry’s highestfootprint per feature ratio, excellent tech specs, crystal clear and transparent sound signature, and twoextremely powerful headphone outputs along with SteadyClock technology.
EXPERIENCE REFERENCE QUALITY CONVERSION AND STABLE AUDIO WITH STEADYCLOCK FS
The RME ADI-2 Pro FS R offers world-class conversion, thanks to its ultra-stableSteadyClock FS clock, AK4493 chip, and upgraded specs from its predecessor. The RME ADI-2 Pro FS R cantackle sample rates up to 768kHz, convert between multiple digital formats, and record and playback DSDaudio. The ADI-2 Pro FS R's SteadyClock FS takes self-jitter even lower, improving its analogue PLL circuitand referencing both Direct Digital Synthesis and PLL to a low-phase-noise quartz crystal. Thanks to thisupdated circuit, the ADI-2 Pro FS R reaches jitter specs as low as a femtosecond. You can also use the ADI-2Pro FS R as a top-tier dual headphone amplifier. Beyond that, you can use the ADI-2 Pro FS R's USB port tocreate a high-end AD/DA frontend for your Mac, PC, or iOS device.
FEATURING ULTRA-FIDELITY AUDIO ARCHITECTURE THAT OFFERS WORLD-CLASS SOUND
The RME ADI-2 Pro FS R features a 10-layer design with custom copper thickness,guaranteeing the finest undisturbed sound. Its internal power supply is a low-noise design that deliversseparate power to its headphone outputs. In use, the ADI-2 Pro FS R exhibits an exceptional signal-to-noiseratio, minimal harmonic distortion, and a high slew rate via selected SoundPlus op-amps. The entire analoguesignal path is fully symmetrical, balanced, and DC-coupled. The only capacitors in the ADI-2 Pro FS R'ssignal path perform DC protection at its analogue input sockets and have been carefully selected to avoidany sonic impact. The 4-channel AD-converter, supporting 786 kHz sample rate and DSD recording, is used in adual-mono design, with a 3 dB improved signal to noise ratio. Two premium DACs are used for two separatestereo outputs.
EQUIPPED WITH AN EXTREME POWER HEADPHONE OUTPUT STAGE WITH DUAL OUTPUTS
Thanks to RME's Extreme Power design, you'll experience 0.1-ohm output impedance, a+22dBu maximum output level, and 1.5 watts of output power per channel. Each headphone output is separate,features balanced operation, and boasts the same 120dBA signal-to-noise ratio as the ADI-2 Pro FS R's lineoutputs. Even with sensitive headphones, hum or noise won't spoil your listening experience. The ExtremePower design incorporates current limiting, power surveillance, overload detection, and DC protection. Lowpower and high power modes are also available to match the impedance of your headphones. Having two stereooutputs with balanced headphones is possible with the newly developed Advanced Balanced mode. This moderemoves most limitations of standard balanced operation and turns the ADI-2 Pro FS R into a powerhouse.
OFFERING A MYRIAD OF ANALOG AND DIGITAL INPUT AND OUTPUT CONNECTIVITY
Whatever signal you feed the RME ADI-2 Pro FS R, it can handle it. A pair ofservo-balanced XLR/TRS combo analogue inputs make connecting your gear a breeze. Two separate balanced andunbalanced outputs on XLR and TS are also on tap, as are two Extreme Power headphone outputs. The ADI-2 ProFS R's optical S/PDIF I/O also accommodates ADAT and AES signals. Connect your Mac to the ADI-2 Pro FS R'sUSB port to use it as a 6-in/8-out audio interface — no drivers required. Or use it under Windows with RME'srock-solid MADIface driver for full WDM and ASIO compatibility. Its USB port is also compatible with youriOS devices. This universal set of I/O options offers superior quality and flexible connectivity to thosewho take a no-compromise approach to audio.
EMBEDDED WITH A RANGE OF UNIQUE FEATURES FOR UNPARALLELED PERFORMANCE
The RME ADI-2 Pro FS R offers more features than your average AD/DA converter. Youget access to Bass/Treble controls, a binaural cross-feed function, adjustable loudness filter, selectableAD/DA filters, four discrete I/O reference levels, auto reference level setting, auto balanced headphonesmode, and much more. Professional engineers will appreciate the ADI-2 Pro FS R's onboard M-S processing,stereo width, and phase reversal parameters. You also get a spectral analyser and a 30-band bi-quad filteranalysis tool. Best of all, everything is easily visible on the ADI-2 Pro FS R's high-resolution display.Internal auditory processing like EQ, Cross-feed and spectral analysis, is done by a high-performance DSPwith 2.17 Gigaflops (2882 MIPS), delivering enough computing power to work even at a 768 kHz sample rate.
ALL NEW EXTENDED MULTI-REMOTE CONTROL SUPPORT FOR SIMPLIFIED OPERATION
The RME ADI-2 Pro FS R includes extended support for RME’s Multi-Remote Control(MRC). Benefit from wireless access to standby on/off, volume, balance, bass/treble, input selection(optical, coaxial, USB), mute, loudness, and EQ. You also get four user-programmable buttons that offer youaccess to 52 different functions and commands for maximum flexibility. There is no other converter or devicewith such a sophisticated yet easy to use remote control! Complete with extended support for RME’sMulti-Remote Control (MRC), the ADI-2 Pro FS R is an exceptional AD/DA converter for engineers andpassionate audiophiles alike.
SPECS
XLR | Input: XLR, servo-balanced Input sensitivity switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS Digital Trim Gain range: 0 dB up to +6 dB Signal to Noise ratio (SNR) @ +13/19/24 dBu: 120 dB RMS unweighted, 124 dBA Signal to Noise ratio (SNR) @ +4 dBu: 119 dB RMS unweighted, 123 dBA Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.5 kHz Frequency response @ 96 kHz, -0.5 dB: 3 Hz – 45.5 kHz Frequency response @ 192 kHz, -1 dB: 2 Hz – 92.7 kHz Frequency response @ 384 kHz, -1 dB: < 1 Hz – 124 kHz Frequency response @ 768 kHz, -3 dB: < 1 Hz – 180 kHz THD @ -1 dBFS: -116 dB, 0.00016 % THD @ -10 dBFS: -125 dB, 0.000056 % Channel separation: > 110 dB |
TRS | As input XLR, but: Input: 6.3 mm TRS jack, servo-balanced, fully compatible to TS and RCA |
1/2 XLR | Output level switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS Signal to Noise ratio (SNR) @ +13/19/24 dBu: 120 dB RMS unweighted, 124 dBA Signal to Noise ratio (SNR) @ +4 dBu: 117 dB RMS unweighted, 120 dBA Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHz Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 44.9 kHz Frequency response @ 192 kHz, -1 dB: 0 Hz – 88 kHz Frequency response @ 384 kHz, -1 dB: 0 Hz – 115 kHz Frequency response @ 768 kHz, -3 dB: 0 Hz – 109 kHz THD @ 0 dBFS: < -120 dB, 0.0001 % THD+N @ 0 dBFS: -115 dB, 0.00018 % Channel separation: > 110 dB Output impedance: 200 Ohm |
1/2 TS (REAR) | As output XLR, but: Output: 6.3 mm TS jack, unbalanced Maximum output level: +19 dBu Signal to Noise ratio (SNR) @ +19 dBu: 120 dB RMS unweighted, 123 dBA Signal to Noise ratio (SNR) @ +13 dBu: 118 dB RMS unweighted, 121 dBA Signal to Noise ratio (SNR) @ +4 dBu: 115 dB RMS unweighted, 118 dBA Output impedance: 100 Ohm |
PHONES 1/2 | As Output 1/2 TS, but: Output: 6.3 mm TRS jack, unbalanced, stereo Output impedance: 0.1 Ohm Signal to Noise ratio (SNR) @ +22 dBu: 120 dB RMS unweighted, 123 dBA Signal to Noise ratio (SNR) @ +7 dBu: 118 dB RMS unweighted, 121 dBA Output level at 0 dBFS, Ref Level +19 dBu, load 100 Ohm or up: +22 dBu (10 V) Output level at 0 dBFS, Ref Level +4 dBu, load 8 Ohm or up: +7 dBu (1.73 V) THD @ +18 dBu, 32 Ohm load, 1.2 Watt: -110 dB, 0.0003 % THD+N @ + 18 dBu, 32 Ohm load: -107 dB, 0.00045 % THD @ +14 dBu, 16 Ohm load, 0.94 Watt: -110 dB, 0.0003 % Max power @ 0.001% THD: 1.5 W per channel |
OUTPUT PHONES 3/4 | As Output Phones 1/2, but: Output levels at 0 dBFS: Hi-Power off +7 dBu, Hi-Power On +22 dBu |
BALANCED PHONES MODE | As before, but: Output levels at 0 dBFS: Hi-Power off +13 dBu (3.46 V), Hi-Power On +28 dBu (19.5 V) Output impedance: 0.2 Ohm Signal to Noise ratio (SNR) @ +28 dBu: 123 dB RMS unweighted, 126 dBA Signal to Noise ratio (SNR) @ +13 dBu: 121 dB RMS unweighted, 125 dBA Output level at 0 dBFS, Hi-Power On, load 150 Ohm or up: +28 dBu (19.5 V) Output level at 0 dBFS, Hi-Power Off, load 8 Ohm or up: +13 dBu (3.46 V) Max power @ 0.001% THD: 2.9 W per channel |
GENERAL | Lock Range: 28 kHz – 200 kHz Jitter suppression: > 50 dB (2.4 kHz) Accepts Consumer and Professional format |
AES/EBU | 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992 Input sensitivity 1.0 Vpp |
SPDIF COAXIAL | 1 x RCA, transformer-balanced, according to IEC 60958 High-sensitivity input stage (< 0.3 Vpp) AES/EBU compatible (AES3-1992) |
SPDIF OPTICAL | 1 x optical, according to IEC 60958 ADAT compatible |
AES/EBU | 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992 Output level 2.7 Vpp Format Professional according to AES3-1992 Amendment 4 Single Wire mode, sample rate 28 kHz up to 200 kHz |
SPDIF COAXIAL | 1 x RCA, according to IEC 60958 Output level 0.75 Vpp Format Consumer SPDIF according to IEC 60958 Single Wire mode, sample rate 28 kHz up to 200 kHz |
SPDIF OPTICAL | 1 x optical, according to IEC 60958 Format Consumer (SPDIF) according to IEC 60958 Sample rate 28 kHz up to 200 kHz |
CLOCKS | Internal, AES In, SPDIF In, ADAT In |
JITTER SUPPRESSION OF EXTERNAL CLOCKS | > 50 dB (2.4 kHz) |
EFFECTIVE CLOCK JITTER INFLUENCE ON AD AND DA CONVERSION | near zero |
EFFECTIVE CLOCK JITTER INFLUENCE ON AD AND DA CONVERSION | near zero PLL ensures zero dropout, even at more than 100 ns jitter Additional Digital Bitclock PLL for trouble-free varispeed ADAT operation |
SUPPORTED SAMPLE RATES FOR EXTERNAL CLOCKS | 32 kHz up to 200 |
INTERNALLY SUPPORTED SAMPLE RATES | 44.1 kHz up to 768 kHz |
INCLUDED POWER SUPPLY | external switching PSU, 100 - 240 V AC, 2 A, 24 Watts |
STANDBY POWER CONSUMPTION | 50 mW |
IDLE POWER CONSUMPTION | 10 Watts |
MAX. POWER CONSUMPTION | 22 Watts |
IDLE CURRENT AT 12 V | 850 mA (10 Watts) |
DIMENSIONS (WXHXD) | 215 x 44 x 130 mm (8.5" x 1.73" x 5.1") |
WEIGHT | 1.0 kg ( 2.2 lbs) |
TEMPERATURE RANGE | +5° up to +50° Celsius (41° F up to 122°F) |
RELATIVE HUMIDITY | < 75%, non condensing |
BOX CONTENTS | 1. RME ADI-2 Pro FS R Black Edition |
2. MRC (Multi-Remote-Control) | |
3. NT-RME-2 (lockable) | |
4. Power supply for ADI-2 Pro. Robust and light-weight switching power supply, 100 V-240 V AC, 12 V 2 A DC. Lockable DC connector | |
5. BO968 Digital breakout cable (9-pin D-sub to 2 x XLR and 2 x RCA) | |
6. Unirack Universal rackmount adapter (tub for two 9.5" devices) |
OTHER DETAILS
GENERIC NAME | Digital Audio Converter |
COUNTRY OF ORIGIN | Germany |
IMPORTER DETAILS | Importers Name: Modi Digital Address: 23, Shiv Sagar Society, Dahisar East, Mumbai- 400068 Contact No: +91 9769558815 |
NET QUANTITY | 1 |
FAQs
What is the warranty period on the RME ADI-2 Pro FS R Black Edition and how do I claim warranty?
The warranty period on RME ADI-2 Pro FS R Black Edition is for 1 year. Read more information about RME's warranty in India. click here.
What are the differences between the pro and the non-pro version?
The RME ADI-2 Pro FS R comes equipped with a new chipset, extended remote controls, upgraded audio specs and an all-new Black colour. These are the main changes between the Pro and Non-Pro version.
Can I play an analogue source and have it digital out via coaxial in real-time?
Yes, this unit works as an AD/DA so you can do this without any special settings. Analog input patches to the digital outputs by default.
Would this permit me to plug a microphone into one of the XLR ports or do I need a separate mic pre?
No, the RME ADI-2 Pro FS R Black Edition does not have any mic preamps built-in so it is not intended for connecting microphones. You would need to use a separate mic preamp.
Do consumer audio players connect to the Analog Inputs in the back panel? What type of cable connectors should be used?
The best way to connect a consumer audio player to this unit would be to utilise either the S/PDIF Coaxial or S/PDIF Optical digital inputs. The analogue inputs are balanced 1/4-inch TRS or XLR, and usually connect to professional audio gear, such as a mixing board or a CD player.
RME PRESENTS THE SPECIAL EDITION ADI-2 PRO FS R WITH IMPROVED PERFORMANCE
RME introduces the special edition ADI-2 Pro FS R, featuring a new and improveddesign with enhanced performance, complete with an IR remote control. The new ADI-2 Pro FS R Black Editionfeatures the AK4493 chip with slightly improved specs and improved performance by reducing the THD andincreasing the signal-to-noise ratio by 3dB whilst converting signals from digital to the analogue domain.The premium-grade circuit design provides 2.5dB of analogue headroom, with the digital headroom going up to+4 dBFS, ensuring the best possible performance. RME ADI-2 Pro FS R showcases the industry’s highestfootprint per feature ratio, excellent tech specs, crystal clear and transparent sound signature, and twoextremely powerful headphone outputs along with SteadyClock technology.
EXPERIENCE REFERENCE QUALITY CONVERSION AND STABLE AUDIO WITH STEADYCLOCK FS
The RME ADI-2 Pro FS R offers world-class conversion, thanks to its ultra-stableSteadyClock FS clock, AK4493 chip, and upgraded specs from its predecessor. The RME ADI-2 Pro FS R cantackle sample rates up to 768kHz, convert between multiple digital formats, and record and playback DSDaudio. The ADI-2 Pro FS R's SteadyClock FS takes self-jitter even lower, improving its analogue PLL circuitand referencing both Direct Digital Synthesis and PLL to a low-phase-noise quartz crystal. Thanks to thisupdated circuit, the ADI-2 Pro FS R reaches jitter specs as low as a femtosecond. You can also use the ADI-2Pro FS R as a top-tier dual headphone amplifier. Beyond that, you can use the ADI-2 Pro FS R's USB port tocreate a high-end AD/DA frontend for your Mac, PC, or iOS device.
FEATURING ULTRA-FIDELITY AUDIO ARCHITECTURE THAT OFFERS WORLD-CLASS SOUND
The RME ADI-2 Pro FS R features a 10-layer design with custom copper thickness,guaranteeing the finest undisturbed sound. Its internal power supply is a low-noise design that deliversseparate power to its headphone outputs. In use, the ADI-2 Pro FS R exhibits an exceptional signal-to-noiseratio, minimal harmonic distortion, and a high slew rate via selected SoundPlus op-amps. The entire analoguesignal path is fully symmetrical, balanced, and DC-coupled. The only capacitors in the ADI-2 Pro FS R'ssignal path perform DC protection at its analogue input sockets and have been carefully selected to avoidany sonic impact. The 4-channel AD-converter, supporting 786 kHz sample rate and DSD recording, is used in adual-mono design, with a 3 dB improved signal to noise ratio. Two premium DACs are used for two separatestereo outputs.
EQUIPPED WITH AN EXTREME POWER HEADPHONE OUTPUT STAGE WITH DUAL OUTPUTS
Thanks to RME's Extreme Power design, you'll experience 0.1-ohm output impedance, a+22dBu maximum output level, and 1.5 watts of output power per channel. Each headphone output is separate,features balanced operation, and boasts the same 120dBA signal-to-noise ratio as the ADI-2 Pro FS R's lineoutputs. Even with sensitive headphones, hum or noise won't spoil your listening experience. The ExtremePower design incorporates current limiting, power surveillance, overload detection, and DC protection. Lowpower and high power modes are also available to match the impedance of your headphones. Having two stereooutputs with balanced headphones is possible with the newly developed Advanced Balanced mode. This moderemoves most limitations of standard balanced operation and turns the ADI-2 Pro FS R into a powerhouse.
OFFERING A MYRIAD OF ANALOG AND DIGITAL INPUT AND OUTPUT CONNECTIVITY
Whatever signal you feed the RME ADI-2 Pro FS R, it can handle it. A pair ofservo-balanced XLR/TRS combo analogue inputs make connecting your gear a breeze. Two separate balanced andunbalanced outputs on XLR and TS are also on tap, as are two Extreme Power headphone outputs. The ADI-2 ProFS R's optical S/PDIF I/O also accommodates ADAT and AES signals. Connect your Mac to the ADI-2 Pro FS R'sUSB port to use it as a 6-in/8-out audio interface — no drivers required. Or use it under Windows with RME'srock-solid MADIface driver for full WDM and ASIO compatibility. Its USB port is also compatible with youriOS devices. This universal set of I/O options offers superior quality and flexible connectivity to thosewho take a no-compromise approach to audio.
EMBEDDED WITH A RANGE OF UNIQUE FEATURES FOR UNPARALLELED PERFORMANCE
The RME ADI-2 Pro FS R offers more features than your average AD/DA converter. Youget access to Bass/Treble controls, a binaural cross-feed function, adjustable loudness filter, selectableAD/DA filters, four discrete I/O reference levels, auto reference level setting, auto balanced headphonesmode, and much more. Professional engineers will appreciate the ADI-2 Pro FS R's onboard M-S processing,stereo width, and phase reversal parameters. You also get a spectral analyser and a 30-band bi-quad filteranalysis tool. Best of all, everything is easily visible on the ADI-2 Pro FS R's high-resolution display.Internal auditory processing like EQ, Cross-feed and spectral analysis, is done by a high-performance DSPwith 2.17 Gigaflops (2882 MIPS), delivering enough computing power to work even at a 768 kHz sample rate.
ALL NEW EXTENDED MULTI-REMOTE CONTROL SUPPORT FOR SIMPLIFIED OPERATION
The RME ADI-2 Pro FS R includes extended support for RME’s Multi-Remote Control(MRC). Benefit from wireless access to standby on/off, volume, balance, bass/treble, input selection(optical, coaxial, USB), mute, loudness, and EQ. You also get four user-programmable buttons that offer youaccess to 52 different functions and commands for maximum flexibility. There is no other converter or devicewith such a sophisticated yet easy to use remote control! Complete with extended support for RME’sMulti-Remote Control (MRC), the ADI-2 Pro FS R is an exceptional AD/DA converter for engineers andpassionate audiophiles alike.
XLR | Input: XLR, servo-balanced Input sensitivity switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS Digital Trim Gain range: 0 dB up to +6 dB Signal to Noise ratio (SNR) @ +13/19/24 dBu: 120 dB RMS unweighted, 124 dBA Signal to Noise ratio (SNR) @ +4 dBu: 119 dB RMS unweighted, 123 dBA Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.5 kHz Frequency response @ 96 kHz, -0.5 dB: 3 Hz – 45.5 kHz Frequency response @ 192 kHz, -1 dB: 2 Hz – 92.7 kHz Frequency response @ 384 kHz, -1 dB: < 1 Hz – 124 kHz Frequency response @ 768 kHz, -3 dB: < 1 Hz – 180 kHz THD @ -1 dBFS: -116 dB, 0.00016 % THD @ -10 dBFS: -125 dB, 0.000056 % Channel separation: > 110 dB |
TRS | As input XLR, but: Input: 6.3 mm TRS jack, servo-balanced, fully compatible to TS and RCA |
1/2 XLR | Output level switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS Signal to Noise ratio (SNR) @ +13/19/24 dBu: 120 dB RMS unweighted, 124 dBA Signal to Noise ratio (SNR) @ +4 dBu: 117 dB RMS unweighted, 120 dBA Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHz Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 44.9 kHz Frequency response @ 192 kHz, -1 dB: 0 Hz – 88 kHz Frequency response @ 384 kHz, -1 dB: 0 Hz – 115 kHz Frequency response @ 768 kHz, -3 dB: 0 Hz – 109 kHz THD @ 0 dBFS: < -120 dB, 0.0001 % THD+N @ 0 dBFS: -115 dB, 0.00018 % Channel separation: > 110 dB Output impedance: 200 Ohm |
1/2 TS (REAR) | As output XLR, but: Output: 6.3 mm TS jack, unbalanced Maximum output level: +19 dBu Signal to Noise ratio (SNR) @ +19 dBu: 120 dB RMS unweighted, 123 dBA Signal to Noise ratio (SNR) @ +13 dBu: 118 dB RMS unweighted, 121 dBA Signal to Noise ratio (SNR) @ +4 dBu: 115 dB RMS unweighted, 118 dBA Output impedance: 100 Ohm |
PHONES 1/2 | As Output 1/2 TS, but: Output: 6.3 mm TRS jack, unbalanced, stereo Output impedance: 0.1 Ohm Signal to Noise ratio (SNR) @ +22 dBu: 120 dB RMS unweighted, 123 dBA Signal to Noise ratio (SNR) @ +7 dBu: 118 dB RMS unweighted, 121 dBA Output level at 0 dBFS, Ref Level +19 dBu, load 100 Ohm or up: +22 dBu (10 V) Output level at 0 dBFS, Ref Level +4 dBu, load 8 Ohm or up: +7 dBu (1.73 V) THD @ +18 dBu, 32 Ohm load, 1.2 Watt: -110 dB, 0.0003 % THD+N @ + 18 dBu, 32 Ohm load: -107 dB, 0.00045 % THD @ +14 dBu, 16 Ohm load, 0.94 Watt: -110 dB, 0.0003 % Max power @ 0.001% THD: 1.5 W per channel |
OUTPUT PHONES 3/4 | As Output Phones 1/2, but: Output levels at 0 dBFS: Hi-Power off +7 dBu, Hi-Power On +22 dBu |
BALANCED PHONES MODE | As before, but: Output levels at 0 dBFS: Hi-Power off +13 dBu (3.46 V), Hi-Power On +28 dBu (19.5 V) Output impedance: 0.2 Ohm Signal to Noise ratio (SNR) @ +28 dBu: 123 dB RMS unweighted, 126 dBA Signal to Noise ratio (SNR) @ +13 dBu: 121 dB RMS unweighted, 125 dBA Output level at 0 dBFS, Hi-Power On, load 150 Ohm or up: +28 dBu (19.5 V) Output level at 0 dBFS, Hi-Power Off, load 8 Ohm or up: +13 dBu (3.46 V) Max power @ 0.001% THD: 2.9 W per channel |
GENERAL | Lock Range: 28 kHz – 200 kHz Jitter suppression: > 50 dB (2.4 kHz) Accepts Consumer and Professional format |
AES/EBU | 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992 Input sensitivity 1.0 Vpp |
SPDIF COAXIAL | 1 x RCA, transformer-balanced, according to IEC 60958 High-sensitivity input stage (< 0.3 Vpp) AES/EBU compatible (AES3-1992) |
SPDIF OPTICAL | 1 x optical, according to IEC 60958 ADAT compatible |
AES/EBU | 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992 Output level 2.7 Vpp Format Professional according to AES3-1992 Amendment 4 Single Wire mode, sample rate 28 kHz up to 200 kHz |
SPDIF COAXIAL | 1 x RCA, according to IEC 60958 Output level 0.75 Vpp Format Consumer SPDIF according to IEC 60958 Single Wire mode, sample rate 28 kHz up to 200 kHz |
SPDIF OPTICAL | 1 x optical, according to IEC 60958 Format Consumer (SPDIF) according to IEC 60958 Sample rate 28 kHz up to 200 kHz |
CLOCKS | Internal, AES In, SPDIF In, ADAT In |
JITTER SUPPRESSION OF EXTERNAL CLOCKS | > 50 dB (2.4 kHz) |
EFFECTIVE CLOCK JITTER INFLUENCE ON AD AND DA CONVERSION | near zero |
EFFECTIVE CLOCK JITTER INFLUENCE ON AD AND DA CONVERSION | near zero PLL ensures zero dropout, even at more than 100 ns jitter Additional Digital Bitclock PLL for trouble-free varispeed ADAT operation |
SUPPORTED SAMPLE RATES FOR EXTERNAL CLOCKS | 32 kHz up to 200 |
INTERNALLY SUPPORTED SAMPLE RATES | 44.1 kHz up to 768 kHz |
INCLUDED POWER SUPPLY | external switching PSU, 100 - 240 V AC, 2 A, 24 Watts |
STANDBY POWER CONSUMPTION | 50 mW |
IDLE POWER CONSUMPTION | 10 Watts |
MAX. POWER CONSUMPTION | 22 Watts |
IDLE CURRENT AT 12 V | 850 mA (10 Watts) |
DIMENSIONS (WXHXD) | 215 x 44 x 130 mm (8.5" x 1.73" x 5.1") |
WEIGHT | 1.0 kg ( 2.2 lbs) |
TEMPERATURE RANGE | +5° up to +50° Celsius (41° F up to 122°F) |
RELATIVE HUMIDITY | < 75%, non condensing |
BOX CONTENTS | 1. RME ADI-2 Pro FS R Black Edition |
2. MRC (Multi-Remote-Control) | |
3. NT-RME-2 (lockable) | |
4. Power supply for ADI-2 Pro. Robust and light-weight switching power supply, 100 V-240 V AC, 12 V 2 A DC. Lockable DC connector | |
5. BO968 Digital breakout cable (9-pin D-sub to 2 x XLR and 2 x RCA) | |
6. Unirack Universal rackmount adapter (tub for two 9.5" devices) |
OTHER DETAILS
GENERIC NAME | Digital Audio Converter |
COUNTRY OF ORIGIN | Germany |
IMPORTER DETAILS | Importers Name: Modi Digital Address: 23, Shiv Sagar Society, Dahisar East, Mumbai- 400068 Contact No: +91 9769558815 |
NET QUANTITY | 1 |
What is the warranty period on the RME ADI-2 Pro FS R Black Edition and how do I claim warranty?
The warranty period on RME ADI-2 Pro FS R Black Edition is for 1 year. Read more information about RME's warranty in India. click here.
What are the differences between the pro and the non-pro version?
The RME ADI-2 Pro FS R comes equipped with a new chipset, extended remote controls, upgraded audio specs and an all-new Black colour. These are the main changes between the Pro and Non-Pro version.
Can I play an analogue source and have it digital out via coaxial in real-time?
Yes, this unit works as an AD/DA so you can do this without any special settings. Analog input patches to the digital outputs by default.
Would this permit me to plug a microphone into one of the XLR ports or do I need a separate mic pre?
No, the RME ADI-2 Pro FS R Black Edition does not have any mic preamps built-in so it is not intended for connecting microphones. You would need to use a separate mic preamp.
Do consumer audio players connect to the Analog Inputs in the back panel? What type of cable connectors should be used?
The best way to connect a consumer audio player to this unit would be to utilise either the S/PDIF Coaxial or S/PDIF Optical digital inputs. The analogue inputs are balanced 1/4-inch TRS or XLR, and usually connect to professional audio gear, such as a mixing board or a CD player.
Don't sweat it, this
RME - ADI-2 Pro FS R Black Edition comes with a 1 Year warranty
from RME that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about RME's warranty in India.
This product is rated 5.0 of 5.0 stars.
It has received 1 review.
