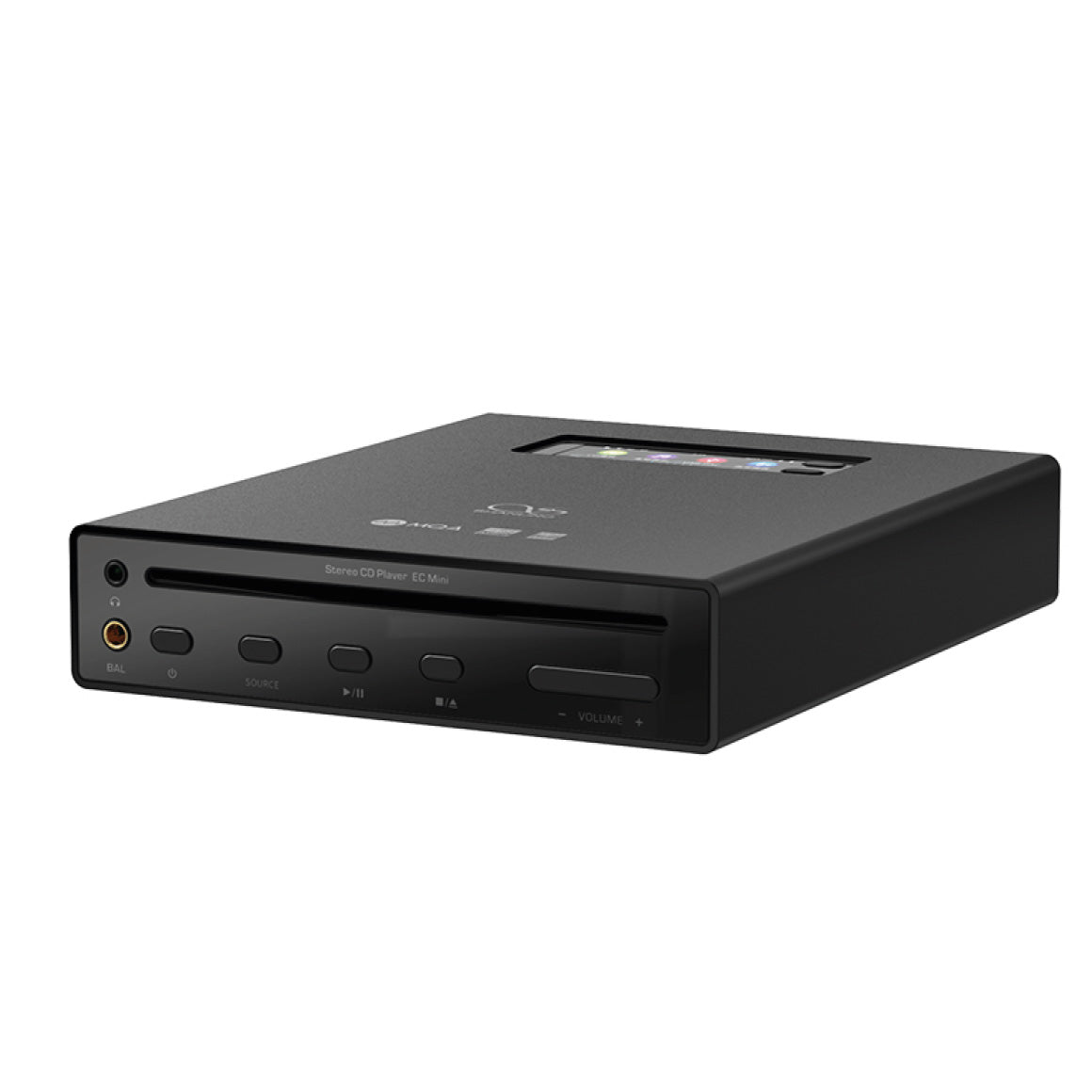

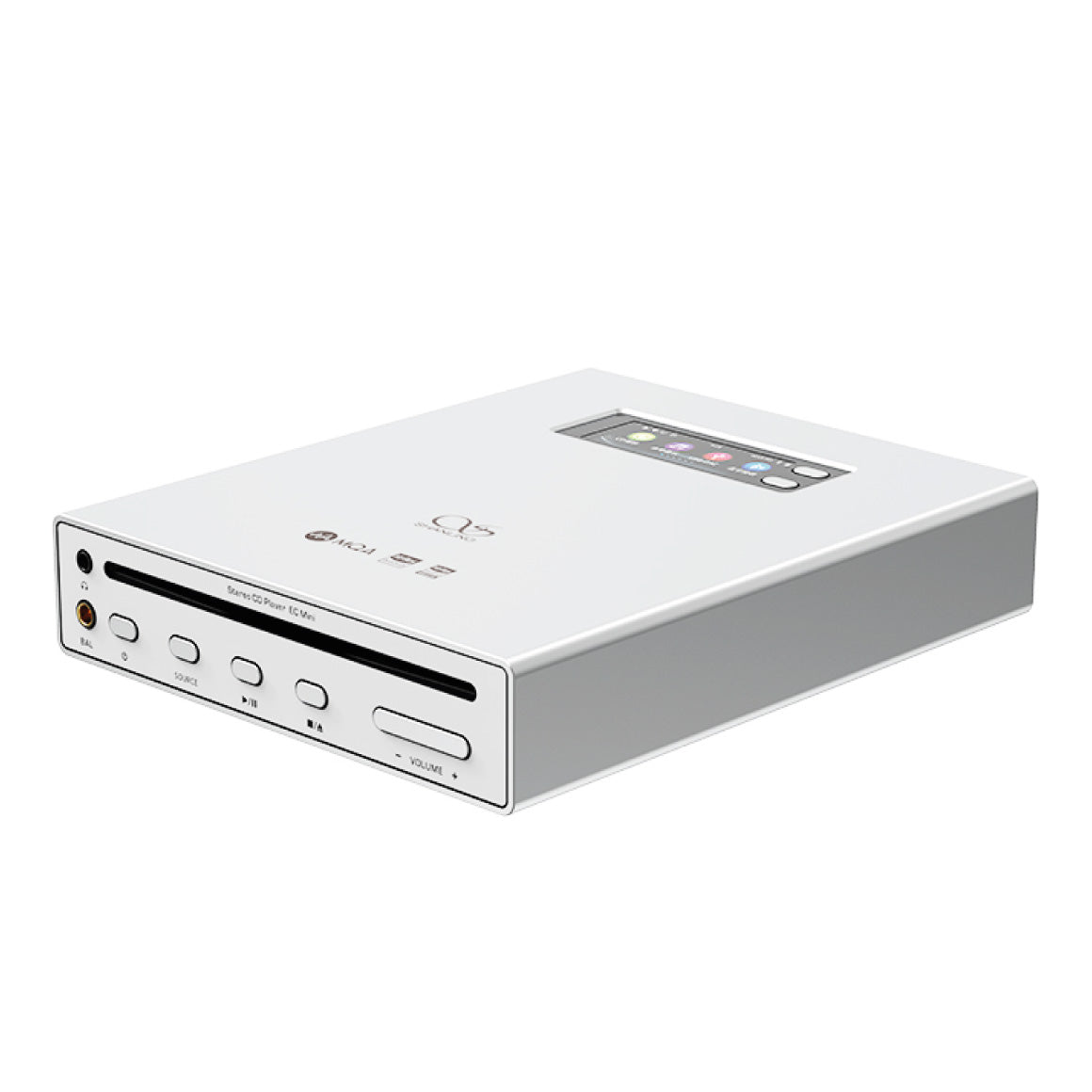

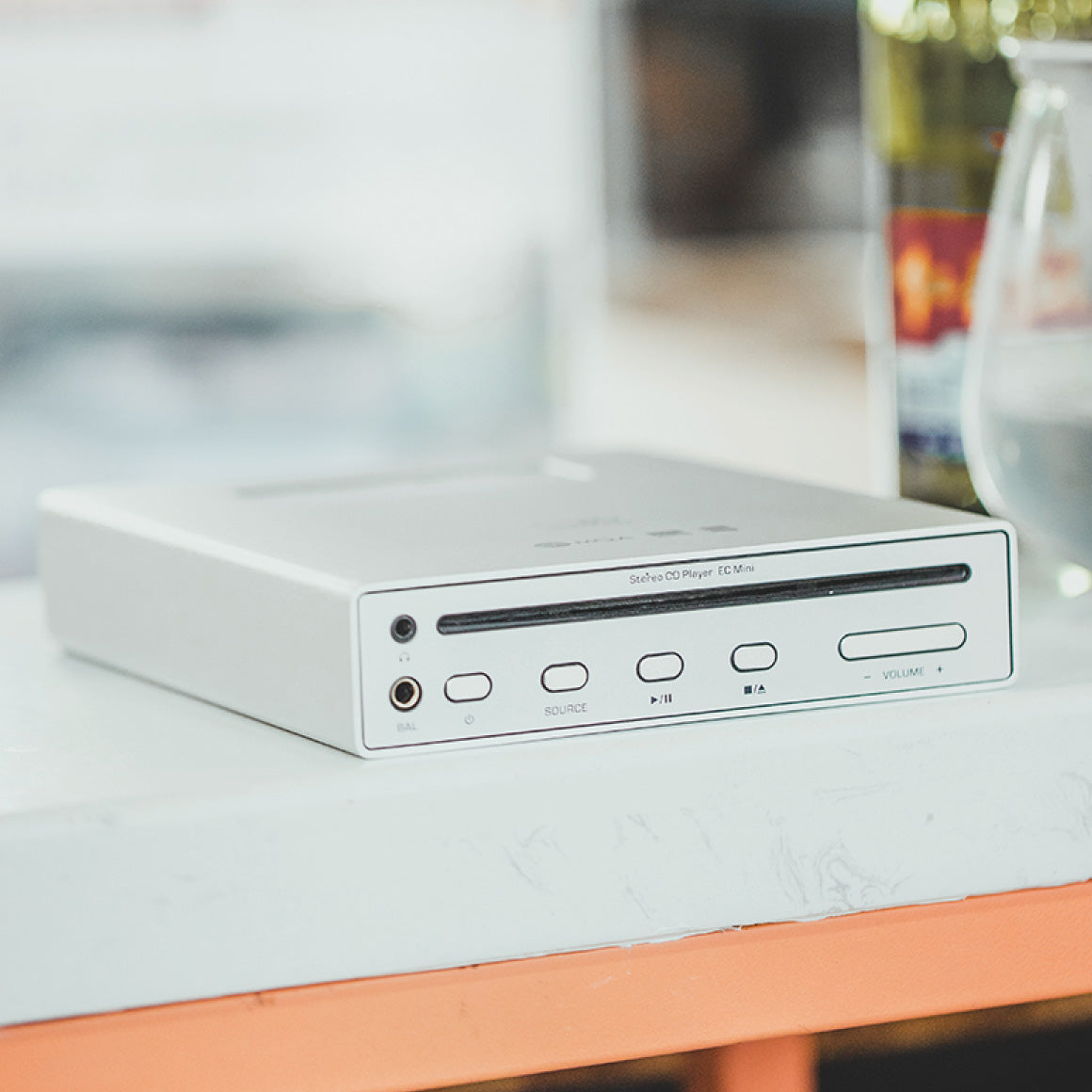

Shanling - EC Mini
CD Player & DACGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 11,294
₹ 883
₹ 712
6
Low Cost EMI
₹ 5,759
₹ 1,556
₹ 1,259
9
15.99%
₹ 3,915
₹ 2,237
12
15.99%
₹ 2,994
₹ 2,927
18
15.99%
₹ 2,074
₹ 4,334
24
15.99%
₹ 1,616
₹ 5,775
HDFC Bank
3
Low Cost EMI
₹ 11,294
₹ 884
₹ 712
6
Low Cost EMI
₹ 5,759
₹ 1,557
₹ 1,259
9
16%
₹ 3,915
₹ 2,239
12
16%
₹ 2,994
₹ 2,929
18
16%
₹ 2,074
₹ 4,337
24
16%
₹ 1,616
₹ 5,779
SBI Bank
3
Low Cost EMI
₹ 11,304
₹ 912
₹ 733
6
Low Cost EMI
₹ 5,743
₹ 1,459
₹ 1,175
9
15%
₹ 3,900
₹ 2,097
12
15%
₹ 2,978
₹ 2,742
18
16%
₹ 2,074
₹ 4,337
24
16%
₹ 1,616
₹ 5,779
Axis Bank
3
Low Cost EMI
₹ 11,294
₹ 884
₹ 712
6
Low Cost EMI
₹ 5,759
₹ 1,557
₹ 1,259
9
16%
₹ 3,915
₹ 2,239
12
16%
₹ 2,963
₹ 2,556
18
16%
₹ 2,074
₹ 4,337
24
16%
₹ 1,616
₹ 5,779
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 11,257
₹ 773
6
14%
₹ 5,727
₹ 1,360
9
16%
₹ 3,915
₹ 2,239
12
16%
₹ 2,994
₹ 2,929
18
16%
₹ 2,074
₹ 4,337
24
16%
₹ 1,616
₹ 5,779
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 11,294
₹ 884
6
16%
₹ 5,759
₹ 1,557
9
16%
₹ 3,915
₹ 2,239
12
16%
₹ 2,994
₹ 2,929
18
16%
₹ 2,074
₹ 4,337
24
16%
₹ 1,616
₹ 5,779
RBL Bank
3
13%
₹ 11,239
₹ 718
6
14%
₹ 5,727
₹ 1,360
9
15%
₹ 3,900
₹ 2,097
12
15%
₹ 2,978
₹ 2,742
18
15%
₹ 2,059
₹ 4,056
24
15%
₹ 1,600
₹ 5,401
Standard Chartered Bank
3
13%
₹ 11,239
₹ 718
6
13%
₹ 5,710
₹ 1,262
9
14%
₹ 3,884
₹ 1,955
12
14%
₹ 2,963
₹ 2,556
INDUSIND Bank
3
14%
₹ 11,257
₹ 773
6
14%
₹ 5,727
₹ 1,360
9
15%
₹ 3,900
₹ 2,097
12
15%
₹ 2,978
₹ 2,742
18
15%
₹ 2,059
₹ 4,056
24
15%
₹ 1,600
₹ 5,401
HSBC Bank
3
12.50%
₹ 11,230
₹ 690
6
12.50%
₹ 5,702
₹ 1,213
9
13.50%
₹ 3,876
₹ 1,884
12
13.50%
₹ 2,955
₹ 2,463
18
13.50%
₹ 2,035
₹ 3,638
YES Bank
3
13%
₹ 11,239
₹ 718
6
13%
₹ 5,710
₹ 1,262
9
14%
₹ 3,884
₹ 1,955
12
14%
₹ 2,963
₹ 2,556
18
15%
₹ 2,059
₹ 4,056
24
15%
₹ 1,600
₹ 5,401
Bank of Baroda
3
13%
₹ 11,239
₹ 718
6
14%
₹ 5,727
₹ 1,360
9
14%
₹ 3,884
₹ 1,955
12
15%
₹ 2,978
₹ 2,742
18
15%
₹ 2,059
₹ 4,056
24
16%
₹ 1,616
₹ 5,779
American Express
3
14%
₹ 11,257
₹ 773
6
14%
₹ 5,727
₹ 1,360
9
14%
₹ 3,884
₹ 1,955
12
14%
₹ 2,963
₹ 2,556
18
15%
₹ 2,059
₹ 4,056
24
15%
₹ 1,600
₹ 5,401
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Chi-Fi
Excellence
Ideal for Audiophiles
These DAC & Amps are designed for discerning music lovers. If audio quality is important to you, a set of DAC & Amps like these would be ideal.
You can expect these DAC & Amps to present you with a refined listening experience. The audio quality exhibited by these DAC & Amps is a beautiful mix of musicality, technical brilliance and high precision.
These DAC & Amps deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!
Bluetooth with
LDAC, aptX & AAC
Battery Life
DAC & Amps with built-in batteries offer easy operation without the annoyance of wires.
Battery life is a measurement of battery performance. It is the amount of time your DAC & Amps will still have enough juice to power your headphones or IEMs. It can be summed up; as how long a battery will last before your DAC & Amps need to be recharged.
Nothing interferes with your music, thanks to the high-performance and long-lasting battery. No interruptions, just pure sonic bliss!
4.4mm
Balanced Output
ESS Sabre ES9219MQ
Dual DAC Chip
Upto 2TB
of Storage
Upto 248mW@32Ω
Power Output

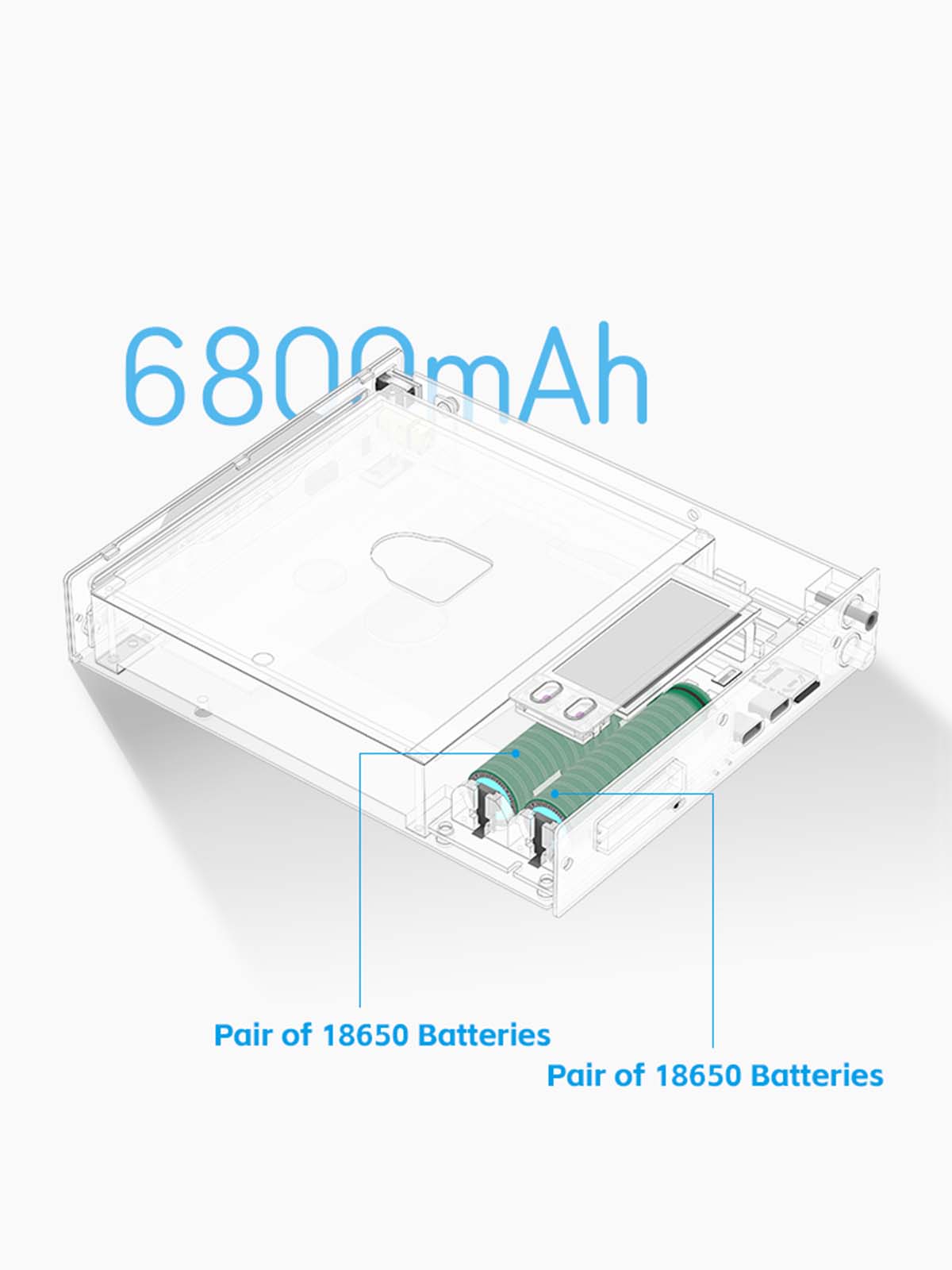

Battery Capacity of
6800mAh
Metal
Build
Volume Controls
If your DAC & Amps include volume controls or volume rockers, you can easily change the volume with a button press or volume knob turn.
DAC & Amps that have volume controls make its operation incredibly simple; turn up the volume on your smartphone or your source devices and then change the volume on DAC & Amps to the desired level.
This design feature allows you to have complete control over the desired volume according to your listening preferences.
DESCRIPTION
SHANLING JOINS IN THE RESURGENCE OF THE PORTABLE CD PLAYER SEGMENT WITH THE EC MINI
The Shanling EC Mini is a versatile and compact device that functions as both a portable CD player and a dedicated digital audio player. It offers support for Audio CD playback, allowing you to enjoy a nostalgic musical journey with your favourite CDs. Additionally, the EC Mini provides modern music playback capabilities, featuring MicroSD card support and bi-directional USB functionality. It offers a range of connectivity options, including 3.5mm and 4.4mm headphone outputs, as well as an RCA analogue pre-output. This makes the Shanling EC Mini a perfect fusion of classic CD players and contemporary digital audio players, catering to a diverse range of music enthusiasts.
FEATURES TWO ESS SABRE DAC CHIPS FOR DEDICATED AND ACCURATE AUDIO DECODING
Shanling has meticulously crafted the EC Mini, incorporating a dedicated audio decoding chipset. This compact device boasts a dual DAC configuration, featuring two ES9219 ESS Sabre DAC chips renowned for their superior sound signal decoding capabilities. These DACs excel at handling 32-bit/384kHz PCM signals and native DSD256 signals, ensuring exceptional audio quality. The dual DAC setup enhances the EC Mini's overall performance, delivering low Total Harmonic Distortion plus Noise (THD+N), high Signal-to-Noise Ratio (SNR), and impressive Dynamic Range (DNR) performance.
EMBEDDED WITH PREMIUM QUALITY INTERNAL COMPONENTS FOR ACCURATE CD PLAYBACK
Shanling has meticulously engineered the EC Mini to provide enduring durability and user comfort, focusing on top-tier CD playback components. This transportable player is equipped with a Philips CD drive and a Sanyo HD860 Laser, known for their precision in CD and MQA-CD reading and playback. These components have already proven their excellence in CD players from Shanling. Shanling Audio, a highly experienced brand in the audiophile industry, has harnessed its years of expertise in crafting high-quality audio products to design the EC Mini. It features premium components like a dedicated LTA8092 Pre-Amp chipset, dual RT6863 headphone amplifiers, KDS low-phase, and ultra-low noise oscillators, and Panasonic, and ELNA capacitors, ensuring a blissful and exceptional music-listening experience.

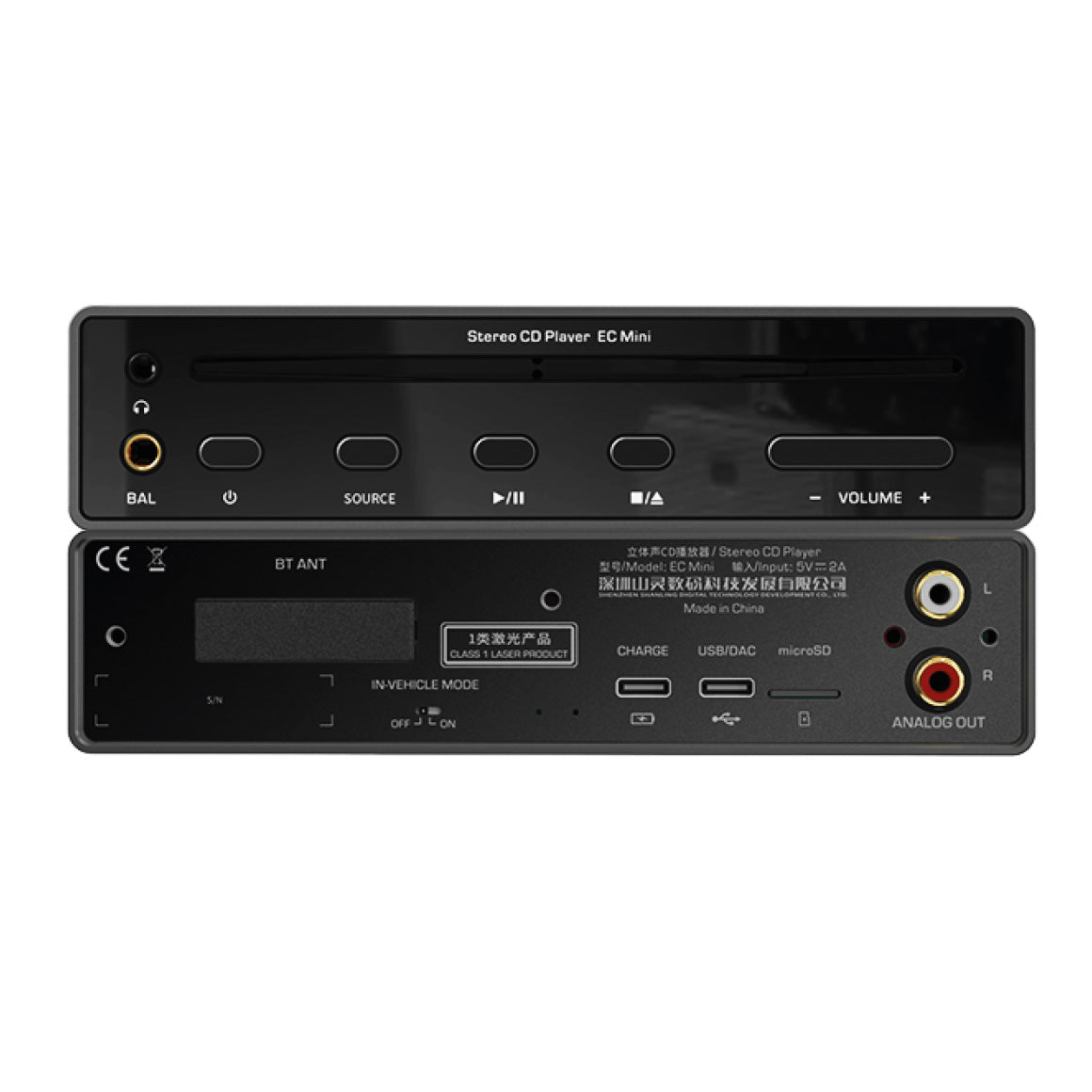

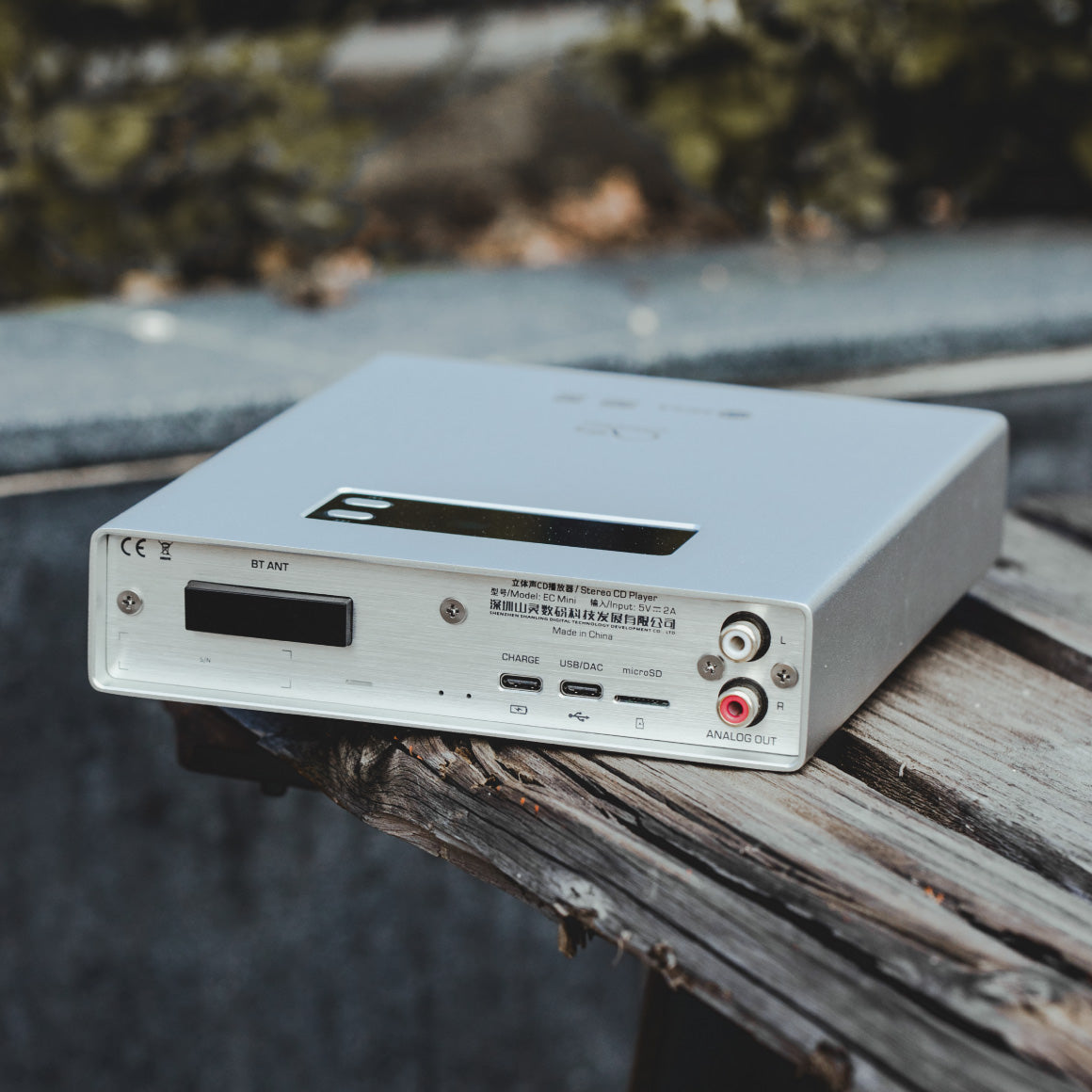

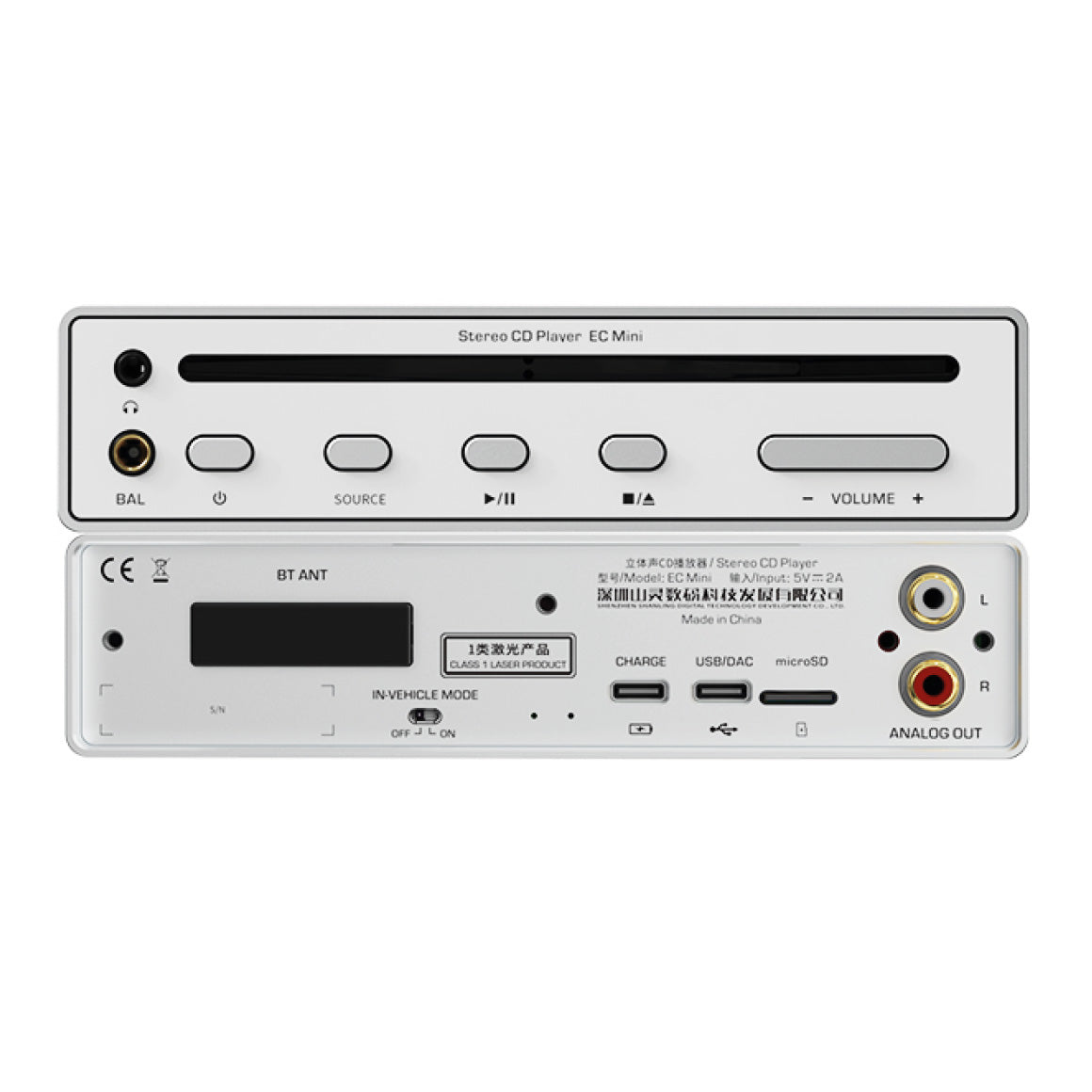

MULTIPLE INPUT AND OUTPUT OPTIONS FOR EASY CONNECTIVITY WITH VARIOUS DEVICES
The Shanling EC Mini offers a versatile range of input and output options, making it more than just a dedicated CD player. It provides comprehensive digital playback support, accommodating microSD cards of up to 2TB in capacity. Additionally, it features Bluetooth V5.0 with support for advanced high-definition protocols such as LDAC, AptX, AAC, and SBC, with the added convenience of bidirectional Bluetooth connectivity. On the output side, the EC Mini boasts dedicated 3.5mm and 4.4mm headphone output ports, as well as RCA analogue pre-out support, offering a wide array of connectivity choices to suit your needs.
INDEPENDENT POWER SUPPLY AND REMOTE PLAYBACK WITH SHANLING COMPANION APP
The Shanling EC Mini incorporates the renowned 18650 battery power supply found in the Shanling H7, featuring a substantial total capacity of 6800mAh. This impressive battery capacity ensures extended usage times, offering up to 25 hours of playback when using a MicroSD card and up to 7.5 hours when playing CDs. Moreover, the EC Mini seamlessly integrates with the latest Shanling Eddict Player application, available on both Android and iOS devices. This app enables you to use your mobile device as a remote control for the EC Mini, granting you control over CD playback and local MicroSD card playback, enhancing your user experience. To download the app click here.

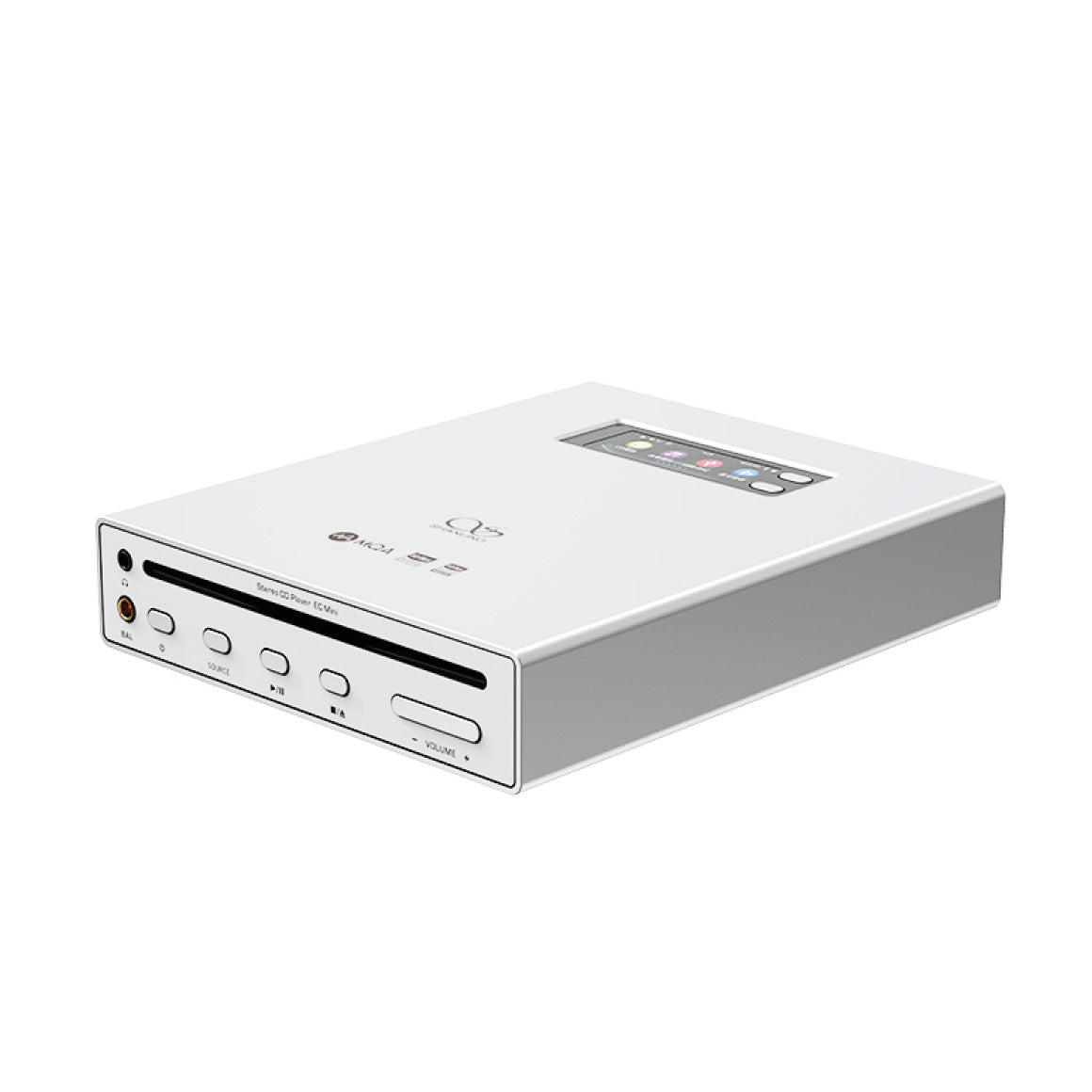

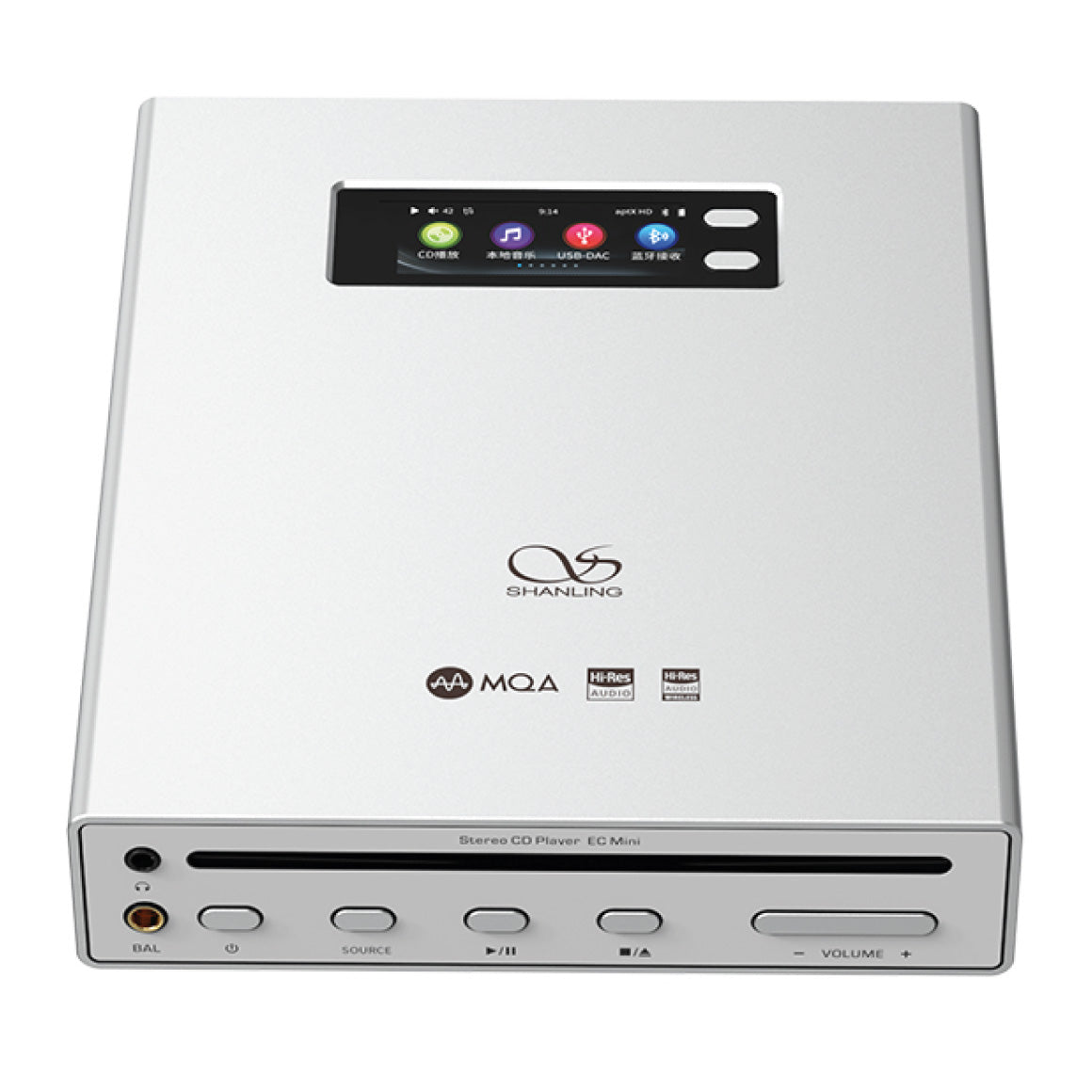

SIMPLE AND COMPACT DESIGN AND UTILISES INGENIC X1000 PLATFORM FOR MUSIC PLAYBACK
The Shanling EC Mini is a meticulously crafted and compact device. While hardware buttons facilitate CD playback control, the addition of a small 2.33-inch touchscreen on the top enhances the versatility of the EC Mini. The design is focused on ensuring it can seamlessly fit into various listening spaces. It features a simplified, downsized design with rounded edges on its metal body for easy portability. The EC Mini also incorporates the Ingenic X1000 platform, which is commonly used in Shanling's devices, and serves as the foundation for its array of advanced features. Furthermore, it runs a customised version of the in-house MTouch system, specifically optimised to ensure smooth and seamless music playback
SPECS
DAC | Dual ES9219MQ DACs |
SCREEN | 2.33-inch LCD Touch display |
MICROSD CARD AUDIO FORMATS | DSD (".iso",".dsf",".dff")/ DXD / APE / FLAC / WAV / AIFF / AIF / DTS / MP3 / WMA/ AAC / OGG / ALAC / MP2 / M4A / AC3 / OPUS / TAK / CUE *DST encoding of ISO is not supported. |
HI-RES SUPPORT | 384kHz/32bit, DSD256 |
MICROSD CARD SUPPORT | Up to 2TB cards |
WEIGHT | 1.2kg |
DIMENSIONS | 250 X 205 X 52mm |
BLUETOOTH VERSION | 5.0 |
BLUETOOTH CODEC | Support |
BLUETOOTH RECEIVER | LDAC / AAC / SBC |
BLUETOOTH TRANSMITTER | LDAC / aptX / AAC / SBC |
OUTPUT LEVEL | up to 2.1 Vrms |
FREQUENCY RESPONSE | 20 Hz - 40 kHz (-0.1dB) |
THD+N | 0.0005% |
CHANNEL SEPARATION | 110 dB |
DYNAMIC RANGE | 114 dB |
SIGNAL-TO-NOISE RATIO | 114 dB |
OUTPUT POWER | 140 mW@32Ω |
FREQUENCY RESPONSE | 20 Hz - 40 kHz (-0.1dB) |
THD+N | 0.0006% |
CHANNEL SEPARATION | 76 dB |
DYNAMIC RANGE | 120 dB |
SIGNAL-TO-NOISE RATIO | 120 dB |
NOISE | >113 dB |
OUTPUT IMPEDANCE | Less than 1 Ohm |
OUTPUT POWER | 248 mW@32Ω |
FREQUENCY RESPONSE | 20 Hz - 40 kHz (-0.1dB) |
THD+N | 0.0005% |
CHANNEL SEPARATION | 115 dB |
DYNAMIC RANGE | 123 dB |
SIGNAL-TO-NOISE | 123 dB |
NOISE | >110 dB |
OUTPUT IMPEDANCE | Less than 1Ω |
BOX CONTENTS | 1. Shanling EC Mini |
OTHER DETAILS
GENERIC NAME | Digital Audio Converter |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 29 x 21 x 8 CM |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Shenzhen Shanling Digital Technology Development Co., Ltd Address: No. 10, Chiwan 1 Road, Shekou District of Shenzhen City, P.R.C. |
PACKAGE CONTENTS | Shanling EC Mini |
