DESCRIPTION

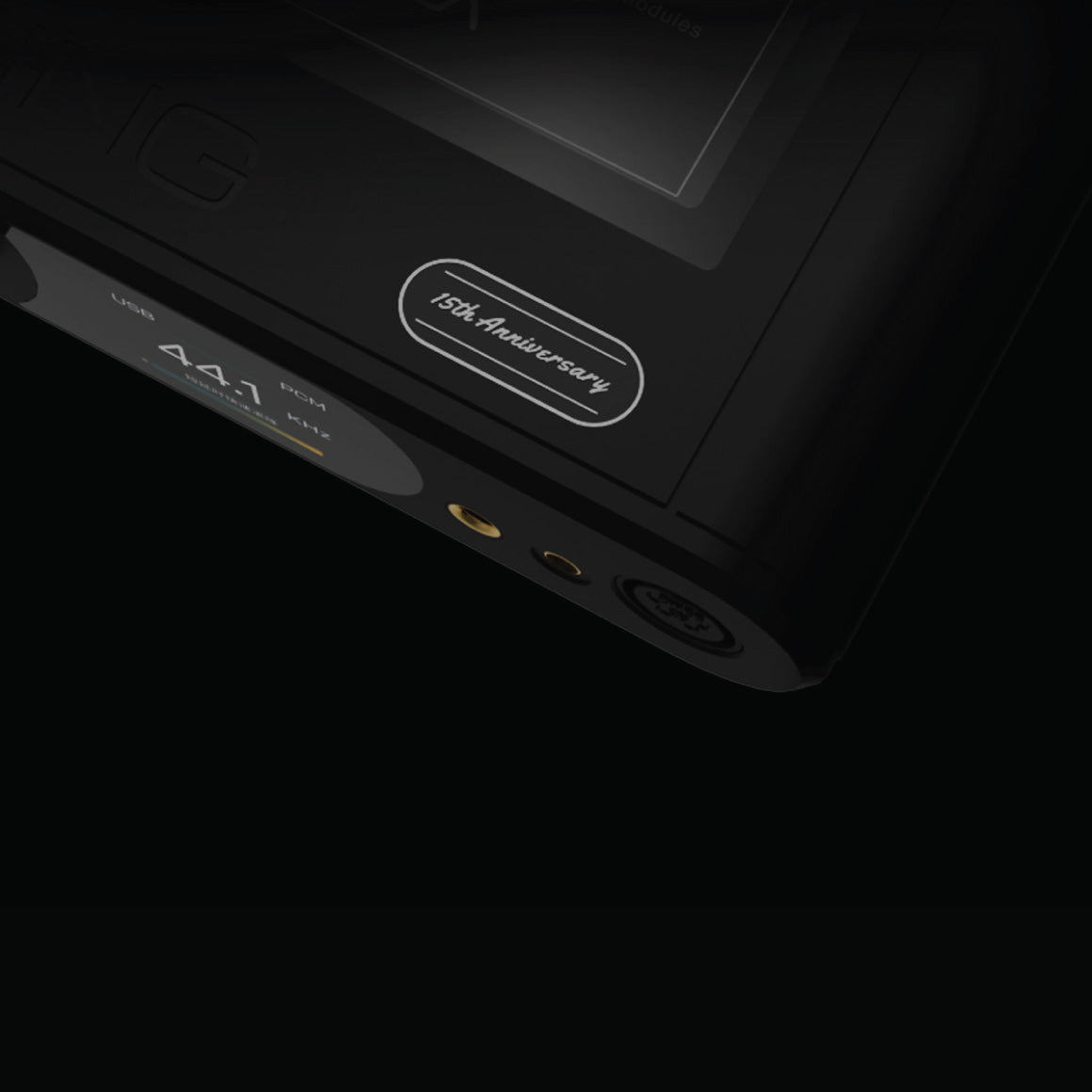

COMMEMORATING 15 YEARS OF AUDIO EXCELLENCE, TOPPING PRESENT THE FLAGSHIP DX9

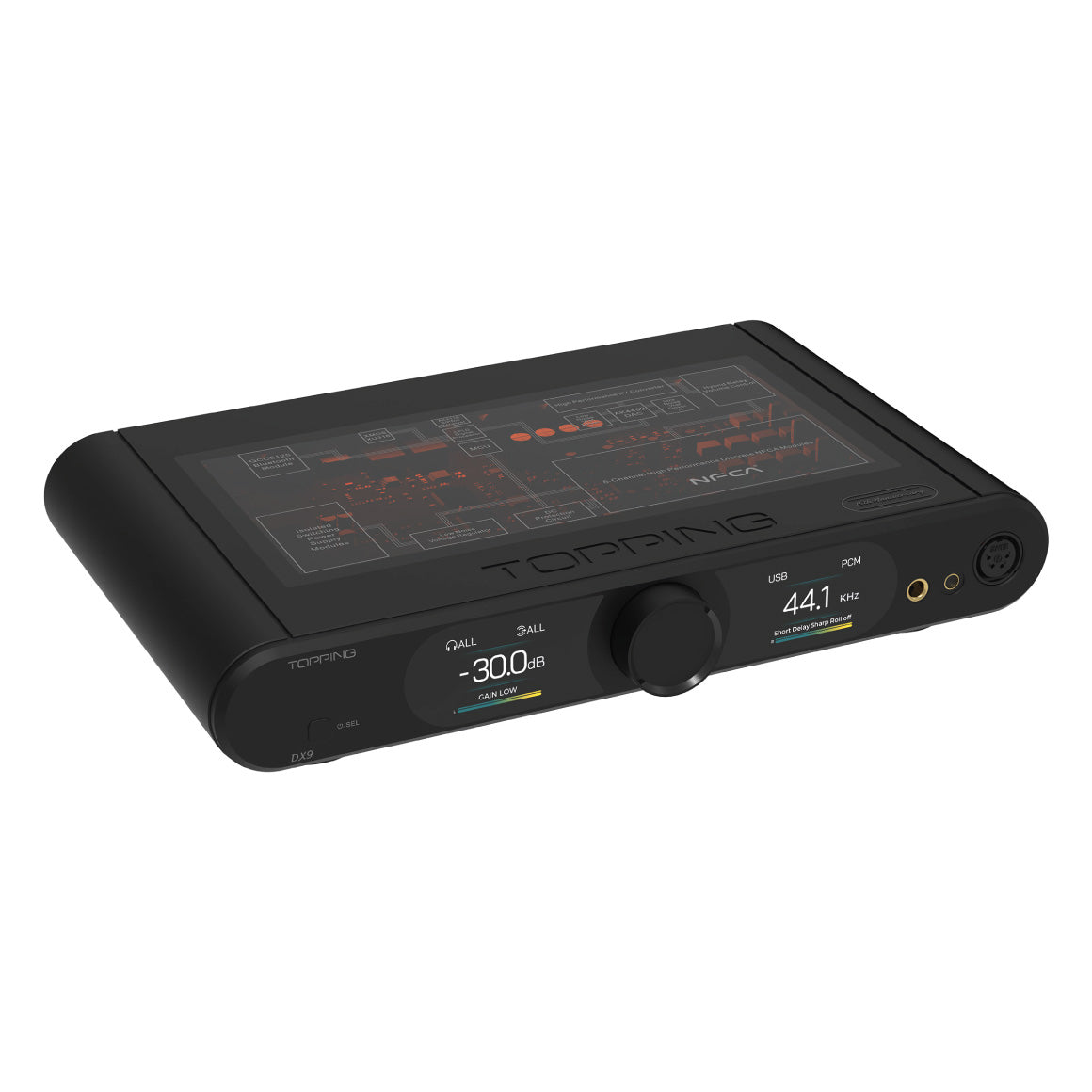

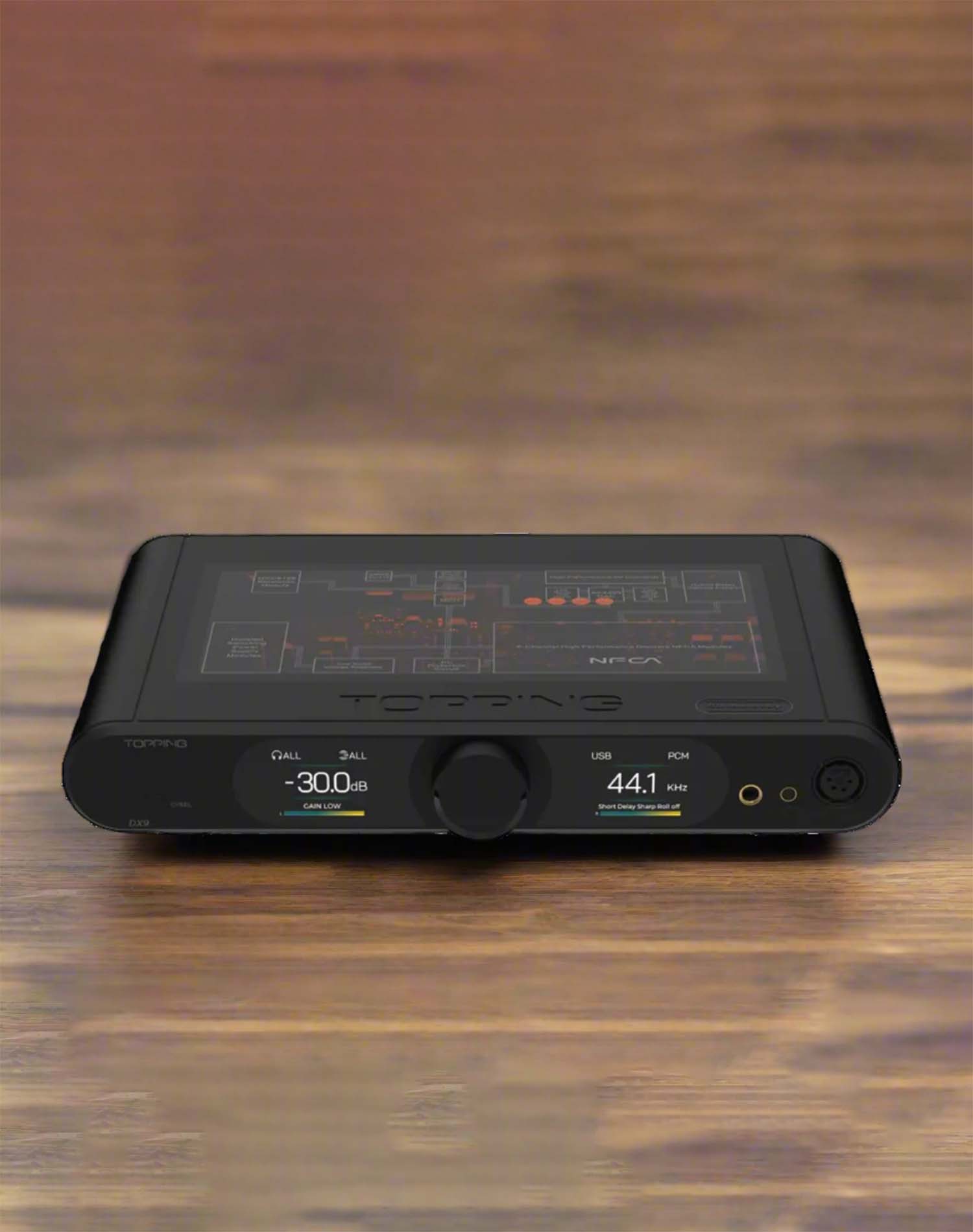

Meet the Topping DX9, a limited edition DAC and Amplifier that skilfully merges traditional engineering expertise with cutting-edge technology. Designed to commemorate Topping's 15th Anniversary, this flagship product stands in a class of its own. It boasts the AKM AK4499EQ, AKM's latest flagship DAC chipset, coupled with a six-channel discrete NFCA headphone amplification module. With its robust core chipset, the DX9 guarantees top-tier performance, delivering exceptional DNR, SNR, and THD+N characteristics while providing impressive headphone output parameters. The DX9 pushes out a remarkable 7000W per channel headphone output at 32Ω impedance and a distortion rating as low as 0.00009% THD+N. It features an exclusive design with a premium CNC-machined chassis and a transparent top surface. Elevate your headphone experience with the Topping DX9, a standalone device that belongs on your desktop.
POWERED BY THE RARE AKM AK4499EQ DAC CHIP FOR THE ULTIMATE PERFORMANCE
The Topping DX9 boasts the rare and legendary AK4499EQ DAC chip, renowned for its remarkable audio capabilities, featuring a dynamic range of 132dB and harmonic distortion below 0.00007%. With four independent channels, it functions akin to having two flagship AK4499EX chips operating in harmony, promising pristine clarity and fidelity in every note. Additionally, the inclusion of the AK4118, a S/PDIF receiver with remarkably low jitter, further elevates its performance. Supporting PCM and Native DSD audio signals, the DX9 delivers an unparalleled listening experience, unveiling the depth and intricacies of your favourite music with unrivalled finesse.
DELIVERING POWERFUL AMPLIFICATION WITH SIX-CHANNEL DISCRETE NFCA MODULE
Your headphones deserve the utmost excellence, and the DX9 surpasses expectations with its state-of-the-art six-channel discrete NFCA (Nested Feedback Composite Amplifier) high-performance headphone amplifier. The DX9 is equipped with Topping's cutting-edge six-channel discrete NFCA headphone amplifier module, featuring an impressive 39 transistors per module. This potent amplifier delivers a commanding output of up to 10W per channel at 16Ω and up to 7W per channel at 32Ω, accompanied by an astonishingly low distortion rate of just 0.00009%. The Topping DX9 unlocks the full potential of your power-hungry headphones, enabling you to experience their audio prowess as never before.
EXPERIENCE ULTRA-PRECISE VOLUME ADJUSTMENTS WITH HYBRID RELAY VOLUME CONTROL
Topping has engineered a cutting-edge hybrid relay volume control for the DX9, utilising a blend of resistors and relays to achieve high-precision volume adjustments. This technology enhances the signal-to-noise ratio (SNR) and minimises noise, especially at lower volume levels. In essence, every subtle twist of the volume knob translates into a meticulously calculated adjustment, offering you fine-grained control over your audio experience. This precision extends to the seamless pairing of high-sensitivity in-ear monitors and headphones with the DX9. The hybrid relay volume network in the DX9 is all about ensuring the utmost accuracy in your sound adjustments.

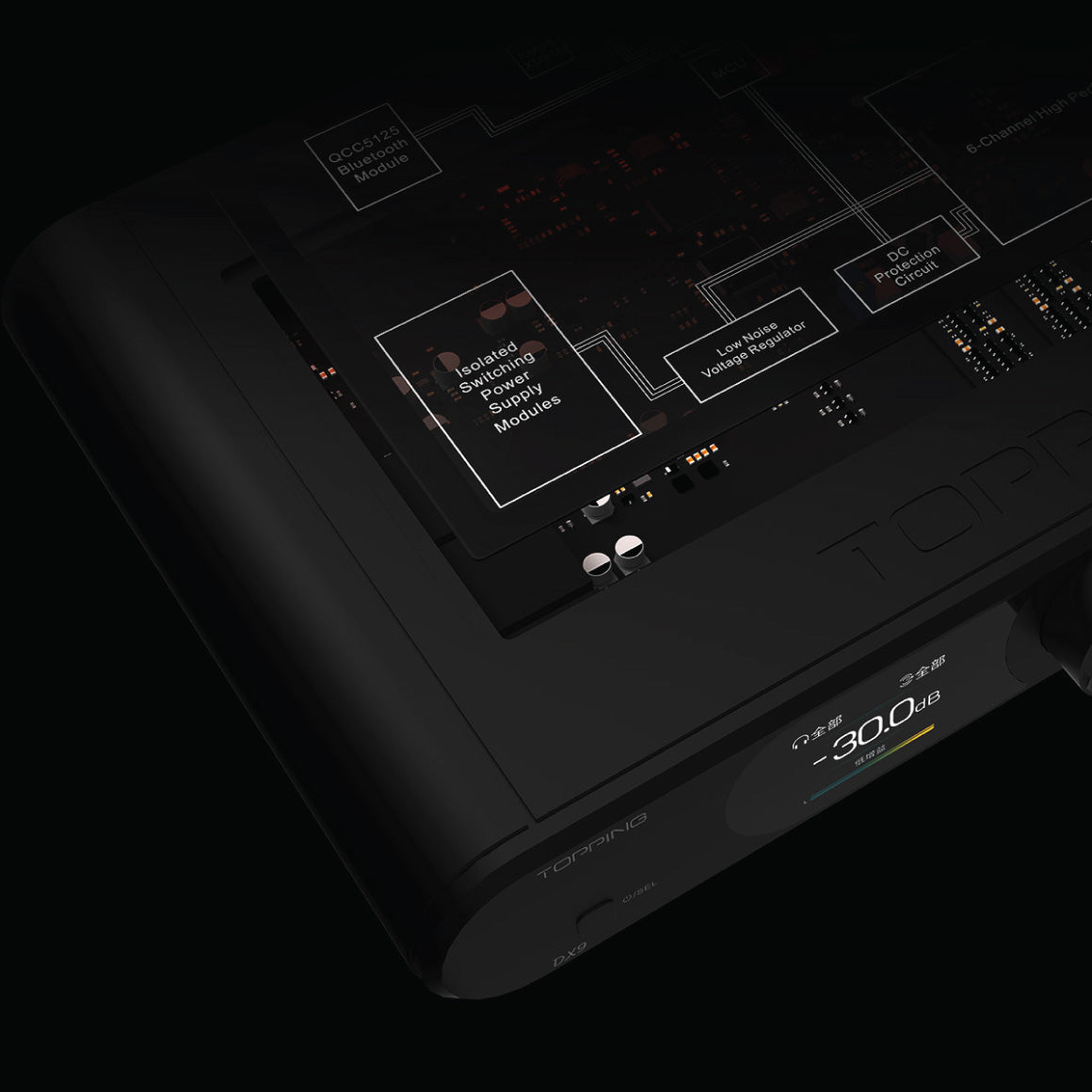

EMBEDS THE BEST QUALITY COMPONENTS AND HAS INDEPENDENT POWER CIRCUITS
Leveraging their wealth of experience, Topping has meticulously curated a premium array of components at the heart of the DX9's chipset. Alongside the flagship AK4499EQ DAC, the DX9 incorporates AKM's AK4118 Digital S/PDIF receiver, a CPLD low-jitter clock processing chipset, and a selection of high-quality capacitors. These elements collectively contribute to the device's ability to attain the desired level of performance and provide an exceptional auditory experience for users. Additionally, the DX9 boasts independently powered DAC and headphone amplifier circuits, ensuring the delivery of pristine, interference-free sound while maintaining an ample energy supply for optimum audio quality.

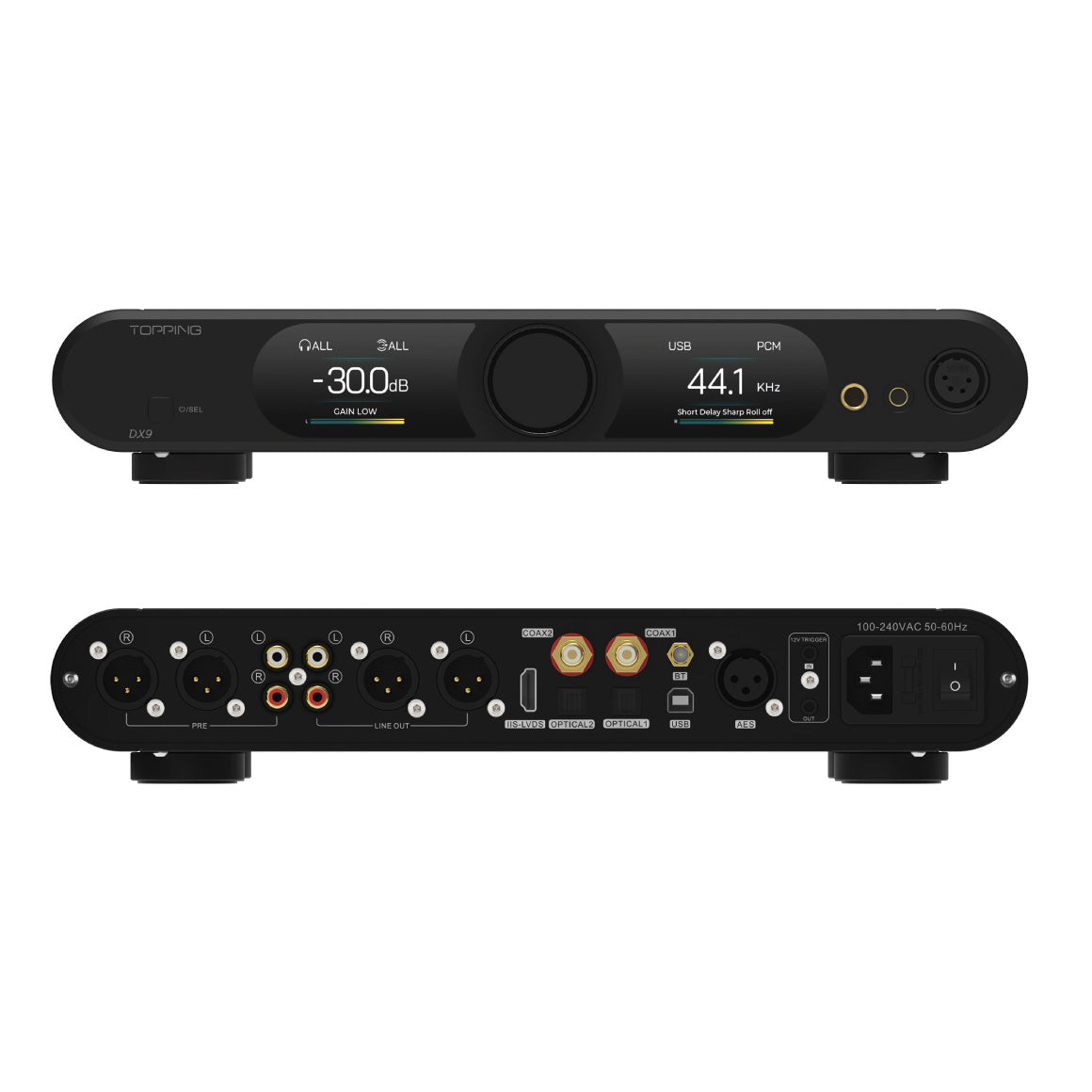

ENJOY FLEXIBILITY IN CONNECTIVITY AND INDEPENDENT LINE-OUT AND PRE-AMP-OUT
The Topping DX9 is designed to cover a spectrum of audio needs with its extensive eight-way digital input array, encompassing AES, USB, Optical, Coax, and Bluetooth connections. What sets it apart is its incorporation of Qualcomm's latest QCC5125 Bluetooth chipset, offering high-definition Bluetooth input capabilities, and supporting protocols like LDAC, AptX HD, AptX Adaptive, and AptX. This diversity extends to the device's input and output options, featuring USB, dual Coaxial, dual optical, I2S, AES, and Bluetooth inputs, as well as dedicated output choices, including single-ended and balanced options for headphones, alongside line-out and preamp outputs. It even provides support for Neutrik XLR and RCA dedicated line-out and preamp outputs.
EXQUISITELY DESIGNED TO EXUDE A BALANCE BETWEEN PRACTICALITY AND AESTHETICS

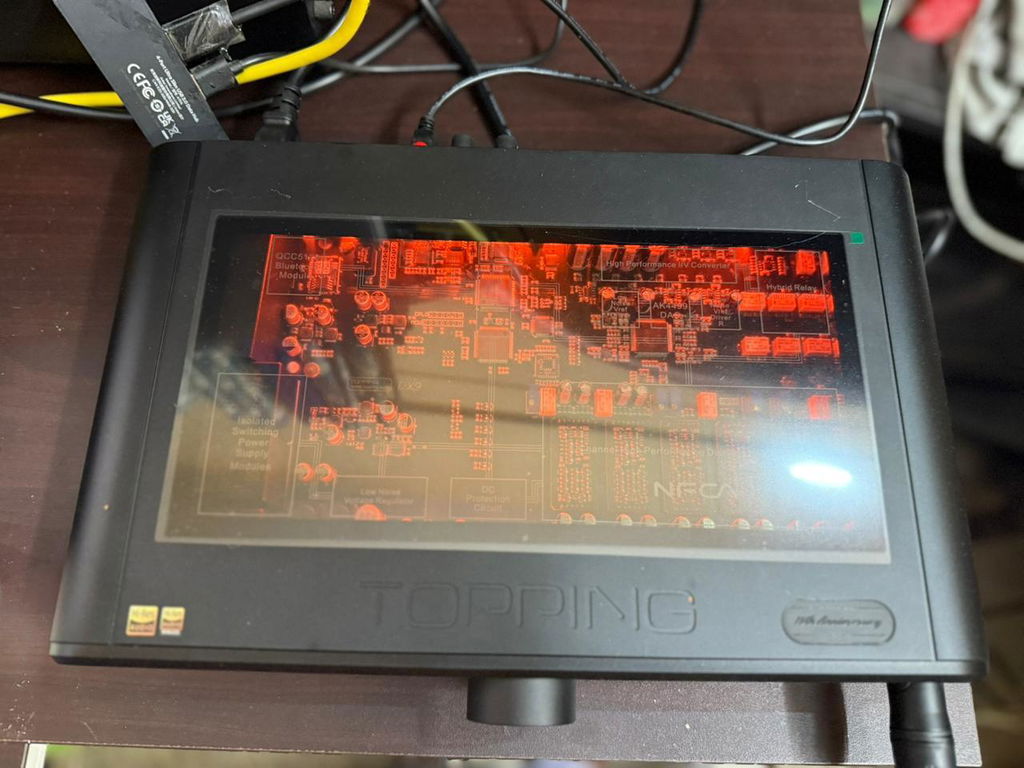

Topping's commitment to crafting its flagship device, the DX9, leaves no detail overlooked. The device boasts impeccable build quality, featuring a CNC-machined metallic chassis that's both robust and visually appealing. Additionally, it incorporates a unique design element with a dual 2.0-inch full-colour display screen and a transparent panoramic sunroof, offering a clear view of the device's internals. Topping's innovative Aurora UI, which graces both screens, adds a touch of vitality with its user-friendly and visually captivating interface. The interface is complemented by a well-coordinated knob and button configuration, ensuring smooth and intuitive operation. Moreover, the DX9 package includes a convenient set of accessories, such as a remote control, USB cable, AC cable, Bluetooth antenna, and a 6.35mm to 3.5mm adaptor. It even features a 12V trigger linkage switch, simplifying the control of multiple devices with a single button press.
SPECS
POWER INPUT | 100-240VAC 50Hz/60Hz |
SIGNAL INPUT | USB/BT/OPT1/OPT2/COAX1/COAX2/AES/IIS |
LINE OUT OUTPUT | XLR/RCA |
PRE OUTPUT | XLR/RCA |
HEADPHONE AMPLIFIER OUTPUT | 1 x 6.35mm headphone output jack 1 x 4-PIN-XLR headphone output jack 1 x 4.4mm headphone output jack |
OTHER CONNECTORS | 12V Trigger In (3.5mm jack) 12V Trigger Out (3.5mm jack) |
DISPLAY | Two 2.0-inch LCDs |
STANDBY POWER CONSUMPTION | <2.5W |
POWER CONSUMPTION | <18W |
USB IN | PCM 44.1kHz-768kHz/16bit-32bit DSD DSD64-DSD512 (Native), DSD64-DSD256 (DOP) |
IIS IN | PCM
44.1kHz-768kHz/16bit-32bit DSD DSD64-DSD512 (Native) |
COAX/OPT/AES IN | PCM 44.1kHz-192kHz/16bit-24bit DSD DSD64 (DOP) |
BT IN | AAC/SBC/APTX/APTX HD/APTX-Adaptive/LDAC |
MEASURED | 34.0cm x 22.5cm x 6.0cm (Include protruding parts) |
WEIGHT | 2750g |
THD+N @1KHZ (A-WT) | RCA: <0.00008% XLR: <0.00007% |
THD @20-20kHz 90KBW | RCA: <0.00015% XLR: <0.00015% |
SNR @1kHZ (A-WT) | RCA: 127dB XLR: 131dB |
DYNAMIC RANGE @1KHZ (A-WT) | RCA: 127dB XLR: 131dB |
FREQUENCY RESPONSE | RCA: 20Hz-20kHz (±0.2dB) 20Hz-40kHz (±0.6dB) XLR: 20Hz-20kHz (±0.2dB) 20Hz-40kHz (±0.6dB) |
OUTPUT LEVEL | RCA: 2.1Vrms @0dBFS XLR: 4.2Vrms @0dBFS |
NOISE (A-WT) | RCA: <1.0uVrms XLR: <1.3uVrms |
CHANNEL CROSSTALK | RCA: -125dB @1kHz XLR: -125dB @1kHz |
CHANNEL BALANCE | RCA: 0.3 dB XLR: 0.3 dB |
OUTPUT IMPEDANCE | RCA: 50 Ohms XLR: 100 Ohms |
THD+N @1KHZ (A-WT) | <0.00007% @Output=550mW (32 Ohms) <0.00007% @Output=60mW (300 Ohms) |
THD @20-20KHZ 90KBW | <0.00050% @Output=550mW (32 Ohms) <0.00030% @Output=60mW (300 Ohms) |
SNR @ MAX OUT 1KHZ (A-WT) | 132dB @1kHz |
DYNAMIC RANGE @1KHZ (A-WT) | 132dB @1kHz |
FREQUENCY RESPONSE | 20Hz-20kHz (+0.2dB) 20Hz-40kHz (±0.6dB) |
OUTPUT LEVEL | 12Vpp @G=L 47Vpp @G=H |
NOISE (A-WT) | <1.3uVrms @G=L <4.2uVrms @G=H |
CHANNEL CROSSTALK | 121dB @1kHz |
GAIN | G=L 12.5dB (Vrms/FS) G=H 24.5dB (Vrms/FS) |
CHANNEL BALANCE | 0.3 dB |
OUTPUT IMPEDANCE | <0.1 Ohm |
OUTPUT POWER | 10000 mW x 2 @16 Ohms THD+N<1% 7080mW x 2 @32 Ohms THD+N<1% 4250mW x 2 @64 Ohms THD+N<1% 950mW x 2 @300 Ohms THD+N<1% 460mW x 2 @600 Ohms THD+N<1% |
LOAD IMPEDANCE | 100 Ohms |
THD+N @1KHZ (A-WT) | <0.00010% @Output=550mW (32 Ohms) <0.00008% @Output=60mW (300 Ohms) |
THD @20-20KHZ 90KBW | <0.00060% @Output=550mW (32 Ohms) <0.00030% @Output=60mW (300 Ohms) |
SNR @ MAX OUT 1KHZ (A-WT) | 131dB @1kHz |
DYNAMIC RANGE @1KHZ (A-WT) | 131dB @1kHz |
FREQUENCY RESPONSE | 20Hz-20kHz (+0.2dB) 20Hz-40kHz (±0.6dB) |
OUTPUT LEVEL | 12Vpp @G=L 24Vpp @G=H |
NOISE (A-WT) | <1.6uVrms @G=L <2.4uVrms @G=H |
CHANNEL CROSSTALK | -98dB @1kHz |
GAIN | G=L 12.5dB (Vrms/FS) G=H 18.5dB (Vrms/FS) |
CHANNEL BALANCE | 0.3 dB |
OUTPUT IMPEDANCE | <0.1 Ohm |
OUTPUT POWER | 3300mW x 2 @16 Ohms THD+N<1% 2100mW x 2 @32 Ohms THD+N<1% 1190mW x 2 @64 Ohms THD+N<1% 240mW x 2 @300 Ohms THD+N<1% |
LOAD IMPEDANCE | >8 Ohms |
BOX CONTENTS | 1. TOPPING DX9 |

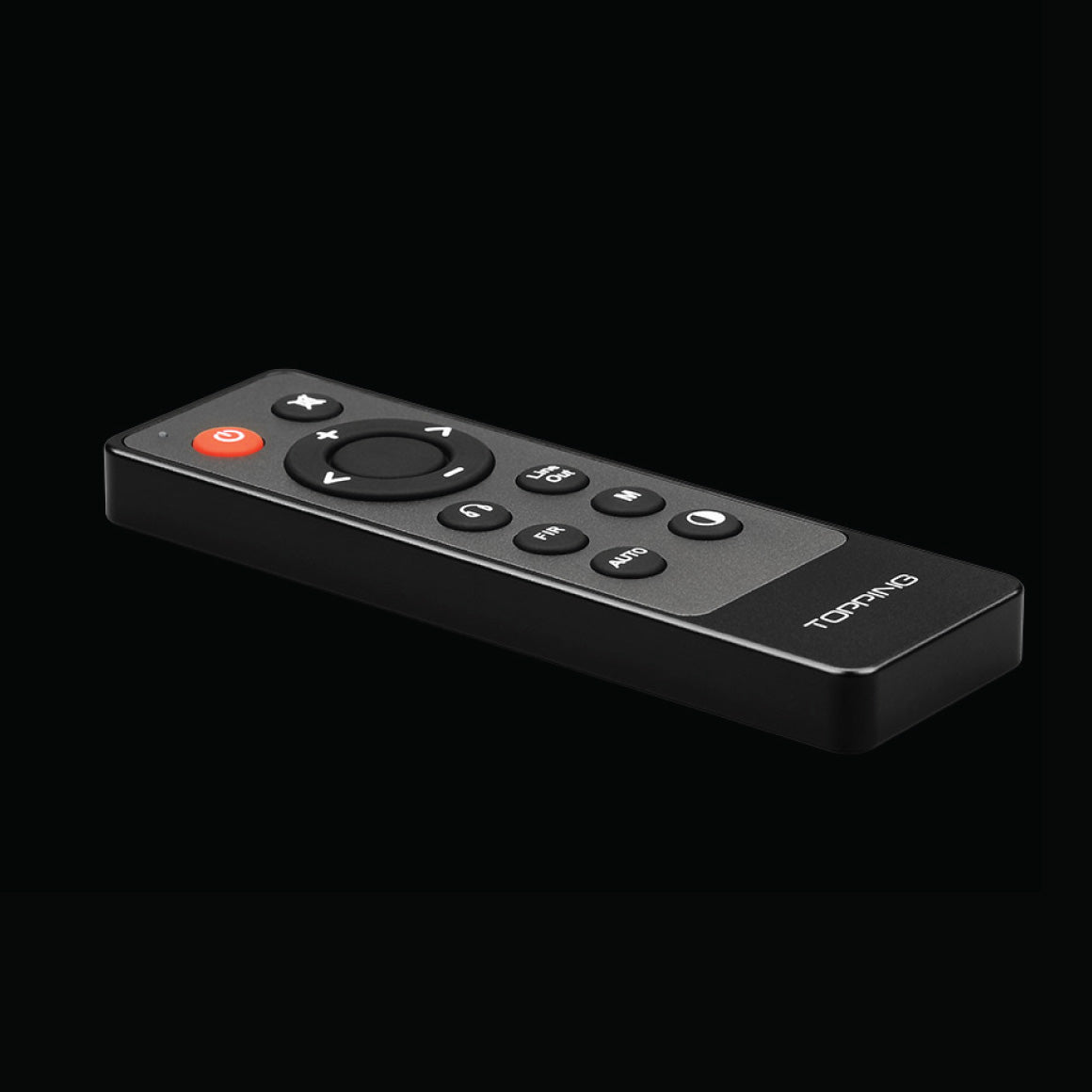

2. Remote Control | |
3. USB Cable | |
4. AC cable | |
5. Bluetooth Antenna | |
6. 6.35mm to 3.5mm adaptor | |
7. Product Information Card |
OTHER DETAILS
GENERIC NAME | DAC & Amp |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 12 x 16.5 x 4 CM |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
PACKAGE CONTENTS | TOPPING DX9 Remote ControL, USB Cable AC Cable Bluetooth Antenna 6.35mm To 3.5mm Adaptor Product Information Card |
User Manual | DX9
Flagship Desktop DAC & Amp
|
COMMEMORATING 15 YEARS OF AUDIO EXCELLENCE, TOPPING PRESENT THE FLAGSHIP DX9
Meet the Topping DX9, a limited edition DAC and Amplifier that skilfully merges traditional engineering expertise with cutting-edge technology. Designed to commemorate Topping's 15th Anniversary, this flagship product stands in a class of its own. It boasts the AKM AK4499EQ, AKM's latest flagship DAC chipset, coupled with a six-channel discrete NFCA headphone amplification module. With its robust core chipset, the DX9 guarantees top-tier performance, delivering exceptional DNR, SNR, and THD+N characteristics while providing impressive headphone output parameters. The DX9 pushes out a remarkable 7000W per channel headphone output at 32Ω impedance and a distortion rating as low as 0.00009% THD+N. It features an exclusive design with a premium CNC-machined chassis and a transparent top surface. Elevate your headphone experience with the Topping DX9, a standalone device that belongs on your desktop.
POWERED BY THE RARE AKM AK4499EQ DAC CHIP FOR THE ULTIMATE PERFORMANCE
The Topping DX9 boasts the rare and legendary AK4499EQ DAC chip, renowned for its remarkable audio capabilities, featuring a dynamic range of 132dB and harmonic distortion below 0.00007%. With four independent channels, it functions akin to having two flagship AK4499EX chips operating in harmony, promising pristine clarity and fidelity in every note. Additionally, the inclusion of the AK4118, a S/PDIF receiver with remarkably low jitter, further elevates its performance. Supporting PCM and Native DSD audio signals, the DX9 delivers an unparalleled listening experience, unveiling the depth and intricacies of your favourite music with unrivalled finesse.
DELIVERING POWERFUL AMPLIFICATION WITH SIX-CHANNEL DISCRETE NFCA MODULE
Your headphones deserve the utmost excellence, and the DX9 surpasses expectations with its state-of-the-art six-channel discrete NFCA (Nested Feedback Composite Amplifier) high-performance headphone amplifier. The DX9 is equipped with Topping's cutting-edge six-channel discrete NFCA headphone amplifier module, featuring an impressive 39 transistors per module. This potent amplifier delivers a commanding output of up to 10W per channel at 16Ω and up to 7W per channel at 32Ω, accompanied by an astonishingly low distortion rate of just 0.00009%. The Topping DX9 unlocks the full potential of your power-hungry headphones, enabling you to experience their audio prowess as never before.
EXPERIENCE ULTRA-PRECISE VOLUME ADJUSTMENTS WITH HYBRID RELAY VOLUME CONTROL
Topping has engineered a cutting-edge hybrid relay volume control for the DX9, utilising a blend of resistors and relays to achieve high-precision volume adjustments. This technology enhances the signal-to-noise ratio (SNR) and minimises noise, especially at lower volume levels. In essence, every subtle twist of the volume knob translates into a meticulously calculated adjustment, offering you fine-grained control over your audio experience. This precision extends to the seamless pairing of high-sensitivity in-ear monitors and headphones with the DX9. The hybrid relay volume network in the DX9 is all about ensuring the utmost accuracy in your sound adjustments.
EMBEDS THE BEST QUALITY COMPONENTS AND HAS INDEPENDENT POWER CIRCUITS
Leveraging their wealth of experience, Topping has meticulously curated a premium array of components at the heart of the DX9's chipset. Alongside the flagship AK4499EQ DAC, the DX9 incorporates AKM's AK4118 Digital S/PDIF receiver, a CPLD low-jitter clock processing chipset, and a selection of high-quality capacitors. These elements collectively contribute to the device's ability to attain the desired level of performance and provide an exceptional auditory experience for users. Additionally, the DX9 boasts independently powered DAC and headphone amplifier circuits, ensuring the delivery of pristine, interference-free sound while maintaining an ample energy supply for optimum audio quality.
ENJOY FLEXIBILITY IN CONNECTIVITY AND INDEPENDENT LINE-OUT AND PRE-AMP-OUT
The Topping DX9 is designed to cover a spectrum of audio needs with its extensive eight-way digital input array, encompassing AES, USB, Optical, Coax, and Bluetooth connections. What sets it apart is its incorporation of Qualcomm's latest QCC5125 Bluetooth chipset, offering high-definition Bluetooth input capabilities, and supporting protocols like LDAC, AptX HD, AptX Adaptive, and AptX. This diversity extends to the device's input and output options, featuring USB, dual Coaxial, dual optical, I2S, AES, and Bluetooth inputs, as well as dedicated output choices, including single-ended and balanced options for headphones, alongside line-out and preamp outputs. It even provides support for Neutrik XLR and RCA dedicated line-out and preamp outputs.
EXQUISITELY DESIGNED TO EXUDE A BALANCE BETWEEN PRACTICALITY AND AESTHETICS

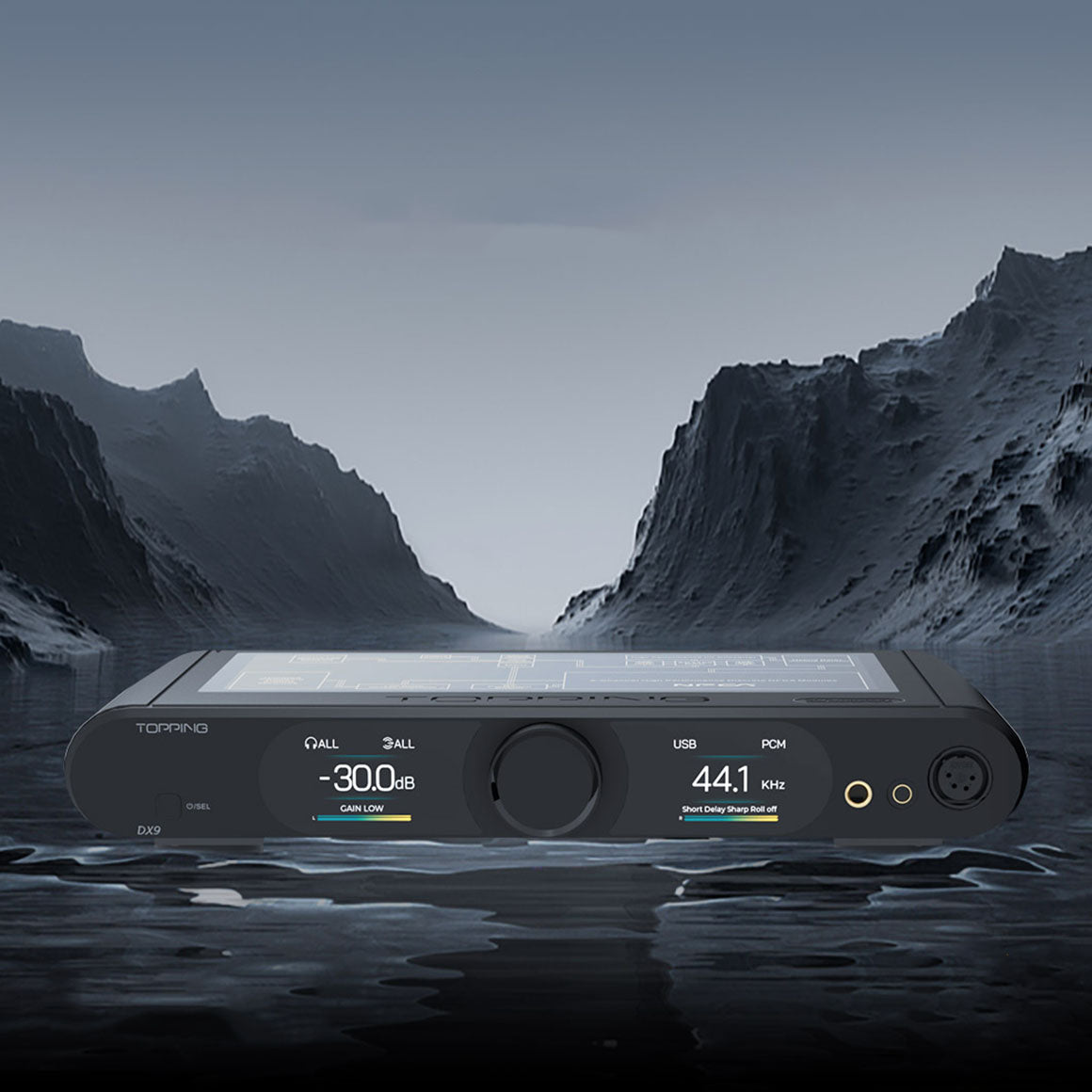

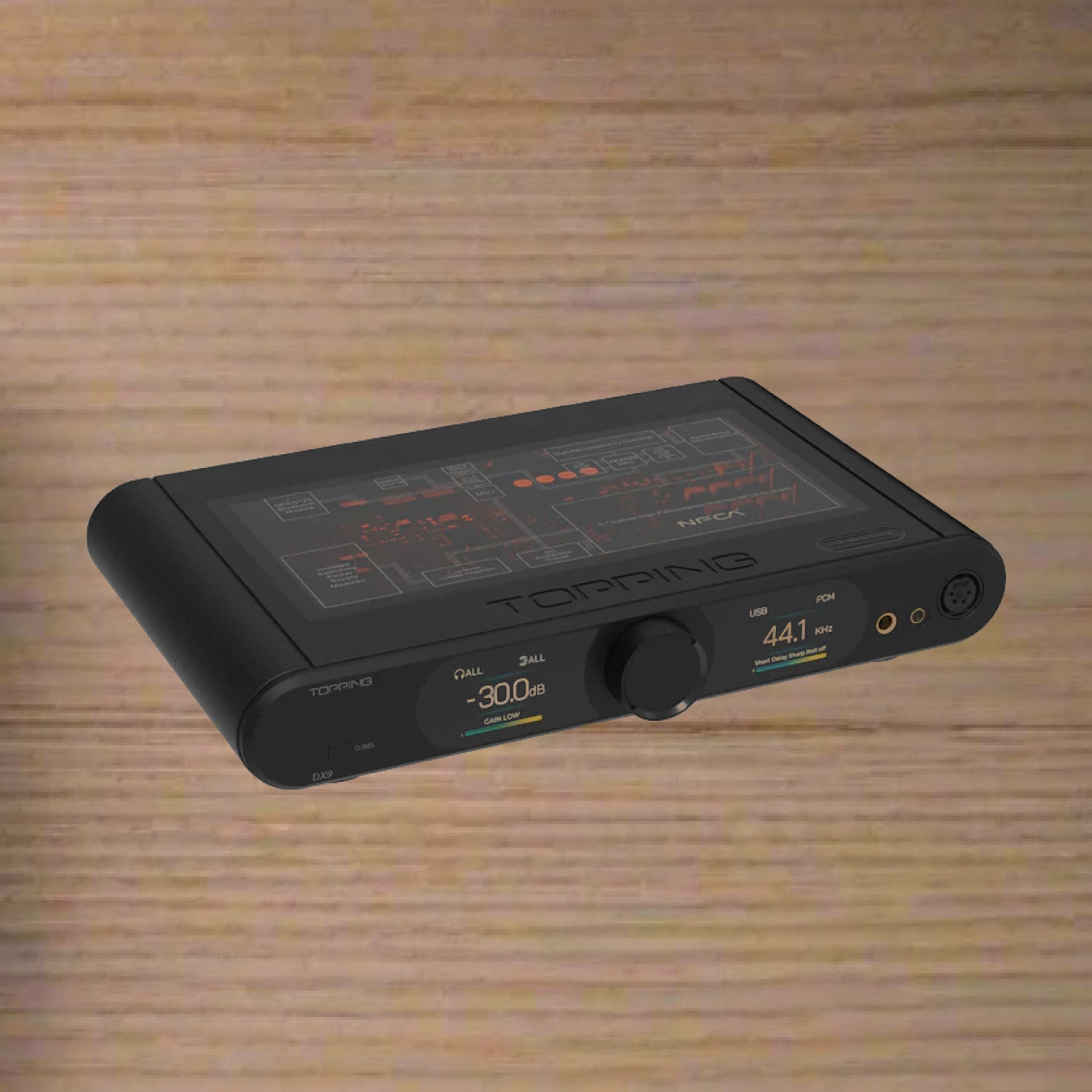

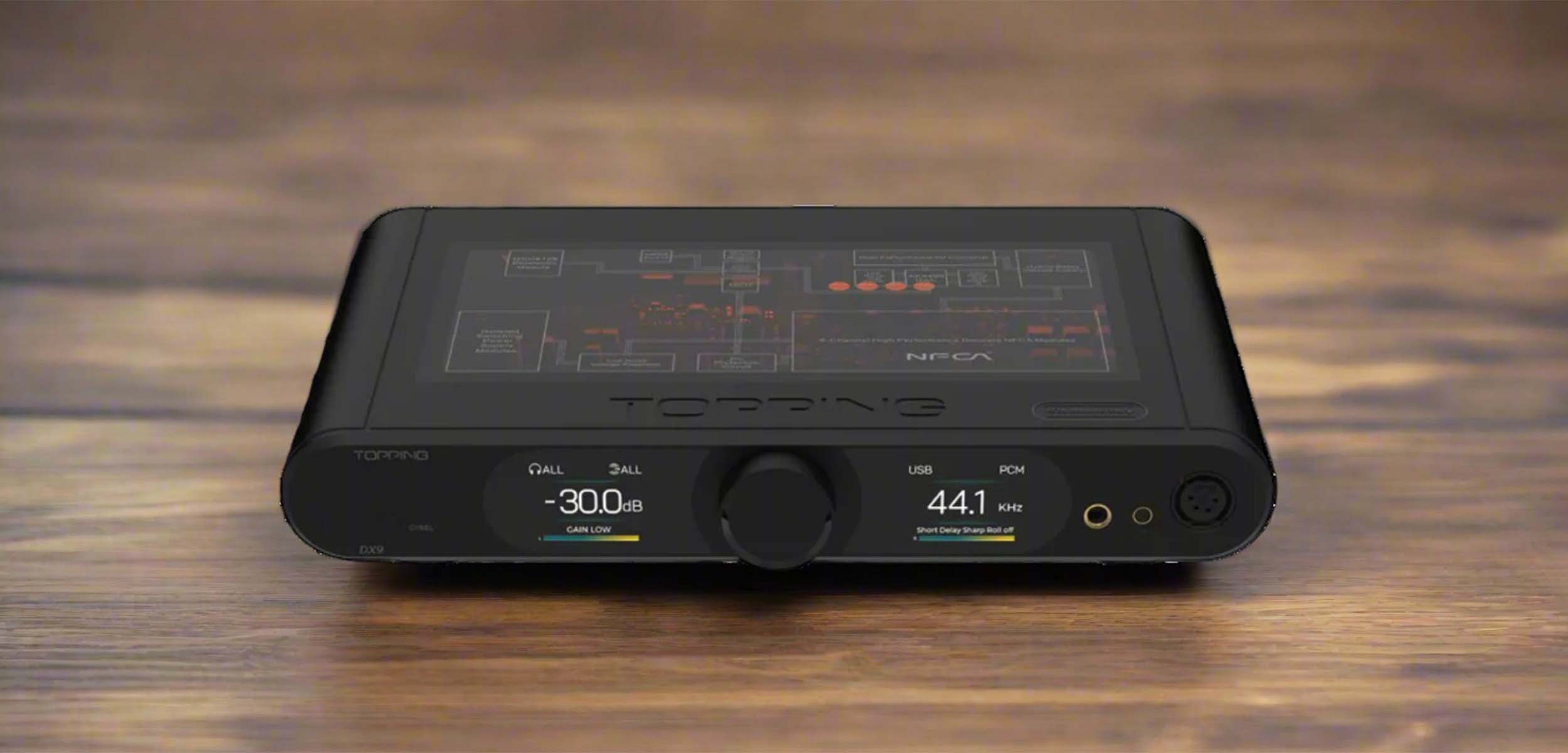

Topping's commitment to crafting its flagship device, the DX9, leaves no detail overlooked. The device boasts impeccable build quality, featuring a CNC-machined metallic chassis that's both robust and visually appealing. Additionally, it incorporates a unique design element with a dual 2.0-inch full-colour display screen and a transparent panoramic sunroof, offering a clear view of the device's internals. Topping's innovative Aurora UI, which graces both screens, adds a touch of vitality with its user-friendly and visually captivating interface. The interface is complemented by a well-coordinated knob and button configuration, ensuring smooth and intuitive operation. Moreover, the DX9 package includes a convenient set of accessories, such as a remote control, USB cable, AC cable, Bluetooth antenna, and a 6.35mm to 3.5mm adaptor. It even features a 12V trigger linkage switch, simplifying the control of multiple devices with a single button press.
POWER INPUT | 100-240VAC 50Hz/60Hz |
SIGNAL INPUT | USB/BT/OPT1/OPT2/COAX1/COAX2/AES/IIS |
LINE OUT OUTPUT | XLR/RCA |
PRE OUTPUT | XLR/RCA |
HEADPHONE AMPLIFIER OUTPUT | 1 x 6.35mm headphone output jack 1 x 4-PIN-XLR headphone output jack 1 x 4.4mm headphone output jack |
OTHER CONNECTORS | 12V Trigger In (3.5mm jack) 12V Trigger Out (3.5mm jack) |
DISPLAY | Two 2.0-inch LCDs |
STANDBY POWER CONSUMPTION | <2.5W |
POWER CONSUMPTION | <18W |
USB IN | PCM 44.1kHz-768kHz/16bit-32bit DSD DSD64-DSD512 (Native), DSD64-DSD256 (DOP) |
IIS IN | PCM
44.1kHz-768kHz/16bit-32bit DSD DSD64-DSD512 (Native) |
COAX/OPT/AES IN | PCM 44.1kHz-192kHz/16bit-24bit DSD DSD64 (DOP) |
BT IN | AAC/SBC/APTX/APTX HD/APTX-Adaptive/LDAC |
MEASURED | 34.0cm x 22.5cm x 6.0cm (Include protruding parts) |
WEIGHT | 2750g |
THD+N @1KHZ (A-WT) | RCA: <0.00008% XLR: <0.00007% |
THD @20-20kHz 90KBW | RCA: <0.00015% XLR: <0.00015% |
SNR @1kHZ (A-WT) | RCA: 127dB XLR: 131dB |
DYNAMIC RANGE @1KHZ (A-WT) | RCA: 127dB XLR: 131dB |
FREQUENCY RESPONSE | RCA: 20Hz-20kHz (±0.2dB) 20Hz-40kHz (±0.6dB) XLR: 20Hz-20kHz (±0.2dB) 20Hz-40kHz (±0.6dB) |
OUTPUT LEVEL | RCA: 2.1Vrms @0dBFS XLR: 4.2Vrms @0dBFS |
NOISE (A-WT) | RCA: <1.0uVrms XLR: <1.3uVrms |
CHANNEL CROSSTALK | RCA: -125dB @1kHz XLR: -125dB @1kHz |
CHANNEL BALANCE | RCA: 0.3 dB XLR: 0.3 dB |
OUTPUT IMPEDANCE | RCA: 50 Ohms XLR: 100 Ohms |
THD+N @1KHZ (A-WT) | <0.00007% @Output=550mW (32 Ohms) <0.00007% @Output=60mW (300 Ohms) |
THD @20-20KHZ 90KBW | <0.00050% @Output=550mW (32 Ohms) <0.00030% @Output=60mW (300 Ohms) |
SNR @ MAX OUT 1KHZ (A-WT) | 132dB @1kHz |
DYNAMIC RANGE @1KHZ (A-WT) | 132dB @1kHz |
FREQUENCY RESPONSE | 20Hz-20kHz (+0.2dB) 20Hz-40kHz (±0.6dB) |
OUTPUT LEVEL | 12Vpp @G=L 47Vpp @G=H |
NOISE (A-WT) | <1.3uVrms @G=L <4.2uVrms @G=H |
CHANNEL CROSSTALK | 121dB @1kHz |
GAIN | G=L 12.5dB (Vrms/FS) G=H 24.5dB (Vrms/FS) |
CHANNEL BALANCE | 0.3 dB |
OUTPUT IMPEDANCE | <0.1 Ohm |
OUTPUT POWER | 10000 mW x 2 @16 Ohms THD+N<1% 7080mW x 2 @32 Ohms THD+N<1% 4250mW x 2 @64 Ohms THD+N<1% 950mW x 2 @300 Ohms THD+N<1% 460mW x 2 @600 Ohms THD+N<1% |
LOAD IMPEDANCE | 100 Ohms |
THD+N @1KHZ (A-WT) | <0.00010% @Output=550mW (32 Ohms) <0.00008% @Output=60mW (300 Ohms) |
THD @20-20KHZ 90KBW | <0.00060% @Output=550mW (32 Ohms) <0.00030% @Output=60mW (300 Ohms) |
SNR @ MAX OUT 1KHZ (A-WT) | 131dB @1kHz |
DYNAMIC RANGE @1KHZ (A-WT) | 131dB @1kHz |
FREQUENCY RESPONSE | 20Hz-20kHz (+0.2dB) 20Hz-40kHz (±0.6dB) |
OUTPUT LEVEL | 12Vpp @G=L 24Vpp @G=H |
NOISE (A-WT) | <1.6uVrms @G=L <2.4uVrms @G=H |
CHANNEL CROSSTALK | -98dB @1kHz |
GAIN | G=L 12.5dB (Vrms/FS) G=H 18.5dB (Vrms/FS) |
CHANNEL BALANCE | 0.3 dB |
OUTPUT IMPEDANCE | <0.1 Ohm |
OUTPUT POWER | 3300mW x 2 @16 Ohms THD+N<1% 2100mW x 2 @32 Ohms THD+N<1% 1190mW x 2 @64 Ohms THD+N<1% 240mW x 2 @300 Ohms THD+N<1% |
LOAD IMPEDANCE | >8 Ohms |
BOX CONTENTS | 1. TOPPING DX9 |
2. Remote Control | |
3. USB Cable | |
4. AC cable | |
5. Bluetooth Antenna | |
6. 6.35mm to 3.5mm adaptor | |
7. Product Information Card |
OTHER DETAILS
GENERIC NAME | DAC & Amp |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 12 x 16.5 x 4 CM |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
PACKAGE CONTENTS | TOPPING DX9 Remote ControL, USB Cable AC Cable Bluetooth Antenna 6.35mm To 3.5mm Adaptor Product Information Card |
User Manual | DX9
Flagship Desktop DAC & Amp
|
Don't sweat it, this
Topping - DX9 comes with a 1 Year warranty
from TOPPING that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about TOPPING's warranty in India.
The Audiophile's Choice For Precision and Accuracy
Explore Collection"Of all the Topping-made D/A converters, DX9 is the one that takes the crown for having the most lifelike bass and natural presentation."
Read More"The Topping DX9 integrated amp and DAC is an excellent desktop performer delivering a very detailed and punchy sound signature suitable for both IEM and headphones users."
Read MoreHave a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is the warranty period on the TOPPING DX9?
What is the TOPPING DX9?
What DAC chip is used in TOPPING DX9?
What kind of connectivity options does the TOPPING DX9 offer?
What is the design and build quality of the TOPPING DX9 like?
This product has no reviews yet.
You may also like
This product has no reviews yet.
