DESCRIPTION

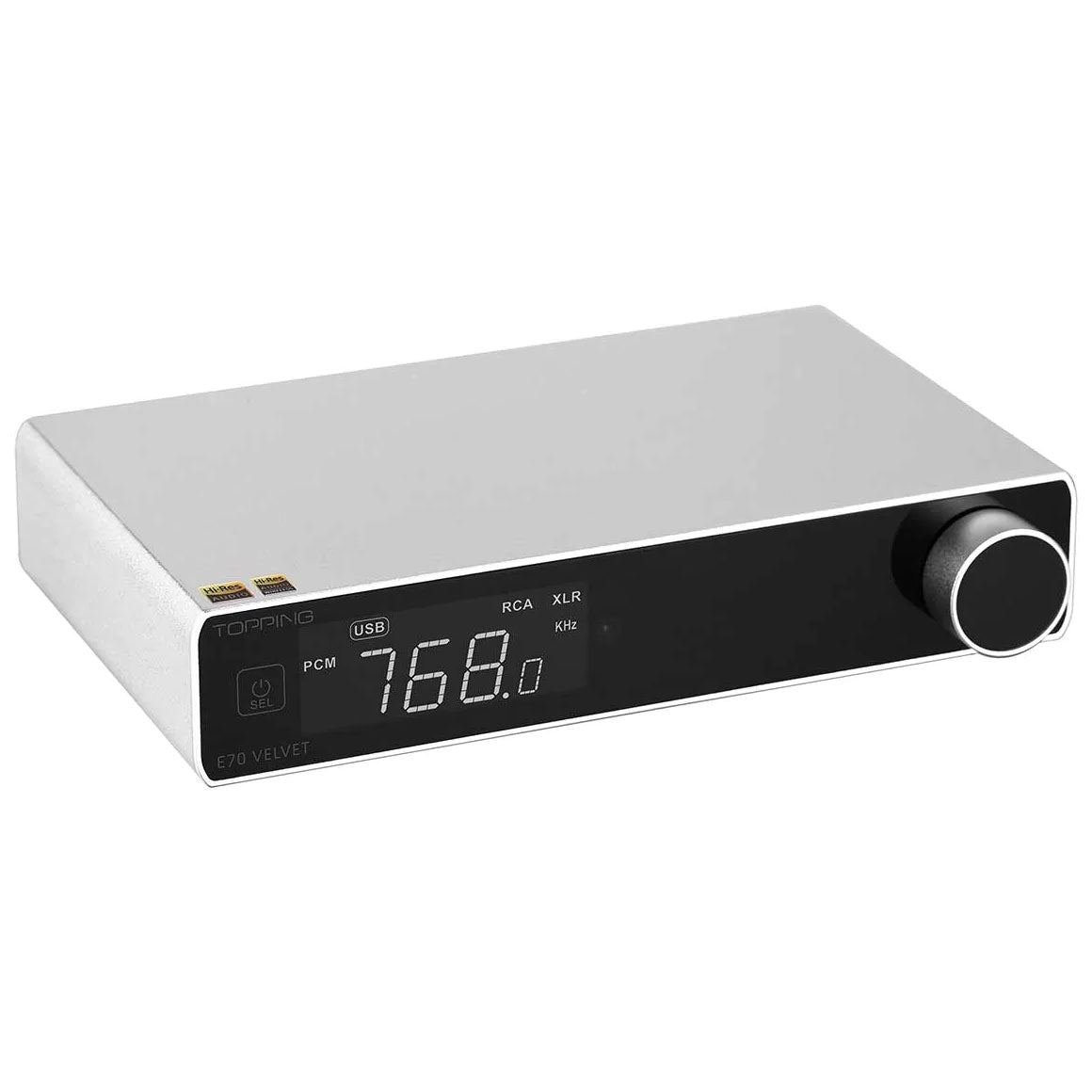

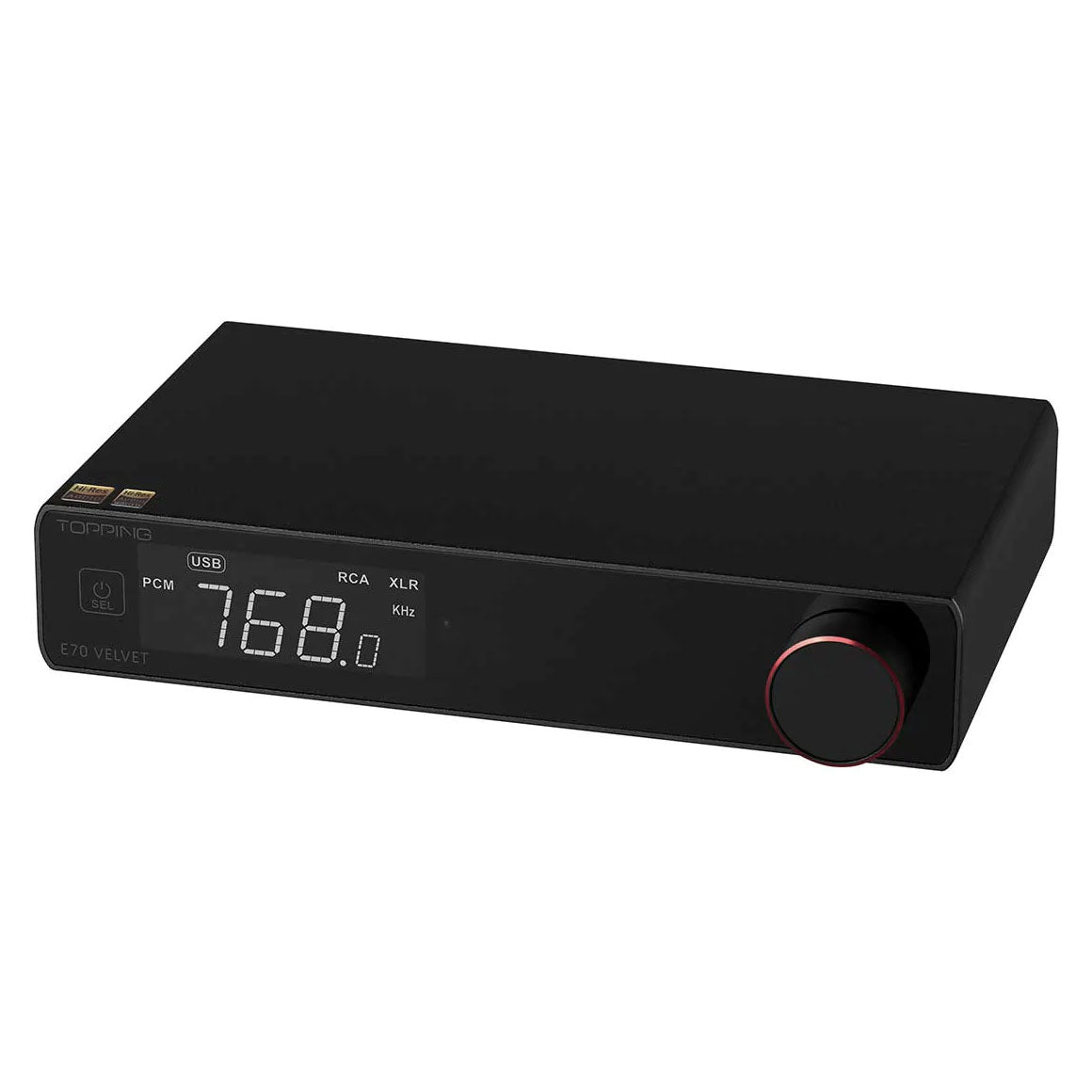

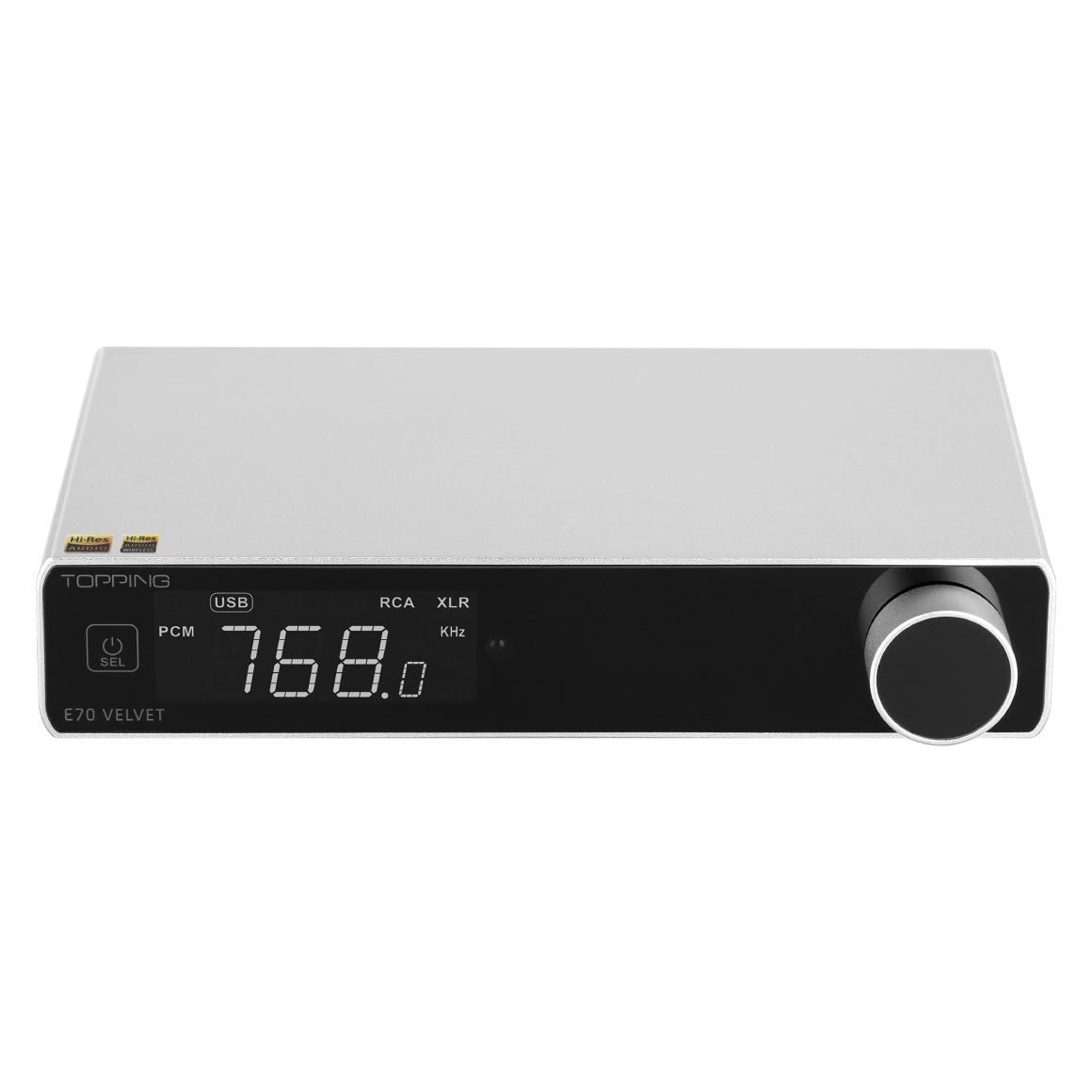

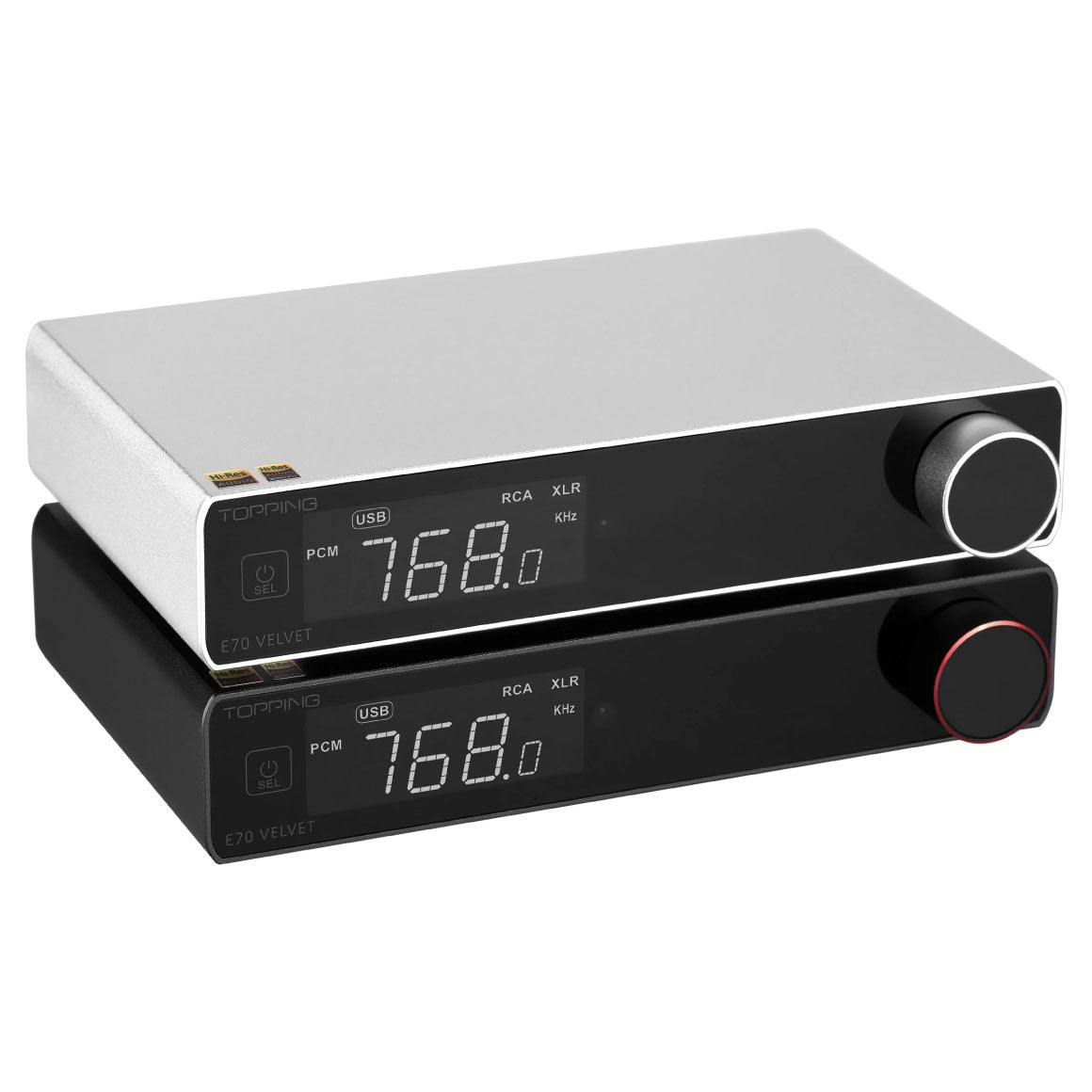

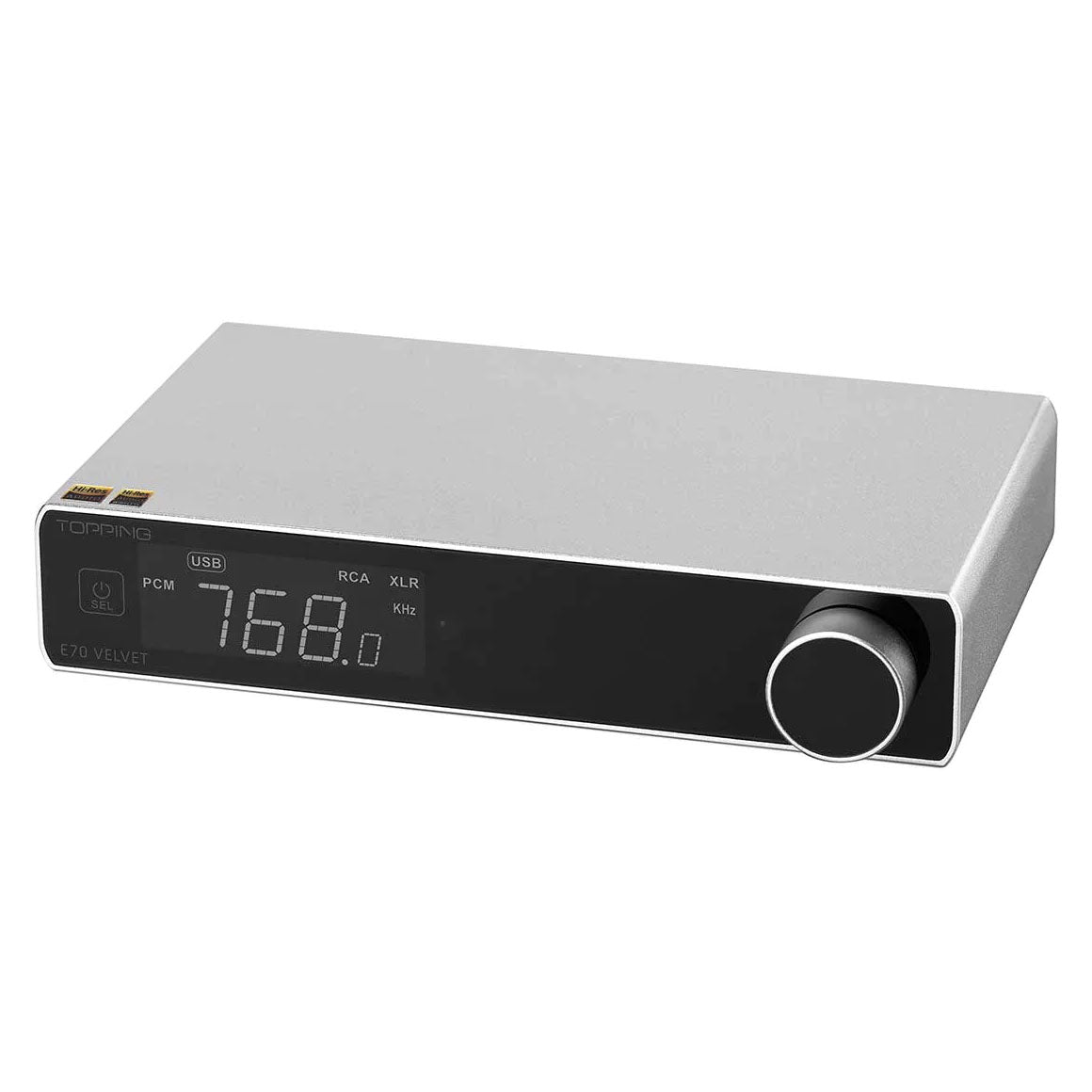

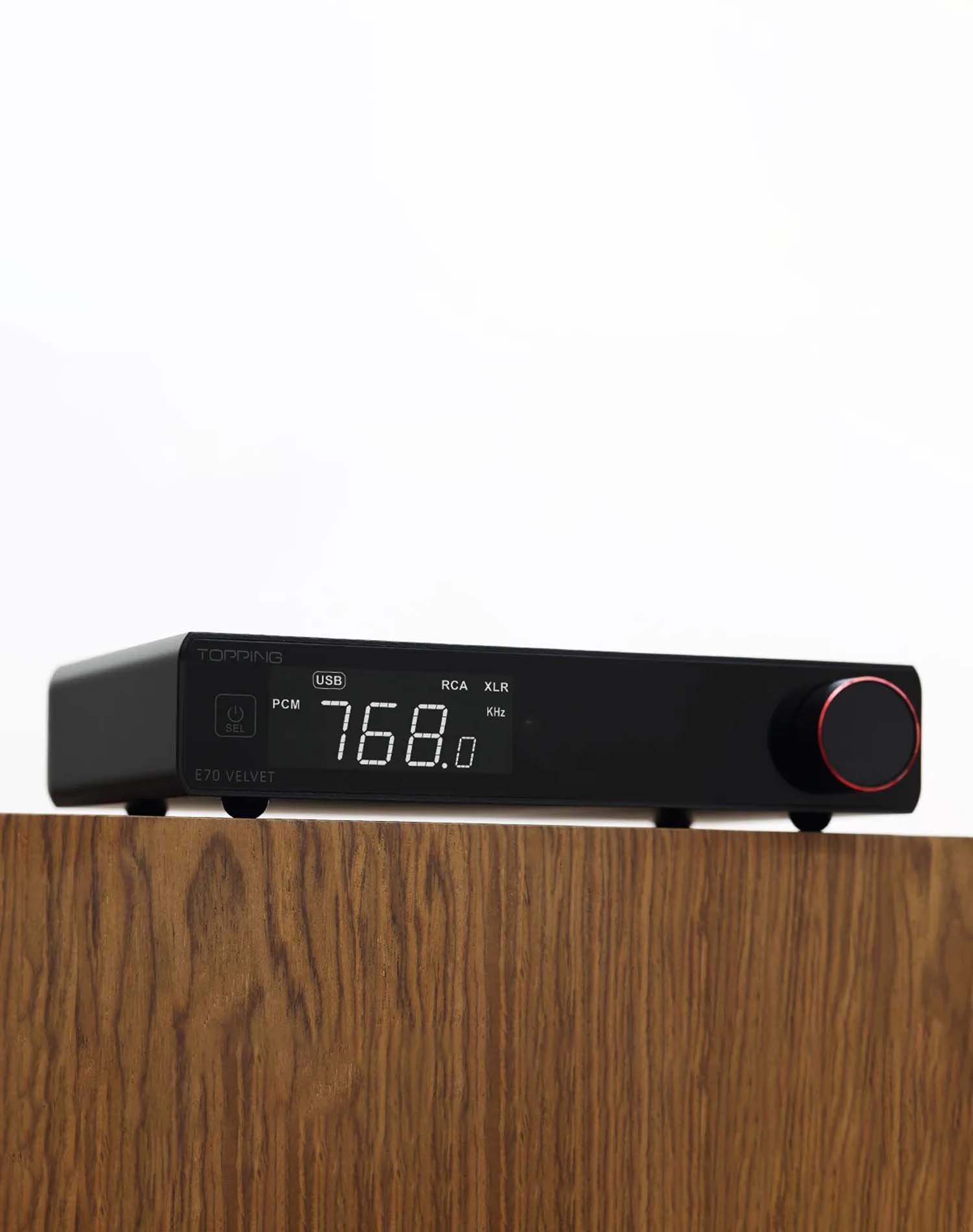

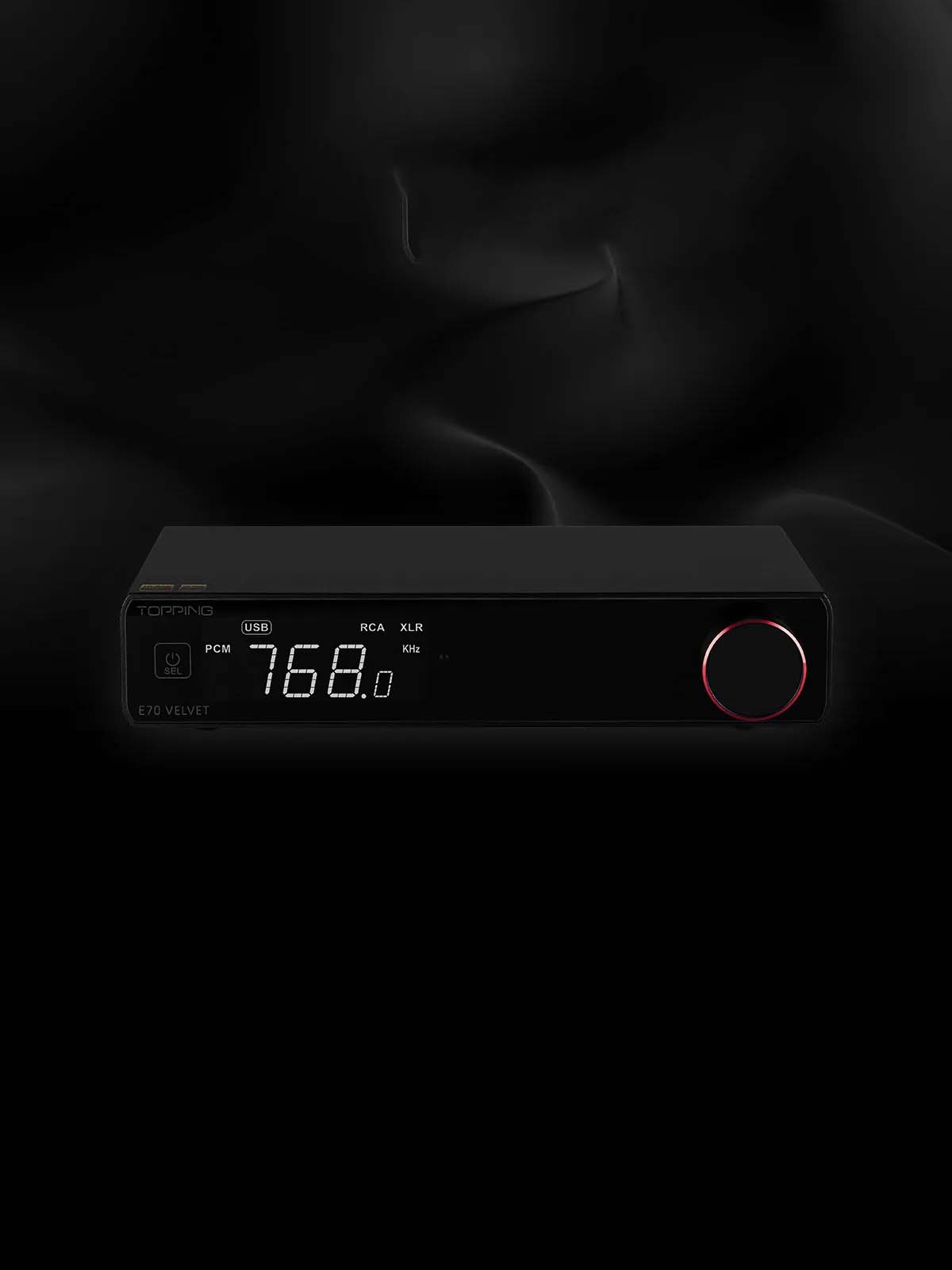

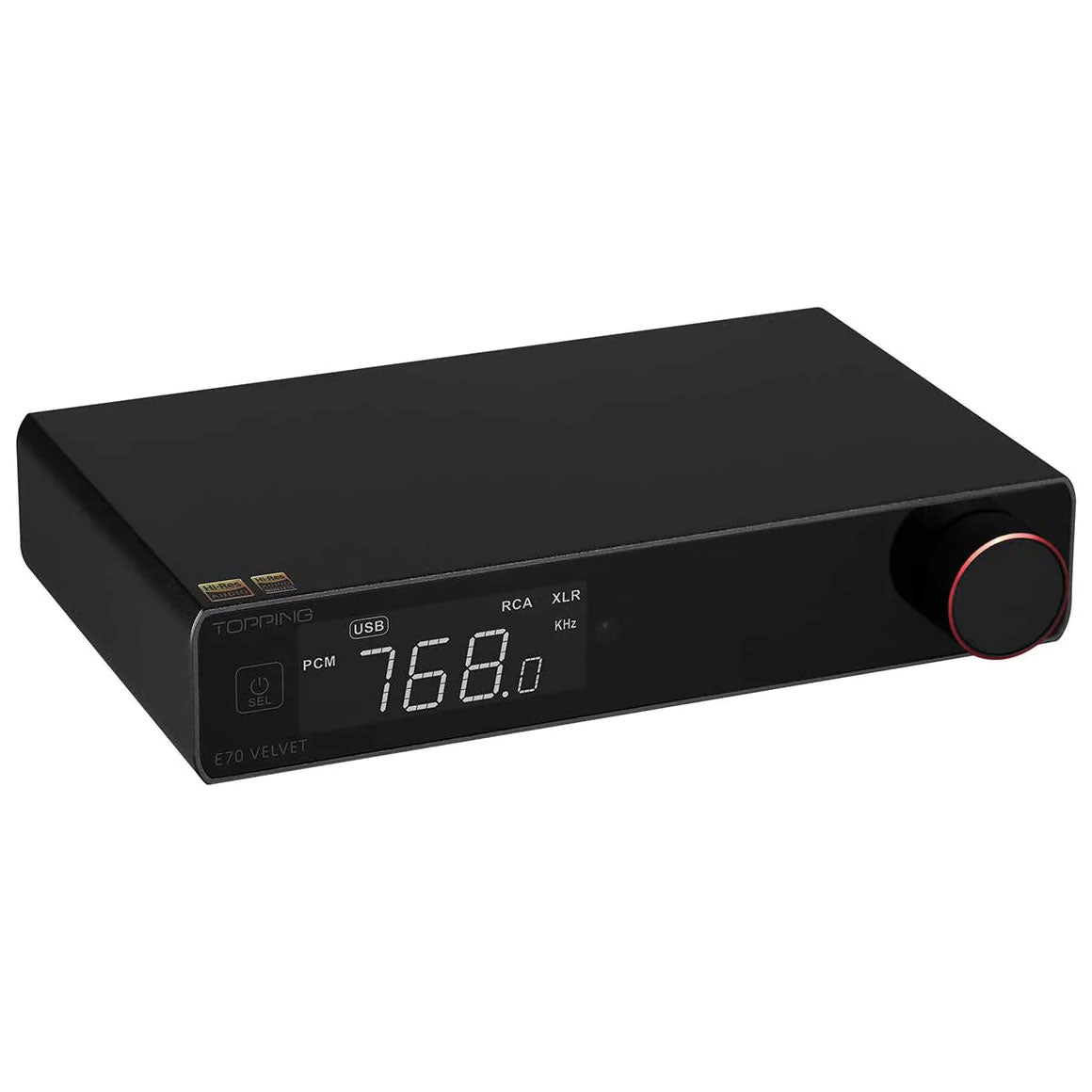

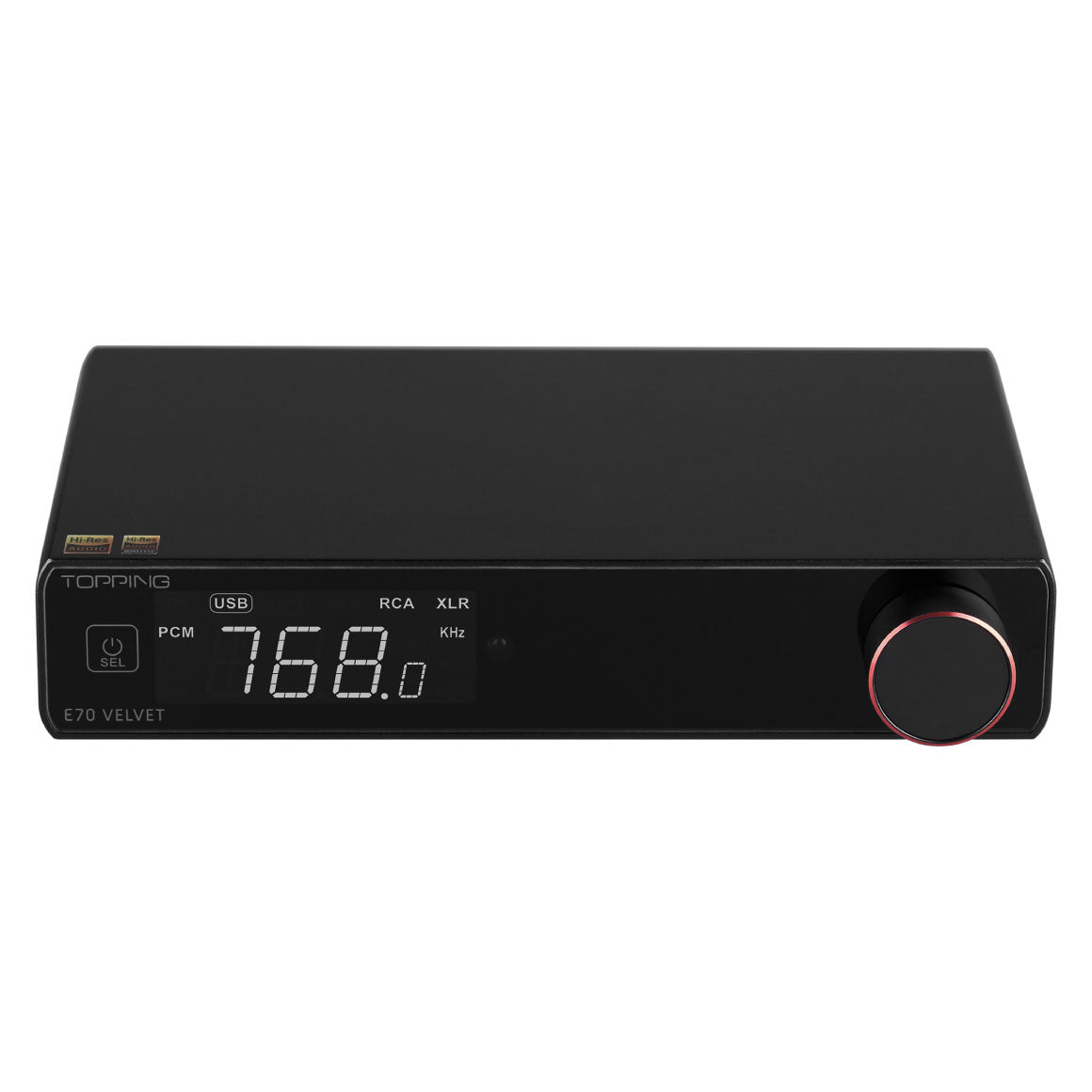

PRESENTING THE E70 VELVET, AN EVOLUTIONARY UPGRADE TO THE E70
TOPPING has been the pioneer in producing some of the cleanest and distortion-free DACs. Their line-up of DACs like the E30, E30 II, D50S, D30 Pro, and E50 have all been well-received and widely accepted in the audiophile community. Their entire line-up of DACs is clean and precise, with spectacular digital-to-analogue conversion capabilities. To improve TOPPING wanted; to create something incredibly sensational while maintaining the characteristics of their earlier generations of DACs. This design aspect led to the birth of the TOPPING E70 Velvet, a fully balanced and Hi-Res certified Desktop DAC. The primary update with the E70 Velvet over the OG E70 is the update in the DAC chipset. From the ESS Sabre flagship ES9028PRO on the E70 OG model, TOPPING has jumped back into the world of rich AKM DACs. The E70 Velvet hosts the flagship AK4499EX + AK4191 AKM DAC chipset in its circuitry. It also hosts an XMOS XU316 USB processor that allows you to play Hi-Res files and supports decoding up to 32-bit/768kHz PCM and Native DSD512 audio signals. The E70 Velvet also includes Bluetooth 5.1 support to save you from the inconvenience of cables. When used wirelessly or "wired," the TOPPING E70 Velvet is a versatile, Hi-Res-certified device that offers clean audio reproduction.
FEATURES DAC CHIPS FROM AKM THAT DELIVERS PHENOMENAL DIGITAL-TO-ANALOGUE CONVERSION
TOPPING is known to include high-grade components in its products. Given the success TOPPING has had in designing and creating amplifiers and DACs over the years, TOPPING's engineers decided it was time to create something truly exceptional. These elements were considered; by a team of engineers that integrated the flagship DAC chips, AK4499EX + AK4191 from AKM, into the E70 Velvet's circuitry. These DAC chips provide industry-leading high performance with high-resolution audio signal decoding. The featured DAC, the AK4499EX, is a flagship 32-Bit DAC from AKM Technologies based on Velvet Sound Verita Technology. The AK4499EX has exceptional characteristics for decoding high-resolution, packing a rich tone and details. The AK4499EX + AK4191 DAC chips support 44.1kHz-768kHz/16bit-32bit and Native DSD64-DSD512 (Direct Stream Digital). It also enables DSD(DoP) DSD64-DSD256 (DSD Over PCM). A brand-new I/V conversion circuit allows for better-quality audio reproduction. The unique circuit design provides lower distortion and less noise. Engulf yourself in pure sonic tranquillity with the all-new TOPPING E70 Velvet Hi-Res DAC!
EXPERIENCE PURE SONIC DELIVERY WIRED OR WIRELESSLY WITH USB AND BLUETOOTH SUPPORT
With the introduction of wireless technology, the audio industry has grown by leaps and bounds. Earlier products had wireless functionality, but they did not sound great. TOPPING engineers considered this aspect and have designed the E70 Velvet to incorporate a QCC5125 chipset enabling Bluetooth 5.1 support. The E70 Velvet has the certification of Hi-Res Audio Wireless & LDAC and supports Bluetooth codecs like LDAC (24bit96kHz), aptX Adaptive, aptX HD, aptX LL, aptX, AAC, and SBC. To get even better sound quality from Bluetooth, TOPPING engineers abandoned the built-in DAC of QCC5125 while connecting its digital signal to AK4499EX to decode. For you to use the E70 Velvet in wired mode, "TOPPING" has incorporated the newest XMOS XU316 chipset. The USB hardware based on the newest XMOS XU316 and Thesycon custom driver (applicable to Windows, other systems are plug-and-play) makes the E70 Velvet stable and reliable. With; USB IN E70 Velvet supports up to 44.1kHz-768kHz/16bit-32bit PCM (Pulse Code Modulation) and Native DSD64-DSD512 (Direct Stream Digital). It also supports DSD(DoP) DSD64-DSD256 (DSD Over PCM). With COAX/OPT-IN, it supports PCM up to 44.1kHz-192kHz/16bit-24bit. The Optical and Coaxial input of E70 supports up to PCM 24-bit 192kHz, which is suitable for digital turntables, disk players, set-top boxes, and gaming consoles.
NOTE: USB input of E70 Velvet has a wide range of compatibility: Windows 10, Windows 11, MAC, Linux, iOS, and Android plug-and-play. Only for Windows ASIO applications; you need to install the driver and set it up.

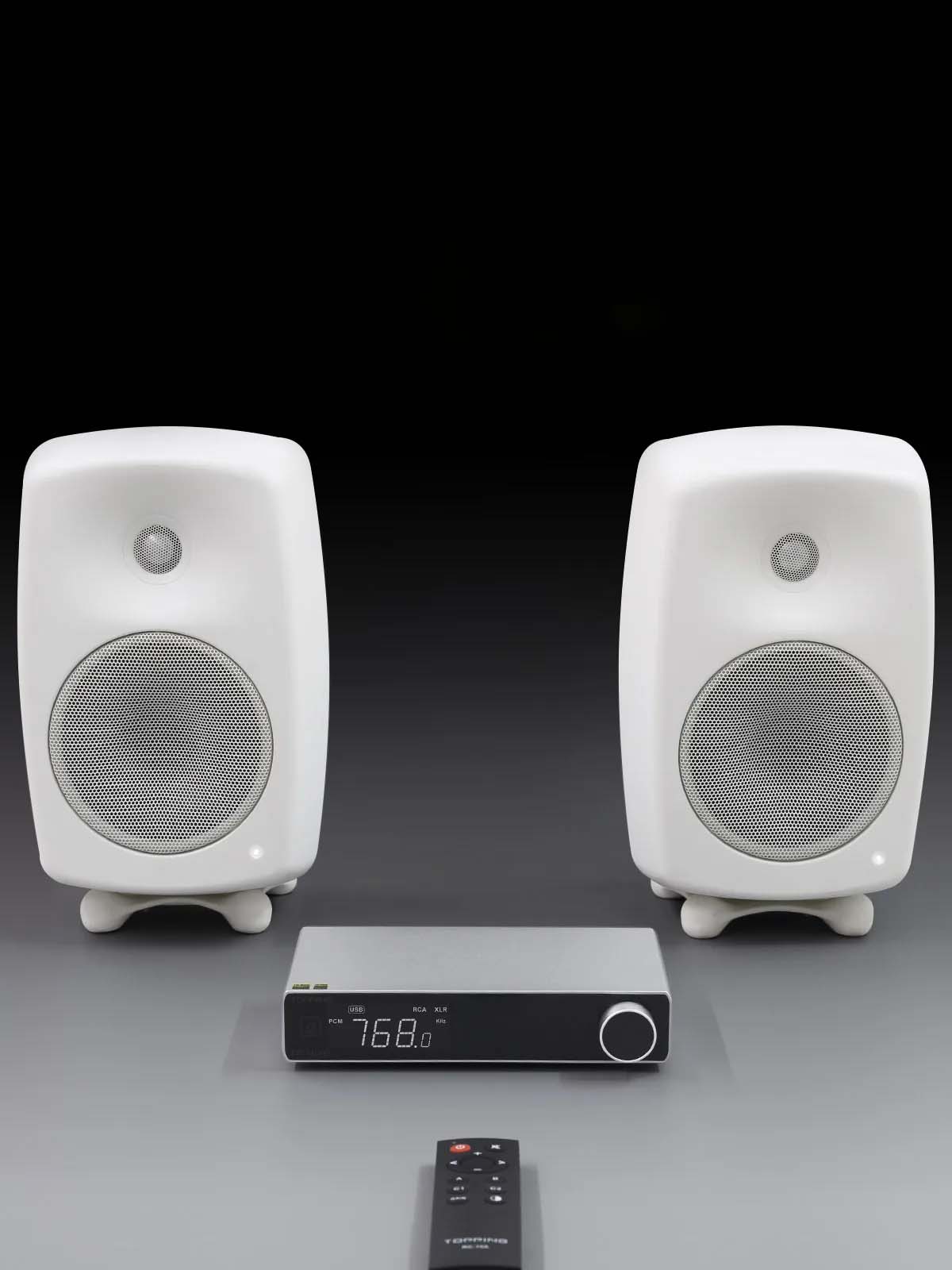

DOUBLES-UP AS A PREAMPLIFIER FUSED WITH A 12V TRIGGER INTERFACE
In addition to the DAC mode with a fixed output level, the E70 Velvet also has a DAC + preamplifier mode. In this mode, you can control the output volume from -99dB to 0dB by the knob or remote control. This design provides greater convenience when connected to a power amplifier or monitor speakers. The TOPPING E70 Velvet also hosts a 12V Trigger interface. The 12V Trigger interface on the E70 Velvet can be configured for active control (Trigger out) or passive control (Trigger in). With only one easy-to-obtain 3.5mm to 3.5mm cable, the E70 Velvet can be turned on and off synchronously with other devices equipped with a 12V Trigger interface. With this setup, you can connect E70 Velvet to the TOPPING L70 professional-grade headphone amplifier and form your desktop audio chain. TOPPING has also kept the THD+N of the E70 Velvet lower than 0.00006% (A-weighted), enabling the music to be accurate in every detail.
EQUIPPED WITH A REMOTE WITH SELECTABLE OUTPUTS AND AUTO ON/OFF FUNCTIONALITY, MAKING IT IDEAL FOR THE L70

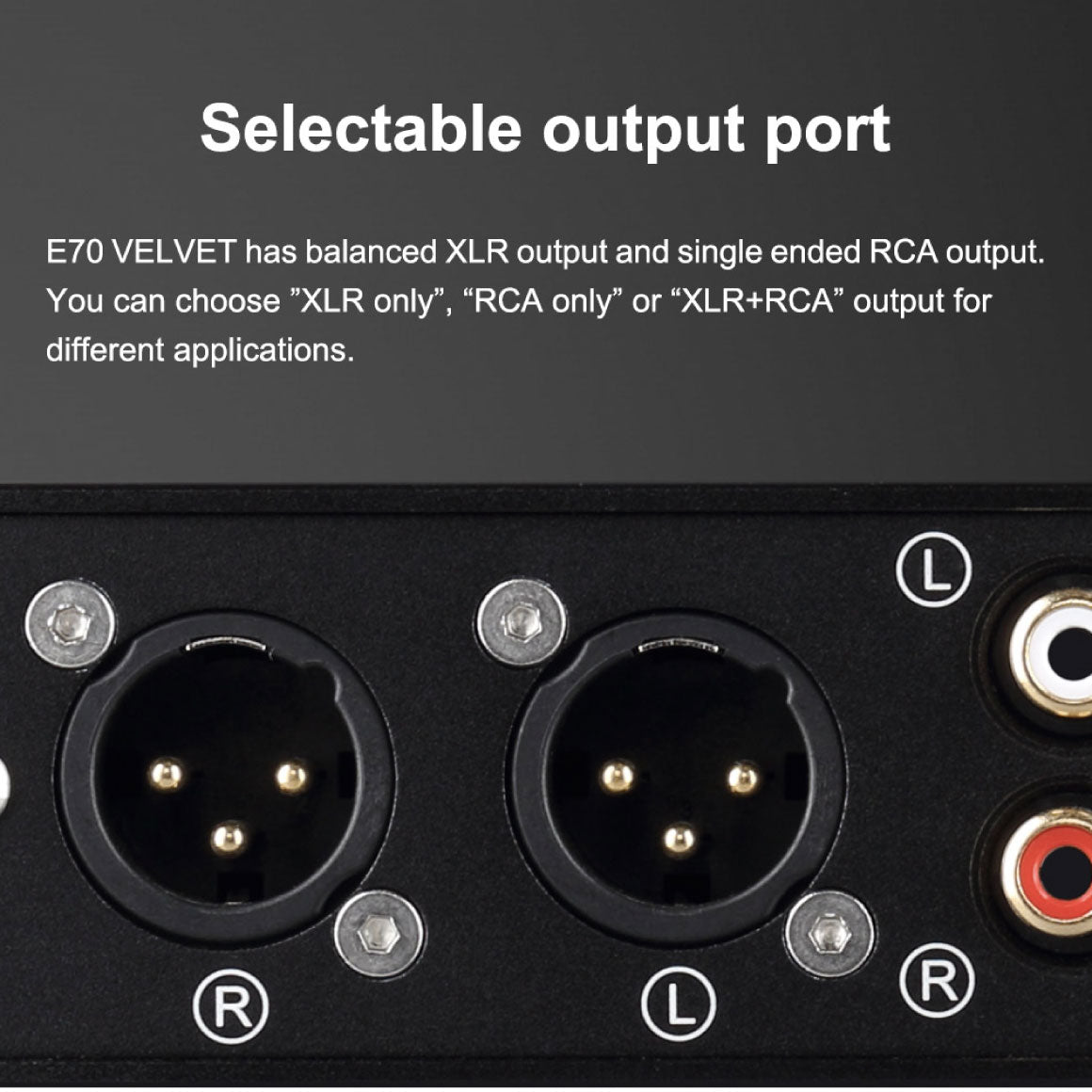

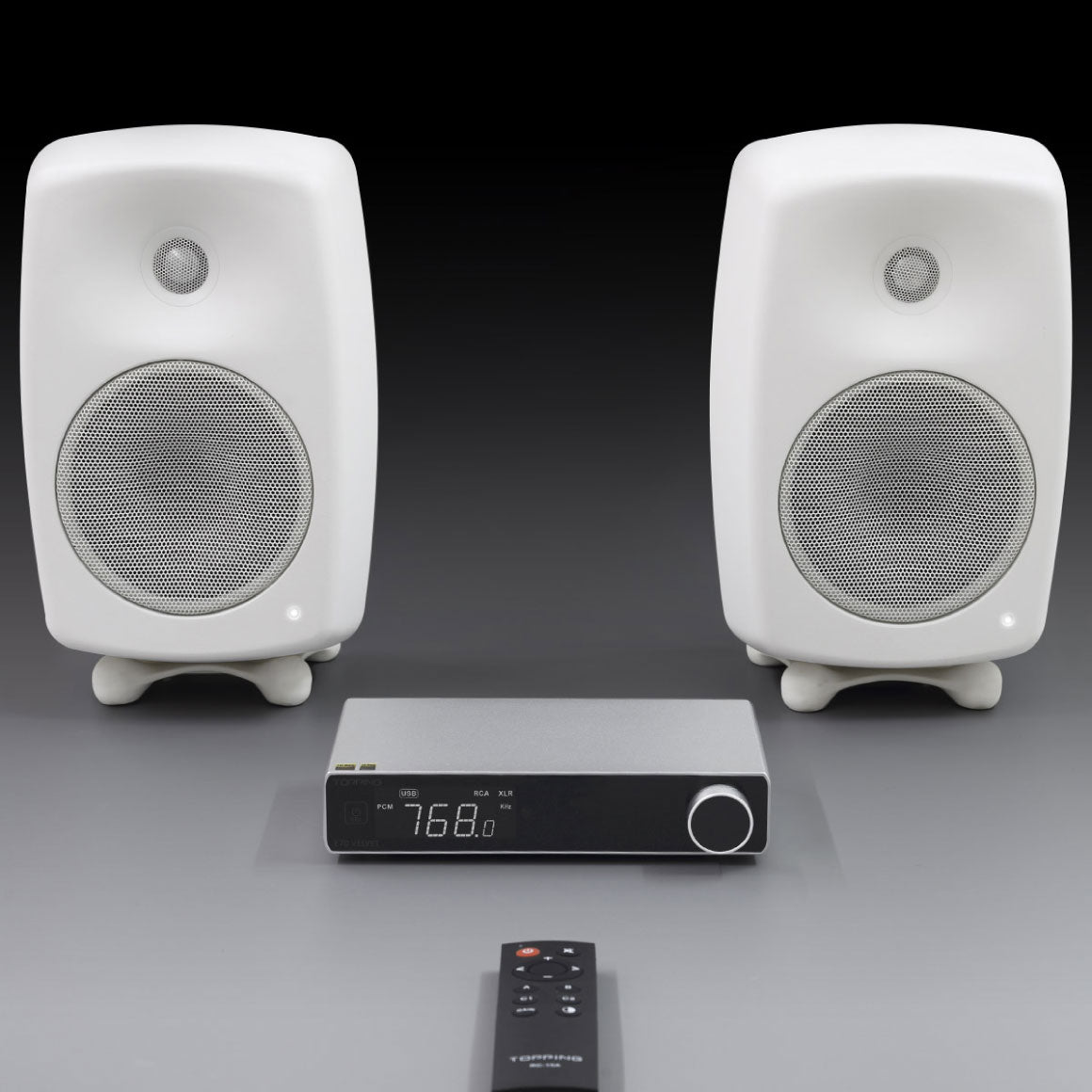

TOPPING E70 Velvet has a balanced XLR output and single-ended RCA output. You can choose "XLR only", "RCA only", or "XLR+RCA" output for different applications. Additionally, TOPPING has added the Auto On/Off functionality to the E70 Velvet, which will turn ON and set to the input where the signal is valid automatically. When E70 Velvet's selection is not "valid" for 1 minute, E70 Velvet will turn OFF automatically. TOPPING was on the spree of designing the E70 Velvet to be the most versatile device and has included a fully functional remote for you to have; control over the device from the comfort of your couch. The E70 Velvet has USB, Coaxial, Optical, USB, and Bluetooth, as inputs and selectable RCA & XLR outputs. The engineers at TOPPING understood that in addition to the more versatile XLR 4V and RCA 2V outputs, there are also extensive needs for XLR 5V and RCA 2.5V. When XLR 4V and RCA 2V are selected, more devices can be adapted when XLR 5V and RCA 2.5V are enabled; the performance improves by leaps and bounds with these functionalities. To get you started TOPPING has also designed their versatile headphone amplifier, the L70, to be a perfect match for the E70 Velvet. The TOPPING L70 is suitable for almost all kinds of headphones. The TOPPING "E70 Velvet" and "L70" can be switched ON and OFF through the 12V Trigger interface. Also, the L70 can be synchronised with the automatic or manual ON/OFF of the E70 Velvet.
SPECS
USB IN | PCM: 44.1kHz-768kHz/ 16bit-32bit DSD(Native): DSD64-DSD512 DSD(DoP): DSD64-DSD256 |

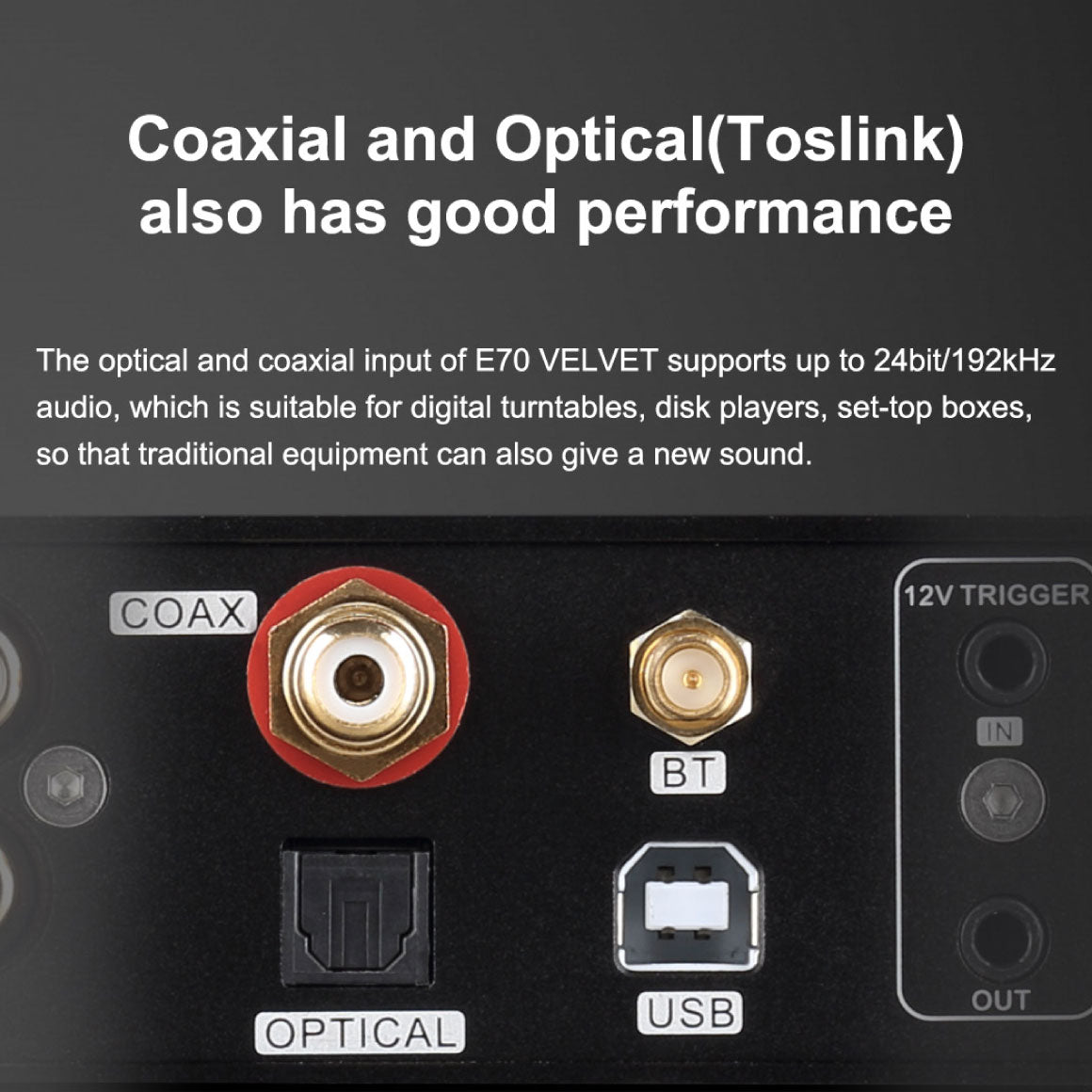

COAX/OPT IN | PCM: 44.1kHz-192kHz/16bit-24bit |
BT IN: | AAC/SBC/APTX/ APTX LL/ APTX HD/ APTX-Adaptive/LDAC |
THD+N (A-WT) | <0.00008% @1kHz |
THD 90KBW (NO-WT) | <0.0002% @20-20kHz |
SNR (A-WT) | 125dB @1kHz |
DYNAMIC RANGE (A-WT) | 131dB @1kHz |
FREQUENCY RESPONSE | 20Hz-40kHz (±0.3dB) 20Hz-40kHz (±1.0dB) |
OUTPUT LEVEL | 2.1 Vrms @0dBFS(4V Mode) 2.5Vrms @0dBFS(5V Mode) |
NOISE (A-WT) | <1.3uVrms |
CHANNEL CROSSTALK | -130dB @1kHz |
CHANNEL BALANCE | 0.3dB |
OUTPUT IMPEDANCE | 50Ω |
THD+N (A-WT) | <0.00006% @1kHz |
THD 90KBW (NO-WT) | <0.0002% @20-20kHz |
SNR (A-WT) | 125dB @1kHz |
DYNAMIC RANGE (A-WT) | 131dB @1kHz |
FREQUENCY RESPONSE | 20Hz-40kHz (±0.2dB) 20Hz-40kHz (±0.8dB) |
OUTPUT LEVEL | 4.2Vrms @0dBFS(4V Mode) 5.0Vrms @0dBFS(5V Mode) |
NOISE (A-WT) | <1.3uVrms |
CHANNEL CROSSTALK | -143dB @1kHz |
CHANNEL BALANCE | 0.3dB |
OUTPUT IMPEDANCE | 100Ω |

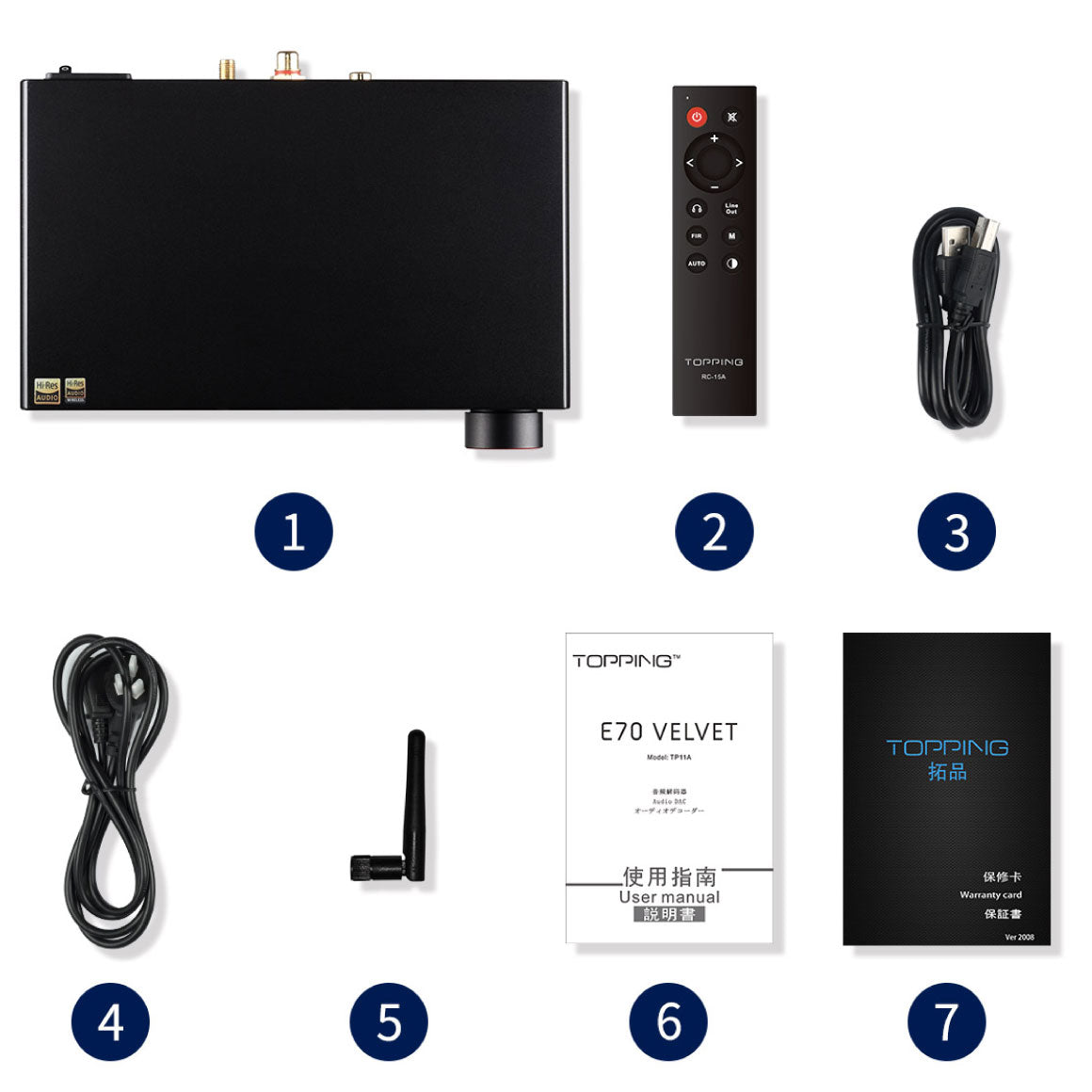

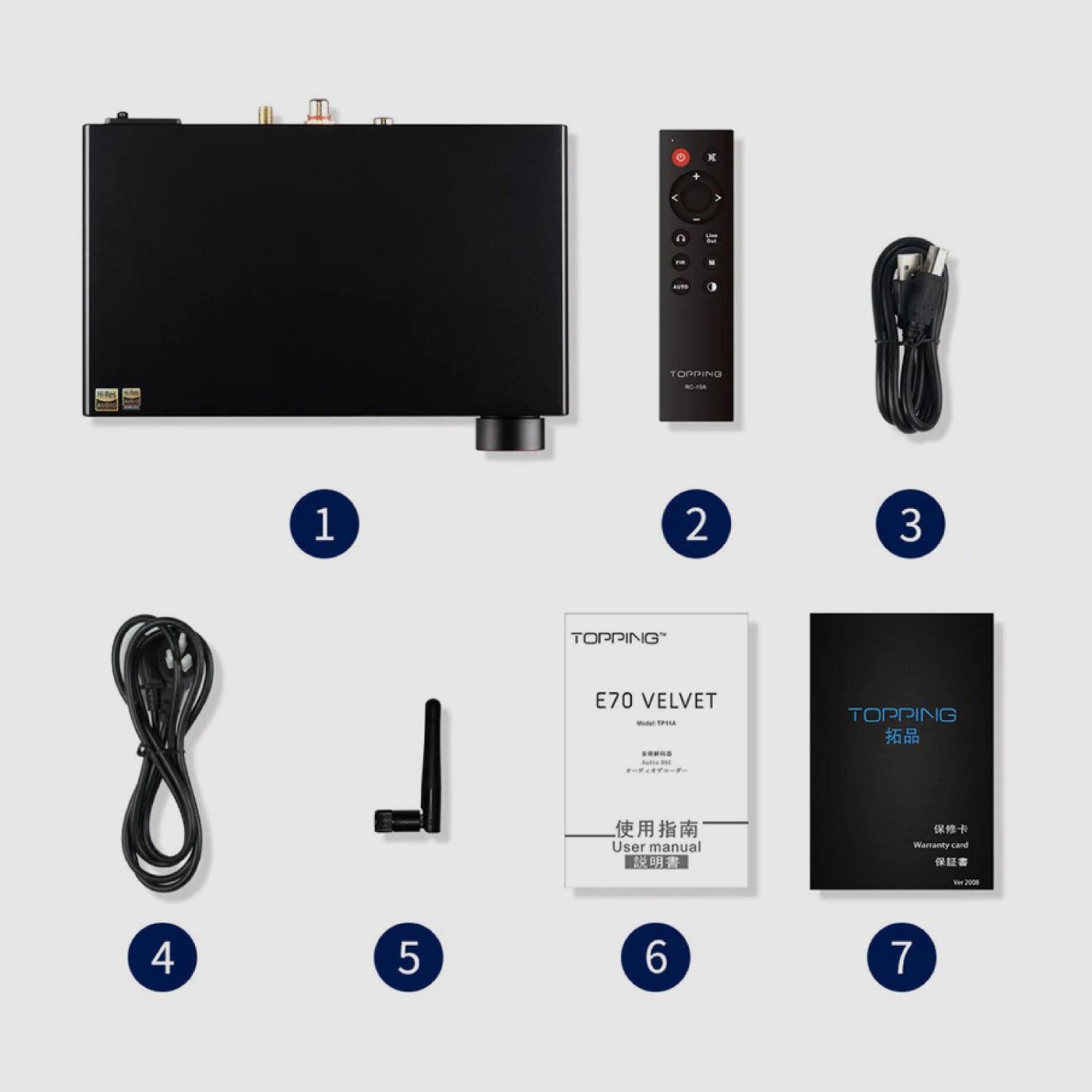

BOX CONTENTS | 1. TOPPING E70 VELVET |
2. Remote Control | |
3. USB Cable | |
4. AC Cable | |
5. Bluetooth Antenna | |
6. User Manual | |
7. Warranty Card |
OTHER DETAILS
GENERIC NAME | DAC & Amp |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
PACKAGE CONTENTS | TOPPING E70 VELVET Remote ControL, USB Cable AC Cable Bluetooth Antenna User ManuaL, Warranty Card |
User Manual | E70 Velvet
Desktop DAC + Preamp
|
FAQs
What is the warranty on the TOPPING E70 VELVET?
TOPPING E70 VELVET comes with a 1-year warranty on the Amp/DAC and 6 months warranty on the battery.
Where is TOPPING brand based?
TOPPING is a brand based in Guangzhou, China.
What are the major differences between the OG TOPPING E70 VELVET and the E70 ?
The E70 Velvet expands on its predecessors' strengths while retaining all its positive qualities to raise the bar for audio performance. The primary update with the new E70 Velvet over the OG E70 is in the DAC chipset architecture. From ESS’s flagship ES9028PRO on the E70 OG model, Topping has jumped back into the world of rich AKM DACs. While the OG model brought you crisp, detailed sound with its ES9028PRO DAC arrangement, the new E70 Velvet brings us the goodness of AKM’s flagship AK4499EX+AK4191EQ DAC Chipset. AK4499EX chip brings the highly-acclaimed Velvet Sound Verita technology that promises rich and smooth sound with the E70 Velvet. Also, with COAX/OPT-IN, the OG E70 supported PCM up to 44.1kHz-192kHz/16bit-24bit and DSD(DoP) DSD64, while the E70 Velvet only supports PCM PCM up to 44.1kHz-192kHz/16bit-24bit.
Which model of TOPPING E70 should you prefer?
It highly depends upon the sound you prefer. The OG E70 offers crisp, detailed, and analytical sound whereas the E70 Velvet offers rich, warm & smooth sound.
What are the stand-out features of this DAC?
Flagship AK4499EX Velvet Sound DAC Chipset.
Latest Bluetooth V5.1 connectivity.
Hi-Res LDAC Transmission.
XMOS XU316 USB Processor.
Supports Hi-Resolution 32-Bit/768kHz PCM and Native DSD512 Audio Signals.
Brand New I/V Conversion Circuit.
Ultra-Low THD+N Performance.
Selectable RCA & XLR Outputs.
Ultra-Low Noise Preamp Function.
Fully-Functional Remote Control.
Multiple Input Options(USB, Coaxial, Optical, USB, Bluetooth).
Automatic On/Off Function With All Inputs.
12V Trigger Interface.
Preamp Function.
Hi-Res Audio & Hi-Res Audio Wireless Certified.

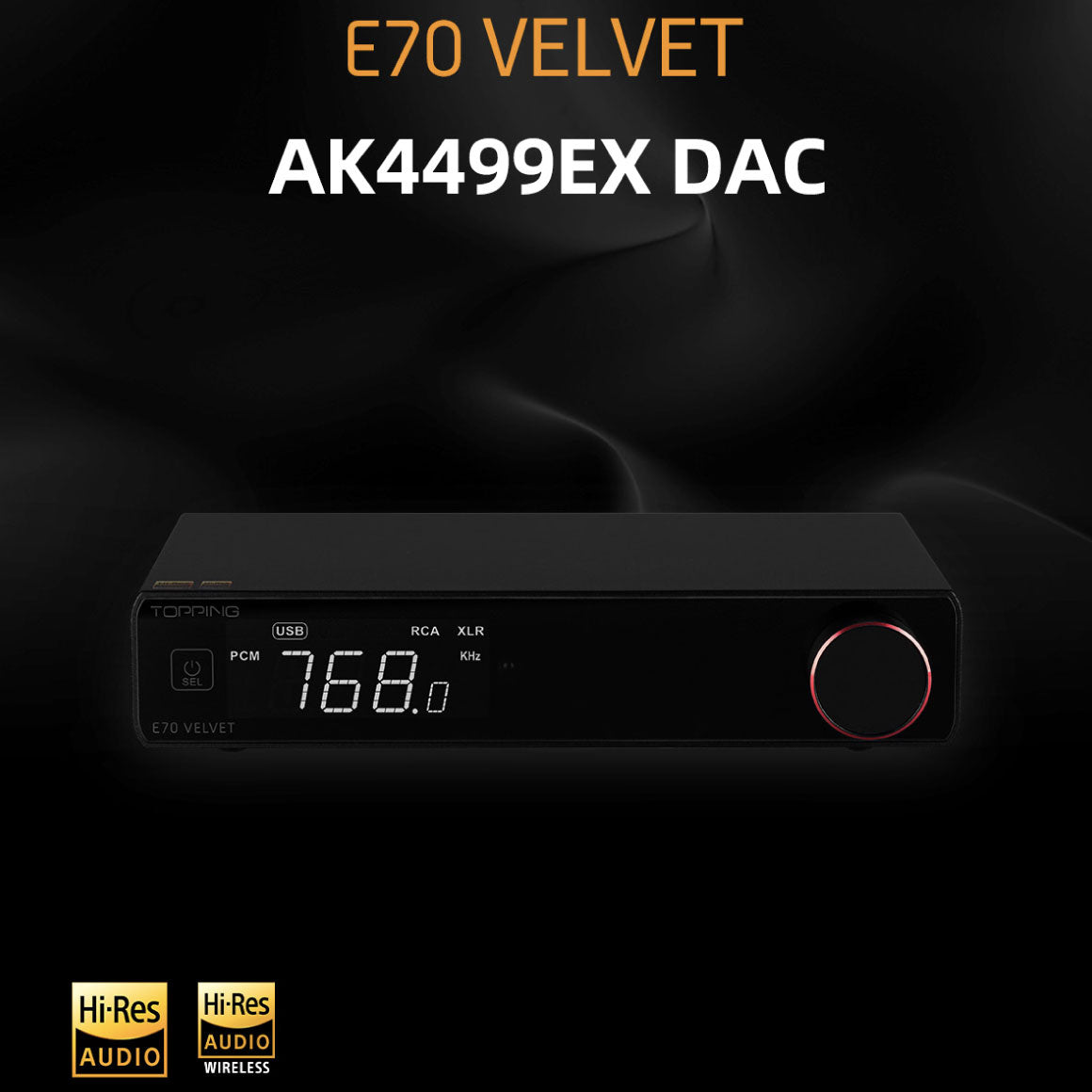

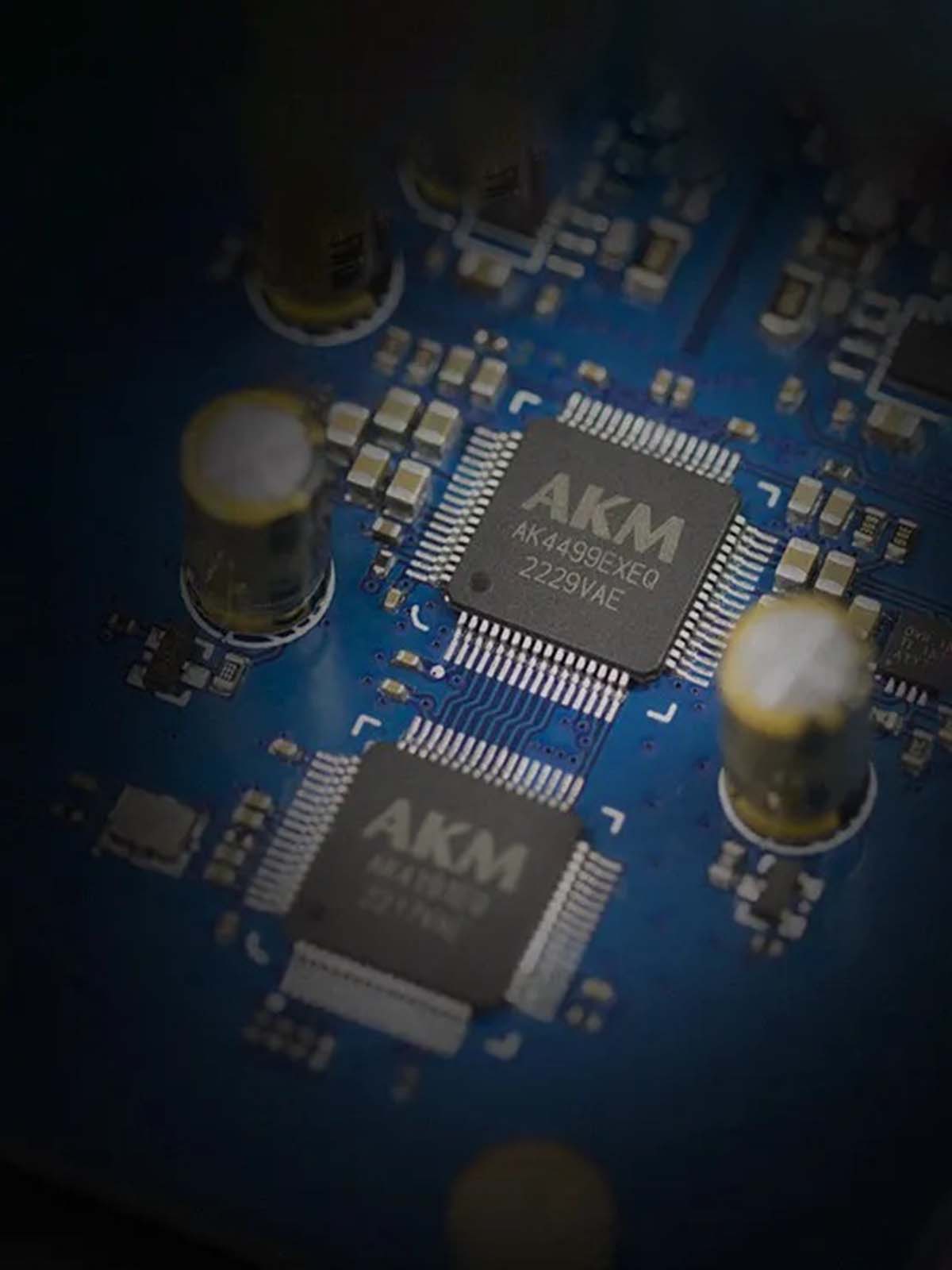

What are the DAC chips incorporated in the TOPPING E70 VELVET?
The TOPPING E70 VELVET hosts the flagship AK4499EX + AK4191 AKM DAC chipset in its circuitry.

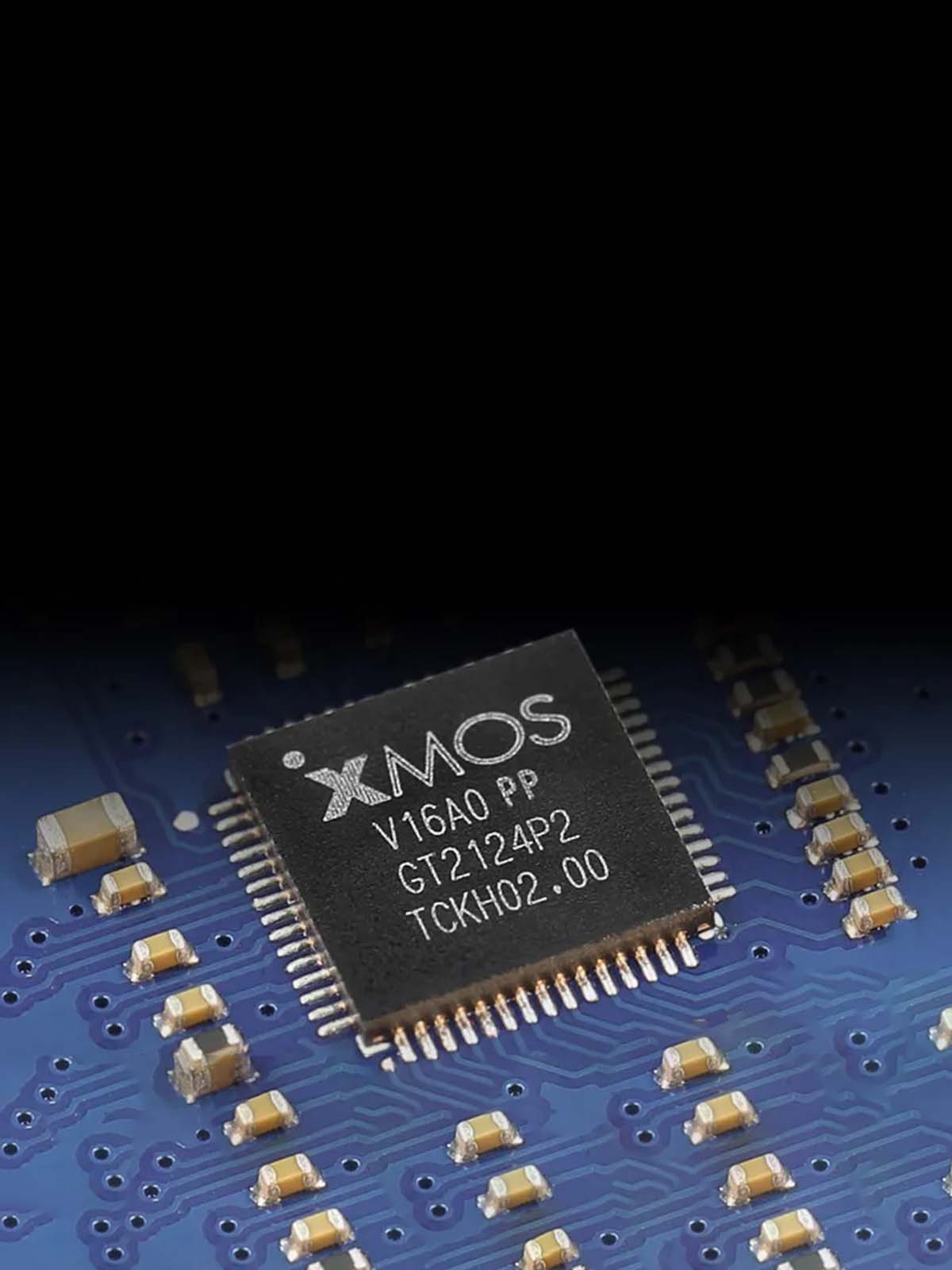

What is the XMOS chip used in TOPPING E70 VELVET?
The USB hardware on the TOPPING E70 VELVET has XMOS XU316 and Thesycon custom driver.
What are the various audio codecs supported by TOPPING E70 VELVET?
TOPPING E70 VELVET has the certification of Hi-Res Audio Wireless & LDAC and supports Bluetooth codecs like LDAC (24bit96kHz), aptX Adaptive, aptX HD, aptX LL, aptX, AAC, and SBC
Is it compatible with gaming consoles?
Yes, it is compatible with gaming consoles.
What operating systems are supported while using the USB input on the TOPPING E70 VELVET?
The USB input of the TOPPING E70 VELVET has a wide range of compatibility: Windows 10, 11, Mac, Linux, iOS, and Android plug-and-play. Only for Windows ASIO applications; you need to; install the driver and set it up.

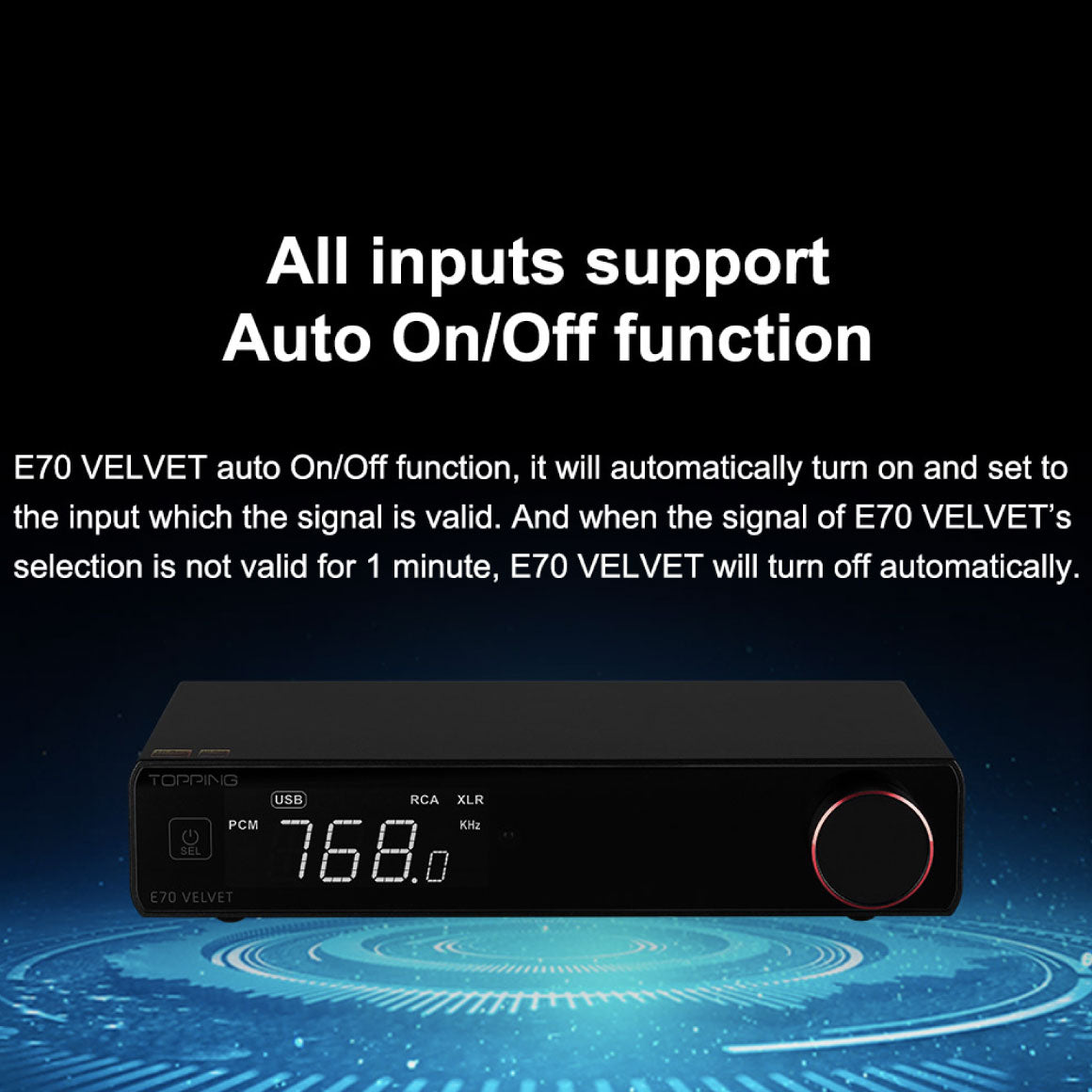

What is the auto On/Off functionality like on TOPPING E70 VELVET?
The TOPPING E70 VELVET has auto On/Off functionality. It will automatically turn ON and set to the input to which the signal is valid. And when the E70 Velvet's selection is not valid for 1 minute, E70 Velvet will turn OFF automatically.

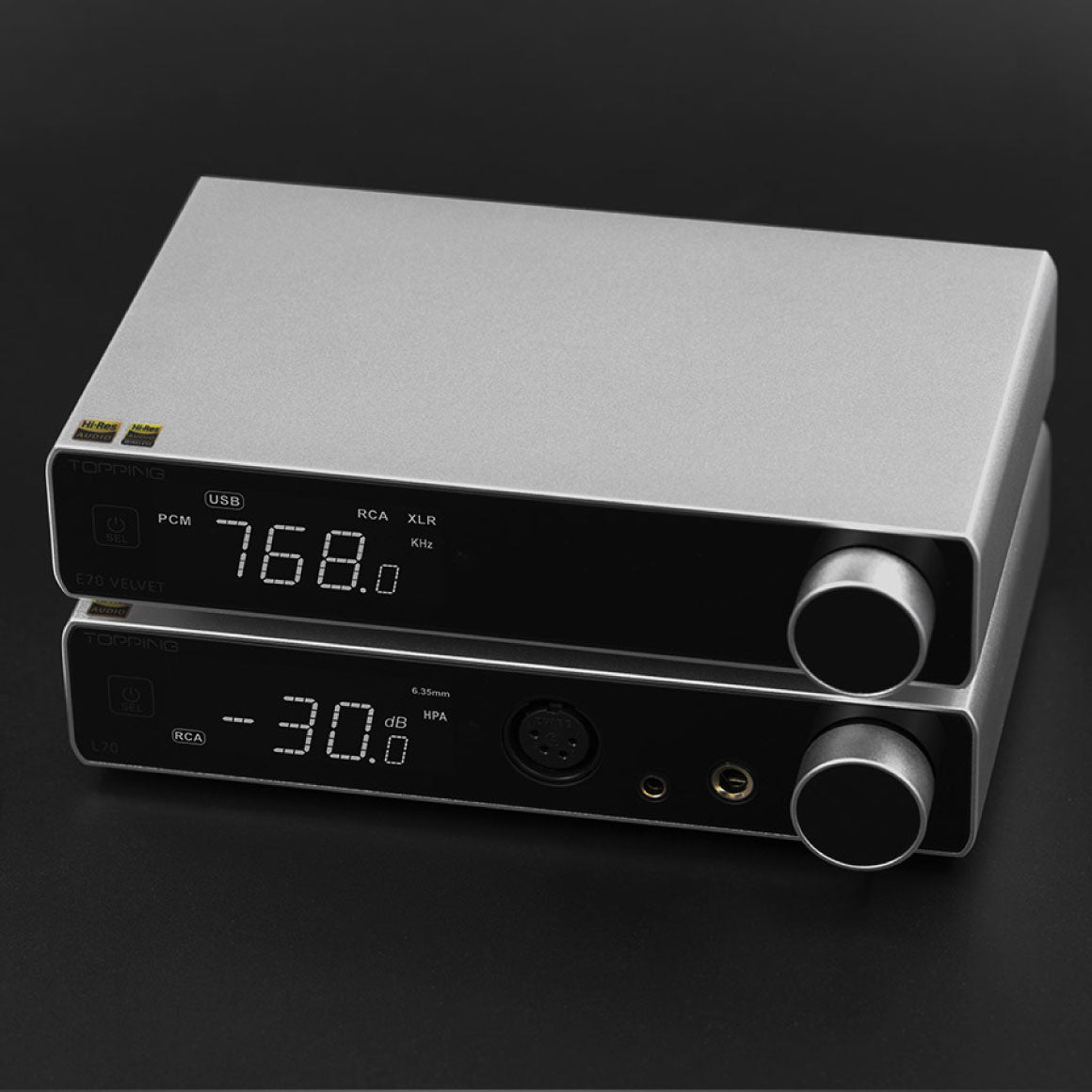

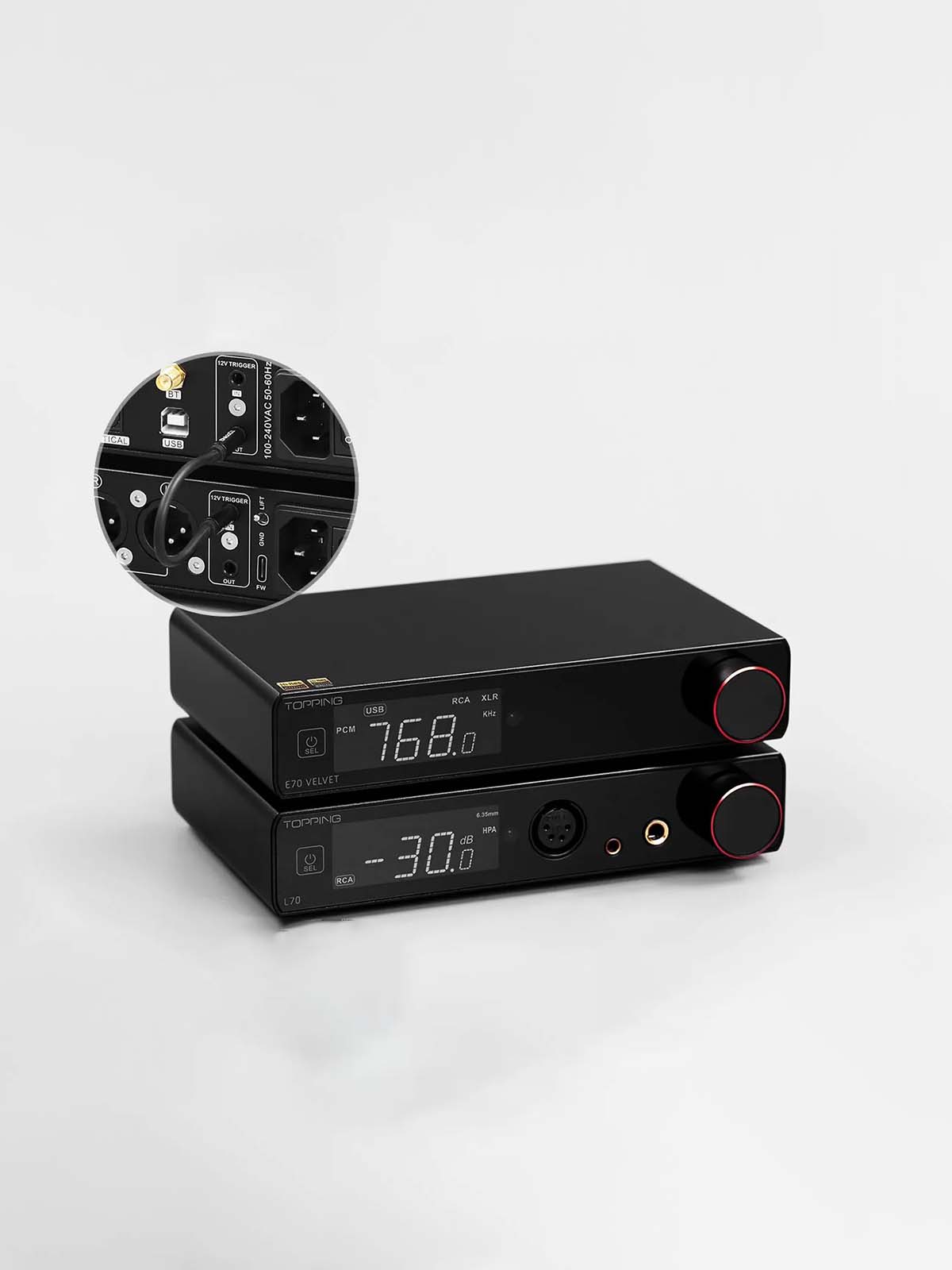

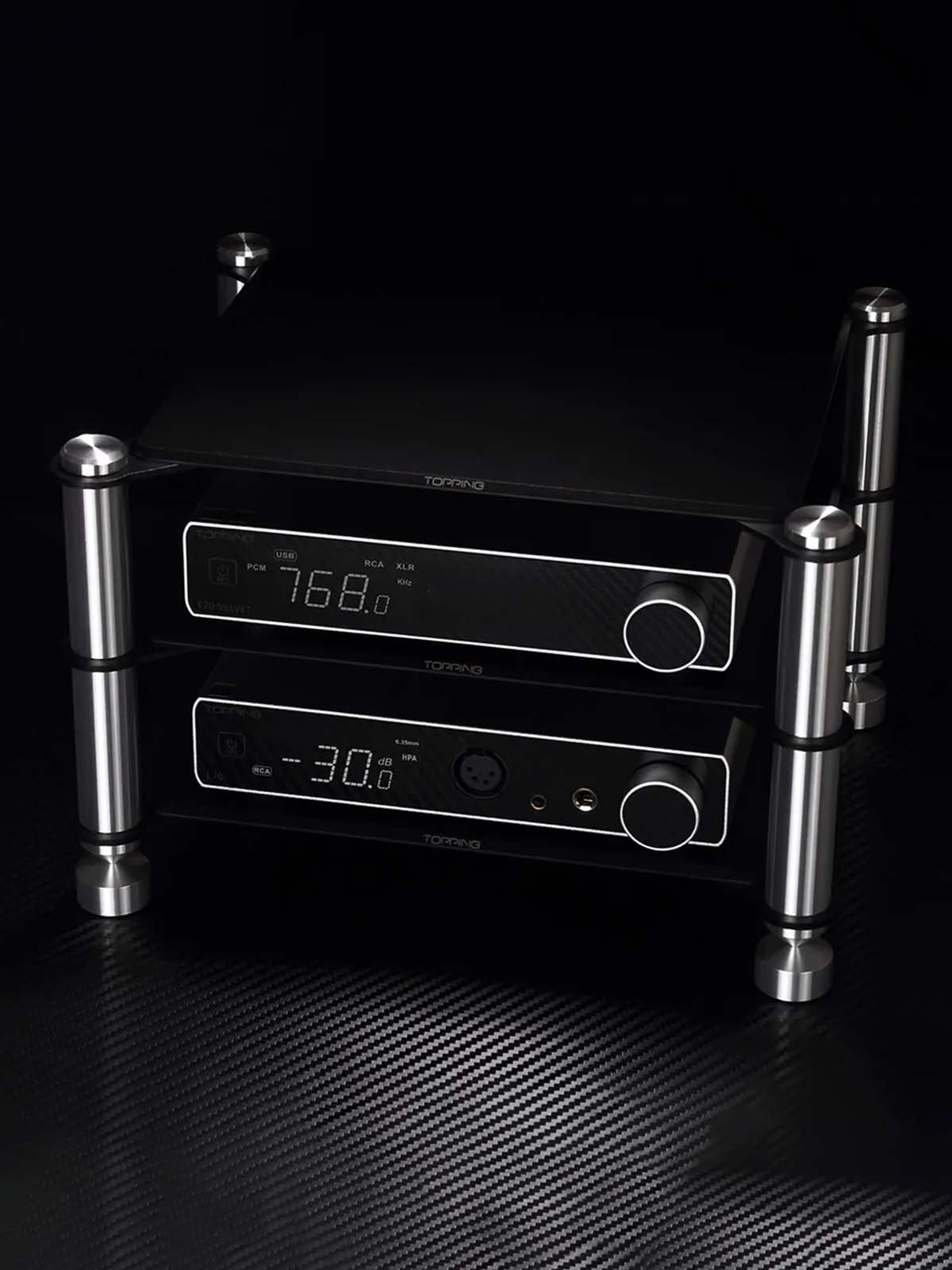

Is it compatible with the TOPPING L70 headphone amplifier?

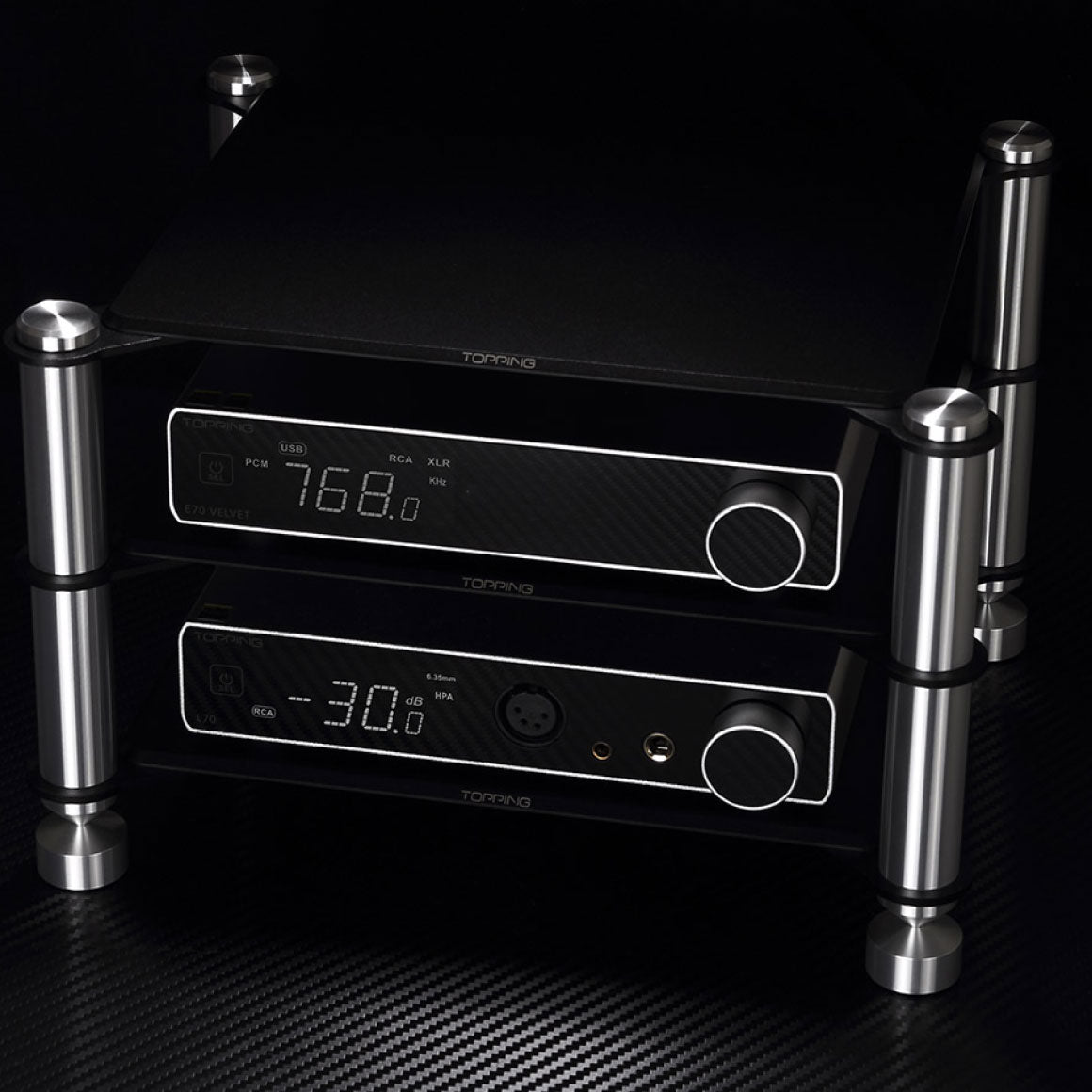

To get you started TOPPING has also designed their versatile headphone amplifier, the L70, to to be a perfect match for the E70 Velvet. The TOPPING L70 is suitable for almost all kinds of headphones.

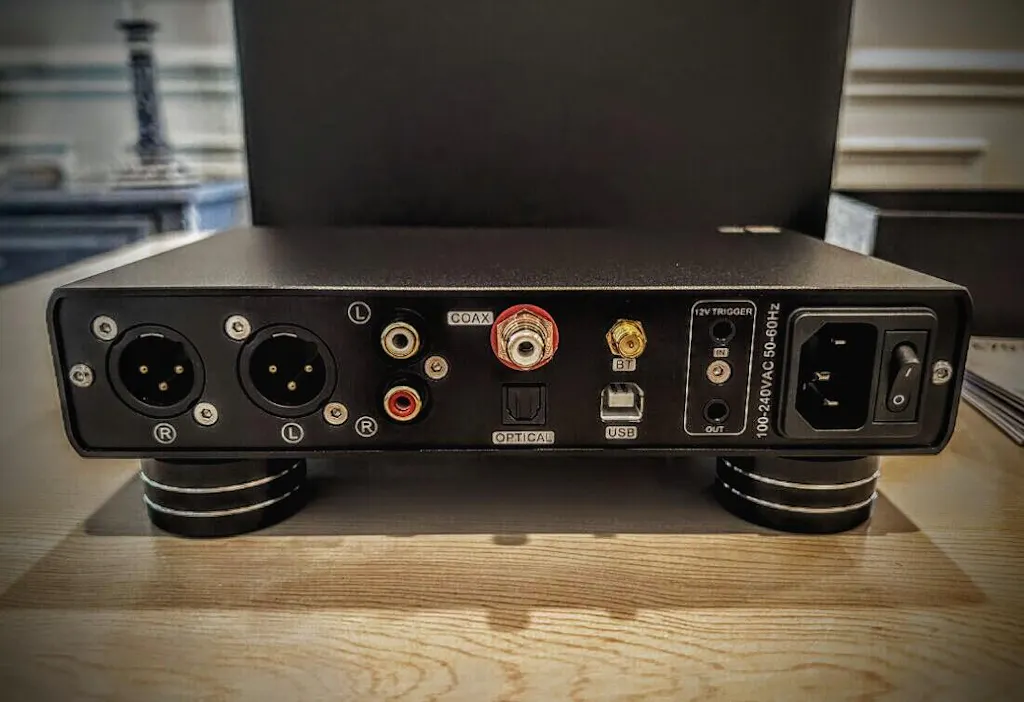

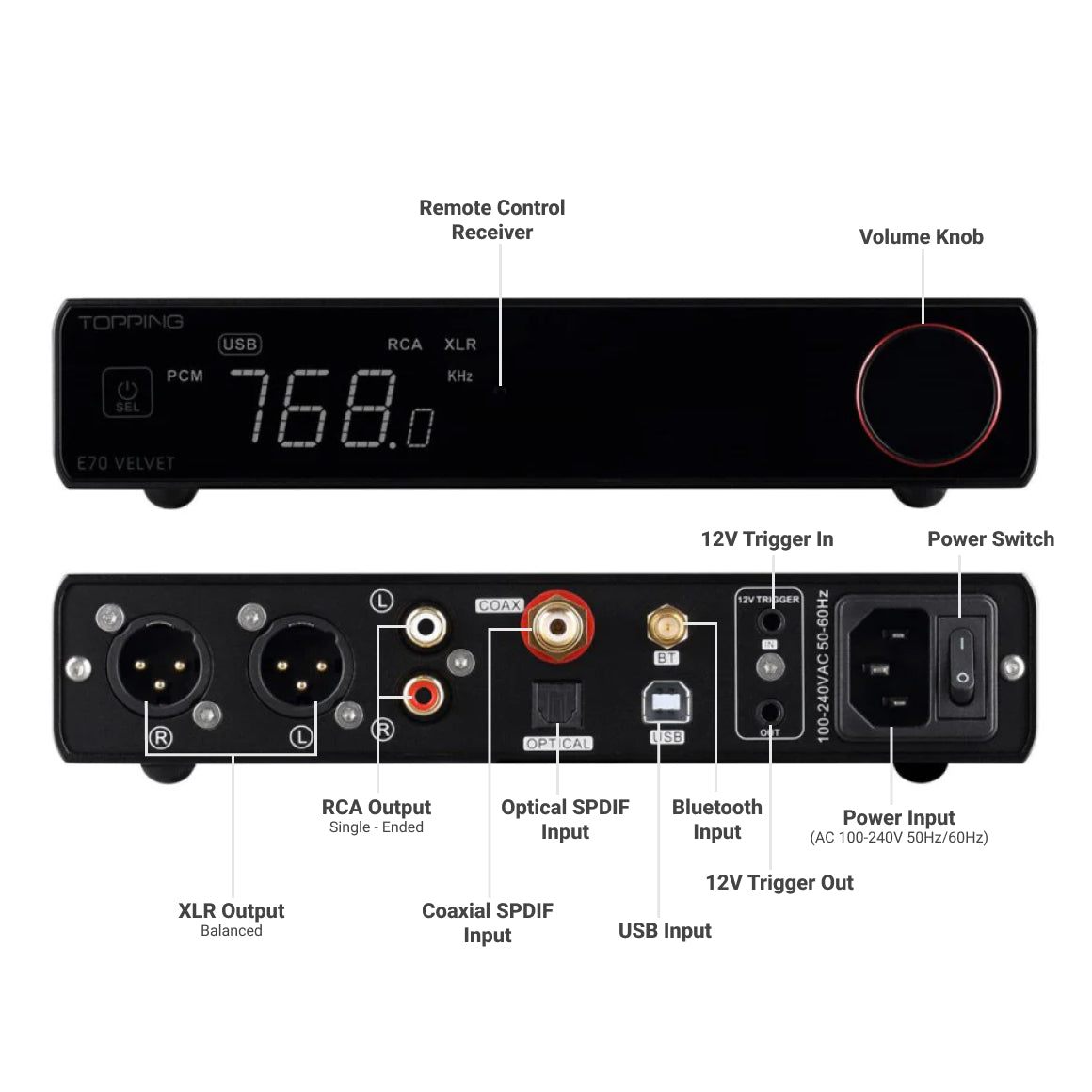

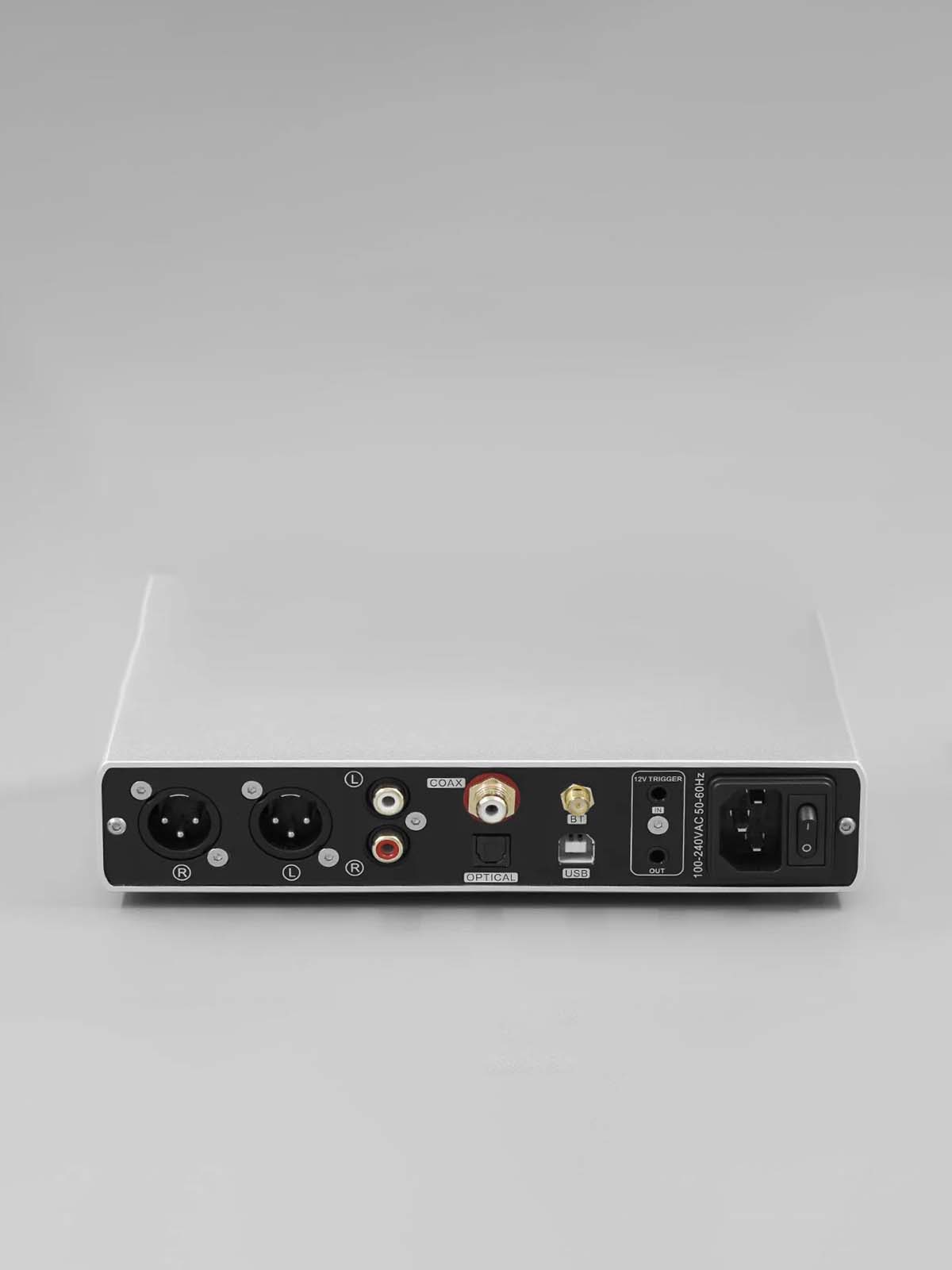

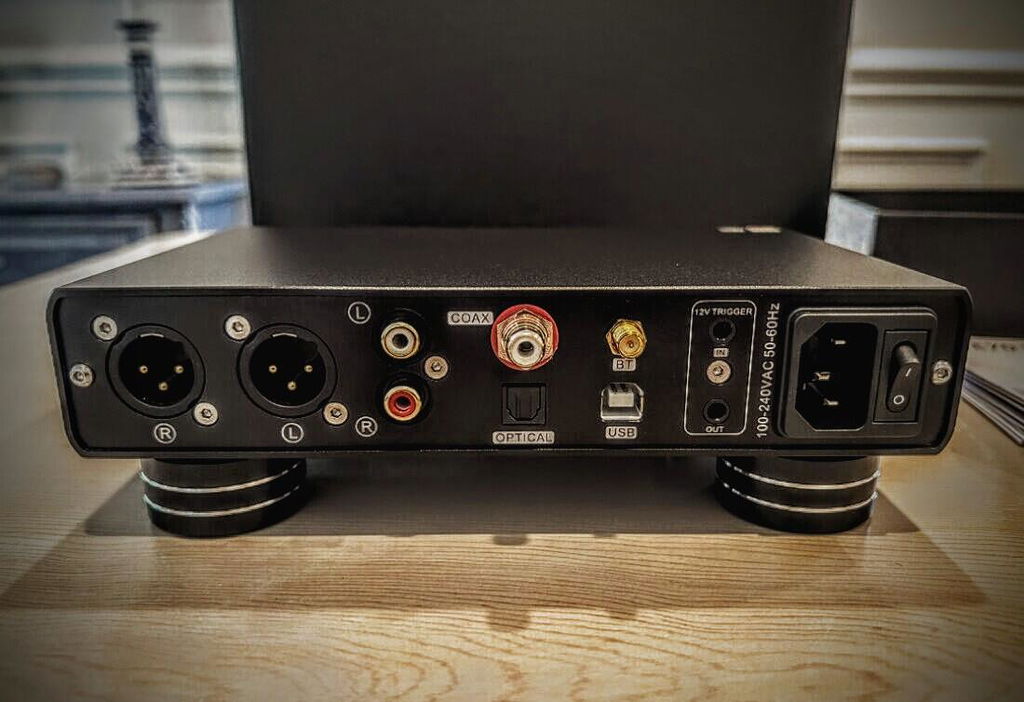

What are the various inputs and outputs like on TOPPING E70 VELVET?
The TOPPING E70 VELVET includes USB, Coaxial, Optical, USB, and Bluetooth, as inputs and selectable RCA & XLR outputs.

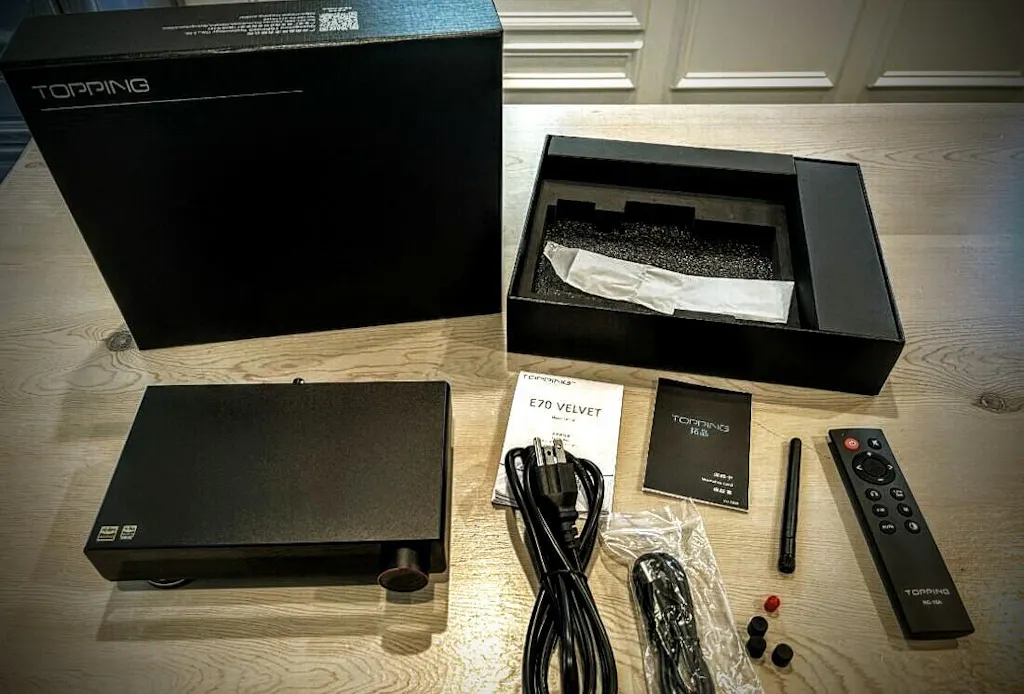

What does the package include?
You will be greeted by the TOPPING E70 VELVET. The package also includes a remote control, USB cable, AC cable, Bluetooth antenna, user manual, and warranty card.
PRESENTING THE E70 VELVET, AN EVOLUTIONARY UPGRADE TO THE E70
TOPPING has been the pioneer in producing some of the cleanest and distortion-free DACs. Their line-up of DACs like the E30, E30 II, D50S, D30 Pro, and E50 have all been well-received and widely accepted in the audiophile community. Their entire line-up of DACs is clean and precise, with spectacular digital-to-analogue conversion capabilities. To improve TOPPING wanted; to create something incredibly sensational while maintaining the characteristics of their earlier generations of DACs. This design aspect led to the birth of the TOPPING E70 Velvet, a fully balanced and Hi-Res certified Desktop DAC. The primary update with the E70 Velvet over the OG E70 is the update in the DAC chipset. From the ESS Sabre flagship ES9028PRO on the E70 OG model, TOPPING has jumped back into the world of rich AKM DACs. The E70 Velvet hosts the flagship AK4499EX + AK4191 AKM DAC chipset in its circuitry. It also hosts an XMOS XU316 USB processor that allows you to play Hi-Res files and supports decoding up to 32-bit/768kHz PCM and Native DSD512 audio signals. The E70 Velvet also includes Bluetooth 5.1 support to save you from the inconvenience of cables. When used wirelessly or "wired," the TOPPING E70 Velvet is a versatile, Hi-Res-certified device that offers clean audio reproduction.
FEATURES DAC CHIPS FROM AKM THAT DELIVERS PHENOMENAL DIGITAL-TO-ANALOGUE CONVERSION
TOPPING is known to include high-grade components in its products. Given the success TOPPING has had in designing and creating amplifiers and DACs over the years, TOPPING's engineers decided it was time to create something truly exceptional. These elements were considered; by a team of engineers that integrated the flagship DAC chips, AK4499EX + AK4191 from AKM, into the E70 Velvet's circuitry. These DAC chips provide industry-leading high performance with high-resolution audio signal decoding. The featured DAC, the AK4499EX, is a flagship 32-Bit DAC from AKM Technologies based on Velvet Sound Verita Technology. The AK4499EX has exceptional characteristics for decoding high-resolution, packing a rich tone and details. The AK4499EX + AK4191 DAC chips support 44.1kHz-768kHz/16bit-32bit and Native DSD64-DSD512 (Direct Stream Digital). It also enables DSD(DoP) DSD64-DSD256 (DSD Over PCM). A brand-new I/V conversion circuit allows for better-quality audio reproduction. The unique circuit design provides lower distortion and less noise. Engulf yourself in pure sonic tranquillity with the all-new TOPPING E70 Velvet Hi-Res DAC!
EXPERIENCE PURE SONIC DELIVERY WIRED OR WIRELESSLY WITH USB AND BLUETOOTH SUPPORT
With the introduction of wireless technology, the audio industry has grown by leaps and bounds. Earlier products had wireless functionality, but they did not sound great. TOPPING engineers considered this aspect and have designed the E70 Velvet to incorporate a QCC5125 chipset enabling Bluetooth 5.1 support. The E70 Velvet has the certification of Hi-Res Audio Wireless & LDAC and supports Bluetooth codecs like LDAC (24bit96kHz), aptX Adaptive, aptX HD, aptX LL, aptX, AAC, and SBC. To get even better sound quality from Bluetooth, TOPPING engineers abandoned the built-in DAC of QCC5125 while connecting its digital signal to AK4499EX to decode. For you to use the E70 Velvet in wired mode, "TOPPING" has incorporated the newest XMOS XU316 chipset. The USB hardware based on the newest XMOS XU316 and Thesycon custom driver (applicable to Windows, other systems are plug-and-play) makes the E70 Velvet stable and reliable. With; USB IN E70 Velvet supports up to 44.1kHz-768kHz/16bit-32bit PCM (Pulse Code Modulation) and Native DSD64-DSD512 (Direct Stream Digital). It also supports DSD(DoP) DSD64-DSD256 (DSD Over PCM). With COAX/OPT-IN, it supports PCM up to 44.1kHz-192kHz/16bit-24bit. The Optical and Coaxial input of E70 supports up to PCM 24-bit 192kHz, which is suitable for digital turntables, disk players, set-top boxes, and gaming consoles.
NOTE: USB input of E70 Velvet has a wide range of compatibility: Windows 10, Windows 11, MAC, Linux, iOS, and Android plug-and-play. Only for Windows ASIO applications; you need to install the driver and set it up.
DOUBLES-UP AS A PREAMPLIFIER FUSED WITH A 12V TRIGGER INTERFACE
In addition to the DAC mode with a fixed output level, the E70 Velvet also has a DAC + preamplifier mode. In this mode, you can control the output volume from -99dB to 0dB by the knob or remote control. This design provides greater convenience when connected to a power amplifier or monitor speakers. The TOPPING E70 Velvet also hosts a 12V Trigger interface. The 12V Trigger interface on the E70 Velvet can be configured for active control (Trigger out) or passive control (Trigger in). With only one easy-to-obtain 3.5mm to 3.5mm cable, the E70 Velvet can be turned on and off synchronously with other devices equipped with a 12V Trigger interface. With this setup, you can connect E70 Velvet to the TOPPING L70 professional-grade headphone amplifier and form your desktop audio chain. TOPPING has also kept the THD+N of the E70 Velvet lower than 0.00006% (A-weighted), enabling the music to be accurate in every detail.
EQUIPPED WITH A REMOTE WITH SELECTABLE OUTPUTS AND AUTO ON/OFF FUNCTIONALITY, MAKING IT IDEAL FOR THE L70
TOPPING E70 Velvet has a balanced XLR output and single-ended RCA output. You can choose "XLR only", "RCA only", or "XLR+RCA" output for different applications. Additionally, TOPPING has added the Auto On/Off functionality to the E70 Velvet, which will turn ON and set to the input where the signal is valid automatically. When E70 Velvet's selection is not "valid" for 1 minute, E70 Velvet will turn OFF automatically. TOPPING was on the spree of designing the E70 Velvet to be the most versatile device and has included a fully functional remote for you to have; control over the device from the comfort of your couch. The E70 Velvet has USB, Coaxial, Optical, USB, and Bluetooth, as inputs and selectable RCA & XLR outputs. The engineers at TOPPING understood that in addition to the more versatile XLR 4V and RCA 2V outputs, there are also extensive needs for XLR 5V and RCA 2.5V. When XLR 4V and RCA 2V are selected, more devices can be adapted when XLR 5V and RCA 2.5V are enabled; the performance improves by leaps and bounds with these functionalities. To get you started TOPPING has also designed their versatile headphone amplifier, the L70, to be a perfect match for the E70 Velvet. The TOPPING L70 is suitable for almost all kinds of headphones. The TOPPING "E70 Velvet" and "L70" can be switched ON and OFF through the 12V Trigger interface. Also, the L70 can be synchronised with the automatic or manual ON/OFF of the E70 Velvet.
USB IN | PCM: 44.1kHz-768kHz/ 16bit-32bit DSD(Native): DSD64-DSD512 DSD(DoP): DSD64-DSD256 |
COAX/OPT IN | PCM: 44.1kHz-192kHz/16bit-24bit |
BT IN: | AAC/SBC/APTX/ APTX LL/ APTX HD/ APTX-Adaptive/LDAC |
THD+N (A-WT) | <0.00008% @1kHz |
THD 90KBW (NO-WT) | <0.0002% @20-20kHz |
SNR (A-WT) | 125dB @1kHz |
DYNAMIC RANGE (A-WT) | 131dB @1kHz |
FREQUENCY RESPONSE | 20Hz-40kHz (±0.3dB) 20Hz-40kHz (±1.0dB) |
OUTPUT LEVEL | 2.1 Vrms @0dBFS(4V Mode) 2.5Vrms @0dBFS(5V Mode) |
NOISE (A-WT) | <1.3uVrms |
CHANNEL CROSSTALK | -130dB @1kHz |
CHANNEL BALANCE | 0.3dB |
OUTPUT IMPEDANCE | 50Ω |
THD+N (A-WT) | <0.00006% @1kHz |
THD 90KBW (NO-WT) | <0.0002% @20-20kHz |
SNR (A-WT) | 125dB @1kHz |
DYNAMIC RANGE (A-WT) | 131dB @1kHz |
FREQUENCY RESPONSE | 20Hz-40kHz (±0.2dB) 20Hz-40kHz (±0.8dB) |
OUTPUT LEVEL | 4.2Vrms @0dBFS(4V Mode) 5.0Vrms @0dBFS(5V Mode) |
NOISE (A-WT) | <1.3uVrms |
CHANNEL CROSSTALK | -143dB @1kHz |
CHANNEL BALANCE | 0.3dB |
OUTPUT IMPEDANCE | 100Ω |
BOX CONTENTS | 1. TOPPING E70 VELVET |
2. Remote Control | |
3. USB Cable | |
4. AC Cable | |
5. Bluetooth Antenna | |
6. User Manual | |
7. Warranty Card |
OTHER DETAILS
GENERIC NAME | DAC & Amp |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
PACKAGE CONTENTS | TOPPING E70 VELVET Remote ControL, USB Cable AC Cable Bluetooth Antenna User ManuaL, Warranty Card |
User Manual | E70 Velvet
Desktop DAC + Preamp
|
What is the warranty on the TOPPING E70 VELVET?
TOPPING E70 VELVET comes with a 1-year warranty on the Amp/DAC and 6 months warranty on the battery.
Where is TOPPING brand based?
TOPPING is a brand based in Guangzhou, China.
What are the major differences between the OG TOPPING E70 VELVET and the E70 ?
The E70 Velvet expands on its predecessors' strengths while retaining all its positive qualities to raise the bar for audio performance. The primary update with the new E70 Velvet over the OG E70 is in the DAC chipset architecture. From ESS’s flagship ES9028PRO on the E70 OG model, Topping has jumped back into the world of rich AKM DACs. While the OG model brought you crisp, detailed sound with its ES9028PRO DAC arrangement, the new E70 Velvet brings us the goodness of AKM’s flagship AK4499EX+AK4191EQ DAC Chipset. AK4499EX chip brings the highly-acclaimed Velvet Sound Verita technology that promises rich and smooth sound with the E70 Velvet. Also, with COAX/OPT-IN, the OG E70 supported PCM up to 44.1kHz-192kHz/16bit-24bit and DSD(DoP) DSD64, while the E70 Velvet only supports PCM PCM up to 44.1kHz-192kHz/16bit-24bit.
Which model of TOPPING E70 should you prefer?
It highly depends upon the sound you prefer. The OG E70 offers crisp, detailed, and analytical sound whereas the E70 Velvet offers rich, warm & smooth sound.
What are the stand-out features of this DAC?
Flagship AK4499EX Velvet Sound DAC Chipset.
Latest Bluetooth V5.1 connectivity.
Hi-Res LDAC Transmission.
XMOS XU316 USB Processor.
Supports Hi-Resolution 32-Bit/768kHz PCM and Native DSD512 Audio Signals.
Brand New I/V Conversion Circuit.
Ultra-Low THD+N Performance.
Selectable RCA & XLR Outputs.
Ultra-Low Noise Preamp Function.
Fully-Functional Remote Control.
Multiple Input Options(USB, Coaxial, Optical, USB, Bluetooth).
Automatic On/Off Function With All Inputs.
12V Trigger Interface.
Preamp Function.
Hi-Res Audio & Hi-Res Audio Wireless Certified.
What are the DAC chips incorporated in the TOPPING E70 VELVET?
The TOPPING E70 VELVET hosts the flagship AK4499EX + AK4191 AKM DAC chipset in its circuitry.
What is the XMOS chip used in TOPPING E70 VELVET?
The USB hardware on the TOPPING E70 VELVET has XMOS XU316 and Thesycon custom driver.
What are the various audio codecs supported by TOPPING E70 VELVET?
TOPPING E70 VELVET has the certification of Hi-Res Audio Wireless & LDAC and supports Bluetooth codecs like LDAC (24bit96kHz), aptX Adaptive, aptX HD, aptX LL, aptX, AAC, and SBC
Is it compatible with gaming consoles?
Yes, it is compatible with gaming consoles.
What operating systems are supported while using the USB input on the TOPPING E70 VELVET?
The USB input of the TOPPING E70 VELVET has a wide range of compatibility: Windows 10, 11, Mac, Linux, iOS, and Android plug-and-play. Only for Windows ASIO applications; you need to; install the driver and set it up.
What is the auto On/Off functionality like on TOPPING E70 VELVET?
The TOPPING E70 VELVET has auto On/Off functionality. It will automatically turn ON and set to the input to which the signal is valid. And when the E70 Velvet's selection is not valid for 1 minute, E70 Velvet will turn OFF automatically.
Is it compatible with the TOPPING L70 headphone amplifier?
To get you started TOPPING has also designed their versatile headphone amplifier, the L70, to to be a perfect match for the E70 Velvet. The TOPPING L70 is suitable for almost all kinds of headphones.
What are the various inputs and outputs like on TOPPING E70 VELVET?
The TOPPING E70 VELVET includes USB, Coaxial, Optical, USB, and Bluetooth, as inputs and selectable RCA & XLR outputs.
What does the package include?
You will be greeted by the TOPPING E70 VELVET. The package also includes a remote control, USB cable, AC cable, Bluetooth antenna, user manual, and warranty card.
Don't sweat it, this
Topping - E70 VELVET comes with a 1 Year warranty
from TOPPING that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about TOPPING's warranty in India.
The Audiophile's Choice For Precision and Accuracy
Explore Collection" I give the E70V a full recommendation. I think it will work as one of the better mid-fi DACs and I find it very competitive in terms of the price.Overall a good design and I look forward to seeing what’s next from Topping."
Read More"The E70 Velvet aptly lives up to its name, delivering a smooth and silky sound that doesn’t compromise on detail or transparency.Differences in sound quality are noticeable, making the E70 Velvet a worthy investment for audiophiles"
Read MoreThis product is rated 5.0 of 5.0 stars.
It has received 1 review.
You may also like
This product is rated 5.0 of 5.0 stars.
It has received 1 review.
