FiiO - BR13
High Fidelity Bluetooth ReceiverGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
ICICI Bank
3
15.99%
₹ 1,882
₹ 147
6
15.99%
₹ 960
₹ 259
9
15.99%
₹ 652
₹ 373
12
15.99%
₹ 499
₹ 488
18
15.99%
₹ 346
₹ 722
24
15.99%
₹ 269
₹ 962
HDFC Bank
3
16%
₹ 1,882
₹ 147
6
16%
₹ 960
₹ 259
9
16%
₹ 652
₹ 373
12
16%
₹ 499
₹ 488
18
16%
₹ 346
₹ 723
24
16%
₹ 269
₹ 963
SBI Bank
3
16.5%
₹ 1,884
₹ 152
6
15%
₹ 957
₹ 243
9
15%
₹ 650
₹ 349
12
15%
₹ 496
₹ 457
18
16%
₹ 346
₹ 723
24
16%
₹ 269
₹ 963
Axis Bank
3
16%
₹ 1,882
₹ 147
6
16%
₹ 960
₹ 259
9
16%
₹ 652
₹ 373
12
16%
₹ 494
₹ 426
18
16%
₹ 346
₹ 723
24
16%
₹ 269
₹ 963
Citi Bank
3
14%
₹ 1,876
₹ 129
6
14%
₹ 954
₹ 227
9
16%
₹ 652
₹ 373
12
16%
₹ 499
₹ 488
18
16%
₹ 346
₹ 723
24
16%
₹ 269
₹ 963
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 1,882
₹ 147
6
16%
₹ 960
₹ 259
9
16%
₹ 652
₹ 373
12
16%
₹ 499
₹ 488
18
16%
₹ 346
₹ 723
24
16%
₹ 269
₹ 963
RBL Bank
3
13%
₹ 1,873
₹ 120
6
14%
₹ 954
₹ 227
9
15%
₹ 650
₹ 349
12
15%
₹ 496
₹ 457
18
15%
₹ 343
₹ 676
24
15%
₹ 267
₹ 900
Standard Chartered Bank
3
13%
₹ 1,873
₹ 120
6
13%
₹ 952
₹ 210
9
14%
₹ 647
₹ 326
12
14%
₹ 494
₹ 426
INDUSIND Bank
3
14%
₹ 1,876
₹ 129
6
14%
₹ 954
₹ 227
9
15%
₹ 650
₹ 349
12
15%
₹ 496
₹ 457
18
15%
₹ 343
₹ 676
24
15%
₹ 267
₹ 900
HSBC Bank
3
12.50%
₹ 1,871
₹ 115
6
12.50%
₹ 950
₹ 202
9
13.50%
₹ 646
₹ 314
12
13.50%
₹ 492
₹ 410
18
13.50%
₹ 339
₹ 606
YES Bank
3
13%
₹ 1,873
₹ 120
6
13%
₹ 952
₹ 210
9
14%
₹ 647
₹ 326
12
14%
₹ 494
₹ 426
18
15%
₹ 343
₹ 676
24
15%
₹ 267
₹ 900
Bank of Baroda
3
13%
₹ 1,873
₹ 120
6
14%
₹ 954
₹ 227
9
14%
₹ 647
₹ 326
12
15%
₹ 496
₹ 457
18
15%
₹ 343
₹ 676
24
16%
₹ 269
₹ 963
American Express
3
14%
₹ 1,876
₹ 129
6
14%
₹ 954
₹ 227
9
14%
₹ 647
₹ 326
12
14%
₹ 494
₹ 426
18
15%
₹ 343
₹ 676
24
15%
₹ 267
₹ 900
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
While this product is out of stock, consider...
Why FiiO is Special
Designed in China
Established & Reputed
Trust us, our reputation in the audio world speaks for itself!
This headphone or gear comes from a well-respected brand known for its high-quality audio equipment, so you can be confident in your purchase.
If you see a product marked as “🎖️ Established & Reputed”, it means you're getting a top-tier device from a brand that's earned its stripes in the audio industry.
Revered by Audiophiles
Audiophiles can be really picky and tough to impress and if the audiophile community says something sounds good, you can bet it's great!
This headphone or gear has gained recognition and admiration from audiophiles, who are known for their discerning taste in high-fidelity audio. They appreciate its precision, attention to detail and its ability to deliver an immersive sonic experience.
If you see a product marked as "🙌🏻 Revered by Audiophiles", it means that it meets the highest standards of sound quality and performance, making it a top choice for anyone who values exceptional audio experiences.
Born in 2007
Why we love this DAC/Amp
Value for Money
Great sound always doesn't have to come with a fancy price tag.
Every once in a while we come across a product that give you a lot more value for the price.
If you see products marked as "🥜 Value For Money" you can be sure you're getting a great bang for your buck.
Ideal for Beginners
Lost in the Audio Maze? Let Us Guide Your Beginner Audiophile Journey!
If you are a newcomer in the audio world, this headphone or gear is a stepping stone for those overwhelmed by the plethora of options available.
If you see a product marked with “🌱 Ideal for Beginners," it indicates that this device is perfect for starting your audiophile journey.
Audiophile Community Favourite
This headphone or gear has a seal of approval from our audiophile community.
It is hit among the pickiest of audio enthusiasts. It comes with two thumbs up and is the community’s and one of our favourites.
If you see a product marked as “🦋 Audiophile Community Favourite”, you're in for a sonic treat with top-tier sound quality that will make your ears swoon and elevate your listening experience to new heights!
For Audiophiles at Home
Cause music hit differently when you are in your own space.
This headphone or gear is perfect for those who demand exceptional sound quality in their personal sanctuary.
If you see products marked as “🏠 For Audiophiles at Home”, get ready to transform your living space into an audiophile's paradise, with rich, immersive sound that makes every listening session a masterpiece.
Use Wirelessly with Bluetooth
Enjoy the convenience of seamless wireless connectivity
This headphone or gear indicates that the product supports wireless connectivity via Bluetooth, freeing you from the tangles of cords and cables.
If you see products marked as “✂️ Use Wirelessly with Bluetooth”, enjoy the freedom to stream music, make calls, and more, all without being tethered to your device, giving you the flexibility to move around and multitask with ease.
Connect With Cable
This device comes with multiple connectivity options. Be sure to check if your source and output support these input and output options.
Built like a Tank
No need to worry about durability.
If you're seeking a headphone or gear with a strong, rugged build, this snapshot indicates that this is the one for you.
If you see a product marked with “🪖 Built like a Tank", it means this product is crafted with metal in its design, ensuring exceptional robustness and durability.
Why it Sounds Amazing
DAC Chip
Know the secret to your pristine audio.
This headphone or gear reveals the secret sauce behind superior audio quality, highlighting the presence of a high-performance DAC chip for pristine sound reproduction.
If you see products marked as “⚙️ DAC Chip”, expect to experience your music with unparalleled clarity, detail, and fidelity, ensuring that every note and nuance is faithfully reproduced for your listening pleasure.
Sampling Rate And Bit Depth
Ever wonder how those ones and zeros on your computer magically transform into the rich melodies that fill your room?
The secret lies in a tiny device called a Digital-to-Analog Converter (DAC). Think of it as a translator, taking the digital code of your music and meticulously sculpting it back into a smooth, analog wave that your speakers can understand. But just like a sculptor needs the right tools, achieving audio nirvana with a DAC depends on two key factors: sampling rate and bit depth.
Sampling Rate:
Imagine your favourite song as a complex rollercoaster track. The sampling rate refers to how often the DAC takes measurements of this digital track, measured in kHz (kilohertz) or thousands of times per second. A higher sampling rate, like 96 kHz, is like taking a ton of pictures of the track, capturing every twist and turn with incredible detail. Lower rates, like the standard 44.1 kHz used in CDs, are like taking snapshots at a theme park – fun, but you might miss some of the subtler details that make the ride truly exhilarating.
Bit Depth:
Now, think about the sculptor's tools. Bit depth refers to the precision of each measurement the DAC takes. Imagine the number of colours available to the sculptor. With higher bit depth (e.g., 24 bits compared to 16 bits), each measurement can capture a wider range of values. This allows the DAC to recreate subtler variations in the sound wave, resulting in richer and more nuanced audio. It's like having a broader colour palette for building a more detailed and lifelike sculpture of the sound.
DESCRIPTION
PRESENTING THE ALL-NEW HIGH-FIDELITY BLUETOOTH RECEIVER - THE FIIO BR13
The FiiO BR13 leverages Bluetooth 5.1 technology, providing extensive codec support, including SBC, AAC, aptX, aptX LL, aptX Adaptive, aptX HD, and LDAC, making it versatile for receiving LDAC signals. Notably, it prioritises aptX LL for low-latency gaming. These high-definition codecs offer an extended range and rapid transmission, spanning up to 30 meters for a more immersive experience. In addition to its Bluetooth 5.1 capabilities, the BR13 features proprietary digital upsampling technology. When connected to your phone, it transforms it into a jukebox in wired mode, and you can also use it as a streamer to enjoy your favourite music.
SEAMLESS BLUETOOTH 5.1 CONNECTIVITY WITH DUAL CONNECTION SUPPORT
The FiiO BR13 harnesses Bluetooth 5.1 technology, offering an array of high-quality codecs like SBC, AAC, aptX, aptX LL, aptX Adaptive, aptX HD, and LDAC. It can receive LDAC signals, ensuring top-notch audio quality. These advanced Bluetooth formats provide extensive coverage and swifter transmission rates, reaching distances of up to 30 meters for a more captivating experience. Moreover, the BR13 supports dual connections, allowing seamless switching between two Bluetooth transmitting devices such as your phone and tablet. It also boasts a dedicated low-latency mode, enabling you to prioritise aptX LL with a single click through the companion app for reduced audio latency, enhancing immersion in activities like gaming, binge-watching dramas, or enjoying movies.
EXPERTLY ENGINEERED WITH HI-FI AUDIO ARCHITECTURE AND FIIOS BLACK TECH
The FiiO BR13 incorporates a professional-grade Hi-Fi audio setup, featuring the Qualcomm QCC5125 Bluetooth chip, ES9018K2M DAC, and TPA1882 op-amp. It also includes HiFi-level mute circuitry, a crystal oscillator, 5 low-noise LDOs, and a dedicated OVP power management chip to ensure reliable and high-quality audio connectivity. With its robust components, the BR13 provides support for seven Hi-Res Bluetooth codecs, including LDAC. The USB DAC functionality enables 96kHz/24bit input and compatibility with UAC1.0 for straightforward plug-and-play use with devices like PS5 and the Nintendo Switch. Additionally, the BR13 employs FiiO's exclusive Black Technology, allowing it to upsample low sampling rate audio signals to high sampling rates up to 96kHz/24bit, delivering sound quality that approaches master-level standards.
INDEPENDENT 60-LEVEL VOLUME ADJUSTMENT AND 2 TYPES OF PARAMETRIC EQ
The FiiO BR13's exceptional architecture excels in the finer details: It offers 60 individual volume adjustment levels for precise control over your preferred volume. Five low-noise LDOS ensure accurate voltage regulation, while a dedicated OVP power management chip safeguards against over-voltage. The HiFi-level mute circuit, coupled with a 100MHz crystal oscillator, minimizes sound interference when powering on or off and when switching between codecs. The BR13 comes with seven presets, including profiles for pop and classical music, enabling you to enjoy various music genres. Moreover, it provides two parametric EQ options, each with ten customisable frequency bands featuring adjustable frequency, level, and Q bandwidth values, allowing you to tailor the sound to your preferences to a tee.
MULTIPLE INPUT CONNECTIVITY OPTIONS WITH DUAL HI-RES CERTIFICATION
The FiiO BR13 offers extensive compatibility with various devices and sets high standards for output quality compared to typical Bluetooth receivers. It provides optical and coaxial outputs with support for 96kHz/24bit and an RCA output at 2Vrms. Furthermore, it supports both SPDIF conversion and SPDIF Bypass. SPDIF conversion enables the transformation of optical or coaxial signals from devices like TVs, set-top boxes, or DVD players into optical, coaxial, or RCA outputs, enhancing the home theatre experience. The SPDIF Bypass feature allows simultaneous optical and coaxial signal inputs, eliminating the need to plug and unplug cables. In addition to its versatile connectivity options, the BR13 boasts dual Hi-Res Audio certifications from the Japan Audio Society, ensuring exceptional performance, both wired and wireless.
A CLASS-LEADING BUILD WITH AN ALUMINIUM ALLOY BODY + A DEDICATED APP
The FiiO BR13 is constructed with a robust aluminium alloy body, complemented by a thoughtfully designed angled front panel. It boasts a custom, high-contrast, and durable LCD screen that provides quick and clear visibility of essential information like the codec and EQ settings. What sets the BR13 apart from many similar products is its versatile control options. You can operate it through the physical buttons on the device or use a companion app for control. Whether you prefer to interact with the device up close or from the comfort of your sofa using the app, the BR13 offers convenient control methods to suit your preferences.
SPECS
HARDWARE SOLUTION | DAC: ES9018K2M, Op-amp: TPA1882, Bluetooth: QCC5125 |
WORKING MODE | USB DAC/Bluetooth Receiving/Coaxial Decoding/Optical Decoding |
VOLUME CONTROL | Physical buttons |
CHANNEL BALANCE | L12~R12 (0.5dB per level) |
DISPLAY | 1.1-inch LCD display with backlight |
DIMENSIONS | About 98x96x26.5mm |
WEIGHT | About 135g |
COLOR | Black |
POWER SUPPLY | USB 5V/1A |
BUTTONS | Power button (power on/play/pause)*1+Input select switch*1+EQ select switch*1+Volume button*2 |
USB | 2-way Type-C (Power supply/data transfer) |
POWER INPUT | Type-C |
SINGLE-ENDED LINE OUT | RCA plug |
DIGITAL OPTICAL INPUT | Optical in |
DIGITAL OPTICAL OUTPUT | Optical out |
DIGITAL COAXIAL INPUT/OUTPUT | RCA plug |
BLUETOOTH RECEIVING (5.2) | AAC/SBC/aptX/aptX LL/aptX Adaptive/aptX HD/LDAC |
MAX SUPPORTED SAMPLING RATE | Local decoding: Up to 96kHz/32bit Coaxial in decoding: Up to 192kHz/24bit Optical in decoding: Up to 96kHz/24bit Coaxial out decoding: Up to 96kHz/24bit (Frequency doubling) Optical out decoding: Up to 96kHz/24bit (Frequency doubling) |
EQ ADJUSTING | Five EQ styles included: JAZZ-POP-ROCK-CLAS-MEM1-MEM2 |
FIIO CONTROL | Supported |
STANDBY | Display automatically off if no signals for 5 minutes (select on the app: 5/10/15 mins) |
BLUETOOTH CODEC INDICATE (ON DISPLAY) | SBC, AAC, aptX/aptX LL, aptX HD, LDAC, aptX Adaptive |
BLUETOOTH MULTIPOINT | Supported |
FIRMWARE UPGRADE | Over-The-Air (OTA) |
THD+N & NOISE | <0.0006% (1kHz/-0dB@10KΩ) |
CROSSTALK | ≥108dBh |
FREQUENCY RESPONSE | 20Hz~20KHz: damping<1.9dB |
SNR | ≥114dB (A-weighted) |
NOISE FLOOR | <5uV (A-weighted) |
LINE OUTPUT LEVEL | 2Vrms |
THD+N & NOISE | <0.0006% (1kHz/-0dB@10KΩ) |
CROSSTALK | ≥109dB |
FREQUENCY RESPONSE | 220~20KHz: damping<1.9dB 20Hz~50KHz: damping<1.2dB |
SNR | ≥114dB (A-weighted) |
NOISE FLOOR | <5uV (A-weighted) |
LINE OUTPUT LEVEL | 2Vrms |
THD+N & NOISE | <0.002% (1kHz/-0dB@10KΩ) |
CROSSTALK | ≥98dB (1kHz/-0dB@10KΩ) |
FREQUENCY RESPONSE | 20Hz~20KHz: damping<0.2dB |
SNR | ≥113dB (A-weighted) |
NOISE FLOOR | <5uV (A-weighted) |
LINE OUTPUT LEVEL | 2Vrms |
BOX CONTENTS | 1. FiiO BR13 |
2. USB to Type-C data cable | |
3. Manual | |
4. Warranty Card |
OTHER DETAILS
GENERIC NAME | Bluetooth Receiver |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 120 x 55 x 25.8mm |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: HK JADE Audio Technology CO., Limited Address: Room 1508, 15/F, Yalam Central Studio II, 625 Nathan Road, Kowloon, CHINA |
PACKAGE CONTENTS | FiiO BR13 USB To Type-C Data Cable ManuaL, Warranty Card |
Quick Start Guide | BR13
High Fidelity Bluetooth Transceiver
|
PRESENTING THE ALL-NEW HIGH-FIDELITY BLUETOOTH RECEIVER - THE FIIO BR13
The FiiO BR13 leverages Bluetooth 5.1 technology, providing extensive codec support, including SBC, AAC, aptX, aptX LL, aptX Adaptive, aptX HD, and LDAC, making it versatile for receiving LDAC signals. Notably, it prioritises aptX LL for low-latency gaming. These high-definition codecs offer an extended range and rapid transmission, spanning up to 30 meters for a more immersive experience. In addition to its Bluetooth 5.1 capabilities, the BR13 features proprietary digital upsampling technology. When connected to your phone, it transforms it into a jukebox in wired mode, and you can also use it as a streamer to enjoy your favourite music.
SEAMLESS BLUETOOTH 5.1 CONNECTIVITY WITH DUAL CONNECTION SUPPORT
The FiiO BR13 harnesses Bluetooth 5.1 technology, offering an array of high-quality codecs like SBC, AAC, aptX, aptX LL, aptX Adaptive, aptX HD, and LDAC. It can receive LDAC signals, ensuring top-notch audio quality. These advanced Bluetooth formats provide extensive coverage and swifter transmission rates, reaching distances of up to 30 meters for a more captivating experience. Moreover, the BR13 supports dual connections, allowing seamless switching between two Bluetooth transmitting devices such as your phone and tablet. It also boasts a dedicated low-latency mode, enabling you to prioritise aptX LL with a single click through the companion app for reduced audio latency, enhancing immersion in activities like gaming, binge-watching dramas, or enjoying movies.
EXPERTLY ENGINEERED WITH HI-FI AUDIO ARCHITECTURE AND FIIOS BLACK TECH
The FiiO BR13 incorporates a professional-grade Hi-Fi audio setup, featuring the Qualcomm QCC5125 Bluetooth chip, ES9018K2M DAC, and TPA1882 op-amp. It also includes HiFi-level mute circuitry, a crystal oscillator, 5 low-noise LDOs, and a dedicated OVP power management chip to ensure reliable and high-quality audio connectivity. With its robust components, the BR13 provides support for seven Hi-Res Bluetooth codecs, including LDAC. The USB DAC functionality enables 96kHz/24bit input and compatibility with UAC1.0 for straightforward plug-and-play use with devices like PS5 and the Nintendo Switch. Additionally, the BR13 employs FiiO's exclusive Black Technology, allowing it to upsample low sampling rate audio signals to high sampling rates up to 96kHz/24bit, delivering sound quality that approaches master-level standards.
INDEPENDENT 60-LEVEL VOLUME ADJUSTMENT AND 2 TYPES OF PARAMETRIC EQ
The FiiO BR13's exceptional architecture excels in the finer details: It offers 60 individual volume adjustment levels for precise control over your preferred volume. Five low-noise LDOS ensure accurate voltage regulation, while a dedicated OVP power management chip safeguards against over-voltage. The HiFi-level mute circuit, coupled with a 100MHz crystal oscillator, minimizes sound interference when powering on or off and when switching between codecs. The BR13 comes with seven presets, including profiles for pop and classical music, enabling you to enjoy various music genres. Moreover, it provides two parametric EQ options, each with ten customisable frequency bands featuring adjustable frequency, level, and Q bandwidth values, allowing you to tailor the sound to your preferences to a tee.
MULTIPLE INPUT CONNECTIVITY OPTIONS WITH DUAL HI-RES CERTIFICATION
The FiiO BR13 offers extensive compatibility with various devices and sets high standards for output quality compared to typical Bluetooth receivers. It provides optical and coaxial outputs with support for 96kHz/24bit and an RCA output at 2Vrms. Furthermore, it supports both SPDIF conversion and SPDIF Bypass. SPDIF conversion enables the transformation of optical or coaxial signals from devices like TVs, set-top boxes, or DVD players into optical, coaxial, or RCA outputs, enhancing the home theatre experience. The SPDIF Bypass feature allows simultaneous optical and coaxial signal inputs, eliminating the need to plug and unplug cables. In addition to its versatile connectivity options, the BR13 boasts dual Hi-Res Audio certifications from the Japan Audio Society, ensuring exceptional performance, both wired and wireless.
A CLASS-LEADING BUILD WITH AN ALUMINIUM ALLOY BODY + A DEDICATED APP
The FiiO BR13 is constructed with a robust aluminium alloy body, complemented by a thoughtfully designed angled front panel. It boasts a custom, high-contrast, and durable LCD screen that provides quick and clear visibility of essential information like the codec and EQ settings. What sets the BR13 apart from many similar products is its versatile control options. You can operate it through the physical buttons on the device or use a companion app for control. Whether you prefer to interact with the device up close or from the comfort of your sofa using the app, the BR13 offers convenient control methods to suit your preferences.
HARDWARE SOLUTION | DAC: ES9018K2M, Op-amp: TPA1882, Bluetooth: QCC5125 |
WORKING MODE | USB DAC/Bluetooth Receiving/Coaxial Decoding/Optical Decoding |
VOLUME CONTROL | Physical buttons |
CHANNEL BALANCE | L12~R12 (0.5dB per level) |
DISPLAY | 1.1-inch LCD display with backlight |
DIMENSIONS | About 98x96x26.5mm |
WEIGHT | About 135g |
COLOR | Black |
POWER SUPPLY | USB 5V/1A |
BUTTONS | Power button (power on/play/pause)*1+Input select switch*1+EQ select switch*1+Volume button*2 |
USB | 2-way Type-C (Power supply/data transfer) |
POWER INPUT | Type-C |
SINGLE-ENDED LINE OUT | RCA plug |
DIGITAL OPTICAL INPUT | Optical in |
DIGITAL OPTICAL OUTPUT | Optical out |
DIGITAL COAXIAL INPUT/OUTPUT | RCA plug |
BLUETOOTH RECEIVING (5.2) | AAC/SBC/aptX/aptX LL/aptX Adaptive/aptX HD/LDAC |
MAX SUPPORTED SAMPLING RATE | Local decoding: Up to 96kHz/32bit Coaxial in decoding: Up to 192kHz/24bit Optical in decoding: Up to 96kHz/24bit Coaxial out decoding: Up to 96kHz/24bit (Frequency doubling) Optical out decoding: Up to 96kHz/24bit (Frequency doubling) |
EQ ADJUSTING | Five EQ styles included: JAZZ-POP-ROCK-CLAS-MEM1-MEM2 |
FIIO CONTROL | Supported |
STANDBY | Display automatically off if no signals for 5 minutes (select on the app: 5/10/15 mins) |
BLUETOOTH CODEC INDICATE (ON DISPLAY) | SBC, AAC, aptX/aptX LL, aptX HD, LDAC, aptX Adaptive |
BLUETOOTH MULTIPOINT | Supported |
FIRMWARE UPGRADE | Over-The-Air (OTA) |
THD+N & NOISE | <0.0006% (1kHz/-0dB@10KΩ) |
CROSSTALK | ≥108dBh |
FREQUENCY RESPONSE | 20Hz~20KHz: damping<1.9dB |
SNR | ≥114dB (A-weighted) |
NOISE FLOOR | <5uV (A-weighted) |
LINE OUTPUT LEVEL | 2Vrms |
THD+N & NOISE | <0.0006% (1kHz/-0dB@10KΩ) |
CROSSTALK | ≥109dB |
FREQUENCY RESPONSE | 220~20KHz: damping<1.9dB 20Hz~50KHz: damping<1.2dB |
SNR | ≥114dB (A-weighted) |
NOISE FLOOR | <5uV (A-weighted) |
LINE OUTPUT LEVEL | 2Vrms |
THD+N & NOISE | <0.002% (1kHz/-0dB@10KΩ) |
CROSSTALK | ≥98dB (1kHz/-0dB@10KΩ) |
FREQUENCY RESPONSE | 20Hz~20KHz: damping<0.2dB |
SNR | ≥113dB (A-weighted) |
NOISE FLOOR | <5uV (A-weighted) |
LINE OUTPUT LEVEL | 2Vrms |
BOX CONTENTS | 1. FiiO BR13 |
2. USB to Type-C data cable | |
3. Manual | |
4. Warranty Card |
OTHER DETAILS
GENERIC NAME | Bluetooth Receiver |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 120 x 55 x 25.8mm |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: HK JADE Audio Technology CO., Limited Address: Room 1508, 15/F, Yalam Central Studio II, 625 Nathan Road, Kowloon, CHINA |
PACKAGE CONTENTS | FiiO BR13 USB To Type-C Data Cable ManuaL, Warranty Card |
Quick Start Guide | BR13
High Fidelity Bluetooth Transceiver
|
Don't sweat it, this
FiiO - BR13 comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
Inspiring Audio Excellence Worldwide
Explore CollectionHi-Res Bluetooth Receiver Award
VGP Award
Nov, 2023
"This compact device packs a significant punch with its professional HiFi architecture and support for high-resolution codecs, bringing a high-quality audio experience to budget-conscious audiophiles."
Read MoreHave a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is the warranty like and who should I contact?
What are the main differences between FiiO BR13 and BTA30Pro?
2. The input/output ports of BR13 are the same as BTA30PRO, with powerful SPDIF input and output, as well as upsampling function.
3. The BR13 adopts aluminum alloy design, equipped with display, using QCC5125 program, independent DAC and amplifier chips. The USB DAC function supports up to 96k/24bit which can be upsampling to 192k/24bit via BR13.And it aslo supports for 7 kinds of EQ adjustment and 2 kinds of PEQ.
4. At the same time, like BTA30PRO, there is a supporting APP to realize more functions.
5. So if you just want a Bluetooth receiver, you can choose the BR13. But if you need the Bluetooth transmitting as well as receiving function, the BTA30PRO is still the best choice.
How to use the FiiO BR13 as a Bluetooth receiver?
1. After turning on the BR13, short press the “IN” button to enter 'BLUE IN' mode;
2. Hold the “IN” button for about 3s to force the device to enter the Bluetooth pairing state;
3. Turn on the Bluetooth function in the mobile phone then search and select the BR13 to get the connection work.
[Button instruction]
Force a pairing: Hold the “IN” button for about 3s to force the device to enter the Bluetooth pairing state;
Clear pairing: Hold the “EQ” button for about 3s to clear all Bluetooth pairing records;
Factory data reset: When the device is off, hold the button A⏯️ for about 10s to achieve factory data reset;

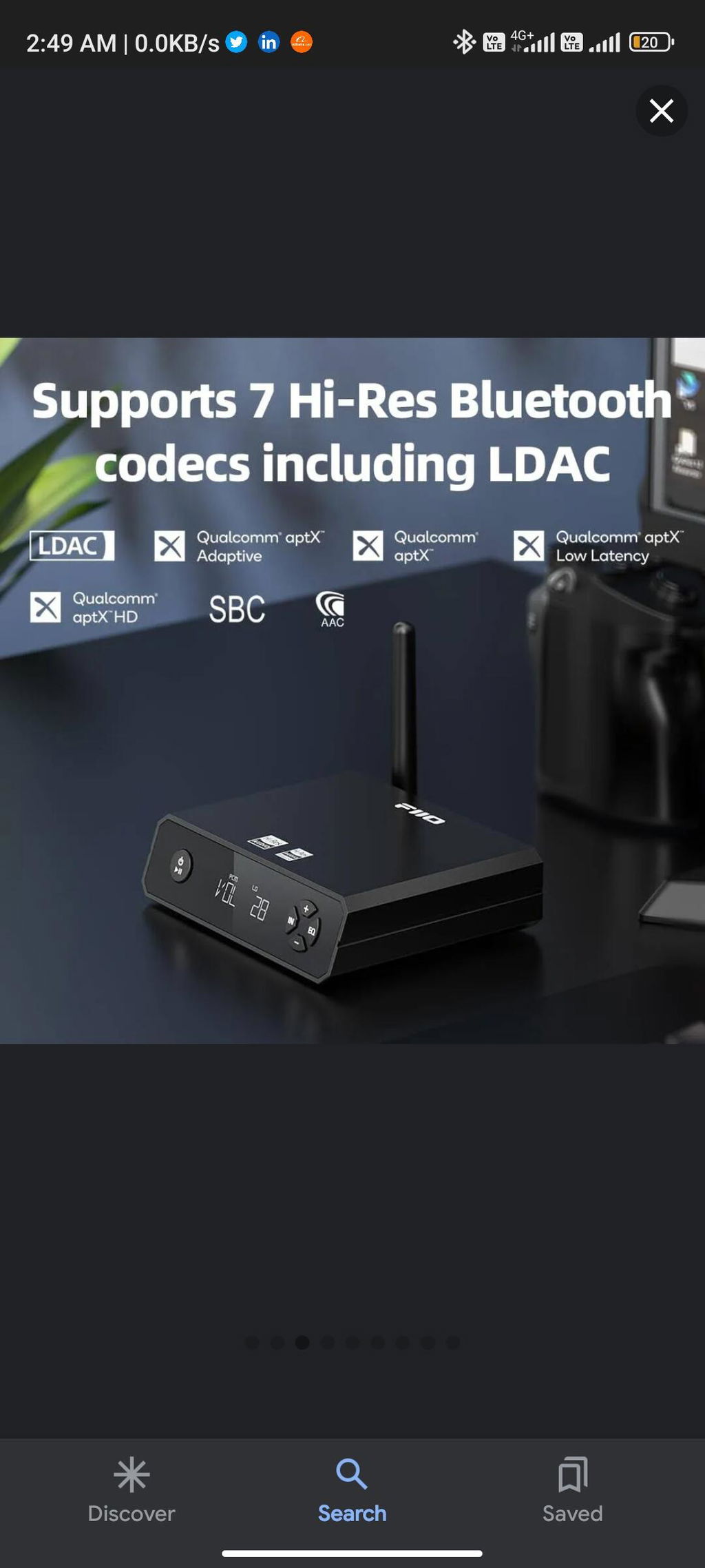

Supported Bluetooth codes: LDAC/aptX Adaptive/aptX/aptX LL/aptX HD/AAC/SBC
You could turn on/off the Bluetooth codecs via FiiO Control APP..
How to use the coaxial/optical input function of FiiO BR13?
1. After turning on the BR13, short press the “IN” button to enter 'COAX IN' mode;
2. Signal input: Connect the coaxial output port of the pre source and the coaxial input port of the BR13 via the coaxial cable;
3. Signal output: The BR13 supports optical and line out output at that time. Use the RCA audio cable or optical cable to connect the corresponding output port of BR13.
[Optical in]
1. After turning on the BR13, short press the “IN” button to enter 'OPT IN' mode;
2. Signal input: Connect the optical output port of the pre source and the optical input port of the BR13 via the optical cable;
3. Signal output: The BR13 supports coaxial, optical and line out output at that time. Use the RCA audio cable,coaxial cable or optical cable to connect the corresponding output port of BR13.
Note:
1.Optical bypass function is supported in 'Optical in' mode, which is convenient for the input/output switching in some devices;
2.If there are no output in coaxial or optical output port, please try to turn off the 'Digital up-sampling' mode in the FiiO Control app;
3.The FiiO Control app could work for BR13 in Bluetooth input mode. You could switch to Bluetooth input mode for adjusting the setting first and switch back to coaxial/optical input mode.
How to use the FiiO BR13 as a DAC for the computer?
Only USB DAC driver-free mode is supported.
1. After turning on the BR13, short press the “IN” button to enter 'USB IN' mode;
2. Signal input: Connect the BR13 and the computer via the USB cable, and select the corresponding sound output device in the playback software of the computer;
3. Signal output: The BR13 supports coaxial, optical and line out output at the same time now. Use the RCA audio cable,coaxial cable or optical cable to connect the corresponding output port of BR13.
Note:Because of the system reason in Macbook, the output sampling rate will not change automatically according to the music files. Please go to'Midi' setting of the Macbook to adjust the output sampling rate.
How to update the firmware of FiiO BR13?
1. Download the firmware file to the mobile phone first;
2. Switch the input mode to BT, connect BR13 to the phone via Bluetooth;
3. Start the APP and go to the BR13 Status page- Settings-Firmware upgrade-Local upgrade
4. On the file list, tap the search icon and select the firmware file. Then a prompt dialogue will pop up. Tap CONFIRM to start the upgrade.
This product is rated 4.9 of 5.0 stars.
It has received 20 reviews.
This product is rated 4.9 of 5.0 stars.
It has received 20 reviews.
