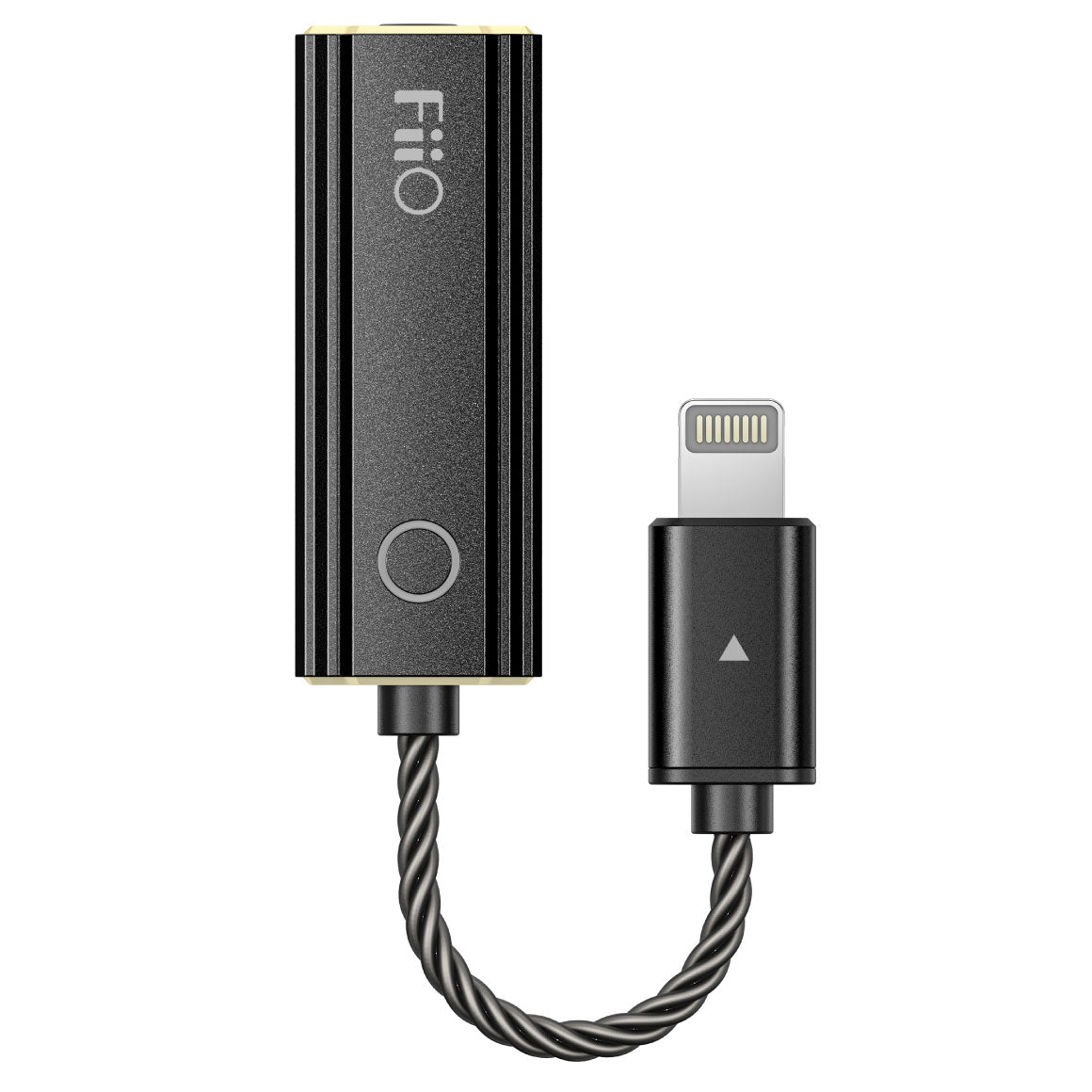

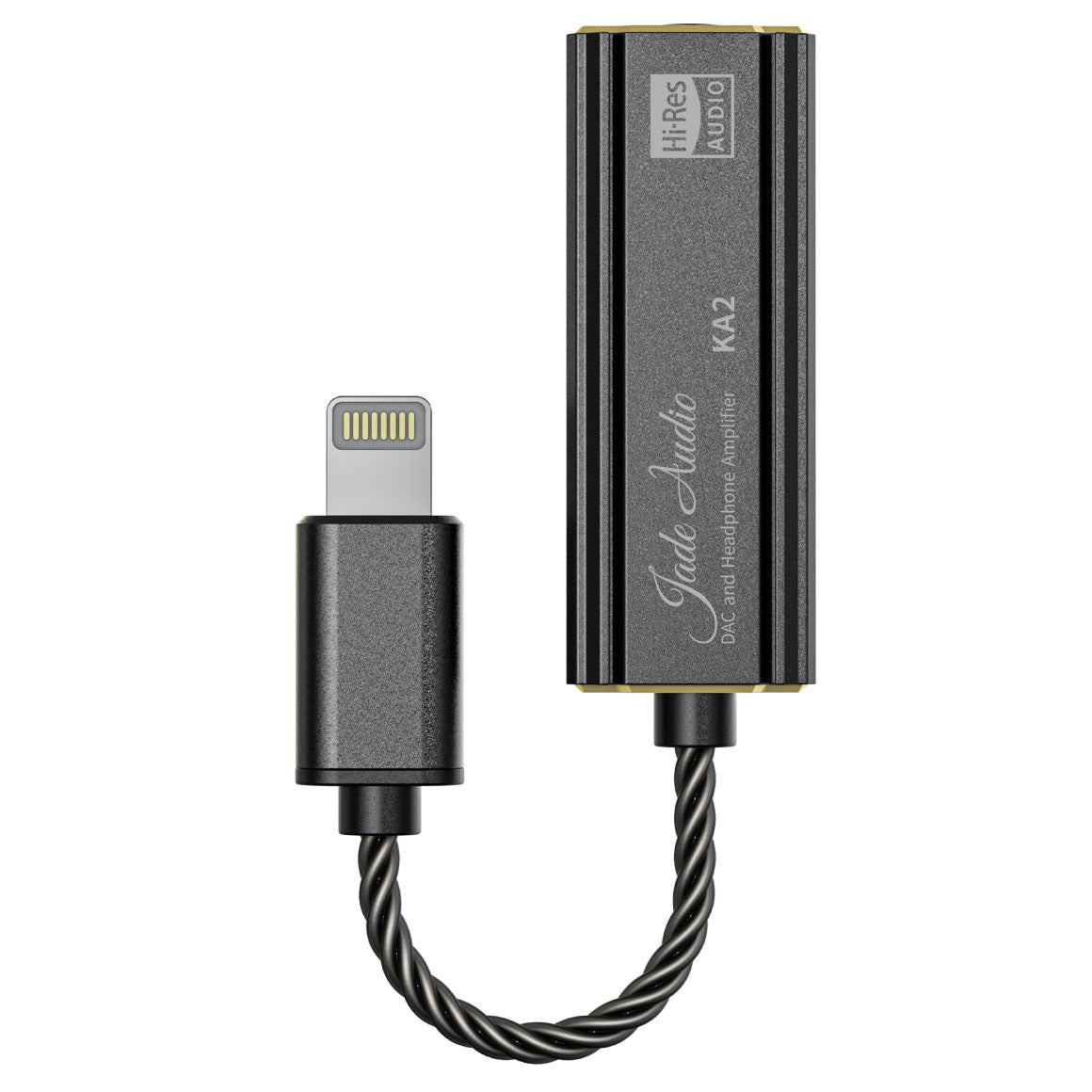

FiiO - KA2
Portable Balanced DAC & AmpGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
ICICI Bank
3
15.99%
₹ 1,882
₹ 147
6
15.99%
₹ 960
₹ 259
9
15.99%
₹ 652
₹ 373
12
15.99%
₹ 499
₹ 488
18
15.99%
₹ 346
₹ 722
24
15.99%
₹ 269
₹ 962
HDFC Bank
3
16%
₹ 1,882
₹ 147
6
16%
₹ 960
₹ 259
9
16%
₹ 652
₹ 373
12
16%
₹ 499
₹ 488
18
16%
₹ 346
₹ 723
24
16%
₹ 269
₹ 963
SBI Bank
3
16.5%
₹ 1,884
₹ 152
6
15%
₹ 957
₹ 243
9
15%
₹ 650
₹ 349
12
15%
₹ 496
₹ 457
18
16%
₹ 346
₹ 723
24
16%
₹ 269
₹ 963
Axis Bank
3
16%
₹ 1,882
₹ 147
6
16%
₹ 960
₹ 259
9
16%
₹ 652
₹ 373
12
16%
₹ 494
₹ 426
18
16%
₹ 346
₹ 723
24
16%
₹ 269
₹ 963
Citi Bank
3
14%
₹ 1,876
₹ 129
6
14%
₹ 954
₹ 227
9
16%
₹ 652
₹ 373
12
16%
₹ 499
₹ 488
18
16%
₹ 346
₹ 723
24
16%
₹ 269
₹ 963
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 1,882
₹ 147
6
16%
₹ 960
₹ 259
9
16%
₹ 652
₹ 373
12
16%
₹ 499
₹ 488
18
16%
₹ 346
₹ 723
24
16%
₹ 269
₹ 963
RBL Bank
3
13%
₹ 1,873
₹ 120
6
14%
₹ 954
₹ 227
9
15%
₹ 650
₹ 349
12
15%
₹ 496
₹ 457
18
15%
₹ 343
₹ 676
24
15%
₹ 267
₹ 900
Standard Chartered Bank
3
No Cost EMI
₹ 1,833
₹ 0
6
No Cost EMI
₹ 917
₹ 0
9
14%
₹ 647
₹ 326
12
14%
₹ 494
₹ 426
INDUSIND Bank
3
14%
₹ 1,876
₹ 129
6
14%
₹ 954
₹ 227
9
15%
₹ 650
₹ 349
12
15%
₹ 496
₹ 457
18
15%
₹ 343
₹ 676
24
15%
₹ 267
₹ 900
HSBC Bank
3
12.50%
₹ 1,871
₹ 115
6
12.50%
₹ 950
₹ 202
9
13.50%
₹ 646
₹ 314
12
13.50%
₹ 492
₹ 410
18
13.50%
₹ 339
₹ 606
YES Bank
3
No Cost EMI
₹ 1,833
₹ 0
6
No Cost EMI
₹ 917
₹ 0
9
14%
₹ 647
₹ 326
12
14%
₹ 494
₹ 426
18
15%
₹ 343
₹ 676
24
15%
₹ 267
₹ 900
Bank of Baroda
3
13%
₹ 1,873
₹ 120
6
14%
₹ 954
₹ 227
9
14%
₹ 647
₹ 326
12
15%
₹ 496
₹ 457
18
15%
₹ 343
₹ 676
24
16%
₹ 269
₹ 963
American Express
3
14%
₹ 1,876
₹ 129
6
14%
₹ 954
₹ 227
9
14%
₹ 647
₹ 326
12
14%
₹ 494
₹ 426
18
15%
₹ 343
₹ 676
24
15%
₹ 267
₹ 900
Club Audiophile
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Chi-Fi
Excellence
Ideal for Audiophiles
These DAC & Amps are designed for discerning music lovers. If audio quality is important to you, a set of DAC & Amps like these would be ideal.
You can expect these DAC & Amps to present you with a refined listening experience. The audio quality exhibited by these DAC & Amps is a beautiful mix of musicality, technical brilliance and high precision.
These DAC & Amps deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!
Ideal for Commuting
If you’re someone who enjoys listening to music while commuting. These portable Amps & DACs allow you to listen to your favourite track without compromising on the audio quality
Best Suited for Portable Use
For those who value them, being able to carry their favourite DAC & Amp equipment when they are on the move is invaluable.
These DAC & Amps offer the ultimate portability experience without sacrificing sound quality. If you’re someone who appreciates cutting-edge engineering, quality sound and portability, then look no further.
Designed to be trusty companions, these DAC & Amps are cleverly engineered with the latest technology to offer the ultimate combination of portability & Hi-Fidelity!
4.4mm
Balanced Output
Cirrus Logic CS43131
Dual DAC Chip
Pair with Laptop via USB
A majority of people use a laptop as the primary source device to listen to music or watch movies. Since the laptop is an essential part of the audio chain there are headphones and devices designed to work a laptop or computer system flawlessly. With the availability of USB connectivity, it becomes easier to pair various devices like an Amp, DAC or even headphones without worrying about drivers or any additional piece of software.
153mW@32Ω
Power Output
Metal
Build
Super Lightweight
Design
DESCRIPTION
FIIO INTRODUCES THE ALL-NEW KA2 HI-RES CERTIFIED BALANCED DAC & AMP IN COLLABORATION WITH JADE AUDIO
FiiO introduces "Jade Audio", a new subsidiary brand of FiiO Electronic Technology Co., Ltd. The company has a team of engineers who have empirical knowledge in acoustics. Continuing the legacy FiiO in collaboration with Jade Audio has introduced the all-new KA2 Balanced DAC & Amp. The overall audio output of the KA2 has a much more refined sound and leans more toward the organic end. A precise tone and timbre are delivered. Over the whole frequency range, the sound appears more cohesive, satisfying the coherency criteria. Power output from KA2 is outstanding. Even over extended listening periods, the KA2's overall sound is soothing and incredibly enjoyable. KA2, the newest product from FiiO and Jade Audio, is a well-rounded pocket package that allows you to drive low-sensitivity and high-impedance headphones on the go (up to 300 ohms). The KA2 has been certified to be Hi-Res Audio capable, according to the standards developed by the Japan Audio Association (JAS) and the Consumer Electronics Association (CEA). You can count on the KA2 to deliver precise, high-fidelity audio that is true to the original recording.
FEATURES DUAL CIRRUS LOGIC DAC CHIPS, KA2 DELIVERS EXCEPTIONAL PERFORMANCE WITH ACCURACY AND EFFICIENCY
The FiiO KA2 embeds dual Cirrus Logic CS43131 DAC chips, each capable of producing Hi-Res audio with accuracy and efficiency. The CS43131 combines a next-generation, low-power audio DAC with a high-fidelity headphone amplifier to provide a superior system-level audio performance without draining the battery life of the source device. The KA2 supports sampling rates of 32Bit/384kHz PCM (Pulse Code Modulation) and DSD256 (Direct Stream Digital), delivering highly detailed and lossless audio. The FiiO KA2 has good soundstage presentation and precise imaging capabilities. The tonality is natural and smooth, and the male and female vocals sound full-bodied. The bass comes off as tight and punchy. The bass is well controlled and is articulate in its presentation. KA2 also excels in the treble region delivering a crisp, clear, and very holographic and airy sound presentation. Treble is clean with an acceptable amount of energy with zero sibilance. The FiiO KA2 is here to deliver an articulate performance that will satisfy even the most discerning audiophiles.
EASY COMPATIBILITY AND CONVENIENCE WITH THE COMPANION APP AND SELECTABLE DIGITAL FILTERS FUSED WITH 4.4MM BALANCED OUTPUT
The FiiO KA2 offers selectable digital filters to cater to your sound preference. Get the best possible match with the five selectable digital filters and tune the sound profile that suits your tastes. The FiiO KA2 hosts a 4.4mm balanced output, which offers maximum output power of 153mW at 32 ohms. The KA2 has a signal-to-noise ratio of 131dB and THD+N of only 0.0005%, and impedance adaptation of 16 to 300 ohms. You can easily power high impedance (up to 300 ohms) and low sensitivity headphones/IEMs with ease. These functionalities contribute to clear; and accurate sound reproduction. It works with Windows, macOS, Android, and iOS. The FiiO KA2 pairs up quickly with your collection of headphones and IEMs. You can choose the audio input interface with type-C or lightning variant. The FiiO KA2 is also compatible with the FiiO control app, which allows you to adjust settings from the comfort of your smartphone.

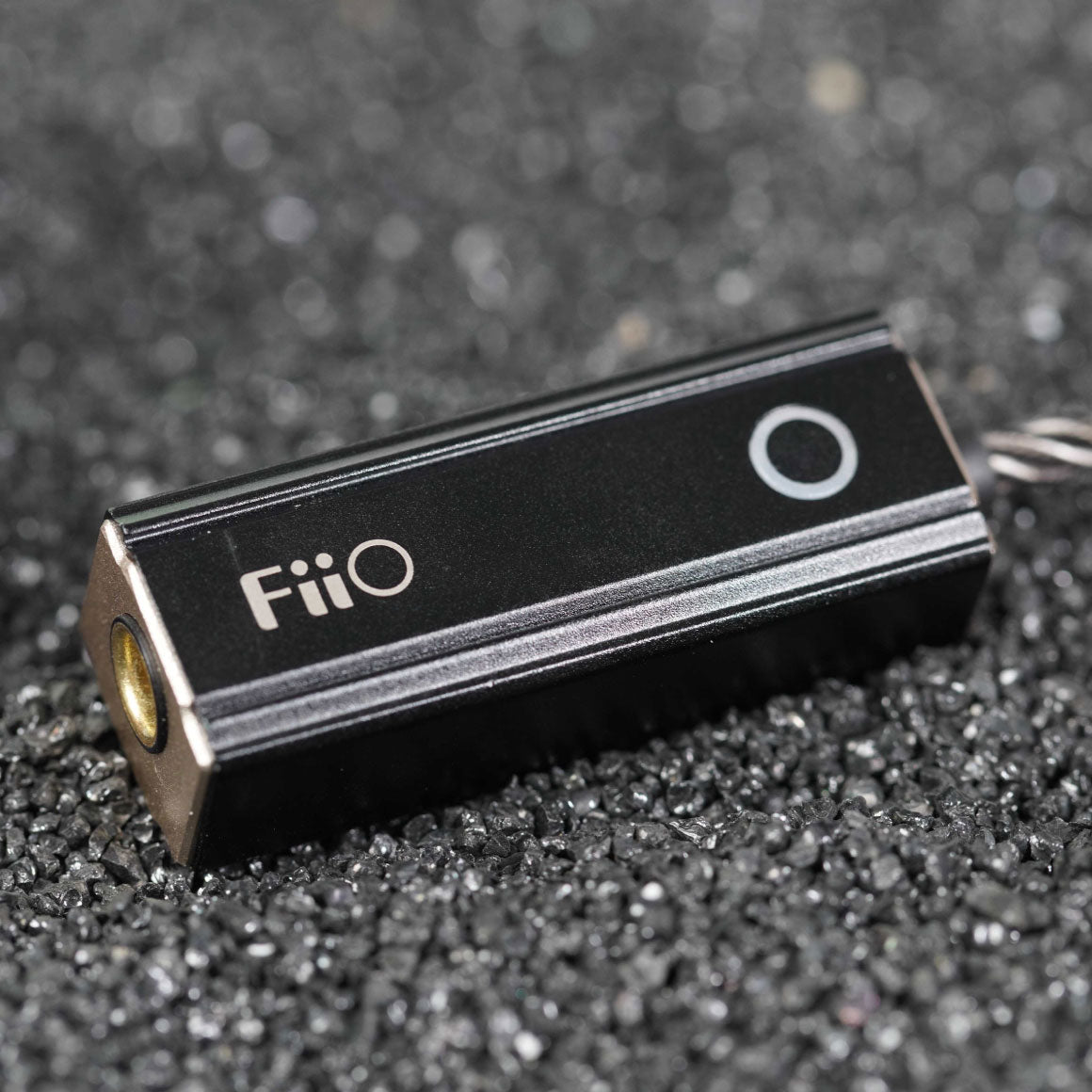

EXCEPTIONAL INDUSTRIAL DESIGN WITH ALL METAL BUILD AND RING-SHAPED LED INDICATOR THAT DISPLAYS SAMPLING RATES
The KA2 follows the industrial design language as with the other members of the KA family – featuring luxurious aesthetics and all-metal construction in a striking black and gold colour scheme. The FiiO KA2 is made entirely of high-quality, long-lasting metal, and while having numerous functions, it has a sleek appearance. Its rectangular, slightly curved metal chassis gives it a relatively rugged appearance. The metal accents look elegant, giving KA2 a premium look and feel. The ring-shaped RGB status indicator lets you know the kind of audio format you are playing at a single glance. The colour blue indicates a sampling rate of 48kHz or below, and the colour yellow indicates a sampling rate above 48kHz. The KA2 also comes with a Type-C female USB-A adapter.
SPECS
| MODEL | KA2 |
| COLOR | Classic Black |
| HARDWARE | DAC: CS43131*2 |
| FIIO CONTROL | Support |
| WEIGHT | About 12.3g |
| SIZE | Fuselage: about 40mm x 15mm x 12mm
Line length: 70mm |
| AUDIO INPUT INTERFACE | Type-C Cable or Lightning |
| HEADSET OUTPUT INTERFACE | 4.4mm socket |
| FIRMWARE UPGRADE | The system firmware can be upgraded through USB |
| SAMPLE RATE INDICATION | Blue: below 48kHz
Yellow: above 48kHz Green: DSD |
| CHANNEL BALANCE | <0.02dB (32Ω/THD+N<1%) |
| IMPEDANCE ADAPTATION | 16 to 300Ω |
| THE HIGHEST SUPPORTED SAMPLING RATE | 384KHz/32bit |
| AUDIO FORMAT SUPPORT | PCM : 32bit/384kHz DSD : DSD64/128/256 |
| OUTPUT POWER | 112mW (16Ω,THD+N<1%)
153mW (32Ω,THD+N<1%) 54mW (300Ω,THD+N<1%) 27mW (600Ω,THD+N<1%) |
| FREQUENCY RESPONSE | 20Hz to 20KHz, the curve amplitude changes by 0.03dB
20Hz to 50KHz, the curve amplitude changes by 0.05dB |
| BOTTOM NOISE | <1.1uV(32Ω-A)
<1.05uV(600Ω-A) |
| OUTPUT AMPLITUDE | 2.2V (32Ω/THD+N<1%) |
| CHANNEL SEPARATION | ≥ 91dB (1Khz, 32Ω load) |
| OUTPUT IMPEDANCE | <0.5Ω (load 32Ω) |
| SNR | ≥ 125dB (32Ω A)
≥ 131.2dB (600Ω A) |
| DISTORTION + BOTTOM NOISE | <0.00036%(32Ω)
<0.00023%(600Ω) <0.00024%(32Ω A) <0.00014%(600Ω A) |
| THD + N | 0.0005%(32Ω)
0.00024%(600Ω) |
| ANDROID EDITION | 1. FiiO KA2 |
| 2. USB-A to Type-C adapter | |
| 3. User Manual | |
| LIGHTNING EDITION | 1. FiiO KA2 |
| 2. USB-A to Lightning adapter | |
| 3. User Manual |
| GENERIC NAME | Headphone Amplifier |
| COUNTRY OF ORIGIN | China |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
Quick Start Guide | KA2
Portable Balanced DAC & Amp
|
FAQs
What is the warranty like and who should I contact?
FiiO offers a one year warranty. If you need to claim warranty, you can contact us. We are quite friendly people, just saying. You can read more about warranty here.
What accessories does the FiiO KA2 include?
The FiiO KA2 has two editions, Android and Lightning. Both of them include a KA2 and a user manual in the package. The Android edition has a USB-A to Type-C adapter. The Lightning edition has a USB-A to Lightning adapter.
How to use the FiiO KA2 with mobile phones?
Android-based mobile phones/tablets:
The FiiO KA2 has two editions, Android (USB Type-C) and Lightning. The Type-C edition can be directly connected to Android mobile phones or tablets. Play music to enjoy high-quality music.
NOTES:
1. A compatibility issue may occur to certain Android mobile phones or music players due to system and hardware differences.
2. Some mobile phones are required to turn on the OTG function, so as to use the KA2 normally. For detailed settings, please consult the support of mobile phones.
3. Some mobile phones may show the 'non-certified Type-C digital headphone' notification. You can ignore the message and use it normally.
iPhones/iPads:
The FiiO KA2 has two editions, Android (USB Type-C) and Lightning. The Lightning edition can be directly connected to iPhones or iPads. Play music to enjoy high-quality music.
NOTE:
1. Only iOS10.0.2 and above are supported. Apple devices below this version cannot be supported because of the iOS itself.
2. How to download lossless music files to the FiiO Music App (iOS)?
Please refer to the FAQ in Apple website: here
How to use the FiiO KA2 as USB DAC for computer?
Windows:
1. Before first connecting, please install the to enable the FiiO USB Audio Driver first.
2. Settings of the playback software on computers: select FiiO KA2/FiiO K series as the audio output device. Connect it to headphones for use. For some computers, it is required to select the KA2 as the system audio output.
Settings of DSD tracks: Click here
Mac:
1. The KA2 runs driver-free on macOS.
2. When connecting to the Type-C port on the computer, just use the Type-C edition of the KA2. If it is connected to a USB-A port, just use the USB-A to Type-C adapter to complete the connection.
3. Select the FiiO KA2/FiiO K series as the audio output device of the computer.
Linux:
The KA2 runs driver-free on Linux. Theoretically, connect the KA2 to the computer to use it directly. However, since there are too many versions of the Linux system, compatibility cannot be guaranteed. If there is a problem, it is recommended to try other data cables or switch to other USB ports. No recognition probably means nonsupport.
Does the FiiO KA2 support in-line control and answering phone calls?
1. There is no physical button on the FiiO KA2, so in-line control will not be supported.
2. Since different smartphones vary in USB phone call permissions, the in-line control and phone call functions of the KA2 are temporally unavailable.
3. An incoming call will be passed out through the speaker and microphone of the mobile phone. So you can pick up the phone to answer the call without unplugging the KA2.
Colors of the RGB indicator light in FiiO KA2
The indicator light of the FiiO KA2 has 3 colors, each of which corresponds with different sampling rates (as shown in the table below). If the color does not correspond with the sampling rate, please check if the connected device or the settings of the music app has a problem, and if the music file is SRC processed.
48kHz or below sampling rate - Blue light
Greater than 48kHz sampling rate - Yellow light
Digital input: DSD - Green light
About the Exclusive USB Audio Access Mode
Due to system and hardware differences of certain Android mobile phones, there may be some permission conflicts and compatibility issues when they are working in the Exclusive USB Audio Access Mode. Here are some situations we have noticed.
1. For some mobile phones, third-party apps are forbidden in the background by default in their power management policies. This will cause a stop on the playback after a few seconds when the music app is working in the Exclusive USB Audio Access Mode. If it happens, please set the app to stay working while asleep in the battery management setting of the mobile phone.
2. When the music app is working under the Exclusive USB Audio Access Mode, the sound may be stuttered or paused when operating other apps. We are working on this issue. It is suggested to focus on listening to music when using the Exclusive USB Audio Access Mode, or disable the Exclusive USB Audio Access Mode when listening to music.
FIIO INTRODUCES THE ALL-NEW KA2 HI-RES CERTIFIED BALANCED DAC & AMP IN COLLABORATION WITH JADE AUDIO
FiiO introduces "Jade Audio", a new subsidiary brand of FiiO Electronic Technology Co., Ltd. The company has a team of engineers who have empirical knowledge in acoustics. Continuing the legacy FiiO in collaboration with Jade Audio has introduced the all-new KA2 Balanced DAC & Amp. The overall audio output of the KA2 has a much more refined sound and leans more toward the organic end. A precise tone and timbre are delivered. Over the whole frequency range, the sound appears more cohesive, satisfying the coherency criteria. Power output from KA2 is outstanding. Even over extended listening periods, the KA2's overall sound is soothing and incredibly enjoyable. KA2, the newest product from FiiO and Jade Audio, is a well-rounded pocket package that allows you to drive low-sensitivity and high-impedance headphones on the go (up to 300 ohms). The KA2 has been certified to be Hi-Res Audio capable, according to the standards developed by the Japan Audio Association (JAS) and the Consumer Electronics Association (CEA). You can count on the KA2 to deliver precise, high-fidelity audio that is true to the original recording.
FEATURES DUAL CIRRUS LOGIC DAC CHIPS, KA2 DELIVERS EXCEPTIONAL PERFORMANCE WITH ACCURACY AND EFFICIENCY
The FiiO KA2 embeds dual Cirrus Logic CS43131 DAC chips, each capable of producing Hi-Res audio with accuracy and efficiency. The CS43131 combines a next-generation, low-power audio DAC with a high-fidelity headphone amplifier to provide a superior system-level audio performance without draining the battery life of the source device. The KA2 supports sampling rates of 32Bit/384kHz PCM (Pulse Code Modulation) and DSD256 (Direct Stream Digital), delivering highly detailed and lossless audio. The FiiO KA2 has good soundstage presentation and precise imaging capabilities. The tonality is natural and smooth, and the male and female vocals sound full-bodied. The bass comes off as tight and punchy. The bass is well controlled and is articulate in its presentation. KA2 also excels in the treble region delivering a crisp, clear, and very holographic and airy sound presentation. Treble is clean with an acceptable amount of energy with zero sibilance. The FiiO KA2 is here to deliver an articulate performance that will satisfy even the most discerning audiophiles.
EASY COMPATIBILITY AND CONVENIENCE WITH THE COMPANION APP AND SELECTABLE DIGITAL FILTERS FUSED WITH 4.4MM BALANCED OUTPUT
The FiiO KA2 offers selectable digital filters to cater to your sound preference. Get the best possible match with the five selectable digital filters and tune the sound profile that suits your tastes. The FiiO KA2 hosts a 4.4mm balanced output, which offers maximum output power of 153mW at 32 ohms. The KA2 has a signal-to-noise ratio of 131dB and THD+N of only 0.0005%, and impedance adaptation of 16 to 300 ohms. You can easily power high impedance (up to 300 ohms) and low sensitivity headphones/IEMs with ease. These functionalities contribute to clear; and accurate sound reproduction. It works with Windows, macOS, Android, and iOS. The FiiO KA2 pairs up quickly with your collection of headphones and IEMs. You can choose the audio input interface with type-C or lightning variant. The FiiO KA2 is also compatible with the FiiO control app, which allows you to adjust settings from the comfort of your smartphone.
EXCEPTIONAL INDUSTRIAL DESIGN WITH ALL METAL BUILD AND RING-SHAPED LED INDICATOR THAT DISPLAYS SAMPLING RATES
The KA2 follows the industrial design language as with the other members of the KA family – featuring luxurious aesthetics and all-metal construction in a striking black and gold colour scheme. The FiiO KA2 is made entirely of high-quality, long-lasting metal, and while having numerous functions, it has a sleek appearance. Its rectangular, slightly curved metal chassis gives it a relatively rugged appearance. The metal accents look elegant, giving KA2 a premium look and feel. The ring-shaped RGB status indicator lets you know the kind of audio format you are playing at a single glance. The colour blue indicates a sampling rate of 48kHz or below, and the colour yellow indicates a sampling rate above 48kHz. The KA2 also comes with a Type-C female USB-A adapter.
| MODEL | KA2 |
| COLOR | Classic Black |
| HARDWARE | DAC: CS43131*2 |
| FIIO CONTROL | Support |
| WEIGHT | About 12.3g |
| SIZE | Fuselage: about 40mm x 15mm x 12mm
Line length: 70mm |
| AUDIO INPUT INTERFACE | Type-C Cable or Lightning |
| HEADSET OUTPUT INTERFACE | 4.4mm socket |
| FIRMWARE UPGRADE | The system firmware can be upgraded through USB |
| SAMPLE RATE INDICATION | Blue: below 48kHz
Yellow: above 48kHz Green: DSD |
| CHANNEL BALANCE | <0.02dB (32Ω/THD+N<1%) |
| IMPEDANCE ADAPTATION | 16 to 300Ω |
| THE HIGHEST SUPPORTED SAMPLING RATE | 384KHz/32bit |
| AUDIO FORMAT SUPPORT | PCM : 32bit/384kHz DSD : DSD64/128/256 |
| OUTPUT POWER | 112mW (16Ω,THD+N<1%)
153mW (32Ω,THD+N<1%) 54mW (300Ω,THD+N<1%) 27mW (600Ω,THD+N<1%) |
| FREQUENCY RESPONSE | 20Hz to 20KHz, the curve amplitude changes by 0.03dB
20Hz to 50KHz, the curve amplitude changes by 0.05dB |
| BOTTOM NOISE | <1.1uV(32Ω-A)
<1.05uV(600Ω-A) |
| OUTPUT AMPLITUDE | 2.2V (32Ω/THD+N<1%) |
| CHANNEL SEPARATION | ≥ 91dB (1Khz, 32Ω load) |
| OUTPUT IMPEDANCE | <0.5Ω (load 32Ω) |
| SNR | ≥ 125dB (32Ω A)
≥ 131.2dB (600Ω A) |
| DISTORTION + BOTTOM NOISE | <0.00036%(32Ω)
<0.00023%(600Ω) <0.00024%(32Ω A) <0.00014%(600Ω A) |
| THD + N | 0.0005%(32Ω)
0.00024%(600Ω) |
| ANDROID EDITION | 1. FiiO KA2 |
| 2. USB-A to Type-C adapter | |
| 3. User Manual | |
| LIGHTNING EDITION | 1. FiiO KA2 |
| 2. USB-A to Lightning adapter | |
| 3. User Manual |
| GENERIC NAME | Headphone Amplifier |
| COUNTRY OF ORIGIN | China |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
|
Quick Start Guide | KA2
Portable Balanced DAC & Amp
|
What is the warranty like and who should I contact?
FiiO offers a one year warranty. If you need to claim warranty, you can contact us. We are quite friendly people, just saying. You can read more about warranty here.
What accessories does the FiiO KA2 include?
The FiiO KA2 has two editions, Android and Lightning. Both of them include a KA2 and a user manual in the package. The Android edition has a USB-A to Type-C adapter. The Lightning edition has a USB-A to Lightning adapter.
How to use the FiiO KA2 with mobile phones?
Android-based mobile phones/tablets:
The FiiO KA2 has two editions, Android (USB Type-C) and Lightning. The Type-C edition can be directly connected to Android mobile phones or tablets. Play music to enjoy high-quality music.
NOTES:
1. A compatibility issue may occur to certain Android mobile phones or music players due to system and hardware differences.
2. Some mobile phones are required to turn on the OTG function, so as to use the KA2 normally. For detailed settings, please consult the support of mobile phones.
3. Some mobile phones may show the 'non-certified Type-C digital headphone' notification. You can ignore the message and use it normally.
iPhones/iPads:
The FiiO KA2 has two editions, Android (USB Type-C) and Lightning. The Lightning edition can be directly connected to iPhones or iPads. Play music to enjoy high-quality music.
NOTE:
1. Only iOS10.0.2 and above are supported. Apple devices below this version cannot be supported because of the iOS itself.
2. How to download lossless music files to the FiiO Music App (iOS)?
Please refer to the FAQ in Apple website: here
How to use the FiiO KA2 as USB DAC for computer?
Windows:
1. Before first connecting, please install the to enable the FiiO USB Audio Driver first.
2. Settings of the playback software on computers: select FiiO KA2/FiiO K series as the audio output device. Connect it to headphones for use. For some computers, it is required to select the KA2 as the system audio output.
Settings of DSD tracks: Click here
Mac:
1. The KA2 runs driver-free on macOS.
2. When connecting to the Type-C port on the computer, just use the Type-C edition of the KA2. If it is connected to a USB-A port, just use the USB-A to Type-C adapter to complete the connection.
3. Select the FiiO KA2/FiiO K series as the audio output device of the computer.
Linux:
The KA2 runs driver-free on Linux. Theoretically, connect the KA2 to the computer to use it directly. However, since there are too many versions of the Linux system, compatibility cannot be guaranteed. If there is a problem, it is recommended to try other data cables or switch to other USB ports. No recognition probably means nonsupport.
Does the FiiO KA2 support in-line control and answering phone calls?
1. There is no physical button on the FiiO KA2, so in-line control will not be supported.
2. Since different smartphones vary in USB phone call permissions, the in-line control and phone call functions of the KA2 are temporally unavailable.
3. An incoming call will be passed out through the speaker and microphone of the mobile phone. So you can pick up the phone to answer the call without unplugging the KA2.
Colors of the RGB indicator light in FiiO KA2
The indicator light of the FiiO KA2 has 3 colors, each of which corresponds with different sampling rates (as shown in the table below). If the color does not correspond with the sampling rate, please check if the connected device or the settings of the music app has a problem, and if the music file is SRC processed.
48kHz or below sampling rate - Blue light
Greater than 48kHz sampling rate - Yellow light
Digital input: DSD - Green light
About the Exclusive USB Audio Access Mode
Due to system and hardware differences of certain Android mobile phones, there may be some permission conflicts and compatibility issues when they are working in the Exclusive USB Audio Access Mode. Here are some situations we have noticed.
1. For some mobile phones, third-party apps are forbidden in the background by default in their power management policies. This will cause a stop on the playback after a few seconds when the music app is working in the Exclusive USB Audio Access Mode. If it happens, please set the app to stay working while asleep in the battery management setting of the mobile phone.
2. When the music app is working under the Exclusive USB Audio Access Mode, the sound may be stuttered or paused when operating other apps. We are working on this issue. It is suggested to focus on listening to music when using the Exclusive USB Audio Access Mode, or disable the Exclusive USB Audio Access Mode when listening to music.
Don't sweat it, this
FiiO - KA2 comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
"FiiO KA2 adjusts the tri-frequency sound to have certain characteristics while taking into account good portability and greater driving force. Overall sound style adjustment of FiiO KA2 is very suitable for listening to POP, rap, and ACG."
Read More
"The latest addition, the FiiO KA2 adopts one or two features of its little brother, the FiiO KA1 Compact Portable DAC and Amplifier, in principle it is more oriented towards its big brother, the FiiO KA3 Small USB DAC and Amplifier."
Read MoreThis product is rated 4.1 of 5.0 stars.
It has received 15 reviews.
Customer Reviews
So I got my self into the IEM's after watching Raghav giving extensive and helpful insights. I started with CCA-PLA13 - BUT the amp & dac fiio ka2 is very over rated in my opinion. Reason being I could not differentiate between my apple lightning to 3.5mm connectors amp and the fiio ka2 except for the fact that fiio ka2 was causing volume to crackle at 100 which in case of apple connector was absent.
The cca pla13 itself did not required burning much and played decent enough out of the box.
I regret purchasing the fiio ka2 and the 4.4mm connector (instead could have saved that money to buy better planar iems in future)
but yeah thats a learning.
Full marks to Raghav for his detailed videos but these dacs are overated.

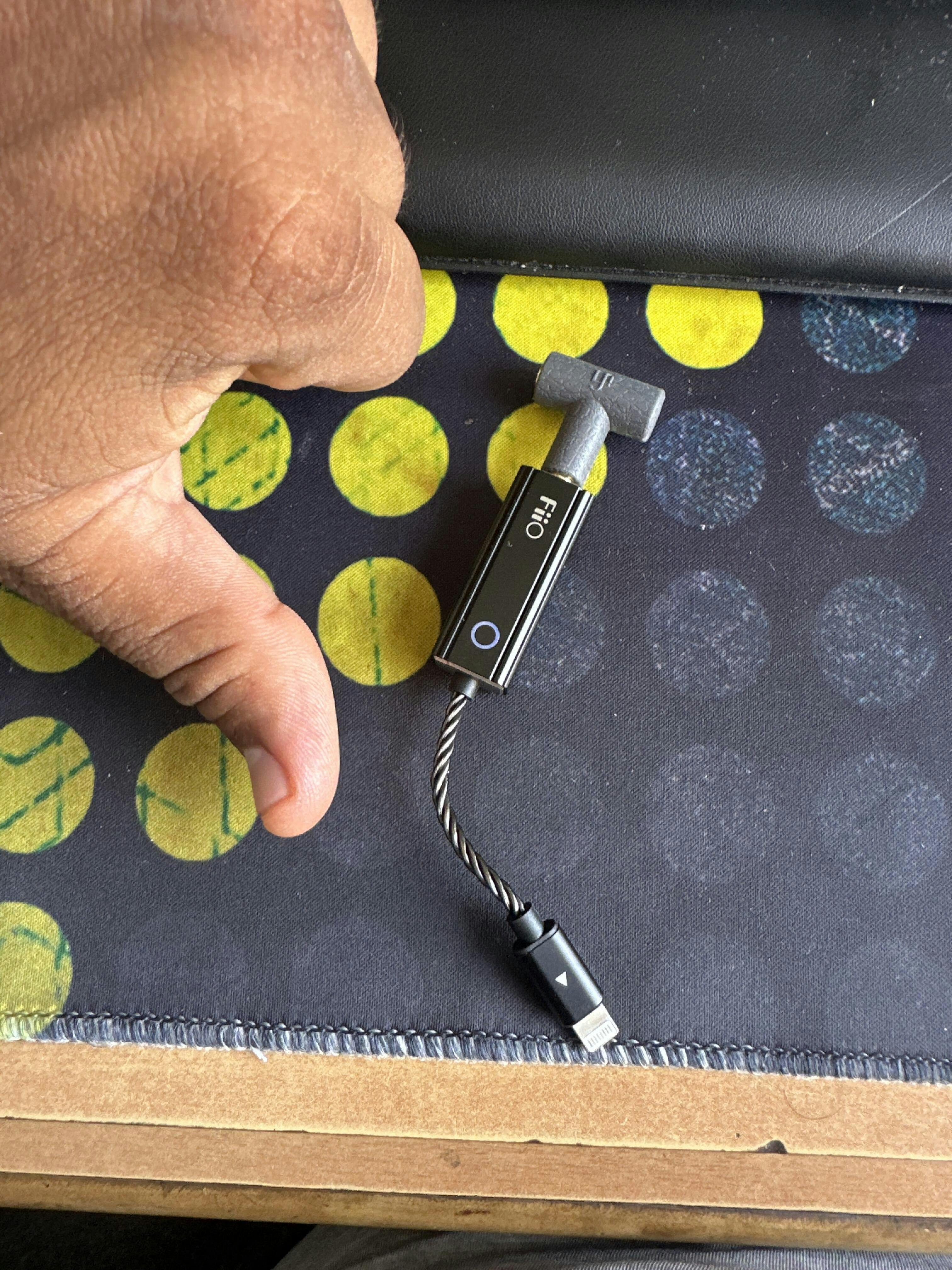

I reviewed these on my iPhone 14 promax with apple music lossless
No connector comes with this pakage which helps me connect my 3.5 mm of final 2000 to fiio ka2.. we need to buy another connector for another two thousand rs to use this Dac.

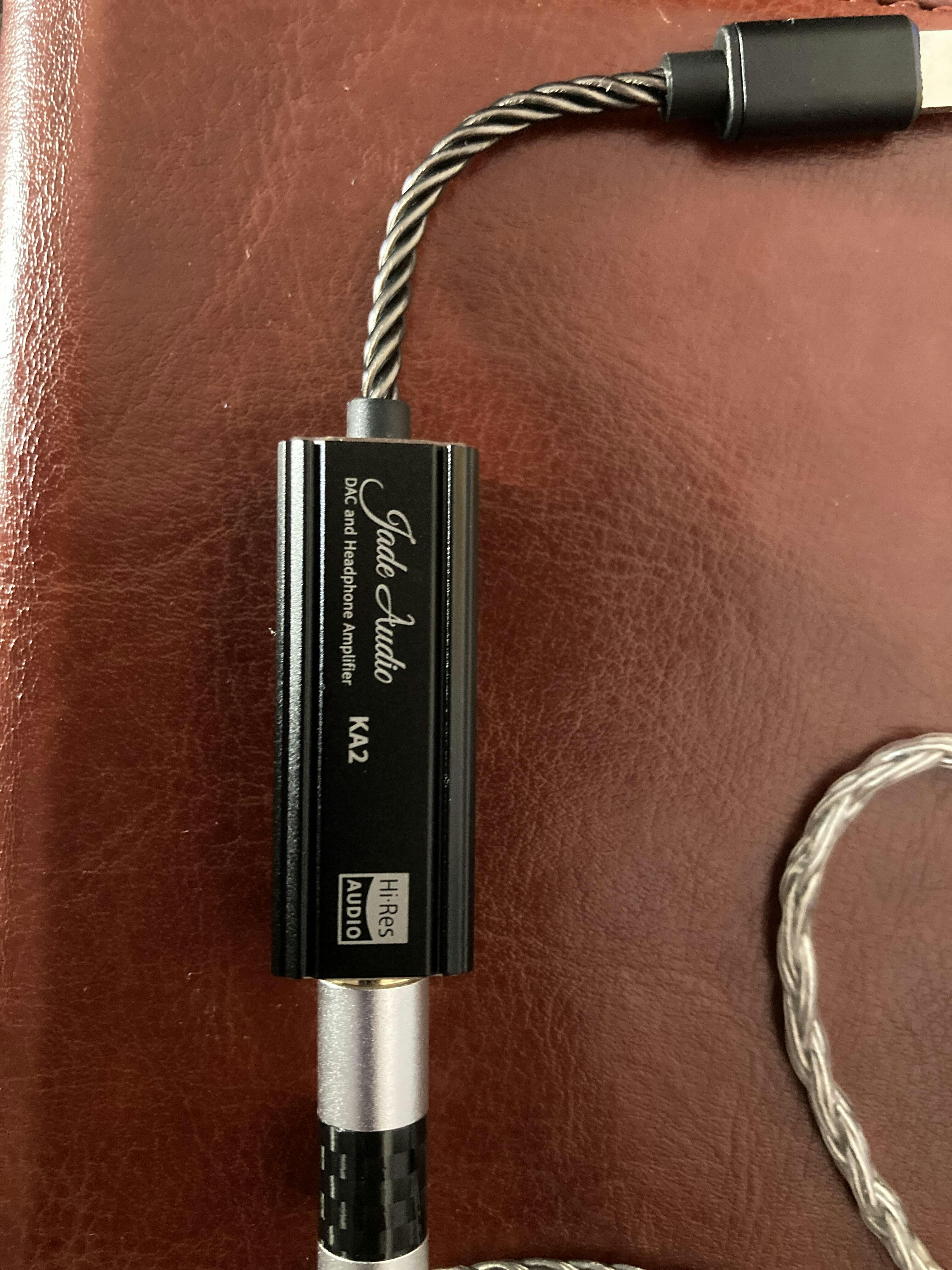

I genuinely like how well this product is built and how cleanly it outputs sound through its 4.4mm output. I listen to a lot of albums which are remastered in DSD 128 and DSD 256 and the KA2 does a stellar job of playing these formats.
My only issue with this product is the fact that it heats up quite a bit with prolonged use and I am hoping that it isn’t an issue.
One really important thing to note here:
A lot of people have been giving the KA2 a lot of hate for it not having a 3.5mm unbalanced output. The KA2 is NOT an unbalanced DAC/Amp. It is balanced with a 4.4mm pentaconn jack and caters only to those who want a balanced output for their IEMs. Adding a 4.4mm to 3.5mm adapter might completely fry the circuit and/or cause these to sound subpar. For those who want the standard 3.5mm jack, the KA1 is the DAC/Amp to go for. For those who want both, the 3.5mm and 4.4mm with a lot more power, the more expensive KA3 is the choice for you.
We really appreciate the genuine feedback, we'll share your thoughts with the brand as well!
It is too good but i understand 4.4 mm jack...this is major problem
Excellent for use with phones with only a c type connection without any headphone jack. Had to get another 4.5 to 3.5 converter for use with all the different headphones I have so be careful, a 3.5mm will not plug in directly
Thank you for the review! we appreciate it.
