The Shanling H7 stands out as a highly potent portable DAC, amplifier, and DAP combination. Its dimensions are well-balanced, boasting flagship specifications, and the construction is sturdy. H7 ticks all the boxes and offers a unique take on all-in-one devices.
About RAGHAV SOMANI
Raghav Somani is the Founder & CEO of Headphone Zone. An avid audiophile and musician since 2008, his choice of headphones include STAX Electrostats, Audeze LCD 3, and for music on the go, the JH Audio Roxanne + Astell&Kern SP1000 is never too far away. On his playlist, you'll find A.R. Rahman, Michael Jackson, and the Eagles.
DESCRIPTION
SHANLING INTRODUCES A HIGHLY CAPABLE AND HI-RES CERTIFIED PORTABLE DAC & AMP - THE H7
Shanling is one of the most innovative brands in the HiFi audio industry. Shanling has been engaged in extensive research and development for over 34 years, consistently releasing new and improved products in categories such as Digital Audio Players, Portable USB DAC & Amps, in-ear monitors, and more. This time, Shanling has released the H7, a brand-new high-end and Hi-Res certified (Wired & Wireless) USB DAC & Amp. The H7 is not your typical portable USB DAC & Amp; it is a flagship product built with the best hardware delivering exceptional sonic performance. It has AKM flagship DAC chips for its digital-to-analogue circuitry and high-performing amplification chips. It is the most dependable DAC & Amp with loads of functionalities and powerful headphone outputs. Experience the magic of the all-new H7 and delve into pure sonic bliss!
FEATURES FLAGSHIP DAC CHIPS FROM AKM DELIVERING PRISTINE SONIC PERFORMANCE WITH MQA SUPPORT
Shanling, with its all-new DAC & Amp, has taken a new approach in terms of the design of the audio architecture. The H7 is the first Shanling audio design built around the new generation of AKM's flagship DAC system. The AK4191EQ Delta-Sigma modulator with AK4499EX DAC splits the Digital-to-Analog process between these two chips for improved performance in both domains. This unique approach implemented by AKM allows for even better sound quality, pushing ahead of the older AKM AK4499 DAC. The H7 is capable of playing Hi-Res files with support for PCM 32-bit/768kHz (Pulse Code Modulation) and Native DSD512 (Direct Stream Digital). The H7 also supports 8X MQA (Master Quality Authenticated) unfolding through USB input, allowing you to play back MQA audio files and streams, delivering the sound of the original master recording. Enjoy your Tidal streaming in its highest quality with the all-new high-end H7 USB DAC & Amp.
PHENOMENAL POWER DELIVERY WITH HIGH-PERFORMANCE AMPLIFICATION CHIPS AND THREE-LEVEL GAIN SETTINGS
Shanling has added high-performance amplification chipsets to the H7's circuitry to complement the high-performance DAC chips. The H7's unique design enables it to achieve unheard levels of sound performance. The H7 amplification architecture is "designed" around TI TPA6120A2, with carefully matched ELNA SILMIC II and Panasonic tantalum capacitors. The H7 is "tuned" for Shanling's favourite warm, smooth, and highly organic sound that still packs a proper punch. Shanling engineers incorporated Ti OPA2211, picked for its low noise and high bandwidth performance. These are combined, with 100 μF WE capacitors and ultra-low noise low-dropout regulator, for the cleanest signal output. The H7 has an in-house developed I/V Stage with a pair of ADI ADA4896-2 amplifiers in a highly optimised I/V conversion stage, carefully matched with each resistor and capacitor for the ultimate performance. The H7 offers three levels of amplifier gain, assuring an ideal match with a wide range of headphones. Pick the lowest "gain" for a hiss-free playback with the most sensitive in-ear monitors. Or switch to the high and unleash its powerful 1.3W output, feeding even the most demanding headphones.
ACCURATE AUDIO PROCESSING WITH FPGA & KDS CRYSTAL OSCILLATORS WITH HI-FI GRADE USB INPUT
Shanling has incorporated in-house developed FPGA & KDS Crystal Oscillators for ideal audio processing. Shanling's self-developed FPGA with two low-phase noise 45MHz / 49MHz active oscillators, pushing phase noise to low levels and providing "ideal" sound processing. The H7 also features Hi-Fi grade USB input with 3rd generation XMOS XU316 which enables stable asynchronous connection. The H7 with a new generation of the highly-acclaimed USB chipset, assuring the top-quality digital input for the H7. The 16-core audio solution provides an asynchronous connection for Hi-Fidelity sound and full support for Hi-Res playback of PCM, DSD and MQA files. The H7 is highly compatible with mobile phones, tablets, desktops, and gaming (Switch H7 to UAC1.0 mode for compatibility with gaming systems like PS5 and Switch).
BLUETOOTH 5.0 SUPPORT WITH AN INCREDIBLE BATTERY LIFE OF 10 HOURS
Shanling has designed the H7 to be an all-in-one device whether you want to use it in wired or wireless mode. The H7 features Bluetooth 5.0 with codec support for LDAC, AAC, and SBC. The H7 allows you to enjoy wireless sound with convenience. Switch H7 to its Bluetooth input for an easy connection to your phone or tablet. Ideal for all the quick audio sessions with music streaming services. To support all these functionalities, Shanling has included a massive 6800mAh battery. The H7 has an incredible battery life of 10 hours (Single-ended) and 8 hours (Balanced). It also has advanced power management utilising a pair of industry-standard 18650 batteries, for a combined 6800 mAh capacity, with a dedicated PMU chip for advanced power management, prolonging the battery life for continuous playback and improving the lifespan of the batteries.
NOTE:
H7 only acts as Bluetooth Receiver

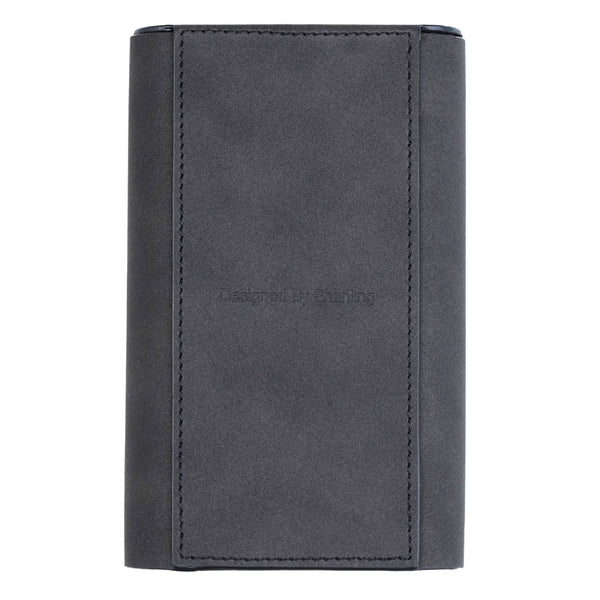

Leather case sold separately

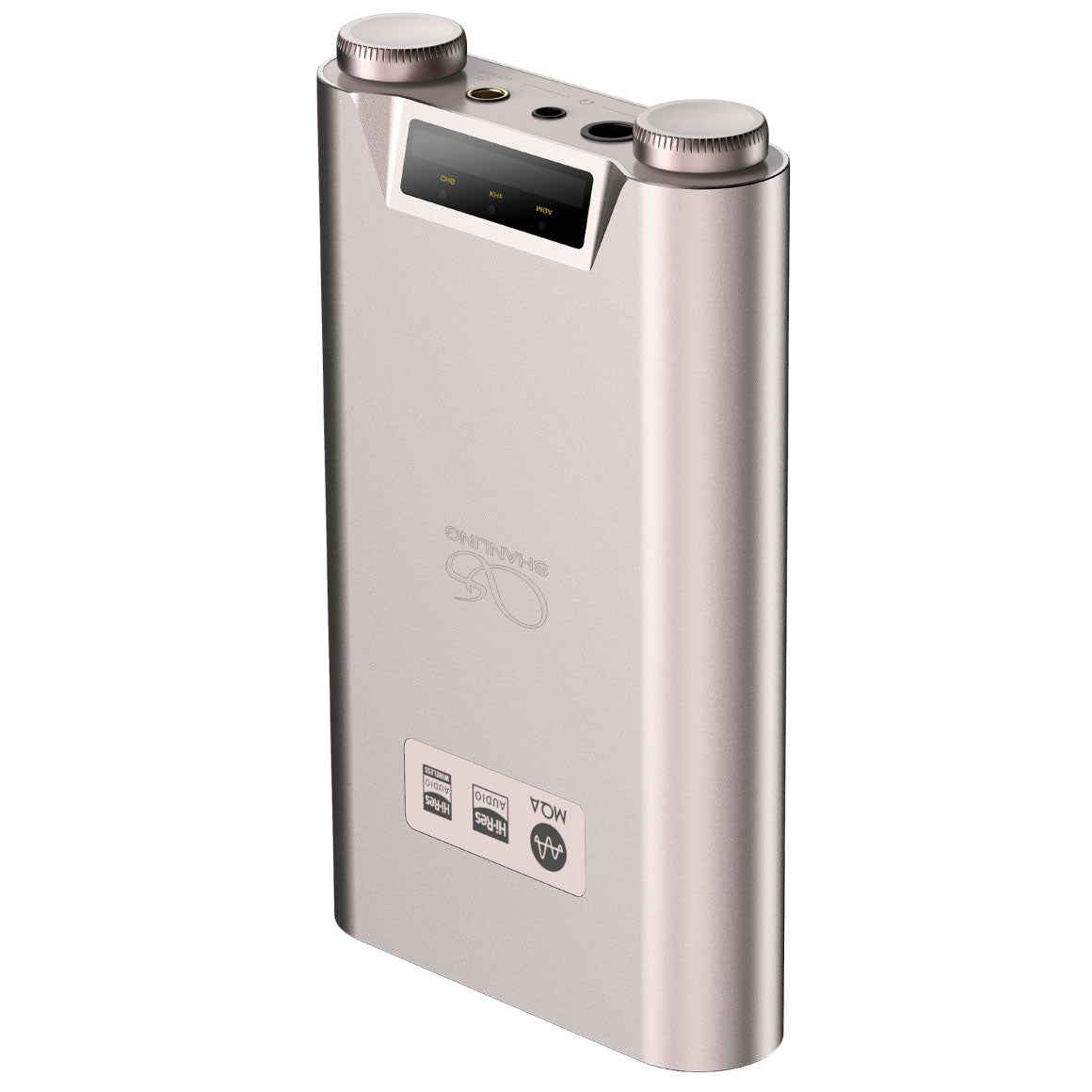

COMPACT 1.44-INCH MONOCHROMATIC OLED DISPLAY WITH A PAIR OF ALPS WHEELS AND PLAYBACK INDICATOR
Shanling continuing with their tradition of top-class construction has designed the H7 with an aviation-grade aluminium shell, with nicely rounded edges for comfortable use and carry. The H7 has a compact 1.44-inch monochromatic OLED display, which indicates the charging status, sampling rate, and MQA status. The H7 also has a pair of ALPS wheels, allowing you to control and access various functions. It also has a unique built-in Player to enjoy the full sound quality from the H7. Thanks to the addition of a MicroSD card slot, H7 is capable of direct lossless playback in the highest quality and without any cables or Bluetooth signal degradation. You can pair the H7 with the Eddict Player app to gain control over your music library. LED indicators make it easy to easily recognize currently playing Hi-Res files, covering the full range of PCM, DSD and MQA.
NOTE:
For more information related to the playback indicator refer to the FAQ section.
The maximum capacity for the MicroSD card slot is 2TB.

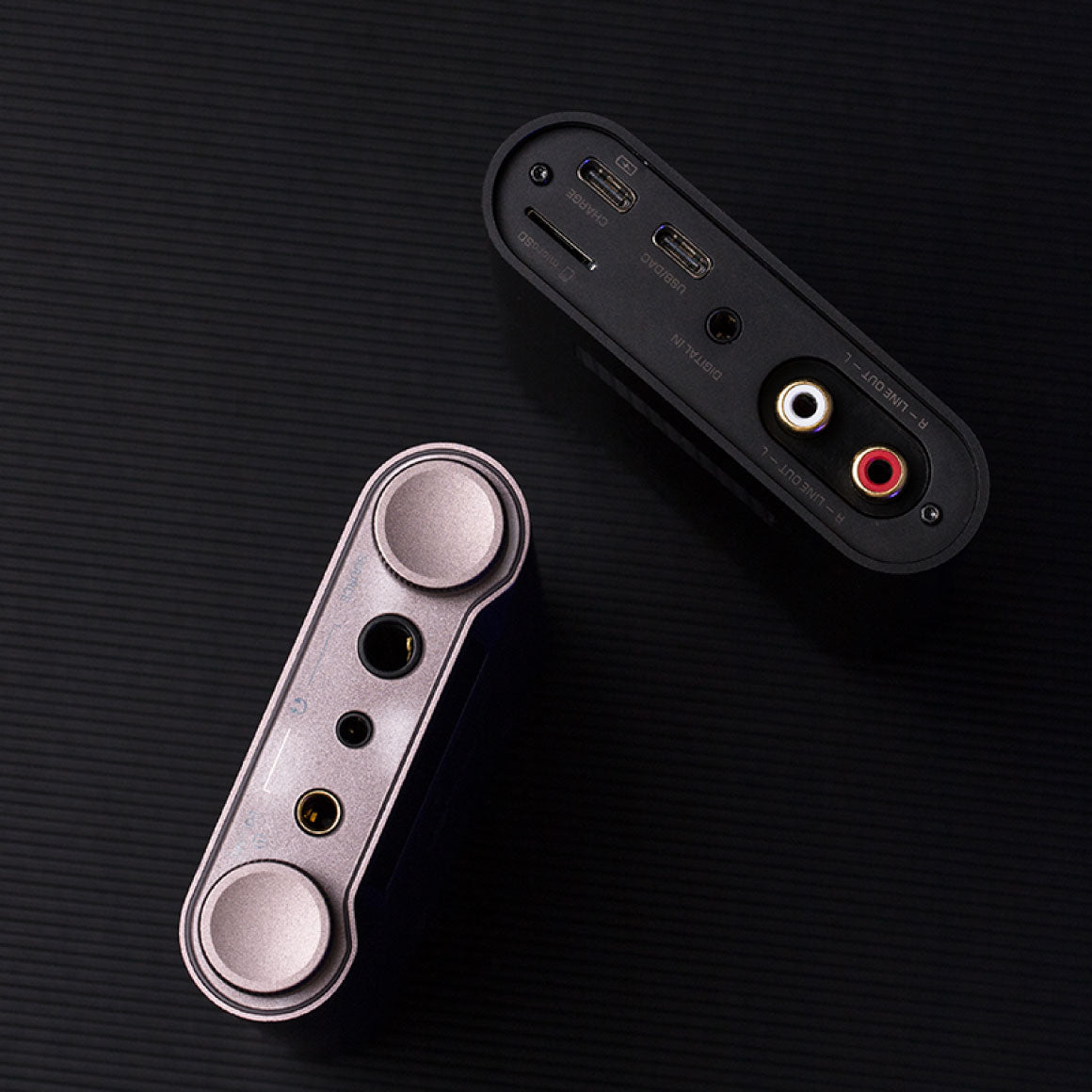

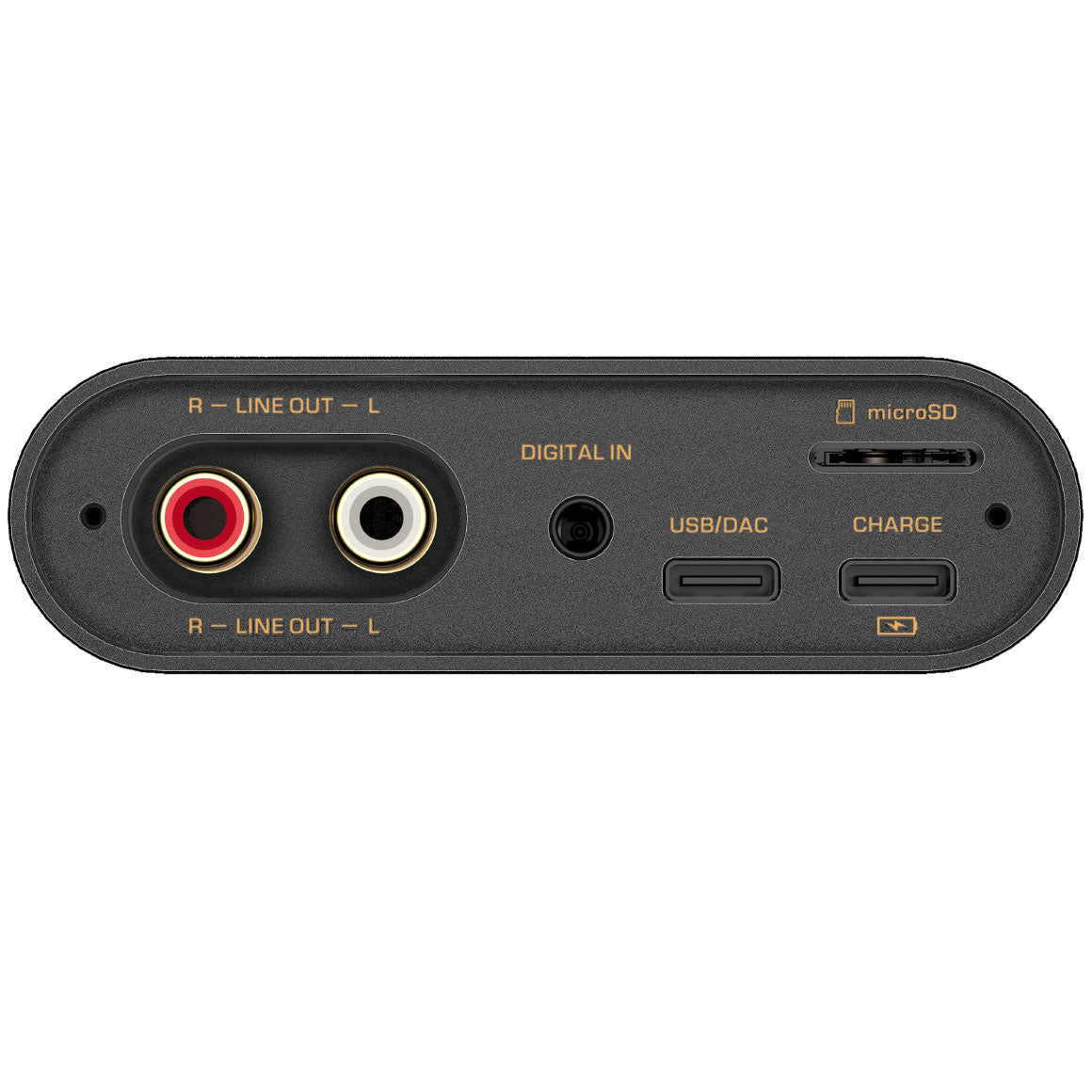

HIGH-QUALITY NEUTRIK CONNECTORS WITH DIGITAL INPUTS AND RCA OUTPUTS
The H7 has an elegant build, and to complement it, the engineers at Shanling have included high-quality Neutrik connectors (6.35mm) for a stable connection. The H7 has coaxial and optical as digital inputs for easy connection to a wide range of devices. It also hosts RCA as output for connecting the H7 to active speakers to form a compact audio rig. The RCA outputs consist of JRC Muses8920 J-Fet amplifiers for clean and distortion-free sound. The H7 also hosts headphone outputs single-ended (6.35mm & 3.5mm) and Balanced (4.4mm).
SPECS
| DIMENSIONS | 142 x 85 x 25 mm |
| WEIGHT | 352.5 g |
| SCREEN | 1.44-inch Screen |
| SYSTEM | Open Android 10 |
| AUDIO FORMATS | DSD(".iso",".dsf",".dff") / ISO / DXD / APE / FLAC/WAV/ AIFF/ALF / DTS/MP3/WMA/AAC/OGG/ ALAC / MP2/M4A/AC3/M3U/M3U8/ OPUS / MQA Hi-Res Support: 32 bit / 768 kHz, DSD 512 |
| HI-RES SUPPORT | 32 bit / 768 kHz, DSD 512 |
| GAIN SETTING | Three Level Setting |
| STORAGE | MicroSD Card Slot, up to 2TB |
| DAC | AKM AK4499EX With AKM AK4191EQ |
| DIGITAL FILTERS | 6 Preset Filters |
| BLUETOOTH | v5.0 Receiver |
| BLUETOOTH CODEC SUPPORT | LDAC / AAC / SBC |
| OUTPUT LEVEL | 2.4 Vrms |
| FREQUENCY RESPONSE | 20Hz - 40kHz (-0.2dB) |
| THD+N | 0.0006% |
| DYNAMIC RANGE | 121dB |
| SIGNAL-TO-NOISE | 121dB |
| OUTPUT IMPEDANCE | 47KΩ |
| OUTPUT POWER | Low Gain: 28mW @32 Ohm Medium Gain: 112mW @32 Ohm High gain: 450mW @32 Ohm |
| FREQUENCY RESPONSE | 20 Hz - 40 KHz (-0.2 dB) |
| THD+N | 0.0009% |
| CHANNEL SEPARATION | 75 dB @ 32 Ohm |
| DYNAMIC RANGE | 121 dB |
| SIGNAL-TO-NOISE | 121 dB |
| NOISE | >113 dB(<1.5 uV) (Low Gain) |
| OUTPUT IMPEDANCE | 1 Ohm |
| OUTPUT POWER | Low Gain:87mW @32 Ohm Medium Gain: 348mW @32 Ohm High gain: 1300mW @32 Ohm |
| FREQUENCY RESPONSE | 20 Hz - 40 KHz (-0.2 dB) |
| THD+N | 0.0007% |
| CHANNEL SEPARATION | 115 dB @ 32 Ohm |
| DYNAMIC RANGE | 123 dB |
| SIGNAL-TO-NOISE | 123 dB |
| NOISE | >111 dB( 1.5 uV) (Low Gain) |
| OUTPUT IMPEDANCE | 1 Ohm |
| BOX CONTENTS | 1. Shanling H7 |
| 2. USB-A to USB-C cable | |
| 3. USB-C to USB-C cable | |
| 4. 3.5mm to RCA coaxial cable | |
| 5. Storage pouch | |
| 6. user manual | |
| 7. warranty card |
OTHER DETAILS
| GENERIC NAME | DAC & Amp |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
| MANUFACTURER DETAILS | Name: Shenzhen Shanling Digital Technology Development Co., Ltd Address: No. 10, Chiwan 1 Road, Shekou District of Shenzhen City, P.R.C. |
| PACKAGE CONTENTS | Shanling H7 USB-A To USB-C Cable USB-C To USB-C Cable 5mm To RCA Coaxial Cable Storage Pouch User ManuaL, Warranty Card |
User Manual | H7
Flagship Hi-Res USB DAC & Amp
|
FAQs
What is the warranty period on the Shanling H7?
The warranty period of the Shanling H7 is of 1 year. In order to claim a warranty, please visit our Shanling Warranty Page
Where is Shanling brand based?
Shanling is a brand based in China.
What are the feature sets?
Flagship AKM AK4499EX DAC with AK4191EQ Modulator
1300mW @ 32 Ohm Output
XMOS XU316 USB input
6.35mm & 4.4 & 3.5mm outputs
Ingenic X2000 platform
Built-in music player
Bluetooth 5.0
Coaxial & Optical inputs
RCA Output
8X MQA unfolding
PCM 32-bit/768kHz and Native DSD512
1.44-inch monochromatic OLED display
MicroSD card slot
Sampling rate/MQA indicators
What DAC chips are used in the Shanling H7?
The Shanling H7 is the first Shanling audio design built around the new generation of AKM's flagship DAC system. The AK4191EQ Delta-Sigma modulator with AK4499EX DAC splits the Digital-to-Analog process between these two chips for improved performance in both domains.
What are the sampling/decoding rates supported?
The Shanling H7 is capable of playing Hi-Res files with support for PCM 32-bit/768kHz (Pulse Code Modulation) and Native DSD512 (Direct Stream Digital).
Does it support MQA?
Yes, it supports 8X MQA (Master Quality Authenticated) unfolding through USB input, allowing you to play back MQA audio files and streams, delivering the sound of the original master recording.
What is the amplification architecture like?
The Shanling H7 amplification architecture is 'designed' around TI TPA6120A2, with carefully matched ELNA SILMIC II and Panasonic tantalum capacitors. The H7 is 'tuned' for Shanling's favourite warm, smooth, and highly organic sound that still packs a proper punch. Shanling engineers incorporated Ti OPA2211, picked for its low noise and high bandwidth performance. These are combined, with 100 μF WE capacitors and ultra-low noise low-dropout regulator, for the cleanest signal output.
Can it be used to power sensitive in-ear monitors and power demanding headphones?
Yes, with the three-level gain settings you are assured an ideal match with a wide range of headphones. Pick the lowest 'gain' for a hiss-free playback with the most sensitive in-ear monitors. Or switch to the high and unleash its powerful 1.3W output, feeding even the most demanding headphones.
Can the Shanling H7 be used for gaming?
Yes, the Shanling H7 is highly compatible with gaming systems (Switch H7 to UAC1.0 mode for compatibility with gaming systems like PS5 and Switch).
What is the Bluetooth version?
The Shanling H7 features Bluetooth 5.0.
What are the various Bluetooth codecs supported?
The Shanling H7 with Bluetooth 5.0 supports LDAC, AAC, and SBC. The H7 allows you to enjoy the wireless sound with convenience.
What is the battery capacity?
Shanling has included a massive 6800mAh battery in Shanling H7's circuitry.
What is the battery life like on the Shanling H7?
The Shanling H7 has an incredible battery life of 10 hours (Single-ended) and 8 hours (Balanced).
Does the Shanling H7 have a screen display?
Yes, the Shanling H7 has a compact 1.44-inch monochromatic OLED display.
What does the display indicate?
It indicates the charging status, sampling rate, and MQA status.
Charging Indicator:
- Red: Charging
- Off: Fully Charged
Sampling Rate Indicator:
Standard Playback:
Blue: 44.1 / 48 kHz
Yellow: 88.2/96/176.4/192kHz
Purple: 352/384/705/768kHz
Green: DSD64/DSD128/DSD256/DSD512
MQA Indicator:
Blue: MQA Playback
Off: Non-MQA Playback
MQA Playback:
Blue: MQA Studio
Green: MQA
Purple: MQA Core
What is the use of ALPS wheels?
The ALPS wheels allow you to control and access various functions.
Left Wheel
Playback:
Press: Switch Input
Rotate Left: Previous Song Rotate Right: Next Song
Settings Menu:
Press for 2s:
Enter Menu
Press: Go to Next Item
Rotate Wheel: Change the
Setting
Press for 25: Exit menu
Right Wheel
Basic Functions:
Press: Play/Pause
Rotate Wheel: Change Volume
Double Press: Controls Lock On/Off
Power On/Off:
Press Right Wheel for 2s to Power On/Off
Does it have a built-in music player?
Yes, Shanling H7 has a built-in music player.
Does it have a MicroSD card slot?
Yes, it does have a MicroSD card slot.
What is the maximum capacity of the MicroSD card slot?
The maximum capacity for the MicroSD card slot is 2TB.
Is it compatible with Eddict Player App?
Yes, you can pair the Shanling H7 with the Eddict Player app to gain control over your music library.
What are the inputs & outputs like on the Shanling H7?
The Shanling H7 has an elegant build, and to complement it, the engineers at Shanling have included high-quality Neutrik connectors (6.35mm) for a stable connection. The H7 has coaxial and optical as digital inputs for easy connection to a wide range of devices. It also hosts RCA as output for connecting the H7 to active speakers to form a compact audio rig. The RCA outputs consist of JRC Muses8920 J-Fet amplifiers for clean and distortion-free sound.
What are the headphone outputs available with the Shanling H7?
The Shanling H7 hosts headphone outputs single-ended (6.35mm & 3.5mm) and Balanced (4.4mm).
What is the output power like on the Shanling H7?
Single-ended Output:
Output Power:
Low Gain: 28mW @32 Ohm
Medium Gain: 112mW @32 Ohm
High gain: 450mW @32 Ohm
Balanced Output:Output Power:
Low Gain: 87mW @32 Ohm
Medium Gain: 348mW @32 Ohm
High gain: 1300mW @32 Ohm
SHANLING INTRODUCES A HIGHLY CAPABLE AND HI-RES CERTIFIED PORTABLE DAC & AMP - THE H7
Shanling is one of the most innovative brands in the HiFi audio industry. Shanling has been engaged in extensive research and development for over 34 years, consistently releasing new and improved products in categories such as Digital Audio Players, Portable USB DAC & Amps, in-ear monitors, and more. This time, Shanling has released the H7, a brand-new high-end and Hi-Res certified (Wired & Wireless) USB DAC & Amp. The H7 is not your typical portable USB DAC & Amp; it is a flagship product built with the best hardware delivering exceptional sonic performance. It has AKM flagship DAC chips for its digital-to-analogue circuitry and high-performing amplification chips. It is the most dependable DAC & Amp with loads of functionalities and powerful headphone outputs. Experience the magic of the all-new H7 and delve into pure sonic bliss!
FEATURES FLAGSHIP DAC CHIPS FROM AKM DELIVERING PRISTINE SONIC PERFORMANCE WITH MQA SUPPORT
Shanling, with its all-new DAC & Amp, has taken a new approach in terms of the design of the audio architecture. The H7 is the first Shanling audio design built around the new generation of AKM's flagship DAC system. The AK4191EQ Delta-Sigma modulator with AK4499EX DAC splits the Digital-to-Analog process between these two chips for improved performance in both domains. This unique approach implemented by AKM allows for even better sound quality, pushing ahead of the older AKM AK4499 DAC. The H7 is capable of playing Hi-Res files with support for PCM 32-bit/768kHz (Pulse Code Modulation) and Native DSD512 (Direct Stream Digital). The H7 also supports 8X MQA (Master Quality Authenticated) unfolding through USB input, allowing you to play back MQA audio files and streams, delivering the sound of the original master recording. Enjoy your Tidal streaming in its highest quality with the all-new high-end H7 USB DAC & Amp.
PHENOMENAL POWER DELIVERY WITH HIGH-PERFORMANCE AMPLIFICATION CHIPS AND THREE-LEVEL GAIN SETTINGS
Shanling has added high-performance amplification chipsets to the H7's circuitry to complement the high-performance DAC chips. The H7's unique design enables it to achieve unheard levels of sound performance. The H7 amplification architecture is "designed" around TI TPA6120A2, with carefully matched ELNA SILMIC II and Panasonic tantalum capacitors. The H7 is "tuned" for Shanling's favourite warm, smooth, and highly organic sound that still packs a proper punch. Shanling engineers incorporated Ti OPA2211, picked for its low noise and high bandwidth performance. These are combined, with 100 μF WE capacitors and ultra-low noise low-dropout regulator, for the cleanest signal output. The H7 has an in-house developed I/V Stage with a pair of ADI ADA4896-2 amplifiers in a highly optimised I/V conversion stage, carefully matched with each resistor and capacitor for the ultimate performance. The H7 offers three levels of amplifier gain, assuring an ideal match with a wide range of headphones. Pick the lowest "gain" for a hiss-free playback with the most sensitive in-ear monitors. Or switch to the high and unleash its powerful 1.3W output, feeding even the most demanding headphones.
ACCURATE AUDIO PROCESSING WITH FPGA & KDS CRYSTAL OSCILLATORS WITH HI-FI GRADE USB INPUT
Shanling has incorporated in-house developed FPGA & KDS Crystal Oscillators for ideal audio processing. Shanling's self-developed FPGA with two low-phase noise 45MHz / 49MHz active oscillators, pushing phase noise to low levels and providing "ideal" sound processing. The H7 also features Hi-Fi grade USB input with 3rd generation XMOS XU316 which enables stable asynchronous connection. The H7 with a new generation of the highly-acclaimed USB chipset, assuring the top-quality digital input for the H7. The 16-core audio solution provides an asynchronous connection for Hi-Fidelity sound and full support for Hi-Res playback of PCM, DSD and MQA files. The H7 is highly compatible with mobile phones, tablets, desktops, and gaming (Switch H7 to UAC1.0 mode for compatibility with gaming systems like PS5 and Switch).
BLUETOOTH 5.0 SUPPORT WITH AN INCREDIBLE BATTERY LIFE OF 10 HOURS
Shanling has designed the H7 to be an all-in-one device whether you want to use it in wired or wireless mode. The H7 features Bluetooth 5.0 with codec support for LDAC, AAC, and SBC. The H7 allows you to enjoy wireless sound with convenience. Switch H7 to its Bluetooth input for an easy connection to your phone or tablet. Ideal for all the quick audio sessions with music streaming services. To support all these functionalities, Shanling has included a massive 6800mAh battery. The H7 has an incredible battery life of 10 hours (Single-ended) and 8 hours (Balanced). It also has advanced power management utilising a pair of industry-standard 18650 batteries, for a combined 6800 mAh capacity, with a dedicated PMU chip for advanced power management, prolonging the battery life for continuous playback and improving the lifespan of the batteries.
NOTE:
H7 only acts as Bluetooth Receiver
Leather case sold separately
COMPACT 1.44-INCH MONOCHROMATIC OLED DISPLAY WITH A PAIR OF ALPS WHEELS AND PLAYBACK INDICATOR
Shanling continuing with their tradition of top-class construction has designed the H7 with an aviation-grade aluminium shell, with nicely rounded edges for comfortable use and carry. The H7 has a compact 1.44-inch monochromatic OLED display, which indicates the charging status, sampling rate, and MQA status. The H7 also has a pair of ALPS wheels, allowing you to control and access various functions. It also has a unique built-in Player to enjoy the full sound quality from the H7. Thanks to the addition of a MicroSD card slot, H7 is capable of direct lossless playback in the highest quality and without any cables or Bluetooth signal degradation. You can pair the H7 with the Eddict Player app to gain control over your music library. LED indicators make it easy to easily recognize currently playing Hi-Res files, covering the full range of PCM, DSD and MQA.
NOTE:
For more information related to the playback indicator refer to the FAQ section.
The maximum capacity for the MicroSD card slot is 2TB.
HIGH-QUALITY NEUTRIK CONNECTORS WITH DIGITAL INPUTS AND RCA OUTPUTS
The H7 has an elegant build, and to complement it, the engineers at Shanling have included high-quality Neutrik connectors (6.35mm) for a stable connection. The H7 has coaxial and optical as digital inputs for easy connection to a wide range of devices. It also hosts RCA as output for connecting the H7 to active speakers to form a compact audio rig. The RCA outputs consist of JRC Muses8920 J-Fet amplifiers for clean and distortion-free sound. The H7 also hosts headphone outputs single-ended (6.35mm & 3.5mm) and Balanced (4.4mm).
| DIMENSIONS | 142 x 85 x 25 mm |
| WEIGHT | 352.5 g |
| SCREEN | 1.44-inch Screen |
| SYSTEM | Open Android 10 |
| AUDIO FORMATS | DSD(".iso",".dsf",".dff") / ISO / DXD / APE / FLAC/WAV/ AIFF/ALF / DTS/MP3/WMA/AAC/OGG/ ALAC / MP2/M4A/AC3/M3U/M3U8/ OPUS / MQA Hi-Res Support: 32 bit / 768 kHz, DSD 512 |
| HI-RES SUPPORT | 32 bit / 768 kHz, DSD 512 |
| GAIN SETTING | Three Level Setting |
| STORAGE | MicroSD Card Slot, up to 2TB |
| DAC | AKM AK4499EX With AKM AK4191EQ |
| DIGITAL FILTERS | 6 Preset Filters |
| BLUETOOTH | v5.0 Receiver |
| BLUETOOTH CODEC SUPPORT | LDAC / AAC / SBC |
| OUTPUT LEVEL | 2.4 Vrms |
| FREQUENCY RESPONSE | 20Hz - 40kHz (-0.2dB) |
| THD+N | 0.0006% |
| DYNAMIC RANGE | 121dB |
| SIGNAL-TO-NOISE | 121dB |
| OUTPUT IMPEDANCE | 47KΩ |
| OUTPUT POWER | Low Gain: 28mW @32 Ohm Medium Gain: 112mW @32 Ohm High gain: 450mW @32 Ohm |
| FREQUENCY RESPONSE | 20 Hz - 40 KHz (-0.2 dB) |
| THD+N | 0.0009% |
| CHANNEL SEPARATION | 75 dB @ 32 Ohm |
| DYNAMIC RANGE | 121 dB |
| SIGNAL-TO-NOISE | 121 dB |
| NOISE | >113 dB(<1.5 uV) (Low Gain) |
| OUTPUT IMPEDANCE | 1 Ohm |
| OUTPUT POWER | Low Gain:87mW @32 Ohm Medium Gain: 348mW @32 Ohm High gain: 1300mW @32 Ohm |
| FREQUENCY RESPONSE | 20 Hz - 40 KHz (-0.2 dB) |
| THD+N | 0.0007% |
| CHANNEL SEPARATION | 115 dB @ 32 Ohm |
| DYNAMIC RANGE | 123 dB |
| SIGNAL-TO-NOISE | 123 dB |
| NOISE | >111 dB( 1.5 uV) (Low Gain) |
| OUTPUT IMPEDANCE | 1 Ohm |
| BOX CONTENTS | 1. Shanling H7 |
| 2. USB-A to USB-C cable | |
| 3. USB-C to USB-C cable | |
| 4. 3.5mm to RCA coaxial cable | |
| 5. Storage pouch | |
| 6. user manual | |
| 7. warranty card |
OTHER DETAILS
| GENERIC NAME | DAC & Amp |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
| MANUFACTURER DETAILS | Name: Shenzhen Shanling Digital Technology Development Co., Ltd Address: No. 10, Chiwan 1 Road, Shekou District of Shenzhen City, P.R.C. |
| PACKAGE CONTENTS | Shanling H7 USB-A To USB-C Cable USB-C To USB-C Cable 5mm To RCA Coaxial Cable Storage Pouch User ManuaL, Warranty Card |
|
User Manual | H7
Flagship Hi-Res USB DAC & Amp
|
What is the warranty period on the Shanling H7?
The warranty period of the Shanling H7 is of 1 year. In order to claim a warranty, please visit our Shanling Warranty Page
Where is Shanling brand based?
Shanling is a brand based in China.
What are the feature sets?
Flagship AKM AK4499EX DAC with AK4191EQ Modulator
1300mW @ 32 Ohm Output
XMOS XU316 USB input
6.35mm & 4.4 & 3.5mm outputs
Ingenic X2000 platform
Built-in music player
Bluetooth 5.0
Coaxial & Optical inputs
RCA Output
8X MQA unfolding
PCM 32-bit/768kHz and Native DSD512
1.44-inch monochromatic OLED display
MicroSD card slot
Sampling rate/MQA indicators
What DAC chips are used in the Shanling H7?
The Shanling H7 is the first Shanling audio design built around the new generation of AKM's flagship DAC system. The AK4191EQ Delta-Sigma modulator with AK4499EX DAC splits the Digital-to-Analog process between these two chips for improved performance in both domains.
What are the sampling/decoding rates supported?
The Shanling H7 is capable of playing Hi-Res files with support for PCM 32-bit/768kHz (Pulse Code Modulation) and Native DSD512 (Direct Stream Digital).
Does it support MQA?
Yes, it supports 8X MQA (Master Quality Authenticated) unfolding through USB input, allowing you to play back MQA audio files and streams, delivering the sound of the original master recording.
What is the amplification architecture like?
The Shanling H7 amplification architecture is 'designed' around TI TPA6120A2, with carefully matched ELNA SILMIC II and Panasonic tantalum capacitors. The H7 is 'tuned' for Shanling's favourite warm, smooth, and highly organic sound that still packs a proper punch. Shanling engineers incorporated Ti OPA2211, picked for its low noise and high bandwidth performance. These are combined, with 100 μF WE capacitors and ultra-low noise low-dropout regulator, for the cleanest signal output.
Can it be used to power sensitive in-ear monitors and power demanding headphones?
Yes, with the three-level gain settings you are assured an ideal match with a wide range of headphones. Pick the lowest 'gain' for a hiss-free playback with the most sensitive in-ear monitors. Or switch to the high and unleash its powerful 1.3W output, feeding even the most demanding headphones.
Can the Shanling H7 be used for gaming?
Yes, the Shanling H7 is highly compatible with gaming systems (Switch H7 to UAC1.0 mode for compatibility with gaming systems like PS5 and Switch).
What is the Bluetooth version?
The Shanling H7 features Bluetooth 5.0.
What are the various Bluetooth codecs supported?
The Shanling H7 with Bluetooth 5.0 supports LDAC, AAC, and SBC. The H7 allows you to enjoy the wireless sound with convenience.
What is the battery capacity?
Shanling has included a massive 6800mAh battery in Shanling H7's circuitry.
What is the battery life like on the Shanling H7?
The Shanling H7 has an incredible battery life of 10 hours (Single-ended) and 8 hours (Balanced).
Does the Shanling H7 have a screen display?
Yes, the Shanling H7 has a compact 1.44-inch monochromatic OLED display.
What does the display indicate?
It indicates the charging status, sampling rate, and MQA status.
Charging Indicator:
- Red: Charging
- Off: Fully Charged
Sampling Rate Indicator:
Standard Playback:
Blue: 44.1 / 48 kHz
Yellow: 88.2/96/176.4/192kHz
Purple: 352/384/705/768kHz
Green: DSD64/DSD128/DSD256/DSD512
MQA Indicator:
Blue: MQA Playback
Off: Non-MQA Playback
MQA Playback:
Blue: MQA Studio
Green: MQA
Purple: MQA Core
What is the use of ALPS wheels?
The ALPS wheels allow you to control and access various functions.
Left Wheel
Playback:
Press: Switch Input
Rotate Left: Previous Song Rotate Right: Next Song
Settings Menu:
Press for 2s:
Enter Menu
Press: Go to Next Item
Rotate Wheel: Change the
Setting
Press for 25: Exit menu
Right Wheel
Basic Functions:
Press: Play/Pause
Rotate Wheel: Change Volume
Double Press: Controls Lock On/Off
Power On/Off:
Press Right Wheel for 2s to Power On/Off
Does it have a built-in music player?
Yes, Shanling H7 has a built-in music player.
Does it have a MicroSD card slot?
Yes, it does have a MicroSD card slot.
What is the maximum capacity of the MicroSD card slot?
The maximum capacity for the MicroSD card slot is 2TB.
Is it compatible with Eddict Player App?
Yes, you can pair the Shanling H7 with the Eddict Player app to gain control over your music library.
What are the inputs & outputs like on the Shanling H7?
The Shanling H7 has an elegant build, and to complement it, the engineers at Shanling have included high-quality Neutrik connectors (6.35mm) for a stable connection. The H7 has coaxial and optical as digital inputs for easy connection to a wide range of devices. It also hosts RCA as output for connecting the H7 to active speakers to form a compact audio rig. The RCA outputs consist of JRC Muses8920 J-Fet amplifiers for clean and distortion-free sound.
What are the headphone outputs available with the Shanling H7?
The Shanling H7 hosts headphone outputs single-ended (6.35mm & 3.5mm) and Balanced (4.4mm).
What is the output power like on the Shanling H7?
Single-ended Output:
Output Power:
Low Gain: 28mW @32 Ohm
Medium Gain: 112mW @32 Ohm
High gain: 450mW @32 Ohm
Balanced Output:Output Power:
Low Gain: 87mW @32 Ohm
Medium Gain: 348mW @32 Ohm
High gain: 1300mW @32 Ohm
Don't sweat it, this
Shanling - H7 comes with a 1 Year warranty
from Shanling that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about Shanling's warranty in India.
HFN RECOMMENDED
Headfonia
Feb, 2023
GOLD AWARD
Soundnews
April, 2023
"Pair it with a good set of headphones or some nice IEMs and you’ll be set up for years! A no-brainer, outperforming almost every DAC/Amp available at the time of writing, giving you the perfect setup on a go!”
Read More
“This is a neutral sound signature but compared to the likes of the Mojo 2 and the Q7 it's a bit smoother and sweeter-toned and will gel beautifully with clean-sounding headgear.”
Read More
"Powering an entire headphone wall, except for a stubborn black sheep, Shanling’s H7 is blurring the line between portable and desktop components, sounding like a serious piece of equipment.”
Read More
"The Shanlong H7 is an excellent entry into this segment of the marker for Shanling. From sound quality and function perspective it is very very good."
AKM AK4191EQ + AK4499EX
Burr-Brown
Dual AKM AK4191EQ + AK4499EX
3.5mm (Single-Ended)
4.4mm (Balanced)
3.5mm (Single-Ended)
4.4mm (Balanced)
3.5mm (Single-Ended)
4.4mm (Balanced)
🦈 Serious Audiophiles Only
🦈 Serious Audiophiles Only
🦈 Serious Audiophiles Only
Upto 1300mW X 2 @ 32 Ohms
Upto 1000 mW @ 32 Ohms
Upto 1610mW + 1610mW @ 32 Ohms
Coaxial (RCA Port)
USB
Optical
Bluetooth
S/PDIF Coaxial
3.5mm SE
4.4mm Bal (Line)
Type-C
Bluetooth
Coaxial (RCA Port)
USB
Bluetooth
32 Bit / 768 KHz
DSD 512
DSD: DSD512/256/128/64
Octa/Quad/Double/Single-Speed
PCM: 768/705.6/384/352.8/192/176.4/ 96/88.2/48/44.1kHz
DXD: 768/705.6/384/352.8kHz
Double/Single-Speed DXD
MQA (Decoder): 384/352.8kHz
Bluetooth: Up To 96kHz
USB DAC: Up To PCM 768kHz/32bit
Native DSD512 Coaxial Decoding: Up To PCM 192kHz/24bit, DoP DSD64
Coaxial (RCA Port)
USB
Optical
Bluetooth
S/PDIF Coaxial
3.5mm SE
4.4mm Bal (Line)
Type-C
Bluetooth
Lightning
Coaxial (RCA Port)
USB
Bluetooth
1. Shanling H7
2. USB-A to USB-C cable 3. USB-C to USB-C cable
4. 3.5mm to RCA coaxial cable
5. Storage pouch
6. user manual
7. warranty card
1. IFi Audio XDSD Gryphon
2. 1x USB-A To USB-C Cable
3. 1x USB-C To USB-C Cable
4. 1x Lightning To USB-C Cable
5. 1x Protective Bag
6. 1x User Manual
7. 1x Instruction Card
1. FiiO Q15
2. Dual Type-C fast charging data cable
3. Dual Type-C short data cable
4. Type-A to C adapter
5. Storage bag x1
6. Silicone pad x1
7. PE film (Pre-applied)
8. Silicone ring x2
9. Manual x1
10. Warranty Card x1
Have a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is the warranty period on the Shanling H7 and how do I claim warranty?
What are the sampling/decoding rates supported?
Does it support MQA?
Can the Shanling H7 be used for gaming?
What is the battery capacity?
Does it have a built-in music player?
Customer Reviews
Review after 1.5 years of using it.
Excellent dac amp when paired with proper digital signal input from streamer and type-c solid silver usb cable. Very natural with high resolution and dynamics. Dac has enough resolution to resolve subtle details, overtones and soundstage depth depending on the headphone.
But I would say this the amp in-built this prefers load impedance above 30. Lacks control if impedance is too low. Therefore for some 16ohm hp/iems isn't the best pairing
We’re delighted that you loved the product! Thank you for sharing your experience with us!
Fantastic in every sense of the word. It has set new horizons for the Audiophiles. My only advise to the connoisseurs of quality audio is that try tk grab one before the stock expires, of course, if finance is not a constraint. Kudos once again to HPZ team for making everything possible.
This makes us really happy and we really appreciate the genuine feedback! We're glad that you have such positive thoughts about our team and the company.
Unboxing experience was very minimal, would have been very happy if it was with a leather case which is definitely required for this master piece.
Intial sound impressions: Got the wow factor after many months probably after a IERZ1R and now again. Every song I played put a smile on my face.
Paired with SENN IE 900, FIIO FDX, FINAL AUDIO E5000. All 3 sounded well and bought the glory back for my picky IE900 😉 which was not having a very good synerygy with chord mojo 2.
Excellent SQ, good sound stage and very powerful.
I previosly owned HIBY R6 2020, SHANLING M8, Ibasso DX300 - amp 11, amp 12, amp 13.
Out of all, I loved shanling M8 the most, now H7 which is a much upgrade for me interms of SQ from M8. H7 is not as warm as M8, but this will be the upgrade for any one who loves M8 to the core of the heart ( atleast for me 😊).
Thanks a lot for your detailed and genuine feedback, we're glad that you have such positive thoughts about the product and we'll share your thoughts with the brand as well. It'll also help our fellow customers to make the right choice!
