Topping - MX5
Desktop DAC & AmplifierGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 6,845
₹ 535
₹ 431
6
Low Cost EMI
₹ 3,490
₹ 943
₹ 763
9
15.99%
₹ 2,373
₹ 1,356
12
15.99%
₹ 1,814
₹ 1,774
18
15.99%
₹ 1,257
₹ 2,626
24
15.99%
₹ 979
₹ 3,500
HDFC Bank
3
Low Cost EMI
₹ 6,845
₹ 536
₹ 431
6
Low Cost EMI
₹ 3,490
₹ 944
₹ 763
9
16%
₹ 2,373
₹ 1,357
12
16%
₹ 1,815
₹ 1,775
18
16%
₹ 1,257
₹ 2,628
24
16%
₹ 979
₹ 3,502
SBI Bank
3
Low Cost EMI
₹ 6,850
₹ 552
₹ 444
6
Low Cost EMI
₹ 3,481
₹ 884
₹ 712
9
15%
₹ 2,363
₹ 1,271
12
15%
₹ 1,805
₹ 1,662
18
16%
₹ 1,257
₹ 2,628
24
16%
₹ 979
₹ 3,502
Axis Bank
3
Low Cost EMI
₹ 6,845
₹ 536
₹ 431
6
Low Cost EMI
₹ 3,490
₹ 944
₹ 763
9
16%
₹ 2,373
₹ 1,357
12
16%
₹ 1,796
₹ 1,549
18
16%
₹ 1,257
₹ 2,628
24
16%
₹ 979
₹ 3,502
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 6,822
₹ 468
6
14%
₹ 3,471
₹ 825
9
16%
₹ 2,373
₹ 1,357
12
16%
₹ 1,815
₹ 1,775
18
16%
₹ 1,257
₹ 2,628
24
16%
₹ 979
₹ 3,502
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 6,845
₹ 536
6
16%
₹ 3,490
₹ 944
9
16%
₹ 2,373
₹ 1,357
12
16%
₹ 1,815
₹ 1,775
18
16%
₹ 1,257
₹ 2,628
24
16%
₹ 979
₹ 3,502
RBL Bank
3
13%
₹ 6,811
₹ 435
6
14%
₹ 3,471
₹ 825
9
15%
₹ 2,363
₹ 1,271
12
15%
₹ 1,805
₹ 1,662
18
15%
₹ 1,248
₹ 2,458
24
15%
₹ 970
₹ 3,273
Standard Chartered Bank
3
13%
₹ 6,811
₹ 435
6
13%
₹ 3,461
₹ 765
9
14%
₹ 2,354
₹ 1,185
12
14%
₹ 1,796
₹ 1,549
INDUSIND Bank
3
14%
₹ 6,822
₹ 468
6
14%
₹ 3,471
₹ 825
9
15%
₹ 2,363
₹ 1,271
12
15%
₹ 1,805
₹ 1,662
18
15%
₹ 1,248
₹ 2,458
24
15%
₹ 970
₹ 3,273
HSBC Bank
3
12.50%
₹ 6,806
₹ 418
6
12.50%
₹ 3,456
₹ 735
9
13.50%
₹ 2,349
₹ 1,142
12
13.50%
₹ 1,791
₹ 1,492
18
13.50%
₹ 1,234
₹ 2,205
YES Bank
3
13%
₹ 6,811
₹ 435
6
13%
₹ 3,461
₹ 765
9
14%
₹ 2,354
₹ 1,185
12
14%
₹ 1,796
₹ 1,549
18
15%
₹ 1,248
₹ 2,458
24
15%
₹ 970
₹ 3,273
Bank of Baroda
3
13%
₹ 6,811
₹ 435
6
14%
₹ 3,471
₹ 825
9
14%
₹ 2,354
₹ 1,185
12
15%
₹ 1,805
₹ 1,662
18
15%
₹ 1,248
₹ 2,458
24
16%
₹ 979
₹ 3,502
American Express
3
14%
₹ 6,822
₹ 468
6
14%
₹ 3,471
₹ 825
9
14%
₹ 2,354
₹ 1,185
12
14%
₹ 1,796
₹ 1,549
18
15%
₹ 1,248
₹ 2,458
24
15%
₹ 970
₹ 3,273
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Why Topping is Special
Designed in China
Established & Reputed
Trust us, our reputation in the audio world speaks for itself!
This headphone or gear comes from a well-respected brand known for its high-quality audio equipment, so you can be confident in your purchase.
If you see a product marked as “🎖️ Established & Reputed”, it means you're getting a top-tier device from a brand that's earned its stripes in the audio industry.
Revered by Audiophiles
Audiophiles can be really picky and tough to impress and if the audiophile community says something sounds good, you can bet it's great!
This headphone or gear has gained recognition and admiration from audiophiles, who are known for their discerning taste in high-fidelity audio. They appreciate its precision, attention to detail and its ability to deliver an immersive sonic experience.
If you see a product marked as "🙌🏻 Revered by Audiophiles", it means that it meets the highest standards of sound quality and performance, making it a top choice for anyone who values exceptional audio experiences.
Specialist
A masterpiece from the experts who know audio inside and out!
This headphone or gear is crafted by specialists who know their stuff, ensuring every detail is perfect.
If you see a product marked as “🌟 Specialist”, it means you're choosing a device designed by experts who specialize in creating this specific category of device.
Why we love this DAC/Amp
Value for Money
Great sound always doesn't have to come with a fancy price tag.
Every once in a while we come across a product that give you a lot more value for the price.
If you see products marked as "🥜 Value For Money" you can be sure you're getting a great bang for your buck.
For Enthusiasts on a Budget
We are here to help you find the best bang for your buck.
This headphone or gear is made for all passionate hobbyists who want top-notch gear without breaking the bank.
If you see a product marked as “🪴 For Enthusiasts on a Budget”, get ready to indulge in your music with high-quality, affordable products that keep your wallet happy and your enthusiasm alive!
Incredibly Popular
Some things deserve all the attention.
This headphone or gear is a crowd favourite, winning over fans everywhere with its undeniable audio quality.
If you see products marked as “🥇 Incredibly Popular”, you’re opting for a tried-and-true choice that’s loved by many, ensuring you're getting something that’s proven to be awesome and widely acclaimed.
For Audiophiles at Home
Cause music hit differently when you are in your own space.
This headphone or gear is perfect for those who demand exceptional sound quality in their personal sanctuary.
If you see products marked as “🏠 For Audiophiles at Home”, get ready to transform your living space into an audiophile's paradise, with rich, immersive sound that makes every listening session a masterpiece.
Use Wirelessly with Bluetooth
Enjoy the convenience of seamless wireless connectivity
This headphone or gear indicates that the product supports wireless connectivity via Bluetooth, freeing you from the tangles of cords and cables.
If you see products marked as “✂️ Use Wirelessly with Bluetooth”, enjoy the freedom to stream music, make calls, and more, all without being tethered to your device, giving you the flexibility to move around and multitask with ease.
Connect With Cable
This device comes with multiple connectivity options. Be sure to check if your source and output support these input and output options.
Why it Sounds Amazing
DAC Chip
Know the secret to your pristine audio.
This headphone or gear reveals the secret sauce behind superior audio quality, highlighting the presence of a high-performance DAC chip for pristine sound reproduction.
If you see products marked as “⚙️ DAC Chip”, expect to experience your music with unparalleled clarity, detail, and fidelity, ensuring that every note and nuance is faithfully reproduced for your listening pleasure.
Power Output
When you need that juice to get the best out of your products.
This headphone or gear packs a punch, revealing the product's impressive power output capabilities, ensuring it can handle even the most demanding products with ease.
If you see products marked as “🚀 Power Output”, you're in for a treat with robust performance for driving high-fidelity products without breaking a sweat.
Sampling Rate And Bit Depth
Ever wonder how those ones and zeros on your computer magically transform into the rich melodies that fill your room?
The secret lies in a tiny device called a Digital-to-Analog Converter (DAC). Think of it as a translator, taking the digital code of your music and meticulously sculpting it back into a smooth, analog wave that your speakers can understand. But just like a sculptor needs the right tools, achieving audio nirvana with a DAC depends on two key factors: sampling rate and bit depth.
Sampling Rate:
Imagine your favourite song as a complex rollercoaster track. The sampling rate refers to how often the DAC takes measurements of this digital track, measured in kHz (kilohertz) or thousands of times per second. A higher sampling rate, like 96 kHz, is like taking a ton of pictures of the track, capturing every twist and turn with incredible detail. Lower rates, like the standard 44.1 kHz used in CDs, are like taking snapshots at a theme park – fun, but you might miss some of the subtler details that make the ride truly exhilarating.
Bit Depth:
Now, think about the sculptor's tools. Bit depth refers to the precision of each measurement the DAC takes. Imagine the number of colours available to the sculptor. With higher bit depth (e.g., 24 bits compared to 16 bits), each measurement can capture a wider range of values. This allows the DAC to recreate subtler variations in the sound wave, resulting in richer and more nuanced audio. It's like having a broader colour palette for building a more detailed and lifelike sculpture of the sound.
DESCRIPTION
RALLY WITH THE ALL-NEW ULTRA-HIGH-PERFORMANCE POWER AMPLIFIER & DAC
TOPPING is known for producing the quietest and most linear power amplifiers. Their amplifiers have been meticulously built to provide outstanding audio performance right out of the box. In their line-up of amplifiers, there is a new entry of the MX5, which is a multi-function power amplifier and DAC, the successor to the highly appreciated MX3. It retains the sound quality which the MX3 had, adding tons of functionality to the MX5. The MX5 is an all-around performer with the newest chipsets and amplification technology built-in to give you the best experience possible, whether you're using it wired or wirelessly. It supports Hi-Res, which means that lossless files can be handled without jitter or distortion. TOPPING experts have created this unit to be used in today's world without sacrificing sound quality. The MX5 is a surprise package with industry-leading components installed in its belly. It's a power amplifier, headphone amplifier, and digital-to-analogue converter, all in one package.
ENJOY HIGH-RESOLUTION AUDIO WIRED AND WIRELESSLY WITH ESS SABRE HIFI DAC CHIP, QUALCOMM AND BT 5.0 CONNECTIVITY
ESS audiophile DACs are widely regarded as the gold standard for digital-to-analogue converters (DACs), setting a new benchmark for a genuinely immersive audio experience. SABRE DACs are designed for premium home theatre equipment such as Blu-ray players, preamplifiers, and all-in-one A/V receivers. With the addition of the ESS SABRE HIFI DAC chip to the TOPPING MX5, you can enjoy high-resolution audio 384kHz & DSD256. MX5 embedded with XMOS XU208 it can serve as a high-quality asynchronous USB DAC & Amp. The Qualcomm QCC3031 chip BT 5.0 chip assures excellent quality of connection, a quick pairing and trouble-free compatibility and hassle-free operation. The USB IN supports PCM up to 44.1kHz-384kHz/16bit-32bit. The OPTICAL and COAXIAL IN support PCM up to 44.1kHz-192kHz/16bit-24bit. The audio codecs supported by the BLUETOOTH IN include aptX-HD, aptX LL, aptX, SBC, and AAC. Throw in an ESS SABRE DAC chip, Bluetooth 5.0, and an 8-core XMOS chip, and you’ve got a true do-it-all system.
MULTI-FUNCTION POWER AMPLIFIER EMBEDDED WITH NFCA HEADPHONE AMPLIFIER AND MERUS CLASS D AMPLIFIER TO DELIVER PRISTINE AUDIO
TOPPING has risen to the ultimate levels of Hi-Fidelity audio with the MX5. The engineers are not playing around when they say "Multi-Function." TOPPING has put two amplifiers into this one unit: an NFCA headphone amplifier that outputs on the front plate and a Merus Class-D power amplifier that outputs on the back. The MX5 has an NFCA circuit optimised for this unit with ultra-low noise and distortion. It pairs with high-sensitivity IEMs and power-hungry high-impedance headphones perfectly. With the help of an Infineon Merus Class D amplifier, the MX5 can output 70W x2 under a 4Ω load with 10% distortion, and 55W x2 under a 4Ω load with 1% distortion. Under an 8Ω load, the MX5 can output 42W x2 with 10% distortion or 35W x2 with 1% distortion. You won't have an issue driving your speakers, studio monitors or high-end tower speakers with the Merus Class D amplifier at your service.
AUTO ON/OFF FUNCTIONALITY WITH BUILT-IN EQ AND 2-STEP GAIN SETTING
All inputs on the MX5 include an Auto On/Off functionality. The unit turns on when a valid signal is detected. When a legitimate signal is lost, the machine shuts down (goes into standby mode) after a certain amount of time has passed. MX5 provides three sensitivity choices for analogue signals with varying intensities to ensure that the audio signal is recognised. Digital signal detection is enabled, and analogue signal detection is disabled by default. When the digital input signal is invalid, the automated shutdown wait time is one minute. The shutdown wait time is set to 10 minutes. The MX5 provides adjustable treble and bass functionality from -10dB to +10dB to suit your preference. The power and headphone amplifiers on the MX5 have two-step gain adjustments to respond to input sources of varying strengths which can also be adjusted via remote control.
MEMORY SETTINGS COUPLED WITH JITTER-FREE INPUTS, SELECTABLE OUTPUT MODES, AND REMOTE CONTROL PROVIDE TROUBLE-FREE CONNECTIVITY AND CONTROL
C1 and C2 are two custom memory settings on the MX5. Long-press either button to store the current input, output, volume, bass, treble, and gain settings. To recall the saved settings, press and hold the button for a few seconds. The MX5 is embedded with USB, optical fibre, coaxial, and Bluetooth, enabling a wide range of connectivity and compatibility options. With four digital and two analogue inputs, the MX5 may connect to a wide range of audio sources, including PCs, set-top boxes, CD players, mobile phones, and tablets. In addition to digital inputs, the MX5 also has analogue inputs that are fully balanced TRS, single-ended RCA and a 6.35mm female port on the front baffle. The volume of the MX5 can be controlled using the volume knob or the remote, and it can be shown in percentage or decibels.
SPECS
THD+N @1KHZ (A-WT) | USB/OPT/COAX : <0.0030% @output=750mW (32Ω) <.0008% @output=80mW (300Ω) SE: <0.0030% @output=750mW (32Ω) <0.0020% @output=80mW (300Ω) BAL: <0.0030% @output=750mW (32Ω) <0.0020% @output=80mW (300Ω) |
SNR @MAX OUT 1KHZ (A-WT) | USB/OPT/COAX : 120dB SE: 128dB BAL: 127dB |
DYNAMIC RANGE @1KHZ (A-WT) | USB/OPT/COAX : 120dB SE: 129dB BAL: 127dB |
FREQUENCY RESPONSE | 20Hz - 20kHz (+0.1dB/ -0.3dB) 20Hz - 40kHz (+0.1dB/ -1.0dB) |
OUTPUT LEVEL | USB/OPT/COAX : 5.6Vpp @ G=L 24.6Vpp @ G=H SE: 10.6Vpp @ G=L 24.6Vpp @ G=H BAL: 10.6Vpp @ G=L 24.6Vpp @ G=H |
NOISE @ A-WT | <2.0uVrms @ G=L <10.0uVrms @ G=H |
CHANNEL CROSSTALK @1KHZ | -93dB |
INPUT SENSITIVITY | USB/OPT/COAX : 0dBFS @ G=L -1dBFS @ G=H SE: 3.9Vrms @ G=L 1.8Vrms @ G=H BAL: 7.8Vrms @ G=L 73.6Vrms @ G=H |
GAIN | USB/OPT/COAX : 6.0dB (Vrms/FS) @ G=L 19dB (Vrms/FS) @ G=H SE: -0.2dB @ G=L 13.6dB @ G=H BAL: -6.1dB @ G=L 7.6dB @ G=H |
OUTPUT IMPEDANCE | <0.2Ω |
OUTPUT POWER | 1600mW x2 @32Ω THD+N<0.1% 1000mW x2 @64Ω THD+N<0.1% 260mW x2 @300Ω THD+N<0.1% |
LOAD IMPEDANCE | >8Ω |
THD+N @1KHZ (A-WT) | USB/OPT/COAX : <0.005% @output=5W (4Ω) <0.004% @output=5W (8Ω) SE: <0.005% @output=5W (4Ω) <0.004% @output=5W (8Ω) BAL: <0.005% @output=5W (4Ω) <0.004% @output=5W (8Ω) |
SNR @MAX OUT 1KHZ (A-WT) | USB/OPT/COAX : 110dB SE: 110dB BAL: 110dB |
DYNAMIC RANGE @1KHZ (A-WT) | USB/OPT/COAX : 110dB SE: 110dB BAL: 110dB |
FREQUENCY RESPONSE | 20Hz - 20kHz (+0.1dB/-0.5dB) 20Hz - 40kHz (+0.1dB/ -1.5dB) |
OUTPUT LEVEL | USB/OPT/COAX : 42Vpp @RL=4Ω 46Vpp @RL=8Ω SE: 42Vpp @RL=4Ω 46Vpp @RL=8Ω BAL: 42Vpp @RL=4Ω 46Vpp @RL=8Ω |
NOISE @ A-WT | <60uVrms @ G=L <90uVrms @ G=H |
CHANNEL CROSSTALK @1KHZ | USB/OPT/COAX : -93dB SE: -90dB BAL: -91dB |
INPUT SENSITIVITY | USB/OPT/COAX : -1.5dBFS @ G=L -7dBFS @ G=H SE: 1.7Vrms @ G=L 0.9Vrms @ G=H BAL: 3.5Vrms @ G=L 1.8Vrms @ G=H |
GAIN | USB/OPT/COAX : 25.2dB (Vrms/FS) @ G=L 30.7dB (Vrms/FS) @ G=H SE: 19dB @ G=L 24.5dB @ G=H BAL: 13dB @ G=L 18.5dB @ G=H |
OUTPUT IMPEDANCE | <0.2Ω |
OUTPUT POWER | 70W x2 @4Ω THD+N<10% 55W x2 @4Ω THD+N<1% 42W x2 @8Ω THD+N<10% 35W x2 @8Ω THD+N<1% |
LOAD IMPEDANCE | 4-8Ω |

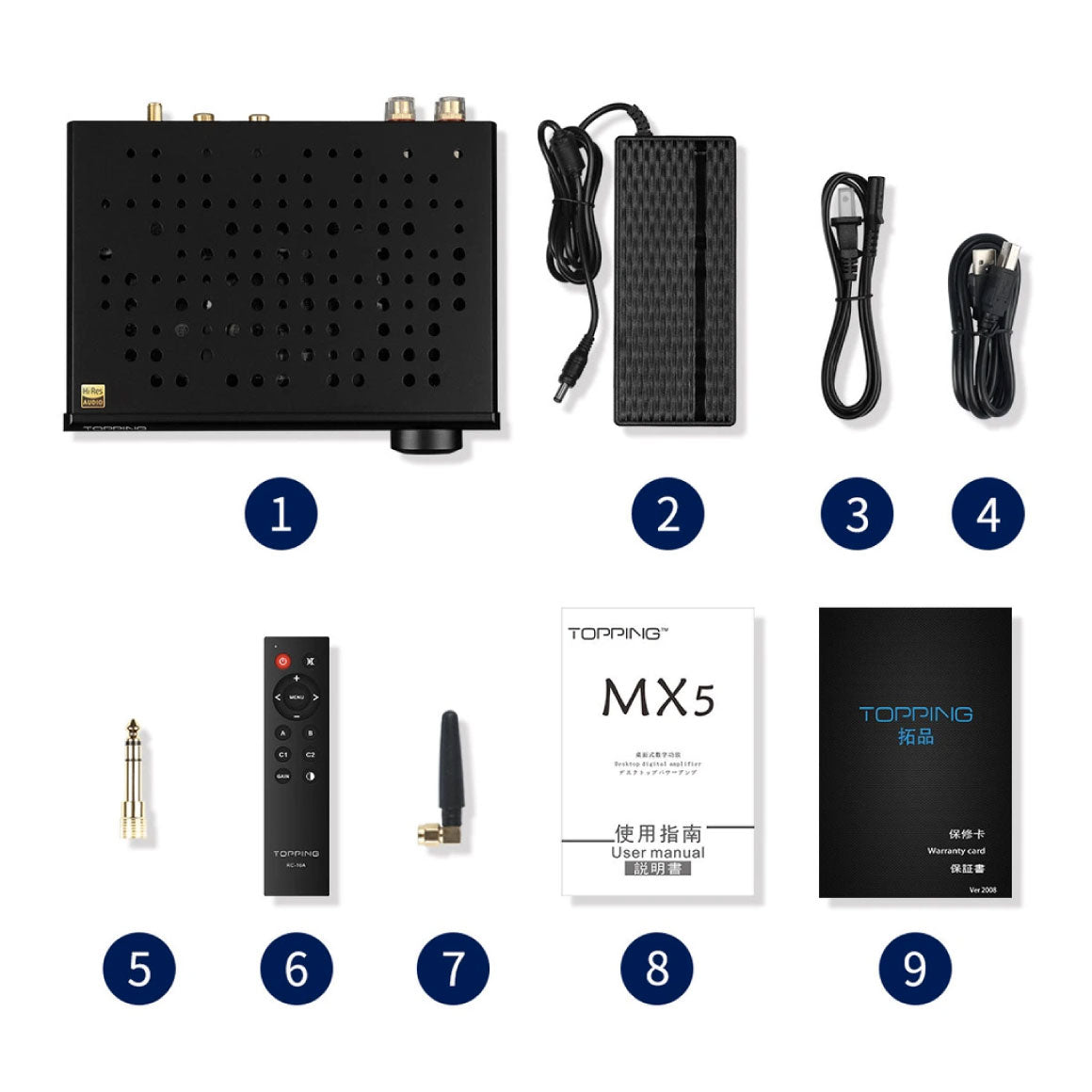

BOX CONTENTS | 1. TOPPING MX5 |
2. Power adapter | |
3. Power cable | |
4. USB cable | |
5. 6.35mm to 3.5mm adapter | |
6. Remote control | |
7. Bluetooth antenna | |
8. User manual | |
9. Warranty card |
OTHER DETAILS
GENERIC NAME | DAC & Amp |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 16.8 x 12 x 4 cm |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
PACKAGE CONTENTS | TOPPING MX5 Power Adapter Power Cable USB Cable 6.35mm To 3.5mm Adapter Remote ControL, Bluetooth Antenna User ManuaL, Warranty Card |
User Manual | MX5
Desktop DAC & Amplifier
|
FAQs
What is the warranty period on the TOPPING MX5?
All TOPPING products come with 1 year of warranty. To claim warranty read more on TOPPING Warranty
How many gain settings are available with the MX5?
MX5 provides two step gain settings for both power amplifier and headphone amplifier.
Does TOPPING MX5 support MQA?
No, TOPPING MX5 does not support MQA.
What are the inputs for the TOPPING MX5?

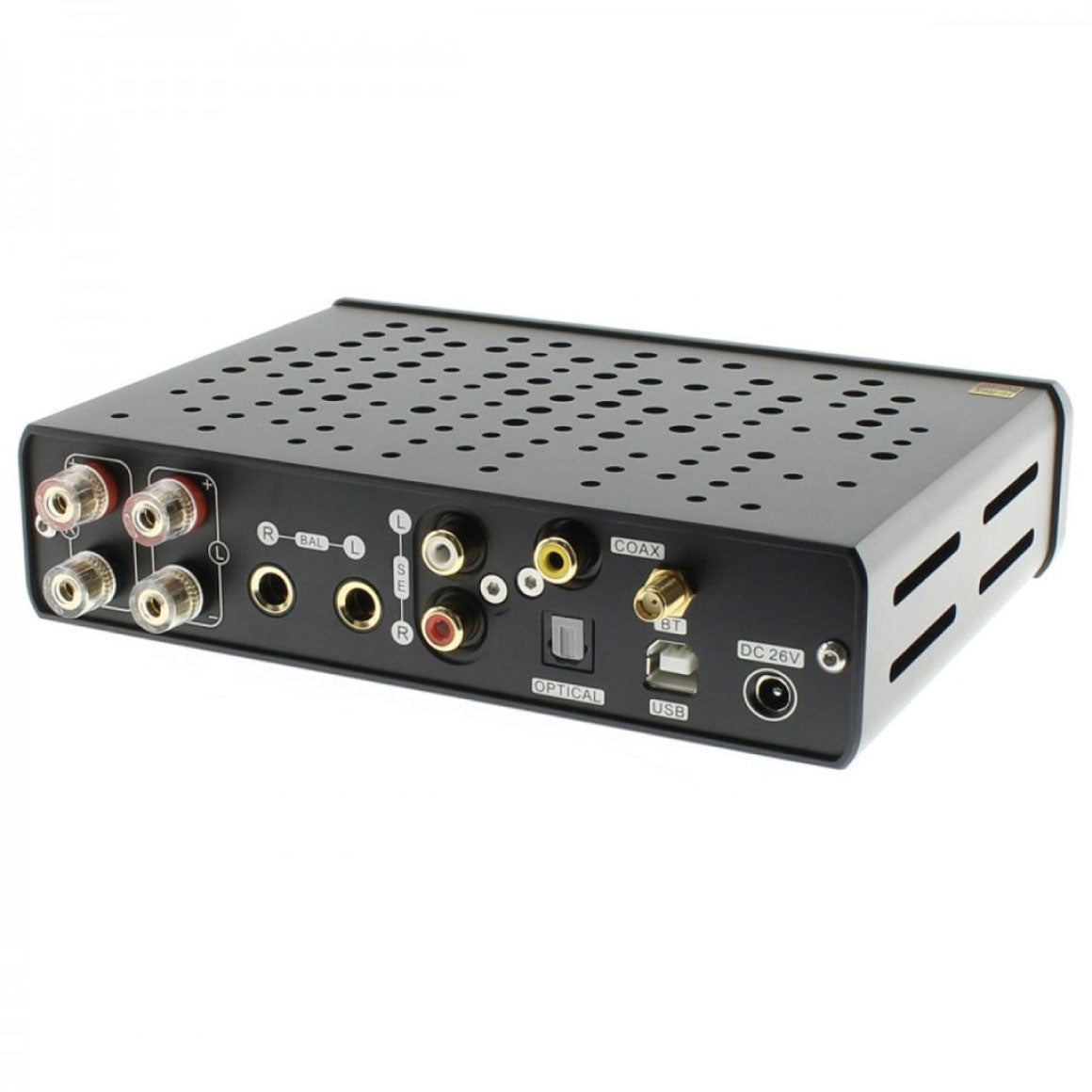

TOPPING MX5 comes with USB, Optical, Coaxial, RCA and 6.3mm TRS Input.
What does the package include?
You will be greeted with the TOPPING MX5. The package also includes Power adapter, Power cable, USB cable, 6.35mm to 3.5mm adapter, Remote control Bluetooth antenna, User manual, and Warranty card.
How is the volume display setting visible on the MX5?
MX5 can be set to display the volume in percentage or in dB.
What is the sampling rate supported by the MX5?
MX5 supports PCM 384kHz/DSD 256.
RALLY WITH THE ALL-NEW ULTRA-HIGH-PERFORMANCE POWER AMPLIFIER & DAC
TOPPING is known for producing the quietest and most linear power amplifiers. Their amplifiers have been meticulously built to provide outstanding audio performance right out of the box. In their line-up of amplifiers, there is a new entry of the MX5, which is a multi-function power amplifier and DAC, the successor to the highly appreciated MX3. It retains the sound quality which the MX3 had, adding tons of functionality to the MX5. The MX5 is an all-around performer with the newest chipsets and amplification technology built-in to give you the best experience possible, whether you're using it wired or wirelessly. It supports Hi-Res, which means that lossless files can be handled without jitter or distortion. TOPPING experts have created this unit to be used in today's world without sacrificing sound quality. The MX5 is a surprise package with industry-leading components installed in its belly. It's a power amplifier, headphone amplifier, and digital-to-analogue converter, all in one package.
ENJOY HIGH-RESOLUTION AUDIO WIRED AND WIRELESSLY WITH ESS SABRE HIFI DAC CHIP, QUALCOMM AND BT 5.0 CONNECTIVITY
ESS audiophile DACs are widely regarded as the gold standard for digital-to-analogue converters (DACs), setting a new benchmark for a genuinely immersive audio experience. SABRE DACs are designed for premium home theatre equipment such as Blu-ray players, preamplifiers, and all-in-one A/V receivers. With the addition of the ESS SABRE HIFI DAC chip to the TOPPING MX5, you can enjoy high-resolution audio 384kHz & DSD256. MX5 embedded with XMOS XU208 it can serve as a high-quality asynchronous USB DAC & Amp. The Qualcomm QCC3031 chip BT 5.0 chip assures excellent quality of connection, a quick pairing and trouble-free compatibility and hassle-free operation. The USB IN supports PCM up to 44.1kHz-384kHz/16bit-32bit. The OPTICAL and COAXIAL IN support PCM up to 44.1kHz-192kHz/16bit-24bit. The audio codecs supported by the BLUETOOTH IN include aptX-HD, aptX LL, aptX, SBC, and AAC. Throw in an ESS SABRE DAC chip, Bluetooth 5.0, and an 8-core XMOS chip, and you’ve got a true do-it-all system.
MULTI-FUNCTION POWER AMPLIFIER EMBEDDED WITH NFCA HEADPHONE AMPLIFIER AND MERUS CLASS D AMPLIFIER TO DELIVER PRISTINE AUDIO
TOPPING has risen to the ultimate levels of Hi-Fidelity audio with the MX5. The engineers are not playing around when they say "Multi-Function." TOPPING has put two amplifiers into this one unit: an NFCA headphone amplifier that outputs on the front plate and a Merus Class-D power amplifier that outputs on the back. The MX5 has an NFCA circuit optimised for this unit with ultra-low noise and distortion. It pairs with high-sensitivity IEMs and power-hungry high-impedance headphones perfectly. With the help of an Infineon Merus Class D amplifier, the MX5 can output 70W x2 under a 4Ω load with 10% distortion, and 55W x2 under a 4Ω load with 1% distortion. Under an 8Ω load, the MX5 can output 42W x2 with 10% distortion or 35W x2 with 1% distortion. You won't have an issue driving your speakers, studio monitors or high-end tower speakers with the Merus Class D amplifier at your service.
AUTO ON/OFF FUNCTIONALITY WITH BUILT-IN EQ AND 2-STEP GAIN SETTING
All inputs on the MX5 include an Auto On/Off functionality. The unit turns on when a valid signal is detected. When a legitimate signal is lost, the machine shuts down (goes into standby mode) after a certain amount of time has passed. MX5 provides three sensitivity choices for analogue signals with varying intensities to ensure that the audio signal is recognised. Digital signal detection is enabled, and analogue signal detection is disabled by default. When the digital input signal is invalid, the automated shutdown wait time is one minute. The shutdown wait time is set to 10 minutes. The MX5 provides adjustable treble and bass functionality from -10dB to +10dB to suit your preference. The power and headphone amplifiers on the MX5 have two-step gain adjustments to respond to input sources of varying strengths which can also be adjusted via remote control.
MEMORY SETTINGS COUPLED WITH JITTER-FREE INPUTS, SELECTABLE OUTPUT MODES, AND REMOTE CONTROL PROVIDE TROUBLE-FREE CONNECTIVITY AND CONTROL
C1 and C2 are two custom memory settings on the MX5. Long-press either button to store the current input, output, volume, bass, treble, and gain settings. To recall the saved settings, press and hold the button for a few seconds. The MX5 is embedded with USB, optical fibre, coaxial, and Bluetooth, enabling a wide range of connectivity and compatibility options. With four digital and two analogue inputs, the MX5 may connect to a wide range of audio sources, including PCs, set-top boxes, CD players, mobile phones, and tablets. In addition to digital inputs, the MX5 also has analogue inputs that are fully balanced TRS, single-ended RCA and a 6.35mm female port on the front baffle. The volume of the MX5 can be controlled using the volume knob or the remote, and it can be shown in percentage or decibels.
THD+N @1KHZ (A-WT) | USB/OPT/COAX : <0.0030% @output=750mW (32Ω) <.0008% @output=80mW (300Ω) SE: <0.0030% @output=750mW (32Ω) <0.0020% @output=80mW (300Ω) BAL: <0.0030% @output=750mW (32Ω) <0.0020% @output=80mW (300Ω) |
SNR @MAX OUT 1KHZ (A-WT) | USB/OPT/COAX : 120dB SE: 128dB BAL: 127dB |
DYNAMIC RANGE @1KHZ (A-WT) | USB/OPT/COAX : 120dB SE: 129dB BAL: 127dB |
FREQUENCY RESPONSE | 20Hz - 20kHz (+0.1dB/ -0.3dB) 20Hz - 40kHz (+0.1dB/ -1.0dB) |
OUTPUT LEVEL | USB/OPT/COAX : 5.6Vpp @ G=L 24.6Vpp @ G=H SE: 10.6Vpp @ G=L 24.6Vpp @ G=H BAL: 10.6Vpp @ G=L 24.6Vpp @ G=H |
NOISE @ A-WT | <2.0uVrms @ G=L <10.0uVrms @ G=H |
CHANNEL CROSSTALK @1KHZ | -93dB |
INPUT SENSITIVITY | USB/OPT/COAX : 0dBFS @ G=L -1dBFS @ G=H SE: 3.9Vrms @ G=L 1.8Vrms @ G=H BAL: 7.8Vrms @ G=L 73.6Vrms @ G=H |
GAIN | USB/OPT/COAX : 6.0dB (Vrms/FS) @ G=L 19dB (Vrms/FS) @ G=H SE: -0.2dB @ G=L 13.6dB @ G=H BAL: -6.1dB @ G=L 7.6dB @ G=H |
OUTPUT IMPEDANCE | <0.2Ω |
OUTPUT POWER | 1600mW x2 @32Ω THD+N<0.1% 1000mW x2 @64Ω THD+N<0.1% 260mW x2 @300Ω THD+N<0.1% |
LOAD IMPEDANCE | >8Ω |
THD+N @1KHZ (A-WT) | USB/OPT/COAX : <0.005% @output=5W (4Ω) <0.004% @output=5W (8Ω) SE: <0.005% @output=5W (4Ω) <0.004% @output=5W (8Ω) BAL: <0.005% @output=5W (4Ω) <0.004% @output=5W (8Ω) |
SNR @MAX OUT 1KHZ (A-WT) | USB/OPT/COAX : 110dB SE: 110dB BAL: 110dB |
DYNAMIC RANGE @1KHZ (A-WT) | USB/OPT/COAX : 110dB SE: 110dB BAL: 110dB |
FREQUENCY RESPONSE | 20Hz - 20kHz (+0.1dB/-0.5dB) 20Hz - 40kHz (+0.1dB/ -1.5dB) |
OUTPUT LEVEL | USB/OPT/COAX : 42Vpp @RL=4Ω 46Vpp @RL=8Ω SE: 42Vpp @RL=4Ω 46Vpp @RL=8Ω BAL: 42Vpp @RL=4Ω 46Vpp @RL=8Ω |
NOISE @ A-WT | <60uVrms @ G=L <90uVrms @ G=H |
CHANNEL CROSSTALK @1KHZ | USB/OPT/COAX : -93dB SE: -90dB BAL: -91dB |
INPUT SENSITIVITY | USB/OPT/COAX : -1.5dBFS @ G=L -7dBFS @ G=H SE: 1.7Vrms @ G=L 0.9Vrms @ G=H BAL: 3.5Vrms @ G=L 1.8Vrms @ G=H |
GAIN | USB/OPT/COAX : 25.2dB (Vrms/FS) @ G=L 30.7dB (Vrms/FS) @ G=H SE: 19dB @ G=L 24.5dB @ G=H BAL: 13dB @ G=L 18.5dB @ G=H |
OUTPUT IMPEDANCE | <0.2Ω |
OUTPUT POWER | 70W x2 @4Ω THD+N<10% 55W x2 @4Ω THD+N<1% 42W x2 @8Ω THD+N<10% 35W x2 @8Ω THD+N<1% |
LOAD IMPEDANCE | 4-8Ω |
BOX CONTENTS | 1. TOPPING MX5 |
2. Power adapter | |
3. Power cable | |
4. USB cable | |
5. 6.35mm to 3.5mm adapter | |
6. Remote control | |
7. Bluetooth antenna | |
8. User manual | |
9. Warranty card |
OTHER DETAILS
GENERIC NAME | DAC & Amp |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 16.8 x 12 x 4 cm |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
PACKAGE CONTENTS | TOPPING MX5 Power Adapter Power Cable USB Cable 6.35mm To 3.5mm Adapter Remote ControL, Bluetooth Antenna User ManuaL, Warranty Card |
User Manual | MX5
Desktop DAC & Amplifier
|
What is the warranty period on the TOPPING MX5?
All TOPPING products come with 1 year of warranty. To claim warranty read more on TOPPING Warranty
How many gain settings are available with the MX5?
MX5 provides two step gain settings for both power amplifier and headphone amplifier.
Does TOPPING MX5 support MQA?
No, TOPPING MX5 does not support MQA.
What are the inputs for the TOPPING MX5?
TOPPING MX5 comes with USB, Optical, Coaxial, RCA and 6.3mm TRS Input.
What does the package include?
You will be greeted with the TOPPING MX5. The package also includes Power adapter, Power cable, USB cable, 6.35mm to 3.5mm adapter, Remote control Bluetooth antenna, User manual, and Warranty card.
How is the volume display setting visible on the MX5?
MX5 can be set to display the volume in percentage or in dB.
What is the sampling rate supported by the MX5?
MX5 supports PCM 384kHz/DSD 256.
Don't sweat it, this
Topping - MX5 comes with a 1 Year warranty
from TOPPING that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about TOPPING's warranty in India.
The Audiophile's Choice For Precision and Accuracy
Explore CollectionThis product is rated 5.0 of 5.0 stars.
It has received 3 reviews.
You may also like
This product is rated 5.0 of 5.0 stars.
It has received 3 reviews.
