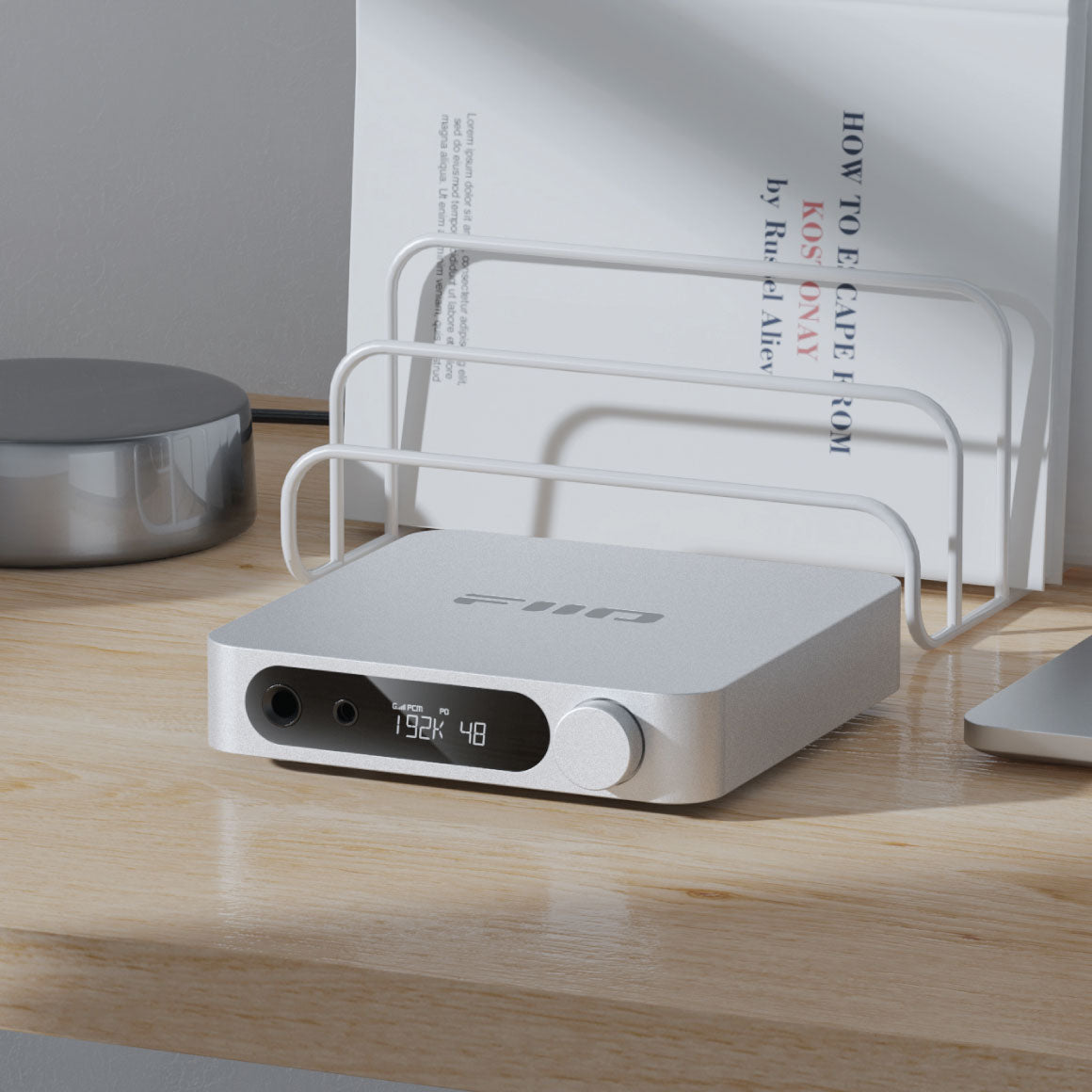

FiiO - K11
Desktop DAC & AmpGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 4,107
₹ 321
₹ 259
6
Low Cost EMI
₹ 2,094
₹ 566
₹ 458
9
15.99%
₹ 1,424
₹ 814
12
15.99%
₹ 1,089
₹ 1,064
18
15.99%
₹ 754
₹ 1,576
24
15.99%
₹ 587
₹ 2,100
HDFC Bank
3
Low Cost EMI
₹ 4,107
₹ 321
₹ 259
6
Low Cost EMI
₹ 2,094
₹ 566
₹ 458
9
16%
₹ 1,424
₹ 814
12
16%
₹ 1,089
₹ 1,065
18
16%
₹ 754
₹ 1,577
24
16%
₹ 588
₹ 2,101
SBI Bank
3
Low Cost EMI
₹ 4,110
₹ 331
₹ 267
6
Low Cost EMI
₹ 2,088
₹ 530
₹ 427
9
15%
₹ 1,418
₹ 762
12
15%
₹ 1,083
₹ 997
18
16%
₹ 754
₹ 1,577
24
16%
₹ 588
₹ 2,101
Axis Bank
3
Low Cost EMI
₹ 4,107
₹ 321
₹ 259
6
Low Cost EMI
₹ 2,094
₹ 566
₹ 458
9
16%
₹ 1,424
₹ 814
12
16%
₹ 1,077
₹ 929
18
16%
₹ 754
₹ 1,577
24
16%
₹ 588
₹ 2,101
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 4,093
₹ 281
6
14%
₹ 2,082
₹ 495
9
16%
₹ 1,424
₹ 814
12
16%
₹ 1,089
₹ 1,065
18
16%
₹ 754
₹ 1,577
24
16%
₹ 588
₹ 2,101
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 4,107
₹ 321
6
16%
₹ 2,094
₹ 566
9
16%
₹ 1,424
₹ 814
12
16%
₹ 1,089
₹ 1,065
18
16%
₹ 754
₹ 1,577
24
16%
₹ 588
₹ 2,101
RBL Bank
3
13%
₹ 4,087
₹ 261
6
14%
₹ 2,082
₹ 495
9
15%
₹ 1,418
₹ 762
12
15%
₹ 1,083
₹ 997
18
15%
₹ 749
₹ 1,475
24
15%
₹ 582
₹ 1,964
Standard Chartered Bank
3
13%
₹ 4,087
₹ 261
6
13%
₹ 2,076
₹ 459
9
14%
₹ 1,412
₹ 711
12
14%
₹ 1,077
₹ 929
INDUSIND Bank
3
14%
₹ 4,093
₹ 281
6
14%
₹ 2,082
₹ 495
9
15%
₹ 1,418
₹ 762
12
15%
₹ 1,083
₹ 997
18
15%
₹ 749
₹ 1,475
24
15%
₹ 582
₹ 1,964
HSBC Bank
3
12.50%
₹ 4,083
₹ 251
6
12.50%
₹ 2,073
₹ 441
9
13.50%
₹ 1,409
₹ 685
12
13.50%
₹ 1,075
₹ 895
18
13.50%
₹ 740
₹ 1,323
YES Bank
3
13%
₹ 4,087
₹ 261
6
13%
₹ 2,076
₹ 459
9
14%
₹ 1,412
₹ 711
12
14%
₹ 1,077
₹ 929
18
15%
₹ 749
₹ 1,475
24
15%
₹ 582
₹ 1,964
Bank of Baroda
3
13%
₹ 4,087
₹ 261
6
14%
₹ 2,082
₹ 495
9
14%
₹ 1,412
₹ 711
12
15%
₹ 1,083
₹ 997
18
15%
₹ 749
₹ 1,475
24
16%
₹ 588
₹ 2,101
American Express
3
14%
₹ 4,093
₹ 281
6
14%
₹ 2,082
₹ 495
9
14%
₹ 1,412
₹ 711
12
14%
₹ 1,077
₹ 929
18
15%
₹ 749
₹ 1,475
24
15%
₹ 582
₹ 1,964
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Why FiiO is Special
Designed in China
Established & Reputed
Trust us, our reputation in the audio world speaks for itself!
This headphone or gear comes from a well-respected brand known for its high-quality audio equipment, so you can be confident in your purchase.
If you see a product marked as “🎖️ Established & Reputed”, it means you're getting a top-tier device from a brand that's earned its stripes in the audio industry.
Revered by Audiophiles
Audiophiles can be really picky and tough to impress and if the audiophile community says something sounds good, you can bet it's great!
This headphone or gear has gained recognition and admiration from audiophiles, who are known for their discerning taste in high-fidelity audio. They appreciate its precision, attention to detail and its ability to deliver an immersive sonic experience.
If you see a product marked as "🙌🏻 Revered by Audiophiles", it means that it meets the highest standards of sound quality and performance, making it a top choice for anyone who values exceptional audio experiences.
Born in 2007
Why we love this DAC/Amp
Value for Money
Great sound always doesn't have to come with a fancy price tag.
Every once in a while we come across a product that give you a lot more value for the price.
If you see products marked as "🥜 Value For Money" you can be sure you're getting a great bang for your buck.
For Enthusiasts on a Budget
We are here to help you find the best bang for your buck.
This headphone or gear is made for all passionate hobbyists who want top-notch gear without breaking the bank.
If you see a product marked as “🪴 For Enthusiasts on a Budget”, get ready to indulge in your music with high-quality, affordable products that keep your wallet happy and your enthusiasm alive!
Audiophile Community Favourite
This headphone or gear has a seal of approval from our audiophile community.
It is hit among the pickiest of audio enthusiasts. It comes with two thumbs up and is the community’s and one of our favourites.
If you see a product marked as “🦋 Audiophile Community Favourite”, you're in for a sonic treat with top-tier sound quality that will make your ears swoon and elevate your listening experience to new heights!
For Audiophiles at Home
Cause music hit differently when you are in your own space.
This headphone or gear is perfect for those who demand exceptional sound quality in their personal sanctuary.
If you see products marked as “🏠 For Audiophiles at Home”, get ready to transform your living space into an audiophile's paradise, with rich, immersive sound that makes every listening session a masterpiece.
Connect With Cable
This device comes with multiple connectivity options. Be sure to check if your source and output support these input and output options.
Why it Sounds Amazing
DAC Chip
Know the secret to your pristine audio.
This headphone or gear reveals the secret sauce behind superior audio quality, highlighting the presence of a high-performance DAC chip for pristine sound reproduction.
If you see products marked as “⚙️ DAC Chip”, expect to experience your music with unparalleled clarity, detail, and fidelity, ensuring that every note and nuance is faithfully reproduced for your listening pleasure.
Power Output
When you need that juice to get the best out of your products.
This headphone or gear packs a punch, revealing the product's impressive power output capabilities, ensuring it can handle even the most demanding products with ease.
If you see products marked as “🚀 Power Output”, you're in for a treat with robust performance for driving high-fidelity products without breaking a sweat.
Balanced Output
Upgrading from single-ended to balanced can be the easiest way to improve your sound.
This DAC, Amp or Hi-Res player offers a balanced output, ensuring pristine audio quality with minimised interference and enhanced clarity for your listening pleasure.
If you see a product marked as "⚖️ Balanced Output”, get ready for a symphony of crystal-clear tunes, free from any unwanted noise drama!
Sampling Rate And Bit Depth
Ever wonder how those ones and zeros on your computer magically transform into the rich melodies that fill your room?
The secret lies in a tiny device called a Digital-to-Analog Converter (DAC). Think of it as a translator, taking the digital code of your music and meticulously sculpting it back into a smooth, analog wave that your speakers can understand. But just like a sculptor needs the right tools, achieving audio nirvana with a DAC depends on two key factors: sampling rate and bit depth.
Sampling Rate:
Imagine your favourite song as a complex rollercoaster track. The sampling rate refers to how often the DAC takes measurements of this digital track, measured in kHz (kilohertz) or thousands of times per second. A higher sampling rate, like 96 kHz, is like taking a ton of pictures of the track, capturing every twist and turn with incredible detail. Lower rates, like the standard 44.1 kHz used in CDs, are like taking snapshots at a theme park – fun, but you might miss some of the subtler details that make the ride truly exhilarating.
Bit Depth:
Now, think about the sculptor's tools. Bit depth refers to the precision of each measurement the DAC takes. Imagine the number of colours available to the sculptor. With higher bit depth (e.g., 24 bits compared to 16 bits), each measurement can capture a wider range of values. This allows the DAC to recreate subtler variations in the sound wave, resulting in richer and more nuanced audio. It's like having a broader colour palette for building a more detailed and lifelike sculpture of the sound.
DESCRIPTION
FIIO INTRODUCES AN ALL-NEW DAC AND AMPLIFIER TO THEIR K SERIES - THE K11
The FiiO K11 is a brand-new USB DAC and Amp featuring a fully balanced design. With its CS43198 high-performance 32-bit DAC, the K11 excels at decoding high-resolution PCM and DSD signals. It offers a versatile range of input and output choices, including USB, Coaxial, and Optical inputs, as well as 4.4mm, 6.35mm, and RCA outputs. This pocket-friendly desktop DAC and Amp is compatible with various devices, making it a convenient choice for use with PCs, laptops, smartphones, and even gaming consoles like the PS5 and Nintendo Switch, ensuring a worry-free audio experience.
FEATURES A HIGH-PERFORMANCE DAC CHIP AND A SPECIALLY DESIGNED AUDIO CIRCUIT

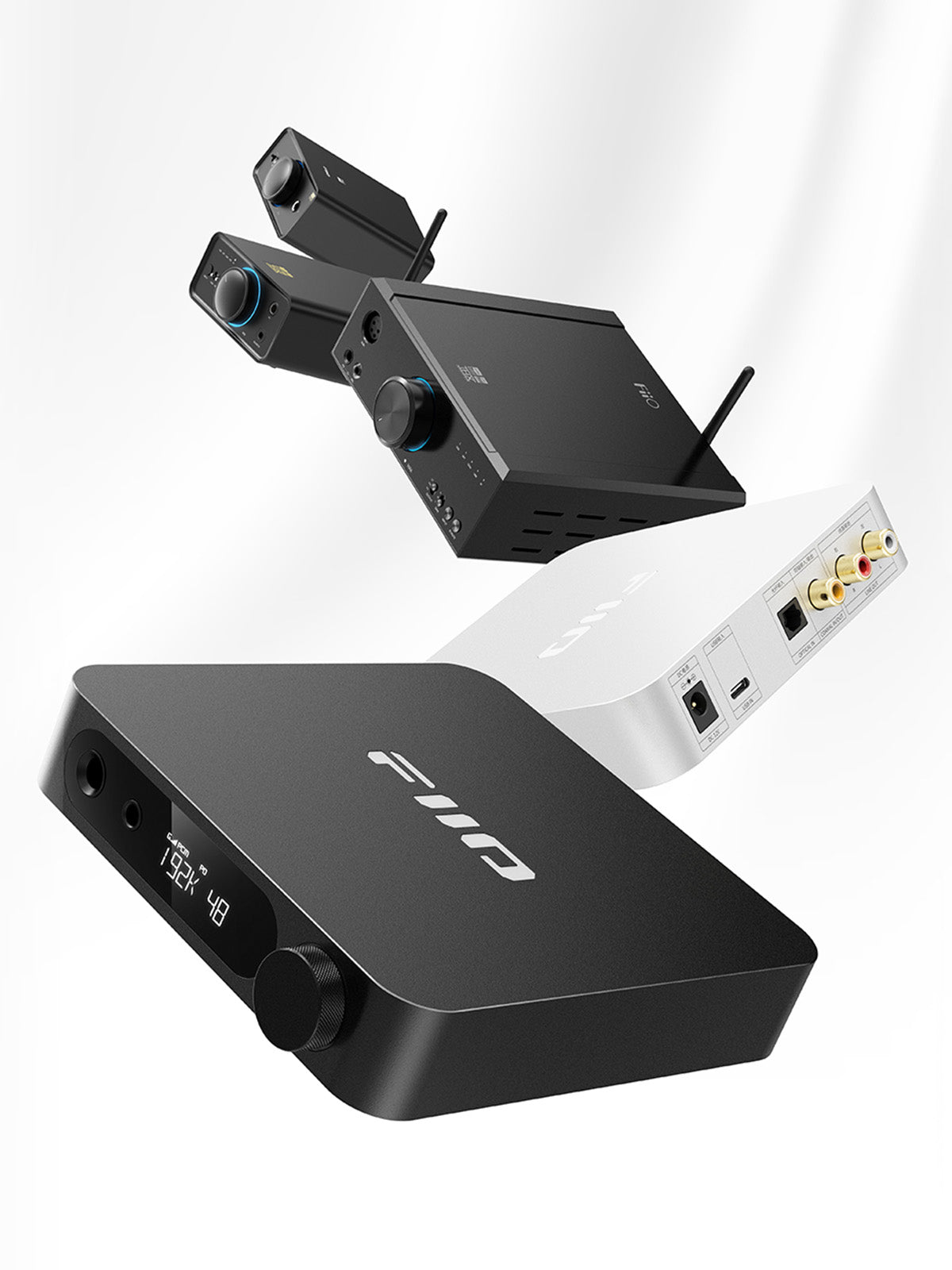

Over the years, FiiO has introduced a range of successful USB DAC and Amp models and their latest, the K11, is meticulously crafted to ensure top-tier sound performance. It features a high-performance CS43198 DAC chipset that excels at decoding high-resolution 32-bit/384kHz PCM and Native DSD256 audio signals. The K11's sleek design houses a specially engineered audio circuit dedicated to delivering exceptional sound quality. Supported by over 16 low-noise LDOs for precise voltage regulation and powered by an external 12V switching power supply, this configuration ensures a cleaner and more stable power supply, resulting in consistently high-quality audio for an enjoyable music experience every time.

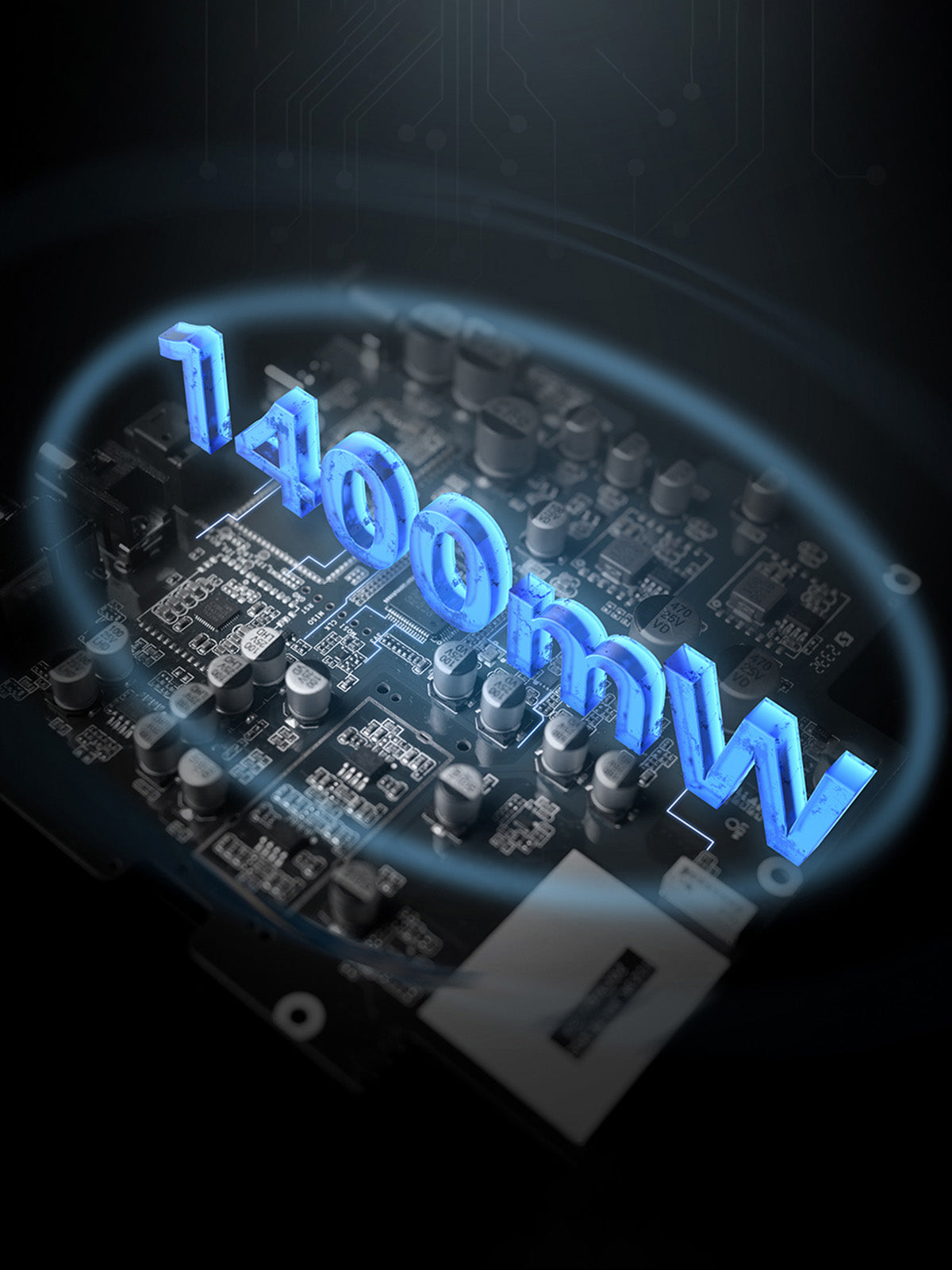

DELIVERS POWERFUL AMPLIFICATION WITH 3 LEVEL GAIN AND 3 VOLUME CURVES
The FiiO K11 stands as a highly capable USB DAC and Amp, offering a robust headphone amplifier section featuring three distinct gain modes. These modes produce a potent output, delivering up to 1400mW of clear sound at 32Ω of impedance load through the balanced connection output. The K11 is thoughtfully equipped with three separate gain levels, each with its volume curve. This versatile feature ensures an optimal listening experience with various headphone types, whether you're using sensitive earphones or more demanding over-ear headphones. The K11 relies on multiple low-noise LDOs for precise voltage regulation and an external 12V power supply, ensuring a pure and stable power source for high-quality audio performance.

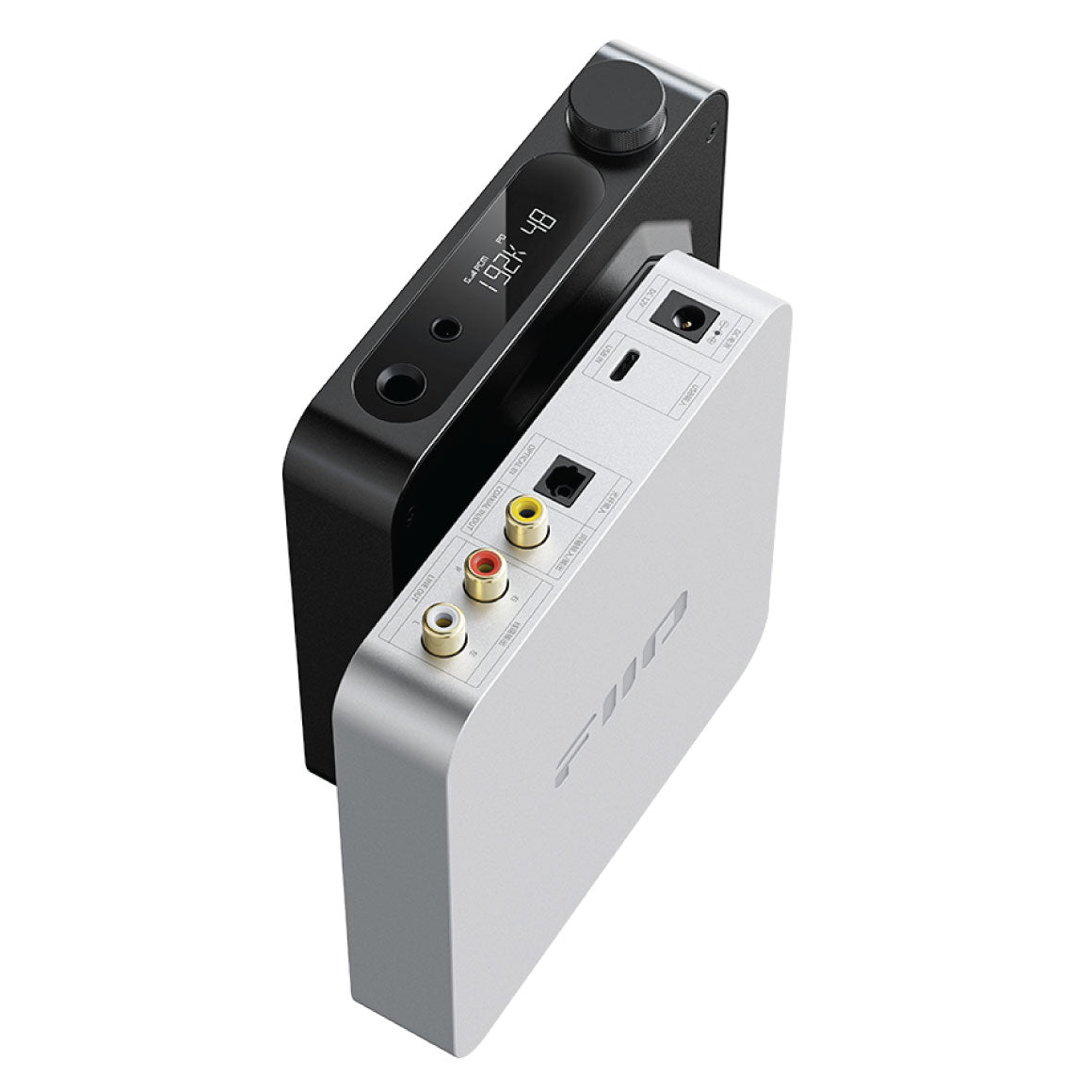

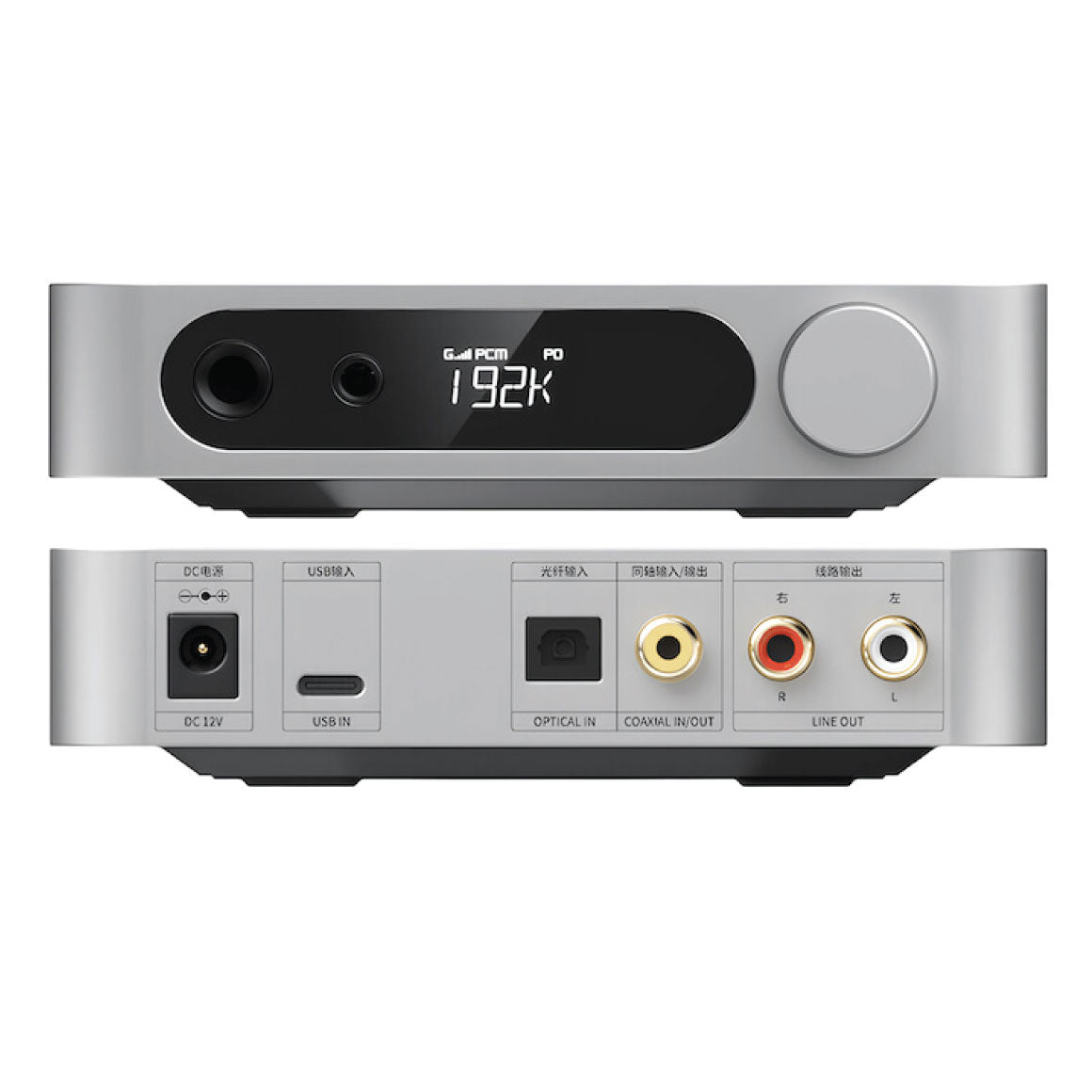

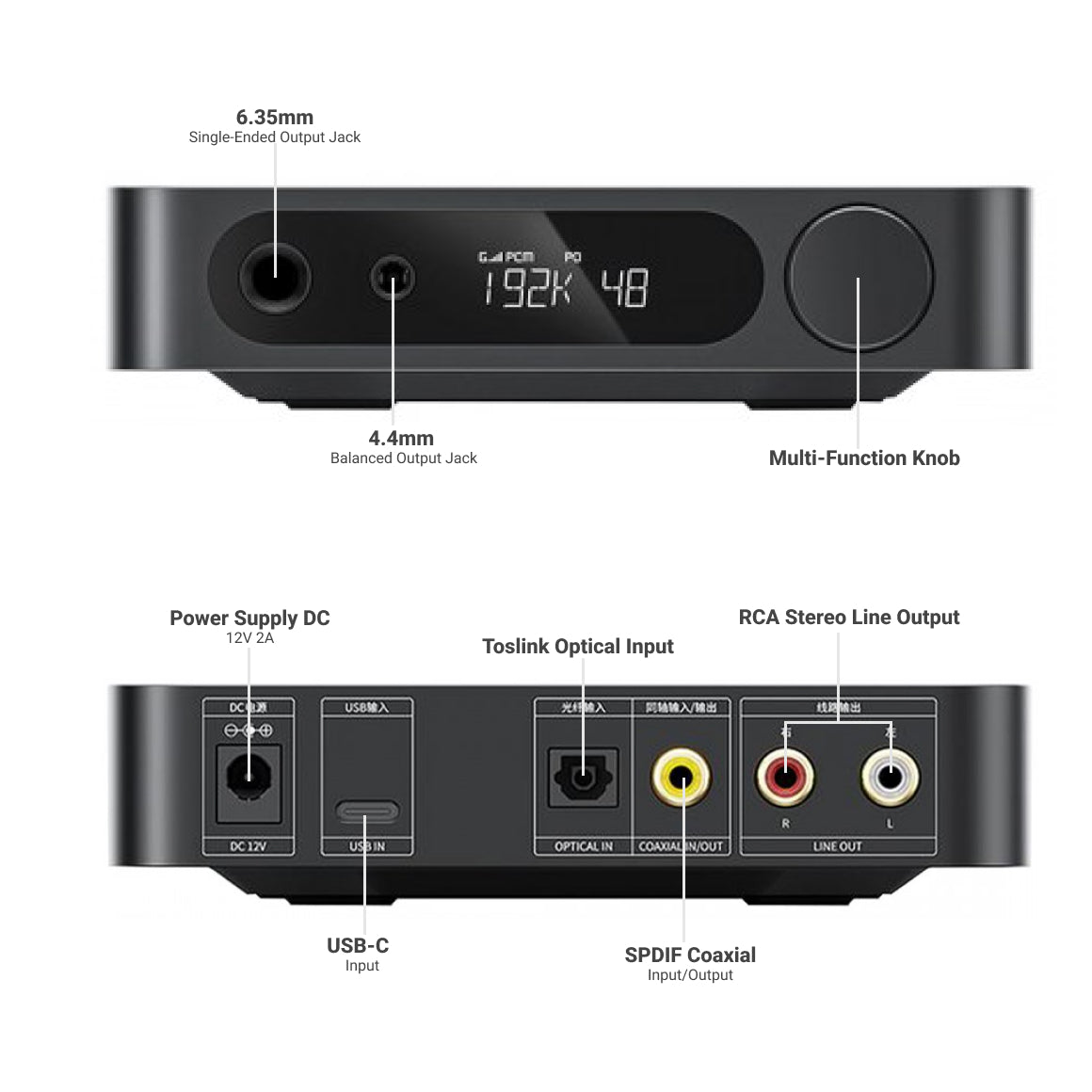

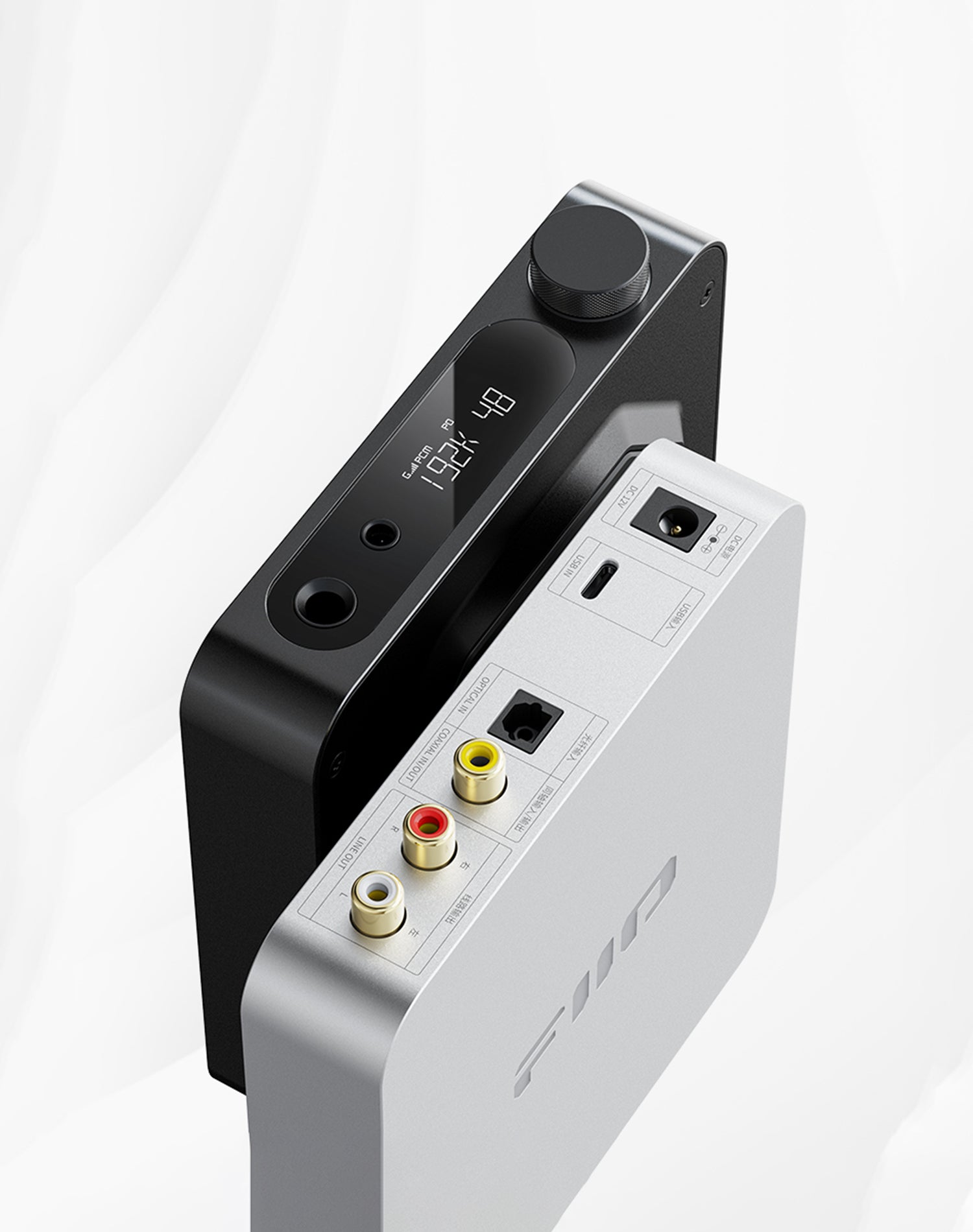

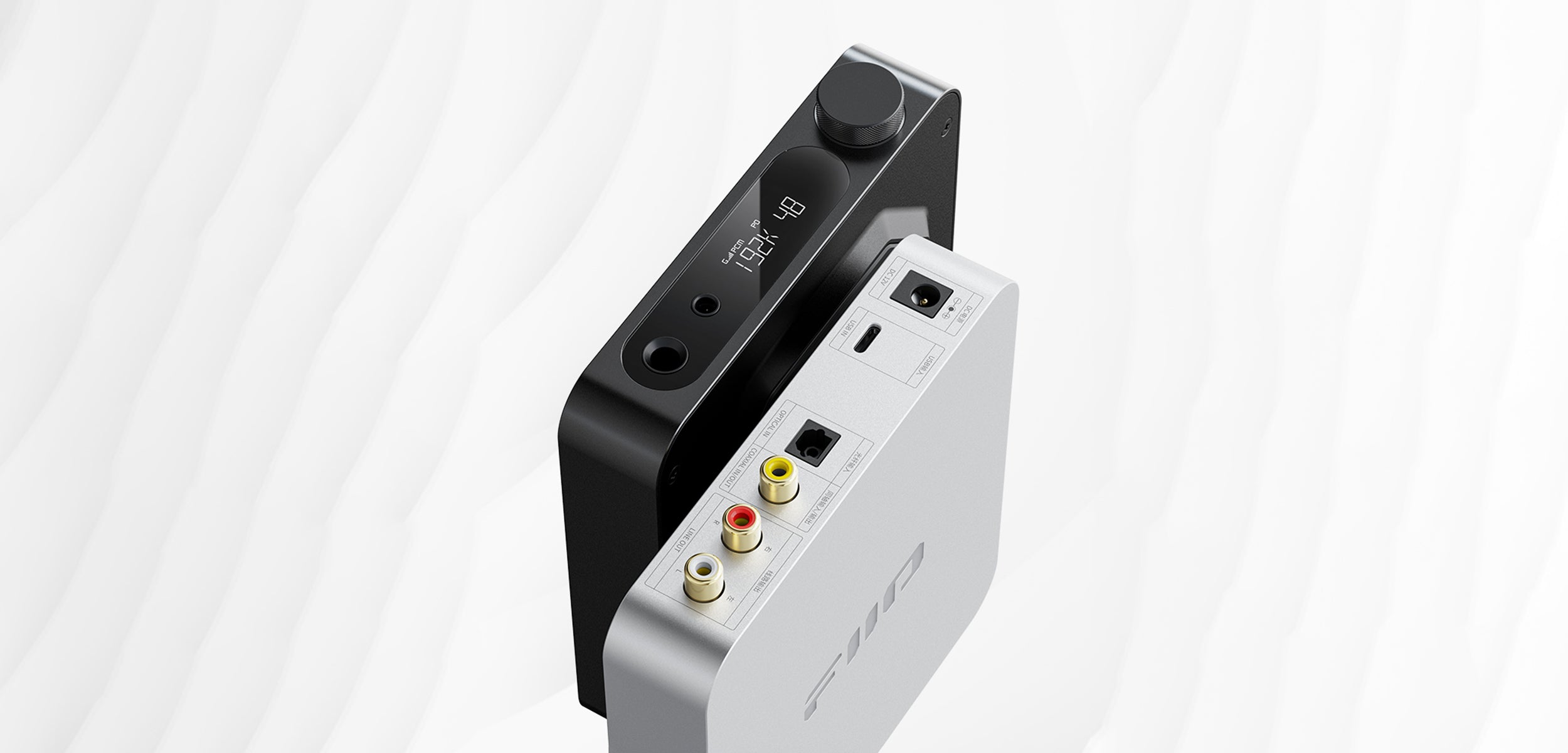

CONNECT TO VARIOUS DEVICES WITH A VARIETY OF INPUT AND OUTPUT OPTIONS
The FiiO K11 offers a range of input and output options to cater to diverse audio setups. It features digital inputs via coaxial, optical, and USB, along with outputs through 4.4mm balanced, 6.35mm single-ended, and RCA analogue line-out connections. The K11 is designed to accommodate various audio needs without straining your budget. It supports USB, coaxial, and optical inputs, with the latter two allowing for inputs of up to 192kHz. The K11 amplifier is versatile for connecting to different music players and digital interfaces. It also supports 4.4mm and 6.35mm headphone outputs, RCA line-out, and coaxial outputs. Notably, the RCA line-out signal can be adjusted up to a maximum of 2Vrms, enabling the K11 portable DAC to interface with a variety of active speakers and external amplifiers.
EASY USB INPUT WITH DRIVER-FREE OPERATION AND LOW NOISE POWER SUPPLY
The FiiO K11 USB DAC and Amp ensure hassle-free USB connectivity with a wide range of devices. It operates seamlessly without the need for driver installations and is compatible with PCs, laptops, smartphones, tablets, and gaming consoles like PS5 and Nintendo Switch. The K11 incorporates a meticulously designed low-noise power supply unit, employing over 16 low-noise LDOs for precise voltage regulation and an external 12V power source. This configuration ensures consistent, stable power distribution to all components of the audio circuitry, enhancing overall performance.

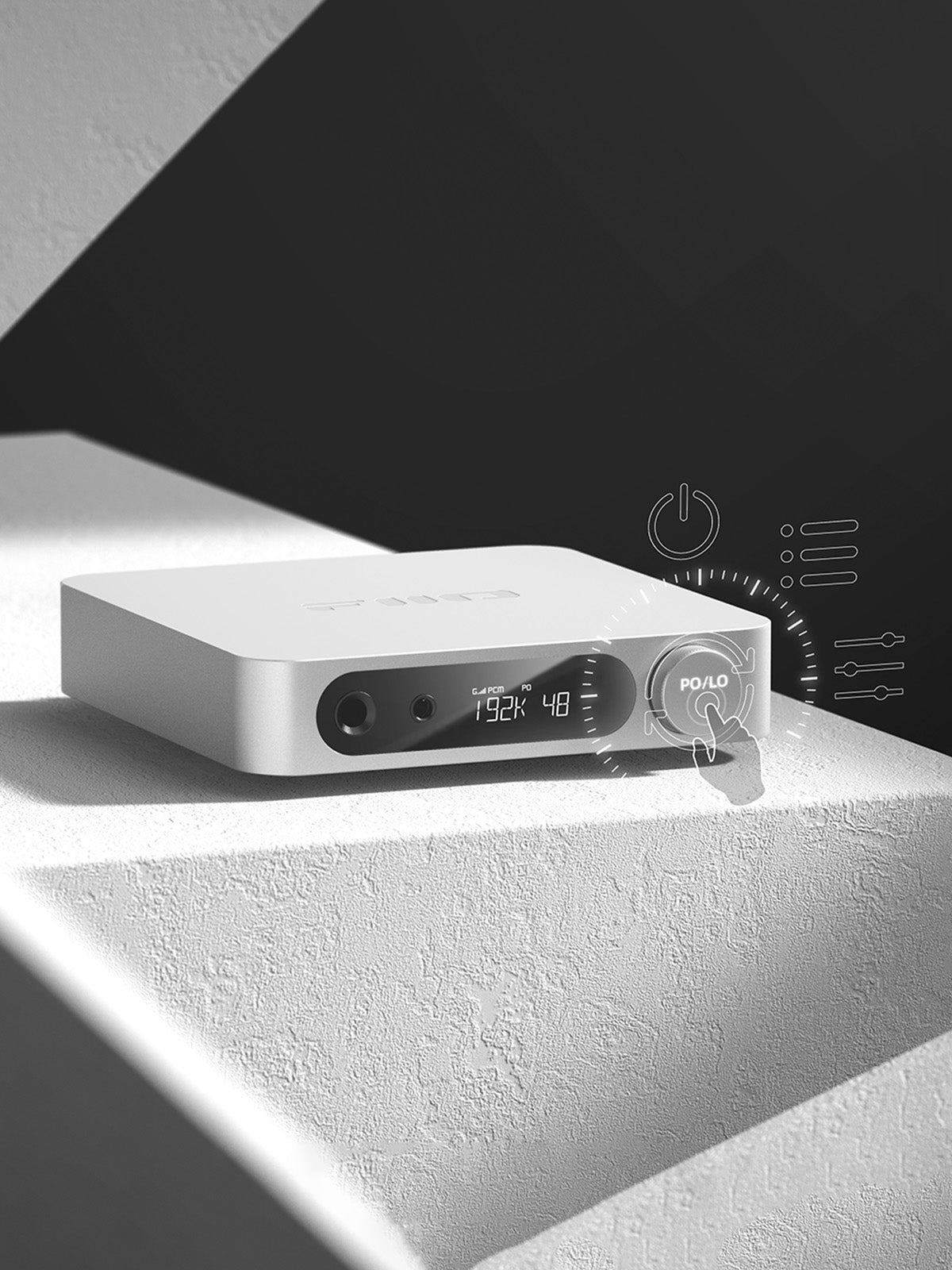

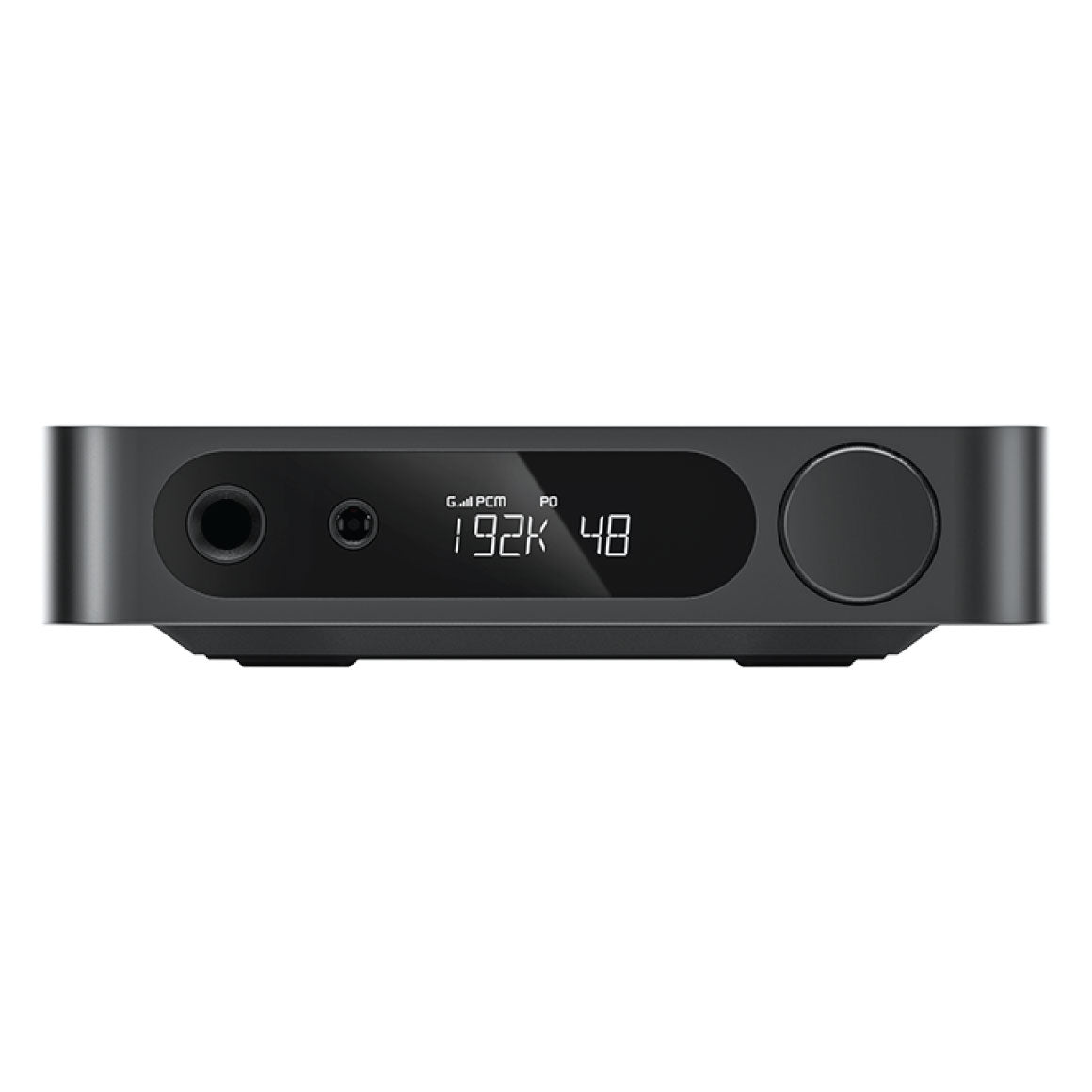

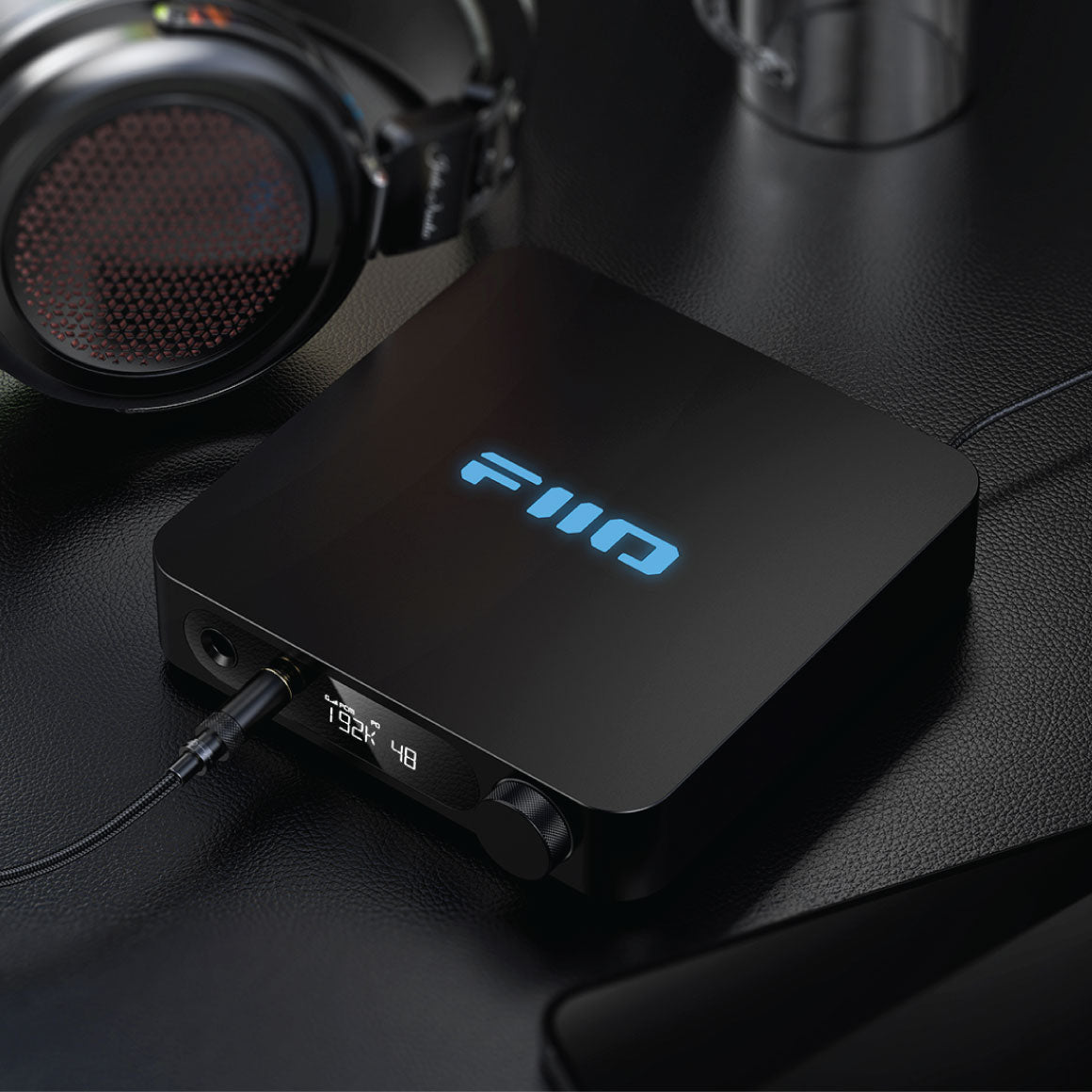

EXPERTLY DESIGNED WITH A SCREEN, RGB LOGO AND MULTIFUNCTION KNOB
The FiiO K11 boasts a robust VA display screen, known for durability and clear visuals. This custom high-definition display offers excellent contrast and longevity, efficiently showing device status such as sampling rates, volume, gain, and output mode, enhancing the user experience. Moreover, the K11 features an illuminated RGB FiiO Logo that changes colours based on the active file's bitrate. You can customise brightness, colour, and patterns via the multi-function knob. Its minimalist design includes a versatile knob for power, volume, menu navigation, and more, and you can easily switch between Line-out and Phone-out modes with a double press. The slim aluminium body offers flexibility in placement, and a silicone anti-slip pad ensures stability.
SPECS
HARDWARE SOLUTIONS | SoC: GD32F303RE, DAC:CS43198 USB decoding: SA9312L SPDIF decoding: MS8422N AMP: SGM8262-2*2 |
VOLUME CONTROL | Volume knob |
ADAPTIVE IMPEDANCE | PO: 8~150 Ohms BAL: 8~350 Ohms |
DAC | CS43198 |
MAIN CHIP | GD32F303RET6 |
USB CONNECTOR | Type-C |
SAMPLING RATE INDICATION | Show on display screen LOGO indicator light shows as default: Cyan: 48KHz and below/Yellow: 48kHz and above/Green: DSD |
FIRMWARE UPGRADE | Supports upgrade through USB |
DRIVER FREE MODE (SWITCH MODE) | Supported |
MAX SUPPORTED SAMPLING RATE | 384kHz-32bit/DSD256 Native 16/24/32bit (USB DAC) 192kHz-24bit (Coaxial) 96KHz-24bit (Optical) |
GAIN | L/M/H |
FIIO CONTROL | N/A |
WEIGHT | About 407g |

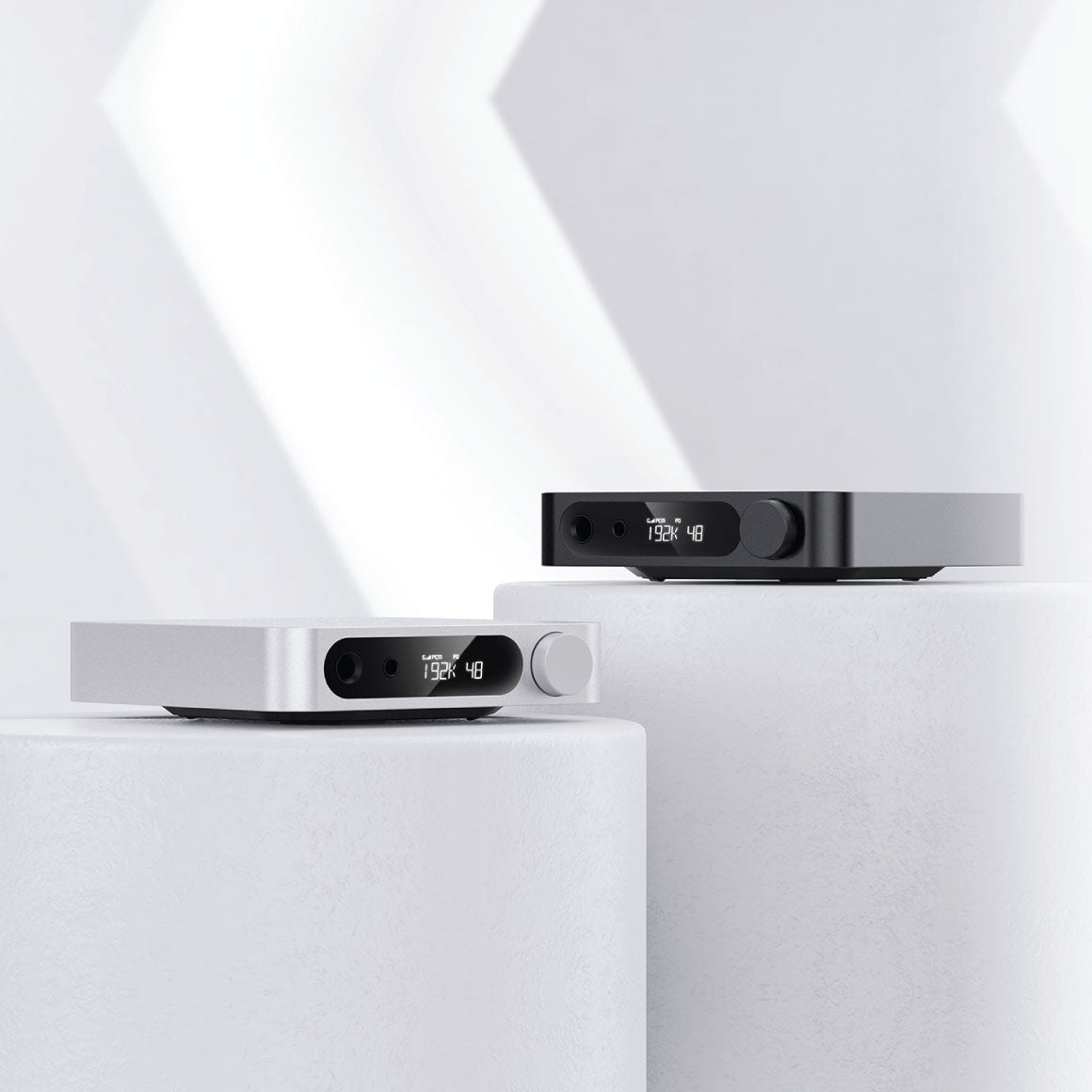

COLOR | Black/Silver |
DIMENSIONS | 147x133x32.3mm (Including feet) |
POWER SUPPLY | DC 12V/2A |
BATTERY CAPACITY | No battery |
KNOB | Encoder knob (including volume adjusting and menu confirming) |
SINGLE-ENDED LINE OUT | RCA port |
DIGITAL COAXIAL IN | RCA port |
BALANCED OUTPUT INTERFACE | Standard 4.4mm socket |
USB | Type-C (data transmission) |
DIGITAL OPTICAL IN | Optical port |
DIGITAL COAXIAL OUT | RCA port (only works in USB mode) |
HEADPHONE OUT | Standard 6.35mm port 4.4mm Balanced port |
THD+N & NOISE | <0.00035% (1kHz/-0.3dB@10KΩ) |
CROSSTALK | ≥120dB |
FREQUENCY RESPONSE | 20Hz~50kHz: damping<0.1dB 20Hz~20KHz: damping<0.1dB |
SNR | ≥126dB (A-weighted) |
NOISE FLOOR | <0.9uV (A-weighted) |
LINE OUTPUT LEVEL | 1.95Vrms |
OUTPUT POWER | L+R≥720mW +720mW (16 Ohms, THD+N<1%) L+R≥520mW +520mW (32 Ohms, THD+N<1%) L+R≥60mW+60mW (300 Ohms, THD+N<1%) |
SNR | ≥123dB (A-weighted) |
FREQUENCY RESPONSE | 20Hz~50kHz: damping<0.2dB 20Hz~20KHz: damping<0.1dB |
OUTPUT IMPEDANCE | <1.2 Ohms |
CROSSTALK | ≥71dB |
PEAK OUTPUT VOLTAGE | 12Vp-p |
THD+N & NOISE | <0.00059% (1kHz/-8.1dB@32 Ohms) |
NOISE FLOOR | <2.8uV (A-weighted) |
OUTPUT POWER | L+R≥570mW+570mW (16 Ohms, THD+N<1%) L+R≥1400mW+1400mW (32 Ohms, THD+N<1%) L+R≥250mW+250mW (300 Ohms, THD+N<1%) |
SNR | ≥123dB (A-weighted) |
FREQUENCY RESPONSE | 20Hz~50kHz: damping<0.2dB 20Hz~20KHz: damping<0.1dB |
OUTPUT IMPEDANCE | <2.4 Ohms |
CROSSTALK | ≥106dB |
PEAK OUTPUT VOLTAGE | 24.5Vp-p |
THD+N & NOISE | <0.0010% (1kHz/-14.5dB@32 Ohms) |
NOISE FLOOR | <4.9uV (A-weighted) |

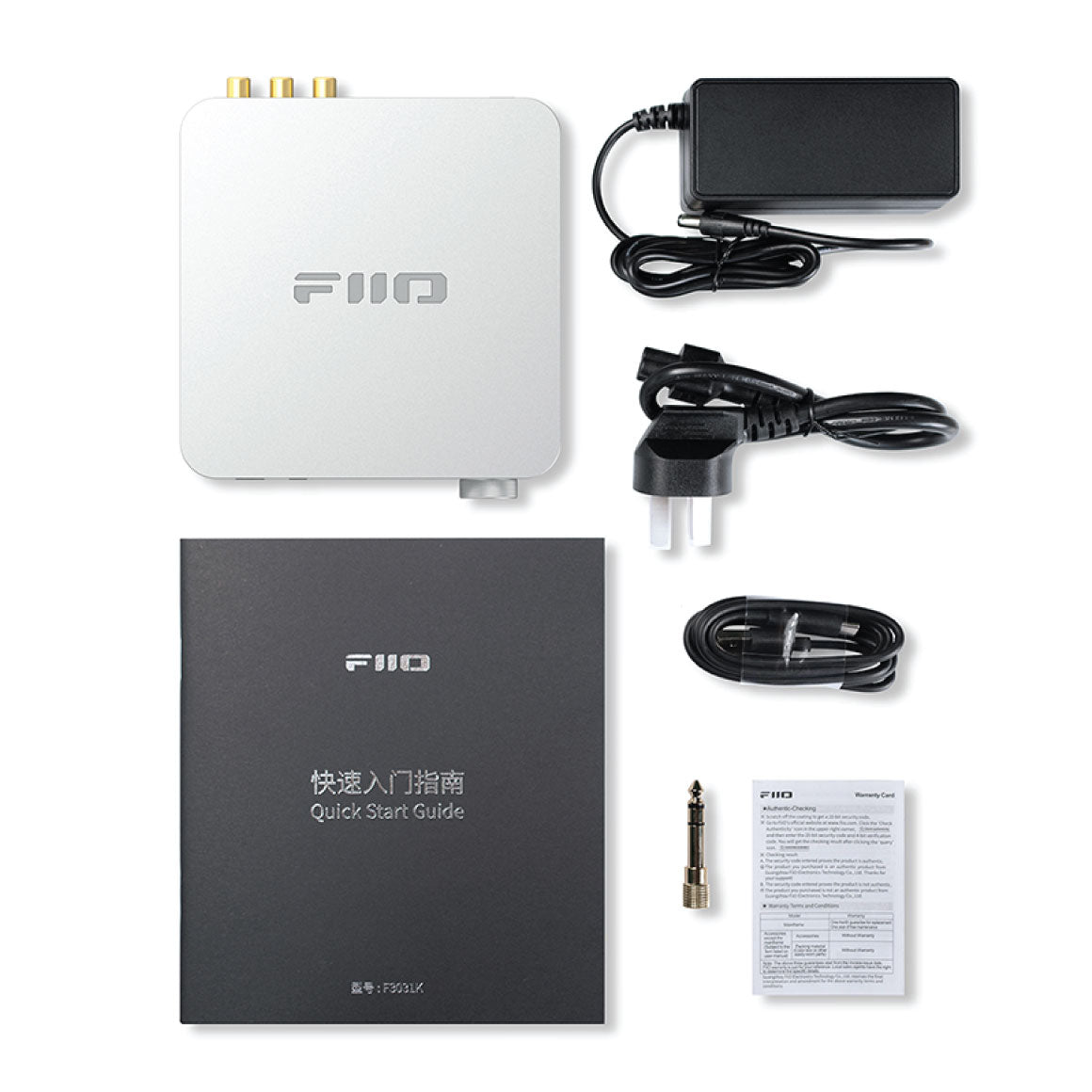

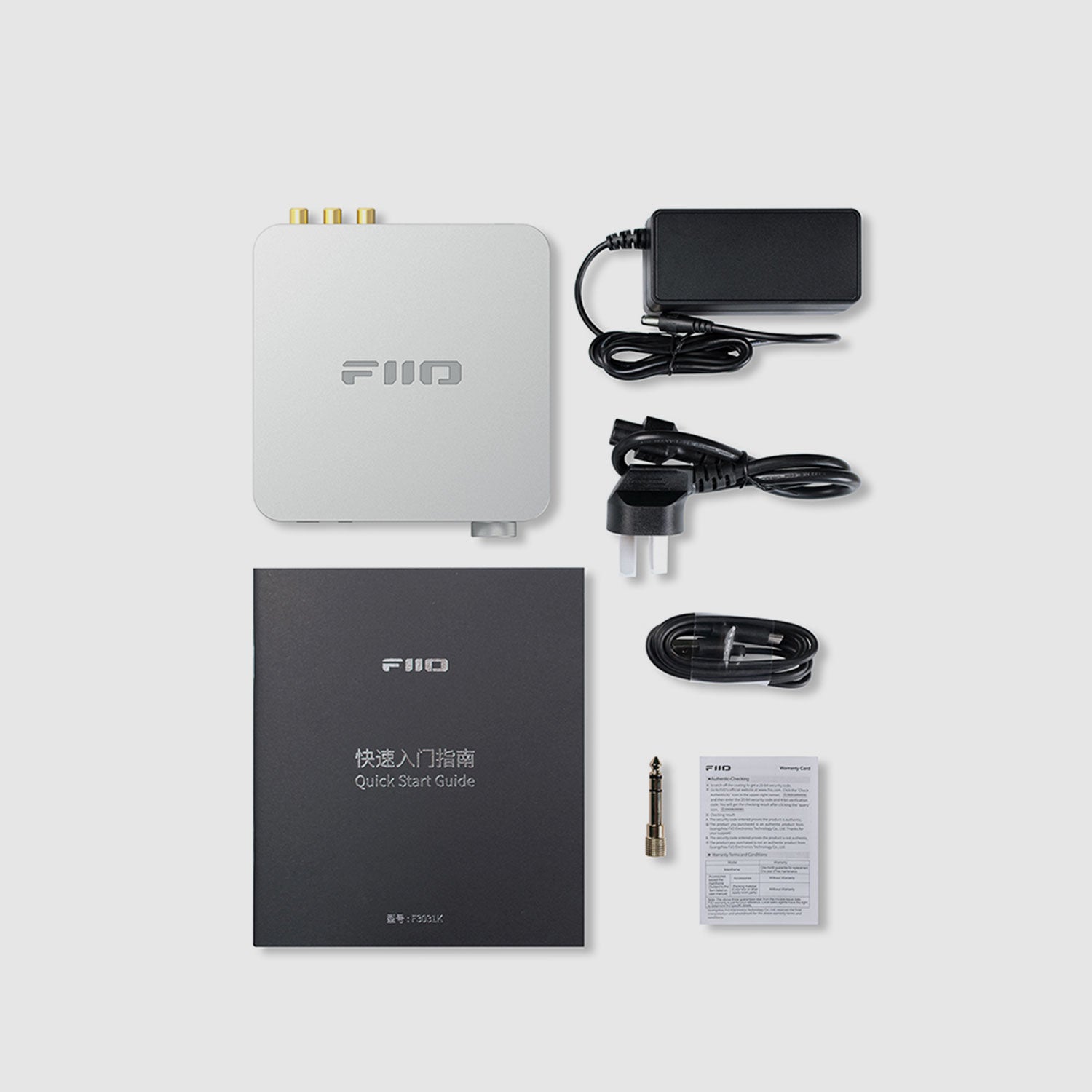

BOX CONTENTS | 1. FiiO K11 |
2. 1x Power Adapter (Including AC Cable) | |
3. 1x USB A to C Cable | |
4. 1x 6.35mm adapter | |
5. 1x Quick Start Guide | |
6. 1x Warranty Card |
OTHER DETAILS
GENERIC NAME | DAC & Amp |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 200x224.5x72mm |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: HK JADE Audio Technology CO., Limited Address: Room 1508, 15/F, Yalam Central Studio II, 625 Nathan Road, Kowloon, CHINA |
PACKAGE CONTENTS | FiiO K11 1x Power Adapter (Including AC Cable) 1x USB A To C Cable 1x 6.35mm Adapter 1x Quick Start Guide 1x Warranty Card |
Quick Start Guide | K11
Desktop DAC & Amp
|
FIIO INTRODUCES AN ALL-NEW DAC AND AMPLIFIER TO THEIR K SERIES - THE K11
The FiiO K11 is a brand-new USB DAC and Amp featuring a fully balanced design. With its CS43198 high-performance 32-bit DAC, the K11 excels at decoding high-resolution PCM and DSD signals. It offers a versatile range of input and output choices, including USB, Coaxial, and Optical inputs, as well as 4.4mm, 6.35mm, and RCA outputs. This pocket-friendly desktop DAC and Amp is compatible with various devices, making it a convenient choice for use with PCs, laptops, smartphones, and even gaming consoles like the PS5 and Nintendo Switch, ensuring a worry-free audio experience.
FEATURES A HIGH-PERFORMANCE DAC CHIP AND A SPECIALLY DESIGNED AUDIO CIRCUIT
Over the years, FiiO has introduced a range of successful USB DAC and Amp models and their latest, the K11, is meticulously crafted to ensure top-tier sound performance. It features a high-performance CS43198 DAC chipset that excels at decoding high-resolution 32-bit/384kHz PCM and Native DSD256 audio signals. The K11's sleek design houses a specially engineered audio circuit dedicated to delivering exceptional sound quality. Supported by over 16 low-noise LDOs for precise voltage regulation and powered by an external 12V switching power supply, this configuration ensures a cleaner and more stable power supply, resulting in consistently high-quality audio for an enjoyable music experience every time.
DELIVERS POWERFUL AMPLIFICATION WITH 3 LEVEL GAIN AND 3 VOLUME CURVES
The FiiO K11 stands as a highly capable USB DAC and Amp, offering a robust headphone amplifier section featuring three distinct gain modes. These modes produce a potent output, delivering up to 1400mW of clear sound at 32Ω of impedance load through the balanced connection output. The K11 is thoughtfully equipped with three separate gain levels, each with its volume curve. This versatile feature ensures an optimal listening experience with various headphone types, whether you're using sensitive earphones or more demanding over-ear headphones. The K11 relies on multiple low-noise LDOs for precise voltage regulation and an external 12V power supply, ensuring a pure and stable power source for high-quality audio performance.
CONNECT TO VARIOUS DEVICES WITH A VARIETY OF INPUT AND OUTPUT OPTIONS
The FiiO K11 offers a range of input and output options to cater to diverse audio setups. It features digital inputs via coaxial, optical, and USB, along with outputs through 4.4mm balanced, 6.35mm single-ended, and RCA analogue line-out connections. The K11 is designed to accommodate various audio needs without straining your budget. It supports USB, coaxial, and optical inputs, with the latter two allowing for inputs of up to 192kHz. The K11 amplifier is versatile for connecting to different music players and digital interfaces. It also supports 4.4mm and 6.35mm headphone outputs, RCA line-out, and coaxial outputs. Notably, the RCA line-out signal can be adjusted up to a maximum of 2Vrms, enabling the K11 portable DAC to interface with a variety of active speakers and external amplifiers.
EASY USB INPUT WITH DRIVER-FREE OPERATION AND LOW NOISE POWER SUPPLY
The FiiO K11 USB DAC and Amp ensure hassle-free USB connectivity with a wide range of devices. It operates seamlessly without the need for driver installations and is compatible with PCs, laptops, smartphones, tablets, and gaming consoles like PS5 and Nintendo Switch. The K11 incorporates a meticulously designed low-noise power supply unit, employing over 16 low-noise LDOs for precise voltage regulation and an external 12V power source. This configuration ensures consistent, stable power distribution to all components of the audio circuitry, enhancing overall performance.
EXPERTLY DESIGNED WITH A SCREEN, RGB LOGO AND MULTIFUNCTION KNOB
The FiiO K11 boasts a robust VA display screen, known for durability and clear visuals. This custom high-definition display offers excellent contrast and longevity, efficiently showing device status such as sampling rates, volume, gain, and output mode, enhancing the user experience. Moreover, the K11 features an illuminated RGB FiiO Logo that changes colours based on the active file's bitrate. You can customise brightness, colour, and patterns via the multi-function knob. Its minimalist design includes a versatile knob for power, volume, menu navigation, and more, and you can easily switch between Line-out and Phone-out modes with a double press. The slim aluminium body offers flexibility in placement, and a silicone anti-slip pad ensures stability.
HARDWARE SOLUTIONS | SoC: GD32F303RE, DAC:CS43198 USB decoding: SA9312L SPDIF decoding: MS8422N AMP: SGM8262-2*2 |
VOLUME CONTROL | Volume knob |
ADAPTIVE IMPEDANCE | PO: 8~150 Ohms BAL: 8~350 Ohms |
DAC | CS43198 |
MAIN CHIP | GD32F303RET6 |
USB CONNECTOR | Type-C |
SAMPLING RATE INDICATION | Show on display screen LOGO indicator light shows as default: Cyan: 48KHz and below/Yellow: 48kHz and above/Green: DSD |
FIRMWARE UPGRADE | Supports upgrade through USB |
DRIVER FREE MODE (SWITCH MODE) | Supported |
MAX SUPPORTED SAMPLING RATE | 384kHz-32bit/DSD256 Native 16/24/32bit (USB DAC) 192kHz-24bit (Coaxial) 96KHz-24bit (Optical) |
GAIN | L/M/H |
FIIO CONTROL | N/A |
WEIGHT | About 407g |
COLOR | Black/Silver |
DIMENSIONS | 147x133x32.3mm (Including feet) |
POWER SUPPLY | DC 12V/2A |
BATTERY CAPACITY | No battery |
KNOB | Encoder knob (including volume adjusting and menu confirming) |
SINGLE-ENDED LINE OUT | RCA port |
DIGITAL COAXIAL IN | RCA port |
BALANCED OUTPUT INTERFACE | Standard 4.4mm socket |
USB | Type-C (data transmission) |
DIGITAL OPTICAL IN | Optical port |
DIGITAL COAXIAL OUT | RCA port (only works in USB mode) |
HEADPHONE OUT | Standard 6.35mm port 4.4mm Balanced port |
THD+N & NOISE | <0.00035% (1kHz/-0.3dB@10KΩ) |
CROSSTALK | ≥120dB |
FREQUENCY RESPONSE | 20Hz~50kHz: damping<0.1dB 20Hz~20KHz: damping<0.1dB |
SNR | ≥126dB (A-weighted) |
NOISE FLOOR | <0.9uV (A-weighted) |
LINE OUTPUT LEVEL | 1.95Vrms |
OUTPUT POWER | L+R≥720mW +720mW (16 Ohms, THD+N<1%) L+R≥520mW +520mW (32 Ohms, THD+N<1%) L+R≥60mW+60mW (300 Ohms, THD+N<1%) |
SNR | ≥123dB (A-weighted) |
FREQUENCY RESPONSE | 20Hz~50kHz: damping<0.2dB 20Hz~20KHz: damping<0.1dB |
OUTPUT IMPEDANCE | <1.2 Ohms |
CROSSTALK | ≥71dB |
PEAK OUTPUT VOLTAGE | 12Vp-p |
THD+N & NOISE | <0.00059% (1kHz/-8.1dB@32 Ohms) |
NOISE FLOOR | <2.8uV (A-weighted) |
OUTPUT POWER | L+R≥570mW+570mW (16 Ohms, THD+N<1%) L+R≥1400mW+1400mW (32 Ohms, THD+N<1%) L+R≥250mW+250mW (300 Ohms, THD+N<1%) |
SNR | ≥123dB (A-weighted) |
FREQUENCY RESPONSE | 20Hz~50kHz: damping<0.2dB 20Hz~20KHz: damping<0.1dB |
OUTPUT IMPEDANCE | <2.4 Ohms |
CROSSTALK | ≥106dB |
PEAK OUTPUT VOLTAGE | 24.5Vp-p |
THD+N & NOISE | <0.0010% (1kHz/-14.5dB@32 Ohms) |
NOISE FLOOR | <4.9uV (A-weighted) |
BOX CONTENTS | 1. FiiO K11 |
2. 1x Power Adapter (Including AC Cable) | |
3. 1x USB A to C Cable | |
4. 1x 6.35mm adapter | |
5. 1x Quick Start Guide | |
6. 1x Warranty Card |
OTHER DETAILS
GENERIC NAME | DAC & Amp |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 200x224.5x72mm |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: HK JADE Audio Technology CO., Limited Address: Room 1508, 15/F, Yalam Central Studio II, 625 Nathan Road, Kowloon, CHINA |
PACKAGE CONTENTS | FiiO K11 1x Power Adapter (Including AC Cable) 1x USB A To C Cable 1x 6.35mm Adapter 1x Quick Start Guide 1x Warranty Card |
Quick Start Guide | K11
Desktop DAC & Amp
|
Don't sweat it, this
FiiO - K11 comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
Inspiring Audio Excellence Worldwide
Explore Collection"The FiiO K11 provided a clean and uncolored signal that allowed every headphone to conserve the sound signature and sonic character without interfering their performance."
Read More"K11 ticks many of the boxes in terms of features as well as sonic performance. K11 is definitely one of the good products that is easily recommendable. Definitely a 4.5/5 product!"
Read More"The K11 does not color the sound or add any warmth or brightness but rather lets the headphones do the talking. The K11 has a wide and spacious soundstage and precise and accurate imaging."
Read More"What sets the K11 apart is the power supply circuit, which uses dedicated regulators for all critical power rails. The DC power brick should also make the K11 less reliant on the cleanliness of USB power. "
Read More"The FiiO K11 sports a sleek and modern design that marries functionality with aesthetics.Its compact dimensions ensure that it won’t dominate your desk space. "
Read MoreHave a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is the warranty period on the FiiO K11 and how do I claim warranty?
What is the FiiO K11?
What are the input and output options available on the FiiO K11?
What are some of the additional design features of the FiiO K11?
How to use the coaxial and optical decoding function of the FiiO K11?
2.K11 output setting: switch to the corresponding output port according to the interface used, switch the headphone or speaker output on the front panel to PO, and switch the line output on the rear panel to LO to decode the audio signal of the mobile phone.
3.Scroll the volume knob and adjust the volume of the K11 to a suitable level before playing music. And select the GAIN (gain) according to personal preference;
4.Play music on the front device to enjoy the music.
Note: When there is no output from the K7, please try to play other music first.
How to use the FiiO K11 as a USB DAC for mobile phones?
1. After the K11 is turned on, use the OTG cable to connect to the mobile phone;
2. K11 input mode switch to USB;
3. K11 output setting: switch to the corresponding output port according to the interface used, switch the headphone or speaker output on the front panel to PO, and switch the line output on the rear panel to LO to decode the audio signal of the mobile phone.
What power adapter is suitable for the FiiO K11?
This product is rated 4.6 of 5.0 stars.
It has received 11 reviews.
You may also like
This product is rated 4.6 of 5.0 stars.
It has received 11 reviews.
