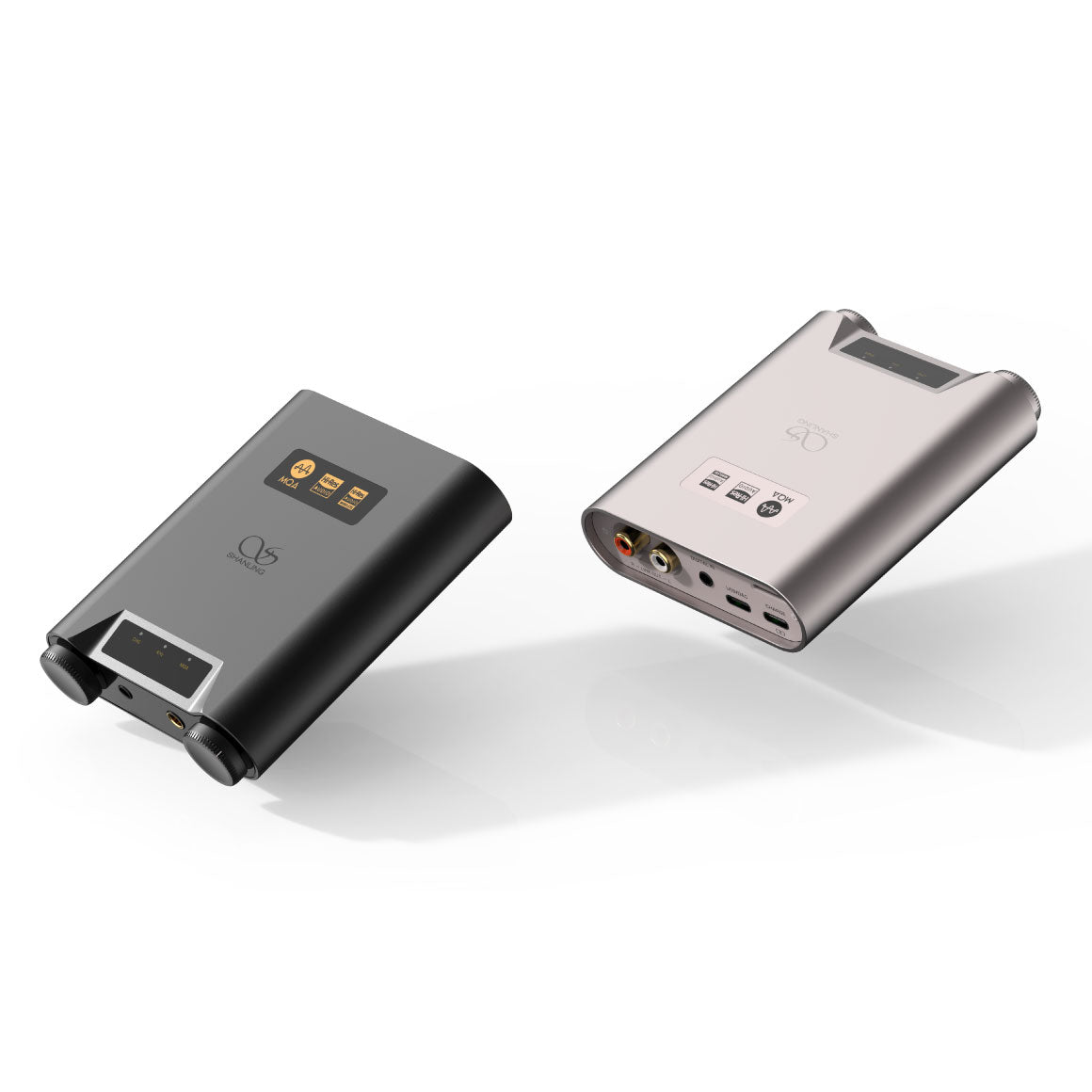

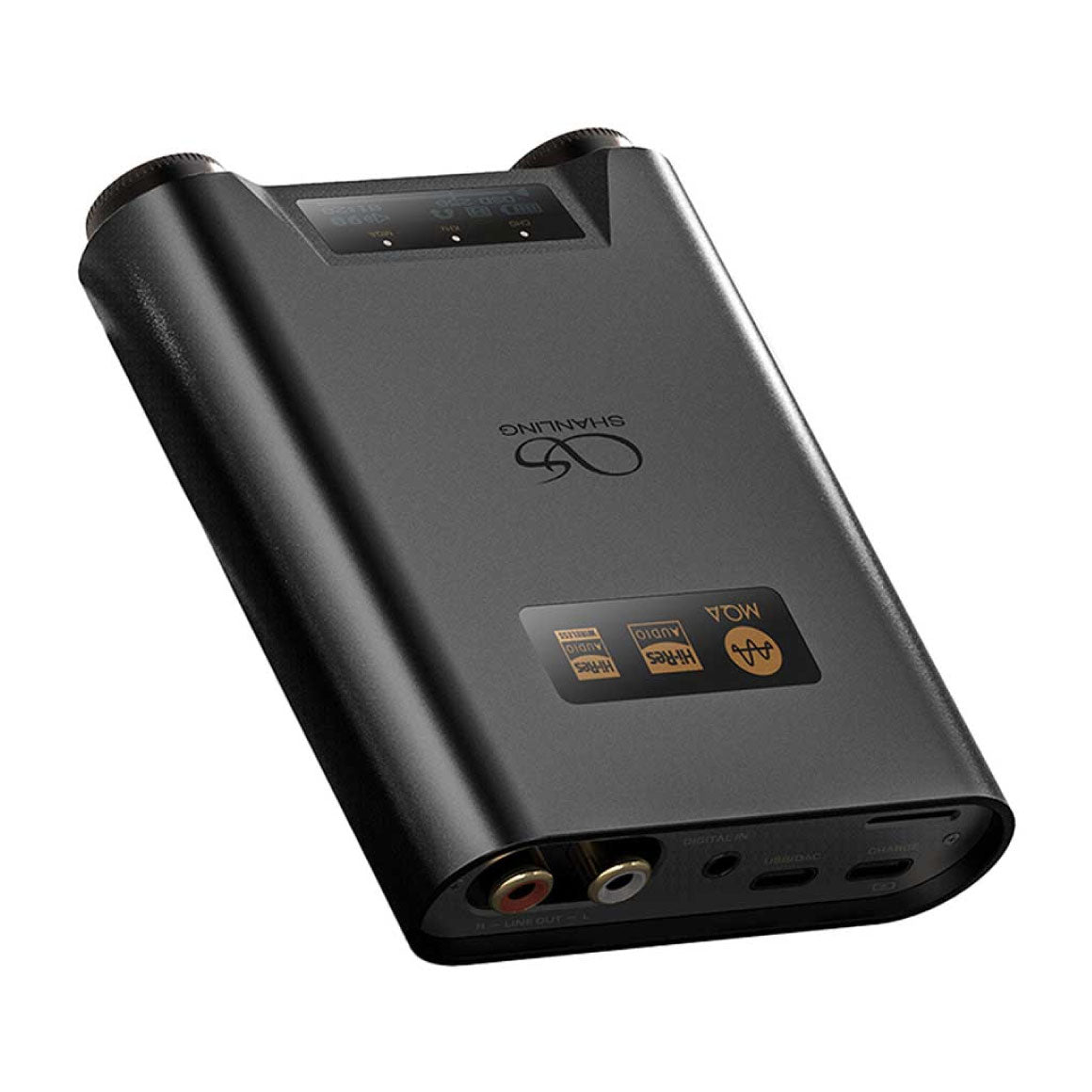

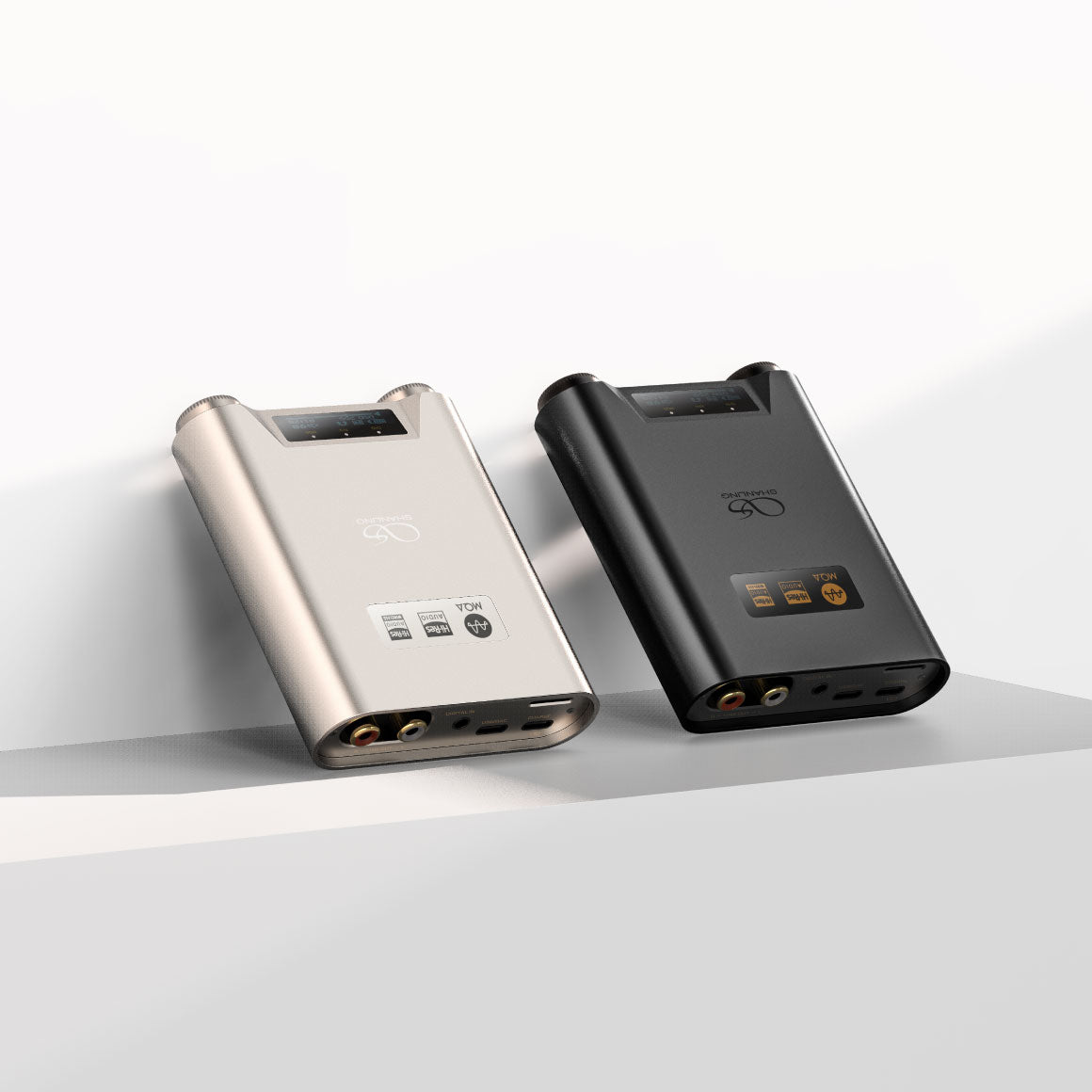

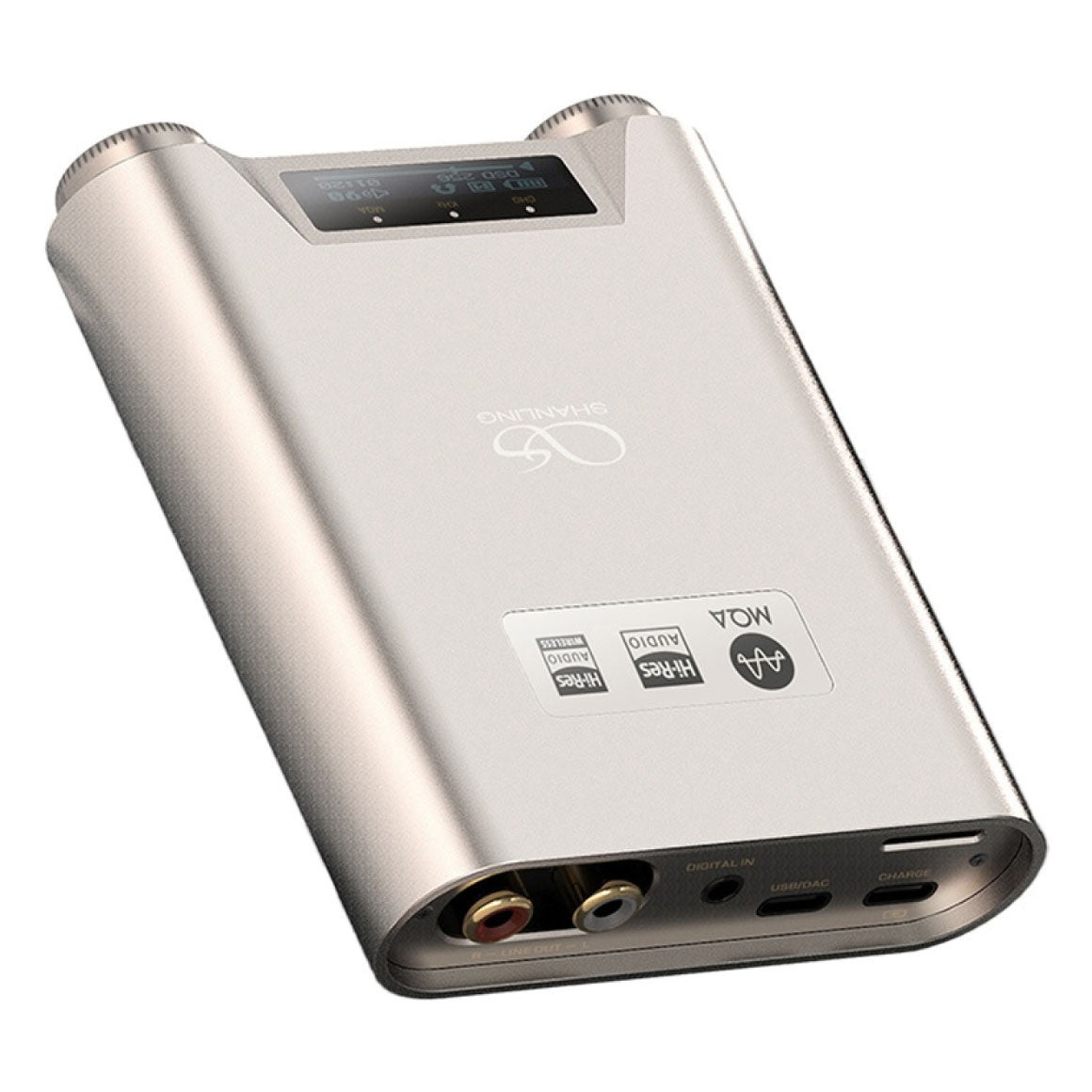

Shanling - H5
Balanced Portable DAC & AmpGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
₹ 3,164 per month with Snapmint
Tenure available: 3, 6 and 9 months
Eligibility: Above 18 years of age, Credit Card NOT Required
Transaction value: Available on all orders
Payment Gateway: Please choose Snapmint Cardless EMI at checkout
3 Months
(No Cost EMI)
₹ 8,750
₹ 8,750
₹ 0
6 Months
(Low Cost EMI)
₹ 8,750
₹ 4,567
₹ 1,172
9 Months
(Low Cost EMI)
₹ 8,750
₹ 3,164
₹ 2,275
₹ 5,833 per month with axio
Tenure available: 3 or 6 Months
Eligibility: All above 21 years of age
Transaction value: Available on all orders below Rs. 60,000/-
Payment Gateway: Please choose Razorpay at checkout
3 Months
No Cost EMI
₹ 11,666
₹ 0
6 Months
No Cost EMI
₹ 5,833
₹ 0
₹ 11,666 per month with Bajaj Finserv
Tenure available: 3 Months
Eligibility: All Bajaj Finance card owners
Transaction value: All orders above Rs. 4,500/-
Payment Gateway: Please choose Razorpay at checkout
3 Months
No Cost EMI
₹ 11,666
₹ 0
₹ 11,666 per month with Zest Money
Tenure available: 3 Months
Eligibility: All Zestmoney users
Transaction value: Depends on your credit limit
Payment Gateway: Please choose Cashfree at checkout
3 Months
No Cost EMI
3
No Cost EMI
₹ 11,666
₹ 0
EMI Options through Other Credit Cards
American Express
3
14%
₹ 11,940
₹ 820
6
14%
₹ 6,074
₹ 1,443
9
14%
₹ 4,119
₹ 2,073
12
14%
₹ 3,142
₹ 2,711
18
14%
₹ 2,167
₹ 4,006
24
14%
₹ 1,680
₹ 5,331
Axis Bank
3
No Cost EMI
₹ 11,666
₹ 0
6
No Cost EMI
₹ 5,833
₹ 0
9
14%
₹ 4,119
₹ 2,073
12
14%
₹ 3,142
₹ 2,711
18
15%
₹ 2,183
₹ 4,302
24
15%
₹ 1,697
₹ 5,729
Bank of Baroda
3
No Cost EMI
₹ 11,666
₹ 0
6
No Cost EMI
₹ 5,833
₹ 0
9
13%
₹ 4,102
₹ 1,923
12
13%
₹ 3,126
₹ 2,513
18
15%
₹ 2,183
₹ 4,302
24
15%
₹ 1,697
₹ 5,729
Citi Bank
3
No Cost EMI
₹ 11,666
₹ 0
6
No Cost EMI
₹ 5,833
₹ 0
9
15%
₹ 4,136
₹ 2,224
12
15%
₹ 3,159
₹ 2,908
18
15%
₹ 2,183
₹ 4,302
24
15%
₹ 1,697
₹ 5,729
HDFC Bank
3
No Cost EMI
₹ 11,666
₹ 0
6
No Cost EMI
₹ 5,833
₹ 0
9
15%
₹ 4,136
₹ 2,224
12
15%
₹ 3,159
₹ 2,908
18
15%
₹ 2,183
₹ 4,302
24
15%
₹ 1,697
₹ 5,729
HSBC Bank
3
No Cost EMI
₹ 11,666
₹ 0
6
No Cost EMI
₹ 5,833
₹ 0
9
13.50%
₹ 4,111
₹ 1,998
12
13.50%
₹ 3,134
₹ 2,612
18
13.50%
₹ 2,159
₹ 3,859
ICICI Bank
3
No Cost EMI
₹ 11,666
₹ 0
6
No Cost EMI
₹ 5,833
₹ 0
9
13.99%
₹ 4,119
₹ 2,072
12
13.99%
₹ 3,142
₹ 2,709
18
14.99%
₹ 2,183
₹ 4,299
24
14.99%
₹ 1,697
₹ 5,725
INDUSIND Bank
3
No Cost EMI
₹ 11,666
₹ 0
6
No Cost EMI
₹ 5,833
₹ 0
9
13%
₹ 4,102
₹ 1,923
12
12%
₹ 3,110
₹ 2,316
18
12%
₹ 2,134
₹ 3,419
24
12%
₹ 1,648
₹ 4,542
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
No Cost EMI
₹ 11,666
₹ 0
6
No Cost EMI
₹ 5,833
₹ 0
9
14%
₹ 4,119
₹ 2,073
12
14%
₹ 3,142
₹ 2,711
18
15%
₹ 2,183
₹ 4,302
24
15%
₹ 1,697
₹ 5,729
RBL Bank
3
No Cost EMI
₹ 11,666
₹ 0
6
No Cost EMI
₹ 5,833
₹ 0
9
15%
₹ 4,136
₹ 2,224
12
15%
₹ 3,159
₹ 2,908
18
15%
₹ 2,183
₹ 4,302
24
15%
₹ 1,697
₹ 5,729
SBI Bank
3
No Cost EMI
₹ 11,666
₹ 0
6
No Cost EMI
₹ 5,833
₹ 0
9
14%
₹ 4,119
₹ 2,073
12
14%
₹ 3,142
₹ 2,711
Standard Chartered Bank
3
No Cost EMI
₹ 11,666
₹ 0
6
No Cost EMI
₹ 5,833
₹ 0
9
14%
₹ 4,119
₹ 2,073
12
14%
₹ 3,142
₹ 2,711
YES Bank
3
No Cost EMI
₹ 11,666
₹ 0
6
No Cost EMI
₹ 5,833
₹ 0
9
14%
₹ 4,119
₹ 2,073
12
14%
₹ 3,142
₹ 2,711
18
15%
₹ 2,183
₹ 4,302
24
15%
₹ 1,697
₹ 5,729
Payment Offers
Snapmint
Tenure available: 3, 6 and 9 months
Eligibility: Above 18 years of age, Credit Card NOT Required
Transaction value: Available on all orders
Payment Gateway: Please choose Snapmint Cardless EMI at checkout
3 Months
(No Cost EMI)
₹ 8,750
₹ 8,750
₹ 0
6 Months
(Low Cost EMI)
₹ 8,750
₹ 4,567
₹ 1,172
9 Months
(Low Cost EMI)
₹ 8,750
₹ 3,164
₹ 2,275
Axio
Tenure available: 3 or 6 Months
Eligibility: All above 21 years of age
Transaction value: Available on all orders below Rs. 60,000/-
Payment Gateway: Please choose Razorpay at checkout
3 Months
No Cost EMI
₹ 11,666
₹ 0
6 Months
No Cost EMI
₹ 5,833
₹ 0
Bajaj Finance
Tenure available: 3 Months
Eligibility: All Bajaj Finance card owners
Transaction value: All orders above Rs. 4,500/-
Payment Gateway: Please choose Razorpay at checkout
3 Months
No Cost EMI
₹ 11,666
₹ 0
Zest Money
Tenure available: 3 Months
Eligibility: All Zestmoney users
Transaction value: Depends on your credit limit
Payment Gateway: Please choose Cashfree at checkout
3 Months
No Cost EMI
3
No Cost EMI
₹ 11,666
₹ 0
MobiKwik
Cashback Offer
- Select Cashfree at Checkout to transact through Mobikwik
- Get Additional Cashback upto Rs. 500/- on transaction via MobiKwik wallet
- Use Code :- MBK500 on MobiKwik Payment page to avail the additional cashback.
- Transaction to be done through MobiKwik wallet only
- Offer can be availed on minimum transaction of Rs. 1999/-
- Offer can be availed once per user during the campaign
- Offer valid till 30th September '23
- T&C Applied
Club Audiophile
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE

Chi-Fi
Excellence
Ideal for Audiophiles
These DAC & Amps are designed for discerning music lovers. If audio quality is important to you, a set of DAC & Amps like these would be ideal.
You can expect these DAC & Amps to present you with a refined listening experience. The audio quality exhibited by these DAC & Amps is a beautiful mix of musicality, technical brilliance and high precision.
These DAC & Amps deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!
Best Suited for Portable Use
For those who value them, being able to carry their favourite DAC & Amp equipment when they are on the move is invaluable.
These DAC & Amps offer the ultimate portability experience without sacrificing sound quality. If you’re someone who appreciates cutting-edge engineering, quality sound and portability, then look no further.
Designed to be trusty companions, these DAC & Amps are cleverly engineered with the latest technology to offer the ultimate combination of portability & Hi-Fidelity!
Bluetooth with
LDAC & AAC
Battery Life
DAC & Amps with built-in batteries offer easy operation without the annoyance of wires.
Battery life is a measurement of battery performance. It is the amount of time your DAC & Amps will still have enough juice to power your headphones or IEMs. It can be summed up; as how long a battery will last before your DAC & Amps need to be recharged.
Nothing interferes with your music, thanks to the high-performance and long-lasting battery. No interruptions, just pure sonic bliss!
4.4mm
Balanced Output
AKM AK4493SEQ
Dual DAC Chip
Upto 840mW @ 32Ω
Power Output
Upto 2 TB
of Storage
Battery Capacity of
3500mAh
Connect With
USB-C, Optical & Coaxial
DESCRIPTION
SHANLING INTRODUCES AN ALL-NEW DAC & AMP TO THIER H-SERIES LINE-UP - THE H5
Following the H7's success, Shanling introduces the H5, a portable DAC & Headphone Amplifier equipped with a powerful Dual DAC chipset and a high-power amp section. The device features AKM's latest AK4493SEQ DAC chips and the XMOS XU316 USB Processor, delivering a delightful tone and rich sound. It supports decoding for high-resolution PCM and DSD audio signals, including MQA decoding function. The H5 is a convenient, portable device that allows you to enjoy your favourite music with exceptional quality wherever you go.

HEAR THE MINUTEST DETAILS IN YOUR MUSIC WITH THE 32-BIT DUAL AKM DAC CHIPSET
Shanling's newest H5 model comes with a top-notch Dual DAC chipset, incorporating two AK4493SEQ DAC chips from AKM Technologies. These chips boast impressive specifications, including an SNR of over 121dB, a Sampling Rate of 768kHz/32bit, and a remarkably low THD+N of just 0.0004%. As a result, the H5 delivers crystal-clear sound with excellent SNR performance and minimal harmonic distortion. The DAC chipset is a high-quality 32-Bit DAC, ensuring exceptional performance when decoding high-resolution audio signals.


SHOWCASES A NEWLY DEVELOPED OP-AMP ARCHITECTURE FOR POWERFUL AMPLIFICATION
Shanling has featured a newly-developed Op-Amp-based amplification circuitry on the latest H5. The H5 uses the latest op-amp audio architecture, loaded with two TPA6120A2 op-amp chips from Texas Instruments, which allows for a smoother sound and facilitates the shaping of a wider soundstage. It uses OPA1612 op-amps, third-generation FPGA technology, and KDS femtosecond low-phase noise oscillator. These allow the H5 digital signal transmission on the way to maintain high accuracy and effectively reduce jitter while packing an output power rating of up to 840mW @ 32Ω of impedance.



FEATURING DUAL HEADPHONE OUTPUT WITH THREE-LEVEL GAIN COMPENSATION
The Shanling H5 offers both single-ended and balanced headphone connection ports and supports high, medium, and low gain compensation. This three-level gain mode allows you to pair your preferred IEMs and headphones with the H5 effectively. The device boasts a maximum output power of up to 840mW at 32Ω of impedance load through the balanced 4.4mm output, while the 3.5mm single-ended output provides up to 227mW of clean output. The balanced 4.4mm output has an output impedance of 6.6Ω, and the 3.5mm output has an output impedance of 4.7Ω.


LATEST GENERATION XMOS USB PROCESSOR WITH MQA DECODING AND MICRO-SD SLOT
The Shanling H5 takes advantage of the cutting-edge XMOS XU316 USB processor chipset, featuring 16 cores in its latest generation. This chipset enables the H5 to support high-resolution 32-Bit/768kHz PCM and native DSD when using the USB input. Additionally, the H5 incorporates a third-generation USB decoding chip, the XU316, which allows for DSD512 decoding and MQA Full Decoder functionality. To enhance convenience, the H5 is equipped with a microSD card slot that supports memory cards with up to 2TB capacity. Users can easily access their music library using the Eddict player on their smartphone, enabling remote control of the H5 for seamless music playback.



IN-BUILT BATTERY AND HIGH-RESOLUTION BLUETOOTH INPUT WITH MULTI-DEVICE CONNECTIVITY
In addition to the USB input, the Shanling H5 also offers a wireless Bluetooth input option. With Bluetooth 5.0, the H5 supports LDAC, SBC, and AAC, ensuring stable and low-latency transmission. This allows you to connect various devices such as tablets, PS5, Switch, CD players, and bookshelf audio. The H5 features a separate charging port and data port, eliminating the need to draw power from the front end. It is powered by a high-performance 3500 mAh battery, supported by an exclusive PMU chip for efficient power management and QC3.0 18W fast charging. The device boasts a rated battery life of up to 12.5 hours on a single charge, allowing you to enjoy hours of usage with just one charging session.

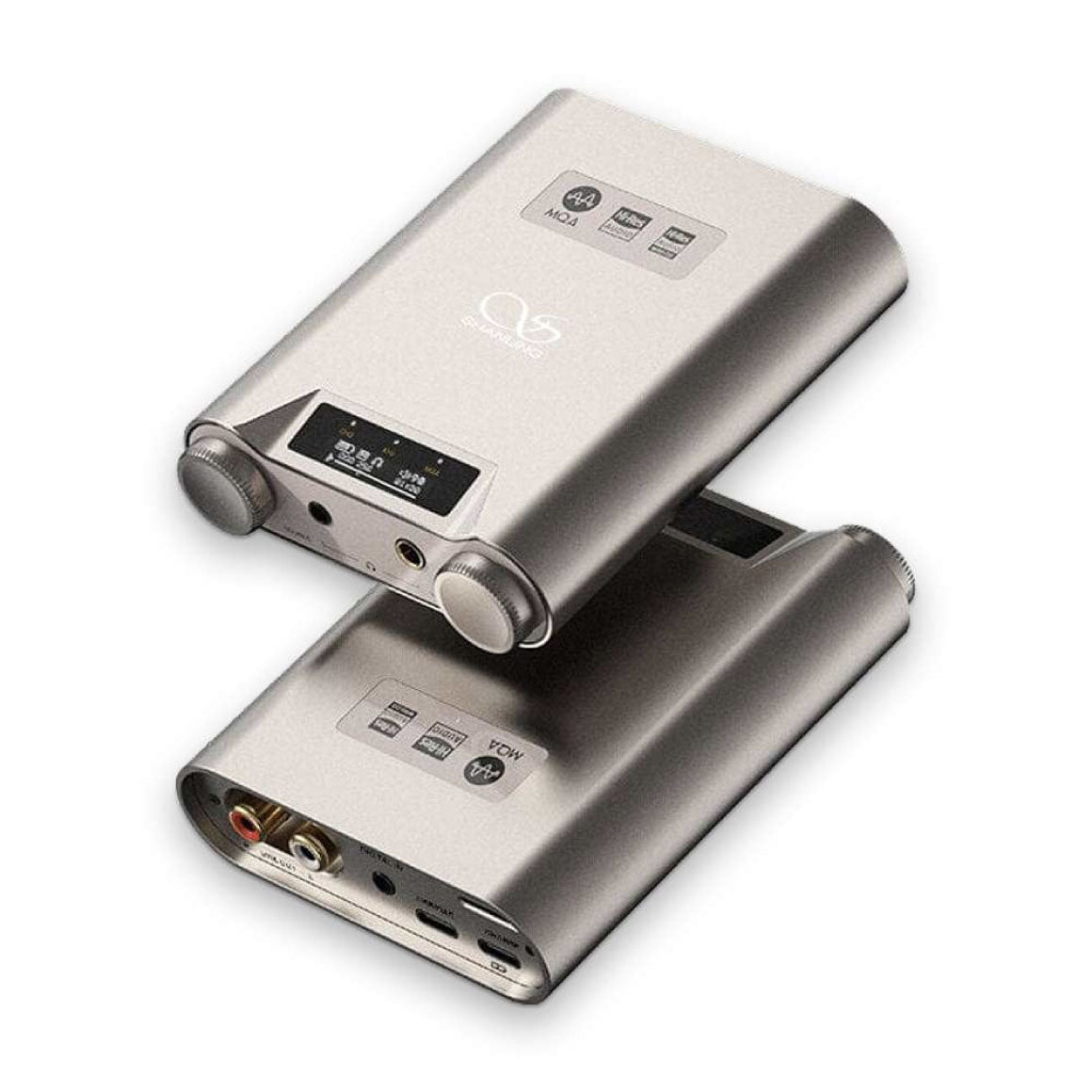

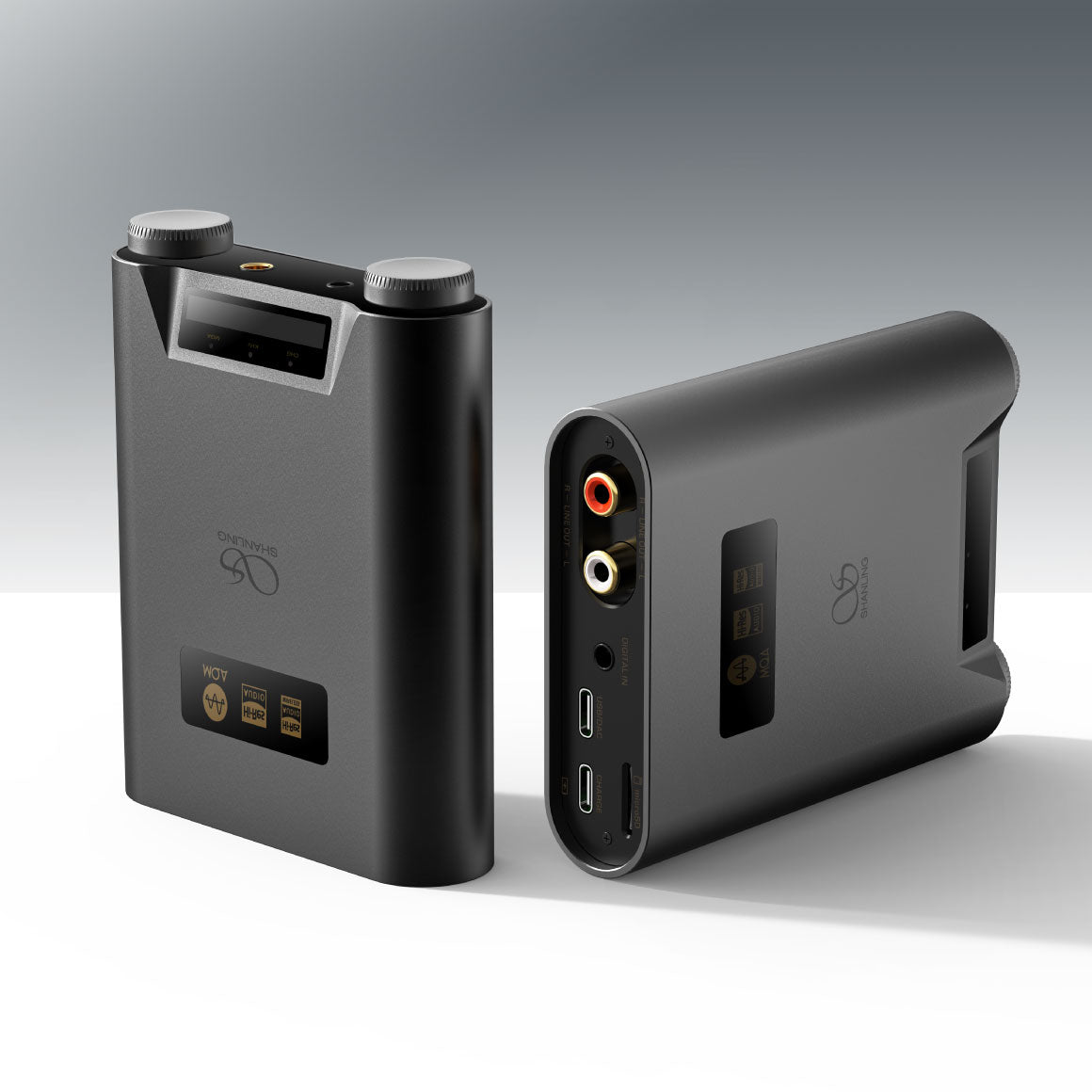

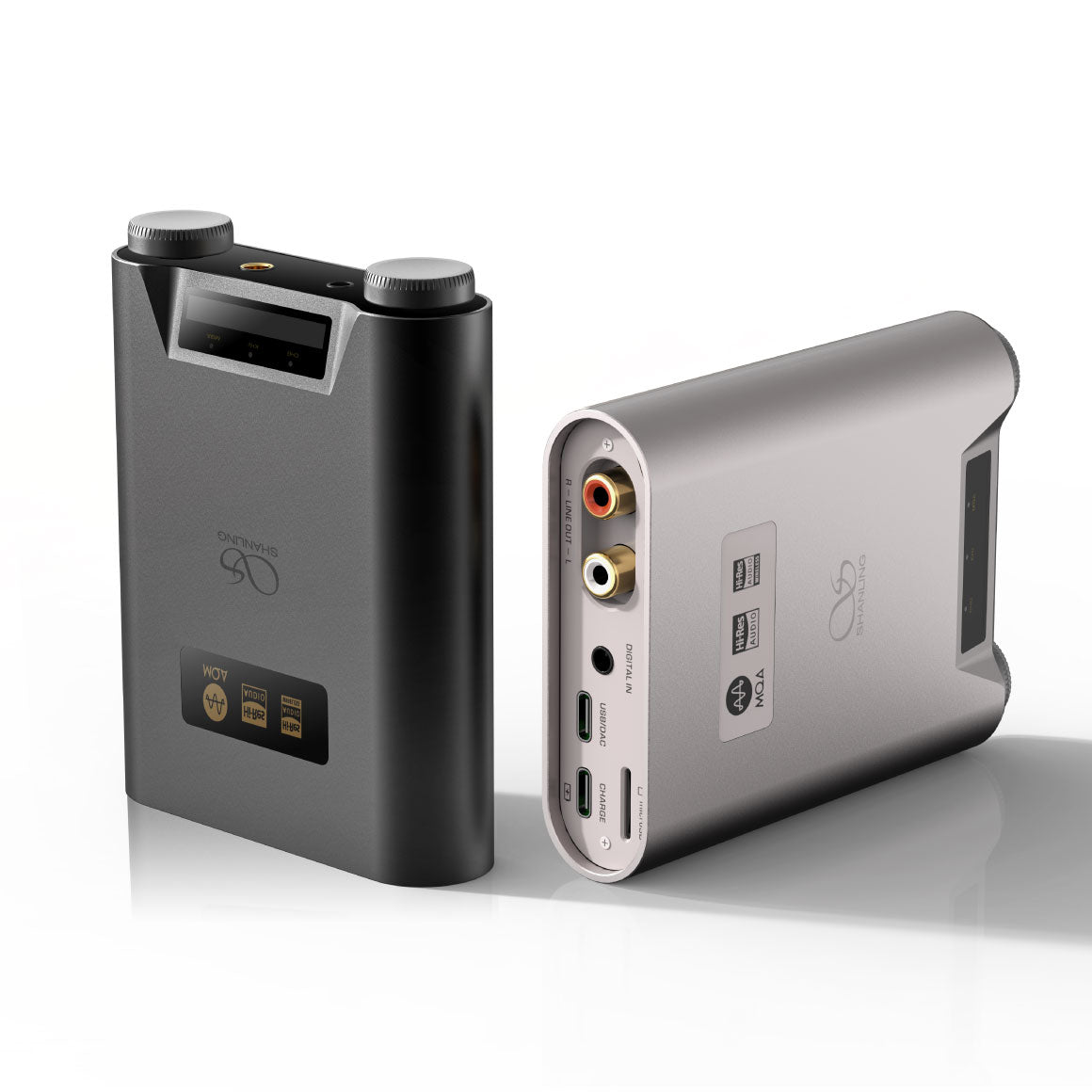

EXPERTLY DESIGNED WITH AIRCRAFT-GRADE MAGNESIUM-ALUMINIUM ALLOY WITH A DISPLAY
Crafted from aircraft-grade magnesium-aluminium alloy, the Shanling H5 is remarkably lightweight, weighing just 270.4g. Its smooth touch and comfortable grip strike a harmonious balance. The Shanling H5 is a product of Shanling's sincere dedication. This device includes a small 0.87" display screen that conveniently presents various settings and playback information. Adjacent to the display screen are three multicolour LED indicators, providing visual cues for active bitrate, charging status, and MQA status.



SPECS
DIMENSIONS | 102 x 85 x 25 mm |
WEIGHT | 270.4 g |
SCREEN | 0.87-inch Screen |
AUDIO FORMATS | DSD(".iso",".dsf",".dff") / ISO / DXD / APE / FLAC / WAV / AIFF / AlF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8/ OPUS |
USB INPUT HI-RES SUPPORT | 32 bit / 768 kHz, DSD 512 |
USB INPUT HI-RES SUPPORT | 32 bit / 384 kHz, DSD 256 |
GAIN SETTING | Three Level Setting |
STORAGE | MicroSD Card Slot, up to 2TB |
DAC | 2x AKM AK4493SEQ |
DIGITAL FILTERS | 6 Preset Filters |
BLUETOOTH | v5.0 Receiver |
BLUETOOTH CODEC SUPPORT | LDAC / AAC / SBC |
OUTPUT POWER | 2.7V@32Ω(227mW@32Ω) |
FREQUENCY RESPONSE | 20 Hz - 40 kHz (-0.7 dB) |
THD+N | 0.0014% |
CHANNEL SEPARATION | 80 dB @ 32 Ohm |
DYNAMIC RANGE | 118 dB |
SIGNAL-TO-NOISE | 118 dB |
OUTPUT IMPEDANCE | 4.7 Ohm |
OUTPUT POWER | 5.19V@32Ω(840mW@32Ω) |
FREQUENCY RESPONSE | 20 Hz - 40 kHz (-0.7 dB) |
THD+N | 0.0004% |
CHANNEL SEPARATION | 105 dB @ 32 Ohm |
DYNAMIC RANGE | 121 dB |
SIGNAL-TO-NOISE | 121 dB/td> |
OUTPUT IMPEDANCE | 6.6 Ohm |

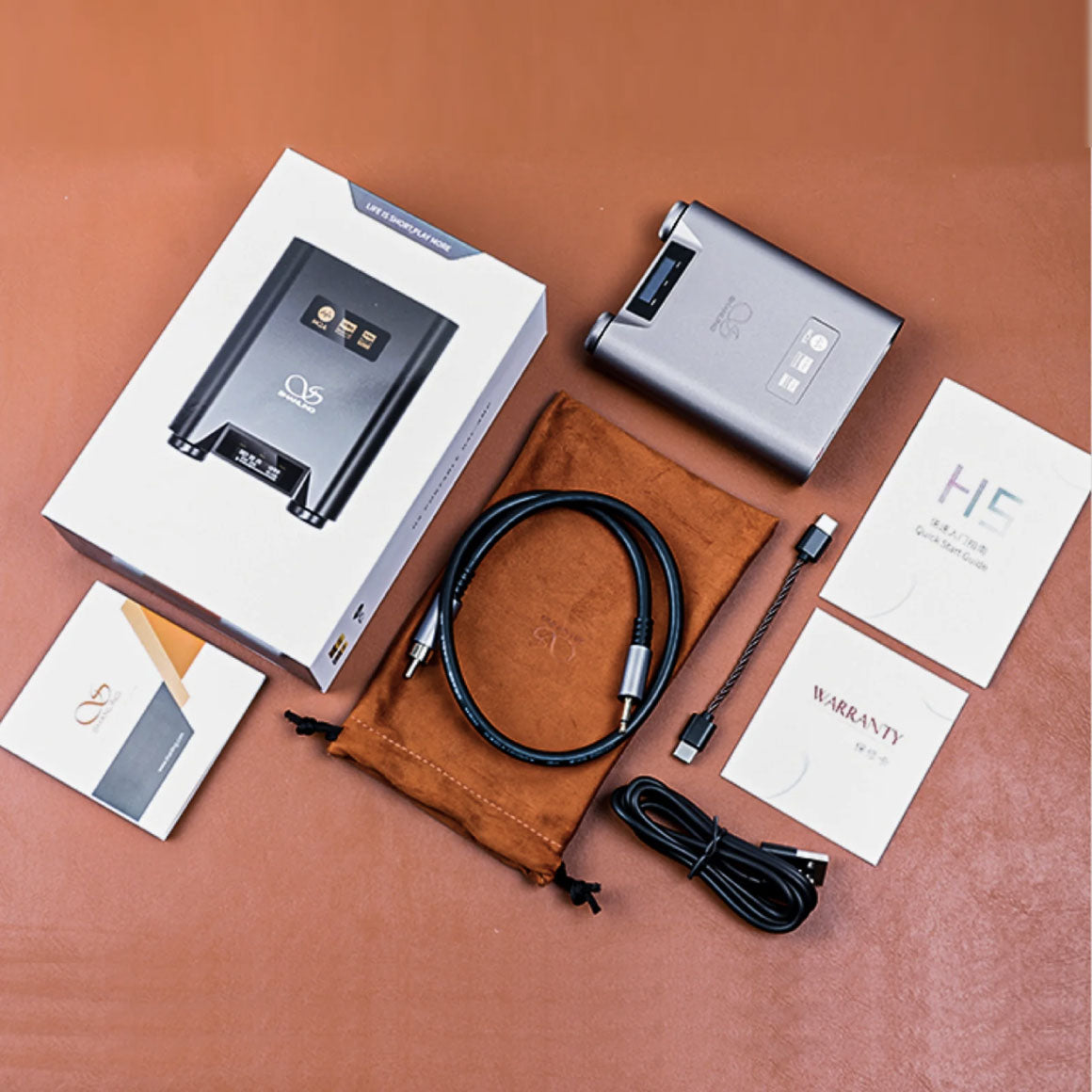

BOX CONTENTS | 1. Shanling H5 |
2. USB-A to USB-C cable | |
3. USB-C to USB-C cable | |
4. 3.5mm to RCA coaxial cable | |
5. Storage pouch | |
6. user manual | |
7. warranty card | |
8. Product catalog |
GENERIC NAME | Headphone Amplifier |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
FAQs
What is the warranty period on the Shanling H5?
The warranty period of the Shanling H5 is of 1 year. In order to claim a warranty, please visit our Shanling Warranty Page here. We are very helpful guys, just saying
Where is Shanling brand based?
Shanling is a brand based in China.
What DAC chips are used in the Shanling H5?
The Shanling H5 features an AKM AK4493SEQ Dual DAC chip.
What are the sampling/decoding rates supported?
The Shanling H5 is capable of playing Hi-Res files with support for PCM 32-bit/768kHz (Pulse Code Modulation) and Native DSD512 (Direct Stream Digital).
Does it support MQA?
Yes, it supports 8X MQA (Master Quality Authenticated) unfolding through USB input, allowing you to play back MQA audio files and streams, delivering the sound of the original master recording.
Can it be used to power sensitive in-ear monitors and power demanding headphones?
Yes, with the three-level gain settings you are assured an ideal match with a wide range of headphones. Pick the lowest 'gain' for a hiss-free playback with the most sensitive in-ear monitors. Or switch to the high and unleash its powerful 840mW output, feeding even the most demanding headphones.
Can the Shanling H5 be used for gaming?
Yes, the Shanling H5 is highly compatible with gaming systems (Switch H5 to UAC1.0 mode for compatibility with gaming systems like PS5 and Switch).
What is the Bluetooth version?
The Shanling H5 features Bluetooth 5.0.
What are the various Bluetooth codecs supported?
The Shanling H5 with Bluetooth 5.0 supports LDAC, AAC, and SBC. The H5 allows you to enjoy the wireless sound with convenience.
What is the battery capacity?
Shanling has included a massive 3500mAh battery in Shanling H5's circuitry.
What is the battery life like on the Shanling H5?
The Shanling H5 has an incredible battery life of 12.5 hours (Single-ended) and 8 hours (Balanced).
Does the Shanling H5 have a screen display?
Yes, the Shanling H5 has a compact 0.87-inch monochromatic OLED display.
Does it have a built-in music player?
Yes, Shanling H5 has a built-in music player.
Does it have a MicroSD card slot?
Yes, it does have a MicroSD card slot.
What is the maximum capacity of the MicroSD card slot?
The maximum capacity for the MicroSD card slot is 2TB.
Is it compatible with Eddict Player App?
Yes, you can pair the Shanling H5 with the Eddict Player app to gain control over your music library.
What are the headphone outputs available with the Shanling H5?
The Shanling H5 hosts headphone outputs single-ended (3.5mm) and Balanced (4.4mm).
What are the headphone inputs available with the Shanling H5?
The Shanling H5 comes with USB, Coaxial, Optical and Bluetooth input .
SHANLING INTRODUCES AN ALL-NEW DAC & AMP TO THIER H-SERIES LINE-UP - THE H5
Following the H7's success, Shanling introduces the H5, a portable DAC & Headphone Amplifier equipped with a powerful Dual DAC chipset and a high-power amp section. The device features AKM's latest AK4493SEQ DAC chips and the XMOS XU316 USB Processor, delivering a delightful tone and rich sound. It supports decoding for high-resolution PCM and DSD audio signals, including MQA decoding function. The H5 is a convenient, portable device that allows you to enjoy your favourite music with exceptional quality wherever you go.

HEAR THE MINUTEST DETAILS IN YOUR MUSIC WITH THE 32-BIT DUAL AKM DAC CHIPSET
Shanling's newest H5 model comes with a top-notch Dual DAC chipset, incorporating two AK4493SEQ DAC chips from AKM Technologies. These chips boast impressive specifications, including an SNR of over 121dB, a Sampling Rate of 768kHz/32bit, and a remarkably low THD+N of just 0.0004%. As a result, the H5 delivers crystal-clear sound with excellent SNR performance and minimal harmonic distortion. The DAC chipset is a high-quality 32-Bit DAC, ensuring exceptional performance when decoding high-resolution audio signals.


SHOWCASES A NEWLY DEVELOPED OP-AMP ARCHITECTURE FOR POWERFUL AMPLIFICATION
Shanling has featured a newly-developed Op-Amp-based amplification circuitry on the latest H5. The H5 uses the latest op-amp audio architecture, loaded with two TPA6120A2 op-amp chips from Texas Instruments, which allows for a smoother sound and facilitates the shaping of a wider soundstage. It uses OPA1612 op-amps, third-generation FPGA technology, and KDS femtosecond low-phase noise oscillator. These allow the H5 digital signal transmission on the way to maintain high accuracy and effectively reduce jitter while packing an output power rating of up to 840mW @ 32Ω of impedance.

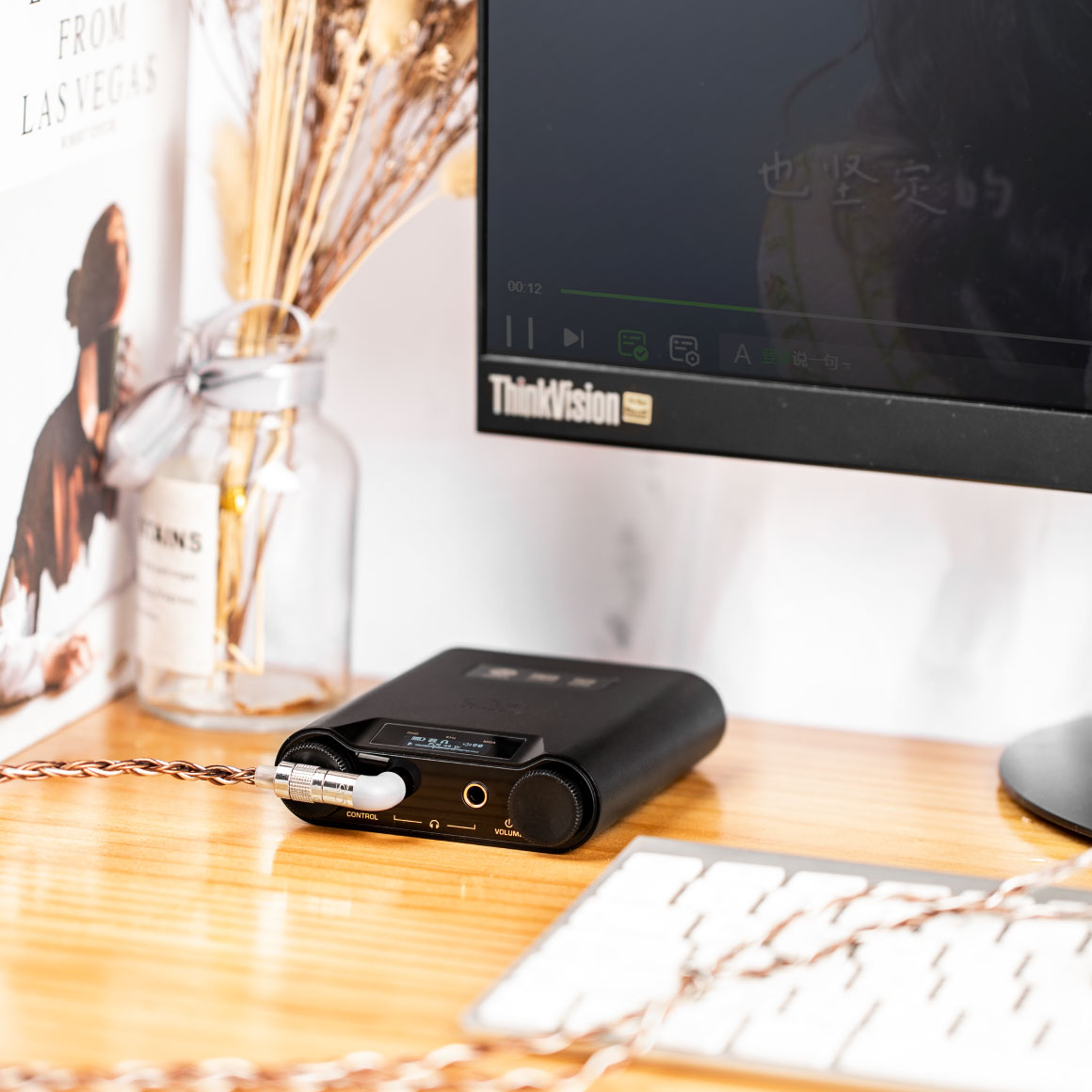

FEATURING DUAL HEADPHONE OUTPUT WITH THREE-LEVEL GAIN COMPENSATION
The Shanling H5 offers both single-ended and balanced headphone connection ports and supports high, medium, and low gain compensation. This three-level gain mode allows you to pair your preferred IEMs and headphones with the H5 effectively. The device boasts a maximum output power of up to 840mW at 32Ω of impedance load through the balanced 4.4mm output, while the 3.5mm single-ended output provides up to 227mW of clean output. The balanced 4.4mm output has an output impedance of 6.6Ω, and the 3.5mm output has an output impedance of 4.7Ω.


LATEST GENERATION XMOS USB PROCESSOR WITH MQA DECODING AND MICRO-SD SLOT
The Shanling H5 takes advantage of the cutting-edge XMOS XU316 USB processor chipset, featuring 16 cores in its latest generation. This chipset enables the H5 to support high-resolution 32-Bit/768kHz PCM and native DSD when using the USB input. Additionally, the H5 incorporates a third-generation USB decoding chip, the XU316, which allows for DSD512 decoding and MQA Full Decoder functionality. To enhance convenience, the H5 is equipped with a microSD card slot that supports memory cards with up to 2TB capacity. Users can easily access their music library using the Eddict player on their smartphone, enabling remote control of the H5 for seamless music playback.



IN-BUILT BATTERY AND HIGH-RESOLUTION BLUETOOTH INPUT WITH MULTI-DEVICE CONNECTIVITY
In addition to the USB input, the Shanling H5 also offers a wireless Bluetooth input option. With Bluetooth 5.0, the H5 supports LDAC, SBC, and AAC, ensuring stable and low-latency transmission. This allows you to connect various devices such as tablets, PS5, Switch, CD players, and bookshelf audio. The H5 features a separate charging port and data port, eliminating the need to draw power from the front end. It is powered by a high-performance 3500 mAh battery, supported by an exclusive PMU chip for efficient power management and QC3.0 18W fast charging. The device boasts a rated battery life of up to 12.5 hours on a single charge, allowing you to enjoy hours of usage with just one charging session.

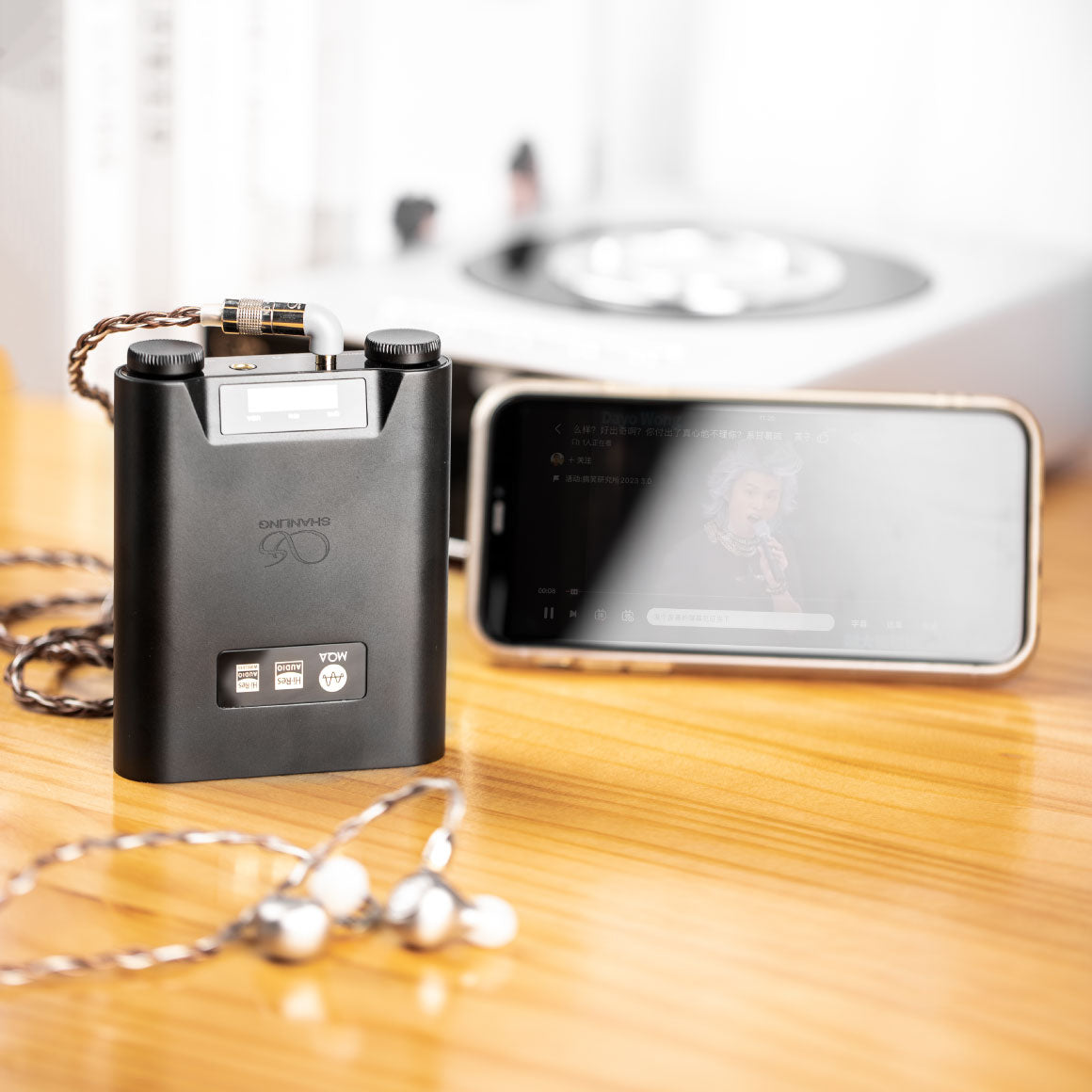

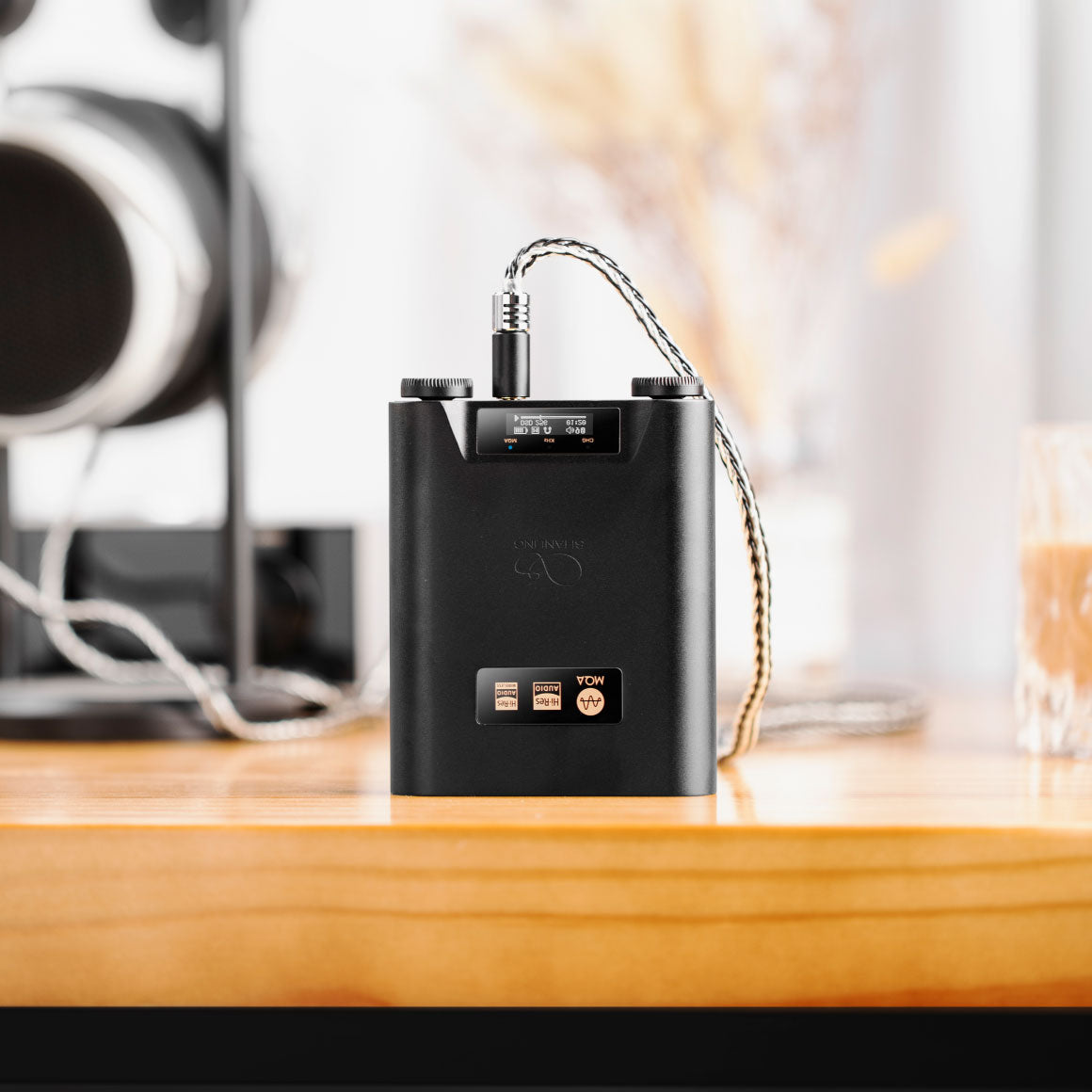

EXPERTLY DESIGNED WITH AIRCRAFT-GRADE MAGNESIUM-ALUMINIUM ALLOY WITH A DISPLAY
Crafted from aircraft-grade magnesium-aluminium alloy, the Shanling H5 is remarkably lightweight, weighing just 270.4g. Its smooth touch and comfortable grip strike a harmonious balance. The Shanling H5 is a product of Shanling's sincere dedication. This device includes a small 0.87" display screen that conveniently presents various settings and playback information. Adjacent to the display screen are three multicolour LED indicators, providing visual cues for active bitrate, charging status, and MQA status.



DIMENSIONS | 102 x 85 x 25 mm |
WEIGHT | 270.4 g |
SCREEN | 0.87-inch Screen |
AUDIO FORMATS | DSD(".iso",".dsf",".dff") / ISO / DXD / APE / FLAC / WAV / AIFF / AlF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8/ OPUS |
USB INPUT HI-RES SUPPORT | 32 bit / 768 kHz, DSD 512 |
USB INPUT HI-RES SUPPORT | 32 bit / 384 kHz, DSD 256 |
GAIN SETTING | Three Level Setting |
STORAGE | MicroSD Card Slot, up to 2TB |
DAC | 2x AKM AK4493SEQ |
DIGITAL FILTERS | 6 Preset Filters |
BLUETOOTH | v5.0 Receiver |
BLUETOOTH CODEC SUPPORT | LDAC / AAC / SBC |
OUTPUT POWER | 2.7V@32Ω(227mW@32Ω) |
FREQUENCY RESPONSE | 20 Hz - 40 kHz (-0.7 dB) |
THD+N | 0.0014% |
CHANNEL SEPARATION | 80 dB @ 32 Ohm |
DYNAMIC RANGE | 118 dB |
SIGNAL-TO-NOISE | 118 dB |
OUTPUT IMPEDANCE | 4.7 Ohm |
OUTPUT POWER | 5.19V@32Ω(840mW@32Ω) |
FREQUENCY RESPONSE | 20 Hz - 40 kHz (-0.7 dB) |
THD+N | 0.0004% |
CHANNEL SEPARATION | 105 dB @ 32 Ohm |
DYNAMIC RANGE | 121 dB |
SIGNAL-TO-NOISE | 121 dB/td> |
OUTPUT IMPEDANCE | 6.6 Ohm |
BOX CONTENTS | 1. Shanling H5 |
2. USB-A to USB-C cable | |
3. USB-C to USB-C cable | |
4. 3.5mm to RCA coaxial cable | |
5. Storage pouch | |
6. user manual | |
7. warranty card | |
8. Product catalog |
GENERIC NAME | Headphone Amplifier |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
What is the warranty period on the Shanling H5?
The warranty period of the Shanling H5 is of 1 year. In order to claim a warranty, please visit our Shanling Warranty Page here. We are very helpful guys, just saying
Where is Shanling brand based?
Shanling is a brand based in China.
What DAC chips are used in the Shanling H5?
The Shanling H5 features an AKM AK4493SEQ Dual DAC chip.
What are the sampling/decoding rates supported?
The Shanling H5 is capable of playing Hi-Res files with support for PCM 32-bit/768kHz (Pulse Code Modulation) and Native DSD512 (Direct Stream Digital).
Does it support MQA?
Yes, it supports 8X MQA (Master Quality Authenticated) unfolding through USB input, allowing you to play back MQA audio files and streams, delivering the sound of the original master recording.
Can it be used to power sensitive in-ear monitors and power demanding headphones?
Yes, with the three-level gain settings you are assured an ideal match with a wide range of headphones. Pick the lowest 'gain' for a hiss-free playback with the most sensitive in-ear monitors. Or switch to the high and unleash its powerful 840mW output, feeding even the most demanding headphones.
Can the Shanling H5 be used for gaming?
Yes, the Shanling H5 is highly compatible with gaming systems (Switch H5 to UAC1.0 mode for compatibility with gaming systems like PS5 and Switch).
What is the Bluetooth version?
The Shanling H5 features Bluetooth 5.0.
What are the various Bluetooth codecs supported?
The Shanling H5 with Bluetooth 5.0 supports LDAC, AAC, and SBC. The H5 allows you to enjoy the wireless sound with convenience.
What is the battery capacity?
Shanling has included a massive 3500mAh battery in Shanling H5's circuitry.
What is the battery life like on the Shanling H5?
The Shanling H5 has an incredible battery life of 12.5 hours (Single-ended) and 8 hours (Balanced).
Does the Shanling H5 have a screen display?
Yes, the Shanling H5 has a compact 0.87-inch monochromatic OLED display.
Does it have a built-in music player?
Yes, Shanling H5 has a built-in music player.
Does it have a MicroSD card slot?
Yes, it does have a MicroSD card slot.
What is the maximum capacity of the MicroSD card slot?
The maximum capacity for the MicroSD card slot is 2TB.
Is it compatible with Eddict Player App?
Yes, you can pair the Shanling H5 with the Eddict Player app to gain control over your music library.
What are the headphone outputs available with the Shanling H5?
The Shanling H5 hosts headphone outputs single-ended (3.5mm) and Balanced (4.4mm).
What are the headphone inputs available with the Shanling H5?
The Shanling H5 comes with USB, Coaxial, Optical and Bluetooth input .
Don't sweat it, this
Shanling - H5 comes with a 1 Year warranty
from Shanling that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about Shanling's warranty in India.
This product is rated 5.0 of 5.0 stars.
It has received 1 review.
