1 Year of
ESS Sabre ES9218P
Dual DAC Chip
Upto 160mW @ 32Ω
Battery Capacity of
SIZE ISN'T A PROBLEM IF YOU'RE GOOD AT IT

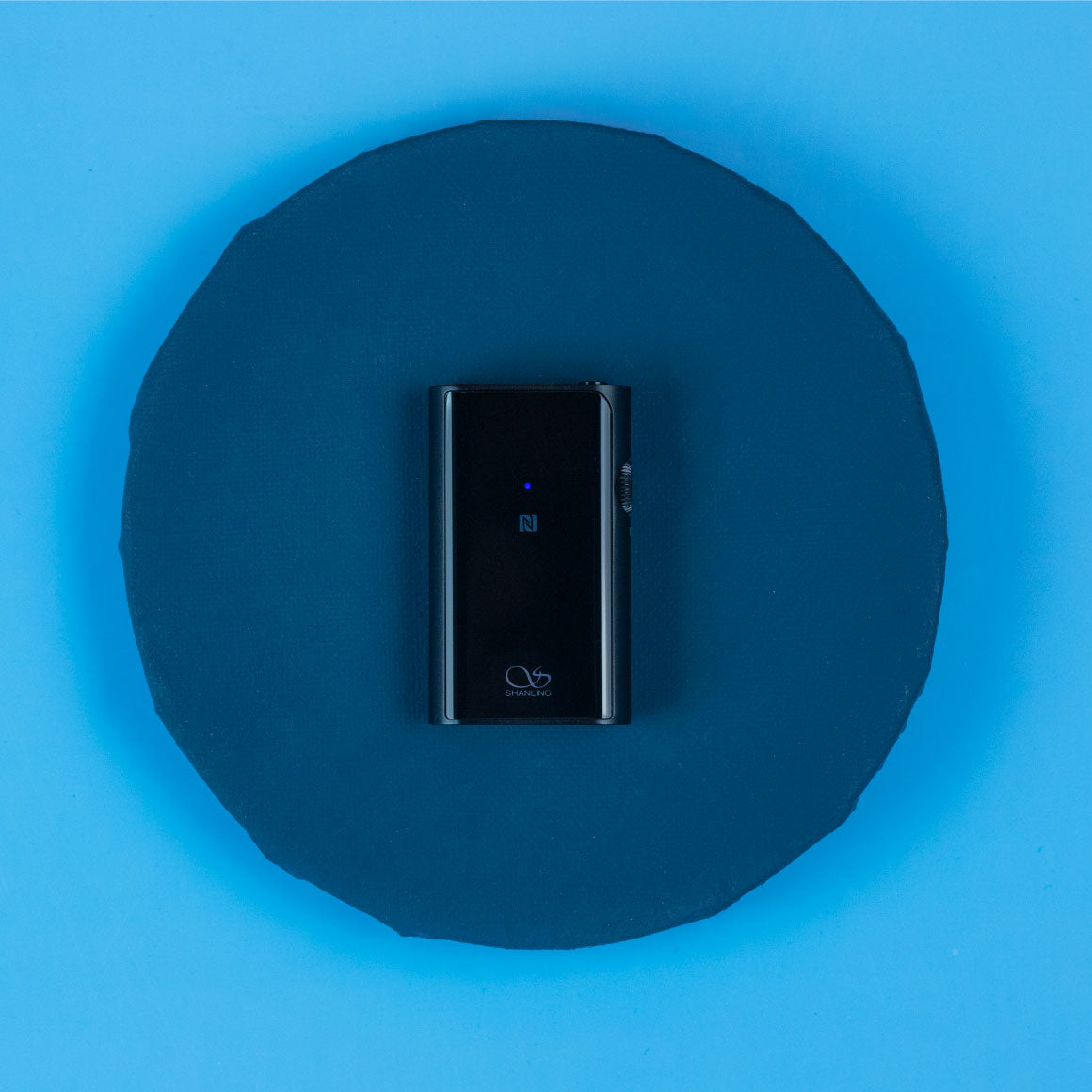

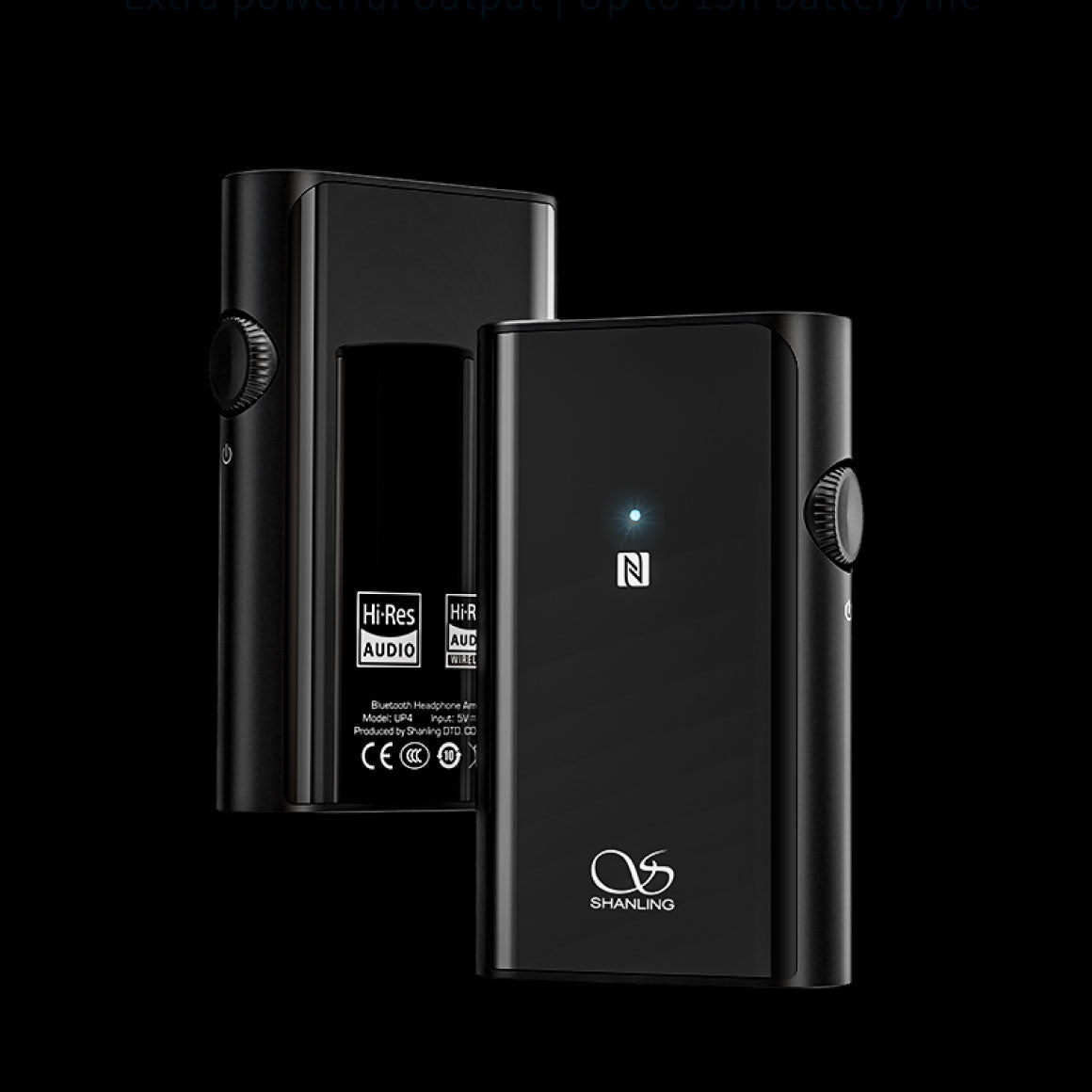

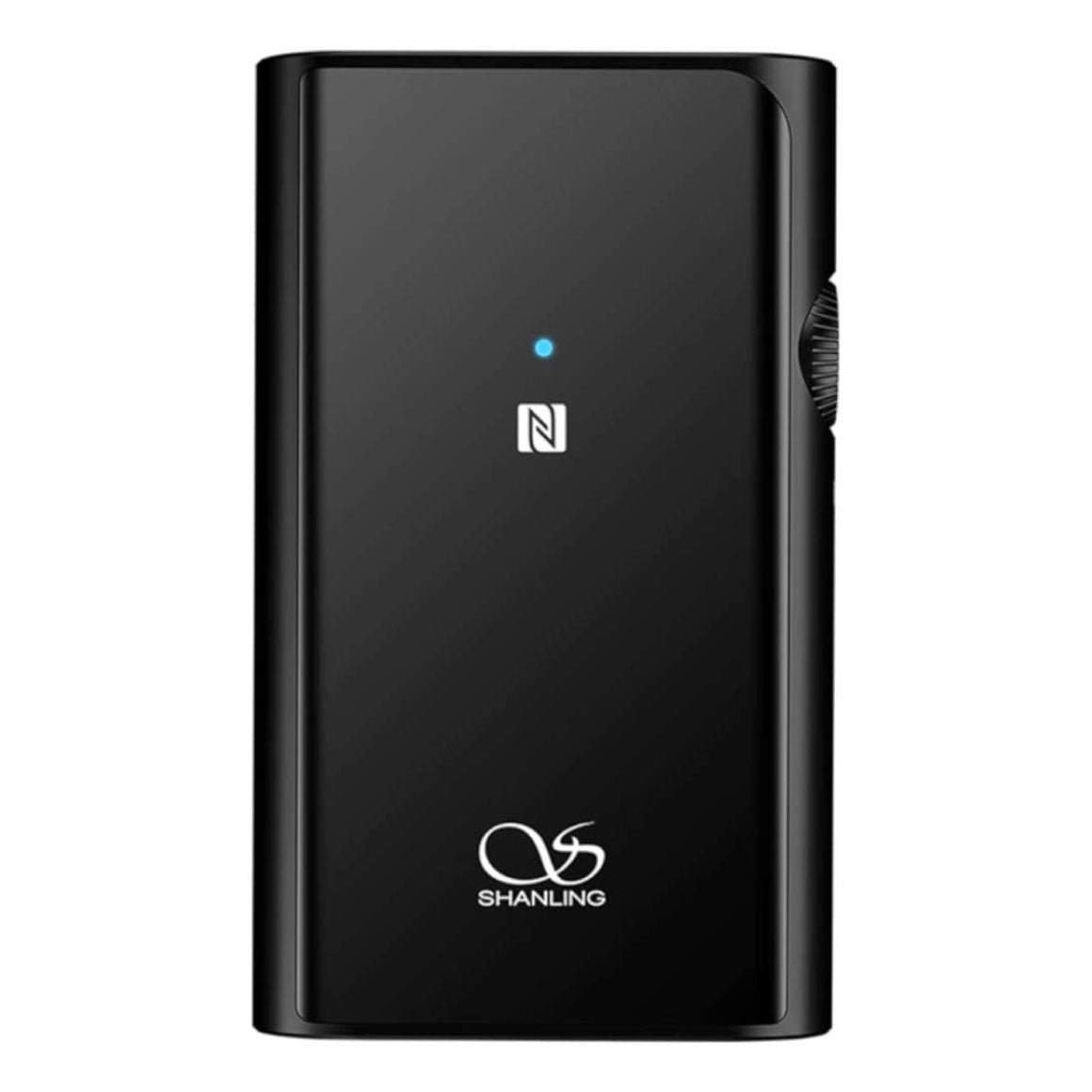

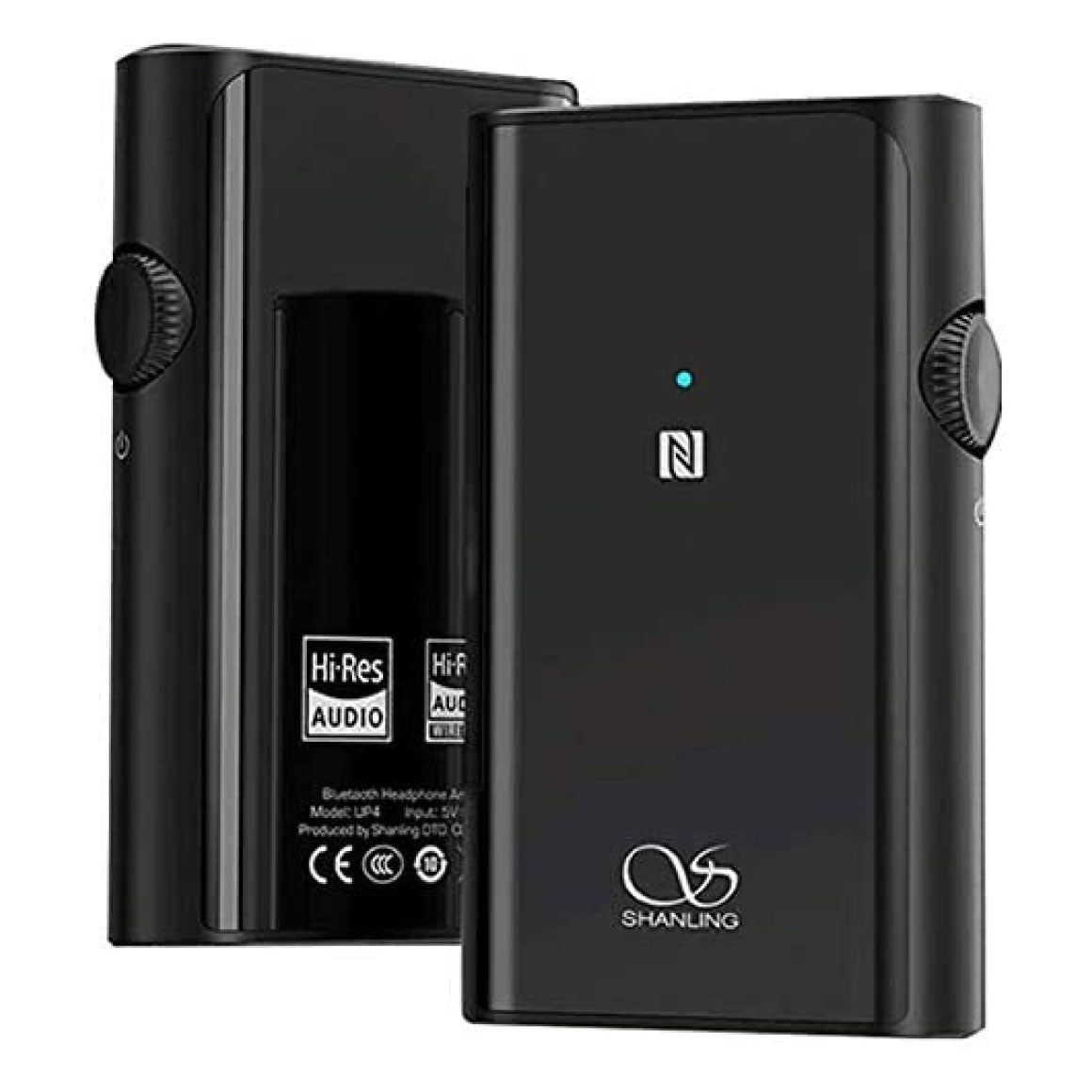

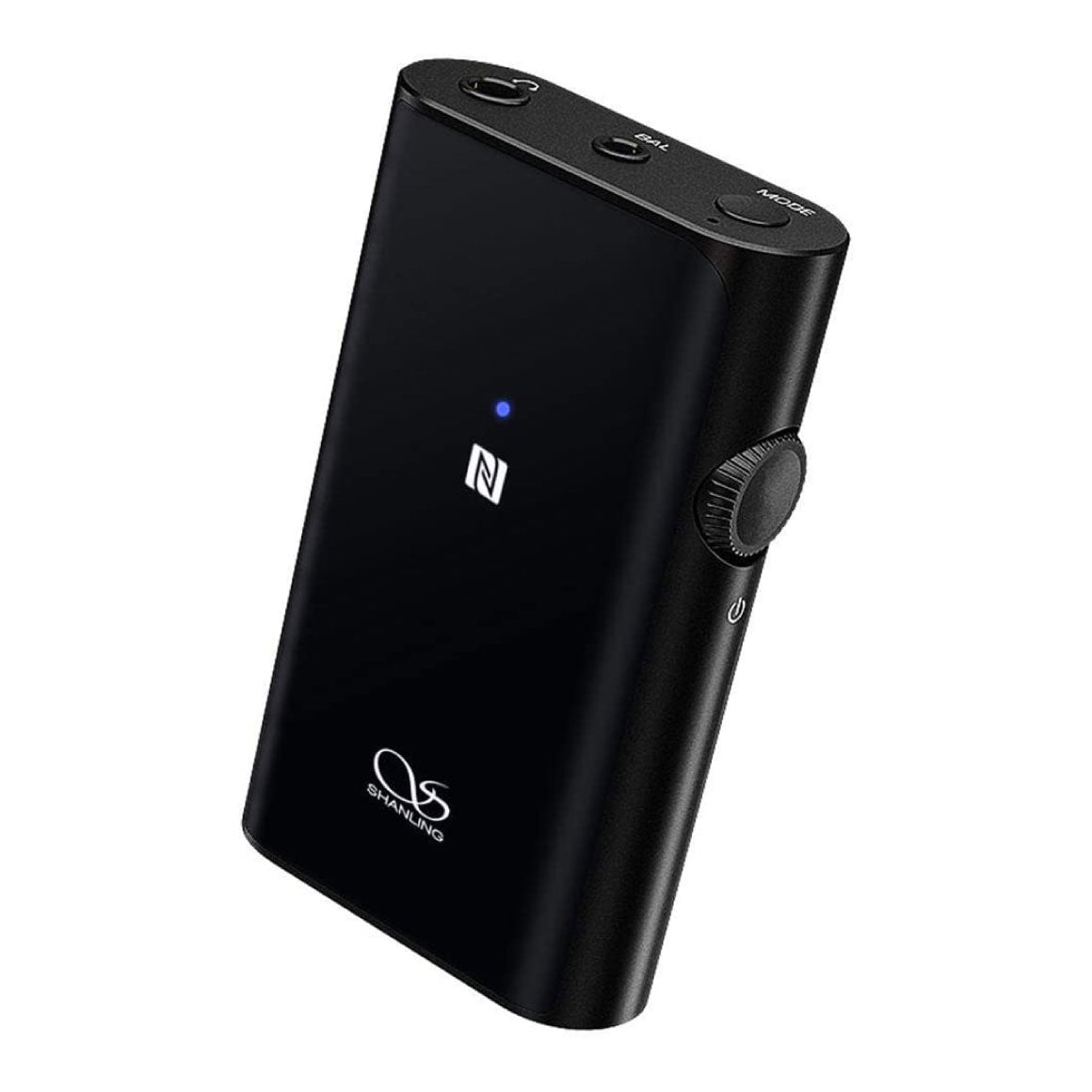

Shanling's iconic minimalistic design is evident in its Bluetooth amplifier — The UP4. It’s a combination of a beautiful aluminium frame and 2.5D glass panels that adds elegance. You can connect your Shanling UP4 to just about any device for the high-end audio quality.
OFFERS HI-RES AUDIO, WIRED OR WIRELESS

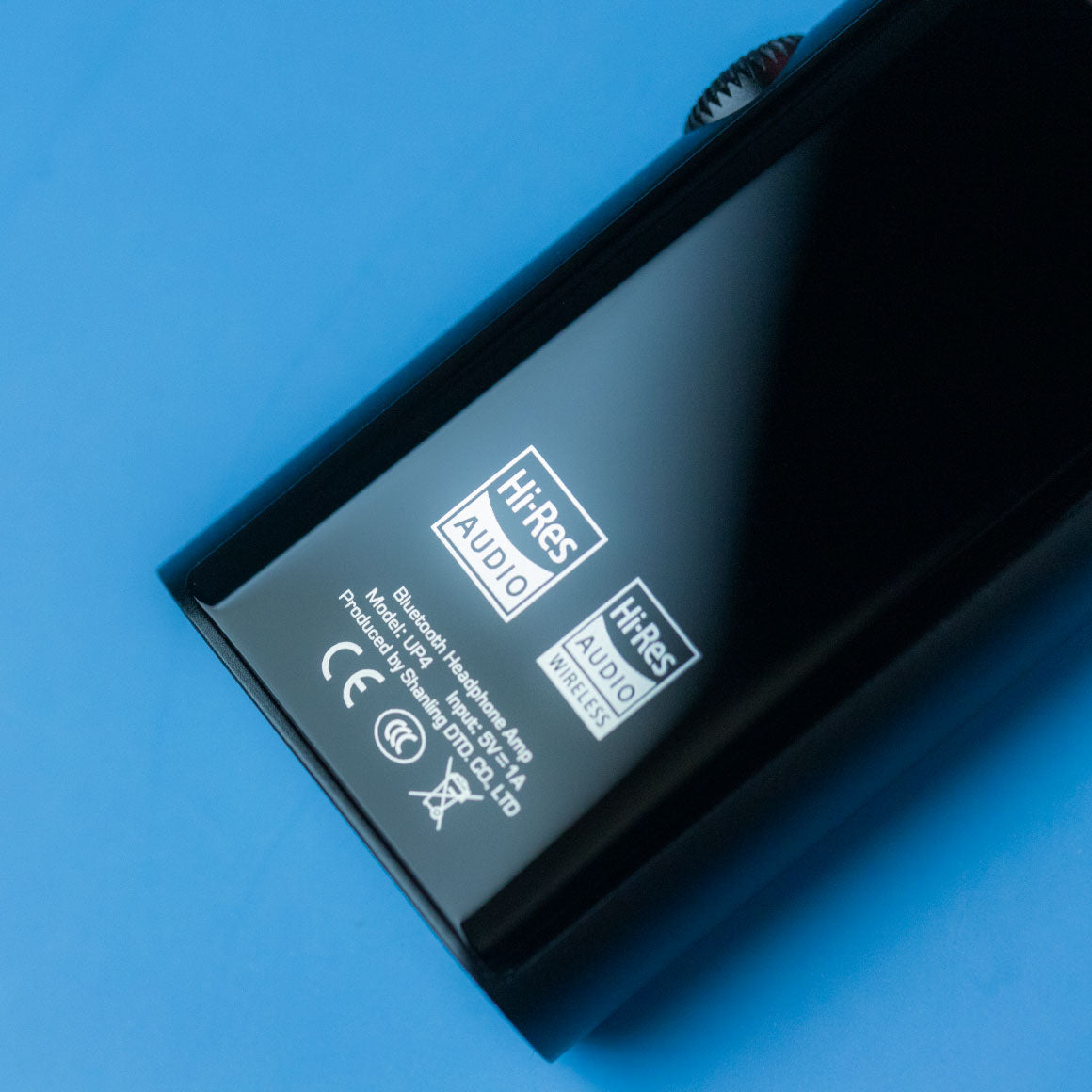

The Shanling UP4 enjoys added credibility with the 'Hi-Res Audio' and 'Hi-Res Wireless Audio' certification from the Japan Audio Society. You can trust it with high-resolution music.
USES APTX, APTX HD, LDAC, LHDC FOR HI-RES SEAMLESS AUDIO REPRODUCTION

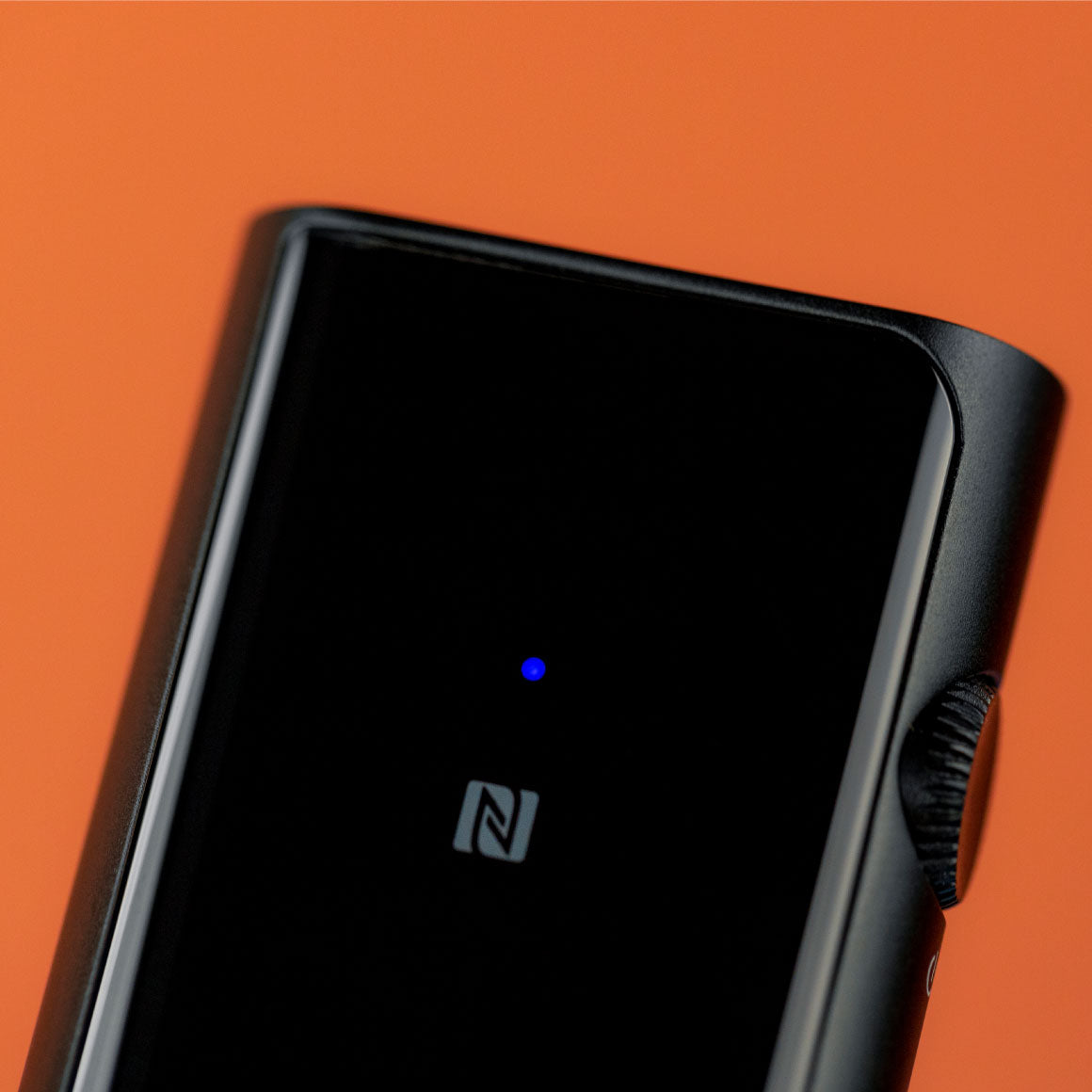

The UP4 houses a CSR8675 Bluetooth chip. This chip ensures stable connectivity along with lower latency and high resistance to any disturbance. With just one touch you can pair it with any device that supports NFC. It also supports LDAC, HWA, LHDC and aptX HD which reproduces high-res audio even when streaming audio wirelessly. Stay connected!
HOUSES A DUAL DAC FOR FLAWLESS HI-RES WIRED AUDIO
If you are using your Shanling UP4 with a 2.5mm jack or even with the standard 3.5 mm jack output, you won't miss on the powerful sound output. Thanks to the Dual-DAC mode, it employs two ESS Sabre ES9218P audio chips which facilitate crystal-clear, high-resolution sound output along with power efficiency.
GAIN AND DIGITAL FILTER OPTIONS TO TWEAK YOUR MUSIC LISTENING EXPERIENCE
Personalize your music with the dedicated mode button. This button has gain and digital filter settings which will slightly modify your overall music according to your preferences. Need an external sound card for your laptop? Connect Shanling UP4 to your laptop or computer as a USB DAC/AMP using nothing but just a USB-C connecter cable.
TOP NOTCH NOISE CANCELLATION TECH FOR CLEARER CALLS
You can even make & take calls with the Shanling UP4. This is all thanks to the Knowles SiSonic microphone and latest 8th generation cVc noise cancellation tech. Your calls are now clearer with minimal background noise.
SHANLING'S CONTROLLER APP TO TAKE ABSOLTUE CONTROL OF YOUR UP4
Take your Shanling UP4's wirelessness up a notch with the Shanling Controller. This nifty app lets you control playback as well as set-up your UP4. You also get added functionality like equalizer, filter & gain support, OTA updates and more.
Get the Shanling Controller App here.
|SUPPORTED BLUETOOTH CODEC||HWA(LHDC), LDAC, APT-X HD, APT-X Low,
APT-X, AAC, SBC, Latency
|BLUETOOTH CHIP||Qualcomm CSR8675|
|AUDIO CHIP||ESS Sabre ES9218P x2|
|BLUETOOTH VERSION||Bluetooth v5.0|
|OUTPUT POWER||71mW @ 32 ohms (single ended, high gain)
91mW @ 32 ohms (single ended, Dual DAC mode)
160mW @ 32 ohms (balanced output)
|SIGNAL TO NOISE RATIO||120dB (single ended)
|CHANNEL SEPARATING DEGREE||73dB @ 32 ohms (single ended)
96dB @ 32 ohms (balanced)
|BATTERY LIFE||15 hours (single ended)
10 hours (balanced)
|CHARGING TIME||2 hours|
|POWER ADAPTER||DC 5V/500 mA|
|USB PORT||Type-C interface, supporting driver-free USB DAC|

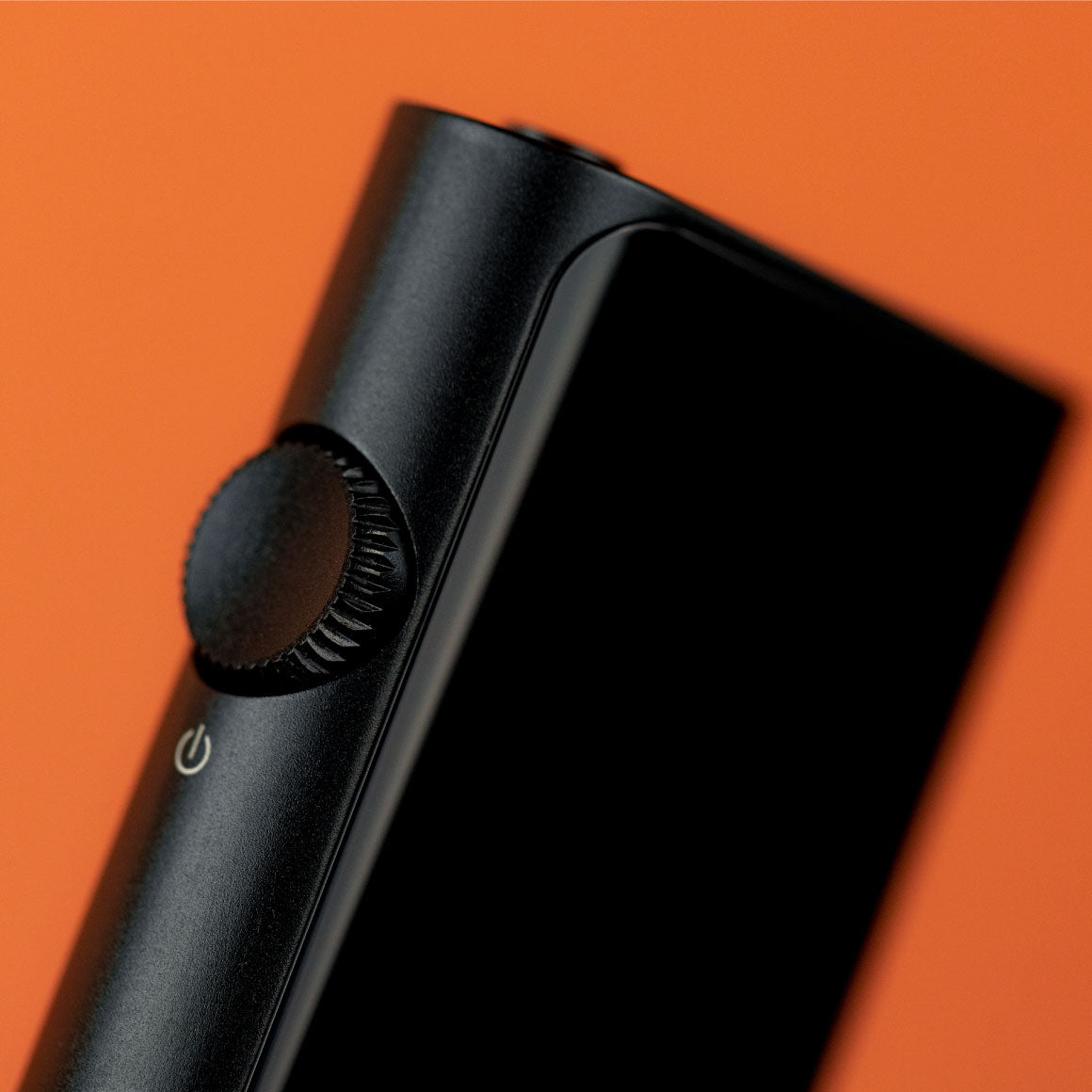

|VOLUME CONTROL||Independent from smartphone volume setting, controlled by volume wheel|

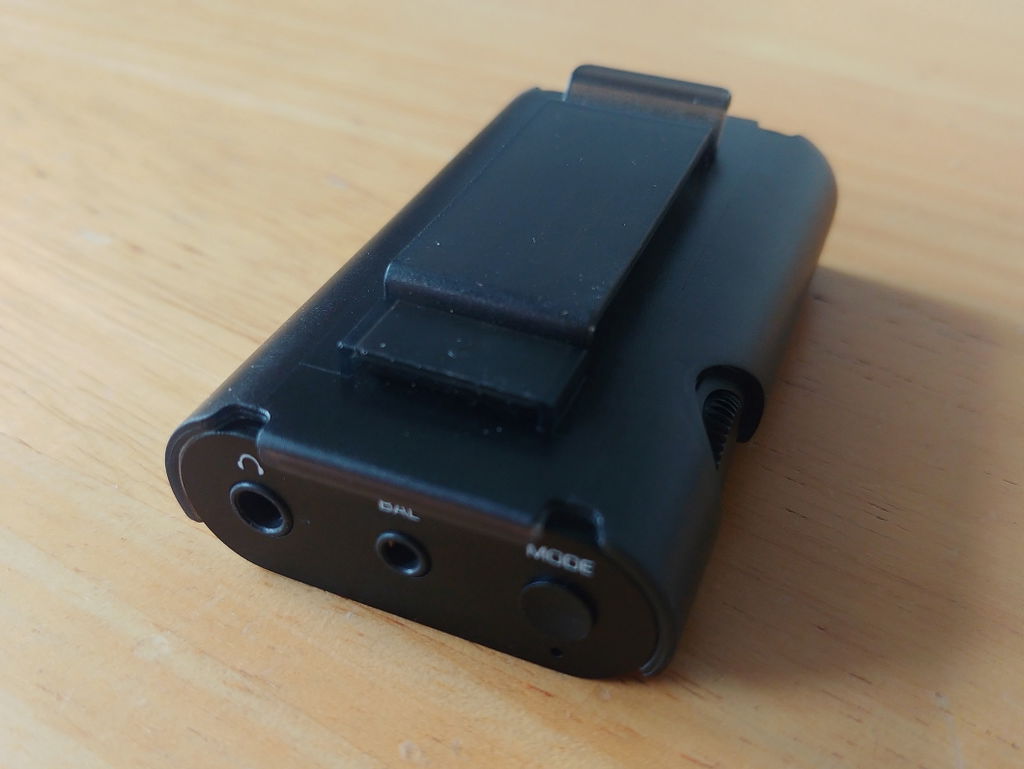

|CONNECTOR||3.5mm and 2.5mm jack|
|SIZE||60 mm*36 mm*13.5 mm|

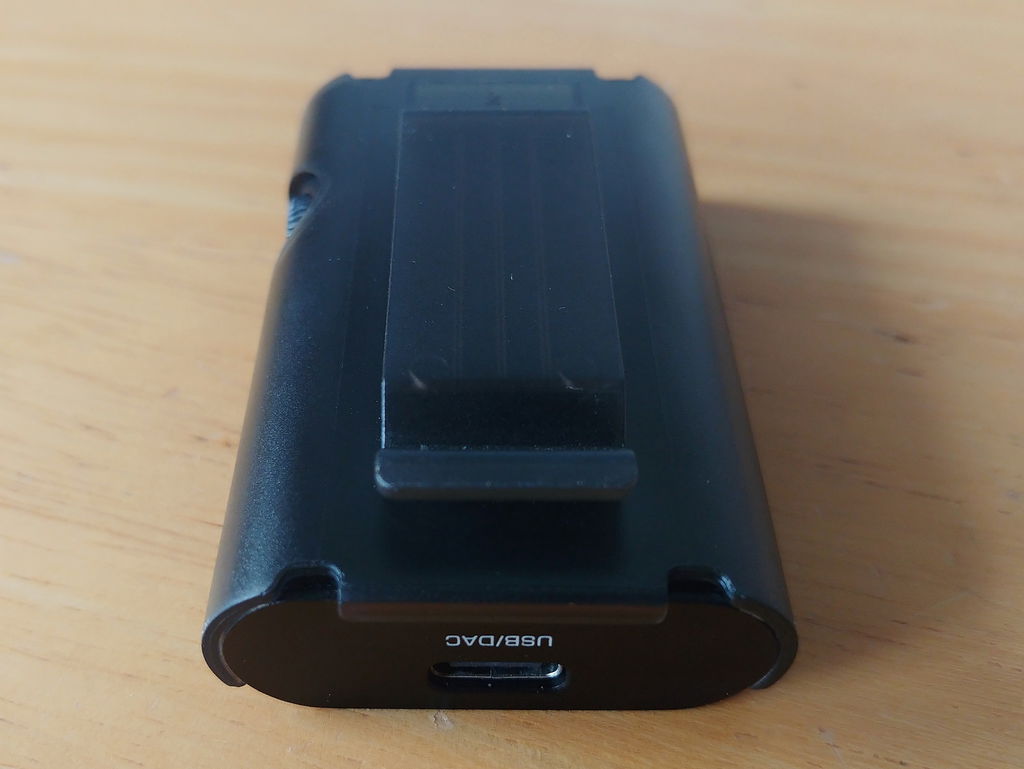

|BOX CONTAINS||1. Shanling UP4 Portable Amp|
|2. Clip Case|
|3. USB-C Cable|
|4. User Manual|
|GENERIC NAME||Headphone Amplifier|
|COUNTRY OF ORIGIN||China|
|IMPORTER DETAILS||Importers Name: Ferrari Video
Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020
Contact No: 044-24420733
30 Years of Shanling: Engineering Audio Products for Hi-Fi Music Enjoyment
Shanling was established in 1988 when it began developing audio products and launched its first-ever Hi-Fi stereo amplifier. Since its beginning, Shanling has continuously developed new products and has incorporated multiple patented technologies like the SONY LDAC, Bluetooth BQB, Hi-Res from Japanese Audio Association, Microsoft HDCD, Dolby Digital, DTS, DVD, SACD, CD patent and more. For more than 30 years Shanling employees have upheld the spirit of integrity, innovation, team spirit and hard work.
Shanling is Powered by Excellence and Customer Satisfaction
Excellence in quality and customer satisfaction has always been the driving force for Shanling. Shanling is from China - headquartered in Shenzhen with a factory in Dongguan. Their product range consists of Hi-Res portable music players, portable amplifiers, Hi-Fi headphones, SACD/CD players, Hi-Fi amplifiers, power conditioners and more. By maintaining a strong relationship with the high-end manufacturers over the years, Shanling today enjoys the position of being one of the most reputed companies in the industry.
Exceptional Digital Audio Players with Cutting-Edge Audio Technologies
Shanling is known for the incorporation of cutting edge technology and that's evident in all the audio players developed by Shanling. Each Shanling audio player features high-end specs including the ESS DAC Chip, Qualcomm aptX, Retina HD display and a strong battery life. The M series of digital audio players like the Shanling M0, M2s, M3s are prime examples of their performance and price and therefore have been highly popular.
Cerfied Hi-Res Audio by the Japan Audio Society
High-Res Audio certified by the Japan Audio Society has been consistent among all the Shanling digital audio players. All these Hi-Res DAPs go through severe tests to get the great sound. The DAPs are designed to support all the high-res audio files including the DSD format. The Shanling UP2 is a brilliantly crafted DAC/AMP which has been highly popular among the users.
1 Year Warranty
Don't sweat it, this Shanling - UP4 comes with a warranty
from Shanling that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about Shanling's warranty in India.
Wireless Headphone amplifier
"The Shanling UP4 is a great DAC/AMP for audiophiles who are looking to improve the sound quality and balanced output for their smartphone at a reasonable price."Read More
"The Shanling UP4 is almost a Swiss army knife in terms of features offered and it's a great companion to one's every need when it comes to mobile DACs."Read More
"The UP4 is a great little device for those people who have a good set of earphones or headphones yet don't want to go down the expensive external DAP route."Read More
The Shanling - UP4 unit delivered to me has significant channel imbalance: the right channel output is much less than the left one. I had to return it to you for a replacement. I assume that you have professional equipment able to accurately measure and quantify individual channel outputs, demonstrating the defect quickly and conclusively.
Once the problem was identified, the UP4 device was thoroughly examined and its sound output was exhaustively compared with similar hardware, namely, Fiio BTR5 and Shanling's own UP2.
1) Microsoft Surface Laptop 3
2) Pioneer External Blu-ray Writer
3) Richard Strauss: Elektra Blu-ray with DTS-HD Master Audio 96 kHz/24-bit
4) Various 24-bit/192 kHz FLAC files
The UP4 device has a very noticeable sound output difference between the channels, readily identifiable even by a casual listener. The left channel sound output is about 30% louder than the right channel. The device has been tested over many hours of listening paired with several IEMs, over-ears and on-ears. None of my other bluetooth/desktop DACs suffer from this defect.
I am disappointed in Shanling but trust you to take care of the problem by replacing the malfunctioning device. Eagerly waiting to hear from you.
I received the unit from headphone zone within 48 hours, full marks to them for that at least. The story thereafter took a turn for the worse though.
I ordered this unit as a birthday gift to myself and was really excited when I received it within 2 days of ordering. I immediately wanted to try it out so after I read the manual and the website I paired my phone (Asus ROG II) to this unit to give it a spin. I listened to music over Spotify and USB Audio player Pro and wasn't too impressed with the output of the FLAC files compared till I turned on the dual-dac mode. That kind of opened up the soundstage a bit and increased the separation between the instruments. I think the BT 5 iny phone definitely helped when paired to this unit. I haven't got a chance to measure the battery life yet but it aes impressive considering I had to charge it after 3 days of continuous listening.
Now comes the disappointing part, the wired (USB-C) connectivity with phones. I tried it with a Xiaomi Mi A1, Asus ROG II andy laptop. I used the cable supplied with the unit and even a Smart Smith USB 3 Gen 2 (10gbps certified) cable but it just refused to work. My Xiaomi Mi A1 and laptop recognised the shanling and allowed me to manually route audio through it. It showed the shanling selected but no sound came out of the earphones.
I immediately decided to report this to headphone zone and opted for the 7-day return policy but no matter what I tried the website threw up an error saying I could only a aio of this option within 7 days of ( I purchased this device on 5 Oct, it was delivered on 7 Oct and this case was logged on 7 Oct itself). Extremely disappointed with this. I will definitely be more careful purchasing stuff going forward.
First of all thanks to headphonezone for promptly allowing me to upgrade my order from UP2 to UP4. They were very fast and accommodative and the gadget reached me on the third day.
About the device, its small and versatile. Supports a lot of codecs for listening to High-Res files. Sounds deep and crisp but smooth. Mid range is also clear. Overall experience is smooth and non fatiguing. One good thing is that it updated its firmware in OTA through Shanling app indicating that it is from a newly manufactured lot (as earlier versions do not update over OTA as gathered from the net). Now its running on V1. 3. The connectivity is fast and it can remember connections with 2 BT devices.

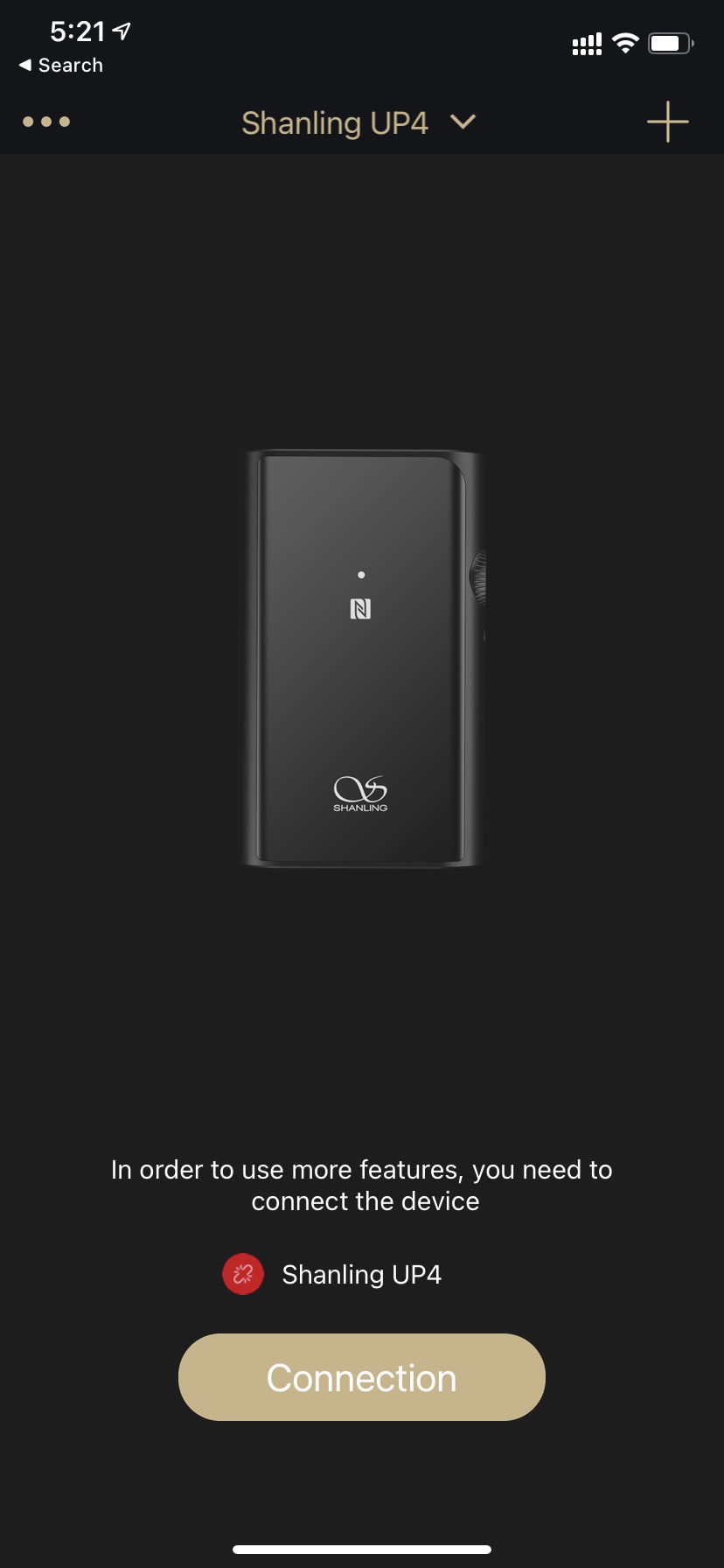

The app is a bit amateurish. When connected it shows a DISCONNECTED(when actually it is connected) button which should read DISCONNECT actually. BT codecs are chooseable and is only limited by the transmitting device. I used with my LG V20 and POCO F1 with LG sounding smoother and POCO with a little more shimmering highs. Enjoyed on both. Adequate power to drive my AKG K712 pro through unbalanced out.
I need to buy a balanced cable now for my detachable earphones. Planning to make a DIY one as balanced cable are costly.
Can anybody confirm the 2.5mm configuration for Shanling. What I gathered from net is R-, R+, L+, L- for TRRS pins respectively.
This is my first audiophile product and I'm really loving it. Tried using through various sources like Laptop, Android & I Phone and it's working great with all the devices. Sound out put is best when connected through Ldac codec mode
Well, at first I didn't trust headphonezone. I've ordered on 13th. But surprisingly it got delivered on 15th. From that day I'm listening to this. And trust me , it's awesome . I wanted less bassy, more crispy, focused vocal. I get that without eq ing . I'm listening in my android with LDAC codec and with my windows PC using the USB DAC. I've paired it with HIFIMAN HE400SE, which is a planar magnetic headphones. We know that a planar magnetic headphone is not easy to drive. But Shanling UP4 can beautifully do its job. Although , You can't use USB DAC thing with your smartphone (at least Samsung m51), as one of headphone gurus said to me that some smartphones are not compatible . Anyway, with apple music and yt music , I'm having a fantastic listening experience. Currently I'm using the unbalanced cable with UP4 , but in future I'll definitely taste sound using balanced cable and UP4.
HI Sayantan Koley,
We are so happy you took out time & elaborately reviewed the product. We are sure this will help our customers to make an even better & informed decision.
With headphone jacks disappearing from smartphones, and Bluetooth earphones still nowhere close to wired headphones in terms of audio quality, I wanted something that turns wired earphones into wireless ones without sacrificing quality and driving power. It means that I wanted a Bluetooth adapter with LDAC codec, high-quality DAC, and a powerful amplifier that can drive even bigger headphones. The Shanling UP4 was along the most high-end portable Bluetooth adapter in the market, complete with AAC, aptX, aptX LL, aptX HD, LDAC, dual-DAC chips from ESS, Hi-Res certification, NFC, and long battery life. After using them for a week, here are my thoughts:
1. Very good connection stability and range.
2. Presence of all wireless audio codecs: SBC, AAC, aptX, aptX LL, aptX HD, and LDAC.
3. Excellent audio quality, at least as far as wireless audio goes.
4. High amplification power.
5. 3.5mm unbalanced and 2.5mm balanced ports.
5. Long battery life (more than 10 hours on a single charge at high volume levels).
6. NFC for quick connections.
7. Status LED shows which codec is being used.
8. Smartphone companion app and support for firmware updates.
9. USB Type-C port with fast charging.
1. Smartphone app is garbage. There's no volume level adjustment from the app, and it sometimes says that the UP4 is not connected to the phone even if it is.
2. Glossy gass body can gey scratched. Could've had a metal design or a matte glass finish.
3. Should've had a display (to show active codec, battery level, and audio source) for this price.
Hey Asif, we are so happy to hear that you are loving this product! Thanks for taking time and sharing this wonderful and detailed review. Happy listening! :)

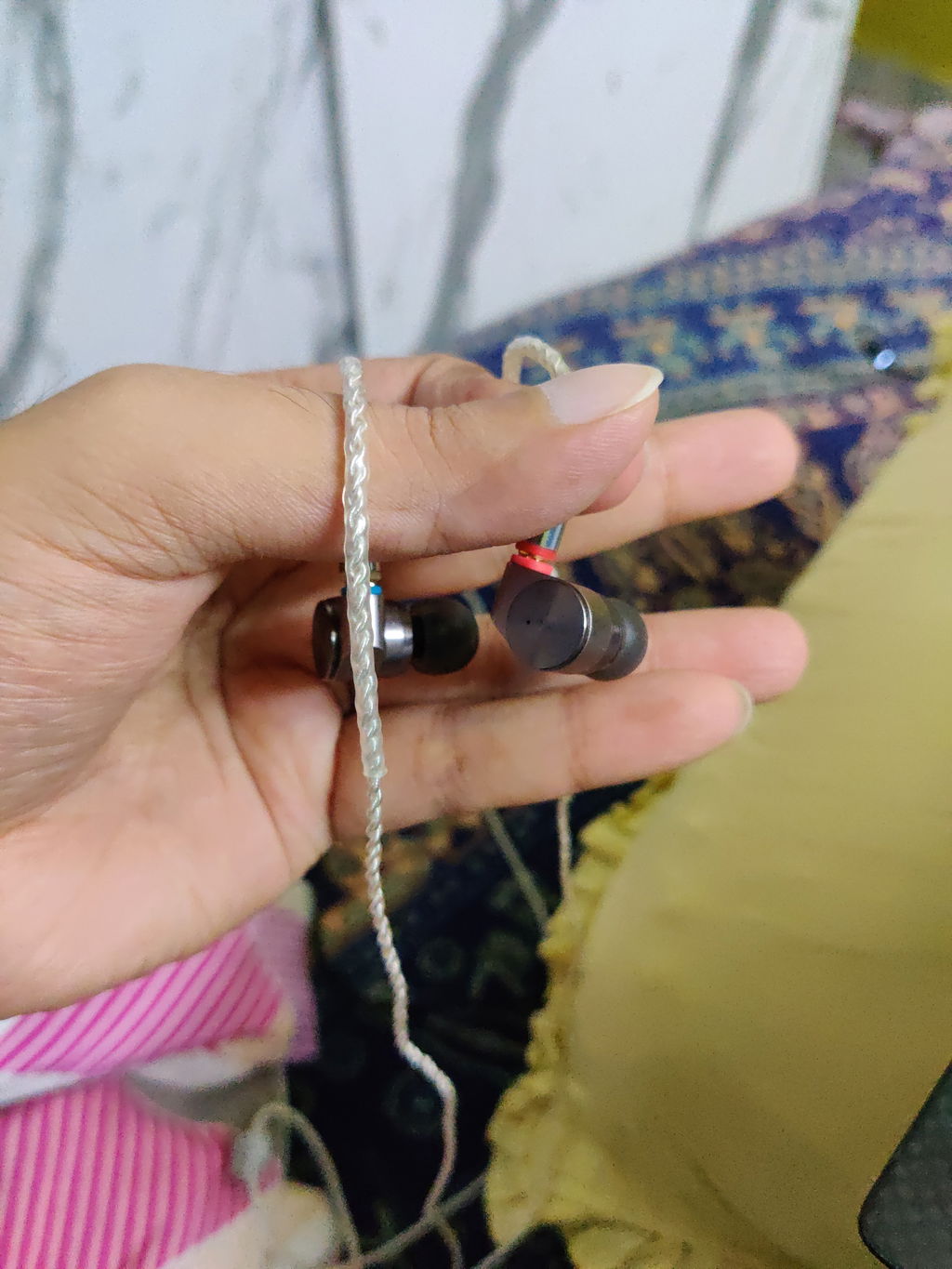

I bought my Shanling UP 4, my first ever AMP/DAC (with Bluetooth). I have paired it with my shiny new TinFi T2 . The sound separation is mind blowing (at least to me) for the budget. The Shanling Up 4 has ample amount of amplification for my drivers and for my needs too. It has also other fancy stuff like a 2.5 mm port for balanced output and some other things (that I have not used so far). Also the quality of the unit is very good.
I would recommend everyone, who is looking for a Dual DAC Bluetooth AMP, with incredible track separation and well balanced audio quality, in a decent budget - you can go for this.
Oh! and the shipping was very very fast, I got my unit in 2 days.
