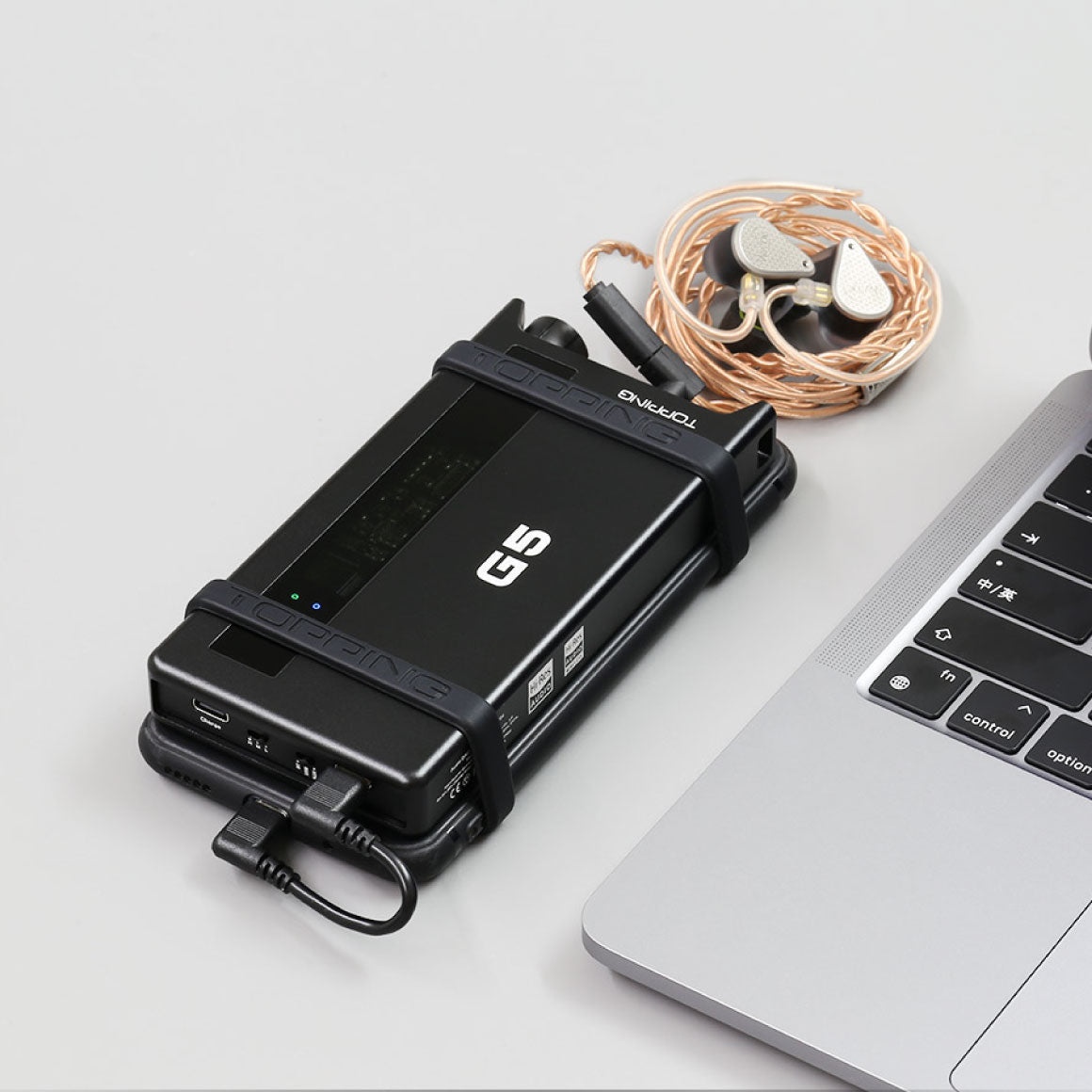

Pair with Laptop via USB
A majority of people use a laptop as the primary source device to listen to music or watch movies. Since the laptop is an essential part of the audio chain there are headphones and devices designed to work a laptop or computer system flawlessly. With the availability of USB connectivity, it becomes easier to pair various devices like an Amp, DAC or even headphones without worrying about drivers or any additional piece of software.
1200mW X 2 @ 32Ω
Power Output
Battery Capacity of
4000mAh
Aluminium
Build
UNBOXED
Headphone Zone Certified Unboxed Units
Unboxed units are as good as new products with the product's packaging being unavailable. These products give you the same satisfaction of new products - but at down-to-earth prices. Usually, the product's packaging may have gotten damaged in transit. Customers use a product once or twice and then return it with opened up packaging.
Customer Returns
Returned headphones are fully functional products that have left the warehouse and therefore can no longer be sold as new as their packaging has been opened. The product may have been used once or twice by the customer who returned it.
Transit Damages
Sometimes we receive headphones in damaged packaging due to shipping accidents. These are brand new headphones with cosmetic flaws on the packaging.
Save Upto 15%
Since you won't get the original packaging, we give you a good discount compared to a new headphone.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.
Original Warranty
All unboxed headphones carry the same warranty period as a brand new headphone would.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Unboxed Products or new products.
Unchanged Replacement Policy
Received a defective Unboxed unit? Return it under our Replacement Policy.
All Original Accessories
The unboxed headphones itself comes with all original accessories.
DESCRIPTION
INTRODUCING TOPPING G5, HI-RES CERTIFIED NEXT GENERATION PORTABLE DAC & AMP
TOPPING is known for producing the quietest and most linear power amplifiers. Their amplifiers deliver exceptional audio quality right out of the box. TOPPING is not only well known for providing some exquisite desktop setups but is also known for its portable DAC & Amp setups. In their line-up of portable DAC & Amplifiers, there is a new entry of the G5, a multi-function wired and wireless DAC & Amp. It has tons of functionality under its belly. The TOPPING G5 is an all-around performer with the newest chipsets and amplification technology built-in to give you the best experience possible, whether you're using it wired or wirelessly. The lossless files are played with no jitter or distortion as it supports Hi-Res. TOPPING experts have created this unit to be used in today's world without sacrificing sound quality. The TOPPING G5 is a power amplifier, headphone amplifier, and digital-to-analogue converter, all in one package. It is a Hi-Res certified portable DAC & Amp and integrates USB DAC, a Bluetooth DAC, and an NFCA headphone module.
FEATURES ESS SABRE DAC CHIP AND BUILT-IN NFCA HEADPHONE AMPLIFIER MODULE THAT DELIVERS CLEAN AND PRECISE AUDIO PERFORMANCE
The TOPPING G5 is a next-generation portable DAC & Amp that features some of the best components in its circuitry that enable it to deliver exceptional sonic performance. The TOPPING G5 features ESS's sub-flagship ES9068AS Sabre DAC chip. It achieves good performance with careful adjustment of THD+N less than 0.00010% and a dynamic range of 124dB. The ES9068A is a feature-rich 32-bit, 2-channel audio D/A converter. Using the critically acclaimed ESS patented HyperStream® II architecture, QUAD DAC™ technology, Time Domain Jitter Eliminator, and advanced SABRE HIFI® technology, the ES9068A delivers a performance level that will satisfy the most demanding audio enthusiast. The G5 uses an NFCA (Nested Feedback Composite Amplifier) module specially modified for portable devices, which can achieve large output, low distortion, and good battery life. The NFCA is a headphone amplifier module that outputs a power of 1200mW*2. It pairs with high sensitivity IEMs and power-hungry high impedance headphones. The ES9068AS Sabre DAC chip and built-in NFCA module allow G5 to deliver clean and precise audio reproduction.
G5 DOUBLES UP AS A USB DAC & AMP AND BLUETOOTH TRANSMITTER WITH XMOS AND QUALCOMM CHIPSETS IN ITS CIRCUITRY
The team of engineers at TOPPING have designed the G5 to be a simple device with which you can plug & play and delve into your music. The TOPPING G5 has a wide range of compatibility with Windows 10 or above, MAC, Linux, iOS, and Android. The TOPPING G5 supports USB, Bluetooth, and AUX transmission. TOPPING G5 uses 2nd generation XMOS, USB supports up to PCM (Pulse Code Modulation) 32Bit/768kHz and DSD512 native. With USB-IN G5 supports 44.1kHz-768kHz/16-32Bit and DSD native DSD64-DSD512 (Direct Stream Digital) and DSD64-DSD256 (DoP) (DSD Over PCM). The TOPPING G5 has the certification of Hi-Res Audio Wireless and LDAC with the support of 24Bit96kHz. It uses the newest QCC5125 chipset to support LDAC, aptX, aptX LL, aptX HD, aptX Adaptive, AAC, and SBC protocols. To get even better sound quality from Bluetooth, the engineers designed to abandon the built-in DAC of QCC5125 and connect its digital signal to ES9068AS to decode. After pairing the G5 with a mobile phone/player/tablet by Bluetooth, the headphone is free from the cables.
GROOVE ON TO YOUR MUSIC FOR UP TO 25 HOURS ON A SINGLE CHARGE
The G5 has a built-in 4000mAh battery so that it does not need to rely on the power supply of the mobile phone like other portable DAC & AMPs, so it will not reduce the battery life of the mobile phone or the device to which it is connected. Due to the optimisation, the G5 can get 25 hours of battery life at AUX input; even if it is in DAC mode, it can get 9 to 10 hours of battery life. The TOPPING G5's playtime varies depending on the source or inputs and different gain settings. It offers more than 9 hours in USB mode with the gain settings set to low or medium and more than 6.5 hours when the gain setting is high. In Bluetooth mode, G5 offers more than 10 hours of battery life with gain settings set to low or medium and more than 8 hours when the gain setting is high. TOPPING G5 offers a whopping 25 hours of battery life when operated in AUX mode with gain settings set to low or medium and more than 13 hours with gain settings high.

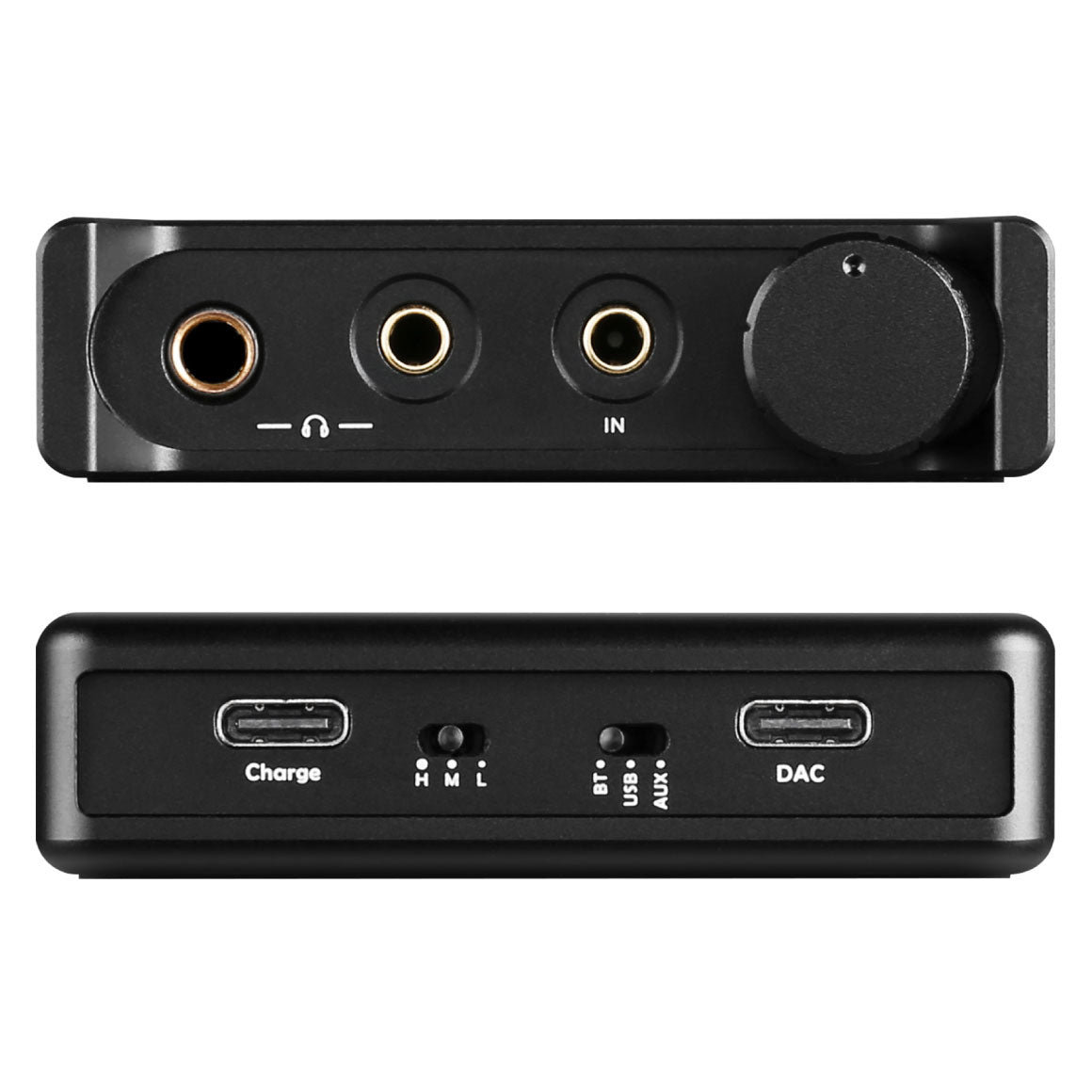

OFFERS 3 STEP GAIN SETTINGS MAKING IT IDEAL FOR ALL KINDS OF HEADPHONES AND IEMS
G5 provides 3-step gain settings so that high-sensitivity or low-sensitivity headphones can obtain a comfortable gain range. The output level as high as 21Vpp and the output power of 175mW under 300 ohms load is enough to drive high impedance headphones; The <0.3uVrms ultra-low noise and <0.192 output impedance allow sensitive IEMs to perform at their best. With these gain settings, you will have enough headroom to power the most demanding headphones. When the gain setting is low, it gives -15dB, -0.1dB on medium, and 12dB on high. G5 provides 2.8Vpp on low, 11Vpp on medium, and 21Vpp on high gain settings for output levels.

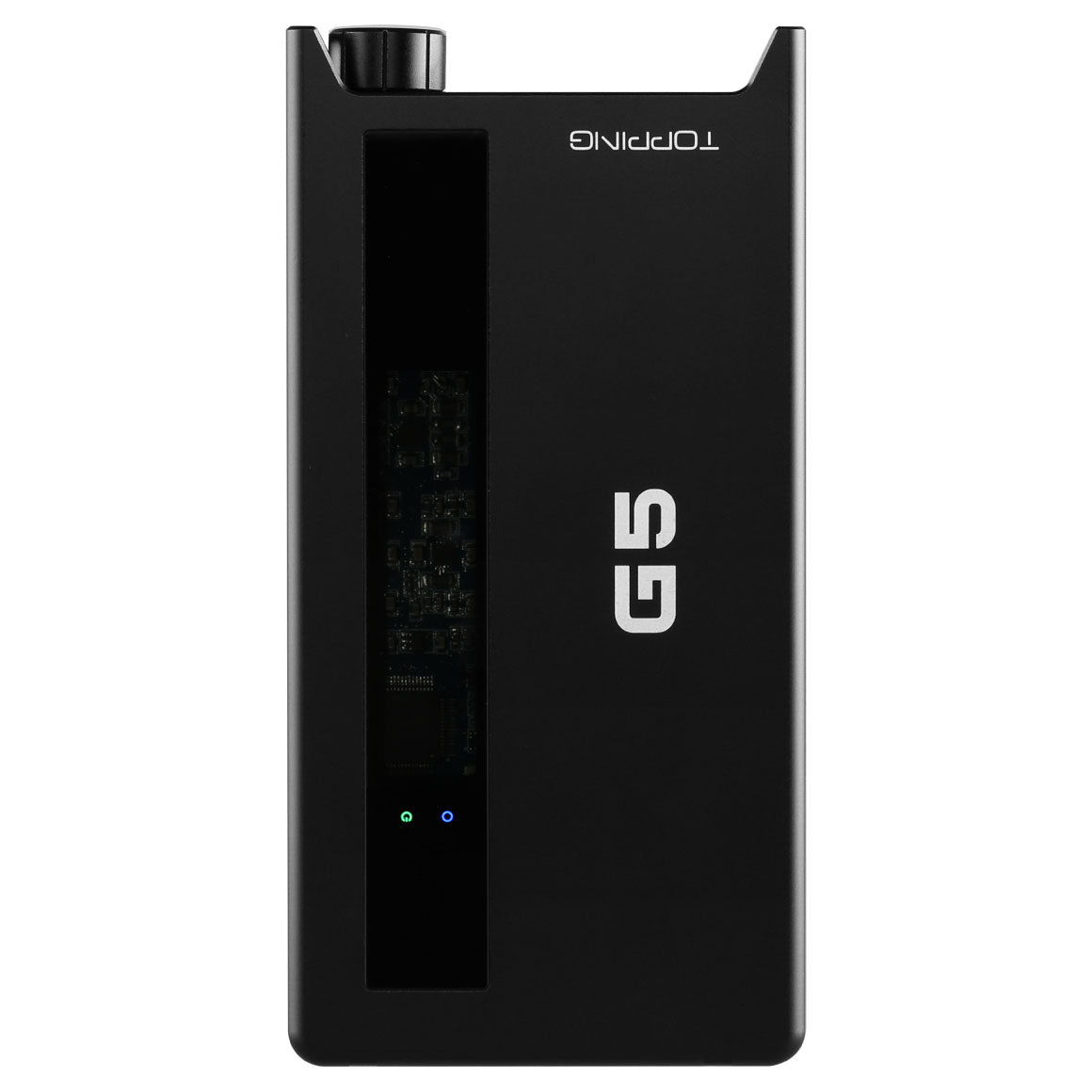

SMALL AND EXQUISITE ALUMINIUM BODY WITH ANTI-MISTOUCH AND ANTI-BREAKING DESIGN WITH THOUGHTFUL CONNECTIVITY AND BUNDLED WITH ACCESSORIES
The TOPPING G5 uses a single piece of aluminium to make a delicate and sturdy casing through precise CNC machining. The faux leather on the bottom keeps the G5 from scratching when stacked with other devices. G5 is designed with corner guards at both ends to protect the entire panel, effectively preventing the volume knob from being mistouched in the pocket, reducing the possibility of breaking the headphone plug. The design of the G5 is exquisite, offering a gain setting switch and input selection switch. It also has dual USB-C ports, one for charging and the other for DAC type for USB DAC mode. The TOPPING G5 has a 4.4mm pentaconn balanced output and a 3.5mm single-ended output jack. It also has a LINE IN/OUT port. The G5 has a smooth volume knob that acts as a power switch in tandem. The TOPPING G5 comes bundled with a wide array of accessories like a 3.5 to 3.5 audio cable, USB charging cable, straight type-C to type-C cable, elbow type-C to type-C cable, two sets of a rubber band, rubber pad, user manual, and warranty card. The design of the G5 is eye-catching. It will not be a burden to put the G5 in your pocket, bag, or desktop whenever you are on the move.
SPECS
| USB IN | PCM : 44.1kHz-768kHz 16bit-32bit
DSD (Native) : DSD64-DSD512 DSD (DoP) : DSD64-DSD256 |
| BT IN | PCM : AAC / SBC / aptX / aptX LL / aptX HD / aptX Adaptive / LDAC |

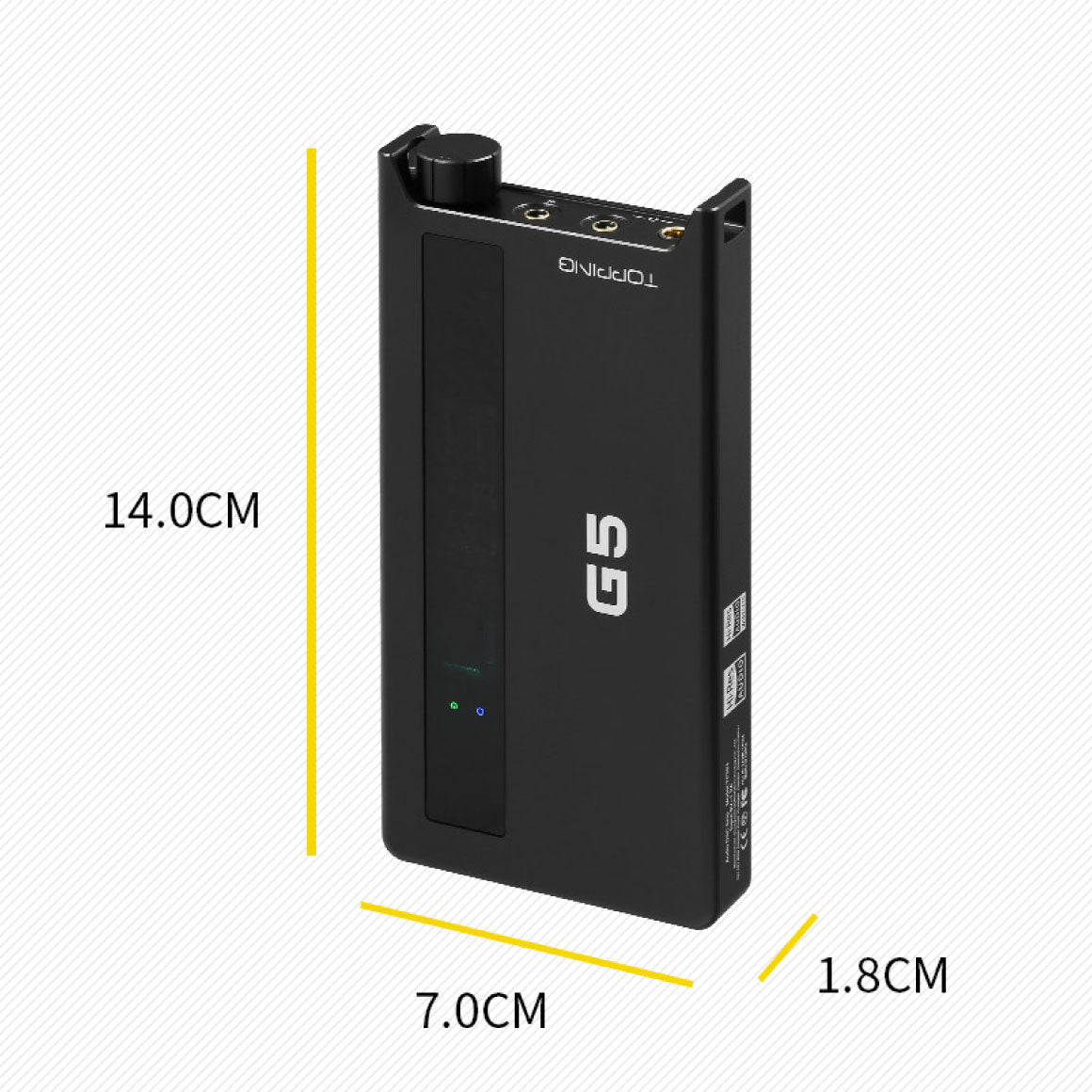

| MEASURED | 14.0cm x 7.0cm x 1.8cm |
| WEIGHT | 265g |
| THD+N @ 1KHZ (A-WT) | <0.00009% |
| THD @ 20-20kHz 90KBW | <0.0002% |
| SNR @ 1KHZ (A-WT) | 124dB |
| DYNAMIC RANGE @ 1KHZ (A-WT) | 124dB |
| FREQUENCY RESPONSE | 20Hz - 20kHz (±0.1dB)
20Hz - 40kHz (±0.8dB) |
| OUTPUT LEVEL | 2.1Vrms @0dBFS |
| NOISE @A-WT | <1.3uVrms |
| CHANNEL CROSSTALK | -104dB @ 1kHz |
| CHANNEL BALANCE | 0.3dB |
| OUTPUT IMPEDANCE | 50Ω |
| THD+N @ 1KHZ (A-WT) | <0.00010% @Output=145mW (32Ω)
<0.00009% @Output=15mW (300Ω) |
| THD @ 20-20kHz 90KBW | <0.00080% @Output=145mW (32Ω)
<0.00060% @Output= 15mW (300Ω) |
| SNR @MAX OUT 1KHZ (A-WT) | 124dB |
| DYNAMIC RANGE @ 1KHZ (A-WT) | 124dB |
| FREQUENCY RESPONSE | 20Hz - 20kHz (±0.1dB)
20Hz - 40kHz (±0.4dB) |
| OUTPUT LEVEL | 1.1Vpp @G=L
6Vpp @G=M 21Vpp @G=H |
| NOISE @A-WT | <1.0uVrms @G=L
<1.5uVrms @G=M <5.0uVrms @G=H |
| CHANNEL CROSSTALK | -114dB |
| GAIN | -8dB (Vrms/FS) G=L
6.4dB (Vrms/FS) G=M 18.2dB (Vrms/FS) G=H |
| CHANNEL BALANCE | 0.3dB |
| OUTPUT IMPEDANCE | <0.1Ω |
| OUTPUT POWER | 1000mW x 2 @16Ω THD+N<0.1%
1200mW x 2 @32Ω THD+N<0.1% 720mW x 2 @64Ω THD+N<0.1% 175mW x 2 @300Ω THD+N<0.1% 90mW x 2 @600Ω THD+N<0.1% |
| LOAD IMPEDANCE | >8Ω |
| THD+N @ 1KHZ (A-WT) | <0.00010% @Output=145mW (32Ω)
<0.00009% @Output=15mW (300Ω) |
| THD @ 20-20kHz 90KBW | <0.00080% @Output=145mW (32Ω)
<0.00060% @Output= 15mW (300Ω) |
| SNR @MAX OUT 1KHZ (A-WT) | 124dB |
| DYNAMIC RANGE @ 1KHZ (A-WT) | 124dB |
| FREQUENCY RESPONSE | 20Hz - 20kHz (±0.1dB)
20Hz - 40kHz (±0.4dB) |
| OUTPUT LEVEL | 1.1Vpp @G=L
6Vpp @G=M 21Vpp @G=H |
| NOISE @A-WT | <1.0uVrms @G=L
<1.5uVrms @G=M <5.0uVrms @G=H |
| CHANNEL CROSSTALK | -114dB |
| GAIN | -8dB (Vrms/FS) G=L
6.4dB (Vrms/FS) G=M 18.2dB (Vrms/FS) G=H |
| CHANNEL BALANCE | 0.3dB |
| OUTPUT IMPEDANCE | <0.1Ω |
| OUTPUT POWER | 1000mW x 2 @16Ω THD+N<0.1%
1200mW x 2 @32Ω THD+N<0.1% 720mW x 2 @64Ω THD+N<0.1% 175mW x 2 @300Ω THD+N<0.1% 90mW x 2 @600Ω THD+N<0.1% |
| LOAD IMPEDANCE | >8Ω |
| THD+N @ 1KHZ (A-WT) | <0.00008% @Output=185mW (32Ω)
<0.00007% @Output=20mW (300Ω) |
| THD @ 20-20kHz 90KBW | <0.0007% @Output=185mW (32Ω)
<0.0005% @Output= 20mW (300Ω) |
| SNR @MAX OUT 1KHZ (A-WT) | 135dB |
| SNR @50MV OUT 1KHZ | 104dB |
| DYNAMIC RANGE @ 1KHZ (A-WT) | 136dB |
| FREQUENCY RESPONSE | 20Hz - 40kHz (±0.1dB) |
| OUTPUT LEVEL | 2.8Vpp @G=L
11Vpp @G=M 21Vpp @G=H |
| AP MEASURED NOISE LEVEL @A-WT | <0.7uVrms @G=L
<0.7uVrms @G=M <1.5uVrms @G=H |
| ACTUAL NOISE LEVEL* @A-WT | <0.3uVrms @G=L
<0.3uVrms @G=M <0.9uVrms @G=H |
| CHANNEL CROSSTALK @ 1KHZ | -84dB |
| INPUT SENSITIVITY | 5.8Vrms @G=L
4Vrms @G=M 1.9Vrms @G=H |
| GAIN | -15dB @G=L
-0.1dB @G=M 12dB @G=H |
| OUTPUT IMPEDANCE | <0.1Ω |
| OUTPUT POWER | 1000mW x 2 @16Ω THD+N<0.1%
1200mW x 2 @32Ω THD+N<0.1% 720mW x 2 @64Ω THD+N<0.1% 175mW x 2 @300Ω THD+N<0.1% 90mW x 2 @600Ω THD+N<0.1% |
| ADAPTER IMPEDANCE | >8Ω |
| THD+N @ 1KHZ (A-WT) | <0.00008% @Output=185mW (32Ω)
<0.00007% @Output=20mW (300Ω) |
| THD @ 20-20kHz 90KBW | <0.0007% @Output=185mW (32Ω)
<0.0005% @Output= 20mW (300Ω) |
| SNR @MAX OUT 1KHZ (A-WT) | 135dB |
| SNR @50MV OUT 1KHZ | 104dB |
| DYNAMIC RANGE @ 1KHZ (A-WT) | 136dB |
| FREQUENCY RESPONSE | 20Hz - 40kHz (±0.1dB) |
| OUTPUT LEVEL | 2.8Vpp @G=L
11Vpp @G=M 21Vpp @G=H |
| AP MEASURED NOISE LEVEL @A-WT | <0.7uVrms @G=L
<0.7uVrms @G=M <1.5uVrms @G=H |
| ACTUAL NOISE LEVEL* @A-WT | <0.3uVrms @G=L
<0.3uVrms @G=M <0.9uVrms @G=H |
| CHANNEL CROSSTALK @ 1KHZ | -84dB |
| INPUT SENSITIVITY | 5.8Vrms @G=L
4Vrms @G=M 1.9Vrms @G=H |
| GAIN | -15dB @G=L
-0.1dB @G=M 12dB @G=H |
| OUTPUT IMPEDANCE | <0.1Ω |
| OUTPUT POWER | 1000mW x 2 @16Ω THD+N<0.1%
1200mW x 2 @32Ω THD+N<0.1% 720mW x 2 @64Ω THD+N<0.1% 175mW x 2 @300Ω THD+N<0.1% 90mW x 2 @600Ω THD+N<0.1% |
| ADAPTER IMPEDANCE | >8Ω |

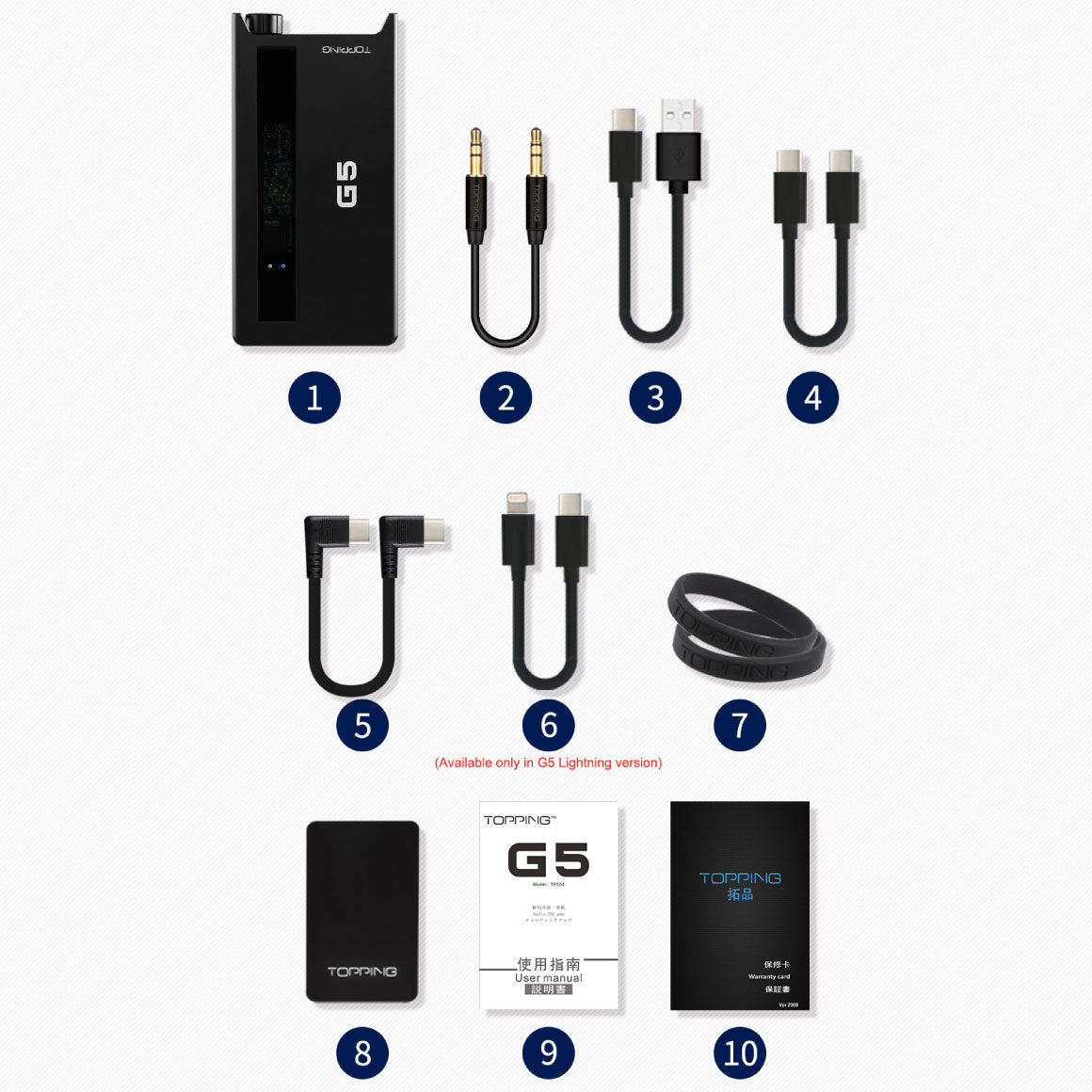

| WHAT YOU WILL GET | 1. TOPPING G5 |
| 2. 3.5 to 3.5 Audio Cable | |
| 3. USB Charging Cable | |
| 4. Straight Type C to Type C Cable | |
| 5. Elbow Type C to Type C Cable | |
| 6. Rubber Band | |
| 7. Ruber Pad | |
| 8. User Manual | |
| 9. Warranty Card | |
| WHAT YOU WILL NOT GET | 1. Original Packaging of TOPPING G5 |
| GENERIC NAME | Headphone Amplifier |
| COUNTRY OF ORIGIN | China |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
FAQs
What is the warranty period on the TOPPING DX7 Pro+?
All TOPPING products come with 1 year of warranty. To claim warranty read more on TOPPING Warranty here.
What is the TOPPING G5 on the whole?
TOPPING G5 is a portable portable headphone DAC & Amp with wireless capabilities.
What is the battery capacity?
The TOPPING G5 has a built-in 4000mAh battery.
What is the battery life like on TOPPING G5?
The TOPPING G5's playtime varies depending on the source or inputs and different gain settings. It offers more than 9 hours in USB mode with the gain settings set to low or medium and more than 6.5 hours when the gain setting is high. In Bluetooth mode, G5 offers more than 10 hours of battery life with gain settings set to low or medium and more than 8 hours when the gain setting is high. TOPPING G5 offers a whopping 25 hours of battery life when operated in AUX mode with gain settings set to low or medium and more than 13 hours with gain settings high.
What are the sampling rates supported by TOPPING G5?
The TOPPING G5's ES9068AS DAC chip handles up to 44.1kHz-768kHz/16-32Bit and DSD native DSD64-DSD512 (Direct Stream Digital) and DSD64-DSD256 (DoP) (DSD Over PCM, covering the range of common program sources.
What is the Bluetooth chipset used in TOPPING G5?
It uses the newest QCC5125 chipset.
What is the sampling rate supported over Bluetooth?
It supports 24Bit/96kHz.
What is the output level like on TOPPING G5?
TOPPING G5 provides 2.8Vpp on low, 11Vpp on medium, and 21Vpp on high gain settings for output levels.
What does the package include?
You will be greeted with the TOPPING G5. The package comes bundled with a wide array of accessories like a 3.5 to 3.5 audio cable, USB charging cable, straight type-C to type-C cable, elbow type-C to type-C cable, two sets of a rubber band, rubber pad, user manual, and warranty card.
Headphone Zone Certified Unboxed Units
Unboxed units are as good as new products with the product's packaging being unavailable. These products give you the same satisfaction of new products - but at down-to-earth prices. Usually, the product's packaging may have gotten damaged in transit. Customers use a product once or twice and then return it with opened up packaging.
Customer Returns
Returned headphones are fully functional products that have left the warehouse and therefore can no longer be sold as new as their packaging has been opened. The product may have been used once or twice by the customer who returned it.
Transit Damages
Sometimes we receive headphones in damaged packaging due to shipping accidents. These are brand new headphones with cosmetic flaws on the packaging.
Save Upto 15%
Since you won't get the original packaging, we give you a good discount compared to a new headphone.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.
Original Warranty
All unboxed headphones carry the same warranty period as a brand new headphone would.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Unboxed Products or new products.
Unchanged Replacement Policy
Received a defective Unboxed unit? Return it under our Replacement Policy.
All Original Accessories
The unboxed headphones itself comes with all original accessories.

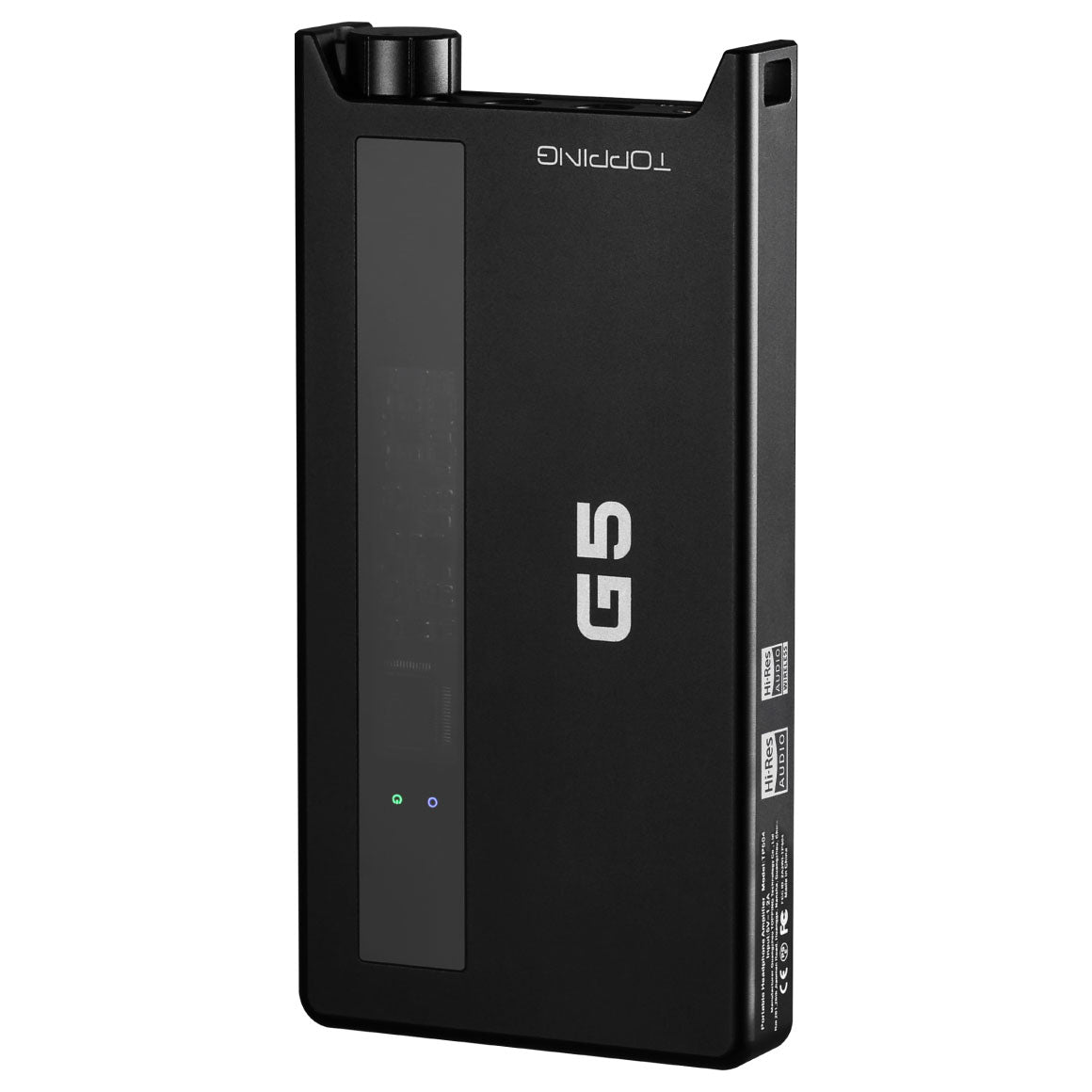

INTRODUCING TOPPING G5, HI-RES CERTIFIED NEXT GENERATION PORTABLE DAC & AMP
TOPPING is known for producing the quietest and most linear power amplifiers. Their amplifiers deliver exceptional audio quality right out of the box. TOPPING is not only well known for providing some exquisite desktop setups but is also known for its portable DAC & Amp setups. In their line-up of portable DAC & Amplifiers, there is a new entry of the G5, a multi-function wired and wireless DAC & Amp. It has tons of functionality under its belly. The TOPPING G5 is an all-around performer with the newest chipsets and amplification technology built-in to give you the best experience possible, whether you're using it wired or wirelessly. The lossless files are played with no jitter or distortion as it supports Hi-Res. TOPPING experts have created this unit to be used in today's world without sacrificing sound quality. The TOPPING G5 is a power amplifier, headphone amplifier, and digital-to-analogue converter, all in one package. It is a Hi-Res certified portable DAC & Amp and integrates USB DAC, a Bluetooth DAC, and an NFCA headphone module.
FEATURES ESS SABRE DAC CHIP AND BUILT-IN NFCA HEADPHONE AMPLIFIER MODULE THAT DELIVERS CLEAN AND PRECISE AUDIO PERFORMANCE
The TOPPING G5 is a next-generation portable DAC & Amp that features some of the best components in its circuitry that enable it to deliver exceptional sonic performance. The TOPPING G5 features ESS's sub-flagship ES9068AS Sabre DAC chip. It achieves good performance with careful adjustment of THD+N less than 0.00010% and a dynamic range of 124dB. The ES9068A is a feature-rich 32-bit, 2-channel audio D/A converter. Using the critically acclaimed ESS patented HyperStream® II architecture, QUAD DAC™ technology, Time Domain Jitter Eliminator, and advanced SABRE HIFI® technology, the ES9068A delivers a performance level that will satisfy the most demanding audio enthusiast. The G5 uses an NFCA (Nested Feedback Composite Amplifier) module specially modified for portable devices, which can achieve large output, low distortion, and good battery life. The NFCA is a headphone amplifier module that outputs a power of 1200mW*2. It pairs with high sensitivity IEMs and power-hungry high impedance headphones. The ES9068AS Sabre DAC chip and built-in NFCA module allow G5 to deliver clean and precise audio reproduction.
G5 DOUBLES UP AS A USB DAC & AMP AND BLUETOOTH TRANSMITTER WITH XMOS AND QUALCOMM CHIPSETS IN ITS CIRCUITRY
The team of engineers at TOPPING have designed the G5 to be a simple device with which you can plug & play and delve into your music. The TOPPING G5 has a wide range of compatibility with Windows 10 or above, MAC, Linux, iOS, and Android. The TOPPING G5 supports USB, Bluetooth, and AUX transmission. TOPPING G5 uses 2nd generation XMOS, USB supports up to PCM (Pulse Code Modulation) 32Bit/768kHz and DSD512 native. With USB-IN G5 supports 44.1kHz-768kHz/16-32Bit and DSD native DSD64-DSD512 (Direct Stream Digital) and DSD64-DSD256 (DoP) (DSD Over PCM). The TOPPING G5 has the certification of Hi-Res Audio Wireless and LDAC with the support of 24Bit96kHz. It uses the newest QCC5125 chipset to support LDAC, aptX, aptX LL, aptX HD, aptX Adaptive, AAC, and SBC protocols. To get even better sound quality from Bluetooth, the engineers designed to abandon the built-in DAC of QCC5125 and connect its digital signal to ES9068AS to decode. After pairing the G5 with a mobile phone/player/tablet by Bluetooth, the headphone is free from the cables.
GROOVE ON TO YOUR MUSIC FOR UP TO 25 HOURS ON A SINGLE CHARGE
The G5 has a built-in 4000mAh battery so that it does not need to rely on the power supply of the mobile phone like other portable DAC & AMPs, so it will not reduce the battery life of the mobile phone or the device to which it is connected. Due to the optimisation, the G5 can get 25 hours of battery life at AUX input; even if it is in DAC mode, it can get 9 to 10 hours of battery life. The TOPPING G5's playtime varies depending on the source or inputs and different gain settings. It offers more than 9 hours in USB mode with the gain settings set to low or medium and more than 6.5 hours when the gain setting is high. In Bluetooth mode, G5 offers more than 10 hours of battery life with gain settings set to low or medium and more than 8 hours when the gain setting is high. TOPPING G5 offers a whopping 25 hours of battery life when operated in AUX mode with gain settings set to low or medium and more than 13 hours with gain settings high.
OFFERS 3 STEP GAIN SETTINGS MAKING IT IDEAL FOR ALL KINDS OF HEADPHONES AND IEMS
G5 provides 3-step gain settings so that high-sensitivity or low-sensitivity headphones can obtain a comfortable gain range. The output level as high as 21Vpp and the output power of 175mW under 300 ohms load is enough to drive high impedance headphones; The <0.3uVrms ultra-low noise and <0.192 output impedance allow sensitive IEMs to perform at their best. With these gain settings, you will have enough headroom to power the most demanding headphones. When the gain setting is low, it gives -15dB, -0.1dB on medium, and 12dB on high. G5 provides 2.8Vpp on low, 11Vpp on medium, and 21Vpp on high gain settings for output levels.

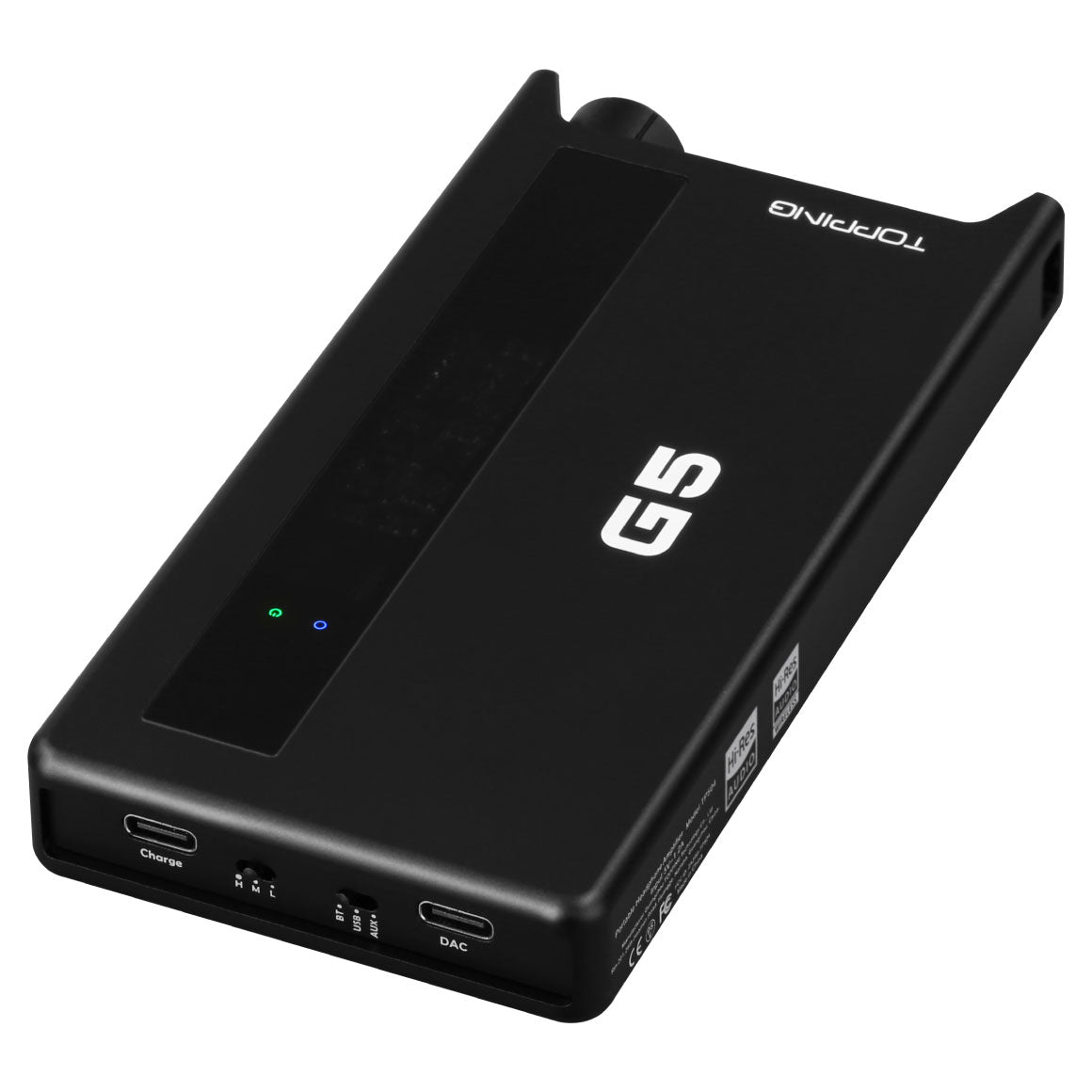

SMALL AND EXQUISITE ALUMINIUM BODY WITH ANTI-MISTOUCH AND ANTI-BREAKING DESIGN WITH THOUGHTFUL CONNECTIVITY AND BUNDLED WITH ACCESSORIES
The TOPPING G5 uses a single piece of aluminium to make a delicate and sturdy casing through precise CNC machining. The faux leather on the bottom keeps the G5 from scratching when stacked with other devices. G5 is designed with corner guards at both ends to protect the entire panel, effectively preventing the volume knob from being mistouched in the pocket, reducing the possibility of breaking the headphone plug. The design of the G5 is exquisite, offering a gain setting switch and input selection switch. It also has dual USB-C ports, one for charging and the other for DAC type for USB DAC mode. The TOPPING G5 has a 4.4mm pentaconn balanced output and a 3.5mm single-ended output jack. It also has a LINE IN/OUT port. The G5 has a smooth volume knob that acts as a power switch in tandem. The TOPPING G5 comes bundled with a wide array of accessories like a 3.5 to 3.5 audio cable, USB charging cable, straight type-C to type-C cable, elbow type-C to type-C cable, two sets of a rubber band, rubber pad, user manual, and warranty card. The design of the G5 is eye-catching. It will not be a burden to put the G5 in your pocket, bag, or desktop whenever you are on the move.
| USB IN | PCM : 44.1kHz-768kHz 16bit-32bit
DSD (Native) : DSD64-DSD512 DSD (DoP) : DSD64-DSD256 |
| BT IN | PCM : AAC / SBC / aptX / aptX LL / aptX HD / aptX Adaptive / LDAC |
| MEASURED | 14.0cm x 7.0cm x 1.8cm |
| WEIGHT | 265g |
| THD+N @ 1KHZ (A-WT) | <0.00009% |
| THD @ 20-20kHz 90KBW | <0.0002% |
| SNR @ 1KHZ (A-WT) | 124dB |
| DYNAMIC RANGE @ 1KHZ (A-WT) | 124dB |
| FREQUENCY RESPONSE | 20Hz - 20kHz (±0.1dB)
20Hz - 40kHz (±0.8dB) |
| OUTPUT LEVEL | 2.1Vrms @0dBFS |
| NOISE @A-WT | <1.3uVrms |
| CHANNEL CROSSTALK | -104dB @ 1kHz |
| CHANNEL BALANCE | 0.3dB |
| OUTPUT IMPEDANCE | 50Ω |
| THD+N @ 1KHZ (A-WT) | <0.00010% @Output=145mW (32Ω)
<0.00009% @Output=15mW (300Ω) |
| THD @ 20-20kHz 90KBW | <0.00080% @Output=145mW (32Ω)
<0.00060% @Output= 15mW (300Ω) |
| SNR @MAX OUT 1KHZ (A-WT) | 124dB |
| DYNAMIC RANGE @ 1KHZ (A-WT) | 124dB |
| FREQUENCY RESPONSE | 20Hz - 20kHz (±0.1dB)
20Hz - 40kHz (±0.4dB) |
| OUTPUT LEVEL | 1.1Vpp @G=L
6Vpp @G=M 21Vpp @G=H |
| NOISE @A-WT | <1.0uVrms @G=L
<1.5uVrms @G=M <5.0uVrms @G=H |
| CHANNEL CROSSTALK | -114dB |
| GAIN | -8dB (Vrms/FS) G=L
6.4dB (Vrms/FS) G=M 18.2dB (Vrms/FS) G=H |
| CHANNEL BALANCE | 0.3dB |
| OUTPUT IMPEDANCE | <0.1Ω |
| OUTPUT POWER | 1000mW x 2 @16Ω THD+N<0.1%
1200mW x 2 @32Ω THD+N<0.1% 720mW x 2 @64Ω THD+N<0.1% 175mW x 2 @300Ω THD+N<0.1% 90mW x 2 @600Ω THD+N<0.1% |
| LOAD IMPEDANCE | >8Ω |
| THD+N @ 1KHZ (A-WT) | <0.00010% @Output=145mW (32Ω)
<0.00009% @Output=15mW (300Ω) |
| THD @ 20-20kHz 90KBW | <0.00080% @Output=145mW (32Ω)
<0.00060% @Output= 15mW (300Ω) |
| SNR @MAX OUT 1KHZ (A-WT) | 124dB |
| DYNAMIC RANGE @ 1KHZ (A-WT) | 124dB |
| FREQUENCY RESPONSE | 20Hz - 20kHz (±0.1dB)
20Hz - 40kHz (±0.4dB) |
| OUTPUT LEVEL | 1.1Vpp @G=L
6Vpp @G=M 21Vpp @G=H |
| NOISE @A-WT | <1.0uVrms @G=L
<1.5uVrms @G=M <5.0uVrms @G=H |
| CHANNEL CROSSTALK | -114dB |
| GAIN | -8dB (Vrms/FS) G=L
6.4dB (Vrms/FS) G=M 18.2dB (Vrms/FS) G=H |
| CHANNEL BALANCE | 0.3dB |
| OUTPUT IMPEDANCE | <0.1Ω |
| OUTPUT POWER | 1000mW x 2 @16Ω THD+N<0.1%
1200mW x 2 @32Ω THD+N<0.1% 720mW x 2 @64Ω THD+N<0.1% 175mW x 2 @300Ω THD+N<0.1% 90mW x 2 @600Ω THD+N<0.1% |
| LOAD IMPEDANCE | >8Ω |
| THD+N @ 1KHZ (A-WT) | <0.00008% @Output=185mW (32Ω)
<0.00007% @Output=20mW (300Ω) |
| THD @ 20-20kHz 90KBW | <0.0007% @Output=185mW (32Ω)
<0.0005% @Output= 20mW (300Ω) |
| SNR @MAX OUT 1KHZ (A-WT) | 135dB |
| SNR @50MV OUT 1KHZ | 104dB |
| DYNAMIC RANGE @ 1KHZ (A-WT) | 136dB |
| FREQUENCY RESPONSE | 20Hz - 40kHz (±0.1dB) |
| OUTPUT LEVEL | 2.8Vpp @G=L
11Vpp @G=M 21Vpp @G=H |
| AP MEASURED NOISE LEVEL @A-WT | <0.7uVrms @G=L
<0.7uVrms @G=M <1.5uVrms @G=H |
| ACTUAL NOISE LEVEL* @A-WT | <0.3uVrms @G=L
<0.3uVrms @G=M <0.9uVrms @G=H |
| CHANNEL CROSSTALK @ 1KHZ | -84dB |
| INPUT SENSITIVITY | 5.8Vrms @G=L
4Vrms @G=M 1.9Vrms @G=H |
| GAIN | -15dB @G=L
-0.1dB @G=M 12dB @G=H |
| OUTPUT IMPEDANCE | <0.1Ω |
| OUTPUT POWER | 1000mW x 2 @16Ω THD+N<0.1%
1200mW x 2 @32Ω THD+N<0.1% 720mW x 2 @64Ω THD+N<0.1% 175mW x 2 @300Ω THD+N<0.1% 90mW x 2 @600Ω THD+N<0.1% |
| ADAPTER IMPEDANCE | >8Ω |
| THD+N @ 1KHZ (A-WT) | <0.00008% @Output=185mW (32Ω)
<0.00007% @Output=20mW (300Ω) |
| THD @ 20-20kHz 90KBW | <0.0007% @Output=185mW (32Ω)
<0.0005% @Output= 20mW (300Ω) |
| SNR @MAX OUT 1KHZ (A-WT) | 135dB |
| SNR @50MV OUT 1KHZ | 104dB |
| DYNAMIC RANGE @ 1KHZ (A-WT) | 136dB |
| FREQUENCY RESPONSE | 20Hz - 40kHz (±0.1dB) |
| OUTPUT LEVEL | 2.8Vpp @G=L
11Vpp @G=M 21Vpp @G=H |
| AP MEASURED NOISE LEVEL @A-WT | <0.7uVrms @G=L
<0.7uVrms @G=M <1.5uVrms @G=H |
| ACTUAL NOISE LEVEL* @A-WT | <0.3uVrms @G=L
<0.3uVrms @G=M <0.9uVrms @G=H |
| CHANNEL CROSSTALK @ 1KHZ | -84dB |
| INPUT SENSITIVITY | 5.8Vrms @G=L
4Vrms @G=M 1.9Vrms @G=H |
| GAIN | -15dB @G=L
-0.1dB @G=M 12dB @G=H |
| OUTPUT IMPEDANCE | <0.1Ω |
| OUTPUT POWER | 1000mW x 2 @16Ω THD+N<0.1%
1200mW x 2 @32Ω THD+N<0.1% 720mW x 2 @64Ω THD+N<0.1% 175mW x 2 @300Ω THD+N<0.1% 90mW x 2 @600Ω THD+N<0.1% |
| ADAPTER IMPEDANCE | >8Ω |
| WHAT YOU WILL GET | 1. TOPPING G5 |
| 2. 3.5 to 3.5 Audio Cable | |
| 3. USB Charging Cable | |
| 4. Straight Type C to Type C Cable | |
| 5. Elbow Type C to Type C Cable | |
| 6. Rubber Band | |
| 7. Ruber Pad | |
| 8. User Manual | |
| 9. Warranty Card | |
| WHAT YOU WILL NOT GET | 1. Original Packaging of TOPPING G5 |
| GENERIC NAME | Headphone Amplifier |
| COUNTRY OF ORIGIN | China |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
What is the warranty period on the TOPPING DX7 Pro+?
All TOPPING products come with 1 year of warranty. To claim warranty read more on TOPPING Warranty here.
What is the TOPPING G5 on the whole?
TOPPING G5 is a portable portable headphone DAC & Amp with wireless capabilities.
What is the battery capacity?
The TOPPING G5 has a built-in 4000mAh battery.
What is the battery life like on TOPPING G5?
The TOPPING G5's playtime varies depending on the source or inputs and different gain settings. It offers more than 9 hours in USB mode with the gain settings set to low or medium and more than 6.5 hours when the gain setting is high. In Bluetooth mode, G5 offers more than 10 hours of battery life with gain settings set to low or medium and more than 8 hours when the gain setting is high. TOPPING G5 offers a whopping 25 hours of battery life when operated in AUX mode with gain settings set to low or medium and more than 13 hours with gain settings high.
What are the sampling rates supported by TOPPING G5?
The TOPPING G5's ES9068AS DAC chip handles up to 44.1kHz-768kHz/16-32Bit and DSD native DSD64-DSD512 (Direct Stream Digital) and DSD64-DSD256 (DoP) (DSD Over PCM, covering the range of common program sources.
What is the Bluetooth chipset used in TOPPING G5?
It uses the newest QCC5125 chipset.
What is the sampling rate supported over Bluetooth?
It supports 24Bit/96kHz.
What is the output level like on TOPPING G5?
TOPPING G5 provides 2.8Vpp on low, 11Vpp on medium, and 21Vpp on high gain settings for output levels.
What does the package include?
You will be greeted with the TOPPING G5. The package comes bundled with a wide array of accessories like a 3.5 to 3.5 audio cable, USB charging cable, straight type-C to type-C cable, elbow type-C to type-C cable, two sets of a rubber band, rubber pad, user manual, and warranty card.
Don't sweat it, this
TOPPING - G5 (Unboxed) comes with a 1 Year warranty
from TOPPING that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about TOPPING's warranty in India.
"We expect perfection from Topping and company delivers even in this constrained category of battery operated product. No excuses are made for that with a DAC that provides state of the art desktop performance."
Read MoreThis product has no reviews yet.
