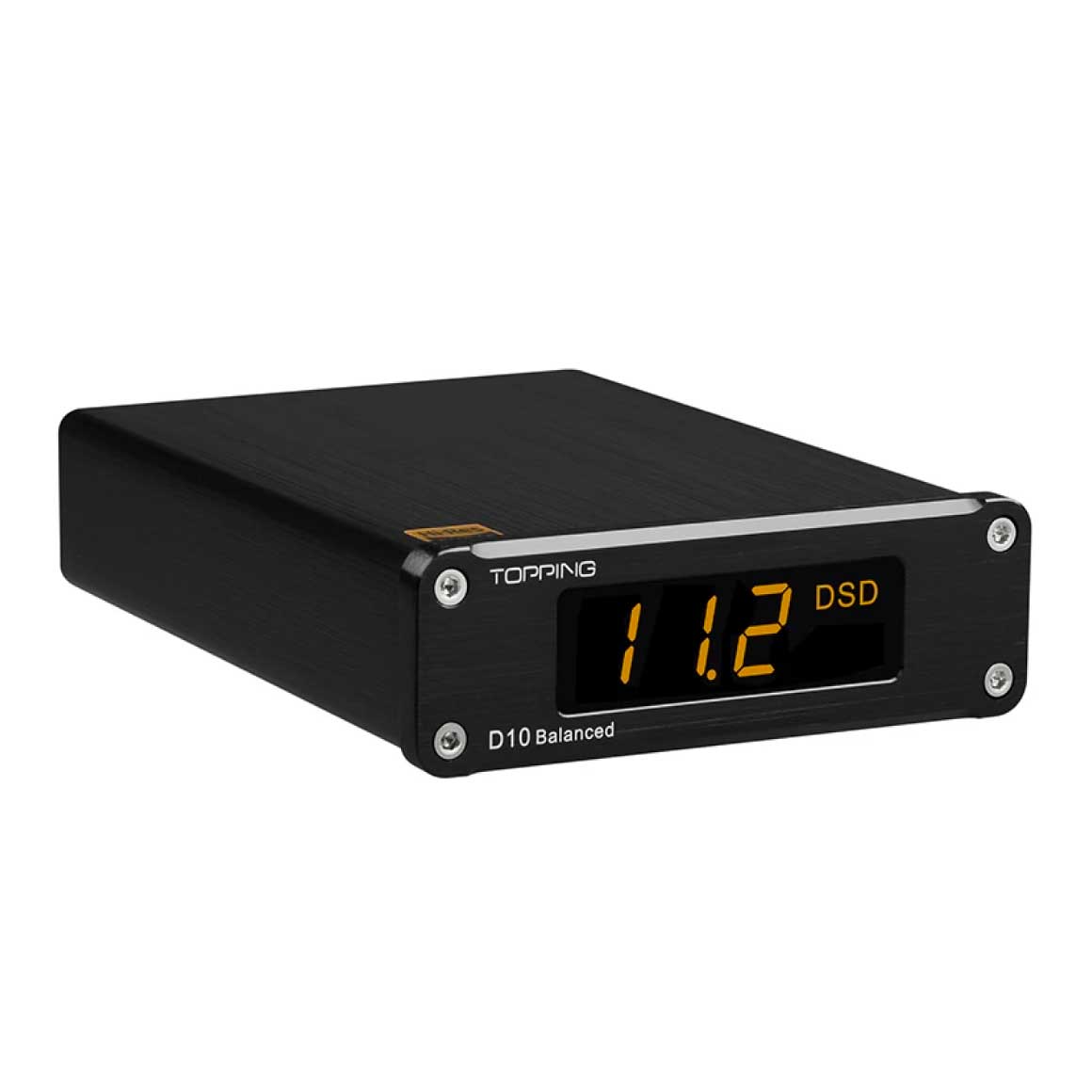

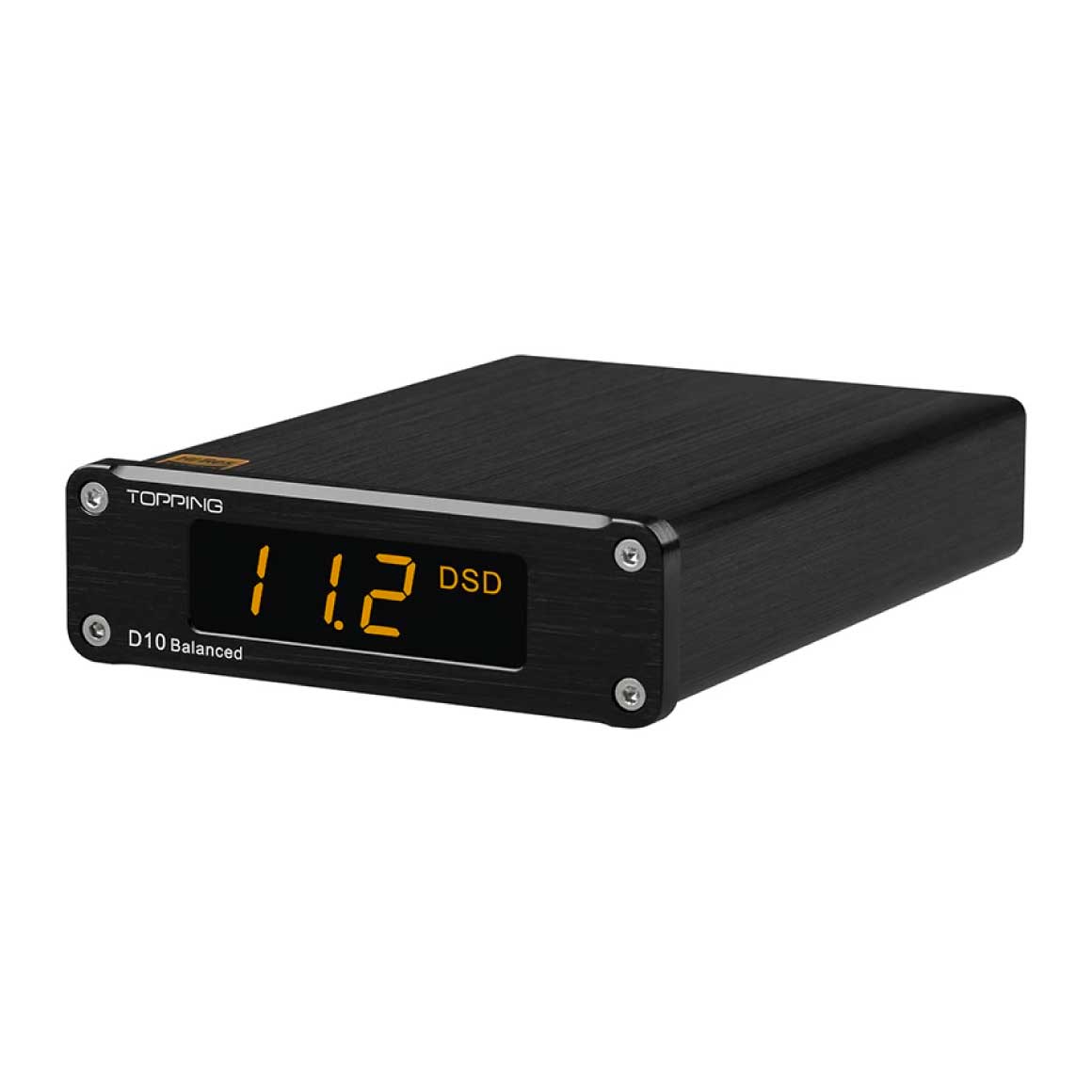

TOPPING - D10 Balanced
Desktop Digital To Analog Converter (DAC)24 Hours
Delivery
Chi-Fi
Excellence
1 Year of
Warranty
Ideal for
Indoor Use
Connect With
USB

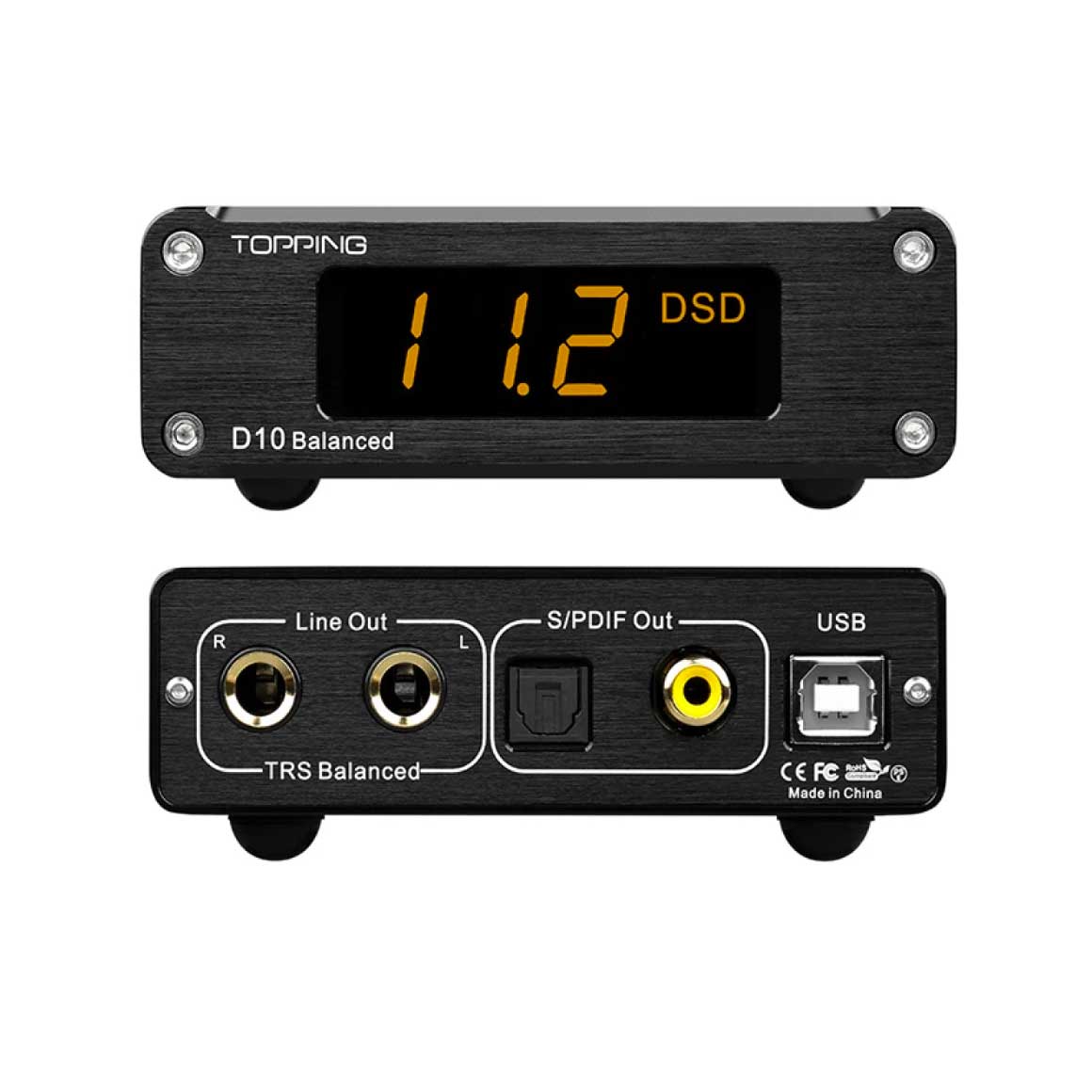

BALANCED OUTPUT CAPABILITY COMBINED WITH HIGH PERFORMANCE SABRE CHIP
Topping D10 Balanced has been revised for excellent performance. The D10 balanced now brings you a balanced output connection. The device has been equipped with a fully balanced TRS line out that can also be used to get a 3-pin XLR line out via the included adapter. This enhances the output fidelity of the device so you can enjoy music at the highest quality possible. The device also features a widely trusted ES9038Q2M DAC chip from ESS Sabre Technologies. It provides ultimate high-resolution audio signal decoding performance with a clean, noise-free sound signal decoding. It helps the D10B achieve high-class performance with ultra-low distortion and high SNR ratings. Topping D10B achieves an ultra-low distortion rating of just 0.00012%.



USB CONNECTIVITY WITH SUPPORT FOR DSD256 & PCM384
The Topping D10 Balanced has been revised and equipped with USB connectivity. The USB interface enables you to connect the D10 Balanced DAC to other devices using the coaxial/optical output and in this mode of operation, the device acts as a USB interface. When used as an interface, D10 Balanced can output up to PCM 24bit 192kHz, serving as a USB bridge. The revised design also allows the D10 Balanced to playback Hi-Res files with decoding capability for DSD256 & PCM384


EMBEDDED WITH XMOS USB PROCESSOR WITH PLUG AND PLAY COMPATIBILITY AND CUSTOMISED ASIO DRIVERS
Topping D10 Balanced is embedded with the latest generation XU208 XMOS USB signal receiver that allows high-resolution signal decoding via USB connection. It supports PCM decoding up to 32Bit/384kHz and DSD up to DSD256 natively. D10 Balanced has a wide range of compatibility with multiple operating systems like Windows(above Win10), MAC, and Linux. D10 Balanced also supports professional ASIO applications. When using ASIO in MAC or Linux, it can be set in the music playback software. Further, when using ASIO with Windows, you can use the customised driver from the company sycon, for high-resolution files.



PAIR ACTIVE SPEAKERS & AMPLIFIERS FOR PROFESSIONAL-GRADE SOUND
Wish to elevate to high-quality professional-grade sound? Simply pair your D10 balanced with active speakers of your choice. Moreover, you even get an option to integrate the D10 Balanced into your HiFi audio system by connecting it to power amps or headphone amplifiers. If you are playing high-resolution music files, the D10 Balanced assures uncompromised high-quality sound regardless of the device you pair it with.


AUTOMATIC POWER ON/OFF AND LED DISPLAY FOR EASY ACCESSIBILITY

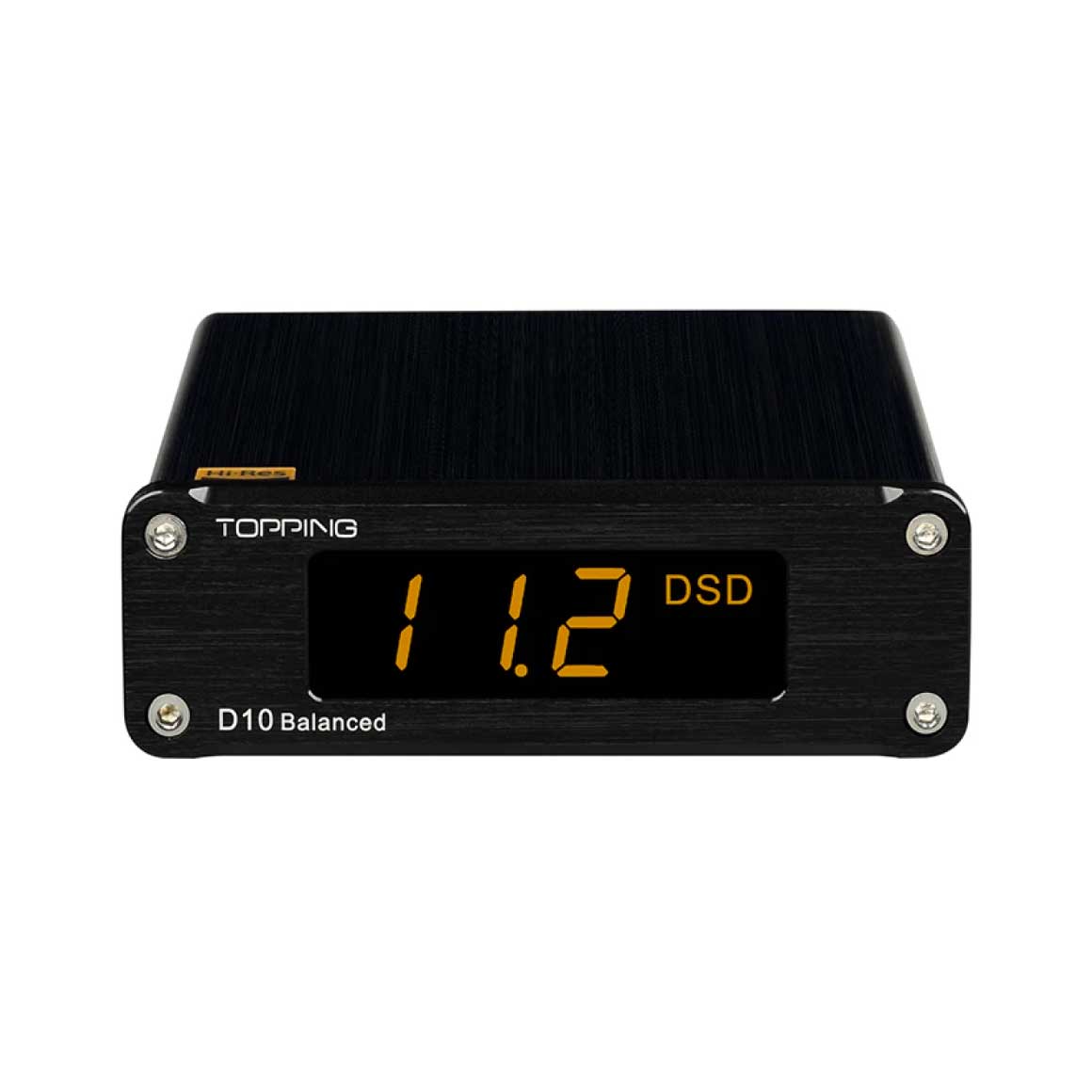

Topping D10 Balanced is designed to be operated with ease. This is evident as it does not need any external power supply. D10 Balanced is powered through the connected USB source as it has extremely low power requirements. The DAC also automatically powers on and off whenever the connected device is powered on or off. The Topping D10 Balanced also features an orange LED display to indicate the audio formats and sample rate of the music playing. This is truly useful and makes it easy to determine the quality of the music playing.



MEASURED | 10.3 cm x 14.6cm x 3.7cm |
WEIGHT | 340g |
POWER INPUT | DC5V / 0.5A |
SIGNAL INPUT | USB |
LINE OUT OUTPUT | 6.35 mm TRS (Note: No Single-Ended Output) |
DIGITAL OUTPUT | OPT / COAX |
DISPLAY | LED |
USB IN | 44.1 kHz-384kHz / 16 bit-32 Bit, DSD64-DSD256(Native), DSD64-DSD128(Dop) |
OPT/COAX OUT | 44.1 kHz-192kHz / 16 bit-24 BIT, DSD64(Dop) |
THD+N @1 kHz A-WT | <0.00012% |
THD | <0.00015% @ 20-20 kHz |
SNR @1 kHz A-WT | 125dB |
DYNAMIC RANGE @1 kHz A-WT | 125dB |
FREQUENCY RESPONSE | 20 Hz-20 kHz (±0.2dB) |
OUTPUT LEVEL | 4.2Vrms @ 0dBFS |
NOISE | <2.4uVrms |
CHANNEL CROSSTALK @1 kHz | -141dB |
CHANNEL BALANCE | 0.3dB |
OUTPUT IMPEDANCE | 88Ω |
OUTPUT DC | Differential: <1mV Common: <70mV |

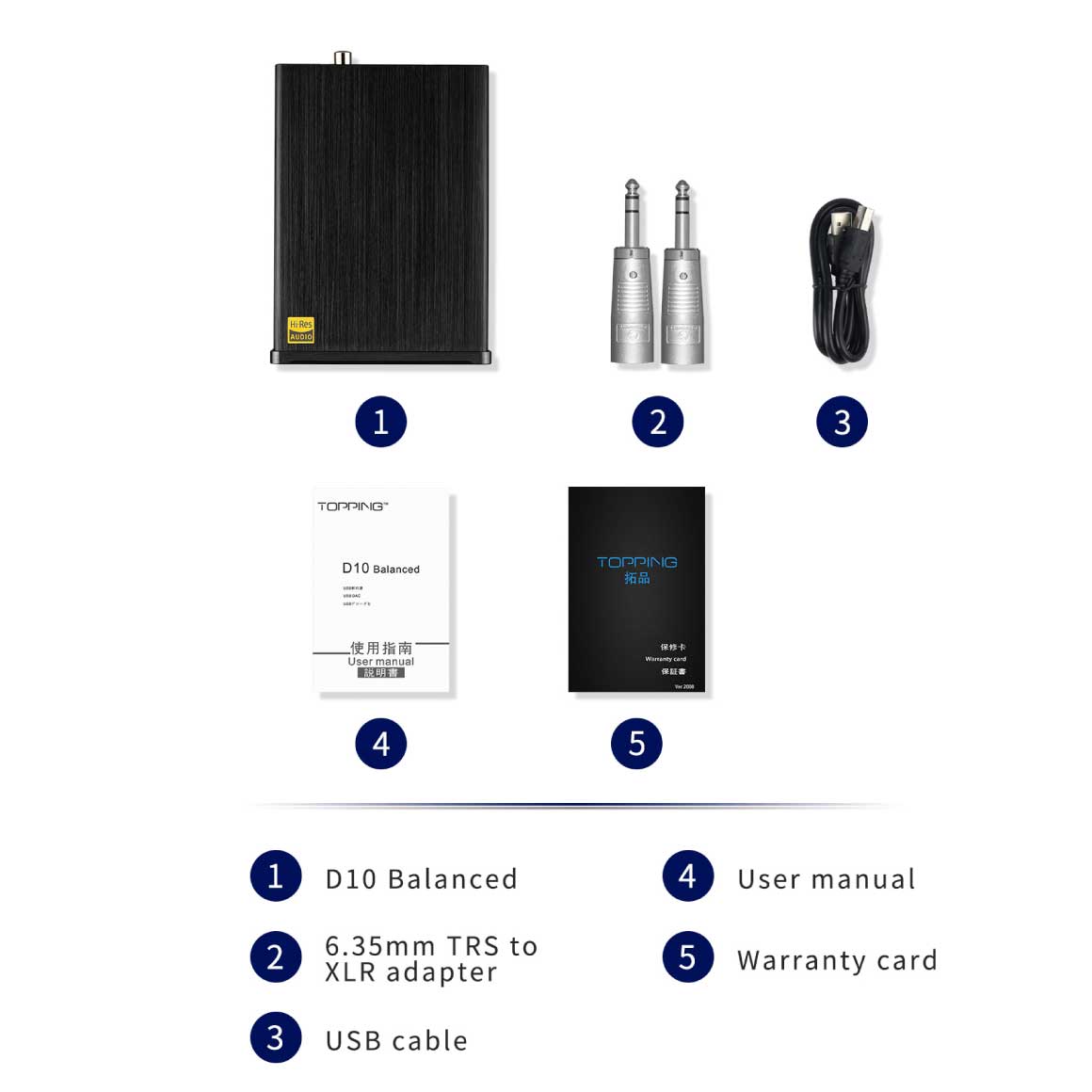

BOX CONTENTS | 1. TOPPING D10 Balanced |
2. 6.35 mm TRS to XLR Adapter | |
3. USB Cable | |
4. User Manual | |
5. Warranty Card |


GENERIC NAME | Digital Audio Converter |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
1 Year Warranty
Don't sweat it, this TOPPING - D10 Balanced comes with a warranty
from TOPPING that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about TOPPING's warranty in India.
